The Expression of Cannabinoid and Cannabinoid-Related Receptors on the Gustatory Cells of the Piglet Tongue
1Department of Veterinary Medical Sciences, University of Bologna, 40126 Bologna, Italy; rodrigozamithcunha@gmail.com (R.Z.C.); ester.grilli@unibo.it (E.G.); andrea.piva@unibo.it (A.P.)
2R&D Division, Vetagro S.p.A., Via Porro 2, 42124 Reggio Emilia, Italy
3R&D Division, Vetagro, Inc., 17 East Monroe Street, Suite #179, Chicago, IL 60603, USA
4Laboratory of Cellular Physiology, Department of Pharmacy and Biotechnology (FaBiT), University of Bologna, 40126 Bologna, Italy; cecilia.delprete2@unibo.it (C.D.); cecilia.franciosi2@studio.unibo.it (C.F.); m.caprini@unibo.it (M.C.)
*Correspondence: roberto.chiocchetti@unibo.itAbstract
The gustatory system is responsible for detecting and evaluating the palatability of the various chemicals present in food and beverages. Taste bud cells, located primarily on the tongue, communicate with the gustatory sensory neurons by means of neurochemical signals, transmitting taste information to the brain. It has also been found that the endocannabinoid system (ECS) may modulate food intake and palatability, and that taste bud cells express cannabinoid receptors. The purpose of this study was to investigate the expression of cannabinoid and cannabinoid-related receptors in the gustatory cells of the papillae vallatae and foliatae of ten piglets. Specific antibodies against the cannabinoid receptors (CB1R and CB2R), G protein-coupled receptor 55 (GPR55), transient receptor potential vanilloid 1 (TRPV1) and ankyrin 1 (TRPA1) were applied on cryosections of lingual tissue; the lingual tissue was also processed using Western blot analysis. Cannabinoid and cannabinoid-related receptors were found to be expressed in the taste bud cells and the surrounding epithelial cells. The extra-papillary epithelium also showed strong immunolabeling for these receptors. The results showed that these receptors were present in both the taste bud cells and the extra-gustatory epithelial cells, indicating their potential role in taste perception and chemesthesis. These findings contributed to understanding the complex interactions between cannabinoids and the gustatory system, highlighting the role of the ECS within taste perception and its potential use in animal production in order to enhance food intake.
1. Introduction
The sense of taste is essential for life; it tells us which prospective foods are nutritious while warning us of those which are toxic. The gustatory system has the function of detecting, identifying, and establishing the palatability of specific chemicals present in food and beverages [1,2]. Sugars, salts, acids, alkaloids, and amino acids can dissolve in saliva, bind to specific receptors, and activate the taste receptor cells located in the taste buds. When stimulated, those receptors activate nerve afferents which project into the brainstem, the information then propagates inside the central nervous system (CNS). Memory, hunger, satiety, and visceral changes can directly affect and can be affected by the experience of tasting [3,4]. Taste buds are the peripheral organs of gustation and are mainly located in the tongue epithelium; however, taste receptors and downstream signaling molecules are also present elsewhere in the oral cavity and digestive organs [5]. The molecular recognition of tasting, which occurs at the apical tips of the taste bud cells, ultimately results in sensory perceptions (sweet, salty, sour, bitter, umami) which guide appetite and trigger the physiological processes for absorbing nutrients and adjusting the metabolism [6]. Taste buds are multicellular organs of roughly 50–100 fusiform cells; they transduce gustatory stimuli into electrochemical signals [3,7]. Taste bud sensory cells communicate with the afferent nerve fibers of the gustatory sensory neurons via neurochemical signals, with cell bodies located in the sensory ganglia of three cranial nerves. Taste bud cells can be classified into 4 types: type I cells which are believed to function as support cells [8,9,10]; type II receptor cells which detect sweet, bitter, and umami (glutamate taste) [11,12,13]; type III cells which detect sour and salt; and type IV (or basal) cells which are generally considered to be postmitotic precursors of types I–III [14]. Type I cells are assumed to be the most numerous, representing approximately 50% of cells per bud, while type II and III cells are less common, contributing 15–20% each [15].
The sense of irritation, pungency, warmth, or cooling elicited by a wide variety of chemical compounds acting on the mucus membranes and the skin is called chemesthesis [16]. Formally, chemesthesis represents the general chemical sensitivity of the mucus membranes and skin throughout the body; this term commonly refers to sensations in the oronasal cavities and eyes (cornea).
Given this broad range of sensations, it is not surprising that the receptor mechanisms subserving chemesthesis are equally diverse and are present in different components, including sensory nociceptors, other free nerve endings, and keratinocytes; oronasal chemesthetic signals are believed to be conducted by somatosensory fibers in the trigeminal (V), glossopharyngeal (IX), and vagus (X) nerves [16]. In addition, it has been shown that, within taste buds, mutually interacting neuronal pathways may co-exist [17], indicating that other cellular signaling cascades may also play a role regarding taste perception (e.g., temperature—which can modify the perception of a taste, warm vs. cool, for instance).
Taste cells may release numerous neurotransmitters (e.g., serotonin, adenosine triphosphate [ATP], glutamate, acetylcholine, gamma-aminobutyric acid [GABA]) and express neurotransmitter receptors (serotonin, ATP, and GABA receptors), suggesting that there is communication among cells in the taste buds which may shape the output of the bud [18,19]. Several reports have indicated that the endocannabinoid system (ECS) may modulate the intake of food and its palatability and that the oral taste bud cells express cannabinoid receptors [7,20,21,22]. Various studies have demonstrated that sweet taste responses can be modulated by leptin and endocannabinoids (anandamide [AEA] and 2-arachidonoyl glycerol [2-AG]) [1,19]. Moreover, there is scientific evidence of the expression of cannabinoid-related receptors (transient receptor potential (TRP) channels, G-protein coupled receptors (GPRs), peroxisome proliferator-activated receptors (PPARs), etc.) in the taste buds [23,24]; however, in relation to food reward and hedonic values, the significance of these ‘non-canonical’ endocannabinoid receptors and ligands of the ECS remains to be elucidated [21]. Nevertheless, it is known that the trigeminal chemesthetic sensation from the mouth also derives from the activation of TRPs expressed by the free endings, which do not innervate taste receptor cells [25]. The aim of the present study was to molecularly investigate the expression of cannabinoid receptors type 1 (CB1R) and type 2 (CB2R), and cannabinoid-related receptors G protein-coupled receptor 55 (GPR55), transient receptor potential vanilloid 1 (TRPV1) and ankyrin 1 (TRPA1) in the gustatory cells of the papillae vallatae and foliatae of the pig using Western blot analysis and immunohistochemistry for the first time. Knowing the specific distribution of these receptors may create the anatomical support for additional studies to investigate new nutritional ligands and promote new anti-stress food (comfort or “comfy” food) in animal production.
2. Results
2.1. Western Blot Analysis

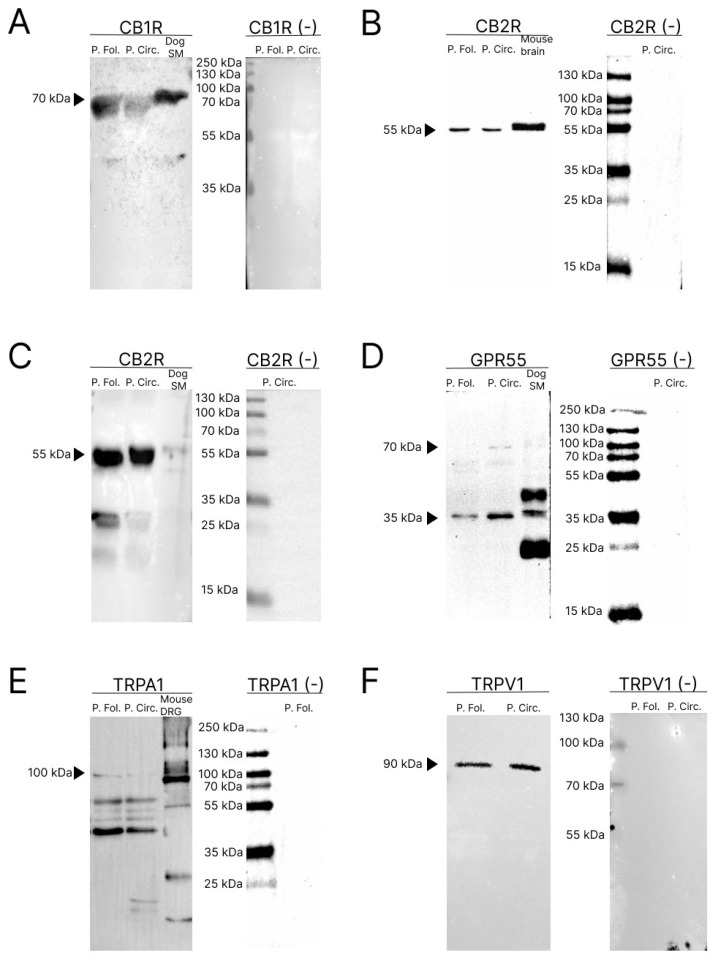

Western blot (Wb) analysis was carried out to determine whether papillae vallatae (or circumvallatae) and foliatae of the pig expressed proteins for CB1R, CB2R, GPR55, TRPV1, and TRPA1. Negative controls, in which the primary antibodies were not involved in the incubation with the membrane, did not show bands in any of the western blots analyzed (Figure 1A–F). furthermore, dog synovial membrane (SM) and mouse nervous system (brain and dorsal root ganglion) were used as positive controls.
The anti-CB1R antibody revealed a specific band of 70 kDa in all the pig papillae and in the positive control sample (dog SM; [26]) (Figure 1A).
The mouse anti-CB2R antibody revealed a specific band of 55 kDa in all the pig papillae and control samples (total mouse brain extract) (Figure 1B). The rabbit anti-CB2R also showed a signal in the vicinity of 30 kDa in addition to the 55 kDa band, (Figure 1C).
The anti-GPR55 antibody recognized a major band in the vicinity of 35 kDa and its dimer at 70 kDa, as well as for the positive control (dog synovial membrane) (Figure 1D).
The anti-TRPA1 antibody recognized a major band in the vicinity of 100 kDa which was present in all the pig papilla samples and in the positive controls, such as the mouse dorsal root ganglion (DRG) neurons (Figure 1E).
The anti-TRPV1 antibody recognized a major band in the vicinity of 90 kDa which was present in all the pig papillae samples [27] (Figure 1F).
2.2. Immunofluorescence
The cannabinoid and cannabinoid-related receptors were expressed by the taste bud gustatory and non-gustatory epithelial cells in both the papillae, with, however, differences within the intracellular distribution of the receptors and degree of immunolabeling. In addition, some receptors were also expressed by intralingual neurons (CB1R, CB2R, TRPA1, TRPV1), intralingual salivary glands (CB1R), and blood vessels (CB2R, GPR55, and TRPV1); however, only the immunostaining of the epithelial (gustatory and extra-gustatory) cells and intralingual neurons will be analyzed and discussed. As has already been described in the pig [28], the taste buds of the papillae vallatae were absent in the dorsal surface of the papillae, while they were particularly abundant in the deeper parts of the papillary sulcus. The elongated shape of the taste gustatory cells, reminiscent of that of the cloves of a garlic bulb, made the taste buds easily recognizable in the sections. In some taste buds, the nuclei were particularly clustered in the basal or central portion of the bud; this nuclear organization consequently created clearly recognizable areas with a typical enucleated aspect.
Approximately 25 dapi-labeled nuclei could be counted in single sections of a single taste bud of the vallate papillae; these data are compatible with those reported [6], having a total number (50–100 cells) of the gustatory cells of a taste bud. Approximately 10–15 taste buds could be counted in a single section of a papilla vallata. In the papillae foliatae, which were endowed with numerous crypts and epithelial lamellae in the sections, the taste buds were more numerous, and it was difficult to count them. In both the papillae, some gustatory cells (likely type I cells) showed immunoreactivity (IR) for the glial marker GFAP (Figure 2A,B) and S100 (Figure 2C,D).
A dense network of substance P (SP) immunoreactive nerve fibers and varicosities was observed in the connective tissue underlying the taste buds; SP-positive fibers were seen in proximity to unidentified cells of the taste buds. Substance P immunoreactive nerve fibers were also seen in the epithelium outside the taste buds (Figure S1). It was not unusual to observe some SP immunoreactive nerve fibers reaching the most superficial layers of the non-gustatory epithelium.
The gustatory cells were reached by a dense network of neuronal varicosities showing bright synaptophysin-IR (Figure S2).
A dense network of CB1R immunoreactive nerve fibers was visible, emerging from the tela submucosa and spreading toward the taste buds and the non-gustatory epithelial cells.
3. Discussion
3.3. Receptors in Intralingual Neurons
Nerve cell bodies are localized in the small ganglia, located for the most part, close to the muscle layers, near the salivary VEGs, and in the tunica propria, predominantly spotted at the base of the papillae vallate, known as the circumvallate ganglia [54]. Nerve fibers run in the tunica propria from the circumvallate ganglia and innervate the glands of the region [54].
The intralingual ganglia are part of the sensory apparatus of the tongue and play a role within the intralingual reflex arch [55,56].
Circumvallate ganglia are considered to be the post-ganglionic parasympathetic neurons (the preganglionic neurons belong to the salivatory nuclei of cranial nerves VII and IX) involved in salivary secretion and blood vessel dilatation [57]. In addition, the circumvallate ganglia are also considered to be the most rostral part of the enteric nervous system (oral nervous system) [54].
The expression of bright CB1R-IR at the circumvallate ganglia better describes the role of the CB1R in regulating glandular secretion [58] and vasoconstriction. These neurons could play a role in the gustatory-salivary reflex [59] and could explain the fast dry-mouth effect of Tetrahydriocannabidiol (THC), an agonist of CB1R, by the intralingual arch reflex [60].
Cannabinoid receptor 1 positive neurons at the circumvallate ganglion point to the role of the lingual plexus as the rostral part of the enteric nervous system (ENS), potentially involved in the brain-gut axis, since CB1 receptors are known to play a role in the appetite regarding fat metabolism [61,62].
The function of CB2R on the intralingual neurons is not fully understood/clear. However, there is morphological evidence that CB2R-IR is expressed by the cytoplasm of the neurons localized in the mandibulary glands of piglets [63] and pharmacological evidence showing the influence of CB2R in salivatory regulation [64,65].
The expression of TRPV1 by the cytoplasm of the circumvallate neurons may explain the fast response when exposed to thermic stimuli or ″spicy″ molecules, with high temperatures and capsaicin both being agonists of the TRPV1 [66]. Similarly, the expression of neuronal TRPA1-IR may be associated with the fast response to menthol or cinnamaldehyde, or to allicin (from garlic extract), and acroline (from diesel exhaust) which are both agonists of the TRPA1 [66].
Taken together, this evidence suggests that the endocannabinoid tone may influence palatability, and consequently stimulate the desire to eat and the hedonic value of foods [21]. Additional investigation is needed to fully understand the role of these receptors at the gustatory organ level and to elucidate the pathways of integration between the endocannabinoid system, the ENS, and the hedonic value of food.
Limitation—The subclasses of gustatory cells expressing the receptors studied were not identified; at present, no markers have been studied and produced that can identify the cellular subtypes of taste buds in this species. Older animals were not included in the present study; therefore, it is not possible, at present, to understand whether some receptors modify their expression during aging.
4. Material and Methods
4.1. Animals
Tissue was collected from 10 piglets, hybrids (Landrace; Large White; Duroc) (weight 10.9 ± 2.2 Kg having an average age of 47 days (26 lactating) which were slaughtered 21 days post-weaning (Authorization no. 287/2021-PR [Resp. To prot. 2216A.19]).
The roots of the tongues (radix linguae), with papillae vallatae and foliatae, were collected within 20 min of the animals’ deaths.
Small parts of the tongue, each containing the papillae vallatae and foliatae, were removed using a scalpel and were immediately immersed in the fixative (4% paraformaldehyde and 0.1 M sodium phosphate buffer pH 7.0) at +4 °C for 48 h. After rinsing in phosphate-buffered saline (PBS), the tissues were stored in PBS containing sucrose (30%) and sodium azide (0.1%) (pH 7.4) at +4 °C. The tissues were subsequently transferred to a mixture of PBS-sucrose-azide and OCT compound (Tissue Tek®, Sakura Finetek Europe, Alphen aan den Rijn, The Netherlands) in a ratio of 1:1 (12 h), and were then immersed in 100% OCT.
The tissues were placed in cryomold trays (Tissue Tek®) containing a 100% solution of Tissue tek (100%) and were frozen in isopentane (2-methyl-butane) cooled in liquid nitrogen. The frozen tissues were then stored at −80 °C until sectioning (thickness: 14 μm), using a cryostat. The sections were collected on poly-L-lysine coated slides and subsequently processed for immunofluorescence.
For the Wb analysis, the tissues were placed in sterilized Eppendorf tubes which were immersed in liquid nitrogen and were then stored at −80 °C.
4.2. Immunofluorescence
The cryosections were hydrated in PBS and processed for immunostaining. To block non-specific binding, the sections were incubated in a solution containing 20% normal donkey serum (Normal donkey serum, Colorado Serum Co., Denver, CO, USA), 0.5% Triton X-100 (Sigma Aldrich, Milan, Italy, Europe), and bovine serum albumin (1%) in PBS for 1 h at room temperature (RT). For single immunostaining, cryosections were incubated in a chamber overnight at room temperature with antibodies (obtained from rabbits) directed against the five receptors studied (CB1R, CB2R, GPR55, TRPV1, and TRPA1) (Table 1). For double immunostaining, the cryosections were incubated with mixtures of two different primary antibodies (Table 1). The primary antibodies were diluted in 1.8% NaCl in 0.01 M PBS, containing 0.1% sodium azide.
After washing the sections in PBS (3 × 10 min), they were incubated for 1 h at RT in a humid chamber with secondary antibodies (Table 2) diluted in PBS.
The cryosections were then washed in PBS (3 × 10 min) and mounted in glycerol buffered at pH 8.6 with 4, 6-diamidino-2-phenylindole-Dapi- (Santa Cruz Biotechnology, CA, USA).
Specificity of the Primary Antibodies
CB1R—The immunogen used to obtain the anti-CB1R antibody was the synthetic peptide MSVSTDTSAEAL, corresponding to the carboxy-terminal amino acids 461–472 of the human CB1 receptor. The homology between the pig (F1S0E6) and the human (P21554) complete amino acid sequences of the CB1 receptor was 97.9% (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 7 January 2018) and the correspondence with the specific immunogen sequence was 100%. Therefore, the human anti-CB1R antibody should recognize the same receptor in pigs as well. The specificity of human tissue has recently been verified by the present research group on human wholemount preparation [26,67]. The specificity of this antibody was also tested using Wb analysis also in the current study (Figure 1A).
CB2R—Two different anti-CB2R antibodies were used.
The immunogens used to obtain the rabbit anti-CB2R recombinant monoclonal antibody (Thermo fisher, 13H43L20) were the peptides corresponding to human CB2R (1: aa341–aa360, 2: aa5–aa25, 3: aa2–25). The specificity of the rabbit anti-CB2R antibody was tested on pig tissues using Wb analysis in the current study (Figure 1B).
The immunogen used to obtain the other mouse anti-CB2R antibody (sc-293188) was human-origin CB2R amino acid sequence 302–360 (P34972). The homology between the complete amino acid sequences of the pig and the human CBR2 was 81.9%. The homology of the specific amino acid sequence (RSGEIRSSAHHCLAHWKKCVRGLGSEAKEEAPRSSVTETEADGKITPWPDSRDLDLSDC) with the porcine species was 70.69% (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 7 January 2018). The same mouse anti-CB2R antibody has already been used on porcine tissues [68]. The specificity of the mouse anti-CB2R antibody was proven on pig tissues using Wb analysis in the current study (Figure 1C).
GPR55—The immunogen used to obtain the anti-GPR55 antibody was the synthetic 20 amino acid peptide from the third cytoplasmic domain of Human GPR55 in amino acids 200–250. The homology between the full amino acid sequences of the pig and human GPR55 was 80%. The specificity of the rabbit anti-GPR55 antibody has been evaluated on pig tissues with Wb analysis in the current study (Figure 1D).
TRPA1—The immunogen used to obtain the anti-TRPA1 antibody was a synthetic peptide from rat TRPA1 conjugated to blue carrier protein. The alignment of the immunogen sequence with the target protein in the pig was 80.3% (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 7 January 2018). This antibody was also tested using Wb analysis in the current study (Figure 1E).
TRPV1—The immunogen used to obtain the anti-TRPV1 antibody was the (C) EDAEVFK DSMVPGEK peptide, corresponding to residues 824–838 of the rat TRPV1. The homology between the complete amino acid sequences of the pig (A0A4X1UCR0) and rat (O35433) TRPV1 was 84.52% (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 7 January 2018), and the correspondence with the specific immunogen sequence was 93%. This antibody had already been tested by the present research group on the pig nervous system using Wb analysis [27]. In addition, this antibody was also tested using Wb analysis in the current study (Figure 1F).
4.3. Specificity of the Secondary Antibodies
The specificity of the secondary antibodies was tested by applying them to the sections after omitting the primary antibodies. No immunolabeled cells were detected after omitting the primary antibodies (Figure S4).
4.4. Semiquantitative Analysis of the Immunoreactivity
The immunoreactivity of the antibodies was evaluated, and their cellular localization (membranous and cytoplasmic) was reported.
4.5. Fluorescence Microscopy
The preparations were examined by the same observer using a Nikon Eclipse Ni microscope 227 (Nikon Instruments Europe BV, Amsterdam, The Netherlands, Europe) equipped with the appropriate filter cubes. The images were recorded using a DS-Qi1Nc digital camera and NIS Elements software BR 4.20.01 (Mountain View, Ottawa, ON, Canada). Slight contrast and brightness adjustments were made using Corel Photo Paint whereas the figure panels were prepared using Corel Draw (Mountain 232 View).
4.6. Western Blot Analysis
Tissue samples (papillae vallate and foliatae) were collected from three piglets; they were frozen and stored at −80 °C until sample processing. Tissues at the amount of 50 mg were fractioned into small pieces and homogenized in 500 µL of RIPA buffer (50 mM TRIS-HCl, pH 7.4, 100 mM NaCl, 1 mM PMSF, 1 mM EDTA, 5 mM Iodoacetamide 1% Triton X-100, and 0.5% Sodium dodecysulphate) supplemented with a protease inhibitor cocktail (Sigma-Aldrich, Co, St. Louis, MO, USA). The extract was sonicated for 10 min in 20 s intervals every 2 min and pelleted for 20 min (14,000 rpm) at 4 °C. The total protein content was determined using the Bradford method. Proteins (from 7.5 to 10 µg) were separated using 10–12% SDS-polyacrylamide gel and transferred to a polyvinylidene fluoride (PVDF) membrane. After transfer, the membrane was blocked by 5% milk powder in PBS-T (PBS 0.01M, pH 7.4) with 0.05% Tween 20 (Sigma) for 1 h at RT. The membranes were incubated with primary antibodies (rabbit anti-CB1R; rabbit anti-CB2R; mouse anti-CB2R; rabbit anti-GPR55; rabbit anti-TRPV1; and rabbit anti-TRPA1) overnight at 4 °C and were diluted 1:1000 in PBS-T containing 1% milk. The following day, the membranes were washed 3 times with PBS-T, for 15 min each, and immunoglobulin G (IgG) horseradish peroxidase-conjugated secondary antibodies mouse anti-rabbit (1:75,000, Santa Cruz) was utilized for incubation in 1% milk powder in PBS-T for 1 h at RT. After 3X washings of the secondary-horseradish peroxidase (HRP) binding antibody, membrane was incubated with chemiluminescence substrate and developed with the enhancing chemiluminescence detection system (Santa Cruz Biotechnology or Cyanagen–Westar ηC ultra 2.0). The blots were visualized using the ChemiDocTM (Bio-Rad, Hercules, CA, USA) imaging system.
5. Conclusions
The diversity of cannabinoid receptors localized, not only in taste cells but also in the intralingual neurons and epithelial cells, points to a potentially key role played by the ECS within taste coding and may exert a major function regarding the hedonic value of food and its rewarding behavior. These results better described the role of the complex gustatory system and the axis between the oral cavity and the ENS. The expression of ECS receptors at the taste cells and intralingual neurons points to a potential role on the neuro-enteric-behavioral axis, creating such a complex cellular signaling network/framework that not only perceives taste but is also able to decode a variety of stimuli from the oral cavity and transmit the response to the CNS and the ENS.
Acknowledgments
We thank Paolo Trevisi (University of Bologna) for his generous provision of the pig tissue samples. Our sincere thanks also go to Anthony Papa for his valuable technical assistance.
Appendix Group
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29194613/s1, Figure S1: Immunolabelling of piglet papilla vallata using the anti-substance P (SP) antibody. Figure S2: Immunolabelling of piglet papilla vallata using the anti-synaptophysin antibody. Figure S3: Immunolabelling of circumvallate ganglia using the anti-transient receptor potential vanilloid 1 (TRPV1) antibody. Figure S4: Immunolabelling (positive and negative controls) of papilla vallata using the anti-transient receptor potential vanilloid 1 (TRPV1) antibody.
Institutional Review Board Statement
Authorization no. 287/2021-PR [Resp. To prot. 2216A.19].
Informed Consent Statement
Not applicable.
Data Availability Statement
Data are contained within the article and Supplementary Materials.
Conflicts of Interest
Authors Ester Grilli and Andrea Piva were employed by the company Vetagro. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
| Primary Antibody | Host | Code | Dilution | Source |
|---|---|---|---|---|
| CB1R | Rabbit | ab23703 | 1:100 | Abcam |
| CB2R | Mouse | sc-293188 | 1:50 | Santa Cruz |
| CB2R | Rabbit | 13H43L20 | 1:250 | Thermo Fisher |
| GFAP | Chicken | ab-4674 | 1:800 | Abcam |
| GPR55 | Rabbit | NB110-55498 | 1:100 | Novus Biol. |
| S100 | Rabbit | PC-157 | 1:50 | Oncogene |
| SP | Rat | 10-515A | 1:500 | Fitzgerald |
| Synaptophysin | Rabbit | ab14692 | 1:100 | Abcam |
| TRPA1 | Rabbit | 100-91319 | 1:400 | Novus Biol. |
| TRPV1 | Rabbit | ACC-030 | 1:200 | Alomone |
| Secondary Antibody | Host | Code | Dilution | Source |
|---|---|---|---|---|
| Anti-mouse IgG Alexa-594 | Donkey | A-21203 | 1:500 | Thermo Fisher |
| Anti-rat 594 | Donkey | A-21209 | 1:500 | Thermo Fisher |
| Anti-rabbit 488 | Donkey | A-21206 | 1:1000 | Thermo Fisher |
| Anti-chicken TRITC | Donkey | 703-025-155 | 1:200 | Jackson |
