Defining the Candidozyma auris pan-genome and essentiality
1Department of Microbiology and Immunology, University of Michigan Medical School; Ann Arbor MI 48019 USA.
2Gilbert S. Omenn Department of Computational Medicine and Bioinformatics, University of Michigan Medical School; Ann Arbor MI 48019 USA.
3Department of Biological Chemistry, University of Michigan Medical School; Ann Arbor MI 48019 USA.
4Program in Immunology, University of Michigan Medical School; Ann Arbor MI 48019 USA.
#Correspondence to: Teresa O’Meara (tromeara@umich.edu), Evan Snitkin (esnitkin@umich.edu)Abstract
Candidozyma auris is an emerging multi-drug resistant fungal pathogen characterized by high mortality and rapid transmission in healthcare settings, but the genetic drivers of phenotypic variation between strains and the landscape of gene essentiality in this organism remain undercharacterized. Here, we integrate pangenomic analysis with global essentiality screening to establish a foundational understanding of the C. auris genome and identify potential therapeutic targets. We performed pangenome analysis on 695 outbreak strains of C. auris selected to be genetically representative of publicly sequenced genomes. After using BLAST to refine the pangenome, we found that 96.8% of gene families were core, with the remaining high-confidence accessory gene families primarily consisting of gene loss events or clade-specific genes. The high proportion of core genes emphasizes the clonal nature of these outbreak strains, but comparative analysis with the closely related C. haemuli species complex suggested that most of these core genes are functionally dispensible. To examine this hypothesis, we developed a novel insertional mutagenesis approach that leverages the promiscuous integration of linear DNA in the C. auris genome. This global analysis identified 614 high-confidence essential genes. Crucially, nearly one-third of these genes, including the conserved translation initiation factor Sui1, exhibit divergent essentiality patterns compared to the model yeasts Candida albicans and Saccharomyces cerevisiae. These findings highlight organism-specific biology that would be overlooked by orthology alone. By combining pangenomic diversity with functional essentiality, this study provides a comprehensive resource for identifying species-specific determinants of virulence and prioritizing novel targets for antifungal drug development.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
Candidozyma auris is an often multi-drug resistant fungal pathogen that causes hospital-associated outbreaks 1. The mortality of systemic infections approaches 50%, and cases are on the rise due to the high colonization and transmission rates in healthcare settings. Once systemic disease is established, there are often few options for treatment, as many isolates have developed resistance to at least one of the three commonly used classes of antifungals and pan-resistant isolates have also been observed 2. However, as a recently discovered organism, C. auris has a largely undercharacterized genome, an unknown set of essential genes, and poorly-understood genetic mechanisms for generating phenotypic variation. This lack of knowledge of essential pathways can limit our ability to identify potential new drug targets specific to this species. Additionally, our limited insight into the genetic changes experienced by lineages of C. auris can hinder our ability to predict the genotypic and phenotypic adaptations that occur in healthcare settings. Thus, there is a need to better understand the genetic variation that exists within and between the different clades of C. auris, as well as investigate the genes and pathways essential for its survival.
Pangenome analysis is an approach to identify the full collection of orthologous gene clusters across all the sequenced genomes for a given species, thus allowing an analysis of genetic diversity that cannot be captured in a single reference strain. Additionally, genes that are present in every isolate of an organism (core genes) are more likely to be essential than those that are variably present between isolates (accessory genes). Several features of C. auris make it potentially suitable for pangenome analysis. Previous studies have shown that C. auris exhibits high rates of genomic rearrangement, producing significant differences in gene content between isolates 3–5. Additionally, C. auris strains vary within and between clades in several clinically relevant phenotypes, such as antifungal resistance, adherence to skin and abiotic surfaces, and nutrient utilization 1,6–9. Finally, hospital pathogen surveillance has produced a large number of sequenced isolates from diverse clades, time points, and geographic locations 10–13. A pangenome analysis of C. auris that takes its clonal nature and population structure into account has the potential to reveal the genetic changes experienced by hospital-associated isolates and lineages, in addition to identifying significant and clade-defining genetic variants for future studies.
Beyond presence and absence, essential genes are defined as the set of genes required for viability in non-stress conditions. One approach for defining the essential gene set is to perform insertional mutagenesis, and to use sequencing approaches to identify regions of the genome that do not tolerate insertions. By identifying essential genes, we can gain insight into the underlying biology of an organism, identify candidates for drug targeting 14–19, and uncover species-specific phenotypes 20,21. In C. auris, the piggyBac transposon system was used to identify lncRNA that controls filamentation and CDT1, a calcium-calcineurin signalling pathway-sensitive ATPase that controls fluconazole tolerance 22,23. Additionally, we developed and used insertional mutagenesis through Agrobacterium-mediated transformation to identify regulators of filamentation and adhesion 7,24. However, genome-scale analyses of essentiality in C. auris have not been previously described, due to difficulties in achieving saturating mutagenesis and mapping insertion sites at scale. Combining essentiality analysis with pangenomics would allow for further characterization of genes that are both conserved and essential and thus ideal as future drug development targets.
Here, we combine pangenomic analysis with global essentiality screening to build a foundational picture of the C. auris genome. We performed de novo genome assemblies for a genetically representative set of 695 genomes primarily drawn from outbreak isolates in clades I, III, and IV and used them to define the pangenome. We used ancestral reconstruction to identify accessory gene families with clear signatures of convergent evolution, including the repeated loss of a specific subtelomeric deletion that overlaps a known adhesin gene. This analysis provides a detailed description of accessory gene families at both the species and clade level, in addition to offering insight into the selective pressures experienced by this population. However, we also found that 96.8% of all gene families were categorized as core, appearing in at least 95% of all isolate genomes. The high percentage of core genes prevented us from gaining insight into gene essentiality just from the pangenome. Therefore, to define the C. auris conserved and essential genes, we took advantage of the discovery that C. auris will promiscuously insert linear DNA into its genome to develop an insertional mutagenesis library and sequencing approach. We identified 614 high confidence predicted essential genes, with nearly a third showing a divergent pattern of essentiality from the model budding yeasts Candida albicans and Saccharomyces cerevisiae. As a case study, we demonstrate variability in requirement for the Sui1 translation initiation factor between C. auris and C. albicans. Together, this study provides a comprehensive characterization of the genetic variation that exists within C. auris through multiple parallel approaches, building a foundation for future work on identifying novel targets for antifungal therapy or species-specific determinants of virulence.
Results

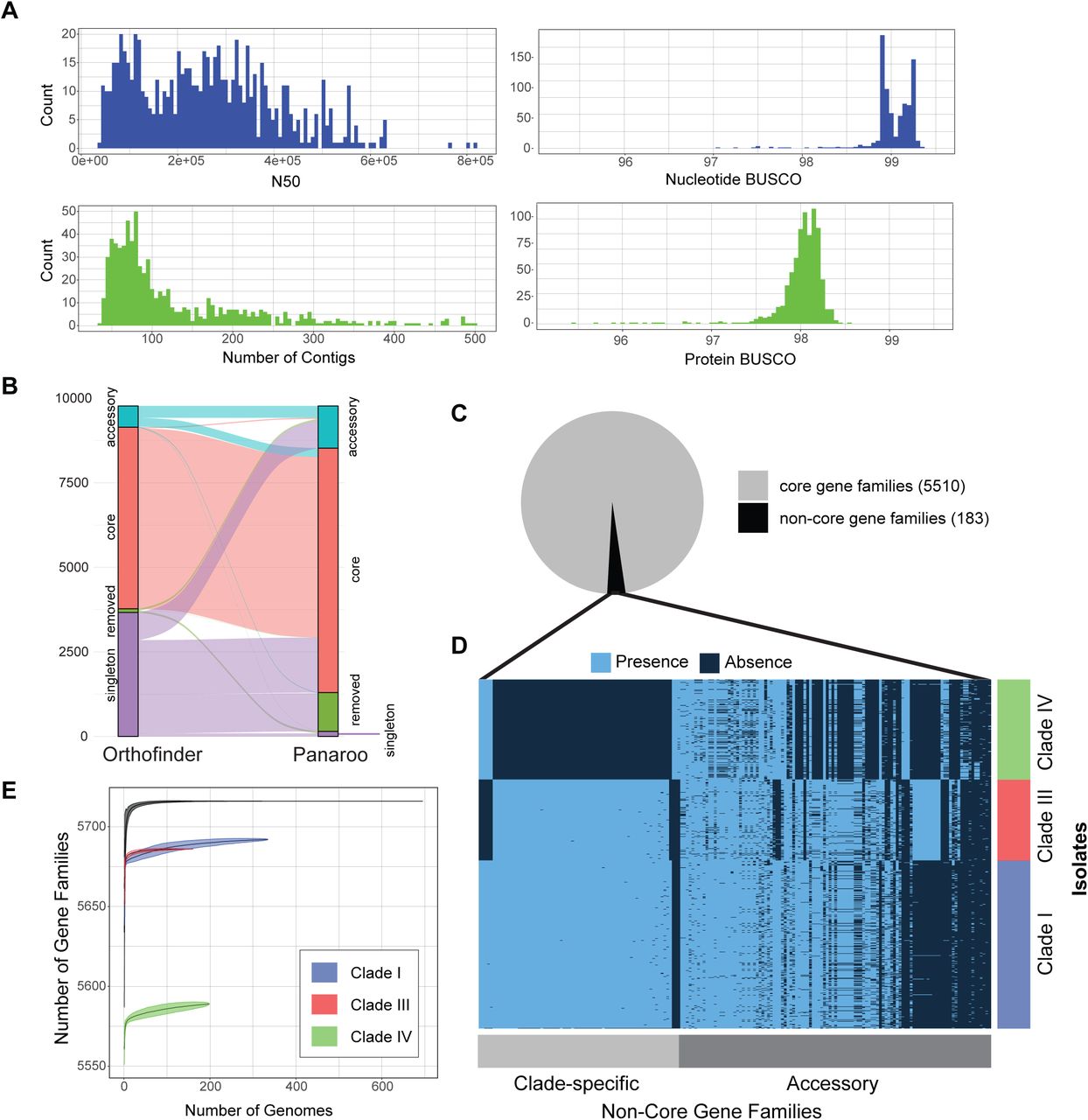

Generating a high-confidence C. auris pangenome
To provide a comprehensive view of the currently sequenced Candidozyma auris outbreak strains, we first selected a panel of 695 genetically diverse isolates from among the short-read Illumina sequences uploaded to the NCBI pathogens database, based on published SNP trees. For each tree, we removed isolates until all members of the tree differed by at least 30 SNPs from their nearest neighbor. We also collected and sequenced isolates from the University of Michigan hospital, Rush University Medical Center, and the Michigan Department of Health and Human Services, performing both long and short read sequencing for use in hybrid assembly (Supplemental Table S1).
All selected isolates were assembled and annotated via a custom-built snakemake pipeline25 designed for C. auris (Methods) and built on the framework of the annotation tool Funannotate, which was designed for fungal genomes 26. To ensure potential structural variants and genomic rearrangements were not removed by reference-based alignment, we performed de novo assembly for all genomes. For the 41 isolates where we performed paired Illumina and long-read nanopore sequencing, we generated hybrid assemblies, providing several high-quality, chromosome-level assemblies for each of the three clades (Figure 1A, left panel). Assemblies were only added to the final dataset if they had nucleotide BUSCO scores above 95%, indicating completeness of the assembly and gene annotation steps (Figure 1A, right panel). We also removed a total of six genomes that exhibited signs of contamination.
Given that C. auris exhibits several features more commonly associated with bacterial populations, such as a lack of sexual reproduction and highly clonal outbreaks, we performed pangenome analysis and orthogroup clustering with both Panaroo 27 and Orthofinder 28. Orthofinder is a pangenome analysis tool commonly applied to eukaryotic populations28. Alternatively, Panaroo is well-suited to a highly clonal dataset of short-read assemblies where the accessory genome is likely to be small, as its gene refinding algorithms can reduce the impact of assembly and annotation errors that would otherwise introduce spurious gene loss events. Comparing Panaroo outputs to Orthofinder revealed that Panaroo reduced the total size of the pangenome by nearly 35%, while assigning more core gene families in total (5527 vs. 5370). The majority of this difference was attributable to the number of singleton and near-singleton gene families, which was higher in Orthofinder by a factor of over 10X (Figure 1B). As this matched our expectations for an inflated number of rare gene families produced by partially-fragmented short-read assemblies, we used the Panaroo results for all further downstream analysis. This resulted in an initial pangenome size of 6183 gene families, 89.4% of which consisted of core genes that appear at least 95% of all isolate genomes, and produced a network graph visualizing differences in synteny and gene order across isolates (Supplemental Figure 1).
Even after the reductions to the pangenome size made by Panaroo, we still found that many gene families exhibited signatures of technical artifacts, which we then resolved. For example, the gene adjacency and synteny from Panaroo’s pangenome graph revealed that some gene families appeared to be isolated on the graph with no connecting edges, indicating that these genes were never found on the same contig or chromosome as any other gene family in any isolate (Supplemental Figure 1). Additionally, direct inspection of our assemblies revealed an apparent overreporting of gene absences, where a gene family would only be annotated and marked as present in a fraction of the genomes it appeared in. While these technical issues are not unexpected and have been noted in previous publications 29, they still presented a significant obstacle to our analysis, which primarily focused on accessory rather than core gene families. To verify that the accessory gene families present in our dataset were accurate and biologically meaningful, we designed a pipeline to validate the gene presence and absence data reported by pangenome tools using BLAST+ 30. This tool takes a specific gene family as input and performs a BLAST search against every isolate in the pangenome, regardless of whether the gene was originally reported as present or absent. Highly stringent BLAST search parameters (>90% sequence identity, >90% coverage, and e-value <10-5) and gene adjacency information from the pangenome graph minimize the chance for off-target hits beyond the target gene family (Methods), allowing us to identify cases of overreported gene absence with high confidence. We applied this tool at both a species level and a clade level, and in both cases found that a significant number of gene families originally reported as accessory carried some level of spurious absences, often exceeding 50% of all reported events. To ensure that all accessory gene families used for downstream analysis were high-quality and biologically meaningful, we applied a conservative threshold of 80% agreement between the gene absences reported by Panaroo and those verified via BLAST, resulting in a total of 183 non-core, high-confidence gene families (Figure 1C-D). We expect that this conservative approach will generate false negatives, in the sense that some true accessory gene families will be excluded from our dataset. However, we also expect this approach to result in a lower false positive rate for the identification of accessory gene families, which is essential for our downstream analysis steps of ancestral reconstruction and inference of potential selective pressures.

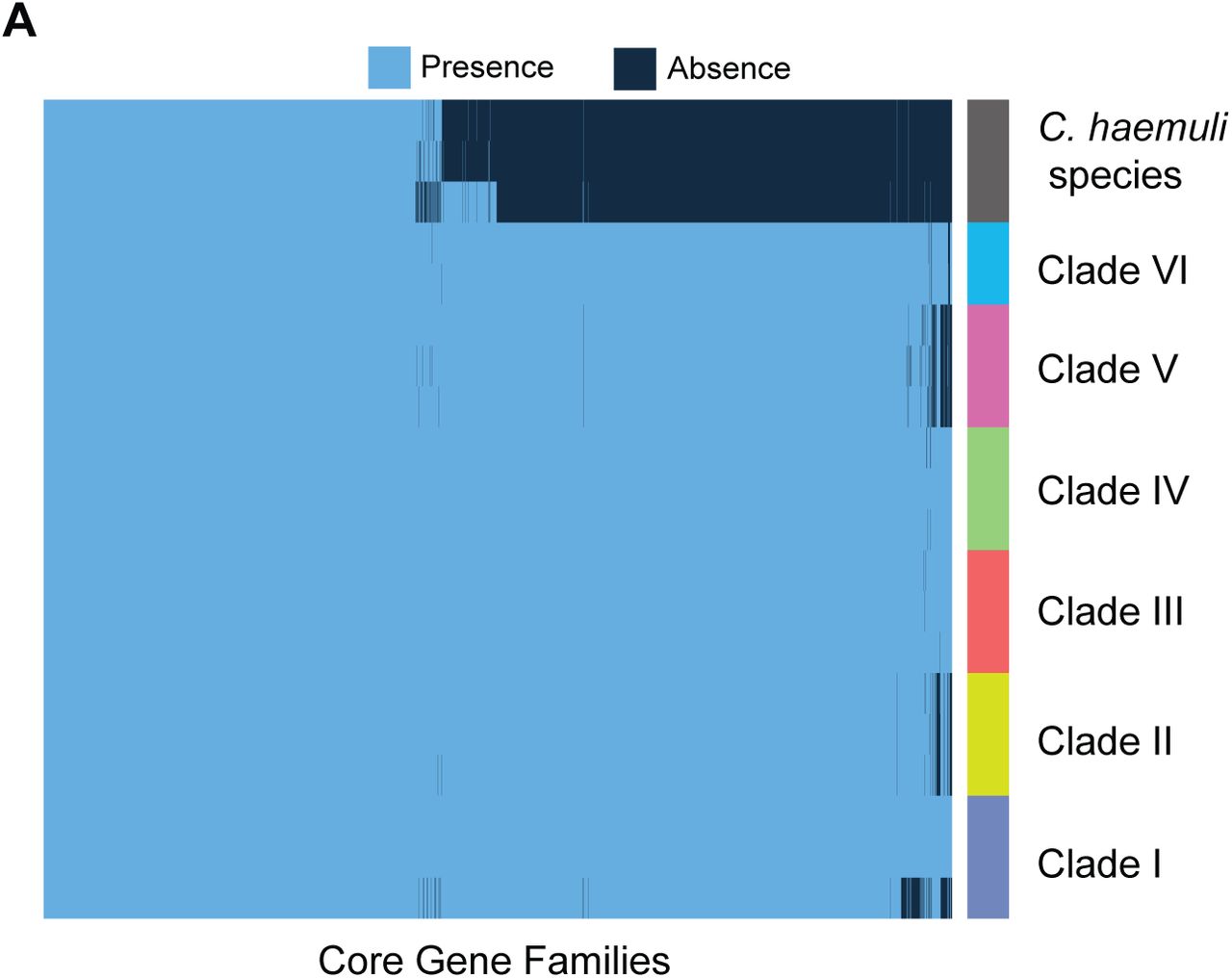

Following these validation steps, accumulation curves of the pangenome at both the species and clade level showed diminishing returns, indicating that our dataset had likely sampled most of the gene families that exist in the isolates that have been sequenced for this species (Figure 1E), and demonstrates the highly clonal nature of each clade. In total, we identified 5693 gene families across our 695 isolates, with an average of 5620 families per genome (sd = 37.91). We found that 96.8% of gene families were categorized as core, appearing in at least 95% of isolates, with 78.2% of gene families appearing in 100% of isolates. We identified 127 validated accessory gene families that showed variation in at least one clade. 81 of these were unique to a single clade, with 27 were shared between exactly two clades, and 19 were shared between all three. However, we also identified 72 genes that were entirely clade-specific, appearing as core in some clades and absent in the remainder. Given that only about 21.8% of gene families exhibited any variation in gene presence or absence, even when we designed our dataset to maximize genetic diversity, these results are consistent with a small effective population size of healthcare-associated isolates with little evidence of crossing. This is in contrast to yeast species where crossing is more common, such as Aspergillus fumigatus, where only 55-69% of the genome is core 26,29, or Saccharomyces cerevisiae, where ∼60% of the genome is core 31.

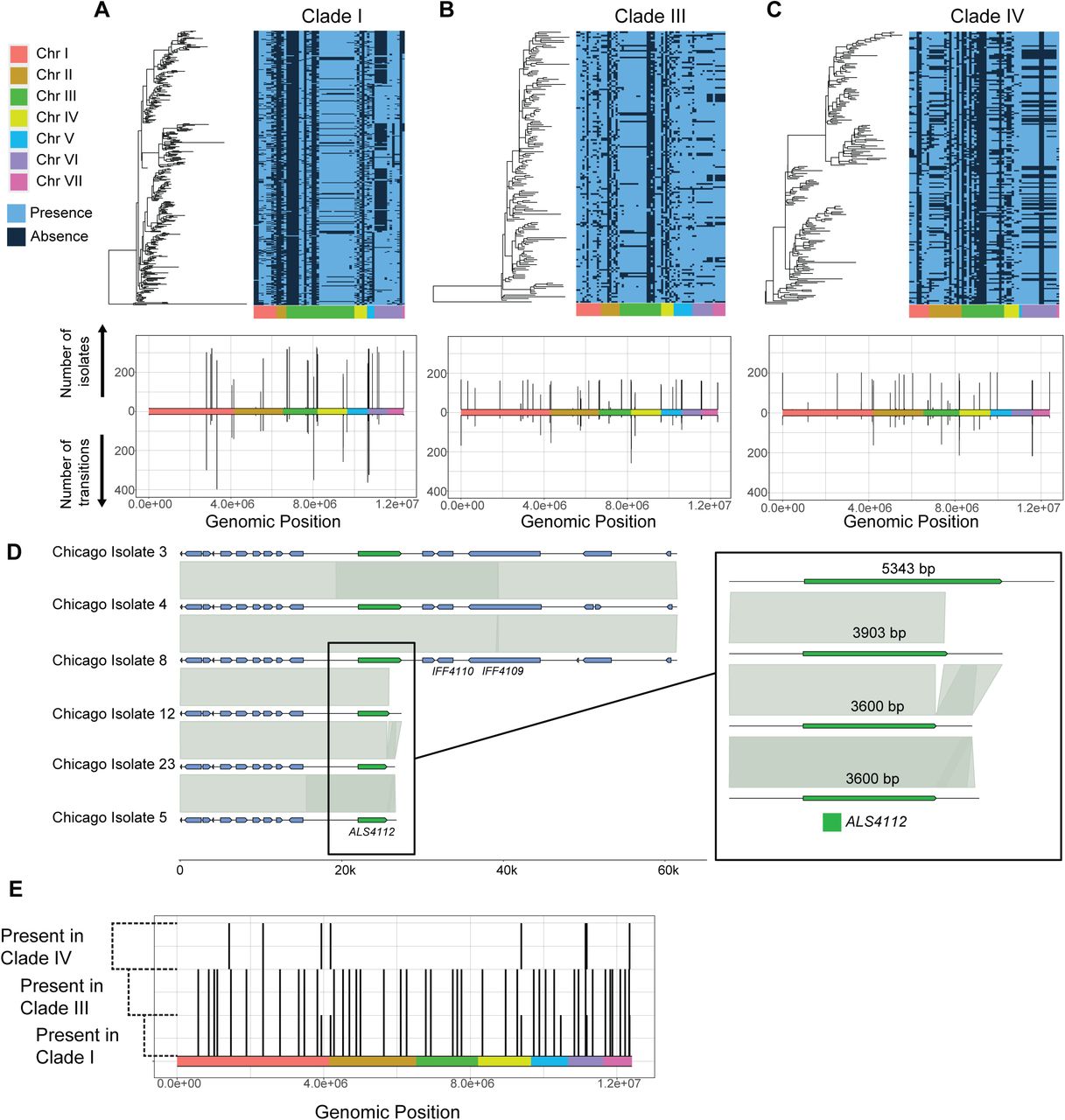

The C. auris accessory genome shows repeated gene loss

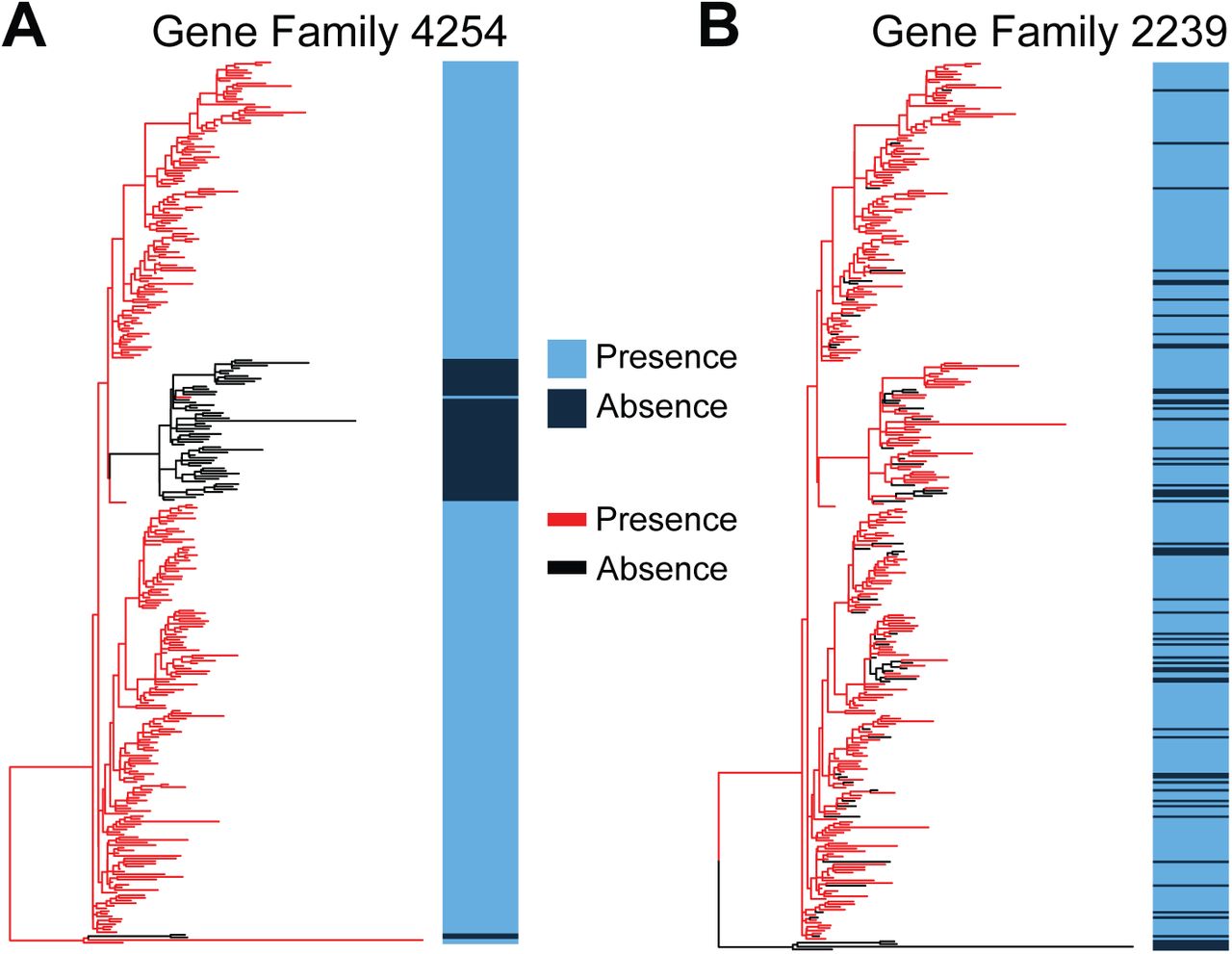

The accessory genes present in this pangenome likely include genes and loci under selective pressure, which can cause the same gene family to be gained or lost multiple independent times. As our dataset draws heavily from clinical isolates, identification of the loci and genes with signatures of convergent evolution and selection in this dataset could provide insight into the selective pressures experienced by C. auris in healthcare settings. To accomplish this, we first generated a maximum-likelihood phylogeny tree with IQTREE 32, using only the single-copy core genes from the pangenome as input. We then subset our validated accessory genes based on the clade where they were identified (Figure 2A-C, top panels). We found that many gene families appeared on the same chromosome and exhibited strong linkage with each other, with identical patterns of presence and absence. To account for shared genomic rearrangements causing the loss of several genes at once, we clustered gene families together into single events if they occurred within 100 kb of each other and shared highly similar patterns of presence and absence (Jaccard index > 0.8, 33). Of the 127 accessory genes, 51 could be grouped into clusters of two or more genes, with 17 clusters in total, resulting in 93 independent genetic loci. We then performed ancestral reconstruction on gene presence and absence data for all of the loci within each clade using phyloAMR 34 to identify the number of times each gene family was gained or lost (Supplemental Figure 2A). The number of transitions varied greatly between loci, even when both loci appeared in similar numbers of isolates. Depending on the clade, roughly 75-87% of loci had a high number of transitions via ancestral state reconstruction, with transitions equal to or greater than 80% of the number of isolates in which they appeared (Supplemental Figure 2B). In contrast, the remaining loci often exhibited significant clustering on the tree, with the gain or loss only appearing in specific subgroups (Supplemental Figure 2A). Contrary to our expectations, the loci with the highest numbers of transitions did not display any detectable enrichment near subtelomeric regions (Figure 2A-C, bottom panels), which are known to be more prone to genomic rearrangements and deletions 3,35,36. However, the largest clusters of 4 or more linked gene families did all occur in subtelomeric regions, with the deletion of chromosome ends being responsible for the shared loss of several adjacent genes. Further examination of these large clusters of linked gene families revealed a large locus near the end of chromosome VI that was lost multiple independent times in Clade IV (Figure 2D, Supplementary Table 1). Loss of this locus invariably caused truncations of the known adhesin gene, ALS4112, which is known to influence the clinically relevant trait of skin adhesion7, as well as loss of two additional adhesins IFF4109 and IFF41106. Notably, this deletion only appeared in isolates derived from Rush University Medical Center, suggesting that this locus and phenotype may be under active selection in that environment.
We next extended our analysis to gene families that did not appear as accessory in any of the three clades, but still exhibited variation at the species level. This is possible when a gene appears in nearly every member of one or more clades and is entirely absent from the others. We found a total of 72 gene families that fell into this category. Clustering of linked genes reduced this number to 50 independent loci, with the largest cluster containing 5 linked gene families. Estimating the location of these loci revealed a nearly even distribution of genes across the genome (Figure 2E), similar to the clade-level accessory genes. The majority of these loci appeared in both Clade I and Clade III, while being absent in Clade IV, consistent with the known genetic distances between these clades 12.
Gene annotation data is limited in C. auris, but features such as InterProScan 37 and PFAM 38 terms can still provide insight into the putative functions and pathways enriched in sets of genes. We found significant enrichment for InterProScan terms related to hyphally-regulated cell wall proteins (IPR021031), major facilitator superfamily transporters including likely sugar transporters (IPR036259, IPR020846, IPR005828, IPR050360), PIK1 kinase (IPR021601, IPR049160), and RACK1 ribosomal subunit (IPR045223) among the accessory genes compared to the core genes (Bonferroni-corrected p-values < 0.05, only annotated genes tested). Significant PFAM terms across this same set of accessory genes were related to these functions, including PF11765 and PF15789 for hyphally-regulated cell wall proteins, PF00083 for sugar and other transporters, PF07690 for the major facilitator superfamily, and PF11522 and PF21245 for PIK1. Subsetting to accessory gene families within a clade did not have any significant impact on these terms.
While these analyses provide detailed insight into the genetic variation that exists in the accessory genome of C. auris, the highly clonal nature of our dataset means that we cannot assume that core gene families are conserved due to their biological functions. It is likely that the core gene families appearing in the 95% or more of our isolates consist of a combination of essential and nonessential genes, given how infrequently we observe presence and absence variation in our pangenome. This is supported by the fact that only 43.9% of the core genome from C. auris is present in at least two related species among C. haemuli and its nearest relatives (Figure 3). To further characterize and differentiate this large category of core gene families, we used the complementary approach of essentiality mapping via insertional mutagenesis. This will allow us to better separate our large core gene families, as well as highlight unique C. auris biology and conserved druggable targets.

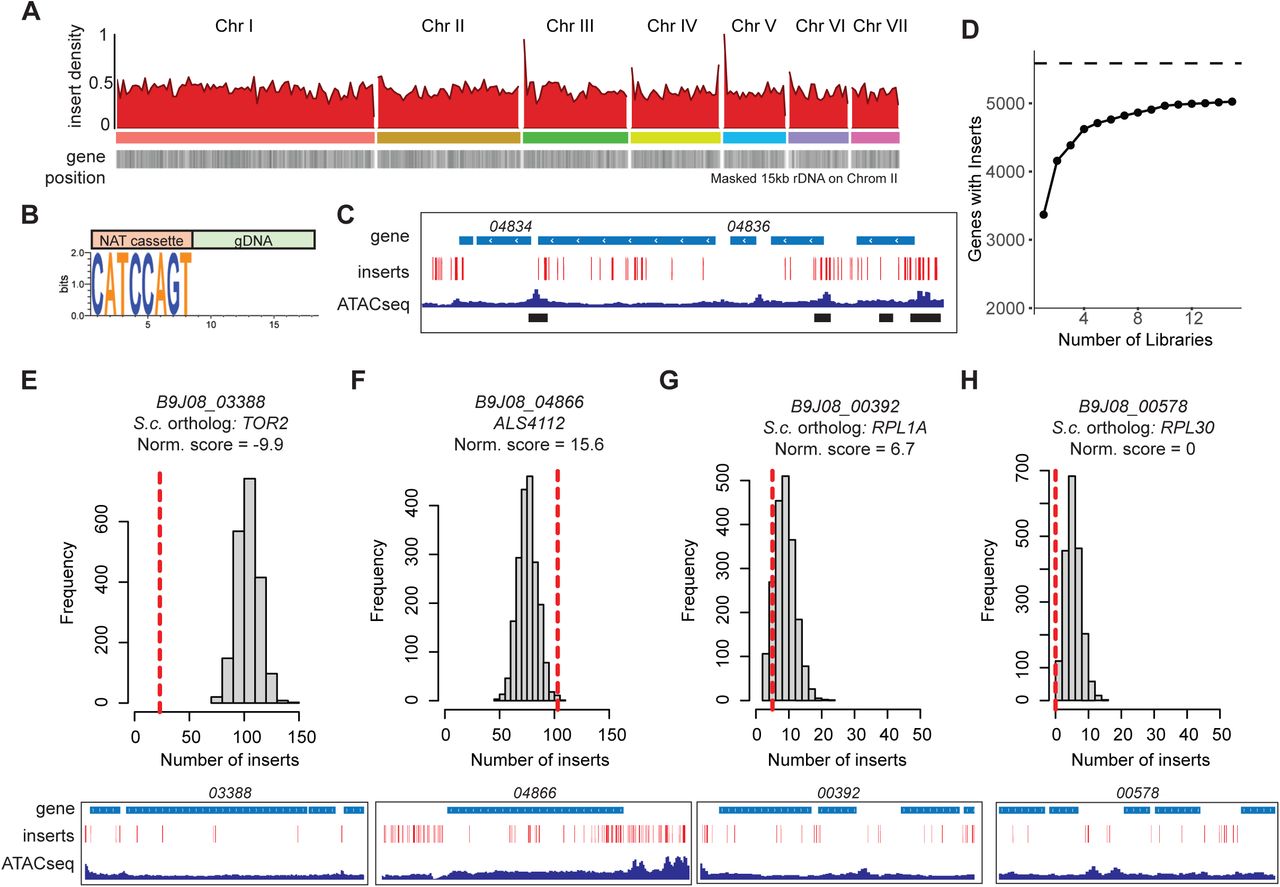

Transformation of a selection marker throughout the C. auris genome

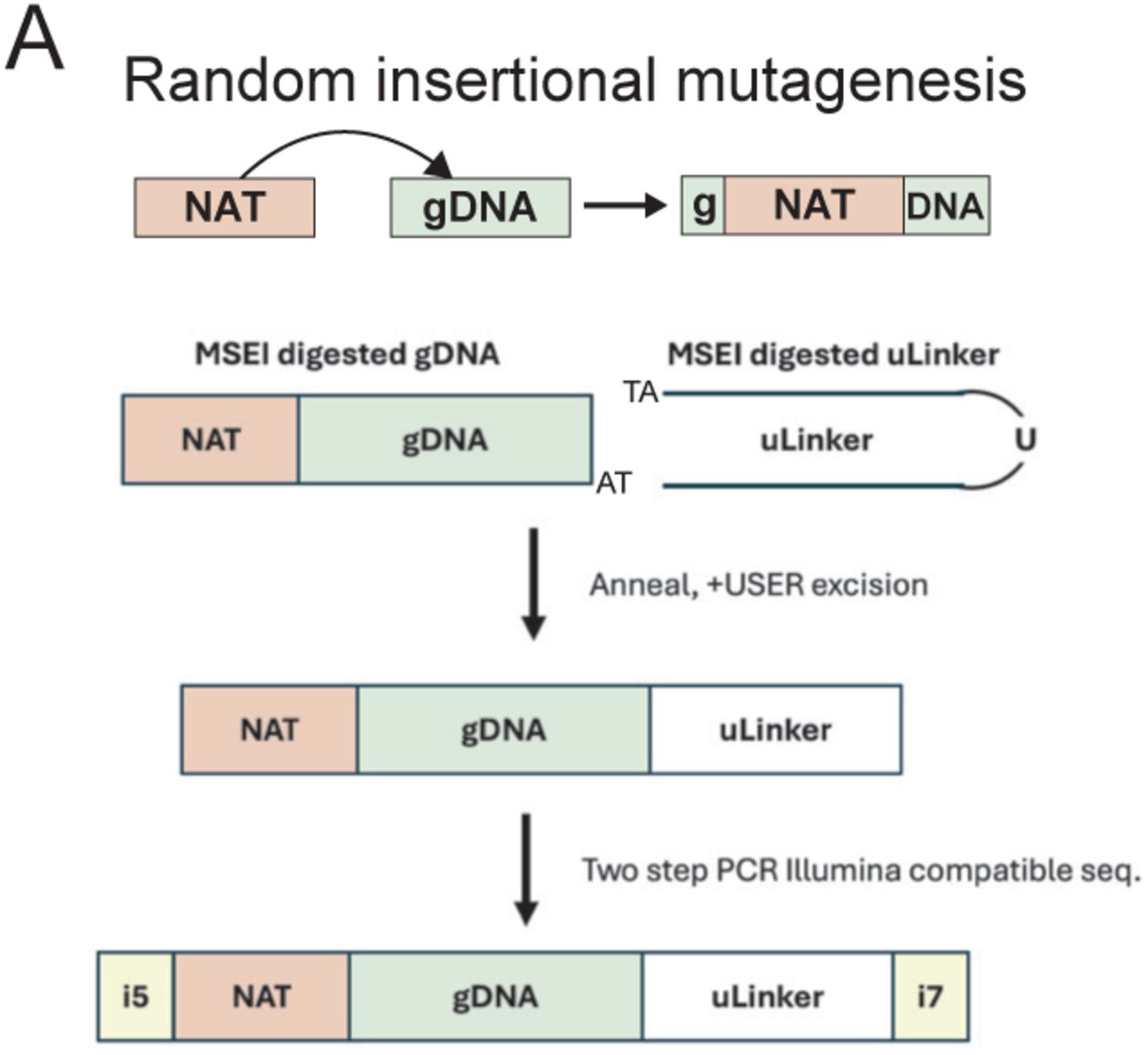

To perform insertional mutagenesis in C. auris, we developed and applied an insertional mutagenesis and mapping strategy. Precise genetic editing through transformation in C. auris is challenging, and many genetic cassettes end up incorporated to an off-target site instead of cleanly deleting a target gene 24,39. To leverage off-target integration for mutagenesis, we used electroporation to incorporate a nourseothricin (NAT) resistance cassette throughout the genome, selected for NAT-resistant colonies in rich media, isolated genomic DNA, and performed library preparation for next-gen sequencing. We then adapted previous insertional mutagenesis techniques to identify insertion sites by digesting genomic DNA with the restriction enzyme MseI and ligating a U-linker to the newly exposed DNA end (Supplemental Figure 3). We applied this technique to the Clade I isolate AR0382, and found that the integration rate of this NAT cassette was high enough to produce insertional mutants without any additional external factors. We identified a total of 208,333 unique NAT cassette insertion sites across fifteen individual libraries, with an insertional density of approximately one insert per 59.5 bases. These insertion sites were widely distributed across all seven C. auris chromosomes (Figure 4A). We observed a strong bias towards the gene-deficient and repetitive region of rDNA repeats on the 3’ end of chromosome 2 (CM076439.1). Previous insertional mutagenesis publications have noted these biases, which we accounted for by focusing our analysis on only genic NAT cassette inserts 15. These NAT cassette integrations also displayed no detectable bias towards any sequence motif enrichment at the sequenced NAT 3’ end. (Figure 4B). Whole genome sequencing of two individual strains also identified only a single insertion event per genome. Holistically, this analysis serves to validate the insert distribution of our method, showing that it is comparable to traditional transposon mutagenesis strategies. These results define a novel method for C. auris insertional mutagenesis that generates a pool of highly diverse insertional mutants for mapping and essentiality testing.
Essentiality mapping in C. auris
A central tenet of random mutagenesis essentiality mapping is that essential genetic regions will be insertion-depleted. As we increased our number of insertional libraries, we observed a saturation for the number of genes tolerating interruptions (Figure 4D). To determine if insertion sites were biased by chromatin accessibility, we optimized ATAC-seq for C. auris and integrated chromatin accessibility analysis on the AR0382 isolate, along with NAT insert site distribution. This allowed us to identify sites that were insert-poor, despite being within accessible regions. For example, despite significant chromatin accessibility at gene loci B9J08_04834 and B9J08_04836, we do not observe any insertions distributed across these genes. (Figure 4C). Additionally, these genes are flanked by predicted ammonium transmembrane transporter and ubiquitin protein ligase genes, which contain comparatively higher-frequency insertion sites in our sequencing. The orthologs to these genes have variable essentiality in other fungi, where B9J08_04834 orthologs are broadly-essential and serve roles in mRNA 5’ guanylyltransferase capping, and B9J08_04836 is predicted to be part of the U2 snRNP complex, and is conserved essential in the S. cerevisiae Sigma1278b background 40.
When defining gene essentiality, we include several caveats. First, previous studies have found that some essential genes can tolerate interruptions, for example through alternative start sites or deletions past essential regions, so essential genes cannot solely be defined by zero-insert open reading frames 15,41. Additionally, the lack of a defined insertion motif precludes us from using transposon mutagenesis analysis methods that require knowledge of insertion motifs to define insert-depleted regions 42. Therefore, to conservatively predict gene essentiality, we developed a scoring system based on transgene insert frequency. We simulated repeated random redistribution of our NAT inserts (∼115k) across the C. auris coding region. We then defined a z-score by normalizing the difference between our inserts for gene length, compared to the lower bound of the simulated insert distribution (Methods). To set a conservative cutoff for genes tolerating inserts, we aimed to define our group of putative essential genes as those that significantly deviated in insertion site count with a z-score cutoff of −5 or have zero inserts. We also provide all insert sites as a supplemental file (Supplemental Data 1).
As an example of an essential gene, we can look at C. auris genes with widely-conserved essentiality in their orthologs, such as TOR2 (Figure 4E). We observe significantly fewer insert sites in TOR2 compared to the simulated distribution, although this number is not zero. In contrast, we observe that the number of observed inserts in other genes which we know are non-essential, such as ALS4112 (B9J08_04866), does not deviate from a random distribution of inserts (Figure 4F). Although this analysis allows us to call essential C. auris genes without making other underlying assumptions, there are some limitations. For short genes, such as those < 700 bp, the lower bound of a simulated insert distribution includes zero inserts (Figure 4G,H), so it remains possible that we did not recover an insert due to chance. Therefore, we categorized these short genes without inserts as unresolvable (UN).

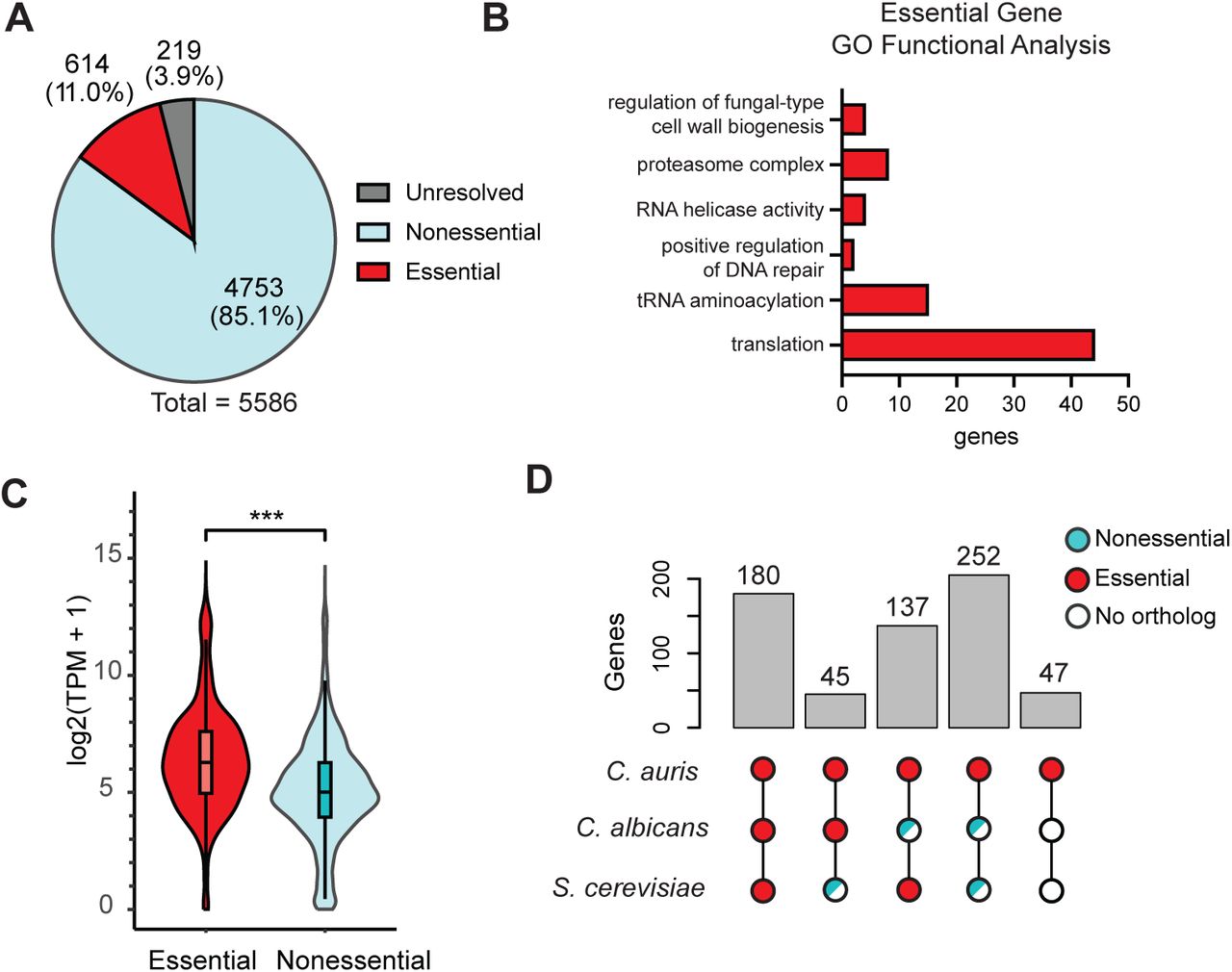

C. auris gene essentiality highlights divergent gene dependence
Altogether, using these criteria, we established 614 genes as high confidence predicted essential and 219 as unresolvable (Figure 5A, Supplemental Data 2). We then compared these predicted essential genes to the validated accessory genes from the pangenome. While essentiality can vary across different genetic backgrounds within the same species 40, we expected to see minimal overlap between the essential gene set and the validated accessory gene families. Consistent with our expectations, no validated accessory genes were categorized as essential genes in the insertional mutagenesis data. Additionally, we found that these essential genes were significantly enriched among the core genes that C. auris shares with C. haemuli and its close relatives, as opposed to the core genes that are not shared between these species (Figure 3A, Fisher’s exact test pval = 3.3 x 10-5).
For our total set of 614 putative essential genes, GO analysis highlighted enrichment for conserved essential functions (Figure 5B). Unresolved genes were similarly enriched for essential functions, including RNA polymerase activity, snRNA binding, and ribosome biogenesis (Supplemental Figure 4A). To address the lack of GO term annotation for C. auris, we also performed GO term enrichment using available C. albicans orthologs of our identified essential C. auris genes (Supplemental Figure 4B). This revealed additional enrichment in cytoskeleton organization, rRNA metabolism, transcription, translation, and DNA repair. Essential genes tend to exhibit higher expression 43,44. Therefore, we compared the expression levels of our predicted essential and nonessential gene sets from a previously published RNAseq dataset6 and observed that our predicted essentials have higher transcript levels (Figure 5C). Collectively, this supports our capacity to define essentiality and their correspondence with essential functions.
C. auris essentiality diverges from model yeasts
Since our permutation-based analysis does not incorporate information about essentiality from other species, we can then perform unbiased ortholog comparisons to identify evolutionary divergences in C. auris essentiality compared to related fungi. We compared essentiality and ortholog data to S. cerevisiae and C. albicans, where extensive work has been previously performed 40,45–48. However, we recognize that some variability may be due to the conditions or strains under which essentiality was determined for each species. Overall, we found moderate agreement between these data sets, where 180/614 essential C. auris genes had essential orthologs in both C. albicans and S. cerevisiae (Figure 5D). We performed a chi-square test of independence to examine the conservation of essentiality across orthologs and observed a significant relationship (𝜒2(1, N=614) = 114.5, p < 0.001). However, we also found that a third of our putative essential genes in C. auris were not essential in C. albicans or S. cerevisiae. Though annotation of the divergently essential gene set was limited, GO term analysis revealed enrichment for DNA replication maintenance, oxidoreductase activity, and ion transport activity, suggesting enrichment for cell replication and cellular respiration (Supplemental Figure 4C). This is consistent with the ability of both C. albicans and S. cerevisiae to grow anaerobically, while C. auris cannot 49. Lastly, 47 of our putative C. auris essential genes do not have clear sequence orthologs to our two comparison species, precluding a comparative analysis of essentiality. All 47 of these lineage-restricted genes are core in Clade I, appearing in over 99% of isolates. We also observed transcripts (TPM >= 1) for each of these genes by RNAseq, confirming that these are actively expressed (Supplemental Figure 4D). These divergences in essentiality highlight the variable dependence on individual genes between these three fungal species and can provide a starting point for examining phenotypic variation between these species.
To experimentally test our inferences regarding one of these conserved essential C. auris genes, we chose one putative essential locus, the DASH complex subunit Spc19 ortholog B9J08_02579, to put under the repressible tetOFF promoter 50. The fungal-specific DASH complex associates with the kinetochore to ensure proper chromosome segregation during closed mitosis, though its essentiality depends on the timing and nature of kinetochore-microtubule interactions during the fungal cell cycle 51. Therefore, if this gene is essential, we would expect to see cell cycle defects and culture stagnation, whereas if DASH is nonessential (as in S. pombe), loss of spc19 would simply confer a decreased growth rate 52. Initial growth on doxycycline-containing media displayed nearly complete growth inhibition, strongly supporting the inferred essentiality of this locus (Figure 6A), and consistency in essentiality between species. Through microscopic analysis of cell morphology, we observed that repression of Spc19 in C. albicans resulted in filaments consistent with cell cycle arrest (Figure 6B) 53,54. Similarly, in C. auris, repression of Spc19 significantly inhibited growth and also resulted in elongated morphology, consistent with cell cycle arrest (Figure 6B) 55.

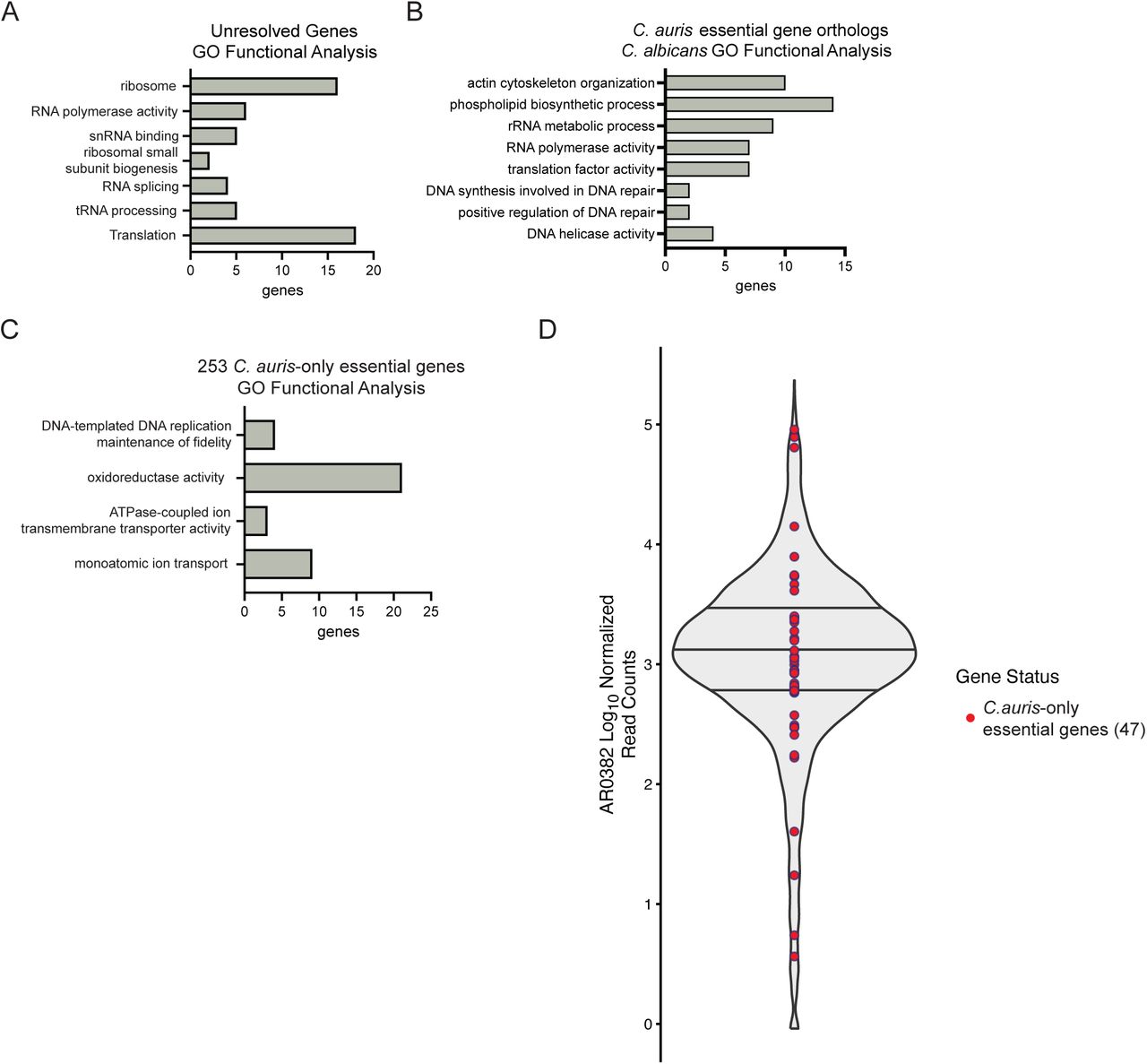

Our ortholog comparison analysis also revealed a set of 664 C. auris genes that were called nonessential under our scoring, despite having essential orthologs in related species. A number of the nonessential C. auris genes in this group can be explained by the difference in outgrowth between studies. In the studies conducted for gene essentiality in C. albicans and S. cerevisiae, mutants were grown in minimal media to identify genes for nutrient synthesis 41,46,56. However, in our method, we outgrow using rich media, which allows for insertional mutagenesis of otherwise essential nutrient synthesis genes. To experimentally validate this, we generated a deletion strain of the C. auris B9J08_01132 gene, a LYS2 ortholog (Figure 6C). This strain exhibits auxotrophy on minimal media, which can be rescued through the supplementation of L-Lysine. This supports the sensitivity of our mutagenesis to properly identify gene nonessentiality in rich media, where conditionally essential genes like lysine synthesis are disposable.
However, we also identified cases where the discordance in gene essentiality suggests an evolutionary divergence in gene dependencies. To exemplify this, we generated a repressible allele of the SUI1 C. auris ortholog, B9J08_00976 57. In related species, Sui1 acts as translation initiation factor eIF1, which is an essential component for eukaryotic protein synthesis 58. On doxycycline-containing media, we do not observe any growth defect in tetOFF-00976, contrasting with the lethal phenotype in an analogous tetOFF-sui1 C. albicans strain, despite strong repression through DOX treatment (Figure 6D, Supplemental Figure 5A). The morphology of the tetOFF-00976 was normal under doxycycline, but the tetOFF-sui1 C. albicans strain showed swelling and lack of growth (Figure 6E). The mechanism that allows for dispensable SUI1 in C. auris is unclear, especially as the proteins show high sequence and structural similarity to the C. albicans protein (Figure 6F), and we did not identify any paralogs or duplications through BLAST that would confer redundancy. Notably, a protein containing an SUI1-like domain was present in C. auris, but the rest of the protein structure was not shared (Supplemental Figure 5B). Altogether, our experimental data supports a model where C. auris gene essentiality and translation biology has diverged from related species 56,59.
Lastly, identifying gene essentiality is key to future therapeutic development. To prioritize our C. auris gene essentiality set for for those that would make ideal drug targets, we performed a structural similarity search using FoldSeek to identify those lacking structural orthologs in human proteins (Figure 6G)60, thus aiming to avoid targets with a high likelihood of concurrent host toxicity. From our search, we identified 6 C. auris genes that have high confidence structures (pLDDT >= 70), are predicted to be essential, and also lack a structural human ortholog (TM < 0.5). Of these six, three had already been identified as fungal-specific essential genes in this dataset, including B9J08_04245, a fungal mitochondrial subunit ortholog, and B9J08_01210, a tryptophan synthase ortholog. However, 209 of the C. auris essential proteins had low-confidence predicted structures, limiting our ability to look for structural orthologs.
Discussion
In this study, we leverage both essentiality mapping and pangenome analysis to characterize the Candidozyma auris genome. Our pangenome analysis focuses on the identification of a high-confidence set of accessory gene families among a dataset of primarily clinical isolates, many of which exhibit strong phylogenetic signals and can be grouped into clusters of linked genetic loci. However, characterizing the C. auris genome through pangenomics is limited by the relatively small amount of genetic variation that exists in this highly clonal dataset, as well as sparse functional annotations for many of its genes. Additionally, our pangenome of mainly clinical and healthcare-adapted isolates may not sample all of the possible genetic variation possible in this species, especially given that the lack of environmental isolates suggests that there are unexplored reservoirs of C. auris. By taking advantage of the high off-target transformation rate of C. auris, we developed and applied a novel insertional mutagenesis technique, mapping gene essentiality through a transposon-like method. In addition to identifying functions enriched among these essential genes, this addresses the limitations of the pangenome by dividing the core genes into essential and non-essential categories.
Inflation of pangenome size through the addition of spurious accessory or singleton gene families is a known problem in pangenomic studies 61. These errors can be caused at multiple levels of the analysis, including problems caused by fragmented assemblies, technical artifacts of gene annotation, and issues with clustering genes into orthologous gene families. Given that our analysis focuses primarily on accessory genes, we chose to take a highly conservative approach to the accessory genome that minimized the number of false positives present in the data. This was done by only considering accessory genes for downstream analysis if two parallel methods, Panaroo and BLAST, consistently reported that the gene was absent from the same isolate genomes. While it is likely that this high level of stringency excludes some number of true accessory genes as false negatives, we found that this approach significantly improved the consistency of the pangenome with existing knowledge of C. auris. Validating our accessory genes in this way retained many of the gene loss events and excluded many of the gene gain events, which matches our expectations of a fungal species that does not demonstrate meiotic recombination 62. This consistency also extends to our own essentiality mapping, where none of the accessory genes overlap with predicted essential genes.
We initially hypothesized that the highest-confidence accessory genes would be entirely localized to subtelomeric regions, as these locations are more likely to experience genomic instability and are the easiest to verify. However, we instead found that accessory genes are distributed roughly evenly across the genome, with no particular enrichment for any chromosomal regions. Additionally, we also found that over 63% of these accessory genes only varied within a single clade, being either absent or core in the other two. While the exact underlying genomic rearrangements causing these gene loss events are not yet known, this implies that our results cannot be explained simply by chromosomal instability in subtelomeric regions. This is further reinforced by our results from ancestral state reconstruction, where many accessory genes show very strong clustering and phylogenetic signals that are inconsistent with genomic instability. In future studies, we aim to combine this dataset with additional types of genetic variation, such as structural variants, SNPs, and indels, to better understand the genomic events leading to the presence and absence variation we observe here.
Pangenome analysis can also give insight into the evolutionary and ecological pressures that shape a species and the function of the core and accessory genomes. In pathogens, virulence genes in the accessory genome often allow for strain-specific pathogenicity mechanisms. As these are more likely to be involved in host-pathogen arms races, they are generally under stronger positive selection and have distinct evolutionary trajectories compared to core conserved genes 63–65. Additionally, core genes are more likely to be essential compared with accessory genes, although this essentiality can vary between strains, as the essentiality of a gene can be buffered by the presence of an accessory gene or other genetic background effect. This variability has been observed in other tractable systems; for example, gene essentiality between two strains of S. cerevisiae, S288c and Sigma1278b, showed only a 94% concordance 40. Combining pangenome analysis with insertional mutagenesis in a set of Streptococcus pneumoniae strains revealed a set of 206 core and essential genes,186 core but not necessarily essential genes, and 128 genes that were accessory but still essential when present 66. As our insertional mutagenesis strategy does not require prior genetic engineering of the C. auris strain, future work could include a strain or clade-level analysis of essentiality. Additionally, since our method of identifying C. auris essential genes is agnostic of orthology, we can identify differences in gene essentiality between orthologs in S. cerevisiae and the fungal pathogen C. albicans, and thus provide a platform for exploring species-specific biology.
In our set of essential proteins, we identified 6 proteins that had high structural quality scores but no obvious structural orthologs in humans. In this set were C. auris B9J08_04245, which shows homology to S. cerevisiae Nam9, a mitochondrial small ribosome subunit that mediates translation in the mitochondria through the mitoribosome. Previous work in C. albicans highlights the mitoribosome as a favorable therapeutic co-target, where deletion mutants confer fluconazole hypersensitivity 67. Similarly, B9J08_01210 has homology to tryptophan synthase, an enzyme used by bacteria, plants, and fungi, but not mammals, for L-tryptophan synthesis, and has been considered a target for antimicrobial development 68–70. However, it is important to note that 209 proteins had poor quality structure prediction, potentially due to a lack of training data for lineage-specific proteins in the AlphaFold models. As 32 of these proteins are also specific for C. auris, it is possible that these will also serve as good targets for future antifungal development, especially if they are essential in multiple clades of C. auris.
Although our novel method of non-homologous NAT cassette incorporation allows us to generate insertion mutant libraries with minimal reliance on exogenous genetic toolkits, there are other tradeoffs to our method. Specifically, unlike transposon-based mutagenesis that targets specific microsequences, such as piggyBac inserting at the TTAA motif, it is unclear whether the method of C. auris promiscuous insertion is sequence-dependent 71. Since we do not have prior knowledge of the insertion space, we are restricted from performing typical transposon distribution analyses through Bayesian methods 72. This requires a more conservative analysis of our insert distribution, because we cannot make as many assumptions about the underlying mechanism.
The promiscuity of NAT incorporation also starkly contrasts with the stability of the pangenome. In fact, promiscuous gene incorporation would suggest that gene gain events should be commonly observed. However, we see very little evidence of horizontal gene transfer or gene gain (singleton) events in the pangenome. We speculate that gene incorporation in C. auris may be a byproduct of genomic instability, such as high-frequency DNA breakage, that might be exacerbated by introduction of ssDNA carriers and high concentrations of linear NAT cassettes. Previous work in C. auris has hypothesized that promiscuous gene insertion may reduce on-target editing efficiency though DNA repair, such as non-homologous end joining 39. However, knockouts of NHEJ proteins KU70 and LIG4 failed to improve editing efficiency, leaving it as an open question as to what is allowing for high rates of NAT incorporation. Considering that other mechanisms driving genetic diversity in C. auris are less clear, this instability potentially highlights a novel pathway for generating genetic variance 62. A similar mechanism has been suggested in the fungal plant pathogens Dothideomycetes, where lack of the Holliday junction resolvase complex MUS81-MMS4 results in more frequent chromatid breakage 73. While orthologs for MUS81-MMS4 are present in C. auris, further investigation of genome integrity pathways in C. auris may reveal the mechanism for its genomic plasticity.
Supporting information
Acknowledgements
We thank all members of the Snitkin and O’Meara labs for helpful comments. We thank MDHHS and Mary Hayden for sharing C. auris strains. Funding for this work was provided by:
AJL: MMMP T32AI007528, Michigan Postdoctoral Pioneer
TRO and ES: U19AI181767
TRO: R35GM147894
TRO: OORRS033123 University of Michigan
JRR: T32GM007544
GZ: F32AI181164, Michigan Postdoctoral Pioneer
LF: NIH R35GM128637, NIH R01AI134678
Methods
Public Data and Sequencing
All public data used in this study was downloaded from the NCBI Pathogens database. Published SNP trees were used to select isolates from this database that differed by at least 30 SNPs. When possible, at least one isolate was selected from every SNP tree. All isolates not obtained from NCBI were sourced from either Rush University Medical Center or University of Michigan Medicine. Isolates from these sources were sequenced via Plasmidsaurus yeast hybrid sequencing orders, with library preparation performed as described below (section ‘Library preparation and sequencing’).
Assembly and Annotation
All genomes used in this study were assembled and annotated via the funQCD snakemake pipeline (https://github.com/Snitkin-Lab-Umich/funQCD). A detailed description of the steps and tools used is available on the GitHub repository. To briefly summarize, raw reads were cleaned via Trimmomatic and assembled via Spades. Assembled genomes were used as input for the fungal genome annotation tool Funannotate 26. RNA-seq data from a panel of isolates was used as training data for structural annotation steps. GeneMark 74, InterProScan 37, and EggNOG-mapper 75 were used to improve functional annotations. These functional annotations are added coding sequences during the de novo assembly pipeline, and use protein homology to infer possible functions. Auriclass v0.5.4 (https://github.com/RIVM-bioinformatics/auriclass) was used to determine the clade of the isolate, and BUSCO 76 was used to evaluate completeness of both the annotation and assembly steps. MultiQC was used to aggregate QC data for downstream data cleaning.
Initial pangenome analysis
Pangenome analysis was performed with both Orthofinder 28 and Panaroo 27. Protein .fasta files produced as output by Funannotate during the funQCD workflow were used as input for Orthofinder. Nucleotide .fasta and annotation .gff files from the same pipeline were used as input for Panaroo. As Panaroo was originally designed for bacterial genomes, it cannot process the ∼5% of C. auris genes that contain introns. To account for this issue, we spliced introns out of these genes before providing input files to Panaroo. In the rare cases where introns could not be spliced due to overlapping another gene (<50 genes across all assemblies, <0.001%), the intron-containing gene was removed from analysis. Comparing Panaroo output before and after this splicing process verified that ∼5% more genes per isolate were recovered, without significantly affecting the remaining gene families. Both Orthofinder and Panaroo were otherwise run with minimal changes from default settings.
BLAST Validation
All accessory and clade-specific gene families were validated via the pangenome_blast_smk pipeline (https://github.com/Snitkin-Lab-Umich/pangenome_blast_smk), primarily built around the command-line BLAST+ tool. A detailed description of the steps and functionality of this pipeline is available on GitHub. To briefly summarize, a custom BLAST database was first generated for all isolates. For each gene family, a single query sequence is extracted from an isolate that carries that gene, with priority given to high-quality hybrid assemblies. This query is BLASTed against the entire subject database, regardless of which isolates the gene originally appeared in the pangenome. Only hits with a sequence identity over 90%, query coverage over 90%, and e-values lower than 1e-5 are considered valid. In parallel, the pangenome graph from Panaroo is used to determine the closest neighbors of the target gene in each isolate, using synteny information. If within-clade accessory genes are being validated, BLAST hits are additionally required to appear on the same chromosome or contig within 50 kb of these expected neighboring genes. Species-wide searches do not use this threshold, as we observed less accurate synteny and neighbor information when performing cross-clade comparisons. BLAST hits are separated based on whether the gene family was originally reported as a presence or an absence in the pangenome for each isolate. Any gene families where more than 20% of the reported gene absences are found as valid hits via BLAST are considered spurious. As an additional requirement, at least one of the reported gene presences must be consistent with BLAST. Agreement between BLAST hits and pangenome presence data was used as a positive control, with roughly 2% of gene families displaying significant inconsistencies, indicating that the pipeline was performing accurately and as expected in this dataset.
Gene Family Location Estimation

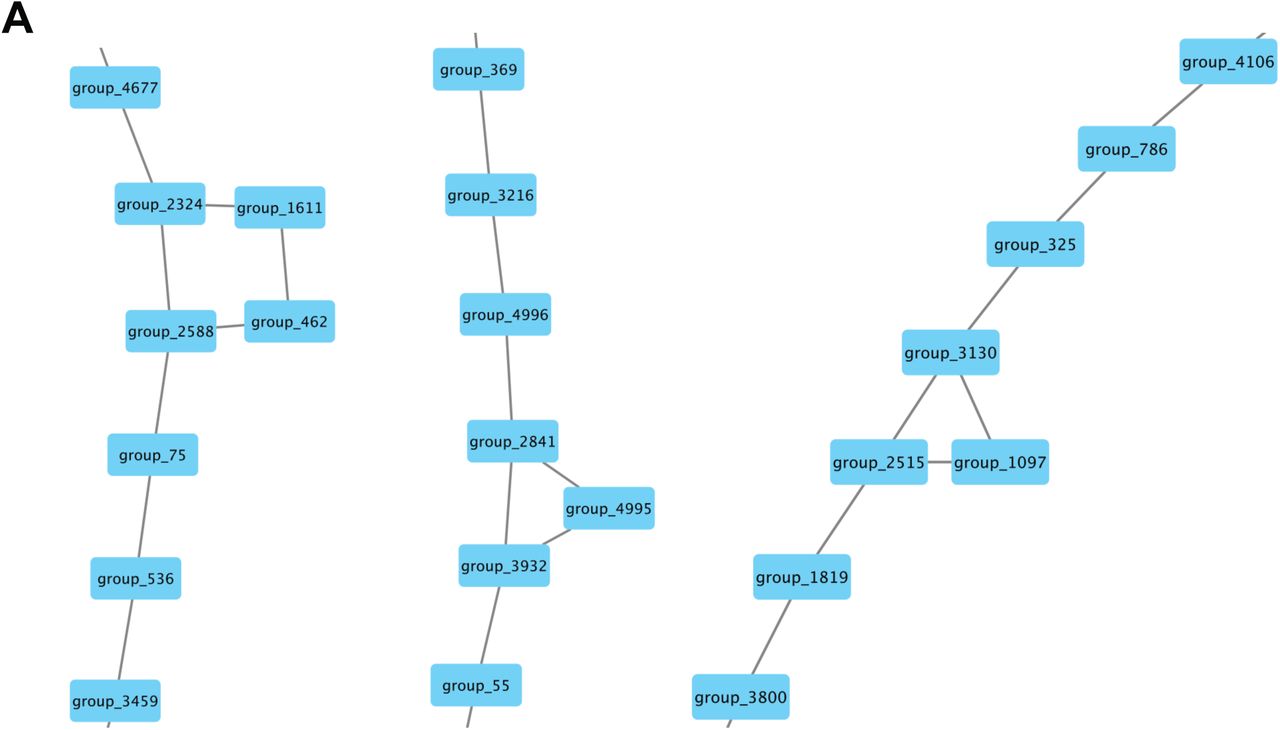

Many gene families do not appear in reference genomes, even when using clade-specific references. For these gene families, the pangenome graph from Panaroo was used to infer its approximate genomic location. This was done using the find_pangenome_neighbors.py script within pangenome_blast_smk, as described above. To summarize, locations were determined by starting at the node representing the gene family of interest and traversing through the graph until a gene family was found that did appear in the reference genome. This process was repeated up to two times, depending on the number of edges connected to the node. If two neighbors were found, the approximate location of the target gene family was set as the interval between the two neighboring genes. If only one neighbor was found, the approximate location was set as the location of the only neighbor.
Strains and Culture Conditions
All strains used in this study are listed in Supplemental Table S2. Cells were cultured at 30°C in YPD or YNB base media, and liquid cultures were constantly agitated during incubation. When required, media was supplemented with 200 μg/mL nourseothricin, 40 μg/mL doxycycline, or 50 μg/mL L-Lysine. All strains were maintained as frozen stocks in 25% glycerol at 80°C. Microscopy was performed on a BioTek Lionheart FX Automated Microscope.
Primers and Plasmids
Supplemental tables contain lists of primers (Supplemental Table S3) and plasmids (Supplemental Table S4) used in this study. Plasmids constructed from fragments were assembled using the NeBuilder HIFI DNA Assembly Master Mix (NEB #E2621) according to the manufacturer manual.
C. auris Transformation
C. auris transformation was performed as described previously 24. Briefly, PCR was used to amplify linear cassettes of the repair, the targeting sgRNA, and Cas9. Each piece was purified using a Zymo DNA Clean & Concentrator kit (Cat no. D4034, Zymo Research) according to the manufacturer’s instructions.
To prepare electro-competent cells, C. auris cells were grown overnight in YPD at 30 °C, pelleted, resuspended in TE buffer with 100 mM Lithium Acetate and incubated at 30 °C for 1 hr with constant shaking. Then, DTT was added at a final concentration of 25 mM and the cells were incubated at 30 °C for 30 min. Cells were harvested by centrifugation at 4 °C before being washed once with ice-cold water and once with ice-cold 1 M Sorbitol. Harvested cells were resuspended in ice-cold 1M sorbitol and kept on ice for transformation
For electroporation, 45 μL of competent cells were added to a pre-chilled 2 mm- gap electro-cuvette (Biorad) along with 500-1000 ng each of the linear cleaned DNA, and then cells were electroporated using a Bio-Rad MicroPulser Electroporator according to the pre-defined P. pastoris (PIC) protocol (2.0 kV, 1 pulse). The cells were then immediately recovered in 1 M cold Sorbitol, then moved to YPD and allowed to outgrow before selecting.
Strain Construction
C. auris mutant strains were generated using a transient CRISPR system 24. The universal Cas9 cassette was amplified from plasmid pTO135 using primers oTO143 and oTO41. Plasmids with repair cassettes were assembled using the NEBuilder HIFI DNA Assembly Master Mix (NEB #E2621) according to the manufacturer’s instructions. Specific mutant colonies were identified through colony PCR using Phire Plant Direct PCR Master Mix (F160; Thermo Fisher Scientific) according to the manufacturer’s instructions. Each mutant was confirmed by at least three independent PCR reactions with distinct primer sets specific to the mutation site and compared to parental strains.
pTO505/tetO-B9J08_00976
To generate tetO-B9J08_00976 strains, the gRNA cassette was constructed by Splice-On-Extension PCR, incorporating a 20-bp guide sequence targeting the endogenous promoter (−203∼−1) of B9J08_00976 via primers oTO3255 and oTO3256. To generate plasmid with the repair template for tetO-B9J08_00976, the plasmid backbone was amplified from pTO139 using primers oTO590 and oTO591. The 500 bp upstream sequence (−703∼−204) of B9J08_00976 and the 500 bp gene sequence (+1∼+500) were amplified from AR0382 genomic DNA using primer sets oTO3249/3250 and oTO3251/3252, respectively. The tetO cassette with a NAT selective marker was amplified from pTO240 with primers oTO3124 and oTO3125. The four fragments were assembled to generate a plasmid with the repair template for tetO-B9J08_00976. The repair cassette was amplified from pTO505 using primers oTO3259 and oTO3260 and transformed into AR0382 strain to generate tetO-B9J08_00976 strains.
pTO487/tetO-B9J08_02579
To generate tetO-B9J08_02579 strains, the gRNA cassette was constructed by Splice-On-Extension PCR, incorporating a 20-bp guide sequence targeting the endogenous promoter (−223∼−1) of B9J08_02579 via primers oTO3074 and oTO3075. To generate plasmid with the repair template for tetO-B9J08_02579, the plasmid backbone was amplified from pTO139 using primers oTO590 and oTO591. The 500 bp upstream sequence (−735∼−224) of B9J08_02579 and the 500 bp gene sequence (+1∼+501) were amplified from AR0382 genomic DNA using primer sets oTO3068/3069 and oTO3070/3071, respectively. The tetO cassette with a NAT selective marker was amplified from pTO240 with primers oTO3124 and oTO3125. The four fragments were assembled to generate a plasmid with the repair template for tetO-B9J08_02579. The repair cassette was amplified from pTO505 using primers oTO18 and oTO19 and transformed into AR0382 strain to generate tetO-B9J08_02579 strains.
pTO540/tetO-B9J08_02579
To generate B9J08_01132::NAT strains, the gRNA cassette was constructed by Splice-On-Extension PCR, incorporating a 20-bp guide sequence targeting the CDS of B9J08_01132 via primers oTO3098 and oTO3099. To generate plasmid with the repair template for B9J08_01132::NAT, the plasmid backbone was amplified from pTO139 using primers oTO590 and oTO591. The 500 bp upstream sequence (−1∼−500) of B9J08_01132 and the 500 bp gene sequence (+4177∼+4677) were amplified from AR0382 genomic DNA using primer sets oTO3092/3093 and oTO3094/3095, respectively. The NAT selective marker was amplified from pTO128 with primers oTO668 and oTO1093. The four fragments were assembled to generate a plasmid with the repair template for B9J08_01132::NAT. The repair cassette was amplified from pTO540 using primers oTO18 and oTO19 and transformed into AR0382 strain to generate B9J08_01132::NAT strains.
Genomic DNA Isolation
Genomic DNA was isolated as previously described 6, using a PCA extraction method. Overnight cultures were harvested by centrifugation and resuspended in lysis buffer (2% (v/v) Triton X-100, 1% (w/v) SDS, 100 mM NaCl, 10 mM Tris-Cl, 1 mM EDTA). Cells were disrupted by bead-beating and DNA was extracted using PCA and chloroform, purified through ethanol precipitation and treated with RNase A (Qiagen, cat no. 19101). RNase was heat-inactivated, then extracted DNA was purified by ethanol precipitation and resuspended in water.
RNA extraction and RT-qPCR
RNA extraction and qRT-PCR was performed using a formamide extraction method, as previously described 6. Cells were incubated with or without 40 ug/mL DOX overnight in YPD, harvested by centrifugation, and snap frozen at −80 °C before processing. For RNA extraction, pellets were resuspended in 100 μL FE Buffer (98% formamide, 0.01 M EDTA). 50 μL of 500 μm RNAse-free glass beads was added to this suspension and the mixture was homogenized for 30 sec 3 times using a BioSpec Mini-Beadbeater-16 (Biospec Products Inc., Bartlesville, OK, USA). The lysate was then clarified by centrifugation and RNA was purified using the Qiagen RNeasy mini kit (ref 74104, Qiagen) according to the manufacturer’s instructions. Samples were DNAse treated with Qiagen DNAse (Qiagen, cat no. 79254).
ATACseq
To prepare spheroplasts, C. auris grown overnight in liquid culture was diluted and grown out for six hours to allow return to logarithmic growth. Approximately 1.6 OD of cells were harvested through centrifugation at 13,000 rpm for 1 minute. Supernatant was aspirated, and the pellet was washed in 1 mL ice cold water then centrifugation repeated at 13,000 rpm for one minute. Water was aspirated, pellet was resuspended in buffer 1 (100mM Tris pH 9.4, 10mM DTT) and incubated for 5 minutes at 30°C. Sample was then centrifuged at 2000xg for 5 minutes at 4°C, and pellet was resuspended in cold buffer 2 (DPBS, 1 M sorbitol, 1.5 U zymolase [Zymo E100])). The sample was then incubated for 5 minutes at 30°C, harvested at 2000xg for 5 minutes at 4°C, and washed and centrifuged in 500 μL cold 1 M sorbitol without resuspending. Finally, spheroplasts were resuspended in 500 μL cold 1 M sorbitol, 50 μL was taken and harvested at 2000xg for 10 minutes at 4°C. Liquid was removed by pipette, and spheroplast was resuspended in tagmentation buffer according to the ActiveMotif ATAC-seq kit (#53150) method. After adding the tagmentation mix to the sample, we proceeded with the manufacturer’s method starting with the Tagmentation Reaction and Purification section, to tagment samples and amplify sequencing libraries. Prepared ATACseq libraries were sequenced on either an Illumina Novaseq X or an Element AVITI24 at the University of Michigan Advanced Genomics Core. Fastq file quality was checked using FastQC and aligned to the C. auris B8441.v3 genome using the Burrows-Wheeler Aligner (BWA) MEM 77–79. Bedgraph coverage files were created using Deeptools bamcoverage 80. Peaks were identified using MACS3 81.
Library preparation and sequencing
For insertional mutagenesis, C. auris AR0382 competent cells were transformed through electroporation as detailed above, using 600 ng of PCR amplified CaNAT from pTO128 using primers oTO668 and oTO1093. Transformed cells were allowed to outgrow in liquid YPD at 30°C for two hours, then nourseothricin stock was added to a final concentration of 200 μg/mL for an additional outgrowth up to 24 hours. Cells were then harvested through centrifugation for genomic DNA extraction.
To prepare libraries, we simultaneously prepared the genomic DNA and the custom U-linker, keeping components on ice. 1 μg of genomic DNA was digested with MseI (NEB #R0525) for three hours at 37°C in a benchtop thermocycler. Digested genomic DNA was then purified using a Zymo Research commercial clean and concentrate kit (Zymo #D4004) using the manufacturer specifications, with the added step of allowing the binding buffer to mix with the sample for three minutes at room temperature to inactivate the restriction enzyme. To prepare the U-linker (oTO2605), 10 μM oligo was incubated in an annealing buffer (100 mM NaCl, 10 mM Tris, pH 8, 1 mM EDTA, pH 8) for 90°C for two minutes, then cooled to 30°C at a ramp rate of −0.1°C/s. The reaction was then snap-cooled in ice and then additional reagents were added to simulate NEB 2.1 buffer (10 nM MgCl2, 100 μg/mL albumen). MseI was then added to the reaction, which was incubated at 37°C for two hours on a benchtop thermocycler. The reaction was purified using a Zymo oligo clean and concentrate kit, eluted with 21 μL of water, and 18 μL of U-linker was mixed with 2 μL 10x annealing buffer. This was heated on a thermocycler to 80°C for two minutes, then cooled to 23°C at a ramp rate of −0.1°C/s. The resulting digested U-linker reaction was kept on ice until ligation.
To ligate the digested U-linker and genomic DNA, we used the NEB quick ligation kit (NEB #M2200) to mix 2.5 μL of U-linker, 9 μL of digested genomic DNA, 12.5 μL of 2x quick ligation buffer, and 1 μL of ligase together, and incubated the reaction at room temperature for ten minutes. The reaction was stopped by adding 1 μL of 0.5 M EDTA. Ligated DNA was purified using Omega Bio-Tek Mag-Bind TotalPure SPRI beads (#M1378) at a 0.9x ratio of beads to reaction volume. We then PCR-amplified ligated DNA with a first round of PCR to add Illumina sequences with the following master mix: 12.5 μL milli-Q water, 10 μL 5x Q5 reaction buffer, 2.5 μL of 10 μM oTO2516, 2.5μL of 10 μM oTO2517, 1 μL of 25mM dNTP mix, 0.5 μL Hot-start Q5 Polymerase, and 1 μL USER enzyme. 30 μL of master mix was added to 20 μL of ligated DNA, for the following reaction: initial incubation at 37°C for USER activity, an initial denaturation at 95°C for 1 minute, then 12 cycles of denaturation (95°C, 15 seconds), annealing (63°C, 15 seconds), and extension (72°C, 1 minute); this was followed by a final extension cycle (72°C, 2 minutes). The product of this reaction was purified using Omega Bio-Tek Mag-Bind TotalPure SPRI beads (#M1378) at a 0.9x ratio of beads to reaction volume. Purified DNA was then added to a reaction master mix (10 μL 5x Q5 reaction buffer, 1 μL of 25mM dNTP mix, 8.5 μL milli-Q water, 0.5 μL Hot-start Q5 Polymerase, 5μL of 10 μM labeled i5 sequencing primer, 5μL of 10 μM labeled i7 sequencing primer) and run on a Bio-Rad T100 Thermocycler for the following reaction: initial incubation at 37°C for USER activity, an initial denaturation at 98°C for 1 minute, then 5 cycles of denaturation (98°C, 10 seconds), annealing (65°C, 40 seconds), and extension (72°C, 40 seconds); this was followed by a final extension cycle (72°C, 3 minutes). This final library was purified using Omega Bio-Tek Mag-Bind TotalPure SPRI beads (#M1378) at a 0.9x ratio of beads to reaction volume. Libraries were sequenced on either an Illumina NovaSeqX or Element AVITI24 platform through the University of Michigan Advanced Genomics Core.
Library analysis
Library sequencing quality control was performed by the University of Michigan Advanced Genomics Core. Read quality was confirmed using FastQC and sequences containing the end of the NAT cassette were identified by initially aligning to pTO128 using the Burrows-Wheeler Aligner (BWA) MEM with minimum seed length (−k) 19 and a band width (−w) of 2. Soft clipped reads corresponding to the junction between the NAT cassette and C. auris genomic DNA were then extracted using extractSoftClipped from SE-MEI (Dpryan, https://github.com/dpryan79/SE-MEI). Extracted sequences were then aligned to C. auris GCA_002759435.3_Cand_auris_B8441_V3 assembly using BWA MEM to identify NAT insertion site regions 77,78. Insert sites were processed using bedtools to condense regions to single-nucleotide resolution at the junction site, and adjacent insertion sites were merged. Insert motif enrichment analysis was performed using the MEME suite of tools on extracted genomic sequences fifteen bases upstream and downstream of NAT insertion sites 82. Analysis of NAT insert regions was performed in R and visualized using ggplot2 (4.0.0) and karyoploteR 83. For the permutation analysis, shorter genes were categorized as unresolved if their permutation lower bound was zero. Some genes were masked based on their proximity to highly repetitive telomeric regions, and include B9J08_03013-03019 from the repetitive telomeric region of CM076439.1, and B9J08_04428 on the telomeric region of CM076441.1. 5586 remaining total annotated genes were considered for this analysis. Gene Ontology enrichment was performed through the Candida Genome Database 84.
Gene Expression analysis
Previously published RNAseq data from Santanta et al. was used in this study 6. Raw reads were assessed for quality using FastQC and trimmed to remove poor quality reads or adapter content using Trimmomatic 79,85. Trimmed reads were mapped to the C. auris B8441 reference transcriptome (NCBI GCA_002759435.3) and quantified using salmon v1.9 86. Read counts normalized to transcripts per million (TPM) were used for the subsequent analysis.
SUPPLEMENTARY FIGURE LEGENDS AND TABLES
Supplementary tables
Table S1 ALS4112 deletions among Clade IV isolates from Rush University Medical Center.
Table S2 Strains used in this study
Table S3 Oligonucleotides used in this study
Table S4 Plasmids used in this study
