Stabilization of Functional Recombinant Cannabinoid Receptor CB2 in Detergent Micelles and Lipid Bilayers
Stabilization of Cannabinoid Receptor CB2
National Institute on Alcohol Abuse and Alcoholism, National Institutes of Health, Bethesda, Maryland, United States of America
University of Cambridge, United Kingdom
* E-mail: yeliseeva@mail.nih.govAbstract
Elucidation of the molecular mechanisms of activation of G protein-coupled receptors (GPCRs) is among the most challenging tasks for modern membrane biology. For studies by high resolution analytical methods, these integral membrane receptors have to be expressed in large quantities, solubilized from cell membranes and purified in detergent micelles, which may result in a severe destabilization and a loss of function. Here, we report insights into differential effects of detergents, lipids and cannabinoid ligands on stability of the recombinant cannabinoid receptor CB2, and provide guidelines for preparation and handling of the fully functional receptor suitable for a wide array of downstream applications. While we previously described the expression in Escherichia coli, purification and liposome-reconstitution of multi-milligram quantities of CB2, here we report an efficient stabilization of the recombinant receptor in micelles - crucial for functional and structural characterization. The effects of detergents, lipids and specific ligands on structural stability of CB2 were assessed by studying activation of G proteins by the purified receptor reconstituted into liposomes. Functional structure of the ligand binding pocket of the receptor was confirmed by binding of 2H-labeled ligand measured by solid-state NMR. We demonstrate that a concerted action of an anionic cholesterol derivative, cholesteryl hemisuccinate (CHS) and high affinity cannabinoid ligands CP-55,940 or SR-144,528 are required for efficient stabilization of the functional fold of CB2 in dodecyl maltoside (DDM)/CHAPS detergent solutions. Similar to CHS, the negatively charged phospholipids with the serine headgroup (PS) exerted significant stabilizing effects in micelles while uncharged phospholipids were not effective. The purified CB2 reconstituted into lipid bilayers retained functionality for up to several weeks enabling high resolution structural studies of this GPCR at physiologically relevant conditions.
Introduction
Heptahelical G protein-coupled receptors (GPCRs) are integral membrane proteins involved in a wide range of physiological processes including sensory transduction and cell-to-cell communication [1]. The cannabinoid receptor CB2 is an attractive target for the development of drugs for management of pain, inflammation, osteoporosis, inhibition of growth of malignant gliomas and tumors of immune origin, and treatment of immunological disorders such as multiple sclerosis [2], [3], [4]. High resolution structural studies will provide critical insights into the molecular mechanisms of ligand binding and activation of CB2, and may guide the rational design of novel, highly specific pharmaceuticals.
Although GPCRs represent as much as 50% of pharmaceutical drug targets currently under development, the progress with structural studies has been relatively slow, in part due to the difficulties in obtaining large quantities of sufficiently pure, homogenous and functional protein. With the notable exception of rhodopsin, GPCRs are naturally expressed at low levels, and heterologous production is currently the only technically feasible way to prepare these proteins [5], [6].
In addition to the availability of large quantities of purified receptor, structural methods require that the protein is sufficiently stable over extended periods of time. While solubilization in detergents is needed for extraction of GPCRs from cell membranes and chromatographic purification, the preservation of the structural integrity of receptors in micelles is a notoriously difficult task. Unlike dark-adapted bovine rhodopsin which exhibits significant stability in detergent solutions, many GPCRs, when removed from membranes and exposed to detergents, lose their functional fold in a matter of minutes and, therefore, require additional efficient stabilization [7], [8]. The relatively few successful attempts to preserve the functional structure of purified GPCRs relied on a careful selection of mild solubilizing detergents as well as on supplementation of buffers used for purification with stabilizers such as lipids and ligands, adjustment of ionic strength and glycerol content. Yet, no general methodology for an efficient stabilization of GPCRs has been developed yet, and their low stability remains a major bottleneck for structural biology [9].
A recently introduced approach to stabilization by site-directed mutagenesis [10], [11] as well as by replacement of the large intracellular loop 3 and truncation of flexible N- and C-terminal domains succeeded in obtaining well-diffracting crystals of several class A GPCRs [12], [13], [14]. However, such modifications alter the wild type structure and are known to affect the functional properties of receptors significantly [10], [11], [15], [16], [17], [18]. Therefore, rather than performing an extensive modification of the structure of CB2 with poorly predictable functional consequences, in this study we explored the stabilization potential of carefully selected detergents, lipids and high affinity ligands. The minimal alteration to the native amino acid sequence of CB2 used in this work included addition of the small affinity tags at the N- and C-terminus of the protein [19] that, as we demonstrated, do not affect function of the receptor as determined by G protein activation and ligand-binding tests [20].
We focus on developing applications of spectroscopic techniques, in particular nuclear magnetic resonance (NMR) to studies of the full length, structurally unperturbed CB2 in lipid bilayers [5], [6], [19], [21], [22]. Emphasis is on studies by the solid-state NMR on purified CB2 reconstituted at a high protein-to-lipid ratio into lipid bilayers of a defined composition. While the high-density homogenous reconstitution of CB2 into liposomes was discussed in a recent publication [19], the present work addresses stabilization of CB2 during its expression, solubilization in detergent micelles, and chromatographic purification, with a goal of maximizing yield of fully functional receptor, in micelles as well as in lipid bilayers.
Several earlier attempts to express the recombinant CB2 for structural investigations failed to produce pure and fully functional receptor [23], [24], [25], [26], [27] . Reasons for the poor recovery of functional receptor vary and depend on the approach used to expression and purification of this protein. As we demonstrated earlier, an expression of CB2 in E. coli as a fusion with maltose binding protein leads to production of a fully functional receptor located in the bacterial plasma membrane [5]. The fusion is inserted into membranes in a “N-terminus out” orientation [28]. The membrane preparation of CB2 can be stored at −80°C for several years without noticeable loss of the receptor’s functionality. Therefore, the significant loss of activity of the purified CB2 that was reported in some of our previous publications can be attributed to severe destabilization of the protein upon its solubilization in detergent micelles and subsequent chromatographic purification. Thus it was essential to find efficient means for stabilization of the receptor in detergent solutions. This required testing of a large number of conditions that affect the functional structure of CB2. Our strategy relied on a development of robust and quantitative screening methods.
The strong partitioning of the hydrophobic cannabinoids into detergent micelles or the lipid matrix of liposomes prevents accurate measurement of the fraction of ligand-binding-competent CB2 (Bmax) [20]. Furthermore, as shown in the present study, the functional receptor has to be stabilized in micelles by an excess of cannabinoid ligand which complicates conventional radioligand-binding studies. Thus an alternative way to analyze the content of functional receptor was required to counter the problems of quantification of the radioligand-bound receptor. In this work, functional activity of CB2 was assessed on liposome-reconstituted receptor by measurement of rates of activation of cognate G protein as well as by 2H-MAS NMR using the deuterated ligand CP-55,940-d6.
Compared to conventional radioligand binding, the rates of nucleotide exchange on G protein activated by the agonist-bound receptor provides a more stringent as well as more comprehensive way to assess CB2 function. It reports not only on the ligand binding competence but also on the ability of the receptor to undergo physiologically relevant conformational changes leading to activation of cognate G proteins. The subunits of G proteins used in this assay are heterologously expressed and purified following published procedures [29], [30], and their correct posttranslational modifications, adequate purity and functional activity ensured. The reaction conditions have been optimized such that the individual subunits of G proteins were provided at concentrations significantly higher than those of the receptor to maintain linear rates of accumulation of Gαi1 bound to γ-35S-GTP, a non-hydrolizable analog of GTP [20] and to ensure that they accurately represent the fraction of the ligand-binding competent and functional protein. Furthermore, these proteoliposomes model a physiologically relevant environment enabling studies of structure and function of CB2 as well as its interaction with the lipid matrix.
Experimental Strategy

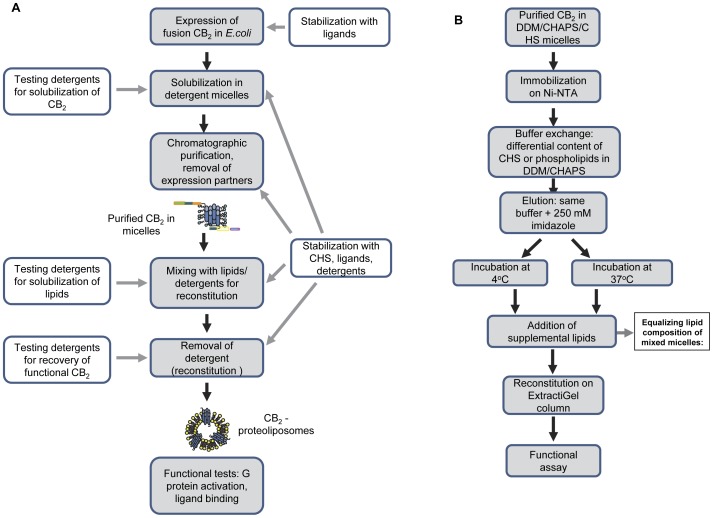

The main objective of this study has been development of procedures for efficient stabilization of the recombinant CB2 in detergent micelles and improvement of yield of purified, functional protein. The general outline of the experiments is presented in Fig. 1, A. The influence of detergents, cholesteryl hemisuccinate (CHS) and ligands is tested at various stages of protein preparation. The effects of stabilizers are assessed after reconstitution of the receptor into liposomes, by studying G protein activation. Whenever possible, this was done by reconstitution of the receptor into lipid bilayers of equal composition to avoid an influence from lipid composition on G protein activation rates as reported earlier [19].
To assess the effect of lipids on stability of purified CB2 in micelles, CHS was replaced with lipids whose stabilizing effect was to be studied (Fig. 1, B). Since these lipids end up in the reconstituted membrane and affect the activation behavior of CB2 [19], it is important to discern their stabilizing effects in micelles from their influence on activity of CB2 in lipid bilayers. This was achieved by performing a pair-wise comparison of stabilizing lipids in micelles, separating each sample into two aliquots and subjecting one of the aliquots to elevated temperature while keeping the other one at 4°C. Upon completion of this temperature treatment, the calculated amount of supplemental lipids was added to each set of samples, such as to equalize the lipid composition of micelles and, consequently, the resulting proteoliposomes. This enabled comparison of the stabilizing effects of lipids in micelles while normalizing for their possible influence on G protein activation in lipid bilayers. For a few select cases, CB2 integrity was evaluated by ligand binding using the deuterated ligand CP-55,940-d6 and 2H-MAS NMR.
Results
Solubilization of CB2 from E. coli Membranes

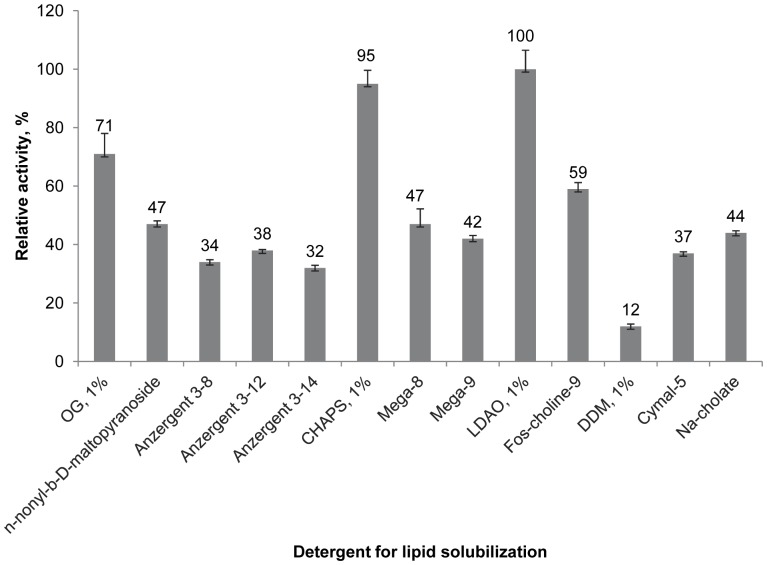

The efficiency of 40 non-ionic and zwitterionic detergents for solubilization of the fusion CB2-130 [20] from E. coli membranes was tested. Solubilization efficiency was analyzed by semi-quantitative Western blotting and results are summarized in Table S1. The data confirm that n-dodecyl-ß-D-maltopyranoside (DDM) in (1%) and 3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonate (CHAPS) (0.5%) with and without supplementation with 0.1% CHS as used earlier [5], [20] are most efficient in solubilizing CB2. Since this particular combination of detergents was also effective in preservation of functional activity, it was used, unless otherwise noted in all subsequent experiments for extraction of the fusion CB2 from membranes.
Optimization of Conditions for Functional Reconstitution
For functional studies not just differences in relative protein activity matter, but also the lipid/protein ratio, the homogeneity of proteoliposome fraction, and residual detergent content. These data have been reported in our previous paper [19]. For reconstitution of CB2, significant quantities of detergents need to be added to achieve the desired lipid/protein molar ratio in the range of 1∶100–1,000. CB2 was introduced into the reconstitution procedure at a concentration of 1–2 mg/mL n in buffer containing CHAPS, DDM and CHS. We examined effects of added detergents, octyl-β-D-glucopyranoside (OG), n-nonyl-β-D-maltopyranoside, n-octyl-N,N-dimethyl-3-ammonio-1-propanesulfonate/N,N-Dimethyl-N-(3-sulfopropyl)-1-octaminium hydroxide (Anzergent 3–8), Anzergent 3–12 and Anzergent 3–14), CHAPS, lauryldimethylamine-oxide (LDAO), octanoyl-N-methylglucamide (Mega 8) and nonanoyl-N-methylglucamide (Mega 9), n-nonylphosphocholine (Fos-choline 9), DDM, 5-cyclohexyl-1-pentyl-β-D-maltoside (Cymal-5) and Na-cholate (see Fig. 2). Reconstitution was performed by chromatography on detergent-absorbing resin.
A typical reconstitution procedure for 100 µg of CB2 on a 1.5 ml ExtractiGel column recovered 75–80% of receptor in the form of proteoliposomes. The particles were unilamellar with a mean diameter of about 120–200 nm, while the protein-to-lipid ratio typically varied between 1∶500 and 1∶600, and the content of residual detergents was ≤1 mol% as described earlier [19].
Briefly, the receptor was purified by affinity chromatography as described [20], eluted from the StrepTactin column in a “triple detergent” (TD) buffer in the final step of chromatographic purification and concentrated on a mini-spin concentrating device. This typically resulted in an increase of the protein concentration to ∼1.5–2 mg/mL accompanied by an increase in concentrations of detergents and CHS: CHAPS - to 2.5% w/v, DDM – to 0.5% w/v, CHS - to 0.5% w/v.
The optimization was performed as follows. The CB2 in a DDM:CHAPS:CHS detergent solution was mixed with lipids 1-palmitoyl–2-oleoyl-sn-glycero-3-phosphocholine (POPC) and 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-L-serine (POPS) (4∶1, mol/mol) dissolved in the dominant detergent to be tested. The reconstitution was performed by passing the mixture through the column of ExtractiGel resin as described, and the functional activity of CB2 was determined by the G protein activation assay as described in Materials and Methods. As shown in Fig. 2, the yield of the functional receptor was the highest when either CHAPS (0.5–1% (w/v)) or LDAO (0.5–1%) was the dominant detergent. Therefore, in all subsequent reconstitution experiments one of these detergents was used for preparation of the mixed micelles.
Functional Activity of CB2
G protein activation assay
Structural integrity of the recombinant CB2 was assessed by measuring its functional activity by in vitro G protein activation [5], [20] and (for several select samples) by 2H- ligand-binding by solid-state NMR [19].
The rates of G protein activation can be significantly affected by a variety of conditions including ions, detergents, physical properties and chemical composition of proteoliposome particles, topology of the receptor in the bilayers, just to name a few. Therefore, the experiments were designed to normalize for possible effects from such influences. Furthermore, in addition to the G protein activation test, the 2H- ligand-binding assay was performed on several selected samples to relate the measured fraction of ligand binding-competent receptor to the G protein activation data.

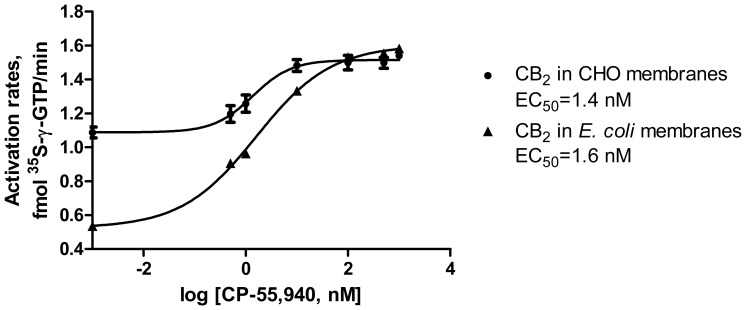

The E. coli membranes expressing CB2-130 [20], devoid of endogenous G proteins, were used as a reference standard (see Materials and Methods). Since the presence of expression partners on the recombinant fusion CB2-130 may affect the activation rates of G proteins, we compared the performance of the fusion CB2 expressed in E. coli with activity of a membrane preparation of the native receptor expressed in CHO cells. The EC50 for the agonist CP-55,940 was ∼1.3 nM, identical for both membrane preparations, suggesting that the presence of the MBP- and polyhistidine tags in CB2-130 did not significantly affect the activation of the receptor and its interaction with G proteins (Fig. 3). Furthermore, the removal of fusion partners by treatment with the TEV protease did not alter the activation rates of G proteins on CB2 in membranes (results not shown).
Effect of Residual Detergents on Activation of G Proteins
A series of co- and post-translational modification (myristoylation, palmitoylation) of heterotrimeric G proteins increases their hydrophobicity and facilitates interaction with membrane-localized GPCRs [31], [32]. To ensure an adequate solubility of several subtypes of G proteins, use of low concentrations of nonionic detergents is advisable [33]. On the other hand, detergents may affect interaction between G proteins and the receptor and influence the rate of GDP to GTP exchange [34], [35], [36]. The detergent-dependent inhibition of the G protein activation in CB2 membranes was assessed in the following experiments.
As is shown in Fig. S1, components of the TD buffer, at concentrations of 0.5% w/v (CHAPS) and 0.1% (DDM), respectively, completely inhibit the nucleotide exchange on Gαi1. Ten-fold dilution of these detergents (0.05% CHAPS and 0.01% DDM) resulted in only slight (∼10%) inhibition, and lower concentration (0.005% CHAPS and 0.001% DDM) did not have any inhibitory effect.
The reaction appears to be somewhat more tolerant to the presence of octyl glycoside (OG): at concentrations of 0.05% or lower this detergent did not exhibit any negative effects. On the other hand, LDAO at the concentration 0.05% inhibited the reaction completely, and at 0.02% - by 20%. Therefore, the content of detergents in proteoliposome preparations was routinely analyzed to ensure that they were present at non-inhibitory levels. Typically, the reconstitution of CB2 on an absorbing resin reduces the concentration of residual detergents to below 1 mol % of lipids [19]. Furthermore, at least two dilutions of proteoliposomes were tested to determine the specific activity of the receptor, to account for possible inhibitory effects of impurities introduced with the proteoliposomes.
The above results were taken into consideration when assessing stabilizing the effects of detergents, ligand and lipids by measuring activation of G protein by CB2 reconstituted into proteoliposomes.
Stabilization of CB2 in Micelles
The structural stability of CB2 was assessed by measuring the rates of G protein activation upon reconstitution of the receptor into proteoliposomes as described in Materials and Methods. To study the effects of stabilizing additives (CHS, lipids and ligands) these compounds were introduced at various stages of the expression and purification procedure as indicated in the text.
Stabilization by CHS
The stabilization of recombinant GPCRs in micelles by cholesteryl hemisuccinate (CHS) has been described previously [5], [7], [12], [37], [38]. As we reported earlier, CHS was added at 0.1% (w/v) to buffers used for solubilization and chromatographic purification of CB2 [6], [20]. The reconstitution of CB2 from the mixed DDM/CHAPS/CHS micelles reduces the content of detergents to below detection levels (≤1 mol%), while CHS is almost quantitatively inserted into lipid bilayers. At a protein-to-lipid ratio of ∼1∶500 the content of CHS in proteoliposomes can reach 25% (mol) of total lipids [19]. Thus, to study CB2 in lipid bilayers of defined composition it is essential to control the content of CHS in mixed micelles prior to reconstitution.
To test the effect of CHS on stability of CB2 in micelles, the biomass of E. coli expressing fusion CB2-130 was divided into two equal portions, and the recombinant protein solubilized and purified in buffers either with or without added 0.1% (w/v) CHS. Upon completion of the chromatographic purification (duration ∼ 48 hours) and proteolytic removal of fusion partners, the CB2 purified in the presence of CHS was mixed with lipids POPC:POPS (4∶1), and reconstituted into proteoliposomes as described in Materials and Methods. The protein sample purified in the absence of CHS was mixed with POPC:POPS:CHS (56∶14:30 w/w/w), and reconstituted using the column-absorbent procedure, such that the content of CHS, POPC and POPS in the proteoliposome preparations of proteins isolated either with or without CHS was essentially identical. Therefore, the equalized lipid composition of proteoliposomes simplified the subsequent analysis of the differences in activation rates of G proteins between these two samples, and highlighted the contribution of CHS to stabilization of CB2 in micellar state.
The CB2 isolated in the presence of CHS exhibited a robust activation of G proteins upon treatment with the high affinity agonist CP-55,940 (specific rates were 8 times higher than the background rates from spontaneous nucleotide exchange on Gαi1). At the same time, the receptor purified in the absence of CHS did not show any measurable activity (Fig. S2). Since both proteoliposome preparations were of identical lipid composition and protein-to-lipid ratio, these results suggest that CHS is critical to maintain the functional structure of CB2 in detergent micelles.
We further optimized the concentration of CHS required for efficient stabilization. The receptor was purified in a buffer containing 0.1% CHS, immobilized onto the Ni-NTA resin via the C-terminal poly-histidine tag, and the buffer was replaced with a new one, containing CHS in concentrations ranging from 0 to 0.2% (w/v). The receptor was then eluted from the resin, supplemented with a mixture of lipids POPC:POPS (4∶1 mol/mol) and reconstituted into proteoliposomes as described in Materials and Methods. The entire procedure of detergent exchange and reconstitution into liposomes took ∼3 hours.

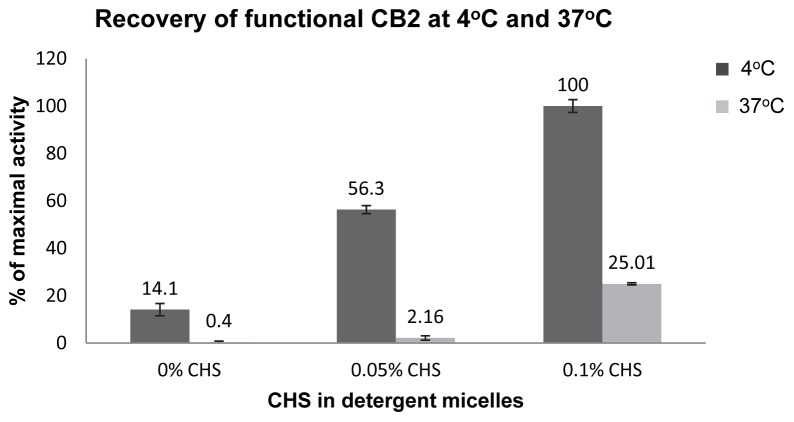

Even a relatively short exposure to detergent micelles without CHS severely destabilizes CB2, and only a small fraction of the receptor remained active after 3 hours of incubation at 4°C at these conditions (Fig. 4). The addition of 0.03% (w/v) CHS protected ≥40% of functional receptor, and 0.1% CHS resulted in the maximal level of functional activity although higher concentration of CHS (0.2% w/v) did not aid the recovery of active CB2 any further.

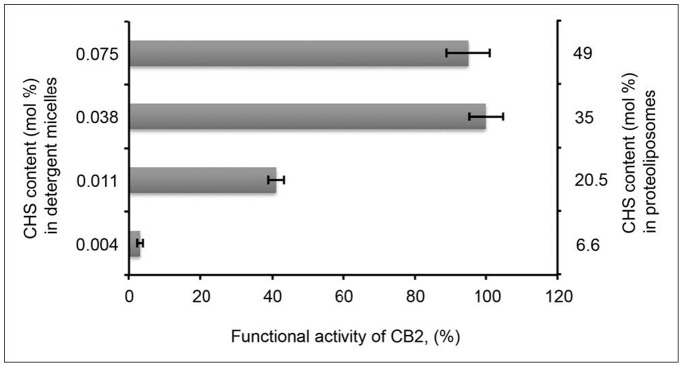

However, the proteoliposomes contained different amounts of CHS, ranging from 0 to 50 mol % of total lipid content, depending on the content of CHS in protein preparation used for the reconstitution (Fig 4). Therefore, the observed differences in activation of G proteins could also be attributed to differences in the properties of the lipid matrix of these proteoliposomes, in particular, a different content of CHS that carries a negative charge at physiological pH [19].
Discerning stabilizing and activating effects of CHS
The lipids with the negatively charged head group enhance the activation of G proteins by agonist-bound CB2, and the content of ∼50–60 mol % of anionic lipids correlates with the maximal levels of activation; note that proteoliposomes contained ∼25 mol% of CHS to assure the functional integrity of the protein [19]. Thus, in order to correctly interpret the results of G protein activation in CHS-containing proteoliposomes, it is necessary to distinguish between the contribution of CHS to stabilization of CB2 in micelles and its activating effect on the receptor reconstituted into liposomes.
The experimental strategy was essentially the same as outlined in Fig 1,B. The receptor was incubated for 30 min at either 4°C or 37°C in buffers containing different amounts of CHS. Upon incubation, samples were mixed with supplemental lipids to equalize the composition of lipids to POPC:POPS:CHS (50∶25:25 w/w/w). Proteoliposomes were then formed, and the activity of CB2 analyzed (Fig. 5). The duration of exposure of protein samples to detergent buffers was 2 hours.
The supplementation of micelles with 0.1% CHS resulted in the highest activity of CB2 at 4°C while in buffers without CHS only ∼ 14% of activity was recovered. Incubation at 37°C led to a much more rapid decline of activity: ∼75% of the functional receptor was lost at 0.1% of CHS, and in the absence of CHS the activity was almost entirely lost. Importantly, possible structural perturbations of CB2 in detergent micelles without CHS appear to be irreversible since the addition of CHS to CB2/DDM/CHAPS micelles just prior to reconstitution of the protein into proteoliposomes did not restore activity.
Thus the TD buffer supplemented with 0.1% CHS can protect a significant fraction of the functional CB2 at 4°C for 2–3 days required to complete the chromatographic purification. Typically, the specific activity of CB2 purified in the presence of DDM/CHAPS/CHS and reconstituted into proteoliposomes is ∼30–35% of that of the fusion CB2-130 in E. coli membranes (Fig. S2). The radioligand binding assay performed on the same proteoliposome preparations confirms this and estimates the content of ligand binding-competent receptor at 30–40% [20]. A more prolonged exposure to detergents leads to a gradual decline in activity, and additionally >25% of functional receptor can be lost after one week of incubation in DDM/CHAPS/CHS micelles. These results strongly suggest that an additional stabilization of the receptor in micelles is needed for recovery of fully functional CB2.
Stabilization by Ligands
Effects of cannabinoid ligands on stability of CB2 in micelles
Since the high affinity ligands have been reported to enhance the stability of several recombinant GPCRs in micelles [10], [39], we studied the effect of cannabinoid ligands on the stability of CB2. We first examined the effect of the high affinity agonist CP-55,940 (Kd∼1.5 nM). The biomass of E. coli expressing CB2-130 was divided into two equal portions, and the receptor was solubilized and purified in buffers either with or without addition of 10 µM CP-55,940. Purified proteins were then reconstituted into the lipid matrix and the activity analyzed (Fig. 6). The receptor isolated in the presence of CP-55,940 exhibited significantly higher specific rates of activation compared to the protein isolated without ligand, suggesting efficient stabilization by this ligand in micelles.

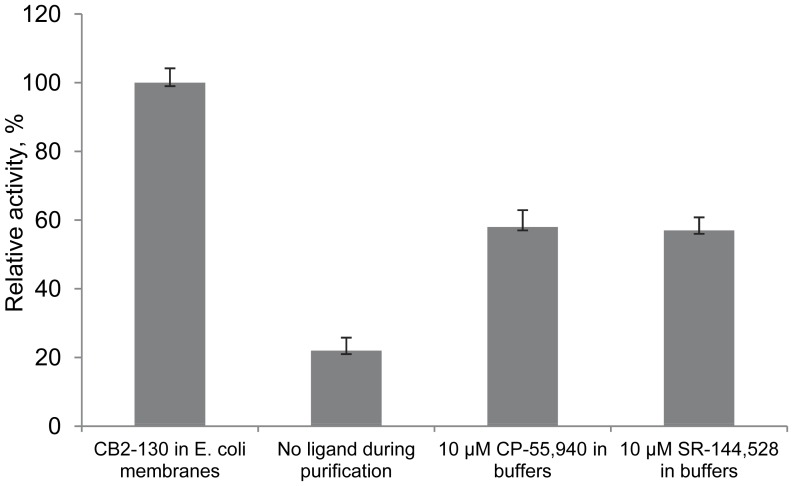

The stabilizing effect of yet another high affinity cannabinoid ligand, an inverse agonist SR-144,528 was examined in a similar experiment, with some modifications. In this case the fraction of functional receptor could not be accessed directly by measuring the activation rates of G proteins in the presence of an inverse agonist. Moreover, the exchange of the agonist for the inverse agonist in liposomes is inefficient due to the high lipophilicity of both ligands. Therefore, the SR-144,528 used for stabilization of CB2 in the course of purification was replaced with CP-55,940 shortly prior to reconstitution of the receptor into proteoliposomes, as described in Materials and Methods.
The activity of CB2 purified either in the presence of SR-144,528 or CP-55,940 was equally high, while the protein purified without any ligand was much less active (Fig. 6). These results suggest that both these high affinity ligands are efficient in stabilizing the functional CB2 in micelles. At the same time, the low affinity- endogenous agonist 2-arachidonoylglycerol (2-AG) (Kd ∼1 µM) was a much weaker stabilizer, and only a small fraction of the receptor isolated in the presence of 10 µM 2-AG remained functional (results not shown).
To test whether the relative content of protein and the high affinity ligand influences stability of CB2 in mixed DDM/CHAPS/CHS micelles, the receptor was purified in the presence of an estimated 10-fold excess of CP-55,940 and transferred to a new buffer containing different concentrations of CP-55,940 as described in the Materials and Methods. After an overnight incubation at 4°C, each protein sample was split into two equal aliquots and incubated for additional 30 min at either 4°C or 37°C. The concentrations of ligand were then adjusted in all samples to 30 µM and the activity analyzed upon reconstitution of CB2 into the lipid matrix.

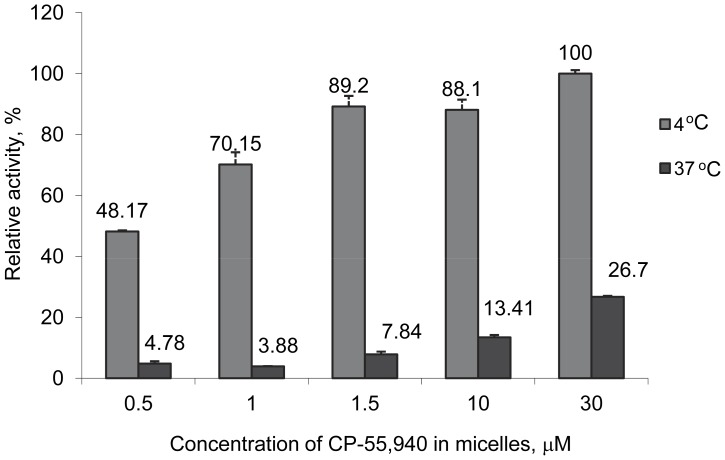

The incubation of 1 µM CB2 with CP-55,940 at a protein-to-ligand molar ratio of 0.5 resulted in ∼ 50% loss of functional protein while the concentration of the ligand of 1 µM (molar ratio protein to ligand 1∶1) preserved ≥70% of receptor in a functional form (Fig. 7). An 1.5-fold or higher excess of CP-55,940 was sufficient to fully recover CB2 function at 4°C. However, even a short (30 min) exposure to lower (0.5 µM) ligand content at 37°C inactivated about 96% of the receptor in micelles. At this elevated temperature, increasing concentration of the ligand resulted in a progressively higher recovery of functional CB2, and a 30-fold molar excess of CP-55,940 protected as much as ∼27% of the receptor.
Stabilization of CB2 during Expression in E. coli Cells
Having established an efficient stabilization of CB2 in micelles by CP-55,940 and SR-144,528, we tested whether these high affinity ligands would also aid stability of CB2 during its expression in E. coli (Fig. S3). The addition of CP-55,940 to the growth medium results in slightly elevated levels of expression (as judged by Western blotting) and a proportional increase in rates of G protein activation. Moderately beneficial effects on expression were also observed with the high affinity agonist, WIN-55,212-2 and inverse agonist SR-144,528, while no effect was detected with the weak agonist 2-AG. These results suggest that high affinity cannabinoid ligands exert a stabilizing effect on CB2 during expression.
An efficient ligand-stabilization of CB2 in E. coli membranes may, in turn, contribute to higher yield of functional, purified receptor. This was tested by supplementing the growth medium and all buffers for chromatographic purification of CB2 with CP-55,940. Indeed, the receptor expressed and purified in the presence of CP-55,940 exhibited higher rates of G protein activation compared to the protein expressed in medium without CP-55,940 (Fig. 8, A), indicating a significant contribution of ligand-stabilization of fusion CB2 in E. coli membranes to overall recovery of functional purified receptor. Therefore, the maximal yield of purified, functionally active CB2 can be achieved through stabilization with the high affinity ligand in bacterial membranes, prior to solubilization of the receptor in detergent micelles. It is practical to synchronize the addition of up to 2.5 µM of stabilizing ligand with the induction of recombinant receptor expression.
Functional activity of stabilized CB2 reconstituted into lipid bilayers
The lipophilic CP-55,940 is almost quantitatively incorporated into liposomes upon reconstitution of purified CB2 from protein-detergent micelles, resulting in ∼2–2.5 molar excess of ligand over the receptor in CB2-proteoliposomes as determined by LC-MS (W. Teague et al, unpublished observations). Once in lipid bilayers, hydrophobic ligands cannot be easily removed or replaced which complicates studies of their pharmacological properties on proteoliposome-reconstituted CB2.

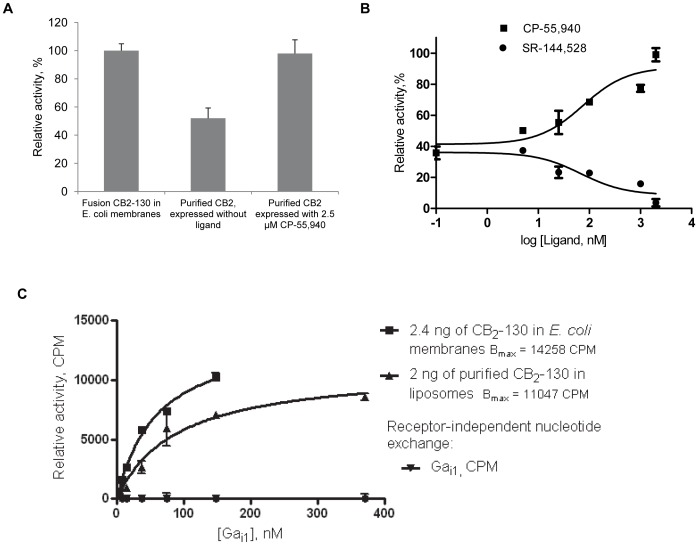

We examined the functional activity of CB2 obtained by expression in E. coli in the presence of 2.5 µM CP-55,940, stabilized with 0.1% CHS and 10 µM CP-55,940 in DDM/CHAPS micelles during chromatographic purification and reconstituted into POPC/POPS/CHS proteoliposomes. The presence of an estimated ∼2-fold excess of an agonist over the receptor ensures partial activation of CB2 in these liposomes. Treatment with progressively increasing concentrations of CP-55,940 resulted in further >2-fold increase in the rates of activation reaching maximum at ∼100-fold molar excess of ligand (Fig. 8 B). Conversely, treatment with increasing concentrations of the competing inverse agonist SR-144,528 results in a decrease in activation rates demonstrating that the purified receptor can be “cycled” between its inactive (inverse agonist-bound) and active (full agonist-bound) states in lipid bilayers.
We further performed Gαi1 saturation binding experiments of CB2-catalyzed nucleotide exchange (Fig. 8, C). The CB2 (1 nM) reconstituted into proteoliposomes was incubated in the presence of CP-55,940 (2 µM) and β1γ2 subunits of G proteins (500 nM), and titrated with increasing concentrations of purified Gαi1. The accumulation of the Gαi1 bound to the non-hydrolizable 35S-γ-GTP progressively increased with the increase in Gαi1 reaching saturation at ∼150 nM of the Gαi1 subunit. The KM for the Gαi1 calculated using a one-site binding equation was ∼90+/−12 nM. A reasonably close value (KM = 61+/−9 nM) was obtained for the fusion CB2-130 receptor in E. coli membranes (Fig. 8C). Since all components in this assay were provided in a large excess compared to the content of the receptor, the calculated Bmax value for the Gαi1 subunit is proportional to the fraction of functional CB2 available for interaction with cognate G proteins. The specific rates of nucleotide exchange were almost identical between these two samples (the calculated Bmax value for CB2 in E. coli membranes was∼5940 CPM/ng CB2 and for purified CB2 in liposomes - 5523 CPM/ng CB2, where CPM is proportional to the amount of radiolabel retained by the Gαi1 subunit).
In summary, the optimized conditions for stabilization of CB2 with high affinity ligands in the course of its expression in E. coli and during chromatographic purification in CHS/DDM/CHAPS detergent micelles results in fully functional purified and reconstituted receptor.
Stabilization by Phospholipids
It has been reported that stability in detergent micelles of several recombinant GPCRs, including β2 adrenergic and rat neurotensin receptor can be aided by phospholipids [40], [41]. We, therefore, tested several phospholipids as possible stabilizers for CB2 in micelles, with the goal to better control the composition of the lipid matrix of CB2-proteoliposomes. The lipids were selected based on their ability to form a mostly fluid phase (in mixtures with POPC), good solubility in detergents, as well as difference in charge of their head group at experimental conditions. POPC, a zwitterionic lipid that is found in plasma membranes at significant concentrations was used as a base lipid, and was supplemented (typically up to 50 mol%) with another lipid whose effects on functional CB2 recovery was investigated, namely: POPS, 1-palmitoyl–2-oleoyl-sn-glycero-3-phospho-(1'-rac-glycerol) (POPG), 1,2-dioleoyl-sn-glycero-3-phospho-L-serine (DOPS), 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC), 1-stearoyl-2-oleoyl-sn-glycero-3-phosphocholine (SOPC) and cardiolipin (Table S2). Since the replacement of CHS in micelles can be performed within ∼2 hours, for practical reasons the effects of phospholipids were tested by incubating CB2 for 2 hours in DDM/CHAPS micelles supplemented with either POPC alone or a mixture of lipids.
The replacement of lipids, temperature treatment, addition of supplementing lipids, and reconstitution were performed essentially as outlined in Fig. 1,B and described in Materials and Methods. It should be noted that G protein activation rates depend not only on the functional integrity of GPCR but also on lipid composition [19], [42], [43]. Therefore, the differences in G protein activation rates presented in Fig. 9, A (light-shaded bars) do not necessarily report survival rates of CB2 in the micellar phase in the presence of different lipids but rather a combined effect of these lipids on protein survival, reconstitution and G protein activation. However, we can directly compare the effect of lipids on protein survival by adjusting the lipid composition just prior to reconstitution.
A second set of samples was tested by raising temperature in the micellar state to 37°C for 30 min before reconstitution followed by measurements of G protein activation (Fig. 9, dark-shaded bars) to probe for a decline of activation rates under a controlled challenge. Receptor stabilized with CHS in micelles (content of lipids POPC/CHS: 75∶25 mol% in liposomes) was used as an activity standard in both sets of samples.

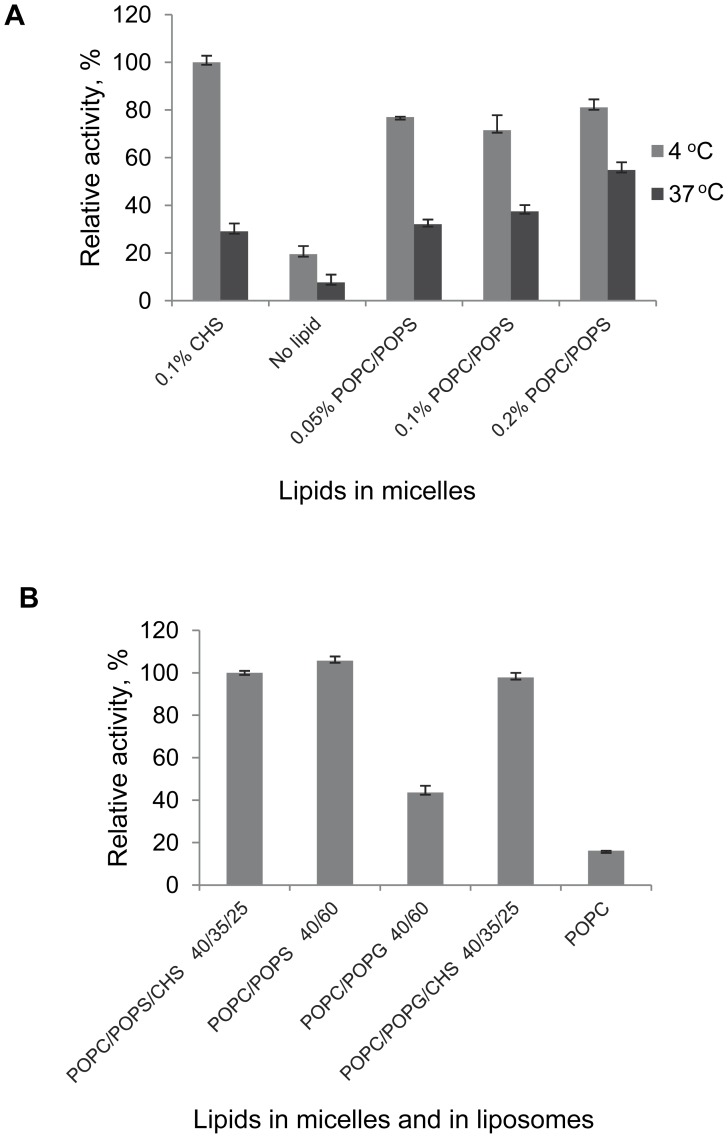

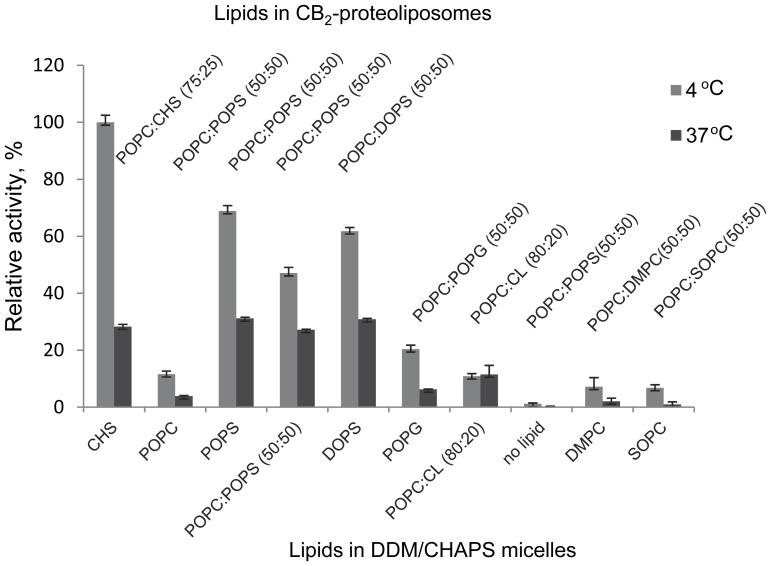

The effects of lipids with 16∶0–18∶1 acyl chain, namely: POPC, POPS and POPG, were first studied. The functional activity of CB2 recovered after a 2-hour incubation at 4°C in DDM/CHAPS micelles supplemented with 0.1% POPC was about one order of magnitude lower than that of the receptor incubated in the presence of CHS. Considering that ∼50% of negatively charged lipids in proteoliposomes are likely to produce the highest rates of G protein activation by CB2 [19], the protein incubated in the presence of POPC was supplemented with POPS just prior to the reconstitution, such that the lipid content of these proteoliposomes became: POPC:POPS (50∶50). However, on average the rates of G protein activation by receptor isolated from CHAPS/DDM/POPC micelles were less than 10–15% of that of the receptor stabilized by CHS suggesting poor recovery of functional protein from POPC-containing micelles. These results were further supported by 2H-CP-55,940 NMR ligand binding studies that indicated very poor ligand binding on a POPC-stabilized receptor. CHS also performed much better at 37°C: as much as 28.3% of activity was recovered from the CHS/DDM/CHAPS micelles compared to 3.9% from POPC/DDM/CHAPS micelles.
A comparison of POPC and POPS indicates that presence of POPS in the micellar phase yields reconstituted CB2 capable of activating G proteins at much higher rates both at 4°C and 37°C. A mixture of POPC/POPS (50∶50 w/w) was almost as efficient as the POPS alone. The estimates, by G protein activation rates, of the recovery of functional protein from POPC:POPS micelles were further supported by the 2H-CP-55,940 NMR ligand binding studies that demonstrate a very high recovery of ligand binding-competent receptor at these conditions. Interestingly, while the functional activity of CB2 incubated in the presence of CHS was slightly higher than that of POPS at 4°C, there was no significant difference between these two lipids at 37°C. At the same time, the receptor incubated in micelles without any lipid was almost completely inactive.
Since these results suggest that the presence of negatively charged headgroup may contribute to protection of CB2 in micelles, the effects of two other anionic phospholipids POPG and POPS were compared. POPG turned out to be significantly less potent than POPS at 4°C in activating G protein, and an even more significant difference between these two lipids was observed at 37°C. While POPS or mixtures of POPS/POPC (50∶50) were as effective as CHS at 37°C, G protein activation rates from reconstituted CB2 in POPG-micelles were approximately 4 times lower.
Cardiolipin (CL) of E. coli, another anionic lipid (that carries two negative charges per molecule), when provided in a binary mixture with POPC (80∶20 w/w) at 4°C did not improve G protein activation by CB2, compared to POPC. However, those low rates did not decline any further with an increase of incubation temperature to 37°C.
Effects of variations in both sn-1 and sn-2 acyl chains on stability of CB2 were examined by testing zwitterionic lipids with choline headgroup: POPC, DMPC and SOPC, whose phase transition temperatures cover a range from −2 to +23°C (Table S2). However, DMPC and SOPC, when introduced into micelles as binary mixtures with POPC (50∶50 w/w) yielded very low G protein activation rates on CB2 (Fig 9, A) and, therefore, were not selected for further work.
The effect of the sn-1 acyl chain of anionic lipids was studied by comparing stabilizing effects of POPS (16∶0–18∶1) and DOPS (18∶1). DOPS yielded only slightly lower G protein activation rates than POPS at 4°C, and was almost equally effective at 37°C (Fig. S4). Since the composition of proteoliposomes used for measurements of the functional recovery of CB2 in this experiment was identical for all samples (POPC:POPS:DOPS, 50∶25:25), the measured G protein activation rates are likely to represent the relative stabilizing effects of POPS and DOPS in micelles rather than their combined effects on stabilization of CB2 in micelles, reconstitution and activation of G proteins. They also suggest the importance of the anionic headgroup for stabilization of CB2 in micelles.
Clearly, not only the type but also the concentration of phospholipids in micelles may contribute to the efficiency of stabilization. This was tested by analyzing the recovery of functional CB2 from DDM/CHAPS micelles supplemented with variable amounts of POPC:POPS (50∶50, w/w). At the concentration of 0.05% these lipids exhibited significant protective effect (Fig. 10, A) while increase in lipid concentrations up to 0.2% w/v did not significantly improve G protein activation at these conditions (2 hours incubation, 4°C). However, at 37°C an increase in the lipid content of micelles correlated with an increase in the recovery of functional protein.
We then tested whether a higher total lipid concentration in micelles combined with a shorter incubation time of CB2 in micelles will further aid the recovery of functional receptor. The purified receptor was incubated in DDM/CHAPS (0.1%/0.5%) micelles containing 0.4% (w/v) of supplementing lipids as indicated in Fig. 10, B, and reconstituted into liposomes within 1 hour of the start of the buffer exchange. In this experiment the reconstitution of CB2 into proteoliposomes was performed by the rapid dilution method, and the lipid matrix (with the exception of POPC-sample) contained 60% of anionic lipids, allowing normalization for the likely effect of negatively charged lipids on G protein activation [19]. The receptor recovered from micelles supplemented with POPC/POPS (40∶60) was as active as CB2 from POPC/POPS/CHS (40∶35:25) micelles, pointing to a significant stabilizing effect of the phospholipid with the serine headgroup. POPG, on the other hand, was significantly less effective than either CHS or POPS, and rates of G protein activation were only 40% of that of POPC/POPS-containing sample.
In summary, the negatively charged lipids in DDM/CHAPS micelles exert a stabilizing effect on CB2, with CHS being the most efficient followed by POPS, DOPS, and significantly lower effects from POPG, and cardiolipin (in this order). Among anionic phospholipids tested, stabilization with lipids containing the serine headgroup appears to be the most efficient. Uncharged phospholipids: POPC, SOPC, DMPC and 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE), were least effective.
Ligand Binding to CB2 by Solid-state NMR
The G protein activation assay provides a relative measure of the functional activity of the receptor. The ligand binding, on the other hand, is a more direct way to quantify the content of functional CB2. Since these two functional tests assess somewhat different features of the receptor, it is advantageous to ascertain whether the estimates of the content of functional CB2 provided by these methods agree. Since the CB2 has to be stabilized with the high affinity ligand, it is technically challenging to perform the radioligand binding assay either in micelles or on purified CB2 reconstituted into liposomes. Therefore, the ligand binding was performed using an 2H-labeled agonist, CP-55,940-d 6, in 2H MAS NMR experiments as described elsewhere in detail [19]. The assay requires significant quantities of 2H-labeled ligand and a large amount of purified receptor and, therefore, was performed only on a few select samples.
1H-CP-55,940 used for stabilization of CB2 during expression and purification was displaced by the CP-55,940-d 6 as described in Materials and Methods, and the labeled ligand was partially competed off the binding pocket of the receptor by the 10-fold molar excess of unlabeled CP-55,940. Upon introduction of the unlabeled ligand, the fraction of the unbound CP-55,940-d 6 increased, and the intensity of 2H signal increased accordingly (Fig. S5, A). When purified in the presence of 0.1% CHS and 10 µM CP-55,940≥90% of the receptor maintained the ligand binding ability. In contrast, when CB2 was reconstituted from micelles in which CHS was replaced with POPC, the 2H signal of CP-55,940-d6 showed virtually no change upon introduction of the excess of unlabeled CP-55,940 (Fig. S5, B) confirming poor stabilizing effect of POPC, as observed by the G protein activation studies.
The competition ligand-binding on CB2 stabilized in the presence of POPC:POPS (40∶60, w/w) demonstrated that as much as ∼82% of the receptor retained ligand binding competence upon reconstitution into proteoliposomes (Fig. S6). This result correlates well with estimates, by the G protein activation assay, of the fraction of functional CB2 stabilized with a mixture of POPC and POPS 40∶60 (Fig. 10, B). Therefore, POPS appears to be only slightly less efficient for stabilization of CB2 compared to CHS, while POPC is a much weaker stabilizer.
Stability of CB2 in Lipid Bilayers
Lipid bilayers stabilize GPCRs better than the detergent micelles [7], and a reconstitution into liposomes is an efficient way of protecting the purified, functional receptor. To examine stability of CB2 in lipid bilayers, the CB2 in proteoliposomes (POPC:POPS:CHS, 60∶15:25, w/w/w) matrix were stored at +4°C and –80°C for several weeks, samples withdrawn periodically, and activity analyzed. The receptor is very stable at -80°C displaying constant activity over a period of several weeks (Fig. S7). When incubated at 4°C, CB2 lost ∼7.5% of activity after 1 week, and another 10–12% - after two weeks of storage. However, there could have been an underestimation of receptor activity because multilamellarity of proteoliposomes may have increased during the prolonged storage.
Temperature stability

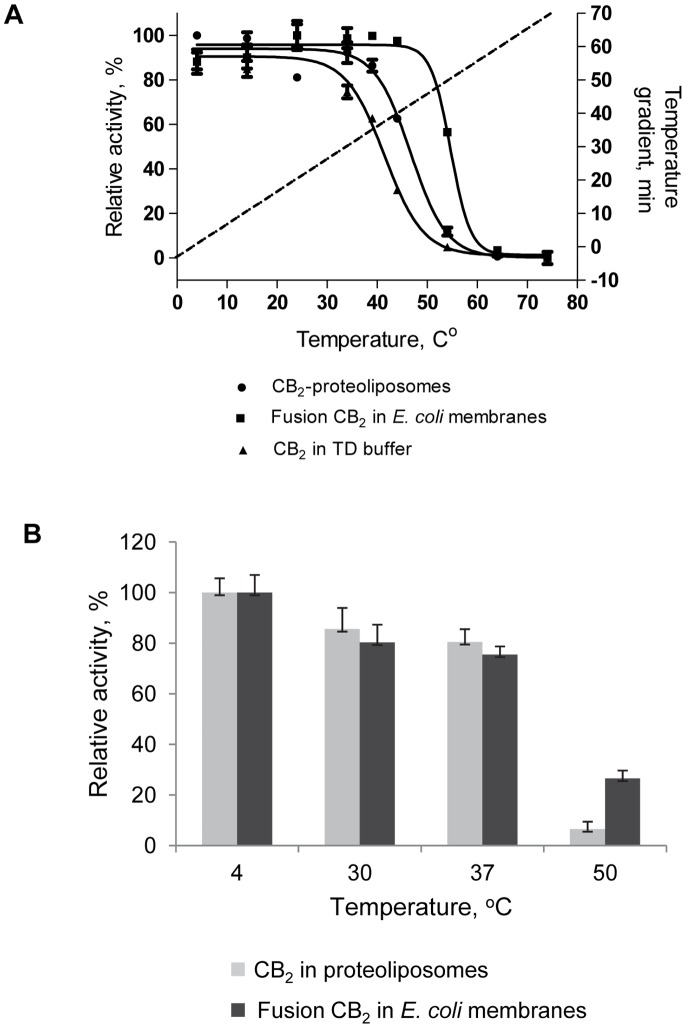

The stability of CB2 in lipid bilayers was assessed at increasing temperatures. While the thermal denaturation of proteins can be studied with biophysical techniques that measure changes in secondary and tertiary structure upon temperature treatment, it is not known at present which structural features of CB2 can be regarded as truly representative of its “functional fold”. In this respect, measurement of receptor function is much more relevant for characterizing stability.
The experiment was performed in two different formats. First, the purified CB2 reconstituted into proteoliposomes consisting of POPC/POPS/CHS (60∶15:25) was heated from 4°C to 74°C at a rate of 1°C/min, samples withdrawn at indicated time points and analyzed by the G protein activation assay (Fig. 11, A). Under these conditions, 50% of CB2 loses its ability to activate G proteins at a temperature (T50) of 46.7+/−1.9°C. For comparison, the purified CB2 in TD micelles (0.1%DDM, 0.5% CHAPS, 0.1% CHS) supplemented with 10 µM CP-55,940 was subjected to the same temperature protocol. Samples drawn at indicated intervals were reconstituted into POPC/POPS/CHS liposomes, and their activity analyzed. As expected, the thermal stability of CB2 in micelles was lower, with a loss of 50% of activity at a T50 of 41.5+/−1.5°C. The fusion CB2-130 in E. coli BL21(DE3) membranes subjected to the same temperature treatment is more stable compared to the purified receptor, with a T50 of 54.7+/−2.0°C. These results might suggest a stabilizing effect on CB2 from the MBP fusion partner. However, it needs to be pointed out that the experiments on purified CB2 in proteoliposomes were conducted in POPC/POPS/CHS lipid matrix while experiments on fusion CB2-130 were conducted in E. coli membranes. The differences in lipid composition, protein concentration between artificial bilayers and E. coli membranes as well as the presence of other proteins in E. coli membranes could have played a role.
For practical applications it is important to know the stability of the receptor exposed to different temperatures for a fixed period of time. This was done by keeping CB2-containing proteoliposomes at various temperatures for a period of 30 min with quantification of CB2 activity by measurement of G protein activation (Fig 11, B). While the purified and reconstituted receptor has long-term stability at 4°C, incubation at 30 or 37°C results already in about 10% loss. Higher temperatures were more detrimental; after 30 min treatment at 50°C less than 10% of receptor remained active.
The fusion CB2 protein in E. coli membranes exhibited a similar response to treatment at 30°C or 37°C with only a slight decline of activity. But in difference to CB2, the fusion-CB2 appears to be more stable at 50°C with about 30% of the protein remaining functional after 30 min (Fig. 11, B).
To summarize, the reconstitution of the purified, detergent-solubilized CB2 into lipid bilayers (liposomes) significantly improves stability of the receptor. Active fold of CB2 in proteoliposomes at +4°C (or lower temperatures) can be maintained for prolonged periods of time, necessary to study the structure and function of this protein in artificial bilayers by a range of biophysical methods.
Discussion
By screening a large number of nonionic and zwitterionic detergents, we optimized conditions for solubilization of CB2 from E. coli, and determined that a combination of DDM and CHAPS was the most efficient in solubilizing as well as adequate in preserving the functional fold of the receptor. Furthermore, for the purified CB2, we optimized a reconstitution procedure using either CHAPS or LDAO as dominant detergents, and demonstrated that the fully functional receptor was incorporated with high yield into lipid bilayers.
Our efforts to prepare the fully functional recombinant CB2 focused on the stabilization of receptor in detergent micelles. Summary of stabilization conditions are presented in Tables 1, 2, 3 and 4. The CHS was found to be the most efficient stabilizer, although this compound is not required for functioning of CB2 in membranes. In fact, CB2 is fully functional in lipid bilayers without CHS although the activation rates may be significantly enhanced by addition of certain negatively charged lipids [19]. While we previously reported the addition of CHS to solubilization and purification buffers for CB2 [5], [20], no systematic study of its stabilizing effect was performed at the time. In particular, it was not clear whether this cholesterol-like compound could be excluded (even for a short period of time) from the detergent buffers without compromising the structural integrity of the receptor. This is of importance since an ability to control the composition of lipid matrix is critical for studies of functioning of CB2 in lipid bilayers.

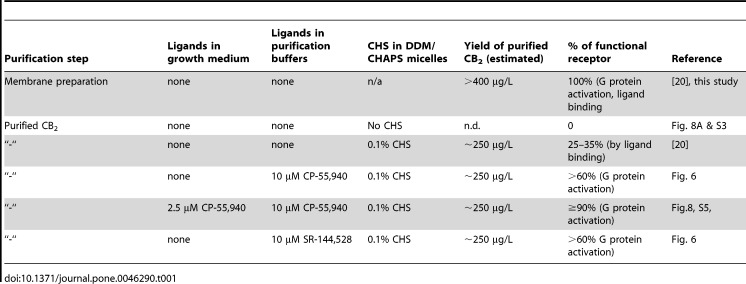

| Purification step | Ligands in growth medium | Ligands in purification buffers | CHS in DDM/CHAPS micelles | Yield of purified CB2 (estimated) | % of functional receptor | Reference |
| Membrane preparation | none | none | n/a | >400 µg/L | 100% (G protein activation, ligand binding | [20], this study |
| Purified CB2 | none | none | No CHS | n.d. | 0 | Fig. 8A & S3 |
| “-“ | none | none | 0.1% CHS | ∼250 µg/L | 25–35% (by ligand binding) | [20] |
| “-“ | none | 10 µM CP-55,940 | 0.1% CHS | ∼250 µg/L | >60% (G protein activation) | Fig. 6 |
| “-“ | 2.5 µM CP-55,940 | 10 µM CP-55,940 | 0.1% CHS | ∼250 µg/L | ≥90% (G protein activation) | Fig.8, S5, |
| “-“ | none | 10 µM SR-144,528 | 0.1% CHS | ∼250 µg/L | >60% G protein activation) | Fig. 6 |

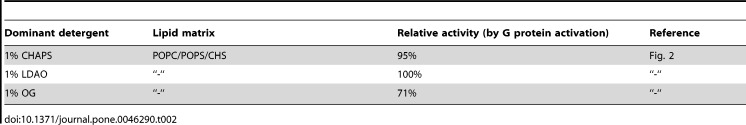

| Dominant detergent | Lipid matrix | Relative activity (by G protein activation) | Reference |
| 1% CHAPS | POPC/POPS/CHS | 95% | Fig. 2 |
| 1% LDAO | “-“ | 100% | “-“ |
| 1% OG | “-“ | 71% | “-“ |

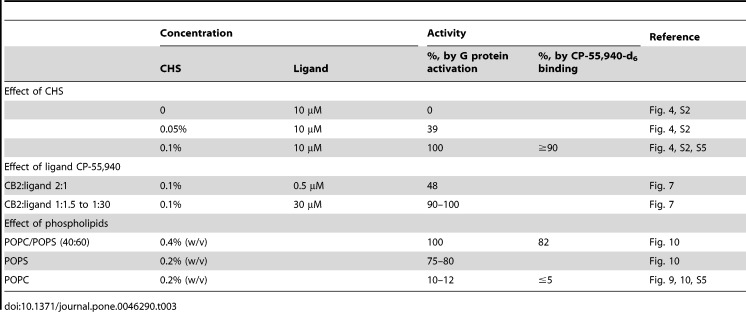

| Concentration | Activity | Reference | |||
| CHS | Ligand | %, by G protein activation | %, by CP-55,940-d6 binding | ||
| Effect of CHS | |||||
| 0 | 10 µM | 0 | Fig. 4, S2 | ||
| 0.05% | 10 µM | 39 | Fig. 4, S2 | ||
| 0.1% | 10 µM | 100 | ≥90 | Fig. 4, S2, S5 | |
| Effect of ligand CP-55,940 | |||||
| CB2:ligand 2∶1 | 0.1% | 0.5 µM | 48 | Fig. 7 | |
| CB2:ligand 1∶1.5 to 1∶30 | 0.1% | 30 µM | 90–100 | Fig. 7 | |
| Effect of phospholipids | |||||
| POPC/POPS (40∶60) | 0.4% (w/v) | 100 | 82 | Fig. 10 | |
| POPS | 0.2% (w/v) | 75–80 | Fig. 10 | ||
| POPC | 0.2% (w/v) | 10–12 | ≤5 | Fig. 9, 10, S5 | |

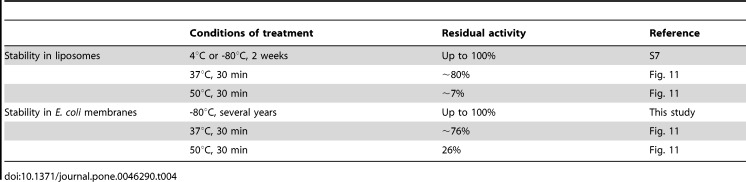

| Conditions of treatment | Residual activity | Reference | |
| Stability in liposomes | 4°C or -80°C, 2 weeks | Up to 100% | S7 |
| 37°C, 30 min | ∼80% | Fig. 11 | |
| 50°C, 30 min | ∼7% | Fig. 11 | |
| Stability in E. coli membranes | -80°C, several years | Up to 100% | This study |
| 37°C, 30 min | ∼76% | Fig. 11 | |
| 50°C, 30 min | 26% | Fig. 11 |
Here we demonstrate that the 0.1% (w/v) concentration of CHS is optimal for stabilization of the functional fold of CB2 in detergent micelles at 4°C. Exclusion of CHS from micelles results in a rapid and irreversible loss of function of CB2.Interestingly, a recently published study on the recombinant human adenosine A2a receptor suggests that almost the same content of CHS (0.11%, w/v) in DDM/CHAPS/CHS micelles was optimal for keeping this protein in a functional, ligand-binding competent form [44]. It was proposed that the size and the shape of CHS-containing micelles plays a major role in stabilization of this GPCR.
However, the presence of CHS in detergent micelles is beneficial but not sufficient to protect the receptor and, on average, no more than 30–40% of CB2 retained functionality after several days of incubation in micelles with CHS. Therefore, we explored additional approaches to stabilization and determined that the high affinity cannabinoid ligands CP-55,940 and SR-144,528 significantly improve the yield of functional CB2, both during its expression in E. coli BL21 cells and upon solubilization in detergent micelles. Taking advantage of a concerted action of CHS and a high affinity ligand the CB2 receptor stabilized in either ground (SR-144,528) or activated (CP-55,940) functional conformations can be prepared. Stabilization by the high affinity ligands was previously reported for other GPCRs including β2 adrenergic receptor [45], CXCR4/δ opioid receptor [46] and others [47].
A slightly higher than equimolar ratio between the CP-55,940 and receptor was required to preserve the functional CB2 in micelles at 4°C. On the other hand, the increased concentration of ligand clearly correlated with the improved stability of CB2 at 37°C, likely due to the change in activation energy and correspondingly higher rates of exchange between the ligand molecules at the binding pocket of CB2 and (free) micelle-solubilized CP-55,940.
Studies of the lipid-CB2 interaction require a precise control over the composition of lipid matrix. This can be achieved by replacing the CHS with yet another stabilizing lipid prior to reconstitution. In this respect, the derivatives of phosphatidylserine were the most efficient for stabilization while other negatively charged at physiological pH lipids (POPG or cardiolipin) did not perform that well. The uncharged lipids, such as POPC, SOPC, DMPC or DOPE were even less effective. These results suggest that the presence of the negatively charged head group may contribute to the stabilization, and that the phospatidylserine moiety seem to be the most effective in this respect. It is intriguing that the negatively charged lipids also exert substantial beneficial effect on activation of CB2 in lipid bilayers [19]. For the limited number of lipids tested there does not seem to be a clear correlation between the structure of acyl chains or the phase transition temperature of a phospholipid and its stabilizing effect in micelles.
The stabilization by synthetic phospholipids has been reported earlier for the β2 adrenergic receptor and the rat neurotensin receptor [40], [41]. Our results demonstrate that not only the type of the phospholipid but also its concentration in micelles affects the stability of CB2. At 4°C the 0.05% (w/v) of lipid was already sufficient to achieve a significant effect, and higher concentrations of phospholipids POPC/POPS (0.4% w/v) were required to recover a fully functional receptor. At a higher temperature (37°C) the stabilizing effect increased almost proportionally with the concentration of lipid.
As expected, the receptor is much more stable upon reconstitution into lipid bilayers, losing only a small fraction of activity upon storage for several weeks at 4°C. These results are of importance since many biophysical studies requiring long acquisition times can be performed on a functional receptor in liposome. We demonstrate higher temperature stability of fusion CB2 in E. coli membranes compared to that of the purified CB2 in artificial lipid bilayers which may be indicative of certain stabilizing properties of MBP fusion partner and/or differential effects of lipid/protein composition of the membrane. Experiments are underway to assess the stability of CB2 in bilayers of various lipid compositions.
In summary, we report insights into efficient stabilization of the cannabinoid receptor CB2 in detergent micelles and in lipid bilayers that may prove instrumental for studies of structure-function relationship of this pharmacologically important GPCR. We believe that our experimental strategy for assessing functional structure and stability that relies on measuring G protein activation by the purified receptor reconstituted into liposomes may be applicable to other recombinant GPCRs, especially to those that interact with highly hydrophobic ligands and thus are not readily amenable for conventional ligand binding assays.
Materials and Methods
Chemicals and Reagents
CP-55,940 was purchased from Tocris Cookson Inc. (Ellisville, MO). Labeled CP-55,940-d6 was synthesized and generously provided by Drs. Kejun Cheng and Kenner C. Rice (NIH). The CB2 antagonist SR-144,528 was obtained from the National Institute on Drug Abuse (Research Triangle, NC). The HisProbe-HRP kit for detection of polyhistidine fusion proteins was obtained from Thermo Scientific (Rockford, IL), the Ni–NTA resin from Qiagen (Valencia, CA), and the StrepTactin Macroprep resin from EMD-Novagen (Gibbstown, NJ). The antibodies against CB2 were purchased from Cayman Chemicals (Ann Arbor, MI). Cholesteryl hemisuccinate Tris salt (CHS), the detergents 3[(cholamidopropyl) dimethylammonio]-1-propanesulfonate (CHAPS) and n-dodecyl-β-D-maltoside (DDM) were obtained from Anatrace (Maumee, OH). N-Octyl-β-D-glucopyranoside (OG) was purchased from EMD-Calbiochem (San Diego, CA). N,N-Dimethyldodecylamine N-oxide (LDAO) was purchased from Sigma (St. Louis, MO). The lipids 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) and 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoserine (POPS) were obtained from Avanti Polar Lipids, Inc. (Alabaster, AL). ExtractiGel D Detergent Removing Gel was purchased from Thermo Scientific (Rockford, IL). SM2 Biobeads were procured from EMD-Calbiochem (San Diego, CA). DilC18 and Alexa Fluor 532 were purchased from Invitrogen, Inc. (Carlsbad, CA). β-methyl cyclodextrin was purchased from Sigma (St. Louis MO).
Membranes expressing CB2 protein in CHO cells were from Perkin Elmer, Waltham, MA.
Expression and Purification of the Recombinant CB2
Expression and purification of CB2 was previously described [5], [20]. CB2-130 was expressed as a fusion with maltose binding protein followed by the TEV protease recognition site at the N-terminus, and a decahistidine tag at the C-terminus, using an expression construct pAY-130. Expression was performed in E. coli strain BL21 (DE3) (EMD Millipore, Billerica, MA). Recombinant CB2 was solubilized in a buffer containing 50 mM Tris pH 7.5, 200 mM NaCl, 30% (v/v) glycerol, and supplemented with 1% (w/v) DDM, 0.5% (w/v) CHAPS and 0.1% (w/v) CHS. Fusion protein was immobilized on a Ni-NTA resin, washed with buffer A (50 mM Tris pH 7.5, 200 mM NaCl, 30% (v/v) glycerol, 0.1% (w/v) DDM, 0.5% (w/v) CHAPS and 0.1% (w/v) CHS) and eluted with buffer B (buffer A supplemented 250 mM imidazole). The fractions containing fusion protein were pooled, dialyzed for 4 hours against buffer C (50 mM Tris pH 7.5, 100 mM NaCl, 15% (v/v) glycerol, 0.1% (w/v) DDM, 0.5% (w/v) CHAPS, 0.1% (w/v) CHS), and the protein was treated with TEV protease (1 mg of protease per10 mg of CB2 fusion, 4°C, 4 hours) to remove the fusion partners. The resulting CB2 was further purified on a hand-packed StrepTactin Macroprep column. After elution with 5 mM desthiobiotin the fractions containing purified CB2 were pooled and concentrated in centrifugal spin concentrators (Orbital Biosciences) to a final protein concentration of 1–2 mg/mL. The concentrated protein solution was divided into aliquots 100 µL, frozen in liquid nitrogen, and stored at −80°C until use.
Preparation of Membranes
Membranes from the E. coli cells expressing recombinant CB2 were prepared according to the previously published protocol [5] and stored at −80°C until use.
Exchange of Detergents, Lipids and Ligands
Typical protocol for exchange of detergents solubilizing CB2 was as follows. 200 µL of Ni-NTA resin (GE Healthcare) equilibrated in buffer A (50 mM Tris-HCl, pH 7.5 supplemented with 30% glycerol, 200 mM NaCl and detergents 0.5% CHAPS, 0.1% CHS and 0.1% DDM) and re-suspended in the same buffer were dispensed into the 1.5 mL Eppendorf tubes equipped with the centrifuge tube filters Spin-X (Costar) and centrifuged at 1200 rpm for 1 min to remove the excess buffer. 200 µL of CB2-130 solution (containing 1% of AlexaFluor 488- labeled CB2) was added to the resin, and columns centrifuged at 1200 rpm for 1 min. The flow-through was collected and re-applied onto the resin two more times, to ensure efficient binding of the His-tagged protein. 200 µL of solution of the replacing detergent buffer in Tris-HCl pH 7.5 supplemented with 30% glycerol and 200 mM NaCl was applied to the resin, and the column centrifuged at 1200 rpm for 1 min. The column was washed with the solution of detergent 5 more times to ensure efficient detergent exchange. Finally, protein was eluted with 4x 200 ml of detergent buffer supplemented with 250 mM imidazole. The elution fractions were combined, and protein concentrated in Ultrafree centrifugal filter tubes (Millipore). The recovery of the protein was determined by measuring fluorescence of the resulting fraction.
Exchange of lipids in detergent micelles was performed as follows. 200 µL of Ni-NTA resin was packed into the 5 mL disposable column, and equilibrated with buffer A supplemented with 10 µM CP-55,940. 200 µg of purified CB2-130 and 2 µg of AlexaFluor 488-labeled CB2-130 were diluted to 400 µL with buffer A containing 10 µM CP-55,940 and passed three times through the column. Then 800 mL x5 of the exchange buffer containing 50 mM Tris pH 7.5, 200 mM NaCl, 10% glycerol, 1% CHAPS, 10-fold molar excess over the protein of CP-55,940 and 4 mg/mL of the lipid mixture were passed through the column. CB2 was eluted from the resin by applying 500 µL of the exchange buffer supplemented with 250 mM imidazole. The yield of the protein and lipids was determined by fluorescence measurements of the trace amounts of the fluorescently labeled CB2 and lipids. Reconstitution was performed by rapidly diluting the eluted protein-lipid-detergent mixture 100-fold into cold PBS.
The exchange of ligands was performed essentially the same way as the exchange of lipids. The protein isolated in the presence of SR-144,528 was immobilized on a Ni-NTA resin and buffer was exchanged to a new one, supplemented with 10 µM of CP-55,940. Elution of CB2 and reconstitution were performed as described above.
Reconstitution of CB2 into Liposomes
Eighty mg of POPC and 20 mg of POPS (2 mL of 10% solution) were added to a siliconized test tube so that the final weight ratio of POPC and POPS was 4∶1. To this mixture, 0.01% (w/w) of fluorescent dye DilC18 was added in a small volume of methanol, and the volume of the mixture was adjusted to 5 mL with methanol. 500 µL of the lipid mixture was transferred into separate test tubes, and the solvent was removed under the stream of nitrogen gas.
Reconstitution from CHAPS- or LDAO-micelles
Reconstitution from 1% CHAPS or 1% LDAO was performed on ExtractiGel detergent removing resin [19]. 3 mL of 50% slurry of ExtractiGel D detergent removing gel was packed into a 5 mL disposable polypropylene column (Thermo Scientific) and equilibrated with 3x5 mL PBS.
4 mL of 1% detergent was added to the test tube containing 10 mg of lipids and mixed well by pipetting up and down so that all the lipids were thoroughly solubilized. 800 µL of the detergent – lipid mixture was transferred into 1.5 mL Eppendorf tube containing 20 µg of the purified CB2 protein in 50 µL and 50 µL of the 1% CHAPS or LDAO, making the total volume of protein – detergent – lipid mixture 900 µL.
300 µL of protein – detergent – lipid mixture was loaded onto a pre-equilibrated ExtractiGel column. Flow-through was discarded, 300 µL of PBS buffer was loaded onto the column, and the eluate was discarded again. Another 1 ml of PBS was loaded on top of the column, and the first 800 µL of the elution fraction containing the liposomes were pooled and concentrated on a 30 kDa membrane filter (Apollo 20 ml concentrator) at 4°C. To this concentrated sample, 1 ml of PBS buffer was added, and sample concentrated to 100 µL. This cycle of diluting with PBS and concentrating 10-fold was repeated four more times.
Smaller preparations of proteoliposomes (typically, 10–20 µg of protein) were obtained on a pre-packed 0.5 ml detergent removal spin columns (Pierce, Rockford, IL).
Preparation of Proteoliposomes for Solid-state NMR
Proteoliposomes for measurements of ligand binding by solid-state NMR were prepared as described elsewhere [19]. Briefly, 400 µg of CB2-130 supplemented with 1 mol % of the Alexa488-labeled CB2 was loaded onto 500 µL of Ni-NTA resin suspended at 50% (v/v) in the TD buffer supplemented with 10.0 µM CP-55,940 and incubated for 2 h at 4°C on a shaker. Upon binding of the receptor to Ni-NTA resin, the exchange of the unlabeled to labeled ligand was performed. After the immobilized receptor was washed on a column with 800 µL ×2 of the TD buffer, the ligand was exchanged by washing with the buffer (800 µL ×10) containing 9.08 µM of CP-55,940-d 6 (a) with or (b) without addition of 90.8 µM of unlabeled CP-55,940. This exchange buffer also contained lipids (3.2 mg/mL POPC, 0.8 mg/mL POPS, and 1 mol% POPC-d 4 supplemented with 0.4 µg/mL DilC18(5)) necessary for subsequent reconstitution steps. The protein was eluted from the resin with 200 µL ×5 of the same exchange buffer containing ligands and lipids, supplemented with 250 mM imidazole, at pH = 7.5. Due to the high lipophylicity of CP-55,940 both ligand and lipids were dissolved in detergent micelles; therefore, the molar ratio between the ligand and lipids was preserved through the exchange, elution, and the subsequent reconstitution steps [22], [48]. The quantification of ligand was performed by measuring the content of deuterated CP-55,940 by high resolution NMR. Quantification of the lipid was performed by measuring fluorescence of the labeled tracer (DilC18). Reconstitution of CB2 into proteoliposomes was performed by the rapid dilution method [19].
Proteoliposomes were precipitated by overnight centrifugation at 417,200×g at 4°C on the Optima TLX ultracentrifuge. Supernatant was discarded, and the proteoliposome pellet was re-dispersed in an equal amount (w/w) of de-ionized water. Each sample was then transferred into a 4-mm-o.d. zirconia MAS rotor with an insert made of Kel-F used to keep the sample centered within the rotor.
Solid-State NMR Measurements
2H MAS NMR measurements of binding of CP-55,940-d 6 to the receptor were conducted at sample temperature of 20 °C and 14.5 kHz MAS on a Bruker AV800 spectrometer operating at the resonance frequency of 122.83 MHz [19]. Interval time between 90° pulses was set to 250 ms in the acquisition to assure full recovery of the methyl signals of CP-55,940-d 6 as well as the headgroup methylene signals of POPC-d 4 used as a standard.
Purification of Gαi1 and Gβ1γ2 Subunits
Myristoylated recombinant Gαi1 was produced in E. coli, expressing both Gαi1 and N-myristoyltransferase, following previously published procedure [29].
Heterodimeric Gβ1γ2 were expressed in Sf9 cells [30] infected with baculoviruses encoding these subunits. P2 membranes were prepared, extracted with 1% sodium cholate, and Gβ1γ2 purified essentially as described previously [30]. The purified proteins were stored in a solution of 10 mM MOPS, pH 7.5, 1 mM MgCl2, 100 mM NaCl with 8 mM CHAPS at -80°C.
Activation of G Protein in an in vitro Coupled Assay
Activation of G proteins by the recombinant CB2 was performed according to the protocol previously reported [20] with some modifications.
Proteoliposomes containing reconstituted CB2 were diluted into ice-cold 10 mM MOPS buffer so that the final concentration of protein was 0.2–0.5 ng/µL. 10 µL of liposome emulsion containing 2 to 5 ng of the reconstituted CB2 was dispensed into the pre-siliconized glass tubes and mixed with cannabinoid ligand dispersed in 10 mM MOPS supplemented with 0.1% (w/v) BSA. Upon addition of a mixture of Gαi1 (100 nM) and Gβ1γ2 (500 nM) the tubes were incubated on ice for 30 minutes. The reaction was started by addition of (final concentrations) MOPS buffer pH 7.5 (50 mM), EDTA (1 mM), MgCl2 (3 mM), GDP (4 µM), BSA (0.3% w/v), NaCl (100 mM), DTT (1 mM) and an appropriate amount of 35S-γ-GTP, and rapidly transferring the tube to the water bath set at 30°C. The total volume of the reaction was 50 µL. Incubation continued for 20 minutes and was terminated by the addition of 2 mL ice-cold stop solution TNMg (20 mM Tris-HCl pH 8.0, 100 mM NaCl, 25 mM MgCl2). The reaction was rapidly filtered through the nitrocellulose filters (Millipore). Filters were washed with 4 x 2 mL of cold TNMg buffer, dried, placed in the scintillation vials and counted upon addition of ScintiSafe Econo F scintillation liquid (Fisher).
Activity Standard for G Protein Activation Assay
The E. coli membranes expressing CB2 were used as an activity standard since they lack endogenous G proteins and contain stable receptor accessible for interaction with G proteins. The levels of CB2 in E. coli CB2-130 membranes quantified by ligand binding assay as well as by semi-quantitative Western blot [5] are ∼3 ng of CB2 per 1 mg of membrane protein. The basal levels of activation of CB2 in E. coli membranes are negligible, while the response of the recombinant receptor to agonist stimulation is specific and ligand dose-dependent [20]. These membranes were provided in the amounts of 1–2 mg (3–6 ng of CB2) per assay. Reaction conditions were optimized to ensure that less than 30% of the available [35S] GTPγS was consumed.
Analysis of the Residual Detergents in Liposomes by High Resolution 1H NMR
Content of CHS and residual detergents in proteoliposomes was determined by high-resolution solution-state 1H NMR as described earlier [19].
Supporting Information
Acknowledgements
We thank Mrs. Lioudmila Zoubak for assistance in purification of CB2 and performing functional tests, Mr. Lakshman Mody for early work on solubilization of CB2 in detergents, Drs. Kejun Cheng and Kenner C. Rice for providing a sample of CP-55,940-d6, Drs Walter Teague and Robert Pawlosky for performing GC-MS measurements on CP-55,940, and Dr. Arthur Spector for critical reading of the manuscript.
