Nomograms for postoperative complications in congenital biliary dilatation: a retrospective cohort study
Department of Pediatric Surgery, Qilu Hospital of Shandong University, Jinan, Shandong, China
Department of Pediatric Surgery, Children’s Hospital of Nanjing Medical University, Nanjing, Jiangsu, China
*Correspondence: Aiwu Li liaiwu@qiluhospital.comAbstract
Objective
Postoperative complications after surgery for congenital biliary dilatation (CBD) can be life-threatening and often necessitate redo surgery. We aimed to predict postoperative complications in patients with CBD using machine learning (ML) algorithms.
Study design
Data from pediatric patients with CBD who were surgically treated at our hospital between July 2014 and July 2023 was retrospectively analyzed. Multiple logistic regression and lasso regression were used to screen risk factors. Predictive models were developed using seven ML algorithms and the better-performing model was selected.
Results
A total of 211 patients were included in the final analysis. Among these, 31 patients experienced complications (cholangitis: 14 patients; pancreatitis: 21 patients).Risk factors for complications identified by variable screening were preoperative perforation, Todani classification type IV-A (type 4A), days of removal of drainage (removal drainage), and serum amylase. Predictors of postoperative cholangitis were preoperative perforation, preoperative cholangitis, type 4A, removal drainage, anemia, level of serum albumin and amylase. Preoperative perforation, cholangitis, serum gamma-glutamyl transferase and amylase were predictors of postoperative pancreatitis. Finally, logistic regression was selected to develop the clinical prediction model for postoperative complications, cholangitis, and pancreatitis.
Conclusions
We developed nomograms to predict postoperative complications, cholangitis, and pancreatitis after surgery for CBD using ML.
1Introduction
Congenital biliary dilatation (CBD), also known as choledochal cyst, is a rare developmental malformation of the biliary system with a higher incidence in females (approximately male–female ratio 1:3) (1, 2). The incidence of CBD is highest in Asia (approximately 1/1,000 in Japan, and 0.3% in South Korea). In contrast, the incidence in western countries is much lower (one in 50,000–150,000) (3). Approximately 2/3 of patients with CBD are detected during childhood (4).
The typical clinical manifestations of CBD are abdominal pain, jaundice, and abdominal mass. Inadequate treatment can lead to liver function impairment, malnutrition, pancreatitis, bile duct perforation, and even cancer (5, 6). The first-choice treatment of CBD is complete excision with Roux-en-Y hepaticojejunostomy. With the recent advances in minimally invasive techniques, laparoscopic and robotic treatment are increasingly being used in CBD surgery.
Irrespective of the surgical approach (open or laparoscopic surgery), patients with CBD may develop postoperative complications such as anastomotic fistula, anastomotic stenosis, cholangitis, and pancreatitis. These complications can even be life-threatening (7), CBD-related complications are a concern of much debate (8, 9). However, there are no clinical prediction models for postoperative complications of CBD.
In this study, we discussed the risk factors for complications associated with laparoscopic surgical treatment of pediatric CBD. We used machine learning (ML) algorithms to construct a prediction model and develop a nomogram to provide a basis for preventing complications associated with CBD.
2Material and methods
This study was approved by the Hospital ethical review committee. The presentation of this work follows the STROBE (Strengthening the Reporting of Observational studies in Epidemiology) criteria (10).
2.1Study population
This was a single-center, retrospective cohort study. Clinical data, test parameters, and demographic data of pediatric patients (age < 18 years) with CBD treated between July 2014 and July 2023 were extracted from the electronic medical records. The inclusion criteria were as follows: 1) CBD diagnosed by preoperative imaging and clinical symptoms; 2) patients who underwent surgical treatment at our hospital and the diagnosis of CBD confirmed during the surgical procedure; 3) regular follow-up for more than one year. The exclusion criteria were as follows: 1) patients who underwent other procedures simultaneously; 2) patients with concomitant severe liver, kidney, lung, or other diseases; 3) incomplete data.
2.2Definitions
CBD types: CBD was classified using the Todani classification of the Alonzo-Lej classification system (11).
Preoperative cholangitis (Pre-cholangitis): cholangitis was confirmed by postoperative pathology.
Postoperative cholangitis (Post-cholangitis): the presence of clinical symptoms of abdominal pain, jaundice, fever, and laboratory tests confirming abnormal liver function postoperatively.
Postoperative pancreatitis (Post-pancreatitis): No pancreatitis or pancreatitis was controlled preoperatively but pancreatitis developed postoperatively.
2.3Data collection and outcomes
Data regarding the patient factors [sex, age, weight, anemia, preoperative perforation, preoperative cholangitis, whether the type of CBD was type 4A (11), and whether the shape of the cyst was cystic], surgical and clinical information (duration of surgery, intraoperative blood loss, intraoperative blood transfusion, duration of hospital stay, postoperative hospital stay, and removal of drainage), and pre-operative laboratory results and radiological data [cyst diameter, white blood cell count (WBC), platelet count (PLT), aspartate aminotransferase (AST), alanine aminotransferase (ALT), gamma-glutamyl transferase (GGT), AST to Platelet Ratio Index (APRI), alkaline phosphatase (AKP), total bilirubin (TBIL), direct bilirubin (DBIL), total protein, albumin, amylase, and lipase] were extracted from the electronic medical records.
2.4Machine learning model building
2.4.1Selection of risk factors
Variables were screened by the least absolute shrinkage and selection operator (LASSO) regression analysis with 10-fold cross-validation and multivariate logistic regression. Predictive models were constructed for each of the screened variables. The covariance of all explanatory variables was assessed using a correlation matrix. Possible interaction terms were tested, revealing no significant interactions.
2.4.2Pre-processing of data
To maintain data integrity, factors with a substantial proportion of missing values (>20%) were excluded from the analysis. For variables with missing data, imputation was performed using the mean or median value, depending on the data type. The number of positive events was increased by a factor of five due to the low incidence of postoperative cholangitis and pancreatitis. The dataset was split into a training set (70%) and a test set (30%). Additionally, the data were standardized to ensure consistency in scale and range.
2.4.3Model selection
Logistic regression (LR), Support Vector Machine (SVM), K-nearest neighbours (KNN), Random Forest (RF), Extreme Gradient Boosting (XGB), Classification and Regression Tree (CART), and Neural Network (NN) were used to develop the prediction models respectively. All the developed models were compared using performance metrics including specificity, sensitivity (recall), accuracy, precision, receiver operating characteristics (ROC) and F1 statistics. Finally, the models with better performance were selected.
2.5Statistical analyses
The SPSS 26.0 (IBM SPSS Statistics 26.0) and R software programs were used for statistical analysis. The normality of the distribution of continuous variables was assessed using the Shapiro–Wilk test. Normally distributed variables were compared using the t-test while the rank sum test was used for skewed variables. χ2 test was used to compare categorical variables. Univariate and multivariate logistic analyses were performed to identify variables affecting complications. ML algorithms were applied to determine the best predictive model. Statistical significance was defined as P < 0.05.
3Results
3.1Characteristics of the study population
A total of 211 patients (54 male; mean age: 3.39 years) were included in the final analysis. Of these, 31 patients experienced complications (cholangitis: 14 patients; pancreatitis: 21 patients). Besides, 4 patients developed calculus, 3 patients presented with intestinal obstruction, and 1 patient developed an anastomotic fistula. All the complications were resolved after treatment. Type-4A CBD was present in 59 patients. We randomly assigned the patients to the training and validation sets in a ratio of 7:3. The characteristics are summarized in Table 1.
| Total (n = 211) | Non-complication (n = 180) | Complication (n = 31) | P | Non-cholangitis (n = 197) | Cholangitis (n = 14) | P | Non-pancreatitis (n = 190) | Pancreatitis (n = 21) | P |
|---|---|---|---|---|---|---|---|---|---|
| Pre-perforation | |||||||||
| No | 174 (87.4%) | 25 (12.5%) | 0.003 | 189 (95%) | 10 (5%) | 0.004 | 184 (92.5%) | 15 (7.5%) | 0.000 |
| Yes | 6 (50%) | 6 (50%) | 8 (66.7%) | 4 (33.3%) | 6 (50%) | 6 (50%) | |||
| Pre-cholangitis | |||||||||
| No | 150 (90.9%) | 15 (9.1%) | 0.000 | 162 (98.2%) | 3 (1.8%) | 0.000 | 160 (97%) | 5 (3%) | 0.000 |
| Yes | 30 (65.2%) | 16 (34.8%) | 35 (76.1%) | 11 (23.9%) | 30 (65.2%) | 16 (34.8%) | |||
| Type | |||||||||
| Non-4A | 141 (92.8%) | 11 (7.2%) | 0.000 | 150 (98.7%) | 2 (1.3%) | 0.000 | 146 (96.1%) | 6 (3.9%) | 0.000 |
| 4A | 39 (66.1%) | 20 (33.9%) | 47 (79.7%) | 12 (20.3%) | 44 (74.6%) | 15 (25.4%) | |||
| Gender | |||||||||
| Female | 134 (85.4%) | 23 (14.6%) | 0.976 | 147 (93.6%) | 10 (6.4%) | 0.758 | 143 (91.1%) | 14 (8.9%) | 0.392 |
| Male | 46 (85.2%) | 8 (14.8%) | 50 (92.6%) | 4 (7.4%) | 47 (87%) | 7 (13%) | |||
| Blood transfusion | |||||||||
| No | 139 (86.3%) | 22 (13.7%) | 0.449 | 153 (95%) | 8 (5%) | 0.103 | 146 (90.7%) | 15 (9.3%) | 0.592 |
| Yes | 41 (82%) | 9 (18%) | 44 (88%) | 6 (12%) | 44 (88%) | 6 (12%) | |||
| Shape of the cyst | |||||||||
| Cystic | 112 (86.2%) | 18 (13.8%) | 0.66 | 121 (93.1%) | 9 (6.9%) | 0.831 | 117 (90%) | 13 (10%) | 0.977 |
| Non-cystic | 68 (84%) | 13 (16%) | 76 (93.8%) | 5 (6.2%) | 73 (90.1%) | 8 (9.9%) | |||
| Anaemia | |||||||||
| No | 150 (89.8%) | 17 (10.2%) | 0.001 | 163 (97.6%) | 4 (2.4%) | 0.000 | 156 (93.4%) | 11 (6.6%) | 0.003 |
| Yes | 30 (68.2%) | 14 (31.8%) | 34 (77.3%) | 10 (22.7%) | 34 (77.3%) | 10 (22.7) | |||
| Removal drainage | 9 (8,10) | 13 (9,15) | 0.000 | 9 (8,10) | 13.5 (11.5,15) | 0.000 | 9 (8,10) | 13 (9,15) | 0.000 |
| Duration of surgery | 215 (191,250) | 235 (215,280) | 0.001 | 215 (191,250) | 225 (213.75,276.25) | 0.223 | 220 (195,250) | 235 (217.5,277.5) | 0.005 |
| Blood loss | 10 (8,20) | 10 (8,20) | 0.921 | 10 (8,20) | 10 (8,20) | 0.543 | 10 (8,20) | 10 (9,30) | 0.413 |
| Duration of hospital stay | 20 (17,24) | 21 (18,22) | 0.824 | 20 (17,24) | 20.5 (17.75,23) | 0.817 | 21 (17,24) | 20 (17.5,21.5) | 0.446 |
| Postoperative hospital stay | 11 (10,13) | 12 (10,14) | 0.735 | 11 (10,13) | 11.5 (9,13) | 0.590 | 12 (10,13) | 11 (10,13) | 0.211 |
| Cyst diameter | 5 (4,8) | 7 (6,8.9) | 0.001 | 5 (4,8) | 7.9 (6.6,10.13) | 0.007 | 5 (4,8) | 8 (6.4,10.25) | 0.000 |
| WBC | 8.45 (6.47,10.42) | 8.32 (5.9,11.89) | 0.744 | 8.45 (6.47,10.42) | 8.00 (6.91,11.89) | 0.996 | 8.43 (6.44,10.42) | 8.4 (6.545,13.51) | 0.632 |
| Age | 26 (13.5,55.75) | 27 (9,79) | 0.555 | 26 (13.5,55.75) | 22.5 (2.18,63.75) | 0.636 | 26.5 (14.5,56.25) | 27 (4.25,70) | 0.935 |
| Weight | 12 (9.81,18) | 13.5 (8,25) | 0.576 | 12 (9.81,18) | 12.75 (4.65,20.63) | 0.930 | 12 (9.9375,18.5) | 13.5 (5.7,24.5) | 0.809 |
| PLT | 362.5 (299.5,447) | 346 (282,391) | 0.255 | 362.5 (299.5,447) | 326 (289.25,384.25) | 0.233 | 364.5 (301,447) | 336 (236,395) | 0.087 |
| ALT | 37 (15,85) | 53 (22,83) | 0.342 | 37 (15,85) | 45 (16,90.5) | 0.897 | 38.5 (15,88.25) | 53 (21.5,65.5) | 0.760 |
| AST | 38.5 (26,70.25) | 56 (24,87) | 0.552 | 38.5 (26,70.25) | 44 (22.5,108.25) | 0.995 | 39 (26,77.25) | 48 (23.5,67.5) | 0.802 |
| GGT | 160.5 (56,333) | 623 (188,1090) | 0.000 | 160.5 (56,333) | 241.5 (177.75,938.75) | 0.030 | 162 (56,336.75) | 699 (241.5,1214) | 0.000 |
| APRI | 0.28 (0.17,0.53) | 0.36 (0.21,0.56) | 0.284 | 0.28 (0.17,0.53) | 0.37 (0.16,0.62) | 0.749 | 0.285 (0.17,0.56) | 0.36 (0.205,0.435) | 0.586 |
| AKP | 236 (178.25,352) | 366 (301,466) | 0.000 | 236 (178.25,352) | 391 (203,480) | 0.104 | 241 (179,388) | 356 (281,461) | 0.004 |
| TBil | 11.3 (5.65,32.1) | 15.3 (8.7,37) | 0.257 | 11.3 (5.65,32.1) | 12.85 (6.58,20.58) | 0.767 | 11.7 (5.8,32.45) | 13.7 (6.35,34.85) | 0.791 |
| DBil | 5.6 (2.3,20.25) | 7.6 (3.4,15.6) | 0.393 | 5.6 (2.3,20.25) | 6.15 (3.1,10.58) | 0.879 | 5.95 (2.3,20.475) | 5.6 (3.3,10.85) | 0.871 |
| Total protein | 62.35 (58.2,67) | 60.2 (57.6,65.2) | 0.202 | 62.35 (58.2,67) | 59.75 (54.65,64.83) | 0.190 | 62.35 (58.15,67) | 60.2 (57.6,62.15) | 0.079 |
| Albumin | 42.1 (39.13,45.48) | 40.8 (35.9,43.8) | 0.023 | 42.1 (39.13,45.48) | 36.35 (33.65,38.43) | 0.000 | 42.1 (39.075,44.95) | 38.8 (35.6,43.65) | 0.011 |
| Amylase | 42 (30.75,79) | 256(37,653) | 0.000 | 42(30.75,79) | 220(25.5,558) | 0.038 | 41(33.75,79.5) | 356(126,664) | 0.000 |
| Lipase | 30.5(21,54) | 249(39,553) | 0.000 | 30.5(21,54) | 229.5(37,415.25) | 0.002 | 31(21,58.75) | 289(107,760) | 0.000 |
3.2Variable selection

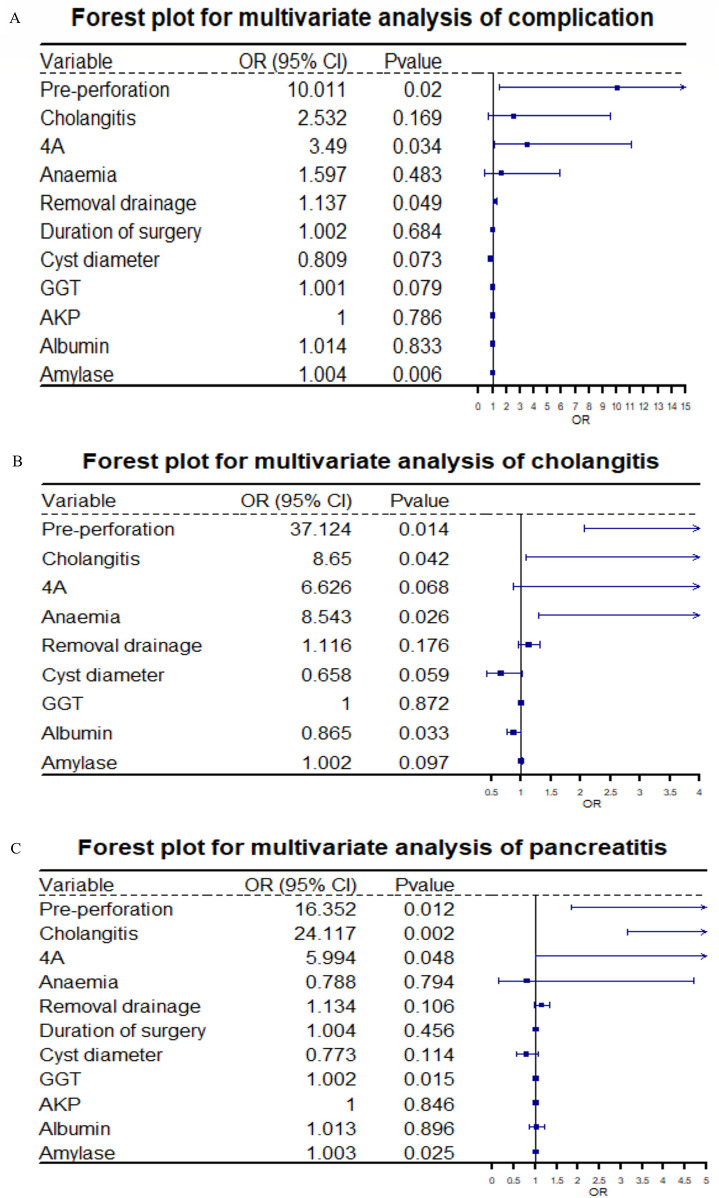

Multivariate analysis showed an association between pre-perforation (P = 0.02), type 4A (P = 0.034), removal drainage (P = 0.049), and serum amylase (P = 0.006) with the development of postoperative complications. Pre-perforation (P = 0.014), pre-cholangitis (P = 0.042), anemia (P = 0.026), and serum albumin (P = 0.033) were associated with post-cholangitis. Pre-perforation (P = 0.012), pre-cholangitis (P = 0.002), type 4A (P = 0.048), GGT (P = 0.015), and amylase (P = 0.025) were associated with post-pancreatitis. Patients with pre-perforation had a significantly higher incidence of overall postoperative complications, including cholangitis and pancreatitis. Patients with preoperative cholangitis had a significantly higher incidence of postoperative pancreatitis and cholangitis. Type 4A classification was significantly associated with an increased incidence of postoperative complications, particularly pancreatitis. Details are shown in Figure 1.

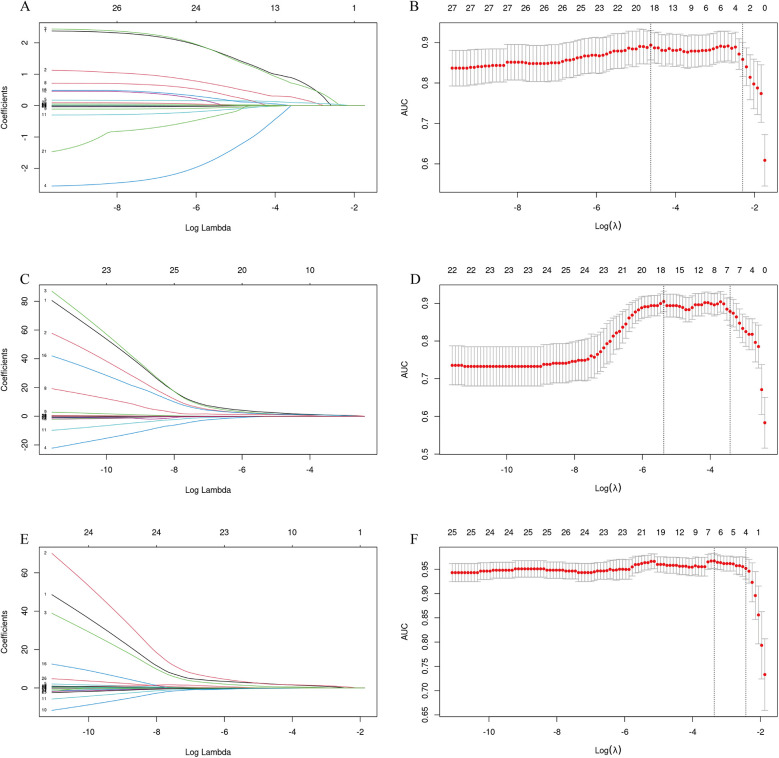

A Lasso regression analysis was conducted on all variables. The results showed that the independent variables for complications, cholangitis, and pancreatitis decreased from 27 to 3 (removal drainage, GGT, amylase), 7 (pre-perforation, pre-cholangitis, type 4A, removal drainage, anemia, albumin, amylase), and 4 (pre-perforation, pre-cholangitis, GGT, amylase), respectively (Figure 2).
Model construction was conducted using variables selected through lasso regression and multivariate analysis separately. The collinearity was assessed using the variance inflation factor (VIF). VIF > 5 was considered indicative of severe multicollinearity between variables. The results confirmed the lack of collinearity among the selected variables (Supplementary Tables S1–S3).
3.3Model construction and comparison
We used seven ML algorithms to construct predictive models for the three outcomes. Multivariate-logistics and multivariate-neural networks had the highest area under the ROC curve for predicting complications.
The variables screened by Lasso regression for predicting cholangitis (seven variables) performed significantly better than the multivariate analysis. KNN had the smallest area under the ROC curve in the prediction model. All other models showed excellent performance.
The performance of the models constructed from the factors screened by multivariate analysis and lasso regression did not differ significantly, and we selected the model with fewer factors included (four factors) for convenience. LR, SVM, and RF performed better in predicting pancreatitis (Table 2).
| Predictive models | LR | KNN | SVM | CART | RF | XGB | NN | |
|---|---|---|---|---|---|---|---|---|
| Complications-3 | ||||||||
| AUC | 0.770 | 0.739 | 0.768 | 0.602 | 0.795 | 0.775 | 0.766 | |
| Accuracy | 0.875 | 0.141 | 0.828 | 0.875 | 0.875 | 0.891 | 0.844 | |
| Precision | 0.444 | 1.000 | 0.444 | 0.222 | 0.556 | 0.333 | 0.444 | |
| Recall | 0.571 | 0.141 | 0.400 | 0.667 | 0.556 | 0.750 | 0.444 | |
| F1 score | 0.500 | 0.247 | 0.421 | 0.333 | 0.556 | 0.462 | 0.444 | |
| Complications-4 | ||||||||
| AUC | 0.788 | 0.669 | 0.669 | 0.611 | 0.785 | 0.745 | 0.778 | |
| Accuracy | 0.844 | 0.141 | 0.797 | 0.891 | 0.875 | 0.875 | 0.844 | |
| Precision | 0.556 | 1.000 | 0.222 | 0.222 | 0.556 | 0.556 | 0.667 | |
| Recall | 0.455 | 0.141 | 0.250 | 1.000 | 0.556 | 0.556 | 0.462 | |
| F1 score | 0.500 | 0.247 | 0.235 | 0.364 | 0.556 | 0.556 | 0.545 | |
| Cholangitis-4 | ||||||||
| AUC | 0.840 | 0.806 | 0.852 | 0.832 | 0.891 | 0.895 | 0.840 | |
| Accuracy | 0.821 | 0.218 | 0.795 | 0.782 | 0.821 | 0.808 | 0.821 | |
| Precision | 0.765 | 1.000 | 0.706 | 0.588 | 0.765 | 0.824 | 0.765 | |
| Recall | 0.565 | 0.218 | 0.522 | 0.500 | 0.565 | 0.538 | 0.565 | |
| F1 score | 0.650 | 0.358 | 0.600 | 0.541 | 0.650 | 0.651 | 0.650 | |
| Cholangitis-7 | ||||||||
| AUC | 0.905 | 0.557 | 0.902 | 0.955 | 0.953 | 0.943 | 0.926 | |
| Accuracy | 0.846 | 0.218 | 0.795 | 0.897 | 0.923 | 0.897 | 0.859 | |
| Precision | 0.765 | 1.000 | 0.765 | 1.000 | 1.000 | 1.000 | 1.000 | |
| Recall | 0.619 | 0.218 | 0.520 | 0.680 | 0.739 | 0.680 | 0.607 | |
| F1 score | 0.684 | 0.358 | 0.619 | 0.810 | 0.850 | 0.810 | 0.756 | |
| Pancreatitis-4 | ||||||||
| AUC | 0.922 | 0.509 | 0.931 | 0.879 | 0.949 | 0.909 | 0.909 | |
| Accuracy | 0.854 | 0.317 | 0.829 | 0.793 | 0.890 | 0.878 | 0.829 | |
| Precision | 0.923 | 1.000 | 0.808 | 0.808 | 1.000 | 1.000 | 1.000 | |
| Recall | 0.706 | 0.317 | 0.700 | 0.636 | 0.743 | 0.722 | 0.650 | |
| F1 score | 0.800 | 0.481 | 0.750 | 0.712 | 0.852 | 0.839 | 0.788 | |
| Pancreatitis-5 | ||||||||
| AUC | 0.912 | 0.527 | 0.930 | 0.875 | 0.964 | 0.913 | 0.903 | |
| Accuracy | 0.841 | 0.317 | 0.854 | 0.793 | 0.915 | 0.878 | 0.927 | |
| Precision | 0.885 | 1.000 | 0.923 | 0.846 | 1.000 | 1.000 | 0.923 | |
| Recall | 0.697 | 0.317 | 0.706 | 0.629 | 0.788 | 0.722 | 0.857 | |
| F1 score | 0.780 | 0.481 | 0.800 | 0.721 | 0.881 | 0.839 | 0.889 | |
To better interpret and apply the model, we used LR to predict the three outcomes and develop nomograms.
3.4Development and verification of nomograms

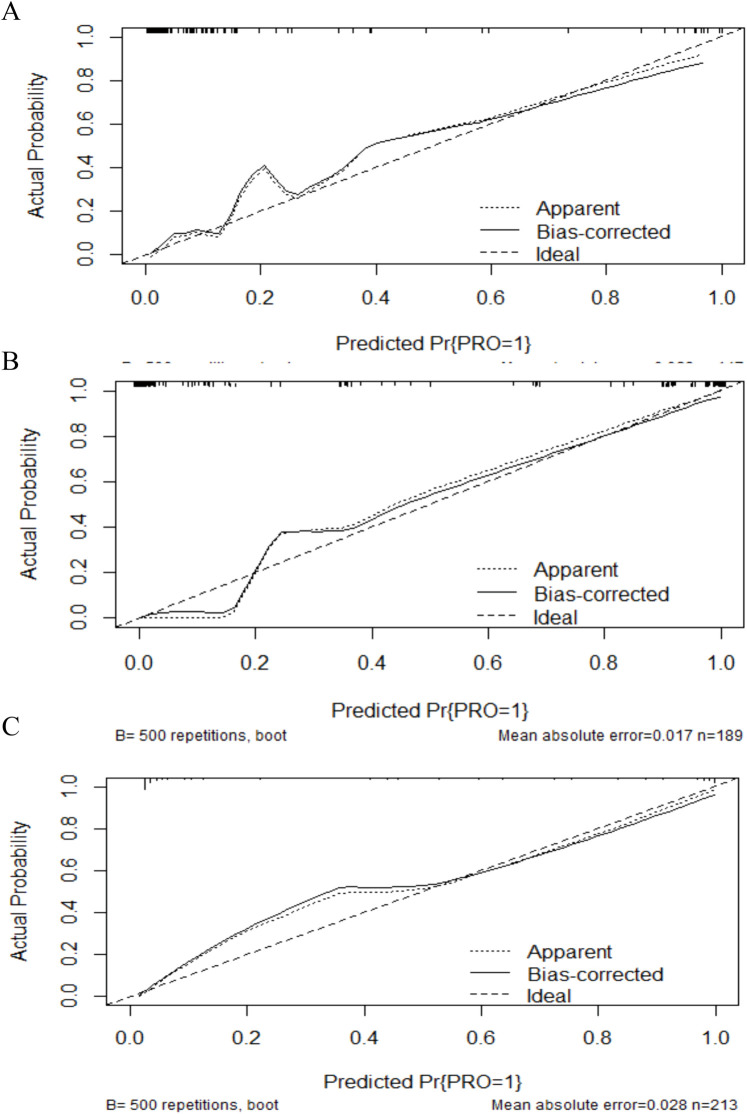

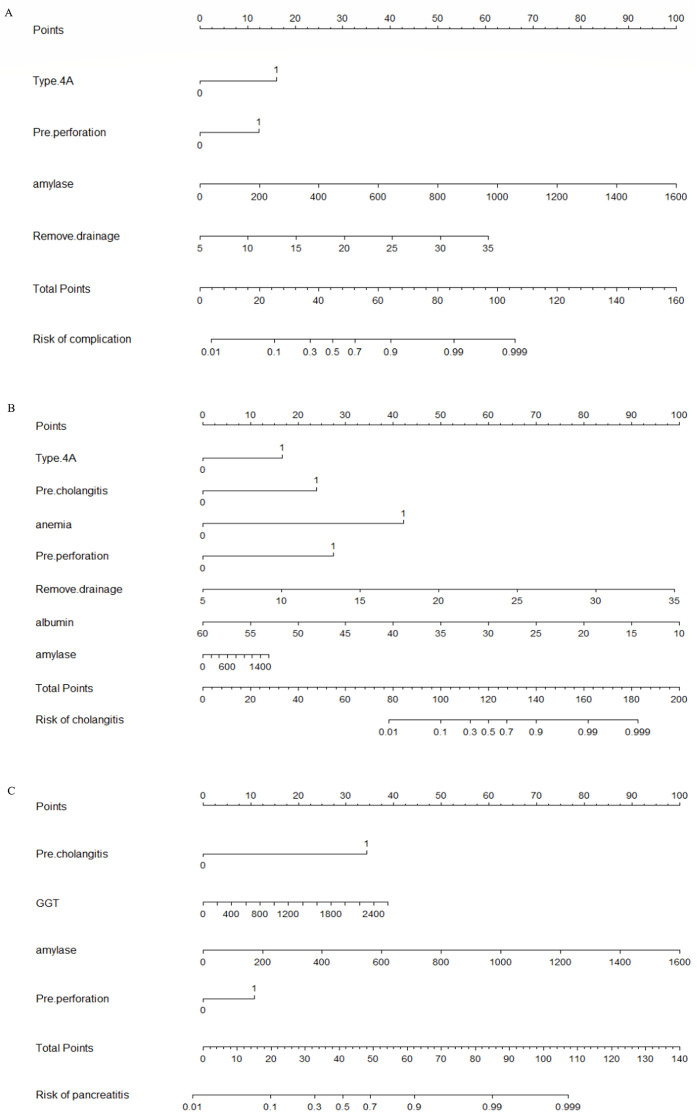

Nomograms were developed to predict complications of cholangitis and pancreatitis, based on the screened independent risk factors (Figure 3). The calibration curves showed a high degree of consistency between the predicted and observed probabilities, demonstrating the high accuracy of the predictive models (Figure 4). Decision curve analysis was used to facilitate decision-making when evaluating the clinical applicability (Figure 5).
4Discussion
In this study, we analyzed the clinical data of 211 patients and used seven ML algorithms to develop predictive models for complications, cholangitis, and pancreatitis after CBD surgery. By comparison, LR showed superior clinical predictive values, with AUCs of 0.788, 0.905, and 0.922 for the prediction of complications, cholangitis, and pancreatitis, respectively, in the internal validation dataset. Additionally, we developed nomograms to facilitate the clinical application of the models.
CBD is a common structural abnormality of the bile ducts that may lead to complications such as bile duct stones, pancreatitis, biliary tract infections, and even bile duct cancer. The overall complication rate may reach 60%, while the cancer incidence may be as high as 26% in patients aged over 40 (12, 13). Therefore, research on the complications of CBD is imperative.
Our analysis revealed that preoperative perforation is a significant risk factor for postoperative complications, cholangitis, and pancreatitis. This finding highlights the critical warning value of preoperative perforation, indicating a greater severity of the disease. Notably, this association has not been highlighted in previous studies. The underlying mechanism may involve persistent local chronic inflammation following perforation, leading to significant adhesion formation (14). In previous studies, patients with perforations were younger and had significantly higher levels of GGT and C-reactive protein (CRP) (15–17). Patients with perforations also had higher WBCs and lower albumin levels (18). In our study, the incidence of complications and pancreatitis was higher in type-4A category, which is consistent with previous findings (19, 20). Extended duration of postoperative drainage days has been found to be associated with the development of postoperative complications. This may be attributable to the fact that prolonged time to drainage implies more localized exudation and severe inflammation.
Based on our study, patients identified as high-risk by the model (e.g., those with preoperative biliary perforation, Todani type 4A, or significant elevation of serum amylase) should undergo preoperative interventions. Specifically, modifiable factors (e.g., hypoalbuminemia, anemia) should be addressed through nutritional support—such as albumin supplementation and iron therapy—to enhance tissue healing capacity. Postoperatively, patients at high risk should be closely monitored for changes in the characteristics of drainage fluid, and individualized follow-up plans should also be established (e.g., closer follow-up and monitoring). Furthermore, priority should be given to early warning and intervention for severe complications. For example, in patients at high risk of cholangitis, prophylactic antibiotics should be administered postoperatively, and potential abnormalities (e.g., biliary stones) should be promptly addressed.
Some limitations of this study should be acknowledged. 1) This was a single-centre study with no external data validation. 2) Due to the limited follow-up duration, we did not find bile duct cancer during the follow-up period, which precluded prediction of bile duct cancers. We will continue to conduct longer follow-ups to obtain data on bile duct cancers. 3) The number of patients who experienced complications was limited, which remains a study limitation. Despite these shortcomings, there are many strengths of our study. This study is the first predictive model about postoperative complications, cholangitis, and pancreatitis after surgery for CBD. Additionally, we developed nomograms for clinical application.
5Conclusion
We developed and validated a prediction model for postoperative complications of cholangitis and pancreatitis after surgery for CBD. Clinical application of the model can help prevent postoperative complications of CBD.
