Incidence and Persistence of Psychotic Experiences in the General Population: Systematic Review and Meta-Analysis
Department of Psychiatry, Royal College of Surgeons in Ireland, Dublin 2, Ireland
Division of Psychiatry, Centre for Clinical Brain Sciences, University of Edinburgh, Edinburgh, EH10 5HF, UK
Department Psychiatry, Beaumont Hospital, Dublin 9, Ireland
To whom correspondence should be addressed; Ardilaun House, 111 St Stephen’s Green, Dublin, D02 VN51., Ireland; e-mail: lornastaines@rcsi.comAbstract
Background and Hypothesis
Psychotic experiences (PEs) are associated with increased risk for mental disorders, in particular persistent PEs. PEs therefore might be useful within intervention research. We sought to systematically determine the incidence and persistence of PEs in the general population.
Study Design
A double-blind search of databases (Embase, Pubmed PMC, Psychinfo, Medline, and Web of Science) from inception to January 2023 and data extraction, were conducted. Study quality was assessed using the NIH assessment tool. Random effects models were conducted to calculate pooled incidence rate per person-year and proportion of persistent PEs per year. Age and study design were all examined using subgroup analyses. Demographic, risk factors, and outcomes for incidence and persistence of PEs were reported in a narrative synthesis.
Study Results
Using a double-blind screening method for abstract (k = 5763) and full text (k = 250) were screened. In total 91 samples from 71 studies were included, of which 39 were included in a meta-analysis (incidence: k = 17, n = 56 089; persistence: k = 22, n = 81 847). Incidence rate was 0.023 per person-year (95% CI [0.0129;0.0322]). That is, for every 100 people, 2 reported first onset PEs in a year. This was highest in adolescence at 5 per 100(13–17 years). The pooled persistence rate for PEs was 31.0% (95% CI [26.65,35.35]) This was highest in adolescence at 35.8%. Cannabis was particularly associated with incidence of PEs, and persistence of PEs were associated with multiple mental disorders.
Conclusions
Each year incidence of PEs is 2 of every 100 people, and persists each year in 31% of cases, this risk is highest in adolescents.
Introduction
Prevention, the reduction of symptoms, and stopping of new incidences, is a key objectives of public mental health.1,2 Within this context, psychotic experiences (PEs) have become an area of growing interest.3–5 PEs are defined as hallucinations/delusions which can occur outside of a psychotic disorder in the general population.3 PEs are proposed to represent a marker of severe psychopathology,6–8 and a transdiagnostic marker for developing mental disorder.3,9 Within this framework, PEs could be extremely valuable to the field of intervention.
Individuals who report PEs are at a 4-fold increased risk for developing a psychotic disorder and a 3-fold risk for any mental disorder.10 These poor outcomes are particularly pronounced in those who report repeated PEs events (persistence). Persistent PEs are associated with greater risk of developing a mental disorder, poor functioning, higher healthcare costs, and elevated risk of self-harm and suicidal behavior.11–17 Within this context, PEs, particularly persistent PEs, could be viewed as an early risk “marker” of potential poor mental health outcomes.3,9 For this potential utility to be fully assessed, accurate information on rates of persistence across the life span are needed. One meta-analysis to date measured rates of persistence as a secondary outcome18 and found a median rate of 20%, but only found 9 estimates from 6 studies. A large-scale retrospective study found a similar rate of approximately 20%,19 but there remains a deficit in information on rates of persistent PEs, and if these differ across a lifetime.
Previous systematic reviews have reported that the prevalence of PEs are 5%–7% in adulthood,18,20,21 and higher in childhood (~17%) and adolescence (7%–8%).22 There is less clarity, however, about the incidence of PEs. Prevalence measures the current burden of a disease ie, the number of PEs, but it cannot give information on rates of new onset of a disease23 eg, over the next year. Incidence provides this information, examining the risk of getting a disease (ie, reporting a new onset PEs), within a given time period.23 This is a key factor both for research into understanding PEs development and for determining resources23 eg, early health centers or interventions. There have been 2 previous reviews that examined incidence, but these were both carried out approximately a decade or more ago.18,20 No previous systematic review has examined persistence of PEs as a primary aim. Many studies on the incidence and persistence of PEs have been published since this time, allowing more precise meta-analytic estimates to be calculated now. What is more, studies suggest that incidence of PEs varies by age,24 which is an important factor to consider when potentially utilizing PEs in interventions.
We aimed to conduct a systematic review and meta-analysis of the incidence and persistence of PEs in the general population, to address this deficit and better inform future research in the field of PEs and intervention.
Methods
Study Protocol Registered on PROSPERO (CRD42020205484)
Search Strategy.
A systematic review of the databases (Embase, Psychinfo, Web of Science, MEDLINE, and Pubmed PMC) and gray literature (Conference proceedings detected in databases, Open gray, open DOAR, trials.gov, Lenus, Worldcat) was conducted from inception to January 2021 by LS and FM, and an update was conducted in January 2023 by LS, JB & JM. The search terms for PEs were “Delus*” OR “hallucinat*” OR “paranoi*” OR “psychoses” OR “psychosis” OR “psychotic” OR “schizophr*” OR “schizotyp*” OR “psychotic experience*” OR “psychotic like experience*.” To measure incidence and persistence the terms “incidence” OR “incidence rate” OR “follow up” OR “persistent” OR “persistence” OR “repeated” OR “reoccurrence” and to measure sample the terms “general population” OR “normal population” OR “normal individuals” OR “normal sample” OR “healthy population” OR “healthy individuals” OR “healthy sample” OR “community individuals” OR “community sample” OR nonpsychotic OR subclinical OR “non-patient” were used.
Results of the search were imported to Endnote, where duplicates (k = 3464) were removed. Abstrackr25 was used for abstract screening. Following methods outlined by,25 a pre-determined list of inclusion–exclusion criteria were used by all screeners (supplementary material 1 and 2). References of all included studies were screened.
Definition.
PEs within this study are defined as hallucinations/delusions which occur outside of a psychotic disorder, in the general population. This definition does not reflect the entire scope of subclinical phenomenon, such as negative symptoms, cognitive deficits, or schizotypal traits. There are several key reasons for this; From preliminary searches, hallucination/delusions are the definitions used by papers for symptoms termed “PEs/psychotic like experiences/psychotic symptoms”; Negative/disorganized symptoms tend to persist without remission,26,27 and these differences in presentation between PEs and other subclinical phenomenon would risk biasing/hiding results, if used under one term; Symptoms such as schizotypal traits are argued to represent a “trait” characteristic, which has a less clinically pathological trajectory.28
Incidence is defined as new onset of a PEs within a specific time period. Persistence is defined as the presence of PEs at more than one-time point in the same individual.
Abstract Screening.
Using abstrackr25 4 screeners (LS, FM, JB, and JM) reviewed study abstracts. To meet criteria for the abstract screening (supplementary material 1), the study needed to:
- Report on original data.
- Have a sample of ≥100 participants.
- Have recruited a general population sample, or nonpsychotic clinical sample.
- Report on PE incidence/persistence, or report on multiple timepoints where PEs was measured.
Exclusion criteria for abstract screening included:
- Reporting only on hypnopompic/hypnagogic hallucinations.
- Sample only included those who met criteria for first-episode psychosis/psychotic disorder.
- Sample only included those who met criteria for clinical-high risk or ultra-high-risk criteria.
Full Text Screening.
All studies which met abstract criteria (k = 250) were screened with 2 initial criteria (supplementary material 2):
- Study met definition of PE.
- Study reports on sufficient data to be used in a systematic review.
If a study met these criteria, they were divided into 1 of the 3 categories, where additional thresholds were included. Studies could be screened in multiple categories. These categories were;
- Incidence studies; studies that report on incidence, incidence rate, or cumulative incidence.
- Persistent studies; studies that report on persistent PEs or multiple timepoints of PEs.
- Repeated measures studies; any additional studies which measured PEs at multiple timepoints, but which did not specifically measure incidence/persistence of PEs. This third category was included to screen for any additional papers which may have usable data for analysis, but where incidence/persistence were not the primary aim of the study.
For incidence studies, the following additional criteria were screened for; (1) Studies report on a measure of incidence., (2) Study reports a specific time period in which PEs incidence was measured. Persistent PEs category was screened with the additional criteria: (1) Study reports on a measure of persistent PEs, (2) Study has clear explanation on collection of PEs data at multiple timepoints. For the repeated measure study-2 additional criteria were applied; (1) Study has specific time period between baseline and follow-up study, (2) Incidence/persistence can be clearly determined.
Study Selection and Data Extraction.
Following a double-blind screening of the data by independent reviewers (LS, FM, JB, and JM), the screeners met and reviewed studies that were selected for inclusion. Consensus was high (97.41%), and all those where reviewers differed (k = 156) were reviewed. The full-text screening was conducted (k = 250) double-blind and independent (LS, FM). Quality assessment of studies was conducted using the National Heart, Lung, and Blood Institute quality assessment tool for observational cohort and cross-sectional studies and tool for case–control studies (supplementary table 1, https://www.nhlbi.nih.gov/health-topics/study-quality-assessment-tools). For the main analysis, studies which report PEs to be “suspected/definite” or “definite” (eg, self-report or by confirmed by clinical interview), both measures were recorded. For details on all studies see (supplementary table 2).
Data extraction were done by two independent reviewers (LS, FM), and differences were reviewed. Data were extracted on study name, authors, year of publication, country of sample, study type (case–-control, cohort, survey),the baseline age of sample, the number of individuals reporting PEs, number of controls, PEs rating instrument and whether self-report or interview, and if sample could be considered enriched in any way from random sampling (supplementary table 3) were collected. At follow up data was collected was: Time period to follow up, PEs measure, measure type, measure definition (supplementary table 4), measure language (supplementary table 5), number of incident PEs, number of persisting PEs, number of remitting PEs, controls. Latent models categories (where applicable), number in each latent model category (where applicable). Additional measures (demographics, risk factors, outcomes) which were examined based on incidence/persistence eg, sex differences between those with persistent/transient PEs, were also recorded (supplementary table 6).
Data Analysis.
Analysis was conducted using R.29 Incidence and persistent analysis were conducted separately. Only studies which reported on observed variable data were used for the meta-analysis. Several studies used one dataset, however inclusion of multiple studies from one dataset risked skewing results. Therefore, if both studies were eligible based on all previous criteria, the following measures were used to determine which sample would be included; (1) Study used a cohort design instead of case–control, and (2) Largest sample size. These criteria were sufficient to determine the most appropriate sample to use for all studies. A narrative synthesis was used for studies which reported only modeling data, but could not be included for meta-analysis (supplementary table 7).

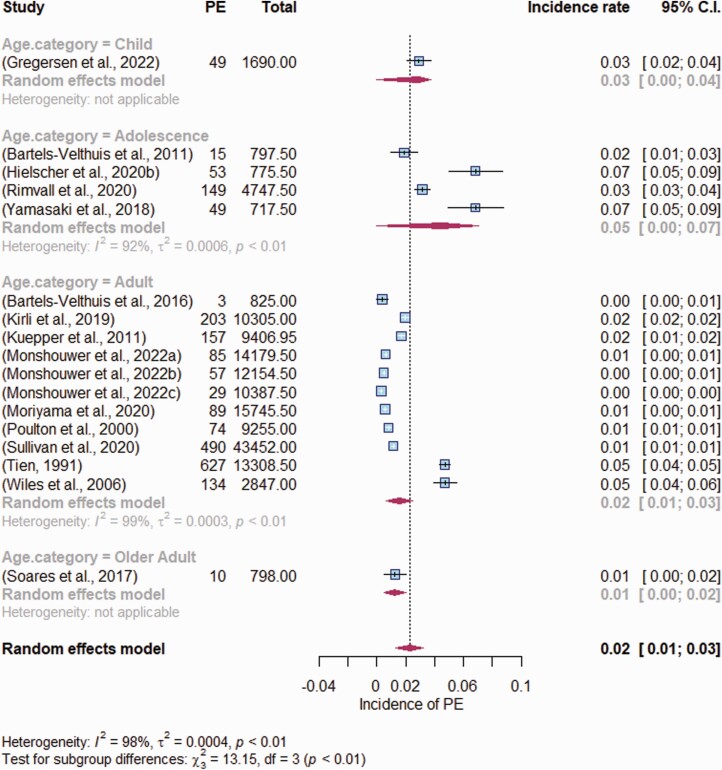

Incidence rate was calculated per person-year, using a random effects model using the restricted maximum likelihood method. Incidence rate per person-year is a method of reporting incidence, where you can directly incorporate time and sample as a denominator ie, you can measure the incidence rate for 100 people in 1 year, or 50 people in 10 years. For this study incidence rate is reported per person-year, and in text per-100-person-year, for clarity. The sample was weighted using inverse variance and heterogeneity between studies was measured using Thompson and Higgins I2 statistic30 and τ2. Outlier analysis was conducted using leave-out analysis and case deletion diagnostics (studentized residuals, difference in fits values, Cook’s distances, heterogeneity measures, hat values, and weighting). A second analysis including criteria “definite” instead of “suspect/definite” for studies which provided both was conducted. Moderator analysis examined difference in age of sample, interview type (self-report or clinical interview), enrichment, language of measure, and Q-test was used to test to assess significance of differences in subgroups. Mixed-effect models were used, random effects for the analysis and fixed effect analysis to compare differences between groups, reported as a chi-squared test.

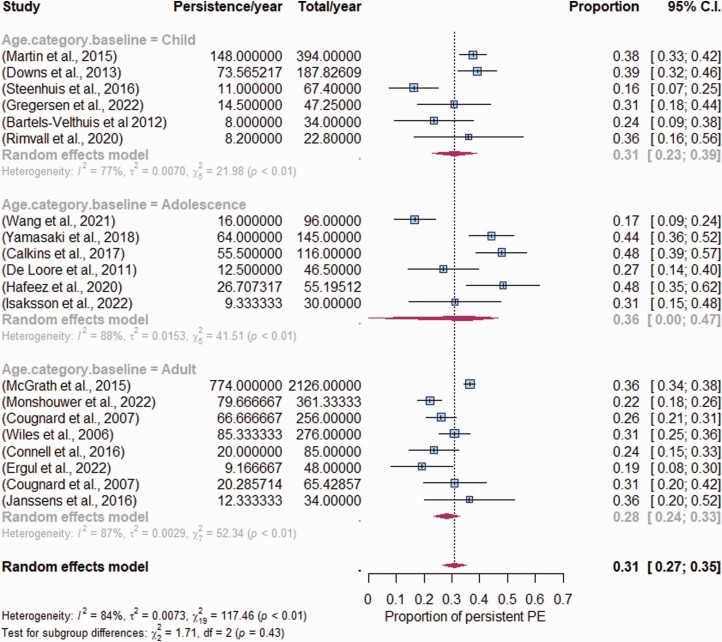

For the persistence analysis, a proportion analysis was conducted31 between those who reported PEs at both timepoints compared to those who reported only at baseline. The proportions were calculated per year, and additionally weighted by sample size. A random effects model of pooled proportion was conducted, heterogeneity between studies was measured using Thompson and Higgins I2 statistic and τ2. Outlier analysis was conducted using case leave-out-analysis and deletion diagnostics (studentized residuals, difference in fits values, Cook’s distances, heterogeneity measures, hat values, and weighting). A second analysis including criteria “definite” instead of “suspect/definite” for studies that provided both was conducted. Moderator analysis with mixed-effect models were conducted using the same measures as incidence, and between cohort and case–control studies.
A majority of measures (demographic, risk factor, and outcomes) were not assessed in a sufficient number of studies (supplementary table 6) to be used in a meta-analysis. A narrative synthesis was conducted on measures where 3 or more studies on independent samples had reported on a measure. Age was treated as a categorical variable, due to the lack of specificity in age reported in studies for follow-up data. This category was defined as: Children (<13 years old), adolescents (13–17 years), adults (18–64 years) and older adults (≥65 years). Given the small sample sizes, language was turned into a categorical variable, comparing studies conducted in English (most common language) vs other languages. If the measure was used in its original form or had been adapted to a different language (supplementary table 4) was also compared.
Results

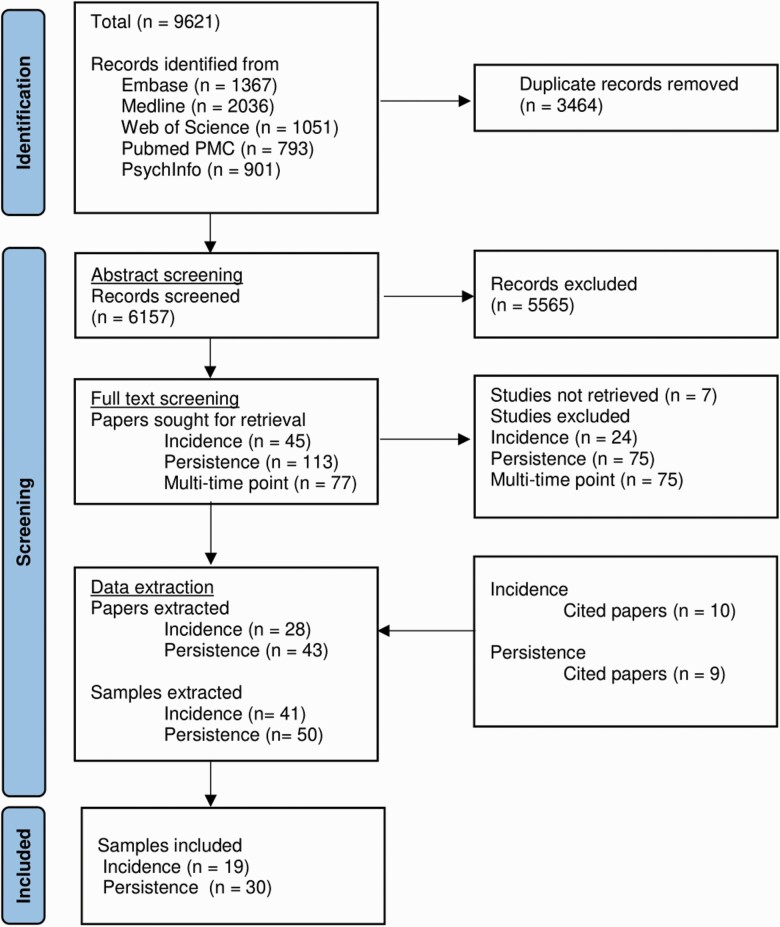

The search strategy yielded a total of k = 9621 papers, once duplicates (k = 3464) were removed, the remaining (k = 6157) papers were screened. The final sample included 28 papers reporting on incidence, and 43 papers reporting on persistence (figure 1). After excluding repeated samples, the total was 19 samples from 16 papers for incidence of PEs14,24,32–44 and 30 samples from 29 papers for persistence.13–15,17,19,34,38,43–62 For full detail see (supplementary table 2). Two incidence papers had more than one usable sample35,38 (In graphs labeled as Hielscher et al., 2020a (baseline - T1 follow-up)/2020b (T1 – T2 follow-up) and Monshouwer et al., 2022a (baseline - T1 follow-up)/2022b (T1 – T2 follow up)/2022c (T2 – T3 follow-up). Two papers report on usable samples from one sample.32,33 One persistence paper reported on 2 different samples (In graphs labeled as Cougnard et al., 2007 EDSP/NEMSIS).49 Five studies14,38,43–45 reported both incidences of PEs and persistent PEs and were included in both meta-analyses.
Narrative Synthesis
Demographics.
Four incidence studies38,43,63,64 examined sex, 243,64 found no significant effect of sex on incidence of PEs. While 2 papers38,63 using one sample, showed female participants had higher incidence of PEs. There was little consensus about urbanicity, reported as nonsignificant,38,63 that rural background showed higher incidence,43 or that urban background had higher incidence of certain subtypes (auditory, visual, and haptic) PEs.39 Age was broadly found to be nonsignificant,33,43,64 with 2 studies supporting incidence was lower in older adults38 and higher in young people.63 Most studies found educational level did not affect incidence of PEs,33,41,43 with only one study38 finding that those with incident PEs had lower rates of college-level education.
Similar to incidence, a majority of studies13,33,50,53,65 found no differences based on sex between persistence and other groups (control/transient PEs). Those that did report significant differences found female participants had higher rates of persistent PEs.38,52,66 Measures of socioeconomic status were generally not found to be significantly different for those with persistent PEs.13,33,50 Older age was associated with lower persistence of PEs in most38,50 but not all33 studies.
Risk Factors.
A majority of studies37–39,43,63,67 showed that cannabis use increased risk for incident PEsm although one38 found this association was only present for cannabis abuse, not dependence. Another63 observed that this significant association was only in those with PEs and cooccurring mental disorders. One study found the association between cannabis and incident PEs, but not in a fully adjusted model which included prior substance use and antecedent mental disorders.68 Incidence of PEs was significantly elevated in those with poorer general functioning,33,39 social functioning,63 and cognitive function.38,69
Cannabis use, unlike incidence, was not found to be a significant factor for persistence of PEs.32,38,70 Trauma was significantly associated with persistence of PEs by a majority,13,32,38 but not all70 studies. Mental disorders at baseline were examined in several studies; anxiety disorder was found to be a significant risk factor for persistence of PEs,32,38,53 but not in all studies.50,70 Mood disorder at baseline generally was not associated with persistence of PEs,14,32,50,53,70 although 2 studies did find those with a mood disorder had higher rates of persistent PEs38,52 compared to those with remitting PEs and healthy controls. A broad range of psychopathology measures were examined including internalizing/externalizing problems, nightmares, and behavior problems. Studies showed a general trend that higher psychopathology was associated with higher rates of persistent PEs.13,33,65,71 Rimvall et al.,14 did not find a significant difference in psychopathology at baseline between persistent PEs and remitted PEs.
Outcomes.
No outcomes were measured by more than 3 samples for incident PEs. Three studies looked about distress about PEs,32,52,54 and found that those with persistent PEs reported more distress about PEs. Looking at functional outcomes, all studies13,52–54 found impairments in the persistent PEs group, compared to remitted and controls. This included lower general functioning,13,52 greater impairment,53 lower social functioning, and quality of life.54 Examining mental health outcomes, those with persistent PEs had higher rates of psychosis,13,48,54,72 substance abuse disorders,13,14,48 and suicide ideation, behaviors, and attempts.14,15,48,52 A majority of studies examining mood disorder did show higher rates of mood disorders in those with persistent PEs,13,17,32,34,52 but one study did not find a significant difference between persistent PEs hallucinations and controls,48 and a second44 found a nonsignificant change in depression score for those with persistent PEs.
Discussion
This systematic review and meta-analysis investigated the incidence rate per year of PEs in the general population, as well as the persistence rate of PEs. Two key findings emerged: The incidence rate of PEs per year was 0.0225 per person-years ie, for every 100 individuals, 2 will report new onset PEs in a given year. This was highest in adolescents at 5 per 100 people each year, and lowest in older adults (1 per 100 people). Secondly, the pooled proportion of persistent PEs was 31.0% and was particularly high in studies of adolescents 35.8% (aged 13–17). These key findings provide information that increases the future utility of PEs for intervention research.
This is the first study to calculate incidence rate per person-year, which is the measure needed to estimate expected incidence in a population over a specific length of time. Our study suggests that PEs do occur across a life span, at about 2 per 100 people each year, regardless of age. Interestingly, this result was not significantly affected by definition of PEs (“suspected/definite” or “definite”), or if the measure was self-report or clinically validated. Supporting the evidence that self-report is reasonably effective at detecting PEs.76 Similarly, measures adapted into new languages did not report substantially different incidence of PEs to measures in their original language, or if the measure was in English or another language. Incidence is an important measure for research, knowledge of expected numbers of PEs, allows for the study of the causes of PEs,23 or to assess if an intervention has prevented PEs.4 Similarly, knowing the incidence of PEs is important for policy, giving accurate information on the rates of new onset PEs in a given year.23
Persistence of PEs was higher than the previously reported 20%,19,20 with our study finding that a about one-third of those who experience PEs will have a second PEs each year. The differences in definition of PEs, clinical interview vs self-report and type of study (case–control vs cohort) were all nonsignificant. Given the findings suggesting age of sample may affect rates of persistence, it may be that the growing number of longitudinal studies in younger samples14,15,47,51,58 is increasing the rates of persistent PEs. Alternatively, it may be because this is the first systematic review with a primary objective to measure persistent PEs, rather than a secondary outcome, yielding a larger sample size and reducing selection bias. At the same time, it is important to note that while the rate of persistent PEs was high, the majority of participants reported no PEs at any time point, and a majority who reported PEs experienced only transient PEs.
One study design measure which was found to be significantly different was the language used (English vs other languages), which might be interpreted as a crude proxy for cultural differences. Given the limited number of samples (k = 50), which were even more restricted given repeated samples across multiple studies (k = 20) it was not possible to look at language at a more nuanced level, or differences at the country/region level. There is substantial evidence that differences in psychosis rates exist between countries77 and different communities within countries.78 This same pattern may occur within PEs, but to determine it, there is a need for more PEs research, particularly in under-examined regions.
Both incidence and persistence of PEs were highest rates in adolescence (age 13–17) and indicates that adolescence is a sensitive developmental period. It also suggests that this is a key age for detecting and intervening for PEs. The incidence rate was found to be 4.5 in every 100 adolescents each year reporting a new onset PEs, and 35.8% of those reporting PEs in adolescence will report PEs again at follow-up. One reason for this vulnerability to PEs in adolescents may be cooccurrence of mental disorders, many of which begin in adolescence.79 The adverse outcomes associated with transient PEs,11,12,80 and particularly with persistent PEs13–17,44 have been well documented.
Our initial aim had been to conduct a meta-analysis including frequently measured demographic, risk, or outcome factors for incidence/persistence of PEs. However, there were insufficient measures to do this, and so a narrative synthesis was conducted. For both incidence38,63 and persistence38,52,66 of PEs, there was some evidence to support female sex being associated with higher rates, but a majority of studies found no difference.13,33,43,50,53,64,65 Urbanicity38,39,43,63 and education38,39,43,63 was inconsistently associated with incidence of PEs,38,39,43,63 and socioeconomic status was not significantly associated with persistence of PEs.13,33,50 Risk factors for incidence suggested poor functioning38,39,43,63,67 at baseline, and cannabis33,38,39,43,63,64 were associated with increased risk for incident PEs. Interestingly, cannabis was not found to be a substantial risk factor for persistence of PEs.32,38,70 Anxiety disorder at baseline was inconsistently associated with higher persistence of PEs.33,38,50,53,70 Other risk factors that generally showed increased risk for persistence included trauma13,33,38,70 and high psychopathology.12,13,33,66,71 Outcomes of persistent PEs included poor functioning,13,52–54 and higher rates of psychosis,13,48,54,72 substance abuse,13,14,48 suicide risk,12,14,48,52 and mood disorder.13,17,32,34,44,48,52 Overall, evidence supports the adverse consequences of PEs, consistent with previous literature. However, research, and particularly replication, is still lacking. Knowledge is also lacking on what causes incidence of PEs and for PEs to persist. More information is needed beyond differences in prevalence of PEs, particularly to determine need and utility of interventions.
Future Directions
Intervention
Prevention is the key to public mental health,1 and within this, PEs could be a valuable tool for detecting those at risk for developing mental disorder.3,10 The results of our study suggests this may be particularly true for adolescents.
Screening.
One policy-level approach could be the introduction of PEs into standard screening tools eg, in mental health services. PEs are relatively easy to screen, with even one-item self-report measures providing good levels of accuracy in detecting PEs.81 This review shows the literature is indicating a high rate of PEs in adolescence, making this group particularly important to screen. A wider implementation of PEs screening tools in adolescent and child services would improve detection and would be a potentially important step in identifying those at greater risk for adverse outcomes.
Intervention.
A new area of interventions are studies aimed at prevention.4,5 Previous studies in school-based and college based have observed a positive effect in reducing and preventing new incidences of PEs.4,5 However, mediators such as bullying and self-esteem82,83 have been linked to a reduction in PEs. PEs could be a primary target to improve eg, through self-esteem or bullying interventions. Reduction could be the key step to preventing persistence of PEs, which were shown in this study to have adverse outcomes.
Assessment.
PEs could be used as a tool to develop preventative treatments eg, PEs used as a recruitment tool for the particularly vulnerable, identifying differences in response to treatment, or used as a measure of long-term efficacy of the intervention (ie, examine rates of persistent PEs in samples). Previous work has shown those with PEs84 do show different responses to treatment, and PEs may be an important component to interventions, even when not directly targeting PEs.
Limitations
Several limitations of this review should be noted; The vast majority of included studies were from Europe or North America. Steps were taken to reduce this, eg, no exclusion criteria such as “must be in English” were included, but it still occurred. It should therefore be noted the incidence and persistence of PEs reflect economically wealthy regions. The meta-analysis used only one measure of persistent PEs or incidence of PEs per sample, as a way to reduce the risk of bias, given the repeated use of samples across studies. The search strategy included terms for general population (“general population,” “community sample” etc.), and may not have included purely clinical samples. Finally, meta-analysis for demographics, risk factors, and outcomes could not be done due to low replication across studies.
Conclusion
This is the largest systematic review to date of incidence of PEs, and the first with a primary aim of examining rates of persistence of PEs. We have found valuable estimates needed to determine if interventions are effective ie, incidence rate per person-year, which can be used to determine prevention, and persistence rate per year, which can be used to determine reduction. The results indicate that PEs is a common occurrence, and that on average 2 in every 100 people will report new onset PEs each year. PEs are proposed to represent a marker of severe psychopathology,7,8 and our findings suggest that developing high psychopathology is not uncommon across the life span. Persistence is particularly associated with poor outcomes,13,15 and our study suggests that there is a 1 in 3 chance of reporting persistent PEs. There is a growing body of literature on PEs but there is a need to expand beyond academic research, into clinical practice and preventative treatment, particularly in young people.
Supplementary Material
Acknowledgment
To the best of our knowledge, no author has a conflict of interest to disclose.
Funding
This study was completed as part of the iHEAR study, the iHEAR study is a European Research Council funded project (grant number: 724809). DC and HC are funded by a Wellcome Trust Innovations Award, number 220438Z/20/Z), and in part by a research grant from Science Foundation Ireland (SFI) under Grant Number 16/RC/3948415 and co-funded under the European Regional Development Fund and by FutureNeuro industry partners. CH and MC are funded by the Health Research Board Investigator Lead Project (ILP-PHR-2019-009). Additionally, thanks are extended to Prof. Murphy and Dr Clarke for help in the write-up of the manuscript.
