Metabolomics Analysis Revealed the Characteristic Metabolites of Hemp Seeds Varieties and Metabolites Responsible for Antioxidant Properties
1Key Laboratory of Beijing for Identification and Safety Evaluation of Chinese Medicine, Institute of Chinese Materia Medica, China Academy of Chinese Medical Sciences, Beijing, China
2Yunnan Hemp Industrial Investment CO.LTD, Kunming, China
*Correspondence: Linlin Dong, lldong@icmm.ac.cnShilin Chen, slchen@icmm.ac.cnAbstract
Hemp seeds are rich in metabolites such as protein, lipids and flavonoids, which are beneficial to health and can be used as a nutritional supplement. Few studies have focused on the metabolites of different hemp seed varieties. In the current study, using widely targeted metabolomics based on UHPLC-QQQ-MS/MS, we compared the metabolomes of seeds from seven hemp varieties with different uses. A total of 1,001 metabolites, including 201 flavonoids, 86 alkaloids, and 149 phenolic acids, were identified. Flavonoids, organic acids, alkaloids, lipids, and fatty acids with high nutritional value are important to investigate the differences between hemp accessions. By using weighted gene co-expression network analysis (WGCNA), six modules of closely related metabolites were identified. And, we identified the metabolite characteristics and hub metabolites of each variety. Then, we experimentally determined antioxidant activity of seven varieties and demonstrated that alkaloids, flavonoids, phenolic acids, terpenes, and free fatty acids are responsible for the antioxidant activity of hemp seeds. Our research provides useful information for further investigation of the chemical composition of hemp seeds.
Introduction
Hemp (Cannabis sativa L.), an annual plant belonging to the Cannabaceae family, has been cultivated for years (Andre et al., 2016). Morphological variability and versatility as well as the biochemical diversity make this plant a multipurpose plant used for nutrients (seed), fuel (seed), textile (stalks), and medicine (seed and inflorescence). Hemp is also used for fodder, construction, and cosmetics (Hurgobin et al., 2021). Hemp, a controversial plant, is restricted by law, mainly because it contains a variety of cannabinoids including Δ9-tetrahydrocannabinol (THC) and cannabidiol (CBD). According to the content of Δ9-THC, hemp can be classified into two types, namely, drug type (THC > 0.3%) and non-drug type (THC < 0.3%; Kovalchuk et al., 2020). Hemp is a crop of multifunctional usage, and the non-drug type can be further divided into use as food and fodder, fiber use, and medicinal use (Schluttenhofer and Yuan, 2017).
Hemp seeds are a rich source of high-quality proteins and oils, and have been an important source of nutrition since ancient China. Hemp seeds contains over 30% protein, 25% starch, and 30% oil, and considerable amounts of dietary fiber and minerals (House et al., 2010; Schluttenhofer and Yuan, 2017). Hemp seeds were known to be an excellent source of digestible protein, which is available for absorption due to the large proportion of seed storage protein (Aiello et al., 2016). Edestin, a type of hexameric legumin, is easily digested and contains nutritionally significant amounts of all essential amino acids (Park et al., 2012). Moreover, hemp seed protein also has potential applications as nutraceuticals. Two hemp seed proteomic studies enriched the future study of protein in hemp seeds (Park et al., 2012; Aiello et al., 2016). Hemp seed also contains a large amount of polyunsaturated fatty acids (PUFAs), including linoleic and α-linolenic acids (approximately 53% and 18% of total fatty acids, respectively) and a small amount of other fatty acids that are not commonly found in vegetable oils, such as γ-linolenic acid and stearidonic acid (Simopoulos, 2008). Hemp seed oil contains over 90% polyunsaturated fatty acids, making it a valuable addition to human and animal diets (Gomez et al., 2011). Hemp seeds also contain many metabolites, such as unsaturated fatty acids, flavone, natural phenols, cannabinoids, and tocopherols that contribute to the antioxidant activity (Chen et al., 2012; Rashid et al., 2021). Hemp seeds and hemp seed oil are believed to have a positive effect on the human health. For example, hemp seed and hemp seed oil benefit the cardiovascular system in genetically obese individuals by improving the cell-mediated immune response (Abrahamsen et al., 2021; Majewski and Jurgoński, 2021). Hemp seeds are also a traditional Chinese medicine believed to be beneficial for intestinal relaxation.
Selection of malic acid and triterpene metabolites during domestication leads to edible properties of Jujube (Zhang et al., 2021), suggesting that genomic selection caused by domestication and/or environment can lead to markedly different varieties. Hemp originated in Central Asia and gradually spread around the world and domesticated into varieties with different characteristics. During the domestication process, varieties of hemp with different properties have been produced for different uses. For example, loss of function of two cannabinoid synthases has occurred during selection of fiber-types and medicinal-types (Ren et al., 2021). Previous study on more than 20 hemp breeding varieties revealed significant differences in antinutritional components, oil content, and protein content (Galasso et al., 2016), suggesting a great influence of domestication on variation in hemp. Reproduction conditions, such as agronomic and climatic conditions, can also affect metabolites in hemp seeds. Metabolome analysis showed that 236 metabolites were differentially accumulated in two local hemp seed breeding varieties with different dimensions in India (Rashid et al., 2021). Being planted in the mountain environment greatly affects the fatty acids profile and carotenoids content of hemp seeds (Cattaneo et al., 2021). Proteomic signatures also indicated that there are differences between two hemp seed varieties (Park et al., 2012; Aiello et al., 2016). As a multifaceted crop, the target trait of breeding is highly correlated with the usage of the variety. For example, the plant with high content of CBD can make great contribution for medical use variety. Plant with high content protein and oil seeds might be ideal parents for food/fodder use variety (Schluttenhofer and Yuan, 2017). As a plant organ with important nutritional and medical value, few studies have focused on the metabolite variation in different hemp seed varieties, resulted in a shortage of information of new hemp varieties with ideal seeds traits. Widely targeted metabolomics has been applied in plant metabolite analysis in many species due to the advantages of high-throughput and high sensitivity. So, it can be an effective approach in performing qualitative and quantitative analyses to determine the nutrient composition of hemp seeds. In this study, we used widely targeted metabolomics to explore the types and distribution of metabolites in seven hemp seeds varieties with significant phenotypic differences. Further, the antioxidant and radical scavenging studies revealed that terpenes and phenols attribute the antioxidant activity in hemp seeds. Our study provides useful information for further improvement of hemp seeds.
Materials and Methods
Plant Materials, Sample Preparation, and Metabolite Extraction

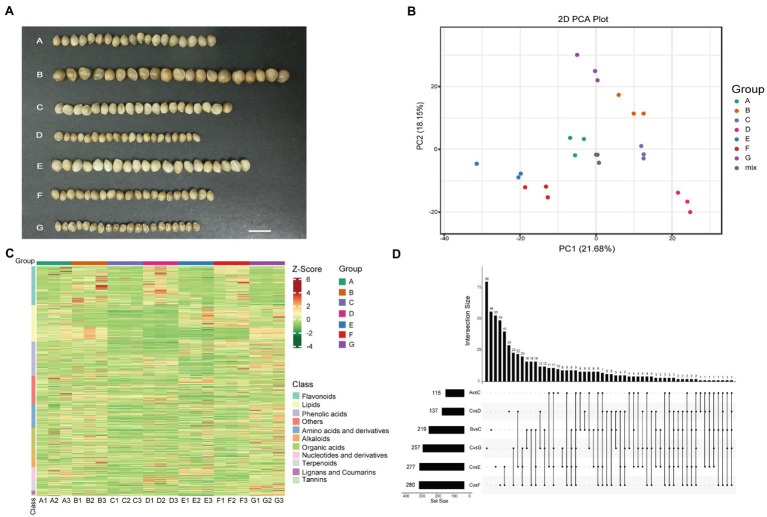

The seeds of seven local breeding varieties were collected in the growing season of 2020. Seeds were harvested when 80% brown seed appeared and stored at 5°C. Seeds from seven varieties (A–G) with significant difference in phenotype and origin were selected for the present study (Figure 1A; Table 1; Supplementary Table 1). The B variety has the largest size and weight among all varieties, while the D and G varieties are the smallest in size among all varieties. The B variety has the darkest seed coat color, while the E variety has the lightest seed coat color. And, the G variety has black spots on the seed coat. Plants of A, C, and G varieties contain high level of cannabinoids and they are used for the CBD extraction. While, plants of B, D, E, and F varieties have low level of cannabinoids and they are food-use type or fiber-use type.
| Variety | Width | Length | Weight | Seed coat color | Type |
|---|---|---|---|---|---|
| A | 4.08 | 5.81 | 332.7125 | Gray | Medicinal use |
| B | 5.16 | 6.83 | 737.325 | Yellow | Fiber/food use |
| C | 4.01 | 5.87 | 360.5375 | White | Medicinal use |
| D | 3.22 | 4.84 | 196.1375 | Dark | Fiber/food use |
| E | 4.51 | 6.42 | 400.25 | White | Fiber/food use |
| F | 3.71 | 5.55 | 234.5 | Dark | Fiber/food use |
| G | 3.14 | 4.62 | 178.1786 | Stripe | Medicinal use |
Whole seeds (un-dehulled) of seven varieties with three biological replicates were subjected to analysis by widely targeted metabolomics (Metware Biotechnology Co., Ltd. Wuhan, China). Samples were freeze-dried by a vacuum freeze-dryer (Scientz-100F) and then crushed using a mixer mill (MM 400, Retsch, Haan, Germany) with a zirconia bead for 1.5 min at 30 Hz. Samples were dissolved (100 mg of lyophilized powder) in 1.2 ml of 70% methanol solution, vortexed for 30 s every 30 min (total of six times), and then stored at 4°C overnight. Following centrifugation at 12,000 rpm for 10 min, the extracts were filtrated (SCAA-104, 0.22 μm pore size; ANPEL, Shanghai, China) before UPLC-MS/MS analysis. Quality control (QC) samples were prepared by mixing sample extracts. During analysis, a QC sample was included in the measurement queue every six test samples to monitor measurement repeatability, i.e., one QC before the first sample, one QC after the first six samples, one QC after the second six samples, and one QC after the last six samples.
UPLC-ESI-Q TRAP-MS/MS
The sample extracts were analyzed using an UPLC-ESI-MS/MS system (UPLC, SHIMADZU Nexera X2, Shanghai, China; MS, Applied Biosystems 4,500 Q TRAP, Thermo Fisher, Shanghai, China) with an Agilent SB-C18 column (1.8 μm, 2.1 mm × 100 mm). The mobile phase consisted of solvent A (pure water with 0.1% formic acid) and solvent B (acetonitrile with 0.1% formic acid). Sample measurements were performed with the following gradient program: starting conditions of 95% A and 5% B; a linear gradient to 5% A and 95% B was adjusted within 9 min and kept for 1 min; and a composition of 95% A and 5.0% B was adjusted within 1.1 min and kept for 2.9 min. The flow velocity was set as 0.35 ml per min, and the column oven was set to 40°C. The injection volume was 4 μl. The effluent was alternatively connected to an ESI-triple quadrupole-linear ion trap (QTRAP)-MS.
ESI-Q TRAP-MS/MS
LIT and triple quadrupole (QQQ) scans were acquired on a triple quadrupole-linear ion trap mass spectrometer (Q TRAP; AB4500 Q TRAP UPLC/MS/MS System, Milwaukee, United States) equipped with an ESI Turbo Ion-Spray interface, operating in positive and negative ion mode, and controlled by Analyst 1.6.3 software (AB Sciex). The ESI source operation parameters were as follows: ion source, turbo spray; source temperature, 550°C; ion spray voltage (IS), 5,500 V (positive ion mode)/−4,500 V (negative ion mode); ion source, gas I (GSI), gas II (GSII), and curtain gas (CUR) set at 50, 60, and 25.0 psi, respectively; and collision-activated dissociation (CAD), high. Instrument tuning and mass calibration were performed with 10 and 100 μmol/L polypropylene glycol solutions in QQQ and LIT modes, respectively. QQQ scans were acquired as multiple reaction monitoring (MRM) experiments with collision gas (nitrogen) set to medium. Declustering potential (DP) and collision energy (CE) for individual MRM transitions were performed with further DP and CE optimization. A specific set of MRM transitions were monitored for each period according to the metabolites eluted within this period.
Multivariate Data Analysis and Statistical Analysis
Data were normalized with sum, log transformation, and auto-scaling before any statistical analysis. Unsupervised principal component analysis (PCA) was performed by the “prcomp” statistics function within R.1 The data were unit variance scaled before unsupervised PCA. The hierarchical cluster analysis (HCA) results of samples and metabolites are presented as heatmaps with dendrograms, while Pearson correlation coefficients (PCC) between samples were calculated by the “cor” function in R and are presented as heatmaps. Both HCA and PCC were performed using the “pheatmap” package in R. For HCA, the normalized signal intensities of metabolites (unit variance scaling) are presented as a color spectrum. Significantly different accumulated metabolites (DAMs) between groups were determined by VIP (Variable importance in the projection) ≥ 1 and absolute log2 (fold change) ≥ 1. VIP values were extracted from the OPLS-DA (orthogonal partial least squares discriminant analysis) results, which also contained score plots and permutation plots, and they were generated using the “MetaboAnalystR” package in R. The data were log transformed (log2) and mean centered before OPLS-DA. To avoid overfitting, a permutation test (200 permutations) was performed. Student’s t-test was carried out using IBM SPSS Statistics 25 Software to identify the significant differences at α level of 0.05 for all biochemical analyses.
Kyoto Encyclopedia of Genes and Genomes (KEGG) Annotation and Enrichment Analysis
Identified metabolites were annotated using the KEGG compound database,2 and annotated metabolites were then mapped to the KEGG Pathway database.3 Pathways with significantly regulated metabolites were then subjected to metabolite set enrichment analysis (MSEA), and their significance was determined by hypergeometric test p-values.
Determination of Total Antioxidant Capacity and Antioxidant Analysis
Quantification of antioxidant activities was performed on a dry weight basis. Liquid nitrogen was added to the seven samples, which were then ground to pass a 60 mesh-sieve with an IKA all basic mill (IKA Works Inc., Wilmington, NC, USA). The powder was then freeze-dried to constant weight. A portion of the powder (0.2 g) was extracted in a capped centrifuge tube with 4 ml of solvents including 80% ethanol and 20% distilled water. The mixture was ultrasonically extracted at 50°C for 20 min at 38 kHz and 30 kW. The extracts were then centrifuged by an Allegra 21R Centrifuge (Beckman Coulter Ltd., Palo Alto, CA, USA) at 4500 rpm for 10 min, and the supernatants were removed into new tubes. Residues were extracted with the same solvents for the second time. Both extracts were combined and stored at 4°C in the dark until further analysis within 2 d. Extractions were performed in three replicates for each sample.
1,1-Diphenyl-2-Picrylhydrazyl Radical-Scavenging Activity
The 1,1-diphenyl-2-picrylhydrazyl (DPPH) radical-scavenging capacity of hemp seed extracts was evaluated according to the method of (Xie et al., 1993) with slight modifications. Briefly, 1 ml of the tested hemp seed extract was added to 3 ml of methanol solution containing DPPH radicals (final concentration of 0.1 mM). The mixture was shaken vigorously for 1 min by vortexing and left to stand at room temperature in the dark for 30 min. Thereafter, the absorbance of the sample (Asample) was measured using an UV 160 spectrophotometer at 517 nm against an ethanol blank. The absorbance of a complete blank control (Ac-blank) was measured after adding 3 ml of methanol to 1 ml of ethanol. The absorbance of a blank control (Ablank) was measured after adding 3 ml of methanol to 1 ml of the sample solution. The absorbance of a negative control (Acontrol) was measured after adding DPPH solution to 1 ml of the extraction solvent. The percent of DPPH discoloration of the sample was calculated according to the following equation:
.
Ferric Reducing Antioxidant Power Assay
The ferric reducing antioxidant power (FRAP) assay was performed as previously described by (Benzie and Strain, 1996) with some modifications. The sample solution analyzed was first diluted with deionized water to fit within the linearity range. The test was performed according to the manufacturer’s instructions (WARYONG, Beijing, China). The working FRAP reagent was prepared by mixing 1 ml of distilled water with 20 μl of 98% H2SO4 and 10 mg of FeSO4·7H2O. Then, 900 μl of working FRAP reagent was warmed to 37°C, and 30 μl of sample and 90 μl of deionized water were added to the FRAP reagent. The absorbance was then measured at 593 nm against a reagent blank after 10 min. The FRAP value was calculated and expressed as micromoles of Fe2+ equivalent (FE) per gram of hemp seed sample using the calibration curve of Fe2+. The linearity range of the calibration curve was 0.003125 to 0.1 μmol (r = 0.9996).
Results and Discussion
Identification of Modules of Closely Related Metabolites

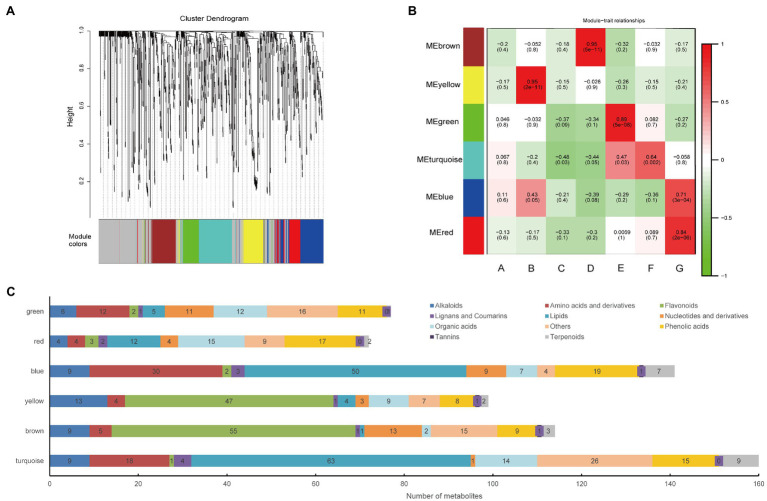

WGCNA is a powerful tool that can identify metabolite sets with highly synergistic changes. Compared with only focusing on differential metabolites, WGCNA uses the information of thousands or nearly tens of thousands of metabolites with the greatest changes or all metabolites to identify the metabolite set of interest and conducts significant association analysis with the phenotype. Thus, we performed WGCNA and constructed a network to further explore the relation between metabolites and hemp seed varieties. The metabolites have been clustered into six modules (comprised of 72–160 metabolites) and those who belong to none of these modules are indicated by grey (Figures 2A,B). Figure 2C shows the composition of the metabolites in the six modules. The details of the metabolites in each module were shown in Supplementary Table 2. The eigen-metabolite, which represented the accumulation profile of the metabolites contained in the module were calculated for each module. Further, we associated each of the co-expression modules with varieties of hemp seed via Pearson correlation coefficient analysis (Figure 2B).
Identification of Metabolite Characteristics in different Varieties
Based on the data of WGCNA, we further identified the hub metabolites of the modules and analyzed the correlation between modules and hemp seed varieties.

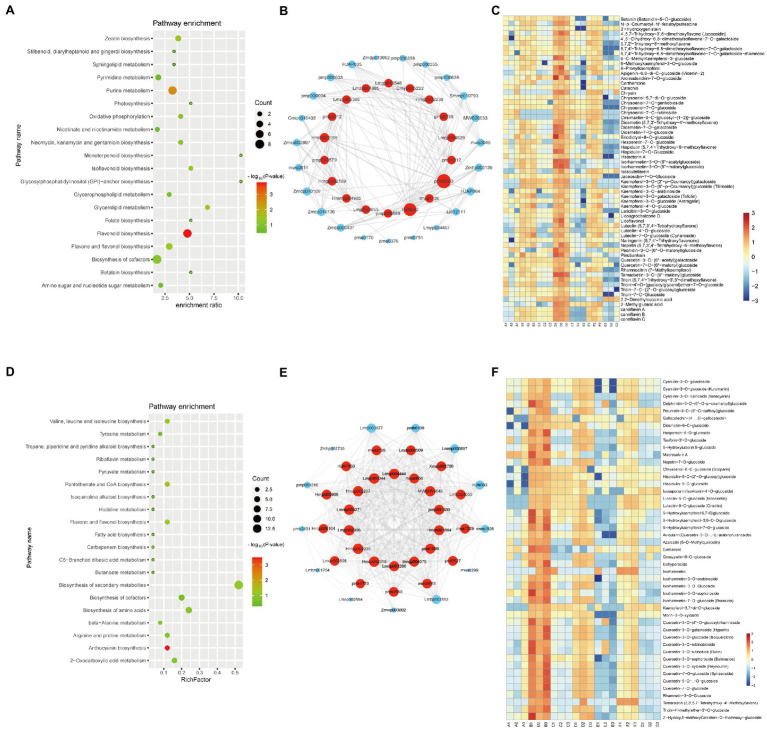

The brown module, which contained 114 metabolites, has a high correlation (r > 0.8, value of p < 0.05) with the D variety (Figure 2B). It indicated that there was a significant association between eigen-metabolite of brown and D variety trait. “Flavonoid biosynthesis,” “flavone and flavonol biosynthesis,” and “isoflavonoid biosynthesis” pathways related metabolites were highly accumulated in D variety (Figure 3A). In the D variety, 55 flavonoids, such as chrysoeriol, kaempferol, and luteolin, as well as their derivatives were detected at a high level. Two alkaloids (p-Coumaroylferuloylputrescine and N-p-Coumaroyl-N′-feruloylputrescine) and derivatives of tricin and diosmetin were hub metabolites in the brown module (Figure 3B). Betanin (mws1138), a natural pigment with powerful antioxidant activity, was also a hub metabolite detected at high levels in the D variety. Cannflavins, which are unique flavonoids in hemp, were also accumulated in the D variety (Figure 3C). The yellow module was highly correlated with the B variety (r > 0.8, value of p<0.05) and contained 99 metabolites including 47 flavonoids and 13 alkaloids (Figure 2B). Metabolites that involved in “anthocyanin biosynthesis” pathway were highly accumulated in B variety (Figure 3D). Lots of derivatives of quercetin and isorhamnetin are highly accumulated in the B variety and play as hub metabolites in the yellow module (Figure 3E). Meanwhile, several anthocyanins like Cyanidin-3-O-glucoside (Kuromanin) and Cyanidin-3-O-rutinoside (Keracyanin) are clustered into the yellow module (Figure 3F), which might be the reason for the dark color of the seed coat. The diet contains plant flavonoids is thought to have neuroprotective, antioxidant, and anticancer properties (Hostetler et al., 2017; Madunic et al., 2018). B and D varieties have a high level of flavonoids, indicating that both varieties may have high medicinal value.

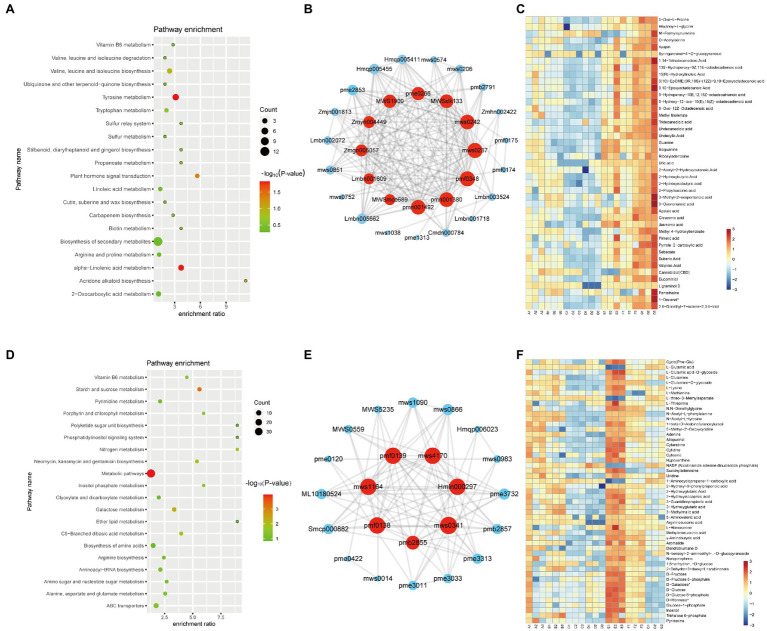

The red module contained 72 metabolites and was correlated with the G variety (Figure 2B). Twelve free fatty acids, 15 organic acids, and 17 phenolic acids were clustered in the red module. And, “alpha-linolenic acid metabolism” pathways (value of p < 0.05) related metabolites are highly accumulated in G variety (Figure 4A). Several free fatty acids served as hub metabolites in the red module, including methyl-linolenate, undecanedioic acid, and 15(R)-hydroxylinoleic acid (Figures 4B,C). The green module correlated with the E variety, and it was accumulated in the following components: amino acids and derivatives; nucleotides and derivatives; organic acids; and saccharides and alcohols (others class; Figure 2B). “Starch and sucrose metabolism” and “Galactose metabolism” related metabolites are overrepresented in the green module (Figure 4D). Only few secondary metabolites were clustered in the green module. The hub metabolites in the green module were mainly composed of saccharides and alcohols, such as D-Mannose (pmf0138), D-Fructose (mws1164), D-Galactose (pmf0139), D-Glucose (mws4170; Figures 4E,F). E and G varieties are rich in saccharides and fatty acids, suggesting they are ideal varieties for nutrition.
The blue and turquoise modules were overrepresented in different classes of lipids. The lipids clustered in the blue module were lysophosphatidylcholines (LPCs), while the turquoise module contained free fatty acids and glycerol ester. Both modules also contained many amino acids and derivatives (Figure 2C). Although these modules were not significantly correlated with the G and F varieties, these data indicated that these two varieties may be the ideal varieties for oil extraction or consumption.
Antioxidant Activity and Medicinal Properties Analysis of Hemp Seed
Hemp seeds have been reported to have high antioxidant activity and phenols and flavonoids are thought to contribute to the antioxidant potential in hemp seeds (Frassinetti et al., 2018; Irakli et al., 2019). We investigate the relationship between metabolite profiles of hemp seeds and their antioxidant activities. Firstly, we performed DPPH radical-scavenging and FRAP assays to evaluate the antioxidant activity of the seven varieties (Table 2). The DPPH radical-scavenging activities of the total extract of the hemp seed varieties ranged from 69.71% to 91.91%. The DPPH radical-scavenging activities of the B, D, F, and G varieties were higher than those of the other varieties. The FRAP assay showed that the FRAP of the total extract of hemp seeds ranged from 18.35 μmol Fe2+/g to 32.54 μmol Fe2+/g. It suggested that there were significant differences in antioxidant activities between hemp seed varieties, and the B, D, F, and G varieties had higher antioxidant activity, while the A and C varieties had lower antioxidant activity.
Then we preformed WGCNA to calculate the relationship between metabolites and antioxidant activity. Brown, yellow and red modules are highly correlated with antioxidant activity. Several identified metabolites may be responsible for the antioxidant activity of hemp seeds. For example, naringenin and kaempferol-3-O-glucoside, possessing antioxidant, anti-inflammatory, and antiproliferative activities (Li et al., 2021), are found in high levels in hemp seeds. Phenolic acids and alkaloids exhibit strong antioxidant activity such as scavenge free radicals and reduce metal ions (Piazzon et al., 2012; Kumari, 2022). Thus, 2-O-Salicyl-6-O-Galloyl-D-Glucose, Feruloyl syringic acid, 1-O-Feruloyl-D-Glucose (class of phenolic acids) and N-Trans-Feruloyl-3’-O-methyldopamine, N-Feruloyl-3-methoxytyramine, N-Cis-Feruloyl-3’-O-methyldopamine (class of alkaloids) which were highly detected in the B, D, F, and G varieties might attribute the antioxidant activity in hemp seeds. Cannabinoids such as cannabichromenic acid (CBCA), cannabidiolic acid (CBDA), CBD and Δ9-THC also have antioxidant activity (Dawidowicz et al., 2021). Yellow module correlated with B variety was rich in flavonoids such as several derivates of quercetin and isorhamnetin. One phenolic acid and six flavonoids act as hub metabolites in B variety (Figure 3E). Brown module (D variety) contained 55 flavonoids, such as chrysoeriol, kaempferol, and luteolin, as well as their derivatives, and two flavonoids and two alkaloids act as hub metabolites in D variety (Figure 3B). The flavonoid profiles of B and D variety as observed in the metabolome analysis could be the putative reason for their high antioxidant activity. G variety correlated with red module also have high antioxidant activity. And, red module contained many phenols, suggesting that these phenols may also contribute to the antioxidant activity. Most noteworthy, B, D, F, and G varieties with high antioxidant activity have dark coat color. Therefore, anthocyanins like derivates of cyanidin [cyanidin-3-O-galactoside, cyanidin-3-O-glucoside (Kuromanin), and cyanidin-3-O-rutinoside (Keracyanin)], which is responsible for the dark seed coat, are also important metabolites for the antioxidant activity of hemp seeds (Tena et al., 2020). In addition, unsaturated fatty acids also have antioxidant activity. Fatty acids, such as methyl-linolenate, undecanedioic acid, and 15(R)-hydroxylinoleic acid, that highly accumulated in G variety might also contribute to antioxidant activity. The high DPPH radical-scavenging activity in the F variety may be caused by high contents of phenolic acid and terpenoid metabolites. While, the high antioxidant activities of the B and D varieties may be attributed to the flavonoid compounds.
Conclusion
In this study, by using widely targeted metabolomics, we totally identified 1,001 metabolites in seven different varieties of hemp seeds and found that the content of the metabolites might responsible for the difference of varieties. Then, by using WGCNA, we identified the characteristic metabolites of the hemp seed varieties. Further, antioxidant activity of seven varieties were detected, and we found that flavonoids and phenolics are mainly responsible for the antioxidant activity of hemp seeds. Our research provides helpful information for further investigation of the chemical composition of hemp seeds.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, and further inquiries can be directed to the corresponding authors.
Funding
This study was supported by the Fundamental Research Funds for the Central Public Welfare Research Institutes (ZZ13-YQ-049), the Scientific Research Project of Hainan Academician Innovation Platform (SQ2021PTZ0052), and the National Key R&D Program of China from the Ministry of Science and Technology of China (no. 2019YFC1711100).
Conflict of Interest
HY is employed by Yunnan Hemp Industrial Investment CO.LTD.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.904163/full#supplementary-material
