Efficient expansion of global protected areas requires simultaneous planning for species and ecosystems
School of Biological Sciences, University of Queensland, St Lucia, Queensland 4072, Australia
School of Geography, Planning and Environmental Management, University of Queensland, St Lucia, Queensland 4072, Australia
Global Conservation Program, Wildlife Conservation Society, Bronx, NY 10460, USA
CSIRO Land and Water, PO Box 2583, Brisbane, Queensland 4001, Australia
Department of Life Sciences, Imperial College London, Silwood Park, Ascot SL5 7PY, Berkshire, UK
Centre for Tropical Environmental and Sustainability Science, James Cook University, Cairns, Queensland 4878, Australia
Abstract
The Convention on Biological Diversity (CBD)'s strategic plan advocates the use of environmental surrogates, such as ecosystems, as a basis for planning where new protected areas should be placed. However, the efficiency and effectiveness of this ecosystem-based planning approach to adequately capture threatened species in protected area networks is unknown. We tested the application of this approach in Australia according to the nation's CBD-inspired goals for expansion of the national protected area system. We set targets for ecosystems (10% of the extent of each ecosystem) and threatened species (variable extents based on persistence requirements for each species) and then measured the total land area required and opportunity cost of meeting those targets independently, sequentially and simultaneously. We discover that an ecosystem-based approach will not ensure the adequate representation of threatened species in protected areas. Planning simultaneously for species and ecosystem targets delivered the most efficient outcomes for both sets of targets, while planning first for ecosystems and then filling the gaps to meet species targets was the most inefficient conservation strategy. Our analysis highlights the pitfalls of pursuing goals for species and ecosystems non-cooperatively and has significant implications for nations aiming to meet their CBD mandated protected area obligations.
Untitled section
Keywords: ecosystem-based targets, surrogacy, spatial prioritization, geographical range size, adequacy, representation, CBD Aichi targets
Article notes
Untitled section
Received 2015 Mar 9; Accepted 2015 Apr 1; Collection date 2015 Apr.
2.Introduction
Protected areas are pivotal for conserving both ecosystems and threatened species [1]. While the persistence of biodiversity often requires a suite of management strategies, protected areas provide a buffer from a myriad of threatening processes [2,3]. Gap analyses of the current global coverage of protected areas (approx. 12% of Earth's land surface) highlight that many ecosystems and most threatened species are not well represented [4–9]. In most countries, a lack of systematic planning has given rise to significant biases in the location of protected areas [10,11]. Typically conservation land was selected in locations that were not required for other, more lucrative, land uses [11]. Systematic conservation planning approaches have sought to redress these biases by using spatial data on species distributions and ecosystems to prioritize locations for new protected areas [12]. The expansion of current protected area networks has the potential to overcome these biases and improve ecosystem protection and the survival of threatened species populations, helping to avoid biodiversity loss and species extinctions [5,6,13,14].
Over the past decade, there has been a major shift towards ecosystem-based planning for the expansion of protected area networks [15–18]. Ecosystem-based targets use environmental surrogates at various scales (e.g. bioregions and ecoregions) with the intention of efficiently representing biodiversity as a whole, including species and processes [15,19]. Ecosystem-based planning is used as an approach to avoid the often challenging need for unbiased, high-resolution information on the spatial distributions of species [20–22]. Much of the existing species data have sparse or patchy distributions biased by survey effort, causing species-driven conservation planning to fail in representing biodiversity as a whole [23]. Ecosystem data are typically spatially contiguous and coarser than species data, thereby providing more flexibility for locating new protected areas and more options for avoiding conflicting land uses [8].
Critics of ecosystem-based targets argue that they are too coarse to effectively represent biodiversity, allowing many species to fall through the cracks [1,20,24,25]. For example, both Araújo et al. [24] and Lombard et al. [22] found that environmental surrogates perform relatively well for plants but fail to adequately represent vertebrates, while Rodrigues & Brooks [1] found that environmental surrogates were poor at representing species. Further, the effectiveness of environmental surrogates decreases for species that are rare, have patchy or historically driven distribution and/or are data deficient, which is the case for many threatened species [21,22].
The global goals stated within the Convention on Biological Diversity (CBD) strategic plans in both 2004 and 2010 are a primary reason for the shift from species-based to ecosystem-based planning for future protected area acquisitions [16]. Specifically, in the 2010 CBD's Aichi target 11, there is a clear goal to conserve 17% of terrestrial and inland waters and 10% of marine and coastal ecosystems [16]. The CBD states that networks should be ecologically representative, but gives no specific stipulation for how much habitat for threatened species should be protected [16]. The achievement of threatened species protection under Aichi target 11 is therefore open to interpretation by nations considering the expansion of their protected area estate.
There are 195 parties that are part of the CBD treaty, each with the opportunity to translate these goals to a national level in ways that may result in various outcomes for biodiversity represented in protected areas. For example, ecosystems are the base unit of the South Africa National Protected Area Expansion Strategy, which plans to achieve the 17% representation by targeting different proportions of ecosystems depending upon their diversity and protection requirements [18]. Similarly, Australia's National Reserve System's (NRS's) primary goal at the time of research was to protect 10% of each of its 85 bioregions [26] by representing at least 80% of the different types of ecosystems within each bioregion by 2015, with a secondary goal to represent core areas for threatened species by 2030 [26]. This plan is an example of a coarse/fine filter approach, which advocates planning for ecosystems and then filling the gaps for species [27,28], which is also applied in North America [28,29].
The use of ecosystem-based targets, both in global protected area guidelines and country-level protected area expansion policy, has occurred in the absence of scientific analyses on how efficiently the ecosystem-based surrogates represent threatened species. While several studies [1,30,31] have examined the comparative benefits of both approaches, none have investigated their efficiency in protecting both species and ecosystems in the context of the CBD's strategic plan and country-level priority setting. Full implementation of the 2010 CBD strategic plan across all signatory countries is likely to take considerable time and resources, but would represent one of the greatest expansions of the global protected area estate in modern times [8]. An improved understanding of how an ecosystem-based approach is likely to impact conservation outcomes is therefore timely and will assist countries in translating the CBD goals into protected area expansion that efficiently and effectively conserves threatened species as well as ecosystems.
Here, we conduct a novel assessment of the impact of ecosystem-based planning and the global CBD goals on protected area outcomes for threatened species at the country level upon which they are implemented. We assess the potential for efficiency and effectiveness in threatened species and ecosystem coverage in the expanding protected area network across Australia, arguably the first country to fully embrace a systematic planning approach using ecosystem-based targets to design the protected area estate [26,32,33]. A recent continent-wide analysis by Watson et al. [34] found that despite this relatively systematic approach, threatened species coverage in the protected area estate (which covered 11.6% of the terrestrial surface) is still inadequate, with approximately 12% of threatened species completely absent from the protected area network. The Commonwealth of Australia's plan to expand their reserve system (known as the NRS [26,35]) follows the guidelines and ecosystem-based approach suggested by the CBD.
Specifically, we investigate (i) how well threatened species are likely to be captured in the resultant protected area network if Australia aims to meet its 10% targets for all ecosystems most efficiently (as current policies suggest) by minimizing the area required; (ii) how well ecosystem-based targets are likely to be met if Australia's protected area network is designed to meet targets for threatened species only; and finally (iii) the efficiency and effectiveness of planning for both sets of targets simultaneously versus sequentially (e.g. meeting ecosystem targets first and species targets later or vice versa). We define efficiency as the amount of area required to meet a given set of targets, and effectiveness as the level of representation of a target in a given protected area network.
3.Material and methods
3.1.Ecosystem spatial data and targets
At the time of this research, Australia was divided into 85 bioregions, hereafter ‘ecosystems’, based on the Interim Biogeographic Regionalization of Australia (IBRA bioregions [33], v. 6.1), at a spatial resolution of approximately 10 km2. These ecosystems were derived by compiling geographical information on continental scale gradients and patterns in climate, substrate, landform, vegetation and fauna, and each bioregion is considered a distinct ecologically and geographically defined area [35]. The Commonwealth of Australia [26,35] has set a target of at least 10% representation in each ecosystem in the protected area estate for the NRS, which is the ecosystem target adopted in this study.
3.2.Threatened species data and targets
We considered distributions of 1320 species from the total of 1737 species listed under the Environmental Protection and Biodiversity Conservation Act. We used maps of species' distributions at a resolution of approximately 10 km2, developed for extant terrestrial and freshwater threatened species available in the Species of National Environmental Significance database [36]. We excluded 95 extinct species and 367 species that are marine, freshwater or migratory, or whose distributions are only estimated with low certainty. The species we considered, hereafter referred to as ‘threatened species’ are listed as Critically Endangered, Endangered or Vulnerable [36] (note that the definitions of these categories as applied within Australia differ slightly from those employed globally by the IUCN Red List, and also that there are species on the IUCN Red List that are not listed nationally, and vice versa).
Following Watson et al. [34] and building on a method developed by Rodrigues et al. [13] and Kark et al. [37], we set a series of adequacy targets for these 1320 threatened species based on geographical range size and level of endangerment. This method develops area-based targets that scale with geographical range size, requiring species with smaller ranges to be increasingly well protected [5,13,38–40]. A target of complete coverage (i.e. 100% of remaining extent) by protected areas was set for those species considered Critically Endangered and those species with a geographical range size of less than 1000 km2. Conversely, for those species with large range sizes (more than 10 000 km2), the target was set to cover 10% of current range. For species with geographical ranges of intermediate size (between 1000 and 10 000 km2), the target was linearly interpolated between these two extremes, with decreasing representation targets (smaller percentage of their range) set for species with larger range sizes (electronic supplementary material, figure S1).
3.3.Spatial prioritization analyses
We determined the amount of each of the 85 ecosystems and 1307 threatened species already covered by the current protected area estate by intersecting the ecosystem maps and threatened species distribution maps with the map of the Australian protected area estate [41] (this includes IUCN management categories I–VI). For both ecosystems and species, we masked out distributions that occurred in cleared areas (i.e. are not potential for conservation). For some species, the area of remaining available intact habitat was smaller than their set target. In such cases, we reduced the target for these species to represent 100% of remaining available intact habitat. Thirteen of our 1320 species had none of their distribution within areas that were considered intact and available for conservation, and were counted as gap species and their targets were set to zero. This left 1307 species as our threatened species target set.
We created a planning unit layer of 10 × 10 km grid cells covering Australia, which was the smallest resolution computationally feasible and approximately matches the scale of the maps of threatened species [34] and ecosystems [42]. We intersected the planning unit layer with the protected area layer, such that each existing protected area was a separate planning unit. We determined the amount of each species and ecosystem type in each planning unit based on their spatial overlap.
We used the systematic conservation planning software Marxan [43] to identify solutions for the expansion of Australia's protected area network to meet the above targets for ecosystems and threatened species coverage. Marxan uses a simulated annealing algorithm to select multiple alternative sets of areas that meet pre-specified biodiversity targets while minimizing overall cost [43]. It has been used for identifying proposed conservation areas in Australia and throughout the world (e.g. [44–46]). When investigating spatial options for expansion, we locked in the current protected area estate and assumed that targets for all species and ecosystems were of equal importance to meet. We set the cost of each planning unit as the total area potentially suitable for conservation within the planning unit, i.e. we assumed that only areas of native vegetation would be suitable for inclusion in the protected area estate, and we used area is a universal surrogate for the costs of protected area management [43].
We used Marxan to identify 500 solutions for each of five scenarios (table 1). First, we identified the additional area required to protect all the ecosystem-based targets (by being added to the current network) and assessed how well the selected network covered the adequacy targets for the 1307 threatened species (table 1, scenario 1). Next, we determined the minimum amount of newly protected land needed to meet the range-based targets for threatened species and assessed how well this solution met the representation targets set for ecosystems (table 1, scenario 2). In our third and fourth scenarios (table 1), we investigated how much additional land area would be required to be added to the network formed in scenarios 1 and 2 to achieve all targets for both species and ecosystems, i.e. achieving 100% of all targets in a stepwise way. Lastly, for scenario five, we established the minimum amount of land needed to create a protected area network for both ecosystems and species targets when planning simultaneously (table 1).
| current situation | scenario 1 achieving 10% ecosystem targets | scenario 2 achieving threatened species coverage targets | scenario 3 achieving 10% ecosystem targets then adding species targets | scenario 4 achieving threatened species coverage targets then adding 10% ecosystem targets | scenario 5 achieving both threatened species and ecosystem targets simultaneously | |
|---|---|---|---|---|---|---|
| land covered in protected areas in ha (% of Australia) | 89 115 652 (11.59%) | 118 629 670 (15.43%) | 143 988 700 (18.73%) | 168 574 630 (21.93%) | 161 689 810 (21.03%) | 161 191 100 (20.96%) |
| threatened species coverage | ||||||
| no. species adequately protected (% of total species) | 284 (21.5%) | 323 (24.7%) | 1307 (100%) | 1307 (100%) | 1307 (100%) | 1307 (100%) |
| average proportiona of species target met | 47.8% | 52.2% | 99.9% | 99.9% | 99.9% | 99.9% |
| ecosystems coverage | ||||||
| no. ecosystems with 10% coverage | 48 (56.5%) | 85 (100%) | 60 (70.6%) | 85 (100%) | 85 (100%) | 85 (100%) |
| average proportiona of 10% ecosystems coverage achieved | 72.6% | 100% | 85.1% | 100% | 100% | 100% |
All five scenarios were evaluated by: (i) the total number and percentage of targets that were fully met; and (ii) the average proportion of coverage for each set of targets (species and ecosystems) in the top solution for each scenario (coverage was calculated per target, and if more than 100% of a target was met, it was capped at 100% when averaging across all targets in the set). We compared the dissimilarity between scenarios (1–5) using Jaccard distances for both the added protected areas only and the entire network including the existing protected areas (electronic supplementary material, table S1).
We also investigated the sensitivity of our results to: (i) the measure of cost we used (area) by comparing with a cost based on forgone agricultural opportunities [47]; and (ii) the possible impact of the reserve expansion being driven by current location of protected areas, by testing a scenario where protected areas were not locked in. First, we re-ran scenarios 1–5 (table 1) with the cost of protecting a planning unit based on its current agricultural profitability, instead of its area (higher profitability values represent higher opportunity costs). We used a GIS agricultural profit map ($ ha−1) from Marinoni et al. [47] to calculate a per planning unit annual profitability value in $ ha−1 and multiplied it by the area of the planning unit potentially suitable for conservation, and used this value as the planning unit cost. Negative values were rounded to zero and a transaction cost of $10 000 was added proportionally to the planning size as the minimum land value [44]. Second, we re-ran the analysis without locking in existing protected areas, thus capturing a scenario where no fixed current protected areas network exists and all non-cleared areas are available for conservation.
4.Results
There is a large degree of variation in the coverage of ecosystems (bioregions) and threatened species in the current protected area network (table 1). Forty-eight (56.5%) ecosystems have achieved their target of 10% protected; however, some ecosystems are poorly represented, and on average ecosystems have attained 72.6% of their target level of protection. The protected area estate is performing worse for threatened species, with only 284 (21.5%) threatened species reaching their range-based target. On average, across all species, 47.3% of the target area is covered in the current network (table 1).
We found that a minimum of 29.5 million hectares must be added to the existing protected area network to achieve 10% representation of each ecosystem. The solution with the sole target of achieving 10% of each ecosystem in the smallest amount of area requires approximately 15.4% (table 1) of terrestrial Australia to be in protected areas (figure 1a). One of the main reasons that the required national-level coverage is greater than the 10% target is because some ecosystems, mostly arid ecosystems [48], have been protected to a level above 10%. Another reason is that many planning units are selected to meet targets for ecosystems that only occur in a small portion of the unit. Expansion aimed solely at increasing ecosystem representation would incidentally increase the number of threatened species adequately captured by 3.2% and increase the average proportion of adequacy targets met across all species from 47.3% up to 52.2% (table 1).
Expanding the current protected area network to represent all threatened species adequately without considering ecosystem targets would require an additional 54.9 million hectares. This equates to a protected area system that is approximately 144 million hectares in size (or 18.7% of Australia; table 1 and figure 1b). In this scenario, the number of ecosystems protected to a 10% level would increase from 48 to 60.

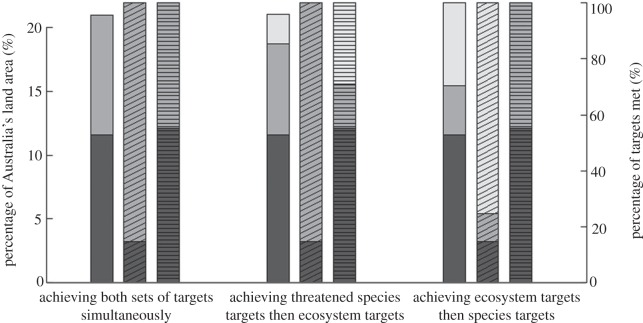

If the protected area network is expanded to meet ecosystems and threatened species targets simultaneously, an additional 72 million hectares would require protection (approx. 21.0% of Australia's land surface; figure 1c and figure 2). Planning to meet these same goals sequentially, starting with ecosystems targets and then adding areas to meet threatened species targets, would require 79.5 million hectares (21.9% of the land; table 1 and figure 2) to be added to the existing network, which is approximately 7 million hectares more than the most efficient scenario that integrated these targets. Planning sequentially, starting with threatened species targets and then adding areas to achieve the 10% ecosystems representation target, will require a similar amount of land as planning simultaneously (table 1 and figure 2).

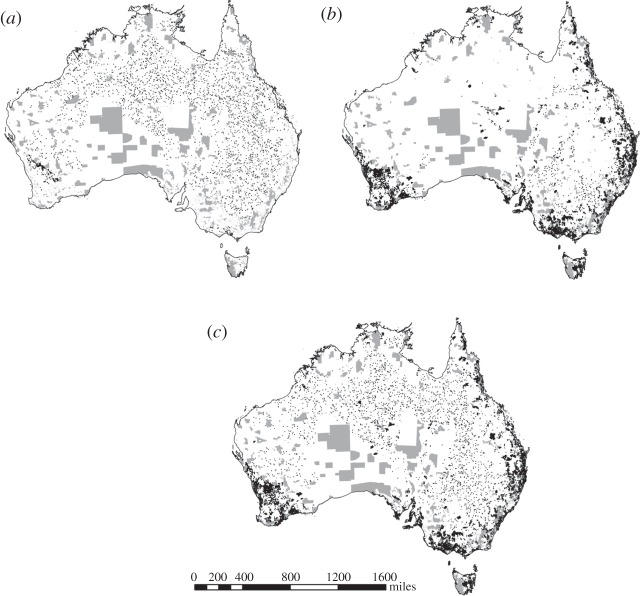

There are substantial differences in the spatial configuration of the protected areas network expansion between the five scenarios (electronic supplementary material, table S1). The majority of the difference lies between scenarios 1 and 2 (selection for ecosystems or selection for species, figure 1a,b, Jaccard dissimilarity distance of added protected areas dj = 0.982). When planning for ecosystems only (figure 1a), we get a map of protected areas which are arranged relatively evenly throughout Australia as a result of the nature of the ecosystems, which are large non-overlapping spatial features. When planning for threatened species (figure 1b), the resulting network is concentrated around the coastline, reflecting the fact that species distributions are usually small dynamic units affected by internal and external processes and reflect past land-use changes [49]. Larger protected areas might be more effective in promoting persistence for biodiversity and might be more robust to climate change [50,51]. However, a species-based approach is likely to protect more areas that are threatened by habitat loss and valuable for recreational use by society [52].
The same pattern of cost-effectiveness holds when using agricultural profits as the cost layer instead of land area, indicating that our analysis was robust to using either of these costs surrogates (electronic supplementary material, figure S2). Planning for ecosystems only marginally improves protection for threatened species and filling the gaps to reach 100% of species targets delivered the most costly scenario (electronic supplementary material, table S2). Planning for both targets simultaneously again proved the most cost-effective approach, followed by sequentially planning first according to species targets and then adding areas to achieve ecosystem targets (electronic supplementary material, table S2).
When performing the same analyses but assuming that no current protected area network exists, scenarios follow the same overall pattern, with simultaneous planning (scenario 5) being the most cost-effective closely followed by sequential planning starting with species (scenario 4). Again, sequentially planning starting with ecosystems (scenario 3) was the least cost-effective option (electronic supplementary material, table S3). Planning according to ecosystems only (scenario 1) required less area than the current protected area network but only protected 9% of the species while planning according to species achieved 60% of the ecosystems targets (electronic supplementary material, table S3).
5.Discussion
If implemented by signatory nations, the CBD 2010 strategic plan will lead to the largest increase in global protected area establishment in history [7,8]. Importantly, national protected area plans adopted by governments often follow the global CBD guidelines, which have explicitly promoted an ecosystem-based approach to achieve the expansion [16,53]. We tested whether an ecosystem-based approach, by itself, would be effective in adequately conserving threatened species, using Australia as a case study. We found that prioritizing future protected areas based on representing the 85 major ecosystems is likely to fall well short of capturing adequate amounts of many (approx. 75%) threatened species' ranges.
We found that planning for the expansion of protected area networks to meet targets for ecosystems and species at the same time will achieve both sets of targets with fewer resources and less land. This result contrasts with the stepwise coarse/fine filter approach, which we show is likely to be a less efficient way to achieve targets for both species and ecosystems together. Our results concur with other analyses which show that if the goal is to protect species and ecosystems, a dual approach is most effective [21,22,49]. Simultaneous planning is most efficient because the planning units that collectively meet both goals most efficiently can be identified, avoiding the selection of planning units that become redundant once a secondary goal is added.
The efficiencies gained by simultaneous planning on a continent the size of Australia are modest, but could become enormous once multiplied up to a global scale. Assuming the same patterns hold, the efficiencies gained by planning for threatened species and ecosystems together across the world would equal an area the size of a third of all EU countries. Our results have significant implications for how nations should interpret the CBD strategic plan. Implementation of the ecosystem-based targets alone is likely to mean future protected areas will not be optimal to meet each country's commitment to protecting threatened species, nor the overall aim of the CBD. Considering the biodiversity crisis most nations currently face [54] and the limited amount available for conservation [55], future acquisitions of protected areas need to be efficient in achieving ecosystem and threatened species representation.
The disparity between protected area network expansion for threatened species targets versus ecosystem-based targets is due to the differences in the spatial resolution of the two types of features. Ecosystems are large and non-overlapping, permitting flexibility in which planning units are selected for conservation and promoting a spatially even spread of protected areas. Alternatively, species distributions are often smaller, can overlap, are spatially aggregated and reflect land-use history [49,52]. As such, the areas still available to these species are spatially skewed and usually small compared with the large and widely distributed ecosystems [49,56]. While many nations do not have extensive spatial data on their threatened species, the IUCN Red List assessments make this freely available when it does exist [57].
We do not attempt to present a future plan for Australia's protected area network, which would entail the inclusion of further social, economic and biological considerations. We assume all areas are available for protected area expansion, but in reality factors such as opportunities for landholder engagement, public accessibility and feasibility would impact on this availability [39,58,59]. Further, while a well-managed, well-placed protected area network provides a key component required to facilitate the persistence and recovery of threatened species [52,60–62], many threatened species require a more intensive management programme than gazetting of protected areas alone [63,64]. The full costs of protecting and managing areas include the opportunity costs of not developing a site, direct costs such as infrastructure, maintenance and salaries, and the costs of planning and implementing management programmes [65,66].
Additional ecological considerations required in a real-world protected area expansion task also include the consideration of species distributions under climate change, minimum protected area size, and connectivity and corridors, which may be important for improving the likelihood that species will persist in reserves over the long term. Future research will need to consider the dynamic nature of threats such as land-use change and climate change, presenting a need to assess both species and ecosystem range shift to these changes. Moreover, given the role of biodiversity-driven ecosystem services such as pollination, pest control and recreation [67], it may be important for real-world planning to consider ecosystem services. Data and targets for threatened species, ecosystems and protected areas are regularly updated but the minor changes that have recently occurred are not likely to affect the conclusions of our analyses [36,68,69].
We found that expanding the protected area network to meet the targets used in this study would result in forfeiting (or shifting the locations for generating) almost 5 billion dollars in annual potential agricultural profit. Due to the simplifications we made in our analysis, it is likely that a real-world comprehensive protected area network in Australia would require a larger total area being needed to meet ecosystem and species targets, as the most ‘efficient’ options may not be available nor sufficient to ensure species persistence. We also note that protected areas can provide alternative sources of income by creating jobs, helping to develop rural areas and tourism revenues and providing benefits for human health and wellbeing while helping to protect the intrinsic values of nature [70]. Regardless of the cost and size of the resultant protected area estate, an efficiency approach such as the one we present serves to minimize the costs of providing these benefits to society.
Biodiversity loss is a global problem. However, the expansion of protected area networks is typically planned at a national level. In countries such as Australia, where ecosystem and species databases exist, planning for both ecosystems and species can occur simultaneously to deliver the most efficient solutions. Countries with protected area expansion plans inspired by interpretations of the CBD guidelines [17,18,26] need to consider the best available data on both species and ecosystems if both are to be efficiently protected.
Supplementary Material
Supplementary Material
Supplementary Material
Supplementary Material
Supplementary Material
Acknowledgements
We thank Matthew Watts for his advice and assistance in analysing the data, Dr Joseph Bennett and two anonymous reviewers for their valuable comments on the manuscript. We acknowledge the support of the Australian Government's National Environmental Research Program, the Australian Research Council Centre of Excellence for Environmental Decisions and the University of Queensland.
Data accessibility
The databases supporting our study are freely available on the web and the appropriate references are cited.
Funding statement
The work was funded by the Australian Government's National Environmental Research Program (TP701709) and the Australian Research Council Centre of Excellence for Environmental Decisions (CE110001014). H.P.P. was supported by an Australian Research Council Laureate Fellowship (FL130100090), Australian Research Council discovery grant (DP140100733) for J.E.M.W. and Australian Research Council DECRA fellowship (DE140101624) for V.O.
Conflict of interests
We have no competing interests.
References
Untitled section
References
- 1.Rodrigues AS, Brooks TM. 2007. Shortcuts for biodiversity conservation planning: the effectiveness of surrogates. Annu. Rev. Ecol. Evol. Syst. 38, 713–737. (doi:10.1146/annurev.ecolsys.38.091206.095737)
- 2.Margules CR, Pressey RL. 2000. Systematic conservation planning. Nature 405, 243–253. (doi:10.1038/35012251)
- 3.Boyd C. 2008. Spatial scale and the conservation of threatened species. Conserv. Lett. 1, 37–43. (doi:10.1111/j.1755-263X.2008.00002.x)
- 4.Jenkins CN, Joppa L. 2009. Expansion of the global terrestrial protected area system. Biol. Conserv. 142, 2166–2174. (doi:10.1016/j.biocon.2009.04.016)
- 5.Rodrigues ASL. 2004. Effectiveness of the global protected area network in representing species diversity. Nature 428, 640–643. (doi:10.1038/nature02422)
- 6.Dietz RW, Czech B. 2005. Conservation deficits for the continental United States: an ecosystem gap analysis. Conserv. Biol. 19, 1478–1487. (doi:10.1111/j.1523-1739.2005.00114.x)
- 7.Watson JEM, Dudley N, Segan DB, Hockings M. 2014. The performance and potential of protected areas. Nature 515, 67–73. (doi:10.1038/nature13947)
- 8.Venter O. 2014. Targeting global protected area expansion for imperiled biodiversity. PLoS Biol. 12, 1001891 (doi:10.1371/journal.pbio.1001891)
- 9.Cantú-Salazar L, Orme CDL, Rasmussen PC, Blackburn TM, Gaston KJ. 2013. The performance of the global protected area system in capturing vertebrate geographic ranges. Biodivers. Conserv. 22, 1033–1047. (doi:10.1007/s10531-013-0467-7)
- 10.Barr LM, Pressey RL, Fuller RA, Segan DB, McDonald-Madden E, Possingham HP. 2011. A new way to measure the world's protected area coverage. PLoS ONE 6, 24707 (doi:10.1371/journal.pone.0024707)
- 11.Joppa LN, Pfaff A. 2009. High and far: biases in the location of protected areas. PLoS ONE 4, 8273 (doi:10.1371/journal.pone.0008273)
- 12.Moilanen A, Wilson KA, Possingham HP. 2009. Spatial conservation prioritization: quantitative methods and computational tools. Oxford, UK: Oxford University Press.
- 13.Rodrigues ASL. 2004. Global gap analysis: priority regions for expanding the global protected-area network. Bioscience 54, 1092–1100. (doi:10.1641/0006-3568(2004)054[1092:ggaprf]2.0.co;2)
- 14.Chape S, Harrison J, Spalding M, Lysenko I. 2005. Measuring the extent and effectiveness of protected areas as an indicator for meeting global biodiversity targets. Phil. Trans. R. Soc. B 360, 443–455. (doi:10.1098/rstb.2004.1592)
- 15.Margules CR, Pressey R, Williams P. 2002. Representing biodiversity: data and procedures for identifying priority areas for conservation. J. Biosci. 27, 309–326. (doi:10.1007/BF02704962)
- 16.CBS Secretariat. 2010. Report of the tenth meeting of the conference of the parties of the convention on biological diversity. In The tenth meeting of the Conference of the Parties to the Convention on Biological Diversity, Nagoya, Japan, NEP/CBD/COP/ 10/27. See https://www.cbd.int/cop10/doc/.
- 17.Silva M. 2005. The Brazilian protected areas program*. Conserv. Biol. 19, 608–611. (doi:10.1111/j.1523-1739.2005.00707.x)
- 18.Government of South Africa. 2010. National protected area expansion strategy for South Africa 2008. Priorities for expanding the protected area network for ecological sustainability and climate change adaptation. Pretoria, South Africa: the Government of South Africa.
- 19.Hoekstra JM, Boucher TM, Ricketts TH, Roberts C. 2005. Confronting a biome crisis: global disparities of habitat loss and protection. Ecol. Lett. 8, 23–29. (doi:10.1111/j.1461-0248.2004.00686.x)
- 20.Brooks TM, Da Fonseca GA, Rodrigues AS. 2004. Protected areas and species. Conserv. Biol. 18, 616–618. (doi:10.1111/j.1523-1739.2004.01836.x)
- 21.Ferrier S. 2002. Mapping spatial pattern in biodiversity for regional conservation planning: where to from here? Syst. Biol. 51, 331–363. (doi:10.1080/10635150252899806)
- 22.Lombard AT, Cowling RM, Pressey RL, Rebelo AG. 2003. Effectiveness of land classes as surrogates for species in conservation planning for the Cape Floristic Region. Biol. Conserv. 112, 45–62. (doi:10.1016/S0006-3207(02)00422-6)
- 23.Neel MC, Cummings MP. 2003. Genetic consequences of ecological reserve design guidelines: an empirical investigation. Conserv. Genet. 4, 427–439. (doi:10.1023/a:1024758929728)
- 24.Araújo MB, Humphries CJ, Densham PJ, Lampinen R, Hagemeijer WJM, Mitchell-Jones AJ, Gasc JP. 2001. Would environmental diversity be a good surrogate for species diversity? Ecography 24, 103–110. (doi:10.1034/j.1600-0587.2001.240112.x)
- 25.Ferrier S, Watson G. 1997. An evaluation of the effectiveness of environmental surrogates and modelling techniques in predicting the distribution of biological diversity. Canberra, Australia: Department of Environment, Australian Government.
- 26.Commonwealth of Australia. 2009. Australias strategy for the national reserve system 2009–2030. Canberra, Australia: Australian Government.
- 27.Noss RF. 1987. From plant communities to landscapes in conservation inventories: a look at the nature conservancy (USA). Biol. Conserv. 41, 11–37. (doi:10.1016/0006-3207(87)90045-0)
- 28.TNC. 1982. Natural heritage program operations manual. Arlington, VA: The Nature Conservancy.
- 29.Alberta Parks. Building the Parks System: Scientific Framework. Alberta, Canada. See http://www.albertaparks.ca/albertaparksca/management-land-use/building-the-parks-system/scientific-framework.aspx . Accessed 10 September 2014.
- 30.Carmel Y, Stoller-Cavari L. 2006. Comparing environmental and biological surrogates for biodiversity at a local scale. Israel J. Ecol. Evol. 52, 11–27. (doi:10.1560/IJEE.52.1.11)
- 31.Neel MC, Cummings MP. 2003. Effectiveness of conservation targets in capturing genetic diversity. Conserv. Biol. 17, 219–229. (doi:10.1046/j.1523-1739.2003.01352.x)
- 32.Watson J, Fuller RA, Barr L. 2008. Why are we still using a one size fits all philosophy for systematic reserve planning in Australia. Pac. Conserv. Biol. 14, 233–235
- 33.Steffen W, Burbidge AA, Hughes L, Kitching R, Lindenmayer D, Musgrave W, Stafford Smith M, Werne PA. 2009. Australia's biodiversity and climate change: a strategic assessment of the vulnerability of Australias biodiversity to climate change. Canberra, Australia: CSIRO Publishing.
- 34.Watson JE, Evans MC, Carwardine J, Fuller RA, Joseph LN, Segan DB, Taylor MF, Fensham R, Possingham HP. 2011. The capacity of Australia's protected-area system to represent threatened species. Conserv. Biol. 25, 324–332. (doi:10.1111/j.1523-1739.2010.01587.x)
- 35.Natural Resource Management Ministerial Council. 2004. Directions for the National Reserve System: a partnership approach. Canberra, Australia: Department of the Environment and Heritage, The Australian Government.
- 36.Commonwealth of Australia. 2012. Species of National Environmental Significance database (SNES). Canberra, Australia: Department of the Environment, the Australian Government; See http://www.environment.gov.au/science/erin/databases-maps/snes.
- 37.Kark S, Levin N, Grantham HS, Possingham HP. 2009. Between-country collaboration and consideration of costs increase conservation planning efficiency in the Mediterranean Basin. Proc. Natl Acad. Sci. USA 106, 15 (doi:10.1073/pnas.0901001106)
- 38.Pressey RL, Cowling RM, Rouget M. 2003. Formulating conservation targets for biodiversity pattern and process in the Cape Floristic Region, South Africa. Biol. Conserv. 112, 99–127. (doi:10.1016/s0006-3207(02)00424-x)
- 39.Carwardine J, Wilson KA, Ceballos G, Ehrlich PR, Naidoo R, Iwamura T, Hajkowicz SA, Possingham HP. 2008. Cost-effective priorities for global mammal conservation. Proc. Natl Acad. Sci. USA 105, 11 (doi:10.1073/pnas.0707157105)
- 40.Klein CJ, Steinback C, Watts M, Scholz AJ, Possingham HP. 2009. Spatial marine zoning for fisheries and conservation. Front. Ecol. Environ. 8, 349–353. (doi:10.1890/090047)
- 41.Commonwealth of Australia. 2006. Collaborative Australian protected areas database (CAPAD). Canberra, Australia: Australian Government Department of Sustainability, Environment, Water, Population and Communities.
- 42.Fuller RA, McDonald-Madden E, Wilson KA, Carwardine J, Grantham HS, Watson JEM, Klein CJ, Green DC, Possingham HP. 2010. Replacing underperforming protected areas achieves better conservation outcomes. Nature 466, 365–367. (doi:10.1038/nature09180)
- 43.Ball I, Possingham H, Watts M. 2009. Marxan and relatives: software for spatial conservation prioritisation. In Spatial conservation prioritisation: quantitative methods and computational tools (eds Moilanen A, Wilson KA, Possingham HP), pp. 185–195. Oxford, UK: Oxford University Press.
- 44.Carwardine J, Wilson KA, Watts M, Etter A, Klein CJ, Possingham HP. 2008. Avoiding costly conservation mistakes: the importance of defining actions and costs in spatial priority setting. PLoS ONE 3, 2586 (doi:10.1371/journal.pone.0002586)
- 45.Klein CJ, Wilson KA, Watts M, Stein J, Carwardine J, Mackey B, Possingham HP. 2009. Spatial conservation prioritization inclusive of wilderness quality: a case study of Australia's biodiversity. Biol. Conserv. 142, 1282–1290. (doi:10.1016/j.biocon.2009.01.035)
- 46.Smith RJ. 2008. Designing a transfrontier conservation landscape for the Maputaland centre of endemism using biodiversity, economic and threat data. Biol. Conserv. 141, 2127–2138. (doi:10.1016/j.biocon.2008.06.010)
- 47.Marinoni O, Navarro Garcia J, Marvanek S, Prestwidge D, Clifford D, Laredo L. 2012. Development of a system to produce maps of agricultural profit on a continental scale: an example for Australia. Agric. Syst. 105, 33–45. (doi:10.1016/j.agsy.2011.09.002)
- 48.Pressey R. 1994. Ad hoc reservations: forward or backward steps in developing representative reserve systems? Conserv. Biol. 8, 662–668. (doi:10.1046/j.1523-1739.1994.08030662.x)
- 49.Kirkpatrick J, Brown M. 1994. A comparison of direct and environmental domain approaches to planning reservation of forest higher plant communities and species in Tasmania. Conserv. Biol. 8, 217–224. (doi:10.1046/j.1523-1739.1994.08010217.x)
- 50.Mackey BG, Watson JE, Hope G, Gilmore S. 2008. Climate change, biodiversity conservation, and the role of protected areas: an Australian perspective. Biodiversity 9, 11–18. (doi:10.1080/14888386.2008.9712902)
- 51.Watson JEM, Iwamura T, Butt N. 2013. Mapping vulnerability and conservation adaptation strategies under climate change. Nat. Clim. Change 3, 989–994. (doi:10.1038/nclimate2007)
- 52.Taylor MF, Sattler PS, Evans M, Fuller RA, Watson JE, Possingham HP. 2011. What works for threatened species recovery? An empirical evaluation for Australia. Biodivers. Conserv. 20, 767–777. (doi:10.1007/s10531-010-9977-8)
- 53.Secretariat of the Convention on Biological Diversity. 2004. Programme of work on protected areas (CBD programmes of work), p.31 Montreal, Canada: Secretariat of the Convention on Biological Diversity.
- 54.Olson DM, Dinerstein E, Powell GV, Wikramanayake ED. 2002. Conservation biology for the biodiversity crisis. Conserv. Biol. 16, 1–3. (doi:10.1046/j.1523-1739.2002.01612.x)
- 55.Sanderson EW, Jaiteh M, Levy MA, Redford KH, Wannebo AV, Woolmer G. 2002. The Human Footprint and the Last of the Wild: the human footprint is a global map of human influence on the land surface, which suggests that human beings are stewards of nature, whether we like it or not. Bioscience 52, 891–904. (doi:10.1641/0006-3568(2002)052[0891:THFATL]2.0.CO;2)
- 56.Lawler JJ, White D, Sifneos JC, Master LL. 2003. Rare species and the use of indicator groups for conservation planning. Conserv. Biol. 17, 875–882. (doi:10.1046/j.1523-1739.2003.01638.x)
- 57.IUCN. 2014. The IUCN Red List of Threatened Species, v. 2014.2. See http://www.iucnredlist.org.
- 58.Watson JE. 2009. Wilderness and future conservation priorities in Australia. Divers. Distrib. 15, 1028–1036. (doi:10.1111/j.1472-4642.2009.00601.x)
- 59.Knight AT, Cowling RM, Campbell BM. 2006. An operational model for implementing conservation action. Conserv. Biol. 20, 408–419. (doi:10.1111/j.1523-1739.2006.00305.x)
- 60.Wilson KA, Evans MC, Di Marco M, Green DC, Boitani L, Possingham HP, Chiozza F, Rondinini C. 2011. Prioritizing conservation investments for mammal species globally. Phil. Trans. R Soc. B 366, 2670–2680. (doi:10.1098/rstb.2011.0108)
- 61.Bruner AG, Gullison RE, Rice RE, Da Fonseca GA. 2001. Effectiveness of parks in protecting tropical biodiversity. Science 291, 125–128. (doi:10.1126/science.291.5501.125)
- 62.Kalamandeen M, Gillson L. 2007. Demything ‘wilderness’: implications for protected area designation and management. Biodivers. Conserv. 16, 165–182. (doi:10.1007/s10531-006-9122-x)
- 63.Leverington F, Costa KL, Pavese H, Lisle A, Hockings M. 2010. A global analysis of protected area management effectiveness. Environ. Manage. 46, 685–698. (doi:10.1007/s00267-010-9564-5)
- 64.Woinarski JC. 2011. The disappearing mammal fauna of northern Australia: context, cause, and response. Conserv. Lett. 4, 192–201. (doi:10.1111/j.1755-263X.2011.00164.x)
- 65.James AN, Gaston KJ, Balmford A. 1999. Balancing the Earth's accounts. Nature 401, 323–324. (doi:10.1038/43774)
- 66.Bruner AG, Gullison RE, Balmford A. 2004. Financial costs and shortfalls of managing and expanding protected-area systems in developing countries. Bioscience 54, 1119–1126. (doi:10.1641/0006-3568(2004)054[1119:FCASOM]2.0.CO;2)
- 67.Ingram JC, Redford KH, Watson JE. 2012. Applying ecosystem services approaches for biodiversity conservation: benefits and challenges. SAPIENS Surv. Perspect. Integr. Environ. Soc. 5, 1–10
- 68.Commonwealth of Australia. 2012. Collaborative Australian protected areas database (CAPAD). Canberra, Australia: Department of Environment, Australian Government.
- 69.Commonwealth of Australia. 2010. Australia's bioregions (IBRA). Canberra, Australia: Department of Environment, Australian Government.
- 70.Balmford A. 2002. Economic reasons for conserving wild nature. Science 297, 950–953. (doi:10.1126/science.1073947)
Associated Data
Supplementary Materials
Data Availability Statement
The databases supporting our study are freely available on the web and the appropriate references are cited.
