Strategies for Design of Potential Singlet Fission Chromophores Utilizing a Combination of Ground-State and Excited-State Aromaticity Rules
Department of Chemistry - Ångström Laboratory, Uppsala University, Box 523, 751 20 Uppsala, Sweden
Department of Chemistry, Humboldt State University, One Harpst Street, Arcata, California 95521, United States
*E-mail: henrik.ottosson@kemi.uu.se.Abstract
Singlet exciton fission photovoltaic technology requires chromophores with their lowest excited states arranged so that 2E(T1) < E(S1) and E(S1) < E(T2). Herein, qualitative theory and quantum chemical calculations are used to develop explicit strategies on how to use Baird’s 4n rule on excited-state aromaticity, combined with Hückel’s 4n + 2 rule for ground-state aromaticity, to tailor new potential chromophores for singlet fission. We first analyze the E(T1), E(S1), and E(T2) of benzene and cyclobutadiene (CBD) as excited-state antiaromatic and aromatic archetypes, respectively, and reveal that CBD fulfills the criteria on the state ordering for a singlet fission chromophore. We then look at fulvenes, a class of compounds that can be tuned by choice of substituents from Baird-antiaromatic to Baird-aromatic in T1 and S1 and from Hückel-aromatic to Hückel-antiaromatic in S0. The T1 and S1 states of most substituted fulvenes (159 of 225) are described by singly excited HOMO → LUMO configurations, providing a rational for the simultaneous tuning of E(T1) and E(S1) along an approximate (anti)aromaticity coordinate. Key to the tunability is the exchange integral (KH,L), which ideally is constant throughout the compound class, providing a constant ΔE(S1 – T1). This leads us to a geometric model for the identification of singlet fission chromophores, and we explore what factors limit the model. Candidates with calculated E(T1) values of ∼1 eV or higher are identified among benzannelated 4nπ-electron compound classes and siloles. In brief, it is clarified how the joint utilization of Baird’s 4n and Hückel’s 4n + 2 rules, together with substituent effects (electronic and steric) and benzannelation, can be used to tailor new chromophores with potential use in singlet fission photovoltaics.
Introduction
Research on solar energy harvesting is one of the most active areas within chemistry, and photovoltaics technology is one of the main directions for turning solar energy into electricity. Today, three different generations of photovoltaics exist.1,2 The third and most recent generation includes materials able to overcome the Shockley–Queisser limit (∼33%).3,4 This generation includes singlet exciton fission photovoltaics, or shortly singlet fission, i.e., a process where one photon of light, absorbed by a molecule, is used to create two excitons of triplet multiplicity in two molecules or in two chromophores linked intramolecularly.5,6
In singlet fission, a molecule in its first singlet excited-state (S1) kickbacks some of its energy, transferring it to a neighboring ground-state (S0) molecule, and both end up in the lowest triplet state (T1). For this process, one needs molecules with their lowest excited states arranged according to at least two key criteria: the S1 state and second triplet excited (T2)-state should have energies higher than twice that of the T1 state, i.e., 2E(T1) < E(S1) and 2E(T1) < E(T2). The first criterion guarantees that the singlet fission is exergonic and the second that the T1 + T1 → T2 annihilation is slow and endergonic.5−7 Ideally, E(S1) should also lie 0.1–0.2 eV above 2E(T1). Desirably, the T2 state should be at an energy higher than the S1 state, i.e., E(S1) < E(T2), so as to hamper intersystem crossing from S1 to T2.8 Combined, this means that 2E(T1) < E(S1) < E(T2) for a singlet fission chromophore. Finally, to maximize the efficiency in energy conversion, E(T1) should preferably be close to or slightly above 1 eV as this facilitates triplet exciton transfer and charge injection from the molecule into a silicon electrode, which has a bandgap of 1.11 eV.9 Such a process was recently accomplished by tetracene (E(T1) = 1.25 eV), enabling a combined exciton yield of 133% ± 13%.10 This and several other recent studies reveal that efficient combinations of singlet exciton fission with semiconductor technology can be accomplished to achieve triplet exciton harvesting and charge injection into electrodes, inducing photocurrents.11−15
A number of aspects need to be taken into account for the enhanced design of singlet fission solar cells.16−18 We need, for example, deepened mechanistic understanding of the exciton fission process, better control of intra- and intermolecular singlet fission rates, and improved understanding of how singlet fission chromophores interact with each other as well as with a semiconductor surface or quantum dot. To fit many different technological setups we should also compose a library of compounds that expands outside the acenes suitable for singlet fission, and chromophores with higher E(T1) than the present ones should be identified.17,18 However, how can further chromophores with the desired characteristics be discovered?
The search for materials suitable for singlet fission is not a straightforward task, particularly as the experimental determination of E(T1) is less facile than for E(S1). However, with the help of quantum chemical analyses, the search has evolved considerably over the last years.8,19−27 The first experimental evidence of efficient singlet fission was observed for anthracene crystals, and research then expanded to tetracene and pentacene materials.28−30 1,3-Diphenylisobenzofuran (DPB) was the first compound observed to undergo singlet fission that had been predicted by theoretical modeling.31,32
Recently, Bronstein, Musser, Friend, and co-workers used for the first time the concept of T1-state Baird-aromaticity33−36 to analyze singlet fission chromophores.37 They studied indolonaphthyridine thiophene (INDT) derivatives, which they described as influenced by a resonance structure with a 4π-electron Baird-aromatic cycle. On the basis of quantum chemical computations of nearly 10000 INDT derivatives, they concluded that a significant part of these are influenced by aromaticity to various extents in their T1 states and have the appropriate relative arrangement of E(T1) and E(S1) to function in singlet fission photovoltaics. Significantly higher photostabilities of two INDT derivatives compared to TIPS-pentacene were also observed,37 a feature of excited-state aromatic molecules with 4nπ-electron cycles earlier noted by Wan and Shukla for dibenz[b,f]oxepins.38,39
Now, what are the explicit scopes of T1-state Baird-aromaticity for the design of singlet fission chromophores, and what are the limitations? It was argued by Ryerson et al.,40 when analyzing the INDT compounds by Fallon et al.,37 that the intermediate triplet-state aromaticity yielding the E(S1) = 2E(T1) situation needs to be found through inspection of calculated adiabatic excitation energies. Thus, a qualitative tool should be desirable. Herein, we report on approaches for the correlated tuning of the E(T1) and E(S1) of Baird-aromatic chromophores by exploiting an earlier observed similarity in the electronic structures of the T1 and S1 states of Baird-aromatic molecules.39,41 Are their ways by which E(T1) and E(S1) can be tuned predictably in a similar manner while E(T2) is left unaffected or changes in another way than E(T1) and E(S1)? How are compounds with E(T1) slightly above 1 eV identified, allowing for the combination of the singlet fission process with existing silicon solar cell technology? We develop a general design strategy by combining qualitative theory on excited-state Baird- and ground-state Hückel-aromaticity with quantum chemical computations. We arrive at approaches that could be applied broadly to identify a plethora of excited-state Baird-aromatic compounds and compound classes potentially suitable for singlet fission photovoltaics.
Design Strategies

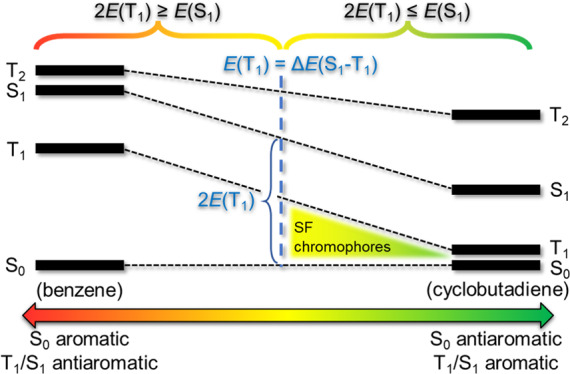

Molecules with Baird-aromatic T1 states in general have a low E(T1), as the aromatic character leads to a stabilization of that state relative to the S0 state, which is Hückel anti- or nonaromatic.35,39,41 Cyclobutadiene (CBD), which is T1-state Baird-aromatic, fulfills the first criterion as E(S1)/E(T1) = 2.84.42 The opposite applies to benzene (T1-state Baird-antiaromatic) because E(S1)/E(T1) = 1.35.43 Thus, one should search for (moderately) Baird-aromatic compounds with E(T1) that are approximately double the E(T1) of CBD (0.59 eV)42 to achieve an E(T1) similar to the band gap of silicon (1.11 eV). If one can identify compound classes influenced by Baird-aromaticity and throughout which the S1 and T1 states are described by the same HOMO → LUMO singly excited electron configuration (except for a spin-flip), it should be possible to find specific compounds that fit the requirements. In such compound classes, the absolute changes in E(T1) and E(S1) should be similarly large because the two states will be influenced in the same manner by, for example, electronic or steric effects caused by substituents. Throughout the compound class, the energy difference between the two states will then equal twice the exchange integral, i.e., ΔE(S1 – T1) = 2Kij = 2KH,L (i and j = orbitals involved in excitation, H = HOMO and L = LUMO).

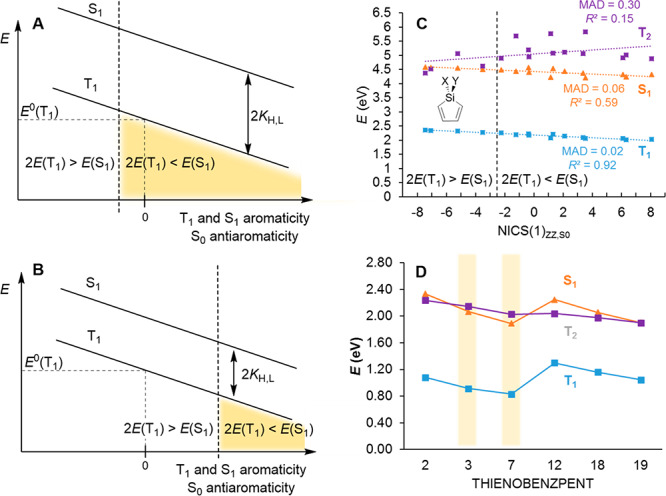

Now, if the E(T1) and E(S1) of the various specific compounds in the compound class are plotted against an (anti)aromaticity index (∼coordinate), one can tentatively determine a threshold degree of (anti)aromaticity between the compounds that satisfy the singlet fission criterion and those that do not (Figure 1). At that threshold, E(S1) will equal twice E(T1), and potential singlet fission chromophores will be found on the right side of the threshold (orange region in Figure 1). However, the hypothesis summarized in Figure 1 assumes that 2KH,L is constant over the interval, but even if HOMO and LUMO keep their respective symmetries throughout a compound class, their spatial localization may shift; as a result, 2KH,L will change in size. The importance of colocalization of the HOMO and LUMO to the same atoms for a large 2KH,L becomes clear through a comparison of naphthalene with azulene: naphthalene with a HOMO and LUMO colocalized to the same atoms has an ΔE(S1 – T1) of 1.7 eV, while azulene, where the HOMO and LUMO are not fully colocalized and somewhat polarized toward different ends of the molecule, has an ΔE(S1 – T1) of 0.5 eV.44 Similarly, the ΔE(S1 – T1) of individual compounds within a compound class will vary if there is a change in the spatial distribution of HOMO and/or LUMO throughout the class.

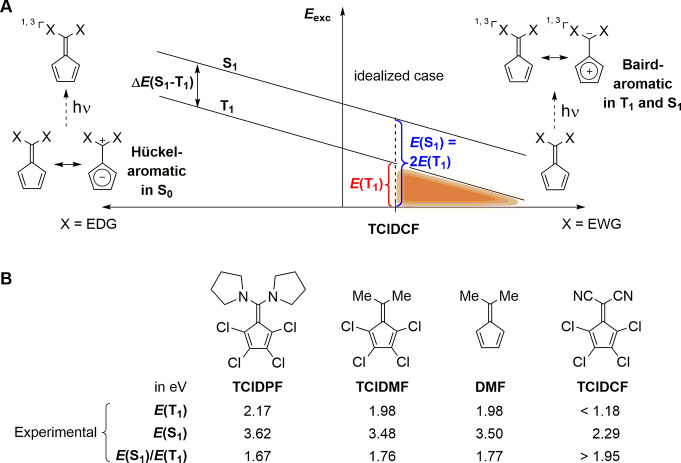

We first test our design strategy on substituted fulvenes (pentafulvenes) being a compound class with E(T1) and E(S1) that span a large part of the region between the corresponding excited-state energies of benzene and CBD.45−49 This feature is a result of the “aromatic chameleon” character of fulvenes, meaning that they can adapt to the different aromaticity rules in different electronic states: Baird’s rule in T1 and S1 and Hückel’s rule in S0.50 π-Electron withdrawing groups (EWGs) at the exocyclic position lead to low-lying T1 and S1 states, as they enhance the Baird-aromatic character of these states (Figure 2A). Computations have shown that fulvenes and related compounds with triplet ground (T0) states are possible,50,51 explained by the fact that the cyclopentadienyl cation (Cp+) has a triplet ground state.52−54 Assuming that the T1 and S1 states are described by the same electron configuration, except for the multiplicity difference, this means that a particular EWG at the exocyclic position of a fulvene will have the same stabilizing effect in S1 as in T1 when compared to the parent fulvene as a reference.
Indeed, the tunability of E(T1) and E(S1) was earlier observed experimentally for four fulvene derivatives: 1,2,3,4-tetrachloro-6,6-dipyrrolidinofulvene (TClDPF), 1,2,3,4-tetrachloro-6,6-dimethylfulvene (TClDMF), 1,2,3,4-tetrachloro-6,6-dicyanofulvene (TClDCF), and 6,6-dimethylfulvene (DMF) (Figure 2B).45,46 For singlet fission, it is rewarding that the experimental E(S1)/E(T1) ratio increases when going from TClDPF to TClDCF (Figure 2B) so that E(S1) in TClDCF is (at least) nearly twice larger than E(T1). With TClDCF being a stable organic compound, together with the recently reported INDT derivatives,37 it is revealed that a large number of chromophores, which to various extents are influenced by aromaticity in their T1 states, are awaiting to be discovered and used in singlet fission photovoltaics. In fact, the experimental ΔE(S1 – T1) values for the four fulvenes displayed in Figure 2B are similar for three compounds (TClDPF, TClDMF, and DMF) yet are possibly higher for TClDCF, as only an upper limit of E(T1) was assessed for the latter compound (1.45, 1.50, 1.52, and <1.11 eV, respectively). The experimental E(S1)/E(T1) ratio of TClDCF, which is 1.95 or higher, suggests that this compound may indeed function as a singlet fission chromophore.
The design strategy outlined for fulvenes in Figure 2A utilizes electronic substituent effects, but altered steric congestion can also change E(T1) and E(S1). Again, this effect can be exemplified on fulvenes by altering the CC bond lengths in silico. This modulates the energies of the HOMO and LUMO (Figure 3A) by changing the strength of either the bonding or the antibonding character of an orbital at a particular bond. If the T1 and S1 states are HOMO → LUMO single excitations, this allows for tuning of the E(T1) and E(S1). As seen for the parent fulvene (Figure 3B), the relevant states change in energy as a function of CC bond lengths, and the absolute energy changes for the T1 and S1 states in each of the two types of distortions. Specifically, the energies of the two states decrease by 0.81 and 0.68 eV when the r2,3 bond is shortened from 1.54 to 1.38 Å, and they decrease in energy by 0.98 and 0.86 eV when the r1,2 = r3,4 distances are elongated from 1.35 to 1.45 Å. Thus, ΔE(S1 – T1) remains rather constant if there is no gradual shift in the location of the HOMO relative to the LUMO along the distortion coordinate. The T2 state in the distorted parent fulvene, on the other hand, displays smaller changes (0.19 and 0.48 eV, respectively). Indeed, molecular contortion (bending and twisting) has recently been shown to be one means for altering E(T1) and E(S1) so as to improve singlet fission performance of an existing chromophore.55
A further design approach is to combine Baird’s rule with Clar’s rule,56−58 as that particular isomer among a series of isomeric polycyclic antiaromatic hydrocarbons (PAAHs) that maximizes the total number of aromatic monocycles in the T1 state (one Baird π-quartet or π-octet plus Clar π-sextets) has the lowest E(T1) value.59 By selecting the proper isomer, it should be possible to identify the T1-state Baird-aromatic compounds with E(T1) = 1.1–1.2 eV, which fulfill the singlet fission criteria. However, it is important to note that the isomer, which is ideal for singlet fission, is not necessarily the one that is the most strongly Baird-aromatic in its T1 state, as also concluded by Ryerson et al.40 Another more established approach for the design of singlet fission chromophores is the diradical character-based design.6,20,24,26,60−62 It has been found that molecules with the proper amount of open-shell singlet diradical character often satisfy the singlet fission criteria,26,63 and a connection between the diradical character and aromaticity has been described for heteroacenes.24 A link to our approach based on Baird-aromaticity can likely be formulated, yet the extent of diradical character in the S0 state may not necessarily reflect Baird-aromaticity in the T1 state (vide infra).
Finally, it should be noted that our design strategies are approaches for identification of candidate chromophores for singlet fission. The strategies do not take into consideration, for example, nonradiative decay processes from the S1 state to the S0 state. Indeed, it has earlier been observed that some 4nπ-electron compounds can have very short excited-state lifetimes (less than 1 ns),64 a feature that could limit the applicability of Baird-aromatic chromophores in singlet fission photovoltaics. We calculated spin–orbit coupling (SOC) elements as a means to determine the probability for intersystem crossings; however, photophysical processes that are limiting for singlet fission performance are likely best probed experimentally. Thus, further careful design is needed, for example, to constrain the molecules into rigid frameworks, hampering the geometric distortions that open pathways for nonradiative decay.
Results and Discussion
The validity of the design strategy is first examined on fulvenes (pentafulvenes), as they represent a compound class in which the (anti)aromatic character of both the S0 state and the T1 and S1 states can be varied extensively.45−49 Our computations were mostly run with DFT at (U)M06-2X and TD-M06-2X levels,65 but CASPT2//CASSCF multireference computations were also performed.66 We primarily used a computational scheme derived by Zeng, Hoffmann, and Ananth (ZHA), which uses adiabatic excitations to the T1 state and vertical excitations to the S1 (T2) states from the S0 (T1) optimized structures. This approach gives the correct ordering of the T1, S1, and T2 states of pentacene,67 and it gives the E(S1)/E(T1) ratios for pentacene and DPB above or close to 2 (2.33 and 1.96 with M06-2X, see Table S1). However, at times, we also used either (i) vertically excited E(T1), labeled as E(T1)v as opposed to the adiabatic ones labeled E(T1)a, or (ii) adiabatically excited E(S1) labeled as E(S1)a. When evaluated against the experimental E(T1) and E(S1) of pentacene, tetracene, DPB, and the four fulvenes of Figure 2, it becomes clear that the approach with vertical E(T1) and E(S1) underestimates E(S1)/E(T1) when compared to experiments while the ZHA approach exaggerates the ratio. The extent of geometric relaxation in the S1 versus T1 states is important to take into consideration, as this varies between the compound classes.
Kaupp and co-workers previously used a TD-DFT-based protocol for the screening of singlet fission chromophores and, provided there is no evidence of multireference character, they proposed vertical excitation energies computed with local hybrid functionals.68 However, M06-2X was found to perform similarly. For the T1 energies and optimized geometries of substituted fulvenes, we recently observed a good agreement between CASPT2 and M06-2X,49 and we therefore used (U)M06-2X. For method assessments on CBD, benzene, DPB, and pentacene, see the Supporting Information. In short, the T1-, S1-, and T2-state orderings are the same with (TD-)M06-2X and CASPT2, and the E(S1)v/E(T1)a with the two methods using the ZHA scheme resemble each other. The (anti)aromatic character of fulvenes was determined through nucleus-independent chemical shifts (NICSs)69,70 computed with the GIAO method71 in the S0 and T1 states at optimized geometries. NICS calculations in the S1 state are cumbersome, and we instead used the electronic multicenter index (MCI)72 for selected compounds. The geometry-based HOMA index73,74 is not ideal for small T1 aromatic molecules (HOMA equals 0.73 for 3Cp+ and 0.45 for 3CBD, thus not reflecting the aromatic ideal of 1.0), and we avoid it for the fulvenes. In contrast, HOMA was used to assess the aromaticity of individual 4nπ-electrons rings of polycyclic compounds as the extent of aromaticity of individual rings in such systems cannot be determined by NICS as each ring is influenced by several diatropic or paratropic circuits.

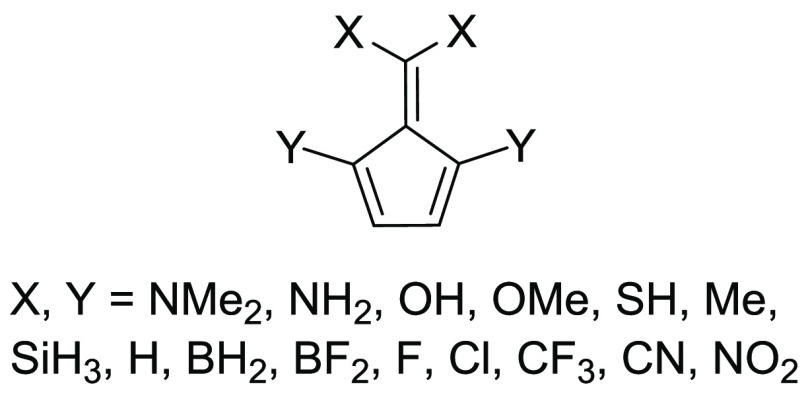

Design Strategy Tested on Substituted Model Fulvenes
As pointed out by Zeng et al.,25 the parent fulvene cannot be used for singlet fission applications since it has a low-lying T2 state, and it also undergoes efficient S1/S0 radiationless decay via two possible conical intersections (one planar and one twisted).75,76 As seen below, the first of the two drawbacks is overcome by utilizing electronic substituent effects. The second drawback can likely be alleviated by benzannelation, leading to a rigidification of the molecular structure. We explored fulvenes substituted at the exocyclic 6-position (substituents X, Figure 4) and/or at the endocyclic 2- and 5-positions (substituents Y). The substituents X and Y were selected as electron neutral, electron donating, and electron withdrawing. With the chosen substituents, we span fulvenes with calculated E(T1)a in the range 0.10–2.81 eV. We did not consider fulvenes substituted at the 3- and 4-positions because substituents at these positions have only weak electronic impact due to steric hindrance, which twists the substituents out of conjugation with the 5-membered ring.49 It should also be emphasized that the fulvenes of Figure 4 are model compounds (many are experimentally unrealistic) that allow us to explore the design hypothesis of Figures 1 and 2A. The initial set included 225 fulvenes, but 2 had triplet ground states (T0), 15 rearranged to an isomeric compound in the S0 and/or T1 state, and 49 had a HOMO and/or LUMO not analogous to those of the parent fulvene. These 66 were not further analyzed, whereby the set included 159 fulvenes (Table S2), i.e., 71% of the initial set.
Throughout the fulvenes with the T1 and S1 states described as singly excited HOMO → LUMO excitations, there are still complications. This is exemplified through two fulvenes that represent limiting cases with, respectively, high and low E(T1) and E(S1) values (Figure S1). The first fulvene with X = NH2 and Y = CN has E(T1)v = 2.92 eV, E(T1)a = 2.49 eV, and E(S1)v = 4.19 eV, while the second fulvene with X = CN and Y = NH2 has a triplet ground (T0) state −0.17 eV below the lowest singlet state and E(S1)v = 1.45 eV. Although the HOMO and LUMO each are analogous in the two compounds, there is a marked difference in the spatial distribution of LUMO that impact KH,L (Figure S1). As a consequence, ΔE(S1 – T1)v,v equals 1.66 eV for the first of these fulvenes while 0.66 eV for the second. The ΔE(S1 – T1)v,a of the two fulvenes are fortuitously very similar (1.70 and 1.62 eV, respectively), while the ΔE(S1 – T1)a,a could not be computed as it was not possible to locate the relaxed S1-state geometries of the fulvenes with neither TD-DFT or CASSCF.
The two fulvenes above further represent limiting cases with regard to singlet and triplet aromaticity because the first one is strongly 6π-electron Hückel-aromatic in its S0 state (Baird-antiaromatic in T1 and S1), while the second one is 4π-electron Baird-aromatic in its T0 state (Hückel-antiaromatic in the lowest singlet state). For the fulvene with X = NH2 and Y = CN, NICS(1)zz,S0 = −24.8 ppm and NICS(1)zz,T1 = 23.8 ppm, while for the fulvene with X = CN and Y = NH2, NICS(1)zz,S0 = 27.4 ppm and NICS(1)zz,T0 = −11.9 ppm. Noteworthy, the strongly Baird-aromatic cyclopentadienyl cation in its T0 state,77,78 representing the limiting Baird-aromatic resonance structure of a fulvene in its triplet state,49 has a NICS(1)zz,T0 value of −26.3 ppm. In its lowest singlet state, the cyclopentadienyl cation is also strongly diradical, as evidenced by a y0 value of 0.96. However, the fulvene with X = CN and Y = NH2, having a T0 state, is not extensively diradical in its lowest singlet state (y0 = 0.09), and other fulvenes with low E(T1) have even lower diradical character (Table S10). This should be compared with the reported diradical characters of tetracene and pentacene (y0 = 0.28 and 0.42, respectively).63 Thus, although increased Baird-aromatic character of the T1 state lowers the E(T1) of fulvenes, it is not followed by increased diradical character of the S0 states until one has reached fulvenes with inverted order between the lowest singlet and triplet states.
For the fulvenes in Figure 4, the changes in (anti)aromaticity when going from S0 to T1, as given by ΔNICS(1)zz,T1–S0, correlate to a reasonable extent with E(T1) (R2 = 0.82, Figure S3), similar to what we found earlier.49 However, when regarding E(T1) in dependence of Baird (anti)aromaticity in the T1 state (NICS(1)zz,T1) the correlation is lower (R2 = 0.68, Figure S4). It is noteworthy that fulvenes with E(T1)a in the range of 1.1–1.2 eV have NICS(1)zz,T1 values in the range of −4 to −2 ppm, i.e., they are nonaromatic in their T1 states. In the S1 state, we did not run NICS calculations due to computational complications, yet calculations using the MCI in the S1 and T1 states for selected fulvenes reveal that the two states for each of the investigated fulvenes are similarly (anti)aromatic (see Table S6).

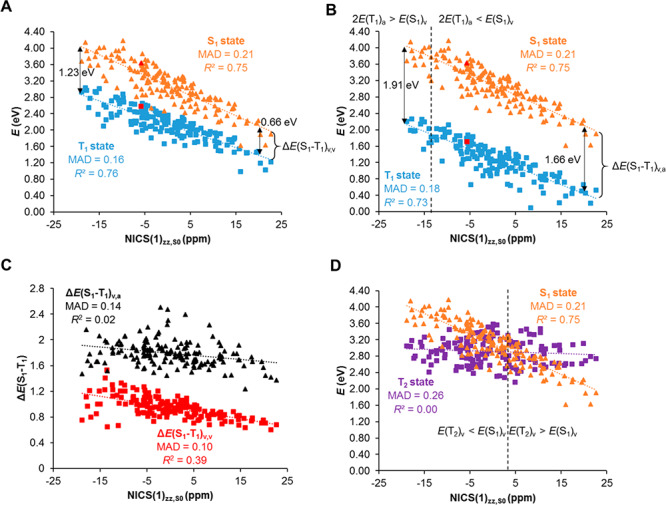

In Figure 5A and B, we plot E(T1)v, E(T1)a, and E(S1)v against NICS(1)zz,S0, thereby revealing that the computed S0-state aromaticity, which is the easiest to calculate, led to good correlations. Similar correlations were also found when plotting these energies against the difference between the NICS in T1 and S0, ΔNICS(1)zz,T1–S0 (Figure S3), which should be the NICS index that best matches E(T1). Importantly, and in support of our hypothesis outlined above (Figures 1 and 2A), it is clear in Figure 5A that E(T1)v, E(T1)a, and E(S1) vary with NICS(1)zz,S0 in essentially identical ways. However, when plotting ΔE(S1 – T1) against NICS(1)zz,S0, it is revealed that only when both E(S1) and E(T1) are vertically excited energies is there a reasonable fit with the mean average deviation (MAD) from the least-squares fitted trendline of 0.10 eV (Figure 5C). Here, it is also notable that ΔE(S1 – T1) is gradually lowered as one goes to fulvenes that are S0 antiaromatic/T1 aromatic, a feature explained by the shift in the spatial distribution of the HOMO and LUMO, leading to small KH,L.
Now, how do these plots agree with the hypothesis presented in Figure 2? Clearly, when based on the ZHA scheme, the 2E(T1)a = E(S1)v threshold is reached at fulvenes with NICS(1)zz,S0 = −13.5 ppm (dashed line in Figure 5B), while when based on the approach with E(T1)v, the threshold appears at the extrapolated value of 45.2 ppm. As the ZHA scheme exaggerates E(S1)/E(T1) while the approach with vertically excited E(T1) underestimates the ratio, it can be concluded that the 2E(T1) = E(S1) threshold is placed along the aromaticity coordinate represented by NICS(1)zz,S0. If the threshold is placed in the middle between the two limiting values then it is placed at NICS(1)zz,S0 = 15.8 ppm, i.e., at fulvenes that are rather strongly Hückel-antiaromatic in S0 and Baird-aromatic in T1.
With regard to the second threshold, E(S1) < E(T2), it is clear in Figure 5D that E(T2) shows no correlation with NICS(1)zz,S0 (R2 = 0.00). Because most substituted fulvenes have E(T2) in the range 2.2–3.5 eV, it is gradually more probable that the criterion E(S1) < E(T2) is met for fulvenes with NICS(1)zz,S0 above 2.5 ppm, as the trendlines for E(T2) and E(S1) cross at this value. Obviously, the fulvenes with NICS(1)zz,S0 values at ∼15 ppm will also satisfy the second criterion, but their E(T1) will likely be far below 1 eV.

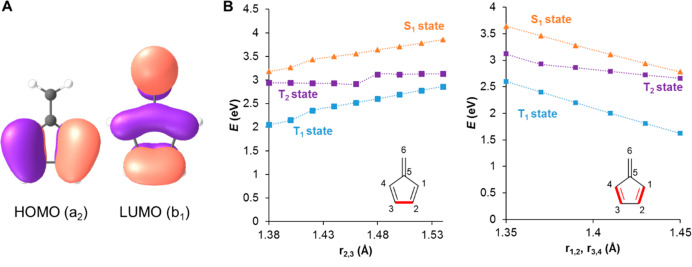

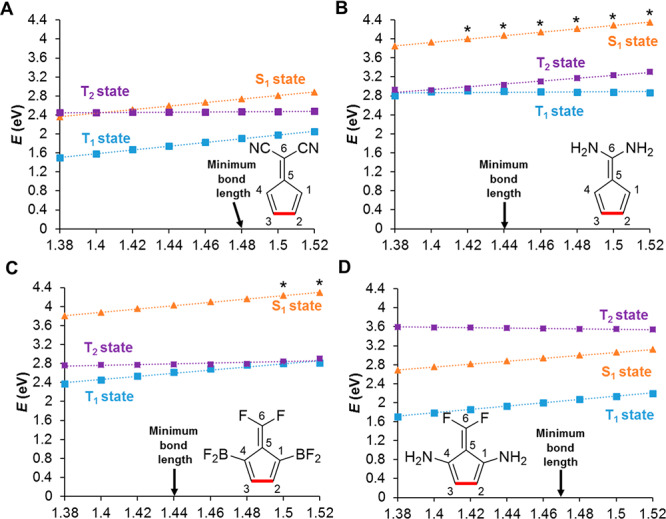

As found above, by changing the bonding or antibonding character of the HOMO and LUMO through geometric distortions (Figure 3), one can tune E(S1) and E(T1) of the parent fulvene simultaneously and similarly since the S1 and T1 excitations are described by the same singly excited configuration except for the spin flip. Thus, ΔE(S1 – T1) is constant along the distortion coordinate. However, ΔE(S1 – T1) does not have the same value if one goes between differently substituted fulvenes as the spatial (de)localization of the HOMO and LUMO vary between the fulvenes. Hence, we analyzed how the E(T1) and E(S1) values change upon distortion in four substituted fulvenes in which the ΔE(S1 – T1) values at the minimum geometry vary from 0.84 to 1.41 eV (Figure 6). Upon distorting the C2–C3 bond length, the E(T1) and E(S1) values change simultaneously and similarly in three of the four fulvenes. The exception is 6,6-diaminofulvene (Figure 6B) in which the S1 state at several of the geometries is described by a different configuration than the T1 state, revealing the importance of having the S1 and T1 states described by the same configuration.
The calculations show that the hypothesis on the rational tuning of E(T1) and E(S1) utilizing excited-state Baird- and ground-state Hückel-aromaticity is valid with TD-DFT. However, is that also the case at the CASPT2 level? The latter calculations disclose potential multireference character and whether the fulvenes exhibit double excitation character in certain excited states or not. Table S7 lists the excitations at CASPT2 and TD-M06-2X levels for a few fulvenes for which the two criteria are met (or nearly met). In short, the E(T1) at the CASPT2 level are similar or slightly higher (0.2 eV) than those calculated with M06-2X. With regard to the E(S1), the CASPT2 energies are higher in all cases except one and sometimes 0.4 eV higher than those at M06-2X level. For the lowest S0 and T1 states, the CASSCF calculations reveal one predominant configuration with a weight between 0.80 and 0.93, revealing good agreement with %TAEe([T]) (Table S9) for the first of these states. We observe that almost all of the compounds preserve the energy order of the different states and fulfill the singlet fission criteria (Table S7). The exceptions are the two model fulvenes with X = BF2, Y = F and with X = CN and Y = SiH3. For these fulvenes, E(S1) and E(T2) are very close in energy, a feature that can lead to an S1/T2 intersystem crossing. However, one still cannot discard the possibility for singlet exciton fission because the calculated SOC for S1/T2 is merely 1.7 cm–1, i.e., < 10 cm–1, which indicates a very weak coupling,79 despite some cases with similarly small SOCs are large enough for ISC.80 Further results on SOC elements, which generally are small, and T1/S0 intersystem crossing are given in the Supporting Information, yet ISC also depends on the Franck–Condon weighted density of states according to the Fermi Golden Rule,81 which is not considered in the present work.
Earlier Experimentally Investigated Fulvenes

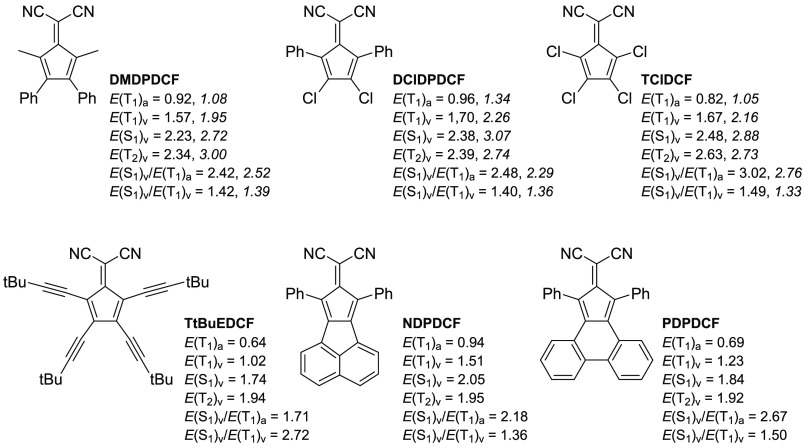

We next considered the dicyanofulvenes (DCFs) that earlier have been synthesized by Finke et al.82 We chose to explore six of these DCFs using our strategy. The TD-M06-2X calculations using the ZHA scheme point out that these compounds could serve as singlet fission chromophores (Figure 7); however, the S1 and T2 states are close in energy for DClDPDCF. Importantly, the adiabatic E(T1) are rather close to 1 eV, despite with M06-2X all are below. Similarly as seen for the model fulvenes, CASPT2 gives E(T1)a, which are higher than those of M06-2X, with 0.2–0.4 eV. In their S0 states, DClDPDCF and TClDCF are influenced by Hückel-antiaromaticity, evident by NICS(1)zz,S0 values of 10.1 and 23.1 ppm, respectively. On the other hand, they are nonaromatic in the T1 states, as the NICS(1)zz,T1 values are −0.2 and 1.3 ppm, respectively. Substituted fulvenes and fulvenoid species, which are clearly Baird-aromatic in their T1 states, have been designed computationally, but these have E(T1) which are far below 1 eV.50
Interestingly, the calculated E(S1)v/E(T1)a ratios of DClDPDCF and TClDCF are well above 2, despite that they are nonaromatic in T1. The other four DCFs in Figure 7 fulfill the E(S1)/E(T1) > 2 criterion, yet only three of them fulfill the E(S1) < E(T2) criterion. The three DCFs that were also calculated at the CASPT2 level have E(S1)/E(T1) ratios that are similar to those at the M06-2X level.
A potential caveat for fulvenes is their nonrigidity, as they can relax geometrically in the S1 and T1 state, making it difficult to predict their usefulness as singlet fission chromophores. Pentacene, tetracene, and DPB relax less in energy in their T1 states compared to fulvenes (Table S8). Interestingly, from the two ratios of E(S1)v/E(T1)v and E(S1)v/E(T1)a (Table S8), one can conclude that the relative degree of energy relaxation is smaller in the established singlet fission chromophores than in the fulvenes investigated here.
Application to Other Compound Classes
Numerous additional compound classes, which to various extents are influenced by Baird-aromaticity in their T1 and S1 states and have the potential to be suitable for singlet fission photovoltaics, can be listed. For that reason we explored if a similar design strategy for fulvenes can be used to identify and tailor CBDs, pentalenes, and their benzannelated derivatives as suitable singlet fission chromophores. We showed earlier that E(T1) of isomeric PAAHs vary with the number of aromatic monocycles in the T1 state.59 In short, the isomer with the lowest E(T1) has the maximum number of disjoint aromatic monocycles (one triplet diradical Baird-aromatic π-quartet/π-octet plus closed-shell Hückel-aromatic π-sextets). In other words, it is described by Clar’s rule56−58 in an extended version that incorporates Baird’s 4n rule.59 Provided the S1 state is influenced similarly as the T1 state, we argue that the benzannelation approach can be used to identify new singlet fission chromophores since E(T1) and E(S1) will be changed in energy by comparable amounts (cf. Figure 1).

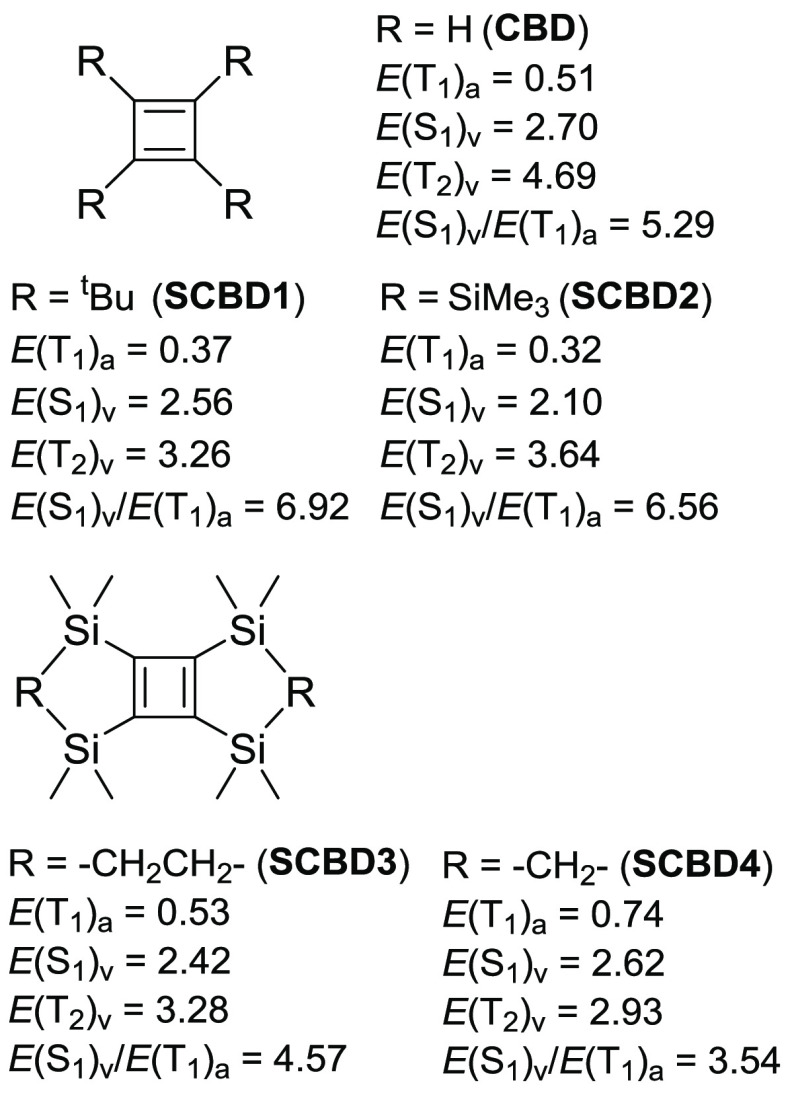

The parent CBD has the correct arrangement of its T1, S1, and T2 states for singlet fission (E(T1) = 0.51, E(S1) = 2.70 and E(T2) = 4.69 eV with M06-2X, Figure 8). However, it is exceedingly unstable, and E(T1) is too low. Instead, three substituted CBDs (SCBD1–SCBD3), which are persistent at room temperature,83,84 were explored. Additionally, we probed an experimentally unexplored silyl-substituted CBD (SCBD4) with a more suitable energy level arrangement than the three persistent CBDs. All four substituted CBDs fulfill the fundamental singlet fission criteria, except the E(T1) of each one is too low.
For the three tetrasilyl-substituted CBDs (SCBD2–SCBD4), there is a correlation (R2 = 0.97) between E(T1)a and the difference in aromaticity between S0 and T1, as measured by ΔNICS(1)zz,T1-S0 (Figure S7). However, the CBD with tBu substituents (SCBD1) does not correlate with them, revealing that both electronic and geometric factors contribute to the E(T1)a of substituted CBDs. Moreover, in the silyl-substituted CBDs, the T1 and S1 states follow similar trends (Figure S7) because the E(T1)a of SCBD3 and SCBD4 increases by 0.21 and 0.42 eV when compared to the E(T1)a of SCBD2, while E(S1)v increases by 0.32 and 0.52 eV, respectively. In contrast, the E(T2)v of SCBD3 and SCBD4, within the ZHA scheme, is lower in energy by 0.34 and 0.71 eV, respectively, when compared to that of SCBD2.

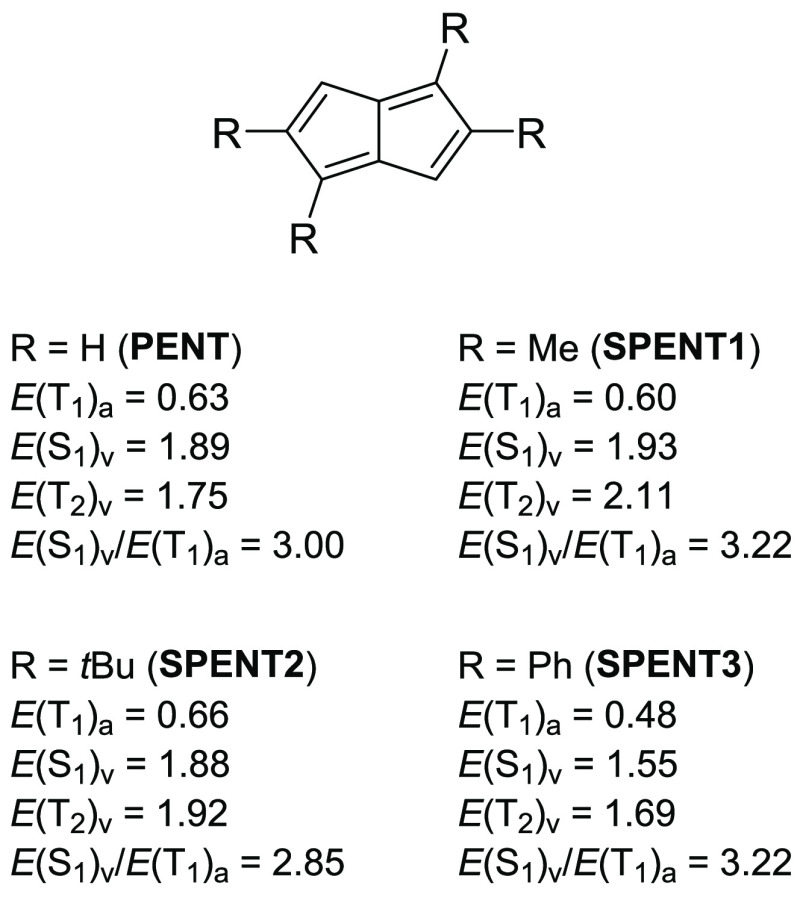

Pentalenes as 8π-electron compounds were examined next, and in the Supporting Information, we also discuss results for indacenes being 12π-electron compounds. In particular, we looked at substituents that induce geometry changes to see if they alter the E(T1)a, E(S1)v, and E(T2)v to any significant extents (Figure 9). Pentalenes are strongly T1-state Baird-aromatic,59 but according to our calculations, the parent compound only satisfies the 2E(T1)a < E(S1)v criterion. Two further drawbacks are the calculated E(T1)a of ∼0.6 eV and the exceptionally low stability of the parent pentalene; however, persistent substituted pentalenes have been reported.85,86 One could argue that substituents can tune E(T1) because the HOMO and LUMO have opposing nodal features at the formal C–C single bonds. However, substituents at the 1,2- and 4,5-positions change E(T1)a minutely, even when they are bulky. Rewardingly, the singlet fission criteria according to the ZHA scheme are satisfied for all three substituted pentalenes.

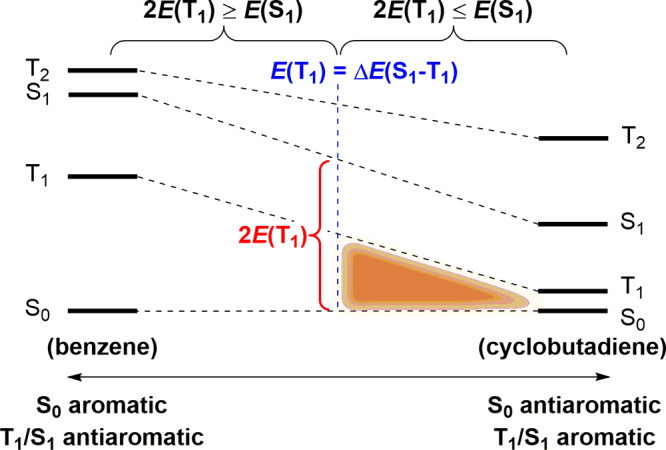

Because CBD has the correct state ordering while benzene does not (Figure 1), it should be possible to tailor compounds with the proper ordering of E(T1), E(S1), and E(T2) through fusion of benzene and CBD rings in certain proportions and with certain connectivities. That said, how should CBD optimally be benzannelated to arrive at suitable singlet fission chromophores? Also, can sterically congestive substituents alter the excited-state energy levels of the larger benzannelated CBD compounds? A selection of benzannelated CBDs were examined (Figure 10). The same reasoning and questions were applied to pentalenes (vide infra).

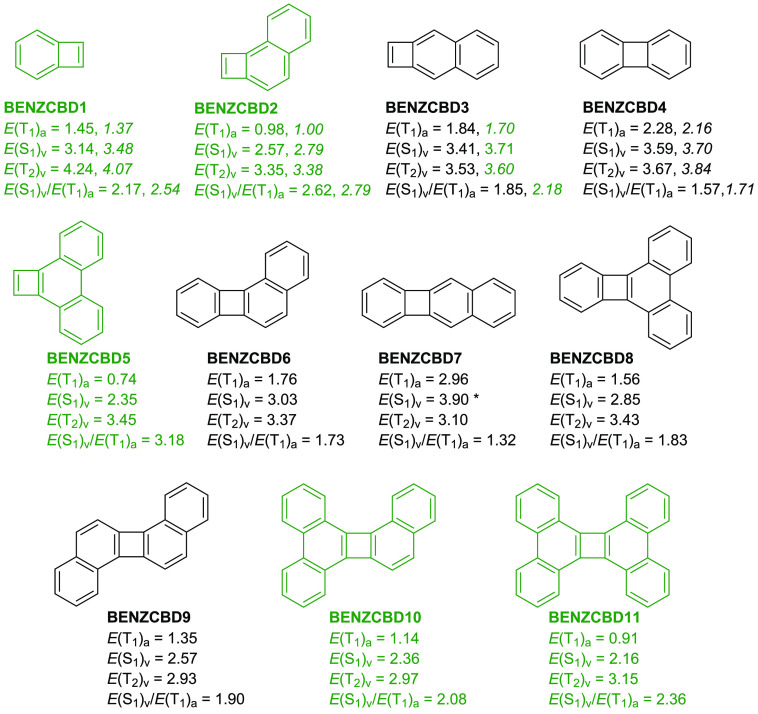

Indeed, fusion of one CBD and one benzene ring into benzocyclobutadiene (BENZCBD1) yields a compound that, according to computations, has the correct state ordering for singlet fission. The calculated E(T1)a is slightly higher than ideal, yet BENZCBD1 is still a highly reactive species and may also, as a result of the small CBD ring, decay nonradiatively to the S0 state. Among the three isomers with one CBD and two benzene rings, only one isomer satisfies the two singlet fission criteria: BENZCBD2. Using the extended version of Clar’s rule,59 it becomes clear that this isomer is the only isomer among the three that can be described by two aromatic monocycles in its T1 state: one triplet diradical Baird-aromatic π-quartet and one closed-shell Hückel-aromatic π-sextet (see Figure S19 for ACID plots).59 In the S0 state, it is notable that the diradical character increases somewhat when going from BENZCBD1 (y0 = 0.11, Table S10) to BENZCBD2 (y0 = 0.23).
An interesting aspect of the E(T1)a, E(S1)v, and E(T2)v of the two naphtoCBDs is the fact that when going from BENZCBD2 to BENZCBD3 the T1 and S1 states increase in energy by near-identical amounts (0.86 and 0.84 eV, respectively), while the T2 state goes up by much less (0.18 eV). This suggests that the T1 and S1 states in the two compounds are described by the same electron configuration (except for the multiplicity), following Figure 1. Indeed, according to TD-DFT computations, the S1 states of both compounds are singly excited HOMO → LUMO excitations (see Table S18). Here, it can be noted that when increasing the molecular size from BENZCBD1 to the dibenzannelated BENZCBD2–BENZCBD4, the energy differences between the vertical and adiabatic excited-state energies decrease, both in T1 and S1 (Table S26).
One can tune E(T1) and E(S1) in two ways: through benzannelation and through C–C bond length distortions (or generally, geometric contortions).55 As seen below, the first provides for larger tunings of the excited-state energies of PAAHs because C–C bond length distortions in BENZCBD2, a small PAAH, lead to variations in E(T1) and E(S1) in the range of 0.1–0.2 eV (see Figure S15). In larger benzannelated PAAHs, where HOMO and LUMO are delocalized over further atoms, the energy tunings will be even smaller. Tuning through benzannelation should therefore be the preferred means to broadly identify PAAHs that satisfy the singlet fission criteria, while bond length changes provide fine-tuning of E(T1) and E(S1). When fusing a benzene ring onto BENZCBD2, leading to BENZCBD5, the T1 and S1 states are lowered in energy by 0.24 and 0.22 eV, respectively, while the T2 state increases by 0.10 eV. Thus, E(S1)v follows the pattern of E(T1)a when going from BENZCBD2 to BENZCBD5, in line with the hypothesis outlined in Figure 1 providing a general means for singlet fission chromophore design. Indeed, with BENZCBD5, we identify a PAAH that satisfies the two singlet fission criteria; however, it is a truly unstable compound87 with some diradical character in S0 (y0 = 0.28).
Several interesting patterns emerge when going to more extensively benzannelated CBDs. Benzobiphenylene (BENZCBD6), when compared to biphenylene (BENZCBD4), has E(T1) and E(S1), which are lower by 0.52 and 0.56 eV, respectively, while E(T2) is lower by 0.30 eV. Hence, the E(S1)v/E(T1)a ratio upon fusion of one benzene ring onto biphenylene in an angular manner increases from 1.57 to 1.73, while extending in a linear way to BENZPENT7 lowers it to 1.32. Further angular benzannelation to trans-dinaphthoCBD (BENZCBD9) brings E(T1)a well below E(S1)v, but the E(S1)v/E(T1)a ratio is still smaller than 2. Here, it should be noted that the connectivity is crucial because BENZCBD9 has a higher E(S1)v/E(T1)a ratio than the isomeric BENZCBD8. Going to the penta- and hexabenzannelated CBDs, BENZCBD10 and BENZCBD11, both singlet fission criteria become satisfied within the ZHA scheme. According to M06-2X, the first of these compounds has E(T1)a in the ideal energy range. Another feature of importance is the oscillator strengths for transitions to S1 in the benzannelated CBDs, which are suitable for singlet fission. Indeed, transitions to this state are weakly allowed in BENZCBD5, BENZCBD7, and BENZCBD8 (Table S19), and one of these compounds (BENZCBD5) is in theory interesting for singlet fission.

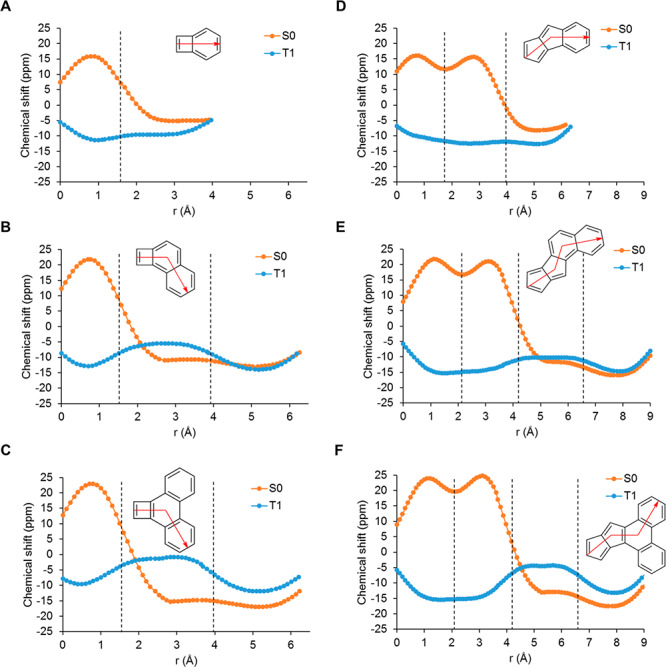

The Baird-aromatic character of a benzannelated 4nπ-electron compound in its T1 state increases with the possibility to form local aromatic monocycles (one Baird- and several Hückel-aromatic ones).59 Still, the Hückel-antiaromatic character of these compounds in their S0 states is significant, in line with an often observed low stability, and NICS-XY scans indicate that it is even accentuated in BENZCBD5 when compared to the other two (Figure 11). However, the T1-state Baird-aromaticity in the CBD ring in this compound is more apparent according to NICS-XY; but a weak global diatropic circuit also exists, as indicated by the ACID plot (Figure S19). Interestingly, the CBD unit in BENZCBD5 in the T1 state seems equally aromatic as in BENZCBD10 and BENZCBD11 but less aromatic to that of BENZCBD9 (Figure S17). However, the assessment of the aromaticity of the CBD ring based on NICS is not suitable, as the NICS value in a PAAH is a composite of ring currents in several 4nπ-electron circuits. HOMA, a geometry-based aromaticity index,73,74 is more suited, and it indeed shows that the aromaticity of the CBD ring in BENZCBD5 (HOMA = 0.41), which is close to that of the T1-state CBD (HOMA = 0.45), is higher than in BENZCBD9–BENZCBD11 (HOMA = 0.13, 0.21, and 0.27, respectively). Here, it is notable that the HOMA of the T1 state of CBD is low, as the C–C bond lengths (1.434 Å) are considerably longer than the reference value (Ropt = 1.388 Å) that results in a HOMA of 1.0.

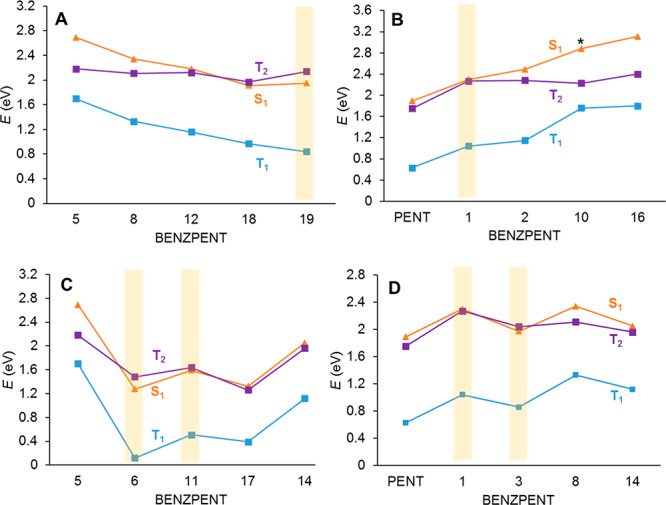

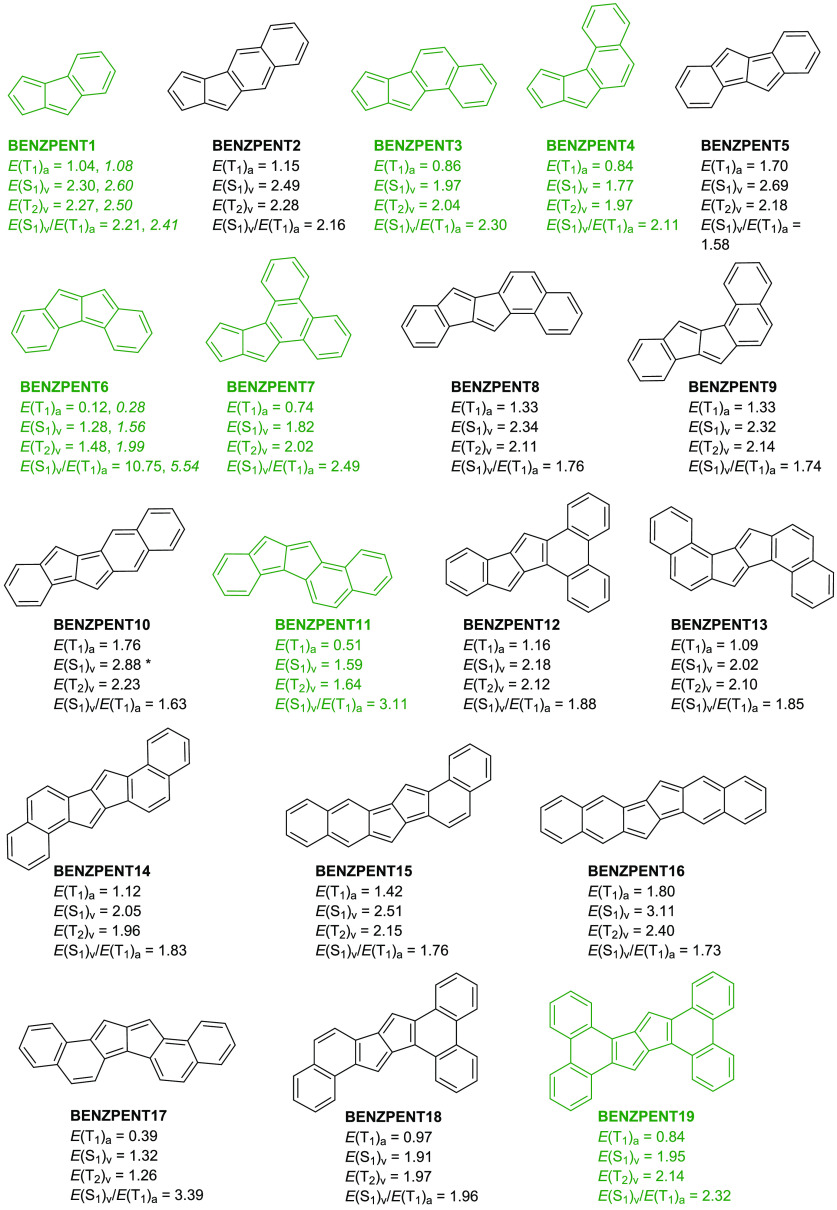

Similar patterns upon benzannelation to the CBDs are found for pentalenes. A drawback with pentalenes is their transitions to the S1 state, which are forbidden or very weakly allowed (for calculated oscillator strengths, see Table S23); however, the excitation to the S2 state in a 5,10-bis(styryl)-substituted dibenzo[a,e]pentalene has shown to provide an entry point to singlet fission.88 The monobenzannelation in BENZPENT1 increases E(T1) when compared to the parent pentalene (Figure 12), similar to what was found for CBD and BENZCBD1, but BENZPENT1 is less ideal for singlet fission as E(S1) ≈ E(T2). On the other hand, the energy relaxation in the S1 state, calculated as E(S1)v – E(S1)a, is much smaller in BENZPENT1 than in BENZCBD1 (Figure S26), and E(S1)a/E(T1)a equals 2.06.
With a more isolated T1-state Baird-aromatic pentalene unit, BENZPENT3 satisfies the singlet fission criteria according to the ZHA scheme but with a slightly low E(T1). Interestingly, dibenzo[a,e]pentalene (BENZPENT5), which corresponds to the core of the compound that experimentally undergoes singlet fission when excited to S2, satisfies none of the singlet fission criteria, yet the bis(styryl)-substitution brings down E(T1) whereby the experimentally explored compound fulfills the criteria (see Figure S22 for a comparison of dibenzo[a,e]pentalene with 5,10-bis(styryl)dibenzo[a,e]pentalene). Noteworthy, the 5,10-bis(styryl) substitution introduces a new conjugation path, 1,8-diphenyl-octa-1,3,5,7-tetraene (see Figure S22), and the diradical spin density of the T1 state is concentrated to this segment. The S1 state, in contrast, is not lowered as much as the T1 state, yet this state is potentially unsuitable for TD-DFT, as it is known that the S1 state in 1,8-diphenyloctatetraene has double-excitation character.89−91 Opposing dibenzo[a,e]pentalene (BENZPENT5), dibenzo[a,f]pentalene (BENZPENT6), the much less stable dibenzopentalene isomer,92 satisfies both criteria, but its E(T1) is very low.
The T1 and S1 states of all benzannelated pentalenes except one are described by singly excited HOMO–LUMO excitations (the exception being BENZPENT10 with an S1 state described as HOMO–2 → LUMO (63%) plus HOMO → LUMO (37%)). Thus, several trends can be observed when expanding to larger benzannelated pentalenes. However, an important feature to note in the four panels of Figure 13 is the fact that E(T1) and E(S1) follow each other closely when the benzannelation is changed. For that reason, one should compare ΔE(S1 – T1) in a selection of compounds that follow one type of benzannelation. For example, in Figure 13A, the ΔE(S1 – T1)v,a spans from 0.94 to 1.11 eV, while ΔE(S1 – T1)v,v spans from 0.39 to 0.63 eV, indicating a similar 2KH,L within the specific selection of the compound. The first trend to note is a gradual and similar lowering of E(T1) and E(S1) found when going successively from BENZPENT5 to the hexabenzannelated BENZPENT19 (Figure 13A), following the angular connectivity that maximizes the number of aromatic monocycles in T1.59 With BENZPENT19, a compound that has been synthesized and further investigated experimentally,93 one has reached a point where 2E(T1) < E(S1), i.e., one is within the orange region of Figure 1. Interestingly, BENZPENT19 has very similar E(T1)a, E(S1)v and E(T2)v values to those of BENZPENT3, and it contains four angular segments (∼BENZPENT3).
When instead going from the parent pentalene to the linear dinaphtho[a,e]pentalene (BENZPENT16), both E(T1)a and E(S1)v increase, the E(S1)v/E(T1)a ratio becomes successively smaller, and E(T2)v is placed gradually further below E(S1)v (Figure 13B). Interestingly, the ΔE(S1 – T1)v,a of BENZPENT10, having a two-configurational S1 state (vide supra), is smaller than that of the other four compounds in Figure 13B (1.12 vs 1.26–1.34 eV). The linear connectivity, which is undesirable for singlet fission chromophores, is further evidenced from the isomeric tetrabenzopentalenes BENZPENT12–BENZPENT16 (Figure S23). Also, on the basis of NICS as well as HOMA, the T1-state aromatic character of the pentalene unit decreases when going from BENZPENT13 and BENZPENT14 to BENZPENT15 and BENZPENT16, i.e., from angular-benzannelated to linear-benzannelated compounds. In the case of BENZPENT15, we have an intermediate situation as the molecule is a combination of linear and angular connectivities. Again, the inclusion of angular-benzannelated segments leads to tuning of E(S1)/E(T1) toward higher values while linear ones do the opposite.
However, there is also another route to benzannelated pentalenes that satisfy the singlet fission criteria. Further benzannelation of dibenzo[a,f]pentalene BENZPENT6 yields BENZPENT11 and BENZPENT17, which both recently were synthesized.94 The first two satisfy the singlet fission criteria (Figures 12 and 13C) but with low E(T1)a values and high diradical characters (y0 = 0.48 and 0.60, respectively). Finally, BENZPENT3 and BENZPENT7, similar to BENZCBD2 and BENZCBD5, respectively, satisfy the singlet fission criteria. Now, starting at BENZPENT3 and fusing a benzene ring or a naphthalene unit to the opposite side of the pentalene unit, one obtains benzonaphthopentalene (BENZPENT8) and trans-dinaphthopentalene (BENZPENT14), respectively, for which E(T1)a and E(S1)v increase by significant amounts and the E(S1)v/E(T1)a ratio drops well below 2 (Figure 13D). The same is found when going from BENZPENT7 to BENZPENT12, revealing that a singlet fission chromophore can be ruined by overbenzannelation. It is only when at the hexabenzannelated pentalene BENZPENT19 with four angular segments that the singlet fission criteria again are satisfied, a compound in which the T1 state can be described with a markedly Baird-aromatic central 8π-electron pentalene moiety (HOMA = 0.75) and four Hückel-aromatic 6π-electron units.59 Interestingly, when gradually building up the four angular segments going from BENZPENT8 (HOMA = 0.47), BENZPENT14 (HOMA = 0.67), and BENZPENT18 (HOMA = 0.70) to BENZPENT19, the Baird-aromatic character of the pentalene unit increases. Thus, benzannelation together with an attention to connectivity can be used to simultaneously tune E(T1) and E(S1) to similar extents such that one reaches a situation where 2E(T1) < E(S1) < E(T2).
The General Design Approach and Its Limitations
As the design approach applies to compound classes in which the extent of excited-state Baird-(anti)aromatic character varies among the individual compounds, E(T1) and E(S1) will change similarly along the aromaticity tuning coordinate, while E(T2) should remain more constant or change differently. The model further assumes that throughout an investigated compound class, (i) HOMO and LUMO each keep the same character (∼symmetry), (ii) the T1 and S1 states are described by singly excited HOMO → LUMO excitations, and (iii) the spatial distributions of HOMO and LUMO are similar. The model is not applicable to compound classes in which these requirements do not hold (for example, triafulvenes, vida infra), or it is only applicable to a part of the compound class.
Information on the E(T1) and ΔE(S1 – T1) = 2KH,L of the parent compound is needed for the most simple back-of-an-envelope design using the model. A third parameter to consider is the slope, i.e., the extent by which E(T1) and E(S1) change in response to altered (anti)aromaticity, but a few different compounds within the compound class must be computed for this information. At the singlet fission threshold, E(T1) = ΔE(S1 – T1) = 2KH,L. Thus, if the parent compounds in two compound classes have the same E(T1) but different 2KH,L then the compound class with the larger 2KH,L will have the threshold placed at a less T1 aromatic compound than what is the case in the compound class with a smaller 2KH,L (Figure 14A and B). A series of further situations are exemplified in Figure S37. Here it should be noted that the additional fulfilment of the E(S1) < E(T2) criterion may restrict the useful region, pushing it toward increased Baird-aromaticity.
The E(T1) of the parent compound depends on its extent of T1 aromaticity; if the parent compound is strongly (weakly) influenced by Baird-aromaticity it will have a low (high) E(T1). The KH,L depends on the extent of colocalization of HOMO and LUMO, as exemplified by naphthalene and azulene with 2KH,L values of 1.7 and 0.5 eV, respectively.44 Extrapolating from this observation, by strict localization of HOMO and LUMO to different atoms, one can, together with spin-polarization, design a molecule (heptazine) that has its S1 state at a lower energy than its T1 state,95 i.e., a negative ΔE(S1 – T1). To instead achieve a large positive 2KH,L, the HOMO and LUMO should be localized to the same atoms, ideally a small number (see siloles below).
However, as noted above, ΔE(S1 – T1) is not constant for fulvenes (Figure 5A), as it decreased for fulvenes with EWGs as exocyclic substituents, which lead to a polarization of LUMO toward the substituents, and consequently, a lowered 2KH,L and ΔE(S1 – T1). On the other hand, the model applies well to 1,1-disubstituted siloles, i.e., 1-silacyclopenta-2,4-dienes, which are cross-hyperconjugated “aromatic chameleons”.47 For the latter compounds, ΔE(S1 – T1) varies within the narrow interval of 2.14–2.34 eV (Figure 14C). Rewardingly, siloles may provide access to singlet fission chromophores with high E(T1) (∼2 eV) according to our computations, and the 2KH,L is high due to colocalizations of HOMO and LUMO to mainly the four C atoms of the diene unit (Figure S35). As siloles are already extensively explored in experiments,96,97 they may provide interesting targets as singlet fission chromophores.
Although the design approach had complications with pentafulvenes, the tria- and heptafulvenes are even more complex. The parent tria- and heptafulvenes have E(T1) at 2.71 and 1.41 eV, respectively, and 2KH,L at 1.87 and 1.54 eV, respectively. Thus, the parent heptafulvene, but not the triafulvene, fulfils the 2E(T1) < E(S1) criterion. To lower E(T1), exocyclic electron donating substituents X are needed in both compound classes,45 but several substituted triafulvenes in their T1 and S1 states are described by other electron configurations than the singly excited HOMO → LUMO configuration that corresponds to the T1 and S1 states in the parent compound (see Figure S31). In heptafulvene, the 2E(T1) < E(S1) criterion is satisfied, but one needs to step toward increased T1 aromaticity in order to achieve heptafulvenes that also satisfy the E(S1) < E(T2) criterion. However, the E(T1) and ΔE(S1 – T1) values vary extensively among substituted heptafulvenes (see Figure S32 and Table S28), and their nonplanar structures in S0 and/or T1 are dilemma. Thus, the model also fails when large conformational changes occur within a compound class, either along the (anti)aromaticity coordinate in the S0 and/or T1 states or upon excitation.
Our design approach also applies to the benzannelated pentalenes (Figure 13). The parent pentalene is strongly Baird-aromatic in T1, and it has an E(T1)a of 0.63 eV and 2KH,L of 1.26 eV. Thus, the singlet fission threshold should be placed at benzannelated pentalenes that are less T1 Baird-aromatic than the parent pentalene (BENZPENT3 or BENZPENT4 are computed to be close to the threshold, Figure 12). Now, as the NICS values of BENZPENT3 and BENZPENT4 are composites of 8π-, 12π- and 16π-electron circuits, NICS is not a suitable method for the assessment of the T1 aromaticity of a pentalene subunit within a benzannelated pentalene. HOMA is a better aromaticity index, and we indeed find the pentalene units in BENZPENT3 and BENZPENT4 to be less aromatic (HOMA = 0.72 and 0.73, respectively) than the parent pentalene (HOMA = 0.86). The design approach also applies to thieno-annelated benzopentalenes (see Figure S36). In regard to these, they have E(T1) that are slightly higher than the purely benzannelated pentalenes (Figures 14D and S36), revealing the impact of the incorporation of heterocycles as a means for fine-tuning E(T1). Thieno-annelated benzopentalenes could be synthetically feasible, and also, these could be interesting targets for research on singlet fission photovoltaics.
Conclusions
Excited-state Baird-aromaticity in combination with Hückel ground-state aromaticity can be used in the design of singlet fission chromophores, but it is a double-edged sword. While several compounds that formally can be written with Baird-aromatic resonance structures fulfill the singlet fission criteria, the specific compound within a certain compound class that is most suitable, having an E(T1) of ∼1 eV, is not always strongly T1-state Baird-aromatic. In order to identify the compounds within a certain compound class that satisfy the singlet fission criteria and that have E(T1) in a suitable energy range, we have developed a general and qualitative design model.
If the T1 and S1 states throughout a compound class are (i) dominated by the singly excited HOMO → LUMO configuration, (ii) HOMO and LUMO each are of the same character, and (iii) distributed spatially in the same manner then the energy difference between the two states equals twice the exchange integral, ΔE(S1 – T1) = 2KH,L (H = HOMO and L = LUMO). As a result, the relative energies of the two states are influenced by substituents (electronic or steric) and benzannelation to similar extents. With this, we develop a geometric model to identify a region along a tuning coordinate (an ∼aromaticity/antiaromaticity scale or increased benzannelation), within which 2E(T1) < E(S1) (orange region, Figure 1). It is noteworthy that when E(T1) goes below a certain threshold, the E(S1) < E(T2) criterion generally becomes satisfied (Figures 5B and 13A). However, the model also has its limitations, the most notable being variations in KH,L and thus ΔE(S1 – T1), among individual compounds in a compound class.
Taken together, our study outlines the scope, limitations, and complications in the usage of T1-state Baird-aromaticity for the design of new singlet fission chromophores. The design approach and the qualitative (geometric) model developed provide a novel design rational. We show that through careful selection of (stable) compound classes influenced by Baird-aromaticity in T1 to various extents and with suitable E(T1) and 2KH,L, one can tailor many new candidates for novel types of singlet fission chromophores.
Computational Methods
All S0- and T1-optimized geometries were obtained using the M06-2X functional65 and 6-311+G(d,p) basis set.98 Additionally, for benzene and CBD, CASPT2 optimizations were carried out using the atomic natural orbital (ANO-RCC-VDZP) basis set with a contraction [B, C, N, O, F/3s2p1d, Si/4s3p2d, H/2s1p].99−101 For vertical excitations of the substituted fulvenes, two methods were used: TD-M06-2X/def2-TZVPD//M06-2X/6-311+G(d,p) and CASPT2-SA3/ANO-RCC-VDZP//M06-2X/6-311+G(d,p) at the S0- or T1-optimized geometries. As a multiconfigurational indicator, the percentage of the perturbative triplet correction (T) to the total CCSD(T) atomization energy (%TAEe[(T)])102 was evaluated at the CCSD(T)/aug-cc-pVDZ//M06-2X/6-311+G(d,p) level. Spin–orbit coupling (SOC) elements were computed within the TD-M06-2X framework using PySOC80 DFT, TD-DFT, and CCSD(T) calculations performed using Gaussian 16 revision B.01,103 and CASPT2 computations were carried out with OpenMolcas packages.101 Aromaticity was evaluated in terms of the nucleus-independent chemical shift (NICS),69 ACID plots,104 harmonic oscillator model of aromaticity (HOMA),73,74 and multicenter index (MCI)72 computed at the M06-2X/6-311+G(d,p) optimized geometries. NICS values were calculated at 1.0 Å above the ring centers (NICS(1)zz)70 using the gauge-independent atomic orbital (GIAO) method.71 NICS-XY scans were performed using the Aroma package, scanning from 1.7 Å above the plane of the molecule.105 Distinctly negative NICS(1)zz values indicate the aromatic character, values close to one indicate the nonaromatic character, and distinctly positive values indicate the antiaromatic character. For six PAAHs, NICS-XY scans were also computed using B3LYP-106 and CAM-B3LYP-107 optimized geometries (see Figures S19 and S18). MCI is an electronic index that provides a measure of electron sharing among the atoms considered: the higher the MCI value, the more aromatic the ring. MCI values were retrieved with the ESI-3D program108 using the overlaps between the occupied molecular orbitals obtained by AIMAll.109 The diradical and tetraradical character have been calculated using the spin-projected spin-unrestricted Hartree–Fock (PUHF) proposed by Yamaguchi110 (see more details in the Supporting Information).
