Cannabichromene Induces Neuronal Differentiation in NSC-34 Cells: Insights from Transcriptomic Analysis
IRCCS Centro Neurolesi “Bonino-Pulejo”, Via Provinciale Palermo, Contrada Casazza, 98124 Messina, Italy
Department of Pharmaceutical Sciences, University of Eastern Piedmont, Largo Donegani 2, 28100 Novara, Italy
Plantachem S.r.l.s., Via Amico Canobio 4/6, 28100 Novara, Italy
Abstract
Phytocannabinoids, with their variety of beneficial effects, represent a valid group of substances that could be employed as neurogenesis-enhancers or neuronal differentiation inducers. We focused our attention on the neuronal-related potential of cannabichromene (CBC) when administered to undifferentiated NSC-34 for 24 h. Transcriptomic analysis showed an upregulation of several neuronal markers, such as Neurod1 and Tubb3, as well as indicators of neuronal differentiation process progression, such as Pax6. An in-depth investigation of the processes involved in neuronal differentiation indicates positive cytoskeleton remodeling by upregulation of Cfl2 and Tubg1, and active differentiation-targeted transcriptional program, suggested by Phox2b and Hes1. After 48 h of treatment, the markers previously examined in the transcriptomic analysis are still overexpressed, like Ache and Hes1, indicating that the differentiation process is still in progress. The lack of GFAP protein suggests that no astroglial differentiation is taking place, and it is reasonable to indicate the neuronal one as the ongoing one. These results indicate CBC as a potential neuronal differentiation inducer for NSC-34 cells.
Untitled section
Keywords: cannabichromene, neuronal differentiation, NSC-34, transcriptomic analysis
Article notes
Untitled section
Received 2023 Feb 22; Revised 2023 Mar 6; Accepted 2023 Mar 7; Collection date 2023 Mar.
1. Introduction
Cannabis sativa L. is a plant belonging to the Cannabaceae family that has been widely used, since ancient times, for both recreational and medical purposes [1]. C. sativa contains different terpeno-phenolic compounds called cannabinoids [2,3].
Recently, cannabinoids added to their pool of properties also neuronal differentiation induction and neurogenesis promotion [4,5]. The discovery of brain areas, also in humans, where stem cells are present and can efficiently differentiate opened a new era of possible therapeutic strategies. What was thought to be irreplaceable became able to self-renew [6], and different studies were made to investigate how neurogenesis discovery could be exploited [7]. The association between cannabinoids and neurogenesis or cannabinoids and neuronal differentiation is quite recent but very promising.
Although the attention is focused primarily on the psychoactive delta-9-tetrahydrocannabinol (Δ9-THC) and the non-psychoactive cannabidiol (CBD), the scientific community is recently considering the potentially therapeutic properties of lesser abundant phytocannabinoids such as cannabichromene (CBC) [8]. Cannabichromene is a non-psychoactive cannabinoid derived by the decarboxylation of cannabichromenic acid (CBCA), induced by the enzymatic CBCA synthase action [9].
The plethora of biological effects induced by the properties of phytocannabinoids, and also by the effects that CBC exerts on adult neural stem progenitor cells (NSPCs), leading them to sustain their viability and differentiation [10], brought to our attention the possibility to use this compound on NSC-34 cell line. It is a hybridoma between spinal cord cells, taken from embryos of mice, and neuroblastoma. They undergo differentiation when exposed to retinoic acid and resemble the features of motor neurons as follows: they generate action potentials, and they synthetize acetylcholine, as well as store it and release it [11,12]. Indeed, NSC-34 proved to be a good model to investigate neuronal differentiation and development. To investigate the potentialities of our cannabinoid on neurons, we treated undifferentiated NSC-34 for 24 h and 48 h with 10 µM of CBC. The transcriptomic profile was inspected, as well as protein levels with Western blot analysis, to evaluate if CBC can induce neurogenesis or can trigger the differentiation process.
2. Materials and Methods
2.1. Extraction, Isolation, and Purification of CBC from C. sativa
The cannabichromene was provided by Plantachem S.r.l.s. (Novara, Italy) with a purity of 94%.
Nonwoody aerial parts, inflorescences, and leaves were extracted with acetone affording a dark green syrup that was heated at 130 °C under stirring for 45 °C in a paraffine bath to achieve the decarboxylation of cannabinoid acids. The reaction was followed by TLC (silica, petroleum ether-EtOAc 80:20). This latter decarboxylated fraction was fractionated by low-pressure chromatography (LPC) on silica gel (250 g, petroleum ether-EtOAc gradient from 90:10 to 20:80) to afford three fractions (I, II, and III). Fraction I (1.345 g) was further purified with low-pressure chromatography (LPC) on silica gel (75 g, petroleum ether-EtOAc gradient from 90:10 to 80:20) to afford 96 mg of cannabichromene as brownish powder, which structure has been identified according to 1H NMR reported in the literature [13]. The chemical formula of CBC and 1H NMR are reported in Figure 1.

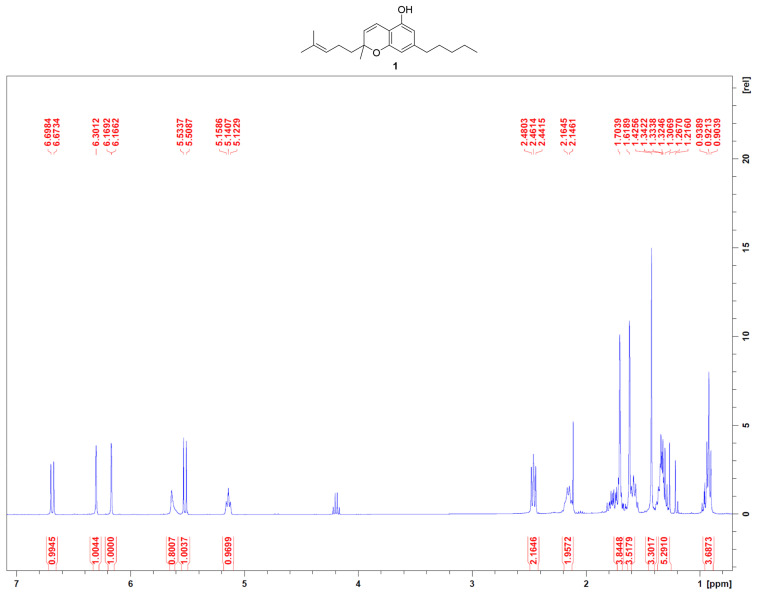

1H 400 MHz NM spectra were measured on Bruker 400 spectrometers (Bruker®, Billerica, MA, USA). Chemical shifts were referenced to the residual solvent signal (CDCl3: δH = 7.26). Silica gel 60 (70–230 mesh) used for low-pressure chromatography was purchased from Macherey-Nagel (Düren, Germany). Purifications were monitored by TLC on Merck 60 F254 (0.25 mm) plates, visualized by staining with 5% H2SO4 in EtOH and heating. Chemical reagents and solvents were from Aldrich (Darmstadt, Germany) and were used without any further purification unless stated otherwise.
2.2. Cells Culture and Treatment
NSC-34 was provided by Cedarlane Corporation (Burlington, ON, Canada). The maintenance medium was composed as follows: DMEM High Glucose, 10% Fetal Bovine Serum, 1% penicillin/streptomycin, and 1% L-Glutamine. All reagents were bought from Sigma-Aldrich, Merck KGaA (Darmstadt, Germany).
When the cells reached about 80% confluence, they were seeded in 6-well plates for obtaining material for transcriptomic analysis, in 96-well plates for MTT test and in 25 cm2 flasks for further Western blot analysis. The seeding concentration was 200,000 cells/mL. The first group was used as control (CTRL), while the second one underwent medium change with fresh medium +10 µM of CBC (CBC). CBC was dissolved in DMSO, which final concentration was inferior to 0.1%. CTRL underwent a complete medium change with medium without CBC, in order to maintain the same conditions in terms of nutrients and cell stress. In total, 24 h after the treatment, the morphology and conditions of the cells were checked and pictures from each group were taken using light microscopy (LEICA DM 2000 combined with LEICA ICC50 HD camera, Wetzlar, Germany). Then, all wells from the 6-well plates were harvested for further analyses. Cells in 96-well plates underwent MTT test. The same procedure was performed for an additional set of 6-well plates to obtain the material for transcriptomic analysis and 25 cm2 flasks to obtain material for Western blots. The mediums were changed after 24 h. Cells were harvested after 48 h to undergo transcriptomic and Western blot analysis. Experiments were carried out at three independent and different times.
2.3. MTT Test
In total, 24 h after the treatment with 10 µM of CBC, the medium was replaced in all wells with fresh medium with MTT at a concentration of 0.5 mg/mL (Sigma-Aldrich Merck KGaA (Darmstadt, Germany). After 4 h at 37 °C, the presence of crystals was visible at the bottom of each well. The crystals were resuspended using acidic propanol and the optic density was measured with a spectrophotometer (570 nm).
2.4. Total RNA Extraction, Library Preparation and Transcriptomic Analysis
Cells from the 6-well plates were harvested for RNA extraction. RNA extraction from cell pellets proceeded as manufacturer’s instruction from the Maxwell® RSC simplyRNA Cells Kit (Promega, Madison, WI, USA). Library was prepared using TruSeq RNA Exome protocol (Illumina, San Diego, CA, USA) [14] and analyzed by Illumina instrument Miseq.
2.5. Bioinformatic Analysis
To check the quality of the reads used for the analysis presented in this work, we used fastqc v0.11.9 (Babraham Institute, Cambridge, UK) [15]. After the quality check, we removed the adapters and the reads with a bad quality score using Trimmomatic v. 0.40-rc1 (Usadel Lab, Aachen, Germany) [16]. The reads that passed the filter were aligned to a reference genome using Spliced Transcripts Alignment to a Reference (STAR) RNA-seq aligner 2.7.10a_alpha_220207 (New York, NY, USA) [17]. The genome used to align the reads is the primary annotation of mouse genome v. M28 from gencode. After the alignment, phase we obtained the count of transcripts for the genes using htseq-count v. 0.13.5 [18]. Using count of the transcripts was possible to perform analysis of differentially expressed genes using DESeq2 library v. 1.36.0 [19] through the programming language R v. 4.2.0 (R Core Team, Vienna, Austria). Benjamini-Hochberg correction was used to reduce the number of false positive DEGs setting the threshold of q value to 0.05. With the list of the DEGs we obtained the enriched pathways and ontologies using the package for R, clusterProfiler v. 4.4.3 [20]. Through the inspection AmiGO2 [21], we studied the enriched ontologies.
2.6. Western Blot Analysis
Cells from the 25 cm2 flasks were harvested using trypsin-Ethylenediaminetetraacetic acid (EDTA). The resulting pellet underwent protein extraction using NE-PER™ Kit for Nuclear and Cytoplasmic Extraction Reagents (Thermo Scientific™, Waltham, MA, USA) following manufacturer protocol, as previously described [22]. In total, 25 µg of proteins were separated using sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) after quantification by Bio-Rad Protein Assay (Bio-Rad Laboratories, Hercules, CA, USA) using bovine serum albumin (BSA) as the standard. Proteins were then transferred to a PVDF transfer membrane (Immobilon-P PVDF, Merck Millipore division of Merck KGaA, Darmstadt, Germany). The membranes were incubated at room temperature using skimmed milk (5% in TBS). After 1 h, membranes were incubated overnight at 4 °C with the following primary antibodies:
- -GFAP (GA5): 1:1000 (#3670), Cell Signaling Technology, Danvers, MA, USA;
- -AChRα1 (153): 1:500 (sc-65829) Santa Cruz Biotechnology, Inc., Dallas, TX, USA;
- -GAPDH (14C10): 1:1000 (#3683), Cell Signaling Technology, Danvers, MA, USA.
The membranes were then incubated 1 h at room temperature with the according secondary antibody as follows:
- -Chicken anti-rat IgG-HRP: 1:2000 (sc-2956) Santa Cruz Biotechnology, Inc., Dallas, TX, USA;
- -Chicken anti-mouse IgG-HRP: 1:2000 (SA1-72021) ThermoFisher Scientific, Rockford, IL, USA.
The different bands were visualized using Luminata Western HRP Substrates, Millipore Corporation, Billerica, MA, USA), and obtained and quantified with ChemiDoc™ MP System (Bio-Rad Laboratories S.r.l., Hercules, CA, USA).
2.7. Statistical Data Analysis
MTT test results and ImageJ quantification of Western blot bands underwent statistical analysis using GraphPad Prism version 6.0 software (GraphPad Software, La Jolla, CA, USA). The data were statistically analyzed by Student’s t-test to compare the two groups and one-way ANOVA when the groups were more than two. When p-value was equal to or less than 0.05, it was considered statistically significant.
3. Results
3.1. MTT Test and Evaluation of Cells Morphology
The possible toxicity of CBC was checked. NSC-34 cells were incubated for 24 h with 10 µM of CBC before undergoing the MTT test. Previous experiments already tested the DMSO group, and, as a result, a concentration below 0.1% is already known for not being toxic to cells [23].

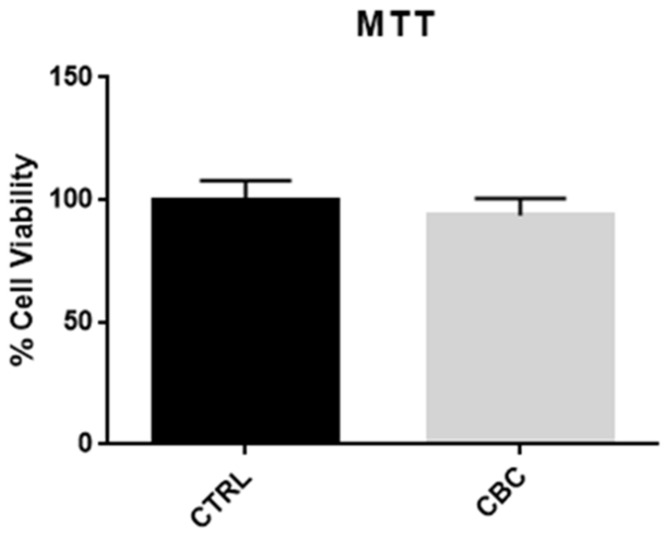

As shown in Figure 2, the difference in cell viability is not significant.
Cell morphology was inspected to evaluate their status. As can be seen in Figure 3, there is no visual difference in cell morphology between the two groups and, as supported by MTT data, it can be concluded that CBC is not harmful to the cells.
3.2. Inspection of the Transcriptomic Profile
The transcriptomic analysis performed on CBC24h in comparison to CTRL revealed 4985 differentially expressed genes (DEGs), among which 2567 DEGs were upregulated while 2418 were downregulated in CBC24h. On the other hand, CBC48h had 2814 upregulated and 3038 downregulated DEGs (for a total of 5852 DEGs).

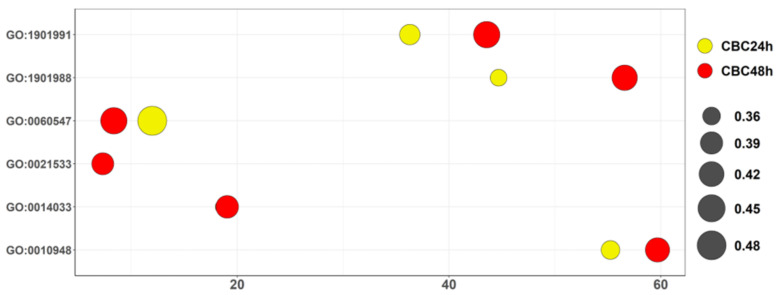

We enriched the whole set of DEGs for biological process terms of Gene Ontology for both times of CBC. We particularly observed, “stem cell differentiation” (GO:0048863), “neural crest differentiation” (GO:0014033), “cell differentiation in hindbrain” (GO:0021533), “negative regulation of necrotic cell death” (GO:0060547), “negative regulation of cell cycle process” (GO:0010948), “negative regulation of cell cycle phase transition” (GO:1901988), “negative regulation of mitotic cell cycle phase transition” (GO:1901991) terms related to neuronal differentiation behavior and enriched both for CBC24h and CBC48h. The seven aforementioned biological process terms are highlighted in the bubble plot in Figure 3. The highest scores are obtained in CBC48h for GO:1901991, GO:1901988 and GO:0010948. Conversely, GO:0060547 have a higher score in CBC24. Curiously, GO:0021533 and GO:0014033 had almost identical scores.

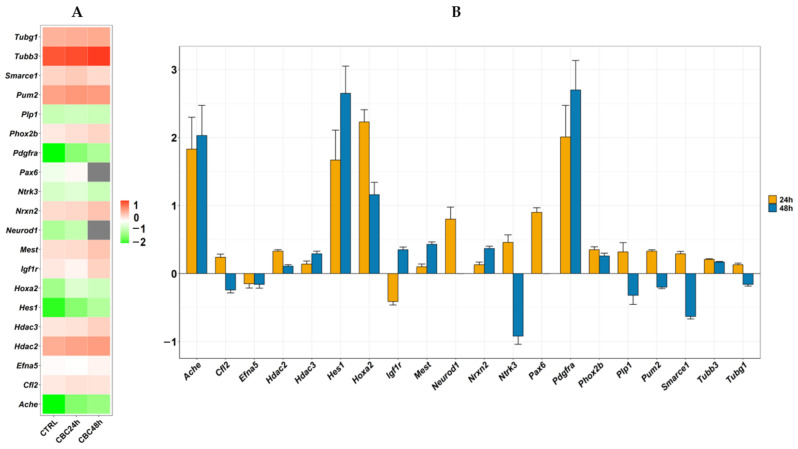

Neurons, like other cells, express typical markers during their differentiation process and during the stage through which they have to pass before becoming mature cells. The relevant markers for our study are shown in Table 1 and Figure 4 also include the expression levels or the fold change of markers identified. In order to evaluate the markers with higher relevance in the study, we plotted in Figure 5A a heatmap, in which are represented their expression level. In detail, we corrected the value through a z-score normalization after a log2 transformation to clearly visualize the markers with expression levels higher (in red) or lower (in green) than the mean value. Hdac2, Tubg1, Pum2, Tubb3, Hdac3, Cfl2, Phox2b, Nrxn2, Mest and Smarce1 have a level of expression clearly higher than the mean in both groups, while Ntrk3, Plp1, Hoxa2, Neurod1, Hes1, Pdgfra1 and Ache have the same behavior with values lower than mean. Igf1r, Efna5 and Pax6 have expressions slightly over the mean value. Additionally, in Figure 5B, we reported the fold change of the same markers obtained for CBC in comparison with CTRL. It is clear that most DEGs result in upregulation in the CBC group.
| Gene | CTRL vs. CBC Fold Change | p-Value | q-Value | CTRL vs. CBC-48 h Fold Change | p-Value | q-Value |
|---|---|---|---|---|---|---|
| Ache | 1.83 | 1.03 × 10−4 | 5.16 × 10−4 | 2.03 | 4.91 × 10−6 | 2.46 × 10−05 |
| Cfl2 | 0.24 | 1.52 × 10−7 | 1.44 × 10−6 | −0.24 | 4.99 × 10−8 | 3.30 × 10−07 |
| Efna5 | −0.15 | 1.75 × 10−2 | 4.05 × 10−2 | −0.16 | 3.59 × 10−3 | 9.33 × 10−03 |
| Hdac2 | 0.33 | 1.05 × 10−47 | 1.82 × 10−45 | 0.11 | 7.56 × 10−8 | 4.88 × 10−07 |
| Hdac3 | 0.14 | 2.21 × 10−3 | 7.08 × 10−3 | 0.29 | 2.32 × 10−13 | 2.54 × 10−12 |
| Hes1 | 1.67 | 1.54 × 10−4 | 7.33 × 10−4 | 2.65 | 4.21 × 10−11 | 3.90 × 10−10 |
| Hoxa2 | 2.23 | 2.18 × 10−35 | 2.38 × 10−33 | 1.16 | 1.61 × 10−10 | 1.41 × 10−09 |
| Igf1r | −0.41 | 1.95 × 10−15 | 5.58 × 10−14 | 0.35 | 1.06 × 10−17 | 1.51 × 10−16 |
| Mest | 0.10 | 1.27 × 10−2 | 3.11 × 10−2 | 0.43 | 2.79 × 10−33 | 7.69 × 10−32 |
| Neurod1 | 0.80 | 6.75 × 10−6 | 4.57 × 10−5 | - | >0.05 | >0.05 |
| Nrxn2 | 0.13 | 7.25 × 10−4 | 2.77 × 10−3 | 0.37 | 5.24 × 10−26 | 1.08 × 10−24 |
| Ntrk3 | 0.46 | 2.54 × 10−5 | 1.49 × 10−4 | −0.92 | 1.03 × 10−14 | 1.21 × 10−13 |
| Pax6 | 0.90 | 1.04 × 10−38 | 1.30 × 10−36 | - | >0.05 | >0.05 |
| Pdgfra | 2.01 | 1.47 × 10−5 | 9.09 × 10−5 | 2.7 | 4.46 × 10−10 | 3.74 × 10−09 |
| Phox2b | 0.35 | 4.68 × 10−15 | 1.29 × 10−13 | 0.26 | 3.29 × 10−10 | 2.80 × 10−09 |
| Plp1 | 0.32 | 1.87 × 10−2 | 4.28 × 10−2 | −0.32 | 1.57 × 10−2 | 3.29 × 10−02 |
| Pum2 | 0.33 | 2.01 × 10−61 | 5.46 × 10−59 | −0.2 | 1.57 × 10−25 | 3.16 × 10−24 |
| Smarce1 | 0.29 | 1.19 × 10−15 | 3.51 × 10−14 | −0.63 | 2.25 × 10−67 | 1.28 × 10−65 |
| Tubb3 | 0.21 | 8.27 × 10−109 | 3.83 × 10−106 | 0.17 | 1.46 × 10−88 | 1.11 × 10−86 |
| Tubg1 | 0.13 | 1.68 × 10−7 | 1.57 × 10−6 | −0.16 | 1.61 × 10−12 | 1.64 × 10−11 |
3.3. Western Blot Analysis

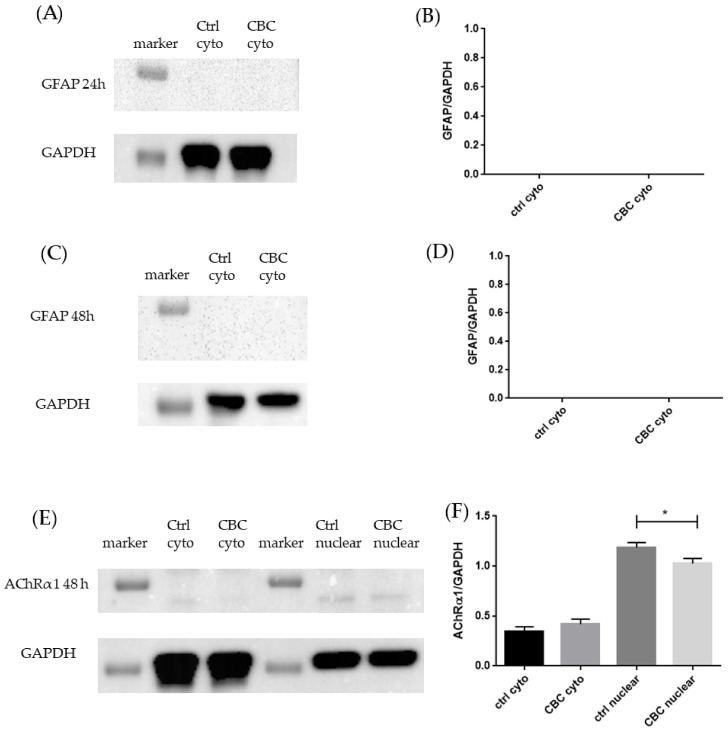

The evaluation of the possible differentiation of NSC-34 cells after CBC exposure was tested using different markers. GFAP evaluation was used to exclude a possible differentiation in glia and astrocytes, and, as seen in Figure 6A–D, NSC-34 are not proceeding in such a way.
The receptor of acetylcholine, AChRα1, was not present neither in the cytoplasm nor in the nucleus after 24 h, while it is present after 48 h both in the control group and in CBC treated group, as shown in Figure 6E,F.
4. Discussion
Phytocannabinoids and their influence on neuronal fate are fascinating fields of study. This capacity makes them suitable candidates to explore the neurogenesis and the neuronal differentiation process in an in vitro model such as NSC-34.
After exposing undifferentiated NSC-34 to 10 µM of CBC, its toxicity and influence on neurogenesis or neuronal differentiation were investigated. The results from the MTT test, as shown in Figure 2, suggest that treatment with 10 µM of CBC does not decrease the cell viability after 24 h. The lack of significance in the comparison between control and treated cells indicates that the tested phytocompound is not toxic at the dose and time of treatment. Figure 3 gives an overview of the cell’s status after treatment, and since there is no clear difference in morphology between the two groups, it can be concluded that the phytocompound does not represent a source of stress for the cells.
Given these statements, the aim of our study was to investigate whether CBC can initiate this process. The graphs reported in Figure 5 gave us an indication of the main genes that will be inspected and further discussed.
Igf1r encodes for Insulin-like growth factor 1 receptor, and, in our data, its expression is reduced after CBC treatment. The main ligand of this receptor is insulin-like growth factor 1 (IGF-1), and it can be produced by the liver, but also by neurons in a growth hormone-independent way [24]. IGF-1 and its receptor trigger the signals of the phosphoinositide 3-kinase (PI3K) pathway, which is known to promote cell survival but also proliferation [25]. The decreased expression of Igf1r in NSC-34 as a consequence of CBC treatment should be interpreted as a reduction in proliferation. Pdgfra encodes for platelet-derived growth factor receptor alpha, and CBC strongly upregulates it. Pdgfra is one type of receptor for platelet-derived growth factors (PDGF), and, in particular, PDGFA and PDGFB heterodimer is necessary for the growth and maturation of stem cells. PDGFA receptor is expressed in embryonic ectomesenchymal-derived cells, and common progenitors from neural crest seem to differentiate in both neural and mesenchymal cells. In regards to adult neural progenitors, PDGFRA, along with PDGFRB, appear to play a role in cell survival [26]. Its upregulation is in favor of cell survival, which correlates very well with MTT data. Ntrk3 encodes for neurotrophic receptor tyrosine kinase 3 (TrkC), and it is upregulated in NSC-34 after CBC exposure. It is the receptor of neurotrophin 3 (NT-3), and together they play an important role in the development of the nervous system. Indeed, NT-3 can increase the expression of its receptor, and this can trigger the differentiation in NSCs. In transfected cells transplanted in a model of spinal cord injury, NT-3 and TrkC were able to cooperate in order to restore the lost neuronal connectivity [27]. Considering that NSC-34 origin is in the spinal cord of mice, the increase in this receptor in NSC-34 after CBC treatment suggests that the differentiation of NSC-34 might be efficiently triggered.
Cfl2 encodes for cofilin-2, and it is overexpressed in NSC-34 after CBC treatment. Cfl2 is part of a protein family that interacts with a major component of the cytoskeleton, actin. The expression of Cfl2 in neuronal progenitor cells is usually very low [28], but it has been found that conditional knockout of Cfl2 influences axonal branching and growth during regeneration [29]. It is coherent to think that it may have an important role in cytoskeleton remodeling, occurring during axonal growth. Its overexpression indicates that this remodeling is taking place, and it is reasonable to think that the aim is neuronal differentiation. Other markers of cytoskeleton remodeling with neuronal differentiation as an aim support this statement. Tubg1 encodes for tubulin gamma 1, and it is overexpressed in NSC-34 after CBC exposure. Gamma tubulins are a superfamily of proteins involved in the microtubule’s nucleation. Tubg1 is expressed ubiquitously in the tissues of the body. Even though isotype 2 is specific to the brain, Tubg1 appeared to be more expressed than isotype 2 in the mature brain [26]. Tubb3 encodes for Tubulin β 3 Class III, and it is upregulated by CBC in NSC-34. It is a microtubule protein, neuron-specific, and it is commonly used as a marker of differentiated neurons. Tubb3 is expressed by NSC-34 both in undifferentiated and differentiated forms [30]. Its expression is distributed in the developing neural plate, so its role is not limited to being a marker, but it also actively regulates the neuron-related developing process [31]. The increased expression of Tubg1 and Tubb3 after CBC treatment points toward the cytoskeleton remodeling directed to neuronal differentiation.
Mest encodes for mesoderm-specific transcript, and it is slightly upregulated in NSC-34 following CBC treatment. Its expression is correlated with dopaminergic neuron maturation. As demonstrated by knock-out mice, Mest is also involved in the survival of adult dopaminergic neurons in substantia nigra [32], while the hypermethilation of its promoter was found in Alzheimer’s Disease patients’ brains. In vitro, the depletion of Mest resulted in the block of neuronal differentiation [33]. These results indicate the important role played by Mest in the neuronal differentiation process; thus, its increment after the CBC treatment suggests a correct progress toward the differentiated status.
Hdac3 is overexpressed is in NSC-34 after CBC exposure. Hdac3 encodes for the protein histone deacetylase-3, which is a member of the histone deacetylases family, and, as other members like -1 and -2, they are mainly expressed in the nucleus. The action of HDACs is the opposite of the histone acetyltransferases (HTAs) family since the first one represses gene transcription while the second allows the relaxation of chromatin and enhancement of transcription [34]. Evidence from developing mice stated that Hdac3 is essential for the correct formation of the brain since Hdac3 deletion results in fetal lethality. In humans, mutations in HDAC3 lead to intellectual disability. Indeed Hdac3 is highly expressed during the development of the cerebral cortex in mice, and it is also required for neuronal progenitor cells [35]. Hdac2 is upregulated as well after CBC treatment in NSC-34 cells. As Hdac3, it is mainly expressed and localized in the nucleus of the cells, where it exerts its role as a transcriptional regulator. The conditional deletion of Hdac2 resulted in defects in neuronal development, indicating its essential role in this process, as follows: Hdac2 knockdown blocks neuronal maturation and leads the progenitor to death. Interestingly, this does not happen to astrocytes, indicating how Hdac2 might regulate the differentiation in a more refined way [36]. The overexpression of both Hdac3 and Hdac2 suggests that the differentiation is probably proceeding without defects. Hoxa2 encodes for Homeobox A2, and it is upregulated in NSC-34 after CBC treatment. Its action is correlated with Pax6, encoding for Paired Box 6, whose expression is upregulated as well after CBC treatment. Hox and Pax genes are transcription factors that are essential during early neurogenesis, but they are also important during differentiation [37]. Pax6 plays its role in CNS development, acting upstream of genes networks involved in the formation of neural circuits and neuronal migration. What is very interesting about Pax6 expression is that the activation of genes involved in neuronal development happens together with the repression of genes involved in mesodermal and endodermal development [38]. For its specificity toward neuronal maturation, its upregulation after CBC treatment points to a neuronal differentiation fate for NSC-34.
Hoxa2, along with Hoxb2, regulates the expression of several genes involved in the specification of neuronal subsets, and one of these is Phox2b. Phox2b encodes for paired-like homeobox 2B, and it is upregulated in our experimental set. Phox2b is a transcription factor and, along with Phox2a, is expressed only in a certain population of neuronal progenitors. Even though they are expressed both in the central and peripheral nervous system, what is interesting is that they are restricted to motor neurons, both branchiomotor and visceral motor ones. When Phox2b is not correctly expressed, neuronal differentiation is not progressing as it should. Phox2b is able to control the differentiation at multiple levels, both general and sub-type specific. This means that Phox2b helps in the general neuronal differentiation of the progenitors, but it is also necessary to guide them toward branchiomotor and visceral motor neurons fate [39]. Its upregulation after CBC treatment to NSC-34 is an indication of correct differentiation in motor neurons, as is expected from NSC-34 cells. Hes1 encodes for Hes Family BHLH Transcription Factor 1, and it is strongly upregulated after CBC treatment in NSC-34 cells. Hes1 is a transcriptional repressor, so its role is to block the expression of genes, but its knockdown appears to induce premature differentiation of neurons when their number is not enough to sustain mature brain activity. On the other hand, the overexpression of Hes1 represents an obstacle to proliferation. The explanation lies in the oscillatory expression of Hes1, which correctly balances proliferation and differentiation [40]. In the case of NSC-34 treated with CBC, Hes1 overexpression is coherent with the proliferation stop.
Nrxn2 encodes for neurexin-2, and it shows upregulation in our experiment after CBC treatment. Nrxn2 is important at the pre-synaptic membrane levels since it is involved in the release of neurotransmitters, and it is one target in the clinical development of spinal muscular atrophy. It was clear that Nrxn2 loss resulted in a reduction in axon excitability in motor neuron cells [41]. This evidence suggests that Nrxn2 has a very important role involving the correct functioning of motor neurons. Its upregulation after CBC treatment could indicate the preparation of NSC-34 to exert their role as motor neuron-like cells. Pum2 encodes for Pumilio2, and it was found upregulated after CBC treatment. Pum2 is a protein with important functions as RNA binding protein, thus regulating a variety of cellular processes. One of these is neuronal differentiation. Indeed, Pum2 is involved in axon branching, dendritic processing formation, and, as a consequence, synapse maturation. In detail, it seems that Pum2 is able to regulate soma size, the so-called “body” of neurons from which axons and dendrites grow. This was clear in an experiment where Pum2 was selectively downregulated, and it resulted in a reduced soma size. Moreover, Pum2 also plays an important role in regulating the excitability and inhibition of neuronal cells, indicating its influence on the maturation of neurons [42]. Its upregulation after CBC exposure suggests that NSC-34 are pushed on the way to becoming differentiated neurons. Smarce1 encodes for SWI/SNF-related, matrix-associated, actin-dependent regulator of chromatin, subfamily E, member 1 and it is upregulated in our study. Smarce1 protein, BAF-57, is part of a much larger complex called SWI/SNF complex, whose functions include the facilitation of genes expression [43]. Notably, BAF57 is highly present in hippocampal neurons, while in glia, it is low, indicating its specificity for neuron cells. Its knock down resulted in dendritic growth defect, suggesting its role in the regulation of their shape [44]. The upregulation of Smarce1 in our experimental set suggests the capacity of CBC to influence the regulation of dendritic shape and, along with the other genes, appear to be able to regulate a different aspect of neuronal differentiation. Efna5 encodes for ephrinA5, and CBC treatment is able to reduce its expression in our NSC-34 cell model. Ephrins belong to a family of proteins that, during brain development, guide axonal projection using signals of attraction and repulsion. Efna5 leads to the collapse of the axonal growth cone. In SH-SY5Y cells, Efna5 contributed to the dopaminergic differentiation by reducing its mRNA expression [45], probably suppressing its axonal-repressor activity. In our experiment, after CBC exposure, the level of Efna5 is reduced as well, suggesting the presence of a starting point towards the differentiation process. Plp1 encodes for proteolipid protein 1, and it is upregulated in NSC-34 after CBC exposure. It is a component of myelin, and it is normally expressed in glutamatergic and cholinergic neurons of the brainstem, while its expression is not detectable in GABAergic neurons [46]. However, this information should not be interpreted as a suggestion that NSC-34 is starting to make myelin. Experiments on knockout animals for the Plp1 gene revealed that this gene is not strictly necessary to develop a correct myelination, but its absence leads to axonal degeneration and axonal retrograde transport impairment [47]. Plp1 is indeed necessary for the integrity of axons, so its overexpression after CBC treatment could be a good signaling for correct axonal growth.
Neurod1 encodes for neuronal differentiation 1, and CBC treatment upregulates its expression in NSC-34 cells. Neurod1 is a Basic helix-loop-helix transcription factor and, as another member of this family, contributes to the differentiation of various cell types. In the case of Neurod1, its main role is exerted during embryonic neurogenesis, and indeed it is also used to reprogram somatic cells into neuronal type. Neurod1 is the base from which many other genes are expressed or repressed during neuronal differentiation, indicating Neurod1 is one of the main players during this process [48]. The upregulation of Neurod1 in our experimental set strongly indicates that CBC is able to trigger neuronal differentiation signaling in NSC-34.
One receptor of acetylcholine, cholinergic receptor nicotinic alpha 1 subunit (AChRα1), is not present in experimental groups at 24 h, but its protein amount increases after 48 h, more in the nucleus than in cytoplasm, as shown in Figure 6E,F. The acetylcholine receptor is known to play a role during the neuronal differentiation of embryonic cells [49]; indeed, the modulation of AChR was demonstrated to be important in the differentiation of cells belonging to rodent neocortex [50]. However, these data need to be associated with Ache transcriptomic data. Ache encodes for acetylcholinesterase (AChE), and it is strongly upregulated after CBC treatment. AChE is the enzyme responsible for the degradation of acetylcholine, a neurotransmitter implied in cholinergic transmission. One important role of AChE is at the neuromuscular junction level, where it stops the cholinergic transmission from motor neurons to muscles [51]. Moreover, AChE is reported to be transcribed during neuronal differentiation [52], and indeed AChE interaction with lamin-1 promotes neurites outgrowth [53]. The increased expression of Ache in our experimental set is a sign of ongoing differentiation, and the fact that is expressed in motor neurons is in favor of our hypothesis. It is important to mention that the Ache gene is even more overexpressed after 48 h in NSC-34 treated with CBC. These pieces of evidence indicate that NSC-34 is preparing enzymes and neurotransmitters typical of cholinergic neurons, probably because of the ongoing differentiation.
The evidence that CBC induces neuronal differentiation is also supported, apart from the mentioned genes expression, also by Western blot analysis of GFAP protein amount as follows: as shown in Figure 6A–D, after between 24 and 48 h, there is no expression of GFAP. GFAP is a protein highly specific for astroglial lineage cells [54]. The lack of GFAP protein suggests that, even after 48 h of CBC exposure, NSC-34 are not proceeding through astroglial differentiation. This is also supported by Figure 3 since the cells did not show any typical astrocyte morphology.

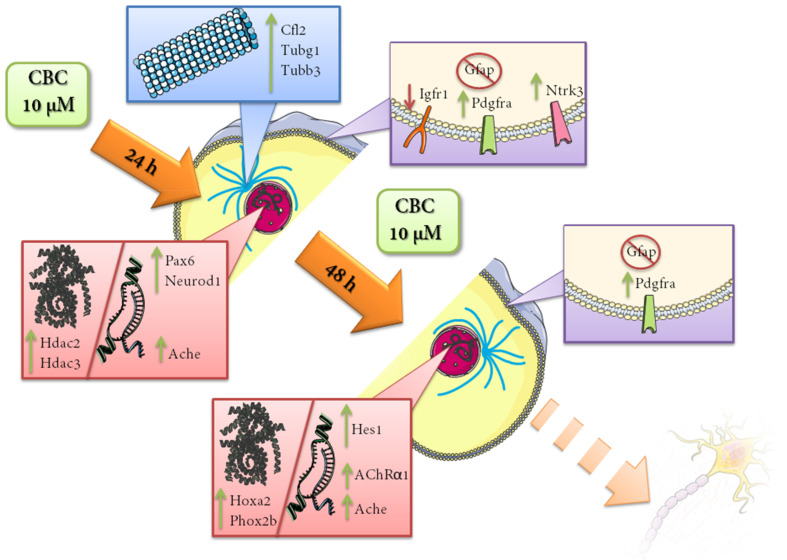

The main evidence of our findings is resumed in Figure 7.
5. Conclusions
CBC proved to induce the expression of several genes correlated with the neuronal differentiation process in NSC-34, such as Hoxa2, Pax6 and Pum2. Moreover, the increased expression of Neurod1, Ache and AChRα1 protein levels and Tubb3 suggests the cell’s progression to a more mature stage of development toward cholinergic neurons. The use of CBC, as indicated by our results, could represent an important addition to the regeneration of the nervous system, but further experiments need to clarify and optimize how CBC could be efficiently used for this purpose.
Acknowledgments
We want to sincerely thank Agnese Gugliandolo for the technical assistance and for the preparation of transcriptomic samples and Giovanni Luca Cipriano for cell culture experiments.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data presented in this study are openly available in the NCBI Sequence Read Archive at BioProject accession number PRJNA907185.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
Funding Statement
This research was funded by Ministry of Health, Italy, Current Research Funds 2023.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Kumar P., Mahato D.K., Kamle M., Borah R., Sharma B., Pandhi S., Tripathi V., Yadav H.S., Devi S., Patil U., et al. Pharmacological properties, therapeutic potential, and legal status of Cannabis sativa L.: An overview. Phytother. Res. PTR. 2021;35:6010–6029. doi: 10.1002/ptr.7213.
- 2.Blando S., Raffaele I., Chiricosta L., Valeri A., Gugliandolo A., Silvestro S., Pollastro F., Mazzon E. Cannabidiol Promotes Neuronal Differentiation Using Akt and Erk Pathways Triggered by Cb1 Signaling. Molecules. 2022;27:5644. doi: 10.3390/molecules27175644.
- 3.Cristino L., Bisogno T., Di Marzo V. Cannabinoids and the expanded endocannabinoid system in neurological disorders. Nat. Rev. Neurol. 2020;16:9–29. doi: 10.1038/s41582-019-0284-z.
- 4.Compagnucci C., Di Siena S., Bustamante M.B., Di Giacomo D., Di Tommaso M., Maccarrone M., Grimaldi P., Sette C. Type-1 (CB1) cannabinoid receptor promotes neuronal differentiation and maturation of neural stem cells. PLoS ONE. 2013;8:e54271. doi: 10.1371/journal.pone.0054271.
- 5.Valeri A., Mazzon E. Cannabinoids and Neurogenesis: The Promised Solution for Neurodegeneration? Molecules. 2021;26:6313. doi: 10.3390/molecules26206313.
- 6.Eriksson P.S., Perfilieva E., Björk-Eriksson T., Alborn A.-M., Nordborg C., Peterson D.A., Gage F.H. Neurogenesis in the adult human hippocampus. Nat. Med. 1998;4:1313–1317. doi: 10.1038/3305.
- 7.Sailor K.A., Ming G.L., Song H. Neurogenesis as a potential therapeutic strategy for neurodegenerative diseases. Expert Opin. Biol. Ther. 2006;6:879–890. doi: 10.1517/14712598.6.9.879.
- 8.Izzo A.A., Capasso R., Aviello G., Borrelli F., Romano B., Piscitelli F., Gallo L., Capasso F., Orlando P., Di Marzo V. Inhibitory effect of cannabichromene, a major non-psychotropic cannabinoid extracted from Cannabis sativa, on inflammation-induced hypermotility in mice. Br. J. Pharmacol. 2012;166:1444–1460. doi: 10.1111/j.1476-5381.2012.01879.x.
- 9.Pattnaik F., Nanda S., Mohanty S., Dalai A.K., Kumar V., Ponnusamy S.K., Naik S. Cannabis: Chemistry, extraction and therapeutic applications. Chemosphere. 2022;289:133012. doi: 10.1016/j.chemosphere.2021.133012.
- 10.Shinjyo N., Di Marzo V. The effect of cannabichromene on adult neural stem/progenitor cells. Neurochem. Int. 2013;63:432–437. doi: 10.1016/j.neuint.2013.08.002.
- 11.Cashman N.R., Durham H.D., Blusztajn J.K., Oda K., Tabira T., Shaw I.T., Dahrouge S., Antel J.P. Neuroblastoma x spinal cord (NSC) hybrid cell lines resemble developing motor neurons. Dev. Dyn. Off. Publ. Am. Assoc. Anat. 1992;194:209–221. doi: 10.1002/aja.1001940306.
- 12.Maier O., Böhm J., Dahm M., Brück S., Beyer C., Johann S. Differentiated NSC-34 motoneuron-like cells as experimental model for cholinergic neurodegeneration. Neurochem. Int. 2013;62:1029–1038. doi: 10.1016/j.neuint.2013.03.008.
- 13.Gaoni Y., Mechoulam R. The isolation and structure of delta-1-tetrahydrocannabinol and other neutral cannabinoids from hashish. J. Am. Chem. Soc. 1971;93:217–224. doi: 10.1021/ja00730a036.
- 14.Silvestro S., Chiricosta L., Gugliandolo A., Pizzicannella J., Diomede F., Bramanti P., Trubiani O., Mazzon E. Extracellular Vesicles Derived from Human Gingival Mesenchymal Stem Cells: A Transcriptomic Analysis. Genes. 2020;11:118. doi: 10.3390/genes11020118.
- 15.Andrews S. FastQC: A Quality Control Tool for High Throughput Sequence Data. [(accessed on 22 January 2023)]. Available online: http://www.bioinformatics.babraham.ac.uk/projects/fastqc/
- 16.Bolger A.M., Lohse M., Usadel B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics. 2014;30:2114–2120. doi: 10.1093/bioinformatics/btu170.
- 17.Dobin A., Davis C.A., Schlesinger F., Drenkow J., Zaleski C., Jha S., Batut P., Chaisson M., Gingeras T.R. STAR: Ultrafast universal RNA-seq aligner. Bioinformatics. 2013;29:15–21. doi: 10.1093/bioinformatics/bts635.
- 18.Anders S., Pyl P.T., Huber W. HTSeq—A Python framework to work with high-throughput sequencing data. Bioinformatics. 2015;31:166–169. doi: 10.1093/bioinformatics/btu638.
- 19.Love M.I., Huber W., Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15:550. doi: 10.1186/s13059-014-0550-8.
- 20.Yu G., Wang L.G., Han Y., He Q.Y. clusterProfiler: An R package for comparing biological themes among gene clusters. Omics A J. Integr. Biol. 2012;16:284–287. doi: 10.1089/omi.2011.0118.
- 21.Carbon S., Ireland A., Mungall C.J., Shu S., Marshall B., Lewis S., Ami G.O.H., Web Presence Working G. AmiGO: Online access to ontology and annotation data. Bioinformatics. 2009;25:288–289. doi: 10.1093/bioinformatics/btn615.
- 22.Silvestro S., Chiricosta L., Gugliandolo A., Iori R., Rollin P., Perenzoni D., Mattivi F., Bramanti P., Mazzon E. The Moringin/α-CD Pretreatment Induces Neuroprotection in an In Vitro Model of Alzheimer’s Disease: A Transcriptomic Study. Curr. Issues Mol. Biol. 2021;43:197–214. doi: 10.3390/cimb43010017.
- 23.Gugliandolo A., Silvestro S., Chiricosta L., Pollastro F., Bramanti P., Mazzon E. The Transcriptomic Analysis of NSC-34 Motor Neuron-Like Cells Reveals That Cannabigerol Influences Synaptic Pathways: A Comparative Study with Cannabidiol. Life. 2020;10:227. doi: 10.3390/life10100227.
- 24.Nieto-Estévez V., Defterali Ç., Vicario-Abejón C. IGF-I: A Key Growth Factor that Regulates Neurogenesis and Synaptogenesis from Embryonic to Adult Stages of the Brain. Front. Neurosci. 2016;10:52. doi: 10.3389/fnins.2016.00052.
- 25.Otaegi G., Yusta-Boyo M.J., Vergaño-Vera E., Méndez-Gómez H.R., Carrera A.C., Abad J.L., González M., de la Rosa E.J., Vicario-Abejón C., de Pablo F. Modulation of the PI 3-kinase-Akt signalling pathway by IGF-I and PTEN regulates the differentiation of neural stem/precursor cells. J. Cell Sci. 2006;119:2739–2748. doi: 10.1242/jcs.03012.
- 26.Dráberová E., Sulimenko V., Vinopal S., Sulimenko T., Sládková V., D’Agostino L., Sobol M., Hozák P., Křen L., Katsetos C.D., et al. Differential expression of human γ-tubulin isotypes during neuronal development and oxidative stress points to a γ-tubulin-2 prosurvival function. FASEB J. Off. Publ. Fed. Am. Soc. Exp. Biol. 2017;31:1828–1846. doi: 10.1096/fj.201600846RR.
- 27.Wang J.-M., Zeng Y.-S., Wu J.-L., Li Y., Teng Y.D. Cograft of neural stem cells and schwann cells overexpressing TrkC and neurotrophin-3 respectively after rat spinal cord transection. Biomaterials. 2011;32:7454–7468. doi: 10.1016/j.biomaterials.2011.06.036.
- 28.Bamburg J.R., Minamide L.S., Wiggan O., Tahtamouni L.H., Kuhn T.B. Cofilin and Actin Dynamics: Multiple Modes of Regulation and Their Impacts in Neuronal Development and Degeneration. Cells. 2021;10:2726. doi: 10.3390/cells10102726.
- 29.Tedeschi A., Dupraz S., Curcio M., Laskowski C.J., Schaffran B., Flynn K.C., Santos T.E., Stern S., Hilton B.J., Larson M.J.E., et al. ADF/Cofilin-Mediated Actin Turnover Promotes Axon Regeneration in the Adult CNS. Neuron. 2019;103:1073–1085.e1076. doi: 10.1016/j.neuron.2019.07.007.
- 30.Matusica D., Fenech M.P., Rogers M.-L., Rush R.A. Characterization and use of the NSC-34 cell line for study of neurotrophin receptor trafficking. J. Neurosci. Res. 2008;86:553–565. doi: 10.1002/jnr.21507.
- 31.Chacon J., Rogers C.D. Early expression of Tubulin Beta-III in avian cranial neural crest cells. Gene Expr. Patterns. 2019;34:119067. doi: 10.1016/j.gep.2019.119067.
- 32.Mesman S., van Hooft J.A., Smidt M.P. Mest/Peg1 Is Essential for the Development and Maintenance of a SNc Neuronal Subset. Front. Mol. Neurosci. 2016;9:166. doi: 10.3389/fnmol.2016.00166.
- 33.Prasad R., Jung H., Tan A., Song Y., Moon S., Shaker M.R., Sun W., Lee J., Ryu H., Lim H.K., et al. Hypermethylation of Mest promoter causes aberrant Wnt signaling in patients with Alzheimer’s disease. Sci. Rep. 2021;11:20075. doi: 10.1038/s41598-021-99562-9.
- 34.Cho Y., Cavalli V. HDAC signaling in neuronal development and axon regeneration. Curr. Opin. Neurobiol. 2014;27:118–126. doi: 10.1016/j.conb.2014.03.008.
- 35.Li L., Jin J., Yang X.-J. Histone Deacetylase 3 Governs Perinatal Cerebral Development via Neural Stem and Progenitor Cells. iScience. 2019;20:148–167. doi: 10.1016/j.isci.2019.09.015.
- 36.Montgomery R.L., Hsieh J., Barbosa A.C., Richardson J.A., Olson E.N. Histone deacetylases 1 and 2 control the progression of neural precursors to neurons during brain development. Proc. Natl. Acad. Sci. USA. 2009;106:7876–7881. doi: 10.1073/pnas.0902750106.
- 37.Davenne M., Maconochie M.K., Neun R., Pattyn A., Chambon P., Krumlauf R., Rijli F.M. Hoxa2 and Hoxb2 Control Dorsoventral Patterns of Neuronal Development in the Rostral Hindbrain. Neuron. 1999;22:677–691. doi: 10.1016/S0896-6273(00)80728-X.
- 38.Thakurela S., Tiwari N., Schick S., Garding A., Ivanek R., Berninger B., Tiwari V.K. Mapping gene regulatory circuitry of Pax6 during neurogenesis. Cell Discov. 2016;2:15045. doi: 10.1038/celldisc.2015.45.
- 39.Pattyn A., Hirsch M., Goridis C., Brunet J.F. Control of hindbrain motor neuron differentiation by the homeobox gene Phox2b. Development. 2000;127:1349–1358. doi: 10.1242/dev.127.7.1349.
- 40.Ochi S., Imaizumi Y., Shimojo H., Miyachi H., Kageyama R. Oscillatory expression of Hes1 regulates cell proliferation and neuronal differentiation in the embryonic brain. Development. 2020;147:dev182204. doi: 10.1242/dev.182204.
- 41.See K., Yadav P., Giegerich M., Cheong P.S., Graf M., Vyas H., Lee S.G., Mathavan S., Fischer U., Sendtner M., et al. SMN deficiency alters Nrxn2 expression and splicing in zebrafish and mouse models of spinal muscular atrophy. Hum. Mol. Genet. 2014;23:1754–1770. doi: 10.1093/hmg/ddt567.
- 42.Schieweck R., Schöneweiss E.C., Harner M., Rieger D., Illig C., Saccà B., Popper B., Kiebler M.A. Pumilio2 Promotes Growth of Mature Neurons. Int. J. Mol. Sci. 2021;22:8998. doi: 10.3390/ijms22168998.
- 43.Wang W., Chi T., Xue Y., Zhou S., Kuo A., Crabtree G.R. Architectural DNA binding by a high-mobility-group/kinesin-like subunit in mammalian SWI/SNF-related complexes. Proc. Natl. Acad. Sci. USA. 1998;95:492–498. doi: 10.1073/pnas.95.2.492.
- 44.Wu J.I., Lessard J., Olave I.A., Qiu Z., Ghosh A., Graef I.A., Crabtree G.R. Regulation of Dendritic Development by Neuron-Specific Chromatin Remodeling Complexes. Neuron. 2007;56:94–108. doi: 10.1016/j.neuron.2007.08.021.
- 45.Wang T., Chen J., Tang C.-X., Zhou X.-Y., Gao D.-S. Inverse Expression Levels of EphrinA3 and EphrinA5 Contribute to Dopaminergic Differentiation of Human SH-SY5Y Cells. J. Mol. Neurosci. 2016;59:483–492. doi: 10.1007/s12031-016-0759-y.
- 46.Miller M.J., Kangas C.D., Macklin W.B. Neuronal expression of the proteolipid protein gene in the medulla of the mouse. J. Neurosci. Res. 2009;87:2842–2853. doi: 10.1002/jnr.22121.
- 47.Harlow D.E., Saul K.E., Culp C.M., Vesely E.M., Macklin W.B. Expression of proteolipid protein gene in spinal cord stem cells and early oligodendrocyte progenitor cells is dispensable for normal cell migration and myelination. J. Neurosci. Off. J. Soc. Neurosci. 2014;34:1333–1343. doi: 10.1523/JNEUROSCI.2477-13.2014.
- 48.Pataskar A., Jung J., Smialowski P., Noack F., Calegari F., Straub T., Tiwari V.K. NeuroD1 reprograms chromatin and transcription factor landscapes to induce the neuronal program. EMBO J. 2016;35:24–45. doi: 10.15252/embj.201591206.
- 49.Resende R.R., Adhikari A. Cholinergic receptor pathways involved in apoptosis, cell proliferation and neuronal differentiation. Cell Commun. Signal. 2009;7:20. doi: 10.1186/1478-811X-7-20.
- 50.Takarada T., Nakamichi N., Kitajima S., Fukumori R., Nakazato R., Le N.Q., Kim Y.-H., Fujikawa K., Kou M., Yoneda Y. Promoted Neuronal Differentiation after Activation of Alpha4/Beta2 Nicotinic Acetylcholine Receptors in Undifferentiated Neural Progenitors. PLoS ONE. 2012;7:e46177. doi: 10.1371/journal.pone.0046177.
- 51.Rotundo R.L. Acetylcholinesterase at the neuromuscular junction. Neurosci. Lett. 2020;735:135157. doi: 10.1016/j.neulet.2020.135157.
- 52.Coleman B.A., Taylor P. Regulation of Acetylcholinesterase Expression during Neuronal Differentiation (∗) J. Biol. Chem. 1996;271:4410–4416. doi: 10.1074/jbc.271.8.4410.
- 53.Sperling L.E., Klaczinski J., Schütz C., Rudolph L., Layer P.G. Mouse acetylcholinesterase enhances neurite outgrowth of rat R28 cells through interaction with laminin-1. PLoS ONE. 2012;7:e36683. doi: 10.1371/journal.pone.0036683.
- 54.Reeves S.A., Helman L.J., Allison A., Israel M.A. Molecular cloning and primary structure of human glial fibrillary acidic protein. Proc. Natl. Acad. Sci. USA. 1989;86:5178–5182. doi: 10.1073/pnas.86.13.5178.
