Results of the Protein Engineering Tournament: An Open Science Benchmark for Protein Modeling and Design
Columbia University, New York City, United States
Medium Biosciences
Align to Innovate, Cambridge, United States
International Flavors and Fragrances
Seismic Therapeutic, Watertown, MA, United States
Department of Systems Biology, Harvard Medical School, Boston, MA, United States
Broad Institute of Harvard and MIT, Cambridge, MA, United States
Francis Crick Institute, London, United Kingdom
†Corresponding author email: erika@alignbio.orgAbstract
The grand challenge of protein engineering is the development of computational models to characterize and generate protein sequences for arbitrary functions. Progress is limited by lack of 1) benchmarking opportunities, 2) large protein function datasets, and 3) access to experimental protein characterization. We introduce the Protein Engineering Tournament—a fully-remote competition designed to foster the development and evaluation of computational approaches in protein engineering. The tournament consists of an in silico round, predicting biophysical properties from protein sequences, followed by an in vitro round where novel protein sequences are designed, expressed and characterized using automated methods. Upon completion, all datasets, experimental protocols, and methods are made publicly available. We detail the structure and outcomes of a pilot Tournament involving seven protein design teams, powered by six multi-objective datasets, with experimental characterization by our partner, International Flavors and Fragrances. Forthcoming Protein Engineering Tournaments aim to mobilize the scientific community towards transparent evaluation of progress in the field.

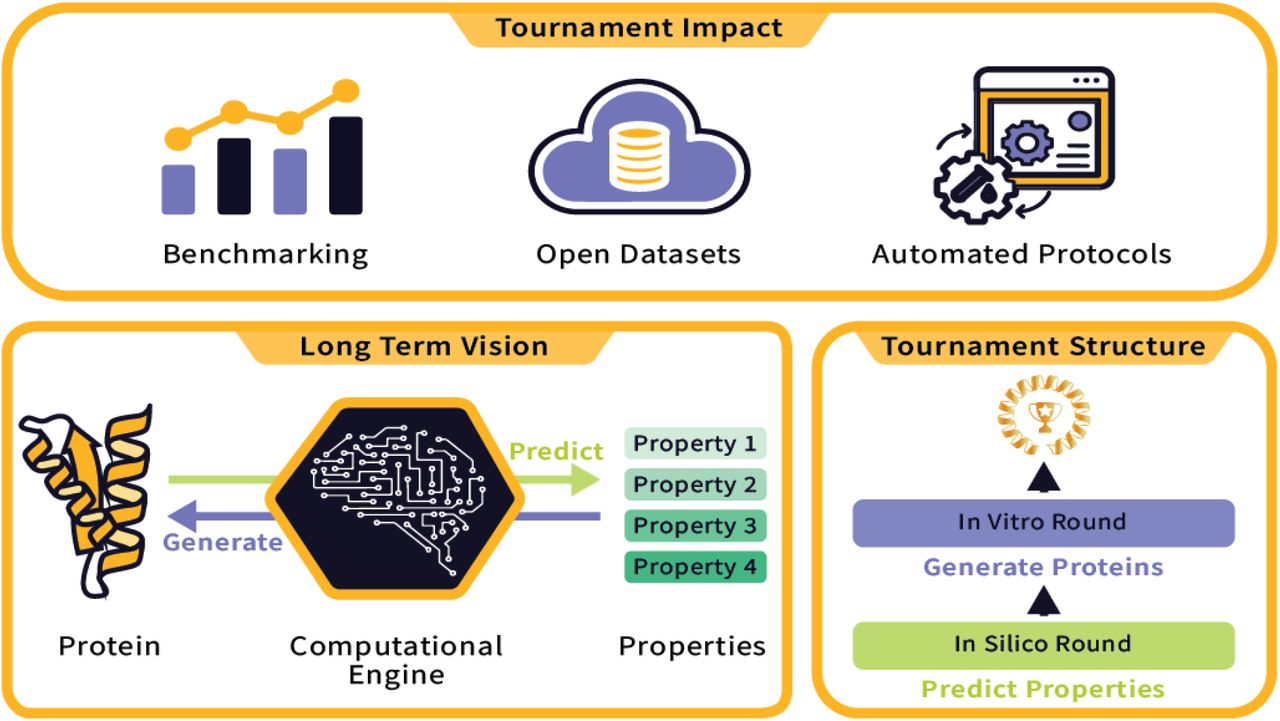

Graphical Abstract
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Summary of Updates:
Footnote Group
Untitled section
The field of computational protein engineering aims to improve our understanding of protein function and design by developing predictive models, which infer biophysical properties from a protein’s sequence1, and generative models, which compose protein sequences possessing a desired set of properties2. However, several obstacles are currently limiting model development in both paradigms.
Predictive modeling has been notably hampered by the lack of large, complex, and diverse datasets. Public, open datasets have long provided valuable opportunities for developing and benchmarking new methods in machine learning research. Computer vision datasets, such as MNIST3 and ImageNet4, enabled individual research labs to experiment with new approaches, and also created a benchmark with which to measure collective progress. Researchers in the protein engineering community have also utilized open datasets, such as FLIP5 and TAPE6, and curated datasets of hundreds of deep mutational scanning experiments like ProteinGym7 to encourage similar developments. However, most available datasets, such as those documented in ProtaBank8, are limited in scope, predominantly mapping simple sequence-function relationships through single point mutations. This simplicity restricts the ability of predictive models to accurately characterize a wide range of protein functions under varied conditions.
Generative modeling also faces its own set of challenges, primarily due to computational scientists’ limited capacity to experimentally validate and characterize their protein designs. This gap significantly hinders the development and benchmarking of new generative design methods, as there is no standardized evaluation criteria to reliably test and compare the efficacy of these novel protein sequences. Addressing these challenges is crucial for the advancement of computational methods in protein engineering, as it would enable more accurate predictions and innovative designs in protein function.
Science competitions have historically tackled predictive benchmarking efforts by allowing researchers to test their computational methods on never-before-seen datasets. Perhaps the most notable example is the Critical Assessment of Structure Prediction (CASP)9 a biennial event for computational protein structure prediction. Since its inception, CASP has become a crucial benchmark for the protein structure prediction community. By creating visibility around a single event, the competition has inspired an ambitious spirit among researchers to develop the best performing method, thereby encouraging rapid development. CASP has inspired the creation of similar competitions, like the Critical Assessment of Computational Hit-finding Experiments (CACHE)10, which was created in the computational chemistry field to benchmark novel approaches for finding new small-molecule binders.
We believe there is a burgeoning opportunity to create a new scientific competition that addresses the unique challenges of both predicting and engineering protein function. We previously outlined these challenges and proposed that a Protein Engineering Tournament could tackle the aforementioned obstacles by curating a series of tournaments which provide novel datasets for predictive modeling and experimental validation for generative design11. By introducing never-before-seen datasets on protein function and offering open-source experimental characterization of novel proteins, the Protein Engineering Tournament hopes to overcome this barrier and enable diverse research groups from all backgrounds to participate in cutting-edge protein engineering research. The Tournament hopes to act as a unifying force for the community by providing a transparent platform for benchmarking protein modeling and design methods, reducing barriers to model development and validation, and accelerating the field of protein engineering.
Results
Tournament structure

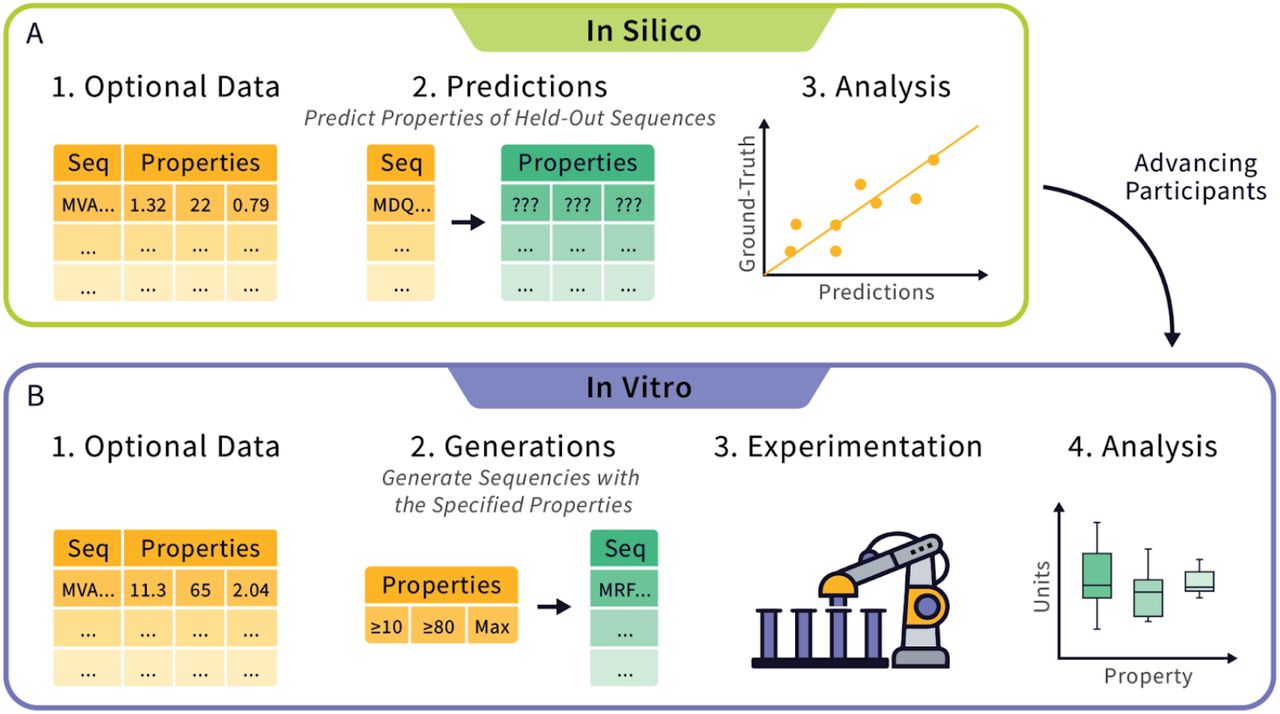

To enable benchmarking of both predictive and generative models, the Tournament was structured to have an in silico round to benchmark predictive models followed by an in vitro round to benchmark generative models (Fig. 1). In the in silico round, the teams were tasked with developing models for predicting biophysical properties of given protein sequences (Fig. 1A). In the in vitro round (Fig. 1B), the teams were asked to design protein sequences that maximize or satisfy certain biophysical properties. Following the conclusion of the tournament, participating teams were asked to submit abstracts, detailing the methods applied in both the in silico and in vitro rounds (see Methods).
Datasets and Events

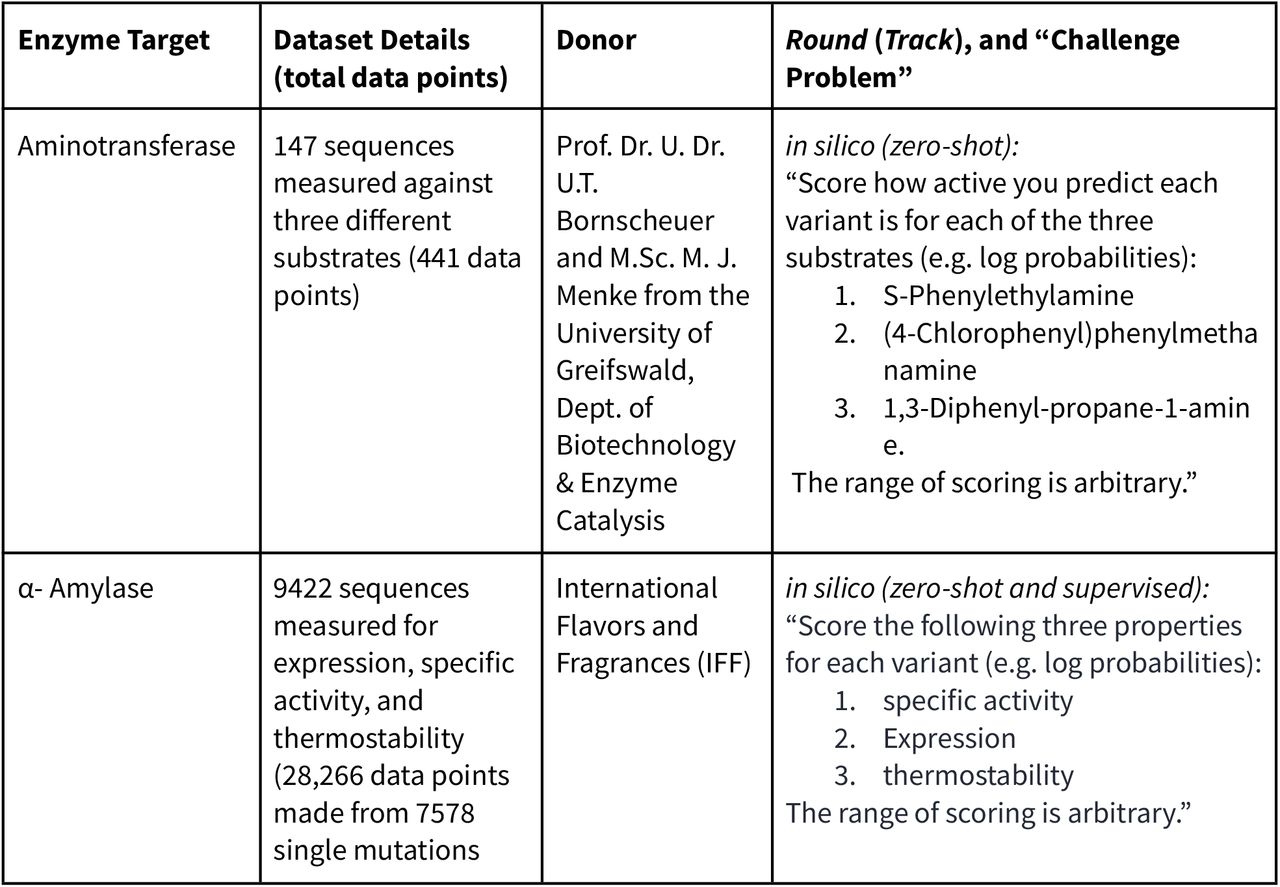

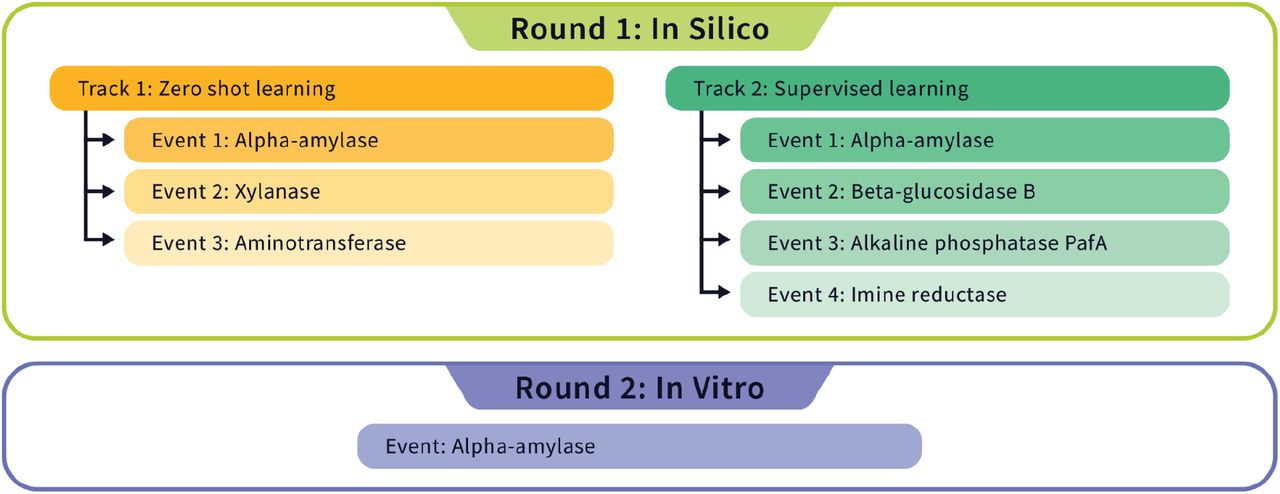

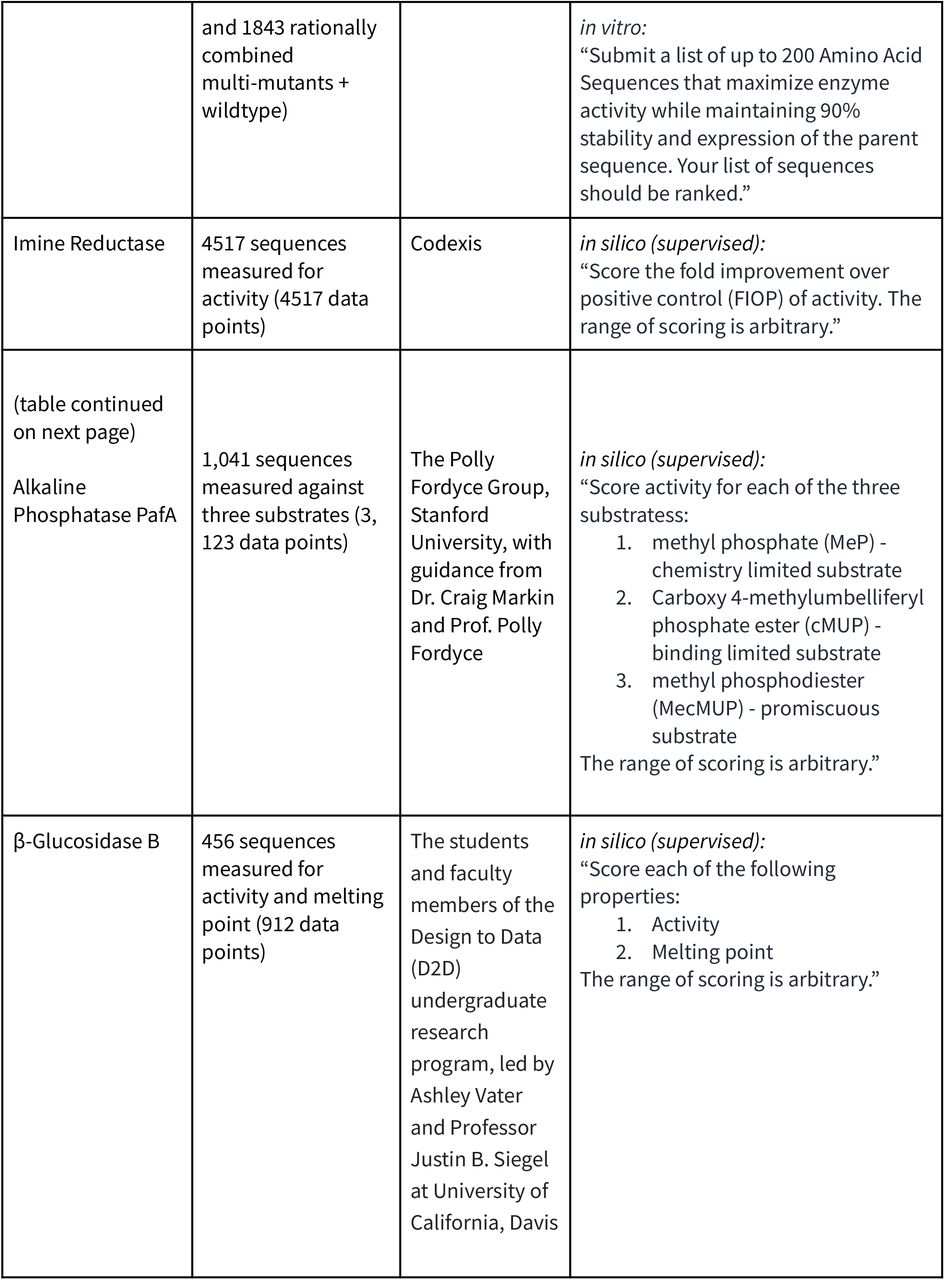

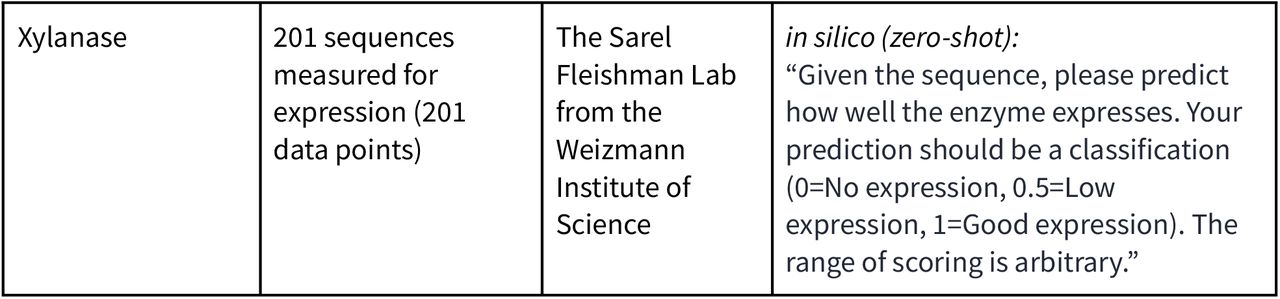

The pilot Protein Engineering Tournament was made possible by the donation of 6 multi-objective datasets from our academic and industry partners (Table 1) structured into two rounds (Fig. 2). Each dataset was used as a unique event in the Tournament, with the exception of the α-Amylase dataset which was used in three events. For each α-Amylase event, the challenge problem and dataset was modified to reflect the track (zero-shot or supervised) and round (in silico and in vitro). By using donated datasets, the Tournament provided an opportunity for academic and industry groups to disseminate privately held or previously unpublished datasets to the protein engineering community.
The in silico round
In the in silico round participants engaged in seven events distributed across two unique tracks: zero-shot and supervised. Teams had the flexibility to choose their level of participation, opting into any number of these events. The objective for each event was to predict a specified set of properties—such as expression levels, thermostability, and specific activity—from provided protein sequences (Table 1).
The zero-shot track challenged participants to make predictions without any prior training data, relying solely on intrinsic algorithmic robustness and generalizability. This track comprised three events centered around the enzymes α-amylase, aminotransferase, and xylanase. Teams were given three weeks to access the datasets and make submissions.
For the supervised track, participants received a pre-split training and test dataset for each event. The training datasets included sequences and their measured properties, while the test datasets included sequences without measured properties. Participants were directed to train their models using the training set and subsequently use the trained model to predict the withheld properties in the test set. Participant’s test set submissions were assessed against the ground-truth withheld data. This track included four events focusing on different enzymes: alkaline phosphatase PafA, α-amylase, β-glucosidase B, and imine reductase. Teams were given six weeks to access the datasets and make submissions.

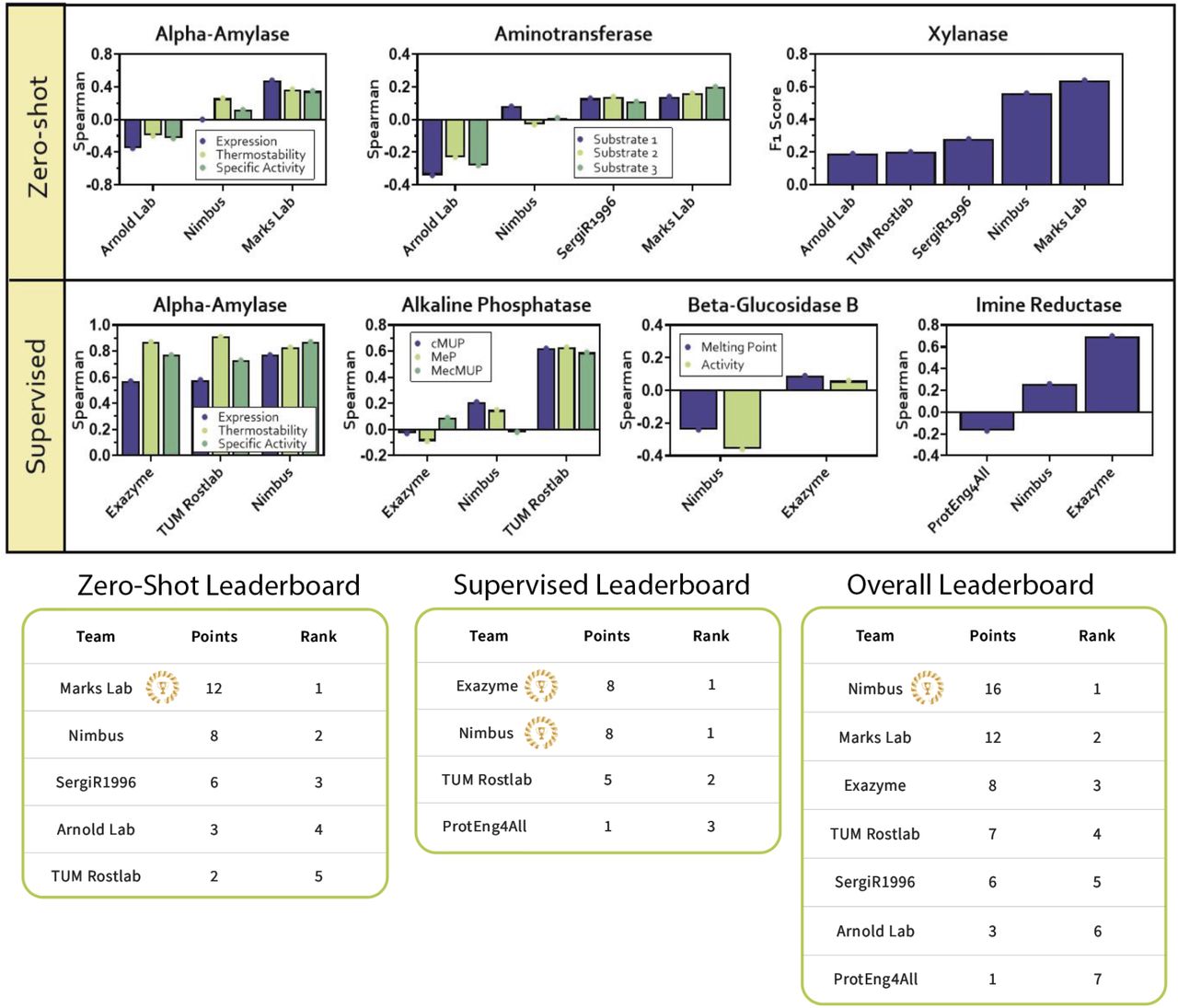

For all in silico events, teams’ results were used to determine their rank and were subsequently awarded points based on their performance (Fig. 3) (see Methods for details on evaluation metrics and scoring). By summing the points received in each event, leaderboards were generated for both the zero-shot and supervised events (Fig. 3), as well as a combined in silico leaderboard (Fig. 3). The Marks Lab won the zero-shot track, while Exazyme and Nimbus shared the first-place spot for the supervised track. Based on combined performance across both tracks, Nimbus was the overall winner for the in silico round.
The in vitro round
In the in vitro round, teams were tasked with using their computational models to propose novel enzyme designs that exhibited enhanced functional properties. Teams were provided with data on single and rationally designed multi-mutations of the α-amylase enzyme, up to 11 mutations from wildtype. Teams were instructed to generate a ranked list of up to 200 protein sequences. The criteria for these sequences were multifold: they should maximize enzyme activity and retain at least 90% of the stability and expression levels of the parent enzyme. Not all teams submitted the full 200 sequences, and not all submitted sequences were able to be synthesized, cloned and/or expressed (Supp. Table 3). Teams used a variety of approaches for their generation: MediumBio only used assay-labeled data; TUM used LLMs to further engineer the top performing IFF-engineered multi-mutant; Marks Lab had sequences generated from a natural sequence model with zero assay-labeled data as well as sequences generated from the same model with conditioning on the assay-labeled data. The in vitro round experimentation was performed by our experimental partner International Flavors and Fragrances (Leiden, Netherlands).
Individual Property Measurements

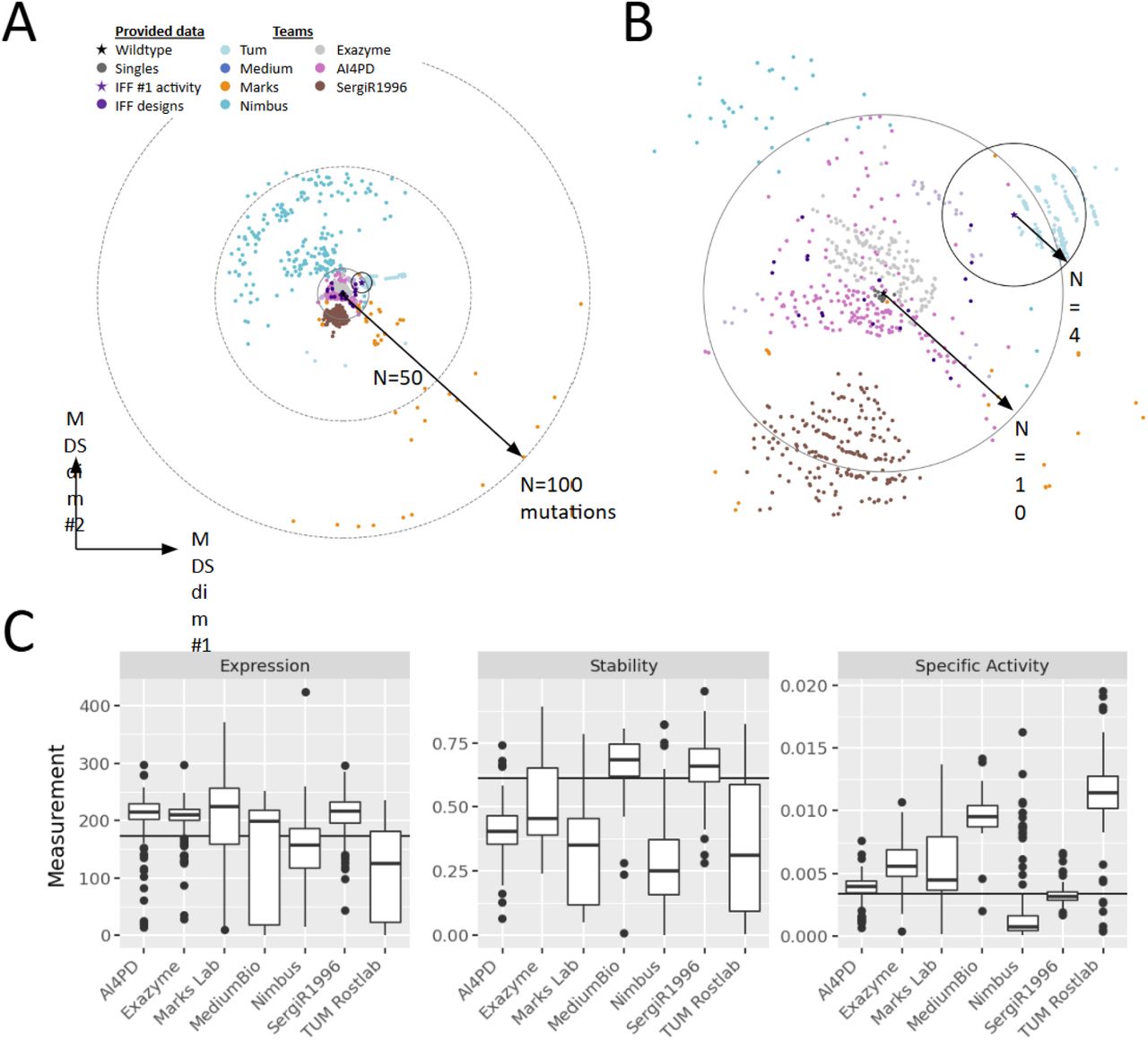

For each submitted enzyme variant, where feasible, two sequence-verified clones were assayed (see Methods), and their resulting measurements were averaged to evaluate expression levels, specific activity, and thermostability (Fig. 4). Comparative data between these replicates were used to assess assay noise and were found to have satisfactory reproducibility across all measured properties (Supp. Disc. Data Quality). For thermostability, the enzyme variants from teams SergiR1996 and MediumBio demonstrated superior performance relative to other groups. For specific activity, the primary property of interest, TUM emerged as the clear winner. Most teams showed comparable levels of expression; however, due to technical issues, the expression levels of the control protein were not directly comparable to those of the submitted variants. The control molecule’s expression was approximately estimated to be three times higher than actual, leading us to adjust the comparison to 30% of the control’s expression levels for fairness.
Final Evaluation of Designed Sequences

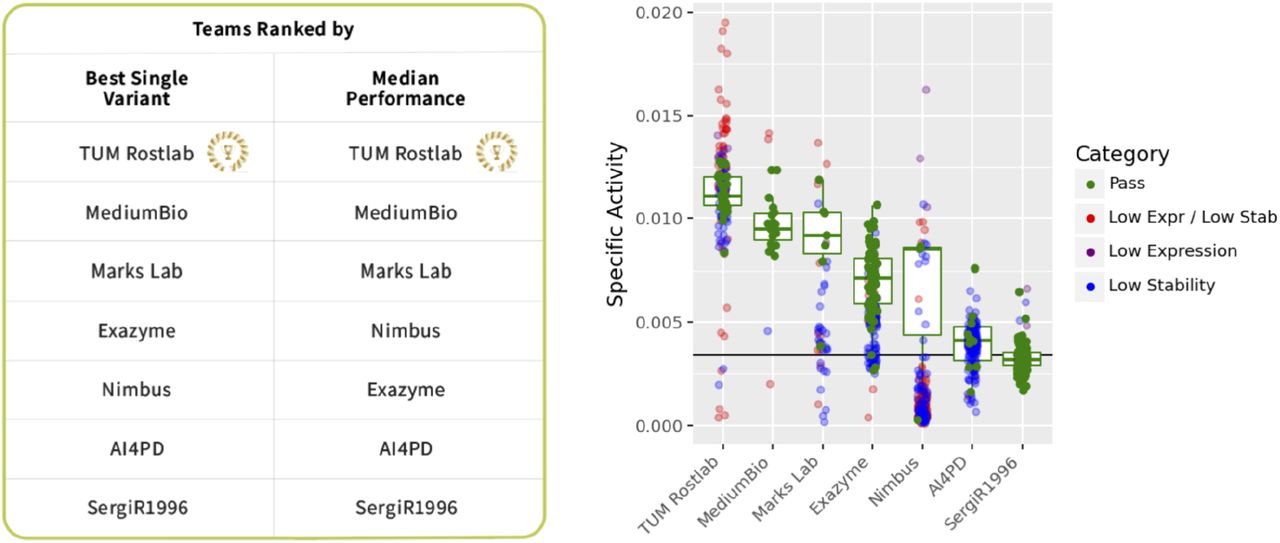

While all teams successfully engineered variants with improved activities, TUM Rostlab distinguished itself with both the top-scoring individual variant and the highest median performance among the qualifying variants that met the combined design criteria for expression and thermostability (Fig. 5). MediumBio and Marks Lab were close contenders, finishing second and third, respectively. Detailed numerical results for the variants that passed the design criteria are provided, including data on the best single variant activity and median activity across variants for each team (Supp. Table 4). Additionally, special recognition was given to teams for outstanding achievements in individual property improvements, combinations of these properties, and for the team with the greatest number of variants meeting the design criteria (Supp. Table 5).
Discussion
The Protein Engineering Tournament has introduced an innovative, community-driven platform to accelerate the advancement of computational protein engineering. This open science initiative combines in silico datasets for predictive modeling and in vitro experimentation for generative protein design. In creating a unified benchmark, the Tournament offers a communal yardstick for evaluating the performance of computational approaches in modeling and engineering protein function. The pilot tournament demonstrated these principles by offering never-before-seen datasets on protein function, novel mappings between computational approaches and experimental outcomes, and ample opportunities for community engagement and knowledge sharing.
The pilot Tournament’s in vitro round successfully produced a new α-amylase dataset including expression, thermostability, and specific activity measurements of ∼1,200 variants from the external partnership with International Flavors and Fragrances. In future iterations, the Tournament’s flexible structure allows for additional methods of generating in vitro data, including partnerships with: 1) external collaborators in academia or industry, 2) companies with Laboratory Data as a Service models, or 3) automation-enabled facilities known as cloud science laboratories. We expect our Tournaments to use a mixture of these methods to leverage their unique benefits and continually adapt to an ever-changing experimental ecosystem (Supp. Table 6).
The Tournament’s in vitro round also offers a unique setting for benchmarking across many types of computational models. The 2023 Protein Engineering Tournament showcased a broad spectrum of computational approaches, reflecting the diverse landscape of modern protein engineering.
Participants employed a range of techniques, from sequence- and structure-based models to protein large language models (LLMs) in order to perform this multi-objective optimization. TUM Rostlab and AI4PD utilized fine-tuning of protein language models, and TUM Rostlab further built upon these large-scale models using reinforcement training. MediumBio applied a combination of greedy recombination of beneficial mutations and model-guided protein sequence space sampling.
Alternatively, Nimbus employed structural modeling tools like PyRosetta12 and AlphaFold13. Marks Lab used natural sequence models to sample some sequences zero-shot and some sequences via assay-labeled conditional generation, and AI4PD also fine-tuned language models, SergiR1996 used a structure based and genetic algorithms to perform multi-objective optimization. Notably, the breadth of techniques implemented by top teams highlights the lack of consensus around the ‘best’ method for protein design. The choice to build on top of IFF’s prior engineering, and the number of mutations introduced (Figure 4A-B), strongly stratified team performance. For instance, the top activity designs were within 1-4 mutations of the top activity design discovered by IFF’s engineering efforts. By contrast, the average design distance was 15 mutations and the most distant examples exceeded 100 mutations. Though it is tempting to draw conclusions about the different strengths of the computational models each team invokes, significant high-level differences in approach may have made the largest impact on the design outcomes. Future Tournaments will enable teams to have multiple avenues to participate in the in vitro round, to maximize the diversity of computational approaches and number of teams that can participate (Supp. Disc. Participation).
In future tournaments the design challenges will also expand to encompass more domains of function (Supp. Fig. 3). The order in which we introduce new functions will be driven by practical application, technical feasibility, and amenability to high-throughput experimentation. As our computational methods improve, our challenges will expand into increasingly more difficult and complex domains, such that the frontier of scientific capabilities is always represented in the Tournament’s challenges. While the first pilot Tournament solely focused on enzyme engineering, we see enzyme engineering and protein binder design as strong initial candidates for the first official Tournament in 2025. As we look ahead to the first official Tournament, we anticipate that this initiative will contribute significantly to the evolving landscape of protein engineering and enable the scientific community to conquer the grand challenge of protein design.
Methods
All data, metadata, team submissions, analysis scripts, figures, and team abstracts are available on our Github: https://github.com/the-protein-engineering-tournament/pet-pilot-2023. This resource offers an in-depth look at the diverse strategies employed during the tournament, serving as a valuable asset for researchers and enthusiasts in the field.
in silico Analysis Metrics and Scoring
For all in silico events, excluding Xylanase, Spearman correlation was chosen as the evaluation metric to compare submitted predicted properties to their measured values. The choice of Spearman correlation was driven by several reasons. First, Spearman correlation is robust to non-linear relationships and does not assume linearity. As a rank-based metric, it is less sensitive to outliers compared to Pearson correlation, which is especially beneficial in the zero shot setting where the ranges of submission were arbitrary. Additionally, its ease of interpretation and widespread use in the protein engineering literature supported this choice.
The only event not analyzed by Spearman correlation was the Xylanase supervised learning event. The Xylanase event was analyzed using a weighted F1 score because it was a classification task (three options: No Expression, Low Expression, and Good Expression). In multi-modal events (i.e., events asking teams to predict more than one property) Spearman correlation across all properties in an event were averaged together, resulting in a final averaged score that allowed us to rank teams from highest to lowest.
Teams were awarded points based on their rank for each individual event using a reverse-rank reward system (e.g., teams coming in 1st, 2nd, and 3rd place were awarded 3, 2, and 1 points respectively). This system rewarded teams for doing well in events and for competing in multiple events, while normalizing to the number of competitors per event. In the event of a tie, both teams were awarded the same amount of points, sharing the higher rank.
in vitro Experimental Methods
Participants’ sequences were cloned and sequence verified. When possible, two clones for each variant were characterized in duplicate for three properties: expression, thermostability, and specific activity. All experimentation was performed by our automation partners, International Flavors and Fragrances, following substantially the same methods that created the original α-amylase dataset provided to the teams.
in vitro Expression Measurements
For the expression measurement, protein concentration in sample supernatants was determined using size exclusion chromatography (SEC). Samples were obtained by filtering broths from cultures grown in microtiter plates (MTPs) for 3 days at 37°C with shaking at 250 rpm and humidified aeration. Filtered samples were diluted and analyzed on HPLC (high pressure liquid chromatography) using an Acquity BEH300 200A SEC column (Waters Corp), with eluent containing 25 mM Acetate-buffer, pH 5.8 and 100 mM NaCl at a flow of 0.3 mL/min. Absorbance was measured at 220 nm and integrated peak area was determined. Sample concentrations were calculated by comparison to the purified α-amylase standard of known concentration used as a calibrator.
in vitro Specific Activity and Thermostability Measurements
A starch hydrolysis assay was used to determine specific activity and thermostability of α-amylase variants. First, 1% (w/v) corn starch (Ingredion Inc.) was dissolved in dilution buffer (50 mM MOPS buffer pH 7.15 with 5 ppm (parts per million) Ca2+ and 20 ppm Na+ with 0.002% TWEEN-80®). Dissolved corn starch was boiled in a microwave, then cooled to room temperature overnight with gentle stirring. Enzyme aliquots (appr. 0.05 μg/L) were added to 1% corn starch (50 μL final volume) in a 384-well polypropylene v-bottom microtiter plate (Greiner 384w PP MTP, Catalog No. 781280) and mixed on a BioShake 3000 plate mixer (QInstruments) for 15 seconds at 2800 rpm. Reactions were sealed with a heat seal for 1.5 seconds at 180°C and incubated in an iEMS shaking incubator (Thermo Scientific) for 30 min at 60°C with 1150 rpm shaking. After incubation, the plates were cooled down at room temperature and spun down briefly to remove condensate on the seals. The bicinchoninic acid (BCA) assay used for detection of reducing ends was carried out using Pierce BCA Assay Kit (Catalog number 23225, ThermoFisher Scientific). After the starch hydrolysis reactions were cooled to room temperature, 5 μL of the reaction mixture were added to 30 μL BCA reagent solution in a 384-well PCR plate (Eppendorf twin.tec PCR MTP 384, Catalog No. 951020737). This mixture was heated to 95°C for 3 minutes, cooled to room temperature, and 25 μL of this BCA reaction were then transferred to a 384-well polystyrene flat-bottom read plate (Greiner 384-well PS MTP, Catalog No. 781101) and absorbance was measured at 562 nm.
A stress incubation was performed on the enzyme samples at 85C for 20 minutes and the starch hydrolysis assay was run as described above to determine activity after the stress incubation. Reducing ends were detected using BCA assay by measuring absorbance at 562 nm.
Activity was calculated from the number of reducing ends generated by enzymatic breakdown of corn starch, as quantified by the BCA assay. Specific activity was then calculated by dividing the activity (measured before the stress incubation) by the protein concentration value previously determined by the expression measurement. Stability was calculated as the ratio of activity after the stress incubation to before the stress incubation (i.e., residual activity).
in vitro Sequence Design Analysis
To assess which variants met all predetermined design criteria, each variant was initially classified based on its expression and stability: categorized as having ‘too low expression’, ‘too low stability’, ‘both low stability and expression’, or ‘pass’ for those meeting all criteria (Supp. Table 3). The variants that passed were further analyzed to identify the team that developed the variant with the highest specific activity (Supp. Table 4).
