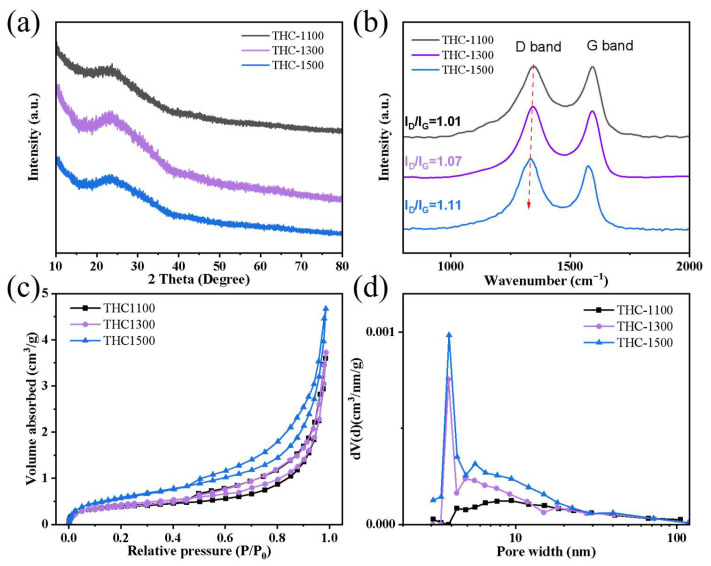

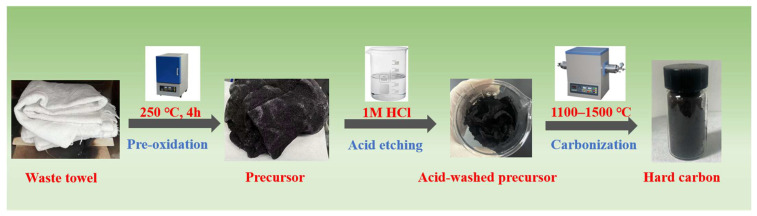

A high hard carbon yield (>49%) was achieved via a pre-oxidation strategy. Notably, the yield decreased only slightly with increasing carbonization temperature, THC-1500 still retained a yield of 49.3%. The structural properties of hard carbons (THCs) derived from waste towels are systematically tailored by carbonization temperature (1100–1500 °C), as revealed in Figure 2. X-ray diffraction (XRD) patterns (Figure 2a) show two broad characteristic peaks centered at ~23° and ~43°, corresponding to the (002) and (100) planes of turbostratic carbon, respectively. With increasing carbonization temperature from 1100 °C to 1500 °C, the (002) peak shifts slightly toward higher 2θ angles (from 23.1° to 23.5°), indicating a reduction in interlayer spacing d₍₀₀₂₎ from 0.385 nm to 0.378 nm (calculated via Bragg’s law). This narrowing of d₍₀₀₂₎ is attributed to the enhanced ordering of graphitic microdomains at higher temperatures [24], consistent with the gradual elimination of lattice defects and the growth of sp²-hybridized carbon layers. Notably, all d₍₀₀₂₎ values fall within the optimal range (0.37–0.40 nm) for sodium-ion storage, balancing interlayer Na⁺ insertion (platform capacity) and surface adsorption (slope capacity) [21,25]. Raman spectroscopy (Figure 2b) further confirms the structural evolution, with two prominent peaks at ~1350 cm⁻¹ (D-band, disordered carbon) and ~1580 cm⁻¹ (G-band, graphitic carbon) [26] The intensity ratio I_D/I_G increases from 1.01 (THC-1100) to 1.11 (THC-1500), the rising I_D/I_G ratio primarily reflects an increase in edge/planar defects within the turbostratic graphitic domains, rather than overall amorphization. Nitrogen adsorption–desorption isotherms (Figure 2c) and pore size distributions (PSDs, Figure 2d) highlight the textural evolution. All samples exhibit type IV isotherms with H4 hysteresis loops, characteristic of hierarchical micro-mesoporous structures. The structural evolution induced by carbonization temperature critically governs the textural properties of the prepared hard carbons. Specifically, the specific surface area (SSA) increases from 1.44 m²/g (THC-1100) to 2.22 m²/g (THC-1500), while the total pore volume similarly rises from 0.0057 cm³/g to 0.0073 cm³/g. This variation may attributed to the progressive development of pore structure during high-temperature treatment, where the release of volatile species creates new micropores while partial pore coalescence occurs simultaneously. Overall, the THC exhibits a dense structure with low porosity, which can minimize side reactions with the electrolyte. Pore size distribution (PSD) analysis reveals a dominant micropore population (<2 nm) across all samples, accompanied by a noticeable broadening of mesopores (2–50 nm) in THC-1500; meanwhile, the mean pore size of THC hard carbon decreases from 15.53 nm (THC-1300) to 13.07 nm (THC-1500) (Table 1), likely resulting from the merging of adjacent pores during advanced graphitization.

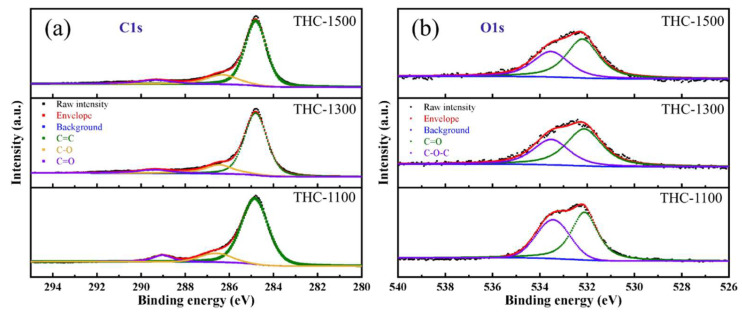

The FT-IR spectra of THC-1100, THC-1300 and THC-1500 (Figure S3) reveal distinct evolution of surface chemistry and carbon structure with increasing carbonization temperature, providing critical insights into the correlation between synthesis conditions and material properties. Peaks centered at 1100, 1610, 1730 and 3400 cm⁻¹ were observed in THC-1100, THC-1300 and THC-1500, which are attributed to the stretching vibrations of C–O–C, C=C, C=O and O–H, respectively. The difference is that an additional absorption peak at 2925 cm⁻¹ was detected in THC-1100, assigned to the asymmetric stretching vibration of C–H. This originates from the incomplete carbonization of waste towels. Therefore, temperature is a crucial factor influencing the surface functional groups of hard carbon. X-ray photoelectron spectroscopy (XPS) was employed to investigate the surface chemical states of the waste-towel-derived hard carbons, with a focus on carbon (C1s) and oxygen (O1s) functional groups (Figure 3). These groups play a critical role in surface-driven sodium storage (slope capacity) and electrolyte wettability. C1s spectra (Figure 3a) exhibit three deconvoluted peaks: the dominant peak at ~284.8 eV corresponds to sp²-hybridized graphitic carbon (C=C), while peaks at ~286.6 eV and ~289.4 eV are assigned to sp³-hybridized aliphatic carbon (C–O)and carbonyl groups (C=O), respectively. With increasing carbonization temperature from 1100 °C to 1500 °C, the intensity of the C=O peaks gradually disappearing. This trend confirms the thermal decomposition of oxygen-containing functional groups and the conversion of sp³ defects to sp² graphitic carbon at higher temperatures, consistent with Raman and XRD results showing increased graphitization. The O1s spectra (Figure 3b) further corroborate these changes, revealing three key features: a peak at ~531.2 eV from carbonyl oxygen (C=O), a peak at ~532.3 eV from thermally stable C–O–C bridging groups (epoxy/ether), and a broad peak at ~533.8 eV from physisorbed oxygen or water. With rising temperature, the C=O peak weakens significantly, while the C–O–C peak remains relatively stable, suggesting the preferential decomposition of labile carbonyl groups over more robust ether/epoxy configurations. The overall reduction in oxygen content (evidenced by the diminished intensity of all O1s peaks) aligns with the thermal degradation of the precursor’s cellulose structure, where higher temperatures drive the elimination of oxygen via decarbonylation and dehydration reactions. These chemical state evolutions directly influence the electrochemical performance of the hard carbons. The increasing graphitization (strengthened sp² C=C peak) enhances interlayer Na⁺ insertion (platform capacity), while the reduction in defects and labile oxygen groups (attenuated C–O/C=O peaks) minimizes irreversible side reactions (e.g., electrolyte decomposition), improving initial Coulombic efficiency (ICE).

The surface morphology and microstructure of hard carbon materials are critical factors influencing their electrochemical performance, as they directly affect ion diffusion pathways, active site accessibility and electrode–electrolyte interface stability. Figure 2 presents scanning electron microscopy (SEM) images of waste-towel-derived hard carbons (THCs) prepared at different carbonization temperatures (1100 °C, 1300 °C and 1500 °C), observed at magnifications of 2000×, 10,000× and 50,000×. The scanning electron microscopy (SEM) images in Figure 4 demonstrate that all waste-towel-derived hard carbons (THC-1100, THC-1300, THC-1500) retain the fibrous morphology inherent to their cellulose precursor, a key structural advantage for sustainable anode design and mechanical stability. At low magnification (Figure 2a,d,g), the THCs exhibit elongated fibrous bundles with lengths of 30–50 μm (Figure S2) and diameters of 5–10 μm, directly replicating the macroscopic dimensions of the original towel fibers. High-magnification cross-sectional views (Figure 2b,e,h) reveal smooth, pore-free surfaces for all samples: an outcome of the pre-oxidation and subsequent acid treatment steps, which effectively removed metal ions and impurities, preventing metal-catalyzed carbon corrosion and avoiding the formation of structural defects. This smooth surface morphology is consistent with the extremely low specific surface areas (~2 m²/g) measured via nitrogen adsorption–desorption, confirming the absence of significant porous structures and validating the effectiveness of the purification process in preserving a dense, non-porous carbon skeleton. A striking nanoscale feature emerges at higher magnification (Figure 2c,f,i): individual THC particles are composed of interconnected nanofilaments, a direct replication of the towel’s native fiber bundle structure. This hierarchical nanofilamentary architecture is highly beneficial for electrochemical performance: the continuous network of nanofilaments facilitates the formation of a robust, long-range conductive pathway, enhancing electron transport throughout the electrode and mitigating polarization during high-rate cycling. Meanwhile, the short diffusion distances within the nanofilaments enable rapid sodium-ion (Na⁺) intercalation, a critical prerequisite for high-rate capability. Additionally, the retention of the fibrous morphology from the precursor provides mechanical resilience, buffering volume changes during repeated Na⁺ insertion/extraction cycles and improving long-term cycling stability. Notably, the consistency in morphological features, including fibrous dimensions, smooth cross-sections, and nanofilamentary structure—across all carbonization temperatures (1100–1500 °C) indicates that the pre-treatment and carbonization processes effectively preserve the desirable structural traits of the towel precursor while optimizing the carbon’s graphitic order for Na⁺ storage. This structural fidelity, combined with the low surface area (minimizing irreversible solid electrolyte interface formation) and hierarchical nanofilament network (enhancing transport kinetics), positions these THCs as promising anode materials for sodium-ion batteries, where a balance of capacity, rate capability, and cyclability is essential. The retention of the precursor’s fibrous morphology also underscores the sustainability of this approach, as it leverages waste biomass to create high-value energy storage materials with tailored structural properties.

Transmission electron microscopy (TEM) and energy-dispersive X-ray spectroscopy (EDS) provide direct insights into the atomic-scale structure and elemental distribution of the waste-towel-derived hard carbons, complementing the bulk characterizations in Figure 2 and Figure 3. High-resolution TEM (HRTEM) images (Figure 5a–c) reveal the turbostratic nature of the hard carbons, with short-range ordered graphitic layers embedded in an amorphous matrix. For THC-1100 (Figure 5a), the (002) lattice fringes are loosely packed with a measured interlayer spacing d₍₀₀₂₎ of 0.395 nm, consistent with XRD results. The layers are curved and discontinuous, indicating abundant structural defects-likely a result of incomplete carbonization and residual oxygen functional groups [19]. As the carbonization temperature further increases, the abundance of graphitic-like microcrystals rises, and the interlayer spacing of these graphitic-like layers further decreases to 0.373 nm. All samples display diffuse halos centered at ~2.6 nm⁻¹ (corresponding to d₍₀₀₂₎) and ~4.8 nm⁻¹ (corresponding to (100) planes), characteristic of amorphous carbon with short-range order. EDS elemental mapping (Figure 5g–i) visualizes the distribution of carbon (C) and oxygen (O) in THC-1300. The high-angle annular dark-field (HAADF) image (Figure 5g) shows a homogeneous matrix with no obvious phase separation. The C map (Figure 5h) confirms uniform carbon distribution, while the O map (Figure 5i) reveals sparse, isolated oxygen-rich domains (bright yellow spots). These residual oxygen species are likely associated with surface functional groups (e.g., C=O) or trapped in defects, as they do not form large oxide clusters.

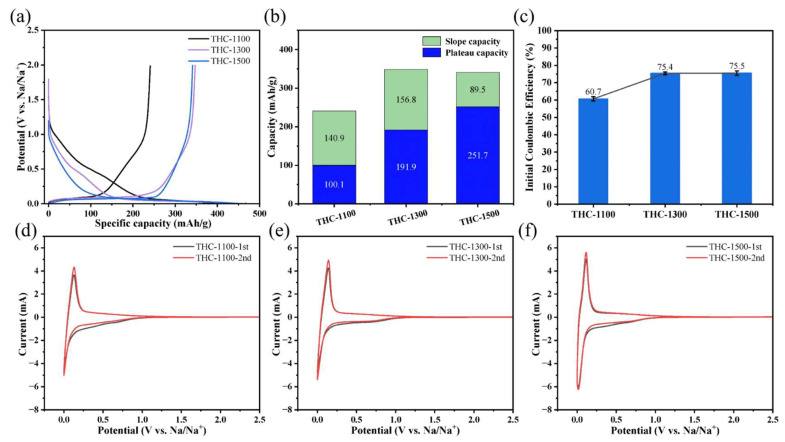

Figure 6a displays the first-cycle galvanostatic charge–discharge (GCD) profiles of THC-1100, THC-1300 and THC-1500 at 0.1 C. All samples exhibit the characteristic two-region behavior of hard carbons: a sloping voltage region (0.1–1.5 V, surface adsorption) and a plateau region (<0.1 V, interlayer Na⁺ insertion). A clear temperature-dependent trend emerges: as carbonization temperature increases from 1100 °C to 1500 °C, the sloping region shrinks progressively, while the plateau region expands, indicating a transition from surface-dominated to interlayer-dominated sodium storage. Figure 6b quantifies the first charge capacity decomposition into slope (surface adsorption) and plateau (interlayer insertion) contributions. With rising temperature, the slope capacity decreases monotonically from 140.9 mAh/g (THC-1100) to 89.5 mAh/g (THC-1500), while the plateau capacity increases sharply from 100.1 mAh/g (THC-1100) to 191.9 mAh/g (THC-1500) before plateauing at 253.7 mAh/g (THC-1500). The total reversible capacity peaks at THC-1300 (348.7 mAh/g), reflecting a balance between slope and plateau mechanisms. Figure 6c presents the initial coulombic efficiency (ICE) of the samples, which improves with carbonization temperature: 60.7% (THC-1100), 75.4% (THC-1300) and 75.5% (THC-1500). As demonstrated by the infrared spectroscopy results, the trend in initial coulombic efficiency originates from the reduction of surface functional groups on the hard carbon, which minimize irreversible electrolyte decomposition and solid electrolyte interface (SEI) formation. Furthermore, the improved ICE and capacity values are comparable to, or even exceed, those reported in previous studies (Table 2). Figure 6d–f present the first- and second-cycle CV curves of THCs at 0.5 mV/s. THC-1300 displays the narrowest high-voltage irreversible peak (0.8–1.2 V, SEI formation/functional group reduction) and the sharpest low-voltage reversible peak (<0.1 V, Na⁺ intercalation) in the first cycle, with nearly identical second-cycle overlap. These traits—rooted in its moderate oxygen content, optimal interlayer spacing (d₍₀₀₂₎ = 0.387 nm), and balanced defect density (I_D/I_G = 1.07)-minimize irreversible Na⁺ consumption, yielding high initial Coulombic efficiency (~75.4%).

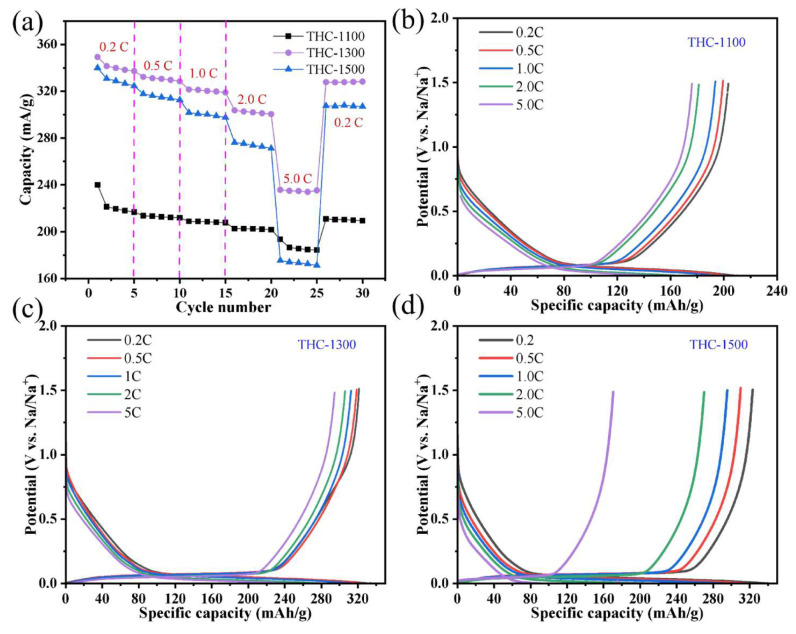

Figure 7a compares the rate capability of THC-1100, THC-1300 and THC-1500 at varying current densities (0.2–5.0 C, where 1 C = 320 mA/g). At low rates (0.2 C), THC-1300 delivers the highest capacity (349.3 mAh/g), followed by THC-1500 (339.5 mAh/g) and THC-1100 (240.0 mAh/g). As the current density increases to 5.0 C, THC-1300 retains the best capacity (234.8 mAh/g, 67.2% of its 0.2 C capacity), while THC-1500 (173.4 mAh/g, 51.0%) show more significant capacity fading. Notably, THC-1300 maintains a stable capacity even after returning to 0.2 C after 30 cycles, indicating excellent rate recoverability. A comparison of the galvanostatic charge–discharge curves for the three materials reveals distinct degradation trends under increasing current rates. For THC-1500, excessive graphitization likely results in narrowed graphite-like interlayer spacing, causing rapid decay of plateau capacity (<0.1 V). Concurrently, diminished surface functional groups accelerate the fading of slope capacity (0.1–1.5 V) (Figure 7d). THC-1100 suffers from fast plateau capacity degradation due to insufficient graphitization and poor electronic conductivity, though its retained functional groups mitigate slope capacity decay (Figure 7b). In contrast, THC-1300 exhibits optimal performance (Figure 7c): its engineered graphite-like interlayer spacing ensures high-rate stability of plateau capacity, while moderate defect density minimizes slope capacity degradation, collectively delivering superior comprehensive properties.

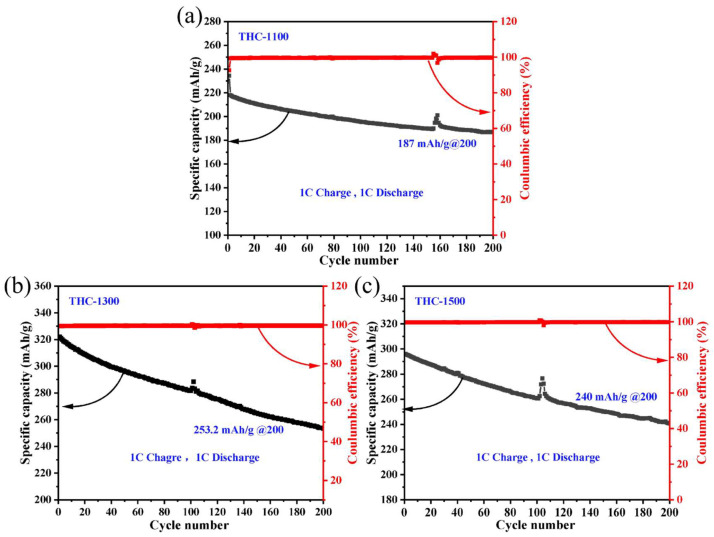

Figure 8 depicts the long-term cycling stability and Coulombic efficiency (CE) of THC-1100, THC-1300, and THC-1500 over 200 cycles at 1 C (320 mA g⁻¹). After 200 cycles, THC-1100 retains a discharge capacity of 187 mAh g⁻¹ (81% retention), while THC-1300 and THC-1500 deliver 253.2 mAh g⁻¹ (78.8% retention) and 240 mAh g⁻¹ (79.1% retention), respectively. The CE stabilizes at 99.6% throughout cycling, demonstrating exceptional electrochemical reversibility. Notably, this high-rate cycling performance (1 C) confirms the superior fast-charging capability of THC hard carbons. The outstanding stability originates from: (1) low specific surface area (<3 m²/g minimizing electrolyte decomposition; (2) formation of a robust solid electrolyte interphase (SEI) during initial cycles that effectively suppresses continuous side reactions and irreversible Na⁺ consumption; (3) Optimized graphite-like interlayer spacing (~0.38 nm), ensuring reversible sodium-ion intercalation/deintercalation. These characteristics establish THC hard carbons as promising anode candidates for sodium-ion batteries.

Based on the above results, we aim to elucidate the sodium storage mechanism of the composite THC hard carbon. As mentioned previously, infrared spectroscopy results demonstrate that as the carbonization temperature increases from 1100 °C to 1500 °C, the surface functional groups of THC gradually decrease. Correspondingly, the initial coulombic efficiency (ICE) of the HC hard carbon gradually increases, while the slope capacity shows a declining trend. This suggests that the slope capacity originates from surface adsorption. Furthermore, with increasing temperature, graphitic-like microcrystals become more abundant. As heteroatoms are further removed, samples obtained at higher temperatures exhibit a higher degree of defects in Raman spectroscopy results. In line with this, THC-1500 possesses the highest plateau capacity. Therefore, the plateau capacity is more likely attributable to sodium ion intercalation. In addition, THC-1300 and THC-1500 exhibit similar total capacities during the first discharge. The difference in their plateau and slope capacities mainly stems from a mutual conversion of capacity contributions. During rate performance tests, THC-1500 consistently shows a lower capacity retention rate than THC-1300, with this difference being most pronounced at a 5 C discharge rate. For THC-1500, the plateau capacity accounts for 73.7% of the total capacity, and the capacity fading at 5 C primarily originates from the decay of the plateau capacity. This decay ultimately results from a smaller interlayer spacing, which is unfavorable for the rapid intercalation of sodium ions. Moreover, all THC samples possess a very small specific surface area, and the contribution from pore-filling is minimal. Consequently, the sodium storage mechanism of THC aligns more closely with the “adsorption-intercalation” model.
