Mixed host co-assembled systems for broad-scope analyte sensing†
Department of Chemistry, University of Victoria Victoria BC V8P 5C2 Canada fhof@uvic.ca
Centre for Advanced Materials and Related Technology (CAMTEC), University of Victoria Victoria BC V8W 2Y2 Canada
Institute of Nanotechnology (INT), Karlsruhe Institute of Technology (KIT) Kaiserstraße 12 76131 Karlsruhe Germany
Canadian Institute for Substance Use Research, University of Victoria Victoria BC V8W 2Y2 Canada
Abstract
Here we report a systems chemistry oriented approach for developing information-rich mixed host chemosensors. We show that co-assembling macrocyclic hosts from different classes, DimerDye sulfonatocalix[4]arenes and cucurbit[n]urils, effectively increases the scope of analyte binding interactions and therefore, sensory outputs. This simple dynamic strategy exploits cross-reactive noncovalent host–host complexation interactions while integrating a reporter dye, thereby producing emergent photophysical responses when an analyte interacts with either host. We first demonstrate the advantages of mixed host co-assembled chemosensors through an increased detection range of hydrophobic, cationic, neutral, and anionic drugs. We then implement mixed host sensors in an array-based platform for the differentiation of illicit drugs, including cannabinoids, benzodiazepine analogs, opiates, anesthetics, amphetamine, and common adulterating substances. Finally, the potential of this approach is applied to profiling real-world multi-component illicit street drug samples, proving to be more effective than classical sensor arrays.
Toc

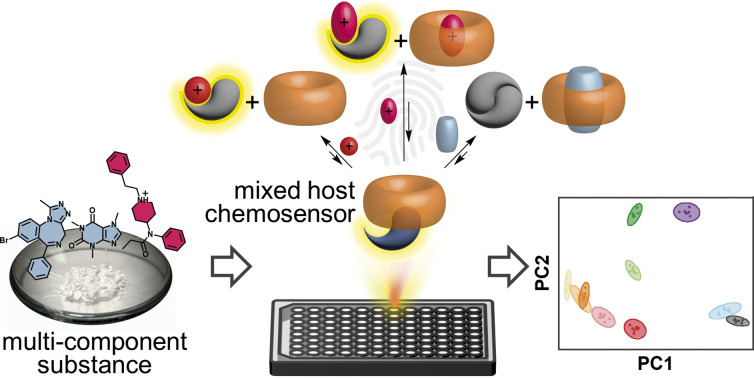

Mixed host chemosensors position a single dye within a co-assembled system of two different host classes. Data-rich responses are produced upon analyte binding to either host, increasing detection scope to hydrophobic, cationic and neutral drugs.
Introduction
Synthetic receptors are a powerful tool for molecular recognition-based sensing. Chemosensors have a broad range of applications, such as the detection of biorelevant compounds for diagnostics, and monitoring biophysical and enzymatic processes.1,2 An ultimate goal for synthetic sensors is to mimic the human olfactory system, containing the ability to identify many different entities from a single sensory tool.3,4 More recently, the conceptual development of sensors has advanced towards information-rich chemical nose or cross-reactive chemosensors to achieve more prolific unique sensing profiles. This is done through either synthetic design or supramolecular assembly, combining multiple receptor and/or reporter elements into one sensing unit.3,5 These design strategies are highlighted by examples of unimolecular probes that covalently integrate multiple complexing receptor and/or reporter components,6,7 and biological non-covalent self-assembly-based probes that function through multi-complexing systems.8–11
Macrocyclic hosts are well-defined synthetic receptors for the detection of small molecules and biomacromolecules.12–14 Host-based sensing is traditionally done using an indicator displacement assay (IDA) that operates through competitive binding of an analyte to a preformed host-indicator complex. This generally results in a fluorescence response, where sensitivity is dictated by binding affinity.15–17 Singular host sensing systems provide limited information, typically in the form of a single output (turn-on or turn-off fluorescence) for one particular class of analyte and often fail to achieve specificity when faced with structurally similar analytes. To attain analyte differentiation a suite of individual host-indicator sensors are often applied, where varied response patterns arise from affinity differences, producing an optical fingerprint for discrimination.18 This strategy has been employed in macrocyclic host-based sensor arrays with some recent examples in differentiating neurotransmitters,19 small molecule bioorganic analytes,20 folded DNA G-quadruplexes,21–23 insect pheromones,24 natural amino acids,25 and amyloid structures.26
The power of increasing cross-reactive self-assembly interactions is demonstrated by macrocyclic host-based chemosensors that co-assemble multiple receptor or reporter elements within the same solution. The majority of reported multi-macrocyclic host systems rely on non-specific amphiphilic aggregation to co-assemble different host classes, allowing for self-adaptable detection of larger peptide biotargets,27 and the ability to differentiate model proteins,28 and cell lines.29 A recent report shows that macrocycles containing different integrated fluorophores have improved discrimination power when they are combined in solution, forming an adaptive network of sensors.30 Despite these advances, one consistent limitation of supramolecular host chemosensors is they tend to detect only a single class of analyte. The current conceptual framework would have us overcome these limitations through synthesis of new chemosensors, an approach that is often inefficient and incapable of achieving sensing within multi-component mixtures and real-world samples.
Here we present a new concept in which a mixed host chemosensor positions a single dye within a complex system, conferring the ability to generate different kinds of optical responses to hydrophobic, neutral, and cationic analytes. Supramolecular hosts tend to bind one type of guest analyte, therefore limiting the scope and applicability of any host-based sensing approach that relies on one host class.31 In this work, we overcome this limitation by co-assembling two different classes of macrocyclic hosts, DimerDye sulfonatocalix[4]arenes and cucurbit[n]urils, into a single composite mixed host chemosensor (Fig. 1). Key to this conceptual approach is the integration of a dye into the sulfonatocalix[4]arene scaffold, which both facilitates co-assembly and acts as a reporter for all host–host and host–analyte interactions. The equilibrium of any one pre-assembled mixed host chemosensor is poised to go in different directions depending on the nature of the analyte added, producing multi-responsive outputs, where we define multi-responsive as both “giving different photophysical responses to different analytes” and “responding to dissimilar classes of analytes” (Fig. 1b). We prove the benefits of this simple co-assembly approach in an array-based platform through the differentiation of hydrophobic, cationic, neutral and anionic drugs. We then apply these mixed host sensing systems to the highly challenging task of typing illicit drug samples that were collected from people who use drugs. Since these samples come from unregulated supplies they represent a leap forward in sample complexity compared to all prior efforts in our group.32
Results and discussion
Design of mixed host chemosensors

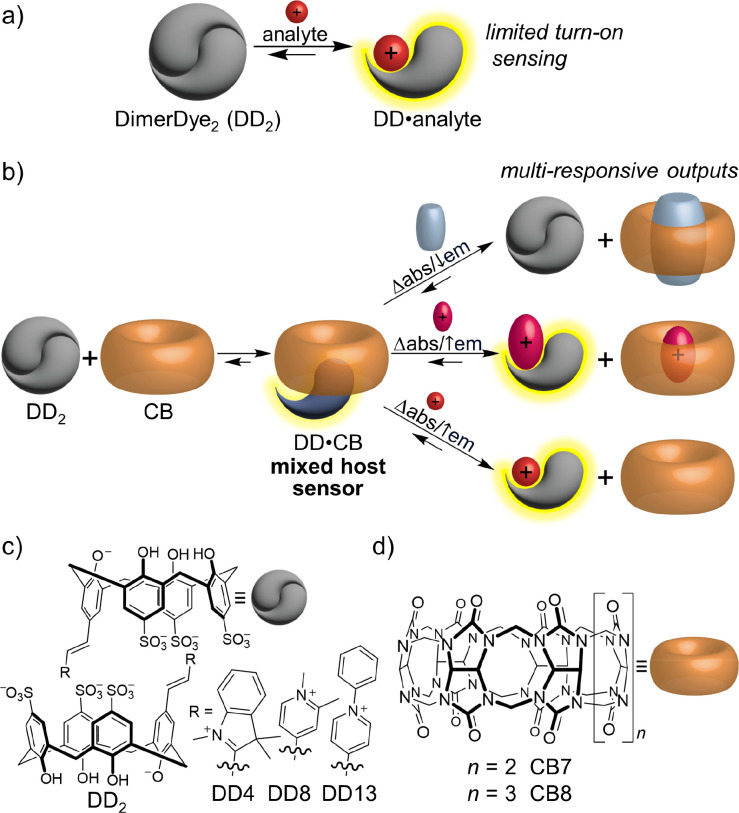

Two distinct host classes were selected to encourage host–host co-assembly. Previously reported DimerDye sulfonatocalix[4]arenes DD4, DD8, and DD13 (Fig. 1c),32 and cucurbit[n]uril hosts, CB7 and CB8 (Fig. 1d) were selected to promote hetero co-assembly while contributing different analyte binding properties. Sulfonatocalix[4]arenes contain a flexible chalice-shaped cavity and negatively charged upper rim.33 In aqueous solution the DimerDye analogs form a homodimer, stacking two fluorophores in an antiparallel quenched arrangement. Upon analyte binding, DimerDyes provide turn-on fluorescence detection through a disassembly-driven sensing mechanism (Fig. 1a).32,34,35 The selected DimerDyes (DD4, DD8, and DD13) cover a range of structural, absorbance, and emission properties, however, they are limited to binding cationic analytes. Conversely, cucurbit[n]utils have a larger range of reported analyte interactions.36,37 They contain a barrel-shaped rigid nonpolar cavity lined with neutral polar carbonyl portals; reporting strong binding with neutral hydrophobic guests complementary in size and shape,38,39 and amphiphilic cationic ammonium or diammonium guests that favor hydrophobic and ion–dipole interactions.36 We selected CB7 and CB8 to accommodate different sized guests, where the larger CB8 cavity offers binding to bulkier hydrophobic drugs.40,41 We predicted the combination of these two host classes would co-assemble through hydrophobic and ion–dipole interactions from the DimerDye pendant arm binding the cucurbit[n]uril cavity and interacting with the polar carbonyl portals.
Mixed host co-assembly sensing mechanism

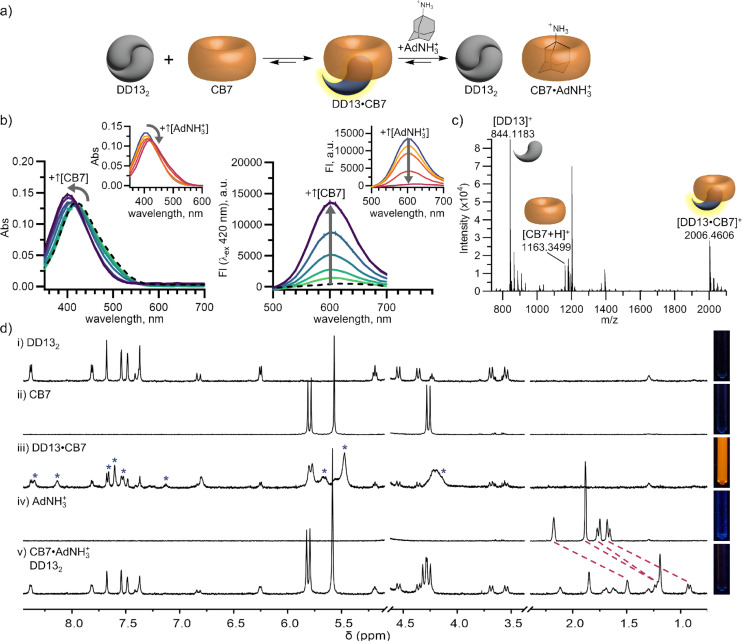

Different pairs of one DimerDye and one cucurbit[n]uril can co-assemble to form a mixed host chemosensor with distinct photophysical properties. Combinations of DD4, DD8 and DD13 with CB7 and CB8 were screened for induced changes in DimerDye absorbance and/or fluorescence (Fig. S9†). The mixed host pairs that displayed significant changes in absorbance and/or fluorescence (DD4·CB8, DD8·CB8, DD13·CB8, and DD13·CB7) were selected for further study. To establish the formation of these hetero host–host complexes, changes in DimerDye absorbance and emission were monitored during titrations with increasing concentrations of cucurbit[n]uril. Titrations of CB8 into DD4 and CB7 into DD13 resulted in both changes in absorbance and turn-on fluorescence (Fig. 2a, b, S10 and S11†). These results indicate the parent DimerDye disassembles from its native homodimer state, with the turn-on fluorescence response strongly supporting the formation of a hetero-complex between the two hosts. Independently, 1H NMR experiments further support the formation of hetero-complexes DD4·CB8 and DD13·CB7 by the appearance of new upfield-shifted and broadened resonances, attributed to the DimerDye pendant arm protons being in a shielded environment (Fig. 2d, S12 and S13†). The broadened CB7 peaks indicate possible aggregate formation at concentrations used in NMR, coinciding with the low solubilities of these mixed host assemblies (Fig. 2d, S12 and S13†). Upon addition of CB8, the DimerDyes DD8 and DD13, exhibited shifts in absorbance, indicating that CB8 forms a hetero-complex with DD8 and DD13 (Fig. S10 and S11†). However, these complexation events caused minimal changes in emission (Fig. S10†). In cases where both a color change and turn-on emission are observed (DD4·CB8 and DD13·CB7), we suspect the homodimer disassembly is driven by the pendant arm binding to cucurbit[n]uril, producing a turn-on fluorescence response. A molecular model of a possible 1 : 1 co-assembly of DD13 with CB7 is presented in Fig. S15.† Matrix-assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS) further confirmed 1 : 1 complexation, reporting a DD13·CB7 co-assembly peak of m/z 2006.4606 (Fig. 1c). In cases where only a color change is observed (DD8·CB8 and DD13·CB8) it is evident that hetero-host interactions are occurring. We suspect the non-fluorescent state is a result of assemblies where the DimerDye pendant arms are in a stacked quenched arrangement. These possible complexes include cucurbit[n]uril outer-surface binding interactions,42 where multi-hetero assemblies with sulfonatocalix[4]arenes in aqueous solution have been reported,43,44 as well as potential ternary complexes in the larger CB8 cavity,45–47 where two DimerDye pendant arms could potentially bind stacked inside the CB8 cavity. Irrespective of the exact complexes occurring in solution, these co-assemblies constitute different mixed host chemosensors from which distinct absorbance and fluorescence sensing outputs can arise (Fig. 1b).
Mixed host mechanistic studies with a CB-selective guest demonstrate multi-responsive emergent sensing properties that are not present in the parent chemosensor. To validate the contribution of CB's sensing responses, we selected amantadine (AdNH3+) as a high affinity guest for CB7 (Kd = 240 fM),48 while the adamantane moiety has been shown to scarcely interact with sulfonated calixarenes.49 Our 1H NMR experiments corroborate this, showing minimal binding of AdNH3+ to DD13 (Fig. S14†). In contrast, the addition of AdNH3+ to the pre-assembled moderately fluorescent co-assembled mixed host chemosensor DD13·CB7 resulted in a turn-off fluorescence response and red-shifted absorbance (Fig. 2b). 1H NMR studies independently confirmed the turn-off fluorescence response is due to the reformation of the quenched homodimer complex DD132 and assembly of the host–guest complex CB7·AdNH3+ (Fig. 2d and S13†). These results show that mixed host co-assemblies can produce photophysical responses through analyte binding to the non-fluorophore-containing host, effectively increasing the scope of analyte detection from a single sensing assembly.

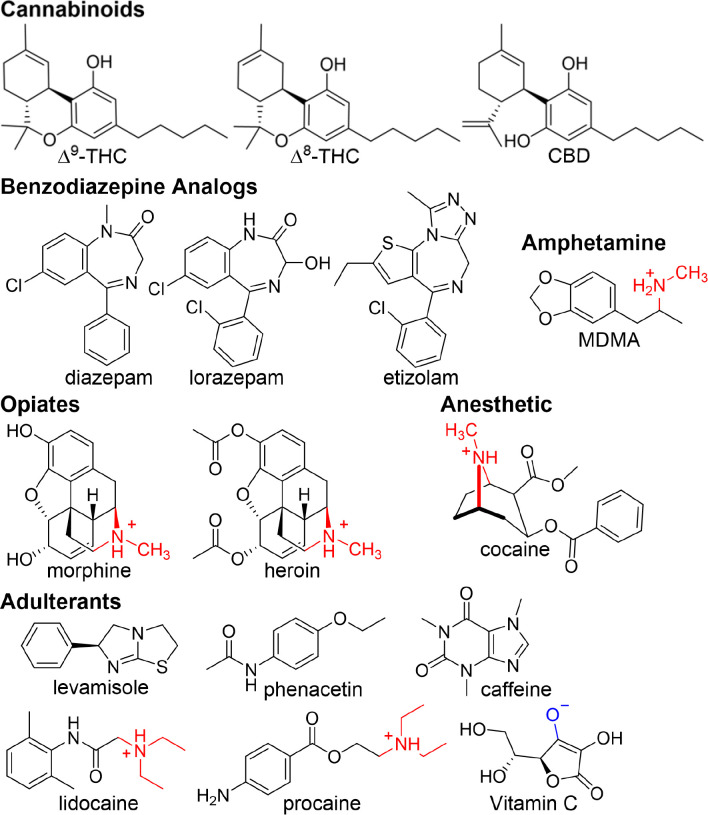

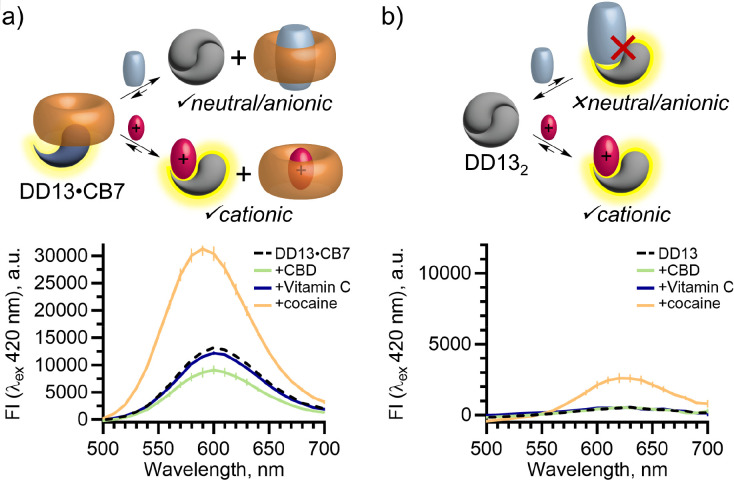

Mixed host chemosensors further expand detection capabilities to new classes of analytes. On their own, DimerDyes have been reported to detect cationic illicit drugs.32 To determine if mixed host chemosensors expand sensing abilities we selected cocaine, cannabidiol (CBD) and Vitamin C as analytes, representing cationic, neutral and anionic classes of drugs (Fig. 3). As a direct comparison, we measured the fluorescence responses of the mixed host chemosensor DD13·CB7 and isolated DD132 (Fig. 4). Assays with only DimerDyes provided limited information for these drugs, only producing a turn-on fluorescence response to the cationic analyte, cocaine and insignificant responses to the neutral and anionic analytes (Fig. 4b). However, the mixed host chemosensor DD13·CB7 produced varied emergent responses to the different analyte classes; with increased and blue-shifted emission for cationic cocaine, decreased and blue-shifted emission for neutral CBD, and a slight, non-shifted decrease in emission to anionic Vitamin C (Fig. 4a). We probed whether the co-assembly of chemosensors would affect the emission intensities and limits of detection (LODs), using cationic cocaine as a test analyte. The LODs of cocaine with mixed host chemosensors (DD4·CB8, DD8·CB8, DD13·CB8 and DD13·CB7) were of similar magnitude to the parent DimerDyes (DD4, DD8 and DD13), ranging from 0.5 to 3.6 μM (Table S1†). Interestingly, mixed host chemosensors DD4·CB8, DD13·CB8 and DD13·CB7 showed an overall enhancement of fluorescence in comparison to the isolated parent DimerDyes (DD4 and DD13), displaying larger changes in amplitude (Fig. S16–S18†). Although mixed-host systems have competing analyte–host and host–host interactions, these results emphasize favorable emergent photophysical properties, providing varied responses to different analytes, including those that otherwise wouldn't bind.
Differential sensing
To further probe the power of using mixed host chemosensors, a large set of bulky, hydrophobic, cationic, neutral and anionic drugs and adulterants were selected for differentiation (Fig. 3). The analytes were chosen to test the sensing range capabilities of our mixed host co-assembled chemosensors while targeting compounds commonly found in harm-reduction-based drug checking of Canadian illicit street drugs.50 An array of mixed host chemosensors (DD4·CB8, DD8·CB8, DD13·CB8, and DD13·CB7) were screened for sensing responses, measuring select absorbance and fluorescence wavelengths (Table S2†). Principal component analysis (PCA) was then used to analyze the fingerprint response patterns, aiming to discriminate samples while minimizing the number of required observations, see ESI† for systematic PCA process.51

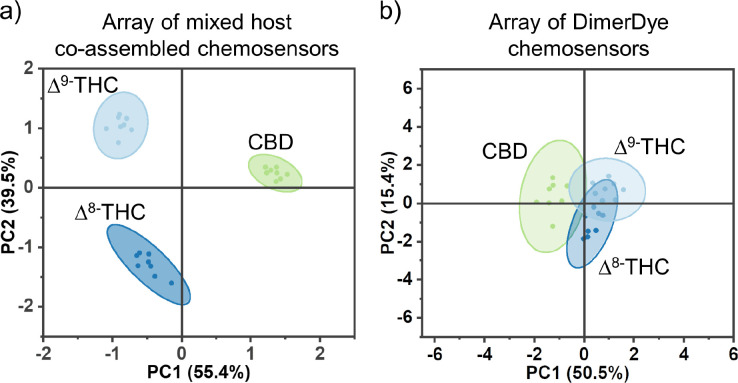

Mixed host chemosensors can generate surprising emergent properties, including the differentiation of drugs for which neither host is considered to be a canonical binder. Cannabinoids pose a challenge for detection by supramolecular hosts as their neutral structure makes them poor guests. Hooley et al. showed that water-soluble deep cavitand sensors bind tetrahydrocannabinol (THC), and can detect and discriminate THC from its metabolites.52 DimerDyes alone prefer cationic guests and do not give any detectable change in fluorescence response to cannabinoids (Fig. 4b). Although THC has been reported not to bind CB7,53 we found our mixed host chemosensors DD13·CB7 and DD13·CB8 each produced variable, information-rich responses. We postulate that the decreased emission observed from DD13·CB7 upon addition of CBD (Fig. 4a), is a result of higher-order complexation events that either disrupt mixed host co-assembly or otherwise perturb the emission of the DimerDye fluorophore. Not only was cannabinoid sensing possible from the mixed host chemosensors, but the combination of absorbance and fluorescence outputs from only two mixed host chemosensors in an array (DD13·CB7 and DD13·CB8) allowed for the complete discrimination of highly similar Δ8- and Δ9-THC isomers, which differ only in the position of a double bond (Fig. 5a and S19†). These results show that emergent properties are produced from the co-assembly with cucurbit[n]uril hosts, providing superior data-rich responses (Fig. 5).

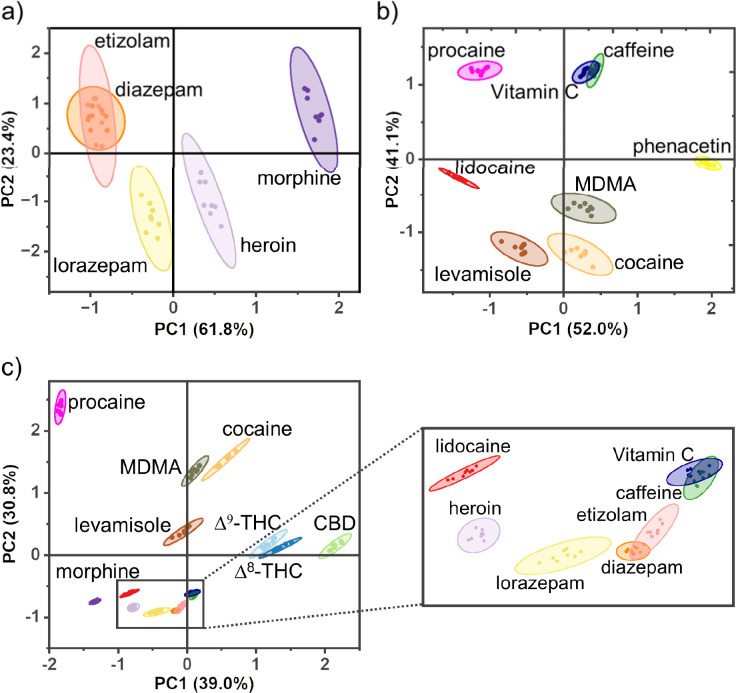

A small array of mixed host chemosensors achieves discrimination of a large set of illicit drugs and adulterants from many distinct chemical classes. We first focused on a test set containing illicit central nervous system depressants, which included both neutral benzodiazepines and cationic opiates. In this analysis, the benzodiazepines etizolam and diazepam displayed overlapping confidence ellipses while the other depressants were discriminated (Fig. 6a and S21†). Next, we studied a test set including cocaine and MDMA, along with a set of pharmacologically active adulterants commonly added for their synergistic effects (Fig. 6b and S22†).54,55 The prescription adulterants procaine, lidocaine, levamisole, and phenacetin, were discriminated from the illicit drugs cocaine and MDMA, whereas the adulterants with fewer health repercussions, Vitamin C and caffeine, overlapped with each other. Lastly, a plot combining all tested drugs maintained similar discrimination patterns among the combined test set, with similar deficiencies in the overlap of two benzodiazepines and the adulterants Vitamin C and caffeine (Fig. 6c and S23†).
Real-world illicit street drug samples represent a challenging set of multi-component targets for identification. Tests that merely reveal the presence or absence of potent substances like fentanyl are less informative tools for harm reduction in the context of the drug overdose crisis.56 People who use drugs access drug checking services to reduce risks by obtaining an understanding of the complete composition (all active illicit drugs, adulterants, and inert compounds), with specific quantities to assess potency and dangers.57 Currently, multiple instrument-based techniques are employed, such as combinations of immunoassay test strips, chromatography, mass spectrometry, Raman, and infrared (IR) spectroscopic methods.58 Typing drug samples using a chemosensor array would provide a complementary technique to current instrument-based analysis. Here we aimed to see if our mixed host chemosensors could be applied to illicit multi-component street drug samples to distinguish different composition profiles previously encountered within the drug-checking ecosystem. Street drug samples were provided by people who use drugs through substance, the Vancouver Island Drug Checking Project,59,60 where drug composition and quantification were determined using Fourier transform infrared (FTIR) spectroscopy and paper spray mass spectrometry (PS-MS) (Table 1 and Fig. S24†). To capture the landscape of street drugs commonly in use in British Columbia, Canada, we studied representative samples from different drug classes (A–E), as well as several fentanyl-containing samples that varied slightly in composition (E–H). We also included two fentanyl samples of the same composition that arrived at the drug-checking site from two distinct users but originating from the same batch and supplier (H and I). Similar to the current protocols used for drug checking, we prepared the street drug samples for sensing experiments dissolving 1.5 mg in 1 mL methanol.61 These stock solutions were then further diluted down to 0.03 mg mL−1 in all sensing experiments.
| Street drug sample | Compositiona |
|---|---|
| A | Cocaine (90%), sorbitol |
| B | Bromazolam (>80% single component) |
| C | Methylenedioxymethamphetamine (MDMA, >80% single component) |
| D | Methylenedioxyamphetamine (MDA, 50%), dimethyl sulfone |
| E | Fentanyl (20%), caffeine, erythritol |
| F | Fentanyl (13%), fluorofentanyl (1%), caffeine |
| G | Fentanyl (6%), bromazolam (5%), chloroisobutyryl fentanyl (0.1%), caffeine |
| H* | Fentanyl (16%), fluorofentanyl (14%), 4-anilino-N-phenethyl-piperidine (ANPP, 3.7%), erythritol, caffeine |
| I* | Fentanyl (18%), fluorofentanyl (16%), ANPP (3.5%), erythritol, caffeine |

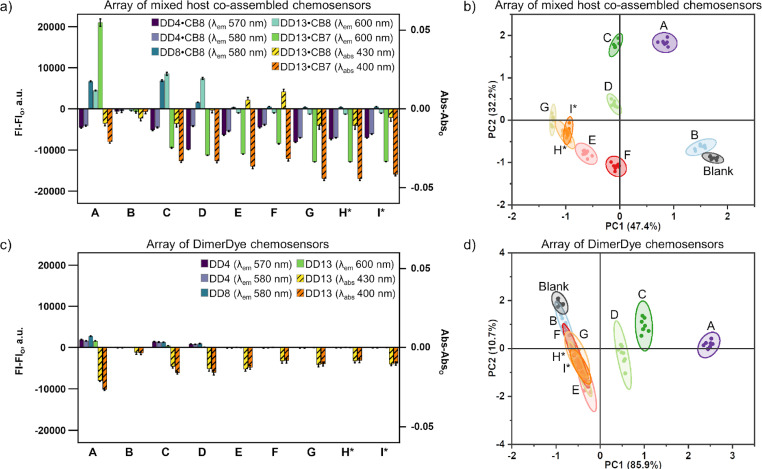

Mixed host chemosensors identify multi-component street drug samples where a comparable traditional sensor array cannot. Full spectral absorbance and fluorescence responses of each mixed host chemosensor (DD4·CB8, DD8·CB8, DD13·CB8 and DD13·CB7) were acquired for all multi-component street drug samples, to determine if mixed host sensing operated in more complex sample matrices (Fig. S25†). To provide a direct comparison to a traditional sensor array, responses of each isolated DimerDye (DD4, DD8, and DD13) were also collected (Fig. S26†). Mixed host chemosensors provided responses of increased emission to cationic cocaine (A), MDMA (C) and MDA (D) multi-component samples, and varying decreased emission responses to neutral bromazolam (B) and various fentanyl samples (E–I) (Fig. 7a, b and S25†). In comparison, DimerDye chemosensors alone produced sensing responses smaller in amplitude, only providing increased emission responses for cationic samples A, C and D (Fig. 7c, d and S26†). Select absorbance and fluorescence wavelengths from the array of mixed host chemosensors (Table S4†) were applied to PCA analysis, providing discrimination of all multi-component samples (Fig. 7b and S27†). The samples H and I were essentially identical by instrument-based drug checking analysis, having been reported as the same drug from the same supplier (Table 1). The results of the mixed host sensor array overlap, and therefore correctly identify H and I as the same street drug sample. The same observations (Table S5†) were applied to PCA analysis of the isolated DimerDye as a direct comparison of the classical single-host-class sensor array. Only discrimination of cationic samples A, C, and D were achieved, with the remaining samples (B, E–I) overlapping (Fig. 7d and S28†). These results show the combination of multiple host classes introduces useful variability in binding interactions. The information-rich sensing responses provide a dramatic enhancement of the overall performance.
Conclusions
This work shows the value of increased systems chemistry complexity through easily co-assembled mixed host chemosensors. Interconnected equilibria are created by combining multiple binding sites of different inherent affinities within the same sensing solution. In doing so, this approach harnesses simple macrocycle combinations to generate more information-rich sensing fingerprints from a single composite sensing system. This self-assembly-based design provides a facile route to broadening the scope of analytes, where the ability to detect untargeted analytes emerges through unexpected higher-order complexation interactions. This tactic can be easily applied to a wide range of established reporter chromophores, fluorophores, and recognition binding elements, offering almost unlimited possibilities for enhancing current sensing systems.
Data availability
The data that supports the findings of this study is available in the ESI.† The raw experimental data used in PCA analysis have been uploaded as an .exl file.
Conflicts of interest
There are no conflicts to declare.
