Characterization of PlyB221 and PlyP32, Two Novel Endolysins Encoded by Phages Preying on the Bacillus cereus Group
1Laboratory of Food and Environmental Microbiology, Earth and Life Institute, UCLouvain, 1348 Louvain-la-Neuve, Belgium; audrey.leprince@uclouvain.be (A.L.); manon.nuytten@uclouvain.be (M.N.); a.gillis@imperial.ac.uk (A.G.)
2Section of Molecular Microbiology and MRC Centre for Molecular Bacteriology and Infection, Imperial College London, London WC2N 5DU, UK
*Correspondence: jacques.mahillon@uclouvain.beAbstract
Endolysins are phage-encoded enzymes implicated in the breaching of the bacterial cell wall at the end of the viral cycle. This study focuses on the endolysins of Deep-Blue (PlyB221) and Deep-Purple (PlyP32), two phages preying on the Bacillus cereus group. Both enzymes exhibit a typical modular organization with an enzymatically active domain (EAD) located in the N-terminal and a cell wall binding domain (CBD) in the C-terminal part of the protein. In silico analysis indicated that the EAD domains of PlyB221 and PlyP32 are endowed with peptidase and muramidase activities, respectively, whereas in both proteins SH3 domains are involved in the CBD. To evaluate their antimicrobial properties and binding specificity, both endolysins were expressed and purified. PlyB221 and PlyP32 efficiently recognized and lysed all the tested strains from the B. cereus group. Biochemical characterization showed that PlyB221 activity was stable under a wide range of pHs (5–9), NaCl concentrations (up to 200 mM), and temperature treatments (up to 50 °C). Although PlyP32 activity was less stable than that of PlyB221, the endolysin displayed high activity at pH 6–7, NaCl concentration up to 100 mM and the temperature treatment up to 45 °C. Overall, PlyB221 and PlyP32 display suitable characteristics for the development of biocontrol and detection tools.
1. Introduction
Bacteriophages or phages are viruses that specifically infect bacteria. They are extremely diverse regarding their morphology, genomic material, and lifestyle [1]. The most common phage lifestyles encountered are the lysogenic and lytic cycles. In a lysogenic cycle, after receptor recognition and DNA injection, temperate phages coexist within their host, either integrated in the chromosome or as independent plasmid-like molecules, in a state called prophage [2,3]. During a lytic cycle, after the phage multiplication using the host replication and translation machineries, the virion progeny is released in a lytic process causing the host death. Phage-encoded enzymes, called endolysins, mediate bacterial lysis [4] via peptidoglycan (PG) degrading activity [5]. In general, endolysins do not possess a signal sequence to be transported through the plasmidic membrane. They rather cooperate with another protein, the holin, to achieve cell lysis [6]. At the end of the lytic cycle, endolysins accumulate in the cytoplasm until holins have oligomerized and formed pores in the membrane, allowing endolysins to reach the PG layer, in a tight time regulated process [7,8].
Endolysins encoded by Gram-positive infecting phages display a modular structure with an N-terminal enzymatically-active domain(s) (EAD) and a C-terminal cell wall-binding domain(s) (CBD), both separated by a linker sequence [5]. The EAD contains one or several domains involved in the cleavage of specific bonds in the PG meshwork. These enzymatic activities can be divided into four main classes based on the targeted link or cleavage mechanism: glycosidases (including N-acetylglucosaminidase, N-acetylmuramidase, and transglycosylases), amidases, endopeptidases, and cysteine, histidine-dependent amidohydrolases/peptidases (CHAP). Less conserved than the EAD, the CBD is responsible for recognition of the host PG and allows keeping the endolysin in close proximity with the cell wall, thus avoiding the release of the enzyme which could lead to unwanted cleavages of neighboring hosts [9]. CBD usually display structural repeats and have been broadly classified into four classes: SH3 domains, choline-binding modules, three-helix bundles, and α/β multimers [5].
Endolysins can be used as antimicrobial compounds in the food and medical sectors instead of their parental phages [10]. Indeed, phages sometimes have such a narrow host spectrum that they cannot target all the pathogenic strains of a certain group whereas their corresponding endolysins usually display a broader spectrum [11]. Moreover, no bacterial resistance to endolysins has been identified so far. This is mainly due to the fact that the rise of such resistant strains would involve important changes in highly conserved PG bonds that are essential for bacterial survival [12]. Endolysin CBDs have also been fused with fluorescent markers or paramagnetic beads and used as specific detection tools [13]. Additionally, endolysins and their CBDs can be engineered (e.g., domain swapping or mutagenesis) to modulate their activity, specificity, or stability [14].
The Bacillus cereus group is a highly debated cluster of closely related species. B. cereus sensu stricto (s.s), Bacillus thuringiensis, Bacillus anthracis, Bacillus weihenstephanensis, Bacillus mycoides, Bacillus pseudomycoides, and Bacillus cytotoxicus are the seven species most commonly recognized as members of this group, but other species have been suggested as new members [15,16]. In the last few years, several endolysins of phages infecting diverse B. cereus group members have been identified and characterized [11,17,18,19,20,21]. Deep-Blue [22,23] and Deep-Purple [24], two phages infecting the B. cereus group, belong to the families Herelleviridae and Siphoviridae, respectively.
The present work focuses on the identification and detailed characterization of the endolysins PlyB221 and PlyP32, encoded by the Deep-Blue and Deep-Purple phages, respectively. Bioinformatic analyses indicated that although related to other endolysins, PlyB221 and PlyP32 display unique SH3 domains as CBD. The activity and binding experiments showed that they were active against members of the B. cereus group, as well as some Bacillus spp. Overall, the biochemical characterization indicates that both endolysins have properties required for applications in food processing facilities, including activity on a broad range of pH and salt tolerance, and showed stability with respect to temperature treatments.
2. Materials and Methods
2.1. Bacterial Strains and Growth Conditions
Bacteria were grown overnight (O/N) in Lysogeny Broth (LB) or LB-agar plates at 30 °C for Bacillus spp. and at 37 °C for Escherichia coli and Staphylococcus epidermidis. Listeria ivanovii was grown at 37 °C in brain heart infusion (BHI). E. coli 10-beta and BL21(DE3) (Millipore corporation, Burlington, MA, USA) competent cells were used for cloning and expression experiments, respectively. E. coli cells containing the pET30a vector were selected in LB medium containing 50 µg/mL of kanamycin (Sigma, Saint-Louis, MO, USA) at 37 °C, unless otherwise indicated.
2.2. Bioinformatic Analysis
Bioinformatic analyses were done using BLASTp [25], InterPro [26], and HHpred [27]. Protein sequence alignments were done using MUSCLE [28]. The comparative dendrogram was built with MEGA7 [29] using the maximum likelihood method. Protein sequences of phage endolysins were retrieved from NCBI: PlyB221 - YP_009285532.1, PlyP32- ARW58283.1, PlyL - WP_000405763.1, B4 (LysB4) - YP_006908235.1, Phrodo (PlyP56) - YP_009289935.1, BtCS33 (PlyBt33) - YP_006488688.1, PBC5 (LysPBC5) - AKQ08598.1, Bcp1 (PlyB) - YP_009031336.1, PlyPH - WP_000540633.1, BigBertha - YP_008771084.1, TsarBomba - ARW58283.1, Nigalana - YP_009282466.1, PBC1 - AFE86261.1, PBC2 - AKQ08512.1, BPS13 - YP_006907567.1, vB_BceM-HSE3 - AWD93052.1, vB_BthS_BMBphi - AXF39889.1, AP50 - YP_002302543.1, 12,826 - CAA72264.1, TP21-L - CAA72267.1, Bastille - AEQ34462.1, Gamma - YP_338200.1, PBC4 - AKQ08217.1.
2.3. Cloning Experiments
The endolysin genes, gpB221 and gpP32, were cloned into the expression vector pET30a (Millipore corporation) after PCR amplification with the Q5 polymerase (NEB) followed by restriction (enzymes from NEB) and ligation with T4 ligase (Promega, Madison, WI, USA) to generate pET30a::gp221 and pET30a::gp32, respectively (Table 1). Constructions were transformed in chemically competent E. coli 10-beta, verified by Sanger sequencing (Macrogen, Amsterdam-Zuidoost, The Netherlands) and transformed into E. coli expression strain BL21(DE3). Similarly, the regions encoding PlyB221 CBD (residues 149–313) and PlyP32 CBD (181–262) were cloned into pET30a using the protocol described above. An N-terminal GFP tag was then subcloned by restriction-ligation. A linker composed of seven alternating glycine and serine residues was added between the GFP and the CBD. The final recombinant plasmids were named pET30a::gfp(linker)::gp221_cbd and pET30a::gfp(linker)::gp32_cdb. Bacteria and plasmids used in cloning and expression experiments are described in Table 1. Sequences of the primers used are listed in Table 2.
2.4. Protein Expression and Purification
LB broth was inoculated with E. coli BL21(DE3) containing the recombinant vectors and incubated O/N with an agitation of 180 rpm. O/N cultures were diluted 1:10 in fresh LB broth, incubated until the OD600 reached 0.5–0.8 and induced with 1 mM Isopropyl β-D-1-thiogalactopyranoside (IPTG) (Sigma). E. coli cultures were incubated during 6 h at 28 °C and 180 rpm to allow protein expression. The cells were then centrifuged (4000× g, 4 °C for 15 min) and the pellet stored at −20 °C. The pellet was thawed on ice for 30 min and resuspended in lysis buffer (50 mM NaH2PO4, 300 mM NaCl, 10 mM imidazole pH 8) supplemented with a protease inhibitor cocktail (1x, SIGMAFATTM Protease Inhibitor Cocktail Tablet, EDTA-Free, Sigma) and 1 mg/mL lysozyme (Sigma). After incubation for 30 min at 10 °C to lyse the cells, three units/mL of Benzonase Nuclease (Sigma) were added to reduce viscosity (15 min incubation). The lysate was centrifuged (30 min, 4 °C at 10,000× g) and the supernatant, containing the soluble proteins, was filtered on 0.45 µm (VWR, Oud-Heverlee, Belgium). The recombinant proteins were then purified on Ni-NTA column (Qiagen, Hilden, Germany) according to the manufacturer’s recommendations. The purity was assessed by SDS-PAGE and the recombinant proteins were dialyzed O/N with agitation against PBS supplemented with 300 mM NaCl. The protein concentration was determined by the Bradford assay [30].
2.5. Spot-on-Plate Assay
The phage host spectra were assessed by spot-on-plate. Briefly, 5 mL of top agar (LB 0.5% agar, 3 mM CaCl2, 3 mM MgCl2) were inoculated with 100 µL of an O/N bacterial culture and poured onto a LB-agar plate. After solidification, 10-fold serial dilutions of phage suspensions were spotted on plates containing the bacteria and incubated at 30 °C O/N.
2.6. Endolysin Activity Spectrum
The lytic activity of the two endolysins was tested using a turbidity reduction assay [9] which consists in measuring the decrease in OD595 caused by the enzymatic activity. Briefly, an O/N bacterial culture was diluted 100-fold in fresh medium and incubated until mid-log phase (3 to 4 h). After centrifugation (6000× g, 5 min) the pellet was washed with PBS and then resuspended in 50 mM Tris-HCl pH 8 (PlyB221) or pH 7 (PlyP32) to reach an OD595 between 0.8–1. From this bacterial suspension, 180 µL were transferred to each well of a 96-well plate and mixed with phage endolysins at given concentrations. The plate was incubated at 30 °C in a MultiskanTM FC Microplate spectrophotometer (Thermo Fisher Scientific, Watham, MA, USA) where the OD595 was monitored every min for 30 min. Wells containing bacterial suspensions and the protein buffer served as control which was subtracted from the experimental data to obtain the final results, expressed as inhibition percentages. The dose response experiment was performed on B. cereus ATCC 10,987 using endolysin concentrations ranging from 3 to 100 µg/mL. For the activity spectrum assays, 100 µg/mL of endolysin were tested on strains described in Table 3.
2.7. Endolysin Activity on Purified Cell Wall
Cell wall preparations were obtained following [31] with minor modifications. In brief, B. cereus ATCC 10,987 from a fresh plate was used to inoculate 1 L of LB broth. The culture was incubated at 37 °C and 180 rpm until the OD600 reached 1. The culture was then centrifuged at 4000× g, 4 °C for 20 min and the supernatant was resuspended in 40 mL of cold PBS. The suspension was disrupted by sonication (on ice) and then centrifuged at low speed (1500× g, 10 min, 4 °C) to remove unbroken cells before high-speed centrifugation (21,000× g, 5 min, 4 °C). The pellet was resuspended in 20 mL of SDS (4%), boiled for 20 min and the suspension was centrifuged (21,000× g, 5 min, 4 °C). The pellet was then washed three times with warm (45 °C) deionized water and twice with 1 M NaCl (centrifugation at 21,000× g, 5 min, room temperature (RT)). The final steps consisted of four washes with deionized water including a first centrifugation at low speed (1500× g, 5 min, RT), followed by high-speed centrifugation (21,000× g, 5 min, RT). The final pellet was resuspended in 5–10 mL of Milli-Q water.
To assess the endolysin activity on the bacterial cell wall, the cell wall extracts were diluted to reach an OD595 of 0.8–1 and mixed with purified PlyB221 and PlyP32 endolysins at different concentrations in a 96-well plate. The reduction in OD540 was monitored every min for 30 min at 30 °C with background shaking using a MultiskanTM FC Microplate spectrophotometer (Thermo Fisher Scientific, Watham, MA, USA).
2.8. Endolysin Biochemical Characterization
The biochemical characterization of the PlyB221 and PlyP32 endolysins was done on B. cereus ATCC 10,987 using the turbidity reduction assay and 50 µg/mL of endolysin. The temperature stability was evaluated by incubating each endolysin at various temperatures during 30 min and then transferring on ice for 5 min. The effects of pH and NaCl were tested by resuspending the bacteria in different buffers (50 mM citrate buffer for pH 4–5, 50 mM phosphate buffer for pH 6–7, 50 mM Tris-HCl buffer for pH 6–9, 50 mM carbonate buffer for pH 10) and in 50 mM Tris buffer pH 8 (PlyB221) or pH 7 (PlyP32) with increasing amount of NaCl (0–500 mM). The results were expressed as a ratio of the maximal activity. Statistical data were derived from Student test and a p-value inferior to 0.05 was considered as significant.
2.9. Cell Wall Decoration Assay
Binding of the CBD to the bacterial cells was assessed by a cell wall decoration assay [32]. Briefly, 500 µL of exponentially growing cells (3–4 h) were collected by centrifugation (10,000× g, 1 min, 4 °C), washed twice with cold PBS and resuspended in 100 µL of PBS. Five to 10 µg of purified GFP fused CBD were mixed with the bacterial suspension and incubated 15 min at RT with agitation (120 rpm). Control reactions used the protein buffer and purified GFP only. Cells were then centrifuged (10,000× g, 1 min, 4 °C) and kept on ice during the three washing steps with cold PBS. Bacteria were then observed under the epifluorescent microscope (Leica AF6000) using a filter with an excitation wavelength ranging from 460 to 500 nm and an exposure time of 400 ms. Images were obtained using the Leica LAS AF software.
3. Results
3.1. PlyB221 and PlyP32 Display the Canonical Features Of Endolysins

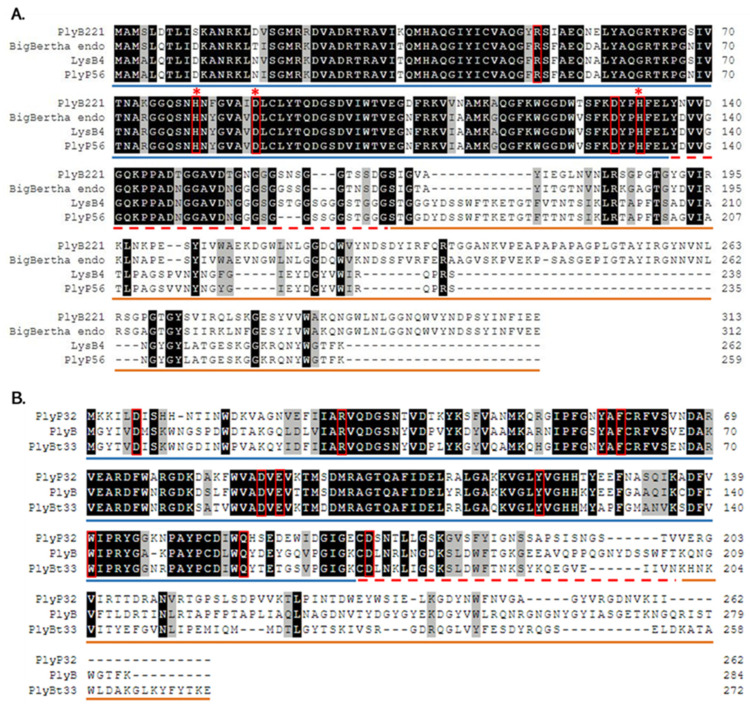

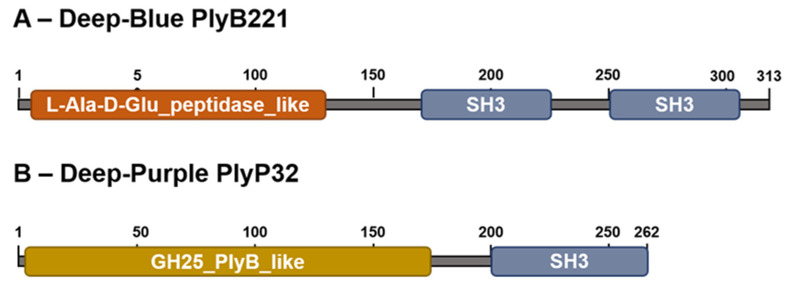

Analysis of phage Deep-Blue genome revealed that gene product (gp) 221 possesses the common organization of phage endolysins (Figure 1A). The gp of this 942-bp gene, renamed PlyB221, indeed displays a putative N-terminal L-Ala-D-Glu_peptidase_like EAD domain (accession number, cd14845, residues 12–135) belonging to the Peptidase_M15 superfamily (cd14814). This suggests that the cleavage site occurs between the alanine and glutamine residues of the peptide chain. PlyB221 presents five potential active sites (Arg50, His80, Asp87, Asp129, His132) of which three (His80, Asp87, His132) are involved in Zn2+ binding (Figure 2A). The C-terminal CBD of PlyB221 contains two putative SH3b domains (residues 171–225 and 251–305) from the SH3 superfamily (smart00287) which was confirmed by HHpred analysis that detected two regions (residues 173–230 and 241–304) of structural homologies with the SH3 domains of phage PBC5 endolysin targeting B. cereus (Probability: 97%, Protein data bank (PDB) ID: 6ILU_B) [33]. BLAST analysis also showed that PlyB221 is closely related to phage BigBertha endolysin (YP_008771084) as they share 80% identity with 100% coverage (Figure 2A). Besides, this protein is the only one that matches PlyB221 with a high coverage as the other endolysins only cover 48% of PlyB221 sequence, corresponding to its EAD. PlyB221 CBD thus seems to be highly variable and different from the other SH3b domains identified so far. The in silico analysis and protein sequence alignments also revealed that PlyB221 EAD is closely related to that of LysB4 (88% identity) and PlyP56 (85% identity), the endopeptidases of B. cereus phages B4 and Phrodo, respectively (Figure 2A) [18,20]. This was confirmed through a comparison gathering all the characterized endolysins encoded by B. cereus phages and showing that PlyB221 clusters with LysB4 and PlyP56 (Figure 3).
Regarding phage Deep-Purple, gp32 (789 bp) encodes the endolysin PlyP32 (Figure 1B) with a putative N-terminal GH25_PlyB_like domain (cd06523, residues 3–173) as EAD, which is part of the GH25_muramidase superfamily (cd00599) (i.e., involved in glycosidic bonds cleavage). The 10 potential active sites are conserved in PlyP32 (Asp6, Arg28, Tyr57, Phe59, Asp89, Glu91, Tyr120, Trp140, Gln157, Asp171) and no metal binding site was detected (Figure 2B). One putative SH3b domain was detected using InterPro (G3DSA:2.30.30.40, residues 200–262). Similarly, HHpred highlighted structural homologies with the SH3b domains of endolysins LysF1 from the Staphylococcus phage K (Prob. 91%, PDB ID: 5O1Q_A) and LysPBC5 of the Bacillus phage PBC5 (Prob. 96%, PDB ID: 6ILU_B) as well as other phage and bacteria-related SH3 domains [33,34]. BLAST analysis indicated that PlyP32 is related to PlyB (coverage 86%, identity 59%) and PlyBt33 (coverage 71%, identity 67%) from Bacillus phages Bcp1 and BtCS33, respectively (Figure 3) [19,35]. Similarly to PlyB221, PlyP32 N-terminal part is far more conserved than its C-terminal end (Figure 2B) as indicated by the BLAST analysis that displayed only relevant matches for the EAD domain (i.e., less than 77% coverage).
3.2. PlyB221 and PlyP32 Show a Bacteriolytic Spectrum Broader than That of Their Parental Phages
The full plyB221 and plyP32 genes were cloned in the expression vector pET30, expressed in E. coli BL21(DE3) and purified on a Ni-NTA affinity column to characterize the bacteriolytic activity of the corresponding enzymes. Figure 4 shows the purified recombinant proteins displaying the expected MW of 39 (lane 2) and 34 kDa (lane 3) for PlyB221 and PlyP32, respectively.

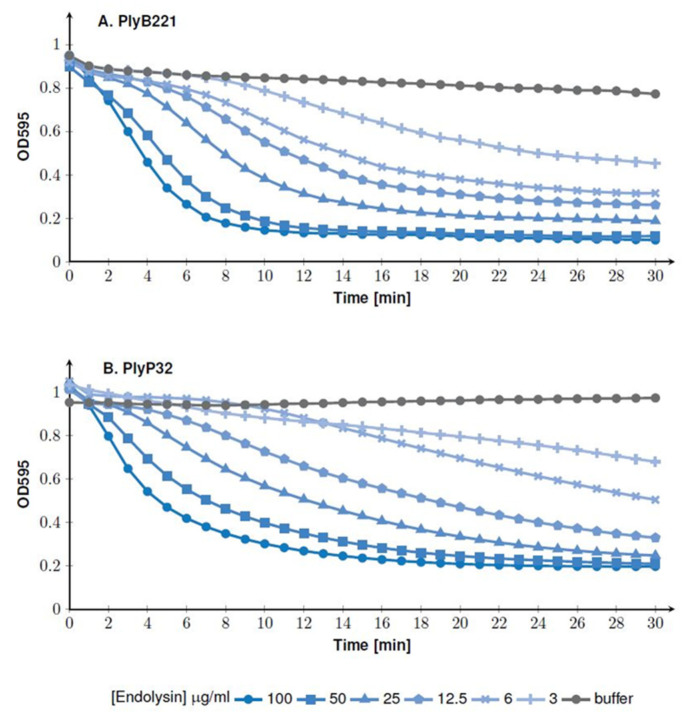

The lytic activity was assessed in a turbidity reduction assay using B. cereus ATCC 10,987 as model strain. The endolysins were serially diluted (from 100 to 3 µg/mL) and incubated with the bacteria resuspended in a Tris-HCl buffer (pH 8 for PlyB221 and pH 7 for PlyP32, see below). The test was performed at 30 °C and the OD was monitored during 30 min. Figure 5A shows that at the highest concentration (i.e., 100 µg/mL), PlyB221 induced a 50% reduction in OD within 4 min of incubation. The same reduction was observed after 15 min at an endolysin concentration of 6 µg/mL. The same dose response behavior was observed for PlyP32 and 50% of inhibition was reached within ca. 5 min at a 100 µg/mL protein concentration (Figure 5B).
The activity ranges of PlyB221 and PlyP32 were then established by subjecting strains from the B. cereus group (n = 14) and other Gram-positive bacteria (n = 8) to 100 µg/mL of protein in a turbidity reduction assay. In parallel, the susceptibility of these strains to the parental phages, Deep-Blue and Deep-Purple, was assessed via spot-on-plate. Three types of bacterial responses were recorded (Table 3): sensitive strains (i.e., formation of phage plaques), insensitive strains and those affected by the process of ‘lysis from without’—i.e., no individual plaques during spot assay—but nonetheless cell lysis when phages were applied at a high multiplicity of infection (MOI) [36].
As shown in Table 3, all the tested strains inside the B. cereus group were sensitive to both endolysins, although to different extents, ranging from 47% to 76% of inhibition for PlyB221 and from 15% to 79% for PlyP32. Interestingly, phages Deep-Blue and Deep-Purple themselves displayed narrower host spectra as they infected three and four strains, respectively, out of the 14 tested strains of the B. cereus group. Thus, the PlyB221 and PlyP32 endolysin activity spectra are much broader than those of their parental phages.
Outside the B. cereus group, none of the tested strains were sensitive to the phages, albeit PlyB221 and PlyP32 were able to lyse Bacillus megaterium, Bacillus licheniformis, and Bacillus pumilus. PlyB221 was highly active against B. megaterium (i.e., 74% and 80% of inhibition for strains Si0003 and 10A-B3, respectively) but showed reduced activity for B. licheniformis and B. pumilus compared to members of the B. cereus group (i.e., 23%, 7%, and 28% for strains HT00023, Si0279, and 10A-B5 respectively). Concerning PlyP32, the percentage of inhibition detected against the strains of B. megaterium, B. licheniformis, and B. pumilus were around 35%, 40%, and 25%, respectively. No endolysin activity was detected on Bacillus subtilis, L. ivanovii, or S. epidermidis (Table 3).
3.3. PlyB221 and PlyP32 Display a Peptidoglycan Hydrolyzing Activity

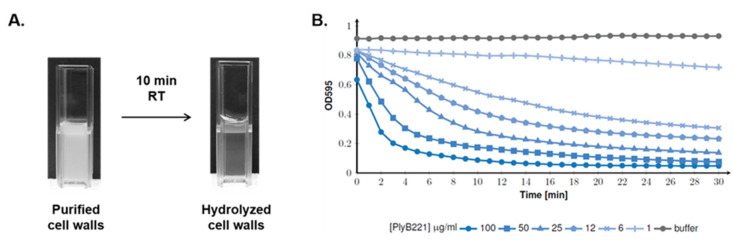

To assess the endolysins PG hydrolyzing activity, cell walls form B. cereus ATCC 10,987 were purified. After 10 min incubation with the PlyB221 (100 µg/mL), PG hydrolysis can be observed macroscopically (Figure 6A). This was confirmed by OD595 monitoring during 30 min as the maximal enzymatic activity of the endolysin is displayed during the first five min (Figure 6B). As for the effect of the endolysin on bacterial cells (Figure 5), PlyB221 efficacy increased with concentration (Figure 6B). Similar observations were made for PlyP32 (data not shown).
3.4. PlyB221 Displays a Somewhat more Stable Activity than PlyP32

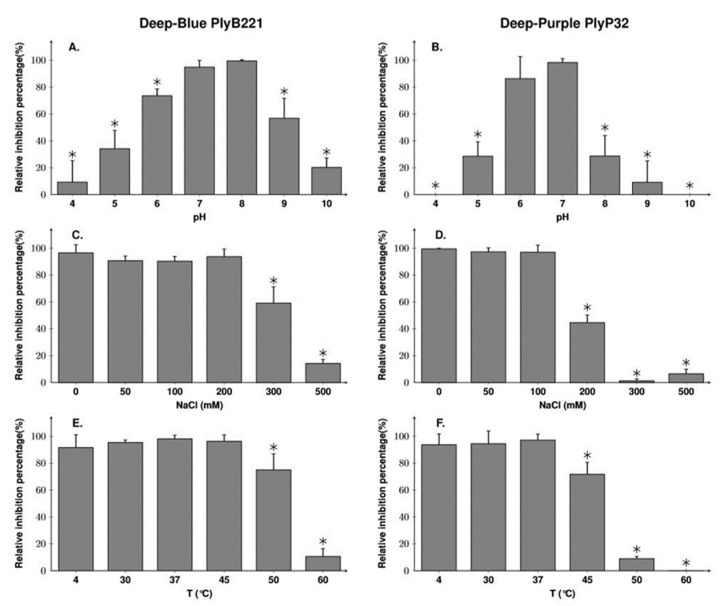

The optimal pH conditions and NaCl concentrations for the activity of each endolysin were then established using B. cereus ATCC 1087 in a turbidity reduction assay. PlyB221 was active in a wide range of pH (5–9) but the highest activity was obtained at pH 7 and 8 (Figure 7A). PlyP32 optimum was between pH 6 and 7 but, outside this range, its activity dropped to 30% at pH 5 and 8 and no activity was detected at pH 4 or 10 (Figure 7B). For both endolysins, the pH optima determined experimentally are consistent with their predicted p.I, namely 7.67 for PlyB221 and 6.22 for PlyP32. Regarding tolerance to NaCl (evaluated at the endolysin optimal pH, i.e., pH 8 and pH 7 for PlyB221 and PlyP32, respectively), PlyB221 and PlyP32 activities decreased at salt concentrations higher than 300 and 200 mM, respectively (Figure 7C,D). Finally, the endolysin thermal stability was assessed by incubating the proteins at temperatures from 4 to 60 °C during 30 min followed by a 5 min incubation on ice before assessing the residual activity on B. cereus ATCC 10987. PlyB221 maximal enzymatic activity was preserved up to 45 °C and the protein retained 75% activity after 50 °C (Figure 7E). PlyP32 enzyme was stable up to 37 °C and lost 28% activity at 45 °C. After 50 °C, the enzymatic activity dropped to 9% and was completely inhibited after incubation at 60 °C (Figure 7F).
3.5. PlyB221 and PlyP32 Cell Wall Binding Domain (CBD) Can Decorate Bacillus Cells
The role of the C-terminal SH3b domains as CBD was evaluated in a cell wall decoration assay, which relies on the observation, by fluorescent microscopy, of the green fluorescent protein (GFP) fused to CBD and adsorbed onto bacteria. N-terminal GFP fusions of the endolysin CBDs (residues 149 to 313 for PlyB221_CBD and 181 to 262 for PlyP32_CBD) (Figure 1) were cloned and expressed in E. coli BL21(DE3). The purified recombinant proteins are shown on Figure 4 with their MW corresponding to 50 kDa for GFP::PlyB221_CBD (lane 4) and 42 kDa for GFP::PlyP32_CBD (lane 5). Figure 8 shows that the CBD of both PlyB221 and PlyP32 decorate uniformly the bacteria confirming the role of the SH3 domain as recognition modules. The purified GFP tag alone did not adsorb to the bacteria (data not shown). All the strains belonging to the B. cereus group were recognized, regardless of their sensitivity towards phages, thus showing that the endolysin binding spectra are wider (Table 3). Overall, the fluorescence observed with PlyB221_CBD was more intense than that recorded with PlyP32_CBD (Figure 8B–H). Outside of the B. cereus group, the other assayed Gram-positive bacteria were not recognized apart from the two B. megaterium strains (Table 3, Figure 8F).
4. Discussion
Endolysins are phage-encoded enzymes that mediate the bacterial lysis during the last step of the viral lytic cycle. Thanks to their EAD enzymatic properties and their CBD allowing recognition and binding to the host cell, endolysins have gained much attention as alternative antimicrobials and detection tools for pathogenic bacteria [46]. In this study, we focused on PlyB221 and PlyP32 endolysins, encoded by two phages preying on the B. cereus group. Deep-Blue is a lytic phage belonging to the Herelleviridae whose potential for biocontrol purposes was previously investigated [23]. It was able to efficiently reduce the contamination by emetic B. weihenstephanensis in food matrices and biofilms, but its main drawback remained its narrow host range, therefore indicating that it should be included in a phage cocktail. Similarly, the siphovirus Deep-Purple was only able to infect a limited number of strains belonging to the B. cereus group but in addition, it was hypothesized that it might be a lytic variant of a lysogenic phage, making it unsuitable for biocontrol purposes [24]. To get around these drawbacks, their respective endolysins were investigated in this study.

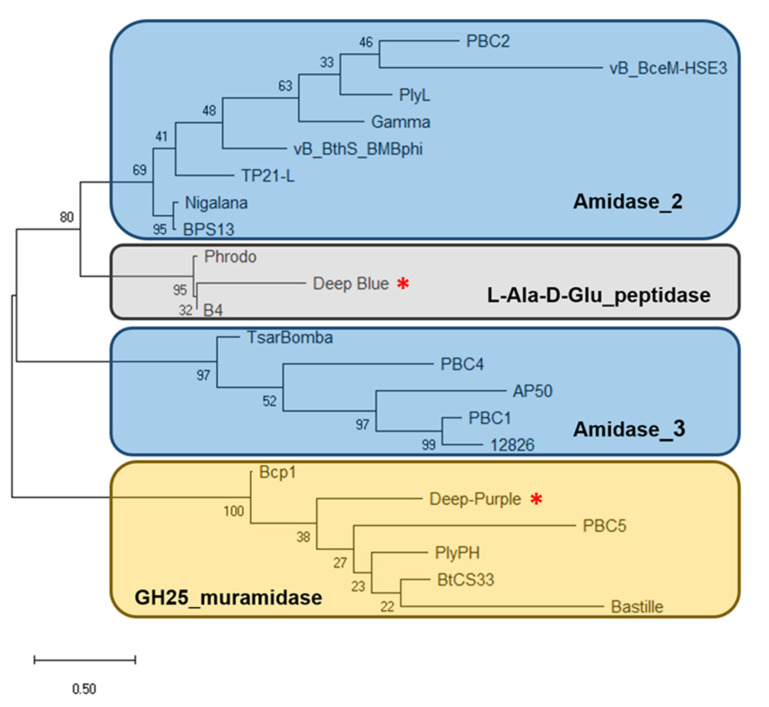

As for other endolysins encoded by phages infecting Gram-positive bacteria, PlyB221 and PlyP32 have an EAD located at their N-terminal end. BLAST and phylogenetic analysis of PlyB221 indicated that it is close to LysB4 and PlyP56 encoded by B. cereus phages B4 and Phrodo, respectively. Similarly, its enzymatic function is fulfilled by an L-Ala-D-Glu_peptidase domain that is predicted to have three metal-binding sites. It was previously shown for LysB4 and PlyP56, that the activity is lost in the presence of EDTA and then restored with the addition of metal ions—such as zinc, calcium, and manganese—thus reinforcing the fact that PlyB221 also relies on divalent cations for its activity [18,20]. PlyP32 possesses a GH25_muramidase EAD that is similar to that of PlyB, the endolysin encoded by the Bacillus phage Bcp1, and PlyBt33 from phage BtCS33 [47,48]. Both PlyB221 and PlyP32 displayed high lytic activity within the first 10 min of incubation with the most sensitive bacteria when 100 µg/mL of protein was tested, which corresponds to 2.6 and 2.9 µM, respectively. This antimicrobial activity is similar to what has been previously described for endolysins targeting the B. cereus group.
Endolysins encoded by phages infecting the B. cereus group show differences regarding the targeted bacteria, ranging from a narrow to a broad activity spectrum. For instance, LysPBC5 is only able to lyse members of the B. cereus group whereas LysPBC2 is also active against other Bacillus spp., and even L. monocytogenes and Clostridium perfringens [11,33]. PlyB221 and PlyP32 both have intermediate activity spectra, as they are active against strains of the B. cereus group but also B. megaterium, B. pumilus, and B. licheniformis. Noteworthy, PlyB221 and PlyP32 were not tested against B. anthracis, but based on their close relationships to PlyP56 and PlyB whose activity against B. anthracis was demonstrated [20,47], their activity spectrum is expected to include this pathogenic bacterium. Also, PlyB221 and PlyP32 are active on a much wider range of bacteria than that of their parental phages. These broad activity spectra could target most, if not all, of the pathogenic strains of the B. cereus group.
Endolysin activity is mainly influenced by pH and ionic strength and those encoded by B. cereus phages usually display optimal activity at neutral or slightly basic pH, and tolerate up to 100–200 mM [17,20,35]. PlyB221 showed high activity (>50%) from pH 6 to 9 whereas PlyP32 activity rapidly dropped outside the range of pH 6 and 7. Endolysins from phages targeting B. cereus that are effective at pH 6 have already been described (i.e., PlyPH and PlyB) but they were also highly active up to pH 9, contrary to PlyP32 [47,49]. The addition of salt did not improve the activity of PlyP32 and PB221, contrary to what was observed for PlyB, and they were able to withstand up to 100 mM and 200 mM of NaCl, respectively, without any loss of activity. The thermal stability of endolysins is also important for their potential application in the food industry. Both endolysins retained high lytic activity (>50%) after treatments up to 45–50 °C which, although not as resistant as some Listeria specific endolysins (e.g., HPL511 70% activity after 30 min at 70 °C [50]) is consistent with other endolysins encoded by phages infecting B. cereus [35,51]. Overall, PlyB221 appeared to be active in a wider range of pH and NaCl conditions and withstood higher temperature treatments than PlyP32.
In both endolysins, the CBD is represented by SH3 domains, a type of CBD widespread among endolysins of phages infecting B. cereus along with the Amidase02_C domain (PF12123) [17,21,47,52]. Contrary to the endolysins activity range that extended to several species outside the B. cereus group, binding of both CBD was limited to strains of the B. cereus group and to B. megaterium (Table 3). This observation suggests that the motif recognized by the SH3b domain is common to strains belonging to both B. cereus and B. megaterium. Although it is still unclear what the SH3 domain ligand is, Lee et al. have shown that the CBD of LysPBC5 is composed of tandem SH3 domains that bind to the PG glycan strands rather than to the peptide interbridge as previously thought [33,53]. Interestingly, although both PlyB221 and PlyP32 endolysins display the same binding spectra, the fluorescent bacteria decorated with PlyB221_CBD were always brighter than those recognized by PlyP32_CBD.
5. Conclusions
In conclusion, we identified two novel endolysins that showed promising characteristics that open several avenues to develop applications for detecting and bio-controlling B. cereus. Beyond their intrinsic binding and activity, their respective EAD and CBD add up to the increasing amount of identified endolysin domains that could be used to synthesize chimeric proteins with improved activity, binding, and stability properties.
Acknowledgments
We are thankful to L. Hock for her help in the early stages of these experiments.
Funding
This work was supported by the National Fund for Scientific Research (FNRS grant to A.G. and J.M.) and the Research Department of the Communauté française de Belgique (Concerted Research Action, ARC no. 17/22-084, grant to A.L.).
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
| Strains/Plasmids | Species/Purpose | Reference |
|---|---|---|
| Strains | ||
| 10-beta | E. coli/cloning strain | NEB |
| BL21(DE3) | E. coli/expression strain | Novagen |
| Plasmids | ||
| pET30a | Expression plasmid | Novagen |
| pUC18::gfp | GFP amplification | Clontech/Takara |
| pET30::gp221 | Test PlyB221 lytic activity | This study |
| pET30::gfp(linker)::gp221_cbd | Test PlyB221 CBD binding activity | This study |
| pET30::gp32 | Test PlyP32 lytic activity | This study |
| pET30::gfp(linker)::gp32_cdb | Test PlyP32 CBD binding activity | This study |
| Target | Primer Name | Sequence (5′ → 3′) |
|---|---|---|
| gfp | GFP_EcoRI_F | TTCCGAATTCAAAGGAGAAGAACTTTTCACTGGAG |
| GFP_EagI_linker_R | TTCGGCCGTCCACTACCTGATCCACTACCTTTGTAGAGCTCATCCATGCC | |
| gp221 | gp221_NcoI_F | TATCCATGGTGGCAATGTCTTTAGATACTTTAATCA |
| gp221_XhoI_R | TATTCTCGAGCTACTCCTCAATGAAGTTGATGTATG | |
| gp221_cbd | gp221_CBD_EagI_F | AGCGGCCGGGTGGAGCAGTAGACACT |
| gp221_XhoI_R | TATTCTCGAGCTACTCCTCAATGAAGTTGATGTATG | |
| gp32 | gp32_NcoI_F | TATCCATGGACAAAAAGATTTTAGATATTTCACATCAC |
| gp32_XhoI_R | ATTACTCGAGTTAAATGATTTTTACGTTATCGCCA | |
| gp32_cbd | gp32[181]_EagI_F | AACGGCCGGTTAGTTTCTATATTGGTAACTCTT |
| gp32_XhoI_R | ATTACTCGAGTTAAATGATTTTTACGTTATCGCCA |
| Deep-Blue | Deep-Purple | |||||||
|---|---|---|---|---|---|---|---|---|
| Strain | Species | Reference | Φ a | PlyB221 b | CBD c | Φ | PlyP32 | CBD |
| Strains of the B. cereus group | ||||||||
| VD021 | B. cereus | [37] | S | 74.9 ± 3.9 | + | S | 77.1 ± 2.4 | + |
| ATCC 10987 | B. cereus | [38] | I | 72.6 ± 2.3 | + | I | 77.8 ± 9.9 | + |
| F4810/72 | B. cereus * | [39] | L | 67.8 ± 10.7 | + | L | 70.3 ± 1.7 | + |
| H3081.97 | B. cereus * | [40] | L | 57.3 ± 5.9 | + | I | 32.7 ± 0.7 | + |
| WSBC10202 | B. weihenstephanensis | [41] | S | 61.1 ± 3.4 | + | L | 71.2 ± 8.4 | + |
| WSBC10204 | B. weihenstephanensis | [41] | L | 76.4 ± 9.1 | + | L | 68 ± 6.8 | + |
| Si0239 | B. weihenstephanensis * | [23] | S | 66.6 ± 4 | + | L | 79.3 ± 2.8 | + |
| LH002 | B. weihenstephanensis * | [24] | I | 69.3 ± 10.5 | + | S | 75.7 ± 5.7 | + |
| GBJ001 | B. thuringiensis | [42] | L | 76.2 ± 3 | + | L | 85 ± 0.4 | + |
| HD4 | B. thuringiensis | BGSC 1 | L | 38.1 ± 0.9 | + | S | 73.4 ± 7 | + |
| NVH 391-98 | B. cytotoxicus | [43] | L | 74.2 ± 6 | + | L | 80.4 ± 4.7 | + |
| BcA20 086 | B. cytotoxicus | MIAE 2 | L | 46.6 ± 11 | + | L | 34.4 ± 14.2 | + |
| KBS 2–12 | B. mycoides | MIAE | L | 62.1 ± 2.7 | + | S | 62 ± 4.2 | + |
| KNC2-18 | B. mycoides | MIAE | I | 66 ± 23.3 | + | I | 15.4 ± 8.6 | + |
| Other Gram-positive bacteria | ||||||||
| Bs168 | B. subtilis | [44] | I | 0.2 ± 0.4 | - | I | 0 ± 0 | - |
| ATCC 10716 | B. licheniformis | BBCM 3 | I | 23.2 ± 1 | - | I | 40.1 ± 4.5 | - |
| SI0279 | B. pumilus | MIAE | I | 6.8 ± 0.9 | - | I | 21.8 ± 7.7 | - |
| 10A-B5 | B. pumilus | [45] | I | 28.3 ± 1.5 | - | I | 26.3 ± 10.2 | - |
| SI0003 | B. megaterium | MIAE | L | 73.9 ± 2.7 | + | I | 34.2 ± 6.6 | + |
| 10A-B3 | B. megaterium | [45] | I | 79.9 ± 0.5 | + | I | 35.3 ± 14.3 | + |
| Liv001 | L. ivanovii | MBLG 4 | I | 0.5 ± 0.9 | - | I | 0 ± 0 | - |
| ATCC 12228 | S. epidermidis | BBCM | I | 0.1 ± 0.2 | - | I | 0 ± 0 | - |
