Association of Predicted Expression and Multimodel Association Analysis of Substance Abuse Traits
aDepartment of Genetics, School of Medicine, UNC-Chapel Hill, Chapel Hill, North Carolina, USA
bRenaissance Computing Institute, Chapel Hill, North Carolina, USA
cDepartment of Psychological Sciences, University of Missouri, Columbia, Missouri, USA
dDepartment of Neurology, School of Medicine, UNC-Chapel Hill, Chapel Hill, North Carolina, USA
eDepartment of Neurology, West Virginia University Rockefeller Neuroscience Institute, Morgantown, West Virginia, USA
*Darius M. Bost, dariusmb@ad.unc.eduAbstract
Introduction
Genome-wide association studies (GWAS) have played a critical role in identifying many thousands of loci associated with complex phenotypes and diseases. This has led to several translations of novel disease susceptibility genes into drug targets and care. This however has not been the case for analyses where sample sizes are small, which suffer from multiple comparisons testing. The present study examined the statistical impact of combining a burden test methodology, PrediXcan, with a multimodel meta-analysis, cross phenotype association (CPASSOC).
Methods
The analysis was conducted on 5 addiction traits: family alcoholism, cannabis craving, alcohol, nicotine, and cannabis dependence and 10 brain tissues: anterior cingulate cortex BA24, cerebellar hemisphere, cortex, hippocampus, nucleus accumbens basal ganglia, caudate basal ganglia, cerebellum, frontal cortex BA9, hypothalamus, and putamen basal ganglia. Our sample consisted of 1,640 participants from the University of California, San Francisco (UCSF) Family Alcoholism Study. Genotypes were obtained through low pass whole genome sequencing and the use of Thunder, a linkage disequilibrium variant caller.
Results
The post-PrediXcan, gene-phenotype association without aggregation resulted in 2 significant results, HCG27 and SPPL2B. Aggregating across phenotypes resulted no significant findings. Aggregating across tissues resulted in 15 significant and 5 suggestive associations: PPIE, RPL36AL, FOXN2, MTERF4, SEPTIN2, CIAO3, RPL36AL, ZNF304, CCDC66, SSPOP, SLC7A9, LY75, MTRF1L, COA5, and RRP7A; RPS23, GNMT, ERV3-1, APIP, and HLA-B, respectively.
Discussion
Given the relatively small size of the cohort, this multimodel approach was able to find over a dozen significant associations between predicted gene expression and addiction traits. Of our findings, 8 had prior associations with similar phenotypes through investigation of the GWAS Atlas. With the onset of improved transcriptome data, this approach should increase in efficacy.
Introduction
The medical community has embraced genetic analysis to understand the pathogenesis of clinically important phenotypes. Most common phenotypes, such as addiction, have complex modes of inheritance. Genome-wide association studies (GWAS) have been instrumental in detecting thousands of correlations between genetic variants and complex phenotypes [1]. GWAS limited by small sample size (thousands) typically detect few, if any, loci with modest effect sizes and explain little variation due to poor statistical power [2]. As sample sizes for some phenotypes have increased to hundreds of thousands, GWAS have detected many additional loci with diminishing effect sizes, affirming most complex phenotypes are highly polygenic. More efficient approaches are needed to elucidate genetic pathogenicity when sample sizes are limiting.
GWAS have identified several significant loci that affect addiction phenotypes. For example, findings suggest signals within the alcohol dehydrogenase (ADH) gene cluster (ADH4, ADH1B, and ADH1C), ANKS1, AGBL4, GCKR, and MTIF2 influence risk for alcohol dependence and alcohol use disorders [3, 4, 5, 6]. For nicotine dependence, the most statistically significant signals are in the nicotinic acetylcholine receptor gene clusters (CHRNA5, CHRNA3, CHRNB4, CHRNB3, CHRNA6, CHRNA4). Other implicated genes include DBH, DNMT3B, FAM163B, HYKK, CTNNA3, NOL4L [7, 8, 9]. Some significant associations mapped for cannabis dependence are located in or near FOXP2 and CHRNA2 as well as AKFN1, CHST11, PIM3, UCHL5, and AL157388.1 [10, 11, 12]. These variants account for a small proportion of the expected genetic variation in the described traits. With the observed estimated heritability of these phenotypes, we expect to detect many more loci as sample sizes increase.
An organizing principle for understanding disease pathogenesis and identifying possible treatment modalities is to understand which genes are implicated. Identifying the mechanism of action of variants detected by GWAS is often arduous [13]. Most variants detected by GWAS fall in intergenic regions with indeterminate function. Functional intergenic variants are expected to mediate phenotypes by changing transcription of both proximal and very distant genes. A burden test that aggregates variants by their effect on gene-specific transcription has the potential to both increase power and our understanding of pathogenesis.
PrediXcan provides a framework for a gene burden test using models trained with genotype and specific expression data from several data consortiums [14]. As an alternative, transcript-wide association studies (TWAS) use a similar approach to predict gene expression, but rely on eQTL reference summary statistics [15]. Both approaches predict tissue-specific gene expression based on genotypes of study individuals for whom expression was not measured. Predicted expression values in study individuals are then tested for phenotypic association. Direct gene-phenotype associations bypass the arduous mechanistic interpretation of intergenic variants, though such variants may be excluded form analysis if their relation to gene expression cannot be quantified. Nonetheless, a further advantage of these methods, which is shared with other burden tests, is that it raises the significance threshold for declaring an association test result significant. In PrediXcan, the divisor is reduced from all variants to the number of tested genes, greatly increasing power.
In the current study, we applied PrediXcan to the University of California, San Francisco (UCSF) Family Alcoholism study to interrogate addiction phenotypes. The UCSF Family Alcoholism study seeks to identify genetic variation that increases or decreases susceptibility to addiction and other related phenotypes [16]. Previous analyses have revealed several loci for alcohol and nicotine dependence through linkage analysis [17, 18]. However, association analysis of candidate genes located within the identified linkage support intervals has not been successful.
In addition to the described difficulties related to single variant testing, association studies can have reporting bias if appropriate corrections for significance thresholds are not made when several related phenotypic models are tested. A more rigorous threshold for association testing is required when multiple, related phenotypes are analyzed. Furthermore, when multiple tissue-specific expression models (e.g., frontal cortex, striatum, parietal cortex, etc.) are tested for association with a phenotype, a more stringent threshold is also required for all association tests using the PrediXcan approach. One way to increase power is to use a multimodel association analysis of association statistics for multiple phenotypes and tissue-specific expression models [19, 20]. Multi-phenotype association analysis takes advantage of pleiotropy. Multi-tissue expression association analysis takes advantage of estimates of gene expression across neural tissues. We predicted that combining the test statistics across tissues would be a particularly effective approach, given that many brain regions have correlated gene expression.
Methods
UCSF Family Alcoholism Study
The cohort was obtained through a nationwide recruitment effort to understand the genetics of substance use disorders, including, but not limited to, alcoholism. Further objectives and designs for this study have previously been detailed [16, 21]. The cohort includes small nuclear families and unrelated subjects, with 92% reporting as White [11, 16]. The remaining racial distribution was 3% each for African American and Hispanic and 1% each Native American and other. In regards to the sex distribution of the cohort, 58% were female. Diagnosis of lifetime alcohol dependence and availability of both parents or one sibling for participation was required for proband study invitation. Relatives of probands were consented after probands obtained permission to contact their relatives. Out of 1,218 family pedigrees, 2,524 individuals were enrolled over the course of the study. Probands were excluded if they reported the use of opiates, cocaine, or stimulants weekly for 6 months or daily for more than 3 months. Probands with current or past diagnoses of bipolar disorder, schizophrenia, other psychiatric illnesses involving psychotic symptoms, the inability to read or speak English, or a threatening illness were also excluded [22].
Given quality control measures mentioned in prior work, our cohort was refined to 1,640. This final sample consisted of 761 families and an average family size of 2.17. The majority of the sample self-identified as White (98.1%), and female (63%). The mean age of the sample was 49.7 years old with a standard deviation of 12.9 years [23].
To collect data on alcohol, nicotine, drug-use history, medical history, and demographics, a modified version of the Semi-Structured Assessment for Genetics of Alcoholism (SSAGA) was administered via a telephone interview. This allowed for Diagnostic and Statistical Manual of Mental Disorders, fourth edition (DSM-IV) diagnosis of alcohol and other substance misuse. Recruitment details of all participants have been previously published [22]. The phenotypes used were DSM-IV alcohol, nicotine, and cannabis dependence. In addition, we used the DSM-IV qualifier, cannabis craving (“In situations where you couldn't use cannabis, did you ever have such a strong desire for it that you couldn't think of anything else?”). Lastly, family alcoholism (phenotype designated in the SSAGA through inquiry of family's history with alcohol) was also included. A single-question screening approach was used within the modified SSAGA to acquire this trait (“Does alcoholism run in your family?”). It is reported that this method correlates well with diagnosis obtained by in-person interviews and the family history research diagnostic criteria for parental alcoholism [16]. Table 1 displays a data summary of the proportion endorsed and estimated heritability for each phenotype. Heritability estimates were computed using Efficient Mixed Model Association expedited (EMMAX) within the Efficient and Parallelizable Association Container Toolbox software (EPACTS) pipeline. These are pseudo-heritability estimates, which resemble estimates derived from pedigree, that are fractions of phenotypic variance explained by the empirically estimated relatedness matrix. The selection of these phenotypes was based on their estimated heritability and the assumption that some associated genes would have pleiotropic effects. Alcohol dependence, being an original focus of the UCSF study, was also included even though its heritability is approximately 0 [16].

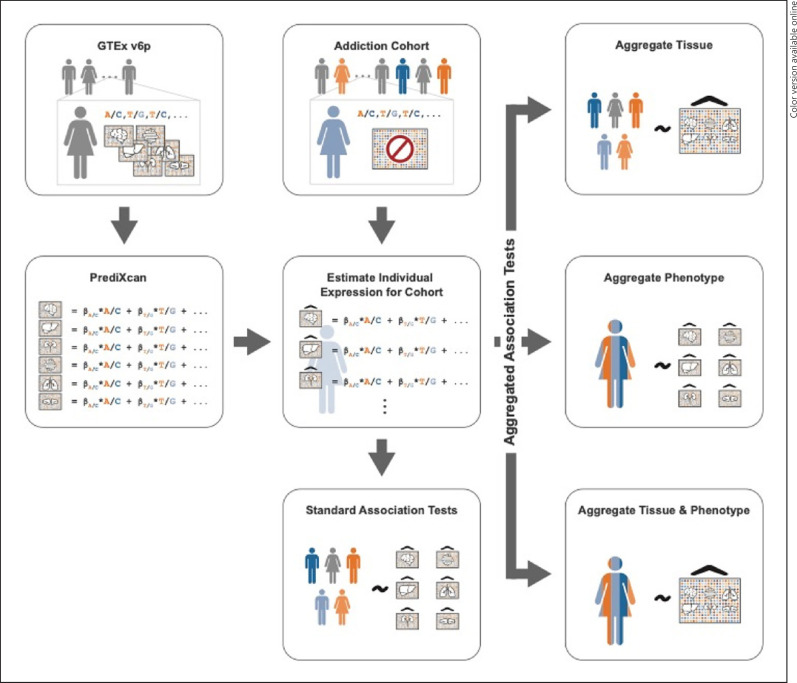

Workflow
PrediXcan models of tissue-specific gene expression were applied to the genotypes in the UCSF family cohort to predict each individual's expression. Linear mixed models (GEMMA) were then used to simultaneously correct for family structure and test for associations between predicted expression and addiction phenotypes for the cohort. Finally, association test results were combined using a multimodel analysis. The workflow is illustrated in Figure 1.
Predicting Gene Expression
Briefly, PrediXcan GTEx models [14] (http://predictdb.hakyimlab.org) are based on the measured tissue-specific gene expression and genotypes for the samples collected by the GTEx Consortium. PrediXcan expression models are trained using an Elastic Net variable selection method on a restricted search space of both typed and imputed cis-single nucleotide polymorphisms (SNPs) within 1 Mb of gene start or end. Our analyses utilized PrediXcan models based on GTEX v8. The genotypes used to predict expression for the UCSF cohort were collected with low-pass whole genome sequencing (WGS) and linkage disequilibrium variant caller Thunder [11]. Low-pass WGS obtains increases in the genomic landscape interrogated relative to GWAS and WES, thus allowing for a greater chance of discovering novel variants and associations. While low pass WGS is not as good as deep WGS for detecting, with confidence, rare alleles or alleles that are specifically typed with fixed content arrays, LD-based variant calling increases calling accuracy in low-coverage samples to the point at which low-coverage approaches become viable [24]. We utilized 10 tissue models for analysis: anterior cingulate cortex BA24, cerebellar hemisphere, cortex, hippocampus, nucleus accumbens basal ganglia, caudate basal ganglia, cerebellum, frontal cortex BA9, hypothalamus, and putamen basal ganglia.
GEMMA
To account for non-independence due to family and population structure we first constructed a centered relatedness matrix based on genotypes using the Genome-wide Efficient Mixed Model Association (GEMMA) application [24]. We further utilized GEMMA to apply a univariate linear mixed model between predicted expression levels and phenotypes while controlling for family/population structure with the above relatedness matrix and including as covariates age, sex, and the first two ancestry principal components. These principal components were calculated within the EIGENSOFT package [25]. For each association we evaluated quantile-quantile plots (qq-plots) to detect evidence of bias.
Multimodel Analysis
In our initial analysis, there were 50 tissue-phenotype combinations (10 tissues × 5 phenotypes). To reduce the number of comparisons we employed Cross Phenotype Association (CPASSOC) version 1.01 to perform multimodel analysis [26]. This method delivers two statistics, Shom and Shet, that result from the integration of association evidence from multiple GWASs. Though comparable to METAL [25], a fixed meta-analysis, Shom alternatively accounts for correlated summary statistics resulting from related traits, relatedness of participants within a cohort, and overlapping participants across cohorts. It operates more efficiently when the effect sizes are homogeneous. When those effect sizes are heterogeneous, Shet is more powerful [26]. CPASSOC allows for relatedness or overlapping among samples within and between different studies and cohorts being analyzed. This is achieved by building a correlation matrix among all summary statistics from each GWAS being analyzed. It also removes targets with very large effect sizes as they may represent true association and inflate those correlations. Multimodel association was performed by aggregating effect sizes across all phenotypes within a given tissue and across all tissues within a given phenotype. CPASSOC excludes genes from further analysis when there are missing values for the different models (phenotype-tissue combinations). For example, if gene X is only included in one of two models being aggregated, gene X will not be used in the multimodel analysis. Because there are not validated models for every gene in every tissue, many genes would be excluded from multimodel analysis. To remedy this, we replaced missing gene p values with values sampled from the gene-specific distribution of observed p values across tissue. To account for false-positives we permuted and ranked the “across all tissues” analysis 10 times.
“Gene Dropping” Single Marker Association Analysis
To demonstrate the utility of gene-based burden tests and multimodel analysis, we calculated single-marker association statistics to serve as a baseline comparison. This was accomplished by implementing the EMMAX software package through the EPACTS pipeline. EMMAX accounts for population stratification due to relatedness and ancestry through a variance component mixed model approach. Covariates included were sex, age, and the first two ancestry principal components. Utilizing a simulation scheme detailed in prior work [27], we determined empirical p values for single-marker association analysis. EPACTS was used to calculate association statistics for each simulated genotype, correcting for family structure [28]. To generate a single permutation, an initial allele frequency was chosen, and for each founder in the pedigree, genotypes were assigned based on this frequency. Subsequent generations were then assigned genotypes by randomly assigning one allele from each parent (gene-dropping). Once genotypes were assigned for all successive generations, the minor allele frequency was calculated for the replicate. Only simulated replicates with a similar minor allele frequency to the test marker were retained for comparison. The simulations were limited to 109 due to computational costs [27].
Results
Single Marker Association (GWAS)
As a baseline, we performed a GWAS analysis with EMMAX. This analysis was conducted over each phenotype, with approximately 33.7 million markers being tested in each. Taken individually, the single marker analyses identified no genome-wide significant results after Bonferroni correction (1.48 × 10−8) for all markers. The Bonferroni threshold however is derived from the combination of all analyses, our 5 phenotypes, so our new threshold was more stringent (2.96 × 10−9) with 168.7 million tests. Thresholding was obtained by a conservative Bonferroni approach to illustrate the scope of the problem of multiple testing. QQ-plots of each trait association test shows p values stratified by minor allele frequency. These figures illustrate inflation caused by extremely rare markers which drove our decision to conduct permutations (online suppl. Section 4; for all online suppl. material, see www.karger.com/doi/10.1159/000523748).
Gene-Phenotype Associations per Tissue (No Aggregation)
Application of PrediXcan for each of the 5 addiction phenotypes and 10 brain tissues requires substantial correction for multiple comparisons. A total of 230,690 phenotype-tissue-gene tests were conducted from the 50 phenotype-tissue combinations. Two genes reached Bonferroni-adjusted significance at the 0.05 threshold (2.17 × 10−7). HCG27 expression within the frontal cortex BA9 and alcohol dependence had the strongest association (3.80 × 10−9) and SPPL2B within hippocampus, also with alcohol dependence, was second (3.89 × 10−8).
Gene-Tissue Associations (Aggregated by Phenotype)
By implementing multimodel association analysis and conducting tests after aggregating across all phenotypes for 10 tissues using the meta-analytic approaches implemented in CPASSOC, we are able to reduce the tests to 46,128. The strongest associations for the aggregated phenotype analysis are listed in Table 2. No genes reached the Bonferroni threshold for significance (1.08 × 10−6).
Gene-Phenotype Associations (Aggregated by Tissue)
Alternatively, aggregating across all tissues reduces the number of test comparisons to 65,270. The most significant results of the aggregated tissue analysis are summarized in Table 3. Fourteen associations passed the new significance threshold (7.66 × 10−7) when filtered by the p value of the Shom statistic. Familial alcoholism produced the strongest overall association, SEPTIN2, and the most associations, 5 (PPIE, RPL36AL, FOXN2, MTERF4, SEPTIN2). Alcohol dependence yielded 2 significant results, CIAO3 and RPL36AL. Cannabis craving yielded 2 significant results, ZNF304 and CCDC66 with the former being the second most significant result overall. Nicotine dependence showed a significant relation with SSPOP, COA5, and SLC7A9. Finally, Cannabis dependence identified 3 significant associations, LY75, MTR1L, and RRP7A. RPS23, GNMT, ERV3-1, HLA-B, and APIP did not reach Bonferroni significance but were suggestive based on p values adjusted by Bonferroni using the p.adjust function in R [28].
Discussion
The field of addiction genetics aims to identify genes involved in addiction pathogenesis. Addiction researchers typically have collected rich phenotypic data with the expectation that there are many important sub-phenotypes. In most cases, cohorts with rich phenotype data are small and lack power for conventional GWAS. Progress has been made using GWAS with large sample sizes with limited phenotype data to identify associated variants. Most variants found in these studies are noncoding and are believed to affect gene expression. More work needs to be done to establish how these variants affect genes. Because a vast majority of detected variants have small effect sizes, it is unlikely these marker associations will advance the field unless the genes they affect are proven to be key players in the pathogenesis of addiction. Currently, only a small fraction of the genetic risk of addiction has been accounted for because multiple comparison testing limits the power of GWAS. We can circumvent some of the issues of identifying genes and limited power by utilizing gene-based burden and multi-phenotype tests.
PrediXcan, is a gene-burden test approach that relies on models that weigh SNPs within 1 Mb of a translation start site to predict gene transcription levels. The models are then used to predict gene expression levels for cohorts without direct RNA analysis. The predicted expression levels can then be associated with phenotypes. The PrediXcan approach reduces the number of association tests by 3 orders of magnitude (from 10–20 million SNPs in the genome to 10–20 thousand genes). In addition to improving power, PrediXcan directly implicates genes and their expression to phenotypes which allow for a better understanding of biological mechanisms at work. Despite the potential advantages of the PrediXcan approach, it is limited by the precision of the models used to predict expression. There is not a model for every gene in each tissue which hampered part of our multimodel analysis. We were able to test 14,219 transcripts in total but only with an average of 4,613 genes analyzed per tissue. The GTEx consortium, upon which these models are derived, only used, on average, 203 samples per brain tissue. It is expected that the models will improve as more data is collected [29, 30, 31].
The multimodel analysis approach, CPASSOC, used to combine phenotypic and tissue-specific results, reduced the number of tests from 230,690 in our base univariate association to 46,128, when aggregating across phenotype, and 65,270, when aggregating across tissues. The success of the aggregated tissue-phenotype analysis is likely due to two factors: (1) the need to correct for fewer comparisons and (2) the correlation between gene expression in brain tissues allows for a better estimation of predicted gene expression. In contrast, the aggregated phenotype-tissue analysis detected fewer significant findings compared to aggregated tissue-phenotype analysis. This could be the result of low correlations between phenotypes as they are focused on varying substances. There is also the potential to lose specificity in understanding which phenotype or tissue is driving an association. Forest plots were utilized to display multimodel analysis results with the phenotype by tissue association, GWAS association and GTEx model associations, to elucidate which predictor was driving a result (Fig. 2).
Single marker association tests without cross-phenotype or cross-tissue aggregation resulted in no significant findings. This was in part due to severe corrections for multiple comparisons. Low precision of predicted transcript levels limited power and resulted in the initial PrediXcan tests, without aggregation, to result in just two significant findings. Nonetheless, this does reinforce the benefit in the burden test methodology in relation to conventional methods. Using multimodel analyses however 1 suggestive transcript was detected and 15 significant results were found when aggregating across tissues. Aggregating by tissue performed better because a better gene specific estimate was obtained likely due to the correlations in gene expression across tissues (online suppl. Section 5.1).
The mechanism of action of how the genes associated with addiction in this study exert their effect is speculative. Many of the genes detected by aggregated tissue-phenotype association analysis are implicated in cognitive and behavioral phenotypes (See Table 4). Many of the genes implicated by aggregated tissue-phenotype association analysis are known to have biosynthetic, regulatory, and signal transductions roles (SEPTIN2 − organelle biogenesis; ZNF304 − functions as a transcriptional repressor; MTRF1L − plays a role in mitochondrial translation termination; PPIE − peptidyl-prolyl cis-trans isomerase; RRP7A − ribosomal RNA processing; SLC7A9 − involved in the transport of many compounds; RPL36AL − rRNA processing in the nucleus and cytosol; FOXN2 − forkhead domain-binding protein; MTERF4 − mitochondrial transcription termination factor; and GNMT − an enzyme that catalyzes the conversion of S-adenosyl-L-methionine to S-adenosyl-L-homocysteine and sarcosine). Changes in expression of SSPOP, a Spondin pseudogene, may not produce a functional translation product. The SSPOP transcript may act as a regulatory noncoding RNA. RPS23 − component of the large 40S ribonucleoprotein complex, associated with nicotine dependence in our study has prior association with smokeless tobacco [32]. Of all significant genes mentioned, 7 had prior associations with relatively similar traits obtained from interrogation of GWAS ATLAS [33]. PPIE − alcohol intake frequency (6.64 × 10−3); SLC7A9 − cigarettes per day (8.55 × 10−3); RPS23 − maternal smoking around birth (4.67 × 10−3); GMNT − drinks per day (1.25 × 10−2); ERV3-1 − frequency of needing morning drink of alcohol after heavy drinking session in last year (7.68 × 10−3); APIP − alcohol consumption (dichotomous, female) 5 (8.02 × 10−3); drinks per day (8.60 × 10−4) [33, 34, 35, 36, 37, 38]. COA5 − with cigarettes per day (7.67 × 10−4), smoking status (1.07 × 10−3), current tobacco smoking (5.71 × 10−3). The one suggestive gene HLA-B also had prior associations with average weekly beer (2.92 × 10−4), alcohol intake frequency (2.94 × 10−4) [33, 34]. All other implicated genes are novel for addiction/substance use phenotypes.
In summary, this study detected associations between predicted gene expression and addiction traits, in a relatively small, well-characterized cohort where the more conventional analysis was unsuccessful. Multi-trait and multi-tissue analysis is a promising approach to identify risk genes because it reduces the need to correct for multiple comparisons. The approach should benefit from improved models that will be made possible when additional reference transcriptional data becomes available. Because of the extremely polygenic nature of most traits with complex modes of inheritance, we expect that this study detected only a small fraction of the genes where the level of transcription is associated with addiction.
Statement of Ethics
As all of the data used in this manuscript are based on previously published literature, a statement of ethics is not applicable.
Conflict of Interest Statement
The authors report no conflicts of interest.
Funding Sources
This research was supported by the National Institute on Drug Abuse Grant R01 DA030976. Additional funding was provided by the State of California and the Ernest Gallo Clinic and the Research Center for Medical Research on Alcohol and Substance Abuse through the University of California at San Francisco.
Data Availability Statement
Nicotine and cannabis UCSF data used in this study are available through dbGaP accession phs001458.v1.p1. Alcohol phenotype data were not included in that dbGaP data submission but is available upon contacting corresponding author.
Supplementary Material
Acknowledgments
We thank Cindy Ehlers, Qian Peng, and Clark Jefferies for participation in writing and/or technical editing of manuscript.
| Alcohol Dep. | Family alcoholism | Cannabis craving | Nicotine Dep. | Cannabis Dep. | |
|---|---|---|---|---|---|
| Proportion endorsed | 60.49 | 85.93 | 17.38 | 49.76 | 13.2 |
| Heritability | 0 | 0.63 | 0.57 | 0.4 | 0.23 |
| Tissue | Phet | FDRphet | Bonfphet† | Phom | FDRphom | Bonfphom | chr | Gene name |
|---|---|---|---|---|---|---|---|---|
| Hypothalamus | 4.80E − 06 | 1.07E − 01 | 1.07E − 01 | 3.75E − 04 | 3.27E − 01 | 1.00E + 00 | 6 | HCG27 |
| Hippocampus | 3.60E − 05 | 4.02E − 01 | 8.04E − 01 | 2.87E − 05 | 2.23E − 01 | 6.41E − 01 | 19 | SPPL2B |
| Hypothalamus | 1.39E − 04 | 6.80E − 01 | 1.00E + 00 | 6.52E − 06 | 1.45E − 01 | 1.45E − 01 | 17 | PRPSAP2 |
| Cortex | 1.64E − 03 | 1.00E + 00 | 1.00E + 00 | 2.99E − 05 | 2.23E − 01 | 6.68E − 01 | 1 | MIER1 |
| Cerebellar hemisphere | 2.70E − 04 | 8.61E − 01 | 1.00E + 00 | 4.27E − 05 | 2.38E − 01 | 9.54E − 01 | 2 | SLC4A5 |
| Caudate basal ganglia | 4.18E − 04 | 9.23E − 01 | 1.00E + 00 | 7.11E − 05 | 3.17E − 01 | 1.00E + 00 | 2 | COX5B |
| Cerebellar hemisphere | 3.78E − 04 | 9.23E − 01 | 1.00E + 00 | 1.07E − 04 | 3.27E − 01 | 1.00E + 00 | 11 | SSRP1 |
| Cerebellar hemisphere | 1.02E − 02 | 1.00E + 00 | 1.00E + 00 | 1.67E − 04 | 3.27E − 01 | 1.00E + 00 | 11 | SIPA1 |
| Cortex | 1.03E − 02 | 1.00E + 00 | 1.00E + 00 | 1.71E − 04 | 3.27E − 01 | 1.00E + 00 | 12 | CAMKK2 |
| Cortex | 3.27E − 03 | 1.00E + 00 | 1.00E + 00 | 1.79E − 04 | 3.27E − 01 | 1.00E + 00 | 1 | RBBP5 |
| Hypothalamus | 6.95E − 05 | 3.66E − 01 | 1.00E + 00 | 1.30E − 05 | 3.13E − 01 | 3.13E − 01 | 17 | PRPSAP2 |
| Hippocampus | 1.80E − 05 | 2.16E − 01 | 4.33E − 01 | 5.74E − 05 | 4.79E − 01 | 1.00E + 00 | 19 | SPPL2B |
| Cortex | 8.21E − 04 | 7.29E − 01 | 1.00E + 00 | 5.99E − 05 | 4.79E − 01 | 1.00E + 00 | 1 | MIER1 |
| Cerebellar hemisphere | 1.35E − 04 | 4.63E − 01 | 1.00E + 00 | 8.55E − 05 | 5.13E − 01 | 1.00E + 00 | 2 | SLC4A5 |
| Caudate basal ganglia | 2.09E − 04 | 5.02E − 01 | 1.00E + 00 | 1.42E − 04 | 6.83E − 01 | 1.00E + 00 | 2 | COX5B |
| Cerebellar hemisphere | 1.89E − 04 | 5.02E − 01 | 1.00E + 00 | 2.14E − 04 | 7.04E − 01 | 1.00E + 00 | 11 | SSRP1 |
| Cerebellar hemisphere | 5.08E − 03 | 7.29E − 01 | 1.00E + 00 | 3.34E − 04 | 7.04E − 01 | 1.00E + 00 | 11 | SIPA1 |
| Cortex | 5.17E − 03 | 7.29E − 01 | 1.00E + 00 | 3.41E − 04 | 7.04E − 01 | 1.00E + 00 | 12 | CAMKK2 |
| Cortex | 1.63E − 03 | 7.29E − 01 | 1.00E + 00 | 3.59E − 04 | 7.04E − 01 | 1.00E + 00 | 1 | RBBP5 |
| Cerebellar hemisphere | 1.01E − 03 | 7.29E − 01 | 1.00E + 00 | 3.86E − 04 | 7.04E − 01 | 1.00E + 00 | 12 | ARHGAP9 |
| Phenotype | Phet | FDRphet | Bonfphet† | Phom | FDRphom | Bonfphom | chr | Gene name |
|---|---|---|---|---|---|---|---|---|
| Nic Dep | 3.49E − 09 | 2.50E − 05 | 2.50E − 05 | 7.16E − 06 | 1.43E − 03 | 5.14E − 02 | 2 | COA5 |
| Alc Dep | 1.76E − 06 | 6.32E − 03 | 1.26E − 02 | 4.75E − 01 | 9.17E − 01 | 1.00E + 00 | 6 | HLA-B |
| Alc Dep | 1.42E − 05 | 2.42E − 02 | 1.02E − 01 | 1.42E − 02 | 1.13E − 01 | 1.00E + 00 | 7 | GPC2 |
| Alc Dep | 1.55E − 05 | 2.42E − 02 | 1.11E − 01 | 1.78E − 04 | 1.04E − 02 | 1.00E + 00 | 6 | HCG27 |
| Cannabis craving | 1.69E − 05 | 2.42E − 02 | 1.21E − 01 | 6.55E − 09 | 1.98E − 05 | 4.70E − 05 | 19 | ZNF304 |
| Can Dep | 2.43E − 05 | 2.80E − 02 | 1.75E − 01 | 1.10E − 08 | 1.98E − 05 | 7.93E − 05 | 2 | LY75 |
| Family alcoholism | 2.73E − 05 | 2.80E − 02 | 1.96E − 01 | 5.51E − 09 | 1.98E − 05 | 3.95E − 05 | 2 | SEPTIN2 |
| Alc Dep | 5.31E − 05 | 4.41E − 02 | 3.81E − 01 | 9.09E − 01 | 9.90E − 01 | 1.00E + 00 | 17 | TRPV3 |
| Can Dep | 5.53E − 05 | 4.41E − 02 | 3.97E − 01 | 1.87E − 08 | 2.43E − 05 | 1.34E − 04 | 6 | MTRF1L |
| Nic Dep | 6.21E − 05 | 4.46E − 02 | 4.46E − 01 | 1.08E − 08 | 1.98E − 05 | 7.76E − 05 | 7 | SSPOP |
| Family alcoholism | 1.36E − 05 | 7.86E − 02 | 5.50E − 01 | 1.10E − 08 | 2.23E − 04 | 4.44E − 04 | 2 | SEPTIN2 |
| Cannabis craving | 8.44E − 06 | 6.80E − 02 | 3.40E − 01 | 1.31E − 08 | 2.23E − 04 | 5.28E − 04 | 19 | ZNF304 |
| Nic Dep | 3.11E − 05 | 1.37E − 01 | 1.00E + 00 | 2.16E − 08 | 2.23E − 04 | 8.72E − 04 | 7 | SSPOP |
| Can Dep | 1.22E − 05 | 7.86E − 02 | 4.90E − 01 | 2.21E − 08 | 2.23E − 04 | 8.90E − 04 | 2 | LY75 |
| Can Dep | 2.77E − 05 | 1.37E − 01 | 1.00E + 00 | 3.74E − 08 | 2.73E − 04 | 1.51E − 03 | 6 | MTRF1L |
| Cannabis craving | 4.58E − 05 | 1.37E − 01 | 1.00E + 00 | 4.06E − 08 | 2.73E − 04 | 1.64E − 03 | 3 | CCDC66 |
| Family alcoholism | 4.76E − 05 | 1.37E − 01 | 1.00E + 00 | 6.75E − 08 | 3.88E − 04 | 2.72E − 03 | 1 | PPIE |
| Alc Dep | 1.42E − 04 | 2.71E − 01 | 1.00E + 00 | 1.77E − 07 | 8.91E − 04 | 7.13E − 03 | 16 | CIAO3 |
| Can Dep | 1.73E − 04 | 2.75E − 01 | 1.00E + 00 | 2.09E − 07 | 9.21E − 04 | 8.41E − 03 | 22 | RRP7A |
| Nic Dep | 1.85E − 04 | 2.75E − 01 | 1.00E + 00 | 2.33E − 07 | 9.21E − 04 | 9.38E − 03 | 19 | SLC7A9 |
| Family alcoholism | 2.68E − 04 | 3.33E − 01 | 1.00E + 00 | 2.51E − 07 | 9.21E − 04 | 1.01E − 02 | 14 | RPL36AL |
| Family alcoholism | 2.90E − 04 | 3.37E − 01 | 1.00E + 00 | 4.02E − 07 | 1.27E − 03 | 1.62E − 02 | 2 | FOXN2 |
| Alc Dep | 7.52E − 05 | 2.02E − 01 | 1.00E + 00 | 4.11E − 07 | 1.27E − 03 | 1.65E − 02 | 14 | RPL36AL |
| Family alcoholism | 2.67E − 04 | 3.33E − 01 | 1.00E + 00 | 5.56E − 07 | 1.60E − 03 | 2.24E − 02 | 2 | MTERF4 |
| Nic Dep | 7.21E − 04 | 5.36E − 01 | 1.00E + 00 | 8.17E − 07 | 2.06E − 03 | 3.29E − 02 | 5 | RPS23 |
| Family alcoholism | 3.53E − 04 | 3.56E − 01 | 1.00E + 00 | 8.18E − 07 | 2.06E − 03 | 3.30E − 02 | 6 | GNMT |
| Family alcoholism | 6.96E − 04 | 5.36E − 01 | 1.00E + 00 | 9.02E − 07 | 2.14E − 03 | 3.63E − 02 | 7 | ERV3-1 |
| Alc Dep | 8.85E − 04 | 5.67E − 01 | 1.00E + 00 | 1.04E − 06 | 2.32E − 03 | 4.17E − 02 | 11 | APIP |
| Locus | Product | Addiction phenotype | Prior associations |
|---|---|---|---|
| SEPTIN2 | Septin 2 | Family alcoholism | Neurofibrillary tangle properties, CSF IL-8 level, diffusion barrier for cilium (1–3) |
| ZNF304 | Zinc finger protein 304 | Cannabis craving | Transcription factor(4) |
| SSPOP | SCO-spondin pseudogene | Nicotine dependence | Pseudogene, transcript affects neurite outgrowth (5, 6) |
| LY75 | CD205 | Cannabis dependence | Unipolar depression, mathematical ability, lymphocyte antigen processing (7–9) |
| MTRF1L | Mitochondrial translational release factor 1-like | Cannabis dependence | Mitochondrial electron transport and amygdala volume (10, 11) |
| CCDC66 | Coiled-coil domain containing 66 | Cannabis craving | Interacts with microtubules, cognitive function measurement, mathematical ability (9, 12) |
| PPIE | Peptidylprolyl isomerase E | Family alcoholism | Peptidyl-prolyl cis-trans isomerase which affects protein folding (13) |
| CIAO3 | Cytosolic iron-sulfur assembly component 3 | Alcohol dependence | Iron binding (14) |
| RRP7A | Ribosomal RNA processing 7 homolog A | Cannabis dependence | Microcephaly and neurogenesis, rRNA processing (15) |
| SLC7A9 | Solute carrier family 7 member 9 | Nicotine dependence | Cystinuria, amino acid transporter (16, 17) |
| RPL36AL | Ribosomal protein L36a Like | Family alcoholism and alcohol dependence | Behavioral disinhibition measurement (negative urgency) (18, 19) |
| FOXN2 | Forkhead box N2 | Family alcoholism | Autism spectrum disorder, ADHD, bipolar disorder, major depressive disorder, and schizophrenia (combined), transcription factor, Alzheimer's age of onset, math ability, handedness (9, 20–23) |
| MTERF4 | Mitochondrial transcription termination factor 4 | Family alcoholism | Mitochondrial ribosomal biogenesis (24) |
| RPS23 | Ribosomal protein S23 | Nicotine dependence | Ribosomal protein, brachycephaly, trichomegaly, and developmental delay (25) |
| GMNT | Glycine methyltransferase | Family alcoholism | Enzyme to regulate the ratio of S-adenosylmethionine to S-adenosylhomocysteine, detoxification pathway in liver cells (26) |
| ERV3-1 | Endogenous retrovirus group 3 member 1, envelope | Family alcoholism | Down regulated in choriocarcinoma (27) |
| APIP | APAF1 interacting protein | Alcohol dependence | Suppresses mitochondrial-mediated apoptosis (28) |
| COA5 | Cytochrome C oxidase assembly factor 5 | Nicotine dependence | Mitochondrial complex IV assembly factor (29) |
| HLA-B | Major histocompatibility complex, class I, B | Alcohol dependence | Immune response, depression, schizophrenia, smoking behavior, autism spectrum, anxiety (30–34) |
