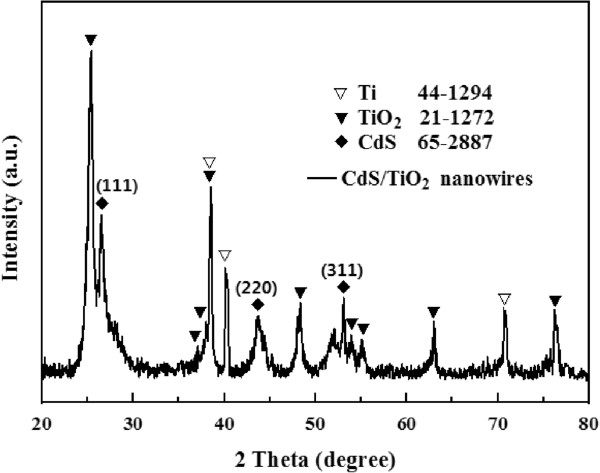

The XRD patterns of the CdS(4)-TiO₂ NWs were acquired as shown in Figure 1. The X-ray diffraction pattern of the CdS QDs on TiO₂ NWs proves the existence of CdS by its three characteristic peaks (2θ = 26.4° (111), 43.9° (220), and 51.9° (311); JCPDS card no.: 65-2887), and the other diffraction peaks attribute to the anatase phase TiO₂ NWs (JCPDS card no.: 21-1272 ) and Ti foil substrate (JCPDS card no.: 44-1294).

The SEM images of pure TiO₂ NWs and CdS(4,6,10)-TiO₂ NWs and the TEM and HRTEM images of CdS(4)-TiO₂ NWs are presented in Figure 2. The surface of titanium foil is etched and covered with TiO₂ NWs with diameter of about 15 nm. Moreover, TiO₂ nanowires possess smooth surface (Figure 2a). The SEM image displays the membrane formed by overlapping and interpenetrating of the TiO₂ NWs. When the deposition cycle number is four, the surfaces of the TiO₂ NWs become rougher than those of the pure TiO₂ NWs, indicating that the diameters of the CdS particles are in the nanoscale range (Figure 2b). For sample CdS(6)-TiO₂ NWs, the surfaces of the TiO₂ NWs are thoroughly covered by particles and rougher than those of the CdS(4)-TiO₂ NWs (Figure 2c). With the increase of deposition cycle number to ten, the morphologies of the TiO₂ NWs for the CdS(10)-TiO₂ NWs are kept almost the same with those of the CdS(6)-TiO₂ NWs, while the diameters of the TiO₂ NWs of CdS(10)-TiO₂ seem to be larger than those of CdS(6)-TiO₂, which indicates that more CdS nanoparticles are deposited on the TiO₂ NW surfaces (Figure 2d). To further investigate the deposition, morphology, and size of CdS, the TEM and HRTEM images of the CdS(4)-TiO₂ NWs are shown in Figure 2e,f. CdS QDs with sizes about 3 to 6 nm are distributed on TiO₂ NW surfaces, making the TiO₂ NW surface rough. This can be further confirmed by the lattice fringes (Figure 2f) of the circular area marked in Figure 2e. The interplanar spacings are 0.35 and 0.34 nm (Figure 2f), consistent with the (101) plane of anatase TiO₂ and (111) plane of CdS.

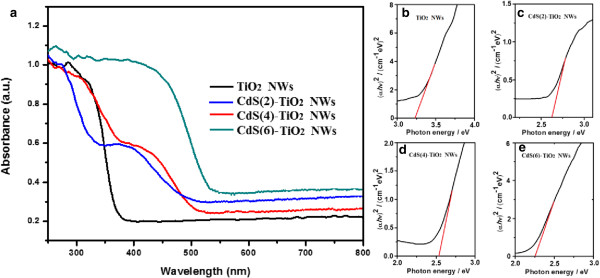

In order to study the optical response of the CdS QD-sensitized TiO₂ NW composites, UV-vis absorption spectra for samples of pure TiO₂ NWs and CdS(i)-TiO₂ NWs (i = 2,4,6) were shown in Figure 3a. Because pure TiO₂ NW absorption is mainly UV, no significant absorbance for visible light could be seen, which is consistent with its large energy gap. For CdS(i)-TiO₂ NWs (i = 2,4), both TiO₂ absorption edge and CdS absorption edge can be detected, as shown in Figure 3c,d, and the corresponding bandgaps of CdS nanoparticles shift from 2.58 to 2.44 eV, respectively. While for the CdS(6)-TiO₂ NWs, the calculated bandgap is 2.25 eV, as shown in Figure 3e. The absorption intensity in the visible light range is vital to the improvement of the photocatalytic activity of TiO₂.

The photocatalytic activities of the as-prepared samples were evaluated by the degradation of MO aqueous solution under xenon lamp irradiation. Using the Beer-Lambert law, the degradation efficiency (D) of the MO aqueous solution can be calculated by the following expression:

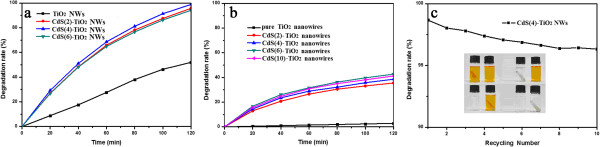

where A₀ and A _t are the absorbance of the characteristic absorption peak of MO at 465 nm in aqueous solution before and after irradiation for a given time. Figure 4 shows the time-dependent photocatalytic degradation efficiency curve of the pure TiO₂ NWs and CdS(i)-TiO₂ NWs (i = 2,4,6,10) under simulated solar irradiation and visible irradiation. The photodegradation efficiencies for pure TiO₂ NWs and CdS(i)-TiO₂ NWs (i = 2,4,6) under simulated solar irradiation are 51.96%, 95.65%, 98.83%, and 94.08%, respectively, after 120-min irradiation, as shown in Figure 4a. Clearly, CdS sensitization increases the photocatalytic efficiency. However, higher CdS concentration does not necessarily lead to better photocatalytic activity. Because higher CdS decoration would cover more surface area of TiO₂ NWs, the photocatalytic activity of TiO₂ NWs in the ultraviolet light range is hence reduced.

Figure 4b shows the photocatalytic efficiency curves of the pure TiO₂ NWs and CdS(i)-TiO₂ NWs (i = 2,4,6,10) under visible light irradiation obtained with a 420-nm cutoff filter. In this case, the efficiencies are 2.81%, 35.52%, 38.59%, 42.69%, and 41.23% in 120 min, respectively. The photocatalytic efficiencies increase slightly with the increase of CdS dosages at first and then become saturated under visible irradiation; the photocatalytic activity is greatly reduced, and almost no activity is observed for the pure TiO₂ NWs.

The synergistic effect mechanism is proposed for the understanding of charge generation and transportation for CdS(i)-TiO₂ NWs (i = 2,4,6,10). The coupling between a UV-excited semiconductor (TiO₂) and a visible light-excited semiconductor (CdS) can effectively enhance the solar energy utilization efficiency, especially in visible light regime. CdS possesses higher conduction band and valence band than TiO₂[9,14,15]. The band configuration induces the transfer of photogenerated electrons from CdS to TiO₂ and photogenerated holes from TiO₂ to CdS, which makes charge separation effective. Under simulated solar irradiation, the CdS particles and TiO₂ NWs could both be excited; photogenerated electrons and holes are transported to the TiO₂ NWs surfaces and CdS particles' surface, respectively; while under visible light irradiation, only the CdS particles could be excited. Photogenerated electrons are transported to the inner TiO₂ NW surfaces, and holes are kept on the CdS particles' surface, which reduces the photocatalytic activity when compared with simulated solar irradiation. At first, with the increase of deposition cycle number, more CdS particles are deposited on the TiO₂ NW surfaces, more photogenerated electrons are generated by the visible light irradiation, and accordingly, the photodegradation efficiency is increased.

When the deposition cycle numbers are 6 and 10, the TiO₂ NW surfaces are thoroughly covered with CdS nanoparticles. For sample CdS(10)-TiO₂ NWs, the inner CdS nanoparticles on the TiO₂ NW surfaces cannot receive visible light irradiation, whose photocatalytic efficiency has been saturated and almost the same with that of sample CdS(6)-TiO₂ NWs. Based on the above mechanism, it is understood that a remarkable absorption enhancement with the increase of deposition cycle number could not be translated to major photocatalytic efficiency increase. In addition, due to its photocorrosion, CdS QDs have been often exploited to sensitize a certain semiconductor with regulated band configuration and help separate the photogenerated electrons and holes [17]. In order to evaluate the photodegradation of MO by plain CdS QDs, a control experiment was made. CdS QDs were prepared onto a clean glass substrate with the same size via the S-CBD approach. The cycles were repeated six times, and the photodegradation efficiency is only 11.4% after a 120-min visible irradiation, which further supports the synergistic effect mechanism between CdS QDs and TiO₂ NWs.

The recyclability and ease of collection for the photocatalysts are very important in practical application. Figure 4c shows the cycling experiment for the as-prepared photocatalysts for MO using sample CdS(4)-TiO₂ NWs. The degradation efficiency after 120 min reduces from 98.83% to 96.32% after ten cycles. Evidently, the photocatalytic activity for MO degradation does not change much after each cycle, revealing the excellent cycling stability of the as-prepared CdS(4)-TiO₂ NWs. The undercurve inset in Figure 4c shows the photographs and photocatalytic degradation efficiency of a typical sample CdS(4)-TiO₂ NWs for recycled MO reduction, which shows ease of collection for the photocatalysts.
