Biosorbents from Plant Fibers of Hemp and Flax for Metal Removal: Comparison of Their Biosorption Properties
1Laboratoire Chrono-Environnement, Faculté des Sciences & Techniques, UMR 6249, Université Bourgogne Franche-Comté, 16 route de Gray, 25000 Besançon, France; chiara.mongiovi@univ-fcomte.fr (C.M.); nadia.crini@univ-fcomte.fr (N.M.-C.); dario.lacalamita@univ-fcomte.fr (D.L.)
2PROTMED Research Centre, Department of Systems Ecology and Sustainability, University of Bucharest, Spl. Independentei 91–95, 050095 Bucharest, Romania; corina.bradu@g.unibuc.ro
3FEMTO-ST, CNRS/UFC/ENSMM/UTBM, Department of Applied Mechanics, Université Bourgogne Franche-Comté, 16 route de Gray, 25000 Besançon, France; marina.raschetti@univ-fcomte.fr (M.R.); vincent.placet@univ-fcomte.fr (V.P.)
4Laboratory of Separation and Reaction Engineering-Laboratory of Catalysis and Materials (LSRE-LCM), Faculdade de Engenharia, Universidade do Porto, Rua Dr. Roberto Frias s/n, 4200-465 Porto, Portugal; ritalado@fe.up.pt
5Innovation Center of the Faculty of Technology and Metallurgy, University of Belgrade, Karnegijeva 4, 11000 Belgrade, Serbia; aivanovska@tmf.bg.ac.rs
6Department of Textile Engineering, Faculty of Technology and Metallurgy, University of Belgrade, Karnegijeva 4, 11000 Belgrade, Serbia; kostic@tmf.bg.ac.rs
*Correspondence: gregorio.crini@univ-fcomte.fr; Tel.: +33-381665701Abstract
Lignocellulosic fibers extracted from plants are considered an interesting raw material for environmentally friendly products with multiple applications. This work investigated the feasibility of using hemp- and flax-based materials in the form of felts as biosorbents for the removal of metals present in aqueous solutions. Biosorption of Al, Cd, Co, Cu, Mn, Ni and Zn from a single solution by the two lignocellulosic-based felts was examined using a batch mode. The parameters studied were initial metal concentration, adsorbent dosage, contact time, and pH. In controlled conditions, the results showed that: (i) the flax-based felt had higher biosorption capacities with respect to the metals studied than the hemp-based felt; (ii) the highest removal efficiency was always obtained for Cu ions, and the following order of Cu > Cd > Zn > Ni > Co > Al > Mn was found for both examined biosorbents; (iii) the process was rapid and 10 min were sufficient to attain the equilibrium; (iv) the efficiency improved with the increase of the adsorbent dosage; and (v) the biosorption capacities were independent of pH between 4 and 6. Based on the obtained results, it can be considered that plant-based felts are new, efficient materials for metal removal.
1. Introduction
In Europe, the Water Framework Directive (WFD) of 2000 established guidelines for the protection of surface water, underground water and coastal water. The main objective was to maintain and/or to restore water quality in Europe. In France, the WFD has been incorporated into French legislation by several laws, the latest of which dates from July 27, 2015 and deals with chemical substances [1,2,3]. This regulation lists two main categories of unwanted substances: dangerous priority substances (DPS) considered persistent, highly toxic or causing bioaccumulation and priority substances (PS) presenting a significant risk for the environment. A total of 70 substances are concerned, of which 8 are metals, namely Hg and Cd as DPS; Pb and Ni as PS; and As, Cr, Cu and Zn. The surface treatment industry is a particular contributor to the release of these metals [2], and among the various industrial activities, this sector is still considered to be one of the largest consumers and polluters of water [1,2,3]. In addition, these eight metals are also the subject of particular attention insofar as they account for the calculation of the so-called metox index, an indicator used to quantify certain forms of toxic pollution and to calculate the taxes that certain high-risk industries must then pay to the French Water Authority. The World Health Organization (WHO) and other environmental protection agencies (US EPA) have also adopted guidelines on the release of metals and their presence in water compartments.
Currently, Europe is asking industrials to innovate by reducing and/or eliminating metals present in their discharge waters at trace levels. In theory, there are methods available including membrane filtration, evaporation, liquid-liquid extraction, adsorption and ion exchange [4,5,6,7,8,9]. For example, the surface treatment industries can upgrade their standard installations used to treat their wastewater before release by using the series of (sand) filtration + adsorption onto activated carbons + ion-exchange to tend toward zero pollution [6,8]. This technology is recognized for its effectiveness, but its widespread use is very limited due to its high cost. It is also extremely difficult, while being economically viable, to remove substances that are heterogeneous and variable in nature and that occur at very low concentrations in discharge waters. In fact, economic considerations must be examined because the industrial sector in Europe is characterized by a large proportion of small and medium-size enterprises that are not very enthusiastic about investing in additional equipment with high operating and maintenance costs. In recent years, many attempts have been made to find inexpensive alternative materials as biosorbents that are both effective and acceptable for industrial use from both a technological (simplicity) and economic point of view. Numerous reviews on this topic can be consulted [10,11,12,13,14,15,16,17,18,19].
A recent class of materials proposed for environmental applications such as the removal of pollutants from solutions is based on the use of plants such as hemp and flax. These two plants are annual, high-yielding crops grown for their fibers and seeds [20,21,22]. Hemp and flax are interesting raw, eco-friendly, lignocellulosic materials because of their ease of production (rapid growth, no pesticides), low cost, renewable character, particular chemical composition of their fibers (mainly cellulose, hemicelluloses and lignin), particular structure (multicellular fibers of fibrilar structure), physical and mechanical properties as well as their versatility. They are usable in the form of powder, fragments (shives), fibers and oils since the entire plant (seeds and plant stem) is recoverable [20]. Like other lignocellulosic fibers or plant fibers such as jute, ramie, sisal, kenaf and bamboo, hemp and flax contain a high content of cellulose and comprise three main constituents (cellulose, hemicelluloses, and lignin) and other minor components. Within the framework of a circular and ecological economy, products based on natural fibers of vegetal origin such as hemp and flax are attracting great interest for their numerous applications in various industrial fields such as textiles, the paper industry, the construction sector, composites (automotive applications, plastic, packaging), agrochemistry, mulch and animal bedding [20,21,22,23,24,25,26]. However, in the field of wastewater treatment, there are no real applications yet, but there is a growing interest in the academic field [25,26].
Indeed, hemp and flax in fiber form have been proposed for metallic ion removal from aqueous synthetic solutions [23,25,26,27,28,29,30,31,32,33,34,35]. Kostić’s group studied the capacity of hemp for removing Zn, Pb and Cd ions from aqueous monometallic solutions and indicated strong bonding of metal ions to functional groups such as the carboxylic, carbonyl and hydroxyl groups present in the hemp structure (cellulose, hemicelluloses, lignin and extractives) [27,32,35]. In a series of papers on the ability of hemp to act as a non-conventional, low-cost and effective adsorbent, Păduraru and co-workers also reported similar conclusions for other metals such as Cu, Cr, Ag and Co [28,29,30]. Balintova et al. [31] studied the removal of copper ions by hemp and reported biosorption capacities between 3.91 and 4.45 mg/g, which were similar to those of the conventional commercial materials used in the treatment of metal contaminated water. Other studies have reported similar findings and conclusions [23,24,33,34]. Flax has also been proposed for metal removal [36,37,38,39,40,41]. For example, Abbar et al. [36,37] showed that 1 g of flax was capable of adsorbing 8.4 mg of Zn, 9.9 mg of Cu and 10.7 mg of Pb. The fibers were brought into contact with the metals present in water at a pH between 4 and 7 (depending on the element to be complexed) for 1 h under agitation. The authors reported that the chemical groups present in the structure of polysaccharides were responsible for biosorption, similarly to the case of hemp fibers. Melia et al. [38] also showed that flax byproducts were interesting as unconventional materials for adsorbing Cd: For metal concentrations between 1.1 and 21.5 mg/L, flax was capable of removing more than 90% of Cd in less than 10 min for the lowest investigated concentrations. The maximum capacity reported by the authors was 3.36 mg/g. Abutaleb et al. [40] recently reported a maximum capacity of 40.9 mg/g for U adsorption onto flax fibers. All these results were obtained using hemp and flax in the form of fibers.
Recently, our group proposed for the first time the use of hemp-based biosorbents in a felt form to treat monometallic and polymetallic aqueous solutions [42,43,44,45,46]. Results of biosorption in batch mode showed that hemp-based felts could be used as efficient biosorbents for the removal of metals present in synthetic solutions [42,43] or in real effluents [44,45,46]. Pursuing our interest in such plant-based biosorbents, in this study, we compared the biosorption performance of two lignocellulosic-based felts (Figure 1) made of hemp and flax fibers and a smaller amount of synthetic fibers toward the removal of 7 metals, namely Al(III), Cd(II), Co(II), Cu(II), Mn(II), Ni(II) and Zn(II). These metals were selected based on their common presence in discharge waters from the French metal industry. Moreover, Cd, Cu, Ni and Zn are also on the list of priority pollutants defined by the French Water Agency [2]. Herein, studies concerning the effects of metal concentration, adsorbent dose, contact time and pH were evaluated using the batch method. To our knowledge, this is the first report on the comparison of metal removal from solutions by hemp- and flax-based materials in felt form, which might be an interesting option to apply in industrial scenarios due to its easy operation as a filter.
2. Materials and Methods
2.1. Materials and Chemicals

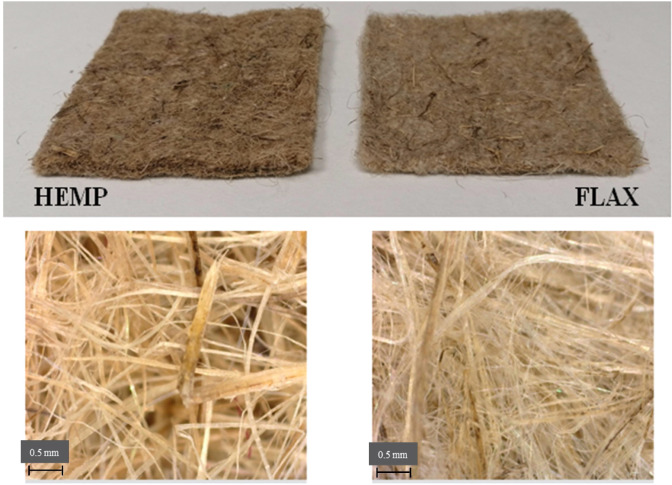

Hemp- and flax-based felts were provided by a French lignocellulosic material processing company in Franche-Comté (Eurochanvre, Arc-les-Gray, Haute-Saône) (Figure 1). Before use, the two felts were extensively washed in water (pH = 5.8 ± 0.1) and then dried at 60 °C until constant weight [42]. Their characteristics are reported in Table 1.
The chemical composition of felts was determined according to a procedure given in the literature [43] by subsequent removal of non-cellulosic components and evaluation of the weight loss: water solubles (extraction with boiling water for 30 min), fats and waxes (extraction with dichloromethane for 4 h), pectins (extraction with 1% ammonium oxalate at boiling temperature for 1 h), lignin (extraction with 0.7% sodium chlorite (pH 4.0–4.5) at boiling temperature for 2 h) and hemicelluloses (treatment with 17.5% sodium hydroxide at room temperature for 45 min). After removal of the non-cellulosic components, α-cellulose remained as a solid residue. For each sample, the chemical composition was determined in duplicate.
The ion exchange capacity (IEC in Table 1) of samples was determined by a potentiometric titration previously described in the literature [42].
Elemental analysis of the sample surfaces was performed using the Thermo NORAN system for energy-dispersive X-ray spectroscopy and electron beam excitation with a voltage from 15 keV to 20 keV. The surfaces of samples were examined on a scanning electron microscope (Apreo, ThermoFisher Scientific) with a tungsten filament voltage from 15 keV to 20 keV and low-vacuum conditions.
Metal sulfate salts were purchased from Sigma-Aldrich France and used as received. Appropriate weights of each metal were dissolved in water to obtain a stock solution containing 300 mg/L. Solutions having lower metal concentrations (range 1–100 mg/L) were obtained by dilution of the stock solution. The metal concentration in all replicates of each experiment was analyzed by ICP-AES following a standard protocol prior to each experiment [42,43,44,45,46].
2.3. Biosorption Equilibirum
The two most common types of isotherm models used in the literature are the Langmuir and the Freundlich. Their non-linear equations are given below: where x is the amount of metal adsorbed (mg), m is the amount of material used (g), Ce (mg/L) and qe (mg/g) are the liquid phase concentration and solid phase concentration of adsorbate at equilibrium, respectively, KL (L/g) and aL (L/mg) are the Langmuir isotherm constants, KF is the Freundlich constant (L/g) and 1/nF is the heterogeneity factor.
According to the Langmuir model, the adsorption process takes place at specific homogeneous sites on the adsorbent surface until a complete monolayer is formed. This model is used to estimate the maximum adsorption capacity qmax (mg/g), which corresponds to the adsorbent saturation, and it is numerically equal to KL/aL. The Freundlich model can be used to describe adsorption on heterogeneous surfaces, and it is not restricted to the formation of a monolayer. The nF value indicates the degree of non-linearity between the solution concentration and biosorption; in particular, if nF = 1, the biosorption is linear; if nF < 1, the biosorption process is chemical, whereas, if nF > 1, biosorption is a favorable physical process.
3. Results and Discussion
3.1. Characterization of Hemp- and Flax-Based Felts
Before the biosorption experiments, the hemp- and flax-based felts were characterized in terms of their structural properties; chemical composition; contents of C, N and S; and ion exchange capacity. From the results listed in Table 1, it is evident that hemp-based felt was thicker and had a higher surface weight than flax-based felt. Both two studied felts contained lignocellulosic fibers (hemp or flax) as well as a certain amount of synthetic fibers (Table 1). Hemp-based felt was characterized by a lower content of synthetic fibers, whereby the hemp fibers had a lower content of α-celluloses and consequently, a higher content of non-cellulosic components (such as hemicelluloses, lignin, pectins, fats and waxes as well as water solubles) compared to the flax fibers. Moreover, both felts had almost similar contents of C, N and S. The results obtained for ion exchange capacity revealed that the hemp-based felt had significantly lower ion exchange capacity in comparison to the flax-based felt.
3.4. Effect of Adsorbent Dose

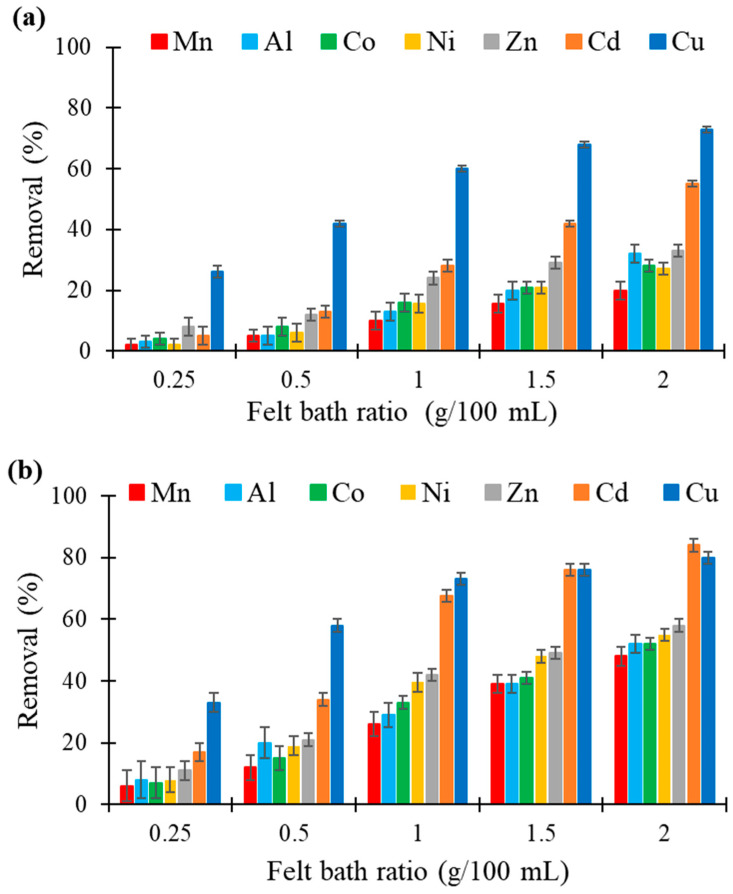

Figure 4 compares the removal of metals by the two felts by changing the dose of adsorbent in 100 mL of metal solution and keeping the other parameters constant. By increasing the amount of felt from 0.25 to 2 g, the removal percentage of each metal also increased, with superior performances for flax-based felt. One gram of a biosorbent was sufficient to obtain satisfactory biosorption results. The order of affinity obtained was always the same for all doses and each felt. Again, it is interesting to note the high levels of reduction obtained for Cu independently of the used felt. The flax-based felt also had a strong affinity for Cd complexing.
3.5. Effect of Contact Time

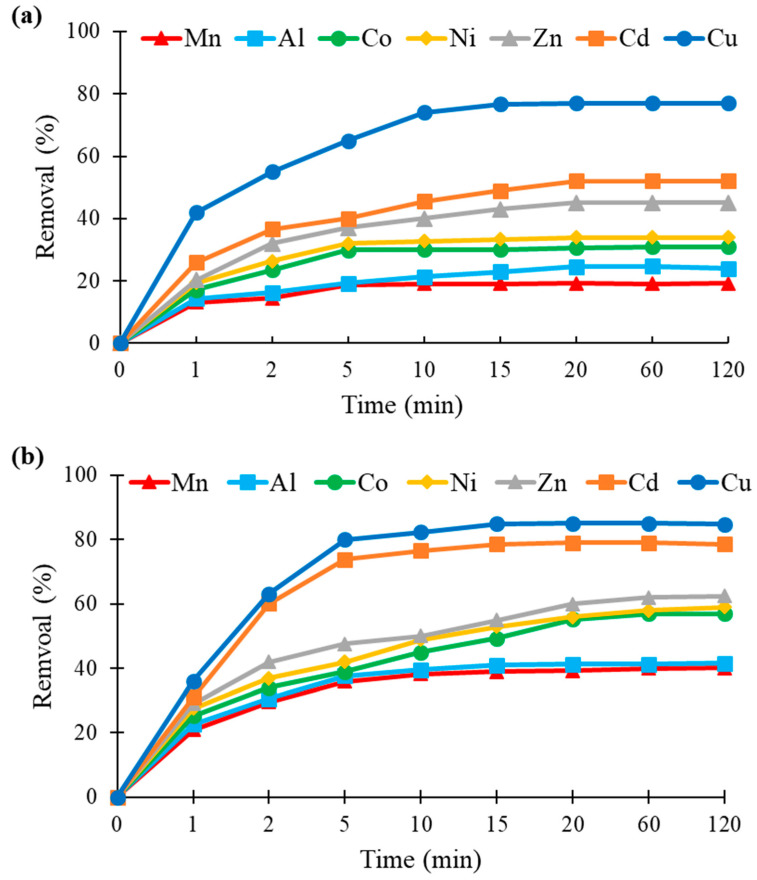

The biosorption data of metals versus contact time are presented in Figure 5, showing the time-dependent removal behavior in relation to the type of felt used for a concentration of 25 mg/L of each metal. Similar trends were obtained for hemp- and flax-based felts, indicating that both biosorption processes were rapid and uniform. Indeed, 10 min were sufficient to obtain biosorption equilibrium. This fast kinetic indicates a rapid binding of metal ions onto the felt, which suggests a surface biosorption mechanism. Similar results have been reported in the literature concerning the effect of contact time on the biosorption of single-component metal solutions by hemp and flax biosorbents in the form of fibers [24,27,28,33].

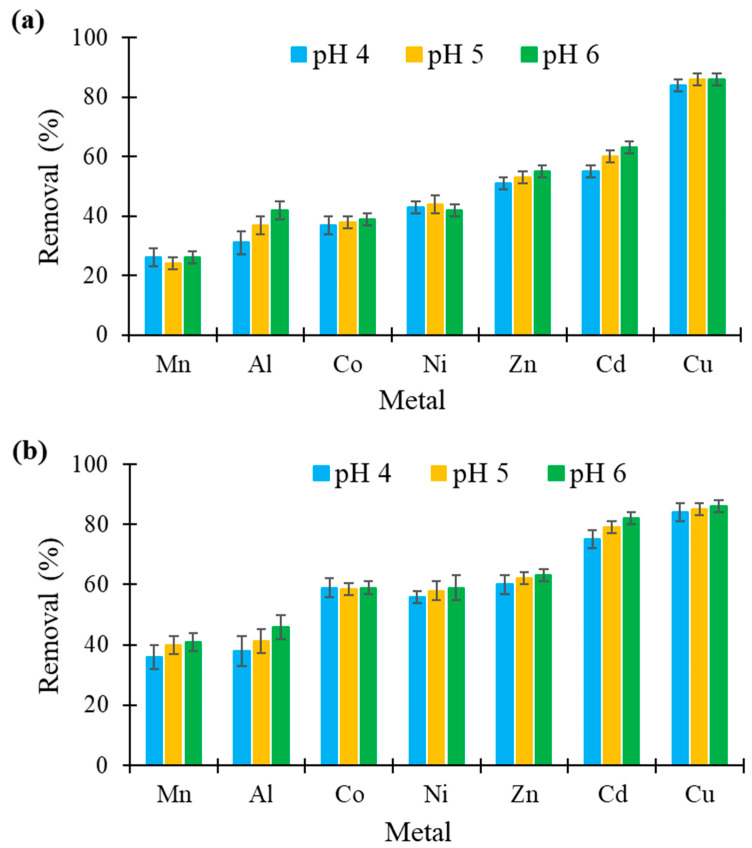

3.6. Effect of pH
Among other studied experimental conditions (metal concentration, adsorbent dosage and contact time), solution pH represented another important factor influencing biosorption. Namely, it affected the solubility of metal ions as well as the ionization state of the chemical groups present on the surface of the biosorbent [45]. In the current study, the effect of solution pH on metal reduction was studied at pH 4, 5 and 6, keeping the other parameters constant. This pH range was chosen because it corresponded to the pH values typically found in effluents from the surface treatment industry. The results reported in Figure 6 indicate that the performances of the two felts were almost independent of pH between 4 and 6. A similar observation was reported before for biosorption of Cd, Co and Zn onto hemp fibers [28,30,31] and biosorption of Cu and Zn onto flax fibers [36]. In each experiment, a change in the solution pH was systematically observed after contact with the felts, also suggesting a chemisorption mechanism [48,49,50,51,52]. The pH increase at the end of the experiments was less than 0.4 and less than 0.7 units for hemp- and flax-based felts, respectively.
3.7. Adsorption Isotherms

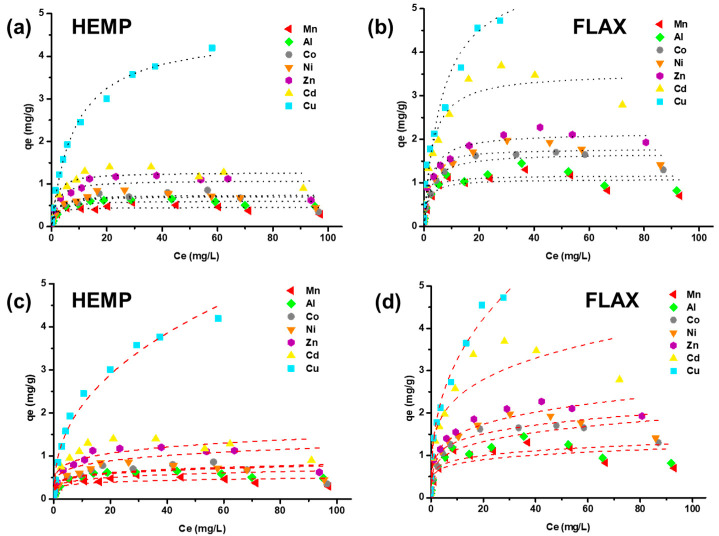

Experimental equilibrium data were fitted to the well-known and widely applied isotherm models of Langmuir and Freundlich. The isotherm parameters for the adsorption of metals onto materials are listed in Table 2. As expected, the Langmuir model was found to represent the equilibrium data with a much better fit as compared to the Freundlich model (Figure 7).
The R2 and χ2 values given in Table 2 confirmed that for both felts, the Langmuir model better fit experimental data. Based on the Langmuir analysis, for each metal, flax-based felt showed higher qmax values than those of hemp. The data demonstrated that both materials exhibited interesting biosorption properties toward Cu, which was the metal with the highest maximum adsorption capacity (4.51 mg/g and 5.53 mg/g for hemp- and flax-based materials, respectively). The Freundlich nF values showed that the adsorption process of metals onto the two felts was favorable under the studied conditions.
3.8. Tests with Polycontaminated Solutions

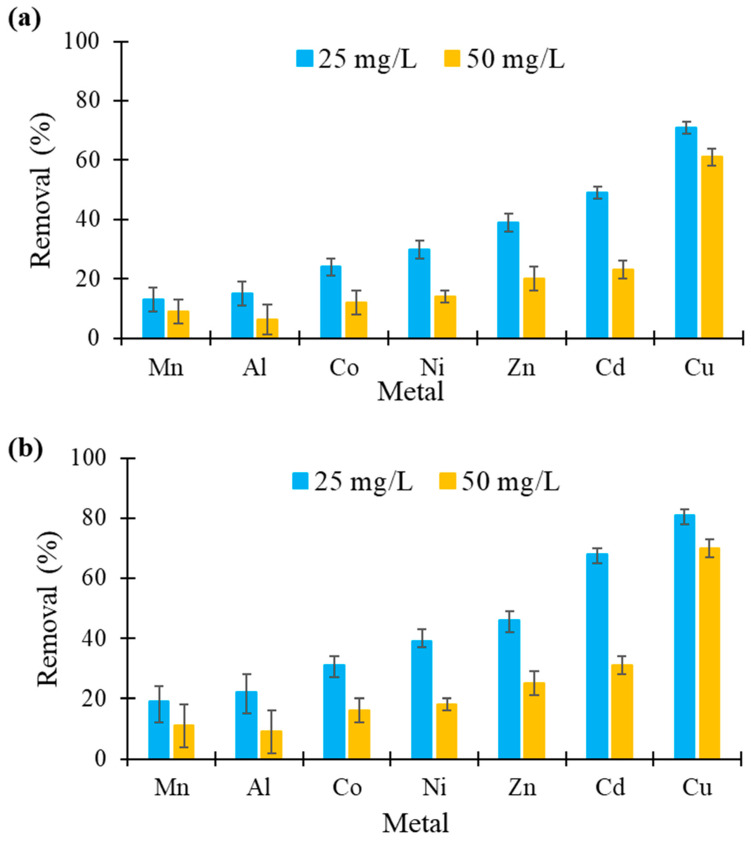

The potential of using hemp- and flax-based felts for removing the metals from an aqueous mixture of 7 metals was also studied. The experiments were conducted at two concentrations, 25 and 50 mg/L, corresponding to a total of 17.5 and 35 mg of metals in 100 mL of volume (Figure 8). The results showed that both felts (1 g in 100 mL) were even effective to treat a polycontaminated mixture. The performance values obtained for each metal in this solution were lower than those obtained in each corresponding single solution, indicating competition between the metals for complexing sites. However, the order of affinity did not change, with Cu always being the most retained and Mn and Al ions the least retained. At a total concentration of 175 mg/L (25 mg/L of each metal), flax-based felt had an excellent biosorption capacity, especially for Cu, with a reduction of 80% (value identical to that obtained in mono-contamination), and for Cd (65% lower concentration), even in the presence of other metals. When the total concentration was doubled to 350 mg/L, the reduction values decreased sharply, with the exception of those for Cu. Interestingly, when using 1 g of flax-based felt dispersed in 100 mL of a solution containing a total of 35 mg of metals, more than 70% of the 5 mg of copper present in the mixture was adsorbed. Similarly high values were published in the literature [53,54,55,56].
In both experiments, a change in the pH of the solution was also observed after contact with the felts, with the initial pH of 4.5 rising to 4.8 and 5.3 in the case of hemp- and flax-based felts, respectively. At these pH values, metals can start to precipitate, and this can participate in the biosorption mechanism.

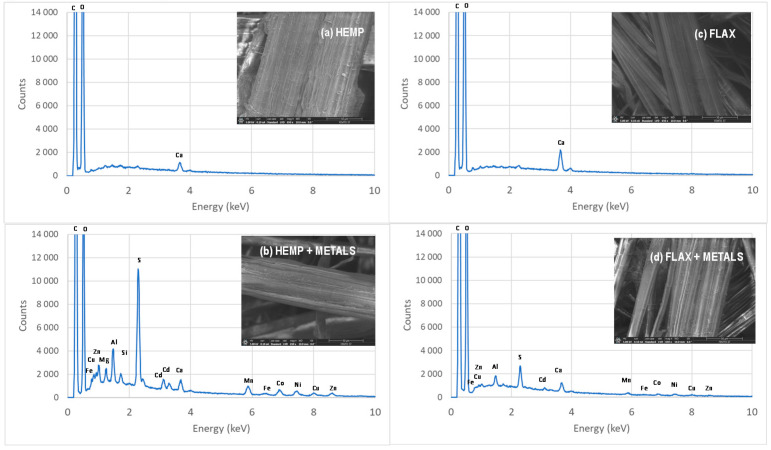

In a recent paper, the interactions involved in the biosorption process using monocontaminated solutions were studied by employing scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDX), which revealed that both surface interactions and precipitation participate in metal removal from solutions [48]. Figure 9 compares the EDX spectra and SEM images of hemp- and flax-based felts before and after adsorption of a polycontaminated solution containing 7 metals. These data confirmed the adsorption of metals by the two materials.
4. Conclusions
This contribution reports a study of the use of hemp- and flax-based felts as biosorbents for metal removal. Under controlled experimental conditions, flax-based felt had higher biosorption capacities for the target metals (Al, Cd, Co, Cu, Mn, Ni and Zn) than the hemp-based felt. Indeed, in the case of flax-based felt, metal chemisorption occurred simultaneously with physical biosorption. A higher exchange surface area was also provided in the flax-based felt, characterized by higher fiber fineness and α-cellulose content when compared to hemp. In all experiments, Cu ions showed the highest removal efficiency for both biosorbents. The biosorption process was rapid because 10 min were sufficient to attain equilibrium. The biosorption capacities were also pH-independent in a range between 4 and 6. Based on these results, it can be considered that plant-based felts are new, efficient lignocellulosic materials for metal removal from aqueous solutions. More experiments will be carried out using other mono- or multi-component synthetic solutions and real effluents from the surface treatment industry. Here, the felts were used in batch processes, but our objective is to install the filters directly into an existing treatment tank under passive mode without additional energy consumption or process investments. In this case, our idea is not to regenerate the material but to eliminate it after use. Like all agricultural materials, after biosorption, felts can be incinerated to a much smaller volume of ash and/or recovery of adsorbed metal without adverse impact on the environment.
Acknowledgments
N.M.-C. and G.C. thank Eurochanvre (Arc-les-Gray, France) for the gift of the materials and the PEA²t Platform (Chrono-environnement, Université Bourgogne Franche-Comté, France), which managed and maintained the analytical equipment used in this study. Doctoral student Chiara Mongioví also thanks the Région Bourgogne Franche-Comté (France) for awarding her a research grant.
Funding
N.M.-C. and G.C. thank Région Bourgogne Franche-Comté (France), Silac Industrie (Champlitte, France) and FEDER (Fonds Européen de Développement Régional) (FINEAU Program 2021–2024, a European project focused on “Plant-based cellulosic materials for wastewater treatment”) for financial support and the PEA²t Platform (Chrono-environnement, Université Bourgogne Franche-Comté, France) which manages and maintains the analytical equipment used in this study. A.R.L. Ribeiro would like to acknowledge the support of Base Funding—UIDP/50020/2020 of the Associate Laboratory LSRE-LCM—funded by national funds through FCT / MCTES (PIDDAC), and FCT funding under DL57/2016 Transitory Norm Programme.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data presented in this study are available on request from the corresponding author.
Conflicts of Interest
The authors declare no conflict of interest.
Sample Availability
Samples of the compounds are available from the authors.
| HEMP | FLAX | |
|---|---|---|
| Thickness (mm) | ~5 | ~3 |
| Surface weight (g/m2) | 665 | 280 |
| Synthetic fiber content (%) | 14.68 | 23.29 |
| Lignocellulosic fiber content (%) | 85.32 | 76.71 |
| α-Cellulose * (%) | 67.02 ± 0.2 | 72.77 ± 0.72 |
| Hemicelluloses * (%) | 19.32 ± 1.46 | 13.71 ± 1.00 |
| Lignin * (%) | 5.95 ± 0.33 | 6.93 ± 0.90 |
| Pectins * (%) | 1.50 ± 0.27 | 0.70 ± 0.31 |
| Fats and waxes * (%) | 1.23 ± 1.17 | 0.76 ± 0.12 |
| Water solubles (%) | 4.98 ± 0.18 | 5.12 ± 1.29 |
| % C | 41.1 | 43.5 |
| % N | 0.28 | 0.35 |
| % S | 0.06 | 0.09 |
| Ion exchange capacity (meq/g) | 0.10 ± 0.09 | 0.87 ± 0.09 |
| Metal Ion | Langmuir | Freundlich | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| qmax (mg/g) | KL (L/g) | aL (L/mg) | χ2 | R2 | KF (L/g) | nF | χ2 | R2 | ||
| HEMP | Mn | 0.33 | 0.08 | 0.24 | 0.00567 | 0.9337 | 0.18 | 4.06 | 0.01258 | 0.6537 |
| Al | 0.51 | 0.38 | 0.75 | 0.00398 | 0.9806 | 0.19 | 3.13 | 0.01554 | 0.7665 | |
| Co | 0.45 | 0.08 | 0.19 | 0.01860 | 0.8331 | 0.22 | 3.24 | 0.03517 | 0.7029 | |
| Ni | 0.53 | 0.15 | 0.28 | 0.01456 | 0.9207 | 0.22 | 3.10 | 0.03519 | 0.7284 | |
| Zn | 0.76 | 0.21 | 0.28 | 0.02939 | 0.8869 | 0.31 | 2.88 | 0.06693 | 0.7905 | |
| Cd | 1.02 | 0.57 | 0.56 | 0.02435 | 0.9563 | 0.38 | 2.88 | 0.07575 | 0.8237 | |
| Cu | 4.51 | 0.66 | 0.15 | 0.01485 | 0.9894 | 0.55 | 1.73 | 0.04286 | 0.9743 | |
| FLAX | Mn | 0.78 | 0.27 | 0.35 | 0.03427 | 0.9416 | 0.33 | 3.03 | 0.07986 | 0.7684 |
| Al | 0.90 | 0.38 | 0.42 | 0.03225 | 0.9564 | 0.45 | 3.82 | 0.07136 | 0.8545 | |
| Co | 1.45 | 13.24 | 9.13 | 0.01866 | 0.9738 | 0.43 | 2.6 | 0.07671 | 0.9020 | |
| Ni | 1.56 | 2.01 | 1.29 | 0.03575 | 0.9717 | 0.68 | 3.63 | 0.06871 | 0.9557 | |
| Zn | 2.05 | 2.09 | 1.02 | 0.03297 | 0.9914 | 0.72 | 3.33 | 0.04097 | 0.9764 | |
| Cd | 3.00 | 9.15 | 3.04 | 0.12359 | 0.9796 | 1.08 | 3.00 | 0.23426 | 0.9785 | |
| Cu | 5.53 | 1.75 | 0.32 | 0.02546 | 0.9906 | 1.40 | 2.70 | 0.18903 | 0.9802 | |
