Tracing contacts to evaluate the transmission of COVID-19 from highly exposed individuals in public transportation
1Programa de Pós Graduação em Informática Aplicada, Universidade de Fortaleza, 60811-905 Fortaleza, Ceará, Brasil
2Departamento de Física, Universidade Federal do Ceará, 60455-760 Fortaleza, Ceará, Brasil
3Laboratório de Ciência de Dados e Inteligência Artificial, Universidade de Fortaleza, 60811-905 Fortaleza, Ceará, Brasil
4Mestrado Profissional em Ciências da Cidade, Universidade de Fortaleza, 60811-905, Fortaleza, Ceará, Brazil
5Célula de Vigilância Epidemiológica, Secretaria Municipal da Saúde, 60810-670 Fortaleza, Ceará, Brasil
6Departamento de Saúde Pública, Universidade de Fortaleza, 60451-970 Fortaleza, Ceará, Brasil
7Empresa de Tecnologia da Informação do Ceará, Governo do Estado do Ceará, 60130-240 Fortaleza, Ceará, Brasil
*Correspondence to: erneson@unifor.brAbstract
We investigate, through a data-driven contact tracing model, the transmission of COVID-19 inside buses during distinct phases of the pandemic in a large Brazilian city. From this microscopic approach, we recover the networks of close contacts within consecutive time windows. A longitudinal comparison is then performed by upscaling the traced contacts with the transmission computed from a mean-field compartmental model for the entire city. Our results show that the effective reproduction numbers inside the buses, Rebus, and in the city, Recity, followed a compatible behavior during the first wave of the local outbreak. Moreover, by distinguishing the close contacts of healthcare workers in the buses, we discovered that their transmission, Rehealth, during the same period, was systematically higher than Rebus. This result reinforces the need for special public transportation policies for highly exposed groups of people.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
We gratefully acknowledge CNPq, CAPES, FUNCAP, the National Institute of Science and Technology for Complex Systems in Brazil and the Edson Queiroz Foundation for financial support.
I.INTRODUCTION
Human mobility is crucial to understanding the COVID-19 pandemic since the Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) is disseminated individual to individual via droplet and airborne transmissions [1]. Considering that non-pharmacological interventions, such as social distancing and isolation, still represent fundamental measures to control the COVID-19 outbreak, the nature of SARS-CoV-2 dissemination also unveils the need to understand the role of the space where interaction between people occurs. There is consensus that superspreading events, which are usually investigated through contact tracing models [2–7], are more likely to happen in indoor environment, as substantiated by previous studies of indoor contagion in hospitals [8, 9], restaurants [10], offices [11], and even on cruise ships [12, 13]. However, the relation between the microscopic level of contagion in indoor environments and the macroscopic observables, such as the numbers of cases and deaths at the city scale remains unclear.
Public transportation is one of the main forms of commuting, playing an important role in the pace of life in cities [14], specially in epidemics [15–20]. In spite of the fact that some cities have adopted social distancing and sanitary protocols on public transportation to control the COVID-19 outbreak, it is common that buses or subways get crowded at rush hour, mainly in the developing countries. In recent months, some studies have been proposed to establish the safety of public transportation regarding the indoor COVID-19 contagion [21–27]. To the best of our knowledge, however, none of these studies have considered the possibility of a comparative analysis based on a two-fold perspective, namely, the dynamic of people’s movement in a city and the dynamic of the virus dissemination within vehicles of public transport.
Here, using data about people’s movement on buses and COVID-19 infection in a large metropolis, we define two data-driven mathematical models based on concepts of complex networks and non-linear dynamics in order to foster the understanding of the role public transportation plays in the COVID-19 pandemic. At the microscopic scale, we define a contact tracing model to estimate the transmission within city buses and, at the macroscopic scale, a compartmental model is employed to estimate the transmission in the entire city. The main contribution of our study is a comparative analysis between these two distinct modeling approaches through the combination of daily epidemiological and mobility data during the first 9 months of the local COVID-19 outbreak, and through different social distancing restriction regimes. One specially relevant aspect of this work is the fact that we are able to trace within the public transportation vehicles (i.e., indoor environments) two groups of people, one of them with a higher exposure to the virus in comparison to the other. This allows us to shed light on potentially dangerous superspreading events in public transportation.
II.MODELING APPROACH
A.Contact tracing model

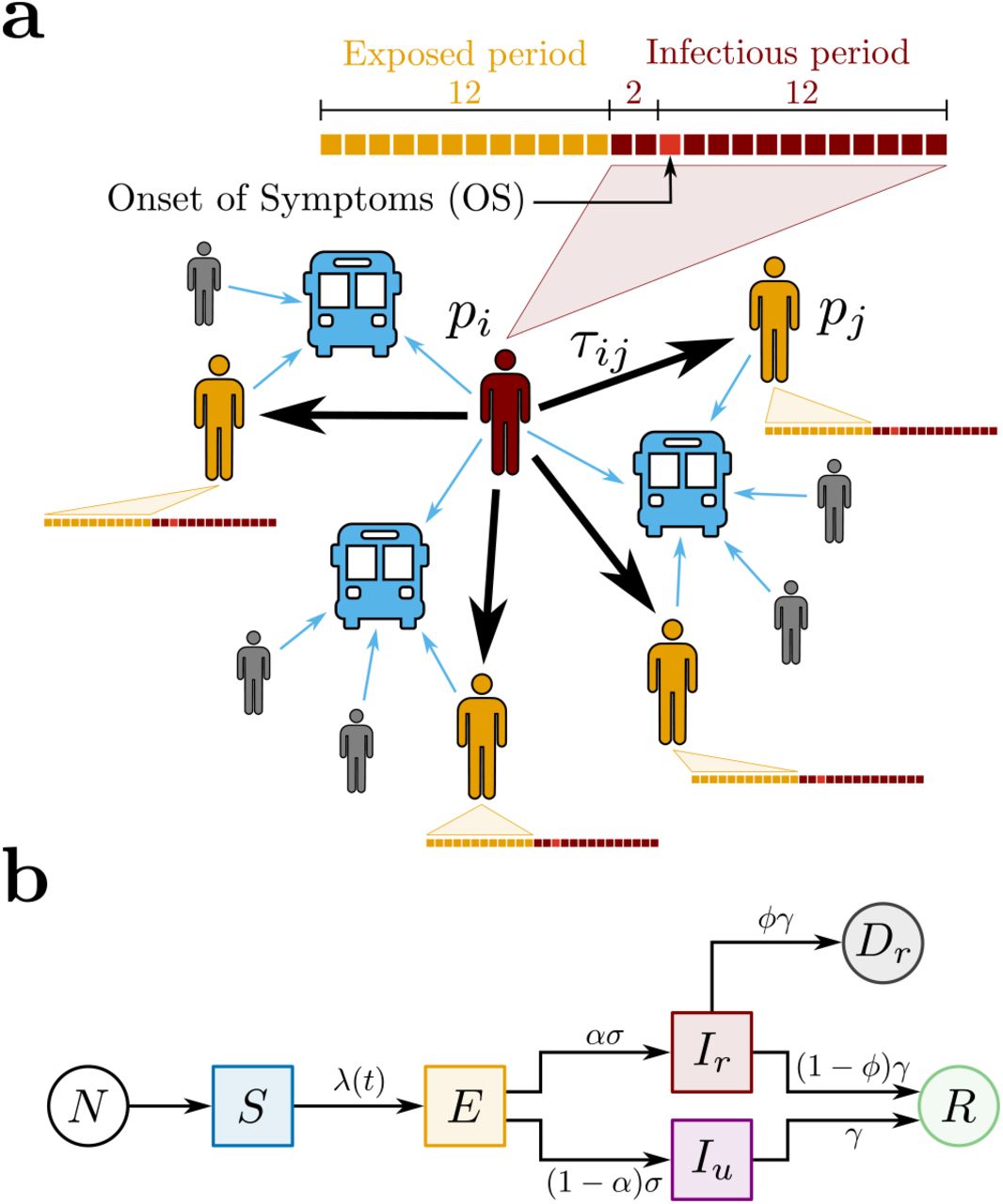

We propose a contact tracing model using two datasets that relate bus validations to COVID-19 confirmed cases during the periods of social isolation, lockdown, and economic reopening in the city of Fortaleza, Ceará, Brazil (see Methods). Our model is a network based on Potentially Infectious Contacts (PICs), in which bus passengers during their infectious period -according to subsequent diagnosis of COVID-19 -have shared the transport for a certain amount of time with other passengers, the latter in their exposed period -also according to subsequent COVID-19 diagnosis. Precisely, the proposed network is composed of vertices pi that represent the passengers diagnosed with COVID-19, and weighted directed edges ck = (pi, pj, τij) that represent PICs. For each edge, the direction is assigned from an infectious passenger pi to an exposed passenger pj, and the weight τij is defined as the estimated value of the ride time shared by pi and pj on the same bus, as shown in Fig. 1a. We calculate τij by superimposing the estimated ride times from pi and pj, considering the different moments of their boarding. Here, the epidemiological profile for COVID-19 transmission is characterized by the dates of the passengers’ Onset of Symptoms (OS). The infectious period corresponds to the days in which a passenger diagnosed with COVID-19 can transmit the virus, initiating 2 days before OS and ending 12 days after OS. The exposed period refers to the time window during which the passenger can get the virus and maintain it latent until the infectious period. In this context, the exposed period begins 14 days before OS and ends 2 days before OS, i.e., the infectious and the exposed periods have a width of 14 and 12 days, respectively, and they do not overlap [28–30]. Furthermore, if there is more than one PIC related to an exposed passenger pj, we consider solely the edge with the largest value of τij. It is important to notice that, by crossing the datasets of bus validations and confirmed cases of COVID-19 in Fortaleza during the period from March to December 2020, we are able to identify 5, 159 pairs of infectious and exposed passengers that rode the same bus on the same day. However, their associated values of τij could only be computed for 3, 023 (58.6%), due to missing information in the dataset of bus validations. From these pairs, we obtain that the network of PICs corresponds to a forest composed of 213 trees with a total of 530 vertices (infectious passengers) and 317 edges (PICs). From all vertices found, 97 were identified as healthcare workers (see Methods). The Centers for Disease Control and Prevention (CDC) recommends that any contact tracing strategy for COVID-19 should consider the concept of Close Contacts (CCs) [31], i.e., anybody who has been for at least 15 minutes within 6 feet (≈ 2 meters) of an infectious person. Since buses are small, enclosed, and they have a great tendency to get crowded at rush hours, we define the CCs in the network of PICs only considering the time condition τij > τc, where the threshold τc = 15 minutes. Applying this criterion to the network of PICs, we find that the network of CCs is composed of 154 trees with a total of 360 vertices (infectious passengers) and 206 edges (CCs). In this case, 75 vertices were identified as healthcare workers. In order to understand the COVID-19 spreading in public transportation, we define the effective reproduction number for the contact tracing model, Rebus, as the expected number of secondary cases produced by a single (typical) infection. Precisely, it accounts for two contributions in relation to who is spreading the disease: one due to reported infectious individuals, , and another due to unreported infectious individuals
. Here, we assume that the fraction of newly reported to newly unreported cases generated by a typical reported infectious individual remains invariant during time. This is equivalent to consider the value of
proportional to the average number of outdegrees from the vertices in the network of CCs during a given time window,
,
The constant of proportionality χ involved in this relation will be explicitly computed through the calibration between the contact tracing and the compartmental models. Each consecutive time window has a width of 22 days and a step size of 5 days. We emphasize that our model has an intrinsic time delay regarding the consolidation of that can reach ≈ 53 days. This value is associated to the time delay in the consolidation of COVID-19 dataset (≈ 15 days) and to the superposition of the maxima of two infectious periods and one exposed period.
B.Compartmental Model
We also adopt a compartmental model to describe the transmission of COVID-19 in order to estimate the levels of infection of the pathogen in Fortaleza. Here, we propose a SEIIR model that distinguishes the populations of Susceptible, Exposed, Infectious (reported or unreported), and Removed (recovered or deceased) individuals, as shown in Fig. 1b. Our model is inspired by the SEIIR model proposed by Li et al. [32]. The reported infectious population Ir corresponds to the number of individuals that had the SARS-CoV-2 infection confirmed by the health system. The unreported infectious population Iu comprises the complement of Ir, i.e., individuals that were infected with COVID-19 but remained unknown to health authorities. We assume that the large majority of the reported infectious individuals are symptomatic cases, in contrast to the population of unreported infectious individuals -of which the large majority is assumed to be of asymptomatic cases. Given this fundamental assumption and considering the recent finding that asymptomatic people are 42% less likely to transmit the SARS-CoV-2 than symptomatic ones [33], we define that the transmission rate for the unreported infectious population Iu is reduced by a factor of µ in relation to the parameter β that represents the transmission rate for the reported infectious population Ir. In this context, the time-dependent rate at which the susceptible population S becomes the exposed population E is given by
where N is the total population of Fortaleza, taken as constant, being approximately equal to 2.67 million people. A fraction α of the exposed individuals is presumed to become reported infectious at a rate σ, and the complementary fraction (1 − α) to evolve to unreported infected at the same rate. Also, both reported and unreported infectious population are assumed to become part of the removed population at the same rate γ. We also keep track of the fraction ϕ of the removed reported infectious population evolving to death, so that the reported deceased population Dr increases at a rate of ϕγIr. The following system of coupled differential equations rules our model:
The total population N = S + E + Ir + Iu + R + Dr is conserved. Furthermore, it can be readily shown [32] that the effective reproduction number Recity is given by
From Eq. (9), we can identify as the average number of secondary infections due to contagion with reported infectious individuals, while
is the effective reproduction number due to contagion with unreported infectious individuals. Finally, the SEIIR model is used here as a core model within the Iterative Ensemble Kalman Filter (IEnKF) framework (see Methods). This approach allows us to investigate the time evolution of the effective reproduction number Recity by inferring the SEIIR model parameters and their populations (see Figs. S1 and S2 of the Supplementary Information). The IEnKF framework is systematically applied to running windows of 22 days, with step size of 5 days, starting from March 24 to November 9, 2020. We use as observable the cumulative number of deaths by SARS-CoV-2 reported daily by the health authorities. For the first and subsequent windows, the guesses for the initial populations of exposed, E0, and deceased individuals, D0, are obtained from the daily number of COVID-19 confirmed cases and the daily cumulative number of COVID-19 confirmed deaths. As the cumulative number of deaths by SARS-CoV-2, both quantities are calculated from the dataset of COVID-19 confirmed cases and deaths (see Methods). In the particular case of the initial guess for the exposed population, E0 = Ci/(ασ), where Ci is the reported number of daily cases. This corresponds, for example, to 4, 982 individuals in the first window. After using IEnKF to estimate the values of all model parameters for the first window, the factor Recity is calculated at its center. These parameters and all populations obtained by numerical integration of Eqs. (3)-(8), except for E0 and D0, as previously explained, are used as initial guesses for the second window. The same procedure is then repeated for the third and subsequent windows.
III.RESULTS AND DISCUSSION

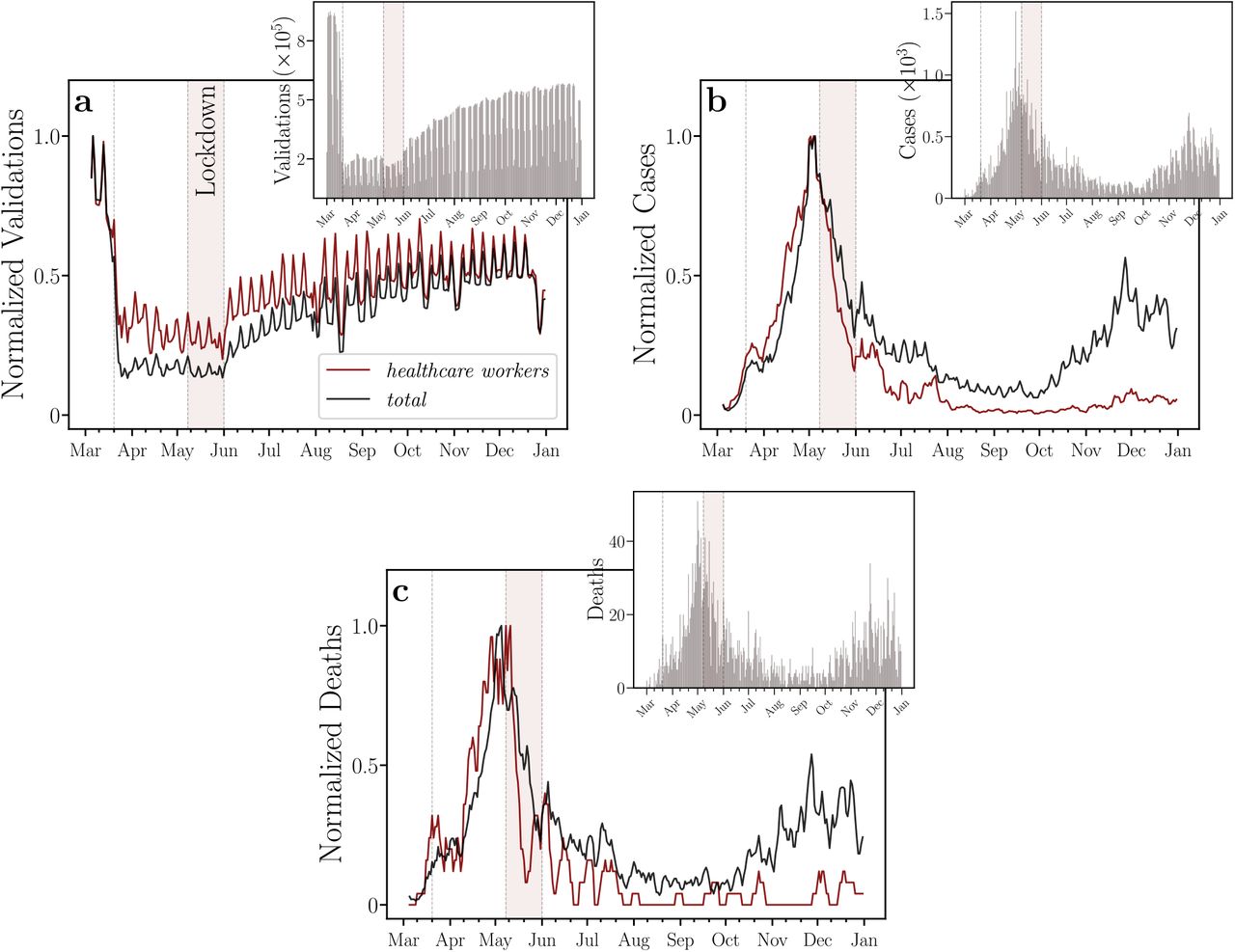

Figure 2a shows the normalized moving averages of bus validations of individuals that got COVID-19, including healthcare workers. We note that healthcare workers that came into contact with SARS-CoV-2 during the studied period did not reduce their bus rides as much as other passengers. In addition, their normalized moving averages of bus validations are getting closer to each other again as the economic reopening progresses. The inset of Fig. 2a shows the daily bus validations, which gradually started to increase in the economic reopening. Figures 2b and 2c show the daily numbers of cases and deaths, respectively, following the same previous normalization and stratification.

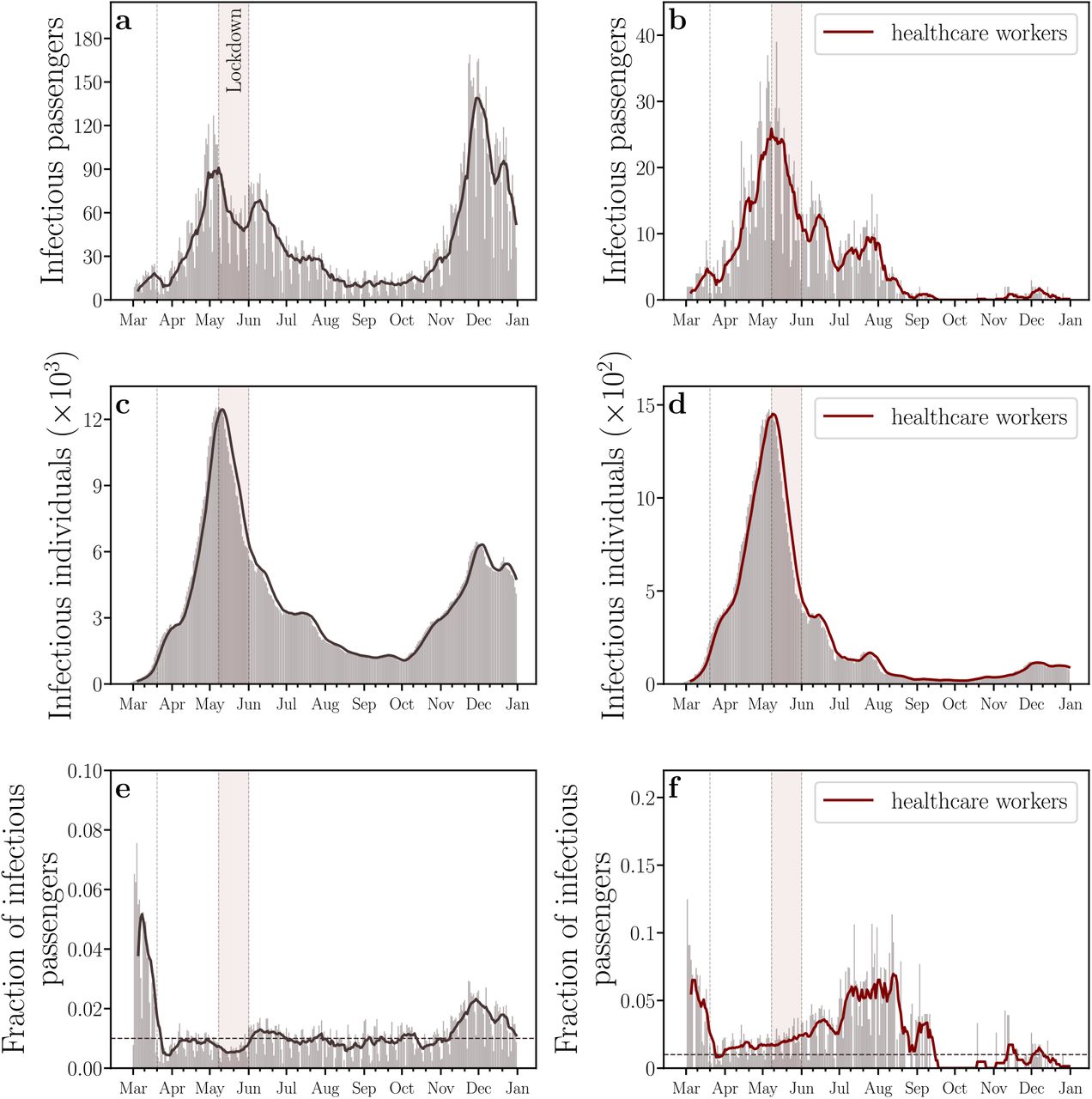

The representativeness of the dataset of COVID-19 confirmed cases on buses is assessed comparing the daily numbers of infectious individuals within those vehicles and in the entire city, as shown in Fig. 3. The daily number of infectious individuals is computed taking into account the 14 days that the individuals remain infectious, i.e., each individual who tested positive for COVID-19 counts up to 14 times, once per day, for the infectious curve. Figures 3a and 3b show the daily numbers regarding all infectious passengers and those infectious passengers who are healthcare workers, respectively. Similarly, the daily numbers of infectious individuals and infectious healthcare workers of the entire city are shown in Figs. 3c and 3d, respectively. While the first and second waves of the epidemic can be clearly identified in both curves shown in Fig. 3a (infectious passengers) and Fig.3c (infectious individuals), only highly attenuated peaks during the second wave period can be visualized in the corresponding curves for healthcare workers, as shown in Figs. 3b and 3d. We conjecture that the explanation for this behavior may be twofold. First, due to the high contagion of healthcare workers during the first wave, this group of people may have achieved a large percentage of immunity, as compared to the rest of the population. Second, efficient Personal Protective Equipment (PPE) became more available in hospitals after the first wave. The results in Fig. 3e show that the percentage of infectious passengers with respect to all infectious individuals in Fortaleza was higher than 1% during most of the epidemic period. Finally, the evolution in time of the fraction between infectious passengers and infectious individuals in the city who are both healthcare workers is shown in Fig. 3f.

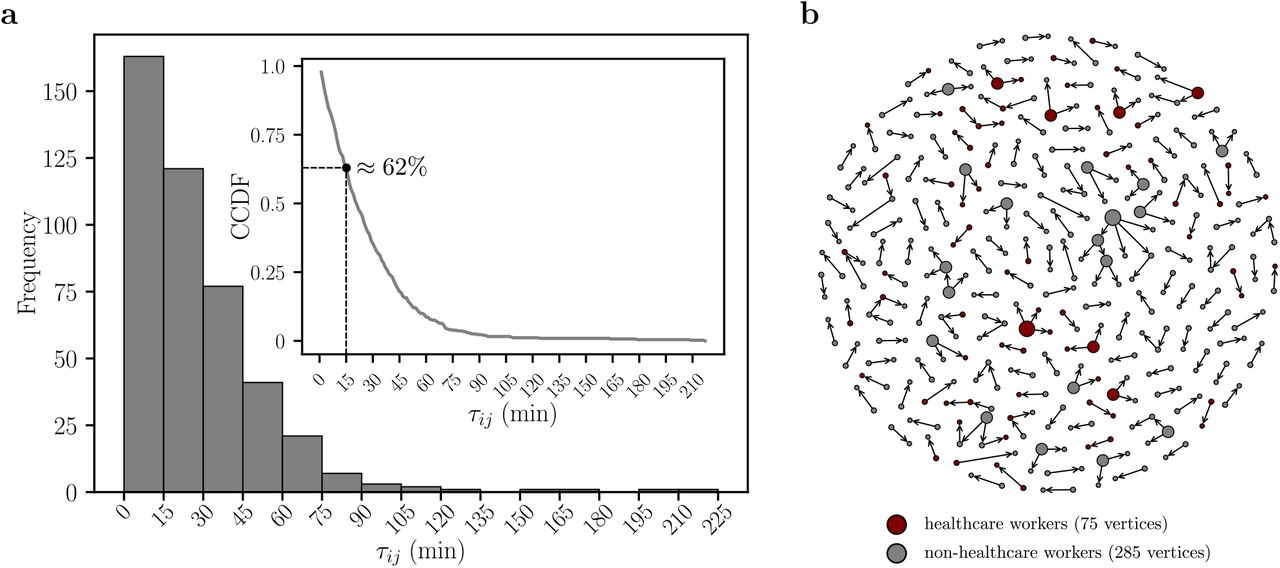

The histogram of the values of τij for the network of PICs is shown in Fig. 4a. The obtained distribution is characterized by the average ⟨τij ⟩ PICs ≈ 28 minutes. We find that CCs, defined by τij > τc = 15 minutes, represent about 62% of the PICs, as shown by the Complementary Cumulative Distribution Function (CCDF) in the inset of Fig. 4a. For the network of CCs, the average of the shared ride times is ⟨τij ⟩CCs ≈ 39 minutes. Fig. 4b shows the network of CCs taking into consideration the periods of social isolation, lockdown, and economic reopening. As depicted, it is composed of several trees, where the vertices represent bus passengers that were diagnosed with COVID-19 and the edges correspond to CCs. Bus passengers identified as healthcare workers in the network are highlighted in red. The size of the vertices is proportional to their outdegrees.
At this point, we show that it is possible to perform a direct comparison between the computed values of obtained from the contact tracing model for different time windows and the corresponding effective reproduction numbers Recity estimated from the compartmental model. First, it is reasonable to assume that
, as long as the population traveling by public buses can be considered as statistically equivalent, from an epidemiologic point of view, to the rest of the city. As a consequence of this assumption and using Eq. (9), we can write that
where the parameter ψ = [α + (1 − α)µ]−1 depends on the time window used for model inference with the IEnKF technique. We now proceed with the comparison between contact tracing and compartmental models. In practical terms, this is achieved by upscaling
to the numerical values obtained for Recity during the early period of the SARS-CoV-2 epidemic, before the restrictions of isolation and social distancing imposed by the State Government took effect. Considering Eqs. (1) and (10), we use the relation
and the numerical values of
, and Recity on the day that corresponds to the maximum of Recity during the first wave (April 8, 2020) to calculate χ ≈ 37. This constant combined with the values of ψ from the inference with the compartmental model, and the values of
from the contact tracing, both calculated for all time windows, are then used to obtain the entire curve of
(see the time evolution of χ/ψ in Fig. S3 of the Supplementary Information). The value of χ can be understood as the product of two factors, χ = χrrχru. Assuming the equality between the proportions of CCs in the pairs of infectious and exposed passengers with existing and missing values of τij, we estimate χrr ≈ 1/0.586 ≈ 1.70 as a balance factor for possible missing CCs. The value of the remaining factor χru ≈ 21.76 expresses the sub-notification of the confirmed cases as well as our lack of knowledge on the transmission from reported to unreported infectious passengers, for which the factor (1 − α)/α could be a lower bound (see Fig. S2 of the Supplementary Information for a sensitivity analysis of the model with parameter α), approximately between 5 and 9 [32]. In an entirely similar fashion, by considering only reported infectious passengers that can be identified as healthcare workers, we can estimate their particular effective reproduction number as
with the same upscaling factor χ/ψ used for all infectious passengers and
is the average of the vertices outdegrees for healthcare workers.

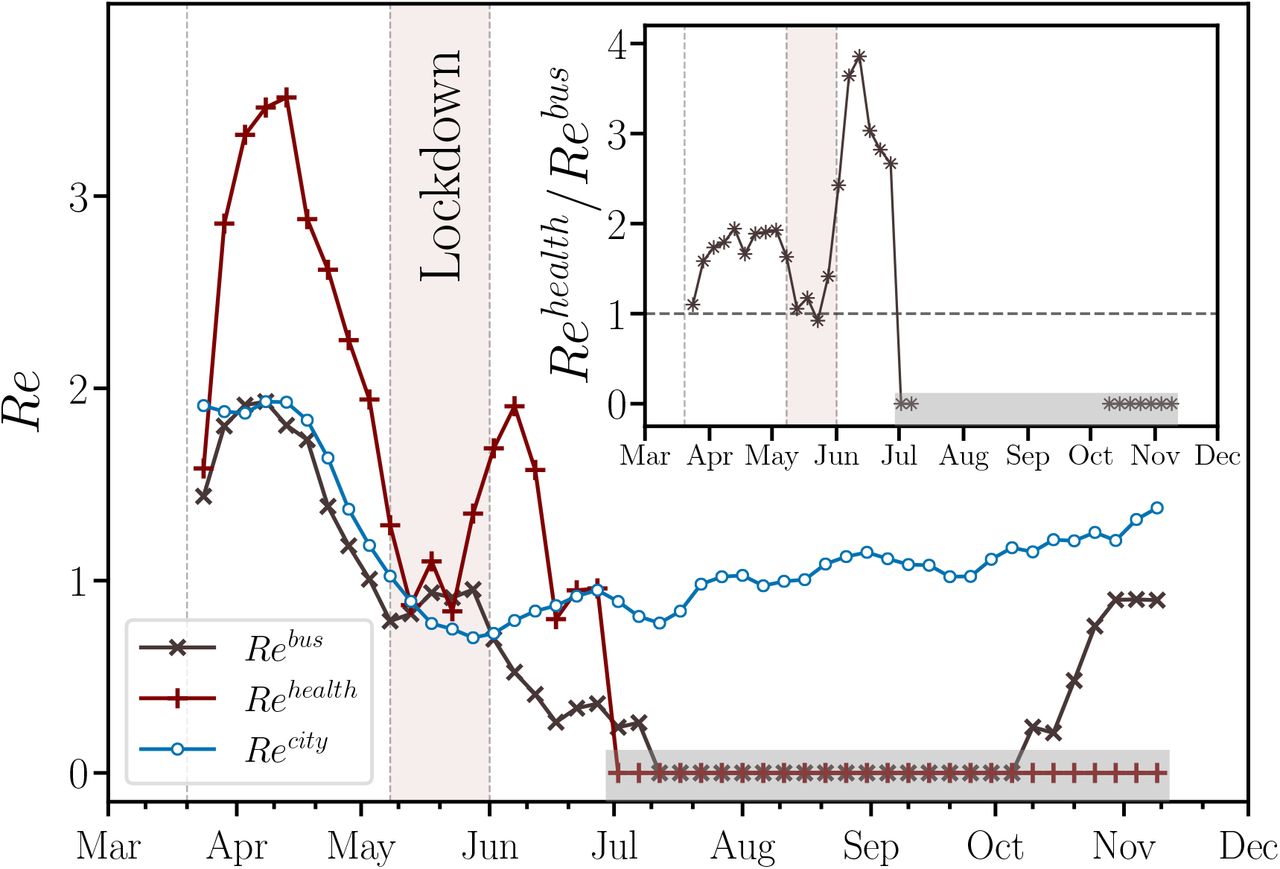

In Figure 5, we show the comparison between the estimates of Rebus and Recity from March to November 2020. Although the contact tracing and compartmental models are defined on different scales, the former on a microscopic scale and the latter on a macroscopic scale, the two curves capture the same decreasing trend associated to both social isolation and lockdown periods. We note that Rebus consistently follows Recity during the local COVID-19 outbreak, except for a three-month period between the first and the second waves of daily cases. In this period, the Rebus decayed to undetectable standards despite the fact that the number of daily bus validations has increased (see Fig. 2a). As also shown in Fig. 5, Rehealth was systematically higher than Rebus, which unveils that the healthcare workers played an important role in the transmission within buses during the first wave of COVID-19 in Fortaleza. Furthermore, Rehealth remained undetectable even in the beginning of the second wave, in contrast to Rebus and notwithstanding the increase of the number of daily bus validations of healthcare workers, as shown in Fig. 2a. As shown in the inset of Fig. 5, the maximum ratio Rehealth/Rebus occurred soon after the lockdown period, since the hospitals were still overloaded due to the peak of cases at the beginning of May and the new daily infections were low in the beginning of the reopening period. We emphasize that the complement of Rehealth, due to non-healthcare workers, behaves similar to Rebus.
IV.CONCLUSIONS
In summary, two epidemiological models have been used in this work to understand the transmission on public transportation during the COVID-19 outbreak in Fortaleza, Ceará, Brazil. Whilst the compartmental model accounts for the transmission in the entire city (macroscopic scale), the contact tracing model has been used to estimate the transmission inside city buses (microscopic scale) through the concept of CCs. Both models were fed with real data of bus validations and of COVID-19 confirmed cases and deaths. Our results show that Rebus consistently follows Recity during the local COVID-19 outbreak, except for a three-month period between the first and the second waves of daily cases. Furthermore, the transmission from healthcare workers within buses until the end of July is characterized by a value of Rehealth persistently greater than Rebus. Healthcare workers, even the non-frontline professionals, are more likely to get and, consequently, spread the pathogen because their social network distances to individuals that tested positive for COVID-19 are very short compared to non-highly exposed workers. Despite being more tested, healthcare workers may not even know that they are infectious when they board a bus due to eventual time delays of the result of a COVID-19 test. Other groups of highly exposed people may affect the dynamics of dissemination of the virus in a similar way, e.g., education workers and police officers. Therefore, our results reinforce the worldwide claim that it is imperative to propose special policies to support displacement (or to avoid it) of highly exposed groups of people. Finally, we suggest that the intensity and the necessity of using public transportation by highly exposed groups must be seriously considered as a criterion to prioritize their vaccination.
V.METHODS
A.Datasets
1.Bus validations
Most part of bus passengers in Fortaleza (≈ 94%) pay their bus fares with a smart card. Every time a passenger passes their card on a ticket gate of a bus, a validation record is created. The Fortaleza City Hall compiled and made available an anonymized dataset of bus validations with the following information: a citizen’s ID (a hash code), a vehicle ID (another hash code), the date and time of the validation record and the estimated ride time. The dataset ranges from March to December 2020, totaling 107, 488, 528 validation registers that refers to 1, 426, 569 different passengers.
2.COVID-19 confirmed cases and deaths
The dataset of COVID-19 confirmed cases and deaths is an anonymized list of all individuals diagnosed with the disease in Fortaleza from March to December 2020. These data were also processed and made available by the Fortaleza City Hall. Such dataset is organized in columns as follows: a citizen’s ID (the same hash code used in the previous dataset), the date of OS, a confirmed death flag, the date of death and a healthcare worker flag. In the period of time ranged by the data, there are 85, 553 confirmed cases (5, 960 of healthcare workers) and 3, 075 confirmed deaths (227 of healthcare workers). We emphasize that these healthcare workers are not only the frontline professionals but also people whose jobs are related to the health field. Finally, we found that 9, 032 people (721 healthcare workers) were diagnosed with COVID-19 and used their smart card on buses at least once from March to December 2020.
B.Iterated Ensemble Kalman Filter
We use the Iterated Ensemble Kalman Filter (IEnKF) framework [32, 35–37] to infer the compartmental model parameters and initial subpopulations. The algorithm is based on comparing predictions of the model f (.) obtained by the numerical integration of Eqs. (3)-(7) of the main text with a set of T observations 𝒪1, …, 𝒪T taken at discrete times t1, …, tT within an observation window (see Fig. S4 of the Supplementary Information). The inference framework starts from an initial state vector X(0) = {S, E, Ir, Iu, R, Dr}(0), and an initial parameter vector θ(0) = {β, µ, σ, γ, α, ϕ}(0). To these vectors, uncertainties are attributed in terms of the variance matrices σX and σθ, respectively. For each iteration m, an ensemble of P “particles” is generated such that each particle has the initial state at time t0 drawn from a multivariate normal distribution with mean X(m−1) and variance a(m−1)σX, where < a < 1 is a “cooling factor”. The initial state vector for particle i is denoted by X(t0, i) = 𝒩 (X(m−1), a(m−1)σX). These states are also used to set XF (t0, i) which define the posterior distribution at time t0. Analogously, each particle i has an initial parameter vector θ(t0, i) = 𝒩 (θ(m−1), b(m−1)σθ), where 0 < b < 1 is another cooling factor. The inference proceeds by numerically integrating the model from these initial conditions, such that the predicted vector state for each particle i at time tn is obtained from the following distribution, XP (tn, i) = f (XF (tn−1, i), θ(tn−1, i)). Based on these predictions, a weight W (tn, i) is assigned to each particle i, such that
where 𝒪 (tn, i) is the predicted value for the observed quantities at time tn for particle i, and Θ is a “temperature”. In our case, 𝒪 (tn, i) is the prediction for the cumulative number of daily reported deaths Dr(tn, i). The filtering process is accomplished by keeping the particles with the largest weights with probability 𝒫 = W (tn, i)/ ∑ j W (tn, j). The states of the filtered particles will set the posterior distribution at time tn, XF (tn, i) = XP (tn, ibest), where ibest is the index of the filtered particles [36]. The parameter vector is updated at time tn using θ(tn, i) = 𝒩 (θ(tn−1, ibest), b(m−1)σθ). This filtering process continues until all the observations 𝒪1, …, 𝒪N are compared. The iterative process continues by setting the initial state vector X(m) and parameter vector θ(m) for the next iteration. The next parameter vector is given by [35]:
where is the sample mean of θ(tn, ibest) and V (tn) is the variance [35, 36]. The next state vector is given by the sample mean,
After each iteration m, the initial state vector X(m) and parameter vector θ(m) are used to compute the evolution of the model for the whole observation window 1, …, tT. The performance of the inferred model is computed by evaluating the error
The iteration continues until | ε(m) − ε(m−1) | < ϵmax, where the threshold used here is ϵmax = 0.01. In Table S1 of the Supplementary Information, we report the values of the estimated parameters for consecutive time windows.
Supporting information
Data Availability
Two datasets were used with the approval and consent obtained by the Fortaleza City Hall, Ceará, Brazil. The first is a list of COVID-19 confirmed cases and deaths of patients in Fortaleza and the second consists of bus validations records from smart cards of passengers, both collected during the period from March to December, 2020. In the context of the ongoing health crisis, we make available these anonymized datasets under request to E. Oliveira at erneson@unifor.br.
