The structural basis of Miranda-mediated Staufen localization during Drosophila neuroblast asymmetric division
1Shanghai Key Laboratory of Molecular Catalysis and Innovative Materials, Department of Chemistry and Key Laboratory of Molecular Medicine, Ministry of Education, Institutes of Biomedical Sciences, Shanghai Medical College, Fudan University, Shanghai 200433, China
2School of Life Sciences, Fudan University, Shanghai 200433, China
3Temasek Life Sciences Laboratory, National University of Singapore, Singapore 117604, Singapore
4Department of Biological Sciences, National University of Singapore, Singapore 117543, Singapore
5Division of Life Science, State Key Laboratory of Molecular Neuroscience, Hong Kong University of Science and Technology, Clear Water Bay, Kowloon, Hong Kong, China
6Institute of Neuroscience and State Key Laboratory of Neuroscience, Shanghai Institutes for Biological Sciences, Chinese Academy of Sciences, Shanghai 200031, China
7Department of Systems Biology for Medicine, School of Basic Medical Sciences, Shanghai Medical College of Fudan University, Shanghai 200032, China
acaiyu@tll.org.sgbwywen@fudan.edu.cncwnwang@fudan.edu.cnAbstract
During the asymmetric division of Drosophila neuroblasts (NBs), the scaffold Miranda (Mira) coordinates the subcellular distribution of cell-fate determinants including Staufen (Stau) and segregates them into the ganglion mother cells (GMCs). Here we show the fifth double-stranded RNA (dsRNA)-binding domain (dsRBD5) of Stau is necessary and sufficient for binding to a coiled-coil region of Mira cargo-binding domain (CBD). The crystal structure of Mira514–595/Stau dsRBD5 complex illustrates that Mira forms an elongated parallel coiled-coil dimer, and two dsRBD5 symmetrically bind to the Mira dimer through their exposed β-sheet faces, revealing a previously unrecognized protein interaction mode for dsRBDs. We further demonstrate that the Mira–Stau dsRBD5 interaction is responsible for the asymmetric localization of Stau during Drosophila NB asymmetric divisions. Finally, we find the CBD-mediated dimer assembly is likely a common requirement for Mira to recognize and translocate other cargos including brain tumour (Brat).
Web Summary
The scaffold protein Miranda is required for the asymmetric segregation of the RNA binding protein Staufen to ganglion mother cells during Drosophila neuroblast division. Jia et al. map the interaction between these proteins and present a crystal structure of the interacting domains.
Asymmetric cell division (ACD) is an evolutionarily conserved division mode used by stem and progenitor cells to create two daughter cells with distinct fates1234. Typically, one daughter cell is a copy of the mother cell retaining self-renewal ability, and the other daughter cell enters the path of differentiation5. Much of our understanding of the molecular mechanisms regulating ACD is coming from the studies of NBs, the neural stem cell of Drosophila central nervous system5. Each ACD of NB generates a self-renewing NB and a smaller GMC that initiates differentiation6. During this process, protein complexes containing cell fate determinants localize asymmetrically to the basal cell cortex during mitosis and are segregated preferentially into the GMC daughter after cytokinesis7. The cell fate determinants include the transcription factor Prospero (Pros) and its mRNA8910111213, the posttranscriptional repressor Brat141516, the Notch signalling inhibitor Numb17, and the dsRNA-binding protein Stau, which binds the 3′UTR of pros mRNA1819. The asymmetric localization of these cell fate determinants is facilitated by two adaptor proteins that colocalize with them at the basal cell cortex. While the basal localization of Pros, Brat and Stau is facilitated by their binding to the scaffold protein Mira16202122, the asymmetric localization of Numb is mediated by its adaptor Partner of Numb (Pon)23.
Mira is a multi-domain scaffold protein that concentrates at the basal cortex along with its cargos during mitosis of Drosophila NB asymmetric division2122. After segregating into GMC with its cargo proteins Pros, Brat and Stau, Mira is rapidly degraded202425. The basal localization of Mira in metaphase was proposed to occur upon direct aPKC phosphorylation at the N-terminal cortical localization domain (aa 1–290)26. The C-terminal part of Mira was shown to be responsible for cargo release and degradation27. The central CBD of Mira (aa 460–668) has been identified as the binding region for cargo proteins Pros, Brat and Stau142024, and was predicted to form a parallel coiled-coil dimer through biochemical and biophysical characterizations28. The previously identified binding regions for Pros, Brat and Stau are largely overlapped142024. However, due to the elongated shape of Mira CBD, the actual contact interfaces on Mira should involve much less residues than those of the identified regions. Moreover, it is not clear whether these cargos competitively or simultaneously interact with the scaffold Mira. Therefore, the exact binding sites of the cargo proteins are yet to be determined.
The Stau family of dsRNA-binding proteins exerts a conserved function in mRNA transport, localization and translational control from Drosophila to mammals29. Stau was originally identified as a factor to anchor oskar mRNA and bicoid mRNA to the posterior and anterior of the Drosophila oocyte, respectively, and is thus required for the correct formation of anteroposterior axis30. Its function was then expanded to neurogenesis, as Stau targets pros mRNA and facilitates its asymmetric localization and segregation during Drosophila NB asymmetric divisions1819. Loss of localization of Stau or of pros mRNA alters GMC development1819. In mammals, two members of the Stau family, STAU1 and STAU2, have been identified. Recent findings that mouse STAU2 regulates Prox1 (Pros homologue) mRNA and Trim32 (Brat homologue) mRNA asymmetric localization have demonstrated the conserved role of Stau proteins in neurogenesis3132. In addition, both STAU1 and STAU2 are core components in distinct ribonucleoprotein particles for specific dendritic mRNA transport, and therefore play distinct roles in dendrite morphogenesis, synaptic plasticity and memory formation3334.
The Stau family use conserved dsRBDs for dsRNA binding, and five dsRBDs have been identified in Drosophila Stau (Fig. 1a)35. dsRBDs 1, 3 and 4 bind RNA in vitro, but dsRBDs 2 and 5 do not35. However, both dsRBDs 2 and 5 are required for the anchoring of bicoid mRNA, whereas dsRBD5 also directs the actin-dependent localization of pros mRNA through interaction with Mira, pointing to other functional roles of dsRBDs 2 and 5 rather than RNA binding20242535. Drosophila Stau dsRBDs 2 and 5 belong to the unconventional (type B) dsRBDs, which are incapable of binding dsRNA although may adopt the same α1–β1–β2–β3–α2 fold as a canonical dsRBD36. The function of type B dsRBDs is proposed to mediate protein–protein interactions, although some canonical dsRBDs are recently found to bind proteins as well36. However, most dsRBD–protein interactions demonstrated by high-resolution structures are intramolecular (cis) interactions, in which appendages N and/or C terminal to the dsRBD pack with the dsRBD α1–α2 helical surface36. One example for the few known intermolecular (trans) dsRBD–protein interactions is human STAU1 type B dsRBD5, which was shown to mediate dimerization of STAU1 through the interaction between the α1–α2 helical surface of dsRBD5 and the N-terminal appendage Stau-swapping motif (SSM) in a domain-swapped manner37. As of yet, all the known trans-protein interactions of dsRBDs are dsRBD–dsRBD interactions facilitated by appendages. It is not clear whether and how dsRBDs bind to proteins without appendages. Moreover, as yet there lacks a clear structure illustrating the trans dsRBD–protein interactions other than dsRBD–dsRBD dimerization.
Here we perform detailed biochemical characterizations of the interaction between Mira and Stau. The Mira/Stau binding sites are mapped to residues 514–595 of Mira and Stau dsRBD5 (aa 951–1,018). The crystal structure of Mira514–595/Stau dsRBD5 is solved at 2.5 Å. The complex is found to form a 2:2 heterotetramer in which Mira forms an elongated parallel coiled-coil dimer, and two dsRBDs bind to two symmetric surfaces at the N-terminal end of the Mira dimer interface. To the best of our knowledge, this is the first high-resolution complex structure describing the intermolecular dsRBD–protein interaction. Stau dsRBD5 uses the exposed face of its β-sheet to interact with Mira, revealing a novel target binding mode for dsRBDs. We also demonstrate that the direct interaction between Mira and Stau dsRBD5 is crucial for the asymmetric localization of Stau in asymmetrically dividing NBs of Drosophila larval brain. We further showed that the dimerization of Mira CBD is essential to coordinate the polarized distribution of its cargos Stau, Brat and Pros in vivo.
Results
The interaction between Mira and Stau

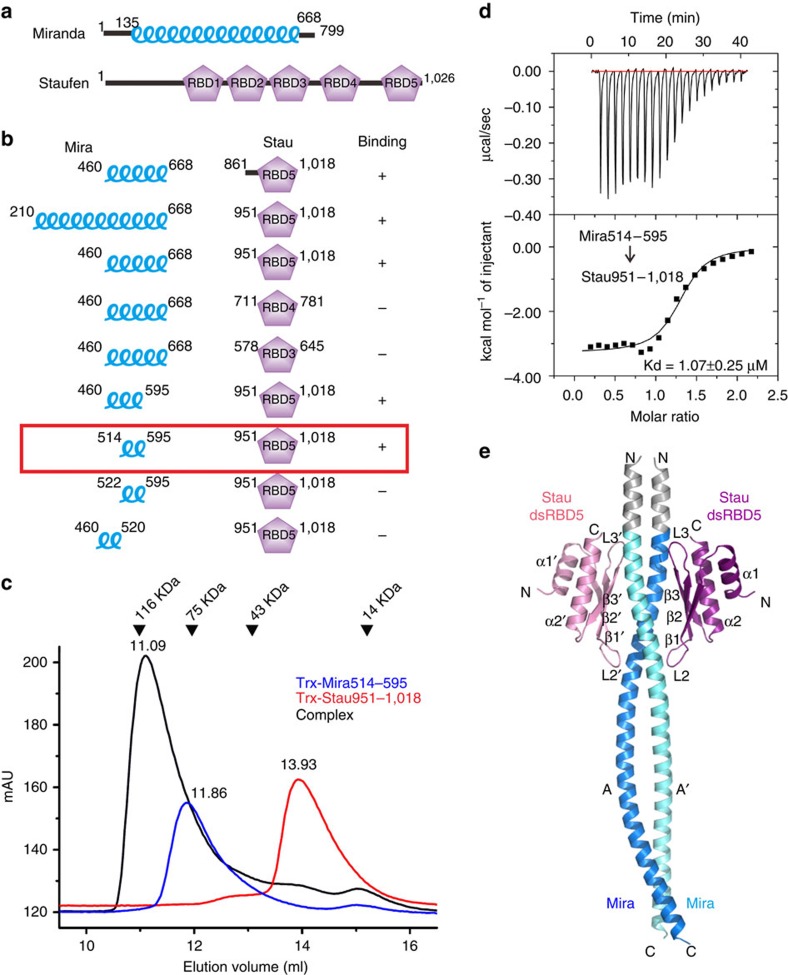

Previous studies reported that Stau interacts with Mira through the C-terminal dsRBD5 domain, and the Stau binding site on Mira was mapped to a segment of residues 506–638 (ref. 20). To verify this interaction, we purified various fragments of these two proteins and performed in vitro binding assays. First, we tested bindings of the whole CBD of Mira (aa 460–668) with various fragments of C-terminal region of Stau containing dsRBD5, as well as the dsRBD3 and dsRBD4 (Fig. 1b). The size-exclusion chromatography (SEC) experiments showed that the 68 amino acids fragment of Stau dsRBD5 (aa 951–1,018) is sufficient to form a complex with Mira, while the N-terminal extensions are not necessary (Fig. 1b and Supplementary Fig. 1). The dsRBD3 (aa 578–645) and dsRBD4 (aa 711–781) of Stau, as expected, could not interact with Mira CBD. Then we tested various C-terminal and N-terminal truncations of Mira CBD, and identified that a fragment of amino acids 514–595 in Mira (referred to as Mira514–595 hereafter) is necessary and sufficient to bind Stau dsRBD5 (Fig. 1b,c and Supplementary Fig. 1). Further isothermal titration calorimetry (ITC) experiment demonstrated that Mira514–595 binds to Stau dsRBD5 with a relatively high affinity with a dissociation constant around 1 μM (Fig. 1d).
Overall structure of the Mira514–595/Stau dsRBD5 complex

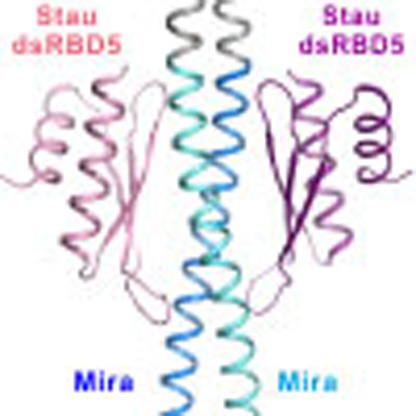

To understand the molecular basis underlying the interaction between Mira and Stau, we co-purified Mira514–595 and Stau dsRBD5 (aa 951–1,018), and obtained good diffraction-quality crystals of Mira514–595/Stau dsRBD5 complex. The complex structure was solved by single-wavelength anomalous dispersion using Se–Met derivatives at 2.5 Å resolution (Table 1). The entire lengths of Mira514–595 and Stau dsRBD5 are well resolved, except for the last six residues at the C terminus of Mira514–595. The structure revealed that the complex forms a 2:2 heterotetrameric architecture, in which two Stau dsRBD5s interact symmetrically with the N-terminal end of the Mira coiled-coil homodimer (Fig. 1e and Supplementary Fig. 2a). The 2:2 stoichiometry of the Mira514–595/Stau dsRBD5 complex in solution was further confirmed by the static light-scattering experiment (Supplementary Fig. 1h, blue line). The Stau dsRBD5 adopts the α1–β1–β2–β3–α2 fold as that of human STAU1 dsRBD5 (ref. 37) and many other canonical dsRBDs3638. In accord with the previous small-angle X-ray scattering-based structure prediction28, two Mira514–595 fragments, each made up of a single contiguous α-helix, dimerize in a parallel manner to form an elongated ‘rod-like' structure (Fig. 1e). Unexpectedly, the 13-aa fragment ‘GPGSEFELRRQAS' N terminal to Mira514–595 which is remained after tag cleavage also forms an α-helix and thus extends the parallel coiled-coil of Mira. Yet, none of the residues from the N-terminal extension is directly involved in Stau dsRBD binding, and the N-extension of Mira514–595 might somehow stabilize the coiled-coil structure (Fig. 1e).
The Mira coiled-coil dimer

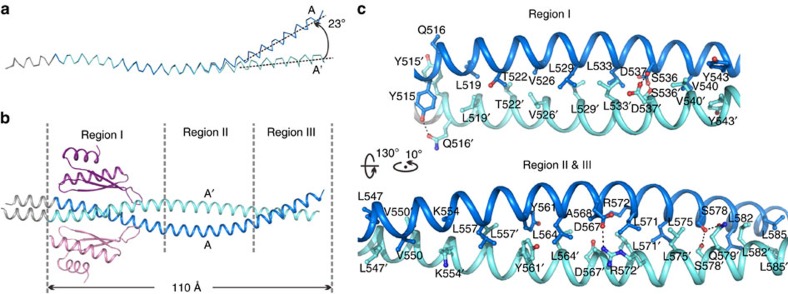

Interestingly, the Mira coiled-coil dimer is slightly asymmetric, with one curved helix A wrapping around the other approximately straight one A′ (Figs 1e and 2a). Two helices of the Mira dimer are identical at the Stau dsRBD5-binding region, spanning a region of ∼30 aa at the very N-terminal end of the Mira514–595 fragment, between Asn514 and Tyr543. Outside this region, helix A kinks about 23 degrees compared with A′ at the C-terminal part of Mira coiled-coil dimer (Fig. 2a). However, the formation of the asymmetric coiled-coil dimer does not disturb the regular heptad repeats (Supplementary Fig. 2b). The entire parallel homodimer in the Mira514–595 structure is ∼110-Å long. On the basis of the analysis of the exposed surfaces of the coiled-coil architecture, we identified three potential target recognition regions in this partial cargo-binding domain of scaffold Mira (Fig. 2b and Supplementary Fig. 2c). Region I encompasses residues 514–543, which is occupied when cargo Stau dsRBD5 is loaded. Region II and III span residues 544–568 and 569–589, respectively.
The two α-helices of Mira514–595 form a quite tight supercoil with an average interhelical distance ∼5.8 Å, a value that is much lower than expected for a canonical coiled-coil (∼9.6 Å)39. The tight dimerization of the Mira coiled-coil is mediated by both hydrophobic and polar interactions. The a/d positions of the two α-helices are mainly hydrophobic residues, which form extensive hydrophobic interactions with each other through their aliphatic side chains (Fig. 2c and Supplementary Fig. 2b). An interhelical salt bridge formed between Asp567 and Arg572′ also contributes to the coiled-coil formation. In addition, several side chain hydrogen bonds formed between two α-helices further stabilize the dimer. Specifically, Tyr515, Ser536 and Asp537 form hydrogen bonds with Gln516′, Asp537′ and Ser536′ from the neighbouring α-helix, respectively. And Ser578 from helix A forms hydrogen bonds with Ser578′ and Gln579′ from helix A′ (Fig. 2c). Despite of the slight asymmetry, surface analysis reveals that all the three potential target-binding surfaces in Mira514–595 dimer are more or less symmetric, indicating that Mira might also interact with other targets in 2:2 stoichiometry through region II and III (Supplementary Fig. 2c). The target recognition of region I and II might be mainly mediated by hydrophobic packing; whereas target binding of region III might be mainly driven by polar interactions.
The Mira514–595/Stau dsRBD5 interface

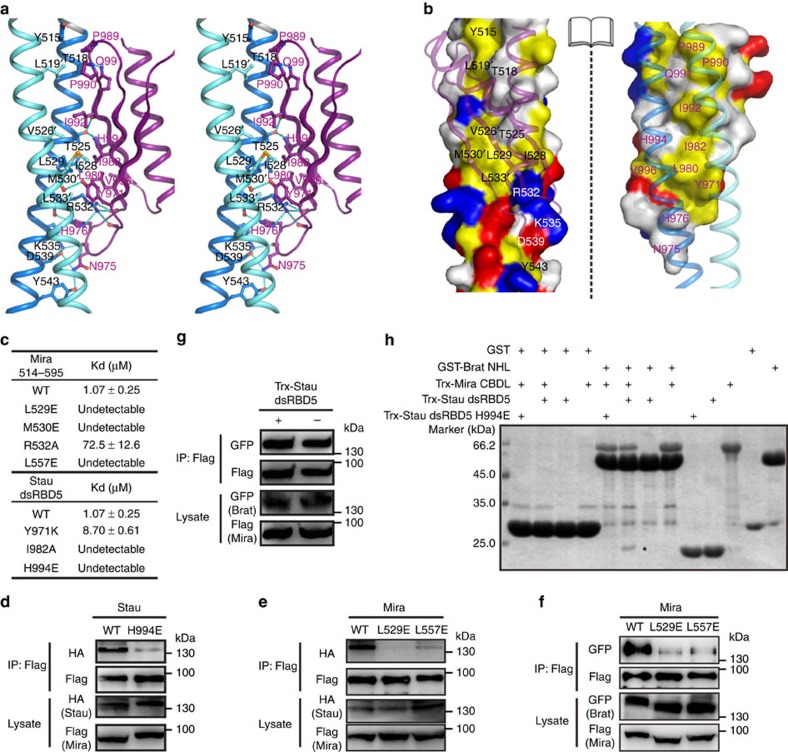

The interesting feature of the Mira514–595/Stau dsRBD5 complex structure is that Stau dsRBD5 binds to Mira through the exposed face of its β-sheet, a mode that has never been observed in any other dsRBDs before this study36. Both α-helices of the tightly dimerized Mira coiled-coil are required to form the two identical surfaces at region I for Stau dsRBD5 residing. Structural details at the Mira-dsRBD5 interface show that hydrophobic interactions have significant contributions to the binding (Fig. 3a,b). Hydrophobic residues, such as Tyr971Stau on β1, Leu980Stau and Ile982Stau on β2, Ile992Stau and Val996Stau on β3 of dsRBD5, Ile528Mira and Leu529Mira from helix A, and Val526′Mira, Met530′Mira, and Leu533′Mira from helix A′ form the hydrophobic core at the interface (Fig. 3a,b). On the other hand, polar interactions are formed across the interface and contribute to the Mira-dsRBD5 binding. For example, the side chain of Thr525Mira from helix A interacts with the main chain oxygen of Ile992Stau and the δ-amide of His994Stau from dsRBD5, respectively (Fig. 3a,b). In addition to the β-sheet, two loop regions (L2 and L3) of Stau dsRBD5 are involved in Mira binding. Arg532Mira from helix A forms an extensive hydrogen bond network with the side chain of His976Stau, and main chain carbonyls of Pro972Stau and Glu978Stau at L2 of dsRBD5 (Fig. 3a,b). Next to it, Asn975Stau at the tip of L2 forms hydrogen bonds with Asp539Mira and Tyr543Mira from helix A. Whereas Pro989Stau, Pro990Stau at L3 of dsRBD5, Tyr515Mira from helix A, and Leu519′Mira from helix A′ form a hydrophobic core to further stabilize the Mira–Stau interaction (Fig. 3a,b).
Validation of the Mira–Stau interaction in vitro
To verify the Mira–Stau interaction mode observed in the crystal structure, we mutated several residues at the binding interface and subjected the mutant proteins to in vitro binding assays. In agreement with the solved crystal structure, SEC and ITC experiments showed that mutations on Mira (L529E, M530E and R532A) or Stau (Y971K, H994E and I982A) from the Mira–Stau packing interface disrupted or severely impaired the interaction between Mira514–595 and dsRBD5 (Fig. 3c, Supplementary Fig. 3). Note that L529 is also located at the interface of Mira coiled-coil dimer (Fig. 2c), and as expected, L529EMira mutation abolished Mira514–595 dimerization, leading it to elute as a monomer on the SEC profile (Supplementary Fig. 3a). According to the Mira514–595/Stau dsRBD5 complex structure, both α-helices of the Mira coiled-coil dimer are required to interact with Stau dsRBD5 (Fig. 3a). Thus, the effect of L529EMira mutation might be resulted from direct disruption of the Mira–Stau packing interface and/or breakage of Mira CBD dimer. To verify the importance of intact Mira CBD dimer in Stau binding, we designed the L557EMira mutation that destroyed the Mira514–595 dimerization but is outside the Stau dsRBD5-binding site (Fig. 2c and Supplementary Fig. 3d). In line with the complex structure, L557EMira mutation was also found to disrupt the Mira–Stau interaction (Supplementary Fig. 3d,k), demonstrating that the dimer assembly of Mira CBD is crucial for Stau dsRBD5 binding.
Furthermore, the Mira–Stau interaction and the complex structure were validated in the context of full-length proteins by coimmunoprecipitation (Co-IP) experiments. To avoid potentially competing interactions with endogenous proteins expressed in Drosophila cell lines, full-length wild type (WT) or mutated Mira was cotransfected with WT or mutant Stau in human HEK293T cells. The Co-IP results demonstrated that the H994EStau, L529EMira and L557EMira mutations completely or severely disrupted the Mira–Stau interaction (Fig. 3d,e). Therefore, the binding between Mira and Stau full-length proteins in cell is solely mediated by the interaction between Mira514–595 dimer and Stau dsRBD5. Consistent with previous finding that Brat requires Mira CBD for proper basal localization14, the L529EMira and L557EMira mutations not only abolished the Mira–Stau interaction, but also significantly attenuated the binding between the full-length Mira and Brat (Fig. 3f), indicating that the compact dimerization of Mira CBD might be a common requirement for cargo recognition through CBD.
Mira can interact with Stau and Brat simultaneously
As both Stau and Brat bind to Mira CBD142024, we next asked whether Stau and Brat competitively or simultaneously interact with Mira. We first showed that Stau dsRBD5 does not compete with Brat for Mira binding (Fig. 3g). Although Mira CBD (aa 460–668) has been suggested to be essential for Mira–Brat interaction through binding to Brat NHL (NCL-1, HT2A and LIN-41) domain14, we found CBD fragments including Mira460–668 and Mira514–595 could not form complex with Brat NHL. Secondary structure prediction using psipred (http://bioinf.cs.ucl.ac.uk/psipred/) reveals that the coiled-coil region of Mira spans a region of ∼530 aa on Mira (aa 135–668; Fig. 1a), pointing to the possibility the previously defined Mira CBD (aa 460–668) may be not long enough for binding to Brat. On the other hand, this data also suggested that the potential cargo-binding Region II and III of Mira514–595 might not be involved in interacting with Brat (Fig. 2b and Supplementary Fig. 2c). Then we made an N-terminal extended Mira CBD (aa 210–668, referred to as Mira CBDL hereafter) and found it was sufficient (maybe not the minimal region) for Brat NHL binding (Fig. 3h). As expected, Mira CBDL robustly interacts with Stau dsRBD5 (Fig. 1b). Importantly, although no direct interaction between Brat NHL and Stau dsRBD5 could be observed, glutathione S-transferase (GST)-tagged Brat NHL could form a complex with wild type Stau dsRBD5 via the bridging of Mira CBDL (Fig. 3h). In contrast, the Mira-binding-deficient H994E mutant could not be pulled down by GST-tagged Brat NHL even in the presence of Mira CBDL, suggesting that Mira may use its elongated coiled-coil structure to simultaneously recruit multiple cargos for transport.
Mira–Stau binding is essential for Stau localization in vivo
We next employed type I NBs in Drosophila larval central brain as an in vivo model to address whether the Mira–Stau dsRBD5 interaction is of functional significance. To test this, we generated transgenic flies expressing full-length Flag-tagged WT or mutant forms of Mira and Stau, respectively.
During NB division, Mira is asymmetrically localized on the basal cortex from prophase and is preferentially segregated into GMC daughter on the completion of mitosis. We first examined the localizations of these transgenes in a WT background and focus on mitotic NBs. As expected, Flag-Mira WT (n=22, 100%) exhibited basal localization in metaphase NBs (Supplementary Fig. 4a). Interestingly, Flag-Mira L529E (n=23, 100%) also localized to the basal cortex (Supplementary Fig. 4b), implying dimerization via Mira CBD is not the only way for Mira basal targeting in a WT background and is consistent with previous finding showing that the N-terminal cortical localization domain (aa 1–290) plays an important role in Mira localization24252627. In line with this, the localization of endogenous apical complex components and basal cell fate determinants in these backgrounds was normal (Supplementary Fig. 4a,b). Predictably, Flag-Stau WT (n=14, 100%) also showed the expected basal enrichment in metaphase NBs (Fig. 4a). In contrast, the Mira-binding-deficient Flag-Stau H994E (n=21, 100%) could not form the basal crescent but localized into cytoplasm instead (Fig. 4b), supporting our structural analysis and in vitro results and demonstrating that the direct interaction between Mira and Stau dsRBD5 is responsible for the correct localization of Stau during ACD.
Cargo targeting requires intact Mira CBD dimer
We next addressed basal protein localization in Mira mutant background rescued with these Mira variants. As reported previously, all Mira cargos including Stau, Brat, and Pros were basally co-localized with Mira in WT NBs (Fig. 4c, Stau, n=21, 100%; Brat, n=21, 100% and Pros, n=28, 100%, also see Supplementary Fig. 4c) but delocalized in Mira mutant NBs (Fig. 4d, Stau, n=20, 100%; Brat, n=20, 100% and Pros, n=17, 100%, also see Supplementary Fig. 4d). Expression of Flag-Mira WT in Mira mutant NBs fully restored the basal localization of these cargos (Stau (n=16, 100%), Brat (n=12, 100%), and Pros (n=12, 100%)) in dividing NBs (Fig. 4e), also see Supplementary Fig. 4e). Similar to Flag-Mira WT the majority of Flag-Mira L529E (94.7%, n=19) also formed basal crescent in Mira mutant NBs (Fig. 4f and Supplementary Fig. 4f). Interestingly, 5.3% of NBs examined showed broad cortical localization of Flag-Mira L529E (Fig. 4g). These data suggest that the Mira CBD dimer does play a role in effective basal targeting of Mira. Although Flag-Mira L529E basally localized in Mira mutant, endogenous Stau (n=26, 100%), Brat (n=22, 100%), and Pros (n=15, 93.3%) exhibited cytoplasmic localization in this background (Fig. 4f and Supplementary Fig. 4f), pointing to the importance of the intact CBD dimer in the localization of Mira-related basal proteins. As an internal control, aPKC was normally enriched on the apical cortex in Mira mutant NBs with or without expression of Flag-Mira variants (Fig. 4c–f; 4d, n=16, 100%; 4e, n=21, 100%; 4f, n=16, 100%; Supplementary Fig. 4c–f).
To further understand the function of Flag-Mira L529E variant, we investigated whether it could rescue Mira mutant over-proliferating phenotype. In WT, each WT NB lineage contains one cell expressing NB marker Dpn; however, majority of Mira mutant NB lineage overproliferate and contain multiple Dpn-positive cells (Fig. 4h,i). While restoring Flag-Mira WT expression in Mira mutant NBs largely reverted the formation of ectopic Dpn-positive cells, ectopic expression of Flag-Mira L529E only partially suppress this phenotype (Fig. 4h,i), suggesting that proper cargo-binding/targeting is important for Mira function. Together with our in vitro biochemical analysis, our data clearly demonstrated that the dimerization of Mira CBD is most likely a prerequisite for cargo recognition and translocation.
Comparison of the Stau dsRBD5 to other dsRBDs

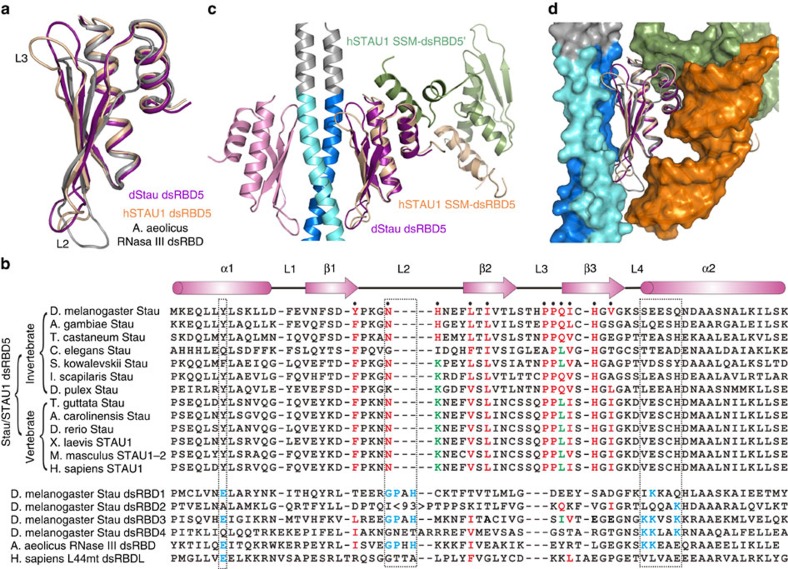

The atypical Drosophila Stau dsRBD5 adopts a very similar structure as the canonical dsRBD of Aquifex aeolicus RNase III (ref. 40), as well as human STAU1 dsRBD5 (ref. 37; Fig. 5a). Similar with its human orthologue, the structure of Drosophila Stau dsRBD5 is consistent with its inability of dsRNA binding35, lacking the residues important for RNA binding in the canonical dsRBDs, such as A. aeolicius RNase III RBD (Fig. 5b). Importantly, the key residues (namely Tyr971, Leu980, Ile982, Ile992, His994 and Val996) on the exposed β-sheet face of Stau dsRBD5 responsible for Mira interaction are evolutionarily conserved from invertebrate to vertebrate in dsRBD5s of Stau/STAU1 homologues. It is most likely that dsRBD5s in other Stau/STAU1 homologues can also use their exposed β-sheet faces to interact with yet unknown proteins via hydrophobic interactions as the main driving force. On the contrary, sequence identities at the β-sheet side of the canonical dsRBD A. aeolicius RNase III and Drosophila Stau dsRBD1-4 (refs 35, 41) are quite low (Fig. 5b). For instance, Ile982 in Drosophila Stau dsRBD5 is negatively charged in A. aeolicius RNase III RBD and Drosophila Stau dsRBD4, and changed to alanine in Drosophila Stau dsRBD3. Note that our mutagenesis experiment showed that the I982A mutation disrupts the Stau dsRBD5/Mira interaction (Fig. 3c and Supplementary Fig. 3e,k). Accordingly, the substitution of Ile982 to negatively charged glutamic acid is expected to disrupt the Mira–Stau interaction. Even in Drosophila Stau dsRBD2, which is incapable of RNA binding, the key residues on the exposed β-sheet face are not conserved (Fig. 5b). Nevertheless, these data are consistent with previous findings that only dsRBD5 is responsible for mediating Mira–Stau interaction20.
The most prominent structural differences between Drosophila Stau dsRBD5 and human STAU1 dsRBD5 locate at the L2 and L3 loops (Fig. 5a). The crystal structure of the Mira514–595/Stau dsRBD5 complex shows that both loops are involved in the interaction with Mira (Figs 1e and 3a). It is noticeable that the sequence and length of L2 and L3 loops are highly variable in different dsRBDs (Fig. 5b). The large (∼100 aa) insertion of L2 in Drosophila Stau dsRBD2 was suggested to preclude dsRNA binding, but to contribute to microtubule-dependent mRNA localization35. Therefore, the conformational flexibility of the two loops might facilitate the protein interactions of dsRBDs.
dsRBDs might interact with proteins and dsRNA simultaneously
In human STAU1 dsRBD5, the SSM motif interacts with the α1–α2 helical face of another STAU1 dsRBD5 to facilitate the dimerization of hSTAU1 (ref. 37). Drosophila Stau dsRBD5, however, lacks the conserved SSM motif crucial for dimerization in vertebrate Stau dsRBD5 (ref. 37). Our biochemical data showed that the isolated Drosophila Stau dsRBD5 aggregates to some extent in solution, but does not form homogeneous oligomer state. By binding to Mira, a homogeneous 2:2 complex was formed as shown in the crystal structure and static light-scattering experiment (Supplementary Fig. 1h, blue line). To test if the N-terminal extension can promote dimerization of Drosophila Stau dsRBD5, we purified a longer fragment of Stau (aa 861–1,018) by extending the N-terminal boundary of dsRBD5. Isolated Stau861–1,018 also showed heterogeneous oligomer states in solution as dsRBD5, and the stoichiometry of the Mira514–595/Stau861–1,018 complex is between 2:2 and 2:4 (Supplementary Fig. 1h, magenta line). Therefore, unlike human STAU1, the N-terminal extension of dsRBD5 is not sufficient for stable dimerization of Stau. However, partial formation of a 2:4 complex indicates that the interaction with Mira does not prevent Stau dimerization. By comparison of the crystal structures of Mira514–595/Stau dsRBD5 complex and hSTAU1 SSM–dsRBD5 dimer, we can clearly see that the β-sheet face-mediated protein interaction would not sterically hinder the dimerization of hSTAU1 dsRBD5 (Fig. 5c). On the other hand, by further superimposing the A. aeolicius RNase III RBD/dsRNA complex structure onto the Stau dsRBD5 and hSTAU1 dsRBD5, we found that the dsRNA binding, the β-sheet face mediated protein binding and the α1–α2 face-mediated dimerization are not mutually exclusive (Fig. 5d). This suggests that a canonical dsRBD may use its different faces to bind to dsRNA and proteins simultaneously.
Discussion
Mira is a key adaptor protein that directs several cell fate determinants to basal cortex during the asymmetric division of Drosophila NB. The detailed molecular mechanism and the direct interactions between Mira and its cargos, however, have not been characterized biochemically. Here we characterize the interaction between Mira and dsRNA-binding protein Stau. The crystal structure of the Mira514–595/Stau dsRBD5 complex demonstrates that Mira forms a parallel coiled-coil dimer and two molecules of Stau dsRBD5 symmetrically bind to Mira514–595 through their exposed β-sheet faces. Structural based point mutations (H994EStau and L529EMira) verified that the direct interaction between Mira and Stau dsRBD5. Two lines of evidence support the functional importance of this interaction. First, the Mira-binding-deficient Stau mutant H994E, when ectopically expressed in NB, exhibited a diffused subcellular distribution during NB ACD. Second, endogenous Stau is defectively localized in Mira mutant NB expressing Mira L529E, a Mira variant that does not bind Stau.
The finding that Mira514–595 forms an elongated parallel coiled-coil dimer suggests that the full-length Mira most likely forms a stable homodimer. Moreover, the compact dimerization of Mira (at least the CBD region) seems to be crucial for cargo binding and transport, as the MiraL529E mutant with impaired CBD dimer assembly could not rescue the localization of Mira-dependant basal proteins in Mira mutant larval NBs (Fig. 4f), and only partially rescue the over-proliferation phenotype observed in Mira mutant brains (Fig. 4h,i). It further points to the possibility that destabilization and unwinding of the Mira CBD coiled-coil through protein modifications (for example, phosphorylation) could be a mechanism for cargo release, which is the final step of Mira-mediated protein transport. On the other hand, the observation that Stau and Brat do not compete with each other for Mira binding (Fig. 3f,g) indicates that Mira acts as an elongated scaffold, which can simultaneously recognize multiple cargos.
Another key finding of this study is that Stau dsRBD5, which belongs to the degenerate type B dsRBDs lacking the dsRNA-binding feature36, interacts with proteins through its exposed β-sheet face. The type B dsRBDs are proposed to be important for protein–protein interactions36. Taking the Stau family as an example, the RNA-binding deficient dsRBDs 2 and 5 of Stau are essential for the localization of mRNAs encoding cell fate determinants in Drosophila eggs and NBs20242535. Similarly, human STAU1 interacts with the 60S subunit of cytoplasmic ribosomes independent of dsRBDs 3 and 4 that bind dsRNA424344. Previous structural studies revealed that the dsRBD–protein interaction often requires N- or C-terminal appendages, which interact with the dsRBD α1–α2 interface mostly in cis, and the known trans-protein interactions of dsRBDs are dsRBD–dsRBD interactions facilitated by appendages, such as the human STAU1 dsRBD5 homodimer36. The crystal structure of Mira514–595/Stau dsRBD5 complex solved here is the first high-resolution structure illustrating the trans dsRBD–protein interaction. It clearly demonstrates that dsRBDs can bind proteins without N- or C-terminal appendages. Thereby, dsRBD itself can serve as an independent protein–protein interaction module. Furthermore, dsRBD fold can also use the β-sheet face to interact with proteins, revealing a novel protein interaction mode of dsRBDs so far. We have identified a few residues on the β-sheet face important for Mira binding, although these residues are only conserved among Stau/STAU1 dsRBD5 homologues (Fig. 5b). Whether the conserved β-sheet of STAU1 dsRBD5 is indeed important for mediating protein interactions with physiological relevance, for example, for ribonucleoprotein particle formation, is an interesting prospect that warrants further investigation.
While this manuscript was in preparation, Brown et al. provided the 3.4 Å resolution cryoelectron microscopy structure of the large ribosomal subunit from human mitochondria45. Surprisingly, we found that a fragment of the RNase III-like L44mt (protein L44 of the mitochondrial 39S ribosomal subunit) adopts a dsRBD-like (referred to as dsRBDL hereafter) fold, and might bind to ribosomal proteins but not RNA through the exposed β-sheet face and L2 loop (Supplementary Fig. 5a). Even though it is not clear whether the β-sheet face (or together with L2) of L44mt dsRBDL is sufficient to mediate specific protein interactions in the isolated state rather than in a large complex with multiple components, it suggests that the β-sheet face might be a common site to mediate dsRBD–protein interaction. Interestingly, although key residues on the exposed β-sheet faces from L44mt dsRBDL and Stau dsRBD5 share little similarity, both of them are capable of protein binding (Fig. 5b and Supplementary Fig. 5a,b). Specifically, six residues (Tyr971, Leu980, Ile982, Ile992, His994 and Val996) from the β-sheet face of Stau dsRBD5 form a hydrophobic surface to interact with Mira. Whereas in L44mt dsRBDL, only two of the above six residues are hydrophobic (Phe271 and Leu280, corresponding to Leu980 and Ile992 in Stau dsRBD5). Nevertheless, L44mt dsRBDL utilizes its exposed β-sheet face to form two protein-binding patches that might interact with two ribosomal proteins simultaneously. Further structure-based sequence alignment of other canonical or type B dsRBDs and dsRBDLs with known structures revealed that residues from the exposed β-sheet faces are highly variable (Supplementary Fig. 5c). Together with the finding that L44mt dsRBDL might use a flexible β-sheet face (compared with that of Stau dsRBD5) to interact with ribosomal proteins, our results imply that dsRBDs may function as versatile protein-binding domains through their exposed β-sheet faces. Moreover, structural comparison shows that protein binding at the β-sheet face does not sterically hinder the dsRNA binding or the interaction at the α1–α2 interface (Fig. 5d). Other multifunctional dsRBDs are expected to exist, and these dsRBDs may be capable of simultaneously interacting with dsRNA and proteins.
Methods
Protein preparation
Various Drosophila Stau and Mira fragments (Fig. 1b), and mutants (Fig. 3c), Brat NHL (aa 756–1,037) were individually cloned into a modified version of pET32a vector in which the thrombin cutting site was replaced by a protease 3C cutting site, and the S-tag was removed. Each of the resulting proteins contained a Trx tag in its N termini. All the mutations were generated using the standard PCR-based method (Supplementary Table 1) and confirmed by DNA sequencing. Recombinant proteins were expressed in Escherichia coli BL21 (DE3) host cells at 16 °C and were purified by using a Ni2+–NTA agarose affinity chromatography followed by SEC. The N-terminal Trx-tagged fragments of Mira and Stau were cleaved by digesting fusion proteins with protease 3C, and the proteins were purified by another step of SEC.
Size-exclusion chromatography
SEC experiments were carried out on an AKTA FPLC system (GE Healthcare). Proteins at concentrations of 10–20 μM in a volume of 100 μl were loaded on a Superose 12 10/300 GL column 20 (GE Healthcare) equilibrated with the buffer containing 50 mM Tris (pH 8.0), 100 mM NaCl, 1 mM DTT and 1 mM EDTA. Protein elution was detected by absorbance at 280 nm.
Isothermal titration calorimetry
ITC measurements were performed on an ITC200 Micro calorimeter (MicroCal) at 25 °C. All protein samples were in 50 mM Tris (pH 8.0), 100 mM NaCl, and 1 mM EDTA buffer. The titrations were carried out by injecting 40 μl aliquots of the Mira fragments into Stau fragments at time intervals of 2 min to ensure that the titration peak returned to the baseline. The titration data were analysed using the program Origin7.0 from MicroCal.
Crystallography
Crystals of the Se–Met derivative of Mira514–595/Stau dsRBD5 protein complex were obtained by the hanging drop vapor diffusion method at 16 °C. The optimized Mira/Stau complex crystals were grown by mixing 1 μl Mira/Stau complex solution, 0.8μl reservoir solution containing 0.1 M sodium acetate (pH 4.8), 0.7 M 1,6-hexanediol, 0.02 M calcium chloride and 0.2 μl 0.1 M magnesium chloride. Crystals were soaked in crystallization solution containing 20% glycerol for cryoprotection. Se-SAD data were collected at SSRF (Shanghai Synchrotron Radiation Facility in China) beamline BL17U at wavelength of 0.9792 Å. Data were indexed, integrated and scaled using HKL2000. Selenium atoms were initially located by SHELXC/D. Experimental phasing, density modification and automatic model building were performed by AutoSol of PHENIX46. The initial model was further rebuilt and adjusted manually with COOT47 and was refined by phenix.refine program of PHENIX46. The final model has 99% of the residues in the favoured region of the Ramachandran plot with no outliers. The final refinement statistics are summarized in Table 1.
Coimmunoprecipitations and immunoblotting
Human HEK293T Cells were transiently cotransfected with the full-length Flag-Mira and HA-Stau or green fluorescent protein (GFP)–Brat WT proteins or various mutants using polyethylenimine transfection reagent. For the transient transfections, 6 μg MiraWT, MiraL529E or 8 μg MiraL557E were cotransfected with 20 μg StauWT or 13 μg StauH994E, respectively; and 4 μg MiraWT, or 20 μg MiraL529E, MiraL557E were cotransfected with 4 μg Brat, respectively. Cells were collected 24 h post transfection and lysed in a buffer containing 50 mM Tris (PH 7.4), 150 mM sodium chlorate, 0.5% Nonidet P-40, 10 mM sodium fluoride, 1 mM Sodium metavanadate, 1 mM DTT, 10 mM PMSF and protease inhibitors. Each lysate was incubated with anti-Flag M2 affinity gel (Sigma) overnight. For the competition assay, the lysate containing cotransfected full-length Flag-Mira and GFP–Brat was incubated with anti-flag M2 affinity gel overnight in the presence or absence of 0.8 mg purified Trx-Stau dsRBD5.
After extensive wash of the beads with the lysis buffer, the captured proteins were boiled in SDS–PAGE loading buffer and subjected to SDS–PAGE. Proteins were transferred to 0.45 μM nitrocellulose membrane (Millipore), and the nitrocellulose membrane was blocked using 3% BSA in TBST (20 mM Tris-HCl (pH 7.4), 137 mM NaCl and 0.1% Tween-20) buffer at room temperature for 1 h, followed by incubation with the following antibodies: Flag (ABclonal), HA (ABclonal), GFP (ABclonal) at 1/2,000 dilution at 4 °C overnight. Membranes were washed three times with TBST buffer, incubated with horseradish peroxidase (HRP)-conjugated Goat anti-Rabbit or anti-Mouse antibody (ABclonal) and visualized on a LAS3000 Chemiluminescent Imaging System.
GST pull-down assay
For GST pull-down assay, GST or GST-tagged Brat NHL (8 μM for the final concentration) were first loaded to 40 μl GSH-Sepharose 4B slurry beads in a 500-μl assay buffer containing 50 mM Tris (pH 8.0), 100 mM NaCl, 1 mM DTT and 1 mM EDTA. The GST fusion protein loaded beads were then mixed with potential binding partners (24 μM each for the final concentration), and the mixtures were incubated for 1 h at 4 °C. After four times washing, proteins captured by affinity beads were eluted by boiling, resolved by 15% SDS–PAGE, and detected by Coomassie blue staining.
Drosophila S2 cell culture
Mira (Flag-Mira WT and Flag-Mira L529E) and Stau (Flag-Stau WT and Flag-Stau H994E) variants were subcloned into UASt.attB vector (A gift from Konrad Basler).
Drosophila S2 cells were grown at 25 °C in Schneider's medium (Invitrogen) supplemented with 10% fetal bovine serum. All transfections were performed using Effectene Reagent (Qiagen) according to the manufacturer's instructions. Briefly, S2 cells were cotransfected with 0.5 μg plasmids of interest (Mira or Stau) together with act-gal4 plasmid. Cells were collected at 48 h later and lysed in Nonidet P-40 lysis buffer containing 50 mM Tris, pH 8.0, 250 mM NaCl, 0.5% Nonidet P-40, 0.2 mM EDTA, protease inhibitor cocktail (complete, Roche) and phosphatase inhibitor. The lysate was collected and cleared by centrifugation at 13,000 r.p.m. for 5 min at 4 °C. The samples were separated by 10% polyacrylamide SDS–PAGE gels followed by transferring to PVDF membranes (Millipore). Mouse anti-Flag antibody (Sigma, 1/2,000), Rabbit anti-Mira antibody (Generated in our lab, 1/1,000) and Rabbit anti-Stau antibody (Daniel St Johnston, 1/1,000) were diluted in TBST with 5% non-fat dry milk.
Fly genetics
Information about the fly stains used in this study was described in the text or FlyBase (www.flybase.org). Stocks (unless stated below) were obtained from Blooming Stock Center and crosses were maintained at 25 °C on standard medium. Stocks used were FRT82B, elav-gal4, insc-gal4, Tub-gal80, hs-flp, UAS-CD8::GFP, Miranda[L44] (Fumio Matsuzaki), UAS-Flag-Mira WT, UAS-Flag-Mira L529E and UAS-Flag-Stau WT and UAS-Flag-Stau H994E were generated in this study.
Mira (Flag-Mira WT and Flag-Mira L529E) and Stau (Flag-Stau WT and Flag-Stau H994E) variants were subcloned into UASt.attB vector (A gift from Konrad Basler) and transgenic lines were generated by BestGene, Inc. (ChinoHills,CA) using attP landing site on II chromosome (Best Gene line 9723).
To address these Mira variant localization and function in Mira mutant background, these transgenes were subsequently crossed into FRT82B or FRT82B.Mira[L44] background to obtain following stocks.
UASt–Flag-Mira WT/Sm6.cyo; FRT82B/Tm3.tb
UASt–Flag-Mira WT/Sm6.cyo; FRT82B.Mira[L44]/Tm3.tb
UASt–Flag-Mira L529E/Sm6.cyo; FRT82B/Tm3.tb
UASt–Flag-Mira L529E/Sm6.cyo; FRT82B.Mira[L44]/Tm3.tb
Mosaic analysis with a repressible cell marker technique was used to positively mark mutant clones with a GFP signal according to published protocol48. In brief, embryos were collected over a period of 6 h, and larvae (24 h after larval hatching, ALH) was subjected to 1-h heat-shocked treatment at 37 °C, and larvae with desired genotypes were dissected and examined.
Immunohistochemistry and imaging
Larvae of desired genotype were dissected at 96 h ALH and brains were fixed for 15 min in 3.7% formaldehyde in PBS with 0.1% Triton-X, and later processed for immunochemistry analysis. The following antibodies were used: mouse anti-Mira (Fumio Matsuzaki), 1/30; mouse anti-flag (Sigma), 1/2,000; rabbit anti-Mira49 (generated in our lab), 1/1,000; rabbit anti-Stau (Daniel St Johnston), 1/2,000; rat anti-Brat50 (Yongqing Zhang), 1/500; mouse anti-Pros (DSHB), 1/20; guinea-pig anti-Dpn (generated in our lab), 1/1,000; rabbit anti-Pon (generated in our lab), 1/2,000; rabbit anti-aPKCζ C20 (Santa Cruz Biotechnologies), 1/1,000; chicken anti-GFP (Abcam), 1/5,000. Secondary antibodies were conjugated to Alexa Fluor 488, Alexa Fluor 555, or Alexa Fluor 633 (Molecular Probes), and used at 1/500, 1/1,000, and 1/250, respectively. TO-PRO-3 (Invitrogen) was used at 1/5,000 for DNA staining and samples were mounted in Vectashield (Vector Laboratories). Images were obtained using Zeiss LSM 510 upright or Leica SP II upright microscope and processed in Adobe Photoshop CS6 and Adobe Illustrator CS6.
Additional information
Accession codes: The atomic coordinates of Mira514–595/Stau dsRBD5 have been deposited to the Protein Data Bank under the accession code 5CFF.
How to cite this article: Jia, M. et al. The structural basis of Miranda-mediated Staufen localization during Drosophila neuroblast asymmetric division. Nat. Commun. 6:8381 doi: 10.1038/ncomms9381 (2015).
Supplementary Material
Acknowledgements
We thank the staff of beamline BL17U and BL17B at SSRF and National Center for Protein Sciences Shanghai, for assistance during data collection; and staff members of the Biomedical Core Facility, Fudan University, for their help on biochemical analyses; and Konrad Basler, Daniel St Johnston, Fumio Matsuzaki, Sousa-Nunes Rita, Yongqing Zhang, the Bloomington Stock Center, DSHB for antibodies, vector and stocks. This work was supported by grants from the National Major Basic Research Program of China (2011CB808505, 2014CB910201), National Science Foundation of China (21473034, 31270778, 31422015), Program for New Century Excellent Talents in University (NCET-12-0129), Shanghai ‘Shu Guang' Project (14SG06), Specialized Research Fund for the Doctoral Program of Higher Education (20130071140004), Science & Technology Commission of Shanghai Municipality (08DZ2270500), and Temasek Life Sciences Laboratory and Singapore Millennium Foundation.
| Se–Met | |
|---|---|
| Data collection | |
| Space group | C121 |
| Cell dimensions | |
| a, b, c (Å) | 200.023, 51.332, 100.274 |
| α, β, γ (°) | 90.000, 90.555, 90.000 |
| Wavelength (Å) | 0.9792 |
| Resolution (Å) | 50.00-2.50 (2.54–2.50)* |
| Rmerge (%) | 7.8 (66.4) |
| Mean I/σI | 35.4 (3.7) |
| Completeness (%) | 94.9 (99.8) |
| Redundancy | 5.5 (6.1) |
| Refinement | |
| Resolution (Å) | 27.66–2.50 |
| No. of reflections | 33,794 |
| Rwork/Rfree | 24.2/28.1 |
| No. atoms | |
| Protein | 4,605 |
| Water | 27 |
| B factors | |
| Protein | 42.63 |
| Water | 33.19 |
| r.m.s. deviations | |
| Bond lengths (Å) | 0.010 |
| Bond angles (°) | 1.183 |
