Antibiotic-resistance plasmid amplified among MRSA cases in an urban jail and its connected communities
1Department of Microbiology and Immunology, University of Michigan Medical Center, Ann Arbor, MI, USA
2University of Michigan School of Public Health, Department of Epidemiology, Ann Arbor, MI, USA
3Section of Infectious Diseases, Rush University Medical Center/Cook County Health, Chicago, IL, USA
4Section of Infectious Diseases, Stroger Hospital of Cook County/Cermak Health Services, Chicago, IL, USA
5Department of Pathology, Rush University Medical Center, Chicago, IL, USA
#Corresponding author; email: hsteinb@umich.eduAbstract
Jails have been hypothesized to be hotspots for the spread of methicillin-resistant Staphylococcus aureus (MRSA). We integrate genomic and epidemiologic data to investigate USA300 MRSA transmission in an urban jail and its connected communities. A genome-wide association study of 308 jail isolates from 2015-2018 revealed a plasmid encoding the ermC clindamycin/erythromycin resistance gene was associated with a 6-fold increased odds of MRSA genetic linkages among detainees. Additionally, 52% of jail-onset MRSA infections carried this plasmid compared to 14% of intake colonization isolates, supporting its role in MRSA spread in the jail. Extending our analysis to 774 isolates from a local healthcare system from 2011-2014, the ermC-carrying plasmid was also associated with MRSA transmission in the larger community and was enriched among former jail detainees and those with related isolates to recently incarcerated cases. Lastly, topical clindamycin exposure before MRSA infection was associated with ermC plasmid presence in both settings, but exposure prevalence was higher in jail versus community cases (7.5% vs. 0.9%), suggesting antibiotic use in the jail may have created a favorable environment for the spread of ermC-carrying strains. These findings highlight the impact of antibiotic use in jails on antibiotic resistance in both jails and their surrounding communities.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
The project described was supported by Grant Numbers R01AI114688 (PI: KJP) and 1R01 AI146079-01A1 (PI: KJP) from the National Institute of Allergy and Infectious Diseases. SNT was supported by the Molecular Mechanisms of Microbial Pathogenesis training grant (NIH T32 AI007528). KJG was supported training fellowships from National Human Genome Research Institute (T32-HG000040) and NIAID (F31-AI186288). ESS was supported by NIAID U19AI181767.
Introduction
Once primarily a healthcare-associated pathogen, starting in the late 1990’s and early 2000’s methicillin-resistant Staphylococcus aureus (MRSA) transmission began occurring in community settings(1). In the United States, this transition was largely due to the emergence of the USA300 strain of MRSA, a sub-lineage of the ST8/CC8 clonal complex(2). Initially, USA300 outbreaks were observed in congregate settings defined by close personal contact, such as jails, prisons, military barracks, daycares, and gyms(3). Subsequently, USA300 has become endemic in many communities, and while rates of healthcare-associated MRSA infections have declined with enhanced prevention efforts, community-associated MRSA (CA-MRSA) infection rates have largely remained stable(4).
USA300 has been characterized by higher rates of susceptibility to non-beta-lactam antibiotics in comparison to more typical healthcare-associated MRSA strains(5, 6). This feature has directly impacted outpatient management of skin and skin structure infections due to CA-MRSA by allowing oral antibiotic options as empiric therapy. However, resistance in CA-MRSA strains has steadily emerged, with notable variation in resistance to agents such as fluoroquinolones and clindamycin across different regions of the US(7–9). Furthermore, multi-drug resistant USA300 MRSA has been observed in several US cities(7, 8), highlighting the importance of antibiotic stewardship efforts both in and out of healthcare settings and for continued monitoring of local antibiograms for CA-MRSA strains. Importantly, due to lack of regular genomic surveillance, shifts in circulating lineages and resistance determinants that are driven by local selective pressures likely go undetected (10).
As the community MRSA epidemic has progressed and become endemic, significant disparities have arisen with respect to those communities most impacted. Previous studies in Chicago, IL have found that the zip codes with the highest rates of CA-MRSA are those with low socio-economic status, high rates of unstable housing, high rates of substance abuse, and high rates of detainee release from correctional facilities(11–15). Jails have garnered particular interest as potential amplifiers of community MRSA because of high rates of community influx, recidivism, and the potential for intermixing of individuals from different social networks and communities(16). Previous mathematical modeling studies have provided support for the potential importance of jails as amplifiers of MRSA, with the number of contacts during incarceration and inflow of infected individuals playing a significant role in spread(17). We previously found a high colonization prevalence for MRSA among both female (20%)(18) and male (19%)(19) detainees when entering the jail, with genomic analysis supporting the spread of MRSA during incarceration(20). We also found that incarceration rates are a key driver of community MRSA rates and racial disparities in infections at the census-tract level (15). However, the mechanism by which MRSA dynamics within urban jails impact the surrounding community remain unclear. Determining the relative influence of jail and community transmission on CA-MRSA incidence is essential to determining where targeted surveillance and intervention efforts will be most impactful.
Here, we sought to improve our understanding of the intersection between community and jail transmission networks by leveraging large genomic and epidemiologic data sets for individuals colonized or infected with USA300 MRSA at Cook County Jail (CCJ), and Cook County Health (CCH), a safety-net healthcare network serving communities with high detainee release rates. By employing genome-wide association studies (GWAS) to identify genotypes preferentially spreading in jail, and integrating clinical metadata, we find evidence for the amplification of an ermC-carrying resistance plasmid via clonal spread of multiple USA300 sub-lineages that independently acquired the ermC plasmid, potentially favored by high rates of topical clindamycin use among detainees during the study period. GWAS of CCH isolates revealed proliferation of the same plasmid, with direct or indirect exposure to CCJ being associated with having a MRSA strain that harbored the ermC resistance plasmid. These findings highlight the distributed impact antibiotic use has across community settings, and how the proliferation of CA-MRSA strains within urban jails can leave detectable signatures on communities with high detainee release.
Results
Characteristics of MRSA cases at Cook County Jail

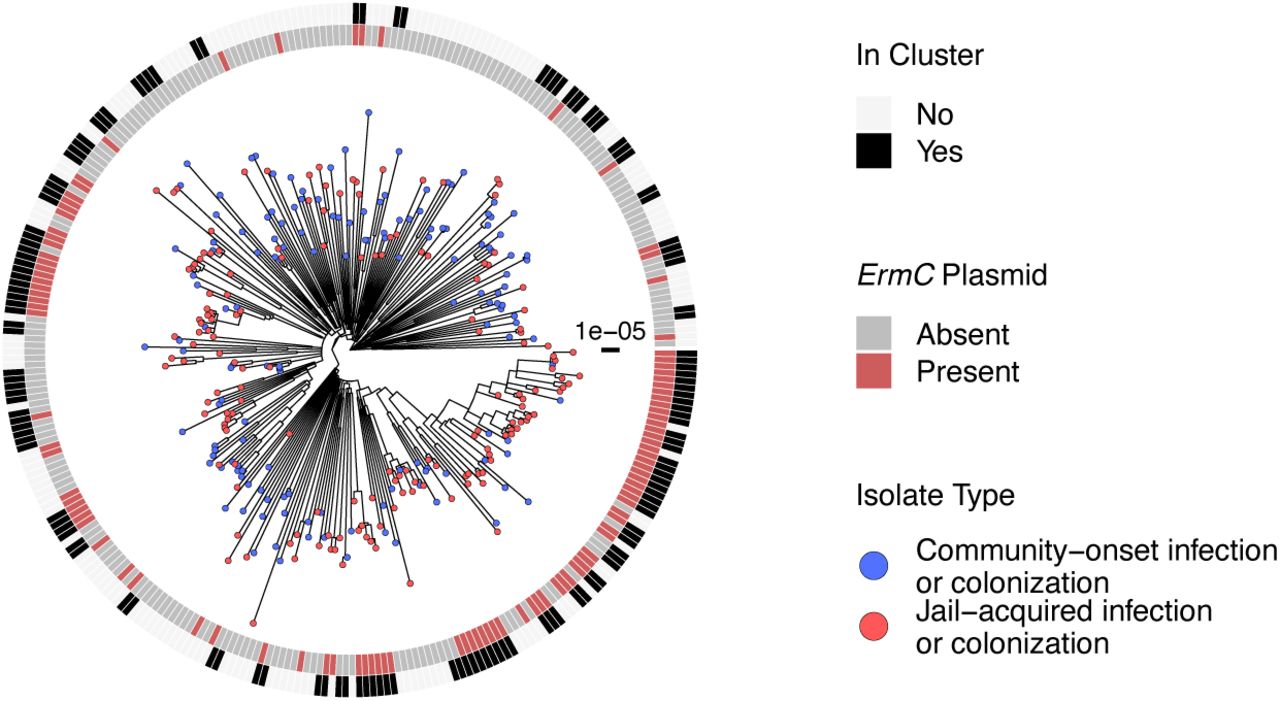

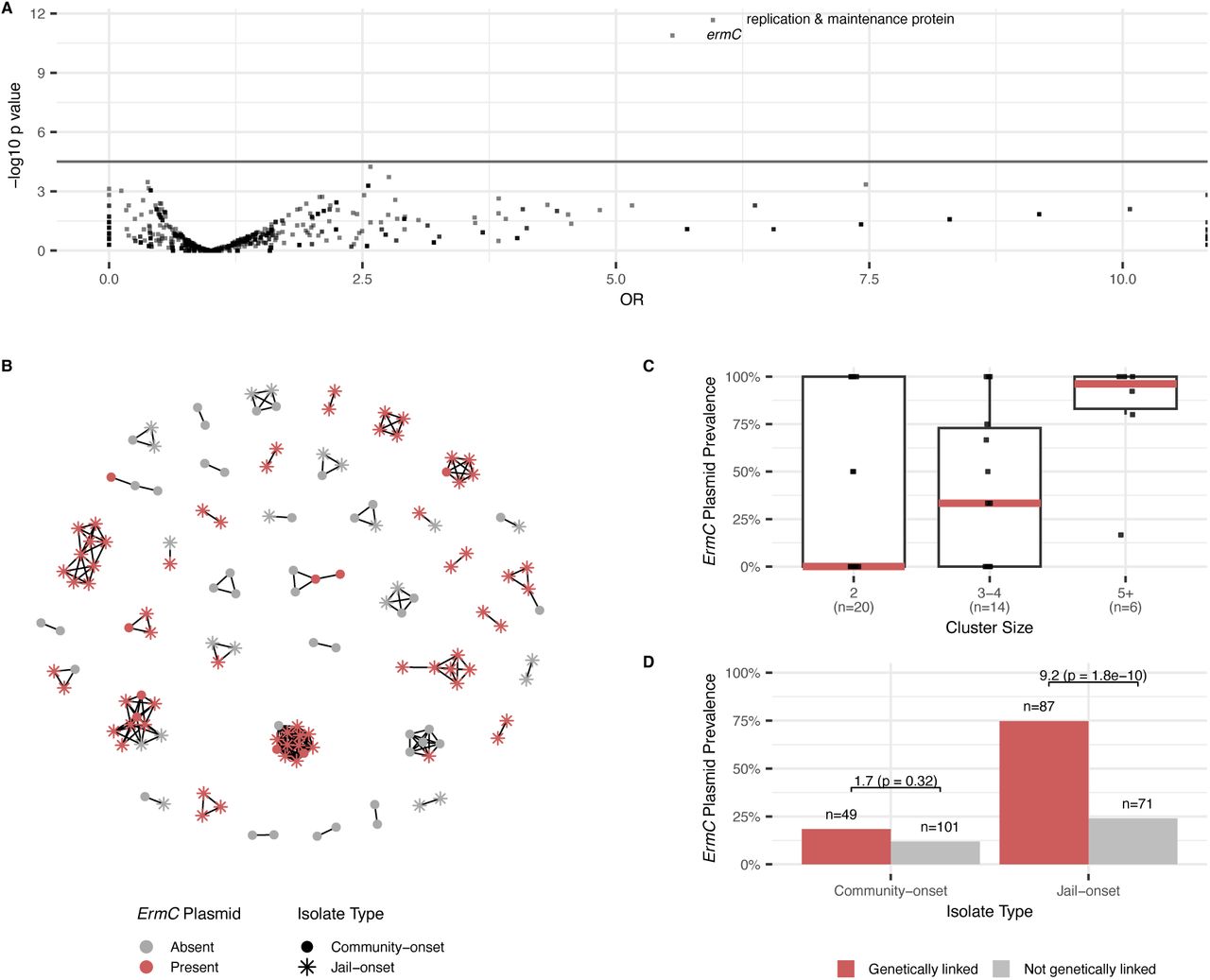

From 2015-2018, 308 unique USA300 MRSA isolates were cultured from 305 detainees at CCJ. Three (1%) of these cases were classified as community-onset infections (infection culture obtained less than 72 hours after entering CCJ), 146 (47%) were jail-onset infections, 147 (48%) were intake colonizations, and 12 (3.9%) were jail-onset colonizations. The majority (74%) of cases were male. Colonization isolates were cultured from the nose (n=89), throat (n=40), or groin (n=30) of asymptomatic cases, and the vast majority of symptomatic infections were wound infections (n=145) (Supplemental Table S1).
Clindamycin use in the Cook County Health and Jail populations associated with ermC

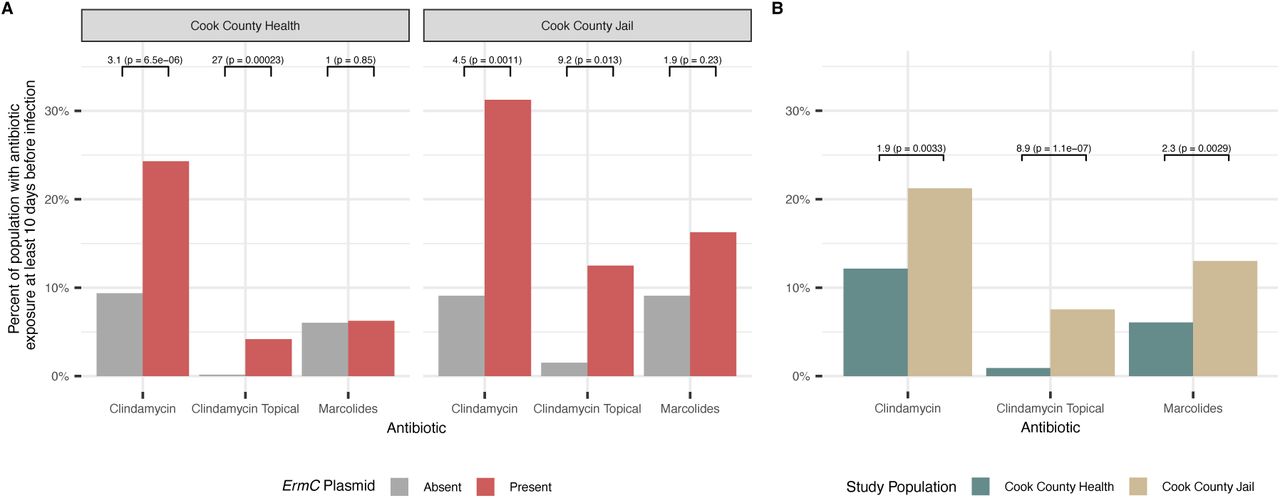

The observation of an ermC plasmid conferring resistance to clindamycin being associated with sustained transmission over time was at odds with prior work suggesting a significant fitness cost (26). We hypothesized that one pathway for preferential spread of ermC plasmids was high rates of clindamycin use. Indeed, among patients represented in the CCH collection, clindamycin use was significantly associated with having a MRSA isolate harboring ermC (Figure 3A, Table 1, OR = 3.1, p = 6.5×10−6, 95% CI: 1.9-5.0). Moreover, the association between harboring an ermC strain was even stronger with topical clindamycin exposure (Figure 3A, OR = 27, p = 2.3×10−4, 95% CI: 3.7-621). Similarly, among detainees with jail-onset MRSA infections at CCJ, ermC was associated with both overall clindamycin exposure (OR = 4.5, p = 0.0011, 95% CI: 1.7-12.0) and topical clindamycin exposure (OR = 9.2, p= 0.013, 95% CI: 1.2-202)(Figure 3A, Supplemental Table S4).
Having observed that clindamycin use was associated with ermC in both CCH and CCJ, we next compared frequency of clindamycin use between the two settings to assess the relative strength of the selective pressure imposed. This comparison revealed that clindamycin exposure was significantly higher among detainees in CCJ than patients in CCH, for both overall (21.2% vs. 12.1%, p = 0.033, Figure 3B) and topical use (7.5% vs. 0.90%, p = 1.1×10−7, Figure 3B). This led us to hypothesize that high rates of clindamycin use among detainee populations, beyond just those with detected MRSA colonization or infection in our study population, could be driving spread of ermC. In support of this hypothesis, we found more individuals in CCJ were prescribed topical clindamycin (range: 60-310 individuals per month) than were infected with MRSA (range: 0-12 per month), in any given month of our study period. Moreover, the use of topical clindamycin spiked in the CCJ just as our collection of MRSA in CCJ commenced in 2016 (Supplemental Figure S7).
Genomic and epidemiologic evidence supports ermC amplification in the jail spilling over into the community

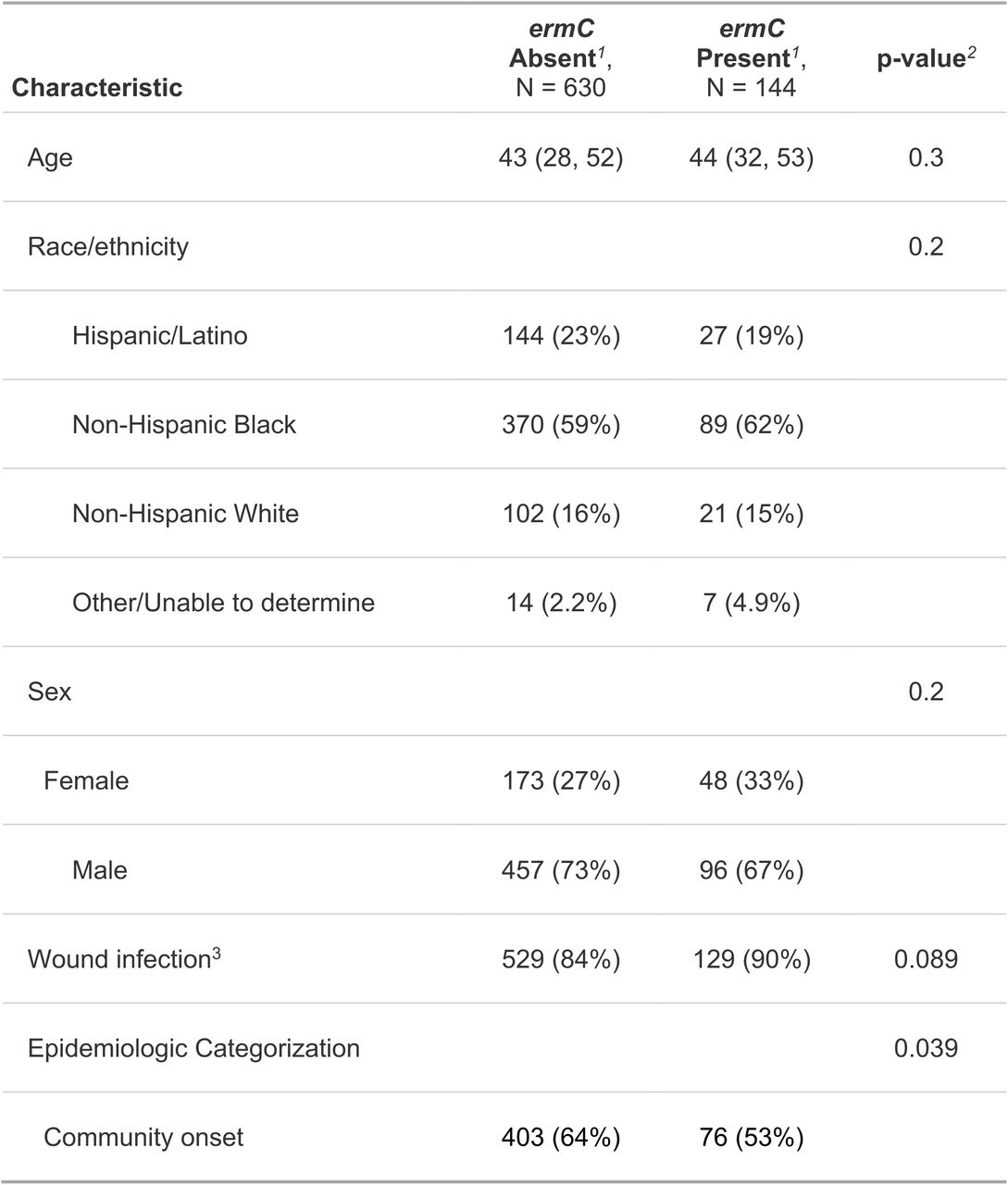

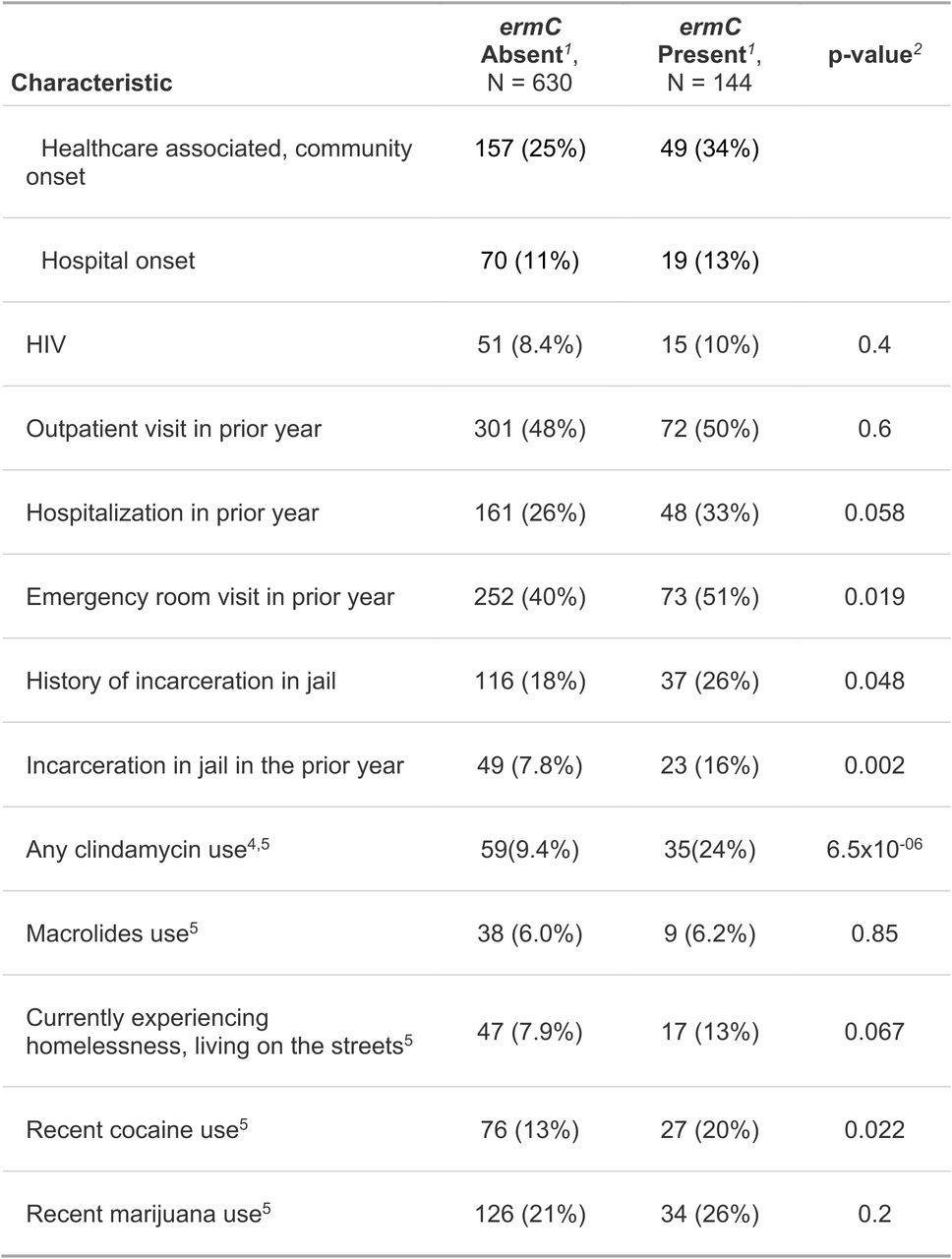

Having observed evidence for amplification of ermC in both CCJ and CCH, we next evaluated evidence for transmission in the jail influencing ermC prevalence in the community. First, we examined whether prior exposure to jail increased the risk of an individual’s isolate harboring ermC. Indeed, we found that among individuals at CCH, incarceration within the year prior to their MRSA clinical culture was associated with their strain harboring ermC (OR = 2.2, p = 0.004, 95% CI: 1.3-3.9). Other than clindamycin, healthcare, and jail exposures, the only other epidemiologic factor significantly associated with having a strain harboring ermC was current cocaine use or history of illicit drug use (Table 1). Of note, cocaine use and recent incarceration are associated (OR = 2.2, p = 0.01, 95% CI: 1.2-4.0), so it is possible that incarceration may be mediating or confounding the association between cocaine/illicit drug use and ermC. History of illicit drug use was also a risk factor for ermC harboring MRSA strains on intake surveillance at the jail, which likely reflects community transmission pre-detention and corroborates the associations found in the CCH data (Supplemental Table S5).

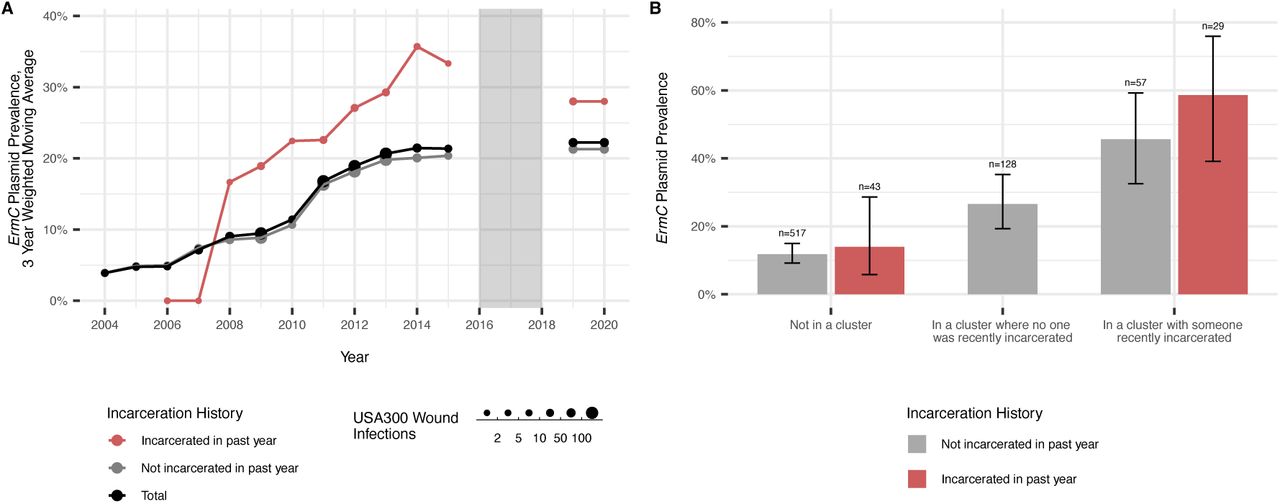

To gain further insights into the relationship between ermC and exposure to the CCJ, we took advantage of additional isolates collected from CCH from 2004-2020. While these additional isolates outside of 2011-2014 are less comprehensively sampled (i.e. only random subsets of wound isolates sequenced from 2004-2009 and only MRSA bloodstream infection isolates available 2015-2018), they allowed us to evaluate ermC prevalence and its association with recent exposure to jail over a longer timeframe. We observed a higher prevalence of ermC in individuals with recent incarceration across all study years (Χ2 = 9.8, p = 0.002) (Figure 4A). In addition, we observe an increasing prevalence of ermC overall (Χ2 test for trend from 2004-2015 = 38.3, p < 0.001), until a plateau in 2019-2020. As noted above, clindamycin use in the jail spiked in 2016, and then decreased to a low level in 2018 that persisted onward (Supplemental Figure S7).
Lastly, having seen evidence that direct exposure to the jail was associated with having an ermC carrying strain, we next set out to see whether indirect exposure to the jail, as evidenced by a genomic linkage of a MRSA isolate from individuals without history of incarceration to a MRSA isolate from someone with exposure to the jail, increased risk for having an ermC carrying strain. Indeed, we found that individuals in a genomic cluster with someone recently incarcerated have 6.7 times increased odds (95% CI: 4.0-11.3) of having ermC as those not in a genomic cluster, controlling for individual recent incarceration history (Figure 4B). Additionally, those who were in a genomic cluster that did not include someone who was recently incarcerated had 2.7 times increased odds (95% CI: 1.7-4.4) of having an ermC isolate compared to those who were not in a genomic cluster, further supporting the evidence that regardless of jail exposure (direct or indirect), ermC-carrying isolates may be associated with greater transmission in the community (Figure 4B).
Discussion
It has been hypothesized that urban jails and prisons act as key amplifiers of CA-MRSA spread(17). However, in practice it has been challenging to separate the impact of transmission in jails and prisons from other socioeconomic community risk factors that are correlated with high detainee release. Here, through sampling circulating MRSA strains from a large urban jail and a healthcare network serving the surrounding communities, employing GWAS to identify variants preferentially spreading in jail settings, and leveraging detailed epidemiologic metadata, we find evidence of amplification of an antibiotic resistance element in MRSA isolates in the jail with re-seeding back into the surrounding communities. More broadly, this work demonstrates how genomic analysis of bacterial pathogens can yield not just insight into transmission pathways, but when combined with relevant metadata, also provide insight into the locations and practices mediating the emergence and spread of genotypes of concern.
Previous studies have shown that communities with high detainee release have elevated MRSA infection rates(14, 15), thereby suggesting a role for jails in the amplification of MRSA in connected communities. We previously found support for MRSA spread in an urban jail in the form of genomic and epidemiologic evidence of MRSA transmission among detainees(20). Here, we built on this finding and showed that jails also have the potential to act as amplifiers of specific genetic variants, in this case, the mobilizable clindamycin resistance-conferring ermC plasmid. Support for ermC amplification in the jail comes from its strong association with intra-jail genomic transmission linkages, as well as the 4-fold increase in ermC prevalence among jail-acquired MRSA isolates relative to isolates collected on entrance to the jail. Of note, the amplification was not due to the clonal spread of a single lineage, but rather the simultaneous spread of multiple USA300 sub-lineages that independently acquired the ermC plasmid. Evidence of downstream impact on the community comes from finding that the presence of ermC in community MRSA isolates is associated with recent individual exposure to the jail and with genetic linkage to isolates collected from individuals with exposure to the jail. Moreover, the plateau in the ermC prevalence in the years following a decrease in the use of topical clindamycin in the jail is consistent with a role of antibiotic use among detainees in amplifying antibiotic resistance in the jail and connected communities.
We believe our findings support the need for antibiotic stewardship efforts to extend beyond healthcare settings in locations such as correctional facilities. The association of prior topical clindamycin exposure with ermC carriage (12% with ermC versus 1.5% without ermC), combined with the significantly increased exposure to topical clindamycin in the jail versus community (7.5% versus 0.90%), supports the role for antibiotic use in the jail playing a role in amplifying ermC, and more broadly showing how antibiotic usage in individual settings can have broader impact on antibiotic resistance. As another example of the distributed impact of antibiotic use, it is increasingly appreciated that long-term care settings and nursing homes that have high rates of antibiotic use and exchange large numbers of patients with regional healthcare facilities, can have a significant impact on regional prevalence of antibiotic resistance threats(27–29). Together, these observations raise the possibility of targeting infection prevention and antibiotic stewardship interventions to these key community and healthcare hub facilities to maximize the impact of finite resources available for regional control of antibiotic resistance.
From an analytic perspective, our work demonstrates the potential for regional genomic epidemiology of bacterial pathogens to track the emergence of variants of concern and elucidate their drivers. Complexity in modes of bacterial genome evolution have to this point hindered the direct application of phylodynamic approaches that have been successfully employed in viral pathogens to detect variants of concern(30). However, work in the clonal bacterial pathogen Mycobacterium tuberculosis has shown the promise of phylodynamic approaches in bacteria, revealing preferential amplification of drug resistant and susceptible lineages in specific host populations(31, 32). Here we took an unbiased GWAS approach to identify not just lineages, but rather variants associated with recent amplification, leading to the detection of ermC as preferentially spreading in both CCJ and CCH collections. Of note is the complex distribution of ermC, where its amplification was not due to the expansion of a single sub-lineage, but rather the expansion of multiple sub-lineages that had independently acquired the ermC plasmid. This observation highlights the need to consider nuances of bacterial evolution in future studies leveraging methodologic innovations from viral genomic analysis. Lastly while we had unique access to samples from CCH and CCJ, our sampling primarily consisted of clinical cultures, demonstrating the feasibility of assembling collections needed to power these analyses and thereby highlighting the promise of regional genomic surveillance.
Our study has some limitations that should be considered when interpreting our findings. First, while we had access to comprehensive collections of clinical isolates from both CCJ and CCH, the collection periods were not overlapping (CCH: 2011-2014 and CCJ: 2015-2018). However, despite not being able to look at direct transmission via comparison between isolates collected from CCJ and CCH, we were able to use knowledge of recent jail exposure among individuals seeking care at CCH to link the jail and community. A second limitation of our study is that the majority of isolates in our collection represent clinical infection, with the CCH collection in particular only including clinical isolates. However, inclusion of MRSA colonization isolates from detainees at jail intake support high prevalence of ermC in the community, and our conclusions regarding ermC amplification are supported by the steady longitudinal increase in ermC prevalence at CCH.
In conclusion, through the integration of genomic and epidemiologic data from an urban jail and the connected community, we find evidence supporting the preferential spread of clindamycin-resistant MRSA in the jail, with spread into the community. Moreover, integration of antibiotic usage data highlighted the role of clindamycin use in both jail and community settings in selecting for the horizontal gene transfer of the ermC-carrying plasmid and spread of strains already harboring the plasmid. In addition to immediate implications for antibiotic stewardship, this work highlights more broadly the potential for genomic surveillance to reveal the sources and drivers of emerging infectious threats in the community. However, essential to generating translational insights capable of guiding intervention is the careful sampling of key community reservoirs, as well as collection of relevant epidemiologic data that enhances understanding of pathways of transmission and their clinical, societal, and behavioral amplifiers.
Methods
Genome sequencing and analysis
New genomes from CCH were sequenced on Illumina Novaseq instruments at the Advanced Genomics Core at the University of Michigan. The quality of sequencing reads was assessed using FastQC v0.11.0, and adapter sequences and low-quality bases removed using Trimmomatic v0.39. SNVs were identified by first using Burrows-Wheeler short-read aligner (bwa v0.7.17) to map trimmed reads to the USA300 reference genome (GenBank accession number NC_010079.1), then discarding polymerase chain reaction (PCR) duplicates with Picard v3.0.0, and calling variants with SAMtools and bcftools v1.9. Variants were filtered using VariantFiltration from GATK v4.5.0.0 (QUAL > 100; MQ>50;>=10 reads supporting variant; and FQ< 0.025). We performed GATK HaplotypeCaller for indel calling only including those with root mean square quality (MQ) > 50.0, GATK QualbyDepth (QD) > 2.0, read depth (DP) > 9.0, and allele frequency (AF) > 0.9. We also excluded variants that were less than 5 base pairs in the proximity to indels, in recombinant regions identified by Gubbins v3.0.0, in a phage region identified by Phaster web tool, or resided in tandem repeats of length greater than 20 bp as determined using the exact-tandem program in MuMmer v3.23 using a custom Python script. We conducted multilocus sequence typing with ARIBA and further classified isolates using in silico sequencing probes provided in Bowers et al. (33, 34).
Phylogenetic analysis
The recombination-masked whole-genome alignment was then used to reconstruct a maximum likelihood phylogeny with IQ-TREE v2.0.3 using the general time reversible model GTR+G and ultrafast bootstrap with 1000 replicates (-bb 1000).
Testing the association of potential transmission events and the MRSA pangenome
We used panaroo v 1.2.5 (clean mode moderate) to identify the accessory genome of each sample(35). Genes were annotated with eggnog v2.1.12(36), with the following parameters: -m diamond --override --itype CDS --translate -- report_orthologs. Individuals linked by recent direct or indirect transmission were defined with a 20 SNV threshold, based on prior literature identifying optimal thresholds for S. aureus(21, 37), and supported by our previous analysis of these particular datasets(20, 25). A Fisher’s exact test was conducted to assess the association between transmission and gene using the R package exact2×2 v1.6.5(38). The relationship between odds ratio (OR) and p value was plotted.. Significance was assessed with a Bonferonni-adjusted p value. We made the intentional decision not to explicitly control for population structure in our GWAS, as the clustering of strains is the signal we were trying to identify a genetic basis for. For example, using regression-based approaches that account for population structure by including a distance-matrix as a random effect, would control for the genetic clustering we are trying to detect(39). In contrast, tools that identify lineages that are undergoing clonal expansions, do not currently capture the simultaneous expansion of multiple lineages due to mobile genetic elements(40). However, not controlling for population structure opens the analysis to simply detecting lineage effects, which may or may not be causal. It is for this reason that we specifically focus on the accessory genome, which by way of mobile elements mediating horizontal spread, break the linkage with genetic background.
Ancestral state reconstruction to evaluate the emergence and spread of ermC plasmid-containing strains
The emergence and spread of ermC plasmid-containing strains was characterized using the R package phyloAMR (https://github.com/kylegontjes/phyloAMR)(41). PhyloAMR’s asr() function applied corHMM’s joint ancestral state reconstruction on the ermC plasmid and traced ancestral- and tip-states across edges of the midpoint-rooted phylogeny, comprising both CCH and CCJ isolates, to infer gain events and loss events(42). The all-rates different model was determined as the best rate matrix using sample-size corrected Akaike information criterion.
The phylogenetic tree-traversal algorithm, asr_cluster_detection(), inferred the evolutionary history of ermC in this population. The phylogeny was traversed from tip to root to classify ermC plasmid-containing isolates as phylogenetic singletons (i.e., evidence of independent acquisitions of the plasmid) or members of a phylogenetic cluster of ermC plasmid-containing strains (i.e., evidence of the emergence and spread of a plasmid-containing lineage). This algorithm classified ermC plasmid-containing isolates with gain events at their tip as phylogenetic singletons. However, isolates with a gain event at the tip and a loss event at their parental node were eligible for classification as members of a phylogenetic cluster. Isolates with ancestral gain events that were shared with at least one additional ermC-containing isolate contributed to the study by another individual were classified as members of a phylogenetic cluster. Isolates that did not share an ancestral gain event with another ermC plasmid-containing isolate were classified as phylogenetic singletons.
Antibiotic susceptibility testing and genetic determinants of clindamycin resistance
Antibiotic susceptibility testing was performed on all clinical isolates (i.e. not for surveillance isolates) in the Cook County Health clinical microbiology laboratory using Microscan susceptibility testing automated system, with resistance determined using CLSI breakpoints. The presence of ermC can confer constitutive or inducible resistance to clindamycin(24). We defined inducible resistance as presence of ermC, along with susceptibility to clindamycin and resistance to erythromycin by broth microdilution; we defined constitutive resistance as presence of ermC, along with resistance to both erythromycin and clindamycin. Furthermore, we used pyseer(39) to confirm that the ermC-carrying plasmid was the only determinant of clindamycin resistance in this collection (Supplemental Figure S8).
Data availability
Whole-genome sequences analyzed in this study have been uploaded to the SRA under Bioprojects PRJNA734638, PRJNA638400, PRJNA530184, PRJNA761409 and PRJNA1225712. The raw individual level meta-data are protected and are not available due to data privacy laws, but aggregate population summaries statistics are available in main text and supplementary tables.
Code availability
Select analysis code available at https://github.com/sthiede/thiede_steinberg_et_al_MRSA_ermC/ (DOI: 10.5281/zenodo.17350441).
Supporting information
Funding and acknowledgments
The project described was supported by Grant Numbers R01AI114688 (PI: KJP) and 1R01 AI146079-01A1 (PI: KJP) from the National Institute of Allergy and Infectious Diseases. SNT was supported by the Molecular Mechanisms of Microbial Pathogenesis training grant (NIH T32 AI007528). KJG was supported training fellowships from National Human Genome Research Institute (T32-HG000040) and NIAID (F31-AI186288). ESS was supported by NIAID U19AI181767. We would also like to thank Joshua Rafinski and Will Chan for their assistance with data analysis. We thank the individuals who participated in this study.
Competing Interest Statement
No competing interests.
