Development and validation of the Behavioral Health Acuity Risk model: a predictive model for suicide prevention through clinical interventions
1Novant Health Cognitive Computing, Novant Health, Inc, Winston-Salem, North Carolina, USA
2Novant Health Forsyth Medical Center, Novant Health, Inc, Winston-Salem, North Carolina, USA
3Novant Health Charlotte Medical Group, Novant Health, Inc, Charlotte, North Carolina, USA
*Corresponding author; email: kehegarty@novanthealth.orgAbstract
Common suicidal ideation screening tools used in healthcare settings rely on the willingness of the patient to express having suicidal thoughts. We present an automatic and data-driven risk model that examines information available in the medical record captured during the normal course of care. This model uses random forests to assess the likelihood of suicidal behavior in patients aged seven or older presenting at any healthcare setting. The Behavioral Health Acuity Risk (BHAR) model achieves an area under the receiver operating curve (AUC) of 0.84 and may be used on its own or as a component of a comprehensive suicidal behavior risk assessment.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
This study did not receive any funding.
Summary of Updates:
Introduction
Suicide was among the top four leading causes of death in the United States in 2020 for those between the ages of ten and forty-four years old, and the twelfth leading cause of death among all ages (1). The economic impact is estimated at more than $4.75 billion per year in the United States (2).
Perhaps surprisingly, many decedents of suicide receive some suicide risk assessment or contact with their healthcare provider prior to suicide (3,4). Unfortunately, current standards of care and most existing instruments for suicide risk assessment have been unable to accurately predict risk with high accuracy (5,6,7), and many patients who are assessed for suicidal ideation deny suicidal intent even within one week of completion of suicide (3). For example, the Columbia-Suicide Severity Rating Scale (C-SSRS) (8) was introduced in 2011 and has come to be widely considered as the gold standard for suicide risk assessment. As with other tools relying on self-reported information, its utility is limited by the respondent’s willingness to provide truthful answers about intent to commit suicide or self-harm. It has been shown to identify patients at risk at a rate only moderately higher than random, having an area under the receiver operating curve (AUROC) of 0.65 (6), and that the assessment itself is susceptible to navigation errors and misinterpretations of question intent (7).
Various computer-aided models have been developed to identify high risk individuals. Tiet et al. developed a decision tree model for individuals with substance use disorder and recent suicidal ideation which evaluates prior suicide attempts, substance use, suicidal ideation, and violent behavior of patients to discriminate between those who will have a future suicide attempt and those who will not (9). Kessler et al. explored regression models for predicting suicide within a population of male non-deployed Regular U.S. Army soldiers having outpatient mental health specialty visits (10). One of the challenges faced by previous researchers is the low prevalence rate of suicide within a general population, which poses difficulty for many statistical and machine learning modeling techniques which suffer under the constraints of a highly imbalanced data set. Typically, the sensitivity and specificity of preceding models has been limited (11,12), which is a barrier to widespread adoption in clinical settings.
The objective of the work described here was to develop and validate a predictive model, which we refer to as the Behavioral Health Acuity Risk (BHAR) model, utilizing machine learning to assess likelihood of an individual to complete suicide. The model is designed for any individual aged 7 and older presenting at any healthcare setting for any cause regardless of previous history of suicidal ideation or attempt. The BHAR model generalizes to a wide population and enables behavioral health care team members to direct resources in the most meaningful way to prevent potential harm. It was developed to be used either on its own or in conjunction with a screening instrument such as the aforementioned C-SSRS to provide a comprehensive assessment of risk through both self-reported information and automated machine learning driven assessment. We compare the performance of the BHAR model to that of the C-SSRS screening tool and evaluate the effectiveness of the BHAR model in identifying patients at risk over the C-SSRS which is reliant on self-reported information.
Materials and methods
Data collection
All research was conducted according to a protocol approved by the Novant Health Institutional Review Board and in accordance with the ethical standards of the Helsinki Declaration of 1975. Data was sourced from existing historical electronic health records housed in the health system’s Epic Clarity database (13) and included any patient having been seen by a Novant Health provider between January 1, 2016 and August 1, 2020. Novant Health is an integrated health system located in the southeastern United States consisting of 15 medical centers and a medical group of >1,800 physicians at >800 ambulatory clinics (14). In addition to these health record data, mortality records from the state of North Carolina Department of Health and Human Services (15) during the same period were used to identify suicide completions which the health system may not otherwise have documented in the medical record. The data set included all encounters for all patients aged 7 years or older. In total, data from 2,884,214 patients were used for development of the model, with the model trained and tested at the encounter level. On average there were 15 encounters per patient.
Feature and label construction
A set of 81 variables were investigated for predictive value in identifying patients who would later have completed suicide with a prediction horizon of 1 week from a given encounter. The predictors included patient demographic and socio-economic characteristics such as age at encounter, gender, race, ethnicity, and marital status. Behavioral characteristics and social determinants of health included access to firearms, feelings of hopelessness or helplessness, use of tobacco, use of alcohol, use of illegal drugs, volume of alcohol consumed per week, receiving routine care through a primary care physician, and prior history of self-injury. Total scores extracted from behavioral assessments such as the Patient Health Questionnaire-9 (PHQ-9) (16) and Generalized Anxiety Disorder-7 (GAD-7) (17) were also included. Predictors related to patient utilization history included prior outpatient visit to a behavioral health specialty clinic in the last 3 days, 30 days and 365 days, as well as having an inpatient admission into behavioral health units in the last 3 days, 30 days and 365 days. Presence or absence of diagnoses such as anxiety disorders, post-traumatic stress disorder (PTSD), and substance use disorders were included as binary variables. For diagnosis related predictors, two features were created for each diagnosis; first, presence or absence of a history of a diagnosis in the patient’s lifetime, and second, if the patient was diagnosed for the first time in the last 6 months. In addition to these discrete diagnosis related predictors, the calculated Charlson Comorbidity Index (CCI) score was also included as a predictor. Predictors related to prescribed medications include, for example, antipsychotics, antidepressants, benzodiazepines, and hypnotics. Medication features utilized a six-month lookback of medications reconciled or prescribed during both inpatient and outpatient clinical settings and were indicated as binary variables.
Model training and evaluation
A random forest model (18) was selected to model the likelihood of suicide due to suitability to this problem and alignment to technical deployment constraints within the EHR platform. A random forest consists of many independently built decision trees. Each tree is built from a randomly selected subset of features and by bootstrap aggregation of training data. This helps to prevent overfitting without compromising on accuracy. Moreover, random forest models can be natively hosted in the EPIC EHR platform (13), enabling the risk score to calculate in near real time and be immediately visible to clinical staff. As mentioned previously, due to the low prevalence of suicide within the general population this dataset is highly imbalanced. Balancing can be achieved by various techniques, and we chose to employ the down sampling method. Down sampling the majority class to achieve a 1:16 ratio was found to be optimal through a hyperparameter search. That is, all the positive cases were retained, and then negative cases were randomly sampled into the data set until the desired ratio was met. The resulting data set was then split into training and testing encounters with an 80% train to 20% test split.
Hyperparameter tuning was performed using a grid search method with 3-fold cross validation having max tree depth between 15 and 30, max bins between 16 and 32, number of trees between 20 and 200 and feature subset strategy between 10 and 50. For binary classification tasks, model discrimination ability is frequently evaluated using techniques such as the Area Under the Receiver Operating Curve (AUROC) or the Area Under the Precision-Recall Curve (AUPRC). As even the down sampled data set was imbalanced in terms of outcome label, and because a prioritization is placed on the identification of positive cases, we chose to optimize the model using the AUPRC. Packages from pyspark machine learning were used to create a pipeline for training and testing. Matplotlib was used for creating visualizations. All extraction, analyses, transformations, and training were performed using spark architecture on 8 Azure-hosted compute-optimized standard F4s with 4-core CPUs and 8 GB RAM. For model explainability and interpretability, we examine feature importance which captures the effect that each variable imparts to calculating risk. Feature importance is calculated using Gini impurity.
Results and Discussion

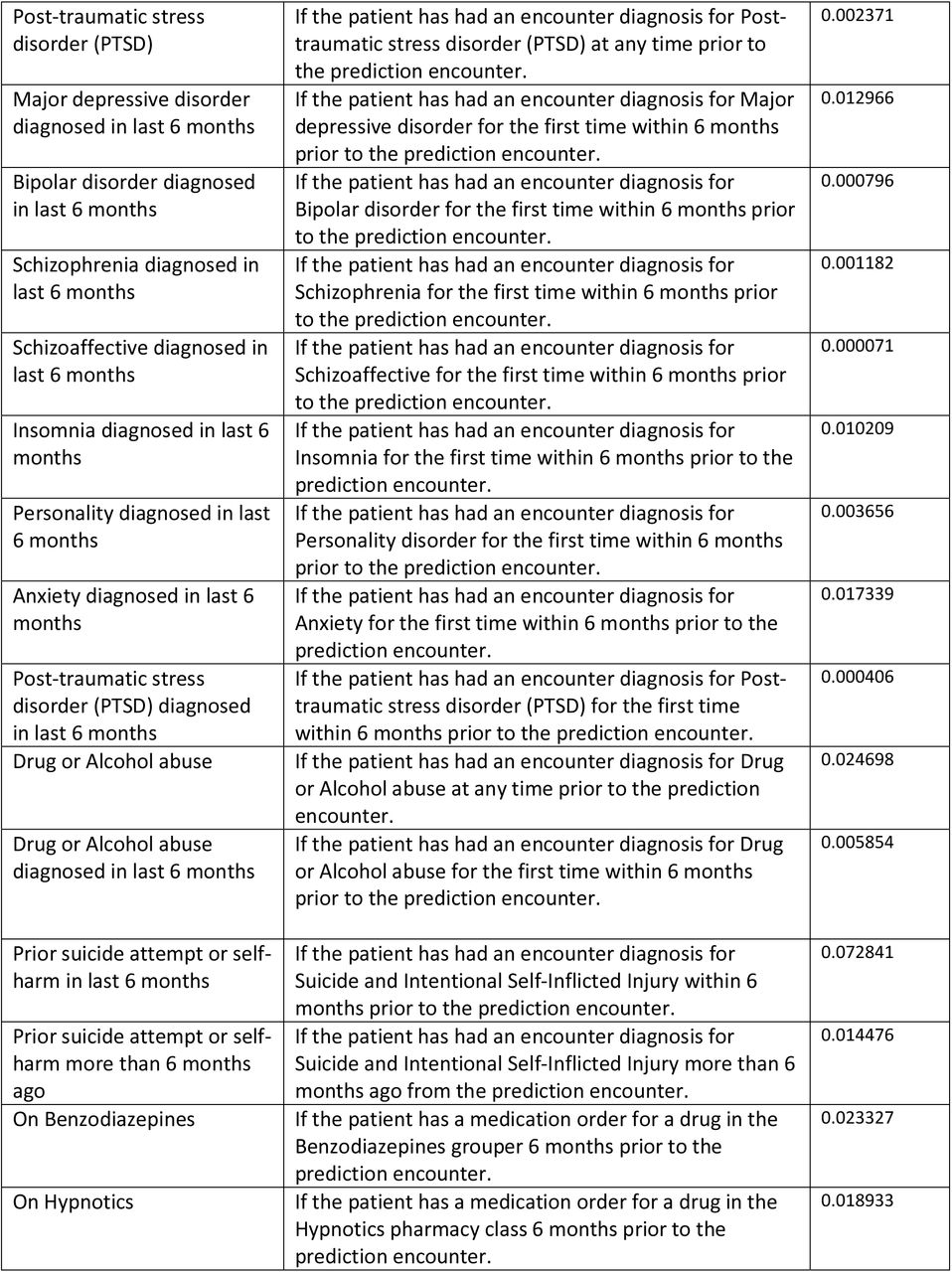

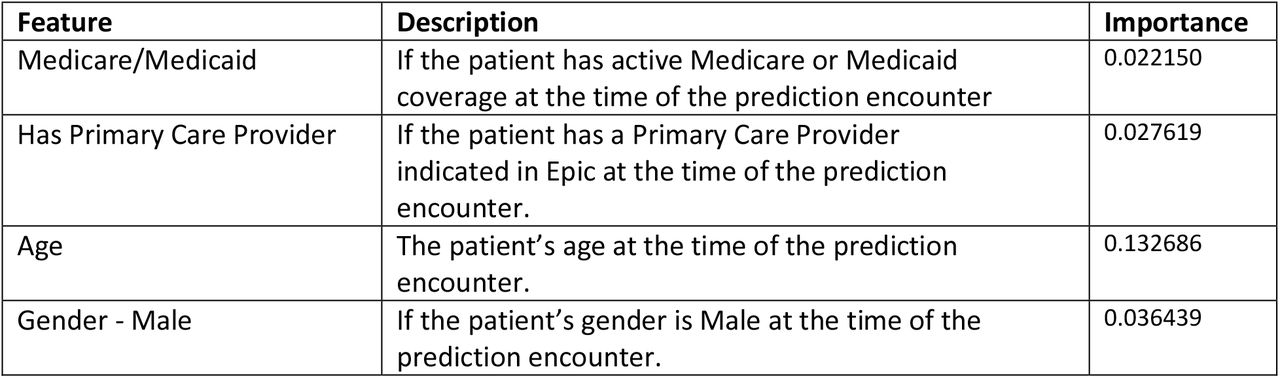

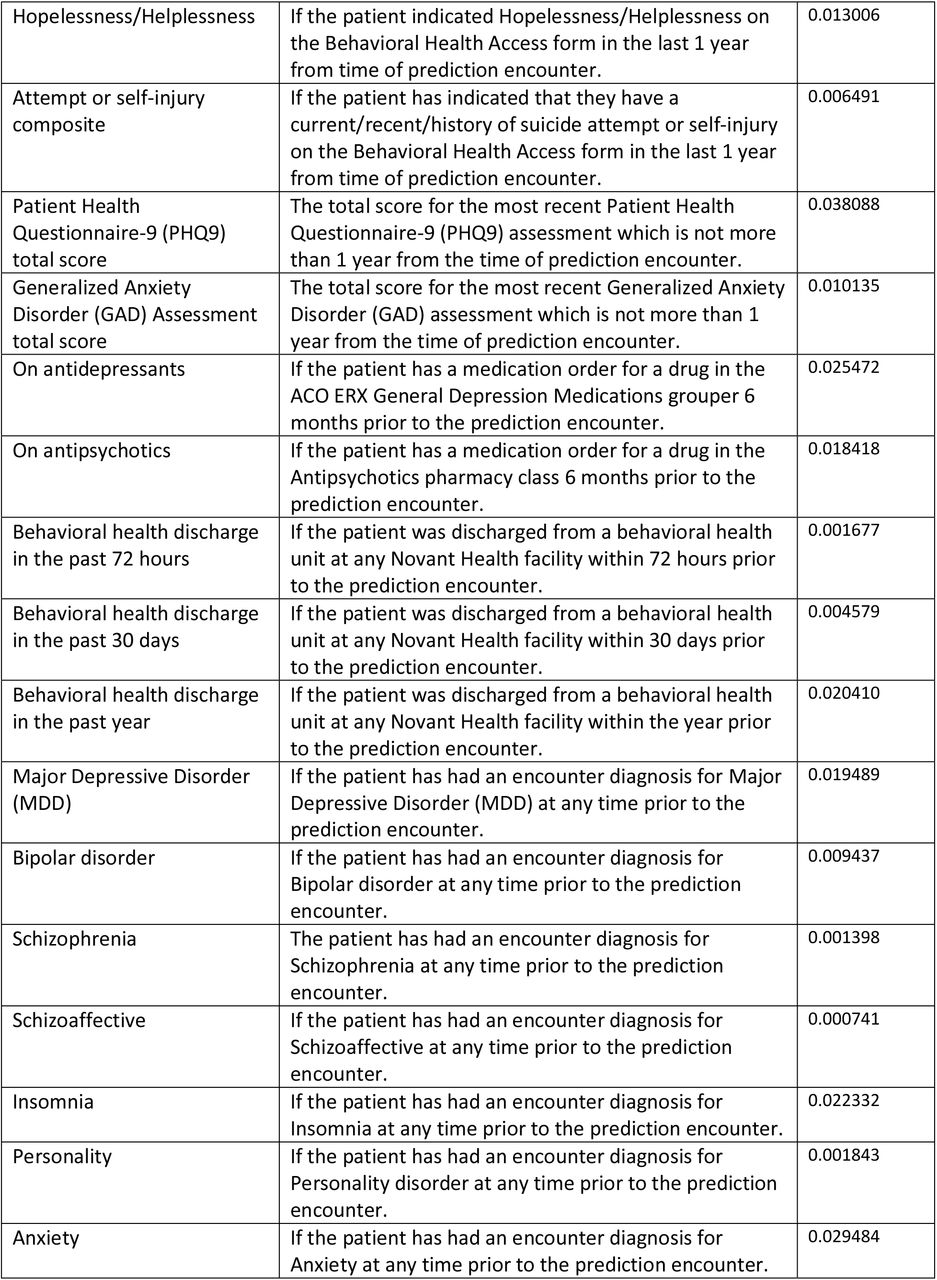

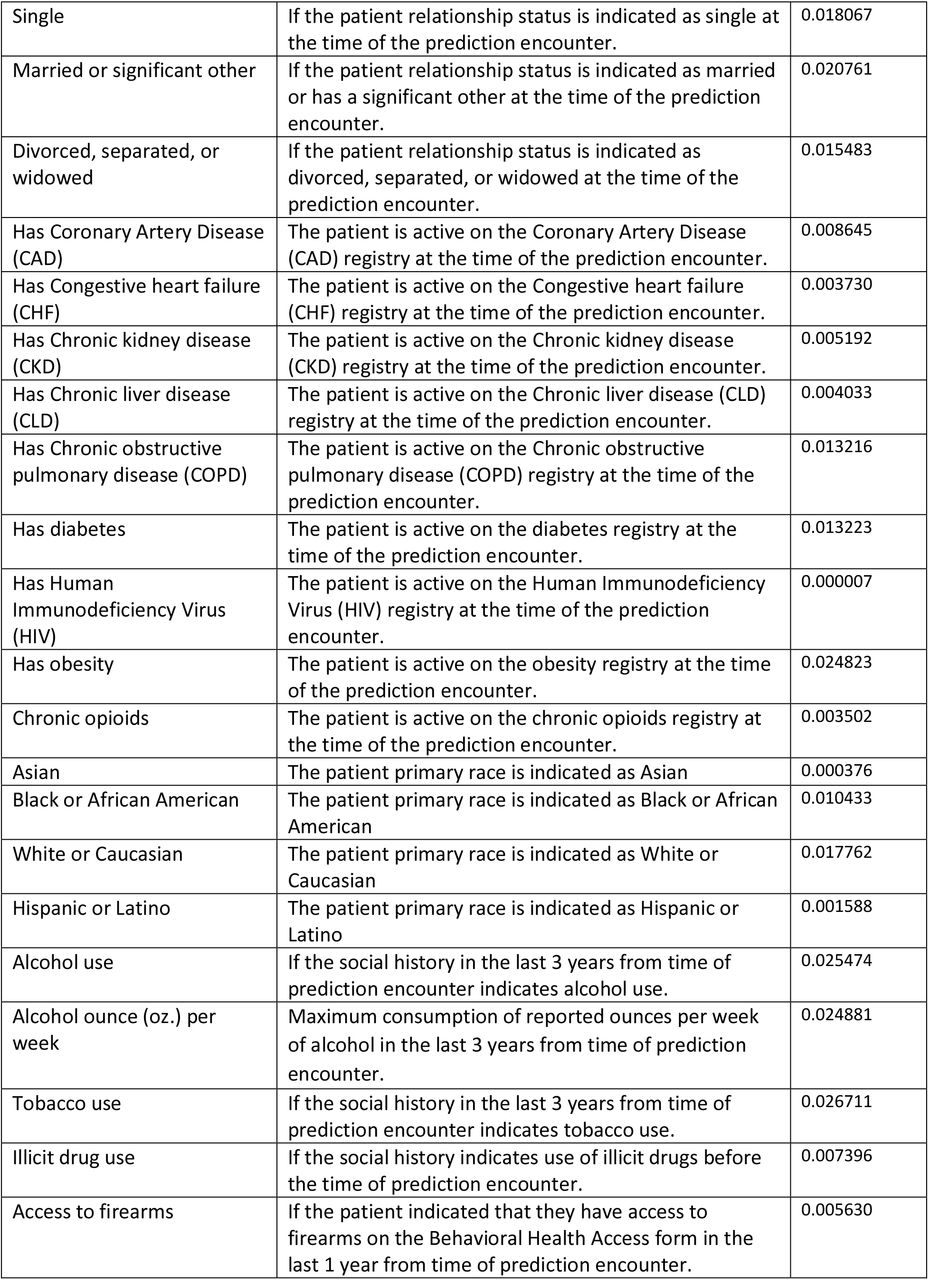

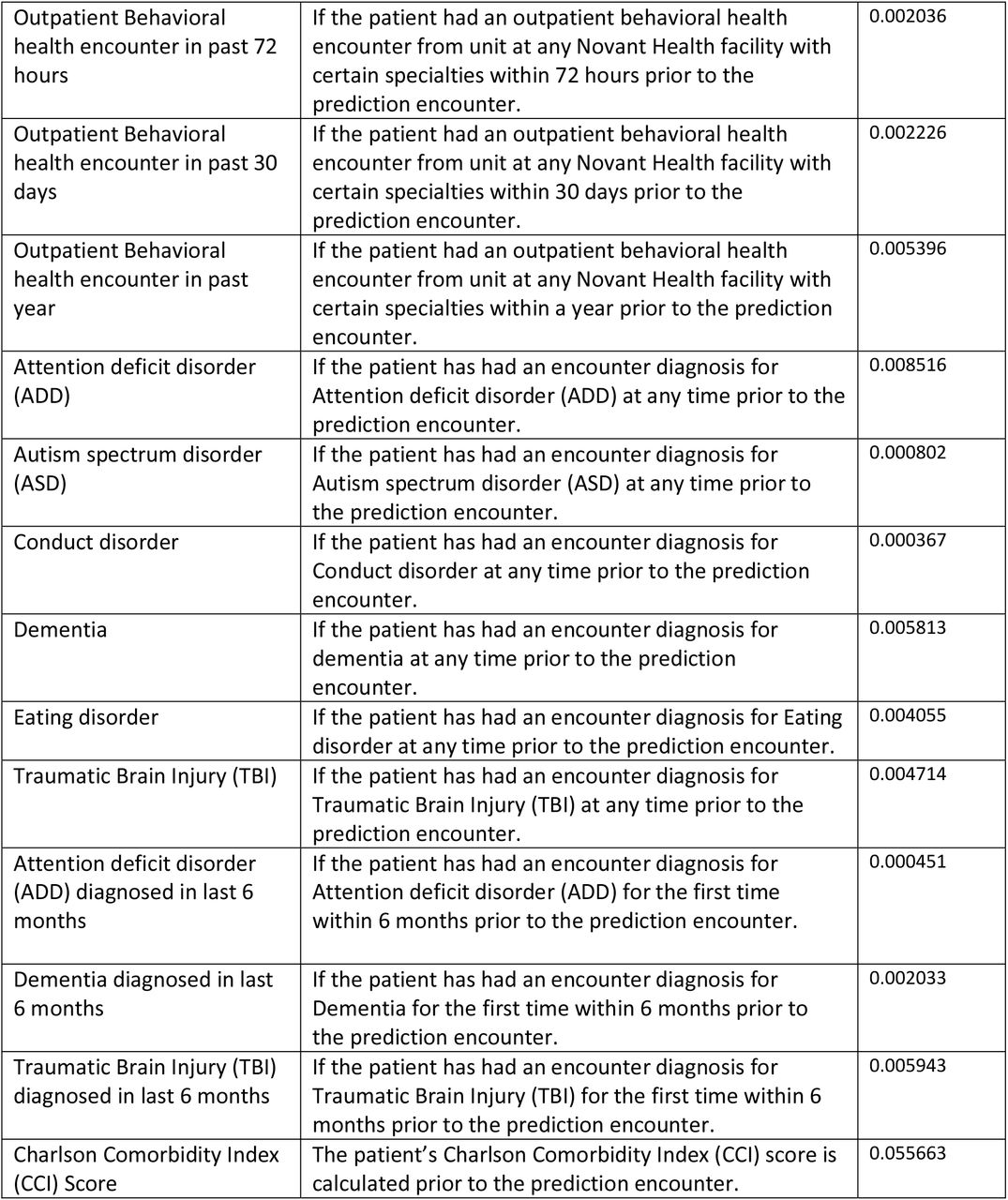

The final model incorporates 69 features. Table 1 details these features and their corresponding importance in calculating the risk score.

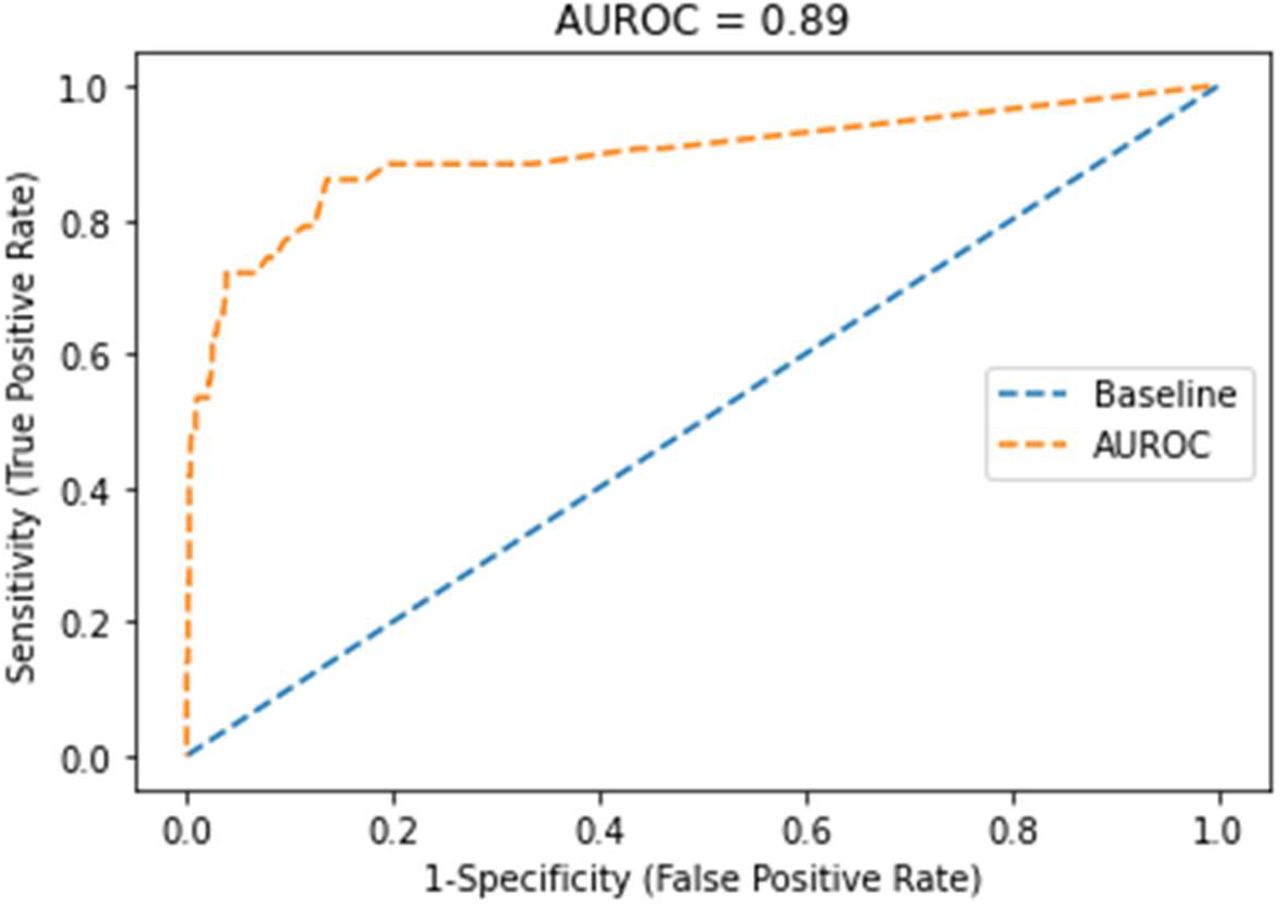

The Receiver Operating Characteristic curve is shown in Fig 1. As previously mentioned, as we are more interested in evaluating the model in terms of predicting true positives rather than true negatives, we focused mainly on the area under precision recall curve (AUPRC) which avoids the influence of true negatives. The Precision-Recall curve is shown in Fig 2.

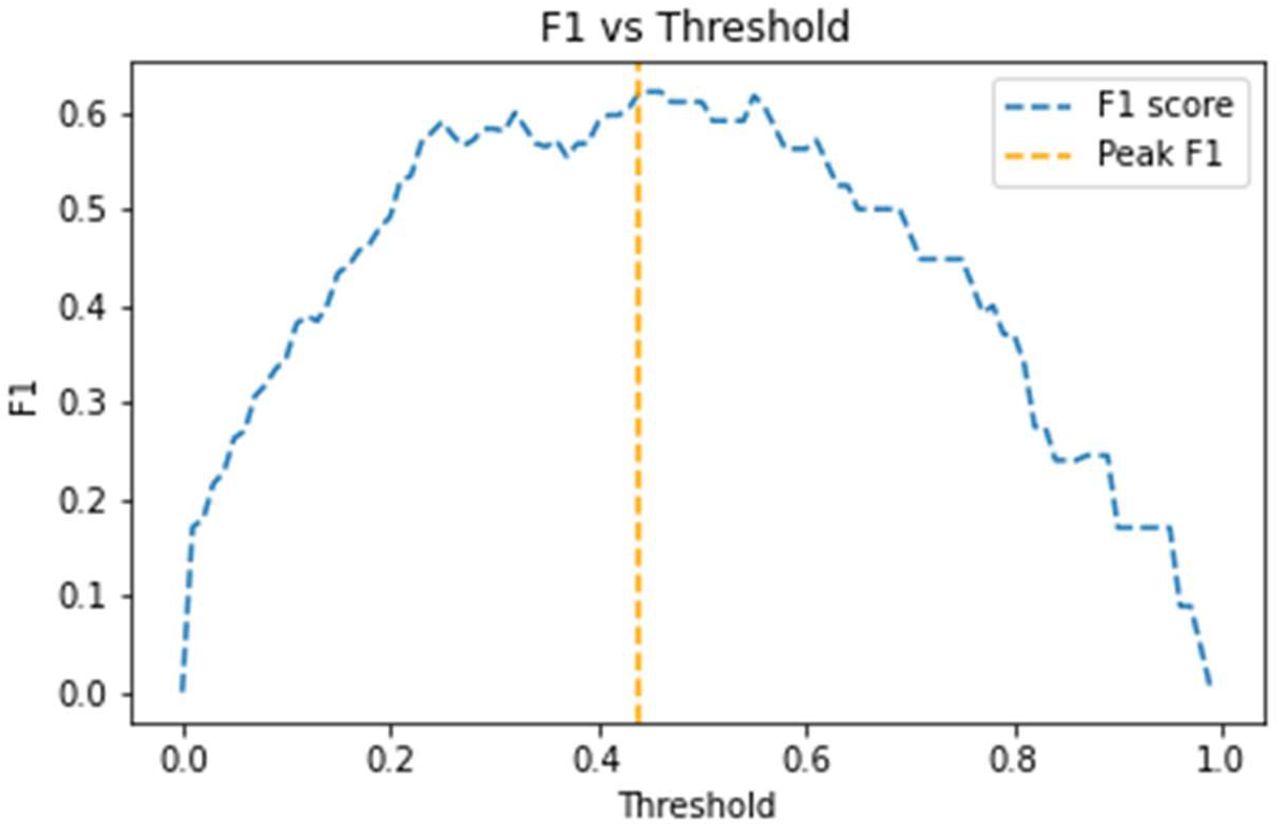

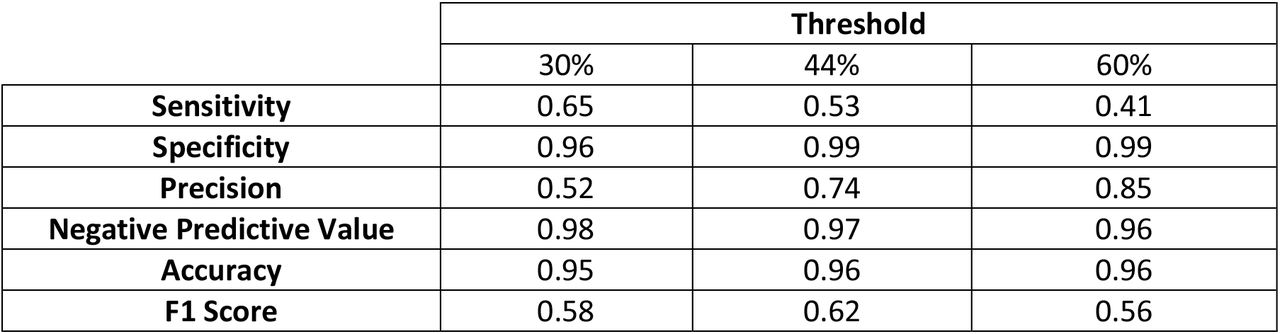

A threshold selection process was implemented using the F1 score to select a threshold above which a patient can be considered as at high risk. As the F1 score is the harmonic mean of precision and recall, higher F1 scores indicate higher precision and recall, which in turn implies lower false positive and false negative rates. The F1 score is calculated at every threshold with intervals of 0.01 and plotted as shown in Fig 3. The threshold at which the F1 score peaks, at 44% risk, was selected as the ideal threshold for classifying a patient as high risk or not, though generally a plateau in F1 score occurs between approximately 30% and 60% risk. The F1 score and other performance metrics at thresholds of 30%, 44%, and 60% are listed in Table 2.
It is worth noting that, as with other probabilistic models, it is not strictly necessary to choose a single threshold for clinical intervention. The BHAR score could be used to rank patients by decreasing risk to prioritize limited resources such as behavioral health specialists to the highest risk patients first and proceed down the list in reverse rank order. Similarly, a low-medium-high categorization could be used to address the highest risk patients with the most resource intensive interventions and medium risk patients, comprising a larger proportion of patients, with less resource intensive interventions.
At all emergency departments included in this study, the C-SSRS is employed as a suicidal ideation screening tool. The C-SSRS assigns a risk level (No Risk, Low Risk, Moderate Risk, or High Risk) based on patient responses to questions about suicidal thoughts. When examining the one year period over 2021, a total of 386,130 patients were seen at a Novant Health emergency department and completed the C-SSRS screening. Of those, six individuals completed suicide within a week of the ED visit. All six individuals were assessed as No Risk based on their responses to the C-SSRS. The BHAR model would have assigned risk scores of 72%, 51%, 26%, 11%, 2%, and 0% to these six individuals. However, the C-SSRS is a very valuable tool for identifying patients ready to talk about suicidal ideation. In fact, out of the patients screened using the C-SSRS who were rated as High Risk (6,684 or 1.7%), none were identified as having completed suicide within a week of discharge, supporting that identifying patients ready to speak to someone and connecting them to those resources is a successful strategy for suicide prevention. However, an objective data-based risk score such as the BHAR score can supplement self-reported screeners by identifying patients at risk based on data in their medical record. Some patients may respond better to a more personal and gentle inquiry into whether they would like to speak to someone, whereas the C-SSRS, delivered as a standard set of questions asked to every patient, may be perceived as procedural and impersonal.
Limitations and future work
One limitation to this work is the way in which suicide completions are labeled in the medical record and in mortality records. Oftentimes coding for accidental overdose or accidental self-inflicted injury is used when intent is not clear, and these cases would have been omitted from the training set used to train the model to identify patients at risk.
There are a few opportunities for model improvement which would be valuable enhancements to this work. One is the exploration of sexual orientation and gender identity (SOGI) data as model features. Members of the LGBTQ+ community are known to be disproportionately affected by depression and suicide (19), so inclusion of SOGI information could be reasonably expected to have value in a suicide risk model. SOGI aspects are not well documented in the Novant Health EHR at the time of this study, though efforts are underway to increase this documentation for the purposes of improving patient care and patient experience.
Natural language processing could also increase model performance by examining text communication between patients and providers, such as through MyChart, and documentation notes made by care providers during the normal course of care. One approach could be to finetune the publicly available Clinical BERT model (20) for this task.
Data Availability
All data produced in the present study may be made available upon reasonable request to the authors after review by the Novant Health Information Governance Steering Committee.
Acknowledgments
The authors would like to acknowledge colleagues in Novant Health Digital Products and Services who enabled this research through support of the Novant Health data warehouse and data platform. The authors extend gratitude to Sean Ganon who assisted in obtaining mortality records for the state of North Carolina and for literature review relevant to this work.
