Crystal Structure of LysB4, an Endolysin from Bacillus cereus-Targeting Bacteriophage B4
1Department of Agricultural Biotechnology, Research Institute of Agriculture and Life Sciences, Center for Food and Bioconvergence, Center for Food Safety and Toxicology, Seoul National University, Seoul 08826, Korea
*Correspondence: sangryu@snu.ac.kr (SR); hanc210@snu.ac.kr (NCH)Abstract
Endolysins are bacteriophage-derived enzymes that hydrolyze the peptidoglycan of host bacteria. Endolysins are considered to be promising tools for the control of pathogenic bacteria. LysB4 is an endolysin produced by Bacillus cereus-infecting bacteriophage B4, and consists of an N-terminal enzymatic active domain (EAD) and a C-terminal cell wall binding domain (CBD). LysB4 was discovered for the first time as an Lalanoyl-D-glutamate endopeptidase with the ability to breakdown the peptidoglycan among B. cereus-infecting phages. To understand the activity of LysB4 at the molecular level, this study determined the X-ray crystal structure of the LysB4 EAD, using the full-length LysB4 endolysin. The LysB4 EAD has an active site that is typical of LAS-type enzymes, where Zn2+ is tetrahedrally coordinated by three amino acid residues and one water molecule. Mutational studies identified essential residues that are involved in lytic activity. Based on the structural and biochemical information about LysB4, we suggest a ligand-docking model and a putative endopeptidase mechanism for the LysB4 EAD. These suggestions add insight into the molecular mechanism of the endolysin LysB4 in B. cereus-infecting phages.
INTRODUCTION
Endolysins are peptidoglycan hydrolases produced by bacteriophages at the end of their replication cycles to breakdown the peptidoglycan of host bacteria (Schmelcher et al., 2012). Endolysins have been considered to be one of the most promising phage products for controlling antibiotic-resistant bacteria since they have narrow host specificity, high sensitivity, and there is a low probability for the development of bacterial resistance (Borysowski et al., 2006). In general, the endolysins from phages infecting Gram-positive bacteria commonly consist of two distinct domains: an N-terminal enzymatic active domain (EAD) that is responsible for the hydrolysis of peptidoglycans, and a C-terminal cell wall binding domain (CBD) that confers enzymatic specificity to endolysins by anchoring to cell wall components (Loessner, 2005; Nelson et al., 2012). These endolysin features suggest their potential as antimicrobial and detection agents.
Endolysin LysB4 was identified in the genome of Bacillus cereus-infecting phage B4 (Lee et al., 2013) and exhibited the enzymatic activity of an L-alanoyl-D-glutamate endopeptidase on peptidoglycans (Son et al., 2012). LysB4 was predicted to consist of a VanY domain as an EAD and a SH3_5 domain as a CBD, according to InterProScan analysis (http://www.ebi.ac.uk/Tools/pfa/iprscan/)(Jones et al., 2014). In silico analysis of the amino acid sequence of LysB4 indicates that its EAD is highly similar to that of Ply500, an endolysin of Listeria phage A500, and CwlK, which is encoded in B. subtilis (Fukushima et al., 2007; Loessner et al., 1995). Crystal structure of the EAD of Ply500 from the Listeria bacteriophage A500 has been determined and revealed that it belongs to a family of Zn2+-dependent peptidases of the lysostaphin-type, D-Ala-D-Ala metallopeptidases, and the sonic hedgehog (LAS) family (Korndorfer et al., 2008). Most endolysins from Bacillus-infecting phages were predicted to be amidases. However, LysB4 exhibited endopeptidase activity, together with PlyP56, which was recently discovered (Etobayeva et al., 2018). Thus, further study is required on the endopeptidases from B. cereus phages to understand the breakdown stage for bacteriophages infecting Bacillus.
In the previous study, LysB4 exhibited antimicrobial activity against Gram-positive bacteria such as Listeria monocytogenes, B. cereus, and B. subtilis. Moreover, this enzyme also showed lytic activity against all tested Gram-negative bacteria when the outer membrane was disrupted (Son et al., 2012). Since the bacteria tested contained so-called DAP-type peptidoglycans (Kamisango et al., 1982; Schleifer and Kandler, 1972), LysB4 was suggested to work on the DAP-type peptidoglycan. However, LysB4 failed to hydrolyze a certain group of Gram-positive bacteria, such as Enterococcus faecalis, Staphylococcus aureus, Lactococcus lactis, and Streptococcus thermophiles, which contain the lysine-type peptidoglycan (Schleifer and Kandler, 1972; Son et al., 2012; Vollmer et al., 2008). Therefore, the previous study concluded that LysB4 preferentially cleaves a peptide bond between L-alanine and D-glutamic acid of the DAP-type peptidoglycan over the lysine-type peptidoglycan (Son et al., 2012).
Here, we determined the X-ray crystal structure of the LysB4 EAD, using the full-length LysB4 endolysin, to reveal the working mechanism of the endolysin based on the high resolution structure. The ensuing studies give molecular insights into the function of the LysB4 of B. cereus-infecting phages, which was discovered for the first time as the Lalanoyl-D-glutamate endopeptidase from B. cereus-infecting phages.
MATERIALS AND METHODS
Protein expression and purification
Construction of the recombinant plasmid encoding LysB4 endolysin was described previously (Son et al., 2012). Briefly, the lysB4 gene was amplified from the genomic DNA of the bacteriophage B4 by polymerase chain reaction (PCR), and the PCR product was inserted into pET15b vector (Novagen, USA). The recombinant plasmid was transformed into E. coli BL21 (DE3) competent cells. The cells were grown in 1.6 L of Luria-Bertani (LB) medium (Merck, USA) supplemented with 100 μg/ml ampicillin at 37°C until the OD600 reached ~0.7 and induced with 0.1 mM isopropyl β-D-1-thiogalactopyranoside (IPTG) at 30°C for 6 h. The cells were harvested by centrifugation at 5,000 × g for 7 min and resuspended with 50 ml lysis buffer containing 20 mM Tris-HCl (pH 8.0), 150 mM NaCl, and 2 mM β-mercaptoethanol. The cell lysate was disrupted by sonication and centrifuged at 10,000 × g to remove cell debris. The supernatant was loaded onto an open column packed with Ni-NTA affinity resin (GE Healthcare, USA). The resin was washed with 400 ml lysis buffer supplemented with 20 mM imidazole. After washing the resin, the protein was eluted with 30 ml lysis buffer supplemented with 250 mM imidazole. Eluted recombinant proteins were loaded on size exclusion chromatography using a Superdex 200 HiLoad 26/600 column (GE Healthcare, USA) pre-equilibrated with the lysis buffer. The final purified samples was concentrated to 18 mg/ml using a Vivaspin® centrifugal concentrator with 30 kDa cutoff (Sartorius, Germany) and stored frozen at − 80°C until use.
Crystallization and data collection
A single crystal of LysB4 was obtained by the hanging-drop vapor diffusion method using a precipitant solution consisting of 2.0 M ammonium sulfate, 0.1 M Bis-Tris pH 6.5, 2% polyethylene glycol monomethyl ether 550 (PEG MME 550), and 8 mM Tris (2-carboxyethyl) phosphine (TCEP). Equal volumes (1 μl) of the protein and reservoir solution were mixed and equilibrated against 500 μl reservoir solution at 14°C for two weeks. The crystals were dehydrated by adding excess amount of ammonium sulfate into the reservoir solution and were then flash-cooled in a liquid nitrogen stream at −173°C (Jang et al., 2018). A native X-ray diffraction data set and a single-wavelength anomalous data set were collected on beamlines 5C and 7A at Pohang Accelerator Laboratory (PAL) (Pohang, Republic of Korea).
Structural determination and refinement
X-ray diffraction data were processed using HKL2000 software (Otwinowski and Minor, 1997). The structure of LysB4 was determined by the molecular replacement method with MOLREP (Vagin and Teplyakov, 2010) in the CCP4 package (Winn et al., 2011) using the structure of Ply500 EAD (PDB code: 2VO9) as a search model (Korndorfer et al., 2008). The position of Zn2+ was determined by zinc single-wavelength anomalous dispersion (Zn-SAD) phasing with Phaser software (McCoy et al., 2007) and the final structure of LysB4 was refined using the PHENIX software suite (Adams et al., 2010).
Ligand docking
A ligand was generated with the Restraint Editor Especially Ligands (REEL) program in the PHENIX software suite (Adams et al., 2010) and manually docked and adjusted in the LysB4 EAD with Coot software (Emsley et al., 2010). The complex structure of the LysB4 EAD and the ligand was further refined using Phenix.refine program in the PHENIX software suite with energy optimization option (weight of X-ray data/stereochemistry was set to 0) (Adams et al., 2010).
Strains, media, and culture conditions
All bacterial strains for the endopeptidase activity assay are listed in Table 2 and were routinely grown in LB broth medium at 37°C with aeration. E. coli DH5α and BL21 (DE3) strains were used for cloning and expression of endolysins, respectively.
Construction of LysB4 mutants
The K15Q, R50Q, R74T, and D129A mutants of LysB4 were constructed via an overlapping extension PCR protocol (Nelson and Fitch, 2012). To construct pET15b_LysB4 K15Q, the lysB4 gene was amplified from the pET15b_LysB4 vector in two parts, using two sets of primers (BglII-pET15b-F and lysB4-K15Q-R for the front part; lysB4-K15Q-F and lysB4-BamHI-R for the rear part). Two overlapping PCR fragments containing the single mutation were used for the second PCR step generating the lysB4 (K15Q) gene. The resultant PCR product was inserted between the NdeI/BamHI restriction sites of pET15b to construct lysB4 K15Q-containing pET15b (pET15b_LysB4 K15Q). For the construction of pET15b_LysB4 R50Q, pET15b_LysB4 R74T, and pET15b_LysB4 D129A, two corresponding sets of primers were used. The sequences of primers used in this study are listed in the supporting information Supplementary Table S1.
Circular dichroism
Circular dichroism (CD) spectra of LysB4, LysB4 R50Q, and LysB4 D129A (1 mg/ml) in the reaction buffer (50 mM Tris-HCl, pH 8.0) were measured using Chirascan™-plus CD Spectrometer (Applied Photophysics, Leatherhead, United Kingdom) at NICEM in Seoul National University (Seoul, Republic of Korea). The spectra were recorded over 190–260 nm range using a cuvette with the optical path length of 0.2 mm.
Endopeptidase activity assay
The endopeptidase activity of LysB4 and its mutants (LysB4 K15Q, R50Q, R74T, and D129A) was evaluated against bacterial cells by monitoring the decrease in OD600. All tested bacteria were cultivated to the exponential phase. Cells were harvested and resuspended with reaction buffer (50 mM Tris-HCl, pH 8.0) to an OD600 of 0.8–1.0. In the case of Gram-negative bacteria, exponentially growing cells were pretreated with a reaction buffer containing 0.1 M EDTA for 5 min at 25°C, and the cells were washed three times with reaction buffer to remove residual EDTA, as previously described (Leive, 1968). Endolysins (300 nM in final concentration, 100 μl) were added to the cell suspension (900 μl) followed by incubation at 25°C, unless indicated otherwise. OD600 values were monitored over time.
RESULTS
The crystal structure of LysB4
We overexpressed the full-length LysB4 endolysin in the E. coli expression system and purified the protein successfully. The protein was crystalized at pH 6.5 in the intact form (~32 kDa), as confirmed by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) analysis of a dissolved crystal sample (Supplementary Fig. S1). The cell content analysis using Phenix.xtriage (Adams et al., 2010) suggested one copy of LysB4 per asymmetric unit with a 41.1% solvent content and 2.09 Å3/Da Matthews coefficient. The crystal structure of LysB4 was determined at 2.38 Å resolution in the space group of I 41 via the molecular replacement method using the structure of Ply500 EAD (PDB code: 2VO9) as a search model (Korndorfer et al., 2008)(Table 1).
One molecule was contained in the asymmetric unit of the crystal as predicted. The N-terminal EAD was well ordered in the crystal. Unfortunately, the C-terminal CBD was completely disordered in the solvent channel of the crystal because of a flexible linker (GGSGSTGGSGGGSTGGGSTGG; 156–176 amino acids) between the EAD and the CBD. Thus, we were able to obtain the structural information of only the EAD of LysB4 in this crystal structure. Our findings further suggest that a direct contact between the EAD and the CBD is unlikely. One zinc ion and a sulfate molecule were also found in the structure. The presence of Zn2+ was confirmed by single-wavelength anomalous signal with X-ray absorption edges of Zn2+ (Fig. 1).

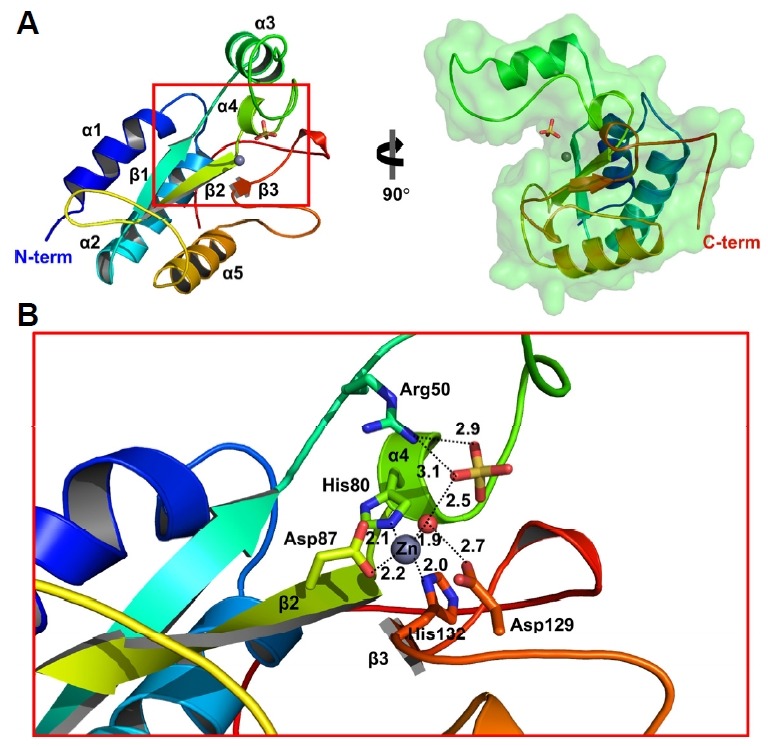

The LysB4 EAD (1–152) consists of five α-helices and one β-sheet containing three antiparallel β-strands (β1, β2, and β3)(Fig. 1A). A subdomain was composed of the β-sheet with three helices (α1, α2, and α5), and the other two helices (α3 and α4) make a flap from the subdomain, forming a deep cleft between them. The flap also contains a long loop linking α3 and α4, which appears to provide structural flexibility to the flap against the subdomain (Fig. 1A). The Zn2+ was tetrahedrally coordinated by His80 from α4, Asp87 from β2, His132 from β3, and one water molecule in the cleft region (Fig. 1B). The sulfate ion, which was contained in the crystal precipitant solution, was bound in the cleft near the Zn2+ (Fig. 1B).
Structural comparison to Ply500 EAD

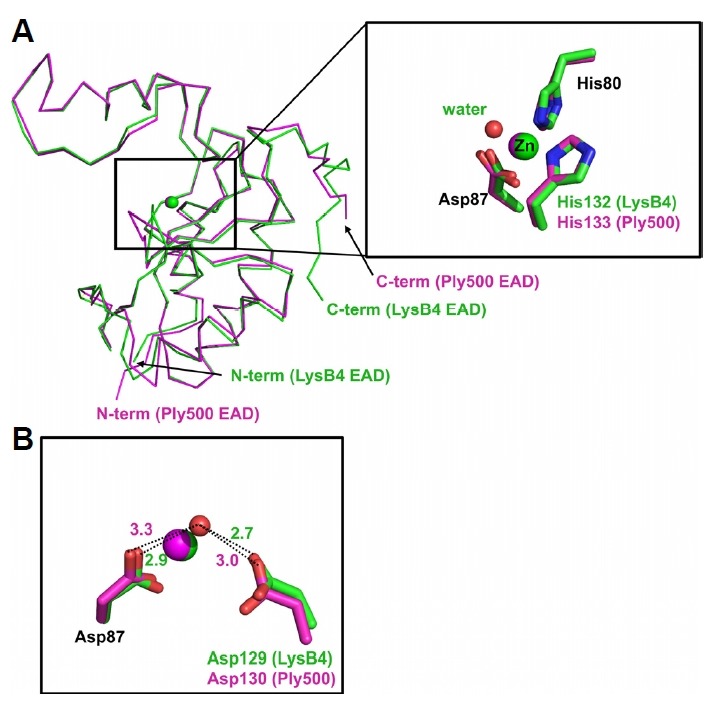

The overall shape of the LysB4 EAD is similar to the structure of Ply500 EAD (PDB code: 2VO9), whose crystal was obtained using a truncated endolysin protein containing only the EAD (Korndorfer et al., 2008)(Fig. 2A). Ply500 EAD has an amino acid sequence identity of 71% relative to the LysB4 EAD. Both EAD seem to show the similar enzymatic activities even though the activity of Ply500 EAD was not tested on the Gram-negative bacteria. Structural superposition with two EAD structures reveals that the overall structures of the two proteins are very similar (rmsd = 0.457 Å over 120 atoms; 8–92, 95–100, 108–124, 129–139, and 142 amino acids) with a variation in the conformation of a C-terminal loop of the LysB4 EAD. More amino acids were ordered in the loop of LysB4 from the bacteriophage B4 than the C-terminal amino acid sequence of Ply500 EAD from the bacteriophage A500 (Fig. 2A). Although the bacteriophages B4 and A500 exhibit different host bacteria, LysB4 and Ply500 exhibited the same L-alanoyl-D-glutamate endopeptidase activity with a bound Zn2+ coordinated by two histidines and an aspartate (Korndorfer et al., 2008).
The Zn2+ was further coordinated by a bound water molecule in the LysB4 EAD, as observed in the typical LAS-type enzymes containing the SxHxxGxAxD motif (Bochtler et al., 2004; Bussiere et al., 1998; McCafferty et al., 1997). The water molecule further interacts with the side chains of Asp87 and Asp129 (2.9 Å and 2.7 Å, respectively; Fig. 2B). Interestingly, the bound water molecule was not observed in the structure of Ply500 EAD (Korndorfer et al., 2008), which indicates a weaker affinity for the water molecule in Ply500 EAD. The weaker affinity of the water molecules might result from the increased distances with the corresponding Asp residues (Asp87 and Asp130) involved in the water binding (3.3 Å and 3.0 Å, respectively; Fig. 2B).
Ligand docking model of the LysB4 EAD

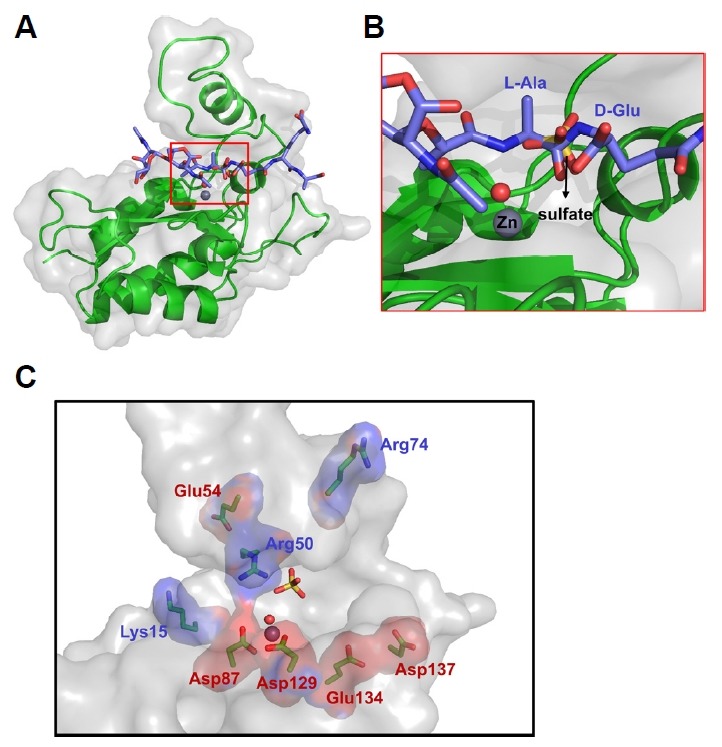

To gain insight into the molecular basis for the substrate specificity of LysB4 toward the DAP-type peptidoglycan, a ligand docking model was constructed with GlcNAc-MurNAc-L-Ala-D-Glu-meso-DAP-D-Ala, which is the stem peptide of the DAP-type peptidoglycan. The sulfate ion is bound adjacent to the active water molecule coordinating Zn2+ and is geometrically similar to the tetrahedral intermediate of the sessile peptide bond, which led us to hypothesize that the bound sulfate ion is in the site of the tetrahedral intermediate of the cleaved peptide bond between the L-alanine and the D-glutamic acid in the enzymatic reaction. We also noted that the Trp100 residue at the outer edge of the cleft is within a distance to make an interaction with a pyranose ring of sugar. It is generally known that the aromatic ring of tryptophan residue can interact with a sugar pyranose ring of GlcNAc (Asensio et al., 2013). Combining these findings, we manually docked the ligand peptide into the deep cleft of the LysB4 EAD (Fig. 3A). The aromatic ring of the Trp100 residue made a π-interaction with the pyranose ring of GlcNAc, and the carbonyl group of the peptide bond between L-alanine and D-glutamic acid was located in the position of the sulfate ion (Fig. 3B). However, the high resolution structure of the complex with the stem peptide is required to elucidate the substrate binding mode.
A putative mechanism of LysB4 endopeptidase activity

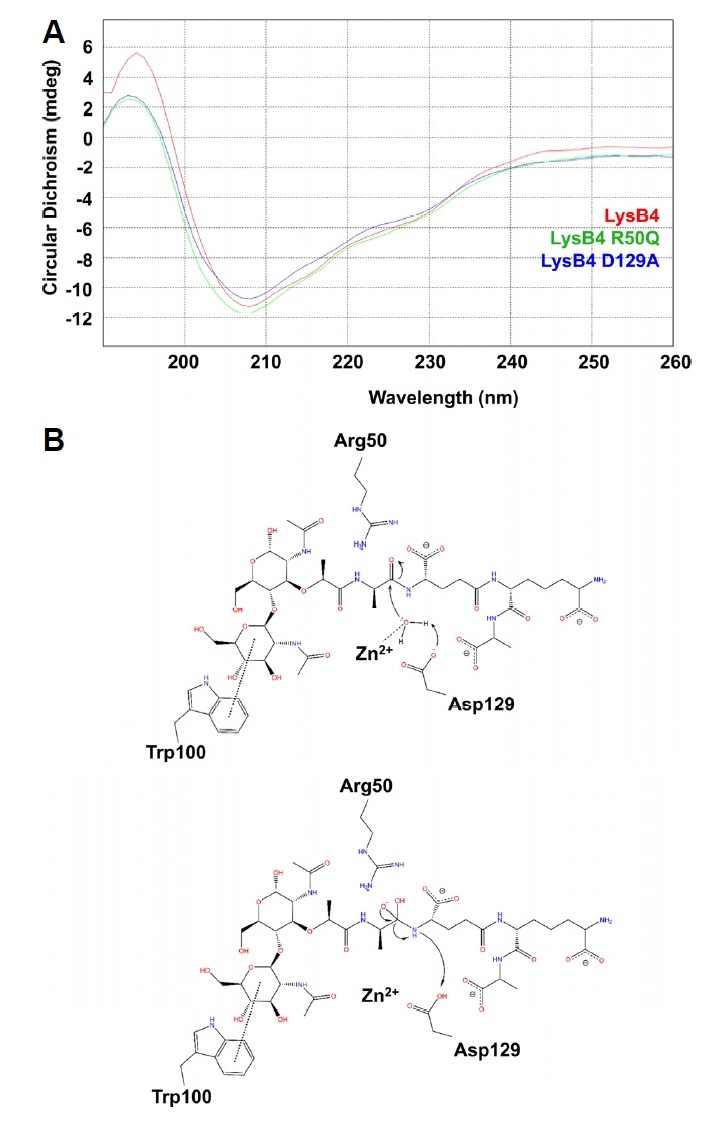

According to the results from VanX, Glu181 acts as a general base to deprotonate the bound water molecule coordinating Zn2+ in the cleft (Bussiere et al., 1998). The studies on ChiX also suggest that the water molecule is deprotonated by Zn2+ and the acidic residue that interacts with the water molecule, and then the deprotonated water molecule attacks the carbonyl group of the peptide bond (Owen et al., 2018). To see if Asp129, which corresponds to VanX Glu181 and ChiX Asp120, plays the same role in catalysis, we measured the antimicrobial activity of the D129A mutant LysB4. As shown in Table 2, the mutation abolished the antimicrobial activity.
The Arg50 residue, which interacts with the bound sulfate ion (Fig. 1B), was next to be investigated. The corresponding Arg71 residue in VanX played an essential role in stabilization of the oxyanion during the catalysis steps (Bussiere et al., 1998). We produced the R50Q mutant protein and confirmed that the mutation abolished the activity of LysB4 in the digestion of peptidoglycan. Thus, our results indicate that LysB4 shares its catalytic mechanism with VanX. The correct folding of the mutant proteins was confirmed by the circular dichroism (CD) spectra (Fig. 4A). Based on these findings, we propose a catalytic mechanism for LysB4 (Fig. 4B). The water molecule bound by Zn2+ and Asp129 is deprotonated and makes a nucleophilic attack on the substrate’s carbonyl group between L-alanine and D-glutamic acid. The negative charge of the tetrahedral intermediate is stabilized by Arg50.
DISCUSSION
Peptidoglycan recognition proteins (PGRPs) trigger immune responses in invertebrates by differentially recognizing peptidoglycans from Gram-negative and -positive bacteria (Dziarski and Gupta, 2006). PGRP-LE specifically recognizes the DAP-type peptidoglycan through the ionic interactions between a conserved arginine residue in the central cleft and the carboxylic group of meso-DAP (Lim et al., 2006). How could LysB4 distinguish the DAP-type peptidoglycan from the other types of peptidoglycans? We noted the three basic residues (Lys15, Arg50, and Arg74) in the active site cleft that play a role in recognizing the negatively charged meso-DAP. We showed that the Arg50 is critical in the catalysis of LysB4 (Table 2). However, it is unlikely that Arg50 is directly involved in the recognition of meso-DAP, since the Arg50 residue is too far from the carboxylic group of meso-DAP in the peptidoglycan in the docking model. We next tested the roles of Lys15 and Arg74 that are located at both ends of the active site cleft (Fig. 3C). The mutant LysB4 proteins (K15Q and R74T) were constructed and their antimicrobial activities were measured. As a result, the mutations did not affect antimicrobial activity. Thus, our findings suggest that the three basic residues might not play a crucial role in substrate recognition.
According to the results of Ca2+-dependent enzymatic activity assays, binding of Ca2+ to a phytase increases catalytic activity by neutralizing the negatively charged cleft (Ha et al., 2000). Likewise, the active site cleft of LysB4 is largely decorated by the acidic residues (Glu54, Asp87, Asp129, Glu134, and Asp137; Fig. 3C). We suggest that Zn2+ or other divalent ions might mediate the ionic interaction to meso-DAP by binding to the negatively charged residues of LysB4, although further study might be needed. In conclusion, our high resolution structure of the LysB4 protein provides insight into the molecular mechanism of how endolysins in bacteriophages recognize and hydrolyze the host peptidoglycans.
Supplementary data
ACKNOWLEDGMENTS
This research was supported by National Research Foundation of Korea (NRF-2017H1A2A1042661-Global Ph.D. Fellowship Program to SH), Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, Forestry (IPET) through Agriculture, Food and Rural Affairs Research Center Support Program, funded by Ministry of Agriculture, Food and Rural Affairs (MAFRA) (710012-03-1-HD120 to NCH), and National Research Foundation of Korea grant funded by the Korea government (MSIP) (No. NRF-2017R1A2A1A17069378 to SR). We made use of beamline 5C and 7A at Pohang Accelerator Laboratory (Pohang, Republic of Korea).
| LysB4 | LyaB4 (Zn-SAD) | |
|---|---|---|
| Data collection | ||
| Beam line | PAL 7A | PAL 5C |
| Wavelength (Å) | 0.97934 | 1.28250 |
| Space group | I41 | I41 |
| Cell dimensions | ||
| a, b, c (Å) | 79.46, 79.46, 77.93 | 80.42, 80.42, 78.16 |
| α, β, γ (°) | 90.0, 90.0, 90.0 | 90.0, 90.0, 90.0 |
| Resolution (Å) | 50.0-2.40 (2.44-2.40) | 50.0-2.67 (2.72-2.67) |
| Rmerge | 0.057 (0.351) | 0.095 (0.412) |
| I/σ I | 19.66 (2.36) | 18.94 (2.61) |
| Completeness (%) | 91.5 (92.4) | 99.1 (90.4) |
| Redundancy | 4.9 (2.9) | 6.6 (3.4) |
| Refinement | ||
| Resolution (Å) | 28.1-2.40 | |
| No. reflections | 7926 | |
| Rwork/Rfree | 0.181/0.224 | |
| No. of Total atoms | 1190 | |
| Wilson B-factor (Å) | 32.75 | |
| R.M.S deviations | ||
| Bond lengths (Å) | 0.007 | |
| Bond angles (°) | 0.785 | |
| Ramachandran plot | ||
| Favored (%) | 94.6 | |
| Allowed (%) | 5.4 | |
| Outliers (%) | 0 | |
| PDB ID | 6AKV | |
| Organisms | Relative lytic activity | |||||
|---|---|---|---|---|---|---|
| LysB4 | LysB4 (R50Q) | LysB4 (D129A) | LysB4 (K15Q) | LysB4 (R74T) | ||
| Gram-negative bacteria | Escherichia coli MG1655 | + | − | − | + | + |
| Pseudomonas aeruginosa ATCC 27853 | + | − | − | + | + | |
| Cronobacter sakazakii ATCC 29544 | + | − | − | + | + | |
| Shigella flexineri 2a strain 2457T | + | − | − | + | + | |
| Salmonella Typhimurium LT2 | + | − | − | + | + | |
| Gram-positive bacteria | Listeria monocytogenes ATCC19114 | + | − | − | + | + |
| Bacillus cereus KCCM 40133 | + | − | − | + | + | |
| Bacillus subtilis 168 | + | − | − | + | + | |
| Enterococcus faecalis ATCC29212 | − | − | − | − | − | |
| Staphylococcus aureus ATCC 29213 | − | − | − | − | − | |
| Streptococcus thermophilus ATCC 19258 | − | − | − | − | − | |
