Menaquinone-specific oxidation by M. tuberculosis cytochrome bd is redox regulated by the Q-loop disulfide bond
Leiden Institute of Chemistry, Leiden University, PO Box 9502, 2300 RA, Leiden, The Netherlands
* Corresponding author; email: l.j.c.jeuken@lic.leidenuniv.nlAbstract
Cytochrome bd from Mycobacterium tuberculosis (Mtbd) is a menaquinol oxidase that has gained considerable interest as an antibiotic target due to its importance in survival under infectious conditions. Mtbd contains a characteristic disulfide bond that has been hypothesized to confer a redox regulatory role during infection by constraining the movement of the menaquinone-binding Q-loop. Interference of reductants used in the standard activity assay of quinol oxidases has prevented testing of this hypothesis. Here, the role of the disulfide bond and quinone specificity of Mtbd has been determined by the reconstitution of a minimal respiratory chain consisting of a NADH dehydrogenase and Mtbd, both in detergent and native-like lipid environments. Comparison to cytochrome bd from Escherichia coli (Ecbd) confirms that Mtbd is under tight redox regulation and is selective for menaquinol, unable to oxidize either ubiquinol or demethylmenaquinol. Reduction of the Mtbd disulfide bond resulted in a decrease in oxidase activity up to 90%, depending on menaquinol concentrations. In addition, the catalytic rates of Ecbd and Mtbd are over 10 times lower with the natural lipophilic quinones in comparison to their often-used hydrophilic analogs. Additionally, unlike Ecbd, the activity of Mtbd is substrate inhibited at physiologically relevant menaquinol concentrations. We signify Mtbd as the first redox sensory terminal oxidase and propose that this enables Mtbd to adapt its activity in defence against reactive oxygen species encountered during infection by M. tuberculosis.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
Cytochrome bd (cyt bd) is a terminal oxidase found in the respiratory chain across various bacterial phyla and couples the oxidation of quinols to the reduction of molecular oxygen to water1–3. The chemical protons released by quinol oxidation are separated from the proton uptake for oxygen reduction by the periplasmic membrane, generating a proton motive force required for ATP synthesis3. Compared to other terminal oxidases, cyt bd is distinguished by its resistance to inhibitors such as cyanide, high affinity for oxygen and upregulation under microaerobic conditions.
Recent findings highlight the significance of cyt bd as a key survival factor for Mycobacterium tuberculosis during infection, particularly in the hostile granulomas where the bacteria reside. When M. tuberculosis cyt bd (Mtbd) functions as the sole terminal oxidase, it can maintain a bacteriostatic state4,5, and enhances resistance against numerous antibiotics, reactive oxygen species, and other toxic compounds6–11. This pivotal role during infection has identified Mtbd as a potential antibiotic target.
Despite this therapeutic potential, most of our current understanding of Mtbd at the molecular level is obtained from studies performed on homologous enzymes, such as Corynebacterium glutamicum cyt bd and the two Escherichia coli cyt bd isoforms, cyt bd-I (Ecbd) and cyt bd-II. Since these enzymes have been shown to have distinct structural features, number of subunits, and substrate binding pockets12–16, caution is required when associating prior knowledge to Mtbd. An important characteristic feature of Mtbd is a disulfide bond constraining the n-terminal Q-loop domain near the quinone binding pocket. It has been hypothesized that this disulfide bond acts as a gatekeeper for the canonical quinone binding pocket close to heme b558, and might confer a regulatory function12,17. Redox-sensing disulfide bonds have been found in other proteins such as transcription factors, signalling enzymes, CO2 reductases, and peroxidases as a defence against oxidative stress18,19. However, whether such a regulatory function is conferred by the Mtbd Q-loop remains speculative, because its validation has been hampered by the need for chemical reductants to reduce the quinone substrates in the standard activity assays for cyt bd oxidase. Given its significance as a potential antibiotic target, it is essential to uncover the main features of Mtbd enzyme kinetics.

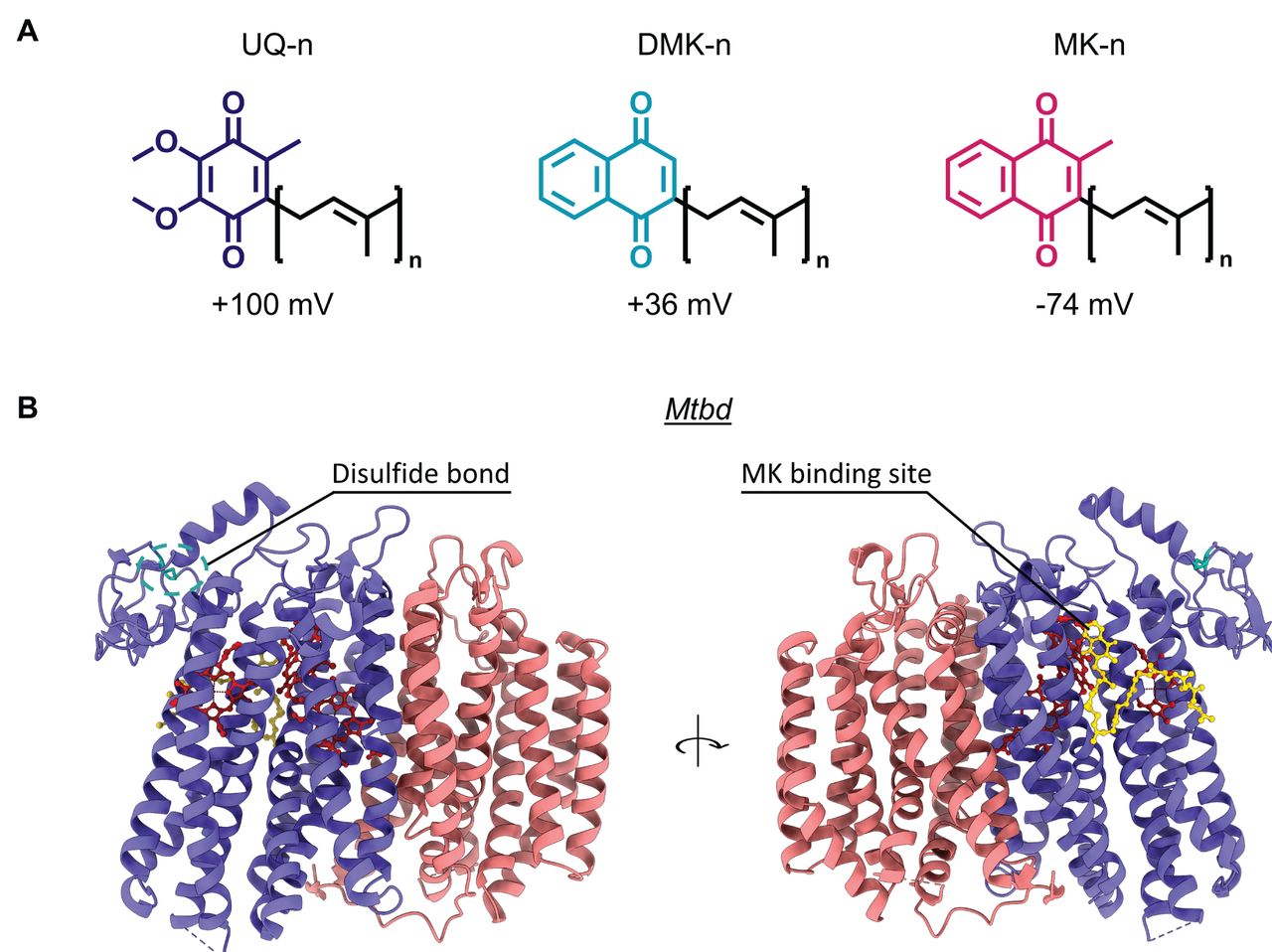

Ecbd, Mtbd and cyt bd’s from other species use distinct quinone subtypes for turnover. The main bacterial quinone subtypes include menaquinone (MK), demethylmenaquinone (DMK), and ubiquinone (UQ), each differing in their quinone headgroup structure and corresponding redox potential (Fig 1A)20. In addition, these quinones contain a hydrophobic isoprenoid tail made from a distinct number of isoprene units21. By convention, the number of isoprene units is indicated by the number (n) after the quinone, e.g. MK-n. M. tuberculosis primarily relies on MK-922, while E. coli demonstrates distinct functionalities for MK-8, DMK-8, and UQ-823,24. Moreover, E. coli upregulates MK-8 during microaerobic conditions, coinciding with the upregulation of Ecbd, highlighting the adaptability of the E. coli quinone pool composition based on environmental requirements20,25.
The interactions between quinones and cyt bd are intricate, as demonstrated by the distinct quinone binding sites in Ecbd and Mtbd (SI Fig 1). While Ecbd has a proposed quinone binding pocket at the Q-loop of subunit CydA, transferring electrons to closely located heme b55814, Mtbd shows quinone binding at the back of CydA, which transfers electrons directly to heme b595, bypassing the initial heme b558 (Fig 1B)12. Additional quinone binding pockets are found that are spatially separated from all three hemes, prohibiting participation in quinol oxidation. For instance, Ecbd contains UQ-8 in its CydB subunit, thought to confer structural stability14 or allosteric regulation, where exchanging different quinone subtypes may alter enzyme
Neither hypothesis has yet been unambiguously proven. Although for E. coli cyt bd-II and C. glutamicum cyt bd, preincubation with MK has been shown to increase enzymatic turnover27, single-particle cryo-EM studies were unable to indicate that MK incubation resulted in an exchange of this ‘structural’ quinone’16. Hence, how the isoprenoid tail and redox properties of these quinone subtypes affect the kinetics of Ecbd and Mtbd requires further study.
Most studies make use of detergent solubilized cyt bd with water soluble quinone analogs. The use of detergent micelles, although convenient for studying cyt bd in solution, introduces an artificial environment that deviates from the native conditions. These detergent micelles can alter the conformation, partially unfold proteins, and strip away vital bound or annular lipids, leading to a loss of native mechanistic function and kinetic rates28. Additionally, using water soluble quinone analogs could significantly alter enzyme kinetics, as indicated when the quinone isoprenoid tail layout was shown to critically affect respiratory efficiency in M. tuberculosis in vivo29. The thorough evaluation of cyt bd quinone interactions and disulfide regulation requires a native membrane environment and natural quinone substrates to mimic in vivo conditions.

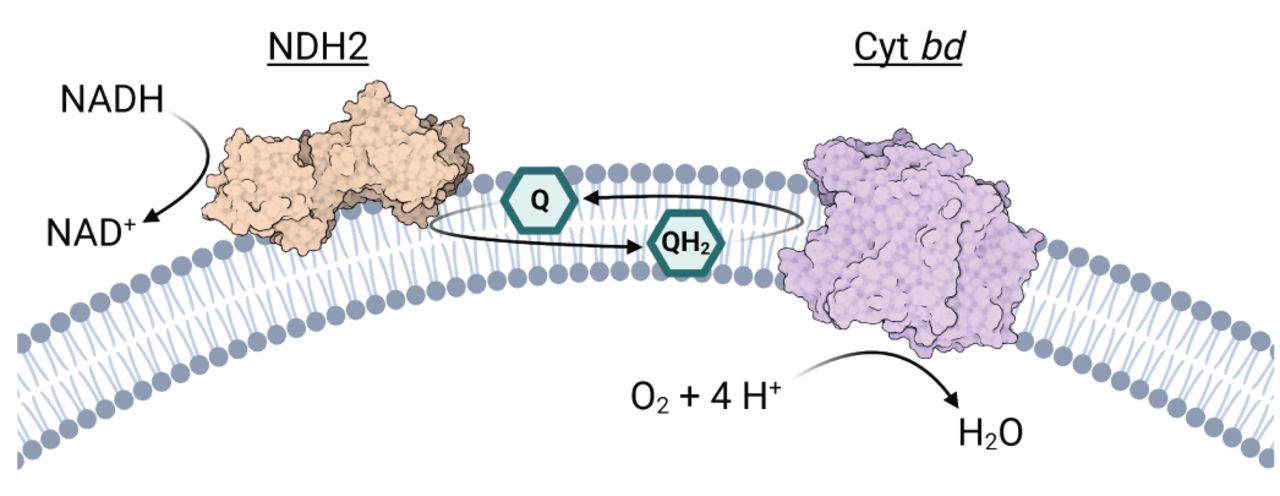

To study the specific interaction of Ecbd and Mtbd with the different quinones and interrogate the role of the Mtbd Q-loop disulfide bond, a minimal respiratory chain was constructed in which cyt bd is combined with a NADH-quinone oxidoreductase, Caldalkalibacillus thermarum NDH-2 (Figure 2). This revealed that water soluble quinone analogs lead to vast overestimations of cyt bd turnover rates, highlighting the need for precise experimental design. Furthermore, In contrast to Ecbd, Mtbd is subject to substrate inhibition by MK-9 at physiologically relevant concentrations.
Additionally, we signify Mtbd as the first terminal oxidase with a redox sensory disulfide bond. We propose that this enables Mtbd to adapt its activity to environmental redox pressures in defence against reactive oxygen species encountered by M. tuberculosis during infection.
Results
Cyt bd oxygen consumption kinetics with water soluble quinone analogs

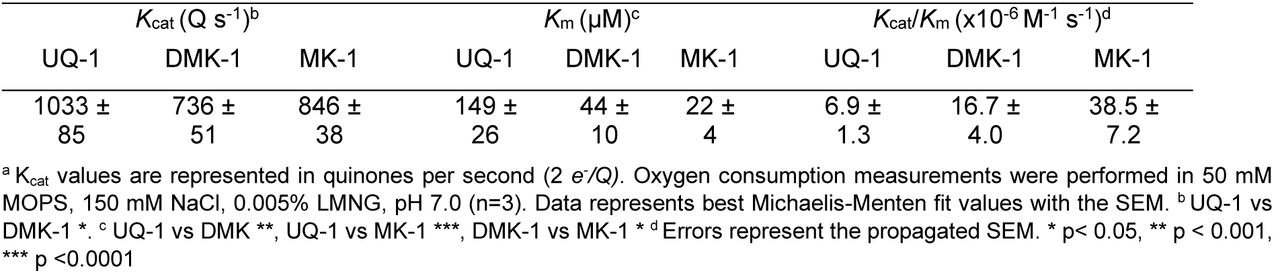

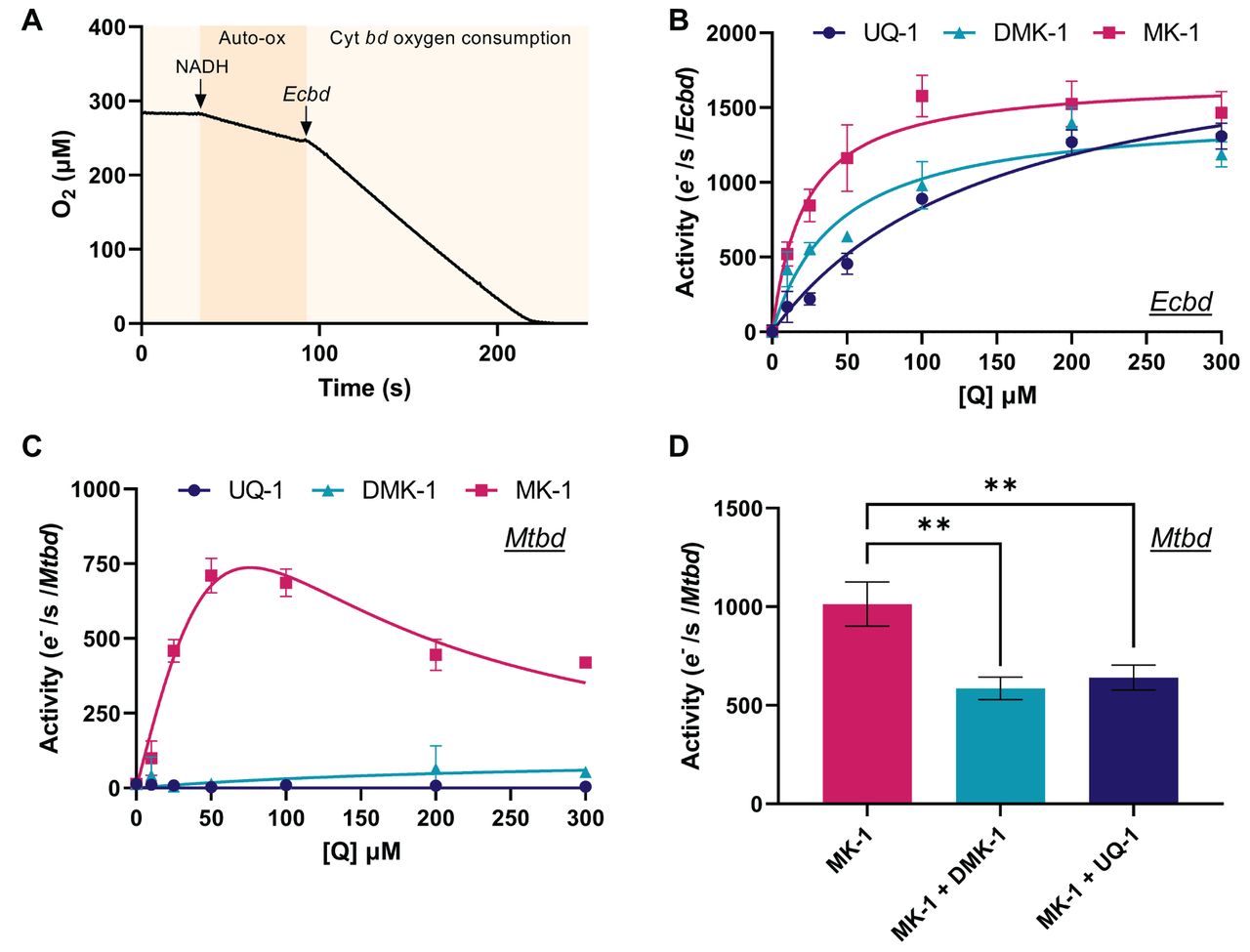

Ecbd, Mtbd and NDH-2 were expressed and purified via affinity and size exclusion chromatography (SI Fig 2). A minimal respiratory chain was constructed with an excess of NADH and NDH-2, such that the quinone pool remains fully reduced. Enzyme activity of Ecbd and Mtbd, comparing different quinone substrates, was determined by monitoring oxygen consumption in a Clark electrode setup. Previous reports indicate that quinols, especially menaquinols, auto-oxidize under aerobic conditions in a concentration dependent manner30. To account and correct for the quinol auto-oxidation rate, the oxygen consumption was quantified for each assay before the addition of cyt bd (Fig 3A). Activity was first measured in detergent conditions using water-soluble quinone analogs. Ecbd displayed standard Michaelis-Menten kinetics with a 6-fold lower Km for MK-1 compared to UQ-1 (Fig 3B, Table 1). Kcat values for the three quinone analogues were similar (Table 1) ranging from 736 to 1033 Q/s (Table 1).
The kinetic profile of Mtbd was profoundly different than that of Ecbd (Fig 3C). Mtbd exclusively turns over MK-1 and is subject to substrate inhibition. While substrate inhibition has been observed in other oxidases16,31,32, its molecular mechanism remains undefined. Multivariate fits of the observed substrate inhibition profile indicated a large interdependency of parameters (Km; Vmax; inhibition constant, Ki) preventing the determination of the kinetic parameters for MK-1 oxidation in spite of the good fit (Fig 2C). Importantly, Mtbd failed to initiate turnover with either DMK-1 or UQ-1. To investigate whether this inactivity resulted from a lack of substrate binding or a thermodynamic barrier limiting quinol oxidation, the binding of UQ-1 and DMK-1 to Mtbd was assessed. It was reasoned that DMK-1 and UQ-1 will present as competitive inhibitors if they bind to the same active-site pocket as MK-1. Upon addition of an excess DMK-1 or UQ-1, oxygen consumption activity was indeed significantly inhibited, suggesting that DMK-1 and UQ-1 bind to the active site, but are unable to be oxidized by Mtbd (Fig 3D). To determine whether the observed substrate specificities in detergent are indicative of in vivo conditions, the same principles were applied to a proteoliposomal system where cyt bd can be studied in a native lipid environment using the long isoprenoid quinones MK-9 and UQ-10.
Ecbd and Mtbd oxygen consumption in proteoliposomes
Ecbd and Mtbd were reconstituted in a proteoliposomal system that emulates a minimal respiratory chain using the same enzymatic components used in our detergent setup. In this system, oxygen consumption is used to monitor cyt bd activity, while excess NDH-2 binds the proteoliposomes to facilitate the reduction of the membrane-embedded quinone pool upon the addition of NADH (Fig 2).

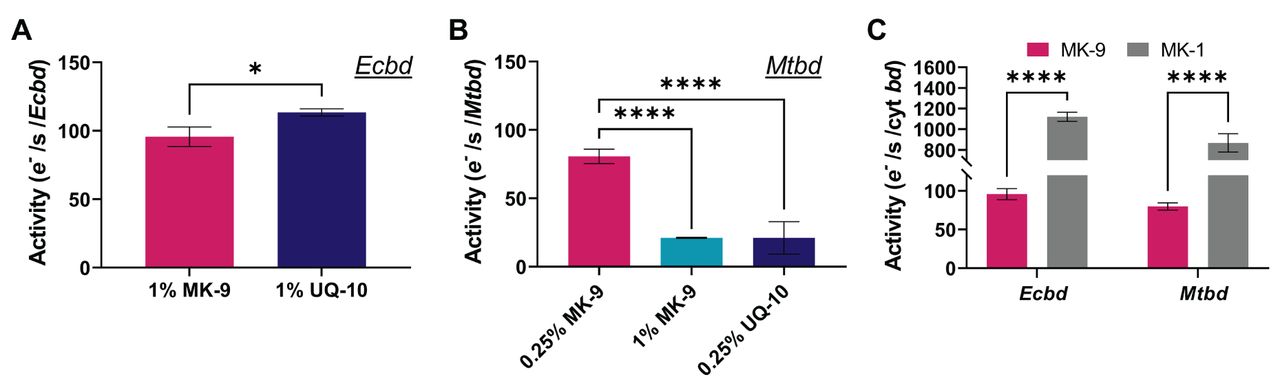

Mtbd and Ecbd were reconstituted in liposomes containing 0.25% - 1% (w/w; quinone/lipid) of the desired quinone (MK-9 or UQ-10) to achieve maximum catalytic rates. Quinone concentrations in bacterial membranes are estimated between 0.3 – 1.5% (w/w) (see SI). Furthermore, 1% MK-9 or UQ-10 approximately coincides with a membrane concentration in the order of 10-15 mM (see SI), well above the Km determined for Ecbd. We note however, that for the water soluble quinone analogs an unknown equilibrium exists between quinones in solution and quinones in detergent micelles, making the two systems difficult to directly compare. Consistent with the UQ-1/MK-1 kinetics, Ecbd showed a marginally higher catalytic rate with UQ-10 than MK-9 (Fig 4A). Additionally, Mtbd displayed the same specificity for MK turnover, confirming the quinone analog data (Fig 4B). Substrate inhibition was confirmed by increasing the MK concentration from 0.25% to 1%, resulting in a significant decrease in enzyme activity.
To study the effect of the quinone isoprenoid chain on cyt bd activity, Ecbd and Mtbd were reconstituted in proteoliposomes and activated with either membrane-embedded MK-9 or water soluble MK-1. Surprisingly, the isoprenoid chain length of the quinone was shown to have a significant effect on the maximum catalytic rate of cyt bd (Fig 4C). Utilizing the natural membranous quinones resulted in tenfold lower catalytic rates, emphasizing the role of the isoprenoid tail in substrate binding, via either diffusion or binding kinetics. This highlights that previously reported catalytic rates using quinone analogs substantially overestimate the catalytic rates achieved in vivo.
Mtbd activity is regulated by a unique Q-loop disulfide bond

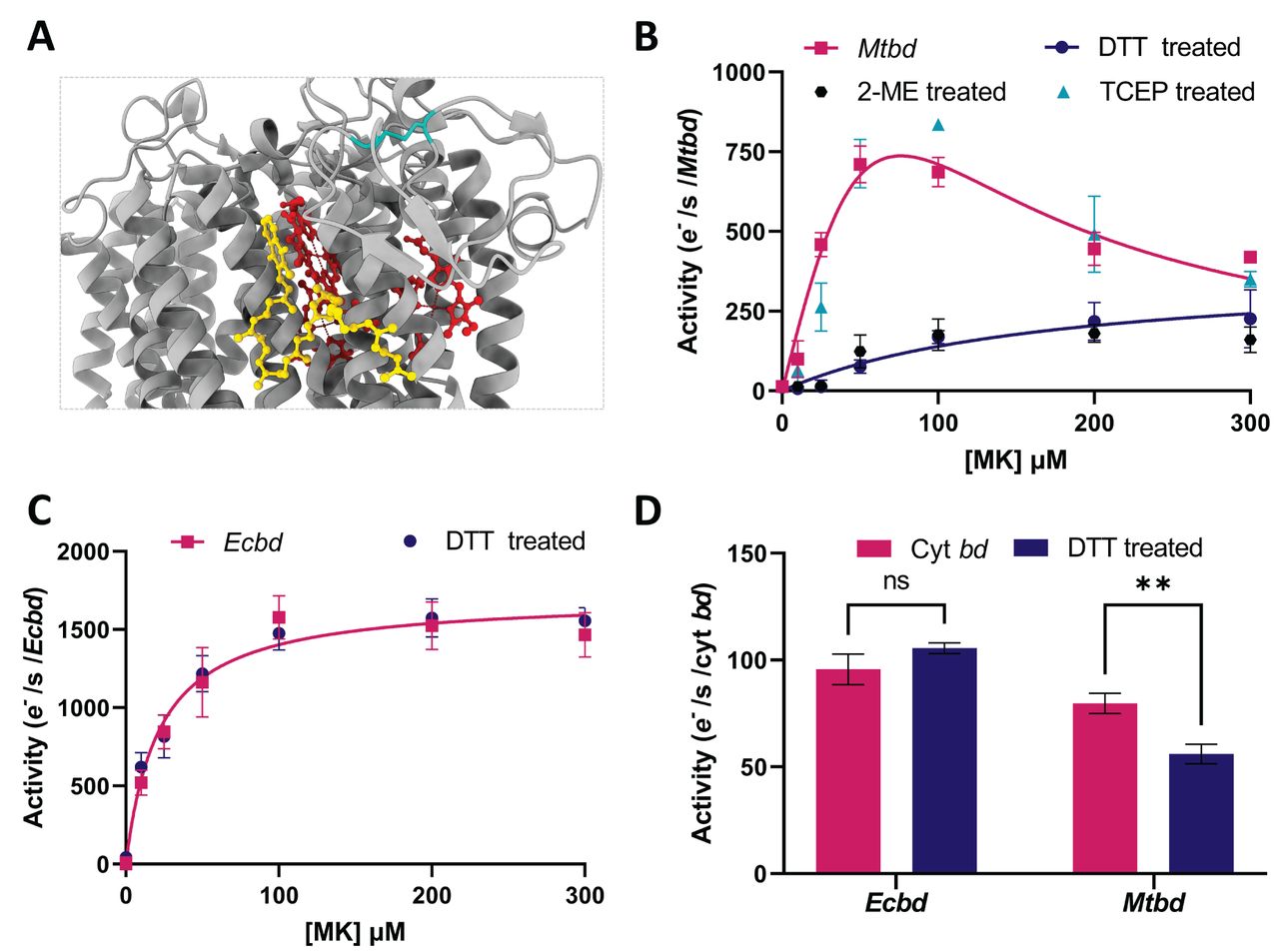

Mtbd is characterized by a unique disulfide bond that was hypothesized to reduce the flexibility of the substrate binding Q-loop (Fig 5A) and thereby confer a regulatory role for enzyme activity12,33. Previous studies faced limitations examining this mechanism, as they relied on chemical reductants such as DTT to reduce the quinone pool, which inadvertently affects the disulfide bond itself. Using NDH-2 to enzymatically reduce the quinone pool enables the comparison of Mtbd activity before and after incubation with chemical reductants to reduce the disulfide bond and probe its effects on Mtbd activity.
Incubation of Mtbd with either DTT or 2-mercaptoethanol (2-ME) showed a significant reduction in oxidase activity (Fig 5B). In addition to the decrease in Mtbd activity, the disulphide bond breakage eliminates MK substrate inhibition, strongly suggesting the reduction of the disulfide bond changes the structure or dynamics of the quinone binding pocket. Unexpectedly, preincubation with the reductant tris(2-carboxyethyl)phosphine (TCEP) did not reduce Mtbd activity, indicating that interactions with the disulfide bond might be hindered by surface accessibility or charge repulsion (SI fig 3). To verify that the chemical reductants only impact the disulfide bond and no other aspects of Mtbd, the same measurements were performed with Ecbd, which lacks the Q-loop disulfide bond (Fig 5C). This confirms that there is no difference in Ecbd activity after treatment with DTT and consolidates the conclusion that the decrease in the activity of Mtbd stems from the reduction of the Q-loop disulfide bond. To ensure that the observed effects are not artifacts of the detergent environment, the measurements were repeated in our proteoliposomal system (Fig 5D). Again, the Ecbd activity remains unchanged by the DTT treatment, while the Mtbd activity significantly decreases. The DTT-mediated decrease in proteoliposomal Mtbd is less pronounced in comparison to the detergent solubilized Mtbd. We ascribe this to the fact that the proteoliposome system has higher quinone concentrations, for which the difference is less pronounced (Fig 5B).
Discussion
Cyt bd is a critical part of the prokaryotic respiratory chain to maintain ATP regeneration under microaerobic conditions3. Mtbd has been highlighted for its essentiality under oxygen limiting conditions, and its related interest as an antibiotic target against M. tuberculosis. Most current knowledge, however, comes from mechanistic studies on homologous enzymes such as Ecbd and C. glutamicum cyt bd, which have diverse structural features, such as a lack of the characteristic Mtbd Q-loop disulfide bond 12–15.
The minimal respiratory chain, both in detergent and liposomes, unambiguously indicates that Ecbd can oxidize UQ, MK and DMK. The affinity of Ecbd for UQ-1 (km: 149 ± 26 μM) is in line with previously reported values31,32,35–37, while the catalytic rate at 200 μM UQ-1 (1268 ± 81 e- s-1), is slightly higher than literature reported values (889 ± 30 e- s-1)14 and is attributed to the difference in the detergent environment and assay conditions. The fact we see activity with MK is in direct contrast with an earlier study that suggests that Ecbd cannot oxidize MK16. We note that in this earlier study, MK was reduced by DTT. Indeed, when we repeated the assay with DTT instead of NADH/NDH-2 to reduce MK, we did not observe any activity. Here, we propose that although DTT is a good reductant for UQ and hence a good reductant to measure oxygen-reducing activity by cyt bd, DTT might be a poor reductant and rate-limiting when the assay is performed with MK. The observation that Ecbd can oxidize MK and DMK is consistent with the in vivo upregulation of MK and DMK during microaerobic respiration, conditions that also lead to increased expression of Ecbd24,25,38.
The catalytic rates of both Ecbd and Mtbd were approximately ten-fold lower when using the natural quinones in comparison to their often-used water-soluble analogs. Similar effects have been shown before, where small differences in quinone isoprenoid units altered enzyme activity27,39. This highlights the need for physiologically relevant assay conditions to obtain appropriate kinetic rates and inhibition values. The difference in activity when using the native quinones could be explained by a difference in binding or diffusion kinetics, as many of the quinone-bound oxidase structures have shown that the quinone isoprenoid tails play a significant role in substrate-enzyme interactions12,40, and longer chains might result in slower substrate binding and release41.
Mtbd exclusively catalyzes MK oxidation, while competition experiments suggest that UQ and DMK can bind to the same active site. A similar phenomenon was shown for cyt bd from C. glutamicum, and cytochrome bcc from M. tuberculosis, which also lacked oxidase activity using UQ as a substrate 27,30. We postulate that this lack of UQ-1 turnover in C. glutamicum cyt bd is caused by a thermodynamic barrier between two-electron oxidation of UQ (100 mV) and the single-electron acceptor heme b (102 mV) 13,42. Similar suggestions have been made for mycobacterial cytochrome bcc, where the heme redox potentials are too low to allow the oxidation of UQ30,43. Although the heme potentials for Mtbd are unknown, we postulate that the same hypothesis applies here.
Mtbd was unable to oxidize DMK, which is similar in structure to MK and has a reduction potential that lies in between that of MK and UQ. In M. tuberculosis, DMK is a precursor in MK biosynthesis. Interestingly, small molecule inhibitors of MenG, the enzyme that converts DMK into MK, were bactericidal in M. tuberculosis33,44. This substantiates the inability of Mtbd to turn over DMK and highlights the tight redox control between the quinone pool and Mtbd. Additionally, this emphasizes inhibition MK biosynthesis as a valid antibiotic strategy that targets the fundamental electron transfer steps between the respiratory chain components.
In contrast to our observation reported here, Mtbd expressed in E. coli has been reported to oxidize UQ when assayed in crude membrane extracts39. Potentially, the observed UQ oxidation was caused by interfering oxidases present in the membrane extracts, such as E. coli cyt bd-II. Further studies would be required to determine why the assay in crude E. coli membrane extracts gives rise to different results than enzymes purified from M. smegmatis, as reported here.
Importantly, the Mtbd disulfide bond is unique among the currently studied cyt bd oxidases. Despite the conservation of these cysteine residues in M. smegmatis45 and C. glutamicum13 cyt bd, these proteins do not show a formed cysteine bond in their structures, suggesting that the bond is not necessary for the protein to remain in a folded state. Molecular dynamics studies have indicated that the Mtbd disulfide bond can alter Q-loop flexibility, potentially regulating Mtbd activity12. Regretfully, none of the aforementioned proteins have structures solved in both the formed and broken disulfide bond states. Here we show that the chemical reduction of the Mtbd disulfide bond results in a significant decrease in oxidase activity. To our knowledge, this is the first proof of a terminal oxidase under the regulation of a redox sensing disulfide bond. Remarkably, when M. smegmatis cyt bd was studied and found to have a broken disulfide bond, it also presented low catalytic rates (21.6 ± 2.8 e- s-1)45, significantly lower than the catalytic rates we report here. Potentially, the M. smegmatis disulfide bond is reduced during isolation or only gets formed under the oxidative pressure of reactive oxygen species. It would be interesting to assess if the activity of M. smegmatis and C. glutamicum cyt bd increases after the formation of the disulfide bond, for instance by incubation with copper or reactive oxygen species such as hydrogen peroxide.
Interactions of Mtbd with environmental redox pressures might be important as M. tuberculosis can survive in reactive oxygen species rich environments during infection46, and Mtbd has a suggested role in hydrogen peroxide resistance47. In addition, Ecbd has been shown to actively detoxify the cellular environment from hydrogen peroxide48 and peroxynitrite49, indicating potential additional roles for Mtbd as a survival factor for M. tuberculosis. Future research should focus on the physiological role of the Mtbd disulfide bond and its influence on M. tuberculosis survival under various conditions. Additional investigations of the interplay between Mtbd and environmental redox pressures, especially regarding its potential detoxifying role as seen with Ecbd, will offer valuable insights into the adaptive role of Mtbd in the defence against reactive oxygen species and antibiotic compounds encountered during infection.
Experimental procedures
Expression and purification of E. coli cytochrome bd-I
The expression of E. coli cytochrome bd-I (Ecbd)was performed as previously described 50, with slight modifications. Briefly, MB43 cells 51,52 transformed with pET17b-CydABX-linkerstreptag were grown overnight in LB with 100 μg/mL ampicillin (250 RPM, 37°C). The culture was diluted to OD ∼0.1 in LB ampicillin and grown to OD∼ 0.4. Expression was induced by the addition of 0.45 mM IPTG and carried out until OD ∼2.0. Cells were harvested by centrifugation (6371 rcf, 20 min, 4°C) and resuspended in 50 mM MOPS, pH 7.4, 100 mM NaCl, cOmplete™ EDTA-free Protease Inhibitor (ROCHE), at 1 g wet cells per 5 mL buffer. Cells were disrupted by a single pass through a Stansted pressure cell homogeniser (270 MPa). Unbroken cells were pelleted and discarded by centrifugation (10.000 rcf, 20 min, 4°C). Crude membranes were isolated by ultra-centrifugation (200.000 rcf, 1h, 4°C) and resuspended to 10 mg/mL protein concentration in 50 mM MOPS, 100 mM NaCl, pH 7.4. Detergent extraction of the membrane proteins was performed by incubation with 0.5% Lauryl maltose neopentyl glycol (LMNG) for 1 hour at 4°C with gentle mixing. Insoluble material was pelleted and discarded by ultra-centrifugation (200.000 rcf, 30 min, 4°C) followed by application of the soluble fraction to a StrepTrap HP column (Cytiva) at 1 mL/min. To remove unbound proteins, the column was washed with 50 mM sodium phosphate, 300 mM NaCl, 0.005% LMNG, pH 8.0. Elution was performed by the addition of 50 mM sodium phosphate, 300 mM NaCl, 2.5 mM desthiobiotin, 0.005% LMNG, pH 8.0, after which purity was confirmed by SDS-page. Fractions containing pure E. coli cytochrome bd-I were pooled, concentrated, and stored at -80°C until further use.
Expression and purification M. tuberculosis cytochrome bd
M. tuberculosis cytochrome bd (Mtbd) expression and purification were performed as previously described with slight modifications 53. M. smegmatis MC2 155 ΔCydAB 54 was transformed with the pLHCyd plasmid using electroporation with an Eppendorf eporator (2.5 kV). Positive transformants were selected by plating the cells on LB agar with 50 μg/mL hygromycin. A starter culture was inoculated in LB-hygromycin and grown for 72 hours (250 RPM, 37°C). The culture was diluted 1:100 and grown for an additional 72 hours (200 RPM, 37°C) until the cells were harvested (6371 rcf, 20 min, 4°C) and resuspended in a 5-fold volume of 50 mM Tris-HCl (pH7.4), 5 mM MgCl2, 0.05% tween-80, cOmplete™ EDTA-free Protease Inhibitor. The cells were lysed by a double pass through a Stansted pressure cell homogeniser (270 MPa). Cell debris was pelleted and discarded by centrifugation at 10.000 rcf, 20 min at 4°C. The crude membranes were extracted by ultra-centrifugation (200.000 rcf, 1 hour, 4°C) and resuspended in 20 mM Tris-HCl, pH 7.4, 0.05% Tween-80, 10% glycerol to a total protein concentration of 10 mg/mL. The proteins were solubilized by the addition of 0.5% LMNG with gentle mixing (1h, 4°C). Insoluble material was pelleted by ultra-centrifugation (200.000 rcf, 30 min, 4°C) and discarded. The soluble fraction was incubated overnight at 4°C with Pierce™ Anti-DYKDDDDK Affinity Resin (Thermo Fisher) and purified according to the manufacturer’s instructions. Briefly, the flow through was removed by centrifugation at 1000 rcf, followed by four washing steps with 10 CV of 50 mM Tris-HCl (pH 7.4), 150 mM NaCl, 0.005% LMNG. The protein was eluted by the addition of 50 mM Tris-HCl (pH 7.4), 150 mM NaCl, 0.02% DDM, 1 mg/mL 3X-FLAG peptide (Genscript). Final purification was achieved by size exclusion chromatography (SEC) on a superdex 200 increase 10/200 column at 0.5 mL/min (50 mM Tris-HCl (pH 7.4), 150 mM NaCl, 0.005% LMNG). SEC peak fractions were evaluated on SDS-gel and pure M. tuberculosis cytochrome bd was pooled, concentrated, and stored at -80°C until further use.
Expression and purification of NDH-2
The gene for Caldalkalibacillus thermarum NDH-2 with an N-terminal hexahistidine tag was ordered from GeneArt and cloned in the pET28 vector between NcoI and XhoI, giving rise to the construct pET28-NDH-2_NtermHis. pET28-NDH-2_NtermHis was transformed into C41 (DE3) cells and plated on LB kanamycin to select positive transformants.
Expression and purification were performed based on the procedure from Heikal et al. with slight modifications 55. Briefly, a streak of transformants was inoculated and grown overnight (250 RPM, 37°C). The overnight culture was diluted to ∼OD 0.1 in LB kanamycin and grown to ∼OD 0.5 before induction with 0.25 mM IPTG. Expression was carried out for 4 hours before cells were harvested (6371 rcf, 20 min, 4°C). The cells were resuspended in a 5-fold volume of 50 mM Tris-HCl, 5 mM MgCl2, pH 8.0, and lysed by a single pass through a Stansted pressure cell homogeniser (270 MPa). Unbroken cells were pelleted by centrifugation (10.000 rcf, 20 min, 4°C) and discarded. Crude membrane fractions were pelleted by ultra-centrifugation (200.000 rcf, 1h, 4°C) and resuspended at a 10 mg/mL total protein concentration in Tris-HCl, 150 mM NaCl, 20 mM Imidazole. Membrane proteins were extracted by treatment with 1% DDM for 1 hour at 4°C with gentle mixing. The membranes were removed by ultra-centrifugation (200.000 rcf, 30min, 4°C) followed by application of the soluble fraction to a HiTrap Nickel NTA column (Cytiva). The unbound proteins were washed from the column with washing buffer (50 mM Tris-HCl pH 8.0, 150 mM NaCl, 20 mM Imidazole, 0.02% DDM) followed by elution using stepwise addition of elution buffer (50 mM Tris-HCl, 150 mM NaCl, 500 mM Imidazole, 0.02% DDM). NDH-2 eluted at approximately 30% elution buffer, as confirmed by SDS-page gel and western blot. Final purification was achieved by size exclusion chromatography on a superdex increase 200 10/300 column (Cytiva) at 0.5 mL/min (50 mM Tris-HCl, 500 mM NaCl, 5% glycerol, 0.02% DDM). Pure fractions were pooled, concentrated, and stored at -80°C until further use.
Cyt bd reconstitution in proteoliposomes
Lipids were purchased from Avanti Polar Lipids and used as received. A lipid mixture of POPE:POPG:CA (60:30:10 for Ecbd proteoliposomes, 30:60:10 for Mtbd proteoliposomes), enriched with the desired concentrations of ubiquinone-10 (UQ-10) (Sigma) or menaquinone-9 (MK-9) (Caymen chemical), was dried under a stream of nitrogen. Final traces of CHCl3 were removed overnight under vacuum. The lipid film was rehydrated and resuspended to a final concentration of 10 mg/mL in 20 mM MOPS, 30 mM Na2SO4, 100 mM KCl, pH 7,4, by vortexing. Cyt bd reconstitution was performed as described 56. Briefly, cyt bd was added to the liposome solution at 1 w/w% protein/lipids and mixed for 30 min by inversion at RT. Insoluble materials was removed by centrifugation in an Eppendorf tabletop centrifuge (14100 rcf, 5 min). The proteoliposome cyt bd concentration was determined by re-dissolving a sample in 2% octyl-β-glucoside, followed by quantification of the soret band with the corresponding extinction coefficient (Ecbd: ε417 230 mM-1 cm-1 57, Mtbd: ε414 279 mM-1 cm-1). The latter extinction coefficient of the Mtbd soret band (414 nm) was determined from UV vis absorbance in relation to protein concentrations determined by BCA assay from three different protein preparations. The extinction coefficient (ε414nm = 279 ± 13 mM-1 cm-1) was comparable to other bd-type oxidases 58.
Enzyme kinetics with water soluble quinone analogs
Oxygen consumption of LMNG solubilized cyt bd with quinone analogs was measured on an oxygraph (Hansatech Ltd.) system at 20°C. The quinone analogs, UQ-1 (Sigma), deoxylapachol (DMK-1, MedChem Express), or MK-1 (Santa Cruz Biotech) were added to the reaction chamber at the desired concentration in 50 mM MOPS, 150 mM NaCl, pH 7.0. Quinone-mediated autooxidation was determined by enzymatic reduction of the quinones by C. thermarum NDH-2 (30 nM) after the addition of 1 mM NADH. Oxygen consumption was initiated by the addition of cyt bd (4 nM for Ecbd, 6.5 nM for Mtbd). The enzyme activity was measured by subtraction of the quinone autooxidation rate from the initial slope after cyt bd addition. The kinetics curves were fit and where possible, enzymatic parameters were determined using GraphPad Prism using either Michaelis Menten (eq.1) or substrate inhibition kinetics (eq.2).
Cyt bd oxygen consumption in proteoliposomes
Oxygen consumption was measured on an oxygraph system at 20°C. Prior to the measurement, cytochrome bd proteoliposomes were diluted to the desired concentration (20 nM cyt bd) in 50 mM MOPS, 150 mM NaCl, pH 7.0. The proteoliposomes were incubated for 30 min at room temperature with 100 nM NDH-2 to complete the proteoliposomal system. Oxygen consumption was initiated by the addition of 1 mM NADH. The oxygen consumption rate was quantified using the initial slope after NADH addition.
Cyt bd oxygen consumption after treatment with reductants
The effect of Mtbd Q-loop disulfide bond reduction was studied by 30 minutes of preincubation with chemical reductants (10 mM TCEP, 10 mM DTT, 100 mM 2-ME). The samples were diluted to the concentrations used previously in the LMNG solubilized or proteoliposomal measurements. The buffer was supplemented with the respective chemical reductant to maintain the reductive environment during the measurement (1 mM TCEP, 10 mM DTT, 100 mM 2-ME). The measurements were performed as mentioned before.
Supporting information
Acknowledgements
We would like to thank Dr. Dirk Bald (VU Amsterdam, The Netherlands) for providing the MB43 cells and the pET17b_CydABX_Linkerstreptag construct for Ecbd expression. Furthermore, we would like to thank Prof. Dr. Gregory Cook (University of Otago, New Zealand) for providing the MC2 155 ΔCydAB strain and pLHCyd plasmid for Mtbd expression.
Conflict of interest
The authors declare that they have no conflicts of interest.
Abbreviations
- Cyt bd
- Cytochrome bd
- DMK-1
- demethylmenaquinone-1
- DTT
- Dithiothreitol
- Ecbd
- E. coli cytochrome bd-I
- LMNG
- Lauryl Maltose Neopentyl Glycol
- MK
- Menaquinone
- Mtbd
- M. tuberculosis cytochrome bd
- NDH-2
- NADH dehydrogenase type-2
- TCEP
- Tris(2-carboxyethyl)phosphine hydrochloride
- UQ
- Ubiquinone-10
- 2-ME
- 2-Mercaptoethanol
