Identification and Characterization of Cannabichromene’s Major Metabolite Following Incubation with Human Liver Microsomes
1Department of Pharmaceutical Sciences, Skaggs School of Pharmacy and Pharmaceutical Sciences, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA; alexandra.ward@cuanschutz.edu (A.M.W.); vu.t.nguyen@cuanschutz.edu (V.N.)
2iC42 Clinical Research and Development, Department of Anesthesiology, School of Medicine, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USAjost.klawitter@cuanschutz.edu (J.K.); jelena.klawitter@cuanschutz.edu (J.K.)
3Department of Behavioral Neuroscience, Oregon Health & Science University, Portland, OR 97239, USA; kozellla@ohsu.edu (L.K.); abbasat@ohsu.edu (A.I.A.)
4Department of Psychiatry, Oregon Health & Science University, Portland, OR 97239, USA
5Veterans Affairs Portland Health Care System, Portland, OR 97239, USA
6Department of Pharmacology, School of Medicine, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA; david.jones@cuanschutz.edu
*Correspondence: uwe.christians@cuanschutz.eduAbstract
Cannabichromene (CBC) is a minor cannabinoid within the array of over 120 cannabinoids identified in the Cannabis sativa plant. While CBC does not comprise a significant portion of whole plant material, it is available to the public in a purified and highly concentrated form. As minor cannabinoids become more popular due to their potential therapeutic properties, it becomes crucial to elucidate their metabolism in humans. Therefore, the goal of this was study to identify the major CBC phase I-oxidized metabolite generated in vitro following incubation with human liver microsomes. The novel metabolite structure was identified as 2′-hydroxycannabicitran using gas chromatography–mass spectrometry and nuclear magnetic resonance spectroscopy. Following the identification, in silico molecular modeling experiments were conducted and predicted 2′-hydroxycannabicitran to fit in the orthosteric site of both the CB1 and CB2 receptors. When tested in vitro utilizing a competitive binding assay, the metabolite did not show significant binding to either the CB1 or CB2 receptors. Further work necessitates the determination of potential activity of CBC and the here-identified phase I metabolite in other non-cannabinoid receptors.
1. Introduction
The best-studied cannabinoids are Δ9-tetrahydrocannabinol (Δ9-THC) and cannabidiol (CBD). Δ9-THC is well known to be a partial agonist of the cannabinoid 2 receptor (CB2R) and the cannabinoid 1 receptor (CB1R), the latter of which is responsible for its psychotropic effects [1,2]. The activity of CBD is more complex, and evidence suggests minimal direct effects on CB1R and CB2R [3,4]. The metabolic pathways of Δ9-THC and CBD have been identified [5]. Δ9-THC is initially metabolized to 11-hydroxy-Δ9-THC, which retains activity at CB1R; it is not until 11-hydroxy-Δ9-THC is further oxidized into the carboxylic acid metabolite that it loses CB1 activity [6]. Similarly, CBD is principally hydroxylated to 7-hydroxy-CBD, which, in preclinical models of seizures, remains active, though the precise mechanism of action is unknown [7]. Further metabolism to the carboxylic acid 7-carboxy-CBD arrests its activity [7,8]. However, our group has also proven that CBD can be directly glucuronidated (CBD-gluc) [9], and the activity of CBD-gluc is unknown.
Besides Δ9-THC and CBD, interest in minor phytocannabinoids has intensified, since many of these are believed to lack the psychoactive properties that are primarily mediated through CB1R activation; one such minor cannabinoid is cannabichromene (CBC, Figure 1A). CBC represents a small percentage of whole plant material (0.05–0.3%); however, these are relatively old metrics obtained from samples collected from 1993–2014 [10,11,12,13]. More recently, as a result of the passage of the Agricultural Improvement Act (aka Farm Bill) in 2018, the general public in the United States has unrestricted access to highly purified and concentrated minor cannabinoids, including CBC [14]. In 2023, the United States minor cannabinoid market size was estimated at 11.5 billion dollars, but is expected to increase to 33.3 billion dollars by 2030 in part due to far-reaching medicinal claims including treatment for neurological disorders, cancer, inflammation, and pain management [15]. These claims have been drastically understudied; preliminary reports on CBC activity have shown conflicting results. CBC has previously been shown to be a partial agonist of CB2R but not CB1R [16], while other studies have confirmed partial agonism in CB2R and also shown partial agonism in CB1R [17]. CBC is generally thought to be non-psychoactive in animal models [18,19]. In exploring non-CB receptor systems, CBC was shown to interact with a variety of transient receptor potential (TRP) channels including TRPA1 [20,21,22,23], TRPV1–4, and TRPV8, thereby having implications for pain and inflammation [2,24], and acute respiratory distress syndrome [25]. Another study showed the anti-inflammatory effects of CBC through a non-CB receptor mechanism in a model of edema [26]. A potential anti-inflammatory mechanism of action was described through downregulating the mitogen-activated protein kinase (MAPK) and nuclear factor kappa B (NF-κB) pathways [27]. CBC has been tested in several model systems of cancer, including urothelial cell carcinoma [28], human breast carcinoma [29], neuroblastoma [30], and bladder cancer [31] with varying efficacy. Due to the wide variety of potential therapeutic applications and potential toxicities, it is important to characterize the pharmacokinetics of CBC and the potential activity of the resulting metabolites.
Previous studies of CBC metabolism applied various animal models resulting in differing metabolic profiles [32,33]. Using gas chromatography–mass spectrometry, Harvey and Brown described hydroxylation in all positions of both aliphatic chains of CBC in rabbit-derived liver microsomes [33]. In hamster-, gerbil-, and cat-derived liver microsomes, epoxidation was detected across the alkene on the branched aliphatic chain representing 10, 12, and 42% of the total amount of metabolites generated in each respective animal model [34]. A recently published study identified four CBC metabolites generated by human liver microsomes: 1″-hydroxy-CBC; 8′-hydroxy-CBC; 6′, 7′-epoxy-CBC; and 6′, 7′-dihydroxy-CBC [35]. However, the authors looked specifically for previously synthesized metabolites and no attempt was made to detect and identify other potentially novel CBC metabolites. This contributes to uncertainty as to whether the major metabolites of CBC were captured.
In continuation of the aforementioned published CBC drug metabolism studies, we found that incubation of CBC with pooled human liver microsomes (HLMs) resulted in one major, yet unknown oxidized metabolite (Figure 2). Our aim was to identify the structure of said major CBC metabolite. We applied an array of analytical techniques including gas chromatography–tandem mass spectrometry (GC-MS/MS), high-resolution time-of-flight (TOF) tandem mass spectrometry, and nuclear magnetic resonance (NMR) spectroscopy to elucidate this metabolite’s structure. Once the structure was identified, we employed in silico molecular modeling and in vitro competitive binding assays to determine the binding of said major CBC metabolite to CB1R and CB2R. A diagram of the experimental workflow is available in the Supplementary Materials (Section S1.1).
2. Materials and Methods
2.1. Enzymes, Reagents, and Chemicals
HPLC-grade water, methanol, acetonitrile, and 88% certified ACS-grade formic acid were purchased from Thermo Fisher Scientific (Waltham, MA, USA). Chloroform-d1 (CDCl3, 99.8 atom%D, Thermo Fisher Scientific, Waltham, MA, USA), D2O (99.9 atom%D, Thermo Fisher Scientific, Waltham, MA, USA), and acetonitrile-d3 (ACN-d3, 99.96 atom%D, Sigma-Millipore, St. Louis, MO, USA) were used as NMR solvents. Hydrogen peroxide solution (30% w/w in water containing stabilizer) was used for synthetic generation of the major metabolite of CBC (Sigma-Millipore, St. Louis, MO, USA). CBC used in incubations with HLMs and NMR was ≥98% pure purchased from Cayman Chemical (Ann Arbor, MI, USA), and CBC used in synthesis of 2′-hydroxycannabicitran was >98% pure purchased from Open Book Extracts (Roxboro, NC, USA). The internal standard CBC-d9 for LC-MS/MS analyses was a certified reference material purchased from Cayman Chemical (Ann Arbor, MI, USA). HLMs had been characterized for individual cytochrome P450 activity and concentration by the manufacturer (Xenotech, Kansas City, KS, USA); a pool of 50 individuals was used for the kinetic studies (H0620/Lot #1810003), while a pool of 200 individuals was used for upscaled incubations and isolation of the major oxidized CBC metabolite (H2640/Lot #1910096). Dichloromethane (ACS-grade, VWR International, Radnor, PA, USA) was used for metabolite extraction from HLMs. The following reagents were purchased from Sigma-Millipore (St. Louis, MO, USA): Na+/K+-phosphate buffer, magnesium chloride (MgCl2), ethylenediaminetetraacetic acid (EDTA), β-nicotinamide adenine dinucleotide phosphate hydrate (NADP), isocitric acid, and isocitric dehydrogenase were used for the HLM NADPH-generating system. Reagents utilized for derivatization prior to GC-MS/MS analysis included ethyl acetate (anhydrous 99.8%) and N,O-bis(trimethylsilyl)trifluoroacetamide with 1% chlorotrimethylsilane (BSTFA with 1% TMCS analytical standard). Reagents used for competitive CB1R and CB2R binding assays included WIN 55,212, CP 55,940, Δ9-THC, CBC, and cannabicitran (CBT-C), all purchased from Cayman Chemical (Ann Arbor, MI, USA). The radioactive ligand [3H]CP 55,940 was purchased from PerkinElmer (Waltham, MA, USA). Buffer components and polyethylenimine were purchased from Sigma-Millipore (St. Louis, MO, USA).
2.6. Molecular Docking
The Schrödinger Suite (release 2023-3, Schrödinger, New York, NY, USA) was used for all ligand and protein preparation, and the Glide Module for all docking calculations [39,40,41]. Using LigPrep, the following compounds were prepared at physiological pH: (−)-Δ9-THC, (+)-CBC, (−)-CBC, (R)-2′-hydroxy-(+)-cannabicitran, (S)-2′-hydroxy-(−)-cannabicitran, (+)-CBT-C, and (−)-CBT-C (structures are available in the Supplementary Materials Section S4.1). CB1R and CB2R were imported from Protein Data Bank (PDB code: 5XR8) and (PDB code: 5ZTY), respectively [42,43]. These protein structures were prepared by removing all water molecules and co-crystallized ligands, and then minimized with OPLS4 force fields and the VSGB solvation model [44]. CB1R and CB2R were scanned and mapped to confirm their binding site. Computational grids were then formed around the mapped binding sites to have the test compounds docked into. This docking was completed with Standard-Precision (SP) and Extra-Precision (XP) glide models for comparison. Top-ranked ligand–protein conformations were produced with corresponding scoring function values.
2.7. Competitive Binding Assays
Radioligand binding to cannabinoid receptors (CB1R and CB2R) was conducted as previously described [45]. Human embryonic kidney 293 (HEK) cells were transfected using lipofectamine 2000 (Invitrogen, Waltham, MA, USA) using CB1R or CB2R cDNA in pcDNA3.1+ plasmid (cDNA Resource Center, Bloomsburg, PA, USA), and stable cell lines were established. HEK-CB1 and HEK-CB2 cells were grown in DMEM supplemented with 10% fetal bovine serum (HyClone Laboratories, Logan, UT, USA), 1% penicillin/streptomycin (final concentration 100 units/mL or 100 µg/mL, respectively), and 300 µg/mL G418. Cells were grown to confluency on 15 cm dishes. Cells from 2 plates were scraped into approximately 7 mL calcium- and magnesium-free phosphate-buffered saline (CMF-PBS) containing 1:3000 protease inhibitor cocktail III (PI) (EMD Millipore, Burlington, MA, USA) and centrifuged at 11,000× g at 4 °C for 10 min. The supernatant was removed, and the cell pellet was resuspended in 2 mL of hypotonic buffer (5 mM Tris, 2 mM EDTA + PI) using a polytron. The homogenate was centrifuged at 35,000× g for 20 min, resuspended in TME buffer (20 mM Tris, 5 mM MgCl2, 1 mM EDTA, pH 7.4 at 4 °C) with PI using a polytron, and an additional 5 mL of hypotonic buffer was added. The homogenate was centrifuged a second time at 35,000× g for 20 min, the supernatant was removed, and the final membrane pellet was covered with 2 mL TME buffer and stored at −80 °C until needed.
The binding assay was performed in duplicate in a 96-well plate using TME supplemented with 5 mg bovine serum albumin (BSA)/mL, pH 7.4 at 30 °C. Total binding and nonspecific binding was determined in duplicate for each concentration of radioligand. The reaction mixture included test compounds Δ9-THC, WIN 55,212 or CP 55,940, membrane preparation (40–50 mg protein), [3H]CP 55,940, and TME+BSA buffer in a final volume of 0.5 mL. The concentration of [3H]CP 55,940 was 1.4 nM. After incubation at 30 °C for 60 min, the reaction was terminated by filtration with TME + 1 mg BSA/mL over Filtermat A filters (Revvity, Boston, MA, USA) presoaked in 0.2% polyethylenimine. An additional wash was added to the normal harvesting program to reduce nonspecific binding. The filters were dried at room temperature, spotted with scintillation cocktail, and remaining radioactivity was determined utilizing a microBetaplate 1405 scintillation counter (PerkinElmer, Waltham, MA, USA).
Full characterization of compounds included the generation of sigmoidal curves for the determination of IC50 values and Hill coefficients for the displacement of [3H]CP 55,940 using a nonlinear curve-fitting algorithm (GraphPad PRISM, version 10.1.1, GraphPad Software, Boston, MA, USA). Ki values were calculated using the Cheng–Prusoff transformation (Equation (1)): where L is the radioligand concentration and Kd is the binding affinity of the radioligand, as determined by saturation binding analysis. For [3H]CP 55,940, the Kd value is 1.54 ± 0.28 nM and 1.18 ± 0.16 nM, and the density of receptors is 990 ± 120 and 8100 ± 1100 fmol/mg protein for CB1 and CB2 receptors, respectively. If applicable, outliers were removed based on the results of the Grubbs’ test.
2.8. Data Analysis
Chemical structures were drawn using ChemDraw (version 19.0, PerkinElmer, Waltham, MA, USA). Please refer to the subsections above for specific software used for controlling instruments, to interpret spectra and data at various points in this study.
3. Results
3.3. Structural Identification of 2′-Hydroxycannabicitran via NMR

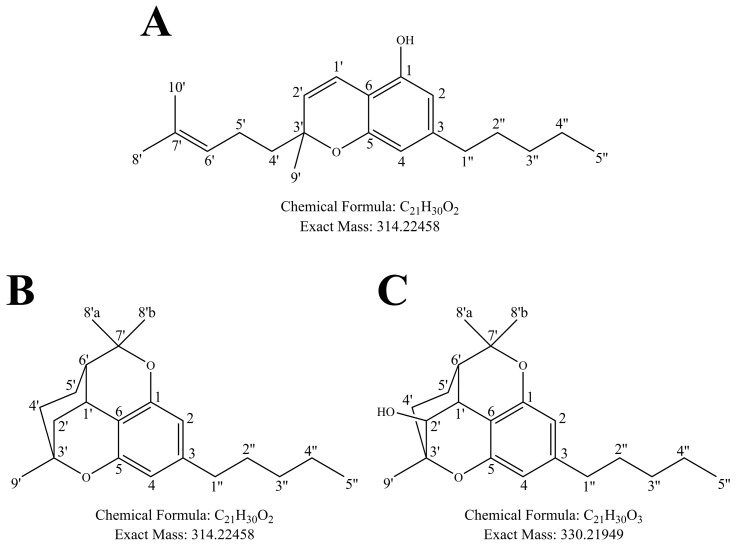

First, we analyzed CBC to establish a baseline for determining the metabolite structure. Several NMR experiments were conducted with CBC in ACN-d3 including 1H-NMR, 13C-NMR, HSQC, HMBC, and DQF-COSY (for more details, please see the Supplementary Materials Section S3.2). The NMR peak assignments of CBC in ACN-d3 needed to be established as the isolated major CBC metabolite proved not to be stable in CDCl3, but inACN-d3 (vide infra). A summary of assigned proton and carbon chemical shifts is shown in Table 1. As a reference, CBC was analyzed in CDCl3 as well as ACN-d3 to allow for a direct comparison to the previous literature [46]. The corresponding spectra are available in the Supplementary Materials (Section S3.2). Briefly, our 1H-NMR spectrum collected in CDCl3 matched that of a previously published report with respect to multiplicity and chemical shift [46]. Our assignments of CBC in ACN-d3 were similar to measurements made in CDCl3 with some differences corresponding to the chemical shift of the protons. The only significant discrepancy was the chemical shift of the hydroxyl proton, which was 4.561 ppm in CDCl3 and 6.814 ppm in ACN-d3.
We synthesized 2.23 mg/mL of 100% pure compound that was identical to the major metabolite of CBC generated by human HLM. Quantity was determined by HPLC-UV-MS/TOF and an NMR-based calibration curve (Supplementary Materials Section S3.1).

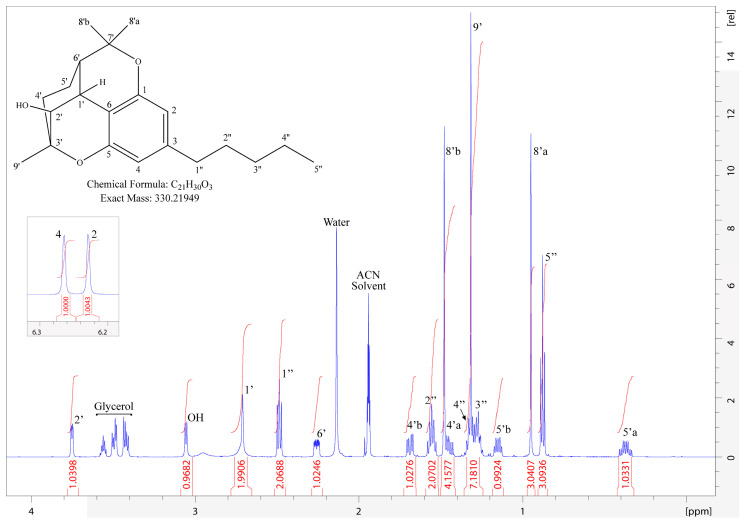

We observed metabolite reactivity with CDCl3 (Supplementary Materials Section S3.1); therefore, ACN-d3 was selected as the NMR solvent. Based on the interpretation of the NMR peak assignments of the purified major oxidized metabolite (Table 2), the structure was identified as 2′-hydroxycannabicitran. Several experiments were conducted to confirm the given assignments such as HSQC, HMBC, DEPT-135, DQF-COSY, and NOESY experiments (Supplemental Materials S3.3). The major metabolite displayed complex coupling patterns in the 1H spectrum (Figure 4) and differed greatly compared to CBC (please compare to Table 1), indicating limited structural similarity.
Evidence for the complex ring structure of 2′-hydroxycannabicitran came from the observation of multiple new short- and long-range correlations. In particular, the proton at position 2, while previously only seeing correlations within the ring at position 1, now showed correlations to multiple spin systems including three-bond J-couplings in the DQF-COSY to H-2′ and H-6′. When analyzing C-6′, HMBC correlations in CBC showed the terminal methyl groups as well as adjacent CH2 groups. H-6′ of the metabolite retained a long-range correlation to one of the terminal methyl groups, but no longer had correlations to the previous chain. Instead, it showed a correlation reaching to the aromatic ring (C-6). It also displayed a correlation to C-1′ and C-2′, a correlation that would be too great of a bond distance to establish an HMBC correlation assuming identical bond arrangement to CBC. Another correlation was the cross-peak between C-7′ and H-1′. Similarly, the methyl protons labeled 8′b showed a long-range correlation in the HMBC to the preexisting ring C-1. All these interactions were evidence of the formation of a new heterocyclic ring. NMR spectra from 2′-hydroxycannabicitran are available in the Supplementary Materials (Section S3.3).
Another key differentiator between CBC and 2′-hydroxycannabicitran was the chemical shift in the proton corresponding to the hydroxylation. CBC has a hydroxylation on C-1 and the proton had a 1H chemical shift of 6.814 ppm as a result of its proximity to the aromatic ring. 2′-Hydroxycannabicitran no longer displayed said hydroxyl hydrogen adjacent to the aromatic ring. However, it did contain a hydroxyl proton, as evidenced by long-range correlations (C-3′, C-2′, and C-1′) observed in the HMBC experiment originating from a 1H that was not directly bonded to 13C as evidenced in the HSQC. Additionally, multiple J-coupling correlations to other protons in the ring structure of the metabolite were observed in DQF-COSY experiments. In the major metabolite, the 1H chemical shift corresponding to the hydroxyl proton, was a doublet at 3.060 ppm. In the NOESY experiment, this proton exhibited the effects of chemical exchange with residual water, and NOE cross-peaks were the opposite sign to pure NOE cross-peaks between other protons in the metabolite.
The tetracyclic ring system was further verified by protons on C-4′ and C-5′ being split in the 1H spectra, with protons on C-5′ appearing as multiplets at 1.152 ppm (H-5′b) and 0.373 ppm (H-5′a). Long range coupling on HMBC displayed differing correlations with the exception of a correlation to both protons at the C-6′ position representing a two-bond correlation. This feature has been described previously in a study analyzing extracted cannabicitran (CBT-C, Figure 1B) [47]. Due to the high structural similarity between the major metabolite of CBC and CBT-C, we analyzed the 1H- and HSQC NMR spectra of CBT-C in ACN-d3 and compared the results to 2′-hydroxycannabicitran, where the primary difference is the presence of a hydroxylation at the 2′ position (Supplementary Materials Section S3.4). Taken together, these results showed that the major metabolite of CBC generated by HLMs using the incubation conditions described above was 2′-hydroxycannabicitran.
3.4. Molecular Docking Prediction of CB1 and CB2 Receptor Binding
After structural identification, the next step was to determine if the metabolite binds to CB1 and CB2 receptors and to compare its binding to that of CBC. Simulations were performed comparing the binding of Δ9-THC, CBC, 2′-hydroxycannabicitran, and CBT-C to both CB1R and CB2R. Importantly, since natural and synthetic CBC exists as a racemic mixture of enantiomers [23,37,48,49,50], we considered the stereospecificity of the ligands to the orthosteric site and modeled (−)-Δ9-THC, (+)-CBC, (−)-CBC, (R)-2′-hydroxy-(+)-cannabicitran, (S)-2′-hydroxy-(−)-cannabicitran, (+)-CBT-C, and (−)-CBT-C (structures are available in the Supplementary Materials Section S4.1). We utilized both Standard-Precision (SP) and Extra-Precision (XP) glide models to rank all ligands according to their docking scores. The SP model attempts to minimize false negatives by being a more forgiving function that identifies ligands with a reasonable disposition to bind. Contrastingly, the XP model attempts to minimize false positives by being a strict function exacting penalties when violations of established physical chemistry principles are predicted [39]. The SP model rankings and highlighted residue interactions for CB1R and CB2R are shown in Table 3 and Table 4, respectively. XP model rankings and figures of all ligands in the active site of CB1R and CB2R are available in the Supplementary Materials (Sections S4.2 and S4.3, respectively).
Interestingly, (+)-CBC was ranked the highest with a docking score of −10.600 at CB1R (Table 3). The aromatic ring and pyran-type ring each formed π–π stacking with Phe170 and Phe268. In this simulation, a hydrogen bond was formed between the hydrogen of the phenolic hydroxyl moiety and the oxygen of Ser505, providing further stability of CBC in the orthosteric site of CB1R. (−)-Δ9-THC displayed similar binding to the CB1R, specifically π–π interactions between the aromatic ring and Phe170 and Phe268, which corresponds to the previous literature [42]. The hydroxyl group on (−)-Δ9-THC had a hydrogen bond to Ser505 with a slightly longer predicted distance of 1.84 Å compared to the analogous interaction with (+)-CBC, which measured at 1.69 Å. This slight increase in hydrogen bond distance and additional π–π stacking justifies (+)-CBC having a higher docking ranking than (−)-Δ9-THC. (−)-CBC was the third-ranking ligand and showed similar interactions to (+)-CBC with the exception of one additional π–π interaction between the aromatic ring and Phe174. This residue has been previously described as interacting with (−)-Δ9-THC [51]. The major metabolite of CBC, (R)-2′-hydroxy-(+)-cannabicitran, and (S)-2′-hydroxy-(−)-cannabicitran did not show particularly strong docking to CB1R. (R)-2′-hydroxy-(+)-cannabicitran predicted a hydrogen bond from the added hydroxylation to the δ-carboxylic acid of Ile267. (S)-2′-hydroxy-(−)-cannabicitran was the lowest ranked of the ligands examined, only showing a single π–π interaction from the aromatic ring to Phe170. Both stereoisomers of CBT-C displayed low binding affinity with π–π interactions.
Overall, there were fewer interactions between the ligands and the active site of the CB2R (Table 4). Again, (+)-CBC was ranked the highest, showing π–π interactions through the pyran-type ring to Phe87 and Phe183. Interestingly, (+)-CBT-C had the second highest docking score, though no registered interactions. (+)-CBT-C docked deeper in the orthosteric pocket of CB2R compared to (−)-Δ9-THC, which may contribute to its docking score through potential van der Waals forces between the tetracyclic ring system and pi groups of the abundant aromatic residues in the orthosteric site. (−)-Δ9-THC also interacted with the same phenylalanine residues as (+)-CBC, but instead through the aromatic ring, and sat with the tricyclic ring system towards the N-terminus and alkyl chain residing towards the middle of the receptor. (S)-2′-hydroxy-(−)-cannabicitran was ranked fourth in the SP precision model with no noted interactions. (R)-2′-hydroxy-(+)-cannabicitran docked nearly in a mirrored image when compared to the enantiomer, which may indicate selectivity for one isomer over the other. In the XP model the (S)-2′-hydroxy-(−)-cannabicitran was ranked first without highlighted interactions, where the (R)-2′-hydroxy-(+)-cannabicitran was not ranked. (−)-Δ9-THC was ranked second of two ligands ranked in the XP model displaying a singular π–π interaction between the aromatic ring and Phe183 (Supplementary Materials Section S4.3).
3.5. In Vitro Interactions at the CB1 and CB2 Receptors

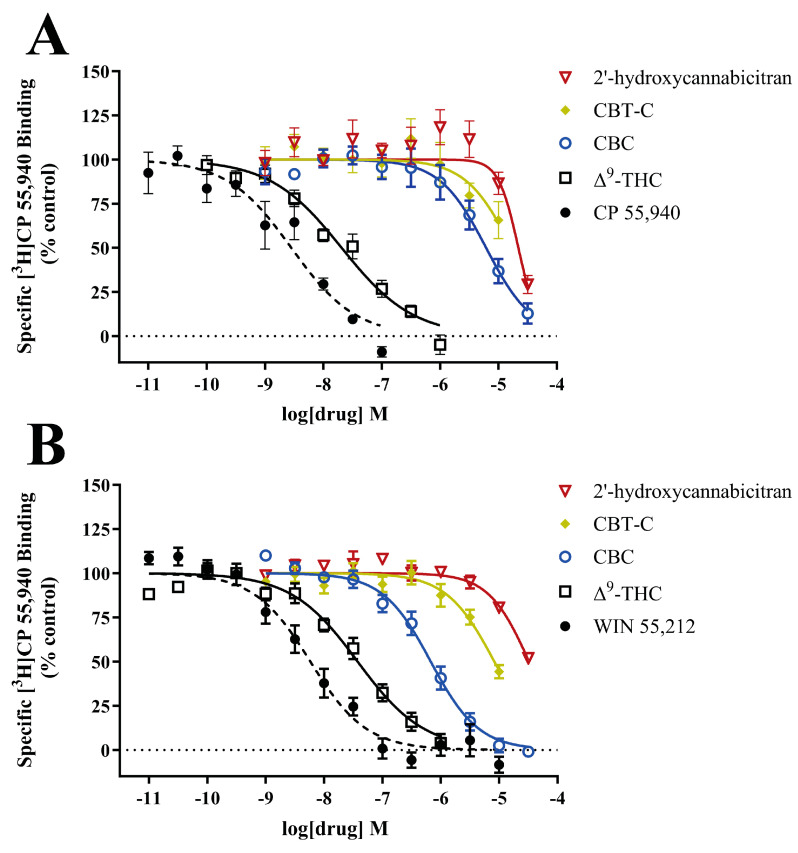

As the docking simulations indicated that the major metabolite of CBC has the potential to interact with CB1 and CB2 receptors, we used a highly purified and structurally confirmed metabolite to study its interactions with CB1R and CB2R in vitro. The displacement of [3H]CP 55,940 by CBC, 2′-hydroxycannabicitran, CBT-C, Δ9-THC, CP 55,940, and WIN 55,212 from human recombinant CB1R (Figure 5A) and CB2R (Figure 5B) were examined. The resulting Ki and Hill slope values are displayed in Table 5. In alignment with the previous literature, CBC was shown to bind at CB2R with moderate affinity (Ki 301 ± 72 nM) [16,17]. CBC displayed weak binding affinity to CB1R with a Ki of 3500 ± 1200 nM. 2′-Hydroxycannabicitran did not retain CBC’s binding affinity at either cannabinoid receptor. CBT-C was able to displace [3H]CP 55,940 from CB2R at high concentrations corresponding to a Ki of 4200 ± 410 nM. Δ9-THC was used as a positive control for both receptor assays. CP 55,940 and WIN 55,212 were included as more selective positive controls for CB1 and CB2 assays, respectively. Positive controls were included in the assays for comparison purposes and displayed high affinity to CB1R and CB2R where applicable, resembling previously reported values [1,30,45,52].
4. Discussion
The metabolic pathways of Δ9-THC and CBD have been well established, and both exhibit phase I oxidative metabolism of hydroxylation at the allylic methyl group on the cyclohexene moiety. These metabolites remain biologically active [6,7]. Both then undergo further oxidation and potential phase II conjugation to be eliminated [6,9]. Interestingly, we did not observe any carboxylic acid metabolites for CBC (Supplemental Materials Section S1.2), which seems to be in contrast to Δ9-THC metabolism and, to a lesser extent, CBD metabolism.
Previous research conducted in the early 1990s utilized liver microsomes isolated from mouse, rat, guinea pig, rabbit, hamster, gerbil, and cat to determine the metabolic profiles of CBC [32,34]. Harvey and Brown identified various modifications to CBC including eight hydroxylations, one epoxidation, and one dihydroxylation between all species [34]. Of note, the metabolic profile across different species was highly variable in terms of relative abundance of the described metabolites. In their later studies, Harvey and Brown identified structures of eight additional dihydroxylated metabolites in rabbits, adding to the complexity of CBC metabolism in the investigated model organisms [33]. This group did not make an attempt to identify human metabolites of CBC. Based on these initial reports, we sought to utilize comparative and complementary methods to Harvey and Brown and objectively analyze CBC metabolites generated by HLMs.
The first study to characterize the human hepatic biotransformation of CBC was conducted by Havlasek et al. Of note, monoglucuronides represented nearly 50% of all CBC metabolites produced, followed by hydroxylation with 31% [53]. There are several critical caveats to their work. First, the authors reported the use of CBC that contained an impurity described as a structural isomer; therefore, caution must be taken when interpreting the data, particularly when many cannabinoids have identical molecular formulas, such as CBC, CBT-C, Δ9-THC, and CBD. Second, the authors’ analytical method confounds chemical species with identical m/z, such as hydroxylations and epoxidations. While the study was the first to describe human metabolites of CBC, it did not localize the exact oxidation or conjugation positions.
Recently, Roy et al. identified four CBC metabolites stemming from incubation with human liver microsomes [35]. They indicated two principal metabolites, 8′-hydroxy-CBC and 6′, 7′-epoxy-CBC, and two lesser metabolites, 1″-hydroxy-CBC and 6′, 7′-dihydroxy-CBC. Incubation parameters, extraction solvent, and analytical methods differed between their study and the methods reported here, which may have contributed to different identified metabolites. Therefore, we recapitulated the incubation and extraction methodologies of Roy et al. and analyzed the data using our analytical methods and observed identical primary oxidized metabolite profiles between what Roy et al. described and using the methods in the present study (Supplementary Materials Section S2.1). We utilized our verified synthetic standard of 2′-hydroxycannabicitran for comparison to the mixture of CBC incubated with HLMs and confirmed via retention time and MS fragmentation patterns that 2′-hydroxycannabicitran represented the major metabolite using both Roy et al.’s and our incubation and extraction protocols. We were able to confirm the presence of 6′, 7′-epoxy-CBC via a unique α-cleavage fragment (exact mass 71.04914 Da) and supporting fragments (Supplemental Materials Section S2.1). Based on these recapitulation experiments comparing both procedures and workflows, we determined that, most likely, Roy et al. seem to have selected for minor CBC metabolites based on UV signal wherein the double-bond of the 2H-pyran ring remains intact and connected to the aromatic ring. Thus, the major metabolite 2′-hydroxycannabicitran would have been overlooked, despite having been formed with Roy et al.’s incubation and extraction methods (Supplemental Materials Section S2.1). Hence, the results of the present study complement those of Roy et al. [35].

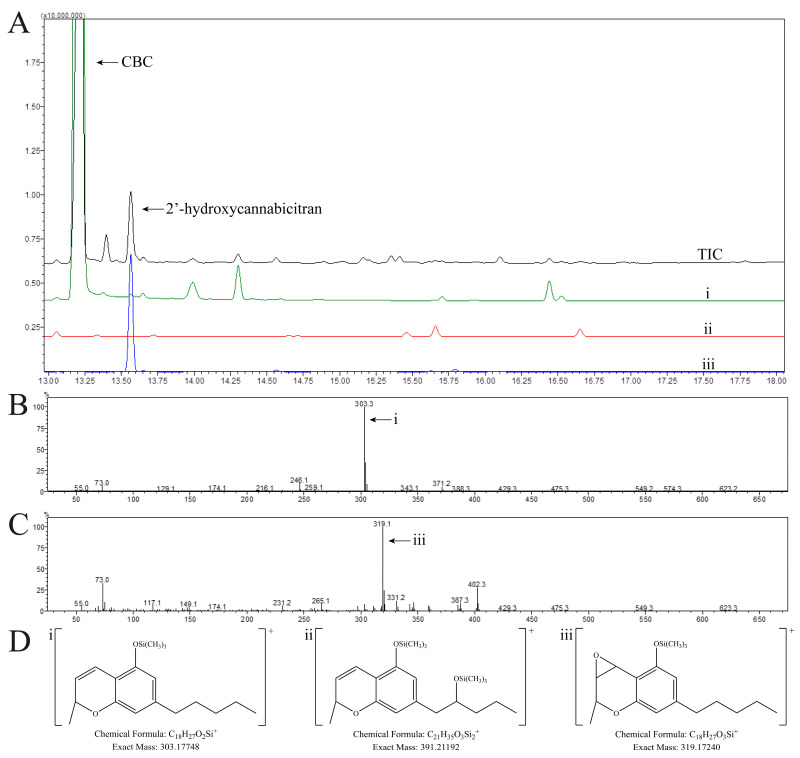

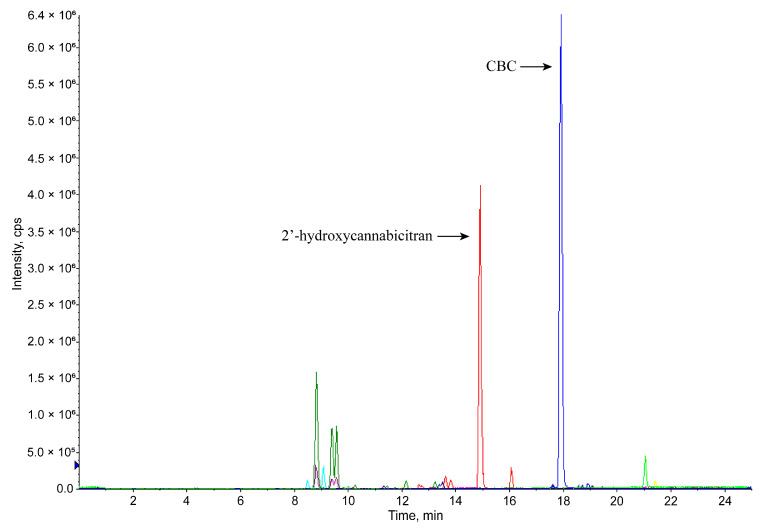

We focused on the major primary oxidized metabolite of CBC due to its predominance in the overlaid extracted ion chromatograms (Figure 2) and total ion chromatogram (Figure 3A). Using the incubation conditions described above, HLMs metabolized CBC to several metabolites with +16 Da and +32 Da, indicating the addition of one or two oxygens, respectively. Among them was said major metabolite with +16 Da that clearly stood out. We have made no attempt yet to structurally identify any of the other metabolites with +16 Da and +32 Da other than those already described by Roy et al. [35] (vide supra). Structural identification of the major CBC metabolite offered several challenges. Previous studies utilizing HLMs to assess oxidative metabolism generally identified metabolites by comparing the MS fragmentation patterns of the parent drug with those of the metabolites, thereby often relying on a combination of ion trap (MSn) and high-resolution mass spectrometry [54,55]. However, this strategy was unsuccessful with the major CBC metabolite identified in the present study. Fragments of said major CBC metabolite and CBC were similar or showed a loss of water (−18 Da), which made it impossible to determine the exact location of the metabolic modification. A unique α-cleavage fragment enabled by the addition of an oxygen molecule was not present in the fragmentation pattern of the major oxidative metabolite, which may be the reason that the exact position of modification could not be detected using LC-MS/TOF and MSn (linear Sciex 6500 QTRAP). Therefore, for the identification of the major metabolite of CBC, we employed a combination of GC-MS/MS and ultimately NMR spectroscopy. For the NMR experiments, initially, CBC and its metabolite were dissolved in CDCl3 in alignment with the previous cannabinoid literature [46,56]. However, it was observed that CDCl3 reacted with the metabolite yielding halogenation of the metabolite, as confirmed by high-resolution TOF analysis. This analysis showed a characteristic chlorine isotopic pattern of two peaks representing 35Cl and 37Cl with a relative intensity of 3:1 with high mass accuracy (Supplementary Materials Section S3.1). This reactivity provided further evidence for an epoxide intermediate between CBC and 2′-hydroxycannabicitran, leading to our hypothesis that CBC was epoxidized by cytochrome P450 enzymes present in the HLMs. Based on our results, we hypothesize that the initially produced epoxide is labile due to the presence of a nucleophilic double-bond, which in a follow up reaction can attack which results in the opening of the epoxide and, subsequently, forms two new, more stable six-membered ring structures present in 2′-hydroxycannabicitran.
For further confirmation of the metabolite structure, we referred to the detailed analysis of CBT-C in CDCl3 conducted by Wood et al. [47]. This group performed both theoretical calculations and determined experimental values for 1H and 13C assignments of CBT-C extracted from hemp extract. The authors note and explain the unique separation of the protons on C-5′ by quantum mechanical modeling leading to the conclusion the low chemical shift (reported 0.61 ppm, in CDCl3) was attributed to shielding stemming from vertical proximity to the phenyl moiety [47]. In the present study, the CBC material used with the incubation of HLMs did not contain any detectable levels of CBT-C, and therefore we are confident that the resulting metabolites were generated from CBC and not residual CBT-C. The verified structure of our newly identified major metabolite of CBC shares significant homology with CBT-C with the exception of a hydroxylation at the 2′ position as shown by our NMR analyses, thereby providing further confidence in our structure assignment.
Overall, in HLMs, we postulate CBC was initially epoxidized and rearranged into 2′-hydroxycannabicitran. The kinetics and potential biological activity of this hypothesized reaction is entirely unknown. However, a similar reaction has been observed in cannabigerol (CBG) [34,57]. Importantly, epoxidized CBG metabolites after cyclic rearrangement have been shown to be bioactive, showing anti-inflammatory activity in microglia cells [58]. Roy et al. investigated the potential for anti-inflammatory activity of their aforementioned CBC metabolites and determined 6′, 7′-dihydroxy-CBC to favor an anti-inflammatory phenotype by a reduction in nitric oxide production in microglia following lipopolysaccharide challenge to induce an inflammatory response. Contrastingly, 8′-hydroxy-CBC was pro-inflammatory by the same metric [35].
To date, no studies have been published that explore the potential biological activity of CBC metabolites to CB1R and CB2R; therefore, in a first step, we employed in silico molecular docking. The binding pocket of CB1R is known to be rather plastic [59], thus explaining large ligand tolerance of the explored cannabinoids in the orthosteric site. Between the two receptors, (+)-CBC was ranked the highest in docking scores. No other stereospecific patterns were discernable between the remaining ligands tested. There were fewer overall predicted interactions of the ligands at the CB2R, but (S)-2′-hydroxy-(−)-cannabicitran was ranked surprisingly high despite not boasting any noted hydrogen bonds or π–π stacking. However, in in vitro competitive inhibition binding assays, 2′-hydroxycannabicitran showed no binding affinity to CB1R or CB2R. The metabolite is comprised of a rather bulky tetracyclic three-dimensional structure, which may contribute to steric hindrance in displacing [3H]CP 55,940 from the orthosteric site of CB1R or CB2R. It is known that ligands of CB1R, such as anandamide and (−)-Δ9-THC, access the binding pocket of the receptor by entering via the plasma membrane and pass through residues Phe174 and Phe177 by forming π–π interactions [60]. While we did observe some of these interactions in other ligands tested, the molecular docking experiments do not consider these more dynamic processes and may explain the discrepancies between the results of molecular docking and in vitro competitive binding assays observed in the present study. Novelly, from our in vitro assays, we identified that CBT-C weakly binds to CB2R, but does not significantly bind to CB1R. A key finding was that 2′-hydroxycannabicitran does not bind to CB1R or CB2R, so any potential biologic activity would occur at other yet-to-be-determined receptors. Importantly, the binding assays used in the present study do not access allosteric modulation and do not capture potential pharmacodynamics relationships between cannabinoids, metabolites, and receptors.
5. Conclusions
Here, we describe for the first time the structure of the major metabolite of CBC resulting from oxidative metabolism by human liver microsomes and its interaction with CB1 and CB2 receptors. We determined that said primary oxidized metabolite is 2′-hydroxycannabicitran and confirmed its structure via NMR spectroscopy. Further research is needed to establish additional fundamental aspects of CBC metabolism including identification of other phase I-oxidized (+16 Da and +32 Da) metabolites, phase II metabolites, and determination of the clinical pharmacokinetics of CBC and its metabolites. Furthermore, the activity of CBC and CBC metabolites on targets other than CB1R and CB2R that may have therapeutic merit, such as the TRP family of receptors, still needs to be assessed.
Appendix Group
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/metabo14060329/s1, Supplemental Materials S1.1 Experimental Design Flowchart, S1.2 Optimization of CBC HLM Incubation Parameters, S1.3 Isolation of Upscaled CBC Metabolites Generated by HLMs, S1.4 Isolation of Fractions after Incubation of CBC with Hydrogen Peroxide, S1.5 CBC Major Metabolite Identified via GC-MS/MS, S2.1 Recapitulation and Comparison to Roy et al., S3.1 Purity of 2′-hydroxycannabicitran, S3.2 Cannabichromene NMR Experiments, S3.3 2′-hydroxycannabicitran NMR Experiments, S3.4 Cannabicitran and Overlay NMR Experiments, S4.1 Structures Imported for Molecular Docking, S4.2 Cannabinoid 1 Receptor Molecular Docking, and S4.3 Cannabinoid 2 Receptor Molecular Docking.
Data Availability Statement
The original contributions presented in this study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author. However, the raw data supporting the conclusions of this article will be made available by the authors on request.
Conflicts of Interest
The authors declare no conflicts of interest.
| 1H Chemical Shift (δ ppm) | 1H Multiplicity J (Hz) | Assignment | Integration | 13C Chemical Shift (δ ppm) | HMBC Correlations |
|---|---|---|---|---|---|
| 6.814 | s | OH | 1H | - | 5, 6 |
| 6.580 | dd (0.6, 10.1) | 1′ | 1H | 116.919 | 1, 5, 6, 2′, 3′, 4′, 9′ |
| 6.176 | s | 4 | 1H | 107.543 | 1, 2, 5, 6, 1′, 1″ |
| 6.130 | m | 2 | 1H | 107.962 | 1, 4, 5, 6, 1′, 1″ |
| 5.520 | d (10.0) | 2′ | 1H | 126.980 | 1, 6, 3′, 4′, 9′ |
| 5.104 | tq (1.4, 7.3) | 6′ | 1H | 124.150 | 4′, 5′, 8′, 10′ |
| 2.424 | dd (7.0, 7.8) | 1″ | 2H | 35.443 | 2, 3, 4, 2″ |
| 2.068 | q (8.0) | 5′ | 2H | 22.381 | 3′, 4′, 6′, 7′ |
| 1.641 | s | 8′ | 5H | 24.787 | 6′, 7′, 10′ |
| 1.625 | m | 4′ | 40.543 | 2′, 3′, 4′, 9′ | |
| 1.555 | s | 10′ | 5H | 16.658 | 6′, 7′, 8′ |
| 1.544 | m | 2″ | 30.620 | 3, 1″, 3″, 4″ | |
| 1.329 | m | 4″ | 7H | 22.232 | 3″, 5″ |
| 1.319 | s | 9′ | 25.452 | 1′, 2′, 3′, 4′ | |
| 1.278 | m | 3″ | 31.205 | 1″, 2″, 4″, 5″ | |
| 0.887 | t (7.0) | 5″ | 3H | 13.340 | 3″, 4″ |
| - | 1 | - | 153.947 | ||
| - | 3 | - | 144.776 | ||
| - | 5 | - | 152.295 | ||
| - | 6 | - | 106.905 | ||
| - | 3′ | - | 77.815 | ||
| - | 7′ | - | 131.386 |
| 1H Chemical Shift (δ ppm) | 1H Multiplicity J (Hz) | Assignment | Integration | 13C Chemical Shift (δ ppm) | 13C Multiplicity | HMBC Correlations |
|---|---|---|---|---|---|---|
| 6.266 | s | 4 | 1H | 109.261 | CH | 2, 5, 6, 1″ |
| 6.228 | s | 2 | 1H | 110.699 | CH | 1, 4, 6, 1″ |
| 3.749 | dd (1.9, 5.8) | 2′ | 1H | 71.161 | CH | 6, 1′, 3′, 6′ |
| 3.060 | d (6.1) | OH | 1H | - | - | 1′, 2′, 3′ |
| 2.719 | t (2.3) | 1′ | 1H* | 37.036 | CH | 1, 5, 6, 2′, 3′, 5′, 6′, 7′ |
| 2.485 | dd (7.4) | 1″ | 2H | 36.583 | CH2 | 2, 3, 4, 2″ |
| 2.258 | ddd (2.8, 5.3, 11.5) | 6′ | 1H | 48.335 | CH | 6, 1′, 2′, 8′b |
| 1.690 | ddd (0.9, 6.1, 15.4) | 4′b | 1H | 37.398 | CH2 | 2′, 3′, 5′, 6′, 7′ |
| 1.554 | m | 2″ | 2H | 31.918 | CH2 | 3, 1″, 3″, 4″ |
| 1.478 | s | 8′b | 4H | 29.767 | CH3 | 1, 6′, 7′, 8′a |
| 1.455 | td (7.1, 15.3) | 4′a | 37.398 | CH2 | 5′, 9′ | |
| 1.321 | m | 4″ | 7H | 23.166 | CH2 | 3″, 5″ |
| 1.315 | s | 9′ | 24.796 | CH3 | 5, 2′, 3′, 4′, 5′ | |
| 1.270 | m | 3″ | 32.144 | CH2 | 1″, 2″, 4″, 5″ | |
| 1.152 | dt (5.9, 12.8) | 5′b | 1H | 22.418 | CH2 | 1′, 3′, 6′ |
| 0.948 | s | 8′a | 3H | 23.936 | CH3 | 2′, 5′, 6′, 7′, 8′b |
| 0.880 | t (7.1) | 5″ | 3H | 14.300 | CH3 | 3″, 4″ |
| 0.373 | tdd (6.2, 11.9, 13.4) | 5′a | 1H | 22.418 | CH2 | 4′, 6′, 7′ |
| - | 3′ | - | 78.238 | C | ||
| - | 7′ | - | 84.205 | C | ||
| - | 6 | - | 113.632 | C | ||
| - | 3 | - | 143.421 | C | ||
| - | 5 | - | 156.996 | C | ||
| - | 1 | - | 158.480 | C |
| Computer Ranking | Ligand | Docking Score | Highlighted Residue-Ligand Interactions | Distance of Interaction (Å) | Type of Interaction |
|---|---|---|---|---|---|
| 1 | (+)-CBC | −10.600 | Ser505-OH | 1.69 | H-bond |
| Phe170-AR | 3.70 | π–π stacking | |||
| Phe170-P | 3.70 | π–π stacking | |||
| Phe268-AR | 3.78 | π–π stacking | |||
| Phe268-P | 3.78 | π-π stacking | |||
| 2 | (−)-Δ9-THC | −10.569 | Ser505-OH | 1.84 | H-bond |
| Phe268-AR | 3.75 | π–π stacking | |||
| Phe170-AR | 3.84 | π–π stacking | |||
| 3 | (−)-CBC | −9.668 | Ser505-OH | 1.81 | H-bond |
| Phe174-AR | 3.33 | π–π stacking | |||
| Phe268-P | 3.46 | π–π stacking | |||
| Phe268-AR | 3.62 | π–π stacking | |||
| Phe170-AR | 3.70 | π–π stacking | |||
| Phe170-P | 3.70 | π–π stacking | |||
| 4 | (R)-2′-OH-(+)-cannabicitran | −9.254 | Ile267-OH | 2.49 | H-bond |
| 5 | (+)-CBT-C | −8.345 | Phe170-AR | 3.38 | π–π stacking |
| 6 | (−)-CBT-C | −7.967 | Phe170-AR | 3.55 | π–π stacking |
| Phe268-AR | 3.55 | π–π stacking | |||
| 7 | (S)-2′-OH-(−)-cannabicitran | −6.796 | Phe170-AR | 3.23 | π–π stacking |
| Computer Ranking | Ligand | Docking Score | Highlighted Residue-Ligand Interactions | Distance of Interaction (Å) | Type of Interaction |
|---|---|---|---|---|---|
| 1 | (+)-CBC | −8.545 | Phe87-P | 3.81 | π–π stacking |
| Phe183-P | 3.99 | π–π stacking | |||
| 2 | (+)-CBT-C | −8.472 | - | - | - |
| 3 | (−)-Δ9-THC | −8.312 | Phe87-AR | 3.68 | π–π stacking |
| Phe183-AR | 3.99 | π–π stacking | |||
| 4 | (S)-2′-OH-(−)-cannabicitran | −8.042 | - | - | - |
| 5 | (−)-CBT-C | −7.949 | Phe183-AR | 3.28 | π–π stacking |
| 6 | (−)-CBC | −7.892 | Phe87-P | 3.57 | π–π stacking |
| Phe87-AR | 3.57 | π–π stacking | |||
| Phe183-P | 4.17 | π–π stacking | |||
| 7 | (R)-2′-OH-(+)-cannabicitran | −7.810 | Ser90-OH | 2.67 | H-bond |
| Phe183-AR | 3.63 | π–π stacking | |||
| Phe87-AR | 3.91 | π–π stacking |
| CB1R | CB2R | |||
|---|---|---|---|---|
| Ligand | Ki (nM) | Hill Slope | Ki (nM) | Hill Slope |
| CBC | 3500 ± 1200 | −0.27 ± 0.51 | 301 ± 72 | −1.32 ± 0.36 |
| 2′-hydroxycannabicitran | >10,000 | - | >10,000 | - |
| CBT-C | >10,000 | - | 4200 ± 410 | −1.15 ± 0.14 |
| Δ9-THC | 13.2 ± 1.9 | −0.73 ± 0.09 | 22.6 ± 5.0 | −0.96 ± 0.16 |
| CP 55,940 | 1.77 ± 0.32 | −0.87 ± 0.18 | - | - |
| WIN 55,212 | - | - | 3.9 ± 1.6 | −1.07 ± 0.13 |
