Evaluation of Domain Generalization and Adaptation on Improving Model Robustness to Temporal Dataset Shift in Clinical Medicine
Program in Child Health Evaluative Sciences, The Hospital for Sick Children, Toronto, Canada
Biomedical Informatics Research, Stanford University, Palo Alto, US
Division of Haematology/Oncology, The Hospital for Sick Children, Toronto, Canada
Division of Pediatric Hematology/Oncology, Stanford University, Palo Alto, US
*ADDRESS FOR CORRESPONDANCE: Lillian Sung MD, PhD, The Division of Haematology/Oncology, The Hospital for Sick Children, 555 University Avenue, Toronto, Ontario, M5G1X8, Telephone: 416-813-5287, Fax: 416-813-5979, Email: lillian.sung@sickkids.caABSTRACT
Importance
Temporal dataset shift associated with changes in healthcare over time is a barrier to deploying machine learning-based clinical decision support systems. Algorithms that learn robust models by estimating invariant properties across time periods for domain generalization (DG) and unsupervised domain adaptation (UDA) might be suitable to proactively mitigate dataset shift.
Objective
To characterize the impact of temporal dataset shift on clinical prediction models and benchmark DG and UDA algorithms on improving model robustness.
Design, Setting, and Participants
In this cohort study, intensive care unit patients from the MIMIC-IV database were categorized by year groups (2008–2010, 2011–2013, 2014–2016 and 2017–2019). Tasks were predicting mortality, long length of stay, sepsis and invasive ventilation. Feedforward neural networks were used as prediction models. The baseline experiment trained models using empirical risk minimization (ERM) on 2008–2010 (ERM[08-10]) and evaluated them on subsequent year groups. DG experiment trained models using algorithms that estimated invariant properties using 2008–2016 and evaluated them on 2017– 2019. UDA experiment leveraged unlabelled samples from 2017–2019 for unsupervised distribution matching. DG and UDA models were compared to ERM[08-16] models trained using 2008-2016.
Main Outcome(s) and Measure(s)
Main performance measures were area-under-the-receiver-operating-characteristic curve (AUROC), area-under-the-precision-recall curve and absolute calibration error. Threshold-based metrics including false-positives and false-negatives were used to assess the clinical impact of temporal dataset shift and its mitigation strategies.
Results
In the baseline experiments, dataset shift was most evident for sepsis prediction (maximum AUROC drop, 0.090; 95% confidence interval (CI), 0.080-0.101). Considering a scenario of 100 consecutively admitted patients showed that ERM[08-10] applied to 2017-2019 was associated with one additional false-negative among 11 patients with sepsis, when compared to the model applied to 2008-2010. When compared with ERM[08-16], DG and UDA experiments failed to produce more robust models (range of AUROC difference, −0.003-0.050).
Conclusions and Relevance
DG and UDA failed to produce more robust models compared to ERM in the setting of temporal dataset shift. Alternate approaches are required to preserve model performance over time in clinical medicine.
KEY POINTS
Question
Can algorithms that estimate invariant properties across environments for domain generalization and unsupervised domain adaptation improve the robustness of machine learning-derived clinical prediction models to temporal dataset shift?
Findings
In this cohort study using 4 clinical outcomes, domain generalization and unsupervised domain adaptation algorithms did not meaningfully outperform the standard model training algorithm – empirical risk minimization – in learning robust models that generalize over time in the presence of temporal dataset shift.
Meaning
These findings highlight the difficulty of improving robustness to dataset shift with purely data-driven techniques that do not leverage prior knowledge of the nature of the shift and the requirement of alternate approaches to preserve model performance over time in clinical medicine.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
There was no funding support for this study.
INTRODUCTION
The wide-spread adoption of electronic health records (EHRs) and the enhanced capacity to store and perform computation with large amounts of data have enabled the development of highly performant machine learning models for clinical outcome predictions.1 The utility of these models critically depends on sustained performance to maintain safety,2 end-users’ trust, and to outweigh the high cost of integrating each model into the clinical workflow.3 However, this is hindered in the non-stationary healthcare environment by temporal dataset shift due to mismatch between the data distribution on which models were developed and the distribution to which models were applied.4
There has been limited research on the impact of temporal dataset shift in clinical medicine.5 Recent approaches largely relied on maintenance strategies consisting of performance monitoring, model updating and calibration over certain time intervals.6-8 Another approach grouped clinical features into their underlying concepts to cope with a change in the record-keeping system.9 Generally, these approaches either require detection of model degradation or rely on explicit knowledge or assumptions about the underlying cause of the shift. Complementary to these approaches would be ones that attempt to proactively produce robust models that incorporate relatively few assumptions on the nature of the shift.
The past decade of machine learning research offered numerous algorithms that learn robust models by using data from multiple environments to identify invariant properties. These algorithms were often developed for domain generalization (DG)10 and unsupervised domain adaptation (UDA).11 In the DG setting, the goal is to learn models that generalize to new environments unseen at training time. In the UDA setting, the goal is to adapt models to target environments using labeled samples from the source environment as well as a limited set of unlabeled samples from the target environment. If we consider EHR data across discrete time windows as related but distinct environments, then both DG and UDA settings may be suitable to combat the impact of temporal dataset shift. To date, these approaches have not been evaluated on improving model robustness to temporal dataset shift for clinical prediction tasks. Therefore, the objective was to benchmark learning algorithms for DG and UDA on mitigating the impact of temporal dataset shift on machine learning model performance in a set of clinical prediction tasks.
METHODS
Data Source
We used the MIMIC-IV database,12 which contains deidentified EHRs of 382,278 patients admitted to an intensive care unit (ICU) or the emergency department at the Beth Israel Deaconess Medical Center (BIDMC) between 2008–2019. For this cohort study, we considered ICU admissions sourced from the clinical information system MetaVision at the BIDMC, in which records from 53,150 patients were made available in the latest version of MIMIC-IV 1.0. Because of deidentification, the requirement for Institutional Review Board approval was waived.
Cohort
Each patient’s timeline in MIMIC-IV is anchored to a shifted (deidentified) year with which a year group and age are associated. The year group reflects the actual 3-year range (for example 2008–2010) in which the shifted year occurred, and age reflects the patient’s actual age in the shifted year. There are four available year groups in MIMIC-IV: 2008–2010, 2011–2013, 2014–2016 and 2017–2019. We included patients who were 18 years or older and randomly selected one ICU admission that occurred in the year group for each patient. As a result, each patient is represented once in our dataset and is associated with a single year group. We excluded ICU admissions less than 4 hours in duration.
Outcomes
We defined four clinical outcomes. For each outcome, the task was to perform binary predictions over a time horizon with respect to the time of prediction, which was set as 4 hours after ICU admission. Long length of stay (Long LOS) was defined as ICU stay greater than three days from the prediction time. Mortality corresponded to in-hospital mortality within 7 days from the prediction time. Invasive ventilation corresponded to initiation of invasive ventilation within 24 hours from the prediction time. Sepsis corresponded to the development of sepsis according to the Sepsis-3 criteria13 within 7 days from the prediction time. For invasive ventilation and sepsis, we excluded patients with these outcomes prior to the time of prediction. Further details on each outcome are presented in the eMethods in the Supplement.
Features
Our feature extraction followed a common procedure14 and obtained six categories of features including diagnoses, procedures, labs, prescriptions, ICU charts and demographics. Demographic features included age, biological sex, race, insurance, marital status and language. Clinical features were extracted over a set of time-intervals defined relative to the time of ICU admission as follows: 0-4 hours after ICU admission, 0-7 days prior, 7-30 days prior, 30-180 days prior, and 180 days-any time prior. For each time interval, we obtained counts of unique concept identifiers for diagnoses, procedures, prescriptions and labs with the exception that identifiers for diagnoses and procedures were not obtained in the 0-4 hours interval after admission as they were not available. We also obtained measurements for lab tests for each time interval, and measurements for chart events in the 0-4 hours interval after admission. In addition, we mapped each measurement variable in each time interval to the patient-level mean, minimum and maximum. Number of extracted features for each category and time interval are listed in the eMethods in the Supplement.
Feature preprocessing pruned features that had less than 25 patient observations, replaced non-zero count values with 1s, encoded measurement features to quintiles, and one-hot encoded all but count features. This process resulted in binary feature matrices that were extremely sparse. All feature preprocessing procedures were fit on the training set (e.g., to determine the boundaries of each quintile) and were subsequently applied to transform the validation and test sets.
Model and Learning Algorithms
In all experiments, we leveraged fully connected feedforward neural network (NN) models for prediction, as they enable flexible learning for differentiable objectives across algorithms. The standard algorithm to learn models is the empirical risk minimization (ERM) algorithm in which the objective is to minimize average training error15 without considerations of environment annotations (year groups in our case).
Algorithms for DG and UDA differ on the types of invariance they assume. Invariant risk minimization (IRM)16 is a DG algorithm that learns a latent representation (i.e., hidden layer activations) where the optimal classifier leveraging that representation is the same for all environments. Group distributionally robust optimization (GroupDRO)17 is a DG algorithm that does not “learn” invariances but instead minimizes training error in the worst-case training environment by increasing the importance of environments with larger errors. Algorithms that learn to match latent representation across environments can be leveraged for DG as well as UDA since these algorithms do not require outcome labels. These include correlation alignment (CORAL),18 which seeks to match the mean and covariance of the distribution of the data encoded in the latent space across environments, and domain adversarial learning (AL),19,20 which matches the distributions using an adversarial network and an objective that minimizes discriminability between environments. The adversarial network used in this study is a NN model with one hidden layer of dimension 32.
Model Development
We conducted baseline, DG and UDA experiments. The baseline experiment consisted of several aspects. First, to characterize temporal dataset shift on model performance, we trained models with ERM on the 2008–2010 group (ERM[08-10]) and evaluated these models in each subsequent year group.
Next, to describe the extent of temporal dataset shift, we compared the performance of ERM[08-10] in each subsequent year group with models trained using ERM on that year group. Difference in performance in the target year group (2017-2019) between ERM[08-10] and models trained and evaluated on the target year group (ERM[17-19]) described the extent of temporal dataset shift in the extreme scenario in which models were developed on the earliest available data and were never updated. All models in the baseline experiment used ERM.
For DG and UDA experiments, model training was performed on 2008–2016, with UDA also incorporating unlabelled samples from the target year group. Performance of DG and UDA models were compared with ERM models trained using 2008-2016 (ERM[08-16]) as these are the fairest ERM comparators for DG and UDA models. For models in the DG and UDA experiments, we focused on their performance in the target year group, but also described their performance in 2008-2016.
Data splitting procedure

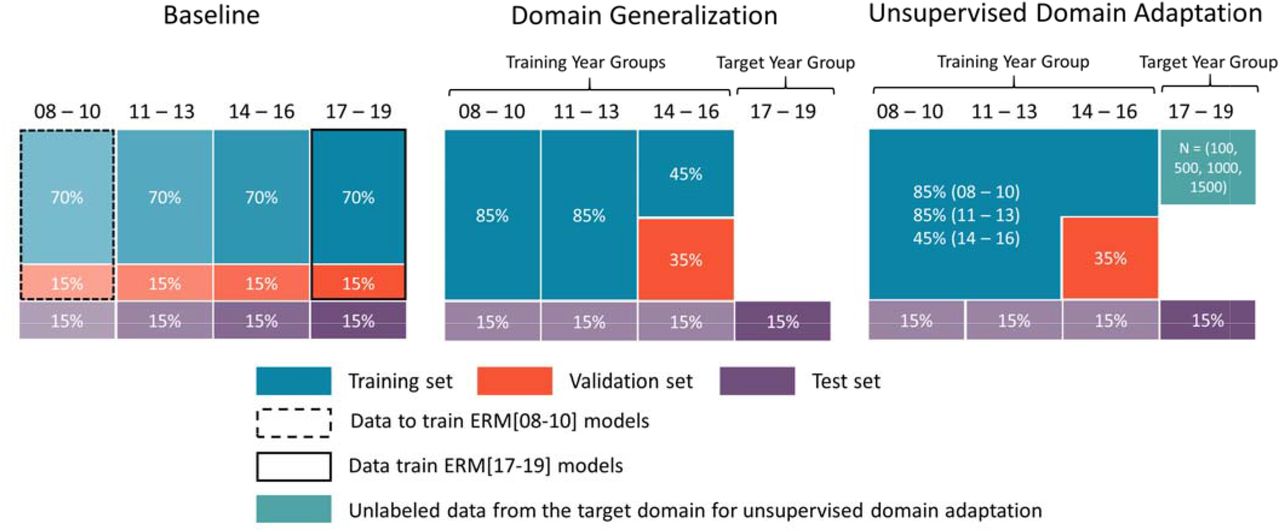

Data splitting procedure was performed separately for each task and experiment (see Figure 1). The baseline experiment split each year group into 70% training, 15% validation and 15% test sets. In DG and UDA experiments, the training set included 85% data from 2008–2010 and 2011–2013, and 45% of data from 2014–2016. The validation set included 35% of data from 2014–2016 (chosen because of its temporal proximity to the target year group). The test set included the same 15% from each year group as the baseline experiment, which allowed us to compare model performance across experiments and learning algorithms on the same patients. For UDA, training year groups were combined into one group, and unlabeled samples of various sizes (100, 500, 1000, and 1500) from the target year group (2017–2019) were leveraged for unsupervised distribution matching.
Model training
We developed NN models on the training sets of each experiment for each task and selected hyperparameters based on performance in the validation sets. DG and UDA models used the same model hyperparameters as ERM[08-16], but involved an additional search over the algorithm-specific hyperparameter that modulated the impact of the algorithm on model learning. For all experiments, we trained 20 NN models using the selected hyperparameters for each combination of outcome, learning algorithm and experiment-specific characteristic (for example, year group in baseline experiment and size of unlabeled samples for UDA). Further details on the models, learning algorithms, as well as hyperparameter selection and model training procedures are presented in the eMethods in the Supplement.
Model evaluation
We evaluated models on the test sets of each experiment. Model performance was evaluated using area-under-receiver-operating-characteristic curve (AUROC), area-under-precision-recall curve (AUPRC) and the absolute calibration error (ACE).21 ACE is a calibration measure similar to the integrated calibration index22 in that it assesses overall model calibration by taking the average of the absolute deviations from an approximated perfect calibration curve. The difference is that ACE uses logistic regression for approximation instead of locally weighted regression such as LOESS.
To aid clinical interpretation of the impact of temporal dataset shift and its mitigation strategies, we translated change in performance to interpretable threshold-based metrics (including sensitivity and specificity) across clinically reasonable threshold levels. We chose the task with the most extreme temporal dataset shift. We setup a scenario with 100 hypothetical ICU patients and estimated the number of patients with and without a positive label using average prevalence from 2018 to 2019. We then illustrated the number of false-positive-(FP) and false-negative predictions (FN) for: (1) ERM[08-10] in 2008-2010, illustrating the results of initial model development with training and test sets in 2008-2010, and representing performance anticipated by clinicians applying the model to patients admitted in 2017-2019 if the model is not updated; (2) ERM[08-10] in 2017-2019, illustrating the actual performance of the earlier model on patients, or the impact of temporal dataset shift; (3) ERM[08-16] in 2017-2019, illustrating the ERM comparators for DG and UDA models; (4) models trained using a representative approach from DG or UDA; and (5) ERM[17-19] in which training and test sets are both using 2017-2019 data.
Statistical Analysis
For each combination of outcome, experiment-specific characteristic (e.g., year group in the baseline experiment), and evaluation metric (AUROC, AUPRC and ACE), we reported the median and 95% confidence interval (CI) of the distribution over mean performance (across 20 NN models) in the test set obtained from 10,000 bootstrap iterations. To compare models (for example, learned using IRM vs. ERM[08-16]) in the target year group, metrics were computed over 10,000 bootstrap iterations and the resulting 95% confidence interval of the differences were used to determine statistical significance.23
Model training was performed on an Nvidia V100 GPU. Analyses were implemented in Python 3.8,24 Scikit-learn 0.2425 and Pytorch 1.726. The code for all analyses is open-source and available onlinea.
RESULTS

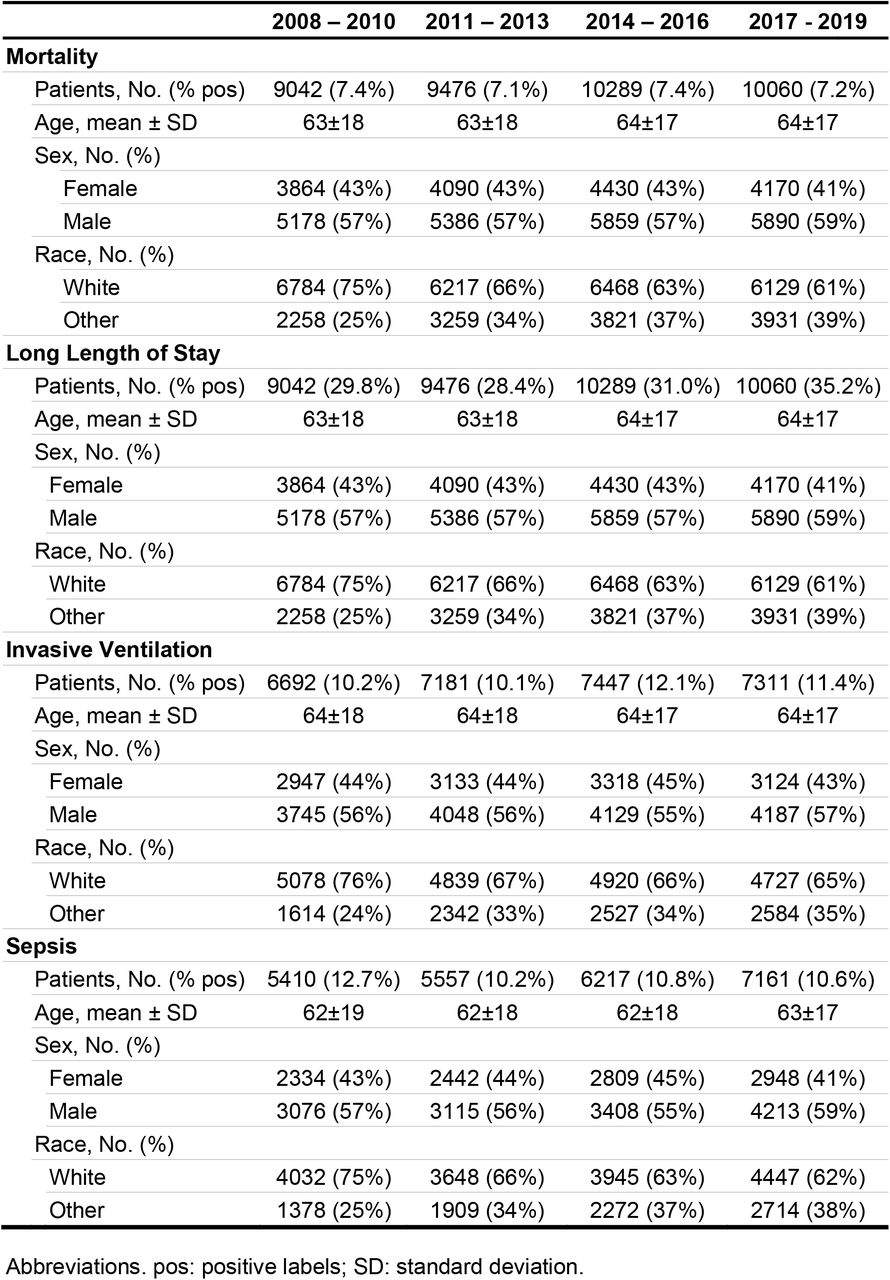

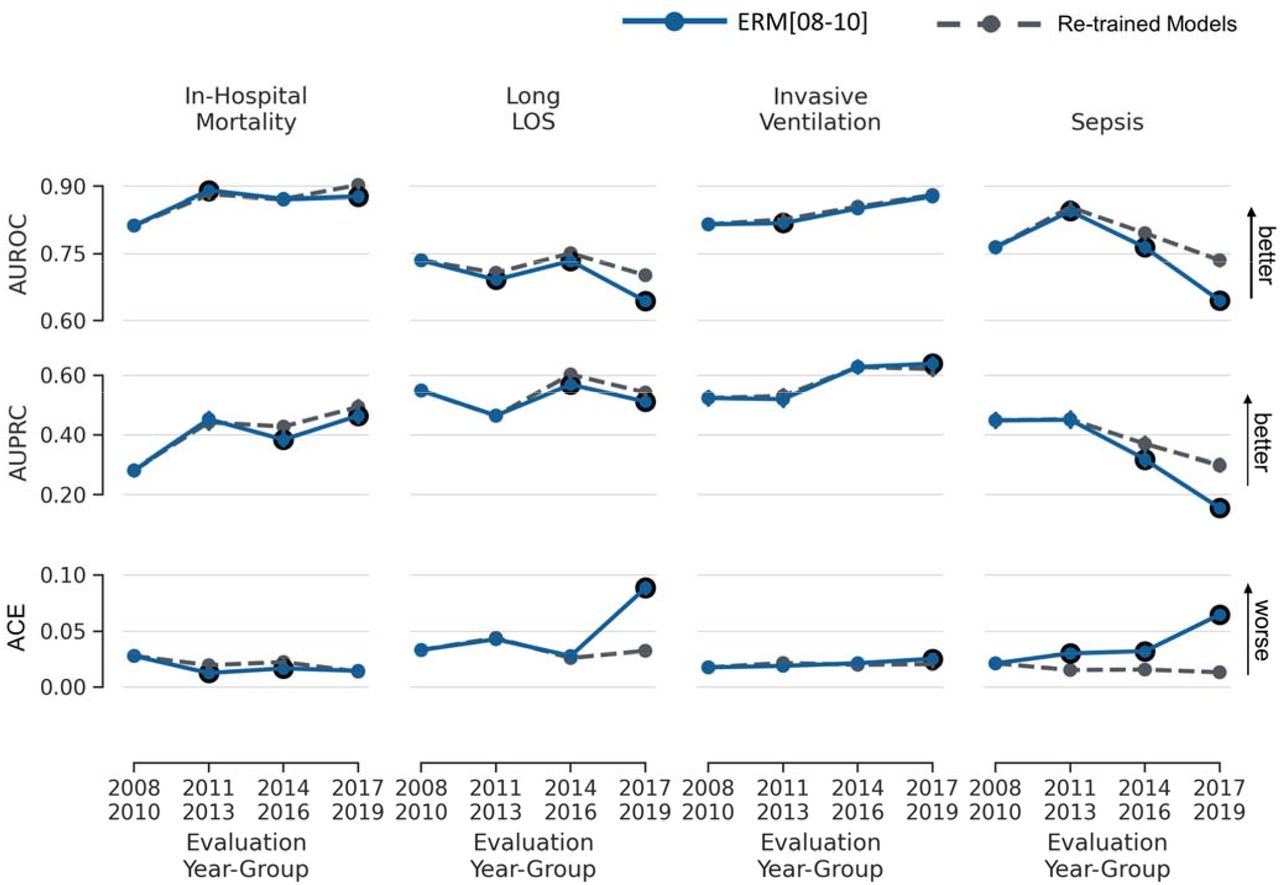

Cohort characteristics for each year group and outcome are presented in Table 1. Figure 2 shows performance measures (AUROC, AUPRC and ACE) of ERM[08-10] models in each year group vs. models trained on that year group. Largest temporal dataset shift was observed for sepsis predictions in 2017-2019 (drop in AUROC, 0.090; 95% CI, 0.080-0.101).

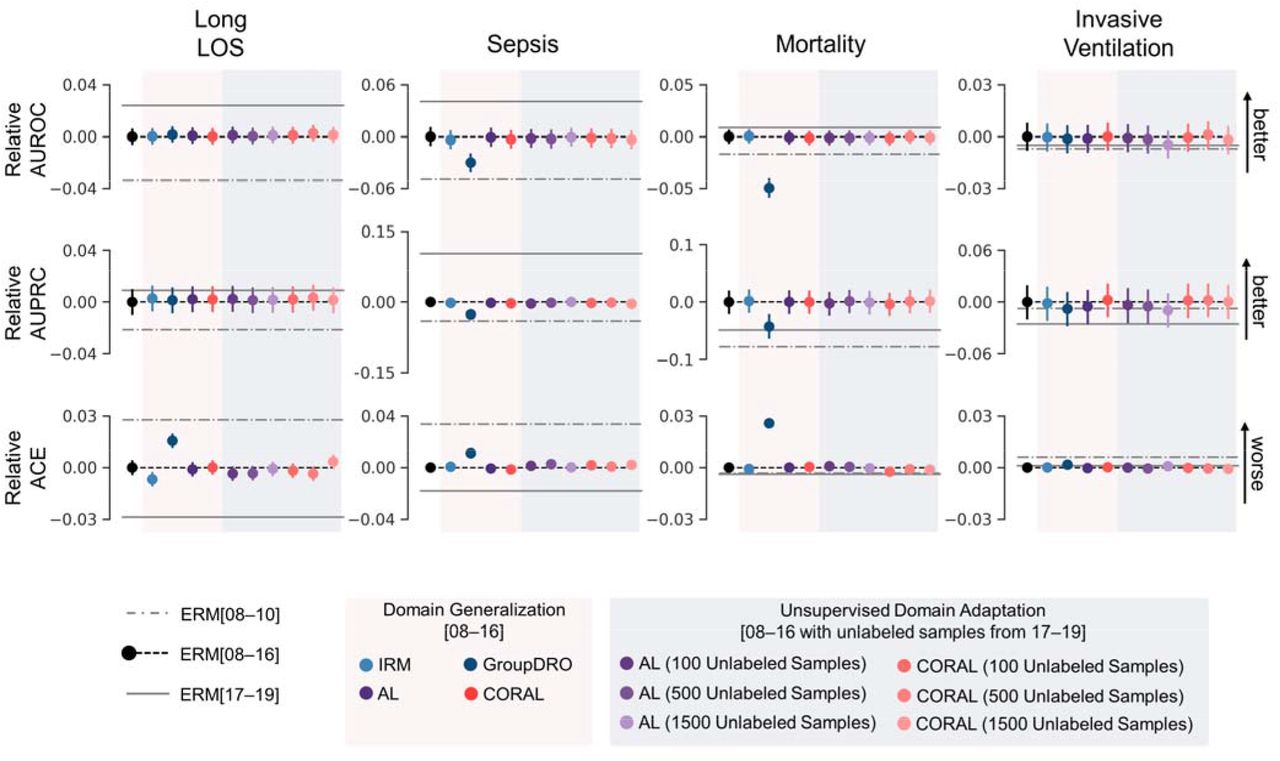

Figure 3 illustrates change in the performance measures of DG and UDA models in the target year group (2017 – 2019) relative to ERM[08-16]. In addition, change in performance measures of ERM[08-10] and ERM[17-19] are plotted in grey for comparison. ERM[08-16] performed better than ERM[08-10] (largest gain in AUROC, 0.049; 95% CI, 0.041-0.057; eTable 1 in the Supplement), but performed worse than ERM[17-19] (worst drop in AUROC, 0.071; 95% CI, 0.062-0.081) with some exceptions in mortality and invasive ventilation predictions (eTable 2 in the Supplement). Performance of DG and UDA models was similar to ERM[08-16] and while some models performed significantly better than ERM[08-16], others performed significantly worse with all differences being relatively small in magnitude (eTable 3 in the Supplement). In addition, increasing the magnitude of the algorithm-specific hyperparameters of the DG and UDA algorithms did not result in performance gains (see eFigures 1, 2, and 3 in the Supplement).

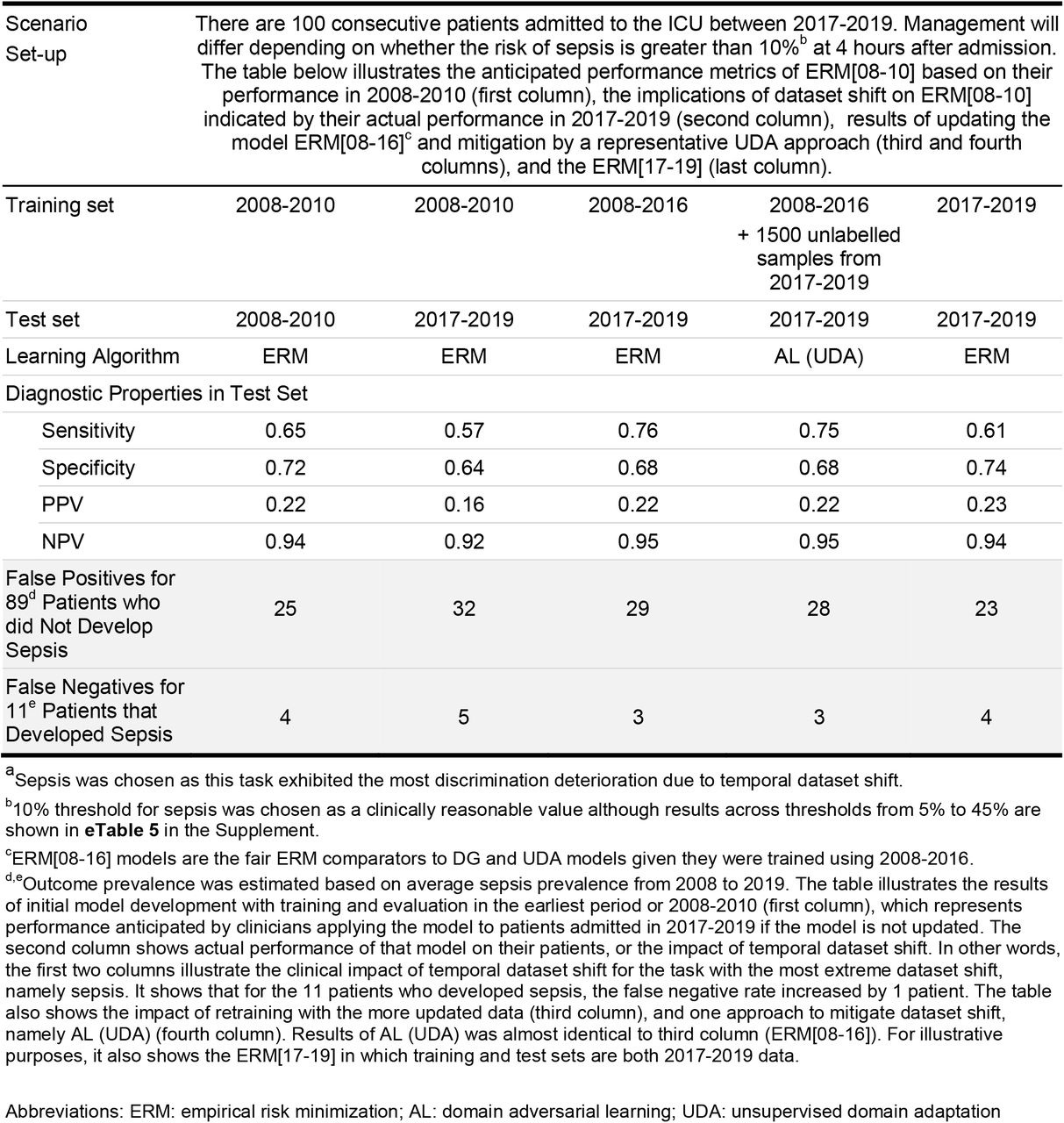

Table 2 illustrates a clinical interpretation of temporal dataset shift in sepsis prediction using a scenario of 100 consecutively admitted patients to the ICU between 2017-2019 with a risk threshold of 10% and an estimated outcome prevalence of 11% (see eTable 5 in the Supplement for results across thresholds from 5% to 45%). ERM[08-10] applied to 2017-2019 was associated with one additional FN among 11 patients with sepsis and 7 additional FP among 89 patients without sepsis when compared to the model applied to 2008-2010. FN with AL, as the representative mitigation approach, was similar to ERM[08-16].
DISCUSSION
Our results revealed heterogeneity in the impact of temporal dataset shift across clinical prediction tasks, with the largest impact on sepsis prediction. When compared to ERM[08-16], DG and UDA algorithms did not substantially improve model robustness. In some cases, DG and UDA algorithms produced less performant models than ERM. We also illustrated the impact of temporal dataset shift and the effect of mitigation approaches for clinical audiences so that they can determine whether the extent of dataset shift precludes utilization in practice.
The heterogeneity of impact by temporal dataset shift as revealed by our baseline experiment echoes the mixed results in model deterioration across several studies that made predictions of clinical outcomes in various populations.5 This calls for careful investigation of potential model degradation due to temporal dataset shift at both the population and task level. In addition, these investigations should translate model degradation, typically measured as change in AUROC, into change in clinically relevant performance measures27 or utility in allocation of resources,28 and place its impact in the context of clinical decision making and downstream processes.29-32
This study is one of the first to benchmark the capability of DG and UDA algorithms on EHR data across multiple clinical prediction tasks to mitigate the impact of temporal dataset shift. Our findings align with recent empirical evaluations of DG algorithms demonstrating that they do not outperform ERM under distribution shift across data sources or hospitals in real-world clinical datasets.33,34 The reasons underlying the failure of DG algorithms are topics of active research, with several recent works offering theory to explain why models derived with IRM and groupDRO are typically not more robust than ERM in practice.35,36 Furthermore, other work has demonstrated that UDA objectives based on distribution matching, such as AL and CORAL, failed to improve generalization to the target domain under shifts in the outcome rate or in the association between the outcome and features37,38. These findings highlight the difficulty of improving robustness to dataset shift with purely data-driven techniques that do not leverage prior knowledge of the nature of the shift. Future research should explore methods that learn robust models by incorporating domain knowledge as to which causal mechanisms are likely to be stable or change across time39.
Strengths of this study include the use of multiple clinical outcomes and the illustration of temporal dataset shift and its mitigations using more clinically relevant metrics. There are several limitations in this study. First, the coarse characterization of temporal dataset shift did not offer insight about the rate at which model performance deteriorated. This was due to the deidentification in the MIMIC-IV database that left year group as the only time information that followed a correct chronological order across patients. Second, using data from the target year group to estimate best-case models is not realistic in real-world deployment as such data might not be available. Third, our assessment of clinical implications did not consider clinical use-cases in which the model alerts physicians of patients with the highest risks (i.e., acting on a threshold that is adaptively selected)40. In those scenarios, the amount of agreement in the ranking of risks between models need to be additionally considered.
In conclusion, DG and UDA failed to produce more robust models compared to ERM in the setting of temporal dataset shift. Alternate approaches are required to preserve model performance over time in clinical medicine.
Supporting information
Data Availability
The data used for this study is publicly available. Instructions for access can be found at https://mimic.mit.edu/iv/. The code for analyses is open source and available at https://github.com/sungresearch/mimic4ds_public.
ACKNOWEDGEMENTS
LS is the Canada Research Chair in Pediatric Oncology Supportive Care.
COMPETING INTERESTS
None
ETHICAL APPROVAL
As this study was conducted on de-identified electronic health records, Ethics Committee/Institutional Review Board approval was waived.
FUNDING
There was no funding support for this study
