ThermoBRET: a ligand-engagement nanoscale thermostability assay applied to GPCRs
1Centre of Membrane Proteins and Receptors (COMPARE), University of Birmingham and University of Nottingham, Midlands, UK
2Division of Physiology, Pharmacology & Neuroscience, School of Life Sciences, University of Nottingham, Nottingham, NG7 2UH, UK
3Institute of Metabolism and Systems Research, College of Medical and Dental Sciences, University of Birmingham, Birmingham B15 2TT, UK
*Correspondence should be addressed to brad.hoare@florey.edu.au, david.sykes@nottingham.ac.uk and dmitry.veprintsev@nottingham.ac.ukAbstract
Measurements of membrane protein thermostability allows indirect detection of ligand binding. Current thermostability assays require protein purification or rely on pre-existing radiolabelled or fluorescent ligands, limiting their application to established target proteins. Alternative methods detect protein aggregation which requires sufficiently high level of protein expression.
Here, we present a ThermoBRET method to quantify the relative thermostability of G protein coupled receptors (GPCRs), using cannabinoid receptors (CB1 and CB2) and the β2-adrenoceptor (β2AR) as model systems. ThermoBRET reports receptor unfolding, does not need labelled ligands and can be used with non-purified proteins. It uses Bioluminescence Resonance Energy Transfer (BRET) between Nanoluciferase (Nluc) and a thiol-reactive fluorescent dye that binds cysteines exposed by unfolding. We demonstrate that the melting point (Tm) of Nluc-fused GPCRs can be determined in non-purified detergent solubilised membrane preparations or solubilised whole cells, revealing differences in thermostability for different solubilising conditions and in the presence of stabilising ligands. We extended the range of the assay by developing the thermostable tsNLuc by incorporating mutations from the fragments of split-Nluc (Tm of 87 ⁰C vs 59 ⁰C). ThermoBRET allows determination of GPCR thermostability, which is useful for protein purification optimisation and as part of drug discovery screening strategies.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Summary of Updates:
Introduction
G protein coupled receptors (GPCRs) are a large family of membrane proteins that are important drug discovery targets (Hauser, Attwood et al. 2017). Structural and biophysical studies of GPCRs have significant importance in modern drug discovery (Congreve, de Graaf et al. 2020) but one major hurdle is their successful solubilisation from their native membrane environment and subsequent purification. Optimisation of receptor stability during this process is a key component to success (Tate 2010). Additionally, the ability of a bound ligand to stabilise the receptor structure is a property which can be exploited in screening efforts to find novel drug candidates (Fang 2012, Zhang, Stevens et al. 2015).
Existing GPCR protein stability assays rely on the availability of a high-affinity radioligand to act as a tracer for receptor functionality (Galvez, Parmentier et al. 1999, Serrano-Vega, Magnani et al. 2008, Robertson, Jazayeri et al. 2011, Magnani, Serrano-Vega et al. 2016). In the absence of the radioactive tracer, temperature-induced aggregation-based techniques such as technology developed by Heptares Therapeutics (now Sosei Heptares) (Marshall, Jazayeri et al. 2013) or temperature shift fluorescence size exclusion chromatography TS-FSEC (Hattori, Hibbs et al. 2012, Vuckovic 2017, Nji, Chatzikyriakidou et al. 2018) can be used. Alternative fluorescence-based techniques with higher throughput exist, such as the N-[4-(7- diethylamino-4-methyl-3-coumarinyl)phenyl]maleimide (CPM) assay, which utilises a thiol-reactive fluorescent fluorochrome. This dye reacts with exposed cysteines, acting as a sensor of protein stability in the temperature-dependent unfolding process (Alexandrov, Mileni et al. 2008). Other thiol-reactive dyes such as BODIPY-FL-Cystine (BLC) or 4-(aminosulfonyl)-7-fluoro-2,1,3-benzoxadiazole (ABD) are also available for stability measurements (Isom, Marguet et al. 2011, Bergsdorf, Fiez-Vandal et al. 2016). However, both these techniques currently require purified protein in microgram quantities which is a considerable drawback.
Low abundance of GPCRs even in over-expressing systems and their inherently low stability in detergents (Milic and Veprintsev 2015) calls for sensitive protein stability assays that can be used without protein purification or pre-existing tracer compounds.

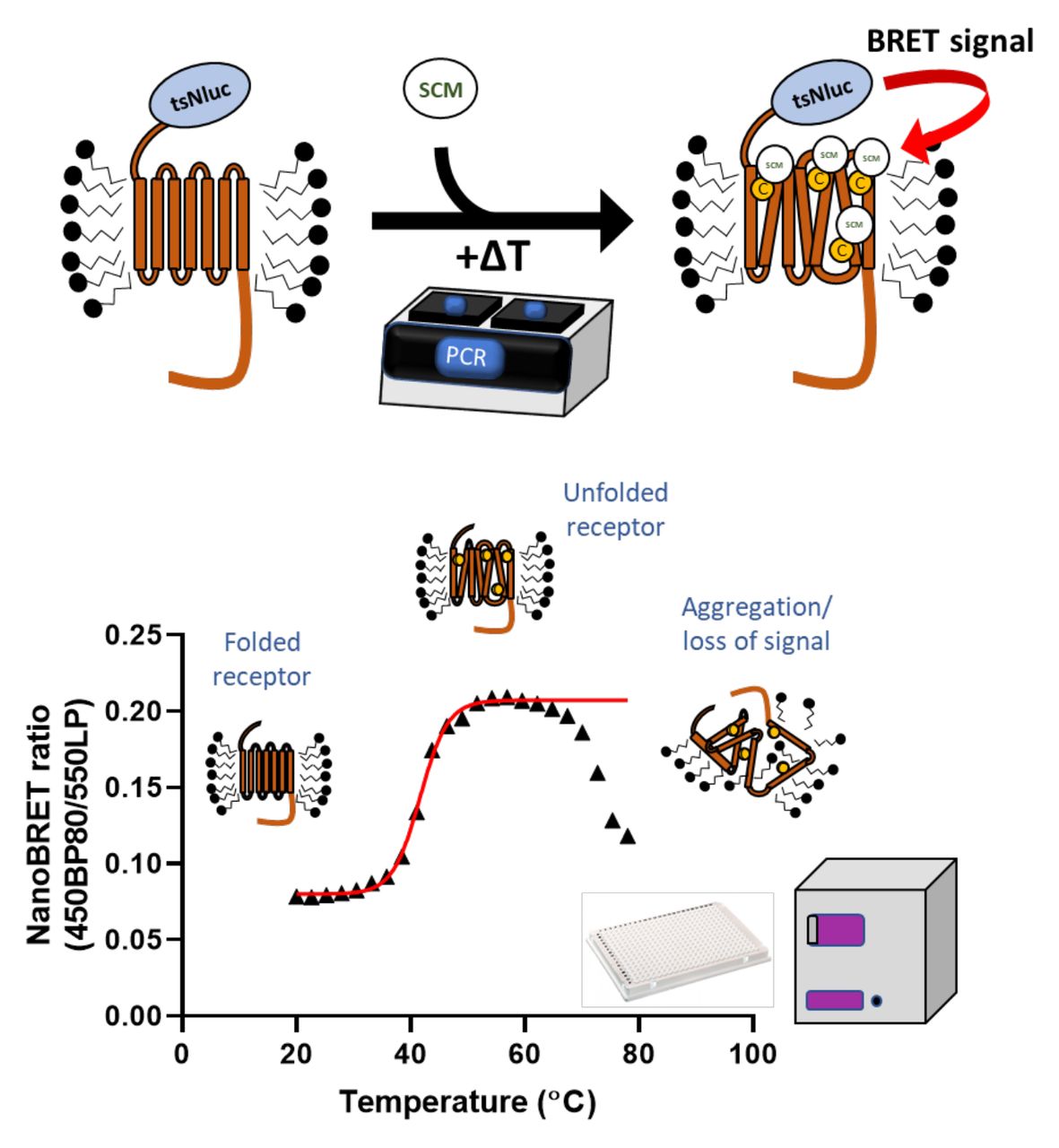

Here, we present the ThermoBRET assay based on bioluminescence resonance energy transfer between the bright Nanoluciferase (Nluc, and, correspondingly, NanoBRET) (Hall, Unch et al. 2012), acting as a donor of light and a thiol reactive Sulfo-Cyanine3 maleimide (SCM) dye, the acceptor, allowing us to quantify the relative thermostability of non-purified GPCRs solubilised into detergent micelles. As a test case we focus on two GPCRs, the cannabinoid receptor 2 (CB2) as a therapeutically promising (Pertwee 2012) but unstable drug target (Vukoti, Kimura et al. 2012, Beckner, Gawrisch et al. 2019, Beckner, Zoubak et al. 2020) and the previously well characterised β2 adrenergic (β2AR) receptor. This assay detects picomolar concentration, corresponding to nanogram amounts, of target protein. Due to the nature of the homogeneous assay format, negating the need to separate bound and unbound ligand, can be used to detect binding of low-affinity ligands. Since we employ NanoBRET detection, these assays are safer than radiometric alternatives and can be readily performed in 96- and 384-well assay format.
Results
ThermoBRET provides reliable measurements of GPCR stability
We fused a Nluc (Hall, Unch et al. 2012) to the receptor N-terminus, preceded by a cleaved signal peptide to ensure its’ successful expression and plasma membrane trafficking (Supplementary Information 1). Detergent solubilised receptor samples containing a thiol reactive Sulfo-Cyanine3 maleimide (SCM) acceptor are incubated at varying temperatures using a gradient forming PCR thermocycler. As the receptor unfolds on heating the SCM covalently binds to exposed cysteine residues (Figure 1). We chose SCM because of its suitability as a BRET acceptor for Nluc, water solubility, and relatively low cost compared to other thiol-reactive fluorophores. In principle, any maleimide or other thiol-reactive conjugated fluorescent dye with overlapping donor-acceptor emission-absorption spectra can be used. The unfolded state of the receptor due to thermal denaturation is measured as NanoBRET between the Nluc tag and the SCM acceptor and is quantified as a ratio of the donor and acceptor light emissions, termed the NanoBRET ratio. The relative thermostability of a receptor in different solubilised non-purified membrane preparations can be easily determined, first by thermal denaturation across a temperature gradient on a thermocycler block, rapid cooling to 4 °C, and then following the addition of the Nluc substrate furimazine and measurement of the NanoBRET ratio in a 384-well luminescence plate reader at room temperature (Figure 1). The midpoint of the transition curve is found by fitting the data to a Boltzmann sigmoidal equation to obtain a Tm.
Detergents affect stability of receptors

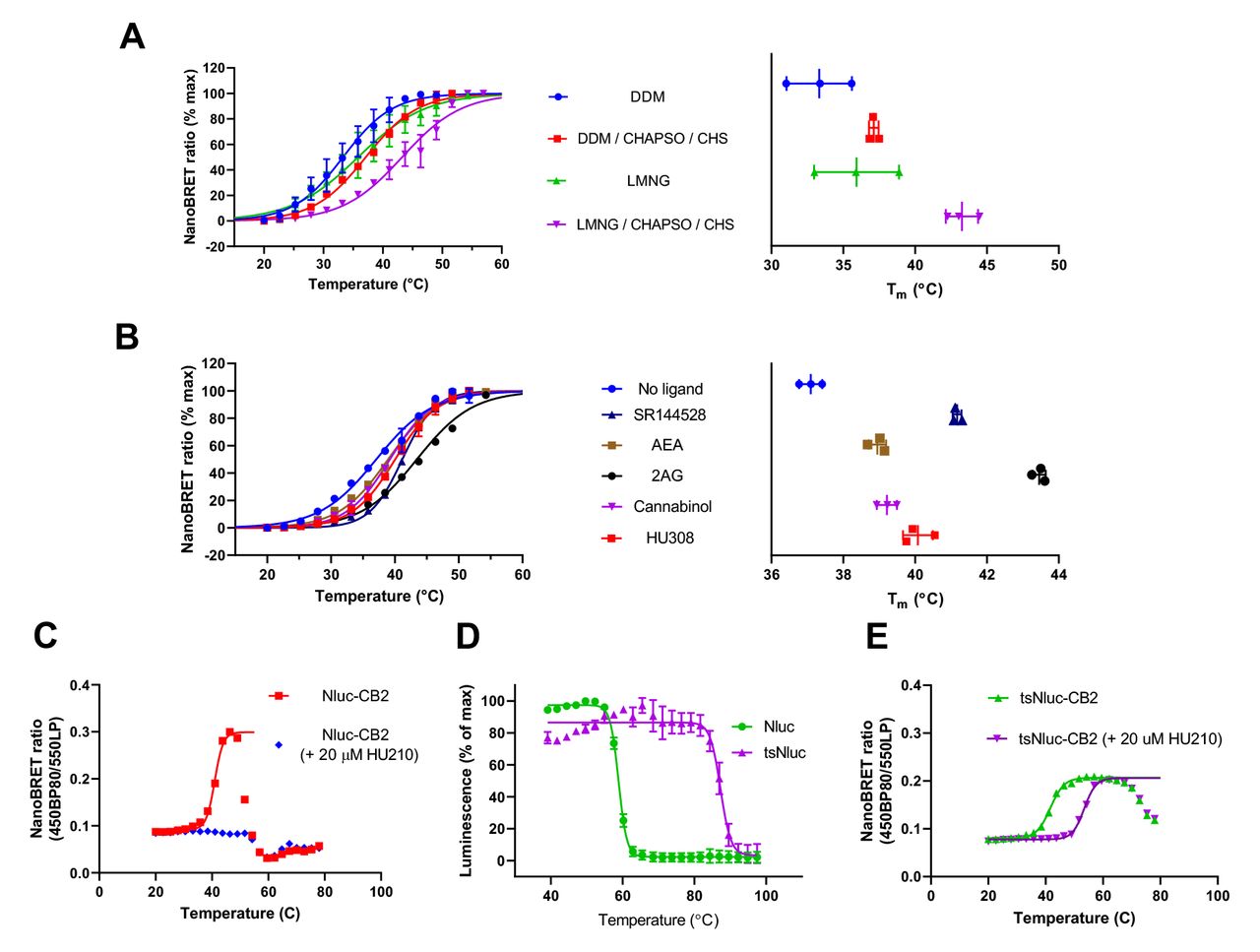

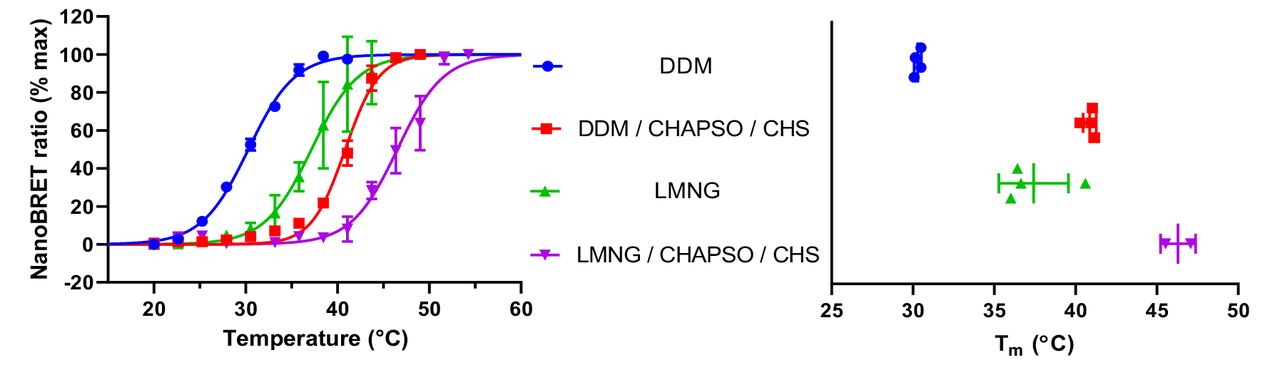

When solubilised in DDM detergent, CB2 had a Tm of around 33 °C (Figure 2A) and was marginally more stable in LMNG (Tm = 35 °C). Addition of CHAPSO and the cholesterol derivative CHS in the detergent micelles provided the highest thermostability for CB2 (Tm = 43 °C in LMNG/CHAPSO/CHS). This observation is consistent with the reported increase in CB2 stability in DDM/CHAPSO mixed micelles (Vukoti, Kimura et al. 2012).
Differences in the detergent stability of the adrenergic β2-receptor were also found (Supplementary Figure 1). Hence, this assay can be readily used to screen for the best detergent solubilising conditions before attempting a large-scale purification.
Ligands stabilise CB2

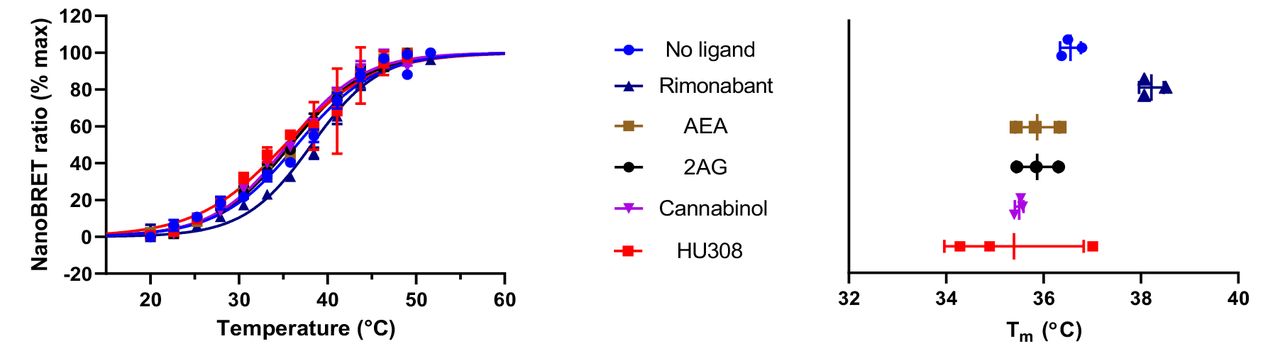

We also tested a selection of endogenous and synthetic cannabinoid receptor ligands for their ability to increase the thermostability of CB2 (Figure 2B). The lipophilicity of its ligands has made the CB2 receptor a particularly challenging target for ligand binding experiments due to their high non-specific binding. These ligands were all tested at a concentration of 20 µM, well above their dissociation constant (KD) at room temperature, in order to ensure full occupancy of the solubilised receptors. Interestingly, the endogenous cannabinoid 2-arachidonoylglycerol (2AG) increased the Tm of CB2 by around 6 °C, whereas the other endogenous cannabinoid anandamide (AEA) only increased the Tm by around 2 °C. The most probable reason for these observations are the variable temperature dependence of the affinity of the ligand to the receptor as well as well as the degree of the entropy contribution to the binding (Layton and Hellinga 2010). Other synthetic cannabinoid ligands HU308 and SR144528 also produced appreciable increases in thermostability, and the pattern of ligand stabilisation appeared different for the related CB1 receptor (Supplementary Figure 2).
tsNluc extends the range of the ThermoBRET assay
One problematic aspect of the ThermoBRET is the thermostability of the Nluc donor itself, which has been reported to unfold at around 55 - 60 °C (Hall, Unch et al. 2012). This limits the thermal range for this assay and prevents accurate Tm determination in conditions where the receptor itself is particularly thermostable, for example when CB2 is bound to the high affinity non-selective cannabinoid agonist HU210 (Figure 2C). We therefore combined Nluc mutations which had been developed by Promega as part of their efforts to create a stable split-luciferase system (Dixon, Schwinn et al. 2016) and found that these mutations improved thermostability of the full length luciferase by about 30 °C (Figure 2D). In line with previous reports (Hall, Unch et al. 2012) we found that purified Nluc had a Tm of 59 °C, and that purified thermostable Nluc (tsNluc) had a Tm of 87 °C (Figure 2D), making it preferable for thermostability measurements across a wide temperature range. Importantly, tsNluc contains no cysteine residues (Supplementary Information 2) and thus is unaffected by maleimide/thiol chemistry. Further characterisation showed tsNluc to have a similar luminescence emission profile as Nluc with furimazine as a substrate, although with a lower luminescence output (Supplementary Figure 3). Applying this novel tsNluc fusion improved the working temperature range of the ThermoBRET assay and allowed successful Tm determination for CB2 in the presence of HU210 (Figure 2E). Strikingly, HU210 was able to stabilise CB2 by around 12 °C, the highest level achieved of any of the CB2 ligands tested.
To further assess the ability of this improved assay format to determine the stability of GPCRs in detergent we created a tsNluc-β2AR expression construct. Previous work employing the CPM assay indicates that this receptor can be stabilised by high affinity antagonists (Wacker, Fenalti et al. 2010). Due to the higher throughput achievable with our BRET-based system we were able to assess the receptor stabilising effects of both β-adrenergic agonists and antagonists (Figure 3 A and B). Both high affinity antagonist and agonist were able to stabilise the receptor to a degree which was dependent on the affinity of the ligands for the receptor (Figure 3C). In contrast koff and kon were by themselves more poorly correlated with receptor stabilisation (Figure 3D and E).
Lipid concentration in lipid-detergent micelles affects stability of the receptor

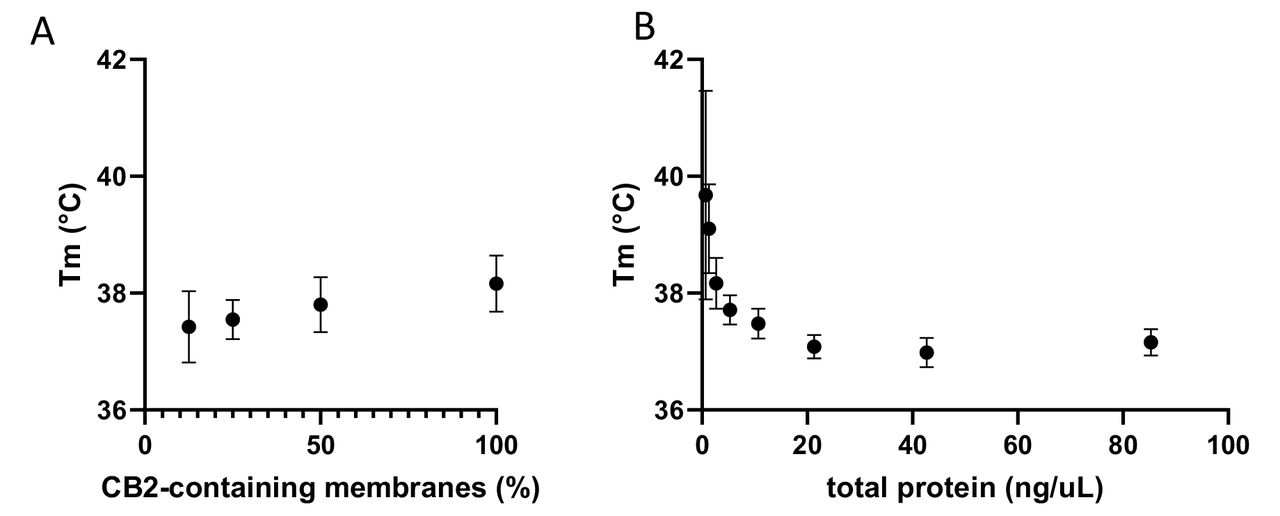

Having established a robust assay to measure receptor stability, we examined the more subtle effects of lipid-detergent ratio in the solubilised tsNluc-CB2. Firstly, we examined if the stability of CB2 is affected by the receptor concentration, while keeping the membrane fraction/detergent ratio the same by supplementing the fraction of CB2 membranes with “empty” non-transfected HEK293 membranes to the same total amount (Supplementary Figure 4A). The reported value was the same, suggesting that CB2 stability is not affected by its concentration, at least within the tested range. Secondly, we examined if an increase in membrane/detergent ratio could affect CB2 stability, by supplementing a fixed amount of CB2 membranes with an increasing amount of “empty” membranes (Supplementary Figure 4B). Surprisingly, the receptor stability was decreased by 2-3 °C at higher membrane/detergent ratio, although it plateaued at concentrations above 20 ng/μL, as generally increasing concentration of lipids may lead to stabilisation of receptors (Cecchetti, Strauss et al. 2021). A possible explanation for this is that the increased total protein concentration (HEK293 membranes contain a significant amount of protein) may accelerate aggregation process. This observation suggests that for each new target this relationship needs to be explored, and concentration of membrane and detergent should be kept constant and an appropriate point on the plateau region should be chosen.
Stability of the receptor measured by ThermoBRET reflects a loss of ligand binding
Receptor denaturation is a complex process, progressing through a loss of tertiary structure through potential intermediates that may have the overall organisation of the correctly folded receptor (and protecting cysteines from modification) to complete loss of tertiary structure and aggregation. It is important to understand what process is sensed by the ThermoBRET assay.

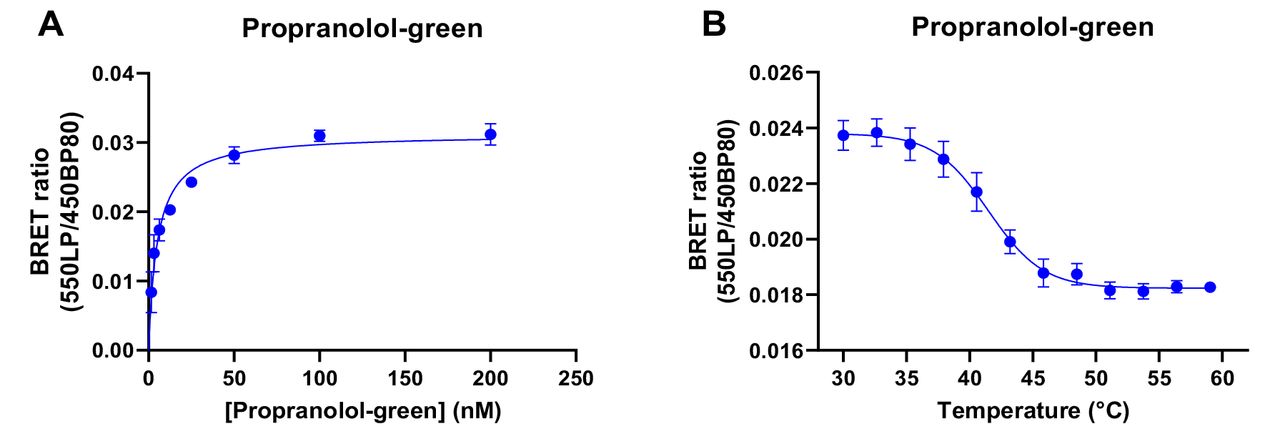

Stabilisation of a receptor can also be monitored through addition of a fluorescent ligand to a detergent solubilized receptor, measured using NanoBRET detection. In this case unfolding of a target protein in response to an increase in temperature will result in a loss in specific binding. Figure 4A shows the saturation binding curve for propranolol-green binding to the tsNluc-β2AR receptor solubilised in DDM. The Kd of propranolol-green for the β2AR was determined to be 5.7 ± 1.1 nM. Figure 4B shows the loss in propranolol-green specific binding signal as the protein unfolds in response to an increase in temperature, following preincubation of a saturating concentration of fluorescent ligand (1 μM) with the receptor.
Isothermal ThermoBRET

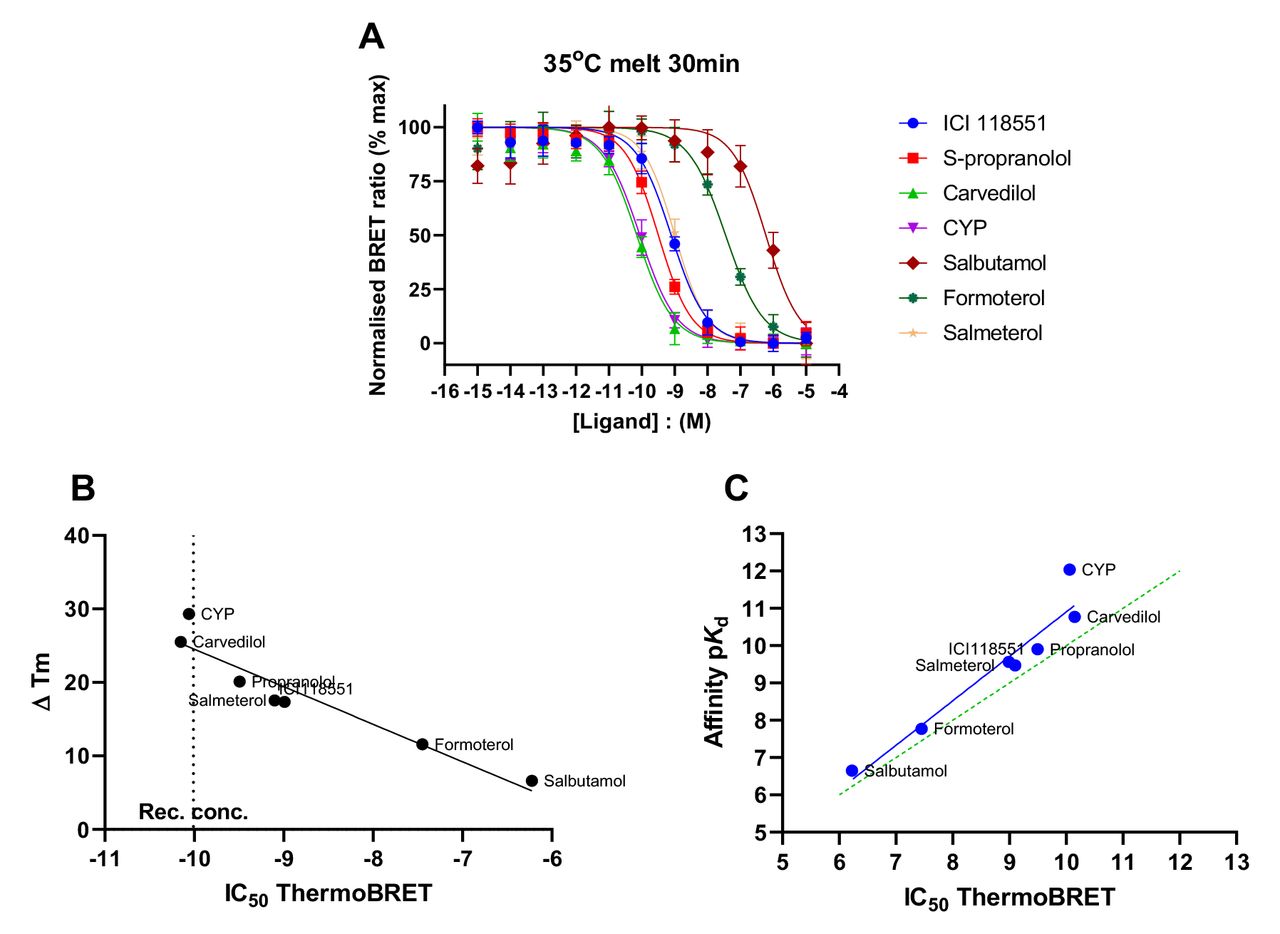

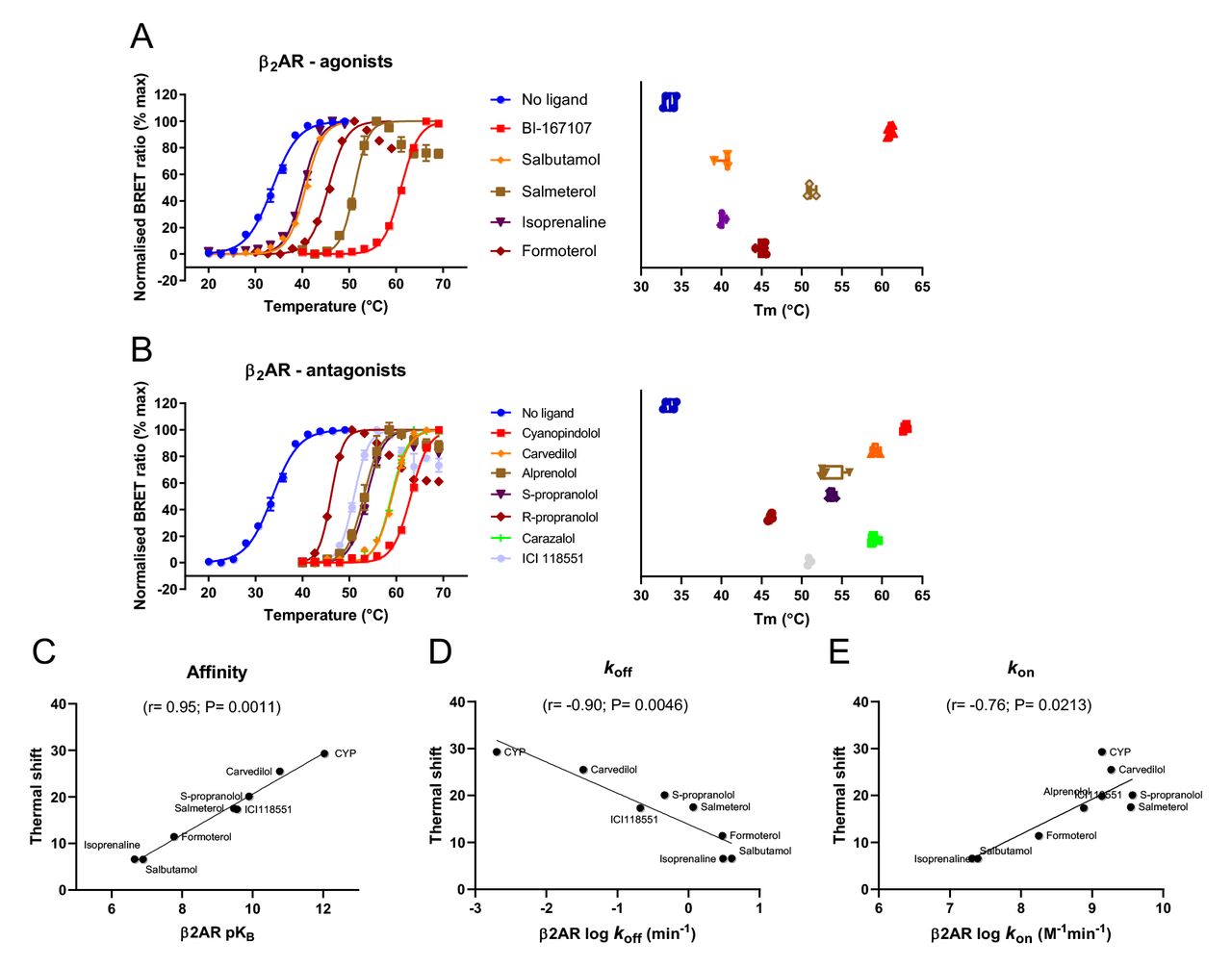

Finally, we assessed the dependency of agonist and antagonist ligand concentration on tsNluc-β2AR thermostability at a constant temperature 35°C, just above the Tm of the apo form of the receptor. Receptor stability measurements expressed as a function of ligand concentration are shown in Figure 5A. ThermoBRET IC50 values were derived for this smaller test set and correlated with the thermal shift values obtained at fixed concentrations of individual agonist and antagonists. A linear relationship was observed between these two measures (Figure 5B). Finally, the ThermoBRET IC50 values were correlated with radioligand binding affinity values obtained for the different ligands (Figure 5C). Again, an excellent correlation was observed between the two data sets apart from for the very slowly dissociating antagonist cyanopindolol. There are two plausible explanations for this: either the very slow off-rate of this ligand means that for this ligand equilibrium is not achieved prior to the determination of ThermoBRET IC50 values, samples being kept on ice prior to melting, or we are observing the phenomenon of ligand depletion due to nM concentrations of receptor present in the reaction mixture.
Assay sensitivity

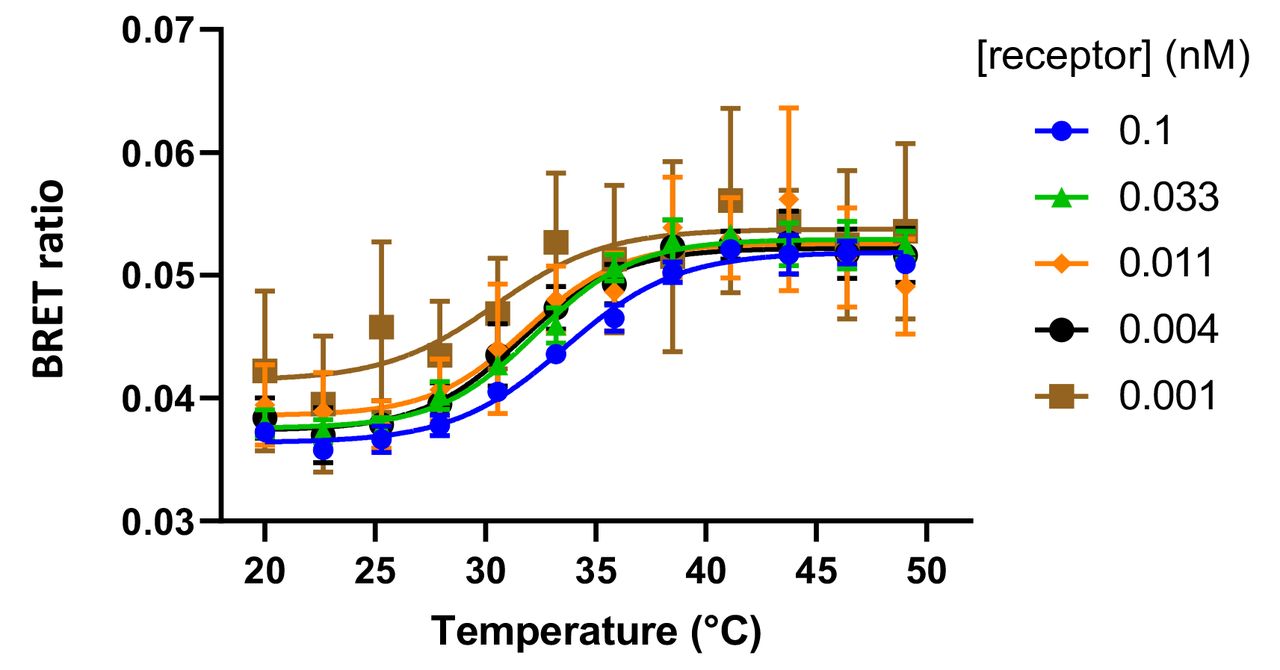

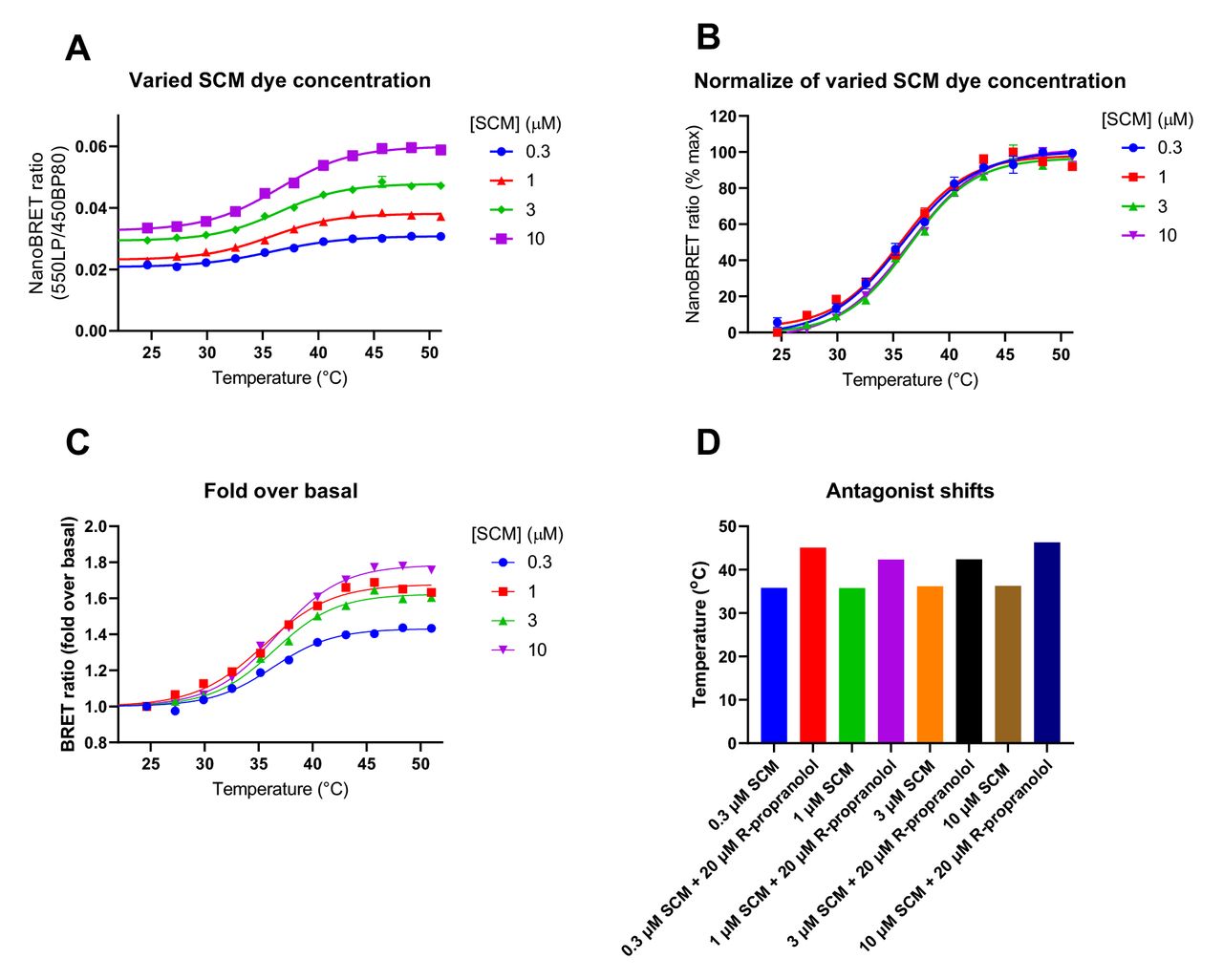

Solubilised receptor concentration was estimated by extrapolation from a standard curve of the luminescence emission from purified tsNluc protein of known concentrations. ThermoBRET assay sensitivity was then determined by dilution of this solubilized β2AR receptor sample with receptor stabilisation assessed by monitoring the change in BRET ratio as a function of increasing temperature, see Supplementary Figure 5. This confirms that ThermoBRET is a nanoscale system with sensitivity in line with that of a traditional ligand binding assay. In further experiments we tested the effect of SCM dye concentration on the thermal unfolding of the β2AR (see Supplementary Figure 6), confirming that dye concentrations in the region of 1-3 μM are sufficient to monitor the unfolding of GPCRs and without significant quenching of the luminescent signal.
Receptor solubilisation directly from cells

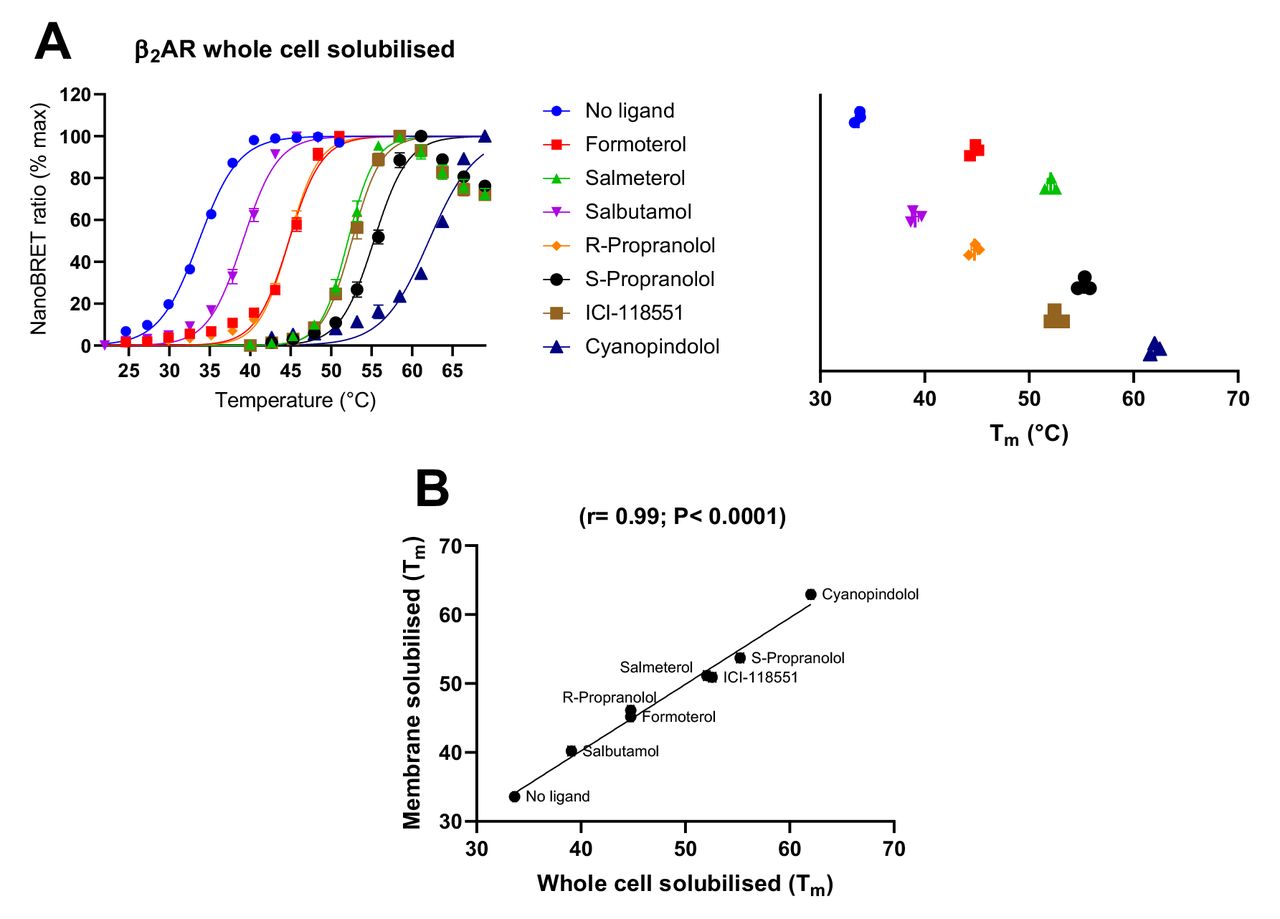

In addition, we assessed the stability of the β2AR solubilised directly from whole cells and the ability of orthosteric ligands to stabilise the receptor. Figure 6 shows the measured stability of the apo β2AR solubilised from whole cells in the absence and presence of a selection of antagonist and agonist ligands and the resulting correlation of Tm values obtained with the same ligands from membrane solubilised receptors. The measurement of receptor thermostability directly from whole cells further reduces the number of steps required for the assay (ie. no need to prepare membranes) and allows target engagement to be assayed when receptors are still in a native membrane environment if it is added prior to solubilisation.
Discussion
Here, we aimed to establish sensitive technique that allows to measure receptor stability in crude detergent-solubilised preparations, without a need for a unique tracer compound. ThermoBRET proved to be sensitive and selectively reporting protein stability of solubilised membrane preparations and even directly solubilised cells. It utilises universal cysteine-reactive fluorescent dyes for readout and can be used to detect binding of specific non-fluorescent ligands.
The processes of protein unfolding and protein aggregation are related, yet very separate, phenomena. As mentioned in the introduction, a decrease in GFP fluorescence (Vuckovic 2017, Nji, Chatzikyriakidou et al. 2018) or luciferase signal (Marshall, Jazayeri et al. 2013) has been used for measuring temperature-induced aggregation of GPCRs. Nluc has also been successfully used in similar applications which monitor protein aggregation of soluble proteins. Such applications fuse either full length Nluc (Dart, Machleidt et al. 2018) or split Nluc (Martinez, Asawa et al. 2018) to the protein of interest and monitor the decrease in luminescence activity to measure aggregation of the protein of interest after thermal denaturation. In contrast, the ThermoBRET assay described here captures the initial conformational unfolding events which expose maleimide reactive cysteine residues in the protein of interest. In addition, ThermoBRET measurement is buffered from changes in the concentration of the luciferase fused target protein because a ratiometric method is used to calculate resonance energy transfer, contrasting with assays which measure luminescence intensity only. This means the measurement remains robust even at low concentrations of the target protein where the magnitude of the measured signal is at the lower end of detection capabilities.
We note that under the test conditions used, the luminescence activity of just 85 pM purified Nluc and tsNluc was measurable in a 96-well plate (Figure 2D), making the assay extremely sensitive. This makes the assay particularly amenable situations where there are limitations on the amounts of reagent that can be provided, for example protein targets which are poorly expressed in vitro and/or in vivo. This assay principle could even be applied in more physiologically relevant in vivo cellular models whereby tsNluc (or the 11 amino acid HiBiT tag) is fused to an endogenously expressed protein via CRISPR-mediated insertion (White, Johnstone et al. 2019).
The novel thermostable tsNluc we describe has clear advantages compared to Nluc. Firstly, due to its improved thermostability it is less likely to unfold before the protein of interest and cause sample aggregation and other possible artefacts. The Tm of tsNluc was 87 ˚C which may put an upper temperature limit on the ThermoBRET method, however such a high thermostability situation would be very unexpected for an integral membrane protein solubilised in detergents. Secondly, whilst previous reports (Hall, Unch et al. 2012) and our own data (Figure 2D) showed the Tm of Nluc to be 59 ⁰C, more recent use of Nluc to monitor protein aggregation show clear luminescence activity after protein samples had been heated to temperatures >60 ⁰C before cooling (Dart, Machleidt et al. 2018). We speculate that Nluc has propensity to spontaneously refold after thermal denaturation, and that the presence of detergents in the buffers of the latter report either aided Nluc refolding or delayed irreversible protein aggregation. In our ThermoBRET assays, the cysteine exposed upon Nluc unfolding would potentially react with the SCM and prevent its refolding, whereas tsNluc avoids these pitfalls. The cysteine-less sequence of tsNluc also allows easy in vitro chemical tagging of tsNluc-fusions. There is of interest in producing conjugates of Nluc fused to other biomolecules, though usually this involves incorporation of sequence-specific ligation motifs onto Nluc followed by enzyme-mediated ligation to the molecule of interest (Wang, Shao et al. 2017, Mie, Niimi et al. 2019, Wouters, Vugs et al. 2020). By introducing a cysteine at the C-terminus of tsNluc, any molecule could be conjugated to tsNluc by thiol-reactive chemistry and mild reaction conditions, enhancing its potential for protein engineering and enabling a wide scope for future applications.
In comparison to our previous ThermoFRET application using a terbium cryptate labelled receptor as a FRET donor (Tippett, Hoare et al. 2020), the ThermoBRET approach offers potential advantages. ThermoFRET requires cell surface labelling of the receptor-fused SNAP tag with the terbium cryptate donor molecule, adding to assay cost, but perhaps more importantly creating an extra labelling step that can be problematic if the tag is not readily exposed at the plasma membrane. In contrast, the use of a genetically encoded bioluminescent donor (ie. tsNluc or Nluc) omits this labelling step. This means that fused proteins which are poorly trafficked to the plasma membrane, are now amenable as they do not require labelling at the cell surface. Additionally, ThermoFRET requires more sophisticated detection by plate readers with time-resolved fluorescence detection capabilities, whereas BRET only requires a luminometer with filtered light detection that are more readily available in many labs. A comparison of biophysical techniques used in drug screening cascades is shown in Figure 7 along with the relative protein requirements and assay throughput potential of each technique.
The ability of the ThermoBRET assay to quantify ligand-induced changes in the receptor Tm makes it an ideal tool to study ligand binding to GPCRs. Tm values obtained in the current study for the β2AR specific ligands compare well with those obtained previously (Zhang et al., 2015). In principle, this assay can detect compounds which bind the target at any site, assuming this interaction influences the thermodynamic conformational landscape of the protein. It can be used to screen potential ligands for orphan GPCRs as it does not depend on the availability of tool compounds or known binders to develop a competition assay. Moreover, it could be used to detect the combined stabilisation of several ligands to discover positive and negative allosteric modulators of GPCRs.
Despite a number of advantages ThermoBRET offers, and positive results obtained for β2AR, CB2 and CB1 receptors, this technique is not immune to the general limitations of thermal shift assays. The protein needs to be in a native state once solubilised, and some condition optimisation may need to be done for the less stable receptors. Correspondingly, it may not be successful for every target receptor tried as there is a requirement that the receptor contains buried cysteines which become exposed upon thermal denaturation. This limitation is also inherent for the CPM assay, and in situations where no free thiol exists then cysteines could be rationally introduced into the receptor sequence to generate a ThermoBRET signal.Finally, more practical experience with screening larger compound libraries will be needed to establish real life performance and limitations of this technique.

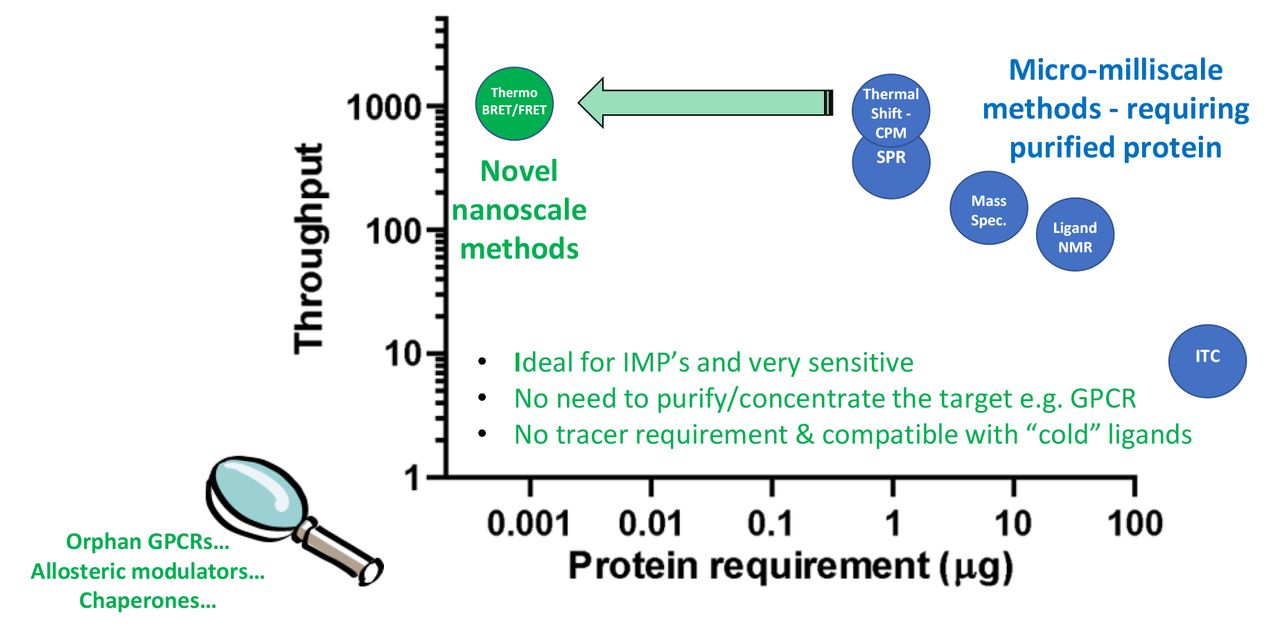

Overall, ThermoBRET is an excellent and highly sensitive tool for optimisation of solubilisation conditions and biophysical screening of GPCR compound libraries to support structural biology, aiding the drug discovery efforts.
Methods
Drug compounds and reagents
Sulfo-Cy3 maleimide (SCM) (Lumiprobe GmbH, Germany) was obtained in powder form, dissolved in DMSO at a concentration of 10 mM and stored in the dark at −20C. Furimazine, the substrate for Nluc, was obtained from the Nano-Glo Luciferase Assay System kit (Promega, UK) provided at a concentration of 5 mM. Cannabinoid ligands (anandamide [AEA], 2-arachydonyl-glycerol [2AG], SR144528, HU210, HU308, cannabinol) were obtained from Tocris Bioscience and dissolved in DMSO to a storage concentration of 10 mM, except AEA and 2AG which were dissolved in EtOH. Rimonabant was obtained from Roche Pharmaceuticals GmbH (Germany).
Plasmid construction
For mammalian cell expression, receptor constructs were cloned into pcDNA4/TO using Gibson assembly (Gibson, Young et al. 2009). All GPCR constructs contained an N-terminal signal peptide (which is cleaved by signal peptidases during protein maturation and trafficking) to improve expression, followed by a TwinStrep affinity tag, then Nluc (or tsNluc) followed by the receptor sequence. The TwinStrep affinity tag was not required for these studies but was present to facilitate receptor purification and antibody-based detection if required. The synthesized cDNA for tsNluc was obtained from GeneArt Gene synthesis (Invitrogen). For bacterial cell expression of Nluc and tsNluc, cDNA sequences were cloned into the pJ411 expression plasmid with a N-terminal 10X histidine affinity tag and TEV cleavage site encoded upstream of the protein of interest. Amino acid sequences of the constructs used are provided in Supplementary Information 1. The correct sequence within the expression cassette of all plasmid constructs was verified by Sanger sequencing (Genewiz, UK).
Mammalian cell culture
The T-RexTM-293 cell line (HEK293TR; ThermoFisher Scientific) was used to make stable expressing cell lines for receptors cloned into pcDNA4/TO. HEK293TR cells were cultured in growth medium (DMEM, 10% FCS, 5 μg/mL blasticidin) in a 37 ⁰C humidified incubator with 5% CO2. Stable cell lines were generated by PEI transfection of pcDNA4/TO plasmids into HEK293TR cells. 24-48 hours after transfection, 20 μg/mL zeocin was incorporated into the growth medium until stable expressing, zeocin-resistant cell populations remained (2-4 weeks). To produce cells for membrane preparations, 1X T175 culture flask of confluent stable cells were treated with 1 μg/mL tetracycline for 48h to induce receptor expression. Following this, cells were lifted by trituration and centrifuged at 500 g for 10 minutes. Cell pellets were then frozen at −80 ⁰C until membranes were prepared.
Membrane preparations
HEK293TR cell pellets were resuspended in 20 mL of ice cold buffer (10 mM HEPES pH 7.4, 10 mM EDTA) and homogenised using a Ultra Turrax (Ika Work GmbH, Germany). The homogenised cell suspension was then centrifuged at 4 ⁰C for 5 minutes at 500 g to remove whole cells and large debris, and the remaining supernatant was then centrifuged twice at 4 ⁰C and 48,000 g for 30 minutes before the membrane pellet was resuspended in buffer (10 mM HEPES pH 7.4, 0.1 mM EDTA). Protein concentration of resuspended membranes was determined with using Pierce BCA Protein assay kit (ThermoFisher Scientific) and was adjusted to 3 – 10 mg/mL before being aliquoted and stored at −80 ⁰C.
ThermoBRET experiments
The CORE buffer for thermostability experiments contained 20 mM HEPES pH 7.5, 150 mM NaCl, 10% w/v glycerol, 0.5% w/v BSA. Cell membranes were diluted in CORE buffer to approximately 0.1 – 0.5 mg/mL total protein and were then centrifuged at 16,000 g for 60 minutes at 4 ⁰C to remove residual EDTA from the membrane preparation buffers. Membrane pellets were then resuspended in CORE buffer containing detergent, and samples were incubated at 4 ⁰C with gentle shaking for 1h to solubilise membranes. Detergent/CHS concentrations used were either 1% DDM, 1% DDM / 0.5 % CHAPSO / 0.3% CHS, 0.5% LMNG, or 0.5% LMNG / 0.5% CHAPSO / 0.3% CHS. Samples were then centrifuged again at 16,000 g for 60 minutes at 4 ⁰C to remove unsolubilised material, and the resulting supernatant containing detergent micelles was transferred to a fresh tube. These supernatants were then kept on ice for up to 48 hours during testing. For thermostability testing, solubilised receptors were diluted 10-fold in CORE buffer with the addition of 1 μM SCM and 20 μM of ligand (if used). This was incubated on ice for 15 minutes before being aliquoted across 96-well PCR plates and placed in the pre-cooled (4 °C) PCRmax Alpha Cycler 2 Thermal Cycler (Cole-Palmer Ltd, St. Neots, UK). Samples were then incubated at different temperatures for 30 minutes via a temperature gradient across the plate. Following rapid cooling of the samples to 4 ⁰C, samples were then transferred to white 384-well proxiplates (Perkin Elmer) containing furimazine at a final concentration of 10 μM. The plate was then read using a PHERAstar FSX plate reader (BMG) at room temperature and the 450BP80/550LP filter module. Measurements were performed in singlet for each temperature point. Whole cell experiments (10 million cells/mL of 1% DDM) were performed essentially as described above but receptor solubilisation was performed in the presence of protease inhibitor cocktail (cOmpleteTM mini EDTA-free Protease Inhibitor cocktail (Roche)).
Nluc and tsNluc expression and purification
NiCo21(DE3) chemically competent E. coli were transformed with pJ411 bacterial expression plasmids and plated onto LB/agar plates containing 2% w/v glucose and 50 µg/mL kanamycin. After incubation at 37 °C for 16-24 hours, a single colony was picked to inoculate 20 mL of terrific broth containing 0.2% w/v glucose and 50 µg/mL kanamycin. After 16-24 hours in a shaking incubator set at 37 ⁰C, 15 mL of overnight culture was added to 3 L of terrific broth containing 0.2% w/v glucose and 50 µg/mL kanamycin, grown in a shaking incubator at 37 ⁰C until OD600 of 0.7-1, when 500 μM of isopropyl-β-D-thiogalactopyranoside (IPTG; VWR Chemicals) was added to induce protein expression. Cells were then grown overnight (16-20 hours) at 25 ⁰C in a shaking incubator before being harvested by centrifugation and frozen at −80 ⁰C. Cell pellets were then thawed on ice, and resuspended in 100 mL lysis buffer (100 mM Tris pH 7.5, 300 mM NaCl, 0.25 mg/mL chicken lysozyme, 1 µg/mL bovine DNAse I, 4 mM MgCl2, and 3 cOmpleteTM mini EDTA-free Protease Inhibitor cocktail tablets (Roche)). After 1h on ice in lysis buffer, cells were then lysed further by French press. Cell lysates were then clarified by centrifugation at 25,000 rcf for 30 minutes and then by passing through a 0.45 μm syringe filter. The His-tagged proteins from the resulting lysate were then purified using a 5mL HiTrap TALON Crude column on an ÄKTA start protein purification system (Cytiva Life Sciences) and eluted with 150 mM imidazole. Elution fractions were analysed by SDS-PAGE and fractions which contained no visible contaminants proteins were pooled together. Protein concentration was determined by A280 measurement on a Denovix DS-11 FX series spectrophotometer assuming the calculated molar extinction coefficient (ε280) of 26,930 mol-1.cm-1 for both proteins.

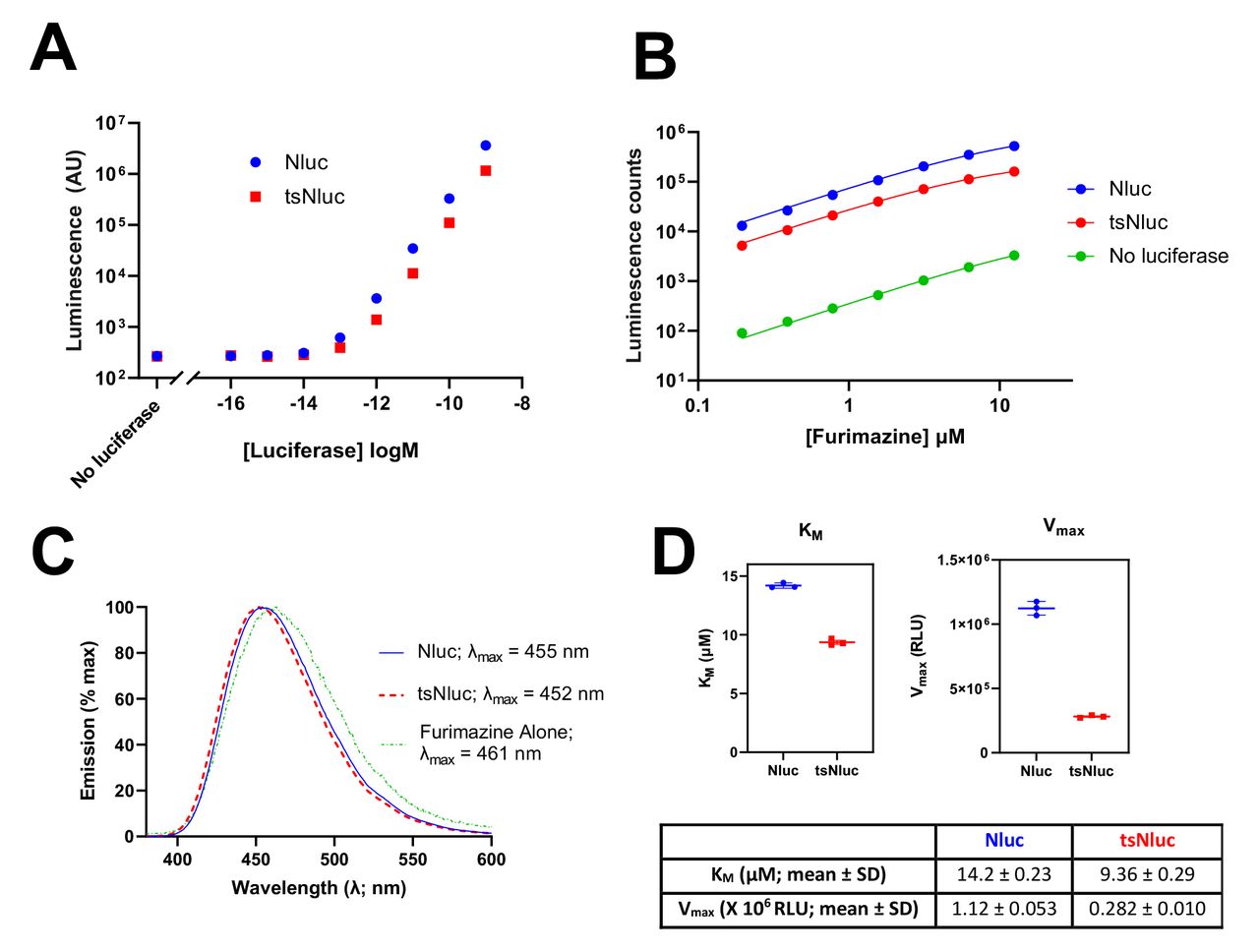

Luminescence activity thermostability experiments
Purified Nluc and tsNluc proteins were serially diluted from around 200 μM down to 100 pM in CORE buffer. Proteins were then aliquoted across 96-well PCR plates (100 μL per well) and placed in the pre-cooled (4 °C) PCRmax Alpha Cycler 2 Thermal Cycler (Cole-Palmer Ltd, St. Neots, UK). Samples were then incubated at different temperatures for 30 minutes via a temperature gradient across the plate. Following rapid cooling to 4 ⁰C, 85 μL of samples were then transferred to white 96 well plates (Perkin Elmer) containing 15 μL of diluted furimazine to a final concentration of 10 μM. After 30 seconds of gentle shaking, the luminescence intensity was measured in a PHERAstar FSX plate reader at room temperature. Measurements were performed in triplicate for each temperature point, and three independent experiments were performed.
Curve fitting and data analysis
All curve fitting and data manipulation was performed using GraphPad Prism 8. For ThermoBRET measurements, NanoBRET ratio was defined as the 550LP emission divided by the 450BP80 emission. In situations in which the NanoBRET ratio decreased at high temperatures (presumably due to protein aggregation and loss of signal), the data was manually truncated after the highest point. Data was then normalised to the upper (100%) and lower (0%) datapoints and fitted using a Boltzmann sigmoidal equation constrained to upper and lower values of 0% and 100%. For luminescence thermostability measurements, unfiltered luminescence was normalised to the top point of the dataset and fitted using a Boltzmann sigmoidal equation with no constraints.
Data availability statement
All data used to support the conclusions are included in the paper. Raw numerical data can be obtained by contacting the corresponding authors.
Acknowledgements
AK was funded by a COMPARE team science summer studentship (2019) awarded to BH. This research was supported by COMPARE funding to DBV. We would like to thank Uwe Grether for supplying the CB1 antagonist rimonabant.
Declaration of interests
D.A.S and D.B.V are founders and directors of Z7 Biotech Ltd, an early-stage drug discovery contract research company. All other authors declare no conflict of interest.
Supplementary Information 1: Amino acid sequences of expression constructs used in this study
> pcDNA4/TO SigPep-TwinStrep-Nluc-CB2
MRLCIPQVLLALFLSMLTGPGEGSASDIGAPAFKSVQTGEFTAAAGSAWSHPQFEK GGGSGGGSGGSAWSHPQFEKGSGGSEDLMVFTLEDFVGDWRQTAGYNLDQVLE QGGVSSLFQNLGVSVTPIQRIVLSGENGLKIDIHVIIPYEGLSGDQMGQIEKIFKVVYP VDDHHFKVILHYGTLVIDGVTPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDE RLINPDGSLLFRVTINGVTGWRLCERILAPAGTMEECWVTEIANGSKDGLDSNPMK DYMILSGPQKTAVAVLCTLLGLLSALENVAVLYLILSSHQLRRKPSYLFIGSLAGADF LASVVFACSFVNFHVFHGVDSKAVFLLKIGSVTMTFTASVGSLLLTAIDRYLCLRYPP SYKALLTRGRALVTLGIMWVLSALVSYLPLMGWTCCPRPCSELFPLIPNDYLLSWLL FIAFLFSGIIYTYGHVLWKAHQHVASLSGHQDRQVPGMARMRLDVRLAKTLGLVLA VLLICWFPVLALMAHSLATTLSDQVKKAFAFCSMLCLINSMVNPVIYALRSGEIRSSA HHCLAHWKKCVRGLGSEAKEEAPRSSVTETEADGKITPWPDSRDLDLSDC*
> pcDNA4/TO SigPep-TwinStrep-Nluc-β2AR
MRLCIPQVLLALFLSMLTGPGEGSASDIGAPAFKSVQTGEFTAAAGSAWSHPQFEK GGGSGGGSGGSAWSHPQFEKGSGGSEDLMVFTLEDFVGDWRQTAGYNLDQVLE QGGVSSLFQNLGVSVTPIQRIVLSGENGLKIDIHVIIPYEGLSGDQMGQIEKIFKVVYP VDDHHFKVILHYGTLVIDGVTPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDE RLINPDGSLLFRVTINGVTGWRLCERILAPAGTMGQPGNGSAFLLAPNGSHAPDHD VTQQRDEVWVVGMGIVMSLIVLAIVFGNVLVITAIAKFERLQTVTNYFITSLACADLV MGLAVVPFGAAHILMKMWTFGNFWCEFWTSIDVLCVTASIETLCVIAVDRYFAITSP FKYQSLLTKNKARVIILMVWIVSGLTSFLPIQMHWYRATHQEAINCYANETCCDFFT NQAYAIASSIVSFYVPLVIMVFVYSRVFQEAKRQLQKIDKSEGRFHVQNLSQVEQDG RTGHGLRRSSKFCLKEHKALKTLGIIMGTFTLCWLPFFIVNIVHVIQDNLIRKEVYILLN WIGYVNSGFNPLIYCRSPDFRIAFQELLCLRRSSLKAYGNGYSSNGNTGEQSGYHV EQEKENKLLCEDLPGTEDFVGHQGTVPSDNIDSQGRNCSTNDSLL*
> pcDNA4/TO SigPep-TwinStrep-Nluc-CB1(91-472)#
MRLCIPQVLLALFLSMLTGPGEGSASDIGAPAFKSVQTGEFTAAAGSAWSHPQFEK GGGSGGGSGGSAWSHPQFEKGSGGSEDLMVFTLEDFVGDWRQTAGYNLDQVLE QGGVSSLFQNLGVSVTPIQRIVLSGENGLKIDIHVIIPYEGLSGDQMGQIEKIFKVVYP VDDHHFKVILHYGTLVIDGVTPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDE RLINPDGSLLFRVTINGVTGWRLCERILAPAGTENEENIQCGENFMDIECFMVLNPS QQLAIAVLSLTLGTFTVLENLLVLCVILHSRSLRCRPSYHFIGSLAVADLLGSVIFVYS FIDFHVFHRKDSRNVFLFKLGGVTASFTASVGSLFLTAIDRYISIHRPLAYKRIVTRPK AVVAFCLMWTIAIVIAVLPLLGWNCEKLQSVCSDIFPHIDETYLMFWIGVTSVLLLFIV YAYMYILWKAHSHAVRMIQRGTQKSIIIHTSEDGKVQVTRPDQARMDIRLAKTLVLIL VVLIICWGPLLAIMVYDVFGKMNKLIKTVFAFCSMLCLLNSTVNPIIYALRSKDLRHAF RSMFPSCEGTAQPLDNSMGDSDCLHKHANNAASVHRAAESCIKSTVKIAKVTMSV STDTSAEAL*
> pcDNA4/TO SigPep-TwinStrep-tsNluc-CB2
MRLCIPQVLLALFLSMLTGPGEGSASDIGAPAFKSVQTGEFTAAAGSAWSHPQFEK GGGSGGGSGGSAWSHPQFEKGSGGSEDLMVFTLEDFVGDWEQTAAYNLDQVLE QGGVSSLLQNLAVSVTPIQRIVRSGENALKIDIHVIIPYEGLSADQMAQIEEVFKVVYP VDDHHFKVILPYGTLVIDGVTPNMLNYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDE RLITPDGSMLFRVTINGVSGWRLFKKISPAGTMEECWVTEIANGSKDGLDSNPMKD YMILSGPQKTAVAVLCTLLGLLSALENVAVLYLILSSHQLRRKPSYLFIGSLAGADFLA SVVFACSFVNFHVFHGVDSKAVFLLKIGSVTMTFTASVGSLLLTAIDRYLCLRYPPSY KALLTRGRALVTLGIMWVLSALVSYLPLMGWTCCPRPCSELFPLIPNDYLLSWLLFI AFLFSGIIYTYGHVLWKAHQHVASLSGHQDRQVPGMARMRLDVRLAKTLGLVLAVL LICWFPVLALMAHSLATTLSDQVKKAFAFCSMLCLINSMVNPVIYALRSGEIRSSAHH CLAHWKKCVRGLGSEAKEEAPRSSVTETEADGKITPWPDSRDLDLSDC*
> pJ411 His-TEV-Nluc
MKKHHHHHHHHHHENLYFQGGSVFTLEDFVGDWRQTAGYNLDQVLEQGGVSSLF QNLGVSVTPIQRIVLSGENGLKIDIHVIIPYEGLSGDQMGQIEKIFKVVYPVDDHHFKV ILHYGTLVIDGVTPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLINPDGSL LFRVTINGVTGWRLCERILA*
> pJ411 HIS-TEV-TsNluc MKKHHHHHHHHHHENLYFQGGSVFTLEDFVGDWEQTAAYNLDQVLEQGGVSSLL QNLAVSVTPIQRIVRSGENALKIDIHVIIPYEGLSADQMAQIEEVFKVVYPVDDHHFKV ILPYGTLVIDGVTPNMLNYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLITPDGS MLFRVTINGVSGWRLFKKIS*
Supplementary Information 2: Amino acid alignment of Nluc and tsNluc

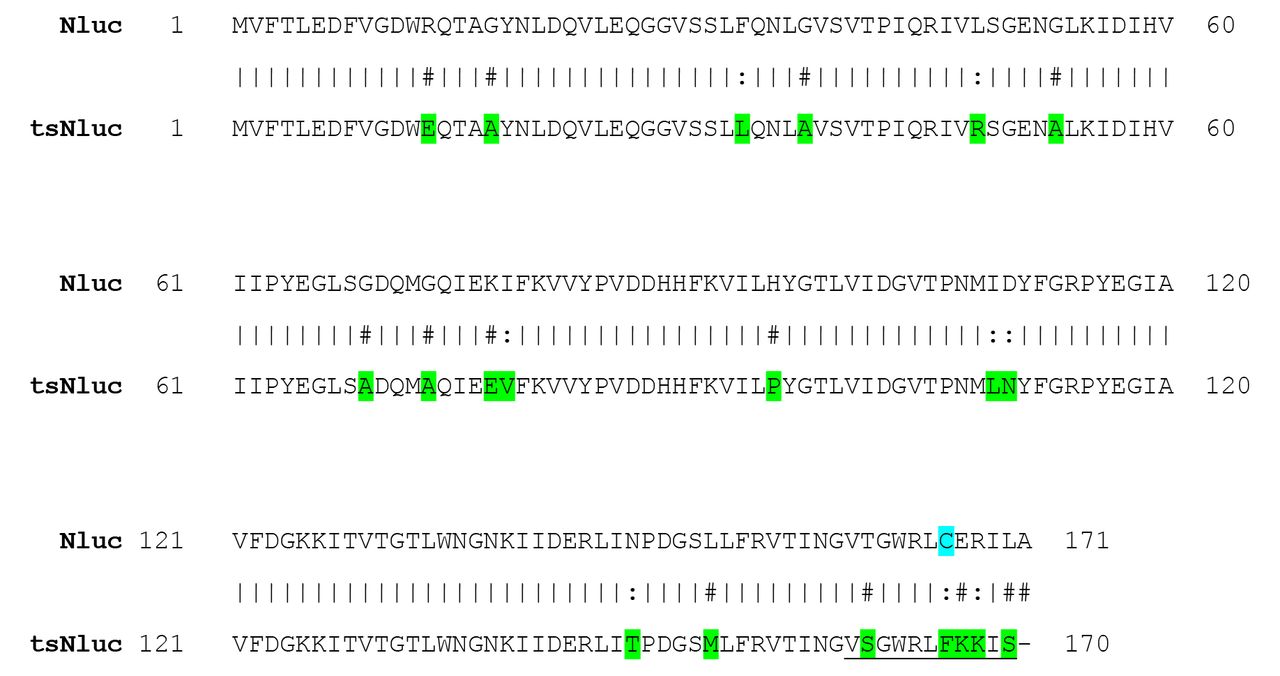

Amino acid alignment of Nluc and tsNluc. The split Nanoluciferase fragment sequences of LgBit and HiBiT (VSGWRLFKKIS) were joined to create tsNluc. Residues shaded green show mutations of tsNluc from the Nluc sequence. Note the C166F mutation which results in tsNluc containing no cysteine residues.
