The acquisition of rmpADC can increase virulence of classical Klebsiella pneumoniae in the absence of other hypervirulence-associated genes
Department of Microbiology and Immunology, University of North Carolina School of Medicine, Chapel Hill, North Carolina, USA
Department of Infectious Diseases, School of Translational Medicine, Monash University, Melbourne, Australia
Department of Infection Biology, London School of Hygiene and Tropical Medicine, London, UK
Department of Genetics, University of North Carolina School of Medicine, Chapel Hill, North Carolina, USA
‡Co-corresponding authors: Corresponding Authors: Virginia L. Miller, vlmiller@med.unc.edu; Kimberly A. Walker, Kimberly_walker@med.unc.eduABSTRACT
Klebsiella pneumoniae is one of the most common causes of nosocomial infections, and the rise of drug-resistant K. pneumoniae strains is complicating treatment and contributing to a mounting global health crisis. K. pneumoniae has two pathotypes, classical (cKp) and hypervirulent (hvKp). CKp typically cause opportunistic infections in immunocompromised individuals in healthcare settings and often are multi-drug resistant. HvKp can be community acquired and cause high-mortality infections in immunocompetent individuals. Concerningly, antibiotic-resistant cKp strains with hypervirulence-associated genes and traits have recently emerged. Determining if and how hv-associated genes contribute to increased virulence of cKp strains is essential to addressing this growing threat. The rmpADC operon is an hv-associated locus that confers hypermucoviscosity (HMV), a key virulence phenotype, and rmp genes are often found in convergent strains. In this study, we aimed to determine if the rmp genes alone could increase the virulence of classical strains in the absence of other hv-associated genes. We introduced genetically distinct rmp loci from different lineages into a broad array of cKp isolates and found that, while many isolates became HMV positive, only a subset of these strains showed an increase in virulence in a mouse model of pneumonia. Sequence type and capsule type were not predictive of how rmp acquisition impacted the clinical isolates. Our results indicate that HMV is likely necessary but not sufficient for hypervirulence and that rmp sequence can influence virulence potential in classical strains.
IMPORTANCE
Klebsiella pneumoniae is a global pathogen, and gene exchange between hypervirulent (hvKp) and classical (cKp) strains is a rising threat. It is essential to understand how hvKp genes impact virulence phenotypes and identify the cKp strain backgrounds most amenable to enhanced virulence. Hypermucoviscosity (HMV) is a critical virulence factor in hypervirulent K. pneumoniae, conferred by the rmpADC locus. The rmp genes are encoded on mobile genetic elements and have been detected in convergent antibiotic-resistant K. pneumoniae strains of concern. In this study, we explored the impact of rmp acquisition in a broad set of classical clinical isolates. We observed that HMV appears necessary, but not sufficient, for increased virulence. Sequence type, capsule type, and HMV capacity could not predict which classical isolates gain an rmp-dependent colonization benefit. These insights increase our understanding of the distinctions between cKp and hvKp and further our ability to identify and treat new strains of concern.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
INTRODUCTION
Klebsiella pneumoniae is one of the most common causes of hospital-acquired pneumonia and a global pathogen of growing concern. K. pneumoniae can cause a wide variety of diseases, including bacteremia, meningitis, urinary tract infections, and liver abscesses, and it is a major cause of neonatal sepsis [1, 2]. These infections are often difficult to treat because many K. pneumoniae strains have acquired resistance to multiple antibiotics [3–7]. K. pneumoniae contributes to a larger problem: the US Centers for Disease Control and Prevention has deemed the increase in β-lactam-resistant and carbapenem-resistant Enterobacteriaceae to be serious and urgent issues, respectively [8], and the World Health Organization included drug-resistant K. pneumoniae on its 2024 Bacterial Priority Pathogens List [9].
K. pneumoniae is broadly divided into two pathotypes, classical and hypervirulent [1, 10]. Classical strains (cKp) are often multi-drug resistant (MDR) and typically cause nosocomial infections in immunocompromised individuals. Hypervirulent strains (hvKp) are community acquired and can cause life-threatening infections in immunocompetent individuals. While these populations are distinct, both have spread globally [11, 12]. Concerningly, horizontal gene transfer between hvKp and cKp strains has given rise to convergent K. pneumoniae strains that are both MDR and hypervirulent [13–15]. Convergence occurs when cKp strains acquiring hypervirulence-associated mobile genetic elements or when hvKp strains acquiring resistance to antibiotics [16–18]. The ongoing threat of strain convergence highlights the need to better understand which hv-associated genes confer hypervirulent phenotypes.
K. pneumoniae is a highly diverse species, with a pangenome of at least thirty thousand genes [19]. K. pneumoniae populations move fluidly between natural and healthcare environments, and a wide variety of strains are capable of causing invasive disease [13, 20].The genetic determinants of virulence and hypervirulence are still not fully understood and the genetic diversity of this species complicates identification efforts [21]. Known K. pneumoniae virulence factors include lipopolysaccharide (LPS), type 1 and type 3 pili, a polysaccharide capsule, and siderophores, all of which are typically present in both classical and hypervirulent strains [1]. Classical strains universally produce enterobactin, and approximately 40% also produce yersiniabactin [22, 23]. HvKp strains are distinguished from cKp strains by producing additional siderophores, including salmochelin and aerobactin, and exhibiting hypermucoviscosity (HMV), although these traits alone do not define hvKp [24]. HMV is a capsule-dependent phenotype characterized by uniform and abundant capsule polysaccharides [25]. HMV-positive strains are typically string-test positive, although HMV is regularly assessed with the more quantitative sedimentation resistance assay [1, 26]. HMV blocks phagocytosis by macrophages, but it is unclear how it might otherwise affect virulence [27, 28].
The HMV phenotype is conferred by the rmpADC operon and appears essential for full virulence of hvKp strains [27, 29–32]. RmpA is a transcriptional regulator with a LuxR-like DNA binding domain that auto-regulates the rmp promoter [33–35]. RmpD is a small protein that interacts with capsule export machinery to confer the HMV phenotype [27]. RmpC, another regulator with a LuxR-like DNA binding domain, increases capsule production [34]. Deletion of any of the three rmp genes severely attenuates mouse lung colonization in a pneumonia model [27, 34]. HMV-negative rmpD and rmpA mutants both fail to establish infections in mouse lungs. The HMV-positive rmpC mutant is readily cleared, but at a slower pace than the HMV-negative mutants.
The rmp genes, along with other virulence-associated genes of known and unknown function, are present on large virulence plasmids and mobile chromosomal elements [36]. There are five distinct lineages of rmpADC associated with unique plasmids or chromosomal elements: rmp1, rmp2, rmp2A, rmp3, and rmp4 [37]. Representative loci from all five lineages have demonstrated functional capacity in KPPR1S, a well-characterized hvKp strain harboring an rmp3 locus in the chromosomally integrated ICEKp1. Expression of rmp loci from all five lineages significantly increased capsule production in a KPPR1S Δrmp3 mutant, and all but the rmp4 locus fully restored HMV [37].
Given the rising threat of convergent K. pneumoniae strains, it is important to determine which hv-associated genes are sufficient to affect the virulence of classical strains and which classical strain genetic backgrounds might pose the highest risk for problematic convergent phenotypes. The large mobile genetic elements (MGEs) that distinguish hvKp from cKp contain numerous genes, but only a few have been explicitly linked to virulence. The rmp locus has long been associated with hypervirulence, and a fully intact and functional rmpADC gene set has proven essential for full virulence in multiple mouse models [1, 27, 31, 34]. While the rmp genes have been identified in convergent strains [38], their role in virulence has mostly been characterized within hvKp. In this study, we sought to determine if rmp is sufficient to impact the virulence of classical strains. To this end, we analyzed the effects of rmp expression in a wide array of genetically distinct classical clinical isolates using in vitro assays and a murine pneumonia model. Here, we report that rmp acquisition alone can promote HMV, confer hypercapsule, and increase the virulence of select cKp isolates, but the impact on virulence varies by strain background. Additionally, rmp lineage and cKp genetic background contribute to rmp-dependent virulence changes in classical strains.
RESULTS

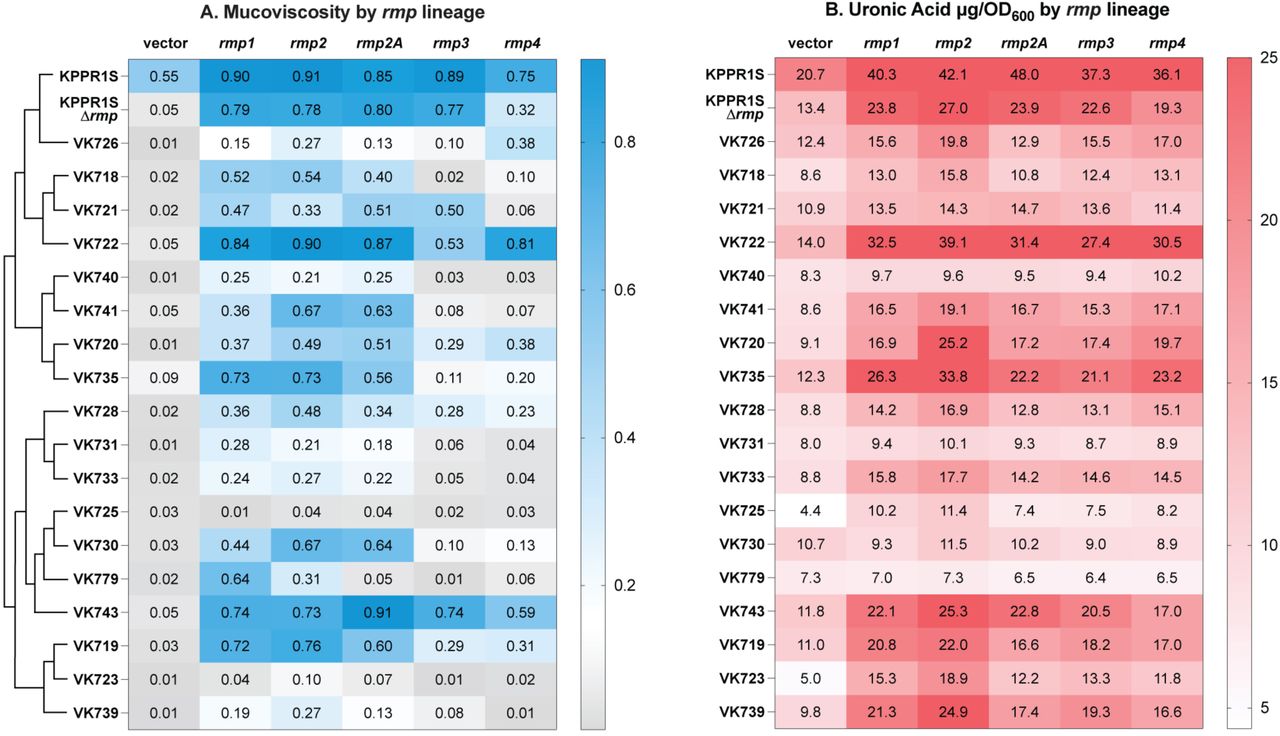

Ectopic rmp expression in classical strains confers varied HMV levels
The rmp genes confer two well-characterized phenotypes associated with hypervirulence, HMV and increased capsule production (hypercapsule) [27, 29, 34]. We set out to determine if the rmp genes are sufficient to confer these phenotypes in multiple cKp isolates, and to ascertain if there are any functional differences across rmp lineages. To this end, we transformed a diverse set of eighteen cKp isolates with low copy plasmids containing a representative rmp locus from each of the five lineages (rmp1, rmp2, rmp2A, rmp3, and rmp4) under the control of an inducible promoter, along with a vector control. Each clinical isolate is a unique combination of sequence type (ST) and capsule locus type (KL), and the strain set included ten STs and seventeen KL types (Table 2, Fig. S1). KPPR1S, a hypervirulent ST493 K2/O1 isolate with an rmp3 locus, was used as a reference strain. HMV was assessed after rmp expression was induced (Figs. 1A, S2). In this assay, liquid cultures of HMV-negative strains easily sediment during low-speed centrifugation; HMV-positive cultures resist sedimentation.
We previously observed that in KPPR1SΔrmp3, rmp expression from the rmp1, rmp2, rmp2A, and rmp3 lineages all conferred elevated HMV levels (included in Fig. 1, S2) [37]. However, expression of rmp4 conferred a significantly lower level of HMV compared to the other lineages. We concluded that all rmp loci have some capacity to confer the HMV phenotype. When these same rmp plasmids were expressed in the cKp isolates, the changes in sedimentation resistance were much more varied (Figs. 1A, S2). Five strains became HMV positive in response to all rmp lineages, while eleven only responded to a subset of rmp lineages. Two strains did not exhibit HMV. Despite the variability, some patterns emerged. Expression of rmp1 and rmp2 converted more cKp strains to HMV-positive than the other lineages. In general, rmp1 and rmp2 conferred higher HMV levels than the other lineages, although this was not true for every isolate. Expression of rmp3 and rmp4 loci had less of an effect in the cKp strains than that of the other three lineages. Several isolates, such as VK718, VK733, VK739 and VK740, became HMV positive when rmp1, rmp2, and rmp2A were expressed, but not when rmp3 or rmp4 were expressed. Four strains became HMV positive from either rmp3 or rmp4 expression, but not both. While rmp3 is the most divergent lineage of the five [37], the finding that both rmp3 and rmp4 converted fewer strains to HMV positive suggests that these patterns of mucoviscosity are not fully explained by the evolutionary relationships between rmp loci or between strains. These observations were validated by Pearson’s correlation analysis, which indicated a more positive correlation among HMV occurrence with rmp1/2/2A than rmp3/4. HMV occurrence with rmp4 had only moderately positive correlation with all the other loci (Fig. S3A).
Previously published work demonstrated that HMV-negative strains produce diverse capsule chain lengths, as visualized by a smear on polyacrylamide capsule gels, whereas HMV-positive strains show more uniform capsule chain lengths [25, 39]. To examine capsule (CPS) properties of cKp expressing the rmp genes, we isolated CPS from the same cultures we had assessed for HMV and performed capsule gel electrophoresis. The HMV-positive classical transformants all showed distinct bands that indicate uniformly sized CPS chains (modal bands), whereas the HMV-negative transformants showed smears indicating varied chain lengths (Fig. S2). The presence of a modal band also corresponded to a sedimentation resistance at or above the threshold 0.15 that was established to distinguish HMV positive from HMV negative [40]. The size of the modal bands varied from strain to strain but were consistent within each classical strain background, regardless of rmp source or HMV level. Together, these sedimentation resistance and CPS profiling data show that both rmp lineage and strain genetic background play a role in HMV status
Ectopic rmp expression confers hypercapsule independent of HMV
To determine if rmp expression in the cKp strains also resulted in hypercapsule, we assayed cKp transformants described above for capsule production by quantifying uronic acid (UA) (Figs. 1B, S1). We found that rmp expression from all lineages increased capsule production independent of HMV status. In fact, rmp expression conferred hypercapsule in most isolates, including two that did not become hypermucoviscous with any rmp locus (VK723 and VK725). Pearson’s correlation analysis showed no correlation between HMV and UA levels (Fig. S3A). Overall, these results are consistent with previous reports that HMV and capsule production are separable traits [27, 34, 41], and further show that both strain background and rmp lineage play a role in CPS phenotypes. As there did not appear to be any correlation between HMV and UA phenotypes within each strain or between which strains became HMV positive, we performed a principal component analysis (Fig. S3B). This showed the isolates were scattered over the plot area and validated that the data presented in Figs. 1 and S2 cannot be easily explained by evolutionary relatedness.

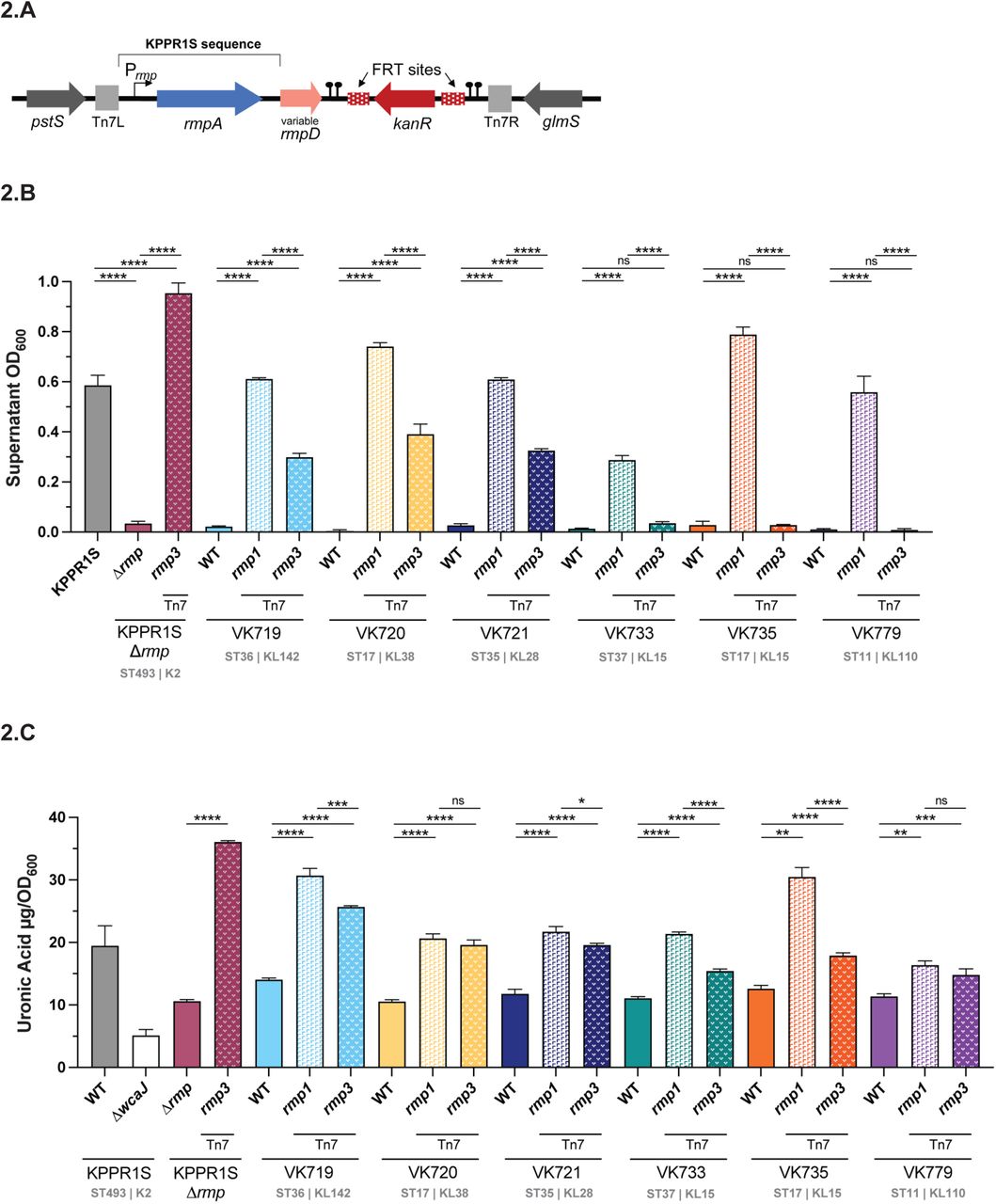

Chromosomal rmp integration with native promoter validates role of rmp lineage
Having demonstrated that cKp isolates exhibit hv-associated phenotypes in response to the ectopic expression of rmp, we wanted to explore the effects of rmp acquisition on virulence. To circumvent the challenges of using inducible promoters and use of plasmid-borne genes in vivo, we opted to utilize the Tn7 system to introduce rmp operons with native promoters onto the chromosomes of a diverse subset of cKp isolates (Fig 2A). Two representative rmp loci were selected for integration based on their distinct effects on cKp isolates, the rmp1 locus from SGH10 and the rmp3 locus from KPPR1S. Both rmp1 and rmp3 loci have been detected in multiple clonal groups [42]. The rmp1 lineage is particularly clinically relevant, as it is the most frequently found rmp lineage in hypervirulent isolates and is located on KpVP-1, the dominant K. pneumoniae virulence plasmid [43]. KpVP-1 has also been stably maintained in convergent strains of concern [37, 44, 45]. The rmp3 lineage, which is found on the ICEKp1 element, is the most divergent from the other rmp lineages [37]. The recipient cKp isolates were selected because they all differentially responded to the ectopic expression of rmp loci; while rmp1 expression conferred HMV and hypercapsule to every selected strain, the effects of rmp3 expression were more variable. The chosen isolates include diverse sequence types and capsule loci, and were isolated from a variety of infection sources (Table 2, Table S2).
The rmp integrants were evaluated for HMV and capsule production as described above (Figs. 2B, 2C). In general, single copy chromosomal integration of rmp loci in the cKp strains conferred the same pattern of HMV and UA phenotypes as ectopic expression of rmp loci shown in Fig. 1. Integration of rmp1 converted all six isolates to HMV positive, while rmp3 integration converted three isolates to HMV positive. Both lineages increased capsule production in all six strains. As a control, we integrated rmp3 at the Tn7 site of the KPPR1SΔrmp3 mutant and found this strain showed higher levels of HMV and UA than its wildtype parent. This change in genetic location could impact expression due to differences in supercoiling or other rmp regulatory mechanisms. In general, the differential effects of rmp1 and rmp3 integration were less distinct in the capsule data compared to the HMV data. While rmp1 integration conferred universally higher levels of HMV, rmp1 and rmp3 both increased capsule production to similar levels in most strains. Together, these data illustrate that rmp lineage can impact virulence-associated phenotypes in cKp.

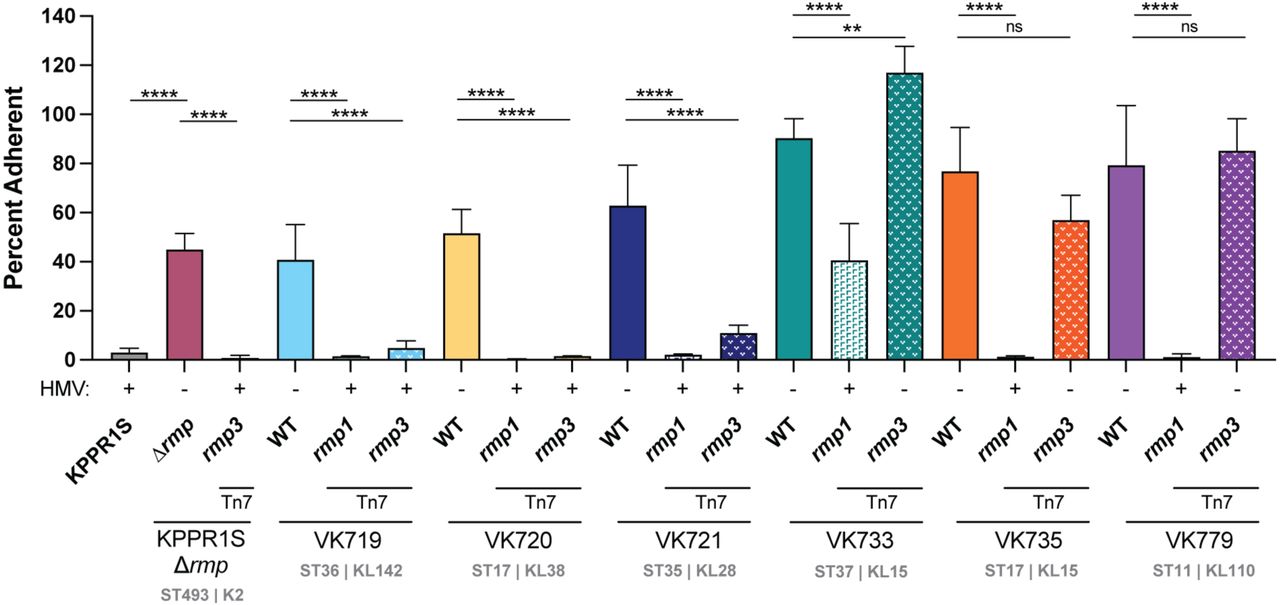

HMV correlates with hv-associated immune evasion phenotypes
HMV has been shown to reduce adherence to mammalian cells and to block phagocytosis by macrophages, which could contribute to immune evasion [27, 46]. To determine if rmp acquisition by cKp alters interactions with host cells we performed an adherence assay with the macrophage-like J774A.1 cell line for the panel of isolates with chromosomally integrated rmp1 and rmp3. For each strain tested, adherence was inversely correlated with HMV level (Fig. 3). HMV-positive rmp integrants adhered at significantly lower levels than their HMV-negative parental strains. Adherence and internalization data typically display similar patterns, as blocking adherence and resisting phagocytosis are both HMV-dependent processes. We tested a subset of our cKp rmp integrants to determine if rmp integration impacted phagocytosis resistance. As expected, HMV-positive integrants were more resistant to internalization than their parental strains (Fig. S4).

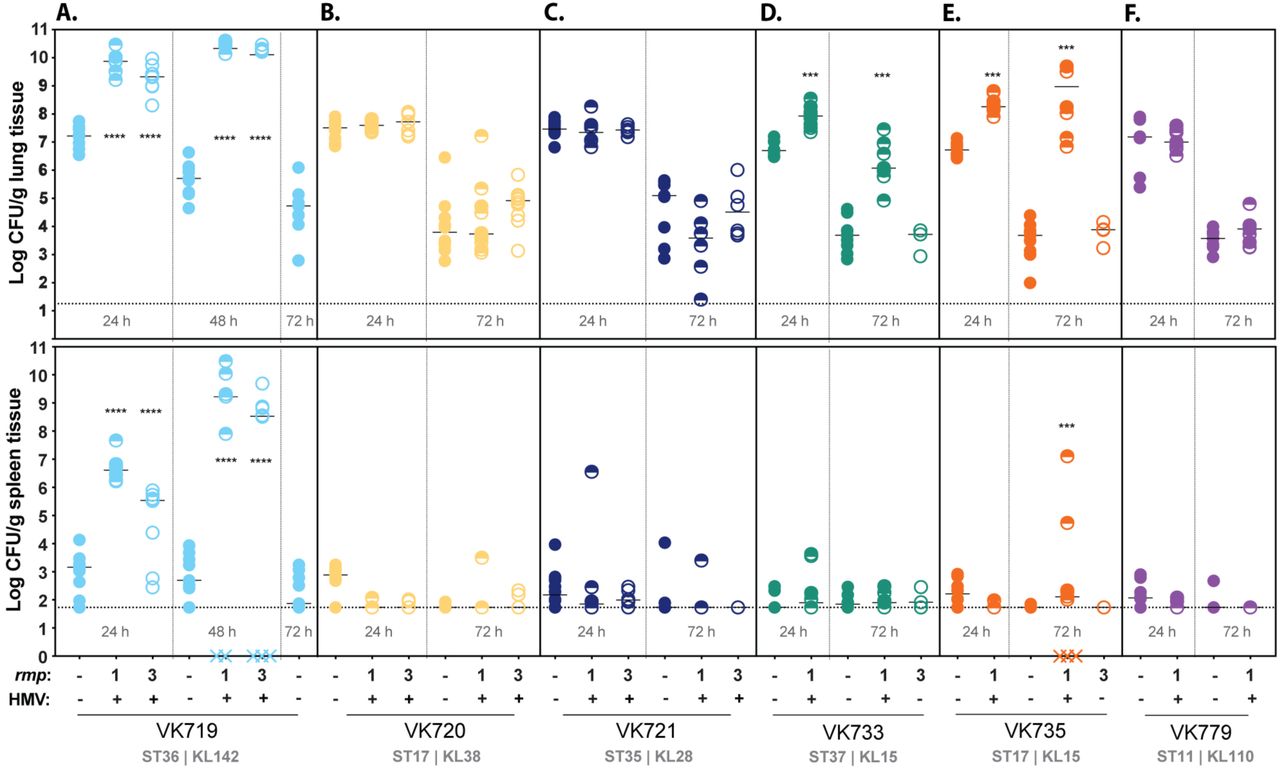

HMV enhances virulence of some, but not all, classical strains
The acquisition of hypervirulence-associated genes and their associated phenotypes can potentially alter the virulence of classical strains, but it is unknown which genes are sufficient to increase virulence [44, 47–49]. Having established that rmp integration confers HMV and hypercapsule in many classical isolates, we wanted to investigate whether rmp acquisition increases virulence in a pneumonia model. Based on previous experiments with HMV-positive and HMV-negative strains, and the cell adherence data described above, we predicted that HMV-positive rmp integrants would have an increased ability to colonize mouse lungs and to disseminate to internal organs compared to their parental cKp strains. To test this, we inoculated mice intranasally with 2 x 107 CFU of bacteria, then collected lungs and spleens at 24 and 72 hours post infection (hpi) to measure the bacterial burden.
In this pneumonia model, the parental clinical isolates all colonized similarly to each other at 24 hpi and bacterial burdens were appreciably lower by 72 hpi (Fig. 4). However, the colonization of HMV-positive rmp integrants varied substantially. We first tested VK719, VK720, and VK721 strains and their isogenic integrants, as these three cKp backgrounds are HMV positive with both rmp1 and rmp3 integration. This set of six HMV-positive strains all displayed high levels of sedimentation resistance and did not adhere to cells in culture, but only the VK719 rmp integrants caused disease in the pneumonia model (Fig. 4A). VK719rmp1 and VK719rmp3 both showed a significant increase in colonization in the lung compared to VK719 at 24 hpi. By 48 hpi, these strains had established severe infections that had spread to internal organs. The bacterial burden of the HMV-positive rmp integrants in the lung was approximately five logs higher than that of the VK719 parental strain. In contrast, the HMV-positive VK720 and VK721 integrants showed no change in colonization compared to their HMV-negative parental strains (Fig 4B, 4C).
Having observed that HMV gain alone was not predictive of enhanced virulence, we expanded our colonization experiment to include additional integrants to determine if this observation was more generalizable. Three cKp isolates, VK733, VK735, and VK779, are HMV positive with rmp1 integration, but not with rmp3. Given their limited capacity to become HMV positive, we were unsure how they would behave in vivo.
VK733rmp1 and VK735rmp1 both showed a significant increase in colonization compared to their parental strains at 24 and 72 hpi (Fig. 4D, 4E). Neither strain colonized as robustly as VK719rmp1 or VK719rmp3, however, and while VK735rmp1 spread to spleens, VK733rmp1 did not. This suggests that rmp lineage can impact virulence through conferring HMV: HMV-positive VK733rmp1 and VK735rmp1 were virulent, while HMV-negative VK733rmp3 and VK735rmp3 were not. Finally, HMV-positive VK779rmp1 was found to be avirulent (Fig. 4F). This further illustrates that HMV gain is not sufficient to increase virulence. In looking at available strain features (Table S2), we did not find anything that was exclusively unique among the strains that showed increased virulence versus those that did not. However, we did note that all three of the strains that gained HMV-dependent virulence (VK719, VK733, and VK735) contained the yersiniabactin-encoding genes (ybt), whereas only one of the three avirulent strains (VK720) contained ybt (Table S2).
Given that the majority of HMV-positive rmp integrants did not display an increase in virulence, we wanted to assess if rmp gene expression in vivo could be a determining factor. We infected mice with VK719rmp3, VK720rmp3, and VK721rmp3, as in Fig. 4 and collected lungs at 24 hpi for RNA extraction and qRT-PCR. Transcripts for rmpA were detected in lung samples from mice infected with these three strains, but we could not confidently compare expression between strains (Fig. S5). While not definitive, this result suggests that rmp is expressed in vivo in both virulent and avirulent strains, and that the colonization differences among these integrants are likely due to factors other than rmp expression. Taken together, these data show that the HMV phenotypes of these isolates in vitro cannot predict virulence in vivo.

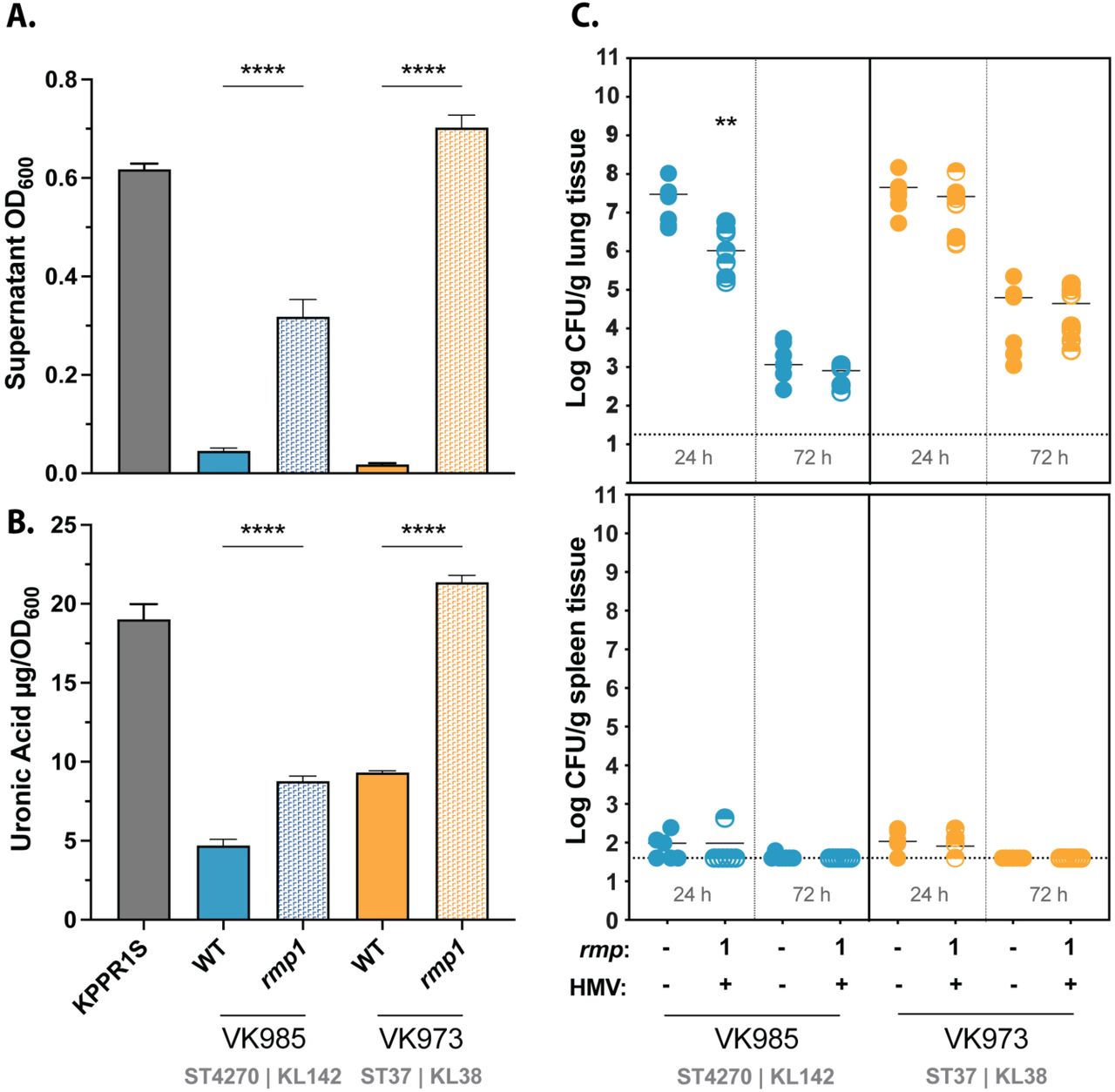

Capsule type does not predict rmp-dependent virulence
A recent study highlighted the importance of capsule type to K. pneumoniae virulence [50]. Given that HMV is dependent on capsule production, and our clinical isolates have highly diverse KL types, we decided to explore if capsule type might impact colonization phenotypes. We acquired additional clinical isolates with the same KL types as two of our original strains and integrated rmp1 onto their chromosomes (VK985 and VK973) [51]. VK719 (ST36) and VK985 (ST4270) are KL142, VK720 (ST17) and VK973 (ST37) are KL38, and all four strains were isolated from urinary samples. When assayed for sedimentation resistance and capsule production, both VK985rmp1 (KL142) and VK973rmp1 (KL38) were HMV positive and produced more CPS than their parental strains (Fig. 5). However, in our pneumonia model, we found that VK985rmp1 did not colonize lungs better than its parental strain, despite being the same KL type as one of the most virulent strains, VK719rmp1 (Fig. 5C). In fact, at 24 hpi VK985rmp1 was recovered from lungs at lower numbers than its parental strain. VK973rmp1 was also avirulent but behaved similarly to its parental strain. Though limited, these results suggest that KL type alone cannot predict rmp-dependent increases in virulence. These data further point to the importance of strain background to any rmp-dependent virulence changes.
DISCUSSION
The growing threat of Klebsiella pneumoniae strains that are both highly virulent and antibiotic-resistant presents an urgent need for a better understanding of how hv-associated genes confer hypervirulent phenotypes [16, 52]. The presence of five genes (rmpA, rmpA2, peg-344, iucA, and iroB), along with the HMV phenotype, are typically used to define hvKp [53]. While these biomarkers are often used to identify convergent strains, they are not always predictive of virulence. In a recent study of convergent isolates, several strains with at least one of these hv-associated genes did not display hypervirulence in a mouse model, implying that acquisition of these genes was not sufficient for hypervirulence [49]. However, one convergent strain demonstrated virulence potential on par with hvKp strains, and that isolate was the only HMV-positive strain tested [49]. Given the virulence variability, it was recently proposed to only define strains as hvKp if they have all five biomarkers or have been shown to be hypervirulent in an appropriate infection model [54].
In studies on the hvKp strain KPPR1S, the rmpADC locus and HMV are both required for full virulence in a lung infection model [27, 55]. This is consistent with recent work demonstrating that rmp genes have a strong impact on K. pneumoniae lethality in mice [55]. In this present study, we aimed to determine if rmpADC acquisition and HMV gain alone were sufficient to confer hypervirulence to cKp. While other studies have characterized convergent isolates that have several hv-associated genes, we focused on the impact of rmp-dependent HMV. By introducing different rmp loci into a broad set of cKp isolates, we were able to draw general conclusions about how these genes can affect virulence-associated phenotypes, as well as actual virulence. After characterizing a large collection of cKp strains with rmp genes from different lineages, we found that HMV-positive phenotypes observed in vitro are not predictive of increased virulence in the mouse pneumonia model.
We first surveyed eighteen classical clinical isolates transformed with low-copy plasmids expressing representative rmp loci from each of the five rmp lineages. We found that ectopically expressing rmp genes in these isolates conferred a variety of HMV and hypercapsule phenotypes, consistent with a previous characterization of rmp function in a single cKp isolate [56]. While rmp3 and rmp4 converted the fewest strains to HMV positive and rmp1 and rmp2 converted the most, there was no consistent pattern. Some classical strains responded to all rmp lineages, some responded to none, and several isolates responded in entirely unique ways. All HMV-positive integrants displayed a known property of HMV: more uniform CPS chain lengths. However, the molecular weight of CPS chain lengths varied widely across cKp strains, and the size of the modal band had no clear correlation with sedimentation resistance, HMV capacity, or virulence potential. The interaction of RmpD with Wzc, a conserved capsule biosynthesis protein involved in capsule polymerization and export, plays a role in the change in capsule chain length associated with HMV [25]. The wzc gene is strikingly diverse between different capsule loci [57], and rmpD varies across rmp lineages [37]. Given the wide variety of K types in our clinical isolates, it is not surprising that these diverse RmpD-Wzc pairings might impact HMV phenotypes.
We observed that rmp expression increased capsule production independent of HMV. This validates previous observations that HMV and elevated capsule production are separable traits [34], and shows that RmpC can affect capsule production in strains with a broad array of capsule types. Elevated capsule production is an rmpC-dependent phenotype [34], and therefore suggests that all three rmp genes were expressed in these strains. This supports the idea that varied HMV phenotypes shown in Fig. 1A could be due, at least in part, to functional RmpD differences rather than variation in expression. Interestingly, there is less diversity across rmpC genes than across rmpD genes [37]. The higher level of sequence similarities might explain the broader functionality of RmpC across the rmp loci tested. Together, the HMV and capsule data show that rmp lineage can influence the characteristics of hv-associated phenotypes in cKp.
To facilitate virulence studies, we integrated rmp1 or rmp3 onto the chromosomes of a subset of cKp isolates. HMV and capsule assays of these integrants validated the importance of rmp lineage, as rmp1 integration conferred higher HMV and UA levels in cKp isolates than rmp3. As observed with hvKp strains, HMV-positive cKp rmp integrants exhibited very low levels of adherence to mammalian cells, supporting previous data suggesting that HMV plays a role in immune evasion [27, 28]. When tested in a mouse pneumonia model, acquisition of rmp conferred a wide range of changes in virulence: VK719rmp1 and VK719rmp3 spread systemically and caused severe infections by 48 hpi, VK735rmp1 spread systemically and caused severe infections by 72 hpi, and VK733rmp1 established an infection, but did not spread to the spleen in the time frame tested. While the majority of rmp integrants showed colonization patterns identical to their parental strains, rmp acquisition, in the absence of other hv-associated genes, can confer a colonization benefit in the lung for some strains.
Although HMV did not strictly correlate with virulence in the pneumonia model, HMV proved to be a prerequisite for elevated colonization in this set of strains. None of the HMV-negative rmp integrants colonized mice any differently than their parental strain. This is a significant observation, because there are reports of strains that exhibit mucoidy phenotypes without carrying rmp [58, 59], and mutations in the capsule export gene wzc are known to independently confer HMV [39, 50, 60–64]. Our data suggest that any virulence changes resulting from those wzc mutations would be strain-dependent, as our results show that HMV does not necessarily enhance lung colonization. Determining the genetic requirements of HMV-dependent virulence will be essential to understanding which strain lineages pose the highest threat to human health.
Despite the phenotypic and genetic diversity of our cKp integrants, we have not identified traits that consistently correspond to in vitro or in vivo strain behavior. Sequence type (ST) does not appear to be predictive of either HMV conversion or virulence capacity. We characterized a pair of ST17 strains and a pair of ST35 strains, and both pairs showed varying levels of HMV and virulence capacity. We also tested an ST11 strain, VK779. ST11 is a sequence type associated with strain convergence, and ST11 strains maintaining KpVP-1 have been identified [44, 48, 65–67]. However, VK779 only became HMV positive with two of the five rmp lineages, and both the HMV-positive VK779rmp1 strain and its HMV-negative parent colonized mouse lungs to similar bacterial burdens and were readily cleared.
One genetic element that might influence the virulence potential of HMV-positive cKp integrants is the presence of yersiniabactin-encoding genes (ybt). Four of the eight clinical strain backgrounds we tested in mice have ybt genes, though they carry different alleles (Table S2) [23]. While all three of the strain backgrounds that exhibited elevated virulence contained ybt, only one of our three avirulent classical strain backgrounds (VK720) contained ybt (Table S2). Siderophore production is associated with virulence for both classical and hypervirulent strains [1]. Approximately 40% of classical strains carry yersiniabactin genes, and genomic surveys have demonstrated that ybt loci are more often detected in isolates associated with invasive infections [23]. Hypervirulent strains are much more likely to carry ybt, as well as genes encoding the additional virulence-associated siderophores salmochelin and aerobactin [22]. In hvKp studies, yersiniabactin and aerobactin mutants are attenuated in murine models of infection [68, 69]. In the hypervirulent KPPR1 strain, yersiniabactin was specifically shown to contribute to bacterial replication in murine respiratory tracts, in part by evading the host innate immune protein lipocalin 2 (LCN2) [70–72] However, in a recent study of convergent strains, the presence of yersiniabactin and aerobactin-encoding genes in HMV-negative strains did not appreciably affect virulence in a murine pneumonia model [49]. Collectively, these studies may indicate that both yersiniabactin and HMV are necessary for lung colonization. While our results show that ybt or HMV are not sufficient for enhanced virulence in every background, they may indicate that ybt plays a critical role in lung colonization in combination with HMV. The potential dual importance of both HMV and siderophore production to K. pneumoniae virulence, and the relationship between iron and rmp [73, 74], implies that HMV and metal acquisition could be linked. This strain set offers an opportunity to explore how ybt might contribute to HMV-dependent virulence.
As specific capsule types are associated with hypervirulent and convergent strains, we tested if capsule type could affect virulence potential. In our limited sampling, capsule type was not predictive of virulence potential. When we tested rmp integrants of the same KL142 type, they had different virulence patterns. It is important to note, however, that both isolates tested in Figure 5, VK985 (KL142) and VK973 (KL38), lack ybt genes, but their KL pairs tested in Figure 4 do contain ybt (Table S2)[51]. A more expansive study, including isogenic capsule swaps, will be needed to better understand how capsule type might influence HMV-dependent virulence capacity. A recent study demonstrated that hypervirulent strains become attenuated when the K1 or K2 cps locus is replaced with a K3 locus, highlighting the role of capsule type in determining virulence capacity [50]. The majority of identified hypervirulent strains have either a K1 or K2 capsule, and convergent strains also seem to be restricted to a limited number of capsule types. Reports of MDR-hvKp have included strains with K1, K2, K5, K16, K19, K20, K24, K47, K51, K54, K57, K62, K64, and KL108 capsules [10, 75]. Interestingly, one of the strains we tested that responded strongly to ectopic rmp expression was VK743, a KL64 strain (Figs. 1A, S1). While its native antibiotic resistances prevented further characterization, these data suggest that naturally occurring convergent strains may give us the best clues as to which genetic backgrounds are most primed for hypervirulence.
Overall, this study enhances our understanding of strain convergence and points to K. pneumoniae factors that, when combined with hypermucoviscosity, affect lung colonization. Given the strain diversity and phenotypic variability of our strain set, further examination of their genomes could reveal other determinants of lung colonization, and characterizing the role of ybt in both virulent and avirulent integrants might establish whether yersiniabactin promotes HMV-dependent virulence. Expanding the strain set to include Tn7 integrants with different combinations of rmp genes could also reveal how rmpD and rmpC separately contribute to virulence. Though this study provides insight into how classical strains can gain virulence, we cannot determine if these strain backgrounds would maintain virulence-associated mobile genetic elements in a natural environment. While we have demonstrated that strain background contributes to the effects of rmp expression, strain background also likely contributes to the dynamics of rmp maintenance and the acquisition of mobile virulence elements, as capsule type has been shown to influence plasmid conjugation [76]. More expansive studies are required to explore these questions due to the high genetic diversity of Klebsiella species.Further understanding the impact of the rmp genes on diverse genetic backgrounds is critical to addressing the threat of multi-drug resistant cKp strains that acquire virulence traits.
MATERIALS AND METHODS
Bacterial isolates
A diverse panel of cKp isolates was assembled from the Klebsiella Acquisition Surveillance Project at Alfred Health in Australia to include common clinical multidrug resistant (MDR) strain backgrounds (sequence types, STs) with a variety of capsule loci. Some capsule loci were specifically chosen for their association with emerging hypervirulence, and others because they are common human isolates but not MDR. The strains in this study all exhibited sensitivity to spectinomycin (to facilitate selection of transformants with pRmpADC), and the isolates chosen for virulence studies were also sensitive to kanamycin (to facilitate selection of Tn7rmp integrants). All isolates and relevant information are listed in Tables 2 and S2.
Bacterial growth conditions
All strains were grown aerobically at 37°C in Luria-Bertani (LB) medium (10 g tryptone, 5 g yeast extract, and 10 g NaCl per liter). Kanamycin at 50 μg/ml (Kan50), tetracycline at 10 μg/ml (Tet10), or spectinomycin at 50 μg/ml (Spec50) were added to media as appropriate. For the ectopic rmp expression assays using pMWO-078-based plasmids, 100 ng/ml anhydrous tetracycline (aTc) was added to the medium at the time of subculture.
Plasmid and strain construction

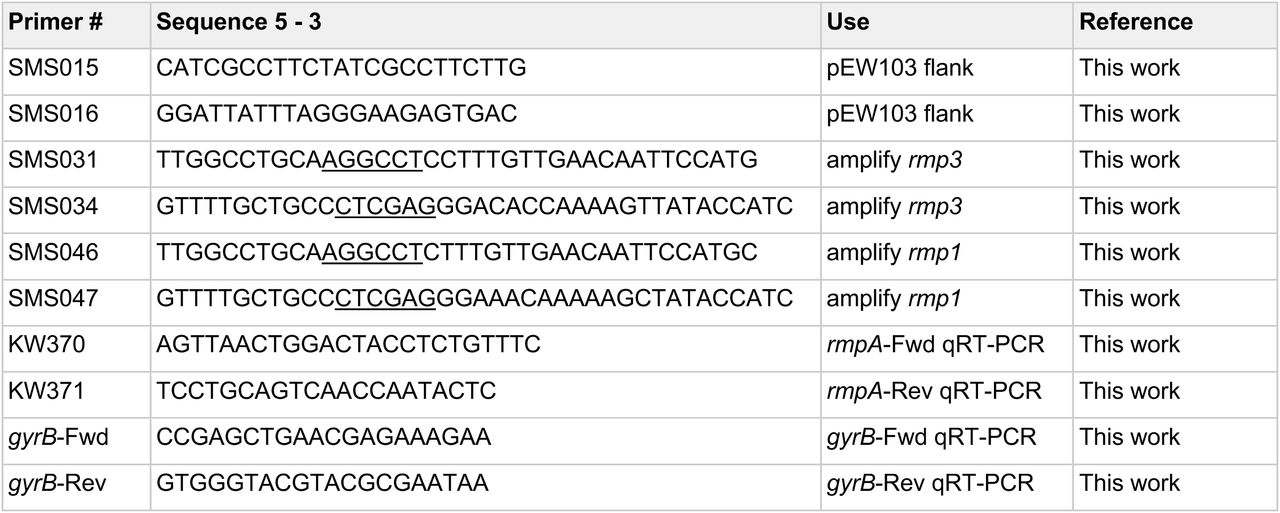

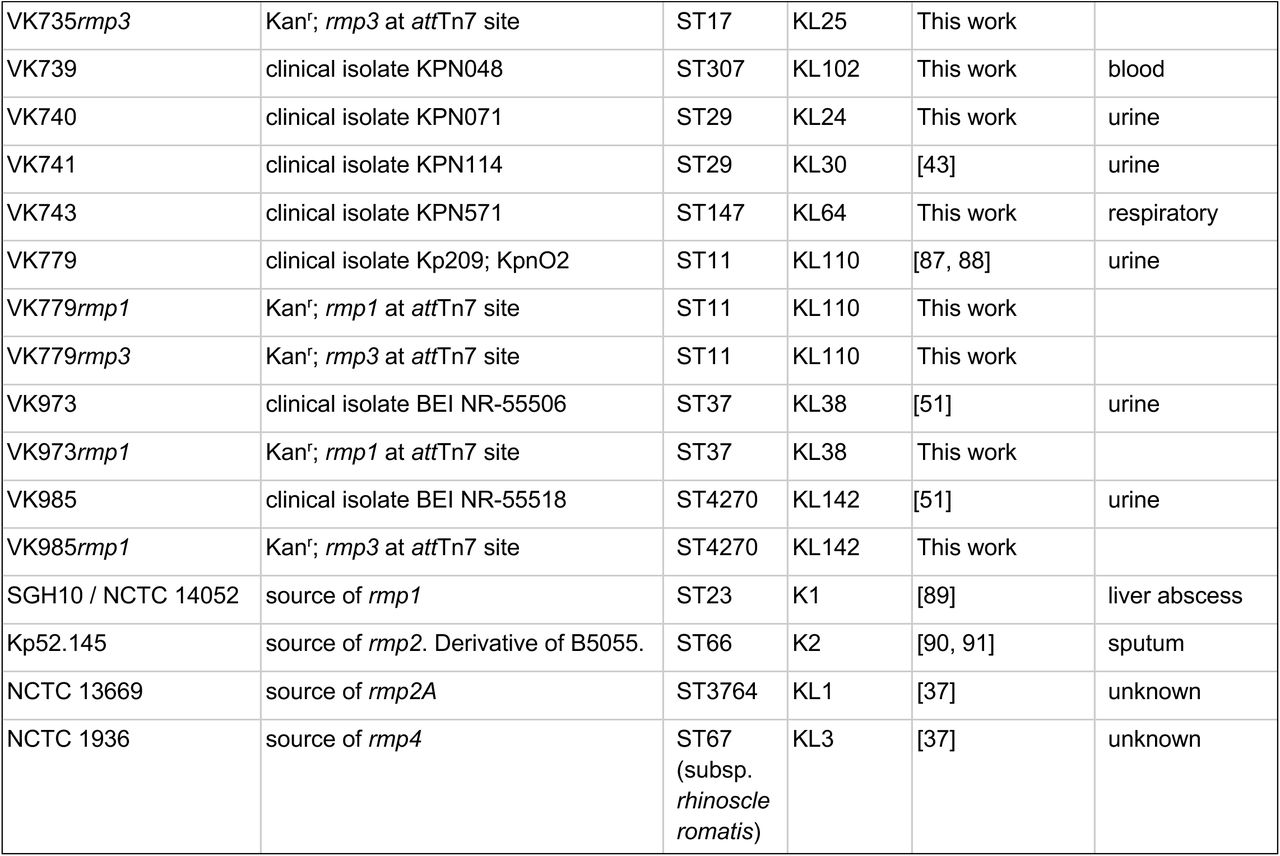

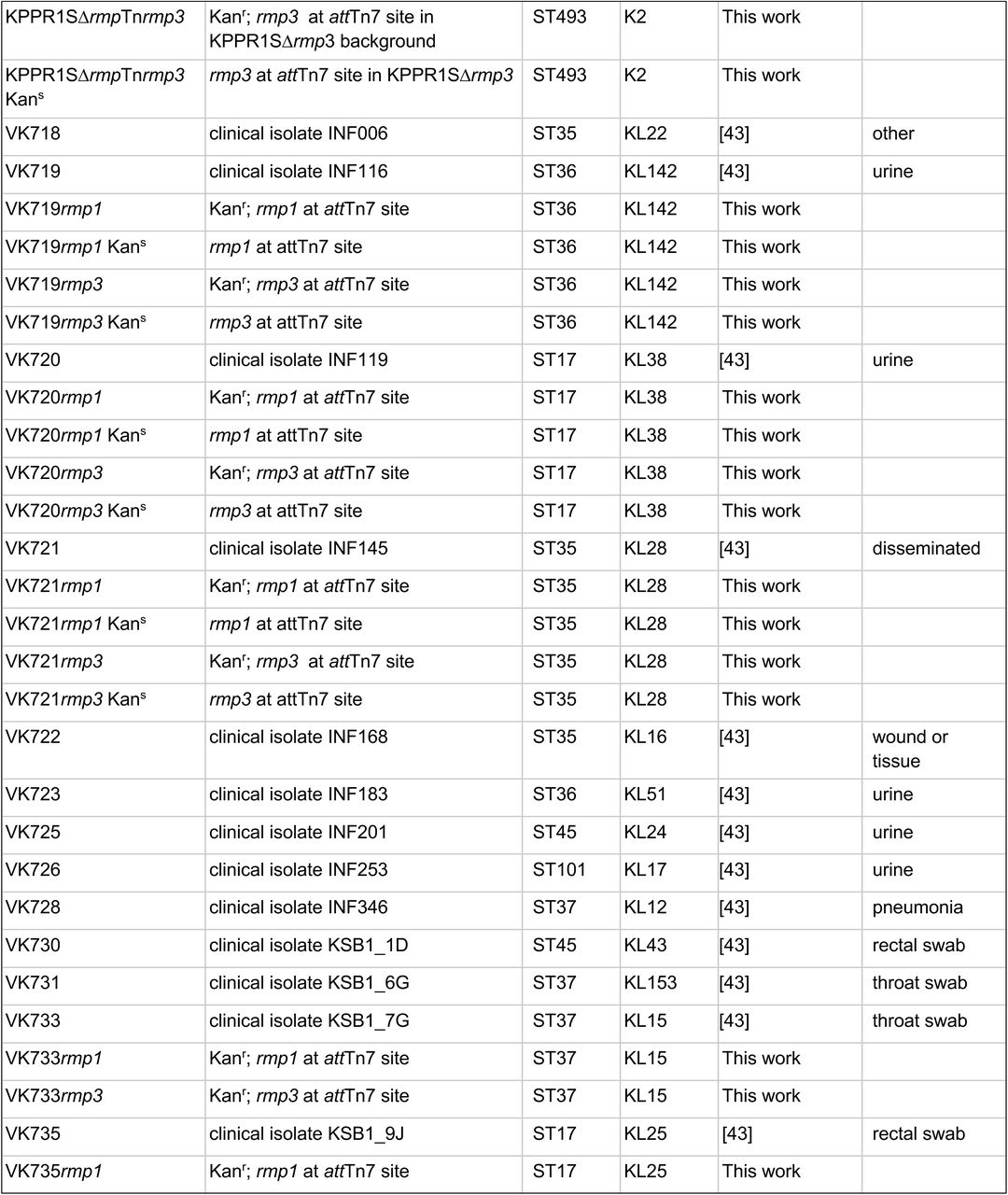

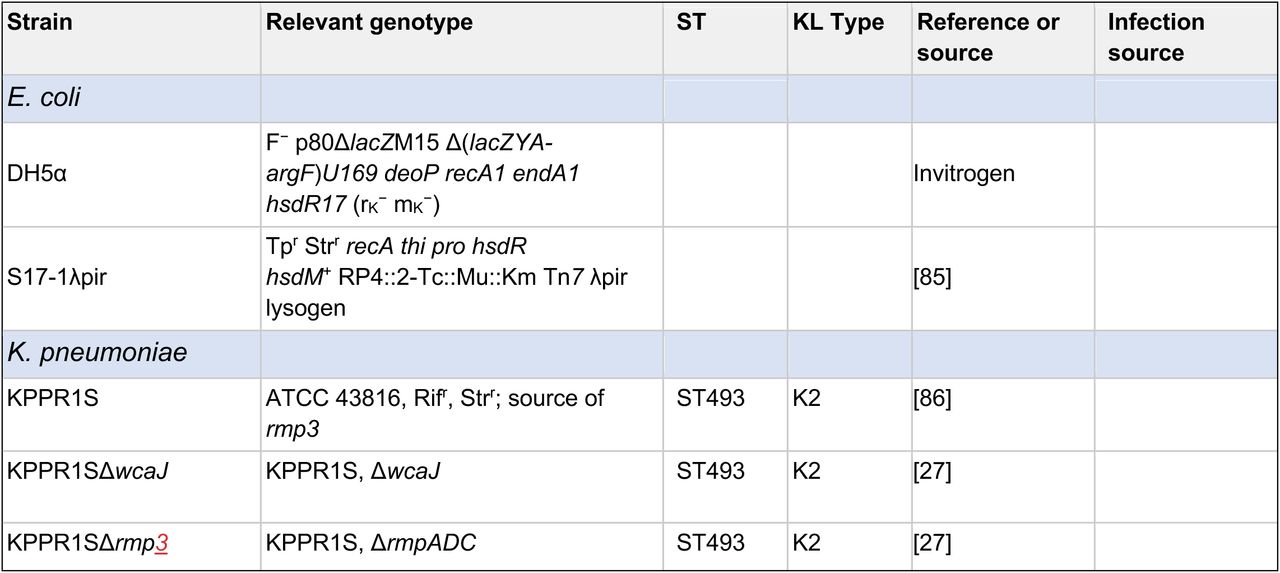

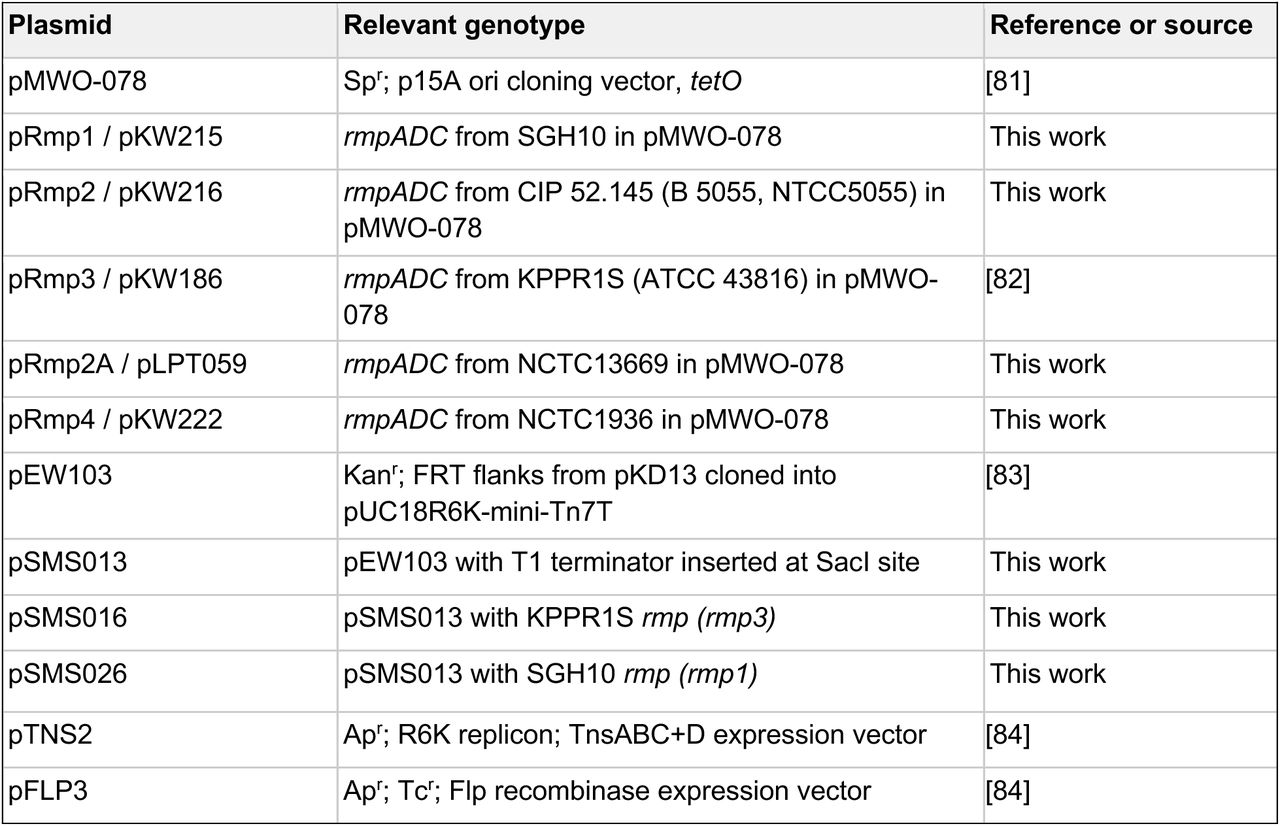

Plasmids and strains used in this study are described in Table 1 and Table 2; primers used for cloning and PCR are listed in Table S1. Expression plasmids were constructed by cloning rmp loci amplified from various K. pneumoniae strains into the SalI-BamHI sites of pMWO-078 using Gibson assembly (NEB). They were transformed into DH5α, confirmed by sequencing, and electroporated into K. pneumoniae strains as previously described [77]. Tn7 integrants were constructed by integrating rmp loci at the attTn7 site of K. pneumoniae strains [78]. Briefly, rmp loci of interest were amplified and cloned into the XhoI-StuI sites of pSMS013, a pUC18Tmini-Tn7 derivative, by Gibson assembly (NEB). These plasmids were electroporated into K. pneumoniae strains along with pTNS2 as previously described, recovered overnight at 37°C, and plated on Kan50 plates [77]. Chromosomal rmp insertion was confirmed by colony PCR. In selected strains, the Kan cassette was removed using pFLP3, as previously described [78].
Assessment of HMV and capsule production
Mucoviscosity of liquid cultures was determined using a sedimentation assay as previously described [26, 34]. Overnight cultures were diluted to an OD600 of 0.2 and grown for 5.5 h at 37°C. Cultures were normalized to 1 OD600/ml and centrifuged at 1,000 × g for 5 min. The OD600 values of the post-spin supernatants were divided by the pre-spin OD600 values to determine sedimentation resistance. Capsule production was determined by quantifying uronic acid as described previously [79]. Cultures were grown as for the mucoviscosity assay. CPS was extracted from 500 μl of culture with 1% zwittergent, precipitated with 100% ethanol at 4°C overnight. CPS pellets were resuspended in tetraborate/sulfuric acid and boiled. 3-Phenylphenol was added and absorbance was measured at 520 nm. UA amounts were determined from a standard curve generated with glucuronolactone.
Capsule SDS-PAGE
Capsule was visualized essentially as previously described [25]. Briefly, 1 OD of bacterial culture was collected after 5.5 hrs of subculture, an equal volume of 2x SDS-PAGE loading buffer was added and then boiled. Proteinase K (0.5 µg) was added and incubated overnight at 55°C. SDS-PAGE was performed with 10% acrylamide gels, followed by staining first with alcian blue then with silver (Pierce silver stain kit; Thermo Scientific) [80].
Phylogenetic tree construction and correlation analyses
The genomes for each isolate were uploaded to Pathogenwatch (https://pathogen.watch/) and aligned against the K. pneumoniae reference core library (2,172,367 bp) to generate a matrix of pairwise distances and corresponding neighbor-joining tree. Pearson’s correlation coefficients (two-tailed) and principal component analysis were performed using Graphpad Prism v. 10 with the HMV and UA data for each strain in Figs. 1/S2.
Adherence and internalization assays with J774A.1 cells
Adherence and internalization assays were performed as previously described [27, 77]. Bacteria were added to J774A.1 at an MOI of 50 and incubated for 1 h. The cells were then washed with PBS and treated with 0.5% Saponin. Recovered CFU were compared to the inoculum CFU. For adherence assays, the J774A.1 cells were pretreated with cytochalasin D for 1 h prior to inoculation to prevent phagocytosis. For internalization assays, the wells were treated with 200 μg/ml gentamicin for 30 min following the 1-h coincubation, then J774A.1 cells were lysed and bacterial CFUs were plated as for the adherence assay.
Murine pneumonia model
All animal experiments were approved by the Institutional Care and Use of Committee of UNC-Chapel Hill and were conducted in accordance with the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. C57BL/6J mice (Jackson Laboratories, Bar Harbor, ME) were anesthetized with 200 µl of a 0.8 mg/ml ketamine and 1.3 mg/ml xylazine solution and inoculated with 2 × 107 CFU intranasally as described previously [77]. Mice were sacrificed at 24, 48, or 72 hpi by intraperitoneal injection of 200 µl sodium pentobarbital (52 mg/ml). Lungs and spleens were removed, weighed, homogenized, and plated to determine CFU/gram of tissue.
qRT-PCR from in vivo RNA
Mice were inoculated with 2 × 108 CFU bacteria intranasally and sacrificed at 24 h. Lungs were removed and each of the large lobes were placed in 1 mL RNA Later (Thermo Fisher Scientific) and stored at -80°C. To extract RNA, tissues were transferred to tubes containing PBS and 5 silica beads and homogenized at 5,600 rpm for a total of 3 minutes in a Precellys 24 homogenizer (Bertin Technologies). Homogenates were then passed through a 40 µm cell strainer (VWR) into a 50 mL conical. This filtrate was then passed through a 5 µm syringe filter (Sartorius). Total RNA was extracted from the filtrate with Trizol reagent (Invitrogen) following the manufacturer’s instructions, with an additional bead beating step, as previously described [77]. Contaminating DNA was removed with DNA-free Turbo, and cDNA was synthesized using an iScript cDNA synthesis kit (Bio-Rad). qRT-PCR was performed using SsoAdvance SYBR green Supermix (Bio-Rad) in a CFX96 RealTime system (Bio-Rad). The transcript levels for the rmpA target gene were compared to those from the gyrB gene.
Statistics and replicates
Statistical tests for each dataset were performed by GraphPad Prism 10 and are provided in the figure legends. A minimum of two assays were performed for every experiment, each with at least three biological replicates. Representative experiments are presented for the in vitro assays; combined experiments are presented for the in vivo assays.
