The use of indocyanine green and near-infrared imaging in laparoscopic completion cholecystectomy for the management of stump cholecystitis: A case series
Department of Surgery, Zen Multispeciality Hospital, Chembur, Mumbai, Maharashtra, India
Address for correspondence: Dr. Vishakha Rajendra Kalikar, Plot No. 425, 10th Road, Jai Ambe Nagar, Chembur, Mumbai - 400 071, Maharashtra, India. E-mail: vish.kalikar@gmail.comAbstract
Introduction:
Stump cholecystitis is managed by performing a completion cholecystectomy, which can be done either laparoscopically or by an open method. The use of indocyanine green (ICG) is known to improve the identification of the biliary tree anatomy, facilitating Calot’s triangle dissection and shortening surgery, thereby reducing the risk of bile duct injuries and making laparoscopic cholecystectomy safer.
Patients and Methods:

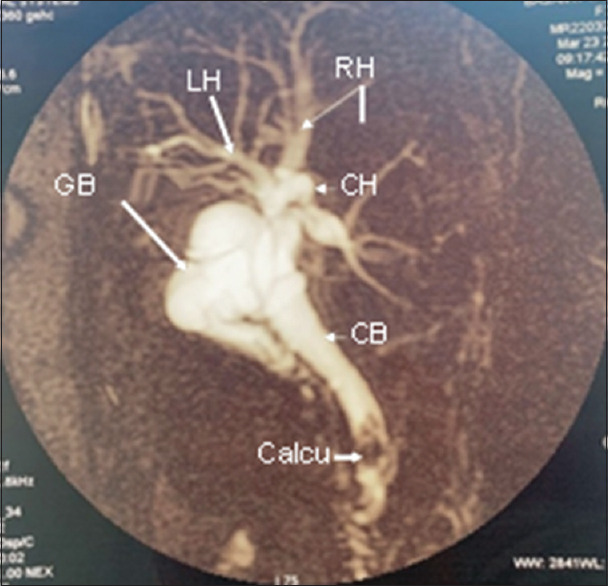

A retrospective analysis was performed of prospectively collected data from 15 patients at our institution from March 2016 to March 2021. Magnetic resonance cholangiopancreatography was performed in all 15 cases, showing remnant gall bladder in all cases with calculi within. Four cases had a dilated common bile duct (CBD) with CBD calculi. Endoscopic retrograde cholangiopancreatography (ERCP) and stone removal followed by CBD stenting were performed in the four patients with CBD calculi. These four cases were scheduled for surgery 4 weeks post-ERCP. All 15 patients underwent laparoscopic completion cholecystectomy. The mean operating time was 80 min.
Results:
The post-operative period of all cases was uneventful, and the patients were discharged on post-operative day 2 or day 3. All patients remained asymptomatic during 1–5 years of follow-up.
Conclusion:
Laparoscopic completion cholecystectomy was performed safely in cases of stump cholecystitis and resulted in symptom relief during short-term follow-up. The use of ICG and near-infrared imaging in such cases helps identify the biliary anatomy, may contribute to the safety of laparoscopic completion cholecystectomy and might reduce the duration of surgery.
INTRODUCTION
The gold-standard treatment for gall bladder stone disease is laparoscopic cholecystectomy.
Approximately 80%–85% of patients experience resolution of their symptoms postoperatively, while symptoms persist in 10%–15% of patients.[1] Multiple causes have been identified for these symptoms, which are grouped together as ‘post-cholecystectomy syndrome’. One of these causes is a gall bladder remnant or cystic duct remnant becoming inflamed due to remnant or recurrent calculi after subtotal cholecystectomy; this condition is known as stump cholecystitis, and its incidence has been reported to be almost 5% after emergency cholecystectomies.[23] This condition is managed by performing a completion cholecystectomy, which can be done either laparoscopically or by an open method.[234]
PATIENTS AND METHODS
We conducted a retrospective analysis of prospectively collected data from 15 patients at our institution from March 2016 to March 2021, consisting of 10 women and 5 men, ranging from 45 to 67 years of age. All 15 patients had a history of acute cholecystitis for which they underwent surgery. Thirteen of them had undergone laparoscopic cholecystectomy in the past and two had a history of open cholecystectomy being performed in the past (4–8 years prior). The symptoms consisted of occasional right upper quadrant abdominal pain and nausea. Ultrasonography (USG) of the abdomen showed a dilated common bile duct (CBD) with CBD calculi in 4 cases, with a remnant gall bladder in 13 cases and normal findings in 2 cases. Magnetic resonance cholangiopancreatography (MRCP) was performed in all 15 cases, even in the 2 cases with normal USG findings, due to a high index of suspicion. MRCP showed remnant gall bladder in all these cases with calculi, and four cases had dilated CBD with CBD calculi [Figure 1]. Endoscopic retrograde cholangiopancreatography (ERCP) and stone removal, followed by CBD stenting, were performed in the four patients with CBD calculi. Those four cases were scheduled for surgery 4 weeks post-ERCP. A complete blood count, liver function test, international normalised ratio and amylase and lipase levels were within the normal range in all cases before surgery. All patients underwent laparoscopic completion cholecystectomy. In all cases, 2.5 mg of indocyanine green (ICG) was given 120 min before induction. A Stryker 1688 4K camera (Stryker, Portage, MI, USA) with near-infrared camera technology was used. Four standard ports were made: a 10-mm camera port at the umbilicus, another 10-mm port at the epigastrium and two 5-mm ports at the right midclavicular line and right anterior axillary line. An additional 5-mm port at the left hypochondrium was used in two cases for additional retraction near Calot’s region for better vision and safer dissection. After meticulous adhesiolysis, the gall bladder remnant was identified in all cases; retrograde dissection was performed in eight cases and antegrade dissection in the rest. ICG helped in identifying the anatomy of the gall bladder remnant, the cystic duct remnant and the CBD [Figure 2]. A critical view of safety was achieved in each case [Figure 3]. The cystic artery and cystic duct were clipped in all cases [Figure 4]. The mean operative duration was 80 min. A Jackson-Pratt drain was placed at the gall bladder fossa in 10 patients and then removed on post-operative day 2 or 3. The summary of these details is mentioned in Table 1.
| Case no. | Previous cholecystectomy history | Symptoms | MRCP findings | ERCP + CBD stenting prior to lcc | Surgical findings |
|---|---|---|---|---|---|
| 1 | Laparoscopic cholecystectomy performed in January 2012 | Occassional right upper quadrant abdominal pain, nausea, fever | Remnant gallbladder was seen with calculi within and dilated CBD and CBD calculi | YES | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 80 min |
| 2 | Laparoscopic cholecystectomy performed in September 2009 | Upper abdominal pain, nausea, occasional vomiting | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 69 min |
| 3 | Laparoscopic cholecystectomy performed in March 2009 | Right upper quadrant abdominal pain, fever | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 63 min |
| 4 | Laparoscopic cholecystectomy performed in March 2008 | Occasional upper abdominal pain | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 88 min |
| 5 | Laparoscopic cholecystectomy performed in December 2011 | Right upper quadrant abdominal pain, occasional fever | Remnant gallbladder was seen with calculi within and dilated CBD and CBD calculi | YES | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 87 min |
| 6 | Laparoscopic cholecystectomy performed in August 2010 | Right upper quadrant abdominal pain | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 70 min |
| 7 | Open cholecystectomy performed in November 2011 | Right upper quadrant pain, nausea, fever | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 77 min |
| 8 | Laparoscopic cholecystectomy performed in February 2012 | Right upper quadrant pain | Remnant gallbladder was seen with calculi within and dilated CBD and CBD calculi | YES | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 84 min |
| 9 | Laparoscopic cholecystectomy performed in March 2010 | Upper abdominal pain, nausea | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 89 min |
| 10 | Laparoscopic cholecystectomy performed in May 2008 | Right upper quadrant pain | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 73 min |
| 11 | Laparoscopic cholecystectomy performed in July 2009 | Upper abdominal pain, nausea | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 68 min |
| 12 | Laparoscopic cholecystectomy performed in September 2011 | Right upper quadrant pain | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 88 min |
| 13 | Open cholecystectomy performed in March 2012 | Right upper quadrant pain, nausea, fever | Remnant gallbladder was seen with calculi within and dilated CBD and CBD calculi | YES | Adhesiolysis and Antegrade dissection were done. CVS was achieved. Operative time: 101 min |
| 14 | Laparoscopic cholecystectomy performed in February 2010 | Upper abdominal pain, nausea | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 90 min |
| 15 | Laparoscopic cholecystectomy performed in May 2009 | Right upper quadrant pain | Remnant gallbladder was seen with calculi within | NO | Adhesiolysis and retrograde dissection were done. CVS was achieved. Operative time: 74 min |
RESULTS
The post-operative period of all cases was uneventful, and the patients were discharged on post-operative day 2 or 3. The follow-up ranged from 1 year to 5 years, and all patients were asymptomatic on follow-up.
DISCUSSION
Laparoscopic cholecystectomy is the most commonly performed minimal access surgery by general surgeons. Stump cholecystitis is managed by completion cholecystectomy, in which the gall bladder remnant is removed either laparoscopically or using an open technique. In the past, due to the fear of dense adhesions and anatomic distortions, the open method was preferred by many surgeons, but now a laparoscopic approach is also considered to be safe in experienced hands.[12] Gall bladder or cystic duct remnants are amongst the many causes of post-cholecystectomy syndrome.[23]
The incidence of stump cholecystitis is around 5%,[3] it occurs more commonly in middle-aged patients and women and patients’ complaints tend to be similar to those that warranted cholecystectomy in the past.[4]
In 1947, Womack and Crider[5] first described “post cholecystectomy syndrome”, in which patients persist to have their symptoms post cholecystectomy , the incidence being around 10-15%.
Achieving a critical view of safety during surgery makes this procedure safer; however, in cases of emergency and acute cholecystitis, the inflammation around Calot’s triangle makes it difficult to do so. One of the backout options in such scenarios is to perform subtotal cholecystectomy, which effectively avoids bile duct injury.[6]
The various methods that have been described in the literature to perform subtotal cholecystectomy can be broadly divided into fenestrating and reconstituting types.[7] In a study by van Dijk et al.,[8] the fenestrating type of subtotal cholecystectomy was associated with a lower incidence of recurrent biliary events but a higher incidence of bile leaks.
Many patients are treated conservatively initially, without any investigations performed, as most surgeons usually do not consider the gall bladder to be a cause of symptoms post-cholecystectomy. MRCP is the imaging modality of choice in such scenarios, with an accuracy of 92%, while abdominal USG had an accuracy of only 60% in a study by Palanivelu et al.[9]
The first reported case of laparoscopic completion cholecystectomy was described by Gurel et al.[10] in 1995.
Spy fluorescence imaging technology uses a laser-generated infrared light, with ICG as the imaging agent. ICG has a well-established safety profile and, following injection, binds to plasma proteins in the blood before eventually being processed in the liver and excreted in bile. The laser light source illuminates the surgical field with white light and low-intensity, invisible, infrared light, causing the ICG to fluoresce.[11] We have previously published a study on the use of ICG in laparoscopic cholecystectomy, which allowed successful visualisation of at least one biliary structure in 100% of the cases.[12] Our protocol is to give ICG 120 min before surgery, unlike in previous studies.[12]
The use of ICG is known to improve the identification of the biliary tree anatomy, facilitating Calot’s triangle dissection and shortening surgery, thereby reducing the risk of bile duct injuries and making laparoscopic cholecystectomy safer.[13] ICG use is also known to decrease the conversion rate of laparoscopic to open cholecystectomy.[14] According to one study, the overall conversion rate was 0.52% in 2490 patients in whom ICG was used in laparoscopic cholecystectomy and it was 2.52% in the group where laparoscopic cholecystectomy was performed without ICG.[15] Even the incidence of bile duct injuries was lower with ICG use (being 0.12% in the ICG group vs. 1.31% in the non-ICG group).[15] According to a study by Yoshiya et al.,[16] the operative time was significantly lower with ICG use, with a lower conversion rate to open cholecystectomy.
We have previously published our results of nine redo cholecystectomies, of which eight underwent laparoscopic completion cholecystectomy (without the use of ICG), and one conversion was done due to excessive adhesions. The mean operating time for the laparoscopic procedure was 90 min.[17] The mean operating time in our study, with the use of ICG and near-infrared imaging, was 80 min, as opposed to 90 min without ICG use, and all the cases were completed laparoscopically.
A report of two cases published in 2021 described administering 0.25 mg/kg ICG intravenously 16 h before surgery in a case report published in 2021, and it was possible to visualise the biliary anatomy in one case, while accidental duodenal perforation occurred in the other case. Nonetheless, both completion cholecystectomies were completed laparoscopically, with the operating time being 114 min and 280 min, respectively.[18]
In another case report of a robotic completion cholecystectomy, 5 mg of ICG was injected intravenously after the induction of general anaesthesia to visualise the biliary ducts, and an additional 2.5 mg of ICG was injected to confirm the right hepatic artery and remnant cystic artery; the operating time was 95 min.[19]
The use of ICG in our study helped us in delineating the anatomy of the biliary tract and identifying the gall bladder remnant and the cystic duct.
CONCLUSION
Laparoscopic completion cholecystectomy was performed safely in cases of stump cholecystitis and resulted in symptoms during short-term follow-up. The use of ICG and near-infrared imaging in such cases helps identify the biliary anatomy, may contribute to the safety of laparoscopic completion cholecystectomy and might reduce the duration of surgery.
