Genome-wide development of insertion-deletion (InDel) markers for Cannabis and its uses in genetic structure analysis of Chinese germplasm and sex-linked marker identification
grid.464342.3Institute of Bast Fiber Crops, Chinese Academy of Agricultural Sciences, Changsha, 410205 China
Key Laboratory of the Biology and Process of Bast Fiber Crops, Ministry of Agriculture, Changsha, China
Abstract
Background
Cannabis sativa L., a dioecious plant derived from China, demonstrates important medicinal properties and economic value worldwide. Cannabis properties have been usually harnessed depending on the sex of the plant. To analyse the genetic structure of Chinese Cannabis and identify sex-linked makers, genome-wide insertion-deletion (InDel) markers were designed and used.
Results
In this study, a genome-wide analysis of insertion-deletion (InDel) polymorphisms was performed based on the recent genome sequences. In total, 47,558 InDels were detected between the two varieties, and the length of InDels ranged from 4 bp to 87 bp. The most common InDels were tetranucleotides, followed by pentanucleotides. Chromosome 5 exhibited the highest number of InDels among the Cannabis chromosomes, while chromosome 10 exhibited the lowest number. Additionally, 31,802 non-redundant InDel markers were designed, and 84 primers evenly distributed in the Cannabis genome were chosen for polymorphism analysis. A total of 38 primers exhibited polymorphisms among three accessions, and of the polymorphism primers, 14 biallelic primers were further used to analyse the genetic structure. A total of 39 fragments were detected, and the PIC value ranged from 0.1209 to 0.6351. According to the InDel markers and the flowering time, the 115 Chinese germplasms were divided into two subgroups, mainly composed of cultivars obtained from the northernmost and southernmost regions, respectively. Additional two markers, “Cs-I1–10” and “Cs-I1–15”, were found to amplify two bands (398 bp and 251 bp; 293 bp and 141 bp) in the male plants, while 389-bp or 293-bp bands were amplified in female plants. Using the two markers, the feminized and dioecious varieties could also be distinguished.
Conclusion
Based on the findings obtained herein, we believe that this study will facilitate the genetic improvement and germplasm conservation of Cannabis in China, and the sex-linked InDel markers will provide accurate sex identification strategies for Cannabis breeding and production.
Supplementary Information
The online version contains supplementary material available at 10.1186/s12864-021-07883-w.
Introduction
Cannabis sativa L., a member of the family Cannabinaceae, is a diploid (2n = 20) monocotyledon and one of the oldest cultivated plants. Although it originated in Central Asia, its cultivation was soon commenced worldwide for applications in folk medicine, textile fibre, oil, and recreational use [1]. Cannabis is a botanical genus of flowering plants divided into two distinct species, namely Hemp and marijuana, based on its tetrahydrocannabinol (THC) content [2]. Although Cannabis cultivation is being restricted in many countries due to its widespread usage as a recreational drug, there has been a resurgence of interest for its agronomic potential and especially its medical value; its outer and inner stem tissues can be used to prepare bioplastics and concrete-like material in construction sectors owing to the rich source of both cellulosic and woody fibres, and its metabolites exert potent bioactivities on human health especially for the treatment of pediatric seizure disorders.
Cannabis is a dioecious species, which includes both male and female flowers separated on different plants. The sex of the plants commonly affects economically relevant traits like fibre quality and cannabinoid (CBD) content. In general, male plants have a better fibre quality, while CBD content in female plants is higher than that in male plants. Therefore, an ideal ratio of male-to-female individuals must be maintained with different production purposes to improve economic efficiency. However, it is difficult to identify the sex of plant via the mere examination of morphological traits before flowering, and DNA molecular marker technology has been considered as an accurate and reliable method for the sex identification of dioecious plants, as it is unaffected by plant growth stages [3].
Conventional breeding is considered the primary method for developing new varieties in Cannabis breeding programs. However, this process is extremely challenging and often spans several years [4]. Previous studies have indicated that advancements in molecular technologies offer several molecular breeding strategies, such as the use of molecular markers to overcome the limitations of conventional breeding [4, 5]. A shift from isozyme and random amplified polymorphic DNA (RAPD) to amplified fragment length polymorphism (AFLP), simple sequence repeat (SSR), and single nucleotide polymorphism (SNP) has occurred, and these markers have been used for genetic analysis and sex identification in Cannabis [6–15]. Although different types of Cannabis molecular markers have been identified and utilized, research on Cannabis is lagging compared to other crops like rice, wheat, and maize. As a result, the density of molecular markers in Cannabis is relatively low, which is insufficient for genetic study in Cannabis, including genetic map construction, gene/QTL mapping, and genetic analysis.
Insertion–deletions (InDels) are recognised as major sources of genetic structural variations found widely distributed across the plant genomes. InDels like SSRs are also a type of length polymorphisms originating from a single mutation event, which is generally bi-allelic and single-locus in nature. Meanwhile, InDels exhibit many desirable inherent genetic characteristics of both SNP and SSR markers, such as co-dominance, abundance, and random distribution across the genome [16]. Generally, unlike SNP, InDel markers have been considered breeder-friendly markers, with limited infrastructure requirements, and its products can be detected in regular genetics and breeding laboratories using polyacrylamide gel electrophoresis (PAGE) or simple gel-based size separation procedures. Furthermore, InDels markers are commonly amplified without stutter bands, which renders them more valuable. In a few previous studies, InDels were also found to be more polymorphic than microsatellite markers [17, 18]. As a valuable complement for both SNPs and SSRs markers and owing to their significance in crop genomic studies, InDel markers have been widely identified in rice [19], barley [20], oil rapes [18, 21], maize [22], and other plants [23–26], and to our knowledge, no research on genome-wide development of InDels in Cannabis has been reported so far. This knowledge gap limits the comprehensive molecular analysis of Cannabis.
China has been considered one of the putative centres of origin for Cannabis, and a region where Cannabis has been cultivated for more than 2000 years for obtaining fibre, oil, and for other purposes [27]. However, the fibre yield, fibre quality, and CBD content are vital factors limiting the development of the Cannabis industry in China, rendering significance to the genetic improvement of the Cannabis crop cultivated in China. Previous studies have shown that the genetic structure analysis of the germplasm can facilitate genetic improvement in other crops [28, 29]. Until now, the genetic diversity and population structure of Cannabis were analysed using SSR and ISSR markers [9, 10, 30, 31]. However, in Cannabis, most SSR and ISSR markers usually display multiple loci [9, 10, 30, 31], thereby posing challenges in the application of molecular analysis such as the comparison of genes/QTLs detected using different genetic populations in Cannabis. Alternatively, the single-locus nature of InDels may help overcome this drawback of multi-locus SSRs and ISSRs. Though the draft genome sequences data were published in 2011 [32], data quality has not met the criteria for genome-wide development of InDel markers and the location of such valuable markers in the Cannabis chromosome has not been elucidated. Recently, a high-quality chromosome-scale reference genome of a drug-type strain “Purple Kush” and the hemp variety “Finola” were obtained, which enabled the genome-wide capture of InDels in the Cannabis genome [33]. With the objectives to increase the density of molecular markers of Cannabis genome and to establish a significance for SSR markers in Cannabis genomic studies, the present study focused on the genome-wide development of InDels and the application of these markers in genetic structure analysis of Chinese germplasm and identification of sex-linked marker in Cannabis. Our study results will help establish a valuable tool for the molecular analysis of Cannabis in the future, and the information on the genetic structure of the Cannabis germplasm and sex-linked marker will aid the genetic improvement and molecular breeding of Cannabis.
Result
Distribution of InDel markers

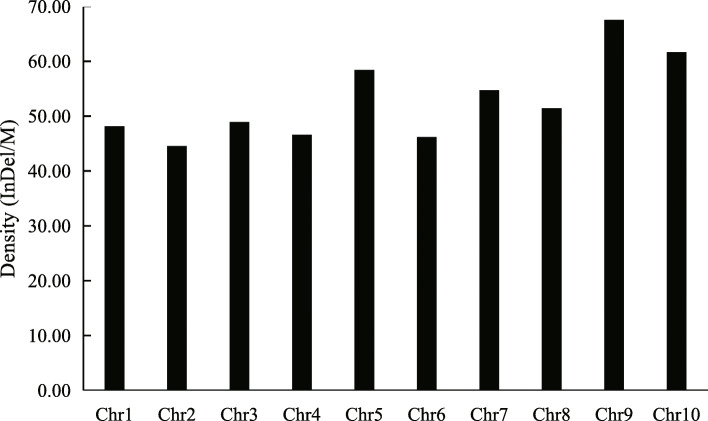

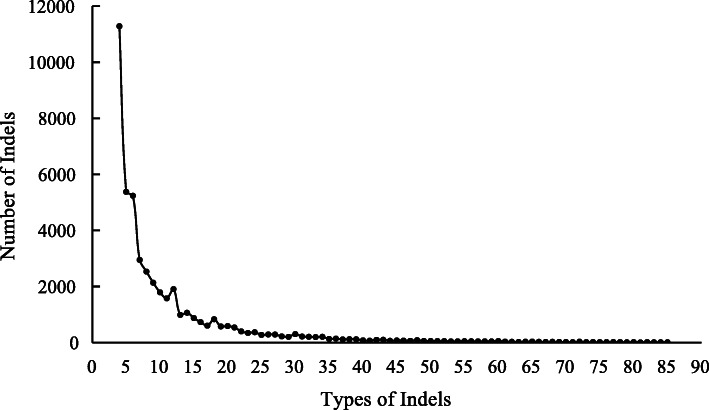

Data on whole genomes for “Purple Kush” and “Finola” were downloaded from ftp://ftpmips.helmholtz-muenchen.de/plants/barley/public_data/. On a genome-wide basis, 47,558 InDels were identified between PK and FN in the genomic DNA sequence database (Table S1). InDel sites varied from 4 bp to 87 bp, and the number of the InDel sites decreased markedly with an increase in the InDel length. Four InDel sites were found to be the most common InDel sites (11286), accounting for 23.7% of the total InDels (Fig. 1). Meanwhile, the distribution of the InDels on each chromosome of the FN genome was different. As shown in Fig. 2, the number of InDels on each chromosome ranged from 2177 to 5081. Chromosome 5 exhibited the highest number of InDels among the Cannabis chromosomes, while chromosome 10 exhibited the lowest. Additionally, the densities of InDels on each chromosome were different, and chromosome 9 exhibited the highest density of InDels (67.5 InDels/Mb) while chromosome 2 exhibited the lowest (44.5 InDels/Mb) (Fig. 2, Fig. 3).
Development of InDel markers for whole Cannabis genome and polymorphism analysis
In total, 47,558 InDel markers between FN and PK were successfully developed, with a density of 47.1/Mb in the FN genome. Of these InDel markers, 31,802 InDel markers were non-redundant based on the specificity, and its density in the FN genome was found to be 31.51/Mb (Table S1). The lengths of all primers ranged between 18 bp and 24 bp, and the product sizes ranged from 80 bp to 400 bp. Eighty-four primer pairs distributed along the chromosomes with intervals of about 10 Mb were selected to evaluate the quality of InDel markers across three Cannabis varieties (Fig. S1). The results showed that 80 primers were amplified successfully, and 38 primers exhibited polymorphisms among three varieties (“Yunma 6”, “Neimengudali”, “Qingdama 1”). Of all the polymorphism primers, 14 primers which exhibited two alleles among the above-mentioned three varieties were used for further study.
Genetic diversity analysis and population structure

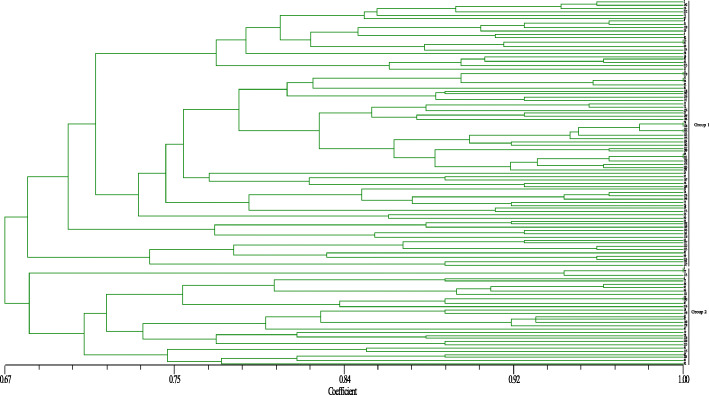

The 14 InDel primers were used to analyse the genetic relationships of 115 accessions, and a total of 39 polymorphic bands were amplified. The PIC ranged from 0.1209 to 0.6351, with an average of 0.4109, and the gene diversity varied from 0.1243 to 0.6865, with an average of 0.4664. The average MAF was 0.6484 and ranged from 0.4478 to 0.9348 (Table 2). Thereafter, cluster analysis was conducted based on the unweighted pair-group method with arithmetic means (UPGMA) using the NTSYS-pc2.11 software. As showed in Fig. 4, at a genetic distance of 0.74, the 115 accessions were divided into two groups. Group I included 84 accessions, mainly consisting of the varieties cultivated in the northern regions of China (up to 90%). Group II included 31 accessions, and most of them were from the southern regions of China (90.3%).

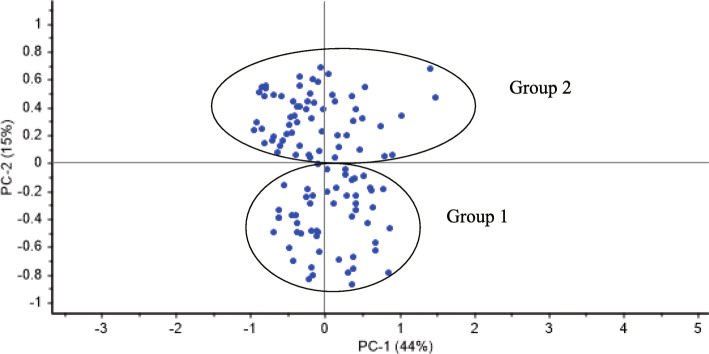

In PCoA, the two main axes explained approximately 59% of the total variation, at 44 and 15%, respectively. The 115 Cannabis varieties could also be classified into two groups using the genetic similarity matrix, which was similar to cluster analysis results (Fig. 5).

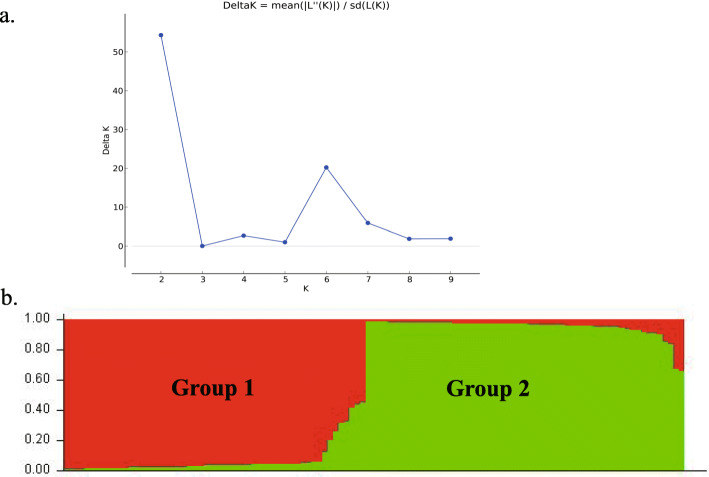

Based on the 39 alleles amplified using 14 InDels, the population structure of the 115 individuals was further estimated under the Hardy–Weinberg Equilibrium using the STRUCTURE V2.3.3 software. Delta K values were plotted against K values, and the best number of clusters was obtained via the Structure Harvester platform (http://taylor0.biology.ucla.edu/structureHarvester/). As shown in Fig. 6, Delta K reached a maximum value at K = 2, which indicated that the 115 cultivars could be partitioned into two populations (Fig. 6).

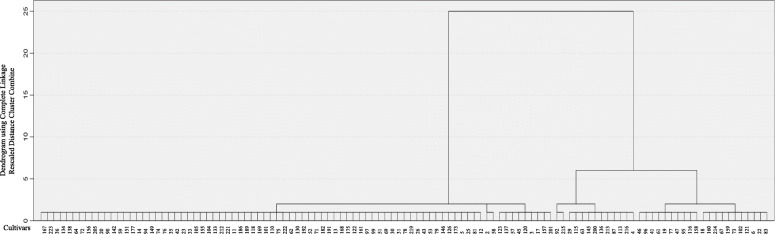

As showed in Table 1, the flowering time of 115 Cannabis genotype varied from 23 days to 125 days. Thereafter, cluster analysis was conducted using IBM SPSS Statistic 19.0 with the longest distance method and the Euclidean distance square. As shown in Fig. 7, at an inter-class distance of 25, the 115 genotypes were divided into two groups; group 1 included 34 cultivars, which mainly originated from the southern regions of (30), and group 2 contained 81 cultivars, most of which were from the northern regions of (74), such as Northwest China (15) and Northeast China (37).
Code Name Origin Flowering Time(d) Code Name Origin Flowering Time(d) 2 620 NeiMengGu 23 97 723 NeiMengGu 35 3 627 YunNan 49 99 607 HeiLongJiang 35 4 Bendima1 ZheJiang 83 101 695 ShangDong 41 5 631 GanSu 31 102 Jingzhou3 LiaoNing 102 6 Yunma1 YunNan 119 104 108 HeiLongJiang 40 11 Fengma2 ShangXi 41 105 711 HeNan 44 12 634 GanSu 31 110 689 ShangXi 41 13 706 HeNan 35 113 661 HeiLongJiang 83 14 632 HeiLongJiang 37 115 625 YunNan 89 17 Lvliangma ShangXi 56 116 710 YunNan 105 18 709 YunNan 108 118 659 HeiLongJiang 41 19 727 YunNan 97 120 676 ShanXi 48 20 114 NingXia 38 121 601 GuangXi 117 22 131 LiaoNing 101 122 644 NeiMengGu 35 23 106 ShangXi 36 123 Wuchang40 HeiLongJiang 51 25 636 HeiLongJiang 31 126 715 HeiLongJiang 31 26 690 HeNan 33 130 673 HeiLongJiang 34 29 698 YunNan 89 133 603 LiaoNing 40 30 694 HeiLongJiang 35 134 611 HeNan 39 31 720 AnHui 35 136 Yanji1 JiLin 79 33 707 JiLin 36 137 668 JiLin 51 35 717 AnHui 37 138 Yousha100 HeiLongJiang 39 36 724 ShangDong 39 142 606 NingXia 38 41 Nanhuadama YunNan 97 145 608 YunNan 88 42 Fengma1 ShangXi 37 146 Yousha500 HeiLongJiang 32 43 617 JiLin 33 149 679 JiLin 37 45 626 GanSu 47 151 674 ShanXi 37 46 Dali8 YunNan 98 155 Neimengudali NeiMengGu 45 47 637 ShangXi 101 156 716 HeiLongJiang 38 51 639 ZheJiang 35 157 Wandama3 Anhui 56 52 Hailun HeiLongJiang 34 158 Jindan15 ChongQing 104 53 667 JiLin 33 159 660 YuNan 112 57 Jinma1 ShangXi 51 160 721 YunNan 108 58 105 ShanXi 25 161 117 GanSu 35 59 731 HeiLongJiang 38 167 677 HeiLongJiang 39 61 118 ZheJiang 97 168 732 HeNan 35 62 672 AnHui 43 169 101 HeiLongJiang 41 63 713 YunNan 88 173 666 HeiLongJiang 31 64 Qingdama1 HeiLongJiang 39 175 662 HeiLongJiang 35 67 708 YunNan 112 177 725 HeiLongJiang 37 69 610 HeNan 35 182 642 HeiLongJiang 35 71 115 AnHui 34 186 722 LiaoNing 41 72 697 GanSu 39 189 613 XinJiang 41 73 675 YunNan 114 191 712 HeiLongJiang 35 74 726 XinJiang 37 192 604 GanSu 34 75 705 HeNan 42 200 714 JiangSu 87 76 112 JiLin 37 201 Linlixiaoma ChongQing 61 77 615 GuangXi 96 205 649 HeiLongJiang 38 78 641 HeiLongJiang 33 212 696 ShangDong 41 79 669 NeiMengGu 32 213 Yangquma ShangXi 79 81 DaqingCK HeiLongJiang 31 214 HL512 HeiLongJiang 99 83 Yunma6 YunNan 125 215 624 YunNan 71 87 104 YunNan 79 216 671 YunNan 83 90 702 HeiLongJiang 38 219 109 HeiLongJiang 33 92 628 AnHui 69 221 647 JiLin 41 94 622 HeiLongJiang 37 222 L1 ShangDong 42 95 116 JiangSu 101 223 L2 ShangDong 39 96 Bama2 GuangXi 98
Screening of sex-linked InDel markers and PCR-based verification of known-sex plants
Based on the latest report which indicated that chromosome pair 1 was the sex chromosome pair in Cannabis [34], fifteen pairs of primers evenly distributed on chromosome 1 were designed and used to amplify twelve samples (six females and six males) from the F2 population crossed by “Yunma 6” and “H4” (Table S2). As shown in Fig. 8a and Fig. 8d, two primers pairs (Cs-I1–10, Cs-I1–15) amplified two bands in male plants (251 bp and 398 bp; 293 bp and 141 bp), while one band (398 bp; 293 bp) was amplified in female plants.
To further verify the versatility and accuracy of the two primers pairs, samples from 24 known-sex plants from the dioecious variety, “H4”, and 10 known-sex plants from the feminized variety, “ZY1” were used for amplification via PCR, respectively. The results showed that 12 female plants showed amplification of the 398-bp fragment, while 12 male plants showed amplification of the two bands (398 bp and 251 bp in size) (Fig. 8b). Consistent with the amplification fragment in female plants of “H4”, all plants from “ZY1” showed amplification of the 398-bp fragment using the Cs-I1–10 primer pair (Fig. 8c). Similar to the Cs-I1–10 primer pair, 12 female plants and all plants from “ZY1” showed amplification of the 293-bp fragment, while 12 male plants showed amplification of the two bands (293 bp and 141 bp in size) using Cs-I1–15 primer pair (Fig. 8e-f).
Discussion
Although different types of molecular markers, such as RAPD, ISSR, SSR, SNP and ARFP, have been used in the molecular biology studies conducted on Cannabis, such as genetic diversity analysis, sex identification, and QTL mapping [9, 10, 12, 15, 30, 31], these molecular makers remain fewer in number compared with those available for other crops, which poses challenges for genetic map construction and QTL mapping. In addition, a genome-wide survey of InDels has not yet been carried out for Cannabis. In this study, 31,802 InDel markers were identified in the Cannabis genome, and the average density across the FN genome was 0.031 InDels/kb (Table S1), which was much less compared to that found in other species such as rice, oilseed rape, maize and cotton [18, 22, 35, 36].
Molecular analyses like map-based gene cloning, GWAS, and MAS, rely on the availability of several genetic markers with detailed information of their position on the genome. The PCR-based InDel markers are extensively applied during initial mapping to identify unknown genes in rice, maize, wheat, and other crops [22, 37–40]. However, due to a lack of availability of chromosome-scale genome assembly, information about their physical position on the chromosome is not available [9–15, 30], which hinders the comprehensive molecular analysis of Cannabis. In this study, 26,982 InDel markers were developed with a density of 26.7 InDels/Mb. Notably, the exact physical positions of all identified InDels on the Cannabis genome were also determined, rendering it convenient to identify InDel markers in target genome regions, which, in turn, would help accelerate map-based cloning and marker-assisted trait selection research in Cannabis.
To analyse the population structure of the 115 Cannabis germplasms from the varieties cultivated in China, 84 InDels distributed along the Cannabis chromosomes with intervals of approximately 10 Mb were selected for the polymorphism analysis, and 38 InDels were found to exhibit polymorphism among three accessions. The polymorphism rate was 45.2%, similar to the extent in chickpea (46.6%) [41], lower than that found in jute (58%) [26], and higher than that in maize (18.68%) [22], which indicated that the polymorphism rate might relate to the plant species. Additionally, of the 36 InDels, 14 InDels amplifying only two fragments were selected for the genotyping of the 115 accessions. The PIC values ranged from 0.1209 to 0.6351, with an average of 0.4109, indicating that most of the InDels have a moderate range of genetic diversity, lower than that of SSR markers in Cannabis [10]. The possible reason was that most InDels used in this study are single-locus (Fig. S2), while, in general, SSRs are multi-locus.
The genetic structure of different genotypes can guide breeding programs for developing varieties with a broad genetic background. The genetic diversity of the Cannabis germplasm has been analysed using two types of markers: SSR and ISSR [9, 30, 31]. In the present study, 39 fragments were amplified using the 14 InDels, and when Delta K was at a maximum value of 2, the 115 accessions were partitioned into two subgroups. In group 1, the sharing proportion of the cultivars of group 2 ranged from 0.011 to 0.453, while in group 2, its sharing proportion of group 1 varied from 0.011 to 0.336 (Table S3). Most cultivars from the northern regions of China belonged to Group I, while most cultivars from the southern regions belonged to Group II (Fig. 6). Similar to the results of population structure analysis, the 115 accessions were clearly clustered into two major groups using UPGMA clustering (Fig. 4). As Cannabis is an annual and photoperiod-sensitive crop, and the day length may determine the floral transition and flowering times, we suggest that the climate, influenced by the latitude and day length, is an essential factor affecting the Cannabis germplasm diversity. In this study, the 115 accessions from China were distinctly classified into two groups (Figs. 4, 5, 6 and 7), and the two groups were consistent with the temperate climate and subtropical climate zones in China, respectively, which was in agreement with the analysis of Gao et al. (2014) and Zhang et al. (2018) [9, 42]. Additionally, both group I and group II included the cultivars from central regions of China like the HeNan provinces, implying that the breeders in these areas might frequently exchange Cannabis germplasm resources with the breeders from the northern or southern regions.
Cannabis is a short-day crop, which is sensitive to photoperiod. Flowering time is an important agronomic trait that affects cannabidiol (CBD) and fibre yield content. Consistent with the population structure analysis, PCoA analysis and UPGMA clustering results (Figs. 4, 5 and 6), 115 Cannabis genotypes were also clustered into two groups according to their flowering time. The cultivars of the group 1 mainly originated from Southern China. In contrast, group 2 was mainly composed of varieties from the northern regions of China (Fig. 7). In general, when the northern Cannabis cultivars are introduced to the southern regions, the plants will encounter early flowering. In this study, though the cultivars ‘22’ and ‘214’ originated from northern China, the plants did not encounter early flowering when cultivated in the southern regions of China (HuNan province), which might support the notion of a superior germplasm for developing wide adaptable Cannabis varieties according to day length.
Owing to the different economic values between female and male plants, a suitable ratio of females to males individuals is vital for enhancing economic efficiency. To overcome the difficulties of the accurate identification of sex through morphological methods before flowering, eight pairs of markers mainly consisted of RAPD markers were reported for sex identification in Cannabis [11–15]. However, these RAPD markers had a common shortcoming of poor repeatability and dominance. Additionally, the accuracy of 8 pair markers for sex identification was only validated by using natural populations, thus limiting its application in the Cannabis breeding program [11–15]. In this study, the two primer pairs, Cs-I1–10 and Cs-I1–15, were screened for sex identification, and except for the natural populations, an F1-segregated population and a feminized variety were used to verify its accuracy (Fig. 8). Thus, its applications are broader than those previously reported for sex identification in Cannabis breeding program. Interestingly, similar to the sex-linked SSR markers CS308 [14], the same fragments in size were presented in both female as well as male plants using Cs-I1–10 and Cs-I1–15, indicating these markers were not specific to the Y chromosome, which was different from the markers MADC1 to MADC3 on Y chromosome [11–13].
Conclusion
In this study, we first developed 31,802 non-redundant InDel markers with a density of 31.5/Mb in the FN genome. Of these markers, 14 InDel markers could be used to divide the 115 Chinese Cannabis cultivars into two groups by genetic diversity analysis, population structure, and PCoA analysis. Additionally, two InDel markers, Cs-I1–10 and Cs-I1–15, related to female and male plant in Cannabis have been screened out. These genome-wide InDels and data on the genetic relationships of the Chinese Cannabis germplasm would serve useful in the further molecular analysis in Cannabis, and two sex-linked markers may provide accurate sex identification strategies at the early stage of Cannabis in production and breeding program.
Materials and methods
Plant materials and DNA extraction
A total of 115 Cannabis accessions were collected from different regions in China and preserved in our institute. Detailed information on these cultivars is summarised in Table 1. Flowering time is the time from sowing to flowering. When more than 50% of the plants of each cultivar bloom, the flowering time was scored and listed in Table 1. Additionally, six female and six male individuals, selected from an F2 population derived from a cross between a female “H4” plant and a male “Yunma 6” (Y6) plant, were used for the screening of sex-linked marker. Furthermore, 24 samples (12 females and 12 males individuals) from the “H4” variety and ten samples from the feminized Cannabis variety, “ZY1”, were used for further validation of the sex-linked marker.
DNA extraction
The young leaves of each sample at the flowering stage were collected for DNA extraction. A Plant Genomic DNA Kit (Tiangen Biotech, Beijing, China) was used for DNA extraction. DNA quality and quantity were checked using an Eppendorf BioSpectrometer (Eppendorf, Hamburg, Germany), and the DNA was further diluted to a 10 ng/L working solution.
Detection and design of the insertions/deletions (InDels)
The genomic DNA sequences of PK and FN were obtained from ftp://ftp.ncbi.nlm.nih.gov/genomes/all/GCA/003/417/725/GCA_003417725.2_ASM341772v2. The DNA sequences of PK represented the reference genome, which was compared with that of FN using MUMer (http://mummer.sourceforge.net/manual/) software to capture the InDel loci (≥ 4 bp). Then, based on the InDel loci data, the primers were designed using the Primer 3.0 software (http://pgrc.ipk-gatersleben.de/misa/primer3.html). One pair of primers with the highest scoring was selected in the design results for the experiments. Furthermore, all InDel markers were checked for specificity using the TBtool software by blasting with the reference genome to avoid nonspecific amplification [43]. Only unique InDels were retained and listed in Table S1.
InDel genotyping
The 84 primer pairs evenly distributed in the FN genome were selected for polymorphism analysis. Polymerase chain reactions (PCRs) were performed using 10 μL aliquots of the reaction mixture, including 7 μL of the PCR mix solution (Qingke, Nanjing, China), 1 μL of the forward primer (10 nmol/L), 1 μL of the reverse primer (10 nmol/L), and 1 μL of the DNA template. PCR was conducted as follows: an initial step at 95 °C for 5 min, followed by 32 cycles of 30 s at 94 °C, 30 s at 55 °C, 40 s at 72 °C, and a final extension of 10 min at 72 °C. Primers used for genotyping were listed in Table 2 and Table S2.
Marker Position Forward Primer Reverse Primer Product (bp) MAF AlleleNo GeneDiversity PIC I1–2 5,107,359 CCCTTGCACACTTATTTGACTAGT CCATTGCTGTTTATATTCGGGTGG 232 0.5739 4.0000 0.5462 0.4635 I1–4 35,070,118 CGATACAATCTAAGGGGAGTAGGC CTGAGAGTTAGCACCACCATTTTG 225 0.6261 4.0000 0.5072 0.4277 I1–6 55,100,664 TCAGTTAATAATCGCACGCACATC GATCCTGGTTCGTGAAATTGATGG 215 0.4522 4.0000 0.6865 0.6351 I2–10 45,232,264 CTAACTAACCATCTACTGCGACCA CTCTGGATCCATTTTCGTTTGAGG 217 0.4913 4.0000 0.6149 0.5407 I4–10 45,033,231 GTTCTAAGAGTGGATTCAACGAAGA TTACAATTTCACCCCTGCTTAGTG 198 0.5435 4.0000 0.6027 0.5376 I5–6 25,186,057 GACTTTGACACCATTCGAGTTCAG GTGTTTACCCCTTCTCACATAGGT 129 0.9348 4.0000 0.1243 0.1209 I5–9 40,002,310 TCATACTACTCTCCTGACCTCTCC AATTGTGATGTTTTCTTGGAGGGC 287 0.7870 4.0000 0.3609 0.3362 I6–2 5,003,421 GGATAAATCTCCGAAATGCACTCT GACAAGGTGATTTTGAAGAGTGGG 196 0.9217 3.0000 0.1470 0.1412 I6–6 25,003,694 TGGGCGAACTCAAGGTCAATATTA CCTCTAGGCCTTCTCAGCTTAATT 157 0.7739 4.0000 0.3774 0.3487 I6–7 30,129,906 GTCTACAACATCTCCTCCACTCTC ATTAAAATAGCCGCACGAAGAG 296 0.7000 4.0000 0.4429 0.3770 I6–8 35,088,175 TTTTGCTACTGGGAATTAGGCGAA CAGAGGAGTCCAAGGAAGAAGAAA 280 0.4478 3.0000 0.6379 0.5629 I7–4 15,048,834 AAAATCCCAACCACACCGACC CCACCACATCAAACCATTCAGATT 272 0.5652 3.0000 0.5255 0.4259 I8–2 5,036,397 AGCTCAATCTGCCCTTAGTTCTAC GTTCATGTTCTCTTCCTCTCCTGT 224 0.4957 3.0000 0.5605 0.4634 I8–4 15,041,707 TACTGCAGGATATGTGTAAAGCGT CACAATATGGGAGGAACAACAAGT 286 0.7652 5.0000 0.3950 0.3721
Genetic diversity assay and population structure
Similar band types of 115 Cannabis cultivars on the electropherograms amplified using the same InDel markers were considered the same allele. Each polymorphic band detected by the same given primer represented an allelic mutation. To generate molecular data matrices, clear bands for each fragment were scored in every accession for each primer pair and recorded as 1 (presence of a fragment), 0 (absence of a fragment), and 9 (complete absence of band). PowerMarker version 3.25 was used to calculate the polymorphism information content (PIC), the number of alleles (NA), major allele frequency (MAF), and gene diversity for each InDel. A clustering map was conducted based on genetic distances and the unweighted pair group method with arithmetic mean (UPGMA) using the SM functionality of the NTSYS-pc2.10e software. Principal Coordinate Analysis (PCoA) was also performed using the NTSYS-pc2.10e software to resolve clustering patterns among genotypes. STRUCTURE v2.3.4 was used to estimate the population structure of the 115 Cannabis genotypes, and the number of the sub-population (K) was set from 1 to 10 based on admixture models and correlated with band frequencies three times. IBM SPSS Statistic 19.0 was used for cluster analysis of 115 Cannabis cultivars with the longest distance method and the Euclidean distance square based on the flowering time of each cultivar.
Supplementary Information
Untitled section
Abbreviations
- InDel
- Insertion/Deletion
- CBD
- Cannabinoid
- THC
- tetrahydrocannabinol
- RFLP
- Restriction fragment length polymorphism
- RAPD
- Random amplified polymorphic DNA
- AFLP
- Amplification fragment length polymorphism
- SSR
- Simple sequence repeats
- ISSR
- Inter-simple sequence repeat
- PCR
- Polymerase chain reactions
- PIC
- Polymorphism information content
- NA
- Number of allele
- MAF
- Major allele frequency
- UPGMA
- Unweighted pair group method with arithmetic mean
Acknowledgements
We thank all the staff in our lab for providing useful suggestions and technical assistance. We are very grateful to the editor and reviewers for providing constructive comments for the improvement of our manuscript.
Research involving plants
We confirm we have included a statement specifying the local, national or international guidelines and legislation and the required or appropriate permissions and/or licences for the study. Experimental research on plants and field studies in this work comply with the IUCN Policy Statement on Research Involving Species at Risk of Extinction and the Convention on the Trade in Endangered Species of Chinese Cannabis.
Funding
This research was supported by China Agriculture Technology Research System (CARS-16-E-02), Central Public-interest Scientific Institution Basal Research Fund (1610242020003; 1610242019001). Funds were used for performing the experiment, and analysis data and in writing the manuscript.
Availability of data and materials
Male-specific sequences of Cannabis cultivar ‘H4’ amplified by InDel marker Cs-I1–10 and Cs-I1–15 have been uploaded to the NCBI SRA database. SRA accession: PRJNA734672. The data will be accessible with the following link: “https://www.ncbi.nlm.nih.gov/sra/PRJNA734672”.
Declarations
Ethics approval and consent to participate
The 115 Chinese Cannabis materials were provided by National medium-term germplasm bank of bast fiber (Institute of Bast Fiber Crops, Chinese Academy of Agricultural Sciences). The study was conducted in accordance with 1961 International Convention against drugs, and also was approved by the 10th document issued by the State Drug Administration and the Ministry of agriculture in China in 2002.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
