Phytochemical Characterization of Cannabis sativa L. Chemotype V Reveals Three New Dihydrophenanthrenoids That Favorably Reprogram Lipid Mediator Biosynthesis in Macrophages
1Department of Pharmaceutical Sciences, University of Piemonte Orientale, 28100 Novara, Italy
2PlantaChem Srls, 28100 Novara, Italy
3Michael Popp Institute and Center for Molecular Biosciences Innsbruck (CMBI), University of Innsbruck, 6020 Innsbruck, Austria
4Canvasalus Srl, 35043 Monselice, Italy
5Department of Pharmacy, University of Naples Federico II, 80131 Naples, Italy
*Correspondence: andreas.koeberle@uibk.ac.at (A.K.); federica.pollastro@uniupo.it (F.P.); Tel.: +43-512-507-57903 (A.K.); +39-321-375-744 (F.P.)Abstract
The growing general interest surrounding Cannabis sativa L. has led to a renewal in breeding and resulted in an impressive variability of chemotypical characteristics that required the division of cannabis into different recognized chemotypes. The chemotype V has been overlooked in terms of phytochemical composition due to the almost total absence of cannabinoids, on which biomedical attention is focused. Systematic approaches addressing diverse chemotypes are, however, needed to discriminate and define phytochemical aspects beyond cannabinoids. Such thoroughly characterized chemotypes guarantee blinding in controlled studies by mimicking the sensory properties of hemp and may help to unravel the “entourage effect”. Capitalizing on the ability of cannabis to synthesize a large number of non-cannabinoid phenolic compounds, we here investigated, for the first time, the composition of the Ermo chemotype V and identified new compounds: two dihydrophenanthrenes and the methoxy-dihydrodenbinobin. All three compounds suppress pro-inflammatory leukotriene biosynthesis in activated macrophage subtypes by targeting 5-lipoxygenase, but substantially differ in their capacity to elevate the levels of specialized pro-resolving lipid mediators and their precursors in M2 macrophages. We conclude that the discovered compounds likely contribute to the anti-inflammatory properties of Cannabis sativa L. chemotype V and might promote inflammation resolution by promoting a lipid mediator class switch.
1. Introduction
Cannabis sativa L. was one of the first plants ever domesticated by humans, who spread its cultivation worldwide over the past 10,000 years. Due to its considerable and heterogeneous use, the plant can be considered as a multi-purpose crop, an object of constant breeding and selection [1]. The harvesting of cannabis has benefited from continuous developments and has been incredibly revived at the industrial level in several European countries such as Italy, Spain, Germany, the Netherlands and France [2]; this is also due to the progressive liberalization of non-psychoactive cultivars and their ongoing phytochemical analysis. More than 500 secondary metabolites have been identified, comprising cannabinoids, terpenoids and phenolic compounds [3].
The increasing public interest in cannabis together with the impressive variability of chemotypical characteristics inspired the division of cannabis into five recognized groups (or chemotypes) within the genus, depending on different concentrations of major cannabinoids (Δ9-THC 1; CBD 2; and CBG 3). The five recognized chemotypes of cannabis include: (I) the drug-type plants (narcotic) with a high content of the psychotropic Δ9-tetrahydrocannabinol (Δ9-THC 1); (II) medicinal cannabis with a 1:1 content of Δ9-THC 1: CBD 2; (III) industrial fiber hemp that has CBD 2 as a predominant constituent and a minimum content of Δ9-THC 1 (0.2% w/w); (IV) fiber-type plants that contain cannabigerol (CBG 3) as the main cannabinoid; (V) fiber-type plants largely devoid of cannabinoids (Table 1) [4]. The latter cannabinoids are certainly spectacular secondary metabolites that have long been in the spotlight of biomedical attention. However, it is also important to discriminate and define the qualitative and quantitative aspects of other chemotypes beyond cannabinoids. Such a systematic approach allows further insights into bioactive constituents, such as cannflavins, which might synergistically contribute to the anti-inflammatory activity of cannabis [1,5]. Moreover, cannabinoid-free strains are necessary for controlled studies to mimic the sensory properties of hemp, guarantee blinding and explain the typical synergy of many botanical extracts besides the isolated cannabinoids [5].
Of all the chemotypes, type V (cannabinoid-free) has been overlooked in terms of phytochemical composition because cannabinoids are absent. Many hypotheses have arisen regarding this inability to produce cannabinoids. For example, the absence of this biosynthesis could be due to the disabling of terpeno-phenolic condensation or a total absence and dysfunctionality of glandular trichomes. The presence of a cannabinoid knock-out factor that leaves unaffected the biosynthesis of other compound classes is decisive in inactivating the pathway toward the phenolic cannabinoid precursors [6]. Anyway, cannabis is a prolific producer of metabolites and besides cannabinoids, the plant biosynthesizes other molecules, such as terpenoids responsible for the typical scent, oxylipins, amines and amides, phytosterols and a plethora of non-cannabinoid phenolic compounds [7]. Among non-cannabinoid phenols, denbinobin 4 deserves particular mention for its biological activity and for its recurrence, which is extremely rare in the plant kingdom. Denbinobin 4, a typical ingredient of several orchidaceous plants, has been identified in the IV chemotype of fiber-hemp [8]. Its anti-tumor potential has cogently been conveyed by the title of a commentary in the British Journal of Pharmacology: Escaping immune surveillance in cancer: is denbinobin the panacea? [9]. Other unique compounds of cannabis are canniprene 6 and cannflavins 7a and 8, which open a new field for chemical and biological exploration [1,10]. In particular, canniprene 6 potently inhibits the production of inflammatory eicosanoids via the 5-lipoxygenase (5-LOX) pathway [11]. It outperforms the structural analogue resveratrol in suppressing pro-inflammatory readouts in diverse cell-free test systems and shows a remarkable potential for application in skin care [12]. The prenylated lipophilic flavonoids, cannflavins 7a and 8, are potent inhibitors of inducible inflammatory enzymes such as microsomal prostaglandin E2 synthase (mPGES)-1 and act as “intelligent” suppressors of the inflammatory response [12].
Given the huge number of bioactive compounds beyond cannabinoids, we were interested in the non-cannabinoid phenolic profile present in the V chemotype, the anti-inflammatory activity of individual components, and the impact of breeding on the chemical and functional fingerprint. For this reason, we here investigated, for the first time, the composition of the Ermo fiber hemp (a variety of hemp with almost no cannabinoids) provided by Canvasalus and reported on the isolation, phytochemical characterization, and biological evaluation of phenolic compounds, of which three derivatives are new. Our phytopharmacological studies employed a targeted metabololipidomics approach and focused on molecular targets within anti-inflammatory, pro-resolving and immunomodulatory lipid mediator biosynthesis pathways.
2. Results and Discussion

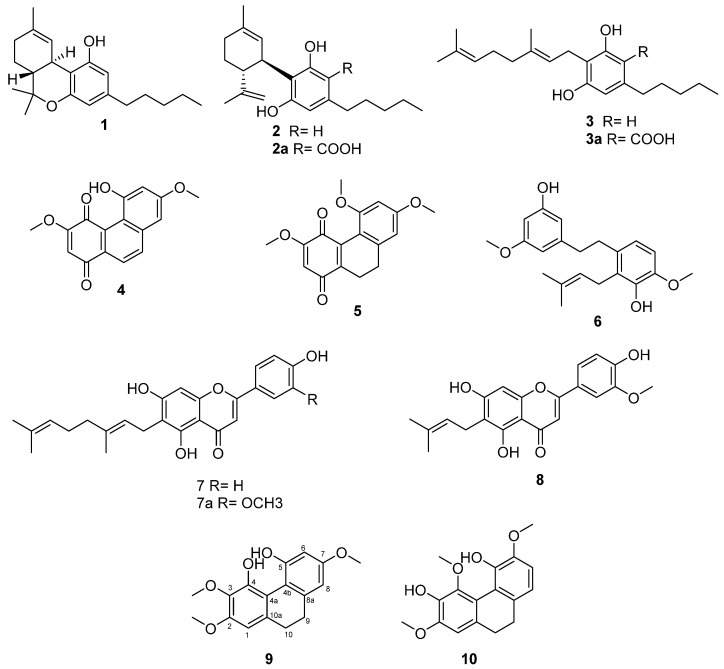

The analysis of the phytochemical profile of the Ermo chemotype V led to the isolation of trace amounts (0.14%) of cannabidiolic acid 2a and cannabigerolic acid 3a. Chromatographic purification yielded non-cannabinoid phenolic compounds, i.e., the dihydrostilbenoid canniprene 6, the C-prenylated flavonoids cannflavin A 7a, cannflavin B 8 and 5′-demethoxy-cannflavin A 7, which was first identified in Morus alba var. tatarica in 2015 [13] and only recently in Cannabis sativa [14]. The Ermo fiber-hemp provided three natural compounds 5, 9 and 10, which have never been isolated before and belong to the biosynthetic group of dihydrophenanthrenoids (Figure 1).
Compound 9, molecular formula determined by HR-ESIMS to be C17H19O5 with m/z 303.12, is a dihydrophenanthrene isolated as a brown powder. The 1H NMR spectroscopic data (Table 2 and Supplementary Materials) displayed signals due to three aromatic protons (δH 6.62, s (H-1), 6.44, d (J = 2.70 Hz, H-6), 6.50, d (J = 2.70 Hz, H-8)), two methylene moieties (δH 2.64, bs (H-9 and H-10)) and three methoxy groups (δH 3.84, s (OMe-2), 3.63, s (OMe-3), 3.81, s (OMe-7)), suggesting the structure of 9,10-dihydro-2,3,7-trimethoxy-4,5-phenanthrenediol (Figure 2 and Table 2). This structure was confirmed by 13C NMR spectroscopy (Table 3), which revealed the presence of four aromatic quaternary carbons (δC 117.3 C-4a, 113.3 C-4b, 127.5 C-8a and 142.7 C-10a) and five oxygenated aromatic quaternary carbons (δC 151.3 C-2, 137.0 C-3, 150.3 C-4, 155.7 C-5, 160.4 C-7), three aromatic methine carbons (δC 99.1 C-1, 102.0 C-6, 106.4 C-8), two methylene groups (δC 31.2 C-9, 21.8 C-10) and three methoxyls (δC 55.3 OMe-2, 61.2 OMe-3, 54.5 OMe-7). Methoxy group locations at C-2, C-3 and C-7 were confirmed by the HMBC and NOESY correlations. Specifically, NOESY correlations observed between the methoxy group at δH 3.84 and the aromatic proton at H-1 (δH 6.62) together with the NOESY observed between the two methoxy groups at δH 3.84 and δH 3.63, placed the two methoxy groups, respectively, at positions C-2 and C-3. This was further confirmed by the HMBC observed between H-1 and C-2. Moreover, HMBC correlations (H-6/C-4b, C-5, C-7, C-8; H-8/C-4b, C-7, C-9; OMe-7/C-7) and NOESY correlations (H-6/OMe-7 and H-8/OMe-7) supported the assignment of the remaining methoxy group at C-7 (Figure 2 and Supplementary Materials).
Compound 10, molecular formula determined by HR-ESIMS to be C17H19O5 with m/z 303.12, isolated as a brown powder, is closely related to compound 9 (Figure 2), with the 1H and 13C NMR spectroscopic data (Table 2 and Table 3 and Supplementary Materials) indicating the same dihydrophenanthrene structure that displays different disposition of aromatic oxygenated carbon atoms. In compound 10, aromatic protons form one singlet at δH 6.63 (H-1) and two doublets at δH 6.87 (JH = 8.2 Hz, H-7) and 6.82 (JH = 8.2 Hz, H-8), which were ascribed to a pair of ortho-coupled protons, while the three methoxy groups are singlets at δH 3.87 (OMe-2), 3.79 (OMe-4) and 3.86 (OMe-6). The 13C spectrum (Supplementary Materials) shows the presence again of five oxygenated aromatic quaternary carbons (δC 152.1 C-2, 147.4 C-3, 136.6 C-4, 141.5 C-5, 147.6 C-6). The HMBC correlations (Supplementary Materials) from H-7 to C-5, C-6, C-8, C-8a, from H-8 to C-4b, C-6, C-7, C-8a, C-9 and from H-6 to the carbon on OMe-6 together with the NOESY correlation OMe-6/H-7 allowed the identification of the ring C substructure. The remaining two methoxy groups have been assigned based on the HMBC correlations (Supplementary Materials) OMe-2/C-2 and OMe-4/C-4 and the NOESY correlation between only OMe-2 and H-1. Based on the above-described evidence, the structure of 10 was defined as 9,10-dihydro-2,4,6-trimethoxy-3,5-phenanthrenediol (Figure 2).
Compound 5 was obtained as a red powder. Its molecular formula was determined by HR-ESIMS to be C17H17O5 with m/z 301.10 (Supplementary Materials). In the 1H NMR spectrum (Table 2, Supplementary Materials), there are only two aromatic protons (δH 6.54, s (H-6), 6.53, s (H-8)) and one olefinic proton (δH 5.95, s (H-2)). Moreover, two methylene moieties (δH 2.67, t (H-9), 2.51, t (H-10)) and three methoxyls (δH 3.87, s (OMe-3), 3.76, s (OMe-5), 3.85, s (OMe-7)) are still present. The 13C spectrum (Supplementary Materials) showed two carbonylic carbons (δC 185.2 C-1, 179.2 C-4) and confirmed the presence of three sp2 oxygenated carbon atoms (δC 160.1 C-3, 158.0 C-5, 162.0 C-7), while there are still four olefinic disubstituted carbon atoms, two ascribable to the aromatic ring (δC 112.0 C-4b, 138.8 C-8a) and the others to the quinonoid moiety (δC 138.0 C-4a, 140.1 C-10a) and two methines (δC 28.3 C-9, 20.1 C-10).

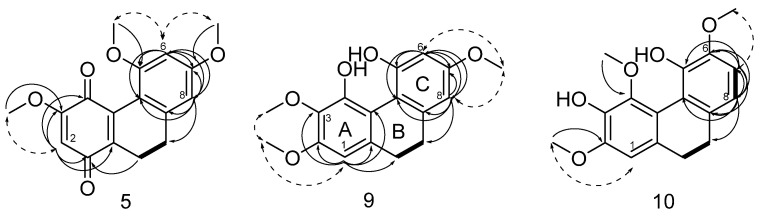

This evidence suggests that compound 5 is a dihydrophenanthrenequinone. The key HMBC correlations (Supplementary Materials) of H-10 to C-1, C-3, C-4, C-10a; H-6 to C-4b, C-5, C-7, C-8; H-8 to C-4b, C-6, C-7, C-9; H2-10 to C-1; OMe-3 to C-3; OMe-5 to C-5 and OMe-7 to C-7 supported this assignment. Furthermore, locations of methoxy groups at C-3, C-5 and C-7 were confirmed by the NOESY correlations H-2/OMe-3, H-6/OMe-5 and OMe-7, H-8/OMe-7 (Supplementary Materials). On the basis of these results, compound 5 was identified as 9,10-dihydro-3,5,7-trimethoxy-1,4-phenanthrenequinone or a new 5-methoxy-dihydrodenbinobin derivative 5 (Figure 2).
Even though a lot of work has been conducted on the phytochemical characterization of cannabis, this is the very first time the non-cannabinoid compounds 5, 9 and 10 have been isolated and characterized from this plant. The dihydrophenanthrenes 9 and 10 are particularly interesting for a possible structure–activity relationship study, since both compounds retain the same number of methoxy and hydroxyl groups but with different positions in the reciprocal scaffold. Moreover, just a few cannabis phenanthrenes have so far been described with properties that might be relevant for human health, such as the unique denbinobin 4 endowed with cell apoptosis-inducing properties that might rely on the impaired activation of the survival kinase Akt (protein kinase B) [15,16] or the interference with NF-kB signaling [17]. Given the biological relevance of denbinobin 4, the newly isolated methoxy-reduced denbinobin analogue 5 described here, is expected to be of similar biological relevance.
Diverse phenanthrene secondary metabolites exert anti-inflammatory, anti-allergic, and/or anti-platelet aggregation activity, among others by interfering with lipid mediator biosynthesis [18,19]. To assess the effect of the three new dihydrophenanthrenoids 5, 9 and 10 on the lipid mediator network, we challenged human M1 and M2 macrophages with Staphylococcus aureus-conditioned medium and analyzed major pro-inflammatory, anti-inflammatory and pro-resolving lipid mediators by targeted metabololipidomics (Figure 3a,b). Compounds 9 and 10 exhibited anti-inflammatory effects in human M1 macrophages by inhibiting 5-LOX product formation at low micromolar concentrations. (Figure 3c). The quinone 5 was most potent (IC50 = 1.0 µM) and the OH-methylation pattern modulated the 5-LOX product-lowering activity (9: IC50 = 3.8 µM, 10: IC50 = 8.5 µM). Direct inhibition of human recombinant 5-LOX was confirmed for compounds 9 (IC50 = 6.9 µM) and 10 (IC50 = 4.6 µM) in a cell-free assay. Compound 5 was less active on isolated 5-LOX (IC50 = 20.1 µM) (Figure 3d,e), despite being the most potent inhibitor of 5-LOX product formation in intact cells (IC50 = 1 µM) (Figure 3c,e), which hints either towards cellular accumulation or alternative targets within the 5-LOX pathway, such as the 5-LOX-activating protein FLAP [20]. In addition, quinone 5 suppressed the formation of overall pro-inflammatory cyclooxygenase (COX)-derived prostanoids (IC50 = 2.0 µM), whereas the diols 9 and 10 substantially elevated COX product formation in M1 macrophages (Figure 3c), probably due to the redirection of arachidonic acid from the 5-LOX to the COX pathway [20].
In human M2 macrophages, which are associated with wound healing and tissue repair [21,22] compounds 9 and 10 stimulated the production of specialized pro-resolving mediators (SPMs) (Figure 3b,f), which actively promote the termination of inflammation and return to homeostasis by inhibiting neutrophil trafficking, stimulating efferocytosis, enhancing bacterial clearance, protecting from oxidative stress, and promoting tissue regeneration [23,24,25]. Interestingly, compound 9 raised the levels of multiple SPM classes, i.e., D-series Rv (RvDs), protectins (PDs) and maresin 2 (MaR2), whereas the isomeric compound 10 selectively increased the availability of MaR2, and the quinone 5 elevated MaR2 and PDs but not RvDs levels (Figure 3b,f). It is tempting to speculate that the 3- and/or 7-methoxy-groups, which are shared by 9 and 5, but not present in 10, in these isolated compounds, are required for an effective increase in PDs levels. Moreover, PDs and MaR2 were strongest upregulated by compound 5 (Figure 3b,f); although, the release of polyunsaturated fatty acids (PUFAs) was decreased (Figure 3g), which indicates that the quinone substructure is not only advantageous for 5-LOX inhibition and required for suppressing COX product formation but is also favorable for the lipid mediator class switch from pro-inflammatory LTs and prostanoids to pro-resolving SPMs.
Mechanistically, the overall increase in SPM levels induced by 9 (Figure 3b,f) seems to arise from an enhanced formation of precursors, including 17-HDHA, 15-HEPE and 15-HETE (Figure 3b) by 15-LOX-dependent oxygenation of docosahexaenoic acid (DHA) [26,27]. Compound 5, on the other hand, slightly but significantly lowered 12/15-LOX product levels (Figure 3h), which rather excludes that 12- and 15-LOX drive the upregulation of PDs and MaR2 (Figure 3f). Of interest, soluble epoxide hydrolase (sEH) not only hydrolyzes epoxyeicosatrienoic acids (EETs) to their corresponding diols (DHETs) but also converts 13(S), 14(S)-epoxy-DHA to MaR2 [28]. Since the ratio of DHETs/EETs, which serves as an indicator of sEH activity [29], is significantly elevated by compound 5 in human M2 macrophages (Figure 3i), it is tempting to speculate that the higher sEH activity adds to the associated increase in MaR2 and potentially PDs levels (Figure 3f). Compound 10 evokes comparable but less pronounced effects (Figure 3b,f); although, sEH activity is only increased by trend (Figure 3i). Together, the newly identified dihydrophenanthrenoids promote a lipid mediator class switch from inflammation to resolution, with small structural changes deciding about the lipid mediator subgroups affected.
3. Material and Method
3.1. General Experimental Procedures
1H (600 MHz, 400 MHz) and 13C (150 MHz, 100 MHz) NMR spectra were measured on Bruker Avance 700 spectrometer and Bruker 400 spectrometers (Bruker®, Billerica, MA, USA). Chemical shifts were referenced to the residual solvent signal (C3D6O: δH = 2.05, δC = 206.7, 29.9). Homonuclear 1H connectivities were determined by the COSY experiment. One-bond heteronuclear 1H−13C connectivities were determined with the HSQC experiment. Two- and three-bond 1H−13C connectivities were determined by gradient 2D HMBC experiments optimized for a 2,3 J = 9 Hz. Low- and high-resolution ESIMS data were obtained on an LTQ OrbitrapXL (Thermo Scientific, Waltham, MA, USA) mass spectrometer. Silica gel 60 (70−230 mesh), RP C-18 silica gel and Celite® 545 particle size 0.02–0.1 mm, pH 10 (100 g/L, H2O, 20 °C), used for low-pressure chromatography and vacuum chromatography was purchased from Macherey-Nagel (Düren, Germany). Purifications were monitored by TLC on Merck 60 F254 (0.25 mm) plates, visualized by staining with 5% H2SO4 in EtOH and heating. Chemical reagents and solvents were from Aldrich (Darmstadt, Germany) and were used without any further purification unless stated otherwise. Flash chromatography Isolera One with DAD (Uppsala, Sweden), HPLC JASCO Hichrom, 250 × 25 mm, silica UV−vis detector-2075 plus (Oklahoma, Japan).
3.2. Plant Material
Cannabis sativa L. Ermo variety was purchased from Canvasalus Srl (Monselice, Italy). A voucher specimen (CsErmo-2022) of the vegetal material is stored in Novara laboratories. The variety is protected at Community Plant Variety Office (CPVO) with application number 20100208.
3.3. Extraction and Isolation
Nonwoody aerial parts, inflorescences and leaves (954 g) were extracted with acetone (2 × 10 L) in a vertical percolator at room temperature, affording 46.18 g (4.84%) of a dark green syrup. This was later dissolved at 45 °C in 400 mL of MeOH (ratio extract/MeOH 1:10) and left at 8 °C to condense fatty acids and waxes. After 12 h the solution was vacuum-filtered with cold MeOH in a sintered funnel protected by a bed of stratified Celite obtaining 20 g of residual fraction after evaporation with rotary evaporator. This latter part was subsequently purified by solid-phase extraction on RP C-18 silica gel to remove pigments, unsaturated fatty acids and poly-isoprenoids. For this purpose, the fraction was dissolved in the minimal MeOH amount at 45 °C and charged on 200 g of RP-C18 (ratio extract/RP-C18 1:10) packed with MeOH in a sintered funnel (9 × 15 cm) with a side arm for vacuum. Elution with MeOH (100 mL) gave 10 g of purified fraction. The latter fraction was fractionated by low-pressure chromatography (LPC) on silica gel (200 g, petroleum ether−EtOAc gradient from 90:10 to 20:80) to afford three fractions (I, II, and III), which were further purified. Fraction I was fractionated by flash chromatography with Isolera One on RP C-18 silica gel (60 g, solvent A: MeOH 0.03% formic acid, solvent B: H2O 0.03% formic acid gradient from 50:50 to 95:5) to afford 1.32 g of a mixture of cannabidiolic acid and cannabigerolic acid (2a and 3a, 0.14%) as brown syrup, and 82 mg of canniprene (6, 0.008%) as a brownish powder. The separation of fraction II by with Isolera One on RP C-18 silica gel (12 g, solvent A: MeOH 0.03% formic acid, solvent B: H2O 0.03% formic acid gradient, from 50:50 to 95:5) followed by purification with HPLC on silica gel (petroleum ether-EtOAc gradient, from 60:40 to 30:70) afforded 37 mg of 9,10-dihydro-2,3,7-trimethoxy-4,5-phenanthrenediol (9, 0.005%) as a brownish powder, 36 mg of 9,10-dihydro-3,5,7-trimethoxy-1,4-phenanthrenequinone (5, 0.004%) as a red powder and 35 mg of 9,10-dihydro-2,4,6-trimethoxy-3,5-phenanthrenediol (10, 0.004%) as a brownish powder. Fraction III was fractionated by Isolera One on RP C-18 silica gel (12 g, solvent A: MeOH 0.03% formic acid, solvent B: H2O 0.03% formic acid gradient, from 50:50 to 95:5) and further separated by HPLC on silica gel (petroleum ether-EtOAc gradient, from 60:40 to 30:70) to afford 46 mg of cannflavin A (7a, 0.005%) as a yellow powder, 17 mg of cannflavin B (8, 0.002%) as yellow powder, 4 mg of 5′-demethoxy-cannflavin A (7, 0.0004%) as a yellow powder.
3.4. Spectroscopic Data
Compound 9. Brown amorphous powder. 1H NMR (C3D6O, 400 MHz) and 13C NMR (C3D6O, 100 MHz): Table 1 and Table 2; HR-ESIMS found m/z 303.1230 [M + H]+; C17H19O5 requires m/z 303.1227.
Compound 5. Red amorphous powder. C3D6O, 400 MHz) and 13C NMR (C3D6O, 100 MHz): Table 1 and Table 2; HR-ESIMS found m/z 301.1066 [M + H]+; C17H17O5 requires m/z 301.1076.
Compound 10. Brown amorphous powder. 1H NMR (C3D6O, 400 MHz) and 13C NMR (C3D6O, 100 MHz): Table 1 and Table 2; HR-ESIMS found m/z 303.1230 [M + H]+; C17H19O5 requires m/z 303.1227.
3.5. Isolation of Peripheral Blood Mononuclear Cells (PBMC) from Human Blood
Leukocyte reduction system chamber (LRSC) filters were provided by the Central Institute for Blood Transfusion and Immunological Department of Tirol Kliniken GmbH (Austria) with the informed consent of the volunteers. Only healthy blood donors between 18 and 65 years of age without medication for chronic diseases, fever, or deficiency symptoms and after physical examinations by trained medical personnel were included in the study. Human peripheral blood mononuclear cells (PBMC) were freshly isolated from LRSC filters. After dilution of the cell concentrates in PBS pH 7.4 containing 12.5 mM citrate and 14 mM glucose (130 mL, 37 °C), immune cells were separated via isopycnic density gradient centrifugation (400× g, 20 min, RT) using Histopaque®-1077 (Sigma-Alrich, St. Louis, MO, USA). PBMC were obtained from the interphase after hypotonic lysis of erythrocytes using water (2–5 mL) and two consecutive washing steps with PBS pH 7.4 (50 mL) (270× g, 5 min, RT).
3.6. Monocyte Differentiation and Macrophage Polarization
To differentiate monocytes, which are the predominant cell type in PBMC, towards M0 macrophages, they were first stimulated with 20 ng/mL GM-CSF or M-CSF (HiSS Diagnostics GmbH, Freiburg, Germany) for 6 days in macrophage medium (RPMI 1640 supplemented with 10% FCS, 2 mmol/L L-glutamine, 100 U/mL penicillin and 100 μg/mL streptomycin). These monocyte-derived macrophages were polarized for another 48 h in macrophage medium with 100 ng/mL lipopolysaccharide and 20 ng/mL interferon-γ (Peprotech, Hamburg, Germany) to obtain M1 or with 20 ng/mL interleukin-4 (Peprotech, Hamburg, Germany) to obtain M2 phenotypes [30,31].
3.8. Determination of 5-Lipoxygenase Activity
Human recombinant 5-LOX (Cayman Chemical, 10 U) was pre-treated with vehicle (DMSO, 0.1%) or test compounds for 10 min in 1 mL PBS pH 7.4, 1 mM EDTA and 1 mM ATP on ice before CaCl2 (2 mM) and arachidonic acid (20 µM) were added [33]. After 10 min at 37 °C, the reaction was stopped by the addition of ice-cold MeOH (1 mL) and PGB1 (2 ng) as internal standard. Clean-Up C-18 Endcapped SPE cartridges (100 mg, 10 mL, UCT, Bristol, PA, USA) were conditioned with MeOH (1 mL, twice) and equilibrated with water (1 mL). After acidification (530 µL PBS plus 60 mM HCl) and centrifugation (750× g, 10 min, 4 °C), supernatants containing lipid mediators were loaded onto the columns, which were first washed with water (1 mL) and then MeOH/water (25:75, 1 mL). After elution of lipid mediators with MeOH (300 µL), water (120 µL) was added and samples were centrifuged (21,100× g, 10 min, 4 °C) and subjected to LC-PDA analysis. 5-LOX products, including all trans-isomers of LTB4 and 5-HETE, were separated at 40 °C and a flow rate of 0.45 mL/min on a Kinetex C-18 LC column (100Å, 1.3 μm, 2.1 × 50 mm, Phenomenex, Torrance, CA) using a Nexera X2 UHPLC system (Shimadzu, Kyoto, Japan). The step gradient of mobile phase A (water/MeOH, 50/50, 0.05% trifluoroacetic acid) and mobile phase B (MeOH, 0.05% trifluoroacetic acid) was kept at 14% B for 2 min, followed by 46% B for 2 min and 90% B for another 2 min. LTB4 isomers and 5-HETE were detected with a photodiode array detector (SPD-M20A, Shimadzu, Kioto, Japan) at 280 nm and 235 nm, respectively. Lipid quantitieswere calculated by internal calibration using PGB1 as reference standard.
3.9. Statistics
Data are expressed as mean ± s.e.m. and single data from n = 4–8 independent experiments. Significant outliers were removed (Grubbs’test, p < 0.05) and data were log-transformed for statistical analysis. For multiple comparisons, repeated-measures one-way ANOVA followed by Dunnett´s post hoc test was performed. p values < 0.05 were considered statistically significant. Data were analyzed using Microsoft Excel (Office 365, Version: 2204, Albuquerque, New Mexico), and statistics were performed using GraphPad Prism (GraphPad Software version 9.3.1, Dotmatics, Boston, UK). IC50 values were calculated by non-linear regression (GraphPad Prism 9.3.1).
4. Conclusions
The Ermo strain of Cannabis sativa belongs to the chemotype V and is almost completely devoid of cannabinoids, which makes it an excellent candidate to ensure blinding in clinical trials. We investigated, for the first time, the phytochemical profile of this fiber hemp and identified three new compounds: two dihydrophenanthrenes 9, 10 and a quinone 5 closely related to denbinobin 4. Metabololipidomics profiling showed that the three compounds target 5-lipoxygenase and suppress pro-inflammatory LT biosynthesis in activated macrophage subtypes. While each of the compounds might contribute to the resolution of inflammation, their capacity and specificity to elevate the levels of specialized pro-resolving lipid mediators and their precursors significantly differs. Taken together, our results demonstrate the potential of phytochemical and pharmacological characterization of cannabis varieties not only to explain the different biological activities of the chemotypes but also to add to our understanding of the “entourage effect” [5].
Appendix Group
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11162130/s1, Figure S1. 1H NMR spectrum (400 MHz) of compound 5 in C3D6O. Figure S2. 13C NMR spectrum (100 MHz) of compound 5 in C3D6O. Figure S3. HSQC 2D NMR spectrum (400 MHz) of compound 5 in C3D6O. Figure S4. COSY 2D NMR spectrum (400 MHz) of compound 5 in C3D6O. Figure S5. NOESY 2D NMR spectrum (400 MHz) of compound 5 in C3D6O. Figure S6. HMBC 2D NMR spectrum (600 MHz) of compound 5 in C3D6O. Figure S7. 1H NMR spectrum (400 MHz) of compound 9 in C3D6O. Figure S8. 13C NMR spectrum (100MHz) of compound 9 in C3D6O. Figure S9. HSQC 2D NMR spectrum (400 MHz) of compound 9 in C3D6O. Figure S10. COSY 2D NMR spectrum (400 MHz) of compound 9 in C3D6O. Figure S11. NOESY 2D NMR spectrum (600 MHz) of compound 9 in C3D6O. Figure S12. HMBC spectrum (400 MHz) of compound 9 in C3D6O. Figure S13. 1H NMR spectrum (400 MHz) of compound 10 in C3D6O. Figure S14. 13C NMR spectrum (100MHz) of compound 10 in C3D6O. Figure S15. HSQC 2D NMR spectrum (400 MHz) of compound 10 in C3D6O. Figure S16. COSY 2D NMR spectrum (400 MHz) of compound 10 in C3D6O. Figure S17. HMBC 2D NMR spectrum (600 MHz) of compound 10 in C3D6O.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
| Chemotype | Major Cannabinoids | Classification |
|---|---|---|
| I | Drug-type plants (narcotic) with high content of the psychotropic Δ9-THC | Drug-type plant (narcotic) |
| II | Medicinal cannabis with Δ9-THC/CBD 1:1 | Fiber-type |
| III | Industrial fiber hemp with CBD as predominant and a minimum content of Δ9-THC (from 0.2% w/w to 0.6% w/w) | Fiber-type |
| IV | Industrial fiber hemp with CBG as predominant cannabinoid | Fiber-type |
| V | Industrial fiber hemp with almost no cannabinoids | Fiber-type |
| 5 | 9 | 10 | |
|---|---|---|---|
| Position | δH, mult (J in Hz) | δH, mult (J in Hz) | δH, mult (J in Hz) |
| 1 | 6.62, s | 6.63, s | |
| 2 | 5.95, s | ||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | 6.53, d, 2.40 | 6.44, d 2.70 | |
| 7 | 6.87, d, 8.2 | ||
| 8 | 6.53, d, 2.40 | 6.50, d 2.70 | 6.82, d, 8.2 |
| 9 | 2.67, t, 7.3 | 2.64, bs | 2.62, bs |
| 10 | 2.51, t 7.3 | 2.64, bs | 2.62, bs |
| OMe-2 | 3.84, s | 3.87, s | |
| OMe-3 | 3.87, s | 3.63, s | |
| OMe-4 | 3.79, s | ||
| OMe-5 | 3.76, s | ||
| OMe-6 | 3.86, s | ||
| OMe-7 | 3.85, s | 3.81, s | |
| OH-5 | 9.09, s |
| 5 | 9 | 10 | |
|---|---|---|---|
| Position | δC, Type | δC, Type | δC, Type |
| 1 | 185.2, C | 99.1, CH | 104.4, CH |
| 2 | 105.6, CH | 151.3, C | 152.1, C |
| 3 | 160.1, C | 137.0, C | 147.4, C |
| 4 | 179.2, C | 150.3, C | 136.6, C |
| 4a | 138.0, C | 117.3, C | 114.7, C |
| 4b | 112.0, C | 113.3, C | 120.7, C |
| 5 | 158.0, C | 155.7, C | 141.5, C |
| 6 | 97.0, CH | 102.0, CH | 147.6, C |
| 7 | 162.0, C | 160.4, C | 109.6, CH |
| 8 | 105.0, CH | 106.4, CH | 118.9, CH |
| 8a | 138.8, C | 127.5, C | 132.2, C |
| 9 | 28.3, CH2 | 31.2, CH2 | 30.3, CH2 |
| 10 | 20.1, CH2 | 21.8, CH2 | 31.3, CH2 |
| 10a | 140.1, C | 142.7, C | 136.7, C |
| OMe-2 | 55.3, CH3 | 55.2, CH3 | |
| OMe-3 | 55.7, CH3 | 61.2, CH3 | |
| OMe-4 | 59.7, CH3 | ||
| OMe-5 | 55.2, CH3 | ||
| OMe-6 | 55.5, CH3 | ||
| OMe-7 | 54.9, CH3 | 54.5, CH3 |
| Q1 | Q3 | ID | DP (V) | EP (V) | CE (eV) | CXP (V) |
|---|---|---|---|---|---|---|
| 327.3 | 116.1 | d8-5S-HETE | −80.0 | −10.0 | −17.0 | −10.0 |
| 339.3 | 197.2 | d4-LTB4 | −80.0 | −10.0 | −22.0 | −13.0 |
| 355.3 | 193.2 | d4-PGE2 | −80.0 | −10.0 | −25.0 | −16.0 |
| 356.3 | 115.2 | d5-LXA4 | −80.0 | −10.0 | −19.0 | −14.0 |
| 380.3 | 141.2 | d5-RvD2 | −80.0 | −10.0 | −23.0 | −14.0 |
| 311.3 | 267.1 | d8-AA | −100.0 | −10.0 | −16.0 | −18.0 |
| 335.2 | 195.1 | LTB4 isomers | −80.0 | −10.0 | −22.0 | −13.0 |
| 335.2 | 195.1 | LTB4 | −80.0 | −10.0 | −22.0 | −13.0 |
| 319.2 | 115.1 | 5-HETE | −80.0 | −10.0 | −21.0 | −12.0 |
| 317.2 | 115.1 | 5-HEPE | −80.0 | −10.0 | −18.0 | −12.0 |
| 351.2 | 271.0 | PGE2 | −120.0 | −10.0 | −20.0 | −13.0 |
| 351.3 | 233.1 | PGD2 | −80.0 | −10.0 | −16.0 | −15.0 |
| 353.3 | 193.1 | PGF2α | −80.0 | −10.0 | −34.0 | −11.0 |
| 369.3 | 169.1 | TXB2 | −80.0 | −10.0 | −22.0 | −15.0 |
| 375.2 | 215.1 | RvD1 | −80.0 | −10.0 | −26.0 | −13.0 |
| 375.2 | 175.1 | RvD2 | −80.0 | −10.0 | −30.0 | −13.0 |
| 333.3 | 115.1 | RvE4 | −80.0 | −10.0 | −22.0 | −13.0 |
| 359.2 | 199.1 | RvD5 | −80.0 | −10.0 | −21.0 | −13.0 |
| 361.2 | 143.0 | RvD5n-3DPA | −110.0 | −10.0 | −23.0 | −25.0 |
| 359.2 | 250.1 | Maresin 1 | −80.0 | −10.0 | −20.0 | −16.0 |
| 359.2 | 221.0 | Maresin 2 | −80.0 | −10.0 | −20.0 | −12.0 |
| 359.2 | 153.1 | PD1/PDX/AT-PD1 | −80.0 | −10.0 | −21.0 | −9.0 |
| 343.2 | 245.1 | 17-HDHA | −80.0 | −10.0 | −17.0 | −14.0 |
| 345.2 | 247.1 | 17-HDPA | −80.0 | −10.0 | −17.0 | −14.0 |
| 319.2 | 219.1 | 15-HETE | −80.0 | −10.0 | −19.0 | −12.0 |
| 317.2 | 219.1 | 15-HEPE | −80.0 | −10.0 | −18.0 | −12.0 |
| 343.2 | 205.1 | 14-HDHA | −80.0 | −10.0 | −17.0 | −14.0 |
| 345.2 | 207.1 | 14-HDPA | −80.0 | −10.0 | −17.0 | −14.0 |
| 319.2 | 179.1 | 12-HETE | −80.0 | −10.0 | −21.0 | −12.0 |
| 317.2 | 179.1 | 12-HEPE | −80.0 | −10.0 | −19.0 | −12.0 |
| 317.2 | 259.1 | 18-HEPE | −80.0 | −10.0 | −16.0 | −23.0 |
| 343.2 | 141.1 | 7-HDHA | −80.0 | −10.0 | −18.0 | −15.0 |
| 345.2 | 143.1 | 7-HDPA | −80.0 | −10.0 | −18.0 | −15.0 |
| 343.2 | 101.1 | 4-HDHA | −80.0 | −10.0 | −17.0 | −15.0 |
| 335.2 | 201.0 | 5,15-diHETE | −50.0 | −10.0 | −30.0 | −13.0 |
| 319.2 | 191.1 | 5.6-EET | −50.0 | −5.0 | −20.0 | −15.0 |
| 319.2 | 167.0 | 8.9-EET | −40.0 | −5.0 | −20.0 | −10.0 |
| 319.2 | 167.2 | 11.12-EET | −40.0 | −10.0 | −20.0 | −10.0 |
| 319.2 | 219.2 | 14.15-EET | −60.0 | −10.0 | −20.0 | −10.0 |
| 337.2 | 145.0 | 5.6-DHET | −70.0 | −5.0 | −20.0 | −10.0 |
| 337.2 | 127.1 | 8.9-DHET | −60.0 | −5.0 | −30.0 | −15.0 |
| 337.2 | 167.1 | 11.12-DHET | −30.0 | −5.0 | −30.0 | −15.0 |
| 337.2 | 207.1 | 14.15-DHET | −60.0 | −5.0 | −20.0 | −10.0 |
| 303.3 | 259.1 | AA | −100.0 | −10.0 | −16.0 | −18.0 |
| 301.3 | 257.1 | EPA | −100.0 | −10.0 | −16.0 | −18.0 |
| 327.3 | 283.1 | DHA | −100.0 | −10.0 | −16.0 | −18.0 |
| 329.3 | 285.1 | DPA | −100.0 | −10.0 | −16.0 | −18.0 |
