Phytoextraction Potential of Sunn Hemp, Sunflower, and Marigold for Carbaryl Contamination: Hydroponic Experiment
1Department of Agricultural Engineering and Technology, Faculty of Agriculture and Natural Resources, Rajamangala University of Technology Tawan-Ok, Chonburi 20110, Thailand
2Center of Excellence in Agricultural Machinery, Faculty of Agriculture and Natural Resources, Rajamangala University of Technology Tawan-Ok, Chonburi 20110, Thailand
3Department of Environmental Health Sciences, Faculty of Public Health, Mahidol University, Bangkok 10400, Thailand
4Center of Excellence on Environmental Health and Toxicity (EHT), Bangkok 10400, Thailand
5Department of Plant Production, Faculty of Agriculture and Natural Resources, Rajamangala University of Technology Tawan-Ok, Chonburi 20110, Thailand
6Department of Biochemistry, Faculty of Sciences, Chulalongkorn University, Bangkok 10330, Thailand
7Center of Excellence in Biocatalyst and Sustainable Biotechnology, Chulalongkorn University, Bangkok 10330, Thailand
8Department of Occupational Health and Safety, Faculty of Public Health, Mahidol University, Bangkok 10400, Thailand
9Department of Public Health, University of Massachusetts Lowell, Lowell, MA 01854, USA
*Correspondence: duangrat.int@mahidol.ac.th; Tel.: +66-2354-8558Abstract
The phytoextraction ability and responses of sunn hemp, sunflower, and marigold plants were investigated toward carbaryl insecticide at 10 mg L−1 and its degradative product (1-naphthol). All test plants exhibited significant carbaryl removal capability (65–93%) with different mechanisms. Marigold had the highest translocation factor, with carbaryl taken up, translocated and accumulated in the shoots, where it was biotransformed into 1-naphthol. Consequently, marigold had the least observable toxicity symptoms caused by carbaryl and the highest bioconcentration factor (1848), indicating its hyperaccumulating capability. Sunflower responded to carbaryl exposure differently, with the highest carbaryl accumulation (8.7 mg kg−1) in roots within 4 days of cultivation, leading to a partial toxicity effect. Sunn hemp exhibited severe toxicity, having the highest carbaryl accumulation (91.7 mg kg−1) that was biotransformed to 1-naphthol in the sunn hemp shoots. In addition, the different models were discussed on plant hormone formation in response to carbaryl exposure.
1. Introduction
Pesticides are widely used for pest control on farmland for crop and livestock protection and even in residential areas for the health of humans and their pets. Carbaryl (chemical name 1-naphthalenyl methyl carbamate) is a carbamate pesticide that is a widely used broad-spectrum insecticide. Carbaryl is used in agriculture, horticulture, and residential settings on corn, soybean, cotton, fruit, nut, vegetable crops, and rice, as well as in-home yards and gardens [1]. Carbaryl is used on intensive rice farmland for the control of grasshoppers and crickets that damage grasses and other vegetation by consuming the stems and leaves. Insect feeding causes direct damage to rice plant growth and seed production, thus reducing valuable grain productivity [2]. After the rice is transplanted at around 30 days, it has green leaves, which are a feed source for grasshoppers; subsequently, the rice blooms at around 90 days, with the flower inflorescence also being attractive to grasshoppers and other insects. Thus, following rice transplantation, a carbaryl application is sprayed at around 30 or 90 days or both, depending on the presence of insects, such as grasshoppers. Some carbamate pesticides, such as carbosulfan, may be applied as well if insects, such as aphids, are present [3]. In 2014, a survey of carbaryl use in agriculture in Mae Taeng district, Chiang Mai, Thailand, was conducted by the Environmental Research and Training Center that reported carbaryl was used by farmers for pest control in the area, including as a herbicide, fertilizer, and plant hormone [4]. Water sampling from the area showed carbamate residue present at 0.01 mg L−1. Soil sampling detected carbaryl at <0.02 mg L−1, and plant sampling recorded carbamate residue (methomyl) during the harvesting period of the yardlong bean as high as 0.02–0.08 mg L−1 and in soybean sprout as high as 0.53 mg L−1 [4].
Carbaryl has a water solubility of 36 mg L−1 at 20 °C [2]. It moves and is transformed in the environment. The environmental fate processes include persistence and degradation, mobility and migration potential to groundwater and surface water, and plant uptake. Its degradation in aerobic soil varies from rapid to slow, with a half-life ranging from 4 to 253 days, depending on the pH and aerated soil conditions. 1-naphthol is the major degradation of carbaryl under aerobic and anaerobic conditions in soil and water. Sorption of 1-naphthol to soil also increases with increasing organic carbon content. The degradation of 1-naphthol is expected to be less persistent in the field than carbaryl [2].
Acute (short-term) and chronic (long-term) exposure of humans to carbaryl has been observed to cause cholinesterase inhibition. The reduced levels of this enzyme in the blood cause neurological effects. These effects appear to be reversible upon discontinuation of exposure. Headache, memory loss, muscle weakness and cramps, and anorexia result from cholinesterase inhibition caused by prolonged low-level exposure to carbaryl [1]. In 2008, the WHO announced that the acceptable daily intake of carbaryl is 0–0.008 mg kg−1 of body weight [5]. Ecological toxicity in terrestrial and aquatic plants and animals has been observed and reported for carbaryl [2]. In 2013, the Ministry of Agriculture and Cooperatives, Thailand, announced a standard for maximum residue limits (MRL) for carbaryl in agricultural products as <0.02–10 mg kg−1 [6]. The MRL for rice is 1 mg kg−1 [6]. Unfortunately, carbaryl has been found at unsafe levels in some vegetables [7]. In 2019, USDA reported that carbaryl could react with nitrile under certain conditions to produce N-nitrosocarbaryl, which has been shown to be carcinogenic and mutagenic in laboratory test systems [2].
Carbaryl degrades readily to 1-naphthol, which is several times more toxic than its precursor. Despite its lower persistence in the environment and its wide distribution, there is a need to know whether and to what extent carbaryl is present because of its potentially toxic effects [8]. When present in the environment at unusually high levels, biodegradable chemicals can be extremely persistent, which increases the risk of surface and groundwater contamination. Thus, contaminated soil at agrochemical facilities requires quick, efficient and economical cleanup. Phytoremediation is one method that can remediate pesticide residue in the soil. Plants remediate organic contaminants via three mechanisms: (1) the direct uptake of contaminants and the subsequent accumulation of nonphytotoxic metabolites into plant tissue; (2) the release of exudates and enzymes that stimulate microbial activity and biochemical transformations; and (3) the enhancement of mineralization in the rhizosphere (the root-soil interface), which is attributable to mycorrhizal fungi and the microbial consortia [3,9]. Phytoremediation has been successfully used to clean up persistent organic pesticides such as atrazine, alachlor and metolachlor [10]. The removal efficiency of several plants has been reported regarding pesticides, such as carbofuran, chlorpyrifos, carbaryl, inuron, permethrin, and triazophos [3,11,12,13]. Some species, such as Phragmites sp., can remove pesticides [14,15,16], while plants, such as Phragmites australis, have been used to remove pesticide wastewater based on a wetland system [14,17]. Among these remediating plants, some can be classified as ornamental and leguminous, such as lupine, sunflower, and morning glory. The leguminous plant, Lupinus angustifolius, is tolerant to the uptake or phytoextraction of carbaryl [9,12], while sunflower can also accelerate the degradation of carbamate pesticides in soil [3]. Although marigold (Tagetes erecta) and pot marigold (Calendula officinalis) have shown evidence of phytoremediation in heavy metals [18,19], there has been little reported on using marigold to remediate carbamate pesticide. These tropical plants, sunn hemp (Crotalaria juncea L.), sunflower (Helianthus annuus L.) and marigold (Tagetes erecta), have a short life cycle and may be suitable for on-farm crop rotation in crop fields, especially as agro- and eco-tourist attractions.

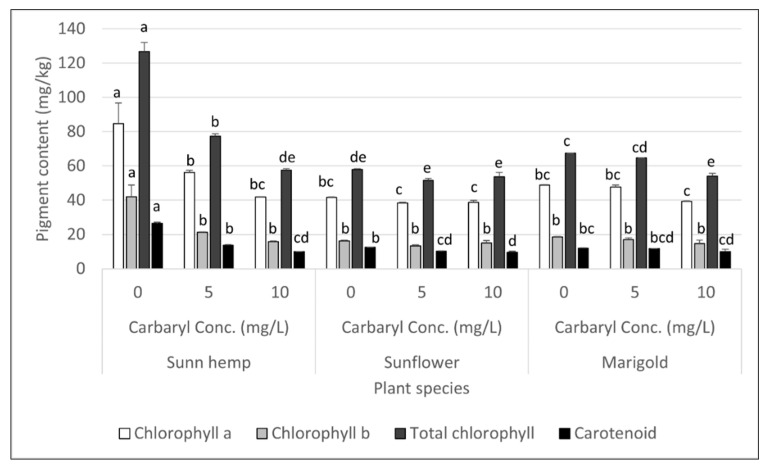

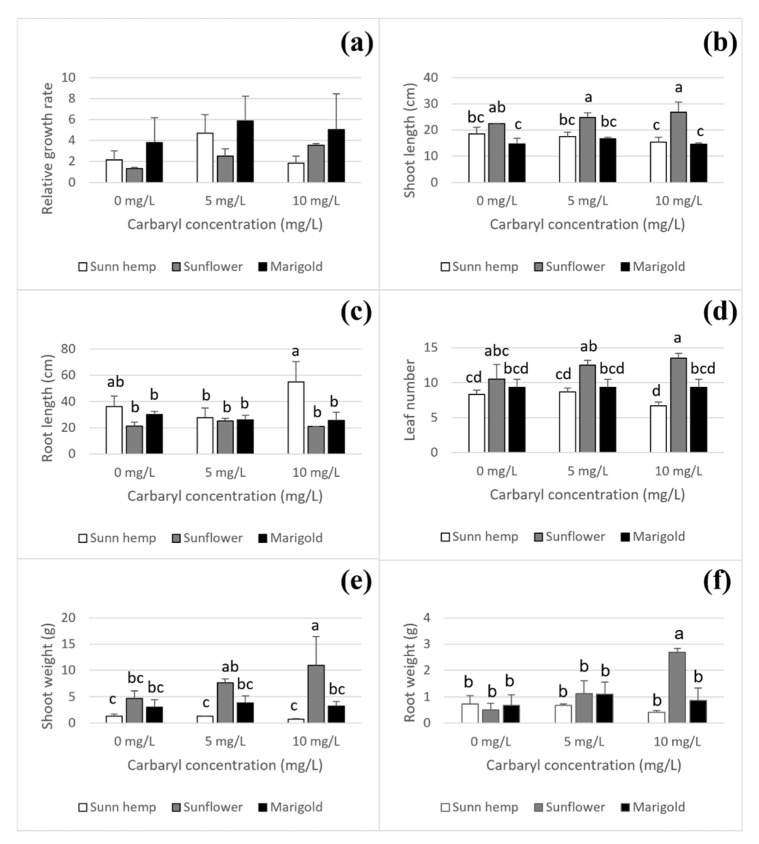

Phytoextraction is the process whereby plant tissue helps to remove pollutants by direct uptake. Testing for hyperaccumulators for application in the field is important. Several plant species may be used on-site to remove more than one contaminant [16,20,21]. Plants that have the ability to perform phytoextraction are characterized by their ability to accumulate and tolerate high concentrations of pollutants while maintaining a rapid growth rate. Thus, the present research investigated using phytoextraction of a synthetic solution treated with carbaryl pesticide. The factors examined were: toxicity (in terms of relative growth rate, plant morphology and pigment contents), bioaccumulation (in terms of bioconcentration factor, translocation factor and enrichment factor), and removal efficiency (in terms of uptake capacity for carbaryl residue under hydroponic conditions).
2. Materials and Methods
2.1. Plant Materials and Cultivation
Seeds of sunn hemp (C. juncea L.), sunflower (H. annuus L.) and marigold (T. erecta) were obtained from Chatuchak, Bangkok, Thailand. The plants were grown in the laboratory and examined for their phytoremediation ability.
In the developed hydroponic system, all plant seeds were germinated in purified water on a soaking sponge for 3–4 days. Then the plants were grown in a hydroponic culture for 2–3 weeks with 30% Hoagland’s s solution. At a starting amount of 23–45 g L−1, the plants were transferred to grow in nutrients containing 0, 5, or 10 mg carbaryl in 1000 mL of nutrient solution [12]. The control was a nutrient solution without a plant at pH 6 adjusted with 1 N NaOH and 1 N HCl, a light intensity of approximately 10,000 lux, and daylight:darkness photoperiod of 10 h:14 h at 28 ± 2 °C in a glass container in the laboratory. The control (non-planted nutrient solution) and plant samples were grown in triplicate. After cultivating and harvesting at 0, 4, 8 and 12 d, a 1 g sample of each plant species was collected. Carbaryl and its degradation, 1-naphthol, were determined from the plant and nutrient solution using a high-performance liquid chromatography (HPLC) technique.
2.6. Seed Germination Experiment

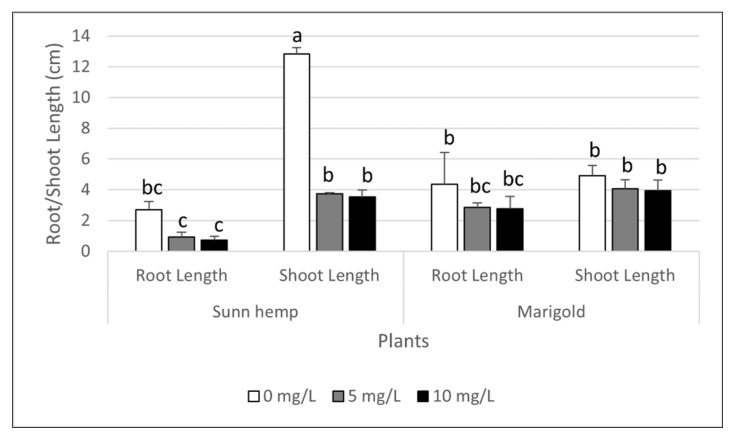

Seeds of sunn hemp, sunflower, and marigold were tested for seed germination in carbaryl solution. The experiment was modified by Goswami and colleagues, Jesus and colleagues, and Khah [27,28,29]. Seeds of uniform size were surface-sterilized in 3% sodium hypochlorite (NaOCl) for 5 min and thoroughly soaked twice using sterilized distilled water for 4 min. Then, 10 seeds were placed in a Petri dish (9 cm diameter) containing a sterilized 3-layer filter paper moistened with 10 mL of the respective treatment (5 or 10 mg L−1 solution of carbaryl pesticide prepared in distilled water), with 0 mg L−1 used as the control also using distilled water. The experiment was repeated in triplicate. All Petri dishes were incubated for 7 d in the dark at 28 ± 2 °C to promote seed germination. The emergence of root tips and shoots was determined based on their lengths, and the germination percentage of seeds was recorded [27,28,29].
2.7. Statistical Analysis
All statistical analyses were performed using the SPSS software. A p-value less than 0.05 was considered significant. Differences in average data were analyzed using One-way analysis of variance (ANOVA) and Tukey’s honestly significant difference (HSD) test [13].
3. Results
4. Discussion
5. Conclusions

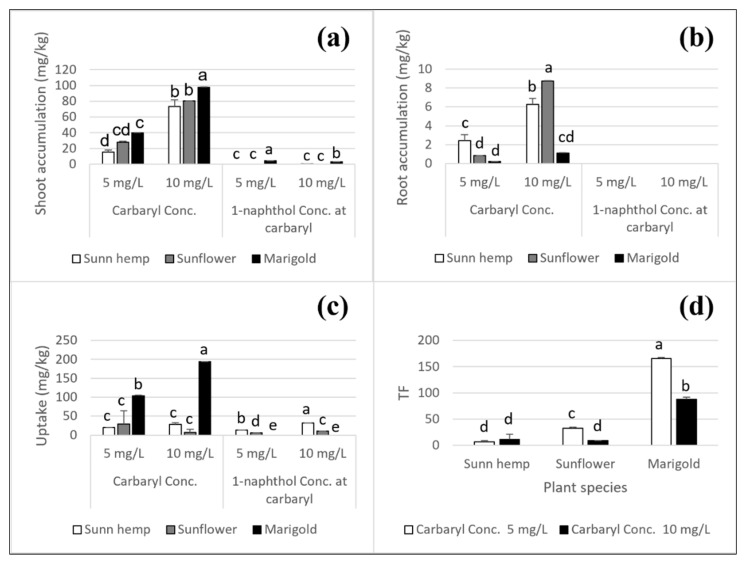

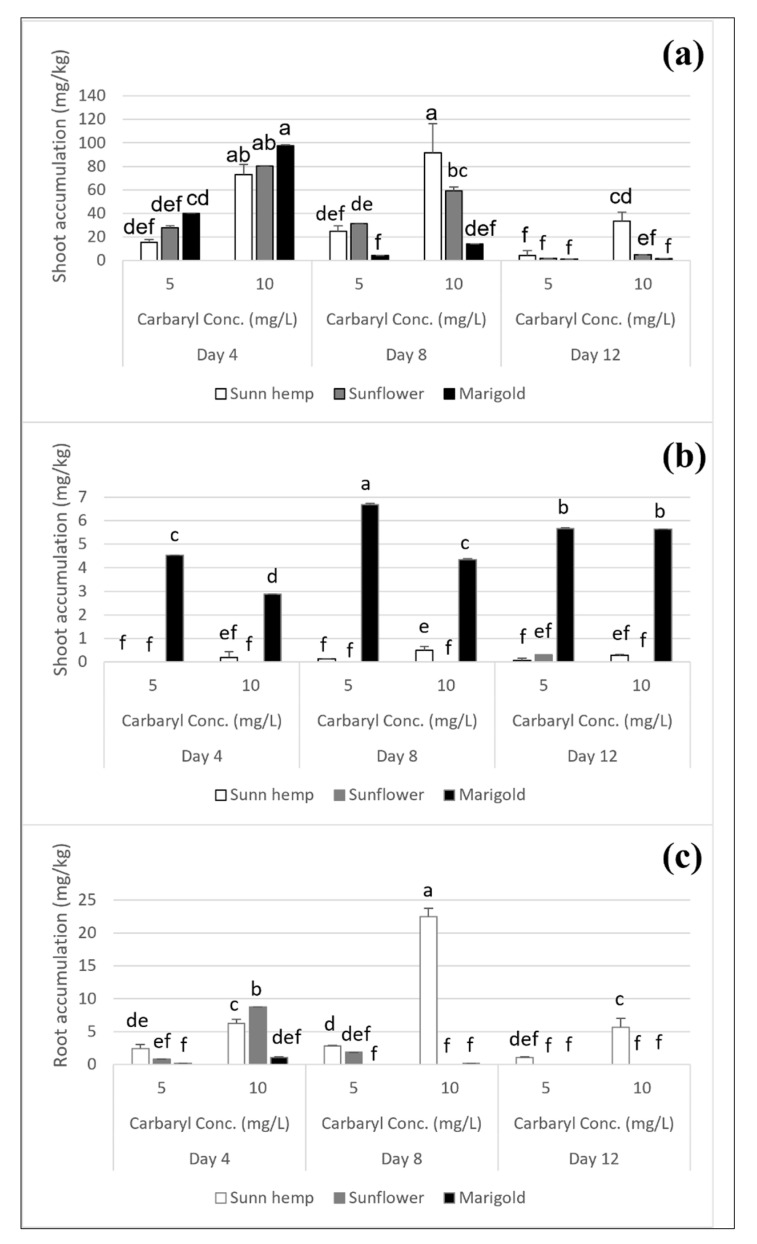

Marigold showed fewer toxicity symptoms due to carbaryl, having the highest BCF (1848), where a value of more than 1000 indicates a hyperaccumulator (Table 2). Thus, marigold had the highest phytoremediation ability for carbaryl removal compared to sunn hemp and sunflower. In addition, marigold had the highest TF, suggesting plant uptake and translocation of carbaryl that had accumulated in the shoots (Figure 6d). Carbaryl degradation to 1-naphthol in marigold may have occurred due to the accumulation of degraded 1-naphthol in its shoots (Figure 7b). Sunflower showed fewer toxicity effects to carbaryl and could accumulate carbaryl in its roots at a higher level in a shorter period than sunn hemp when exposed to the higher carbaryl concentration of 10 mg L−1 (after 4 days of cultivation following carbaryl exposure, Figure 6b and Figure 7c). Sunn hemp could accumulate carbaryl in the shoots better when exposed to the higher carbaryl concentration of 10 mg L−1 after 8 days of cultivation (Figure 7a), with more toxicity symptoms apparent. Although sunn hemp can handle carbaryl at a low level of contamination, it is a legume that can amend soil fertility with nitrogen fixation. Thus, at a low level of carbaryl contamination, sunn hemp may be good for use as an accumulator for carbaryl removal, whereas, for a high level of carbaryl contamination, marigold could be used as a phytoremediator with hyperaccumulation ability for carbaryl removal.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Environmental Protection Agency, USA at https://www.epa.gov; (accessed on 6 June 2021). Department of Agriculture, Maryland, USA at https://www.aphis.usda.gov (accessed on 6 June 2021; World Health Organization Press, Geneva, Switzerland at https://cdn.who.int (accessed on 6 June 2021; Ministry of Agriculture and Cooperatives, Thailand at https://www.acfs.go.th (accessed on 6 June 2021).
Conflicts of Interest
The authors declare no conflict of interest.
| Plant Species | Time (Days) | Carbaryl Conc. (mg L−1) | Toxicity Symptom | ||
|---|---|---|---|---|---|
| Pale-to-White Spots on Leave | Gray-to-Dark-Gray Root | Shrunken Leave Edge | |||
| Sunn hemp | 4 | 5 | − | − | − |
| 10 | + | + | + | ||
| 8 | 5 | ++ | + | − | |
| 10 | ++ | + | + | ||
| 12 | 5 | ++ | + | − | |
| 10 | +++ | ++ | + | ||
| Sunflower | 4 | 5 | − | − | − |
| 10 | − | − | − | ||
| 8 | 5 | − | − | − | |
| 10 | − | + | + | ||
| 12 | 5 | − | + | − | |
| 10 | − | + | + | ||
| Marigold | 4 | 5 | − | − | − |
| 10 | + | + | − | ||
| 8 | 5 | − | − | − | |
| 10 | + | + | − | ||
| 12 | 5 | − | − | − | |
| 10 | − | + | − | ||
| Plant Species | Carbaryl Removal Factor | |||
|---|---|---|---|---|
| BCF | TF | EF | Removal Percentage | |
| Sunn hemp | 9.51 ± 7.43 | 11.21 ± 10.50 b | 8.69 ± 7.53 | 65.11 ± 49.44 |
| Sunflower | 15.59 ± 0.04 | 9.20 ± 0.03 b | 14.12 ± 1.33 | 71.02 ± 50.19 |
| Marigold | 1847.63 ± 859.67 | 88.00 ± 4.01 a | 1826.63 ± 849.06 | 93.03 ± 12.74 |
