Examining changes in gramicidin current induced by endocannabinoids
Université de Montréal, Département de pharmacologie et physiologie, Montréal, Québec, Canada
University of Brescia: Universita degli Studi di Brescia, ITALY
Abstract
Endocannabinoids are a diverse family of lipid molecules, which circulate in the human body, impacting the cardiovascular and the nervous systems. Endocannabinoids can influence pain perception, appetite, stress responses, mood, memory and learning. Regulation of these lipids present a promising therapeutic avenue for numerous neurological disorders. In addition to acting as agonists to cannabinoid receptors (CBRs), endocannabinoids can also modulate the function of various ion channels and receptors independently of CBRs. This modulation of function can arise from direct binding to the channel proteins, or via changes to the lipid properties such as membrane elasticity/stiffness, curvature, or hydrophobic thickness. Here, we assess the effects of endocannabinoids on membrane properties by examining changes in gramicidin (gA) currents in Xenopus oocytes. Endocannabinoids from both classes (Fatty acid ethanolamides (FAEs) and 2-monoacylglycerols (2-MGs)) are studied and current-voltage relationships are assessed. We see no correlation between changes in gA currents and physiochemical properties of FAE endocannabinoids; namely carbon tail length, degrees of unsaturation, position of first unsaturated bond, and lipophilicity. On the other hand, gA currents correlate with the position of the first unsaturated bond, and inversely correlate with the degree of unsaturation of 2-MGs. Correlation of gA currents with the lipophilicity of 2-MG endocannabinoids depended on whether tails were saturated or unsaturated. Employing gramicidin channels as molecular force probes can enable both predictive and quantitative studies on the impact of bilayer-mediated regulation on membrane protein function by endocannabinoids.
Article notes
Untitled section
Received 2024 Nov 2; Accepted 2025 Jun 22; Collection date 2025.
Introduction
Endocannabinoids are lipid molecules which are naturally synthesized in the human brain and peripheral tissues [1]. Two other cannabinoid classes are exogenous or phytocannabinoids, which are extracted from plants, and synthetic cannabinoids, which are generated industrially as potent agonists. Being a part of the endocannabinoid system (ECS), endocannabinoids are responsible for a variety of different mechanisms in regulating human body homeostasis. These lipid-like molecules have been linked to modulating metabolism, obesity, appetite, stress responses, mood, memory and learning and neurodegenerative disorders [2–4]. Endocannabinoids are directly derived from membrane phospholipids (phosphatidylinositol 4,5-bisphosphate, PIP2 and phosphatidylethanolamine, PE) and are known to modulate cell signalling via cannabinoid receptors (CBRs) [1,5]. Mounting evidence has also pointed to endocannabinoids modulating ion channels and receptors independently of CBRs. For example, various endocannabinoids have demonstrated effects in TRP channels [6,7], Kv channels [8,9], Cav channels [10,11] and more recently Kir channels [12] expressed in heterologous systems that do not express CBRs.
Many studies of cannabinoid regulation of channel function suggest effects via direct interactions (via binding site) or indirect (via signalling cascade) mechanisms. However, in addition to signalling pathways, cannabinoids may also act by altering the physiochemical properties of the lipid membrane [13]. For instance, the exogenous cannabinoid, cannabidiol (CBD) which is one of the nonpsychoactive component of marijuana [14], has been shown to modulate Nav1.4 channels via both direct interactions (i.e., pore binding) and via changes in membrane properties, which then alters fenestrations in the bilayer-spanning domain of the channel [15,16]. A recent examination of endocannabinoid regulation of Kir channels using surface plasmon resonance and molecular dynamics simulations demonstrates these molecules do not directly interact with these channels [12]. Therefore, it is possible that endocannabinoids may also exert their effects through changes in membrane properties.

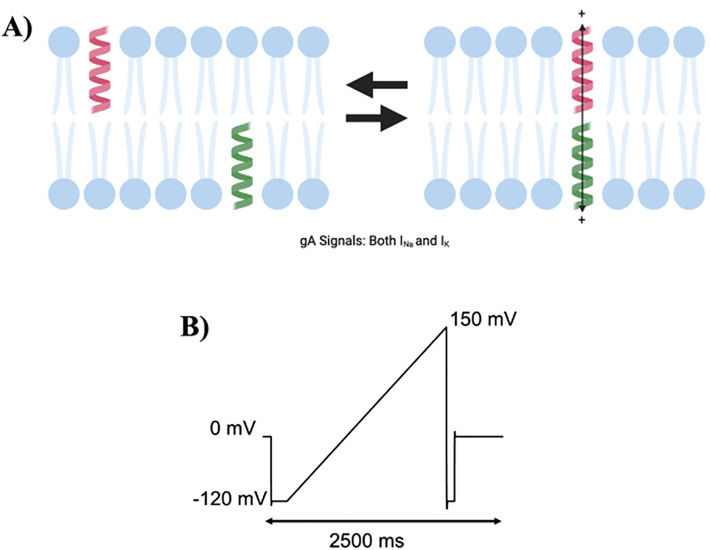

Monitoring changes in gramicidin currents (gA) across different membrane potentials has been demonstrated to be an effective tool in assessing the ability for compounds to modulate membrane properties [16–18]. Gramicidin which was originally identified as an antibiotic [19,20] allows for the permeation of water and cations through a ~ 4 Å functional channel pore which spans the lipid membrane. To create this channel, two gramicidin monomers (one in each side of membrane leaflet) need to dimerize (Fig 1) [17,21]. Preference for dimerization or dissociation back to individual monomers can be directly correlated to membrane properties such elasticity or stiffness [21,22]. Therefore, changes in gramicidin dimerization can be directly related to changes in membrane properties. Notably, amphiphilic molecules which share both lipophilic and hydrophilic properties such as Triton X 100 (TX-100) have been shown to modulate membrane properties and affect gramicidin currents [17,21,23]. Endocannabinoids are also considered amphiphilic entities which have a carbon tail and a polar head group [24].
In this observational study, we examine whether two classes of endocannabinoids, 2-monoacylglycerols (2-MGs) and fatty acid ethanolamides (FAEs) modulate membrane properties by assessing changes macroscopic gramicidin (gA) current. It has been previously demonstrated that amphiphiles such as TX100 effect membrane elasticity, largely through changes in the bilayer spring constant [17,25]. Poly-unsaturated fatty acids (PUFAs) also affect membrane stiffness, and other membrane properties [26],. Thus, we anticipate endocannabinoids will similarly impact membrane stiffness/elasticity. Using a Xenopus oocyte cell-model and two-electrode voltage clamp (TEVC) we elicited cationic gramicidin currents in the presence and absence of various endocannabinoids and correlated changes with the structural properties of these lipid-like molecules. A similar approach was used to examine the effect of the CBD on the membrane stiffness of HEK cells [16].
Materials and methods
Drugs and reagents
Solid gramicidin was dissolved in extracellular recording solution to a final concentration of 65 μM and was made fresh on the day of experiments (Sigma-Aldrich, USA). All endocannabinoids were pre-diluted in 99.8% DMSO at a varying concentration (Cayman Chemicals, USA). The final concentration of each endocannabinoid tested was 30 μM in the bath. Detergent, Triton™ X-100 (Sigma-Aldrich, USA) was diluted to a working concentration of 10 mM with distilled water to form a stock solution. The final concentration of Triton™ X-100 added to the bath was 30 μM, which has been previously demonstrated to alter membrane properties [17,21,27].
Oocyte preparation
Experiments were performed using unfertilized Xenopus oocytes, as these have been demonstrated to lack cannabinoid receptors [28,29]. Cells were surgically extracted from female Xenopus laevis frogs which were anesthetized with tricaine methanesulfonate (Sigma-Aldrich, USA), and were not sacrificed following surgery. After extraction of oocyte sacks, cells were treated with 1 mg/mL collagenase type IA (Sigma-Aldrich, USA) for 60 mins. Stage IV and V oocytes were manually sorted and placed in a vial containing Barth antibiotic solution supplemented with 5% horse serum (mM): 90 NaCl, 3 KCl, 0.82 MgSO4.7H2O, 0.41 CaCl2.2H2O, 0.33 Ca(NO3)2.4H2O and 5 HEPES supplemented with 100 U/mL of penicillin-streptomycin and 10 mg/mL of kanamycin stock (10 mg/mL). Oocytes were placed in a control temperature of 17–19 °C prior to experiments.
Electrophysiological recordings
Uninjected Xenopus oocytes were for two-electrode voltage clamp (TEVC). Glass borosilicate rapid fill microelectrode pipettes containing a 1 M KCL solution were used to impale cells and measure gramicidin (gA) currents. Briefly, during recordings oocytes were placed in a bath containing an external recording solution (in mM): 5 KCl, 84 NaCl 15 HEPES, 0.4 CaCl2, and 0.8 MgCl2, pH = 7.4. Pipettes were pulled to 500−750 kΩ, monitored between cells, and replaced if outside of this range, and the bath was ground with pellet electrodes. Gramicidin currents were elicited using a 2.5 second repetitive pulse protocol holding our cells at 0 mV, stepping down to −120 mV and ramping to +150 mV. Inter-pulse time for each pulse was 30 seconds to allow for the endogenous membrane and proteins to fully recover after each sweep. Currents were amplified by an OC-725C amplifier (Warner Instruments, USA) and digitized using a Digidata 1322A (Molecular Devices). Actual voltages applied to the cell were also recorded in real time, and monitored for any instability. Data were obtained with Clampex 10.5 at a sampling rate of 5 KHz with a filter of 1 KHz.
During electrophysiological recordings, the repetitive pulse protocol was taken as a control, followed by the addition of 65 μM of pre-diluted gramicidin. This amount of gramicidin was necessary to achieve sufficiently large currents in Xenopus oocytes for comparative examination. Additional pulse protocols were recorded in the presence of gramicidin and once the current density stabilized (typically 5–10 mins) the endocannabinoid was added into the extracellular bath solution at a final concentration of 30 μM. Recordings were completed once the current density stabilized following the addition of the endocannabinoid (typically after 30 minutes). Each recording was conducted at ambient room temperature (22–24 °C). For each condition, we recorded at least an n = 6 comprised of oocytes isolated from at minimum two separate surgeries.
Data analysis and statistics
Raw cationic current recordings were analyzed offline using the Clampfit Software (Molecular Devices). Graphing was conducted using the Origin 9.0 Software (Northampton, MA, USA). Currents were measured at specified voltages (−120 mV, −100 mV, −50 mV, 0 mV, + 50 mV, + 100 mV and +150 mV) for each cell in the absence then presence of the specific endocannabinoid after current stabilization at each step. Post-treatment currents were normalized to the control current (before the addition of the endocannabinoid, 0 µM) at +150 mV. Normalized currents were then averaged for each endocannabinoid condition and plotted for I-V curved with standard error of means (SEM). This enables pair-wise analysis to determine whether the endocannabinoid effects gramicidin currents. Differences between gA currents before and after treatment were assessed for normality using a Shapiro-Wilk test, prior to performing a pair-wise t-test.
Endocannabinoids contain three structural characteristics: chain length (number of carbons), degree of unsaturation (number of double carbon bonds) and the position of the first unsaturated bond (Figure S1 in S1 File). To examine the correlation between the maximal change in gramicidin current at +150 mV versus these structural characteristics a linear relationship was utilized following the equation:
Where appropriate a non-linear Gaussian fit equation was used:
Changes in gramicidin current as a function of any 2 of the 3 characteristics were also plotted as three-dimensional (3-D) surface plots.
Concentration dependence of oxy-AEA and 2-PG effects on gA current were fit with the function
All data here are presented as means of (±) standard errors for the noted n recordings. Pairwise sample student t-test was used to determine statistical significance between the mean currents at each voltage for each test condition (endocannabinoid) versus its own control. The level of significance was denoted as α = 0.05. Any P-value less than 0.05 was denoted as statistically significant *, P < 0.01 denoted with ** and P < 0.001 denoted ***. Pearson correlation coefficient (R) and coefficient of determination (R²) are also reported for each linear fit.
Results
Fatty Acid Ethanolamides (FAEs) endocannabinoids modulate gramicidin currents and membrane properties

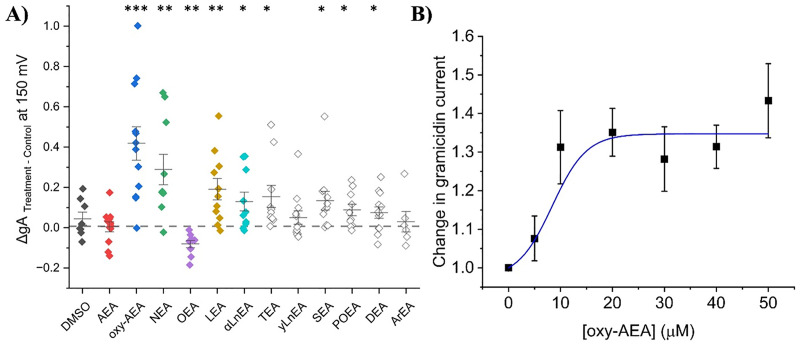

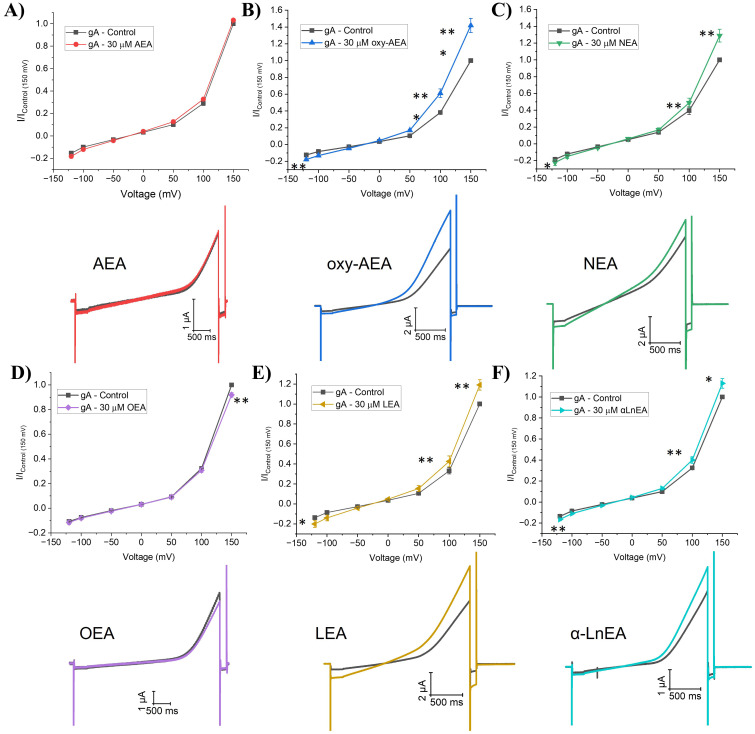

In this study, we assessed changes in cationic currents through gramicidin channels induced by endocannabinoids by two-electrode voltage clamp of Xenopus oocytes. Unfertilized Xenopus oocytes do not express cannabinoid receptors [20,30–32], and thus ensure that any changes we observe are due to changes in membrane properties, rather than via intracellular signaling induced by cannabinoid receptor activation. Gramicidin monomers dimerize to form conducting (sodium and potassium) cationic channels embedded in the membrane bilayer [33,34] (Fig 1). This dimerization can be directly correlated to membrane properties such as elasticity, stiffness and thickness [16,22,35]. Oocytes were bathed in a physiological low potassium (5 mM) and high sodium (84 mM) external solution, and cationic currents were assessed using a repetitive ramp protocol started holding at 0 mV, stepping down to hyperpolarized potential of −120 mV and ramping to +150 mV (Fig 1). Once these basal currents were stable, we then added 65 μM gramicidin to the extracellular bath and waited until gramicidin currents were stable (typically 5 mins) before adding 30 μM of the test endocannabinoid. Measurements were taken every 60 seconds and current stabilization typically required incubation for approximately 30 minutes. This time course and endocannabinoid concentration were consistent with previous studies involving the addition of cannabinoids to Xenopus oocyte membranes [12,36]. Currents before and after endocannabinoid treatment were compared in a pair-wise manner by normalizing the I-V for each cell to the maximal gramicidin current recorded at +150 mV prior to the addition of the endocannabinoid. These normalized I-Vs for each condition were then averaged and analyzed for statistical significance at each voltage. Amphiphiles such as Triton X-100, have been demonstrated to modulate membrane elasticity and alter gA current [16,21]. TX-100 does not affect membrane thickness [25] nor unitary conductance of gA [17]. Rather, a decrease in gA current is associated with a decrease in membrane stiffness (conversely an increase in membrane elasticity) and an increase in gA current implies an decrease in membrane elasticity (or increase in membrane stiffness) [21,27,37,38]. In oocytes, we observe a decrease in macroscopic gA currents following treatment with 30µM TX-100 (+100 mV: P = 0.001; + 150 mV: P = < 0.0001) (Figure S1 and Table S1 in S1 File) suggesting that TX-100 alters membrane elasticity in oocytes thereby decreasing the number of conducting/functional dimers. Similar results were also observed in untransfected HEK cells [16].
In this study, we examined the effects of endocannabinoids on gA currents as a surrogate for assessing membrane elasticity/stiffness. Endocannabinoids tested are organized in two chemical families which differ in their headgroup; fatty acid ethanolamides (FAEs) and 2-monoacylglycerols (2-MGs). Our findings reveal various FAE endocannabinoids modulate gA current with a diversity of responses. gA current traces before and after endocannabinoid treatment were normalized to current elicited at +150 mV in control (no endocannabinoid), and normalized current-voltage (I-V) relationships were determined (Figs 2 and 3 and Table S1 in S1 File). Interestingly, anandamide (AEA), which was the first and most studied endocannabinoid, show no change in gA current at any voltage (Fig 2A and Table S1 in S1 File). Oxy-AEA, which is an oxyhomologue of anandamide, alongside NEA and LEA show significant increases in gA currents (~20–40% at +150 mV; Fig 2 and Table S1 in S1 File). α-LnEA, SEA and TEA had a more moderate effect on gA current, with increases of approximately 15% (Table S1 in S1 File). Interestingly, OEA is the only endocannabinoid which significantly reduced gA current by approximately 10% at +150 mV (P < 0.001), which indicates this endocannabinoid decreases dimerization and could increase membrane elasticity (Fig 2D and Table S1 in S1 File). ArEA and γLnEA induce non-significant changes in gA current of ~5% at +150 mV suggesting these endocannabinoids do not alter native oocyte membrane properties (Table S1 in S1 File). We determined the concentration dependence of changes in gA current induced by oxy-AEA, indicates a maximal effect (Emax) of 34.7 ± 3.9% increase with a EC50 of 8.4 ± 2.9 µM (n = 11) (Fig 3B).

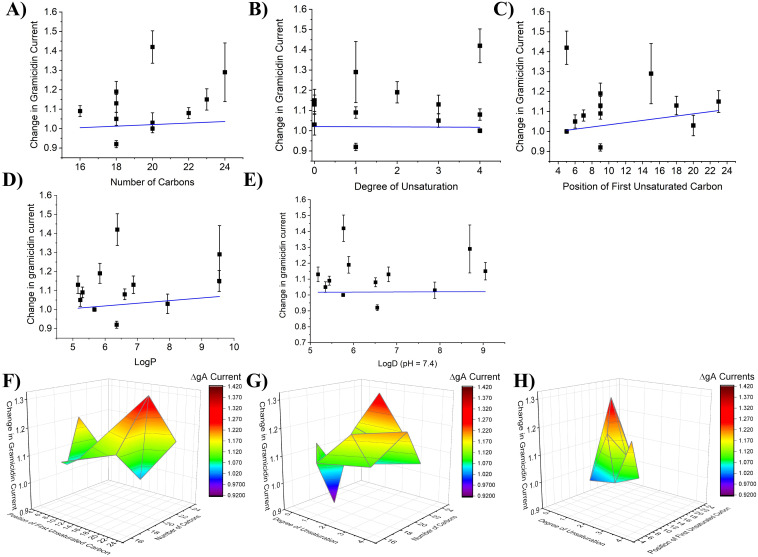

Endocannabinoids can be characterized by their physiochemical including chain length, degree of unsaturation and the position of the first unsaturated bond (Figure S2 in S1 File). We sought to determine whether the changes in gA current induced by FAEs correlate to any of these physiochemical properties (Fig 4). Linear fits reveal no correlation between changes in gA current and either of the three properties (Fig 4A–4C, Table S3 in S1 File). Additionally, we examined if FAE changes in membrane properties could be correlated with lipophilicity (LogP or LogD (pH = 7.4) estimated by ACD/Labs) (Fig 4D–4E, Table S3 in S1 File). Again, there was no direct correlation between changes in gA current and lipophilicity of FAE endocannabinoids. This indicates that changes in membrane properties induced by FAEs are not driven by a single property. Therefore, we generated three-dimensional surface maps defining the relationship between gramicidin currents and pairs of the physiochemical properties of the FAEs (Fig 4F–4H). These profiles indicate that endocannabinoids with longer tails (20–24) and fewer unsaturated bonds (where unsaturation occurs far from the headgroup) lead to the greatest increase in gA current, and thus, decrease in membrane elasticity. The only FAE to decrease gA current (i.e., increase elasticity) is OEA which has an 18-carbon tail, 1 degree of unsaturation and the first carbon double bond at the 9th position (Figure S1 in S1 File).
2-monoacylglycerols (2-MGs) endocannabinoids modulate gramicidin currents and membrane properties

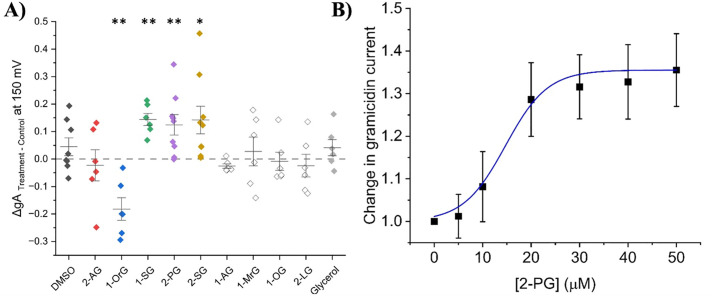

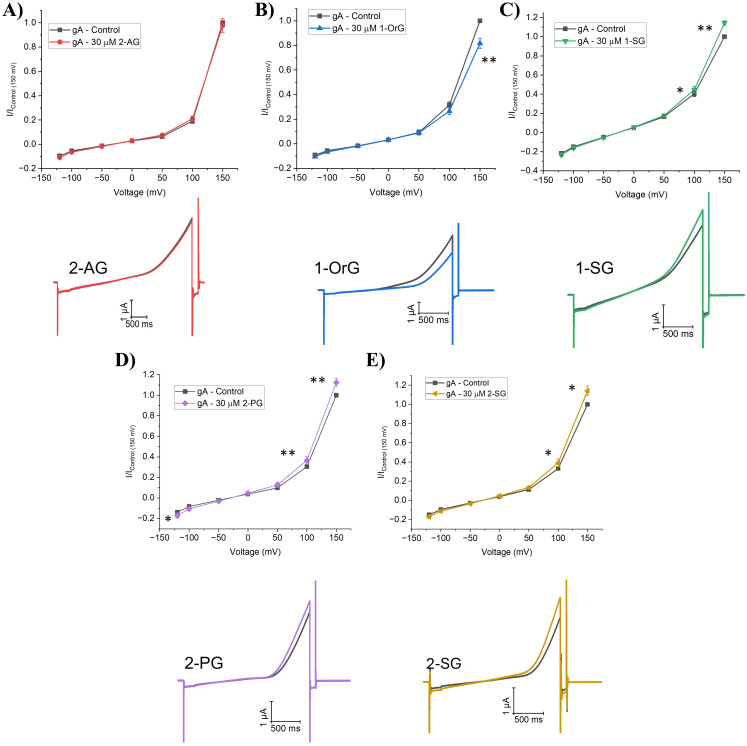

We also examined the effects of 2-monoacylglycerol endocannabinoids (2-MGs) on membrane properties. 2-MGs contain an glycerol as their headgroup typically bound at the sn-2 position, though linkage at the sn-1 position is possible as well. Average normalized I-V relationships are plotted alongside representative raw gA current traces in Fig 5. Our data reveals varying effects of 2-MG endocannabinoids on gA current and thus, their ability to modulate membrane properties. Surprisingly, another well-characterized endocannabinoid, 2-arachidonoyl glycerol (2-AG) does not significantly change gramicidin currents at potential +100 mV (P = 0.19) nor +150 mV (P = 0.70) (Fig 5A and 5D and Table S2 in S1 File). Therefore, 2-AG may not exert effects on other proteins through changes in membrane properties but rather through direct interactions with protein targets. 2-PG 2-SG, and 1-SG increase gA current and thus decrease membrane elasticity (P < 0.01) (Fig 5 and Table S2 in S1 File). 1-OrG is the only endocannabinoid in the 2-MG class which significantly decreases gramicidin currents (~18% at +150 mV (P = 0.02)), indicating a possible increase in membrane elasticity (Fig 5B and Table S2 in S1 File). Five other endocannabinoids in this class (1-AG, 1-MrG, 1-OG, 2-LG and 2-SrG) do not alter gA current (Fig 6A, Table S2 in S1 File) and thus do not alter the elasticity/stiffness of a the biological Xenopus oocyte membrane. We examined the concentration dependence of 2-PG, which had the largest effect on changes in gA current, and fit with equation (3) indicates a maximal effect (Emax) of a 35.5 ± 4.6% increase with a EC50 of 14.7 ± 3.1 µM (n = 6) (Fig 6B).

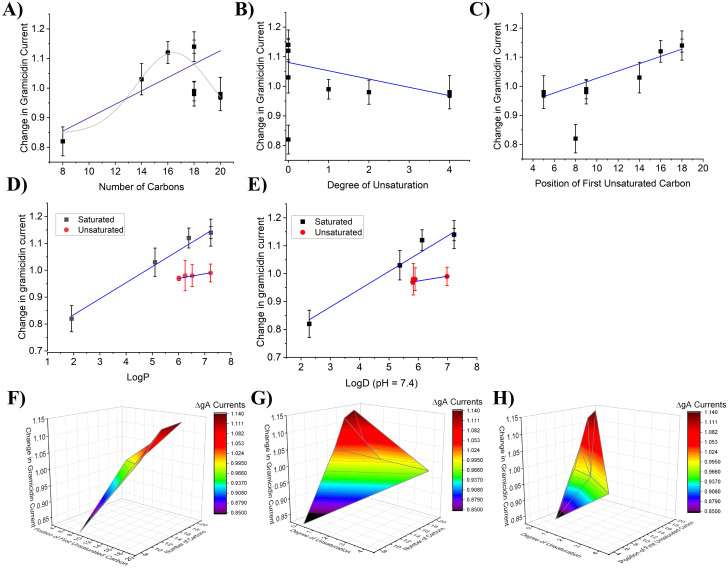

As we did for FAEs, we analyzed the relationship between the effect of 2-MG endocannabinoids on gramicidin currents and the structural properties of the lipids; chain length, degree of unsaturation, and the position of the first unsaturated bond (Figure S2 in S1 File, Fig 7A–7C). Gramicidin dimerization had a strong correlation (R: 0.92; R2: 0.84) with the position of the first unsaturated bond, and a moderate inverse correlation (R: −0.73; R2: 0.53) with the degree of unsaturation (Fig 7B and 7C, Table S5 in S1 File). Notably, we found that the relationship between the change in gramicidin current at +150 mV and the number of carbons in each endocannabinoid tail could be fit with a linear function (R: 0.82; R2: 0.67; P < 0.001). We also fit this data with a non-linear Gaussian relationship (Fig 7A, grey), which resulted in a reduced-λ2 of 4.4, R2 of 0.73 and P = 0.07 (Table S4 in S1 File), suggesting this model does not quite reflect the relationship and a linear relationship is more appropriate. gA current could be correlated with the lipophilicity (LogP and LogD (pH = 7.4)) of saturated 2-MGs (R: 0.99; R2: 0.98; P < 0.001; and R: 0.98; R2: 0.96; P = 0.003 respectively), however, the slope was not different from zero for unsaturated 2-MGs (P = 0.06–0.09) (Fig 7D–7E; Table S5 in S1 File). 3-dimensional surface plots reinforce this landscape in which longer tails with fewer unsaturated bonds away from the headgroup leads to maximal increase in gA currents, while shorter tails with few unsaturated bonds leads to a decrease in gA currents (Fig 7F–7H).
Discussion
In this study, we sought to correlate changes in membrane properties to changes in gA macroscopic currents elicited in Xenopus laevis oocytes. This cell model lacks CBR receptors [28,29,32] and provides a biological lipid membrane in which we examine the effects of FAE and 2-MG endocannabinoids. Several studies have shown that gramicidin is a useful tool in determining the effects of many membrane properties such as bilayer stiffness, elasticity, thickness and deformation energy and curvature [35]. Some of these properties are directly correlated to the susceptibility gramicidin monomers which dimerize (to form a transmembrane cationic channel) and the current theses dimers produce. As reference amphiphilic molecules such as TX-100 [21], capsaicin [39] and β-OG [21] tend to decrease membrane stiffness and increase elasticity. Alternatively, lipids can have varying effects for instance, cholesterol increases membrane stiffness [27] and lysophosphatidylcholine (LPC) decreases membrane stiffness [40]. Notably, cholesterol is one of the only molecular entities which can modulate (decrease) membrane thickness [27]. Our data reveals TX-100 decreases overall cationic gramicidin current at +150 mV and +100 mV (Figure S1 and Table S1 in S1 File) which agrees with previously reported data [21,27]. Additionally, a recent study using the same experimental approach in HEK293 cells revealed TX-100 decreases overall gramicidin cationic currents while CBD increases currents [16]. Therefore, to interpret our data, we suggest that endocannabinoids which increase gramicidin current may increase membrane stiffness (decrease elasticity) while those that decrease gramicidin current similarly to TX-100 may decrease membrane stiffness (increase elasticity). Previous studies in our lab using phytocannabinoids and endocannabinoids found that 30 μM of these compounds typically elicits effects on channels expressed in Xenopus laevis oocytes [12,36]. Therefore, to examine the effect of endocannabinoids on membrane properties using changes in gA current as a readout, we tested each endocannabinoid at 30 μM in this study.
Endocannabinoids may exert their effects through activating cannabinoid receptor signalling, directly binding to transmembrane proteins such as ion channels or through changes in the properties of membrane lipid bilayers. These molecules are lipophilic and like to insert themselves into the lipid bilayer to exert their effects [13]. Exogenous cannabinoids such as CBD and THC have been shown to modulate membrane elasticity [15,16,41] while endocannabinoids such as anandamide (AEA) and 2-AG have also been speculated to exert their effects through changes in the lipid bilayer [42]. Additionally, endocannabinoids and endocannabinoid-like molecules such as POEA, OEA, SEA, LEA, and 2-LG remain understudied as they have a low affinity for cannabinoid receptors CBRs [3], and thus cannot alter intracellular signalling via that mechanism.
Fatty acid ethanolamides (FAEs) are derived from phosphatidylethanolamine (PE) which is found in the lipid membrane and contain an ethanolamide head group [1]. Our data demonstrated that AEA did not alter gA currents in native oocyte membranes. Previous reports indicated that in ideal membranes, AEA increases gA single channel open lifetime and the frequency of channel appearance in planar lipid membranes [42] suggesting that AEA increases gramicidin dimerization and decreases membrane elasticity (increases stiffness). Thus, while AEA may be able to alter elasticity/stiffness in ideal membranes, it seems that native membranes may be less amenable to such changes. Oxy-AEA, a precursor to AEA, had the largest increase in gramicidin current followed by NEA and LEA, then smaller changes induced by DEA, POEA, SEA, TEA. The extra oxygen atom within the amide group has been speculated to increase resistance to enzymatic break down [43]. These data suggest that most FAE endocannabinoids tested increase gramicidin current may increase membrane stiffness (decrease elasticity) while OEA was the only endocannabinoid that decreased gA current and thus decreases membrane stiffness (increases elasticity). We saw no correlation between changes in gA currents and physiochemical properties of endocannabinoids; namely carbon tail length, degrees of unsaturation, and position of first unsaturated bond (Fig 3A–3C). We also did not observe changes in gA function correlate with the hydrophobicity (LogP or LogD) of the FAEs examined (Fig 3D and 3E). This provides further support that, FAEs likely do not exert their effects through modulating hydrophobic membrane thickness, since this type of change would likely be correlated with chain length. Rather, we anticipate changes in gA function are reflecting changes in the elastic properties of the biological membranes they are embedded.
Membrane elasticity is impacted by altered membrane fluidity and lipid packing, which reduces the membrane’s resistance to deformation. These effects are also modulated by interactions with cholesterol, lipid rafts, membrane proteins, and lipid metabolism. Our results seem to suggest that FAE endocannabinoid regulation of membrane elasticity in a biological system may involve a complex balance of the hydrogen bonding interactions possible via the ethanolamide headgroups and the changes to lipid packing induced by the fatty acid tails.
2-monoacylglycerols (2-MGs) are derived from phosphatidylinositol 4,5-bisphosphate (PIP2) also found in the lipid bilayer, however they have a glycerol head group that can bind in the sn-2 or sn-1 positions [1,44]. 2-PG, 1-SG, and 2-SG induce the largest increases in gA current (~15%). These lipids have chain lengths of 16 or 18 carbons and no degrees of unsaturation. With the increase in gramicidin current we speculate 1-SnG, and 2-PG increase membrane stiffness (decrease elasticity). Interesting, 2-PG has been shown to not bind CBRs [45] and thus could regulate the function of various membrane proteins through direct binding or changes in membrane properties. 2-AG was previously shown to increase open channel lifetime and the frequency of gA channel appearance in planar lipid membranes, however little is known about changes to cationic current [42]. Notably, this effect of 2-AG in planar lipid bilayers was smaller than the effect observed for AEA. Our data indicates that 2-AG does not significantly modulate macroscopic gA current in the biological membranes of Xenopus oocytes. The lack of response from 2-AG and AEA suggest that biological membranes may be stiffer than ideal membranes, and are likely less responsive to modulators. 1-OrG, which has a short carbon tail length (C8) and no degrees of unsaturation, is the only 2-MG endocannabinoid that decreases gramicidin current.
As their name implies, 2-MGs contain a glycerol head group. At high concentrations (> 5 mM) glycerol has been previously demonstrated to stiffen membranes (decreases elasticity) [46], consistent with our observation that several 2-MGs increase gA currents. While we attempted to test this hypothesis, by examining the effect of 12.5 µM glycerol, the concentration corresponding to its molar fraction of the endocannabinoids tested, we did not see any changes in gA current (Table S2 in S1 File). This suggests that at the headgroup alone is insufficient to induce the changes we observe, although, concentrations at the lipid surface would likely rise significantly with the hydrophobic endocannabinoid tails. We demonstrate that there are reasonable correlations between gA current changes and the number of carbons, degree of unsaturation, and the position of the first unsaturated bond of 2-MG endocannabinoids (Fig 7A–7C, Table S5 in S1 File). Furthermore, we find that membrane stiffness is correlated to the hydrophobicity (LogP and LogD) of unsaturated 2-MGs (Fig 7D and 7E). On the other hand, membrane stiffness did not increase with saturated 2-MGs (the slope was not different than zero). In addition to linear plots of gA changes vs. physiochemical properties of the endocannabinoids, three-dimensional plots (Figs 3G–3H and 7G–7H) provide a landscape for which to better understand the contributes to membrane elastic properties. These profiles indicate that for both FAE and 2-MG endocannabinoids with longer tails with fewer unsaturated bonds that are far away from the headgroup increase membrane stiffness (or decrease membrane elasticity). However, the landscape between the 2 classes are notably different, with FAEs having more saddled features, while the landscape of 2-MGs is more smooth. Our findings indicate a potential mechanism by which endocannabinoids can exert their effects on ion channels through changes in membrane properties. More specifically, these profiles provide a backdrop to compare the landscape of changes to any ion channel’s function versus endocannabinoid properties as a mechanism to determine the contribution of changes in membrane elasticity to endocannabinoid regulation of that protein.
Overall, we demonstrate that endocannabinoids have complex effects on membrane stiffness in a biological system. The effect of FAEs could not be easily explained by carbon tail length, degrees of unsaturation, position of first unsaturated bond, or lipophilicity. On the other hand, the effect of 2-MGs on membrane stiffness can easily be attributed to carbon tail length, whether tails are saturated or unsaturated, the position of first unsaturated bond, and lipophilicity.
Supporting information
Abbreviations
- FAEs
- fatty acid ethanolamides
- AEA
- Arachidonoyl Ethanolamide or anandamide
- α-LnEA
- α-Linolenoyl Ethanolamide
- oxy-AEA
- oxy-Arachidonoyl Ethanolamide
- NEA
- Nervonoyl Ethanolamide
- OEA
- Oleoyl Ethanolamide
- TEA
- Tricosanoyl Ethanolamide
- POEA
- Palmitoleoyl Ethanolamide
- LEA
- Linoleoyl Ethanolamide
- γ-LEA
- γ-Linolenoyl Ethanolamide
- DEA
- Docosatetraenoyl Ethanolamide
- ArEA
- Arachidoyl Ethanolamide
- SEA
- Stearoyl Ethanolamide
- 2-MGs
- 2-monoacylglycerols
- 2-AG
- 2-Arachidonoyl Glycerol
- 1-OrG
- 1-Octanoyl-rac-Glycerol
- 1-SG
- 1-Stearoyl-sn-Glycerol
- 2-PG
- 2-Palmitoyl Glycerol
- 1-AG
- 1-Arachidonoyl Glycerol
- 2-LG
- 2-Linoleoyl Glycerol
- 2-SG
- 2-Stearoyl-rac-Glycerol
- 1-MrG
- 1-Myristoyl-rac-Glycerol
- 1-OG
- 1-Oleoyl Glycerol
- TX-100
- Triton-X 100
- CBD
- Cannabidiol
- TEVC
- Two-Electrode Voltage Clamp
Data Availability
Data is available at D'Avanzo, N. (2025). Gramicidin Data. Federated Research Data Repository. https://doi.org/10.20383/103.01301.
Funding Statement
This work was supported by a Discovery Grant (RGPIN-2019-00373) from the National Science and Engineering Research Council (NSERC) and Project Grant from the Canadian Institutes of Health Research (CIHR) (FRN 173388 awarded to ND). SM was supported by scholarships awarded from UMontreal.
References
Untitled section
References
- 1.Ruiz de Azua I, Lutz B. Multiple endocannabinoid-mediated mechanisms in the regulation of energy homeostasis in brain and peripheral tissues. Cell Mol Life Sci. 2019;76(7):1341–63. doi: 10.1007/s00018-018-2994-6
- 2.Romano A, Coccurello R, Giacovazzo G, Bedse G, Moles A, Gaetani S. Oleoylethanolamide: a novel potential pharmacological alternative to cannabinoid antagonists for the control of appetite. Biomed Res Int. 2014;2014:203425. doi: 10.1155/2014/203425
- 3.Rahman SMK, Uyama T, Hussain Z, Ueda N. Roles of endocannabinoids and endocannabinoid-like molecules in energy homeostasis and metabolic regulation: a nutritional perspective. Annu Rev Nutr. 2021;41:177–202. doi: 10.1146/annurev-nutr-043020-090216
- 4.Cristino L, Bisogno T, Di Marzo V. Cannabinoids and the expanded endocannabinoid system in neurological disorders. Nat Rev Neurol. 2020;16(1):9–29. doi: 10.1038/s41582-019-0284-z
- 5.Howlett AC. The cannabinoid receptors. Prostaglandins Other Lipid Mediat. 2002;68–69:619–31. doi: 10.1016/s0090-6980(02)00060-6
- 6.Muller C, Morales P, Reggio PH. Cannabinoid ligands targeting TRP channels. Front Mol Neurosci. 2019;11:487. doi: 10.3389/fnmol.2018.00487
- 7.Zygmunt PM, Petersson J, Andersson DA, Chuang H, Sørgård M, Di Marzo V, et al. Vanilloid receptors on sensory nerves mediate the vasodilator action of anandamide. Nature. 1999;400(6743):452–7. doi: 10.1038/22761
- 8.Iannotti FA, Silvestri C, Mazzarella E, Martella A, Calvigioni D, Piscitelli F, et al. The endocannabinoid 2-AG controls skeletal muscle cell differentiation via CB1 receptor-dependent inhibition of Kv7 channels. Proc Natl Acad Sci U S A. 2014;111(24):E2472-81. doi: 10.1073/pnas.1406728111
- 9.Oliver D, Lien C-C, Soom M, Baukrowitz T, Jonas P, Fakler B. Functional conversion between A-type and delayed rectifier K+ channels by membrane lipids. Science. 2004;304(5668):265–70. doi: 10.1126/science.1094113
- 10.Shimasue K, Urushidani T, Hagiwara M, Nagao T. Effects of anandamide and arachidonic acid on specific binding of (+) -PN200-110, diltiazem and (-) -desmethoxyverapamil to L-type Ca2+ channel. Eur J Pharmacol. 1996;296(3):347–50. doi: 10.1016/0014-2999(95)00826-8
- 11.Chemin J, Monteil A, Perez-Reyes E, Nargeot J, Lory P. Direct inhibition of T-type calcium channels by the endogenous cannabinoid anandamide. EMBO J. 2001;20(24):7033–40. doi: 10.1093/emboj/20.24.7033
- 12.Mayar S, Borbuliak M, Zoumpoulakis A, Bouceba T, Labonté MM, Ahrari A, et al. Endocannabinoid regulation of inward rectifier potassium (Kir) channels. Front Pharmacol. 2024;15:1439767. doi: 10.3389/fphar.2024.1439767
- 13.Oz M, Yang K-HS, Mahgoub MO. Effects of cannabinoids on ligand-gated ion channels. Front Physiol. 2022;13:1041833. doi: 10.3389/fphys.2022.1041833
- 14.ElSohly MA. Marijuana and the Cannabinoids. Humana Press; 2007.
- 15.Ghovanloo M-R, Choudhury K, Bandaru TS, Fouda MA, Rayani K, Rusinova R, et al. Cannabidiol inhibits the skeletal muscle Nav1.4 by blocking its pore and by altering membrane elasticity. J Gen Physiol. 2021;153(5):e202012701. doi: 10.1085/jgp.202012701
- 16.Ghovanloo M-R, Goodchild SJ, Ruben PC. Cannabidiol increases gramicidin current in human embryonic kidney cells: an observational study. PLoS One. 2022;17(8):e0271801. doi: 10.1371/journal.pone.0271801
- 17.Lundbaek JA, Birn P, Hansen AJ, Søgaard R, Nielsen C, Girshman J, et al. Regulation of sodium channel function by bilayer elasticity: the importance of hydrophobic coupling. Effects of Micelle-forming amphiphiles and cholesterol. J Gen Physiol. 2004;123(5):599–621. doi: 10.1085/jgp.200308996
- 18.Kapoor R, Peyear TA, Koeppe RE 2nd, Andersen OS. Antidepressants are modifiers of lipid bilayer properties. J Gen Physiol. 2019;151(3):342–56. doi: 10.1085/jgp.201812263
- 19.Dubos RJ. Studies on a bactericidal agent extracted from a soil bacillus : I. preparation of the agent. Its activity in vitro. J Exp Med. 1939;70(1):1–10. doi: 10.1084/jem.70.1.1
- 20.Kelkar DA, Chattopadhyay A. The gramicidin ion channel: a model membrane protein. Biochim Biophys Acta. 2007;1768(9):2011–25. doi: 10.1016/j.bbamem.2007.05.011
- 21.Sawyer DB, Koeppe RE 2nd, Andersen OS. Induction of conductance heterogeneity in gramicidin channels. Biochemistry. 1989;28(16):6571–83. doi: 10.1021/bi00442a007
- 22.Andersen OS, Koeppe RE 2nd. Bilayer thickness and membrane protein function: an energetic perspective. Annu Rev Biophys Biomol Struct. 2007;36:107–30. doi: 10.1146/annurev.biophys.36.040306.132643
- 23.Ashrafuzzaman M, Koeppe RE 2nd, Andersen OS. Intrinsic lipid curvature and bilayer elasticity as regulators of channel function: a comparative single-molecule study. Int J Mol Sci. 2024;25(5):2758. doi: 10.3390/ijms25052758
- 24.Basavarajappa BS. Neuropharmacology of the endocannabinoid signaling system-molecular mechanisms, biological actions and synaptic plasticity. Curr Neuropharmacol. 2007;5(2):81–97. doi: 10.2174/157015907780866910
- 25.Lundbaek JA, Koeppe RE 2nd, Andersen OS. Amphiphile regulation of ion channel function by changes in the bilayer spring constant. Proc Natl Acad Sci U S A. 2010;107(35):15427–30. doi: 10.1073/pnas.1007455107
- 26.Baccouch R, Shi Y, Vernay E, Mathelié-Guinlet M, Taib-Maamar N, Villette S, et al. The impact of lipid polyunsaturation on the physical and mechanical properties of lipid membranes. Biochim Biophys Acta Biomembr. 2023;1865(2):184084. doi: 10.1016/j.bbamem.2022.184084
- 27.Lundbaek JA, Birn P, Girshman J, Hansen AJ, Andersen OS. Membrane stiffness and channel function. Biochemistry. 1996;35(12):3825–30. doi: 10.1021/bi952250b
- 28.Karimi K, Fortriede JD, Lotay VS, Burns KA, Wang DZ, Fisher ME, et al. Xenbase: a genomic, epigenomic and transcriptomic model organism database. Nucleic Acids Res. 2018;46(D1):D861–8. doi: 10.1093/nar/gkx936
- 29.Peshkin L, Lukyanov A, Kalocsay M, Gage RM, Wang D, Pells TJ, et al. The protein repertoire in early vertebrate embryogenesis. bioRxiv. 2019:571174. doi: 10.1101/571174
- 30.James-Zorn C, Ponferrada V, Fisher ME, Burns K, Fortriede J, Segerdell E, et al. Navigating Xenbase: an integrated Xenopus genomics and gene expression database. Methods Mol Biol. 2018;1757:251–305. doi: 10.1007/978-1-4939-7737-6_10
- 31.Petrova K, Tretiakov M, Kotov A, Monsoro-Burq AH, Peshkin L. A new atlas to study embryonic cell types in Xenopus. Dev Biol. 2024;511:76–83. doi: 10.1016/j.ydbio.2024.04.003
- 32.Oz M, Yang K-H, Dinc M, Shippenberg TS. The endogenous cannabinoid anandamide inhibits cromakalim-activated K+ currents in follicle-enclosed Xenopus oocytes. J Pharmacol Exp Ther. 2007;323(2):547–54. doi: 10.1124/jpet.107.125336
- 33.Sun D, Peyear TA, Bennett WFD, Andersen OS, Lightstone FC, Ingólfsson HI. Molecular mechanism for gramicidin dimerization and dissociation in bilayers of different thickness. Biophys J. 2019;117(10):1831–44. doi: 10.1016/j.bpj.2019.09.044
- 34.Hladky SB, Haydon DA. Discreteness of conductance change in bimolecular lipid membranes in the presence of certain antibiotics. Nature. 1970;225(5231):451–3. doi: 10.1038/225451a0
- 35.Lundbaek JA, Collingwood SA, Ingólfsson HI, Kapoor R, Andersen OS. Lipid bilayer regulation of membrane protein function: gramicidin channels as molecular force probes. J R Soc Interface. 2010;7(44):373–95. doi: 10.1098/rsif.2009.0443
- 36.Mayar S, Memarpoor-Yazdi M, Makky A, Eslami Sarokhalil R, D’Avanzo N. Direct regulation of hyperpolarization-activated cyclic-nucleotide gated (HCN1) channels by cannabinoids. Front Mol Neurosci. 2022;15:848540. doi: 10.3389/fnmol.2022.848540
- 37.Sawyer DB, Koeppe RE 2nd, Andersen OS. Gramicidin single-channel properties show no solvent-history dependence. Biophys J. 1990;57(3):515–23. doi: 10.1016/S0006-3495(90)82567-4
- 38.Lundbaek JA, Maer AM, Andersen OS. Lipid bilayer electrostatic energy, curvature stress, and assembly of gramicidin channels. Biochemistry. 1997;36(19):5695–701. doi: 10.1021/bi9619841
- 39.Lundbaek JA, Birn P, Tape SE, Toombes GES, Søgaard R, Koeppe RE 2nd, et al. Capsaicin regulates voltage-dependent sodium channels by altering lipid bilayer elasticity. Mol Pharmacol. 2005;68(3):680–9. doi: 10.1124/mol.105.013573
- 40.Lundbaek JA, Andersen OS. Lysophospholipids modulate channel function by altering the mechanical properties of lipid bilayers. J Gen Physiol. 1994;104(4):645–73. doi: 10.1085/jgp.104.4.645
- 41.James TR, Richards AA, Lowe DA, Reid WA, Watson CT, Pepple DJ. The in vitro effect of delta-9-tetrahydrocannabinol and cannabidiol on whole blood viscosity, elasticity and membrane integrity. J Cannabis Res. 2022;4(1):15. doi: 10.1186/s42238-022-00126-z
- 42.Medeiros D, Silva-Gonçalves L da C, da Silva AMB, Dos Santos Cabrera MP, Arcisio-Miranda M. Membrane-mediated action of the endocannabinoid anandamide on membrane proteins: implications for understanding the receptor-independent mechanism. Sci Rep. 2017;7:41362. doi: 10.1038/srep41362
- 43.Appendino G, Minassi A, Berton L, Moriello AS, Cascio MG, De Petrocellis L, et al. Oxyhomologues of anandamide and related endolipids: chemoselective synthesis and biological activity. J Med Chem. 2006;49(7):2333–8. doi: 10.1021/jm051240y
- 44.Röhrig W, Achenbach S, Deutsch B, Pischetsrieder M. Quantification of 24 circulating endocannabinoids, endocannabinoid-related compounds, and their phospholipid precursors in human plasma by UHPLC-MS/MS. J Lipid Res. 2019;60(8):1475–88. doi: 10.1194/jlr.D094680
- 45.Hanus LO, Mechoulam R. Novel natural and synthetic ligands of the endocannabinoid system. Curr Med Chem. 2010;17(14):1341–59. doi: 10.2174/092986710790980096
- 46.Pocivavsek L, Gavrilov K, Cao KD, Chi EY, Li D, Lin B, et al. Glycerol-induced membrane stiffening: the role of viscous fluid adlayers. Biophys J. 2011;101(1):118–27. doi: 10.1016/j.bpj.2011.05.036
Associated Data
Supplementary Materials
Data Availability Statement
Data is available at D'Avanzo, N. (2025). Gramicidin Data. Federated Research Data Repository. https://doi.org/10.20383/103.01301.
