Monoacylglycerol lipase deficiency in the tumor microenvironment slows tumor growth in non-small cell lung cancer
M. KIENZL ET AL.
ONCOIMMUNOLOGY
Division Of Pharmacology, Otto Loewi Research Center, Medical University Of Graz, Graz, Austria
BioTechMed, Graz, Austria
Institute Of Molecular Biosciences, University Of Graz, Graz, Austria
Diagnostic And Research Institute Of Pathology, Medical University Of Graz, Graz, Austria
Institute Of Clinical Pharmacology, Goethe University, Frankfurt, Germany
Fraunhofer Institute For Translational Medicine And Pharmacology ITMP, Frankfurt, Germany
CONTACT Julia Kargl julia.kargl@medunigraz.at Division Of Pharmacology, Otto Loewi Research Center, Medical University Of Graz, Graz 8010, AustriaABSTRACT
Monoacylglycerol lipase (MGL) expressed in cancer cells influences cancer pathogenesis but the role of MGL in the tumor microenvironment (TME) is less known. Using a syngeneic tumor model with KP cells (KrasLSL-G12D/p53fl/fl; from mouse lung adenocarcinoma), we investigated whether TME-expressed MGL plays a role in tumor growth of non-small cell lung cancer (NSCLC).
In sections of human and experimental NSCLC, MGL was found in tumor cells and various cells of the TME including macrophages and stromal cells. Mice treated with the MGL inhibitor JZL184 as well as MGL knock-out (KO) mice exhibited a lower tumor burden than the controls. The reduction in tumor growth was accompanied by an increased number of CD8+ T cells and eosinophils. Naïve CD8+ T cells showed a shift toward more effector cells in MGL KOs and an increased expression of granzyme-B and interferon-γ, indicative of enhanced tumoricidal activity. 2-arachidonoyl glycerol (2-AG) was increased in tumors of MGL KO mice, and dose-dependently induced differentiation and migration of CD8+ T cells as well as migration and activation of eosinophils in vitro.
Our results suggest that next to cancer cell-derived MGL, TME cells expressing MGL are responsible for maintaining a pro-tumorigenic environment in tumors of NSCLC.
Introduction
Monoacylglycerol lipase (MGL) was characterized several decades ago as the major enzyme that hydrolyzes monoglycerides into glycerol and fatty acids (rev. in1). One of these monoglycerides is 2-arachidonoyl glycerol (2-AG),2 which has been also identified as an endocannabinoid (rev. in3). 2-AG is a full agonist at cannabinoid 1 (CB1) and cannabinoid 2 (CB2) receptors, thereby causing cannabimimetic effects.4 MGL contributes to many (patho)physiological conditions, such as pain, food intake, stress, metabolic disorders, addiction, inflammation, and cancer (rev. in1). Cannabinoid receptor signaling is terminated through degradation of 2-AG by MGL, which therefore plays, aside from its lipolytic function, a major role in endocannabinoid metabolism.3 It accounts for around 85% of brain 2-AG hydrolase activity while the remaining part is degraded by enzymes like α/β-hydrolase domain containing (ABHD) 6 and 12.5 2-AG, CB1/CB2 and MGL are a chain of key regulators that operate cooperatively within the endocannabinoid system (ECS). Notably, pharmacological inhibition or genetic deletion of MGL results in the accumulation of endogenous 2-AG, but not of arachidonoyl ethanolamide (anandamide; AEA), another well-described endocannabinoid.6–9 In addition, MGL provides a large pool of arachidonic acid (AA), from which pro-inflammatory prostaglandins may be generated.10 This indicates that besides 2-AG, MGL regulates the availability of AA.8,11
Apart from metabolizing 2-AG, MGL is known to break down other MGs with different fatty acid chain length and saturation,12 as well as prostaglandin glycerol esters.13 The enzyme plays an important role in the intestine where reduced triglyceride secretion after oral fat challenge has been described in MGL deficient mice.14 MGL also acts as a fatty acid ethyl ester hydrolase and thus may counteract the formation of potentially toxic byproducts of ethanol metabolism.15
MGL has lately emerged as an interesting pharmacological target for the treatment of inflammatory diseases and cancer.16,17 During carcinogenesis, tumor cells shift their energy metabolism toward glycolysis and lipid synthesis.18 Fatty acids support cancer progression, e.g., by providing building blocks for new membranes. They are also needed for the generation of bioactive lipids that function as signaling molecules.18 Studies have shown that increased MGL expression/activity in cancer cells drives tumorigenesis through remodeling of fatty acids,19 suggesting a tumor-promoting role for cancer cell-derived MGL. In keeping with MGL’s pro-tumorigenic role, MGL knockdown or treatment with the MGL inhibitor JZL184 results in reduced proliferation/invasion and increased apoptosis in colorectal cancer (CRC) cell lines.20,21 Furthermore, treatment with JZL184 reduces metastasis of A549 lung cancer cells in nude mice.22 High levels of MGL were seen in human melanoma and endometrial cancer samples.23,24 Other studies showed reduced MGL levels in human samples of CRC25 and squamous cell carcinoma.26 In one of these studies, overexpression of MGL in HCT116 CRC cells showed reduced colony formation.25 In old MGL KO mice, tumors supposedly develop spontaneously, particularly in the lung,27 suggesting that MGL may rather act as a tumor-suppressor. However, MGL has been considered an unfavorable prognostic factor in primary gastrointestinal stromal tumors28 and lung adenocarcinoma.29 At the same time, in pancreatic cancer, no correlation of MGL with survival was detected,30 indicating that expression of MGL and correlation with tumor aggressiveness in human cancers is still unclear and may depend on the tumor entity and context.
In contrast to our knowledge of the role of MGL in tumor cells, not much is known about the presence and function of MGL in the immune and stromal cells of the tumor microenvironment (TME), in particular, as to how TME-derived MGL influences tumorigenesis. Immune cells express cannabinoid receptors, and they generate/degrade and respond to endocannabinoids, virtually forming an “immune-endocannabinoid system” (rev. in31,32). MGL has been detected in macrophages/monocytes and eosinophils (rev. in32), and a recent study suggests that MGL is present in tumor-associated macrophages (TAMs) that regulate tumor progression in mouse models of CRC.33 Using RNAScope® in situ hybridization (ISH), we recently showed that T cells (CD3+) and macrophages of mouse intestines express MGL.34
CD8+ T cells and eosinophils represent two important anti-tumorigenic immune cell populations in the TME. One of the main roles for CD8+ T cells in the TME is the killing of tumor cells. CD8+ cells release cytotoxic granzymes and perforin35 via recognition of tumor antigen presented by MHC-1.36 In line with their tumor cell cytotoxicity, increased presence of CD8+ T cells was reported to correlate with a better outcome in several types of cancer, such as breast37 and colorectal cancer.38 The role of eosinophils in the TME is less clear. Although tumor eosinophilia has been correlated with lower tumor progression, the opposite has been also reported.39 Similar to CD8+ T cells, their antitumorigenic properties include the degranulation of cytotoxic molecules40,41 and the recruitment of anti-tumorigenic leukocytes.42 Because of the presence of cannabinoid receptors in these cells (reviewed in32), both CD8+ T cells and eosinophils can respond to 2-AG. Low MGL expression in tumor tissue could increase 2-AG levels and locally affect the migration and proliferation of these cells; however, this has not been clarified yet.
As the major regulator of 2-AG levels, MGL is critical for CB1 receptor (de)sensitization and the endocannabinoid tone.43 By inhibiting MGL, endogenous 2-AG levels increase in a tissue-specific pattern.6 Tumors also exhibit elevated 2-AG levels, as observed in endometrial cancer.44 Amongst various endocannabinoids and endocannabinoid-like lipids, only 2-AG has consistently been shown to be increased in experimentally induced tumors (current study).45,46 Our own work47 and a study by Sailler et al.46 demonstrate that 2-AG levels are increased in plasma of patients with CRC and other types of cancer. Both pro- and anti-inflammatory effects in immune cells have been reported for 2-AG,31 therefore, elevated levels of 2-AG in tumors could impact immune cell behavior in the TME in opposite ways. Effects of 2-AG on immune cells usually involve cannabinoid receptors, mostly CB2 (rev. in31,48), although CB1 or cannabinoid receptor independent effects, such as leukotriene biosynthesis and LTB4 activation might be involved.49,50
In the current study, we investigated the role of MGL in the development of NSCLC, with a focus on MGL in the TME. We aimed to identify a potential influence of MGL-expressing TME cells on tumor growth, and on changes in the immune cell landscape of tumors. In particular, we were interested where in the TME MGL is expressed. The TME, specifically the infiltrated immune cell profile, critically determines tumor progression.51 We used MGL-/- knockout (MGL KO) and wild type (WT) mice in a syngeneic NSCLC model in which mice were subcutaneously (s.c.) injected with KP cells (Kras,LSL-G12D, p53fl/fl; established from mouse lung adenocarcinoma) to induce the development of a s.c. tumor. We show that MGL KO mice and mice treated with the MGL inhibitor JZl184 have a lower tumor burden than the WT littermates or vehicle-treated mice, respectively, indicating a pro-tumorigenic role of MGL in NSCLC.
Materials and methods
Animal studies and cell culture
All animal experiments were performed in the animal facilities of the Medical University of Graz. C57BL/6J mice were purchased from Charles River. Approval for animal experimental protocols was granted by the Austrian Federal Ministry of Science and Research (protocol number: BMBWF-66.010/0041-V/3b/2018).
MGL KO mice were a gift from Dr. R. Zimmermann9 from the University of Graz and bred in-house together with wild-type (WT) littermates. The murine KP cell line was isolated from a lung adenocarcinoma of a KrasLSL-G12D/p53 fl/fl mouse at the Fred Hutchinson Cancer Center (Seattle, WA, USA) after intratracheal administration of adenoviral Cre recombinase as described before.52 The cell line was generously provided by Dr. McGarry Houghton. KP cells were maintained in DMEM with 10% FBS (Life Technologies) and 1% penicillin/streptomycin (P/S, PAA Laboratories) at 37°C and 5% CO2 in a humidified atmosphere. For the generation of a MGL-overexpressing KP cell line, parental KP cells were transduced with a lentivirus carrying a MGL-CFP-Puro-cassette (KP_MGL) or a control cassette (KP_ctrl), which were kindly provided by Dr. C. Heier from the University of Graz.15 Selection for positive single clones was performed with puromycin (1 µg/ml, Thermo Fisher, A1113803) and confirmed using flow cytometry. Primary human cancer-associated fibroblasts were kindly provided by Dr. K. Leithner from the Medical University of Graz53 and cultured in DMEM supplemented with 10% FBS and 1% P/S. Cells were starved overnight with serum-free media and 1 or 5 ng/ml TGF-β (Bio-Techne, 7754-BH-005) for 3 days and were used for differentiation. Mouse primary dermal fibroblasts were cultured according to the manufacturer’s protocol (Pelobiotech, Martinsried, Germany).
Murine tumor models
Parental KP cells (0.5×106) were injected (s.c.) into the right flank of mice. For pharmacological inhibition of MGL, tumor-bearing C57BL/6J wild-type mice were intraperitoneally (i.p.) treated with 16 mg/kg JZL184 (MGL inhibitor, Cayman), once daily, starting one day prior to the injection of tumor cells. For the experiments with MGL-overexpressing cells, either 0.5 × 106 KP _MGL or KP _ctrl cells were injected (s.c.) into the right flank of C57BL/6J wild-type mice. Tumor growth was monitored during the course of the experiments twice per week using a caliper. Mice were sacrificed after about two weeks, and tumors were subsequently collected, weighted, and measured with a caliper ex vivo. Tumor volume was calculated according to the following formula: v = length x width x height x π/6.40
Single-cell suspensions
The preparation of single-cell suspensions from tumors was performed as previously described.40 Using a scalpel, tumors were minced, and digested with DNase I (160 U/ml; Worthington) and collagenase (4.5 U/ml; Worthington) for 15 minutes at 37°C while rotating at 1000 rpm. After brief vortexing, samples were incubated for 10 min before they were passed through a 40 µm cell strainer, washed in PBS+2% FBS, counted, and used for antigen staining.
Flow cytometric phenotyping of immune cell populations
First, single cell suspensions were incubated for 20 min in Fixable Viability Dye (FVD) eFluorTM 780 (eBioscience) in the dark to exclude dead cells. After adding 1 µg TruStainTM FcX (Biolegend), immunostaining was performed on ice for 30 min (protected from light) with the following antibodies: CD45-AF700 (# 103,128), CD45-BV785 (# 103,149), Ly6C-APC (# 128,015), Ly6C-FITC (# 128,005), Ly6G-PE/Dazzle594 (# 127,648), CD11 c-BV605 (# 117,334), CD8-PerCPCy5.5 (# 100,734), CD63-PE (# 143,903), PD1-APC (# 135,210), CD62L-BV605 (# 104,438), NKp46-BV510 (# 137,623), CD4-PECy7 (# 100,422), CD4-APC (# 100,516), CD19-PECy7 (# 115,520), CD44-FITC (# 103,005), PD1-BV421 (#135,221), CD62L-BV421 (# 104,436) (all antibodies from Biolegend), and CD11b-BUV737 (# 612,801), F4/80-PE (# 565,410), Siglec-F-PerCP5.5 (# 565,526), F4/80-BUV395 (# 565,614), CD3-BUV395 (# 563,565), CD4-BUV496 (# 564,667), CD44-BUV737 (# 612,799), Siglec-F-PE (# 562,068) (all antibodies from BD Biosciences). For detection of changes in IFN-γ and granzyme-B expression, single-cell suspensions of tumors or spleens (2×106 cells per well) were seeded into 96-well U-bottomed plates with RPMI containing 10% FBS, 1% P/S, and GolgiStop (1.5 µl/ml, BD Biosciences) and left for 4 h at 37°C. During that time, they were stimulated with PMA (100 ng/ml, Sigma Aldrich) and ionomycin (1 µg/ml, Sigma Aldrich) or kept without stimulation. After that, surface staining was performed with CD45-AF700, CD3-BUV395 and CD8-PerCP5.5, followed by intracellular labeling (BD Cytofix/CytopermTM Kit) with IFN-γ-PECF594 (BD Biosciences, # 562,303) and granzyme-B-AF647 (# 515,406). After staining, cells were washed and fixed using IC Fixation Buffer (eBioscience). Samples were either analyzed on a BD LSRFortessaTM or BD CantoTM flow cytometer with FACSDiva software (BD Biosciences). Analyses and compensation were performed with Flowjo software (TreeStar). Fluorescence minus-one-samples were used to define gates. See Supplementary figure S1 for gating strategies.
RNA extraction and qRT-PCR
RNA extraction from tissue was carried out in TRIzol (Life Technologies). For RNA extraction from cultured cells, RNeasy Kit (Qiagen) was used. Samples were treated with either a DNA-free DNA Removal Kit (Invitrogen) or RNase-Free DNase set (Qiagen). One µg of RNA was reversely transcribed with the High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems). Quantification of gene expression by RT-qPCR was performed with SsoAdvanced Universal SYBR Green Supermix (Bio-Rad). Primers were acquired from Eurofins (Supplementary table 1) or Bio-Rad (Supplementary table 2). ΔCq- and ΔΔCq-methods were used for the assessment of relative gene expression.54
Differentiation of bone marrow-derived eosinophils (BMDEs)
Bone marrow was isolated from C57BL/6J wild-type mice, and eosinophils were differentiated as previously described.40 In short, after lysis of erythrocytes with ddH2O and 10xPBS, cells were cultured in BMDE-RPMI, i.e. RPMI+20% HyClone FBS (GE Healthcare; # 10,309,433), 25 mM HEPES (Thermo Fisher; # 15,630–080), 1xnon-essential amino acids (Thermo Fisher; # 11,140–035), 1 mM sodium pyruvate (Thermo Fisher; #11,360–039), 1% P/S and 50 μM beta-mercaptoethanol (Sigma-Aldrich; M3148) supplemented with 100 ng/ml FLT3L (PreproTech; # 250–31 L) and 100 ng/ml stem cell factor (PreproTech; # 250–03) for four days at 37°C and 5% CO2. After that, the medium was changed to BMDE-RPMI supplemented only with 10 ng/ml IL-5 (Bio-Techne). Every fourth day, cells were transferred to a new flask, and a fresh medium was added every other day. Fully differentiated BMDEs were used for assays on day 14.
Ca2+ flux in eosinophils
BMDEs were treated with 2 µM of Fluo-3 AM in the presence of 0.02% pluronic F-127 for 1 hr at room temperature and protected from light.55 Then, 1 µM of the CB2 antagonist SR144528 or EtOH as control was added for the last 10 min. BMDEs were subjected to baseline measurement for 60 sec and additionally stimulated with increasing concentrations of 2-AG (Tocris) or DMSO (vehicle). Changes in intracellular Ca2+ were determined as an increase in the 530/30 nm channel on a BDCalibur flow cytometer.
Isolation of lymphocytes from spleen
CD3+ and CD8+ T cells were isolated from spleens of MGL KO mice and their WT littermates with EasySepTM mouse CD8+ T cell/T cell isolation kit according to the manufacturer’s protocol (Stemcell).
BMDE and CD8+ T cell migration assay
Migration assays were performed using 5 µm Transwell plates (Corning), as previously described.56 In brief, BMDEs and negatively isolated murine CD8+ T cells were seeded in the upper well (at 1 × 105 or 1.5 × 105 cells per well, respectively), and increasing concentrations of 2-AG were used as a chemoattractant for 1 or 4 h at 37°C, respectively. DMSO was used as vehicle. SR144528 or EtOH (control) was used as a pretreatment (1 µM, 10 min at room temperature). CCL19 (Biolegend) was used as a positive control for CD8+ T cell migration. Enumeration of cells migrating to the lower well was performed on a BDCantoTM flow cytometer (BD Biosciences).
T cell differentiation and proliferation assay
Isolated murine T cells were seeded into 96-well U-bottom plates (1.5×105 cells per well, pre-coated with 5 µg/ml ULTRA-LEAFTM anti-mouse CD3 antibody (Biolegend)) with X–VIVOTM 15 medium (Szabo-Scandic) containing 1% P/S, 2 nM L-glutamine, 50 µM β-mercaptoethanol, 25 mM HEPES, 50 U/ml mIL-2, 1xnon-essential amino acids (Thermo Fisher; # 11,140–035), 1 mM sodium pyruvate (Thermo Fisher; # 11,360–039), and ULTRA-LEAFTM anti-mouse CD28 antibody 1 µg/ml (Biolegend). T cells were then treated with different concentrations of 2-AG following pre-treatment with 1 µM SR144528 or vehicle for 30 min. To determine T cell proliferation, cells were pre-loaded with 5 µM eFluorTM 450 cell proliferation dye (Invitrogen) for 10 min at 37°C. After 4 days of incubation at 37°C, T cells were harvested and staining was performed as described above.
In situ hybridization (ISH) and immunofluorescence
Tumors were fixed in acid-free phosphate-buffered 10% formaldehyde solution (Roti®-Histofix 10%, pH7) for 16–24 h at room temperature, and further processed for paraffin embedding according to standard procedures. Tissue was cut in 5 μm sections, baked at 60°C for 1 hr, de-waxed and rehydrated. ISH was performed according to the manufacturer’s protocol and as recently published.34 In brief, three ZZ probes for MGL (targeting bases 703–849 of NM_001166251.1) (BaseScopeTM RED kit; Advanced Cell Diagnostics [ACD]) were used to detect the corresponding mRNAs in tumors. Sections with tumor tissue were treated with H2O2 for 10 min and target retrieval was performed using the Brown FS3000 food steamer for 15 min. Each step was followed by washes in distilled water. The sections were then digested with Protease IV at 40°C for 20 min, washed, followed by incubation with the corresponding probes at 40°C for 2 h and stained using FastRed. Samples from MGL KO and WT mice were put on one slide for comparison. MGL KO mice lacked expression of MGL outside of the engrafted KP tumor cells. The specificity of the MGL probe is also published elsewhere.34
ISH and immunofluorescence were performed on 4 µm sections of the human lung adenocarcinoma formalin-fixed paraffin-embedded samples obtained from the Biobank of the Medical University of Graz. mRNA was detected using an anti-human MGL probe (targeting bases 566–1530 of NM_007283.6 (RNAScope 2.5 HD Assay-RED kit, ACD; cat. # 539,151)). Ethical approval was obtained from the Institutional Review Board of the Medical University of Graz (EK-numbers: 30–105 ex 17/18). All procedures involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards. Informed consent was obtained from all subjects involved in the study.
Antibodies against cytokeratin (1:200; Dako # ZO0622), F4/80 (1:500; Cell Signaling # 70,076) or CD163+ (1:500; Abcam # ab182422), CD3+ (1:500; Novus # NB6001441SS), CD11b (1:100; Novus # NB11089474), fibroblast-specific protein (FSP) (1:100; Millipore #72,274), von Willebrand factor (vWF) (1:400; Abcam # ab6994), α-SMA (1:100; Abcam # ab5694), were used to determine tumor cells and cell types of the immune/stromal TME co-localizing with MGL mRNAs. After ISH, tissue sections were first blocked in 0.1 M PBS containing 0.3% Triton X-100 and 5% goat serum (Sigma-Aldrich). Primary antibodies were applied in 0.1 M PBS containing 0.3% Triton X-100 and 1% goat serum over night at 4°C. As the second antibody, Alexa Fluor® 488-labeled goat anti-rabbit IgG (1:500; Jackson Immuno Research; #111-546-144) was used. Sections were also equally processed without primary antibodies as a negative control. Afterward, sections were mounted with Vectashield® (containing DAPI) (Vector Laboratories) and images were taken by an Olympus IX70 fluorescence microscope (Olympus) connected with a Hamamatsu ORCA-ER digital camera (Hamamatsu Photonics K.K., Japan). Images were processed with Olympus CellSense® 1.17 imaging software (Olympus). The contrast, brightness and color balance of images were adjusted using Corel Photo Paint®.
LC-MS analytics of endocannabinoids and other lipids
Endocannabinoids, endocannabinoid-like substances, DGs, TGs and other lipids from mouse tumor and adjacent white adipose tissue were determined using liquid chromatography in combination with tandem mass spectrometry (LC-MS/MS) and high-resolution mass spectrometry (LC-HRMS), respectively. Details about the used equipment, materials, method parameters and a full list of analyzed analytes can be found in the Supplementary materials S2 (LC-MS analytics).
Tissue was homogenized prior to lipid extraction using wet grinding in a Precellys 24 (Bertin Instruments, Montigny-le-Bretonneux, France) at 10°C. The tissue homogenates had a concentration of 0.05 mg/µL in ethanol:water (1:3, v/v), and 10 zirconium dioxide balls were added for the grinding. For quantification of endocannabinoids and related substances, tissue homogenates equaling 2 mg of tissue and a 1:50 dilution in ethanol:water (1:3, v/v) were extracted after filling up the sample volume to 200 µL with ethanol:water (1:3, v/v). Quantitation of endocannabinoids and related compounds was achieved as described previously with a shortened gradient and reduced source temperature of 400°C to enhance sensitivity of 2-oleoyl glycerol (2-OG).57 Due to the shortened gradient, OEA and its isomer vaccenic acid ethanolamide (VEA) were not separated and were, therefore, quantified as a sum parameter.
1-arachidonoyl glycerol (1-AG), 2-AG, arachidonoyl ethanolamide (AEA), oleoyl ethanolamide (OEA), palmitoyl ethanolamide (PEA) and 2-OG were extracted from 200 µL sample volume using liquid-liquid-extraction by adding 20 µL of internal standards in acetonitrile, 20 µL acetonitrile and 400 µL ethyl acetate: hexane (9:1, v/v). After mixing and centrifugation at 4°C for 3 min, the upper organic layer was transferred and dried under a nitrogen stream at 45°C. Before analysis, samples were dissolved in 50 µL acetonitrile. The LC-MS/MS measurement included separation on an Agilent 1290 Infinity II UHPLC system with an Acquity UPLC BEH C18 column (100 × 2.1 mm, 1.7 μm, Waters, Eschborn, Germany) and measurement on a QTrap 6500+ (Sciex, Darmstadt, Germany) using an ESI Turbo-V-source with negative ion source voltage. Data were acquired using Analyst software v1.7.1 and further analyzed with MultiQuant software v 3.0.2. Acceptance criteria and quality assurance measures were applied as described previously.57 The lower and upper limits of quantification for all analytes can be found in the Supplementary materials S2.
The lipid screening using LC-HRMS was performed as described previously with a shortened gradient, which is further described in the Supplementary materials S2.58 Additionally, oleic acid was quantified within this analysis. Lipids were extracted using a modified MTBE extraction protocol.59 A volume of 10 µL tissue homogenate (≡ 0.5 mg tissue) was mixed with 75 µL of internal standards in methanol, 10 µL of oleic acid-d9 in methanol, 250 µL MTBE and 60 µL 50 mM ammonium formate. The mixture was vortexed for 1 min and centrifuged for 5 min at 20,000 g at room temperature. After transfer of the upper organic phase, the aqueous phase was re-extracted with 100 µL of a mixture of MTBE: methanol: water (10:3:2.5, v/v/v, upper phase). The combined organic phases were dried under a stream of nitrogen at 45°C and reconstituted in 100 µL methanol before LC-HRMS analysis. For the calibration standards and quality control samples for oleic acid, 20 µL of ethanol:water 1:3 (v/v) was mixed with 20 µl standard/qc solution in methanol containing 0,1% BHT, 55 µL methanol, 10 µl oleic acid-d9 in methanol, 250 µL MTBE and 60 µL 50 mM ammonium formate and extracted as described above.
The measurement was performed using a Vanquish Horizon UHPLC system coupled to an Exploris 480 (both Thermo Fisher Scientific, Dreieich, Germany) applying a Zorbax RRHD Eclipse Plus C8 column (1.8 µm 50 × 2.1 mm ID, Agilent, Waldbronn, Germany). Both ionization modes were used with a scan range from 180 to 1500 m/z and a mass resolution of 120.000 combined with data-dependent acquisition at 15.000 mass resolution with a full scan every 0.6 s. For verification of the system stability, the first twelve samples were pooled and replicates injected at the start, at the end of a run as well as after every 10th sample. For data acquisition and peak integration, XCalibur software v4.4 and TraceFinder software v5.1 were used with a mass tolerance of 5 ppm.
In a semi-targeted approach, 318 lipids were evaluated and results were normalized to one internal standard per lipid class. These lipids were identified using exact mass ± 5 ppm, isotope ratio and comparison of MS/MS fragmentation pattern with LipidBlast database.60 A relative standard deviation below 20% for the quality control samples was used as acceptance criteria for the lipid screening. Oleic acid was quantified in negative ionization mode full scan as hydrogen-loss and the same quality assurance and acceptance criteria as for the endocannabinoids were applied.57
Statistical analysis
GraphPad Prism 6.1 (GraphPad® Software) was used to perform statistical analyses for in vitro and in vivo experiments. Gaussian distribution was tested by using Shapiro-Wilk normality test. Statistically significant differences between two experimental groups were determined using unpaired student’s t-tests, multiple t-tests or two-way ANOVA with the indicated post hoc test for corrections of multiple comparisons. To compare three or more groups, one-way ANOVA was used with the indicated post hoc test for corrections of multiple comparisons. Statistical analysis for not normally distributed data was performed using non-parametric Mann-Whitney tests and Kruskal-Wallis test with Dunn’s multiple comparison test. Correlations between tumor weight/volume and MGL, ABHD6 or 12 expressions were determined using Pearson’s correlation coefficient (r) and Spearman’s correlation coefficient rho (rs).
Lipid species data was analyzed in R (Version 4.0.3) using Welch’s t-test, and plots were drawn with the pheatmap-package (Raivo Kolde, 2019. pheatmap: Pretty Heatmaps. R package version 1.0.12. https://CRAN.R-project.org/package=pheatmap). Colors indicate the up- (red) or down (blue) regulation of each lipid.
P values < .05 were considered significant and denoted with 1, 2 or 3 asterisks when lower than 0.05, 0.01 or 0.001, respectively.
Results

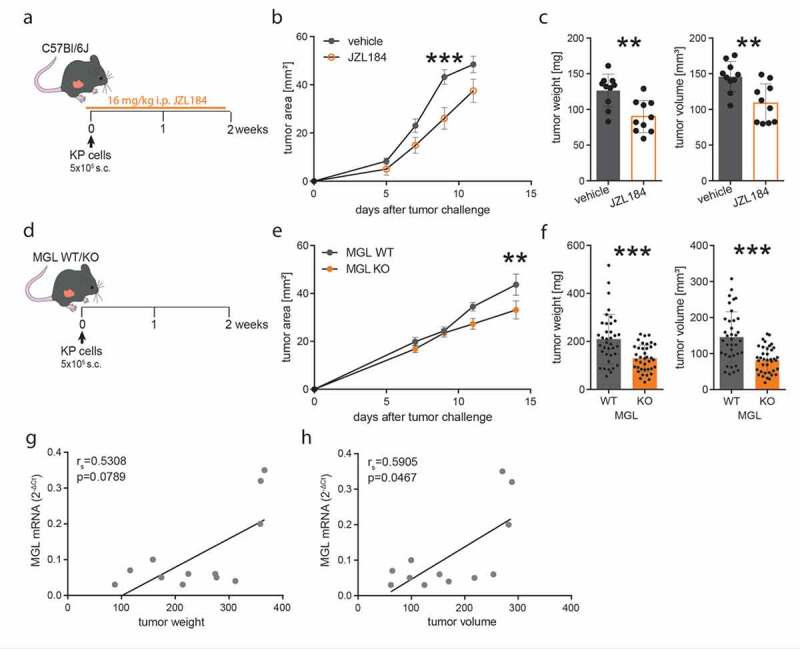

MGL-deficiency in cells of the TME inhibits tumor growth in a syngeneic NSCLC model
In recent publications, reduced lung cancer cell invasiveness was detected after treatment with an MGL inhibitor.22,29 We, therefore, treated KP cell tumor bearing C57BL/6J mice with the MGL inhibitor JZL184 (or vehicle) first to investigate whether systemic blockade of MGL affects primary tumor growth (Figure 1a). As a result, the inhibitor slowed tumor progression (Figure 1b) and caused a significant reduction in tumor weight and volume (Figure 1c). To validate whether JZL184 truly inhibited MGL activity, we performed a monoacylglycerol hydrolase (MGH) activity assay in protein lysates of the liver from vehicle- and JZL184-treated mice, demonstrating the systemically inhibiting effect of JZL184 on MGL activity (Supplementary figure S3a). JZL184 treatment had no direct effect on tumor cells and did not influence tumor cell viability (evaluated as CD45− cells; Supplementary figure S3b) or proliferation (Supplementary figure S3c and d) in vivo.
As the role of MGL has not yet been investigated in the TME of NSCLC, we aimed to find out whether tumor infiltrating cells that were deficient of MGL (thus creating a MGL deficient TME) would be sufficient to reduce tumor growth. We injected KP cells into the flank of MGL KO and WT mice (Figure 1d). The growth of tumors was monitored over 2 weeks and similar to the effect of JZL184, we found reduced tumor growth in the MGL KO vs. WT mice (Figure 1e). Ex vivo analysis of tumor weight and volume showed an approximate 40% reduction of tumor size in MGL KO mice (Figure 1f). mRNA expression of MGL in tumors from WT mice positively correlated with tumor size (Figure 1 g, h). mRNA expression of other monoglyceride hydrolases like ABHD6 (recently suggested as a tumor-driver in NSCLC61) and ABHD12 showed no significant correlations (Supplementary figures S3e-h).

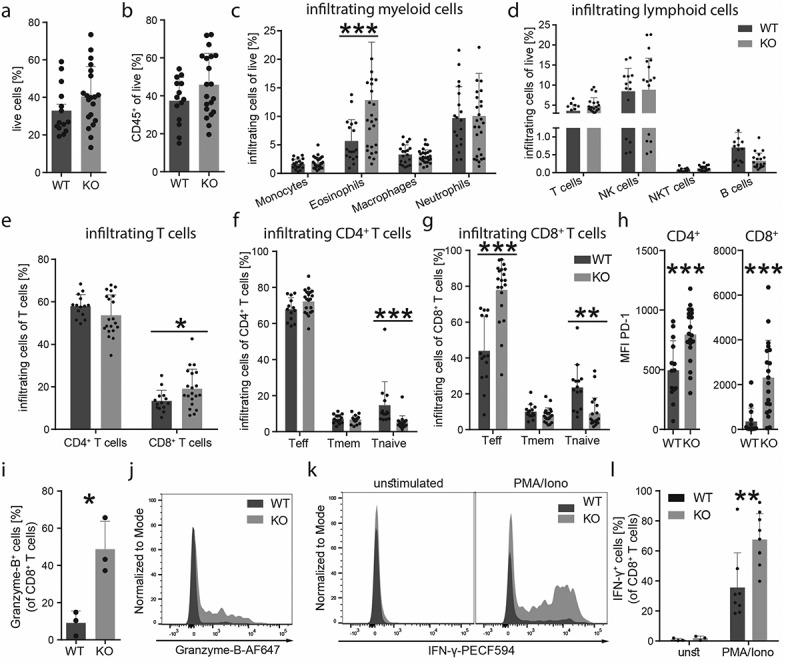

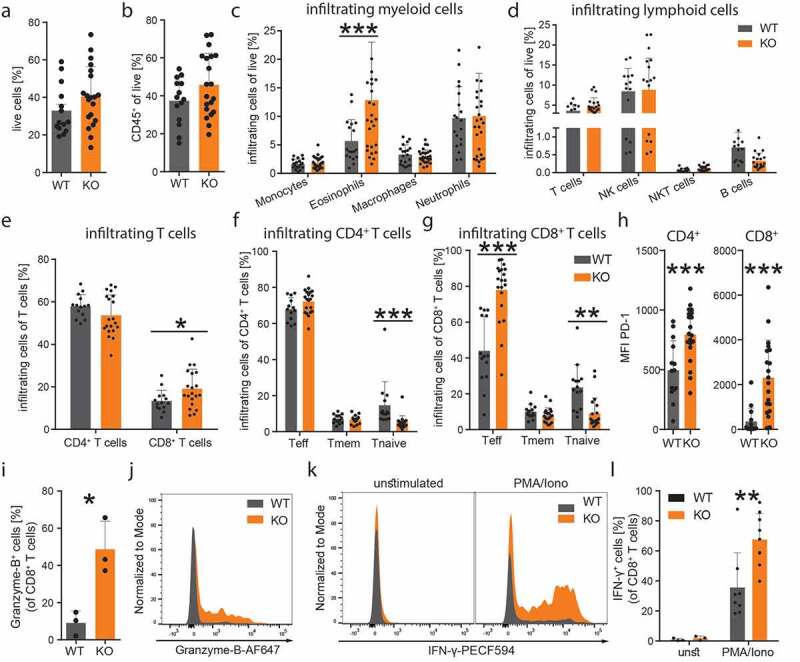

MGL deficiency in cells of the TME favors an anti-tumorigenic immune cell profile
We next investigated whether the reduced tumor size that we observed in MGL KO mice was accompanied by changes in the immune cell profile of the TME (Figure 2a-g). In comparison to WT mice, flow cytometry of tumor-infiltrating leukocytes in the MGL KO mice revealed significant increases in the number of eosinophils (Figure 2c) and CD8+ T cells (Figure 2e), indicating a potential shift to an anti-tumorigenic environment. However, no differences were detected in CD4+ T, overall T, NK, NKT and B cells (Figure 2d). In WTs, the relative abundance of naïve CD4+ and CD8+ T cells were higher than in KO mice (Figure 2f), while in KO mice, the relative abundance of effector CD8+ T cells was higher than in WTs (Figure 2g). The expression of the inhibitory checkpoint receptor PD-1 on tumor-infiltrating CD4+ and CD8+ T cells was increased in tumors from MGL KO mice suggesting increased immune activity of these cells (Figure 2h). Expression levels of granzyme-B (Figure 2i, j) and IFN-γ (Figure 2k, l) were increased in tumor-infiltrating CD8+ T cells of MGL KO vs. WT mice, indicating enhanced tumoricidal activity of CD8+ T cells in MGL KO mice.
MGL is expressed in tumor cells and various cells of the TME
Our first results showed that MGL deficiency in cells of the TME resulted in a lower tumor burden accompanied by changes in the TME. Since previous data showed that MGL expression in TME macrophages had an influence on tumor progression,33 we were interested, in which cells of the TME of our NSCLC model MGL were expressed.
We used ISH technique with a specific probe against MGL combined with immunofluorescence (we have tested the specificity of this probe in MGL KO mice previously34). In tumors of MGL WT mice, only 40% of DAPI-stained nuclei, that stained for the tumor cell marker cytokeratin, colocalized with adjacent MGL mRNA ISH signals (Figure 3a), indicating that MGL mRNA was also expressed by TME cells. Within the TME, we detected MGL mRNA in F4/80-positive macrophages (Figure 3b), fibroblast specific protein (FSP)-positive tumor-associated fibroblasts (Figure 3c), endothelial cells (Figure 3d), but, particularly, in α-SMA positive cells (Figure 3e). Of note, primary fibroblasts from NSCLC patients and dermal fibroblasts from C57BL/6 mice differentiated by TGF-β also expressed MGL mRNA in cell cultures, hence confirming our findings (see Supplementary figures S4a and b). CD3+ T cells did not express MGL mRNA in the tumors (Figure 3f). Around 20% of cytokeratin positive cells stained for MGL mRNA (Figure 3g). As expected, cells in the TME from tumors of MGL KO mice were devoid of MGL mRNA expression and staining for MGL mRNA in these mice was, therefore, only observed in tumor cells (see Supplementary figures S4c-h). MGL RT-qPCR in tumor samples of WT mice was higher than in KO mice (Figure 3h). The qPCR data in the MGL KO mice indicated that MGL was expressed in KP cells in vivo thus confirming our ISH data. KP cells kept in culture only marginally expressed MGL mRNA (Supplementary figure S4i), and equally, expression of ABHD6 mRNA was low (Supplementary figure S4i). MGL and ABHD6 mRNAs showed equally high expression in tumors of WT mice (Figure 3i). There were no differences in ABHD6 expression between MGL KO and WT mice (Supplementary figure S4j). At the same time, ABHD12 showed highly elevated expression in MGL WT tumors (Figure 3i) and cultured KP cells (Supplementary figure S4i), but no changes were seen between MGL KO and WT tumors (Supplementary figure S4k).
In sections of human lung adenocarcinoma, most tumor cells expressed MGL mRNA (75%) (Figure 3j). In addition, we detected MGL mRNA in CD163+ macrophages (46%) and in α-SMA positive cells (28%) (Figure 3 k,l). Unlike in the KP cell tumors of mice, the human samples showed MGL mRNA expression in some CD3+ T-cells (6%) (Figure 3m and 3n).

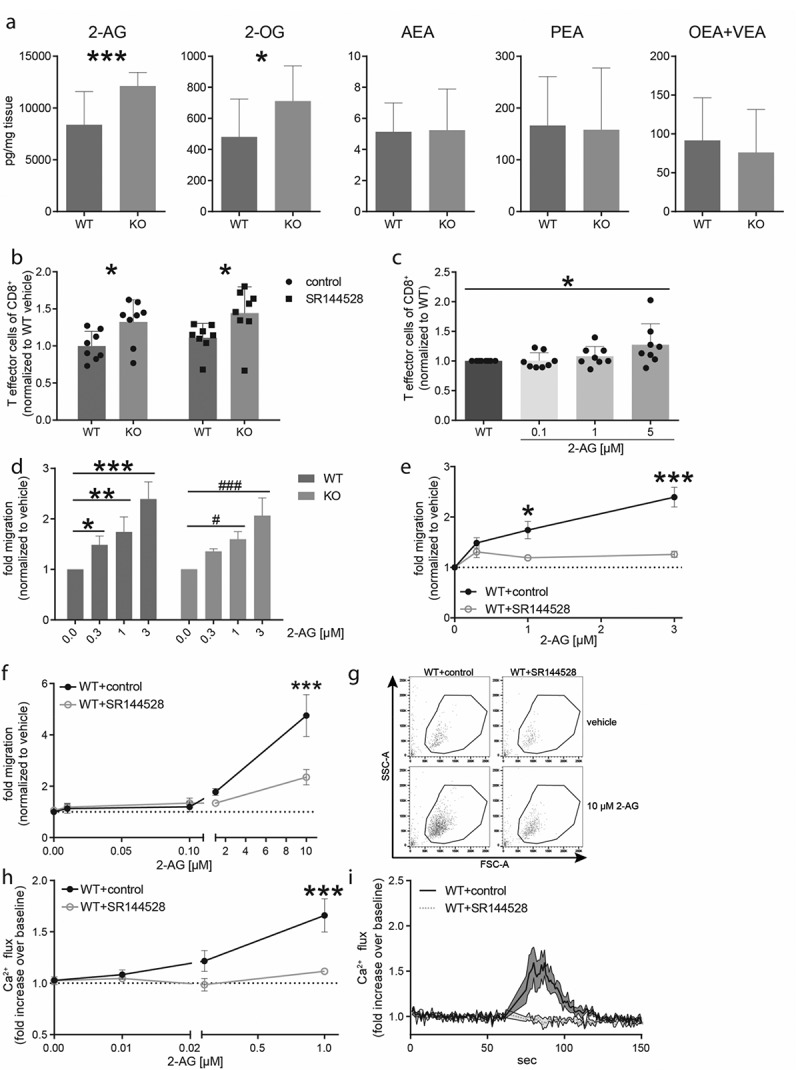

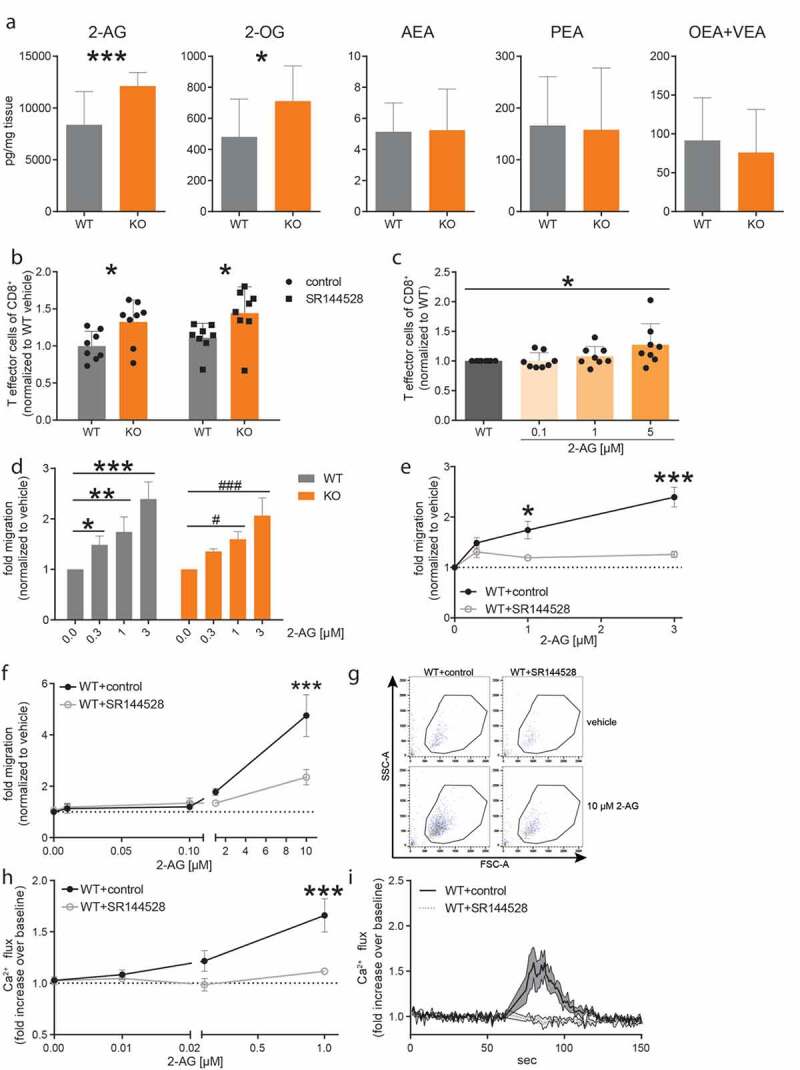

In vitro, 2-AG shifts CD8+ T cells toward a T effector phenotype and activates eosinophils in a CB2 dependent manner
MGL hydrolyzes monoglycerides (MGs), and in that function it may affect 2-AG and also other lipid levels. We, therefore, measured MGs, endocannabinoids, endocannabinoid-like lipids and free fatty acids (FAs) in tumors of MGL deficient and WT mice, first focusing on changes of endocannabinoids and MGs in tumor tissues. Mass spectrometric measurements revealed increased levels of 2-AG and 2-OG in tumors of MGL KO as compared to WT mice (Figure 4a). Next to 2-AG, AEA and palmitoylethanolamide (PEA) were increased in tumors of JZL184-treated vs. vehicle-treated control mice (Supplementary figure S5a). When comparing 2-AG levels of KO and WT tumor tissue vs. tumor-adjacent white adipose tissue, increased levels were detected in KP tumor tissue, indicating a tumor-specific rise of 2-AG that was significantly higher in tumors of MGL KO mice (Supplementary figure S5b).
Second, as MGL has been reported to regulate FA levels in aggressive cancer cells,19 we investigated whether FAs were altered in our tumor models. However, we did not detect alterations in FA contents but noted increased triglyceride levels in the MGL KO tumors instead. Many lipid species described as being altered in human lung cancer tissue, such as phosphatidylcholines (PCs,62) and lysophosphatidylcholines (LPCs,63), were found increased in tumors of MGL KO mice (Supplementary figure S5c).
Since we had found increased levels of 2-AG in the tumors of MGL KO vs. WT and JZL184-treated mice (Figure 4a and Supplementary figure S5a), we investigated whether 2-AG could play a role in the change of the infiltrating immune cell populations in MGL KO mice (specifically CD8+ T cells and eosinophils) and/or tumor cell proliferation. We first investigated the role of 2-AG on differentiation, migration, and proliferation of CD8+ T cells in vitro. Based on our finding that CD44/CD62L-expression revealed a shift to an increase in infiltrating CD8+ T effector cells into tumors of MGL KO mice, as compared to WTs, we checked CD44 expression on polyclonal-stimulated T cells in vitro. We observed an increased CD44 expression in CD8+ T cells from MGL KOs compared to WTs that was not sensitive to CB2 inhibitor SR144528 treatment (Figure 4b). To confirm an involvement of 2-AG, we additionally treated T cells isolated from MGL WT spleens with different concentrations of 2-AG and recorded a dose-dependent increase in CD44+ CD8+ T cells (Figure 4c).
As a next step, we isolated T cells from MGL WT and KO mice and investigated migration in response to increasing concentrations of 2-AG (chemoattractant) in a Transwell plate. We identified dose-dependent migration of CD8+ T cells toward 2-AG (Figure 4d). Since there was no significant difference in the migratory potential between MGL WT and KO CD8+ T cells, we continued our experiments with WT cells. Here, the additional treatment with SR144528 showed a reduced migration compared to control (EtOH)-treated cells (Figure 4e), suggesting the involvement of a CB2 dependent mechanism in migration.
We also investigated whether the proliferation of CD8+ T cells could be affected by 2-AG. However, incubation of T cells with different concentrations of 2-AG did not change their proliferative behavior (Supplementary figures S6a and a). Although 2-AG was described to reduce the growth of pancreatic cancer cells in vitro,64 we failed to see the effects of 2-AG on KP tumor cell proliferation and viability in vitro (Supplementary figures S7a and b).
In addition to CD8+ T cells, we isolated eosinophils (which are known to express CB256,65) from bone marrow cells of WT mice and differentiated them into bone marrow-derived eosinophils (BMDEs). MGL expression was not detected in eosinophils within tumors (data not shown); therefore, the following experiments were performed in WT cells only. BMDEs were used on day 14 with purity and viability of about 93% and 94%, respectively (Supplementary figure S8), and we tested the chemotactic potential of 2-AG. BMDEs migrated toward 2-AG in a dose-dependent manner (Figure 4f). Migration was suppressed after pre-treatment with 1 µM of CB2 inhibitor SR144528, corroborating previous findings56 (Figure 4f, representative dot plots are shown in Figure 4g). We also wanted to know whether 2-AG could induce Ca2+ flux in murine eosinophils via CB2, as previously described for human eosinophils.56 Ca2+ flux was dose-dependently increased in BMDEs of MGL WT mice when stimulated with 2-AG (Figure 4h). Similar to the chemotactic effect of 2-AG, pre-treatment with 1 µM of SR144528 reduced Ca2+ signals almost to baseline values (Figure 4h-i).
Taken together, our in vitro data indicate that 2-AG activates eosinophils and promotes differentiation in CD8+ T cells, supporting the observed in vivo effects.

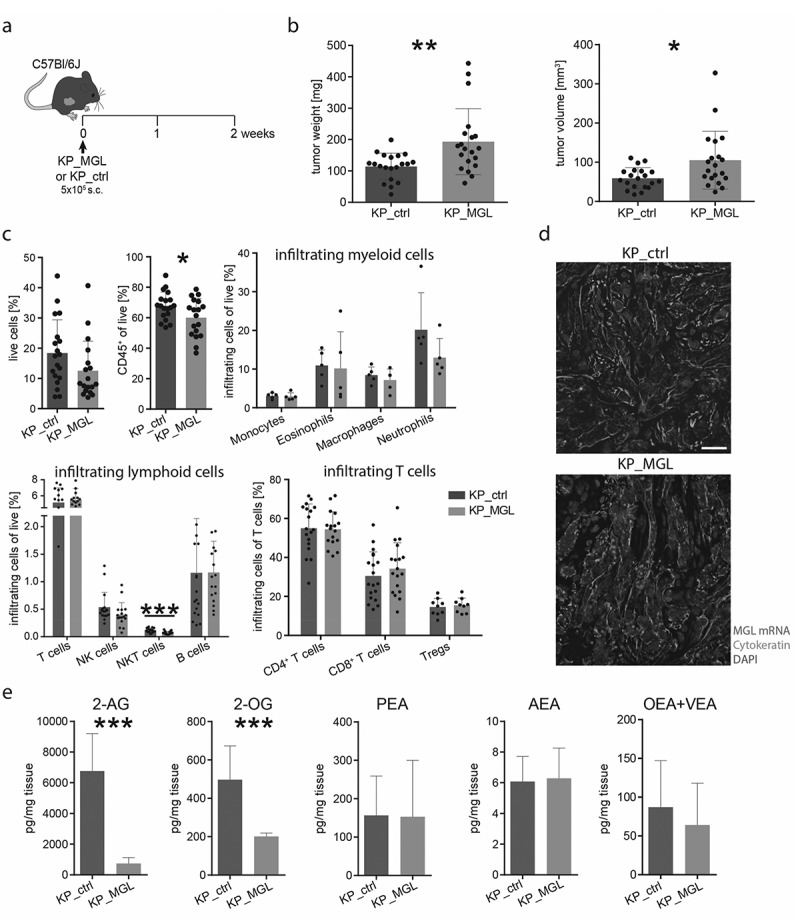

WT mice injected with MGL-overexpressing KP cells showed increased tumor growth
In addition to cells of the TME (Figure 3b-e), MGL is expressed in KP tumor cells in situ (Figure 3a), but is hardly detectable in cultures of KP cells in vitro (Supplementary figure S4h). To investigate whether tumor cell-expressed MGL affects tumor growth and the TME landscape in our model, we generated KP cells overexpressing MGL, which were lentivirally transduced either with a MGL-encoding (KP_MGL) or a control plasmid (KP_ctrl). CFP (present in the control and the MGL-encoding plasmid) was used for sorting successfully transduced cells (Supplementary figure S9a). MGL overexpression in the transduced KP cell line was confirmed by qPCR and MGH activity assay (Supplementary figure S9b-c). WT mice were injected s.c. with either the MGL-overexpressing or the control KP cell line and tumor growth was monitored for about 14 days (Figure 5a). In general, tumors in these experiments were smaller than tumors in Figure 1 (tumors with non-transfected KP cells), which may have been due to the immunogenicity of CFP.66 Analysis of ex vivo tumor weight and volume demonstrated significantly increased tumor burden in mice with the overexpressing MGL KP tumor cells (Figure 5b). Using BrdU-staining, we excluded that differences in the proliferation of the cell lines per se could have been responsible for the increase in tumor growth (Supplementary figure S9d).
Flow cytometric analysis of single-cell suspensions of tumors from MGL-overexpressing vs. control mice showed reduced infiltration of CD45+ and NKT cells. However, no changes in the T and B cell profiles, nor in infiltrating myeloid cell populations (Figure 5c). The results suggest that next to TME-expressed MGL, tumor cell-expressed MGL may also promote tumor growth in our model though with minor impact on the TME immune cell profile. Increased MGL expression in tumor cells was also detected by ISH for MGL combined with immunofluorescence of cytokeratin (tumor cell marker) (Figure 5d). Endocannabinoid levels were measured with mass spectrometry and showed significantly reduced 2-AG and 2-OG levels in MGL-overexpressing KP tumors compared to control (Figure 5e). Lipid screening revealed differences in various lipid species between KP_MGL and KP_ctrl tumors (Supplementary figure S10). The lipid profile of MGL overexpressing tumors was less altered as compared to tumors from MGL KO mice suggesting that MGL located in TME cells may have a critical influence on the composition of the tumor lipid profile and maybe on the generation of procarcinogenic precursors. No increase of FAs was seen in MGL overexpressing tumors.
Discussion
Despite a decline since 2008, lung cancer is estimated to cause more deaths than breast, prostate, colorectal, and brain cancers combined.67 NSCLC comprises the majority of all lung cancers. Although significant advances have been achieved with new forms of treatment, such as immunotherapy, NSCLC remains challenging to treat, calling out for a better understanding of the TME’s role in this type of cancer.68
Lately, the immune cell landscape of NSCLC has been characterized, describing reactive T cells and neutrophils as potentially important players of NSCLC carcinogenesis.69 Since components of the endocannabinoid system are widely present in immune cells (rev. in32), we wanted to address the question whether the 2-AG degrading enzyme MGL located in the TME contributes to NSCLC carcinogenesis. A link between endocannabinoid degradation and NSCLC has previously been reported in an immunocompromised mouse model demonstrating a reduction in tumor growth and metastasis by FAAH inhibitors.70,71 Furthermore, decreased invasion and metastasis of lung cancer cells were detected upon MGL inhibitor treatment in athymic mice.22 Other than these reports, only cannabinoids and their receptors have been studied in lung cancer cells and in in vivo lung cancer models (e.g.72–74). A study by Xiang et al. has focused on MGL inside the TME and investigated the role of MGL in macrophages and its impact on tumor growth in gastrointestinal cancer mouse models showing a significant impact of MGL on cancer progression.33 Data are otherwise contradictory whether MGL promotes tumor growth or acts as a tumor suppressor.
The MGL/2-AG axis in the TME affects lung cancer
We applied a cell line generated from a mouse lung adenocarcinoma in a syngeneic NSCLC tumor model and studied tumor growth, MGL expression, and alterations in immune cell populations of the TME (summarized in Figure 6).
We could show that tumors with a MGL-deficient TME were smaller than tumors with a MGL positive TME. We also observed higher levels of 2-AG in MGL KO vs. WT mice tumors, most likely because of an absence of MGL expression in the TME of the KOs. Higher levels in tumors vs. normal tissue have been frequently observed for 2-AG46 (also reviewed in32), and confirmed in our study. Furthermore, Qiu et al. have shown an anti-tumorigenic effect of 2-AG on tumor progression in a model of pancreatic cancer,64 suggesting that the MGL/2-AG axis indeed could be critical in the pathogenesis of cancer. Our data also showed that MGL mRNA expression levels positively correlated with tumor burden in the NSCLC model (Figure 1h). In line with that, low expression of MGL was associated with increased survival in hepatocellular carcinoma.75 Unlike other findings,61 no evidence for a correlation of ABHD6 with tumor size was detected in our study, whereas the high expression of ABHD12 suggests that this enzyme could be a monoglyceride hydrolase in tumor cells next to MGL with a potential role in NSCLC pathogenesis.
Concerning MGL mRNA expression in tumor cells in vitro, we observed very low expression in the cultured KP cells while MGL mRNA was visibly expressed in tumor cells in situ, suggesting that MGL RNA expression is upregulated once KP tumor cells grow inside the body. Thus, in situ tumor cells as well as TME cells, many of them α-SMA-positive fibroblasts, were found to express MGL indicating that degradation of 2-AG and potential use of AA for the synthesis of other mediators like prostaglandins10,11 could occur in cancer as well as in TME cells. We corroborated MGL in tumor and TME cells in sections of human lung adenocarcinoma by ISH/immunofluorescence, and in lung fibroblasts from NSCLC patients in vitro.
MGL and 2-AG affect differentiation and tumoricidal activity of CD8+ T cells
The deficiency of MGL in cells of the TME had a significant impact on the immune cell profile, which was shifted to a more anti-tumorigenic profile. Significant increases were observed for cytotoxic CD8+ T cells and eosinophils in MGL KO vs. WT mice tumors. A more detailed investigation of CD8+ T cells revealed that they were also more active (higher levels of granzyme B and IFN-y) and that 2-AG may have direct effects on the conversion of T naïve into T effector cells. This is of high interest, as reduced T effector cells76 and a potential dysregulation of T lymphocytes with reduced IFN-γ expression were detected in NSCLC patients.77 Thus, the impact on the CD8+ T cell population may represent an important mechanism against tumorigenesis generated by MGL deficiency in the TME. 2-AG has already been described to induce changes in the immune cell composition of the TME, leading to an increase in myeloid-derived suppressor cells (MDSCs) in a model of pancreatic cancer.64 In contrast to our findings, CD4+ and CD8+ T cells were not affected in this model.64 We were able to confirm a role of 2-AG in CD8+ T cell migration in vitro, suggesting that 2-AG may have contributed to the higher number of CD8+ T cells in KP tumors of MGL KO mice in vivo.
We also observed increased PD-1 expression on CD4+ and CD8+ T cells in our study, which could be a consequence of high T cell activity against antigens in tumors of MGL KO mice.78 When comparing PD-1+ and PD-1− CD8+ T cells in an adoptive T-cell therapy study, authors found that only PD-1+ CD8+ T cells could control tumor progression, and that anti-PD-L1 therapy further enhanced this effect79 adding translational value to our findings.
Collectively, our data on the immune cell infiltrate in our NSCLC model indicate that MGL derived from TME cells may suppress infiltration, differentiation and activity of CD8+ T cells during tumor progression in NSCLC. MGL in TME cells is, therefore, likely responsible for maintaining a tumor progressive environment.
Direct effects of 2-AG on immune cells
Since increased 2-AG levels were measured in tumors of MGL KO and JZL184-treated mice, we hypothesized a direct role of 2-AG signaling in tumor development. As CB1 receptors are desensitized in MGL KOs or mice chronically treated with a high dosage of JZL184,7,80 we excluded the involvement of CB1 in our experiments. We, therefore, concentrated our in vitro experiments on CB2 and observed CB2 dependent effects in the differentiation of CD8+ T cell phenotypes and activation of eosinophils by 2-AG. However, we cannot exclude that 2-AG may have also acted via leukotriene receptors by rapid hydrolysis and leukotriene biosynthesis as previously shown.50 Human leukocytes are known to contain several hydrolases other than MGL and could hydrolyze 2-AG.81 In contrast to previous findings of an anti-proliferative effect on e.g. pancreatic cancer cells by 2-AG,64 we failed to see a direct influence of 2-AG on tumor cell proliferation and apoptosis in vitro. As to eosinophils, they are known to exhibit pro-tumorigenic and many anti-tumorigenic properties dependent on the types of cancer (rev. in82). In human NSCLC, eosinophils are usually present at low levels (0.3% of all immune cells),83 however, we counted higher numbers of eosinophils in the MGL KOs of our model (around 12%), which could have contributed to an anticarcinogenic effect.
MGL overexpressed in KP cells contributes to tumor growth
As described above, MGL is expressed in KP tumors in vivo, but it is hardly present in KP cells in vitro. To identify if tumor cell-derived MGL might contribute to changes in tumor growth and in the TME profile, we used lentiviral transduction to create a MGL-overexpressing KP cell line. Tumor growth was increased in MGL-overexpressing KP cells in vivo. Our data are in line with a study by Nomura et al., who showed increased MGL expression in aggressive cancer cells, and enhanced tumorigenic behavior when MGL was overexpressed in non-aggressive cancer cells.19 Thus, together with another study showing that overexpression of MGL in nasopharyngeal carcinoma cells increased their metastatic potential,84 MGL in KP tumor cells (next to TME-derived MGL) also governs tumor progression. However, since we failed to detect changes in the number of T cells and eosinophils (though we noted a decrease in NKT cells) in the immune cell infiltrate of the TME of MGL overexpressing tumors, tumor cell-derived MGL may have less importance than TME-derived MGL in regulating the TME immune landscape.
Lipids display distinct profiles in tumors of MGL WTs vs. KOs, and in mice with MGL overexpressing tumor cells
Many lipid species evaluated in our study were increased in MGL KO mice vs. wild-types, such as species of LPC, PCs and sphingomyelins. Some of these lipids have been found decreased in lung cancer, for instance PC (18:4/3:0) and LPC (18:0,18:1,18:2).62,63,85 However, at the moment, we can only speculate whether an increase in these lipids could have contributed to the reduced tumor growth in the MGL KO mice. No differences in the content of FAs were observed between MGL overexpressing and normal tumors suggesting that MGL overexpressed in tumor cells may not provide FAs for procarcinogenic lipid mediators in our model.

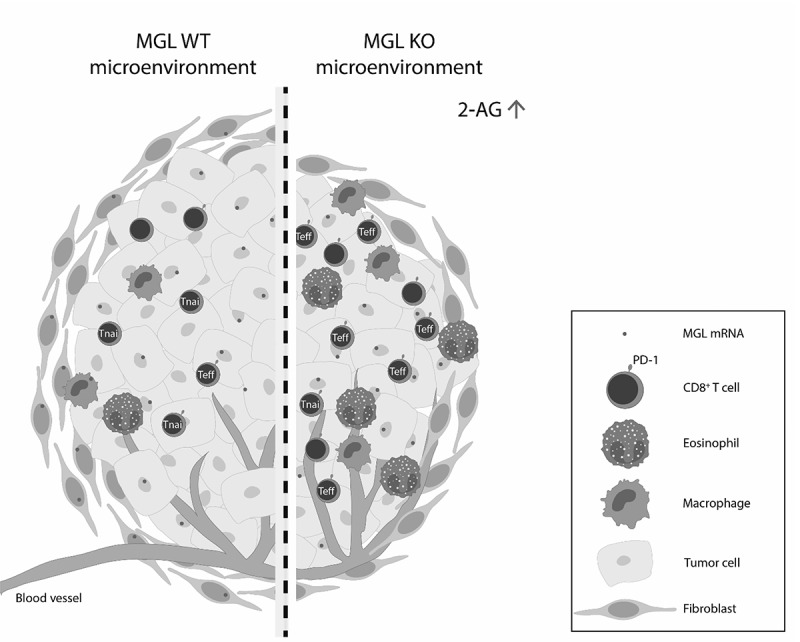

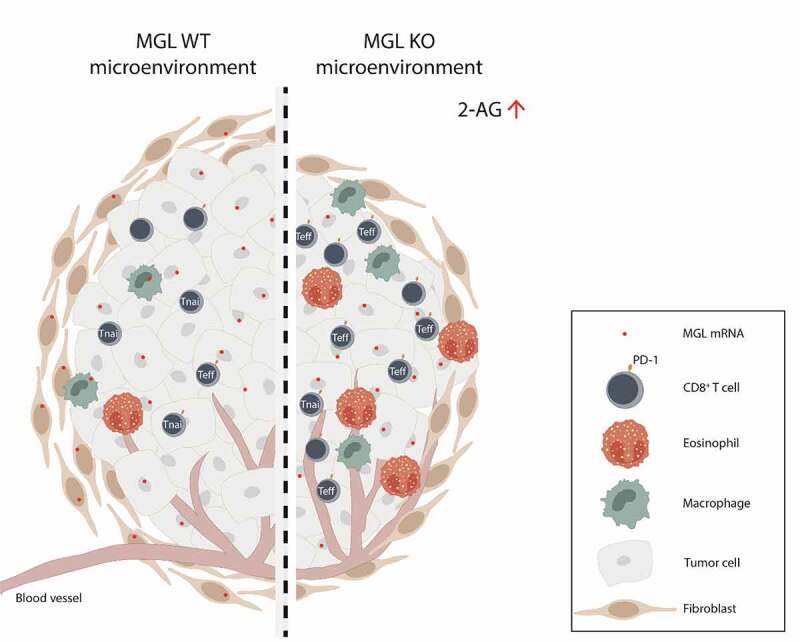

In conclusion, we could show that MGL is present in cells of the TME in a model of NSCLC and that it impacts the tumor growth and the landscape of the TME. Identifying major mechanisms for a favorable response to immune checkpoint therapy,86 such as increased CD8+ T cell infiltration and IFN-γ production, ablation of MGL in the TME may highlight a new strategy for potential adjuvant therapy. Together with the fact that a MGL inhibitor reduced tumor growth in NSCLC suggests that MGL could be an interesting target in NSCLC anti-tumor therapy.
