Untargeted Metabolomics Combined with Solid Phase Fractionation for Systematic Characterization of Bioactive Compounds in Hemp with Methane Mitigation Potential
Department of Animal Science, Faculty of Technical Sciences, Aarhus University, Blichers Allé 20, 830 Tjele, Denmark; 201808215@post.au.dk (R.H.J.); maro@anis.au.dk (M.R.); mitho@anis.au.dk (M.T.); dana.olijhoek@anis.au.dk (D.W.O.); mon@anis.au.dk (M.O.N.)
*Correspondence: natalja.norskov@anis.au.dk; Tel.: +45-87156000Abstract
This study systematically evaluates the presence of methane mitigating metabolites in two hemp (Cannabis sativa L.) varieties, Futura 75 and Finola. Hemp metabolites were extracted with methanol and fractionated using Solid Phase Extraction (SPE). Extracts, fractions, and the remaining pulp were screened for their methane mitigating potential using an in vitro model of rumen fermentation. The bioactive metabolites were identified with Liquid Chromatography-Mass Spectrometry (LC-MS). When incubated with a standard feed (maize silage), the extract of Futura 75 significantly reduced methane production compared to that of control (without added extract) and without negative effects on feed degradability and volatile fatty acid patterns. The compounds responsible for the methane mitigating effect were assigned to flavonoid glycosides. However, none of the fractions of Futura 75 or the pulp exhibited similar effect on methane emission. Butyric acid concentration in the fermentation inoculum was significantly increased, which could indicate why methane production was higher, when incubated with the fractions and the pulp. The extract of Finola did not show a similar significant effect, however, there was a numerical tendency towards lower methane production. The difference in methane mitigating properties between Cannabis sativa L. Futura 75 and Finola, could be related to the content of bioactive flavonoids.
1. Introduction
Hemp (Cannabis sativa L.) has been identified as a bio-economic crop with multiple applicabilities and with low environmental footprint [1,2]. Organic hemp cultivation is increasing in Denmark and in the whole of Europe, and hemp-derived products already found their applications in medicine, construction, textile, cosmetics, as well as food industries and as feed supplements [1]. Recent interest in hemp is associated with several important environmental topics related to its cultivation. Hemp can be grown annually and has positive effects on the environment due to carbon sequestration, greenhouse gas (GHG)-emissions from soil, and crop rotation schemes in areas suitable for cash crop production [3,4]. In a report from the Danish Centre for Food and Agriculture (DCA), the climate foot print of hemp cultivation in Poland and the Netherlands was estimated to 1.69 and 1.56 Mg CO2eq per hectare per year, respectively, which is lower than for winter wheat (3.10 and 1.67 Mg CO2eq per hectare per year, respectively) [3]. Due to quick germination and growth, hemp outperforms weeds, which has a positive impact on the environmental footprint due to reduced need for fertilizers and pesticides [3]. However, the cultivation of hemp is strictly regulated by European authorities, and only hemp varieties with low contents of tetrahydrocannabinol (THC; <0.2%) are allowed to be cropped [5].
For hemp to be an economically valuable crop for farmers, it is important that all parts of the plant can be utilized. The fibers of hemp are used in construction and textile industries, whereas seeds are used for cosmetics and medicine [1]. However, there are several parts of the plant that have no industrial application yet, referring to leaves and the upper third part of the plant containing also stalks. Those parts of the plant are potentially digestible for ruminant animals but are often poorly digestible for monogastrics. Increasing the use of hemp biomass as feed additive could potentially lower the carbon footprint of dairy production systems, provided that hemp contains metabolites with methane mitigating potential. Ruminant animals are characterized by having large forestomachs, of which the rumen is the largest and hosts a multitude of bacteria capable of fermenting carbohydrates, including fibers that are indigestible for monogastric animals. During fermentation, CO2 and H2 are formed and converted into methane by methanogenic archaea. Methane is a GHG 28 times as potent as CO2 [6]. This is a challenge for the dairy and beef sectors in Denmark as well as globally, and effective ways to reduce enteric methane need to be found to mitigate global warming and climate change.
For the last decade, untargeted metabolomics applying high-resolution mass spectrometry was successfully used to detect and identify bioactive compounds in many terrestrial plants, including hemp [7,8,9,10,11]. In the study by Delgado–Povedano et al., 2020 [10], untargeted metabolomics, Gas and Liquid Chromatography coupled to high resolution mass spectrometry time-of-flight (GC-TOF-MS and LC-TOF-MS) were applied to characterize the extracts of Cannabis sativa L. in 17 cultivars. Different chromatographic techniques were applied to increase metabolite coverage depending on their polarity. In total, 180 metabolites were identified with both chromatographic systems, 46 metabolites using LC-MS, and 134 metabolites using GC-MS [10]. Many terpenoids, lipids, cannabinoids, flavonoids, and fewer benzenoids, hydrocarbons, and amino acids were identified [10]. In another study, a comprehensive analysis of bioactive compounds in six fiber-type hemp inflorescences was performed by various analytical platforms, such as High Pressure Liquid Chromatography coupled to an Ultra Violet detector (HPLC-UV) and GC coupled to a Flame Ionization Detector (GC-FID) combined with MS-based platforms [7]. Moreover, the authors used different extraction solvents, such as acetone, ethanol, and ethyl acetate, for extraction of metabolites [7]. In the study by Delgado–Povedano et al., 2020 [10], metabolite classes such as cannabinoids, flavonoids, and terpenoids dominated the spectra. In the study of Jin et al., 2020 [11], the comprehensive analyses of secondary metabolites were performed on hemp plant parts; inflorescences, leaves, stem barks and roots. Inflorescences and leaves were characterized by cannabinoids, flavonoids and terpenoids, whereas stem barks and roots were mainly characterized by sterols and triterpenoids [11]. The highest concentrations of cannabinoids were found in inflorescences, whereas leaves contained the highest concentrations of flavonoids, such as orientin, vitexin, isovitexin, quercetin, luteolin, kaempferol, and apigenin [11]. These approaches all show that hemp produces a plethora of secondary metabolites with a diversity of known and unknown bioactivities. Cannabinoids for example have medical applications, whereas terpenoids and flavonoids were shown to have antimicrobial, anti-inflammatory, and antioxidative properties [12]. However, identification of compounds with particular bioactive properties is a difficult task, requiring extensive extraction and fractionation efforts. In the study by Lee et al., 2019 [8], untargeted metabolomics in combination with C18 Solid Phase Extraction (SPE) and preparative HPLC were successfully used to fractionate and identify antioxidative compounds in Betulaceae family plants. In another study, extraction and further C18 SPE fractionation were used to yield seven fractions of Labisia pumila [13]. A combination of C18 SPE, flash chromatography and HPLC was used to fractionate and identify bioactive compounds with anticholinesterase activity from Phyllanthus muellarianus [14]. One of the highly bioactive compounds in hemp, THC, was extracted and purified using superficial fluid extraction and SPE [15].
To our knowledge, no previous studies have been conducted to systematically identify and subsequently validate potential methane mitigating properties of hemp. The purpose of this study was: (1) to extract and systematically fractionate two industrially used hemp varieties, i.e., Futura 75 and Finola (constituting the upper third part of the plant including leaves and stalks); (2) to assess the methane mitigating effect of the extracts, fractions, and the remaining pulp in an in vitro screening system simulating rumen fermentation; and (3) perform identification of potential methane mitigating compounds using LC-TOF-MS. We hypothesized that the two hemp varieties and derived extracts, fractions, and pulp differ in methane mitigating properties in vitro, which relates to the composition of bioactive compounds.
2. Results and Discussion
2.2. Screening for Methane Mitigation Potential and Identification of the Bioactive Compounds in Hemp Varieties Futura 75 and Finola
An in vitro system simulating rumen fermentation was used to screen for methane mitigating properties. In this system, a standard feed (0.5 g of maize silage) was incubated under anaerobic conditions in 90 mL inoculum composed of buffered rumen fluid without (control) or with addition to the inoculum of UF, FL, fractions and pulp derived from the two hemp varieties. Similar amounts of hemp biomass (0.5 g) were used for extraction and fractionation and equal volumes of reconstitution (6 mL).
Table 1 shows the effects of adding hemp extracts, fractions, or pulp to the inoculum on methane production, total gas production (TGP), volatile fatty acid (VFA) concentrations in the incubation media and degradability of organic matter (OM) in the maize silage after 48 h of in vitro fermentation. When UF of Futura 75 was added to the incubation media, production of methane per gram sample OM, was significantly reduced compared to the control incubations with only maize silage. A decline in methane production was not observed with addition of FL, pulp, or any of the fractions. Addition of UF of Finola only caused a numerical reduction in the production of methane compared to that of control. UF from Finola did, however, induce a significantly lower methane production as compared to pulp. None of the fractions or FL of Finola inhibited production of methane compared to that of control.
A similar pattern was observed for TGP, except that TGP for pulp of Finola was significantly higher compared to that of control. None of the tested additives influenced the degradability of OM in the maize silage nor the concentration in the incubation medium of total VFAs derived from fermentation of the feed. However, concentration of butyric acid was significantly increased by the addition of all three fractions, FL, and the pulp, but not by the addition of UFs derived from Futura 75, compared to that of the control. Significantly higher production of butyric acid was also observed upon addition of pulp or F50 from Finola, but not for UF, FL, F25, and F75.
The results of the in vitro screening showed that extracted metabolites from Futura 75 have the potential to inhibit methane production in vitro without changing the total VFA production or degradability in the rumen of a standard feed, which is important in relation to the production economy, if inclusion of methane mitigating feed additives to diets of ruminants should be considered in the future. Although the fractions of Futura 75 did not inhibit methane production, they affected the proportion of butyric acid formation relative to other VFAs produced during fermentation of the feed.

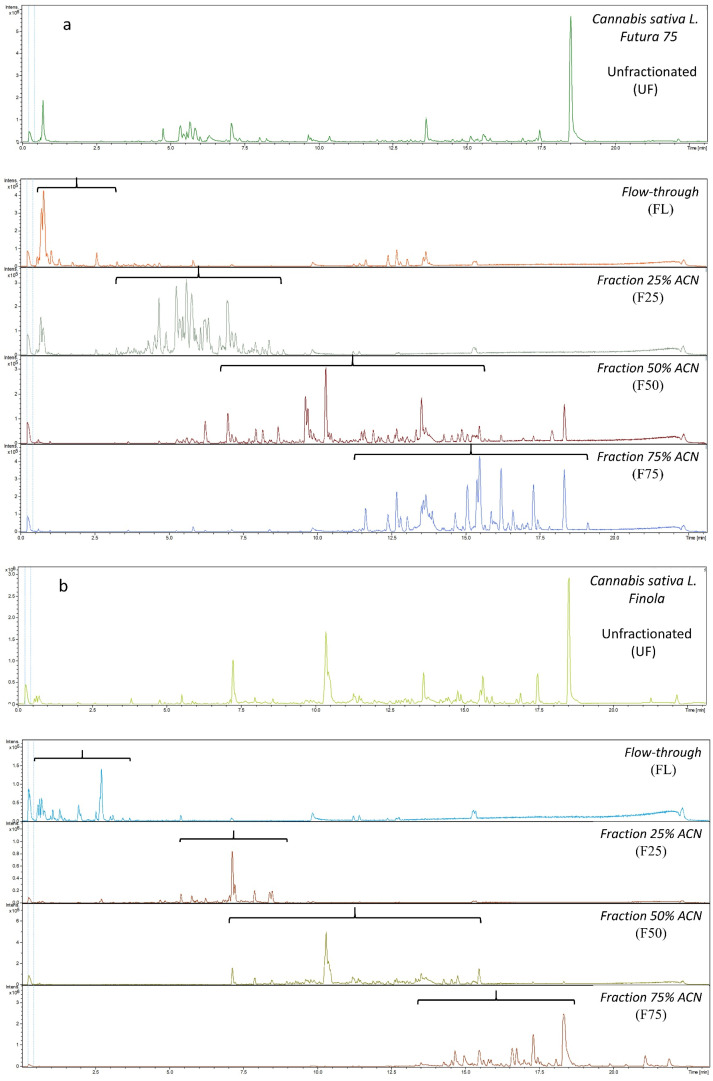

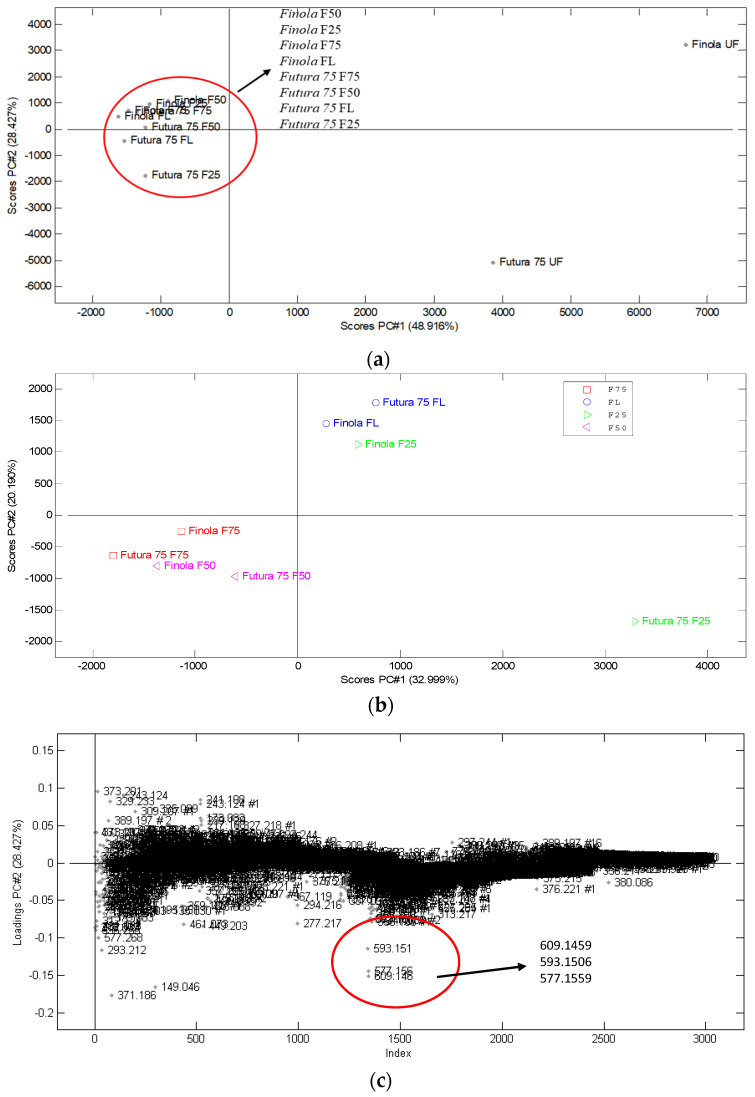

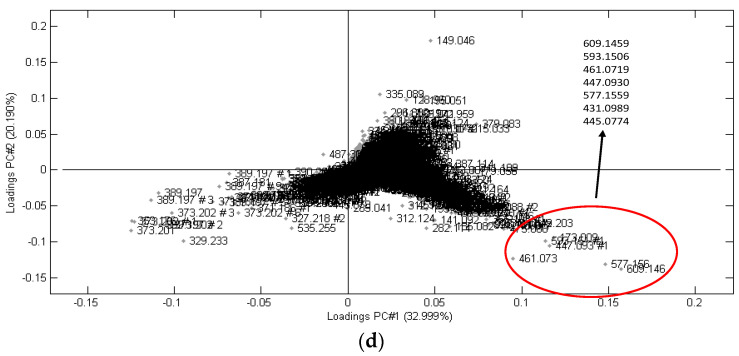

To identify metabolites responsible for these effects, a Principal Component Analyses (PCA) combined with MS/MS spectra for metabolites identification was performed. The PCA´s in Figure 3a–d show the scores and loadings plots of Futura 75 and Finola and their fractions. Metabolites responsible for discrimination were identified to belong to the class of phenolic compounds known as flavonoids glycosides. The following flavonoids glycosides with varying length of sugar moities were tentatively identified (Table 2): kaempferol, vitexin, orientin, deosmetin, genistein, and daidzein; their corresponding MS/MS spectra are included in the Supporting Information. These secondary metabolites were mainly present in Futura 75 and separated by PC2, Figure 3a,c. The PCA analyses also showed that FL, F50 and F75 of Futura 75 and Finola contained predominantly similar metabolites, grouping closely together on the scores plots and oppositely to F25 (Figure 3b). The main discrimination between F25 of Futura 75 and Finola was also attributed to flavonoids glycosides, shown on the corresponding loadings plot, Figure 3d. The highest discrimination on PC1 was achieved between unfractionated extracts and the fractions (Figure 3a), which was expected, because fractions do not contain the same number of metabolites compared to that of UF. PC1 discriminated also between FL, F25, and F50, with F75 reflecting differences in the contents of hydrophilic and lipophilic compounds in the fractions (Figure 3b).
The tentative identification of flavonoids glycosides was based on their fragmentation patterns of MS/MS spectra compared to the literature and the Human Metabolome Database (HMDB). The characteristic fragmentation of flavonoids glycosides using neutral loss is well described in the literature [20]. The neutral loss of (M-H-90)− and (M-H-120)− was previously described by Kazuno et al., 2005 [20] for C-Glycosides. The neutral loss of (M-H-176)− is typical for glucuronic acid conjugates and the loss of (M-H-44)− corresponds to the loss of CO2 [22]. However, flavonoids can be bound to several sugar moieties, which increase their molecular weight, and can be characterized during collision induced dissociation as a loss of high molecular weight fragments visible in the MS/MS spectra (Supporting Information).
The extraction of plant secondary metabolites and further screening for bioactivity is a widely used technique, which was previously performed for a variety of plants, but to the best of our knowledge never for hemp. In the study by Bodas et al., 2008 [23], 450 plant species were screened in vitro for effects on methane production, and they reported a 15% methane depression for six plants; Carduus pycnocephatus, Populus tremula, Prunus avium, Quercus robus, Rheum nobile, and Salix caprea [24]. No adverse effects on feed degradability, total gas and VFA production were observed [23]. Kamra et al., 2008 [25] screened 93 plant extracts for their potential to inhibit in vitro methane production and ciliate protozoa. The results demonstrated that 20 out of 93 plant extracts lowered methane by more than 25% and decreased methanogen numbers [24,25,26]. However, the identification of bioactive metabolites is not revealed when screening for bioactivity. Further exploration and fractionation are necessary to identify compounds of interest.
In this study, extracts of hemp varieties Futura 75 and Finola, their fractions and pulp were screened for methane mitigation potential. The extract of Futura 75 showed significant methane mitigating potential without any detrimental effects on degradability of the basal feed or on VFA concentation profiles (rumen fermentation patterns), and metabolites responsible for the methane mitigating effects were identified in the current study to belong to the class of phenolic compounds known as flavonoids glycosides: kaempferol, luteolin, apigenin, vitexin, and dismetin. Flavonoids were previously shown to decrease methane production in vitro [24,27]. In a screening study with 13 plants, flavonoid-rich extracts of Equisetum arvense and Salvia officinalis were shown to decrease methanogenesis by 8 to 14% [28]. In the study of Oskoueian et al., 2013 [29], the inclusion of flavone, myricetin, naringin, rutin, quercetin, and kaempferol decreased methane production at concentrations of 4.5% of the substrate (dry matter (DM) basis). Their potential ranked as follows: myricetin ≥ kaempferol ≥ flavon ≥ quercetin ≥ naringin ≥ rutin ≥ catechin [29]. In another study, the evidence for a hydrogen-sink mechanism of catechin was demonstrated [30]. Extracts rich in mixed flavonoids and pure flavonoid compounds added in concentration of 0.2 g/kg DM decreased relative abundances of hydrogenotropic methanogens [31].
Although fractionation of the extract of Futura 75 was achieved, none of the fractions exhibited similar potential as the unfractionated extract. The largest difference in PCA analyses between Futura 75 and Finola could be attributed to the presence of the bioactive flavonoids in Futura 75, which were also present in F25. Therefore, the lack of effect of F25 could be due to too low concentrations of flavonoids and/or synergetic effects with other metabolites. Another explanation can be reflected in the production of butyric acid, which was significantly higher, when the fractions were added to the incubation media, but not upon addition of the UF. Because phenolic compounds are bound in the cell wall matrix by sugar molecules or conjugated with glucuronic acid, the sugar becomes more bioaccessible for fermentation, when extracted and fractionated compared to the unfractionated extract [32,33]. Beta-glucuronidase is a common enzyme, which is involved in the deconjugation of phenolic compounds by microorganisms [34], and released sugars and sugar acids can be used for fermentation resulting in increased butyric acid formation. However, the added amount of sugar via this route to the incubation medium may perhaps have been too low to explain the quantitative changes in butyric acid concentrations in the medium by the end of the 48h fermentation period. However, certain microorganisms can exploit sugar acids as nutritional niche for their growth, as it was suggested for catabolism of gluconate in E. coli [35], thereby creating differences in the fermentation patterns, but this requires further investigation.
The higher bioactivity of Futura 75 compared to Finola may not only be related to differences between varieties, but could also be related to differences in the production of secondary metabolites due to harvest year and period [11,36,37]. Previously, the content of secondary metabolites was shown to vary between different cultivars. However, the largest variation can be ascribed to the year of harvest, which relates to the growing conditions and harvest time (the phenological stage of the plant). In the study by Irakli et al., 2019 [36], TPC of seeds of Futura 75 and Finola were compared during two years, 2017 and 2018. For the year 2017, no significant difference was observed between the two cultivars, whereas in year 2018, a significant difference in TPC was measured [36]. In the study of Andre et al., 2020 [37], the main influence on the TPC and the individual flavonoids of inflorescence was observed for harvest period (early or late summer) and the phenological stage of the plant. At the end of summer or beginning of spring, the TPC was nearly half of the concentration in July and was also influenced by the flowering stage of the plant [37]. Jin et al., 2020 [11] also reported that the concentration of individual flavonoids and TPC decreased as the plant aged. In addition, the concentration of flavonoids varied between different parts of the plants, with the highest concentration found in leaves and inflorescences [11]. Since both cultivars in this study were harvested by the same technique to collect the upper third part of the stem (containing stalks and leaves), we suggest that a major difference in flavonoid content may be related to differences in harvest time, as Futura 75 was harvest in early summer, whereas Finola was harvested in late summer.
3. Materials and Methods
3.1. Chemicals
Methanol was HPLC grade from Sigma (Merck KGaA, Darmstadt, Germany). Acetonitrile (ACN), isopropanol (VWR, West Chester, PA, USA) and formic acid were LC-MS grade from Fluka (Merck KGaA, Darmstadt, Germany). Lithium formate monohydrate 98% was purchased from Sigma (Merck KGaA, Darmstadt, Germany). Methane (769126-1L) Messer® CANGas 99.995% and Carbon dioxide (769002-1L) Messer® CANGas 99.995% were from Sigma-Aldrich (Darmstadt, Germany).
3.2. Sample Information
Cannabis sativa L. Futura 75 and Cannabis sativa L. Finola were harvested in Denmark on the 24 June 2018 and 31 August 2019, respectively. The upper third part of the stem containing stalks and leaves were harvested and dried for five days, while the seeds from the plants were threshed. The dry hemp was industrially milled before it was milled a second time at Aarhus University to pass through a 1-mm screen. The samples were homogenized using an Ultra Centrifugal Mill ZM 200 (Retsch, Haan, Germany), Figure 4.

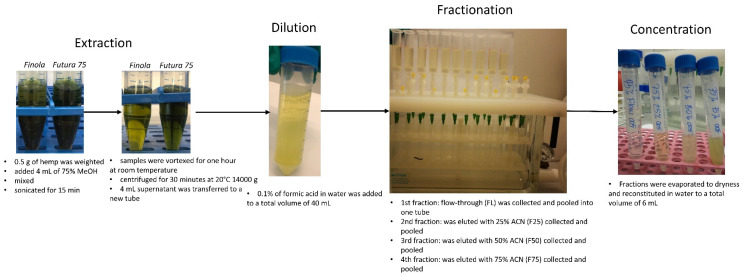

3.3. Extraction and Fractionation Protocol
Milled hemp samples (0.5 g) were dissolved in 4 mL 75% MeOH, mixed and sonicated for 15 min and further vortexed for 1 h at room temperature to extract metabolites, Figure 5. To separate the pellet from the supernatant containing extracted metabolites, the samples were centrifuged for 30 min at 20 °C 14,000 g and the supernatant was transferred to a new tube. The pellet was allowed to dry for three hours and was further used as the pulp fraction. The supernatant was either directly evaporated to dryness for 18–26 h using a ScanSpeed/SCANVAC vacuum centrifuge from (LH Laboratorie Service A/S, Denmark) and reconstituted in 6 mL of water or used for fractionation. A small aliquot of unfractionated extract was used for qualitative control using LC-TOF-MS. Fractionation: 4 mL of extract diluted 10× with 0.1% formic acid in water to a total volume of 40 mL to increase the affinity of extracted metabolites towards C18 SPE columns. Fractionation was performed on C18-E SPE columns (2 g, 6 mL) attached to a vacuum manifold from Phenomenex (Torrance, CA, USA). The columns were activated with 4 mL of 100% ACN and 2 × 4 mL of water. Four mL out of the 40 mL solution were added to ten separate C18 SPE columns. The flow-through was collected into ten tubes. The metabolites that had the affinity towards the C18 SPE columns were further collected by elution with 2 mL 25% ACN to each SPE column, followed by 50% and finally 75% ACN. In total, four fractions were hence collected from each hemp variety. After fractionation, 10 tubes from each fractionation were pooled into one tube and mixed. An aliquot from each pooled tube (representing one fraction) was transferred to a vial for qualitative LC-TOF-MS analyzes, to verify the metabolic profiling and fractionation of metabolites. The pooled samples were further evaporated to dryness for 18–26 h in 5 mL aliquots using a vacuum centrifuge. After evaporation, the samples were reconstituted in 1 mL of water per glass and shaken for 1 h. The total volume of each fraction after evaporation and reconstitution was 6 mL, Figure 5. After evaporation and re-constitution, an aliquot of each fraction was taken for quality control of metabolic profiling and fractionation by LC-TOF-MS.
3.5. Working Solutions for In Vitro Fermentation System
The working solutions for the in vitro fermentation system included redox indicator, reducing agent, buffer, and macro- and micro-mineral solutions. The solutions were prepared as described by Menke and Steingass 1988 [38] and kept under anaerobic conditions by continuously flushing with N2 until added to incubation bottles. The ratio between buffer solution and rumen fluid was 2:1.
3.6. Rumen Fluid
Rumen fluid was collected from three rumen cannulated non-pregnant dry Holstein cows (approx. 695 kg) housed at the experimental facility at Aarhus University, Foulum, Denmark. The handling and care of the cows complied with the guidelines set out by the Danish Ministry of Environment and Food (2020) (Act No. 2028, 2020) with respect to animal experimentation and care of animals under studies. The cows were fed at maintenance level on a standard diet consisting of straw, hay, and a concentrate mixture, as described by Brask et al., 2013 [39]. The fluid and particles were collected in preheated thermo bottles half an hour before morning feeding and transported to the laboratory within 30 min of sampling. At the laboratory, the rumen fluid was filtered through two layers of moist cheesecloth, and pH was measured.
3.7. In Vitro Fermentation System
To determine the effect of UF, F25, F50, F75, and pulp of Futura 75 and Finola on methane formation during in vitro rumen fermentation, 0.5 g of maize silage, which served as a standard feed, was weighed into Duran® bottles (capacity: 132 ± 1.1 mL) and 1 mL of UF or fraction or 0.1 g of pulp were subsequently added to the maize silage. Bottles containing only maize silage without any additives served as controls.
Ninety milliliters of buffered rumen fluid inoculum were then added to each bottle. The headspace was flushed with N2 and then an ANKOM pressure sensor module (AnkomTechnology, Macedon, NY, USA) was fitted on top of the bottle. Bottles with samples were incubated at 39 °C for 48 h in a controlled incubator shaker (New BrunswickTM Excella® E25R, Eppendorf, Hamburg, Germany) with the oscillation set at 50 rpm. Pressure changes in the headspace of the bottles during the incubations were measured continuously as a difference with respect to the concurrently measured atmospheric pressure. Recordings were obtained at intervals of 10 minutes via radio frequency to a computer. Accumulated gas in the headspace was automatically released (250 milliseconds vent opening) into a gas-tight FlexFoil bag (1 L; SKC Ltf, Dorset, United Kingdom) attached to the unit, when the pressure inside the bottle reached 0.75 psi above ambient pressure. Each sample type (extract, fraction, or pulp) was analyzed as triplicates in two separate runs. Each run also included three replicates of pure maize silage without any additives as a control sample, and three replicates of only rumen inoculum, which served as blank samples. Beforehand, the maize silage had been freeze-dried and milled through a 0.5 cm sieve on a centrifugal mill (Ultra Centrifugal Mill ZM 200, Verder Scientific, Hann, Germany).
After 48 h of incubation, 10 mL of gas was extracted from each gasbag using a polypropylene syringe (BD Plastipak, Madrid, Spain) and transferred into evacuated GC-vials (Labco Limited, Ceredigion, United Kingdom) for later CH4 and CO2 analyses. The inoculum with undegraded feed residue was filtered through F57 fiber bags (ANKOM Technology, Macedon, NY, USA) for collection of undegraded feed residues, and a sample of the flow through was collected for VFA analysis.
3.8. CH4, CO2 and VFA Analyses Using GC-TCD
The GC-TCD analyzes of CH4 and CO2 were performed using a Trace 1310 GC with TCD detector and a TriPlus Headspace autosampler (Thermo Fisher Scientific, Waltham, MA, USA). The injection volume was 200 µL with an inlet temperature of 150 °C. The sample was injected in split mode, and CH4 and CO2 were separated on a HP-FFAP column, 30 m length, ID 0.53 mm and 1 µm film thickness (Agilent Thechnologies, Wilmington, NC, USA). The temperature program for the column was as follows: initial temperature, 50 °C (1.75 min hold), followed by the gradient to 150 °C at 20 °C/min and held for 1 min, the chromatographic separation was 8.75 min. The flow rate of the carrier gas (He) was 1.7 mL/min. The temperature of the TCD detector was 200 °C. Quantification was performed using standard curves for CH4 and CO2 with standard gasses in concentrations ranging from 100–200.000 ppm added to Chromilion 7.2.10. Exetainer® 5.9 mL vials (Labco, Lampeter, UK).
VFA analyses were performed as described by Kristensen et al., 2009 [40], using a Rt®-Q-BOND column, 30 m length, ID 0.25 mm and 8 µm film thickness (Restec, Bellefonte, PA, USA).
3.9. Chemical Analyses
The contents of DM and OM in the standard feed (maize silage), undegraded feed residues and hemp pulp were determined in duplicate and used for calculation of DM and OM addition to bottles in the incubated samples and for calculation of the rumen degradability of DM and OM over 48 hours of incubation. DM content was determined by oven drying at 103 °C overnight, while the ash was determined by combustion at 525 °C for 6 h. Degradable DM (%) was calculated as: (total DM (feed +/− pulp) added to incubation bottles minus DM content in the undegraded feed residues after incubation)/(total DM added to incubation bottles) × 100.
3.10. Calculations and Statistical Analyses
The cumulative gas pressure recorded during the 48 hour fermentation period was converted to mL gas produced at standard temperature and pressure (STP) (IUPAC, 2012) [41] assuming that the ideal gas law applies to the produced gasses (predominantly CO2, CH4 and H2). TGP and degradable DM response parameters were blank corrected before the statistical analyses. Methane (mL) production was calculated from TGP after 48 h and the CH4 concentration (%) in the collected gas.
The statistical analyses were conducted in R 4.1.2 (R Core Team, 2020). Effects of the hemp extracts, fractions and pulp on the various response parameters were analyzed with the following linear mixed model: Ytbe = μ + αt + γ·sbe + Ae + ɛtbe, where Ytbe is the dependent response variable, μ is the overall mean, α is the fixed effect of treatment (t = 1 to 13), γ is the fixed regression parameter of starting time and sbe denotes the starting time of the b’th bottle of run e, A is the random effect of experimental run (e = 1 to 4), and ɛtbe is the random residual error, assumed to be independent with constant variance and normally distributed. The data were tested for normality of the residuals by evaluating the QQ-plots constructed in R and by using the Shapiro–Wilk test. Homogeneity of the variance was tested by evaluating plots of residuals and by using Bartlett’s test. Data are presented in tables as estimated marginal means (EMS) and standard error of means (SEM). Two-way analysis of variance (ANOVA) was used to compute the p-values for the fixed effects. Differences between EMS were evaluated using Tukey’s method for comparison. Statistical significance was declared when p ≤ 0.05 and statistical tendencies were declared when 0.05 < p ≤ 0.10.
4. Conclusions
Our results, based on an in vitro model simulating rumen fermentation, indicate that flavonoids of Cannabis sativa L. variety Futura 75 have the potential to inhibit enteric methane production without negative effects on degradability in the rumen of the standard diet or the rumen fermentation (VFA) patterns. Although a satisfactory fractionation of compounds from Cannabis sativa L. variety Futura 75 was achieved, none of the derived fractions lowered methane production from the standard feed in vitro. The lack of effect of the fractions is hypothesized to be related either to the loss of synergetic effects among different metabolites due to fractionation or to a higher bioaccessibility of sugars and sugar acids derived from flavonoids glycosides, which possibly influenced fermentation patterns by rumen microorganisms. However, these hypotheses require further investigation. Cannabis sativa L. variety Finola did not exhibit a significant effect on methane production, however, there was a numerical tendency towards lower methane production. This difference between two varieties of hemp was attributed to differences in contents of flavonoids glycosides.
Acknowledgments
Thanks go to laboratory technicians Anne Krustrup and Birgit Hørdum Løth for measurements of methane and VFAs, and to Marianne Pedersen for assistance during the in vitro experiment.
Appendix Group
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/metabo12010077/s1, Supplementary material contain MS/MS spectra of identified flavonoids glycosides.
Funding
This research was funded by Aarhus University Research Council, grant AUFF-E-2020-9-22.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data presented in this study are available on request from the corresponding author. The data are not publicly available due to security policy of the Aarhus University.
Conflicts of Interest
The authors declare no conflict of interest.
| CH4/Sample OM (mL/g) | TGP (mL) | Degradable DM (%) | Total VFA (mmol/L) | Acetic Acid (% of Total VFA) | Propionic Acid (% of Total VFA) | Butyric Acid (% of Total VFA) | Total Other 1 VFAs (mmol/L) | Other VFAs (% of Total VFA) | |
|---|---|---|---|---|---|---|---|---|---|
| Maize silage | 61.6 ab | 79.7 b | 60.5 ab | 127 | 40.2 | 30.2 | 2.28 b | 3.19 | 2.52 |
| Futura 75 UF | 41.2 c | 60.6 c | 58.6 ab | 113 | 46.3 | 26.0 | 3.19 ab | 3.67 | 3.31 |
| Futura 75 FL | 58.9 abc | 81.5 abc | 64.3 ab | 110 | 47.0 | 25.1 | 3.49 a | 3.86 | 3.56 |
| Futura 75 F25 | 59.0 abc | 77.4 ab | 62.1 ab | 104 | 50.0 | 23.7 | 3.79 a | 3.98 | 3.82 |
| Futura 75 F50 | 58.3 abc | 80.4 ab | 66.4 a | 113 | 46.3 | 25.6 | 3.46 a | 4.03 | 3.64 |
| Futura 75 F75 | 57.9 abc | 76.3 ab | 65.3 ab | 109 | 49.3 | 24.6 | 3.66 a | 4.04 | 3.81 |
| Futura 75 Pulp | 62.1 abc | 86.6 ab | 51.2 b | 114 | 47.6 | 25.4 | 3.68 a | 4.07 | 3.63 |
| Finola UF | 46.3 bc | 63.1 ab | 68.9 ab | 112 | 47.7 | 25.6 | 3.29 ab | 3.67 | 3.43 |
| Finola FL | 62.5 abc | 83.7 abc | 63.1 ab | 111 | 46.9 | 25.2 | 3.50 ab | 3.92 | 3.56 |
| Finola F25 | 59.5 abc | 77.0 ab | 69.2 a | 120 | 44.7 | 27.1 | 3.40 ab | 4.03 | 3.38 |
| Finola F50 | 59.7 abc | 79.8 ab | 63.2 ab | 107 | 50.3 | 24.1 | 3.81 a | 4.01 | 3.80 |
| Finola F75 | 62.9 ab | 81.3 ab | 61.7 ab | 117 | 45.0 | 26.3 | 3.35 ab | 3.90 | 3.37 |
| Finola Pulp | 73.7 a | 97.2 a | 57.4 ab | 121 | 47.1 | 27.4 | 3.61 a | 4.30 | 3.62 |
| SEM | 4.38 | 4.74 | 6.11 | 11.3 | 5.37 | 2.45 | 0.463 | 0.347 | 0.579 |
| p value | 0.04 | <0.001 | 0.03 | 0.50 | 0.58 | 0.17 | 0.03 | 0.12 | 0.18 |
| RT 1 (min) | M-H− (m/z) (Δppm) | Fragments (m/z) | Neutral Loss (Da) | AutoMS/MS (eV) 2 | Tentatively Identified |
|---|---|---|---|---|---|
| 5.35 | 609.1458 (0) | 489.1042, 429.0823, 357.0611, 327.0510, 309.0409 | 120, 60 | 22–28 | Kaempferol 7-sophoroside (HMDB) |
| 5.46 | 593.1506 (1) | 473.1092, 429.0813, 357.0619, 327.0509, 309.0399 | 120, 44, 72 | 22–27 | Kaempferol-3-O-neohesperidoside [19] |
| 5.55 | 447.0930 (1) | 357.0618, 327.0511, 297.0405 | 90, 120 | 19–24 | Orientin [20,21] |
| 5.55 | 895.1917 | 447.0929, 357.0610, 327.0505 | 448, 90, 120 | 28–35 | Orientin + sugar moiety |
| 5.66 | 593.1506 (1) | 473.1068, 413.0869, 293.0449 | 120, 60, 120 | 22–27 | Kaempferol diglycoside (HMDB) |
| 5.66 | 875.2248 | 593.1506, 473.1076, 413.0881, 293.0452 | 282, 120, 60, 120 | 28–34 | Kaempferol diglycoside + sugar moiety |
| 5.77 | 577.1559 (1) | 457.1139, 413.0880, 311.0563, 293.0453 | 120, 44, 120 | 22–27 | Daidzein diglycoside (HMDB) |
| 6.01 | 431.0989 (1) | 341.0672, 311.0561, 283.0611 | 90, 120 | 19–23 | Vitexin [21] |
| 6.01 | 863.2014 | 431.0989, 341.0654, 311.0557 | 432, 90, 120 | 27–34 | Vitiexin + sugar moiety |
| 6.30 | 461.0719 (2) | 285.0400 | 176 | 19–24 | Kaempferol glucuronide (HMDB) |
| 6.30 | 923.1496 | 461.0726, 285.0403 | 462, 176 | 29–36 | Kaempferol glucuronide + sugar moiety |
| 7.05 | 445.0774 (1) | 269.0451 | 176 | 19–24 | Genistein glucuronide (HMDB) |
| 7.05 | 668.1190 | 445.0768, 269.0453 | 223, 176 | 23–30 | Genistein glucuronide + sugar moiety |
| 7.05 | 891.1607 | 445.0769, 269.0450 | 446, 176 | 28–35 | Genistein glucuronide + sugar moiety |
| 7.32 | 475.0876 (2) | 299.0556 | 176 | 19–24 | Diosmetin glucuronide (HMDB) |
| 7.32 | 951.1803 | 475.0876, 299.0553 | 476, 176 | 29–36 | Diosmetin glucuronide + sugar moiety |
