Cutaneous Delivery and Biodistribution of Cannabidiol in Human Skin after Topical Application of Colloidal Formulations
School of Pharmaceutical Sciences, University of Geneva, CMU-1 rue Michel Servet, 1211 Geneva, Switzerlandjonathan.faro@unige.ch (J.F.B.)
Institute of Pharmaceutical Sciences of Western Switzerland, University of Geneva, CMU-1 rue Michel Servet, 1211 Geneva, Switzerland
Abstract
The objective of this study was to investigate the cutaneous delivery of cannabidiol (CBD) from aqueous formulations developed for the targeted local treatment of dermatological conditions. CBD was formulated using a proprietary colloidal drug delivery system (VESIsorb®) into an aqueous colloidal solution at 2% (ACS 2%) and two colloidal gels (CG 1% and CG 2%, which contained 1% and 2% CBD, respectively). Two basic formulations containing CBD (5% in propylene glycol (PG 5%) and a 6.6% oil solution (OS 6.6%)) and two marketed CBD products (RP1 and RP2, containing 1% CBD) were used as comparators. Cutaneous delivery and cutaneous biodistribution experiments were performed using human abdominal skin (500–700 µm) under infinite- and finite-dose conditions with 0.5% Tween 80 in the PBS receiver phase. The quantification of CBD in the skin samples was performed using a validated UHPLC-MS/MS method and an internal standard (CBD-d3). The cutaneous deposition of CBD under finite-dose conditions demonstrated the superiority of CG 1%, CG 2%, and ACS 2% over the marketed products; CG 1% had the highest delivery efficiency (5.25%). Cutaneous biodistribution studies showed the superiority of the colloidal systems in delivering CBD to the viable epidermis, and the upper and lower papillary dermis, which are the target sites for the treatment of several dermatological conditions.
Untitled section
Keywords: cannabidiol, topical formulation, skin delivery, cutaneous biodistribution profile
Article notes
Untitled section
Received 2023 Dec 16; Revised 2024 Jan 19; Accepted 2024 Jan 27; Collection date 2024 Feb.
1. Introduction
Preclinical studies point to the potential therapeutic applications of cannabinoids for the treatment of dermatological conditions [1,2,3,4]. However, clinical data on the mechanism of action and the therapeutic efficacy (and hence, clinical relevance) are scarce. The potentially beneficial effects would most likely be mediated via the cannabinoid receptors, CBR1 and CBR2, which are both found in the skin [4]. Alternative targets with which cannabinoids can interact are Transient Receptor Potential (TRP) ion channels and Peroxisome Proliferator-Activated Receptors (PPARs) [4,5]. Through the interaction with these receptors, cannabinoids, in general, and cannabidiol (CBD), in particular, hold promise for the treatment of disorders, such as acne vulgaris [6,7,8,9,10], allergic contact dermatitis [7,10,11], asteatotic dermatitis [12], atopic dermatitis [4,13,14,15,16], hidradenitis suppurativa [17], Kaposi sarcoma [10,18,19], pain [20,21,22,23,24], pruritus [7,12,25,26,27,28,29,30,31,32], psoriasis [7,33], skin pigmentation disorders [34], and skin cancer [7,35], and can serve to improve skin protection, barrier function [36,37,38,39,40], and wound healing outcomes [41,42,43]. CBD is thought to act primarily as a modulator of inflammatory processes in the skin [44] and can reduce itching [45]. It has also been reported that cannabinoids, including CBD, show promise for the treatment of skin infections due to their anti-microbial properties [46,47]. Further information about the various pathways involved is provided in a review by Tóth et al. [5].
As mentioned above, despite promising preclinical data, reliable human in vivo data on the benefits of CBD are lacking. This is due in part to the fact that CBD’s physicochemical properties render it a formulation challenge for topical or transdermal drug delivery. Although CBD has a molecular weight of 314.47 Da and a melting point of 66–67 °C, which are both compatible for delivery via the skin, it is highly lipophilic (log P 5.79), has very poor aqueous solubility, and is highly sensitive to degradation when exposed to light, heat, oxygen, or an alkaline pH [1,2]. A possible strategy to facilitate the topical or transdermal delivery of CBD involves its incorporation into more advanced drug delivery systems able to mask or overcome its drawbacks [48,49].
To this end, colloidal drug delivery systems (CDDS) may represent an attractive option for the topical delivery of CBD [50,51,52,53]. CDDS have already been shown to significantly improve the oral drug delivery of a number of drugs and nutraceuticals, improving their bioavailability several fold [54,55,56,57,58,59,60,61,62]. These improvements in bioavailability are dependent on small droplet sizes and a uniform droplet size distribution [63,64,65,66,67,68,69,70,71,72,73] because large, inhomogeneous colloidal formulations can lead to an unpredictable and poor reproducibility outcome [55,74]. However, enhanced bioavailability alone cannot be considered a real improvement when a drug delivery system fails to deliver clinically relevant concentrations of a drug [75,76] to the therapeutic target or when appreciable amounts of the drug are delivered, but no beneficial clinical effects are observed [77].
Due to its very small and highly reproducible mean droplet sizes and the very low polydispersity index, VESIsorb® Formulation Technology-based CDDS (VESIsorb CDDS) have been highly successful in improving the oral bioavailability of a number of poorly water soluble compounds, such as coenzyme Q10 (CoQ10) [75], CBD [78], and beta-caryophyllene (BCP) [79]. Moreover, the efficacy and safety of the technology for topical delivery to the skin have been demonstrated by its longstanding use for the cutaneous delivery of Natural Moisturizing Factor (NMF) and D-panthenol [80,81]. The safety, tolerability, and biocompatibility of the delivery system were further demonstrated in a proof-of-concept study to treat dry eye disease by the topical ocular delivery of a VESIsorb CDDS containing ectoin [82].
The objective of the present study was to use this technology to develop an aqueous colloidal solution of CBD and to measure CBD delivery into and across human skin with regard to dermatological applications. Hence, the cutaneous deposition of CBD was a far more relevant parameter than transdermal permeation for formulation evaluation, and indeedm, selectivity for deposition was highly desirable. Although infinite-dose conditions were used for the initial studies, finite dosing was used in the second part of the study to mimic more closely the actual conditions of use in vivo. For the finite-dose studies, CBD gel formulations—at 1% and 2%—were also prepared since this was clearly a more patient-friendly and practical dosage form. In order to benchmark CBD delivery achieved using these formulations, it was decided to use two commercial/marketed products as references. In addition to the quantification of the cutaneous deposition and transdermal permeation of CBD, its cutaneous biodistribution was also determined—but only under finite-dose conditions—in order to determine the amounts of CBD present as a function of penetration depth in the skin. This provided an insight into the CBD concentrations that could be achieved in the different anatomical regions in the skin and would obviously be of interest with respect to the feasibility of using topical administration for the targeted local treatment of dermatological conditions.
2. Materials and Methods
2.1. Materials
Cannabidiol (CBD) used in the study was extracted from the aerial parts of Cannabis sativa L. (hemp) and was concentrated to a CBD content of 90% with a tetrahydrocannabinol (THC) content below 0.3%. Thus, this extract was considered as “full-spectrum hemp oil” in the field of cannabis science. Deuterated CBD (CBD-d3) was used as an internal standard and was obtained from Sigma Aldrich (Merck KGaA, Darmstadt, Germany). Other reference compounds, such as THC and cannabigerol (CBG), were procured from Lipomed AG, (Arlesheim, Switzerland) and Supelco (Merck KGaA, Darmstadt, Germany). Acetonitrile (ACN) and methanol (MeOH) (HPLC grade and LC/MS grade) were received from Fisher Scientific (Reinach, Switzerland). Isopentane, Dulbecco’s phosphate-buffered saline (without calcium chloride or magnesium chloride; DPBS); Tween 20 and Tween 80 were purchased from Sigma Aldrich (Merck KGaA, Darmstadt, Germany). Formic acid (extra pure 99%) (FA) was obtained from Biosolve Chemicals (Dieuze, France). Brij™ C20-PA-(RB) was purchased from Croda Europe (East Yorkshire, UK). O.C.T. embedding matrix was sourced from CellPath (Newtown, UK). Ultrapure water (Millipore Milli-Q Gard 1 Purification Pack resistivity > 18 MΩ·cm; Zug, Switzerland) with a filter (Millipak® 40 Millipore) of 0.22 μm was used to prepare all the solutions. The marketed CBD-containing products, Charlotte’s Web Cream 1% (RP1 1%) and Lord Jones Serum (Face-oil) 1% (RP2 1%), were supplied by Vesifact AG (Baar, Switzerland).
2.2. Analytical Methods
2.2.1. Quantification by UHPLC-UV
UHPLC coupled with UV detection was used to determine the CBD content of the different formulations during stability testing. The UHPLC method was a modification of the low-pressure isocratic HPLC method described by Sigma-Aldrich (https://www.sigmaaldrich.com/CH/de/technical-documents/protocol/analytical-chemistry/small-molecule-hplc/analysis-of-cannabinoids, accessed on 10 January 2024) using a 2.1 × 50 mm Acquity UPLC® BEH C18 1.7 µm column. The mobile phase comprised 0.1% formic acid in ultrapure water and ACN (20:80). CBD was detected using an Acquity UPLC® PDA eLambda detector at a wavelength of 220 nm. The limit of detection and the limit of quantification were 0.1 µg/mL and 0.5 µg/mL, respectively. The retention time for CBD was 1.15 min. The CBD Aqueous Colloidal Solution (ACS) and reference formulations were diluted to a nominal CBD concentration of 15 µg/mL, and were subsequently measured in order to define the total drug content in the formulation and the deviation of the actual drug content from the nominal value.
2.2.2. Quantification by UHPLC-MS/MS
UHPLC with tandem mass spectrometry detection (UHPLC-MS/MS) was used to quantify CBD delivery to and across the skin during the cutaneous delivery studies. A Waters Acquity UPLC® system (Baden-Dättwil, Switzerland) equipped with a binary solvent pump and sample manager coupled to a Waters XEVO® TQ-S micro MS tandem quadrupole detector (Baden-Dättwil, Switzerland) were used.
Gradient separation was carried out using a Waters XBridge BEH C18, 2.1 × 50 mm column containing 2.5 μm particles. The gradient conditions are described in Table 1. Mobile phase A consisted of ultrapure water and mobile phase B consisted of a mixture of MeOH:ACN (50:50 with 0.1% formic acid). The flow rate was set at 0.3 mL/min and the column was maintained at 35 °C. All samples were injected using an injection volume of 2 µL. CBD and CBD-d3 were co-eluted at a retention time of 2.27 min (complete details are presented in the Supplementary Data).
| Time (min) | Flow Rate (mL/min) | %A | %B |
|---|---|---|---|
| 0 | 0.3 | 30 | 70 |
| 0.5 | 0.3 | 30 | 70 |
| 3.5 | 0.3 | 0 | 100 |
| 4.0 | 0.3 | 0 | 100 |
| 4.1 | 0.3 | 30 | 70 |
Mass spectroscopy detection was performed with electrospray ionization using the Multiple-Reaction Monitoring (MRM) mode. To account for the matrix effect, each injected sample contained an internal standard (CBD-d3) at approximately a 40 ng/g concentration. The different UHPLC-MS/MS settings for the analytes are presented in Table 2.
| Cannabidiol | Cannabidiol-d3 | |||
|---|---|---|---|---|
| Nature of parent ion | [M + H]+ | [M + H]+ | ||
| Mass transitions | 1 | 2 | 1 | 2 |
| Precursor ion (m/z) | 315.23 | 315.23 | 318.30 | 318.30 |
| Product ion (m/z) | 123.00 | 193.14 | 123.06 | 196.20 |
| Dwell time (s) | 0.249 | 0.249 | 0.249 | 0.249 |
| Cone voltage (V) | 12.0 | 12.0 | 12.0 | 12.0 |
| Collision energy (V) | 28.0 | 14.0 | 32.0 | 18.0 |
| Capillary voltage (kV) (ESI positive) | 2.0 | |||
| Desolvation temperature (°C) | 350 | |||
| Desolvation gas flow (L/h) | 650 | |||
| Collision gas flow (L/h) | 0.15 | |||
| LM resolution 1 | 15.0 | |||
| HM resolution 1 | 15.0 | |||
| LM resolution 2 | 15.0 | |||
| HM resolution 2 | 15.0 | |||
MassLynx software (V4.1, Waters Inc., Milford, MA, USA) was used for data integration and analysis. The validation of the analytical method was performed as per current EMA [83] and ICH guidelines [84]: the specificity, sensitivity, linearity, accuracy, and precision were tested with the goal of quantifying CBD in skin extracts and permeation samples. The complete details are presented in the Supplementary Data.
2.3. Development of Formulations
2.3.1. Development of the Aqueous Colloidal Solution (ACS) Formulation
A novel colloidal formulation based on the proprietary VESIsorb CDDS was developed for the topical delivery of CBD, ACS 2% (Table 3). These colloids are droplet-like structures with a lipid/triglyceride core that is the primary carrier for the lipophilic CBD. This core is surrounded by a monolayer of amphiphilic molecules, such as phospholipids and, optionally, co-surfactants. The unique characteristics of colloids are their small droplet size and homogenous droplet size distribution. The ACS 2% formulation was characterized by measuring the size of the droplets using a Zetasizer Nano S instrument (Malvern Instruments Limited, Worcestershire, UK).
| Group | ||||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| Description | 5% PG a | RP1 b | RP2 c | OS d 6.6% | ACS e 2% | Blank |
| Formulation | PG | Cream | Serum/face oil | Oil | Colloidal solution | PBS |
| Volume/mass applied (g) | 1 | |||||
| CBD concentration | 5% | 1% | 1% | 6.6% | 2% | 0 |
| Receiver pH | 7.4 | |||||
| Applied CBD amount (mg/cm2) | 25 | 5 | 5 | 33 | 10 | 0 |
| N | 6 | 6 | 6 | 6 | 6 | 1 |
| Type of skin | Sliced human skin: 500–700 μm | |||||
| Contact area (cm2) | 2 | |||||
| Receiver phase | PBS + 0.5% Tween 80 | |||||
| Sampling (h) | 10, 12, 18, 24, 36, 42, 48 | |||||
| Sampling volume (μL) | 300 | |||||
| Extraction conditions | 10 mL of MeOH:water 4 h | |||||
2.3.2. Development of the Colloidal Gel Formulation
In order to identify the best gelling agent, the ACS 2% solution was gelled by adding a series of thickening agents (carbomer, carrageenan, hydroxypropylmethylcellulose (HPMC), and xanthan gum) to the ACS 2% at increasing concentrations (e.g., 1.0%, 1.5%, and 2.0% w/w) under magnetic stirring. Based on the results of these preliminary studies, xanthan gum was selected for the preparation of the gel formulations used in the finite-dose studies—CG 1% and CG 2% (Table 4) containing 1% and 2% CBD, respectively. For the preparation of CG 1%, the ACS 2% solution was first diluted at a 1:1 (w/w) ratio with the buffer used to prepare ACS 2% and was subsequently gelled.
| Group | ||||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| Description | RP1 a | RP2 b | ACS c 2% | CG d 1% | CG e 2% | Blank |
| Formulation | Cream | Serum/face oil | Colloidal solution | Colloidal gel | Colloidal gel | PBS |
| Volume/mass applied (mg) | 30 | |||||
| CBD concentration | 1% | 1% | 2% | 1% | 2% | 0 |
| Receiver pH | 7.4 | |||||
| Applied CBD amount (μg/cm2) | 150 | 150 | 300 | 150 | 300 | 0 |
| N | 6 | 6 | 6 | 6 | 6 | 1 |
| Type of skin | Sliced human skin: 500–700 μm | |||||
| Contact area (cm2) | 2 | |||||
| Receiver phase | PBS + 0.5% Tweens 80 | |||||
| Sampling (h) | 10, 16, 20, 24 | |||||
| Sampling volume (μL) | 300 | |||||
| Extraction conditions | 10 mL of MeOH:water 4 h | |||||
| Cutaneous biodistribution | 10 lamellae measuring 40 μm down to a depth of ~400 μm | |||||
2.3.3. Development of the Comparator Formulations
Two basic formulations were prepared with the aim to enable a comparison of the delivery of the CBD in this study with the data in the published literature. Thus, two simple solutions of either 5% CBD in propylene glycol or 6.6% CBD in a mixture of medium- and long-chain triglycerides and propylheptyl caprylate were prepared by dissolving the CBD in the respective solvent or solvent mixture. The resulting basic formulations were characterized by visual appearance and CBD content.
2.4. Human Skin Preparation
Human skin was used for the skin deposition/permeation experiments. Samples were collected immediately after surgery from the Department of Plastic, Aesthetic and Reconstructive Surgery, Geneva University Hospital (Geneva, Switzerland). The study was approved by the “Commission cantonale d’éthique de la recherche” (CCER—2021-01578). The hypodermis and fatty tissue were removed and the skin was sliced to a uniform thickness (500–700 µm) using a Thomas Stadie-Riggs manual skin slicer (Thomas Scientific, Swedesboro, NJ, USA) and stored at −20 °C until use or for a maximum period of 3 months.
2.5. Preliminary Studies
To ensure appropriate experimental conditions, preliminary studies were performed in order to determine (i) the optimum composition of the receptor phase in the Franz cell receiver compartment to ensure sufficient CBD solubilization so that sink conditions were maintained, (ii) the stability, and (iii) extraction efficiency of the skin samples. All the methods and detailed results are presented in the Supplementary Data.
2.6. Evaluation of Skin Delivery In Vitro
2.6.1. CBD Delivery under Infinite-Dose Conditions
Table 3 summarizes the different formulations tested and the experimental conditions for the infinite-dose experiments.
Before starting the experiment, the skin samples were thawed at room temperature and equilibrated in a 0.9% NaCl solution for 15 min. Skin integrity was monitored using a Vapometer (Delfin Technologies Ltd., Kuopio, Finland) at the beginning of the experiment.
Human skin samples were mounted in 2.0 cm2 Franz cells, which were then filled with the selected receiver solution (10 mL of 0.5% Tween 80 in PBS). Formulations (500 mg/cm2; infinite dose) were applied to each Franz cell and the donor compartment was covered with parafilm to ensure occlusion. The receiver compartments were stirred at 250 rpm and maintained at 32 °C using a water bath. Each condition was tested with 6 replicates.
Aliquots (0.3 mL) were withdrawn from the receiver compartment at pre-determined time points: 10, 12, 18, 24, 36, 42, and 48 h. Each aliquot was replaced with an equal volume of fresh buffer. Permeation samples were centrifuged at 10,000 rpm for 20 min prior to CBD quantification after the appropriate dilution and addition of the internal standard.
At the end of the experiment, the formulations were removed from the skin surface with tissue paper, and the skin surface was cleaned with a cotton swab moistened with 0.5% Tween 80 in PBS and rubbed twice to remove any residue. Then, the skin area in contact with the formulation (~2.0 cm2 disc) was punched out from the skin samples. These samples were cut into small 1 mm × 1 mm pieces and subjected to CBD extraction (10 mL of MeOH:H2O 90:10) for 4 h. The extraction samples were centrifuged at 10,000 rpm for 20 min before CBD quantification after the appropriate dilution and addition of the internal standard. All additions of volume and internal standards to the sample as well as the dilution were performed by weight measurement. The drug contents of the different formulations were expressed according to the nominal value.
2.6.2. CBD Delivery under Finite-Dose Conditions and Investigation of CBD Biodistribution
Table 4 summarizes the different formulations tested and the experimental conditions used for the finite-dose experiments.
Human skin samples were prepared as previously described and mounted in 2.0 cm2 Franz cells, which were then filled with the selected receiver solution (10 mL of Tween 80 0.5% in PBS). Formulations (15 mg/cm2; finite dose) were applied to each Franz cell and the donor compartments were kept unoccluded. The receiver compartments were maintained under constant stirring at 32 °C using a water bath. Each condition was tested with 6 replicates. Aliquots (0.3 mL) were withdrawn from the receiver compartment at pre-determined time points: 10, 16, 20, and 24 h. Each aliquot was replaced with an equal volume of fresh buffer. Permeation samples were centrifuged at 10,000 rpm for 20 min before CBD quantification after the appropriate dilution and addition of the internal standard.
At the end of the experiment, a small area of 0.5 cm2 was punched out from the 2 cm2 skin samples. These skin discs were snap-frozen in isopentane cooled with dry ice (−78.5 °C) followed by cryotoming (Thermo Scientific CryoStarTM NX70; Reinach, Switzerland) to obtain 10 lamellae with a thickness of 40 µm encompassing the stratum corneum, viable epidermis, and upper and lower dermises down to a depth of ~400 µm. The CBD deposited in each lamella was extracted in 200 µL of MeOH:H2O 90:10 overnight with continuous stirring at room temperature. The extraction samples were centrifuged at 10,000 rpm for 10 min and diluted prior to UHPLC-MS/MS analysis. A small area of 0.28 cm2 was also punched out of the remaining skin, trimmed into small 1 mm × 1 mm pieces, and subjected to CBD extraction and subsequent quantification to determine the total skin deposition. All additions of volume and internal standards to the sample as well as dilutions were performed by weight measurement. The drug content of the different formulations and drug delivery efficiencies calculated were expressed according to the nominal value.
2.7. Data Analysis
The data are expressed as the mean ± SD. The data were processed and evaluated statistically using GraphPad Prism 9.4.1. Groups were compared using either an analysis of variance (ANOVA) or analysis of means by the Student’s t-test. Tukey’s multiple comparisons test or Bonferroni t-test were used, when necessary, as post hoc procedures. The level of significance was fixed at α = 0.05.
3. Results and Discussion
3.1. Analytical Methods
The analytical methods for the quantification of CBD were shown to be specific, sensitive, linear, accurate, and precise. Thus, in accordance with the current EMA [83] and ICH guidelines [84], they were considered as valid for the quantification of the CBD in the range of 2.3 to 100.0 ng/g for the skin extraction samples and in the range of 1.2 to 100.0 ng/g for the skin permeation samples. The complete results and details are presented in the Supplementary Data.
3.2. Formulation Development and Characterization
3.2.1. Aqueous Colloidal Solution Formulation
The ACS 2% formulation was prepared and the total drug content in the formulation was measured to be in the range of 20.82 to 21.03 mg/g, corresponding to a deviation of between +4.0 and +5.2% as compared with the expected nominal values. The total CBD loading efficiency was 99.63% and ACS 2% presented an excellent two-year stability at 25 °C as assessed by the visual appearance, colloidal droplet size, and CBD content (neither creaming nor the sedimentation of CBD crystals were observed, despite the extremely low aqueous solubility of CBD (~0.1 μg/mL [85]) (Table 5)). The mean diameter of the droplets formed was between 45 to 50 nm and the size distribution of the droplets was homogeneous, exhibiting a single main population and a polydispersity index of <0.100. Importantly, these colloids could be sterile-filtered and thus produced without the need for preservatives.
| Time Point (Months) | ACS 2% | CG 2% | ||||
|---|---|---|---|---|---|---|
| z Average (nm) | PDI | CBD (%) | z Average (nm) | PDI | CBD (%) | |
| 0 | 45.70 | 0.071 | 2.100 ± 0.004 | 47.08 | 0.129 | 2.064 ± 0.004 |
| 12 | 47.83 | 0.070 | 2.127 ± 0.004 | 52.70 | 0.175 | 2.104 ± 0.021 |
| 24 | 47.99 | 0.072 | 2.121 ± 0.003 | |||
3.2.2. Colloidal Gel Formulation
The colloidal gel formulations (CG 1% and CG 2%) were prepared as described above, and the CBD content was determined by UHPLC-UV. The experimentally determined CBD contents for the nominal 1% and 2% CBD colloidal gels were 10.51 and 20.64 mg/g, corresponding to a deviation from the nominal values of +5.1% and +3.2%, respectively. The CBD loading corresponded to efficiencies of 99.62% and 97.83% for CG 1% and CG2%, respectively. The storage stability of CG 2% was also at least 24 months at 25 °C, as assessed by the visual appearance, colloidal droplet size, and CBD content (Table 5). The gelation did not impair CBD stability in the formulation and had no influence on the colloidal droplet size (Table 5). However, the gel formulation was characterized by a slightly larger PDI compared to the aqueous colloidal solution, but this increase in the PDI was expected due to the semi-flexible nature of xanthan gum and its tendency to self-associate [86].
3.2.3. Basic Comparator Formulations
The CBD content in the two basic comparator formulations (PG 5% and OS 6.6%) was measured by UHPLC-UV as well. For PG 5%, the drug content ranged from 50.18 to 50.81 mg/g, which corresponded to a deviation from the nominal concentration by +0.4% to +1.6%. For OS 6.6%, the measured CBD content ranged from 66.52 mg/g to 66.66 mg/g, which amounted to 99.88% to 100.00% of the nominal value.
3.2.4. Reference Formulations
The CBD content of the two reference products (RP1 1% and RP2 1%) was measured by UHPLC-UV. For RP1 1% (Charlotte’s Web Cream 1%), the drug content ranged from 12.40 to 14.27 mg/g, deviating from the nominal concentration by +24.0% to +42.7%. For RP2 1% (Lord Jones Serum face oil 1%), the measured CBD content was 12.20 mg/g, amounting to +22.0% above the nominal value.
3.3. Preliminary Studies
The optimal receiver medium was determined to be PBS with 0.5% Tween 80. Detailed results can be found in the Supplementary Data. The extraction method was considered as being efficient since 98.8 ± 22.9% of the CBD was recovered upon skin extraction (mean ± SD, n = 8). After contact with skin, CBD was quantified by UHPLC-MS/MS. No known degradation compounds were detected. The relative amount of CBD recovered as a function of time is shown in the Supplementary Data. At the end of the experiment, 99.5 ± 17.7% of CBD was recovered. Based on the results, it was concluded that CBD was stable when in contact with the skin at 32 °C for at least 48 h, i.e., sufficient to proceed with skin delivery experiments.
In vitro releases studies were not performed since the results were not predictive of the release from a formulation into the stratum corneum, which is a highly hydrophobic environment as opposed to the hydrophilic release medium. Furthermore, for SEDDS, most in vitro methods, i.e., membrane diffusion methods (such as uses of filters, dialysis membranes, or separation methods (e.g., ultracentrifugation)), influence release kinetics [87].
3.4. CBD Delivery under the Infinite-Dose Condition
3.4.1. Experimental Observations
All skin samples were considered acceptable with a TEWL below 15.0 g/m2h. The measured skin thickness values of all the samples ranged between 500 and 700 μm
3.4.2. CBD Skin Deposition

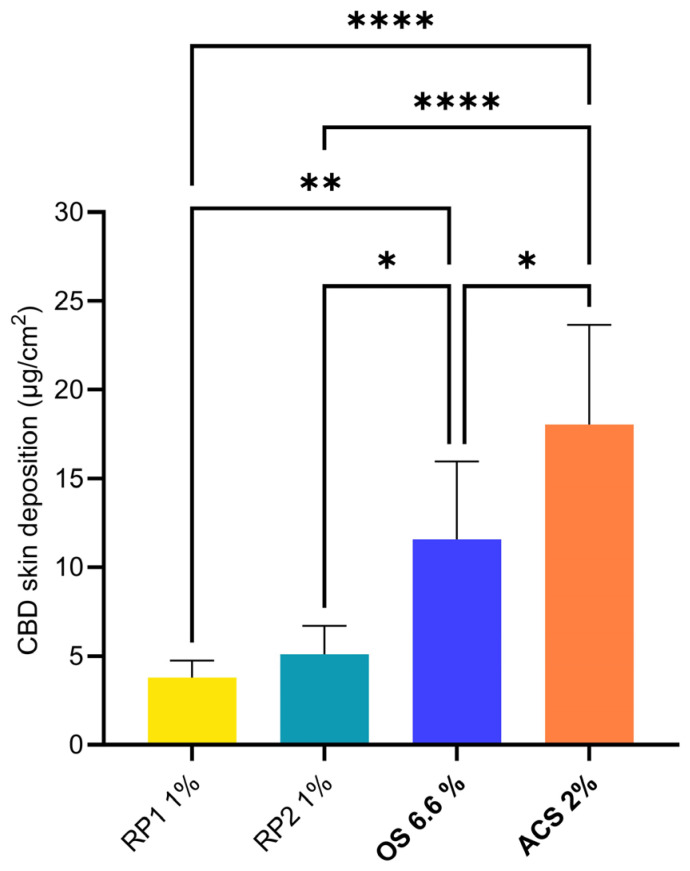

First, the CBD skin deposition was studied under infinite-dose conditions; the results following the application of the different formulations for 48 h are summarized in Table 6 and Figure 1.
| Formulation | Cutaneous Deposition (μg/cm2) |
|---|---|
| Mean ± SD | |
| Blank | NA |
| RP1 a 1% | 3.78 ± 0.97 |
| RP2 1% | 5.12 ± 1.59 |
| OS 6.6% | 11.57 ± 4.40 |
| ACS 2% | 18.03 ± 5.64 |
The skin deposition of CBD from the basic PG formulation (see Section 2.3.3) was abnormally high and variable (575.87 ± 357.59 µg/cm2). It was also noted that the PG-based formulation was very difficult to remove from the skin surface after a 48 h application time. This was probably due to the phenomenon observed at the end of the experiment, where a “crust” appeared to have been created on the skin surface. Excessive rubbing of the PG formulation resulted in the detachment of the epidermis. Thus, the skin deposition from the PG 5% formulation was considered aberrant and was not discussed further.
The remaining formulations yielded skin depositions between 3.78 ± 0.97 µg/cm2 (RP1 1%) and 18.03 ± 5.64 µg/cm2 (ACS 2%). The statistical comparison of the different groups is presented in Figure 1. Only the depositions from the two comparator formulations were non-significantly different. Both OS 6.6% and ACS 2% formulations outperformed the reference formulations, RP1 1% and RP2 1%, in terms of cutaneous delivery. The ACS 2% formulation delivered more CBD to the skin than OS 6.6% despite a three-fold-lower CBD content, thus increasing the delivery efficiency.
3.4.3. CBD Transdermal Permeation
CBD permeation across human skin from the control formulations (PG 5%, RP1 1%, and RP2 1%) was low and under the LOD of the analytical method after application for 48 h. The highest CBD permeation was observed for ACS 2% (16.8 ± 5.0 ng/cm2) and the flux was 0.30 ± 0.24 ng/cm2/h for the linear range of 18-48 h; however, the concentrations were still below the LOQ.

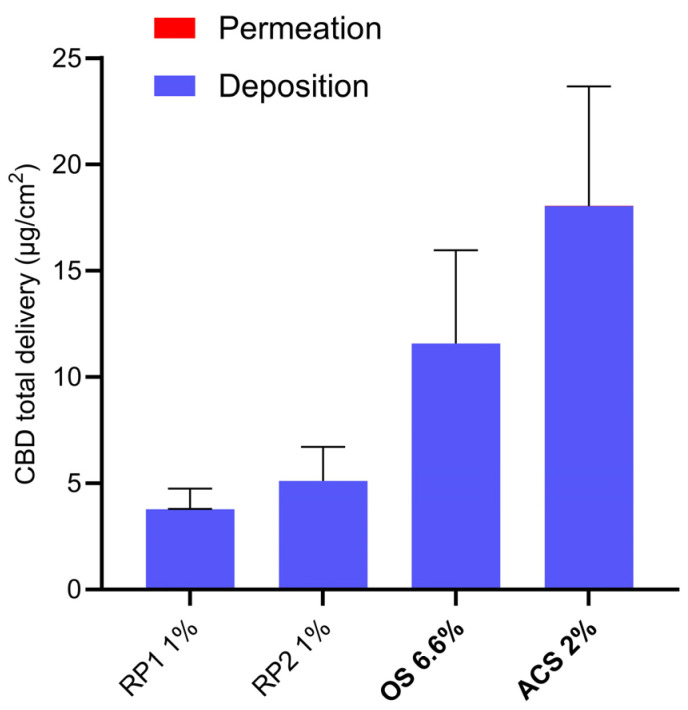

3.4.4. Total CBD Delivery
Total CBD delivery was dominated by cutaneous deposition, given that it was approximately 1000-fold higher than the transdermal permeation (Figure 2).
This skin selectivity limited the amounts of CBD permeated across the skin, and therefore the risk of systemic side effects in vivo. Given that the different formulations have different CBD contents, it is interesting to express the results in terms of delivery efficiency, which can be defined as the proportion of the applied dose that is effectively delivered to the skin (i.e., Delivery efficiency (%) = 100 × (delivered CBD/applied CBD)) [88]. The topical delivery efficiency, i.e., the fraction of the applied dose that was deposited in the skin, from the different formulations is presented in Figure 3.

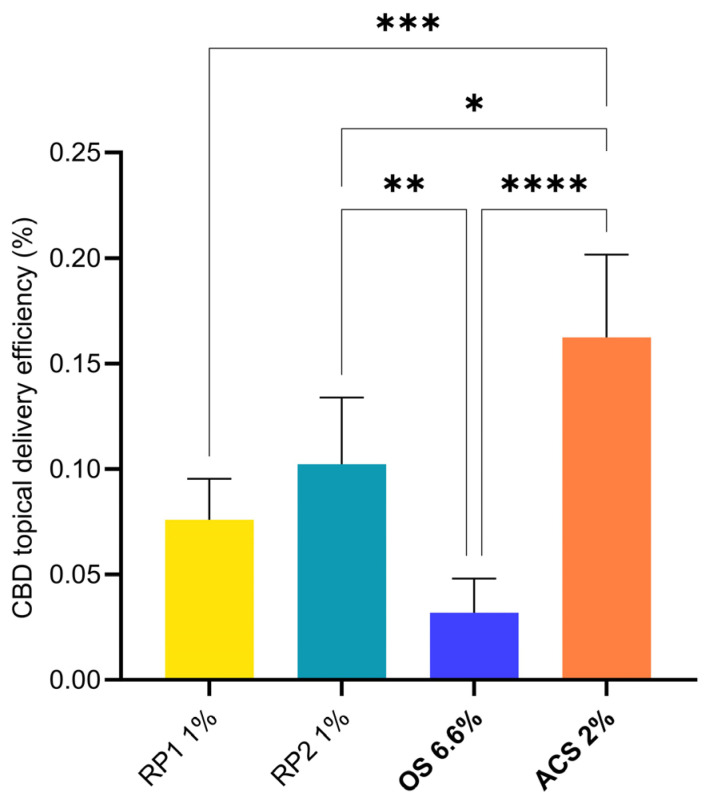

The best delivery efficiency was observed for ACS 2% (0.16 ± 0.04%) followed by RP1 1% and RP2 1%. The delivery efficiency of OS 6.6% was the lowest due to the high CBD content and the fact that the lipophilic nature of the formulation compromised the partitioning of the CBD into the lipophilic intercellular lipid matrix of the stratum corneum. As mentioned above, the percentage of the applied amount of ACS 2% that permeated across the skin was extremely low (1.66 ± 0.62) × 10−4%. It is worth noting that infinite-dose experiments underestimate delivery efficiencies in vivo. Since the formulation was applied in excess, the major part of the API content did not come into contact with the skin during the time course of the experiment; thus, delivery efficiencies are more relevant when using more realistic conditions and finite-dosing conditions. This observation was indeed confirmed in the case of CBD during the subsequent finite-dose experiments described below.
3.5. CBD Delivery under the Finite-Dose Condition
3.5.1. Experimental Observations
The integrity of all the skin samples was considered to be acceptable since TEWL was below 12.0 g/m2h. The measured skin thickness of all the samples ranged between 500 and 750 μm. The gel formulations, CG 1% and CG 2%, were easy to apply to the skin and showed less evaporation and better wetting of the surface compared with the colloidal solution (ACS 2%). Moreover, the skin surface had a good appearance after formulation application for 24 h.
3.5.2. CBD Skin Deposition
Cutaneous delivery experiments under finite-dose conditions (15 mg of formulation applied per cm2) were performed following the OECD guidelines [89]. The cutaneous deposition of CBD after the application of the different formulations for 24 h is shown in Figure 4.

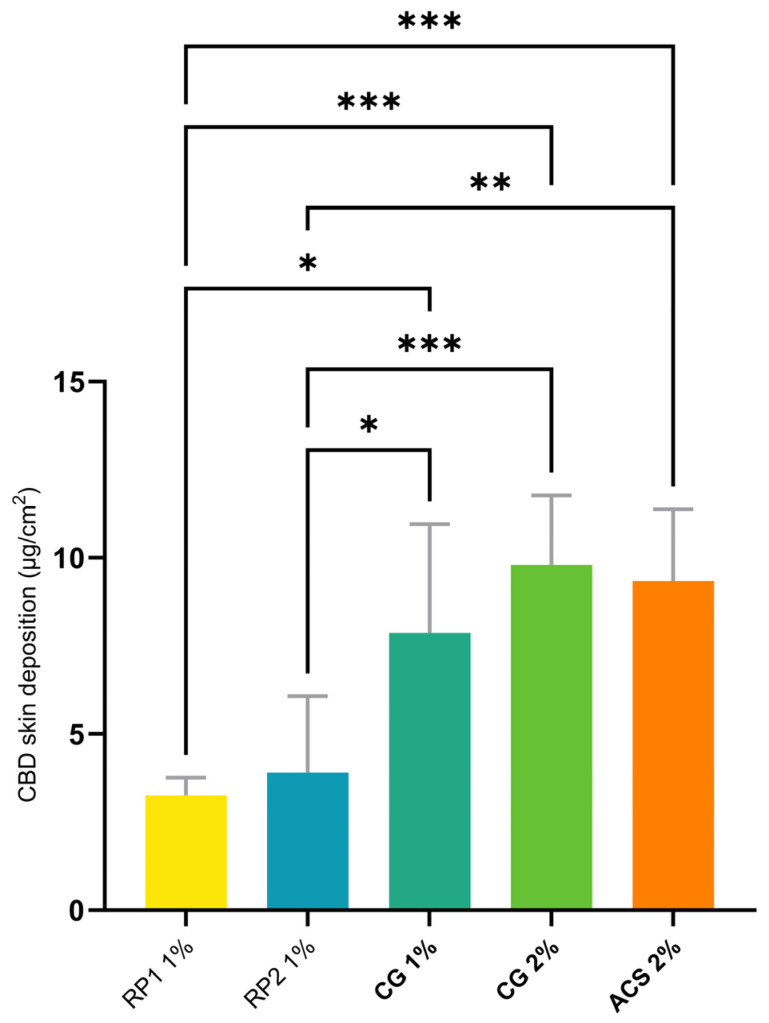

Table 7 presents the cutaneous deposition, topical delivery efficiency, and an “improvement factor” (IF) that describes the cutaneous deposition in terms of that observed for RP1, which is given a nominal value of 100. Hence, RP2, which has a 20% greater delivery than RP1, has an IF of 120.
| Formulation | Cutaneous Deposition (μg/cm2) | Topical Delivery Efficiency | Improvement Factor a |
|---|---|---|---|
| Mean ± SD | % | % | |
| Blank | NA | NA | NA |
| RP1 | 3.25 ± 0.51 | 2.17. ± 0.94 | 100 (ref) |
| RP2 | 3.90 ± 2.18 | 2.60 ± 1.45 | 120 |
| CG 1% | 7.87 ± 3.09 | 5.25 ± 2.06 | 242 |
| CG 2% | 9.80 ± 1.98 | 3.26 ± 0.66 | 302 |
| ACS 2% | 9.34 ± 2.04 | 3.11 ± 0.68 | 287 |
The skin deposition of CBD from the ACS 2%, CG 1%, and CG 2% formulations outperformed RP1 and RP2. There was no statistically significant difference in CBD deposition outcomes between CG 1% and CG 2% (7.87 ± 3.09 and 9.80 ± 1.98 µg/cm2, respectively), despite the difference in CBD content. There was therefore no benefit to doubling the concentration of CBD in the formulation from 1% up to 2% from an end-product-manufacturing point of view. It is possible that a larger increase in drug content can nevertheless elicit an increase in the cutaneous deposition if required to improve the therapeutic efficacy. Furthermore, and importantly, there was no difference in the deposition values between CG 1%, CG 2%, and ACS 2%. This indicated that the thermodynamic activity of CBD and its partitioning into the skin were not impaired by gelation and that the CBD was still released successfully.

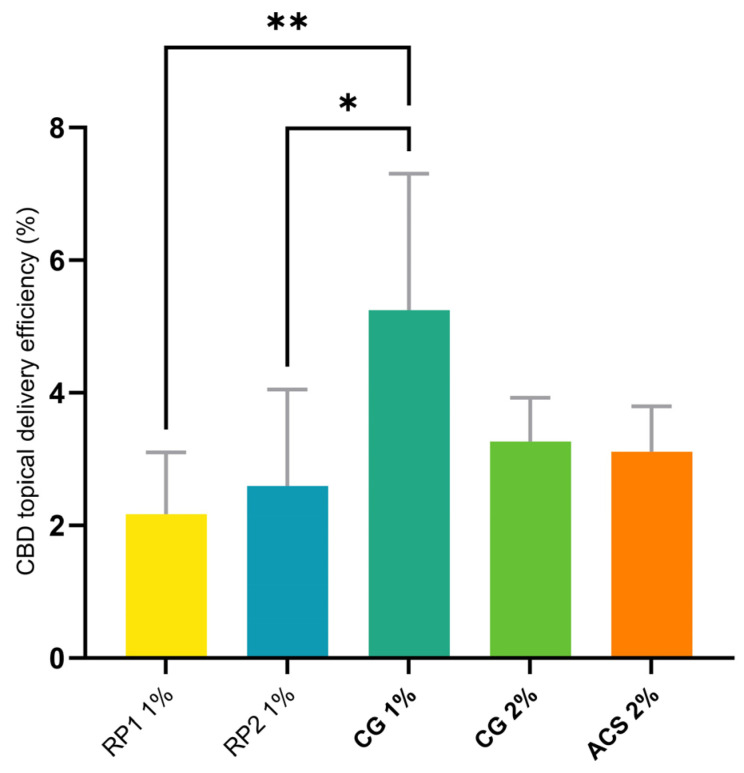

CG 1% showed the highest topical delivery efficiency, 5.25%, and was statistically superior to RP1 1% and RP2 1% (Figure 5); the 19.4-fold increase observed for the delivery efficiency for ACS 2% from only 0.16% under infinite-dose conditions to 3.11% illustrated that the calculation of this parameter was more relevant under finite-dose conditions, which were also closer to the actual conditions of use in vivo.
3.5.3. CBD Cutaneous Biodistribution
The cutaneous biodistribution method is a technique that enables the drug to be precisely quantified and localized as a function of skin depth, providing more accurate information about drug distribution in the different anatomical regions of the skin [90,91,92,93,94]. Compared to the total deposition analysis, it allowed us to distinguish between the amounts present in the stratum corneum, the outermost barrier of the skin, the epidermis and subjacent structures, such as the dermis, or hypodermis. The amounts present in the region corresponding to the putative site of action could be converted to a concentration to provide a preliminary indication of whether a therapeutic effect was possible. The biodistribution profile of CBD in human skin after a 24 h application of the different colloidal formulations and the reference products were compared in terms of the drug content in each skin lamellae (10 × 40 µm). As presented in Figure 6, the initial observations indicate that the concentration of CBD decreases considerably in the first 200 µm skin depth for all formulations, suggesting that CBD is mostly deposited and localized in the epidermis.

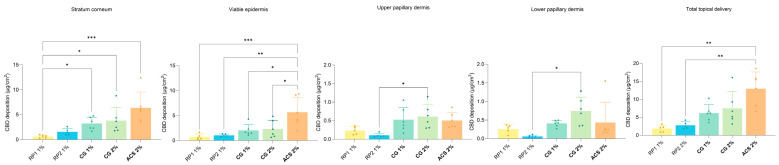

Figure 7 presents the localization of the amounts of CBD in the skin as a function of the different histological skin layers. From this representation, it is possible to identify the superiority of ACS 2% in terms of total topical delivery. This resulted from a higher drug content in the stratum corneum and epidermis with 6.368 ± 3.120 μg/cm2 and 5.648 ± 2.997 μg/cm2, respectively. The total deposition obtained was 12.953 ± 4.671 μg/cm2.
3.5.4. CBD Transdermal Permeation
CBD permeation across human skin was below the LOD of the analytical method after the formulation application for 24 h under finite-dose conditions. However, an underestimation of the CBD uptake by the systemic circulation in vivo could not be entirely excluded. The capillary network is located within the papillary dermis, which is present at a depth of around 150 to 200 µm. However, given the amounts present, the expected plasma concentrations following a single administration should nevertheless remain low.
3.6. Comparison with the Existing Data on CBD Transdermal Delivery
The different formulations tested under the conditions used in this study resulted in local delivery of CBD to the skin with cutaneous deposition being far greater than transdermal permeation. The levels of CBD permeated across the skin indicated the low probability of significant transdermal permeation detectable in vitro when using realistic formulation application conditions, e.g., such as those used for the finite-dose experiments. The much smaller amounts of formulation applied also eliminated the effect of occlusion due to the amount of formulation applied to the skin surface under infinite-dosing conditions.
The methodologies used for previous in vitro investigations of the transdermal delivery of CBD are heterogeneous and difficult to compare [95,96,97,98]. The heterogeneity comes first from the skin type and thickness and second from the experimental conditions, in particular, the composition of the receiver phase. Studies using thin skin and aggressive receiver solutions show the highest transdermal CBD permeation; however, the predictive power of those studies for behavior in vivo are open to discussion (see below).
Franzè et al. used similar (but not identical) conditions to those used in the present study (e.g., formulation application for 24 h and skin samples with a thickness of 740 µm, but porcine skin was used instead of human skin) [96] and the skin deposition of CBD observed with ACS 2%, CG 1%, and CG 2% (~8–10 μg/cm2) was similar to the amounts of CBD in the dermis following the application of the “Drug-in-Micelles-in-Liposomes” (DiMiL) formulations that they developed (~8–13 μg/cm2). This was achieved in the present study, despite the use of finite-dose conditions with smaller volumes and lower amounts of CBD applied per unit surface area (~15 μL/cm2 with a CBD content of 150 μg/cm2 for CG 1% and 300 μg/cm2 for ACS 2% and CG 2%, versus 472 μL/cm2 with a CBD content of 358 μg/cm2 for the DiMiL formulations). The only question that arose with respect to that study, in our opinion, was the amount of Kolliphor HS 15 (2.5% w/v) present in the receiver phase; Kolliphor HS 15 was also used in the DiMiL formulation, so it was probable that the skin was impregnated with Kolliphor and this could have enhanced CBD transport (as evidenced by the transdermal permeation). Stinchcomb et al. performed flow-through studies using saturated CBD solutions (in mineral oil, or propylene glycol:water (7:3) and propylene glycol:water:ethanol (4:5:4)) and thin cadaver skin, but lower contents of solubilizer (Brij 98 0.5% w/v) in the receiver [97]. The transdermal flux observed in those studies could be explained by the thermodynamic activity of the CBD in the basic formulations, the skin thickness, and the fact that its barrier function could have been compromised due to the contact with propylene glycol and/or ethanol for 48 h. It is worth noting that the inclusion of ethanol increased CBD transdermal flux.
Two recent reviews have summarized the developments in CBD dermal and transdermal delivery [99,100]. Lodzki et al. administered CBD to nude mice from an ethosomal formulation applied for 24 h. The results showed high blood levels of between 600 and 1000 ng/mL without any flux calculations [48]. However, nude mice skin is much thinner than human skin and is considered to be a very permeable surrogate. Paudel et al. studied the pharmacokinetics of CBD when administered nasally and transdermally to guinea pigs [101]. The CBD (1.8%) gel formulation for transdermal delivery was made from an 80:20 PG:H2O solution with or without 6% Transcutol P, gellified by hydroxyethyl cellulose. For transdermal studies, 500 μL of the CBD gel formulation with or without the enhancer was applied to the dorsal region. Patches were constructed to keep the formulation in place on an area of 13.2 cm2 for 48 h. The flux of CBD without Transcutol P was 6.13 ± 0.43 nmol/cm2/h (1927.7 ng/cm2/h). Interestingly, CBD levels remained at a steady state after the patch removal, indicating a possible reservoir effect of the skin.
3.7. Clinical Relevance
The majority of in vitro and in vivo preclinical studies investigating the use of the skin as a delivery route for the administration of CBD focus on its transdermal delivery for systemic applications. The in vitro studies used infinite-dose conditions and, given the physicochemical properties of CBD, aggressive solubilizers were required to maintain sink conditions in the receiver phase. Solubilizers can affect the fragile skin membranes used in the experiments, e.g., heat-separated epidermis or very thin dermatomed skin (thickness <300 µm), increasing permeability and resulting in increased amounts of CBD being detected in the receiver compartment, leading to a risk of overestimating systemic delivery in vivo. The present study, where a more “realistic” receiver phase composition was used with a thicker membrane (500–700 µm), resulted in a much more reduced transdermal delivery of CBD (ACS 2%: cumulative permeation—16.8 ± 5.0 ng/cm2) than that observed in other studies. The use of a thicker skin membrane in the present study as compared to other reports could result in an underestimation of transdermal permeation, since entry into blood capillaries is possible in the upper dermis. On the other hand, the use of a less aggressive receiver phase in the present study might decrease the risk of overestimating systemic levels achieved after delivery across human skin in vivo.
A recent clinical trial assessing the transdermal delivery of CBD (and THC) using an emulsion-based formulation after application of a 100 mg CBD dose to the hand, wrist, and forearm, and where blood levels were monitored for 12 h, showed that the highest CBD concentration was ~0.5 ng/mL [102]. For comparison, the study by Knaub et al., which used a self-emulsifying drug delivery system for the oral delivery of 25 mg of CBD, achieved maximum concentrations in the range of 6-20 ng/mL [79]; thus, despite the 4-fold lower dose, the oral administration resulted in 12–40-fold-greater levels in the blood. Given the plasma concentrations observed in humans after oral (and transdermal) administration, we decided for the present study to focus on topical delivery with a view to local administration for the targeted treatment of dermatological indications. Since, to the best of our knowledge, there were no data about finite-dose CBD applications, a better predictor of in vivo behavior, it was decided to introduce this into the study plan and to conduct finite-dose-application experiments (without occlusion) together with an investigation of the biodistribution profile to determine which regions of the epidermis and dermis could be targeted.
It has been suggested that the topical application of CBD can decrease levels of proinflammatory cytokines, e.g., IL-6 and IL-17, and promote the release of anti-inflammatory cytokines, e.g., IL-10 [103]. From this perspective, it is reasonable to assume that topical applications can be used for CBD delivery to the viable epidermis, thereby targeting atopic dermatitis [4,13,14,15,16], pruritus [7,12,25,26,27,28,29,30,31,32], and perhaps psoriasis [7,33] and other inflammation-related diseases.
In conclusion, the results of this study demonstrate the feasibility of delivering CBD to the epidermis and upper dermis using a patient-friendly formulation under finite-dose conditions. The data presented here were collected using healthy human skin, and it is clear that a dermatological condition, such as atopic dermatitis, could impair skin barrier function and thereby increase cutaneous bioavailability. Thus, the effect of barrier impairment due to disease on CBD delivery and biodistribution needs to be investigated, and this is envisaged in subsequent studies.
Acknowledgments
We would like to acknowledge the University of Geneva for providing financial support for the acquisition of the Waters UHPLC-MS/MS system used in this study. YNK thanks the University of Geneva for the teaching assistantship provided to J.F.B.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics16020202/s1, Figure S1: Solubility of CBD in different receiver media (mean ± SD; n = 3); Figure S2: CBD content over time when in contact with the dermal side of human skin at 32 °C (mean ± SD, n = 6 for the test group and n = 1 for the control group). The blue area denotes the acceptance range (± 15%); Figure S3: MRM traces of a CBD standard of 100 ng/g (left panel) and CBD-d3 standard of 100 ng/g (right panel); Figure S4: MRM traces of a blank sample, Tween 80 solution 1%, blank permeation sample and blank extraction sample; Figure S5: Selectivity of the different MRM channels for CBD, CBD-d3, THC and CBG; Figure S6: Calibration curves—Peak area as a function of concentration (left panel); Internal standard standardized peak area as a function of relative concentrations (right panel); Table S1: Accuracy and precision; Table S2: LOD and LOQ values. Reference [104] is cited in the Supplementary Materials.
Institutional Review Board Statement
Samples were collected immediately after surgery from the Department of Plastic, Aesthetic and Reconstructive Surgery, Geneva University Hospital (Geneva, Switzerland). The study was conducted by the “Commission cantonale d’éthique de la recherche” (CCER—2021-01578).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The data presented in this study are available on request from the corresponding author.
Conflicts of Interest
The authors declare that this study received funding from Vesifact AG. The funder supplied the proprietary formulations that were tested and provided information concerning their properties. The authors declare no conflicts of interest.
Funding Statement
Y.N.K. would like to acknowledge the financial support received from Vesifact AG.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Tijani A.O., Thakur D., Mishra D., Frempong D., Chukwunyere U.I., Puri A. Delivering therapeutic cannabinoids via skin: Current state and future perspectives. J. Control. Release. 2021;334:427–451. doi: 10.1016/j.jconrel.2021.05.005.
- 2.Vanti G., Grifoni L., Bergonzi M.C., Antiga E., Montefusco F., Caproni M., Bilia A.R. Development and optimisation of biopharmaceutical properties of a new microemulgel of cannabidiol for locally-acting dermatological delivery. Int. J. Pharm. 2021;607:121036. doi: 10.1016/j.ijpharm.2021.121036.
- 3.Kirk R.D., Akanji T., Li H., Shen J., Allababidi S., Seeram N.P., Bertin M.J., Ma H. Evaluations of Skin Permeability of Cannabidiol and Its Topical Formulations by Skin Membrane-Based Parallel Artificial Membrane Permeability Assay and Franz Cell Diffusion Assay. Med. Cannabis Cannabinoids. 2022;5:129–137. doi: 10.1159/000526769.
- 4.Baswan S.M., Klosner A.E., Glynn K., Rajgopal A., Malik K., Yim S., Stern N. Therapeutic Potential of Cannabidiol (CBD) for Skin Health and Disorders. Clin. Cosmet. Investig. Dermatol. 2020;13:927–942. doi: 10.2147/CCID.S286411.
- 5.Tóth K.F., Ádám D., Bíró T., Oláh A. Cannabinoid Signaling in the Skin: Therapeutic Potential of the “C(ut)annabinoid” System. Molecules. 2019;24:918. doi: 10.3390/molecules24050918.
- 6.Ali A., Akhtar N. The safety and efficacy of 3% Cannabis seeds extract cream for reduction of human cheek skin sebum and erythema content. Pak. J. Pharm. Sci. 2015;28:1389–1395.
- 7.Oláh A., Tóth B.I., Borbíró I., Sugawara K., Szöllõsi A.G., Czifra G., Pál B., Ambrus L., Kloepper J., Camera E., et al. Cannabidiol exerts sebostatic and antiinflammatory effects on human sebocytes. J. Clin. Investig. 2014;124:3713–3724. doi: 10.1172/JCI64628.
- 8.Dobrosi N., Tóth B.I., Nagy G., Dózsa A., Géczy T., Nagy L., Zouboulis C.C., Paus R., Kovács L., Bíró T. Endocannabinoids enhance lipid synthesis and apoptosis of human sebocytes via cannabinoid receptor-2-mediated signaling. FASEB J. 2008;22:3685–3695. doi: 10.1096/fj.07-104877.
- 9.Jin S., Lee M.Y. The ameliorative effect of hemp seed hexane extracts on the Propionibacterium acnes-induced inflammation and lipogenesis in sebocytes. PLoS ONE. 2018;13:e0202933. doi: 10.1371/journal.pone.0202933.
- 10.Eagleston L.R.M., Kalani N.K., Patel R.R., Flaten H.K., Dunnick C.A., Dellavalle R.P. Cannabinoids in dermatology: A scoping review. Dermatol. Online J. 2018;24:1. doi: 10.5070/D3246040706.
- 11.Basu S., Dittel B.N. Unraveling the complexities of cannabinoid receptor 2 (CB2) immune regulation in health and disease. Immunol. Res. 2011;51:26–38. doi: 10.1007/s12026-011-8210-5.
- 12.Yuan C., Wang X.M., Guichard A., Tan Y.M., Qian C.Y., Yang L.J., Humbert P. N-palmitoylethanolamine and N-acetylethanolamine are effective in asteatotic eczema: Results of a randomized, double-blind, controlled study in 60 patients. Clin. Interv. Aging. 2014;9:1163–1169. doi: 10.2147/CIA.S65448.
- 13.Gaffal E., Cron M., Glodde N., Tüting T. Anti-inflammatory activity of topical THC in DNFB-mediated mouse allergic contact dermatitis independent of CB1 and CB2 receptors. Allergy. 2013;68:994–1000. doi: 10.1111/all.12183.
- 14.Pulvirenti N., Nasca M.R., Micali G. Topical adelmidrol 2% emulsion, a novel aliamide, in the treatment of mild atopic dermatitis in pediatric subjects: A pilot study. Acta Dermatovenerol. Croat. 2007;15:80–83.
- 15.Petrosino S., Verde R., Vaia M., Allarà M., Iuvone T., Di Marzo V. Anti-inflammatory Properties of Cannabidiol, a Nonpsychotropic Cannabinoid, in Experimental Allergic Contact Dermatitis. J. Pharmacol. Exp. Ther. 2018;365:652–663. doi: 10.1124/jpet.117.244368.
- 16.Zengin G., Menghini L., Di Sotto A., Mancinelli R., Sisto F., Carradori S., Cesa S., Fraschetti C., Filippi A., Angiolella L., et al. Chromatographic Analyses, In Vitro Biological Activities, and Cytotoxicity of Cannabis sativa L. Essential Oil: A Multidisciplinary Study. Molecules. 2018;23:3266. doi: 10.3390/molecules23123266.
- 17.Scheinfeld N. Topical treatments of skin pain: A general review with a focus on hidradenitis suppurativa with topical agents. Dermatol. Online J. 2014;20:3. doi: 10.5070/D3207023131.
- 18.Luca T., Di Benedetto G., Scuderi M.R., Palumbo M., Clementi S., Bernardini R., Cantarella G. The CB1/CB2 receptor agonist WIN-55,212-2 reduces viability of human Kaposi’s sarcoma cells in vitro. Eur. J. Pharmacol. 2009;616:16–21. doi: 10.1016/j.ejphar.2009.06.004.
- 19.Maor Y., Yu J., Kuzontkoski P.M., Dezube B.J., Zhang X., Groopman J.E. Cannabidiol inhibits growth and induces programmed cell death in kaposi sarcoma-associated herpesvirus-infected endothelium. Genes Cancer. 2012;3:512–520. doi: 10.1177/1947601912466556.
- 20.Donvito G., Nass S.R., Wilkerson J.L., Curry Z.A., Schurman L.D., Kinsey S.G., Lichtman A.H. The Endogenous Cannabinoid System: A Budding Source of Targets for Treating Inflammatory and Neuropathic Pain. Neuropsychopharmacology. 2018;43:52–79. doi: 10.1038/npp.2017.204.
- 21.Bridges D., Ahmad K., Rice A.S. The synthetic cannabinoid WIN55,212-2 attenuates hyperalgesia and allodynia in a rat model of neuropathic pain. Br. J. Pharmacol. 2001;133:586–594. doi: 10.1038/sj.bjp.0704110.
- 22.Lynch M.E., Ware M.A. Cannabinoids for the Treatment of Chronic Non-Cancer Pain: An Updated Systematic Review of Randomized Controlled Trials. J. Neuroimmune Pharmacol. 2015;10:293–301. doi: 10.1007/s11481-015-9600-6.
- 23.Whiting P.F., Wolff R.F., Deshpande S., Di Nisio M., Duffy S., Hernandez A.V., Keurentjes J.C., Lang S., Misso K., Ryder S., et al. Cannabinoids for Medical Use: A Systematic Review and Meta-analysis. JAMA. 2015;313:2456–2473. doi: 10.1001/jama.2015.6358.
- 24.Russo E.B., Guy G.W., Robson P.J. Cannabis, pain, and sleep: Lessons from therapeutic clinical trials of Sativex, a cannabis-based medicine. Chem. Biodivers. 2007;4:1729–1743. doi: 10.1002/cbdv.200790150.
- 25.Thomas A., Baillie G.L., Phillips A.M., Razdan R.K., Ross R.A., Pertwee R.G. Cannabidiol displays unexpectedly high potency as an antagonist of CB1 and CB2 receptor agonists in vitro. Br. J. Pharmacol. 2007;150:613–623. doi: 10.1038/sj.bjp.0707133.
- 26.Brooks J.P., Malic C.C., Judkins K.C. Scratching the surface—Managing the itch associated with burns: A review of current knowledge. Burns. 2008;34:751–760. doi: 10.1016/j.burns.2007.11.015.
- 27.Patel T., Yosipovitch G. The management of chronic pruritus in the elderly. Skin Therapy Lett. 2010;15:5–9.
- 28.Ständer S., Weisshaar E., Luger T.A. Neurophysiological and neurochemical basis of modern pruritus treatment. Exp. Dermatol. 2008;17:161–169. doi: 10.1111/j.1600-0625.2007.00664.x.
- 29.Reich A., Ständer S., Szepietowski J.C. Pruritus in the elderly. Clin. Dermatol. 2011;29:15–23. doi: 10.1016/j.clindermatol.2010.07.002.
- 30.Kupczyk P., Reich A., Szepietowski J.C. Cannabinoid system in the skin—A possible target for future therapies in dermatology. Exp. Dermatol. 2009;18:669–679. doi: 10.1111/j.1600-0625.2009.00923.x.
- 31.Feramisco J.D., Berger T.G., Steinhoff M. Innovative management of pruritus. Dermatol. Clin. 2010;28:467–478. doi: 10.1016/j.det.2010.03.004.
- 32.Visse K., Blome C., Phan N.Q., Augustin M., Ständer S. Efficacy of Body Lotion Containing N-palmitoylethanolamine in Subjects with Chronic Pruritus due to Dry Skin: A Dermatocosmetic Study. Acta Derm. Venereol. 2017;97:639–641. doi: 10.2340/00015555-2593.
- 33.Milando R., Friedman A. Cannabinoids: Potential Role in Inflammatory and Neoplastic Skin Diseases. Am. J. Clin. Dermatol. 2019;20:167–180. doi: 10.1007/s40257-018-0410-5.
- 34.Hwang Y.S., Kim Y.J., Kim M.O., Kang M., Oh S.W., Nho Y.H., Park S.H., Lee J. Cannabidiol upregulates melanogenesis through CB1 dependent pathway by activating p38 MAPK and p42/44 MAPK. Chem. Biol. Interact. 2017;273:107–114. doi: 10.1016/j.cbi.2017.06.005.
- 35.Holland M.L., Allen J.D., Arnold J.C. Interaction of plant cannabinoids with the multidrug transporter ABCC1 (MRP1) Eur. J. Pharmacol. 2008;591:128–131. doi: 10.1016/j.ejphar.2008.06.079.
- 36.Juknat A., Pietr M., Kozela E., Rimmerman N., Levy R., Coppola G., Geschwind D., Vogel Z. Differential transcriptional profiles mediated by exposure to the cannabinoids cannabidiol and Δ9-tetrahydrocannabinol in BV-2 microglial cells. Br. J. Pharmacol. 2012;165:2512–2528. doi: 10.1111/j.1476-5381.2011.01461.x.
- 37.Juknat A., Pietr M., Kozela E., Rimmerman N., Levy R., Gao F., Coppola G., Geschwind D., Vogel Z. Microarray and pathway analysis reveal distinct mechanisms underlying cannabinoid-mediated modulation of LPS-induced activation of BV-2 microglial cells. PLoS ONE. 2013;8:e61462. doi: 10.1371/journal.pone.0061462.
- 38.Casares L., García V., Garrido-Rodríguez M., Millán E., Collado J.A., García-Martín A., Peñarando J., Calzado M.A., de la Vega L., Muñoz E. Cannabidiol induces antioxidant pathways in keratinocytes by targeting BACH1. Redox Biol. 2020;28:101321. doi: 10.1016/j.redox.2019.101321.
- 39.Atalay S., Jarocka-Karpowicz I., Skrzydlewska E. Antioxidative and Anti-Inflammatory Properties of Cannabidiol. Antioxidants. 2019;9:21. doi: 10.3390/antiox9010021.
- 40.Gęgotek A., Atalay S., Domingues P., Skrzydlewska E. The Differences in the Proteome Profile of Cannabidiol-Treated Skin Fibroblasts following UVA or UVB Irradiation in 2D and 3D Cell Cultures. Cells. 2019;8:995. doi: 10.3390/cells8090995.
- 41.Ramot Y., Oláh A., Paus R. Cover Image: Neuroendocrine treatment of inherited keratin disorders by cannabinoids? Br. J. Dermatol. 2018;178:1469. doi: 10.1111/bjd.16570.
- 42.Chelliah M.P., Zinn Z., Khuu P., Teng J.M.C. Self-initiated use of topical cannabidiol oil for epidermolysis bullosa. Pediatr. Dermatol. 2018;35:e224–e227. doi: 10.1111/pde.13545.
- 43.Sangiovanni E., Fumagalli M., Pacchetti B., Piazza S., Magnavacca A., Khalilpour S., Melzi G., Martinelli G., Dell’Agli M. Cannabis sativa L. extract and cannabidiol inhibit in vitro mediators of skin inflammation and wound injury. Phytother. Res. 2019;33:2083–2093. doi: 10.1002/ptr.6400.
- 44.Palmieri B., Laurino C., Vadalà M. A therapeutic effect of cbd-enriched ointment in inflammatory skin diseases and cutaneous scars. Clin. Ter. 2019;170:e93–e99. doi: 10.7417/ct.2019.2116.
- 45.Martinelli G., Magnavacca A., Fumagalli M., Dell’Agli M., Piazza S., Sangiovanni E. Cannabis sativa and Skin Health: Dissecting the Role of Phytocannabinoids. Planta Med. 2022;88:492–506. doi: 10.1055/a-1420-5780.
- 46.Appendino G., Gibbons S., Giana A., Pagani A., Grassi G., Stavri M., Smith E., Rahman M.M. Antibacterial cannabinoids from Cannabis sativa: A structure-activity study. J. Nat. Prod. 2008;71:1427–1430. doi: 10.1021/np8002673.
- 47.Wassmann C.S., Højrup P., Klitgaard J.K. Cannabidiol is an effective helper compound in combination with bacitracin to kill Gram-positive bacteria. Sci. Rep. 2020;10:4112. doi: 10.1038/s41598-020-60952-0.
- 48.Lodzki M., Godin B., Rakou L., Mechoulam R., Gallily R., Touitou E. Cannabidiol-transdermal delivery and anti-inflammatory effect in a murine model. J. Control. Release. 2003;93:377–387. doi: 10.1016/j.jconrel.2003.09.001.
- 49.Hammell D.C., Zhang L.P., Ma F., Abshire S.M., McIlwrath S.L., Stinchcomb A.L., Westlund K.N. Transdermal cannabidiol reduces inflammation and pain-related behaviours in a rat model of arthritis. Eur. J. Pain. 2016;20:936–948. doi: 10.1002/ejp.818.
- 50.Heuschkel S., Goebel A., Neubert R.H. Microemulsions—Modern colloidal carrier for dermal and transdermal drug delivery. J. Pharm. Sci. 2008;97:603–631. doi: 10.1002/jps.20995.
- 51.Subramanian N., Ghosal S.K., Moulik S.P. Enhanced in vitro percutaneous absorption and in vivo anti-inflammatory effect of a selective cyclooxygenase inhibitor using microemulsion. Drug Dev. Ind. Pharm. 2005;31:405–416. doi: 10.1080/03639040500214605.
- 52.Theochari I., Mitsou E., Nikolic I., Ilic T., Dobricic V., Pletsa V., Savic S., Xenakis A., Papadimitriou V. Colloidal nanodispersions for the topical delivery of Ibuprofen: Structure, dynamics and bioperformances. J. Mol. Liq. 2021;334:116021. doi: 10.1016/j.molliq.2021.116021.
- 53.Wang Q., Zhang H., Huang J., Xia N., Li T., Xia Q. Self-double-emulsifying drug delivery system incorporated in natural hydrogels: A new way for topical application of vitamin C. J. Microencapsul. 2018;35:90–101. doi: 10.1080/02652048.2018.1425752.
- 54.Bremmell K.E., Briskey D., Meola T.R., Mallard A., Prestidge C.A., Rao A. A self-emulsifying Omega-3 ethyl ester formulation (AquaCelle) significantly improves eicosapentaenoic and docosahexaenoic acid bioavailability in healthy adults. Eur. J. Nutr. 2020;59:2729–2737. doi: 10.1007/s00394-019-02118-x.
- 55.Briskey D., Sax A.T., Mallard A.R., Ng C., Rao A. The impact of micelle size and increased absorption of ubiquinone using a novel delivery system (AquaCelle®) Int. J. Pharmacokinet. 2019;4:IPK02. doi: 10.4155/ipk-2019-0004.
- 56.Hosny K.M., Alhakamy N.A., Almodhwahi M.A., Kurakula M., Almehmady A.M., Elgebaly S.S. Self-Nanoemulsifying System Loaded with Sildenafil Citrate and Incorporated within Oral Lyophilized Flash Tablets: Preparation, Optimization, and In Vivo Evaluation. Pharmaceutics. 2020;12:1124. doi: 10.3390/pharmaceutics12111124.
- 57.Hu C., Wang Q., Zhao G., Yao W., Xia Q. Improved oral absorption of (−)-epigallocatechin-3-gallate via self-double-emulsifying solid formulation. Eur. J. Lipid Sci. Technol. 2016;118:1115–1124. doi: 10.1002/ejlt.201500316.
- 58.Lopez-Toledano M.A., Thorsteinsson T., Daak A., Maki K.C., Johns C., Rabinowicz A.L., Sancilio F.D. A Novel ω-3 Acid Ethyl Ester Formulation Incorporating Advanced Lipid Technologies(TM) (ALT(®)) Improves Docosahexaenoic Acid and Eicosapentaenoic Acid Bioavailability Compared with Lovaza(®) Clin. Ther. 2017;39:581–591. doi: 10.1016/j.clinthera.2017.01.020.
- 59.Pravst I., Rodríguez Aguilera J.C., Cortes Rodriguez A.B., Jazbar J., Locatelli I., Hristov H., Žmitek K. Comparative Bioavailability of Different Coenzyme Q10 Formulations in Healthy Elderly Individuals. Nutrients. 2020;12:784. doi: 10.3390/nu12030784.
- 60.Vasconcelos T., Araújo F., Lopes C., Loureiro A., das Neves J., Marques S., Sarmento B. Multicomponent self nano emulsifying delivery systems of resveratrol with enhanced pharmacokinetics profile. Eur. J. Pharm. Sci. Off. J. Eur. Fed. Pharm. Sci. 2019;137:105011. doi: 10.1016/j.ejps.2019.105011.
- 61.Wang Q., Huang J., Hu C., Xia N., Li T., Xia Q. Stabilization of a non-aqueous self-double-emulsifying delivery system of rutin by fat crystals and nonionic surfactants: Preparation and bioavailability study. Food Funct. 2017;8:2512–2522. doi: 10.1039/C7FO00439G.
- 62.Wu X., Xu J., Huang X., Wen C. Self-microemulsifying drug delivery system improves curcumin dissolution and bioavailability. Drug Dev. Ind. Pharm. 2011;37:15–23. doi: 10.3109/03639045.2010.489560.
- 63.Bekerman T., Golenser J., Domb A. Cyclosporin nanoparticulate lipospheres for oral administration. J. Pharm. Sci. 2004;93:1264–1270. doi: 10.1002/jps.20057.
- 64.Cho H.T., Salvia-Trujillo L., Kim J., Park Y., Xiao H., McClements D.J. Droplet size and composition of nutraceutical nanoemulsions influences bioavailability of long chain fatty acids and Coenzyme Q10. Food Chem. 2014;156:117–122. doi: 10.1016/j.foodchem.2014.01.084.
- 65.Gao Z.-G., Choi H.-G., Shin H.-J., Park K.-M., Lim S.-J., Hwang K.-J., Kim C.-K. Physicochemical characterization and evaluation of a microemulsion system for oral delivery of cyclosporin A. Int. J. Pharm. 1998;161:75–86. doi: 10.1016/S0378-5173(97)00325-6.
- 66.Redzuan M., Bustami Effendi T.J., Majeed A. Enhanced Oral Bioavailability of Astaxanthin with Droplet Size Reduction. Food Sci. Technol. Res. 2012;18:549–554. doi: 10.3136/fstr.18.549.
- 67.Millar S.A., Maguire R.F., Yates A.S., O’Sullivan S.E. Towards Better Delivery of Cannabidiol (CBD) Pharmaceuticals. 2020;13:219. doi: 10.3390/ph13090219.
- 68.Ozaki A., Muromachi A., Sumi M., Sakai Y., Morishita K., Okamoto T. Emulsification of coenzyme Q10 using gum arabic increases bioavailability in rats and human and improves food-processing suitability. J. Nutr. Sci. Vitaminol. 2010;56:41–47. doi: 10.3177/jnsv.56.41.
- 69.Pouton C.W. Lipid formulations for oral administration of drugs: Non-emulsifying, self-emulsifying and ‘self-microemulsifying’ drug delivery systems. Eur. J. Pharm. Sci. Off. J. Eur. Fed. Pharm. Sci. 2000;11((Suppl. S2)):S93–S98. doi: 10.1016/S0928-0987(00)00167-6.
- 70.Singh A.K., Chaurasiya A., Awasthi A., Mishra G., Asati D., Khar R.K., Mukherjee R. Oral bioavailability enhancement of exemestane from self-microemulsifying drug delivery system (SMEDDS) AAPS PharmSciTech. 2009;10:906–916. doi: 10.1208/s12249-009-9281-7.
- 71.Tarr B.D., Yalkowsky S.H. Enhanced intestinal absorption of cyclosporine in rats through the reduction of emulsion droplet size. Pharm. Res. 1989;6:40–43. doi: 10.1023/A:1015843517762.
- 72.Yap S.P., Yuen K.H. Influence of lipolysis and droplet size on tocotrienol absorption from self-emulsifying formulations. Int. J. Pharm. 2004;281:67–78. doi: 10.1016/j.ijpharm.2004.05.015.
- 73.Zheng B., McClements D.J. Formulation of More Efficacious Curcumin Delivery Systems Using Colloid Science: Enhanced Solubility, Stability, and Bioavailability. Molecules. 2020;25:2791. doi: 10.3390/molecules25122791.
- 74.Nishimura A., Yanagawa H., Fujikawa N., Kiriyama A., Shibata N. Pharmacokinetic Profiles of Coenzyme Q 10: Absorption of Three Different Oral Formulations in Rats. J. Health Sci. 2009;55:540–548. doi: 10.1248/jhs.55.540.
- 75.Liu Z.X., Artmann C. Relative bioavailability comparison of different coenzyme Q10 formulations with a novel delivery system. Altern. Ther. Health Med. 2009;15:42–46.
- 76.Yang S., Gursoy R.N., Lambert G., Benita S. Enhanced oral absorption of paclitaxel in a novel self-microemulsifying drug delivery system with or without concomitant use of P-glycoprotein inhibitors. Pharm. Res. 2004;21:261–270. doi: 10.1023/B:PHAM.0000016238.44452.f1.
- 77.Thompson B., Waterhouse M., English D.R., McLeod D.S., Armstrong B.K., Baxter C., Duarte Romero B., Ebeling P.R., Hartel G., Kimlin M.G., et al. Vitamin D supplementation and major cardiovascular events: D-Health randomised controlled trial. BMJ. 2023;381:e075230. doi: 10.1136/bmj-2023-075230.
- 78.Mödinger Y., Knaub K., Dharsono T., Wacker R., Meyrat R., Land M.H., Petraglia A.L., Schön C. Enhanced Oral Bioavailability of β-Caryophyllene in Healthy Subjects Using the VESIsorb(®) Formulation Technology, a Novel Self-Emulsifying Drug Delivery System (SEDDS) Molecules. 2022;27:2860. doi: 10.3390/molecules27092860.
- 79.Knaub K., Sartorius T., Dharsono T., Wacker R., Wilhelm M., Schön C. A Novel Self-Emulsifying Drug Delivery System (SEDDS) Based on VESIsorb® Formulation Technology Improving the Oral Bioavailability of Cannabidiol in Healthy Subjects. Molecules. 2019;24:2967. doi: 10.3390/molecules24162967.
- 80.Baschong W., Hüglin D., Röding J.F. D-panthenol loaded nanotopes providing enhanced anti-inflammatory efficacy: A study on human volunteers. SÖFW-J. 1999;125:18–20.
- 81.Baschong W.e.a., Artmann C., Röding J. Comparison of skin moisturization attained by supplementing the NMF in the skin or by applying water binding molecules on the skin surface. SÖFW-J. 1999;126:2–4.
- 82.Nosch D.S., Joos R.E., Job M. Prospective randomized study to evaluate the efficacy and tolerability of Ectoin® containing Eye Spray (EES09) and comparison to the liposomal Eye Spray Tears Again® (TA) in the treatment of dry eye disease. Cont. Lens. Anterior. Eye. 2021;44:101318. doi: 10.1016/j.clae.2020.04.003.
- 83.EMA Guideline on Bioanalytical Method Validation. [(accessed on 8 July 2022)]. Available online: https://www.ema.europa.eu/en/documents/scientific-guideline/guideline-bioanalytical-method-validation_en.pdf.
- 84.ICH ICH M10 on Bioanalytical Method Validation. [(accessed on 11 July 2022)]. Available online: https://www.ema.europa.eu/en/ich-m10-bioanalytical-method-validation#current-version-section.
- 85.Koch N., Jennotte O., Gasparrini Y., Vandenbroucke F., Lechanteur A., Evrard B. Cannabidiol aqueous solubility enhancement: Comparison of three amorphous formulations strategies using different type of polymers. Int. J. Pharm. 2020;589:119812. doi: 10.1016/j.ijpharm.2020.119812.
- 86.Rodd A.B., Dunstan D.E., Boger D.V. Characterisation of xanthan gum solutions using dynamic light scattering and rheology. Carbohydr. Polym. 2000;42:159–174. doi: 10.1016/S0144-8617(99)00156-3.
- 87.Bernkop-Schnürch A., Jalil A. Do drug release studies from SEDDS make any sense? J. Control. Release. 2018;271:55–59. doi: 10.1016/j.jconrel.2017.12.027.
- 88.del Río-Sancho S., Lapteva M., Sonaje K., Böhler C., Ling V., Boehncke W.-H., Kalia Y.N. Targeted cutaneous delivery of etanercept using Er:YAG fractional laser ablation. Int. J. Pharm. 2020;580:119234. doi: 10.1016/j.ijpharm.2020.119234.
- 89.OECD Guidance Notes On Dermal Absorption. [(accessed on 10 August 2023)]. Available online: https://www.oecd.org/chemicalsafety/testing/48532204.pdf.
- 90.Kandekar S.G., Singhal M., Sonaje K.B., Kalia Y.N. Polymeric micelle nanocarriers for targeted epidermal delivery of the hedgehog pathway inhibitor vismodegib: Formulation development and cutaneous biodistribution in human skin. Expert Opin. Drug Deliv. 2019;16:667–674. doi: 10.1080/17425247.2019.1609449.
- 91.Lapteva M., Mignot M., Mondon K., Möller M., Gurny R., Kalia Y.N. Self-assembled mPEG-hexPLA polymeric nanocarriers for the targeted cutaneous delivery of imiquimod. Eur. J. Pharm. Biopharm. 2019;142:553–562. doi: 10.1016/j.ejpb.2019.01.008.
- 92.Lapteva M., Mondon K., Möller M., Gurny R., Kalia Y.N. Polymeric micelle nanocarriers for the cutaneous delivery of tacrolimus: A targeted approach for the treatment of psoriasis. Mol. Pharm. 2014;11:2989–3001. doi: 10.1021/mp400639e.
- 93.Quartier J., Capony N., Lapteva M., Kalia Y.N. Cutaneous Biodistribution: A High-Resolution Methodology to Assess Bioequivalence in Topical Skin Delivery. Pharmaceutics. 2019;11:484. doi: 10.3390/pharmaceutics11090484.
- 94.Quartier J., Lapteva M., Boulaguiem Y., Guerrier S., Kalia Y.N. Polymeric micelle formulations for the cutaneous delivery of sirolimus: A new approach for the treatment of facial angiofibromas in tuberous sclerosis complex. Int. J. Pharm. 2021;604:120736. doi: 10.1016/j.ijpharm.2021.120736.
- 95.Casiraghi A., Musazzi U.M., Centin G., Franzè S., Minghetti P. Topical Administration of Cannabidiol: Influence of Vehicle-Related Aspects on Skin Permeation Process. Pharmaceuticals. 2020;13:337. doi: 10.3390/ph13110337.
- 96.Franzè S., Angelo L., Casiraghi A., Minghetti P., Cilurzo F. Design of Liposomal Lidocaine/Cannabidiol Fixed Combinations for Local Neuropathic Pain Treatment. Pharmaceutics. 2022;14:1915. doi: 10.3390/pharmaceutics14091915.
- 97.Stinchcomb A.L., Valiveti S., Hammell D.C., Ramsey D.R. Human skin permeation of Delta8-tetrahydrocannabinol, cannabidiol and cannabinol. J. Pharm. Pharmacol. 2004;56:291–297. doi: 10.1211/0022357022791.
- 98.Junaid M.S.A., Tijani A.O., Puri A., Banga A.K. In vitro percutaneous absorption studies of cannabidiol using human skin: Exploring the effect of drug concentration, chemical enhancers, and essential oils. Int. J. Pharm. 2022;616:121540. doi: 10.1016/j.ijpharm.2022.121540.
- 99.Mahmoudinoodezh H., Telukutla S.R., Bhangu S.K., Bachari A., Cavalieri F., Mantri N. The Transdermal Delivery of Therapeutic Cannabinoids. Pharmaceutics. 2022;14:438. doi: 10.3390/pharmaceutics14020438.
- 100.Scholfield C.N., Waranuch N., Kongkaew C. Systematic Review on Transdermal/Topical Cannabidiol Trials: A Reconsidered Way Forward. Cannabis. Cannabinoid. Res. 2022;8:589–602. doi: 10.1089/can.2021.0154.
- 101.Paudel K.S., Hammell D.C., Agu R.U., Valiveti S., Stinchcomb A.L. Cannabidiol bioavailability after nasal and transdermal application: Effect of permeation enhancers. Drug Dev. Ind. Pharm. 2010;36:1088–1097. doi: 10.3109/03639041003657295.
- 102.Varadi G., Zhu Z., Crowley H.D., Moulin M., Dey R., Lewis E.D., Evans M. Examining the Systemic Bioavailability of Cannabidiol and Tetrahydrocannabinol from a Novel Transdermal Delivery System in Healthy Adults: A Single-Arm, Open-Label, Exploratory Study. Adv. Ther. 2023;40:282–293. doi: 10.1007/s12325-022-02345-5.
- 103.Sivesind T.E., Maghfour J., Rietcheck H., Kamel K., Malik A.S., Dellavalle R.P. Cannabinoids for the Treatment of Dermatologic Conditions. JID Innov. 2022;2:100095. doi: 10.1016/j.xjidi.2022.100095.
- 104.Layton C., Runco J., Aubin A. WATERS Application Note: Forced Degradation of Cannabidiol. 2016. [(accessed on 11 July 2022)]. Available online: https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&cad=rja&uact=8&ved=2ahUKEwi0rtrM5vD4AhUOhYkEHXgRAsIQFnoECAMQAQ&url=https%3A%2F%2Fwww.waters.com%2Fwebassets%2Fcms%2Flibrary%2Fdocs%2F720005766en.pdf&usg=AOvVaw19pmcHPitJSQyXq4FJe6Rm.
Associated Data
Supplementary Materials
Data Availability Statement
The data presented in this study are available on request from the corresponding author.
