Dear editor,

The unprecedented pandemic of COVID-19 has created worldwide shortages of personal protective equipment, in particular respiratory protection such as N95 respirators(1). SARS-CoV-2 transmission is frequently occurring in hospital settings, with numerous reported cases of nosocomial transmission highlighting the vulnerability of healthcare workers(2). The environmental stability of SARS-CoV-2 underscores the need for rapid and effective decontamination methods. In general, N95 respirators are designed for single use prior to disposal. Extensive literature is available for decontamination procedures for N95 respirators, using either bacterial spore inactivation tests, bacteria or respiratory viruses (e.g. influenza A virus)(3-6). Effective inactivation methods for these pathogens and surrogates include UV, ethylene oxide, vaporized hydrogen peroxide (VHP), gamma irradiation, ozone and dry heat(3-7). The filtration efficiency and N95 respirator fit has typically been less well explored, but suggest that both filtration efficiency and N95 respirator fit can be affected by the decontamination method used(7, 8). For a complete list of references see supplemental information.

Here, we analyzed four different decontamination methods – UV radiation (260 – 285 nm), 70°C dry heat, 70% ethanol and vaporized hydrogen peroxide (VHP) – for their ability to reduce contamination with infectious SARS-CoV-2 and their effect on N95 respirator function. For each of the decontamination methods, we compared the normal inactivation rate of SARS-CoV-2 on N95 filter fabric to that on stainless steel, and we used quantitative fit testing to measure the filtration performance of the N95 respirators after each decontamination run and 2 hours of wear, for three consecutive decontamination and wear sessions (see supplemental information). VHP and ethanol yielded extremely rapid inactivation both on N95 and on stainless steel (Figure 1A). UV inactivated SARS-CoV-2 rapidly from steel but more slowly on N95 fabric, likely due its porous nature. Heat caused more rapid inactivation on N95 than on steel; inactivation rates on N95 were comparable to UV.

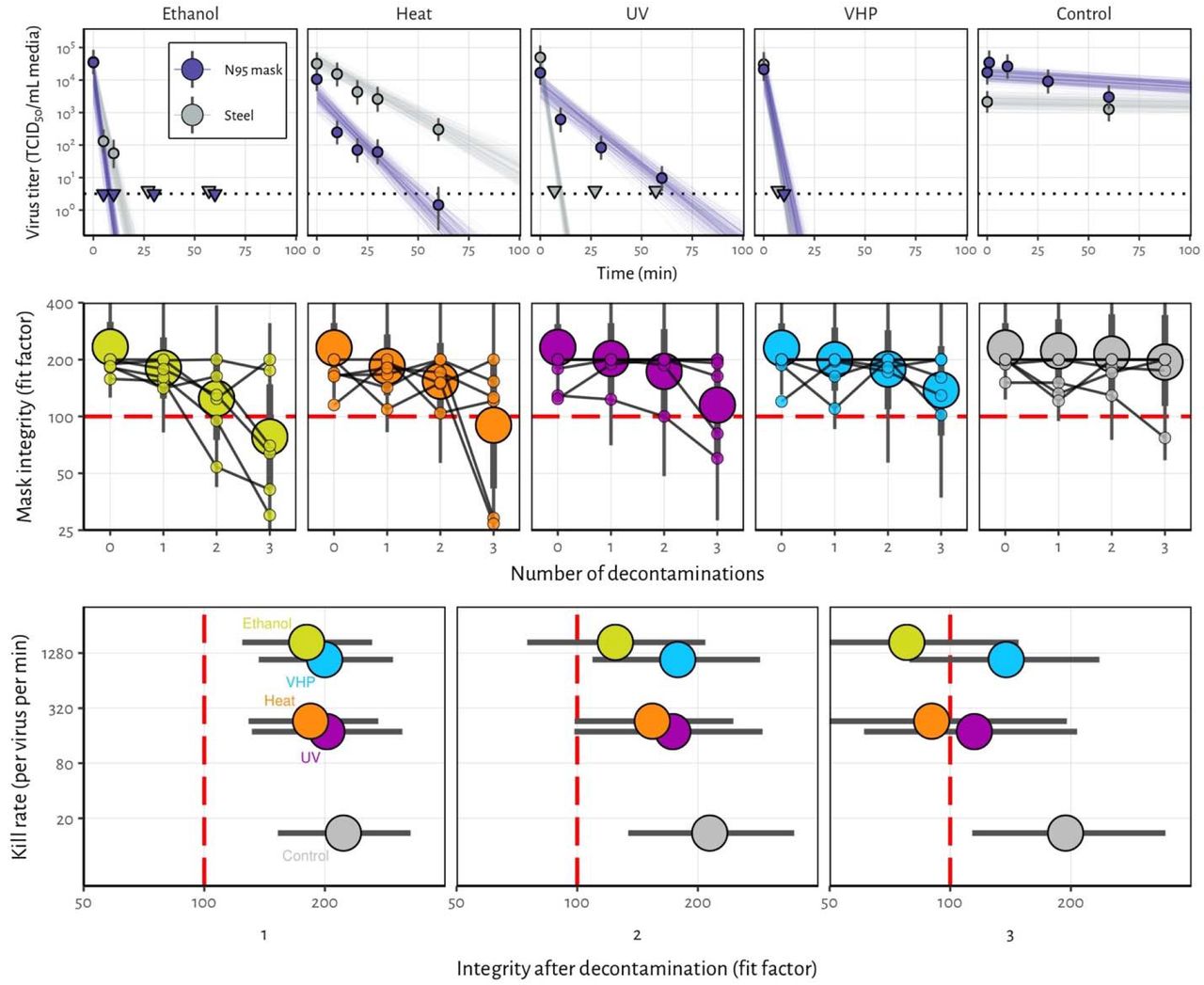

Quantitative fit tests showed that the filtration performance of the N95 respirator was not markedly reduced after a single decontamination for any of the four decontamination methods (Figure 1B). Subsequent rounds of decontamination caused sharp drops in filtration performance of the ethanol-treated masks, and to a slightly lesser degree, the heat-treated masks. The VHP and UV treated masks retained comparable filtration performance to the control group after two rounds of decontamination, and maintained acceptable performance after three rounds.

Taken together, our findings show that VHP treatment exhibits the best combination of rapid inactivation of SARS-CoV-2 and preservation of N95 respirator integrity, under the experimental conditions used here (Figure 1C). UV radiation kills the virus more slowly and preserves comparable respirator function. 70°C dry heat kills with similar speed to UV and is likely to maintain acceptable fit scores for two rounds of decontamination. Ethanol decontamination is not recommended due to loss of N95 integrity, echoing earlier findings⁵.

All treatments, particularly UV and dry heat, should be conducted for long enough to ensure that a sufficient reduction in virus concentration has been achieved. The degree of required reduction will depend upon the degree of initial virus contamination. Policymakers can use our estimated decay rates together with estimates of real-world contamination to choose appropriate treatment durations (see supplemental information).

Our results indicate that N95 respirators can be decontaminated and re-used in times of shortage for up to three times for UV and HPV, and up to two times for dry heat. However, utmost care should be given to ensure the proper functioning of the N95 respirator after each decontamination using readily available qualitative fit testing tools and to ensure that treatments are carried out for sufficient time to achieve desired risk-reduction. It will therefore be critical that FDA, CDC and OSHA guidelines with regards to fit testing, seal check and respirator re-use are followed(9, 10).

Supplemental methods

Short literature review on mask decontamination

The COVID-19 pandemic has highlighted the necessity for large-scale decontamination procedures for personal protective equipment (PPE), in particular N95 respirator masks(1). SARS-CoV-2 has frequently been detected on PPE of healthcare workers(11). The environmental stability of SARS-CoV-2 underscores the need for rapid and effective decontamination methods(12). Extensive literature is available for decontamination procedures for N95 respirators, using either bacterial spore inactivation tests, bacteria or respiratory viruses (e.g. influenza A virus)(3-6, 9, 13-15). Effective inactivation methods for these pathogens and surrogates include UV, ethylene oxide, vaporized hydrogen peroxide (VHP), gamma irradiation, ozone and dry heat(4, 5, 7, 9, 14-16). The filtration efficiency and N95 respirator fit has typically been less well explored, but suggest that both filtration efficiency and N95 respirator fit can be affected by the decontamination method used(7, 8). It will therefore be critical that FDA, CDC and OSHA guidelines with regards to fit testing, seal check and respirator re-use are followed(9, 17-20).

Laboratory experiments

Viruses and titration

HCoV-19 nCoV-WA1-2020 (MN985325.1) was the SARS-CoV-2 strain used in our comparison(21). Virus was quantified by end-point titration on Vero E6 cells as described previously(22). Virus titrations were performed by end-point titration in Vero E6 cells. Cells were inoculated with 10-fold serial dilutions in four-fold of samples taken from N95 mask and stainless steel surfaces (see below). One hour after inoculation of cells, the inoculum was removed and replaced with 100 µl (virus titration) DMEM (Sigma-Aldrich) supplemented with 2% fetal bovine serum, 1 mM L-glutamine, 50 U/ml penicillin and 50 µg/ml streptomycin. Six days after inoculation, cytopathogenic effect was scored and the TCID₅₀ was calculated (see below). Wells presenting cytopathogenic effects due to media toxicity (e.g., due to the presence of ethanol or hydrogen peroxide) rather than viral infection were removed from the titer inference procedure.

N95 and stainless steel surface

N95 material discs were made by punching 9/16” (15 mm) fabric discs from N95 respirators, AOSafety N9504C respirators (Aearo Company Southbridge, MA). The stainless steel 304 alloy discs were purchased from Metal Remnants (https://metalremnants.com/) as described previously. 50 µL of SARS-CoV-2 was spotted onto each disc. A 0 time-point measurement was taken prior to exposing the discs to the disinfection treatment. At each sampling time-point, discs were rinsed 5 times by passing the medium over the stainless steel or through the N95 disc. The medium was transferred to a vial and frozen at −80°C until titration. All experimental conditions were performed in triplicate.

Decontamination methods

Ultraviolet light

Plates with fabric and steel discs were placed under an LED high power UV germicidal lamp (effective UV wavelength 260-285nm) without the titanium mesh plate (LEDi2, Houston, Tx) 50 cm from the UV source. At 50 cm the UVC power was measured by the manufacturer at 550 µW/cm². Plates were removed at 10, 30 and 60 minutes and 1 mL of cell culture medium added. The energy the discs were exposed to at 10, 30 and 60 min is 0.33 J/cm², 0.99 J/cm², and 1.98 J/cm² respectively. While the CDC has no specific recommendations on the minimum dose, they do report that a 1 J/cm2 dose can reduce tested viable viral loads by 99.9%⁴.

Heat treatment

Plates with fabric and steel discs were placed in a 70°C oven. Plates were removed at 10, 20, 30 and 60 minutes and 1 mL of cell culture medium added.

70% ethanol

Fabric and steel discs were placed into the wells of one 24 well plate per time-point and sprayed with 70% ethanol to saturation. The plate was tipped to near vertical and 5 passes of ethanol were sprayed onto the discs from approximately 10 cm. After 10 minutes, 1 mL of cell culture medium was added.

VHP

Plates with fabric and steel discs were placed into a Panasonic MCO-19AIC-PT (PHC Corp. of North America Wood Dale, IL) incubator with VHP generation capabilities and exposed to hydrogen peroxide (approximately 1000 ppm). The exposure to VHP was 7 minutes, after the inactivation of the hydrogen peroxide, the plate was removed and 1 mL of cell culture medium was added.

Control

Plates with fabric and steel discs and steel plates were maintained at 21-23°C and 40% relative humidity for up to four days. After the designated time-points, 1 mL of cell culture medium was added.

N95 mask integrity testing

N95 Mask (3M™ Aura™ Particulate Respirator 9211+/37193) integrity testing after 2 hours of wear and decontamination, for three consecutive rounds, was performed for a total of 6 times for each decontamination condition and control condition. Masks were worn by subjects and integrity was quantitatively determined using the Portacount Respirator fit tester (TSI, 8038) with the N95 companion component, following the modified ambient aerosol condensation nuclei counter quantitative fit test protocol approved by the OSHA¹⁸. Subjects were asked to bend over for 40 seconds, talk for 50 seconds, move head from side-to-side for 50 seconds, and move head up-and-down for 50 seconds whilst aerosols on inside and outside of mask were measured. By convention, this fit test is passed when the final score is ≥100. For the N95 integrity testing, a Honeywell Mistmate humidifier (cat#HUL520B) was used for particle generation.

Statistical analyses

In the model notation that follows, the symbol ∼ denotes that a random variable is distributed according to the given distribution. Normal distributions are parametrized as Normal(mean, standard deviation). Positive-constrained normal distributions (“Half-Normal”) are parametrized as Half-Normal(mode, standard deviation). Normal distributions truncated to the interval [0, 1] are parameterized as TruncNormal(mode, standard deviation).

We use <Distribution Name>CDF(x | parameters) and <Distribution Name>CCDF to denote the cumulative distribution function and complementary cumulative distribution functions of a probability distribution, respectively. So for example NormalCDF(5 | 0, 1) is the value of the Normal(0, 1) cumulative distribution function at 5.

We use logit(x) and invlogit(x) to denote the logit and inverse logit functions, respectively:

Mean titer inference

We inferred mean titers across sets of replicates using a Bayesian model. The log₁₀ titers v_ijk (the titer for the sample from replicate k of time-point j of experiment i) were assumed to be normally distributed about a mean µ_ij with a standard deviation σ. We placed a very weakly informative normal prior on the log₁₀ mean titers µ_ij:

We placed a weakly informative normal prior on the standard deviation:

We then modeled individual positive and negative wells for sample ijk according to a Poisson single-hit model(23). That is, the number of virions that successfully infect cells in a given well is Poisson distributed with mean: where v is the log₁₀ virus titer in TCID₅₀, where v is the log₁₀ virus titer in TCID₅₀, and the well is infected if at least one virion successfully infects a cell. The value of the mean derives from the fact that our units are TCID₅₀; the probability of infection at v = 0, i.e. 1 TCID₅₀, is equal to 1 – e ^{-ln(2) × 1} = 0.5.

Let Y_ijkdl be a binary variable indicating whether the l^th well of dilution factor d (expressed as log₁₀ dilution factor) of sample ijk was positive (so Y_ijkdl = 1 if the well was positive and 0 otherwise), which will occur as long as at least one virion successfully infects a cell.

It follows from (5) that the conditional probability of observing Y_ijkdl = 1 given a true underlying titer log₁₀ titer v_ijk is given by:

Where is the expected concentration, measured in log₁₀ TCID₅₀, in the dilute sample. This is simply the probability that a Poisson random variable with mean (– ln(2) × 10^x) is greater than 0. Similarly, the conditional probability of observing Y_ijkdl = 0 given a true underlying titer log₁₀ titer v_ijk is given by: which is the probability that the Poisson random variable is 0.

This gives us our likelihood function, assuming independence of outcomes across wells.

Virus inactivation regression

The durations of detectability depend on the decontamination treatment but also initial inoculum and sampling method, as expected. We therefore estimated the decay rates of viable virus titers using a Bayesian regression analogous to that used in van Doremalen et al., 2020(12). This modeling approach allowed us to account for differences in initial inoculum levels across replicates as well as other sources of experimental noise. The model yields estimates of posterior distributions of viral decay rates and half-lives in the various experimental conditions – that is, estimates of the range of plausible values for these parameters given our data, with an estimate of the overall uncertainty(24).

Our data consist of 10 experimental conditions: 2 materials (N95 masks and stainless steel) by 5 treatments (no treatment, ethanol, heat, UV and VHP). Each has three replicates, and multiple time-points for each replicate. We analyze the two materials separately. For each, we denote by Y_ijkdl the positive or negative status (see above) for well l which has dilution d for the titer v_ijk from experimental condition i during replicate j at time-point k.

We model each replicate j for experimental condition i as starting with some true initial log₁₀ titer v_ij(0) = v_ij0. We assume that viruses in experimental condition i decay exponentially at a rate λ_i over time t. It follows that:

We use the direct-from-well data likelihood function described above, except that now instead of estimating titer distribution about a shared mean µ_ij we estimate λ_i under the assumptions that our observed well data Y_ijkdl reflect the titers v_ij(t).

Regression prior distributions

We place a weakly informative Normal prior distribution on the initial log₁₀ titers v_ij0 to rule out implausibly large or small values (e.g. in this case undetectable log₁₀ titers or log₁₀ titers much higher than the deposited concentration), while allowing the data to determine estimates within plausible ranges:

We placed a weakly informative Half-Normal prior on the exponential decay rates λ_i:

Our plated samples were of volume 0.1 mL, so inferred titers were incremented by 1 to convert to units of log₁₀ TCID₅₀/mL.

Mask integrity estimation

To quantify the decay of mask integrity after repeated decontamination, we used a logit-linear spline Bayesian regression to estimate the rate of degradation of mask fit factors over time, accounting for the fact that fit factors are interval-censored ratios. Fit factors are defined as the ratio of exterior concentration to interior concentration of a test aerosol. They are reported to the nearest integer, up to a maximum readout of 200, but arbitrarily large true fit factors are possible as the mask performance approaches perfect filtration.

We had 6 replicate masks j for each of 5 treatments i (no decontamination, ethanol, heat, UV and VHP). Each mask j was assessed for fit factor at 4 time-points k: before decontamination, and then after 1, 2, and 3 decontamination cycles. We label the control treatment i = 0. So we denote by F_ijk the fit factor for the j^th mask from the i^th treatment after k decontaminations (with k = 0 for the initial value).

We first converted fit factors F_ijk to the equivalent observed filtration rate Y_ijk by:

Observation model and likelihood function

We modeled the censored observation process as follows. logit(Y_ijk) values are observed with Gaussian error about the true filtration logit(p_ijk), with an unknown standard deviation σ_o, and then converted to fit factors, which are then censored:

Because our reported fit factors are known to be within integer values and right-censored at 200, for F_ijk ≥ 200 we have a conditional probability of observing the data given the parameters of

That is, we calculate the probability of observing a value of F greater than or equal to 200 (equivalent a value of Y greater than or equal to 1 – 1/200), given our parameters.

For 1.5 ≤ F_ijk < 200, we first calculate the upper and lower bounds of our observation Y⁺_ijk = 1 – 1 / (F_ijk – 0.5) and Y^–_ijk = 1 – 1 / (F_ijk – 0.5). Then:

That is, we calculate the probability of observing a value between Y⁺_ijk and Y^–_ijk, given our parameters.

Decay model

We assumed that each mask had some true initial filtration rate p_ij0. We assumed that these were logit-normally distributed about some unknown mean mask initial filtration rate p_avg with a standard deviation σ_p, that is:

We then assumed that the logit of the filtration rate, logit(p_ijk), decreased after each decontamination by a quantity d_0k + d_ik, where d_0k is natural degradation during the k^th trial in the absence of decontamination (i.e. the degradation rate in the control treatment, i = 0), and d_ik is the additional degrading effect of the k^th decontamination treatment of type i > 0). So for k = 1, 2, 3 and i > 0: where ε_ijk is a normally-distributed error term with an inferred standard deviation σ_εik for each treatment and decontamination level.

And for the control i = 0:

Model prior distributions

We placed a weakly informative Half-Normal prior on the control degradation rate d₀:

We placed a weakly informative Half-Normal prior on the non-control degradation rates d_i, i > 0: reflecting the conservative assumption that decontamination should degrade the mask at least somewhat.

We placed a Truncated Normal prior on the mean initial filtration p_avg:

The mode of 0.995 corresponds to the maximum measurable fit factor of 200. The standard deviation of 0.02 leaves it plausible that some masks could start near or below the minimum acceptable threshold fit factor of 100, which corresponds to a p of 0.99.

We placed weakly informative Half-Normal priors on the logit-space standard deviations σ_p, σ_εik, and σ_o. σ_p reflects variation in individual masks’ initial filtration about p_avg. The various σ_εik reflect variation in masks’ true degree of degradation between decontaminations about the expected degree of decay, and σ_o reflects noise in the observation process.

We chose standard deviations less than or equal to 0.5 for these normal hyperpriors because a standard deviation of 1.5 (i.e. 3 σ in the hyperprior) in logit space corresponds to probability values being uniformly distributed between 0 and 1; we therefore wish to tell our model not to use larger values of σ_p, σ_o, or σ_εik, as these would squash all p_ijk to one of two modes, one at 0 and one at 1(25).

Markov Chain Monte Carlo Methods

For all Bayesian models, we drew posterior samples using Stan (Stan Core Team 2018), which implements a No-U-Turn Sampler (a form of Markov Chain Monte Carlo), via its R interface RStan. We ran four replicate chains from random initial conditions for 2000 iterations, with the first 1000 iterations as a warmup/adaptation period. We saved the final 1000 iterations from each chain, giving us a total of 4000 posterior samples. We assessed convergence by inspecting trace plots and examining _RD and effective sample size (n_eff) statistics.

Limit of detection (LOD)

End-point titration has an approximate limit of detection set by the volume of the undilute sample deposited in each well. If all wells – including those containing undiluted sample – are negative and a Poisson single-hit model is used, the best guess is that the true titer lies somewhere below 1 TCID₅₀ / (volume of deposited sample). How far below is determined by the number of wells. For four wells, as was standard in our experiments, the first quarter log₁₀ titer at which 0 wells is the most likely outcome is 10^−0.5 TCID₅₀ per volume of sample. This is also the imputed Speaman-Karber titer in that case. Since we used samples of volume 0.1 mL, this corresponds to a value of 10^0.5 TCID₅₀/mL. So although we do not use the Spearman-Karber method here (since we infer mean titers directly from the well data) we use that LOD value to plot samples for which no replicate had a positive well (since the posterior distribution in that case covers a wide-range of sub-threshold values).

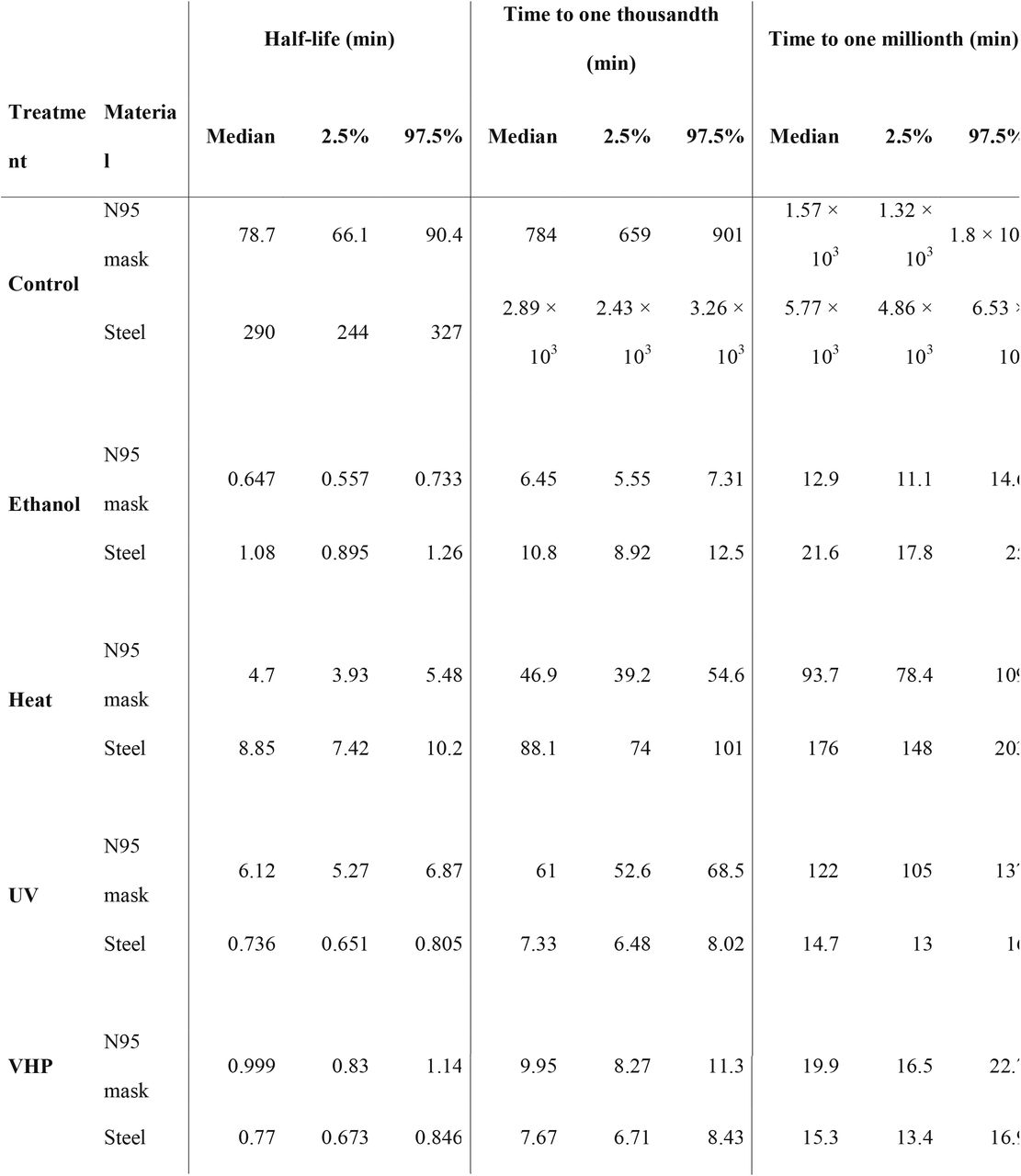

Supplemental table
