A Novel Technique to Characterize Klebsiella pneumoniae Populations Indicates that Mono-Colonization is Associated with Risk of Infection
Department of Microbiology and Immunology, University of Michigan Medical School, Ann Arbor, Michigan, USA
Department of Pathology, University of Michigan Medical School, Ann Arbor, Michigan, USA
Bioinformatics Core, University of Michigan Medical School, Ann Arbor, Michigan, USA
Department of Microbiology & Immunology, Indiana University School of Medicine, Indianapolis, Indiana, USA
Department of Computational Medicine and Bioinformatics, University of Michigan Medical School, Ann Arbor, Michigan, USA
Division of Infectious Diseases, Department of Internal Medicine, University of Michigan Medical School, Ann Arbor, Michigan, USA
#Corresponding author mikebach@med.umich.eduAbstract
Klebsiella pneumoniae and related species are a common cause of healthcare-associated infections. The gut is a major Klebsiella reservoir and gut colonization is a risk factor for developing an extraintestinal Klebsiella infection. Patients can be colonized by multiple Klebsiella strains or even species in the gut simultaneously, and there is high concordance between the gut colonizing- and infection causing-strains. The detection and characterization of colonizing strains is critical for a better understanding of the progression to infection and for developing interventions for colonized patients. However, the association between mixed or mono-colonization and subsequent infection is unknown. In this study, we developed an amplicon-based sequencing method called wzi-Seq that enables the detection and quantification of Klebsiella strains from complex samples and mixtures using the conserved capsule gene wzi as a molecular barcode. This method is highly accurate and precise with a sensitivity of 93% and specificity of 99.8% in mixtures containing as many as 58 unique wzi types. The assay was validated analytically and applied to an established case and control cohort. We determined that 63.2% (108/171) patients were mono-colonized with a single Klebsiella strain while 36.8% (63/171) had mixed colonization with multiple Klebsiella strains.
Controlling for patient variables in multivariate analysis, we determined that mono-colonization was significantly (p = 0.034) associated with infection. Characterization of Klebsiella colonizing populations could improve the accuracy of assessing infection risk and enable targeted interventions to prevent these healthcare-associated infections.
Importance
Klebsiella gut colonization is a major risk factor the development of extraintestinal Klebsiella infections in hospitalized settings. However, it is unknown if patients are colonized by one or multiple strains of Klebsiella and how the population structure of Klebsiella in the gut impacts infection risk. Here we describe the development of a novel technique, wzi-Seq, to detect and quantify multiple Klebsiella strains from complex samples using standard techniques and rapid DNA sequencing. We applied wzi-Seq to rectal swabs from a well-characterized patient cohort and found that Klebsiella colonization with a single strain was more prevalent than colonization with multiple strains. Furthermore, mono-colonized patients had a significantly higher risk of developing a Klebsiella infection than mixed colonized patients. This work validates a new tool to study Klebsiella populations and reveals that population structure in the gut influences the risk of healthcare associated infections.
Article notes
Competing Interest Statement
Dr. Vornhagen has consulted for Vedanta Biosciences, Inc. Dr. Rao has received an investigator-initiated grant from Merck & Co, Inc.; he has consulted for Seres Therapeutics, Inc., Rebiotix, Inc., Vedanta Biosciences, Inc., and Summit Therapeutics, Inc.
Summary of Updates:
Introduction
The Gram-negative bacterium Klebsiella pneumoniae (Kp) has become a pathogen of major concern due to increasing virulence, infections, and antibiotic resistance1,2. The rise in Kp antibiotic resistance is especially concerning as Kp has become the third highest cause of deaths attributable or associated to antimicrobial resistance globally3. Kp is part of a species complex (KpSC) of five closely related species and their subspecies: K. pneumoniae, K. variicola, K. quasipneumoniae, K. quasivariicola, and K. africana4. These species can colonize mucosal surfaces in the body such as the nasopharynx and gut and can cause pneumonia, urinary tract infections, and bacteremia5,6.
One of the primary Kp reservoirs is the gut with asymptomatic gut colonization rates typically ranging between 6-23% 7–10. Kp gut colonization is a major risk factor for the development of an extraintestinal Kp infection11,12. In approximately 80% of patients there is concordance between the gut colonizing and infection causing strain8,13. Colonization data is based typically on a few cultured rectal isolates per patient, preventing a clear understanding of colonizing Kp dynamics in patients. Even with this limited sampling, we occasionally observed that patients were colonized with more than one strain simultaneously13. The true incidence of mixed colonization in patients, and its impact on infection risk is a major gap in knowledge. For example, mixed colonization could represent a low-risk state in which commensalism between strains, and the larger community prevents progression to disease, or an extremely dysbiotic state where niche exclusion is compromised and multiple pathogenic strains of Kp invade and increase the risk of infection.
Molecular typing schemes to identify and track Kp strains, including multilocus sequence typing (MLST), pulsed-field gel electrophoresis (PFGE), whole genome sequencing (WGS), and capsule typing are highly standardized and reproducible but are often time and labor intensive14–18. In recent years, strain typing based on the conserved wzi gene in the Kp capsule operon has become an alternative method for distinguishing Kp strains16. Previous work has validated wzi primers for the conserved motifs that flank the highly variable 447 bp region of the wzi gene (Fig. 1)16. Sanger sequencing of the Kp wzi gene using these primers has enabled the curation of the BigsDB database (https://bigsdb.pasteur.fr/klebsiella/klebsiella.html) containing 741 unique wzi types16,19. Strain identification via wzi typing has been shown to have higher discriminatory power than traditional K typing and similar discriminatory power as MLST typing16. This technique has become a fast and reliable alternative method for the differentiation of Kp strains.
To better characterize Kp colonization dynamics and the impact on patient infection risk we adapted wzi sequencing primers to develop a high throughput and accurate amplicon-based method called wzi-Seq16. The goal of this study was to develop and validate the wzi-Seq method, use it to assess the incidence of mono-vs mixed colonization in patients, and evaluate the impact of colonization status on patient infection risk. We demonstrated that wzi-Seq is a highly accurate and precise method with a sensitivity of 93% and specificity of 99.8% for detecting strains in complex mixtures containing up to 58 wzi types. We applied wzi-Seq to patient rectal swabs from a previous case-control study and demonstrated that mono-Kp colonization was more prevalent than mixed Kp colonization and associated with an increased risk of developing a subsequent extraintestinal Kp infection13,20. This work describes a novel method of using the wzi gene as a molecular barcode and provides insight into Kp colonization dynamics that has the potential to improve our understanding of Kp colonization dynamics and patient infection risk.
Results
wzi-Seq Assay Design

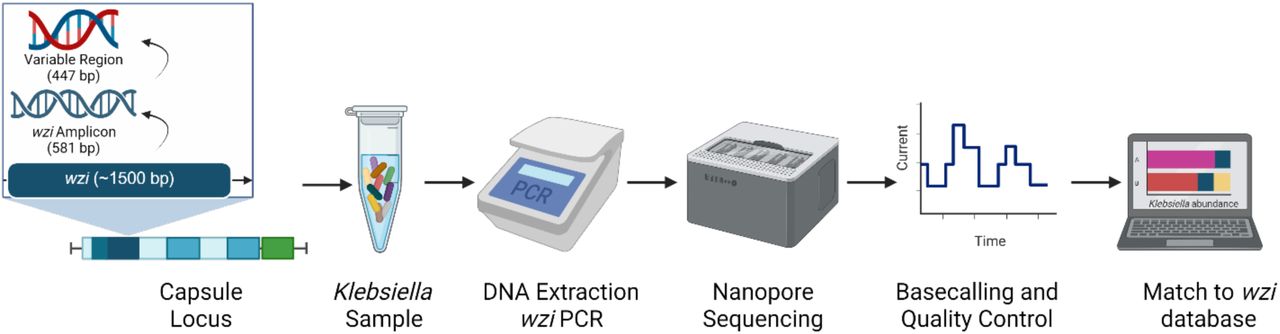

To design an amplicon-based sequencing method for the detection and quantification of multiple Kp strains from complex samples, we developed a nanopore-based long-read amplicon sequencing technique targeting the conserved wzi gene (Fig. 1). Sequencing reads were mapped to a reference database of 741 unique wzi alleles, and two quality filtering pipelines were used, which differed in allowing no mismatches (error0) or an error rate of up to 0.5% of the alignment length (error0.005). Whereas the error0 pipeline was more stringent for the presence of a strain, the error0.005 pipeline was expected to produce more reads for quantification of abundance. After quality filtering, the remaining reads for each wzi type were used to calculate the total abundance of each wzi type in a sample.
Accuracy and Precision

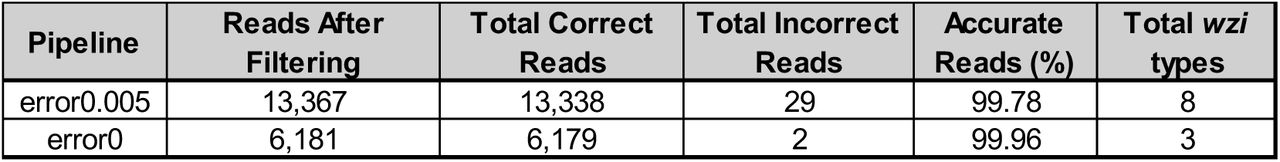

To validate the wzi-Seq approach, contrived samples were created using increasingly complex mixtures of strains with known wzi types. Kp strains with unique wzi types were mixed at known ratios to create 1, 5,12, 30 or 58 wzi type sample mixtures. Sequencing of a single Kp strain KPPR1 (wzi type 2), yielded 13,367 and 6,181 reads from the error0.005 and error0 pipelines, respectively. Of these reads, the total correct mapped reads were 13,338 and 6,179 for the error0.005 and error0 pipelines, with a read accuracy greater than 99.7% for both pipelines (Suppl. Table 1). Although both pipelines had reads that mapped to at least two additional wzi types that were not the expected wzi type, these reads were less than 0.3% of the total for either pipeline (Suppl. Table 1).

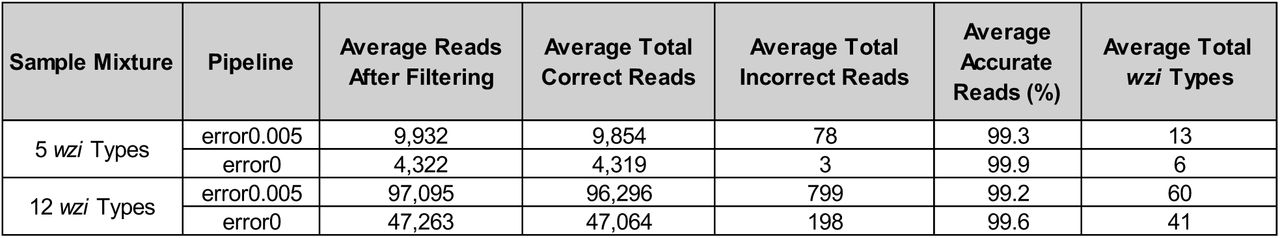

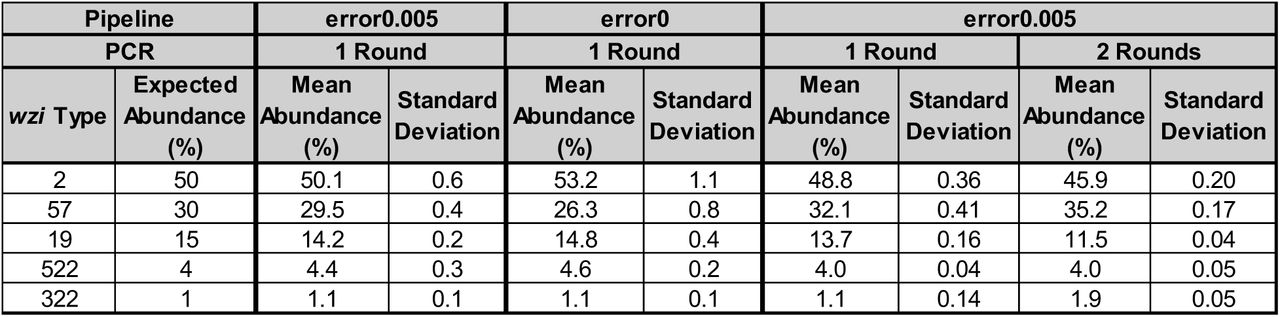

To further test the accuracy and precision of the wzi-Seq method, a 5 wzi type mixture was created using Kp strains with wzi types 2, 57, 19, 522, 322. The wzi types were mixed using intended ratios of 50%, 30%, 15%, 4%, and 1% of each strain based on optical density (OD) measurements. An average of 9,932 and 4,322 reads were recovered from the error0.005 and error0 pipelines, respectively with a read accuracy greater than 99% for both pipelines (Suppl. Table 2). For the error0.005 pipeline, the mean wzi type abundance was within 1% of the expected abundance and there was high precision between replicates (standard deviation <1% for each wzi type; Table 1). Although the error0 pipeline had higher total read accuracy, the pipeline was slightly less precise (standard deviation: 0.1-1.1%) compared to the error0.005 pipeline (standard deviation: 0.1-0.6%) (Table 1). When comparing the experimental abundance values between the two pipelines there were no significant differences in the abundance values for each wzi type (Fig. 2A).

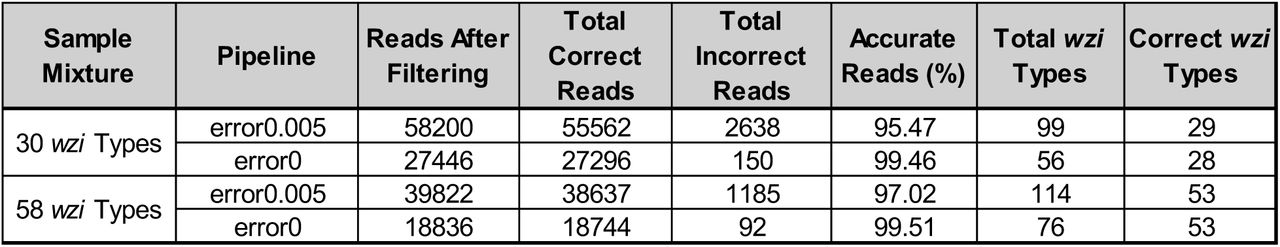

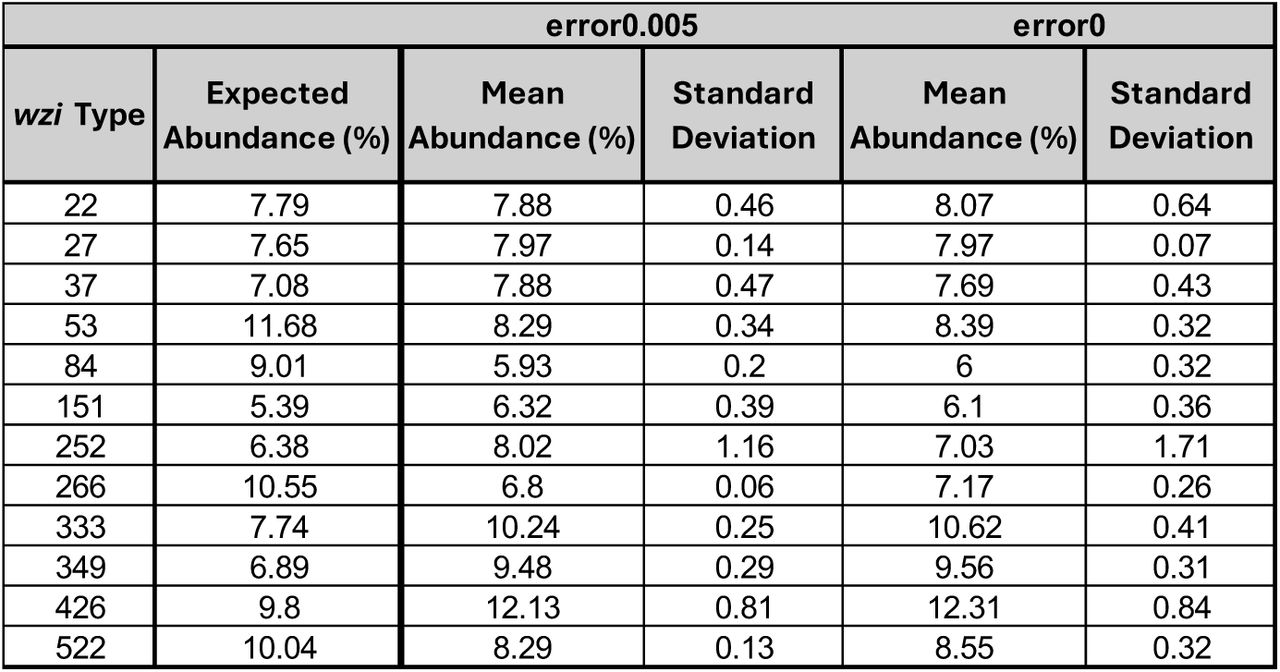

Next, we tested more complex mixtures containing between 12-58 unique wzi types. Sequencing a 12 wzi type mixture in triplicate yielded 96,296 and 47,064 correctly mapped reads for the error0.005 and error0 pipelines, respectively (Suppl. Table 2), for a read accuracy greater than 99%. There was no significant difference in the recovered abundance values for each wzi type between the two pipelines (Fig. 2B). Similarly to the 5 wzi type mixture, the precision between replicates was high with a standard deviation of less than 2% for the abundance of any of the 12 wzi types (Suppl. Table 3). Although more than 12 different wzi types were recovered by both pipelines, these erroneous reads made up less than 0.5% of all total reads and there was no significant difference in the abundance of each wzi type between the two pipelines (Fig. 2B, Suppl. Table 2). Additionally, the wzi-Seq method was tested in duplicate on 30 and 58 wzi type mixtures (Suppl. Table 4). The read accuracy was greater than 99% for the error0 pipeline, and 95.5% and 97.0% for the 30 and 58 wzi type mixtures, respectively, with the error0.005 pipeline (Suppl. Table 4). Together these data highlight that wzi-Seq can accurately differentiate wzi types in complex mixtures containing up to 58 unique wzi types.

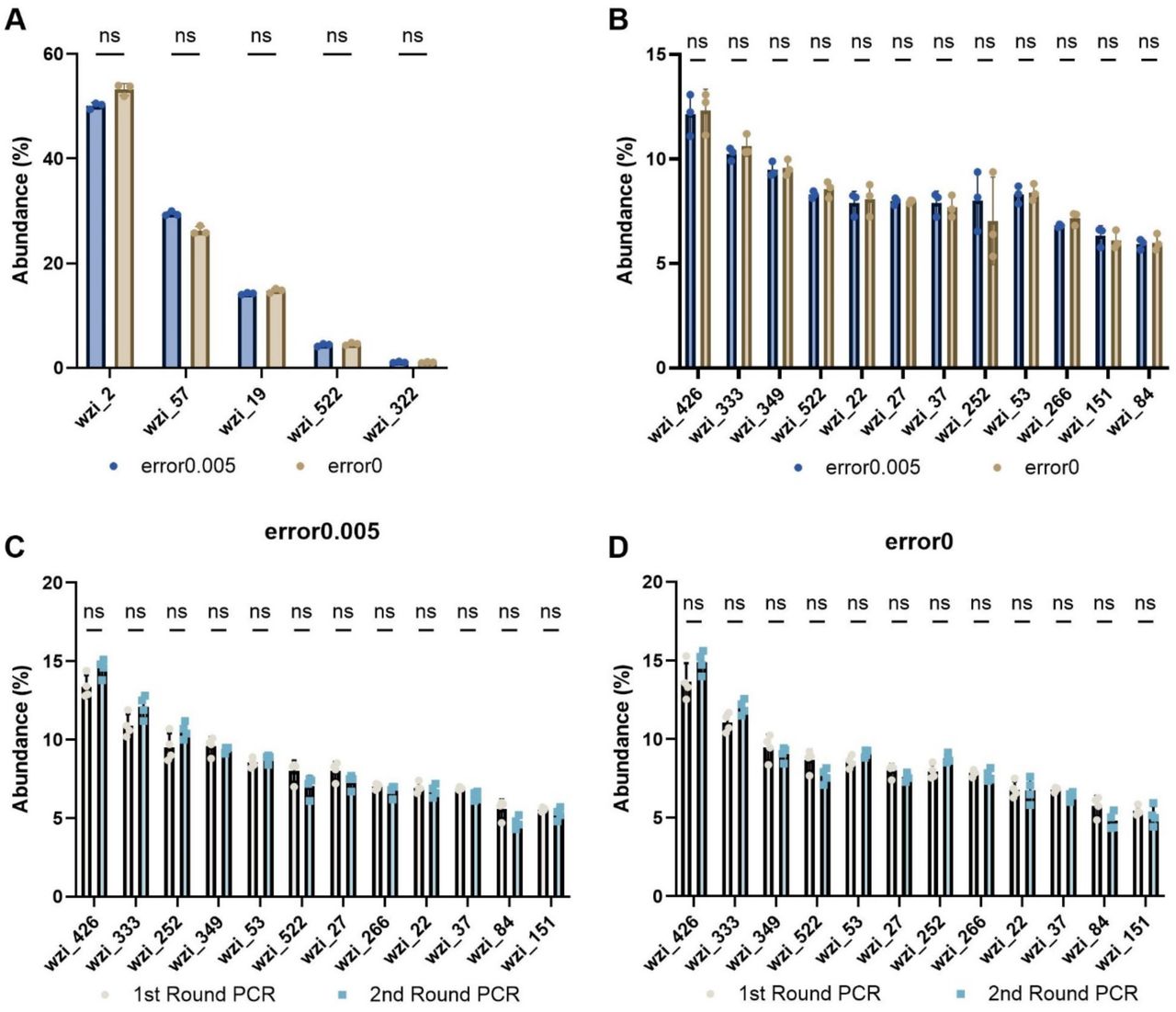

To enable analysis of low-biomass samples in which Kp may be present in low abundance, the accuracy and precision of performing a second round of PCR was tested on 5 and 12 wzi type mixtures. There were no significant differences in the abundance values after one or two rounds of PCR in the 12 wzi type mixture regardless of whether the error0.005 or error0 pipeline was used (Fig. 2C, D). No differences between the number of rounds PCR and abundance levels were also observed for the 5 wzi type sample mixture (Table 1). Together these data highlight the high accuracy and precision of the wzi-Seq method and that this accuracy and precision is maintained with increasingly complex mixtures and low biomass samples.
Sensitivity and Specificity of Strain Detection

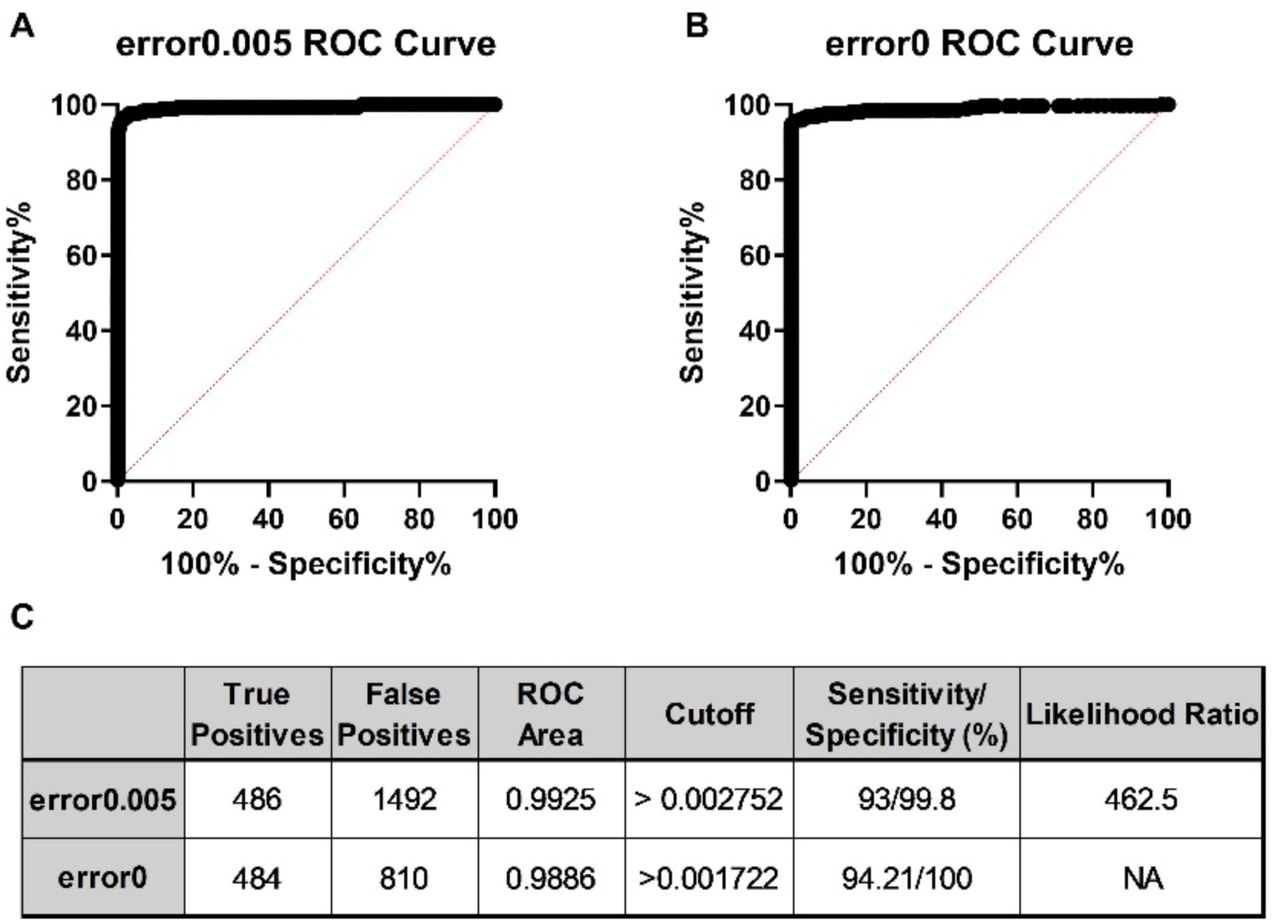

Next, we assessed the true positive and false positive rates of strain detection in contrived mixtures. The wzi abundance values of 23 different contrived samples with mixtures ranging in complexity from 5-58 wzi types were used as the input to generate a receiver operating characteristic (ROC) curve. All detected wzi types that were expected in each sample were considered true positive values and all other wzi types were considered false positives. For the error0.005 and error0 pipelines, the area under the ROC was 0.9925 and 0.9986, indicating very high accuracy (Fig. 3A, B). The ROC curves were used to determine cutoffs for both pipelines that would optimize sensitivity and specificity of strain detection at the readfrac level before converting to relative abundance. When using a readfrac cutoff of 0.00275 on error0.005 samples, the predicted sensitivity and specificity of the assay was 93.0% and 99.8%, respectively (Fig. 3C). For the error0 pipeline, a readfrac cutoff of 0.00172 predicted an assay sensitivity and specificity of 94.2% and 100%, respectively (Fig. 3C). These cutoffs were then tested on four contrived mixtures containing between 5-30 different wzi types that were not included in the original ROC analysis. Applying these cutoffs eliminated 98.9% of false positives in error0.005 samples and 100% of false positives in error0 samples with 100% of true positives detected in all samples (data not shown) and were applied in subsequent analyses.
Using wzi-Seq to Investigate Klebsiella Colonization Dynamics

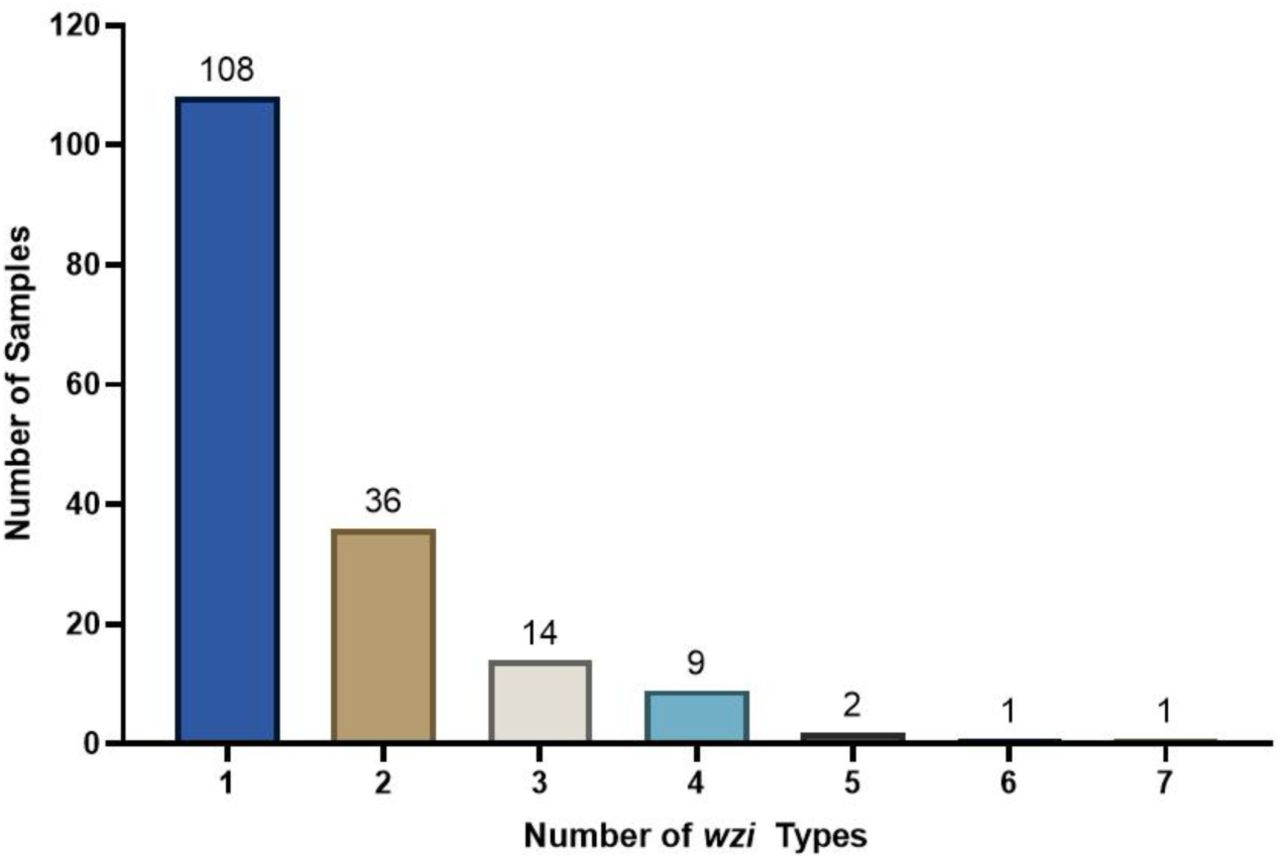

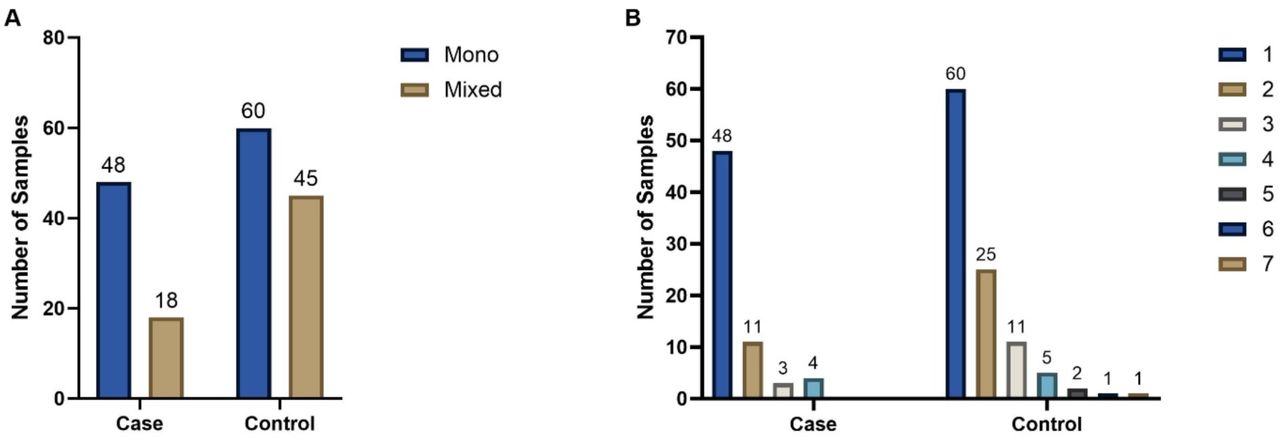

To determine the frequency of mono- or mixed colonization, we analyzed a previously constructed case-control cohort of Klebsiella-colonized patients, where cases developed an extraintestinal infection and controls did not13,20. A total of 236 rectal swabs were subjected to wzi-Seq to determine the frequency of mono- or mixed colonization. Strict criteria for strain detection were applied, including that the abundance must be >1% and that wzi-Seq results had to detect wzi types previously found by culture and Sanger sequencing of individual isolates from the same rectal swab (see methods). Out of 236 rectal swabs, 27/236 (11.4%) failed wzi PCR, 28/236 (11.9%) failed quality control (see methods), 120/236 (50.8%) samples required a second round of wzi PCR to meet the DNA input requirements for ONT sequencing, and 10/236 (4.2%) were considered inconclusive. A total of 171 (72.5%) samples passed all quality control metrics and were included in the final analysis. Of these 171 samples, 108/171 (63.2%) were mono-colonized with only one wzi type detected and 63/171 (36.8%) were considered mixed with 2-7 wzi types present. This contrasts with only 5/171 (2.9%) samples detected as mixed by conventional culture and wzi typing of 3 isolates per rectal swab. The majority of mixed samples (79.4%) were colonized with 2 or 3 unique wzi types (Fig. 4). Across 171 mono- and mixed colonized samples, 160 unique wzi types were identified.

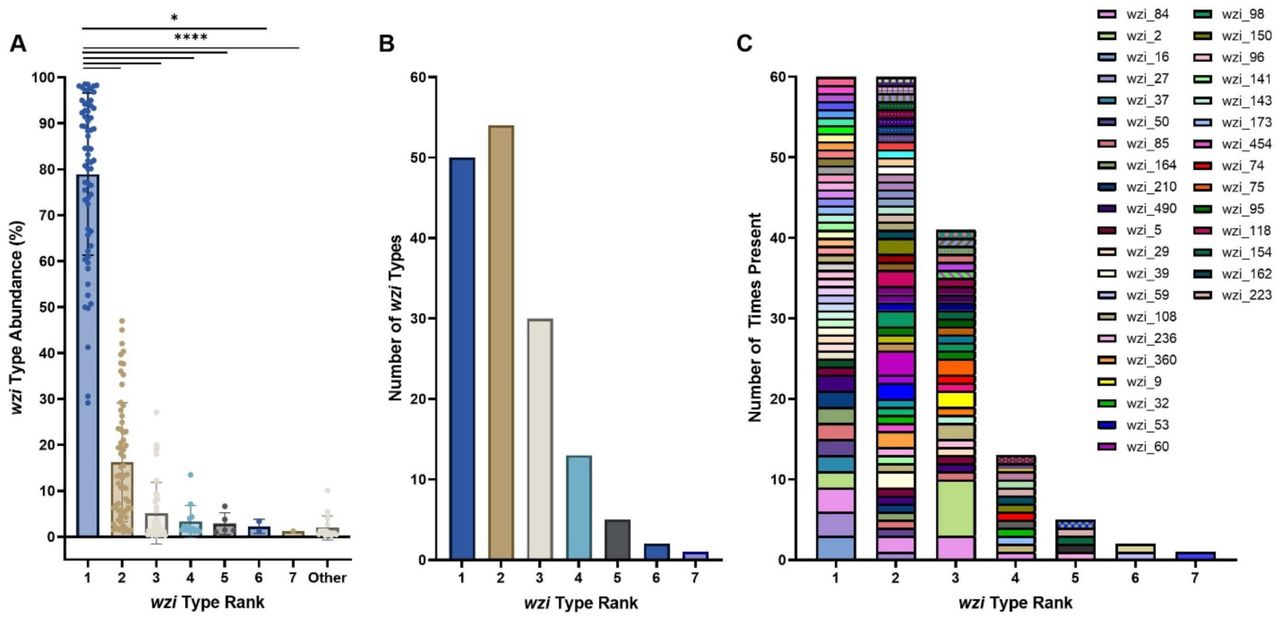

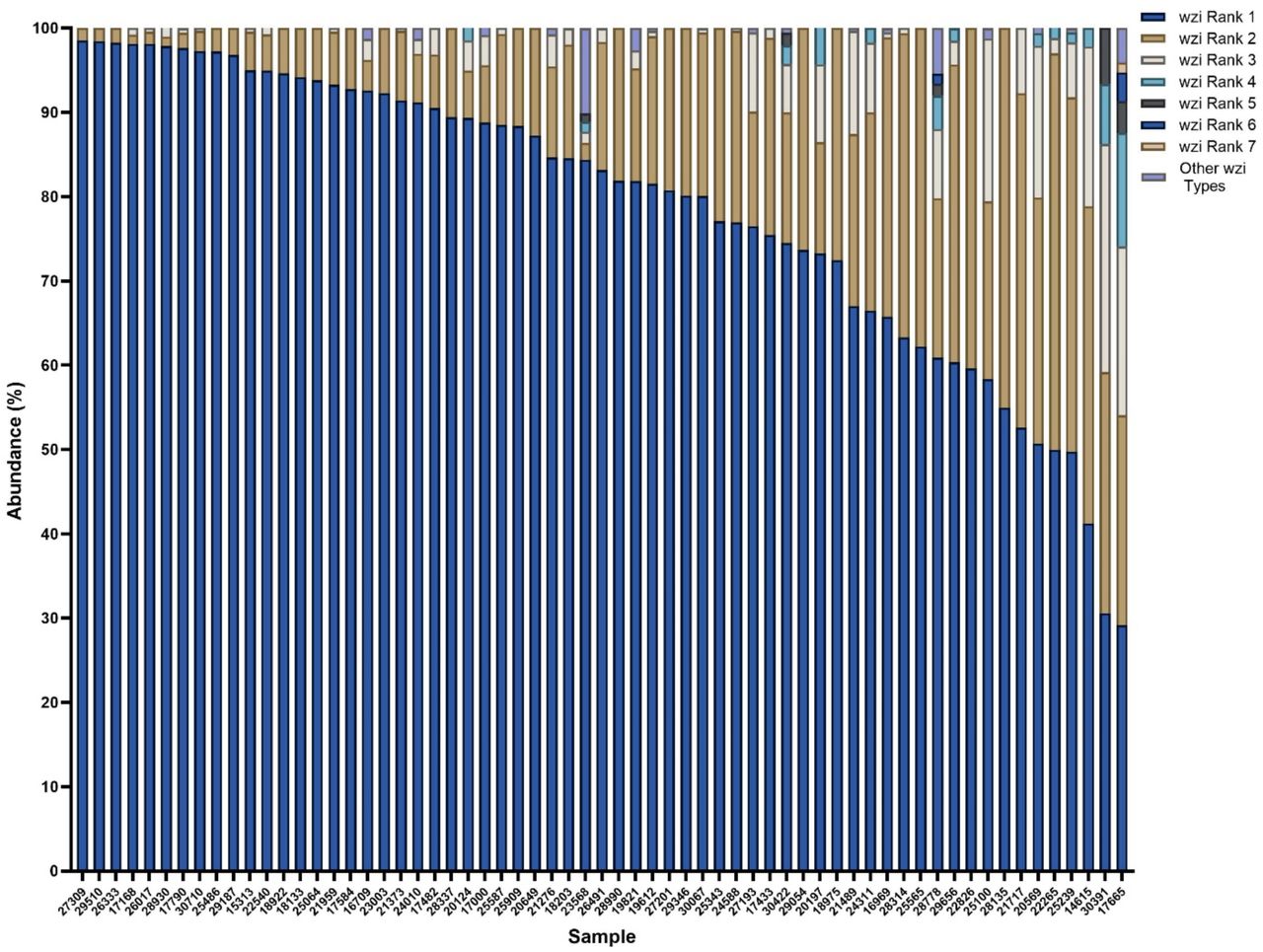

To further investigate the colonization dynamics in patients colonized with multiple wzi types, the abundances of wzi types were investigated in mixed samples (Fig. 5). The most abundant of the wzi types present (wzi Rank 1) had an abundance greater than 50% in 58/63 (92.1%) and greater than 75% in 42/63 (66.7%) of samples (Fig. 6A), indicating that even in mixed samples one wzi type tended to dominate (Fig. 6A). Interestingly, there was high diversity in the wzi types detected in mixed samples, with 119 unique wzi types detected (Fig. 6B,C). There was not a single wzi type that tended to be the dominant colonizer, as there were 50 unique wzi types detected across mixed samples as the highest wzi type (wzi Rank 1), and dominant strains in one sample were subdominant in another (e.g. wzi 84 in pink, Fig. 6C).
Validation of Rectal Swab wzi-Seq Results

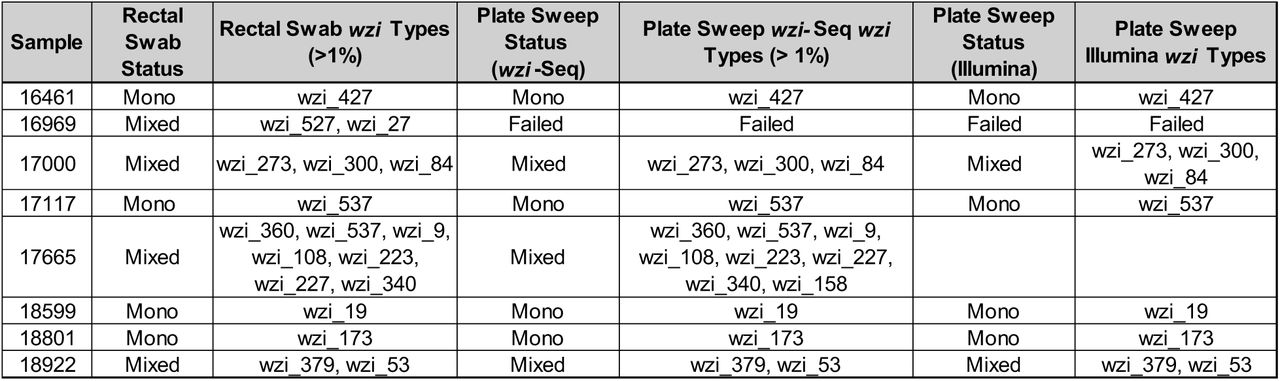

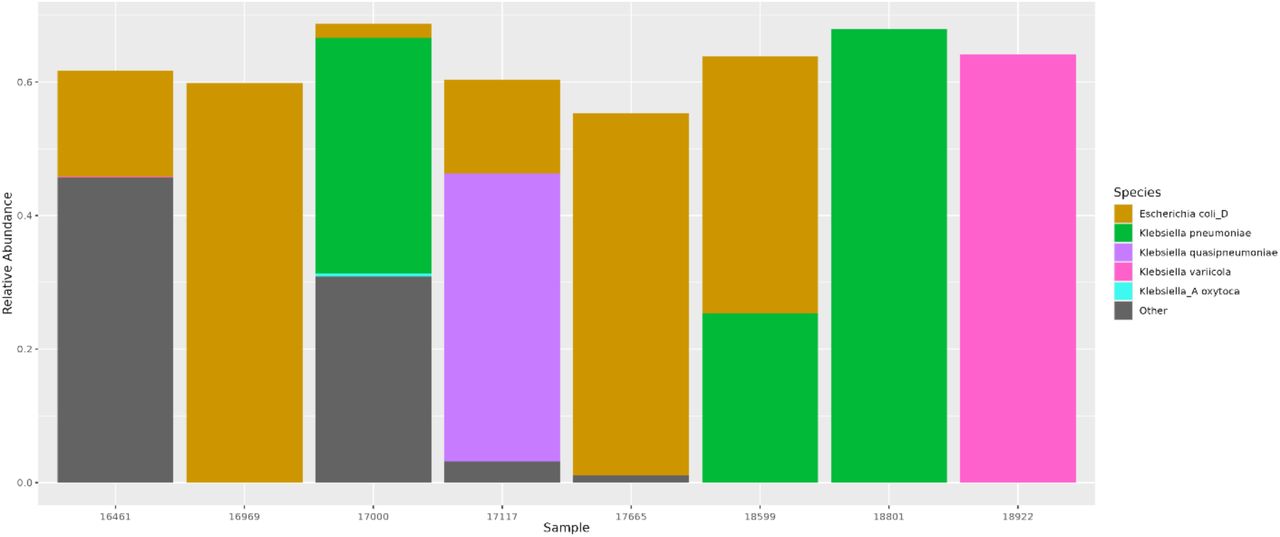

To confirm the detection of mixed colonization, repeatability and agreement with an orthogonal method were assessed. The wzi-Seq analysis was repeated on a separate sample aliquot and compared to direct Illumina sequencing from the same aliquot. Eight swab samples, four mixed and four mono-colonized based on analysis above, were struck out on MacConkey agar to select for Gram-negative bacteria including Klebsiella and then DNA was extracted from plate sweeps for parallel analysis. The repeat wzi-Seq analysis reproduced the categorization of mixed and mono-colonization, excluding one sample that failed sequencing (Suppl. Table 5). Data from direct Illumina sequencing of plate sweeps detected Klebsiella species in each sample except for 2 samples (Suppl. Fig. 1). For samples with Klebsiella detected, reads were mapped to the wzi-1 reference sequence and wzi types were inferred to be present in the population using a popANI approach (see methods). Overall, the results were highly consistent with the rectal swab and plate sweep, with all error0.005 wzi types detected, and the same categorization of mixed and mono-colonization (Suppl. Table 5).
Some Escherichia coli (E. coli) strains can have a Klebsiella like capsule and be amplified with wzi primers21,22. To determine whether wzi-Seq was impacted by non-specific amplification of E. coli wzi we performed additional bioinformatic analysis. We first evaluated the nucleotide similarity of all 741 unique Klebsiella wzi types against all known E. coli genomes in the NCBI database using BLAST. Out of all 741 wzi types, 6 wzi types had 100% identity to known E. coli genomes. E.coli DNA sequences that had significant but <100% match with any of the 741 Klebsiella reference wzi types were added to our existing wzi reference database. Then the wzi-Seq analysis pipeline using the updated reference database was rerun on rectal swabs with mixed colonization (see methods). Out of 63 mixed samples, 62/63 (98.4%) were still classified as mixed after running the E. coli amended pipeline; one had a second Klebsiella-specific wzi type that fell to 0.9%, just below our 1% cutoff for a mixed sample. Five samples contained at least one wzi type (wzi_5, wzi_370, or wzi_173) that was 100% identical to an E. coli wzi type, but this did not change the result of mixed detection because either this wzi type was from a culture-confirmed K. pneumoniae isolate or there were multiple Klebsiella-specific wzi types present in the sample (Supplemental Dataset).
Mono-colonization is Associated with an Increased Risk of Klebsiella Infection

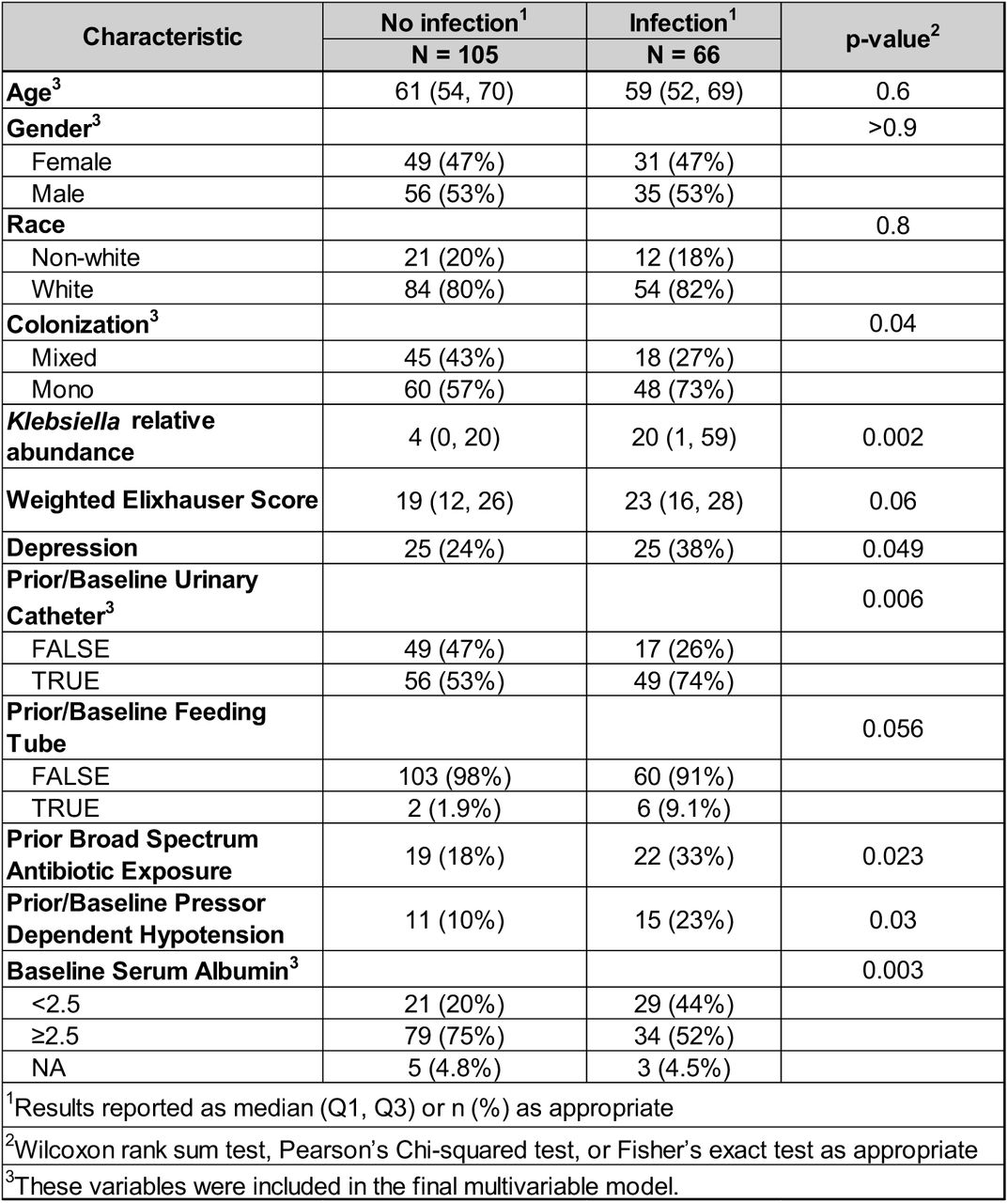

To determine whether mono- or mixed colonization was associated with an increased risk of developing a Klebsiella infection, patient characteristics associated with each rectal swab were evaluated. Out of 171 rectal swabs, 66 were from colonized patients who developed a subsequent Klebsiella infection (case) while 105 were from asymptomatic colonized controls (Suppl. Fig. 2A). Mixed colonization was more prevalent in control samples (45/105, 43%) than in cases (18/66, 27%) (Suppl. Fig. 2A, B).

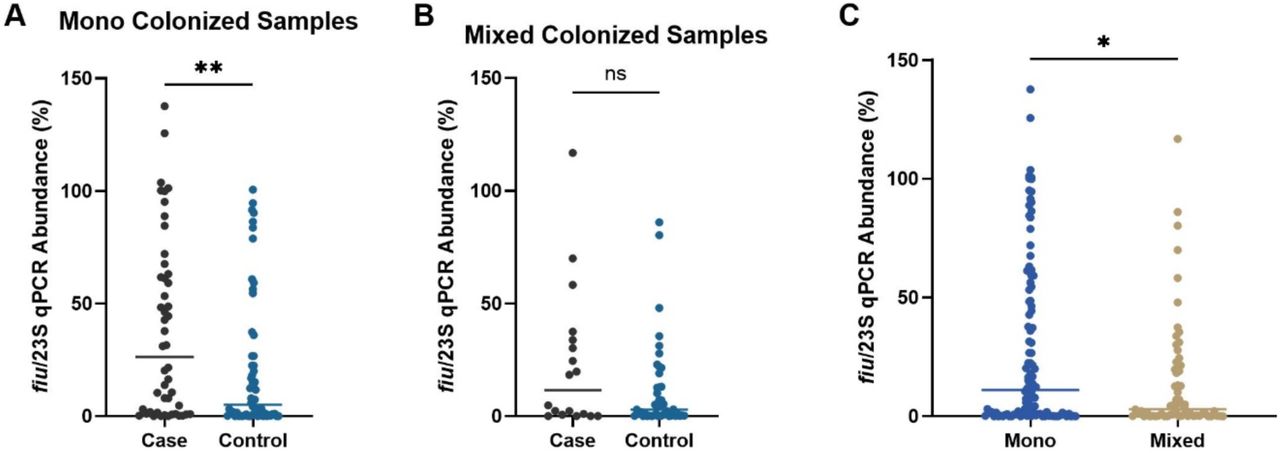

Klebsiella dominance in the gut is associated with an increased risk of infection, so we compared Klebsiella abundance in mono- and mixed colonization as previously measured by our validated qPCR assay7,8,11. Klebsiella relative abundance in mono-colonized samples was significantly higher in cases than controls but this was not the case in mixed colonized samples (Suppl. Fig. 3A, B). Overall, the relative abundance was significantly higher in mono-than in mixed colonized patients (Suppl. Fig. 3C).

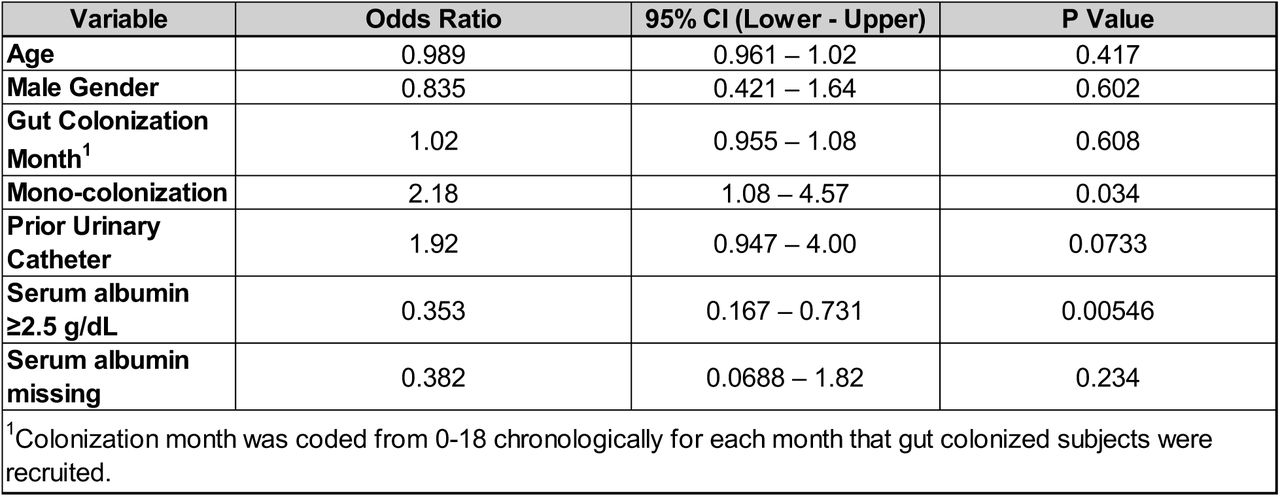

To determine the association of mono- and mixed colonization with subsequent infection, we constructed a multivariable model. Patient characteristics could be putative confounders to consider for adjustment (see methods), so we characterized the distribution of these variables versus subsequent infection. Table 2 shows important baseline characteristics of the study population and variables that were considered in our final model. Relative abundance and mono/mixed colonization status were found to be colinear. If they lie along the same causal pathway and with the observed collinearity, then including both relative abundance and mono-colonization in the model together would result in weakening the association. Indeed, we observed that while both mono-colonization and relative abundance are both associated with infection (Table 2), including both as covariates weakens the association with infection and there is no interaction noted statistically (p=0.691 for the interaction vs. infection in a multiple logit model). Therefore, relative abundance was not considered for the final model, and we focused on mono-colonization vs. mixed colonization11,13. Other than age, gender and collection month, which were a priori factors to include for adjustment (see methods), only prior urinary catheter use and baseline serum albumin were retained in the final model. After adjustment for these potential confounders (Suppl. Table 6) we measured an independent association between mono-colonization and subsequent infection demonstrating a 2.18-fold increased odds of infection (95% CI 1.08-4.57; p=0.034).
Gut Community Structures Do Not Vary Between Mono or Mixed Colonized Patients

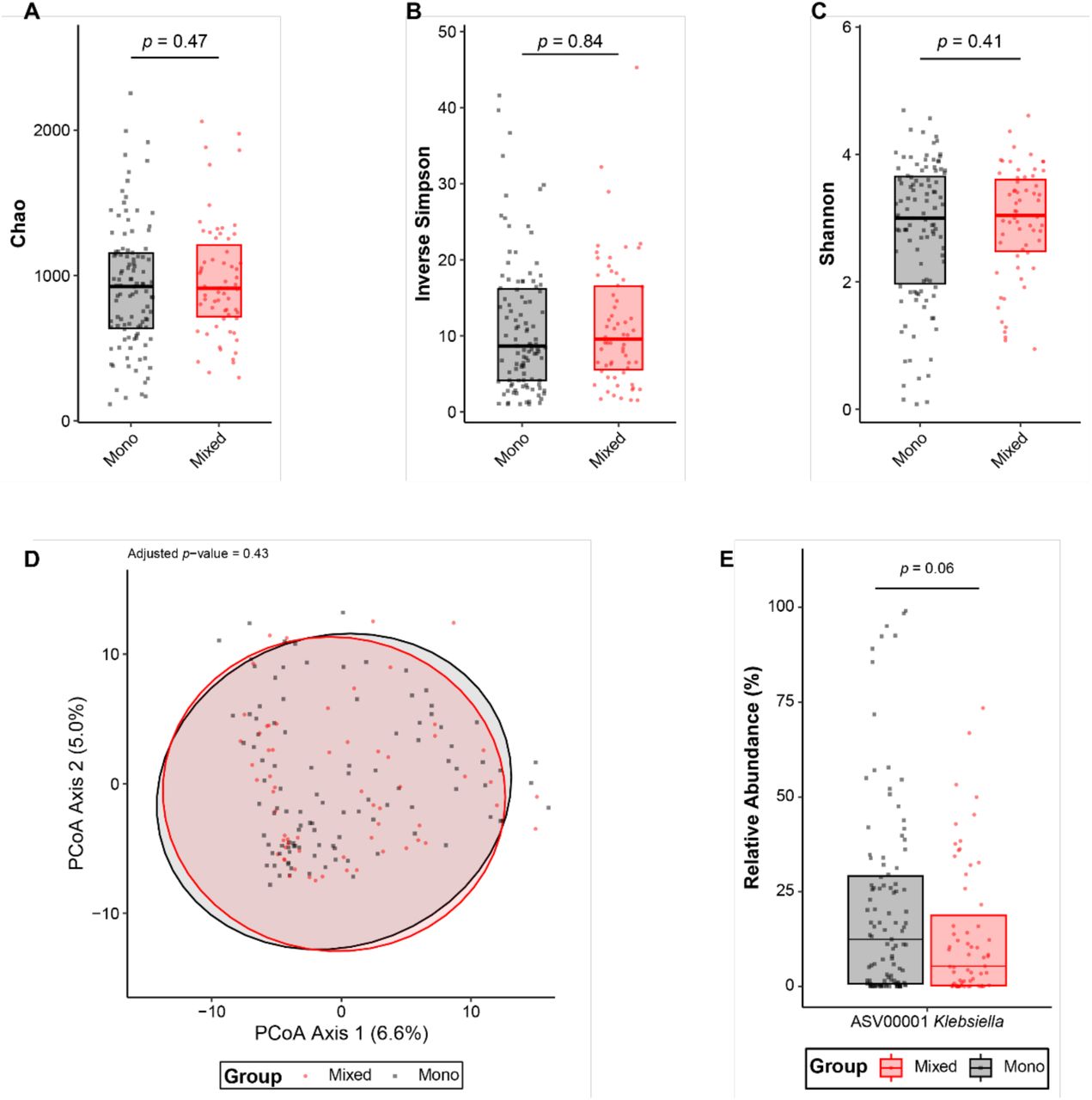

To investigate whether overall microbial community differences contribute to Klebsiella colonization dynamics, we analyzed available 16S rRNA gene sequencing of the patient rectal swabs23. Interestingly, the gut microbial community structure was not significantly different between mono- or mixed colonized patients. No significant differences in community richness, evenness, or diversity were observed between patient groups (Fig. 7A-C). Furthermore, a principal coordinate analysis did not reveal any significant differences in the beta-diversity between mono- and mixed colonized patients (Fig. 7D). When using 16S rRNA data to assess Klebsiella abundance, higher abundance of the ASV: ASV000001 Klebsiella was observed in mono compared to mixed samples that approached statistical significance (p=0.06; Fig. 7E), consistent with our qPCR data.
Discussion
In this study, we describe the development and validation of wzi-Seq, a novel amplicon-based sequencing method to measure Kp population structure in samples (Fig. 1). We demonstrate that the wzi-Seq method has excellent read accuracy and high precision for measuring relative abundance, and these performance characteristics are not impacted when performing additional rounds of PCR (Fig. 2; Table 1; Suppl. Tables 1-3). Furthermore, the assay has a sensitivity and specificity of 93/99.8% for the error0.005 pipeline and 94.21/100% for the error0 pipeline for strain detection in samples with up to 58 strains (Fig. 3; Suppl. Table 4). Applying wzi-Seq to a cohort of Kp colonized patients, we determined that Kp mono-colonization was more prevalent than mixed colonization, with mono-colonization being independently associated with an increased infection risk (OR=2.18; p=0.034). This study describes a novel and reliable technique to investigate Kp colonization dynamics and reveals the population structure of colonizing strains as a potentially important risk factor for infection.
The wzi-Seq assay has performance characteristics that make it suitable for several applications. This amplicon sequencing approach can perform strain typing directly from samples, distinguishing it from WGS, MLST, PGEF, and MALDI-TOF that typically require culturing of single Klebsiella isolates. Importantly, wzi typing has similar discriminatory power as MLST and K-typing7,16,24. Also, the assay can accurately detect and quantify mixtures of Kp strains within a sample, similarly to 16S rRNA gene sequencing for multiple species. We developed the wzi-Seq assay using nanopore sequencing in part because the long region of interest precluded Illumina sequencing. We have taken advantage of recent advances in nanopore accuracy at both the sequencing and base calling steps, and mitigated the residual error rate by using read mapping to known sequences and applying several quality filtering steps25. As used here, this method can be used to detect and quantify multiple strains in a sample with high confidence.
The finding that mixed colonization occurs in a substantial subset of patients, but that mono-colonization is associated with increased infection risk has several implications. Mixed colonization and infection has been documented in other pathogens including Clostridioides difficile26–29. Unlike Klebsiella, C. difficile causes intestinal disease and mixed infection with multiple strains was significantly associated (OR 3.5, 95% CI 1.3-9.4, p = 0.015) with recurrence in patients, even after adjustment for gender and previous exposure to antibiotics26. For Klebsiella, mixed colonization may represent a more commensal state than mono-colonization. Indeed, a recent study illustrated that two strains of Kp can cross-feed one another with one strain compensating for the fact that the other cannot utilize a specific nutrient30,31. This may represent a stable colonization state where one strain is kept in check by its reliance on the other, reducing the chance that they cause clinical disease. In contrast, mono-colonization was associated with higher relative abundance of Kp, and these variables were co-linear in our models of infection. This may represent the outcome of competition with other Kp strains, resulting in complete displacement of one strain and replacement with the other. Even in mixed colonization, one wzi type tended to dominate, suggesting that Kp strains outcompete other strains, or at least settle at a higher density in equilibrium. It would be interesting to explore whether mixed colonized patients are at higher risk for prolonged colonization, or whether over time these patients progress to a mono-colonized state due to dominance by a single strain.
Furthermore, this highlights that typing only single isolates may miss these mixed colonized states with implications not only on patient infection risk but also potential transmission events.
We also found that the gut microbial community was not significantly different between mono-and mixed colonized patients, suggesting that microbial richness or diversity in the gut does not impact strain colonization status (Fig. 7). This is consistent with previous studies that only observed minor changes in the gut microbial community during Kp colonization in mice32–34. This suggests that in our patient cohort, other clinical and environmental factors might play a more significant role in shaping the overall community structure. Alternatively, Kp strains might occupy a particular ecological niche within the gut microbiome that allows coexistence with other microbes without causing substantial shifts in the community structure.
This study and the wzi-Seq method have several limitations. As wzi-Seq relies on a single conserved gene for discrimination, the technique cannot be used to differentiate between strains of the same wzi type. Furthermore, the primers used to amplify the wzi gene can, in rare cases, amplify group 1 E. coli wzi genes21,22. The incidence of Klebsiella capsules in E. coli is unclear, although a study of freshwater E. coli found Klebsiella capsules in only 7% of isolates35. We addressed this limitation by including E. coli wzi sequences in our reference database for read-mapping and requiring a 100% match to a Klebsiella wzi sequence to consider that wzi type to be present in a given sample. When using complex samples with unknown wzi types, orthogonal validation approaches may be needed to distinguish Kp and E. coli with identical wzi sequences. In conclusion, this study describes the development and validation of wzi-Seq, a novel technique that enables the detection and quantification of Kp from complex samples. In future directions, the wzi-Seq technique can be applied to test patient samples, adapted to target additional genes, and applied to characterize diverse populations of Kp in both experimental and natural conditions.
Methods
Rectal Swab Sample Collection and Analysis
Patient enrollment and sample collection was performed previously and was approved by the Institutional Review Board13,20. Patient rectal swabs were collected with instructions to pass the anal verge using flocked swabs placed in Amies transport media (Becton, Dickinson, Franklin Lakes, NJ), and screened for Klebsiella via plating on MacConkey agar and verification via MALDI TOF mass spectrometry13. From positive rectal swabs, up to three Klebsiella isolates were collected and subject to wzi PCR and Sanger sequencing and the wzi type of each isolate was determined by matching the consensus wzi sequence to the BigsDB database (https://bigsdb.pasteur.fr/klebsiella/klebsiella.html).
wzi-Seq Assay
DNA was extracted from rectal swabs or contrived samples using the Qiagen UltraClean Microbial DNA kit (Qiagen, Hilden, Germany) as per the manufacturer’s instructions. PCR was performed using previously published wzi primers and the Q5 polymerase (New England Biolabs, Ipswich, MA, USA) with volumes as specified by the manufacturer in a 100 µL reaction16. For all reactions, 4 µL of DNA template with a concentration of 1-2ng/µL was used. PCR conditions were 30 sec at 98°C, then 30 cycles of 10 sec at 98°C, 30 sec at 59°C, 30 sec at 72°C, followed by 2 minutes at 72°C on a MiniAmp Plus Thermal Cycler (Thermo Fisher Scientific, Waltham, MA, USA). For samples with poor amplification a second round of PCR was performed using the same conditions as listed above, using 4µL of the first PCR reaction as the template. Samples were run on a 1% agarose gel at 100V for 30 minutes to confirm amplification, purified using the QIAquick PCR Purification Kit (Qiagen, Hilden, Germany), and quantified using Nanodrop and Qubit (Thermo Fisher Scientific, Waltham, MA, USA). All samples were submitted to the University of Michigan Advanced Genomics Core (AGC) for Oxford Nanopore Technologies sequencing (Oxford Nanopore Technology, Oxford, UK). Basecalling was performed using the SUP pipeline by the University of Michigan AGC.
Bioinformatic analysis
error0 and error0.005 Pipelines
Reads with mean base quality lower than 10, or with more than 5% bases lower than 10 were removed using NanoFilt v2.8.036 and a custom script. Remaining reads were aligned against the reference wzi types curated from the BIGSdb-Pasteur database (https://bigsdb.pasteur.fr/klebsiella/) using Minimap2 v2.2637. Reads were filtered by these criteria sequentially: mapping quality was larger than zero; the read had a single mapping location after mapping quality filtering; alignment covered more than 95% of the mapped gene sequence; NM value (number of mismatches and gaps) was zero. Filtered reads were counted on each reference gene sequence.
The filtering for the error0.005 pipeline was the same as the error0 pipeline except that the base quality fraction filter was disabled, and the error rate filter was relaxed to lower than 0.5% of the alignment length.
Quality criteria for rectal swab samples
To ensure confidence in identified wzi types the following quality control metrics were applied to all samples: 1) error0.005 samples had to have greater than 1,000 reads, 2) error0.005 and error0 readfrac cutoffs (>0.00275 and >0.00175, respectively) were applied before abundance calculations, 3) samples had to detect wzi types from banked rectal isolates from that sample (168/171 available), and 4) wzi type abundance had to be greater than 1%. A 1% abundance cutoff was applied as this was the lowest abundance validated using contrived mixtures. To reduce the possibility of contamination causing the appearance of mixed colonization, samples were considered inconclusive and not included if the wzi_2 allele of our commonly used laboratory strain was present as the first or second most abundant wzi type and was not detected via rectal isolate typing. Samples were then examined for concordance between error0.005 and error0 pipelines. If there was discordance, BAM files were examined in IGV for potential single nucleotide polymorphisms that may explain the discordance and where possible, checked against sequenced genomes from that specimen.
Detection of potential E. coli capsule sequences
To map reads to a reference database with both Klebsiella and potential E. coli wzi alleles, the error0 pipeline was run with the following changes: 1) the mapping quality filter was removed, 2) zero mismatches were allowed between mapped reads and the reference, 3) 100% coverage of the reference was required, and 4) a unique mapping position needed to remain after steps 2 and 3. Mixed samples were re-run using this E. coli amended pipeline to determine whether this impacted the mixed status of any samples.
Illumina Sequencing Analysis
Data QC and determination of species composition
Fastqc (v0.12.1) (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/) was used to assess the quality of sequencing reads before and after trimming with Trimmomatic (v0.36)38. InStrain (v1.10.0) was used to identify bacterial species composition for each population sample39. The reference database consisted of 4,644 representative genomes from the Unified Human Gastrointestinal Genome (UHGG) collection in 2025. Trimmed reads were aligned to each reference independently with Bowtie2 (v2.4.2). inStrain output was filtered with 50% genome breadth cutoff.
wzi popANI pipeline
BWA mem (v0.7.17) (https://arxiv.org/abs/1303.3997), was used to align trimmed reads to wzi-1. Samtools (v 1.21) was used to transform sam files into bam files and index the bam files40. R (v4.4.3) was used to calculate the popANI between population sequences and wzi-references, which provides the lower-bound distance to each wzi type. The value of popANI to a given wzi-type increases if there are no shared alleles between a sample and wzi reference at a given position in the alignment. For each sample, wzi types were removed if popANI was >3 or higher than the lowest popANI value. Breadth of coverage was estimated for each remaining wzi type and wzi types were removed if breadth of coverage was lower than 99%.
16S rRNA sequencing and analysis
DNA extraction and 16S rRNA gene sequencing was performed elsewhere23. Sequences were processed with mothur (v. 1.48.0) and aligned to the SILVA reference alignment, release 13241,42. The sequencing error rate was assessed using a predefined mock community and estimated to be 0.0066%. For all analyses, sample read counts were rarefied to 8,363 reads (lowest sample read count >8,000), and one sample (PR24765, prokka_sample_923-JV-132, rectal swab corresponding to patient colonized by Klebsiella strain Kp7994) was excluded due to low total read count (<8,000). Differences in community structure were assessed by PERMANOVA (1,000 permutations) using robust Aitchison distance as the dissimilarity metric from the vegan package, v. 2.6-2, and alpha diversity metrics were calculated using mothur41,43. Data analysis was carried out in RStudio 2021.09.0+351 “Ghost Orchid” Release for macOS. For all analyses, a p-value ≤ 0.05, after Benjamini-Hochberg adjustment where appropriate, was considered statistically significant. All scripts for 16S rRNA gene sequencing analysis used for this study are available at https://github.com/jayvorn/wzi_mixed_mono_colonization (embargoed until publication).
Logistic Regression Model and Analysis
The goal of this analysis was to determine the independent contribution of mono-colonization vs. mixed colonization with Kp to risk of subsequent clinical infection from Kp. We did this by including mono-colonization as the primary predictor and then included covariates due to a priori importance (e.g., past matching criteria) or based on retention as putative confounders after a stepwise selection procedure. For the former types of covariates, our prior studies on the same cohort from which the current study’s subjects were drawn, informed the clinical variables to consider for adjustment20. Notably, since our source cohort was from a matched case control study but not all cases and controls could be included here, we included the matching criteria of age, gender, and month of swab collection as covariates for adjustment in our model13. We then turned to purposeful selection to determine which other putative confounders to include in the final model44. Starting with variables capturing demographics, comorbidities, prior/baseline medication and device exposures, and prior laboratory parameters, we proceeded in a stepwise fashion until only significant variables and potential confounders were retained, and this is the final model presented in the results44.
Data availability
The 16S sequencing data used in this study are deposited in the Sequence Read Archive (SRA) database under accession code PRJNA789565. The wzi-sequencing data will be deposited and available in SRA prior to publication. Patient variables used in logistic regression can be made available upon request, after ensuring de-identification and compliance with IRB regulations at both institutions.
Supporting information
Funding Statement
Research reported in this publication was supported by the National Institute of Allergy and Infectious Diseases of the National Institutes of Health under Award Number R21AI176642. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.
