The ubiquitous use of Electronic Health Records (EHRs) and the standard documentation practice of daily care notes are integral to the continuity of patient care by providing a comprehensive account of the patient’s health trajectory, inclusive of condition status, diagnoses, and treatment plans (Brown et al., 2014). Yet, the ever-increasing complexity and verbosity of EHR narratives, often laden with redundant information, presents the risk of cognitive overload for healthcare providers, potentially culminating in diagnostic inaccuracies (Rule et al., 2021; Liu et al., 2022; Nijor et al., 2022; Furlow, 2020) diagnostic inaccuracies (. Physicians often skip sections of lengthy and repetitive notes and rely on decisional shortcuts (i.e. decisional heuristics) that contribute to diagnostic errors (Croskerry, 2005).

Current efforts at automating diagnosis generation from daily progress notes leverage language models. Gao et al. (2022) introduced a summarization task that takes progress notes as input and generates a summary of active diagnoses. They annotated a set of progress notes from the publicly available EHR dataset called Medical Information Mart for Intensive Care III (mimic-iii) (Johnson et al., 2016). The BioNLP 2023 Shared Task, known as ProbSum, built upon this work by providing additional annotated notes and attracted multiple efforts focused on developing solutions Gao et al., 2023; Manakul et al., 2023; Li et al., 2023) These prior studies utilize language models like T5 (Raffel et al., 2020;) and GPT (Floridi and Chiriatti,2020), demonstrating a growing interest in applying generative large language models (LLMs) to serve as solutions. Unlike the conventional language tasks where LLMs have shown promising abilities, automated diagnosis generation is a critical task that requires high accuracy and reliability to ensure patient safety and optimize healthcare outcomes. Concerns regarding the potential misleading and hallucinated information that could result in life-threatening events prevent them from being utilized for diagnosis prediction (Baumgartner, 2023).

One of the solutions to improve factual accuracy is to utilize a knowledge graph to retrieve relevant knowledge to guide the LLMs with better instruction (Pan et al., 2023). In the biomedical domain, the Unified Medical Language System (UMLS) (Bodenreider, 2004), a comprehensive resource developed by the National Library of Medicine in the United States, has been extensively used in NLP research. It serves as the leading medical knowledge source, facilitating the integration and retrieval of biomedical information. The UMLS offers concept vocabulary and semantic relationships, enabling the construction of medical knowledge graphs. Prior studies have leveraged UMLS knowledge graphs for tasks such as information extraction (Huang et al., 2020; Lu et al., 2021; Aracena et al., 2022; He et al., 2020) and question-answering (Lu et al., 2021). However, UMLS knowledge graphs have not been applied to the task of diagnosis prediction.

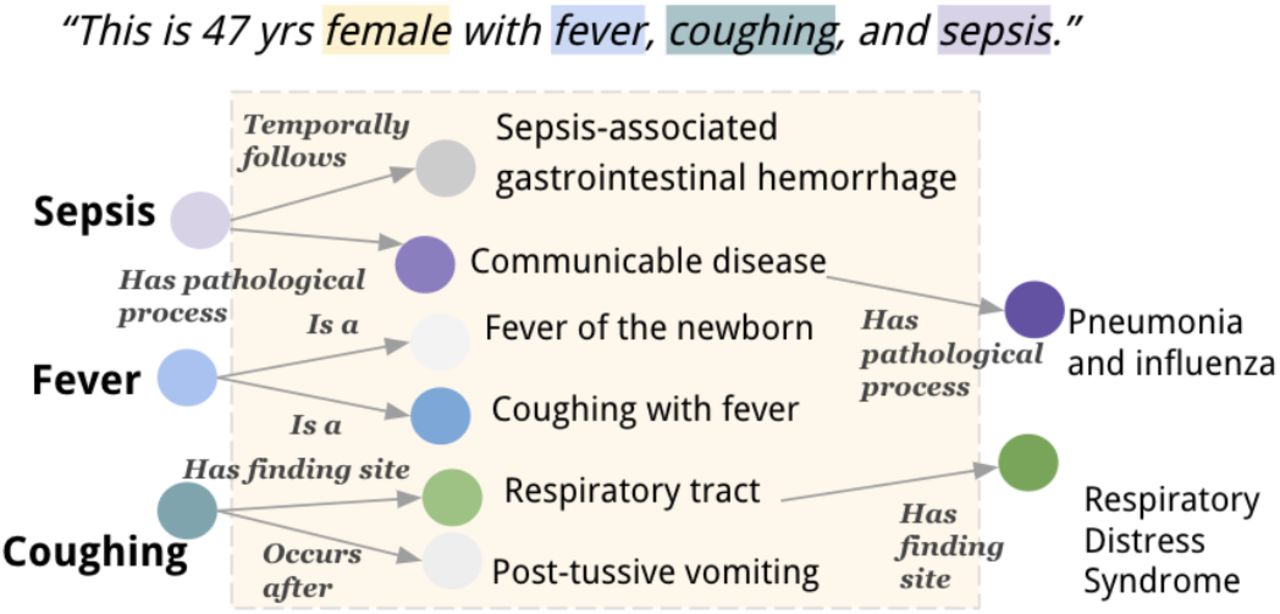

Mining relevant knowledge for diagnosis is particularly challenging for two reasons: the highly specific factors related to the patient’s complaints, histories, and symptoms in EHR, and the vast search space within a knowledge graph containing 4.5 million concepts and 15 million relations for diagnosis determination. While utilizing a multi-hop reasoning mechanism for disease pathology discovery via the UMLS knowledge graph aligns with the need for extensive medical knowledge in diagnostics, implementing this approach is hampered by its computational complexity. Specifically, the number of concepts in the UMLS knowledge graph reachable within one hop ranges from 2 to 33k, with a median of 368. The number of two-hop paths may exhibit exponential growth due to the UMLS knowledge graph’s high connectivity. Therefore, addressing the computational complexity of multi-hop reasoning within the extensive UMLS knowledge graphs is crucial for effective knowledge mining in medical diagnostics.

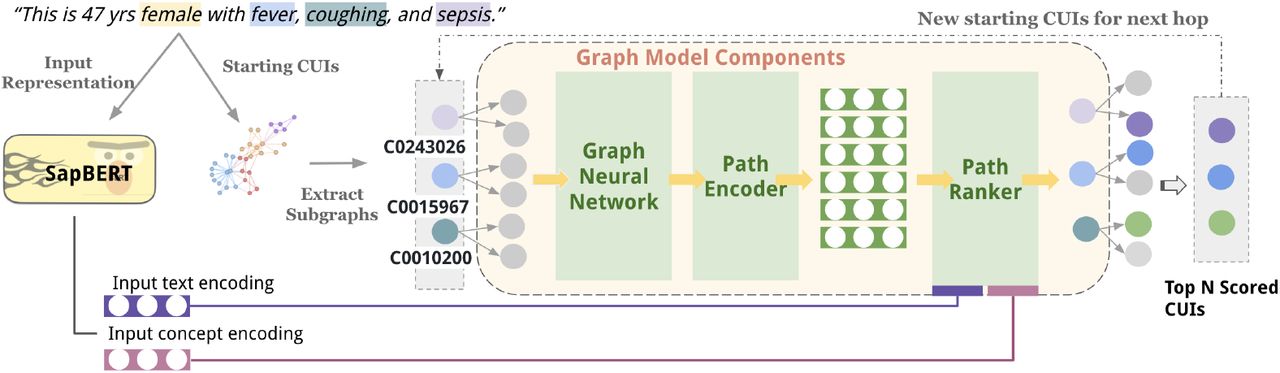

In this study, we explore using knowledge graphs as an external module to ground LLM’s diagnostic process in medical knowledge and take the initial step of building a graph model to discover relevant paths using the UMLS. We propose Dr.Knows (Diagnostic Reasoning Knowledge Graphs), that retrieves top N case-specific knowledge paths about the pathology of diseases through a multi-hop mechanism, overcoming the difficulties of retrieving and selecting paths from the entire knowledge graph. We then adapt the predicted paths into a graph-prompting method for LLMs. We utilized ChatGPT-3.5-turbo for our experiments on knowledge grounding since it represents the cutting-edge in language models and has been frequently examined as a diagnostic instrument in earlier research (Kuroiwa et al., 2023; Caruccio et al., 2024).

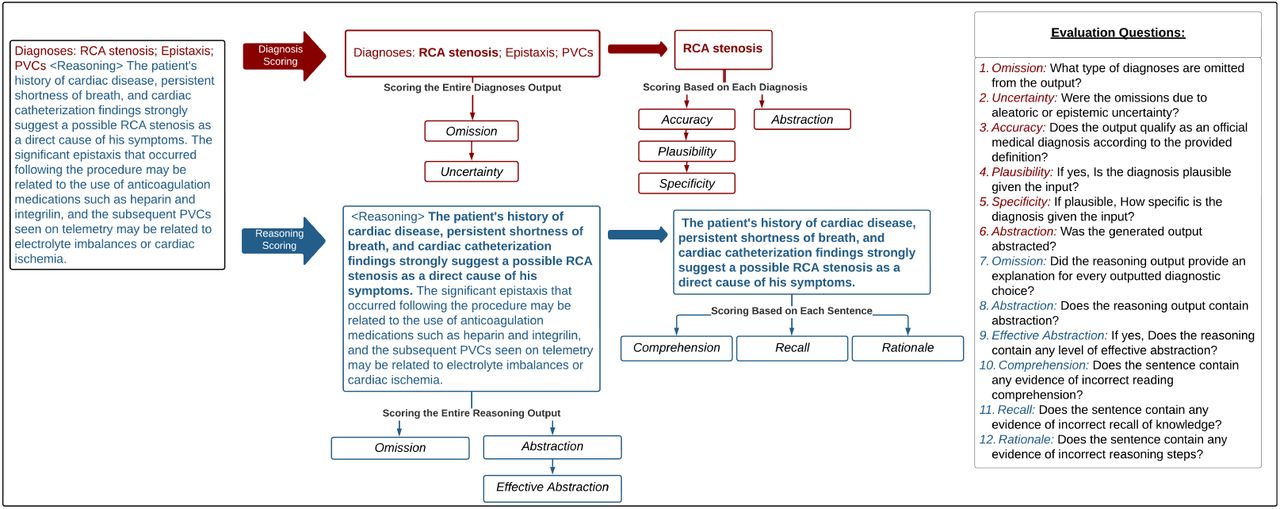

Going beyond the technical aspects of constructing knowledge graphs, our work also focuses on the precise evaluation of LLMs, motivated by the need of improving diagnostic performance and ensuring diagnostic safety (Balogh et al., 2015; Donaldson et al., 2000). Existing evaluation metrics for LLM output are insufficient for evaluating diagnostic accuracies, where precise performance is necessary to ensure diagnostic safety. We focus on an evaluation framework that can identify the diagnostic errors and the root cause, and assess the self-explanatory aspects of LLMs’ diagnostic processes. We designed the first human evaluation survey, following the SaferDX instrument, an organizational self-assessment tool with recommended practices aimed at improving diagnostic safety (Singh et al., 2019), for LLMs diagnosis prediction. The survey also incorporates the latest evaluation criteria for LLM, including factual accuracy, hallucination, quality of evidence, and other relevant aspects, identified from previous work in the field of biomedical NLP (Otmakhova et al., 2022; Singhal et al., 2023; Moramarco et al., 2021; Adams et al., 2021). Our aim is to bridge the gap between comprehensive diagnostic evaluation for safety and the capabilities of advanced language models, facilitating a deeper understanding of their diagnostic performance, and paving the way for safe LLM-augmented diagnostic decision support.

Our work and contribution are structured into four primary components:

1. designing and evaluating Dr.Knows, a graph-based model that selects the top N probable diagnoses with explainable paths (§4);
2. designing and implementing the first human evaluation framework for LLMs diagnosis generation and reasoning (§4.3),
3. revealing the usefulness of Dr.Knows as an additional module to augment LLMs in generating relevant diagnoses, a first iteration of integrating knowledge graphs for graph prompting (§2.3),
4. demonstrating the utilities of our proposed human evaluation framework that reveals LLM’s diagnostic performance with critical aspects of ensuring diagnostic safety (§2.3).

Our research poses a new problem that has not been addressed in the realm of NLP for diagnosis generation - harnessing the power of knowledge graphs for the controllability and explainability of LLMs. The following key findings will inform future work on developing knowledge graph-based methods for LLMs for diagnostic prediction:

Utility of Our Proposed Human Evaluation for LLM

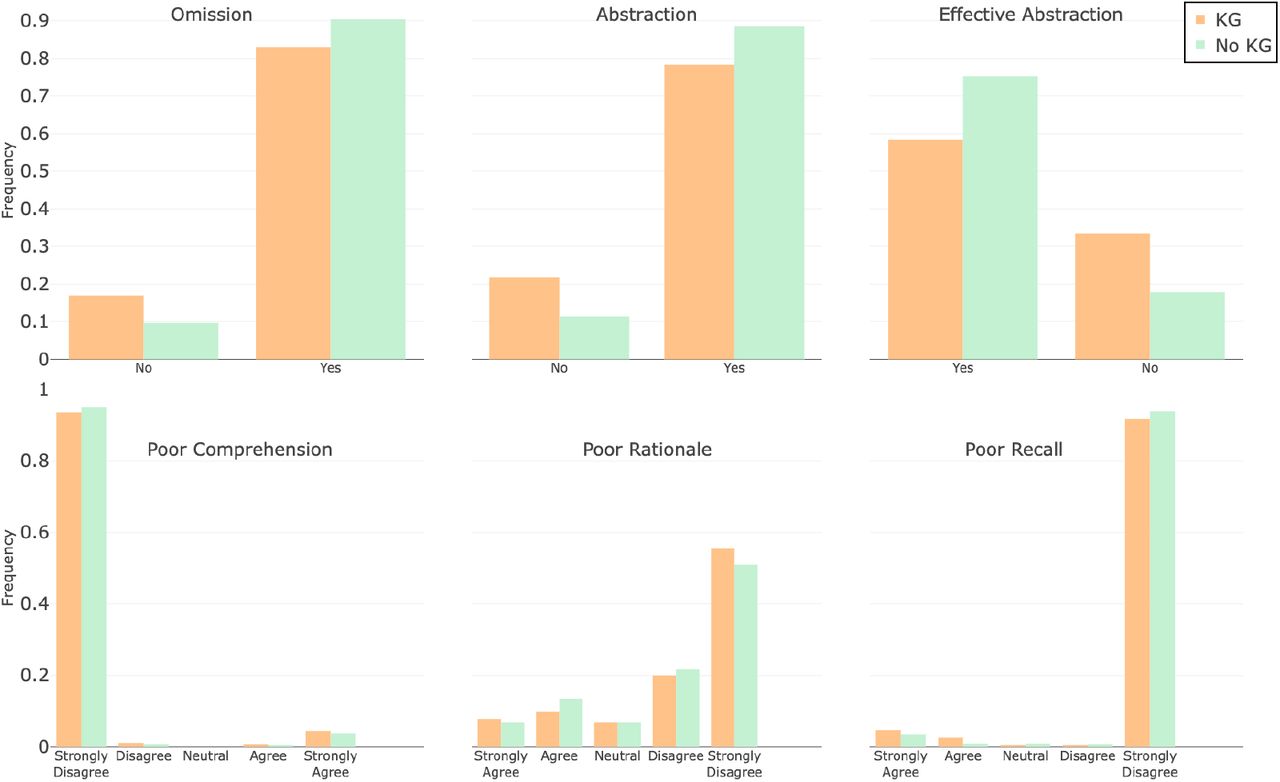

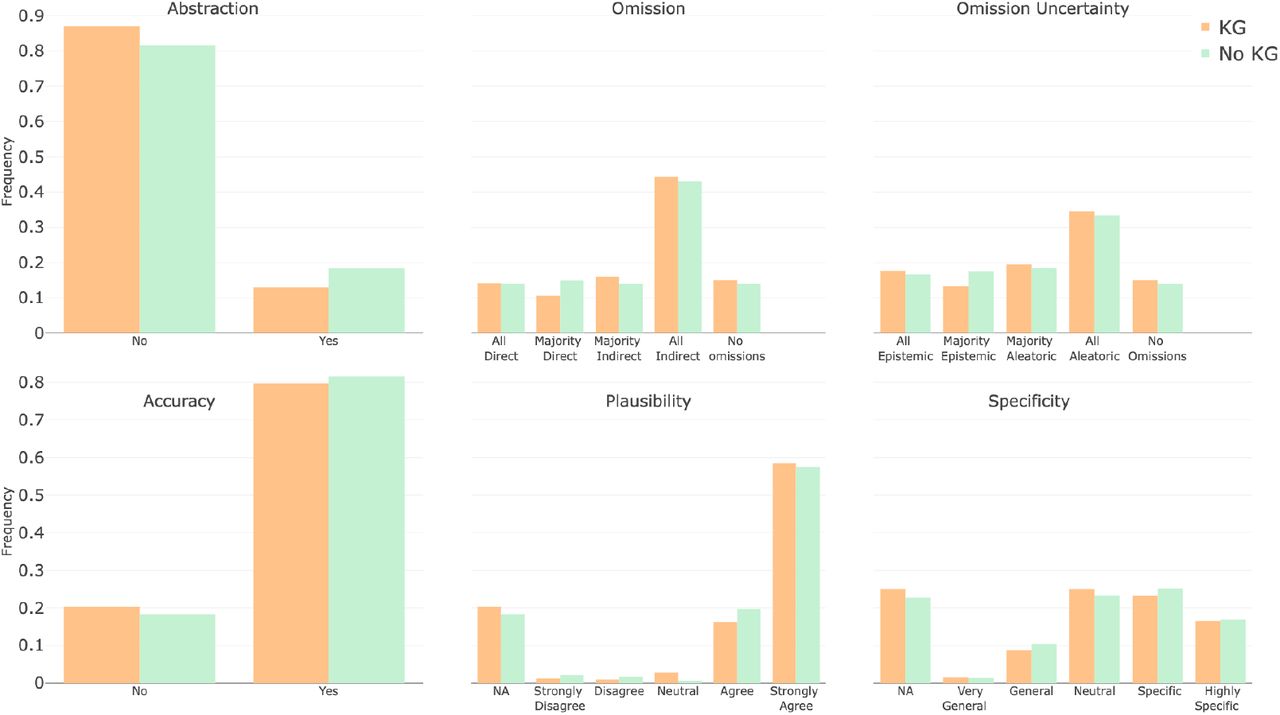

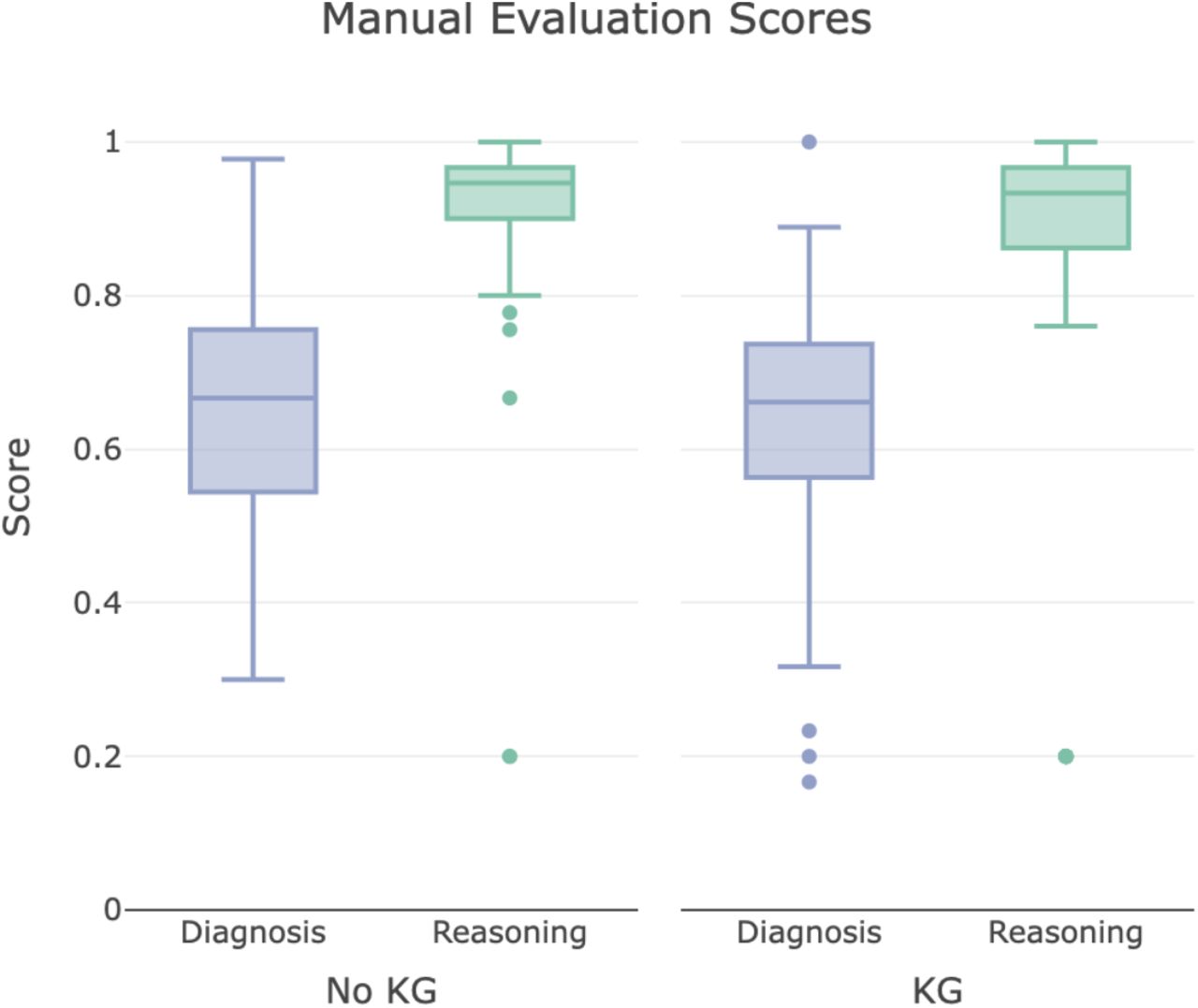

While the overall diagnostic accuracy and reasoning scores show the output with and without knowledge paths in the input has no differences, the broken-down scores present the strengths and weaknesses of different models. The granular approach of evaluation enables a more informed analysis of LLMs for particular applications and contributes to the iterative process of model refinement. The scoring aspects of plausibility, omission, specificity, rationale address various critical facets of AI interpretability and decision-making quality, aiming at mitigating the risks and enhancing the reliability and safety of diagnostics provided by AI systems. We provide the full guidelines of human evaluation in Supplementary Material and hope to contribute to facilitating the development of safe AI diagnostic tools.

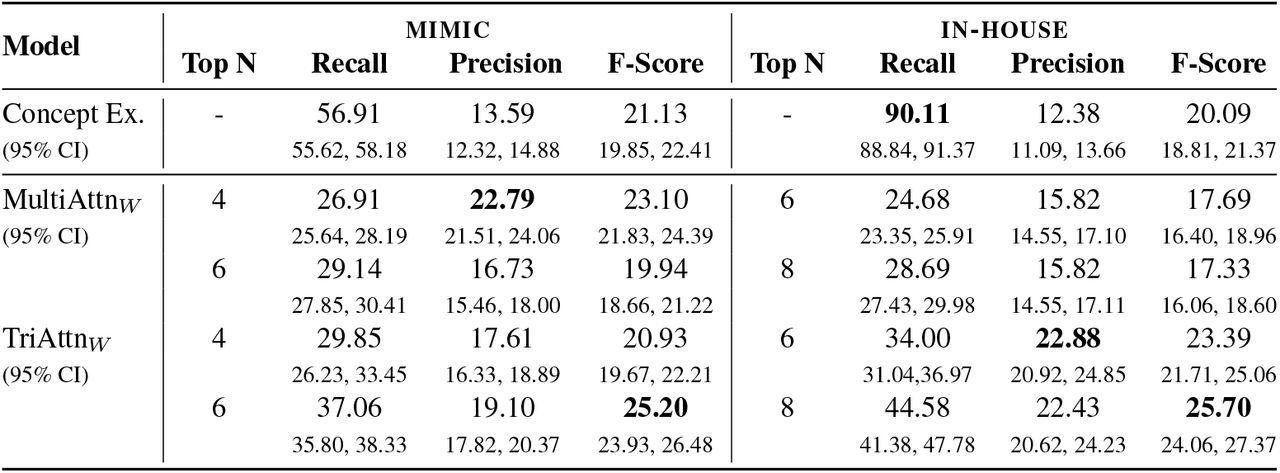

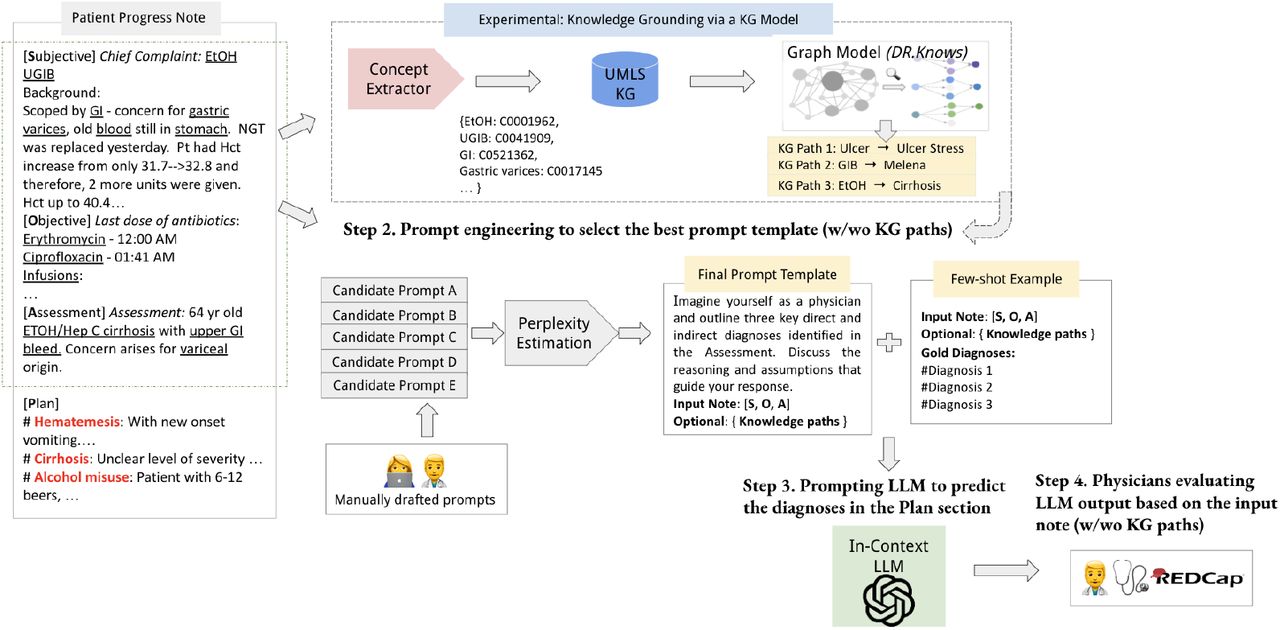

Figure 1 presents the study overview of this work. We studied summarizing diagnoses from daily progress notes written in the SOAP-format. We developed a novel graph model, Dr.Knows, that identifies and retrieves relevant knowledge paths from UMLS KG. Dr.Knows is available in two versions: TriAttn_w, which employs trilinear attention to determine the relevance scores for each knowledge path, and MultiAttn_w, which utilizes a multi-head attention mechanism to score and select knowledge paths. Our initial evaluation of Dr.Knows focuses on its capability to identify and predict Concept Unique Identifiers (CUIs) for diagnoses, specifically addressing the CUI prediction task. Subsequently, we explored how these additional knowledge pathways could be harnessed to enhance ChatGPT’s ability to summarize diagnoses derived from daily progress notes. To achieve this, we integrated the knowledge pathways predicted by Dr.Knows into a prompting framework for ChatGPT. Additionally, we presented the performance difference between the zero-shot and few-shot settings.

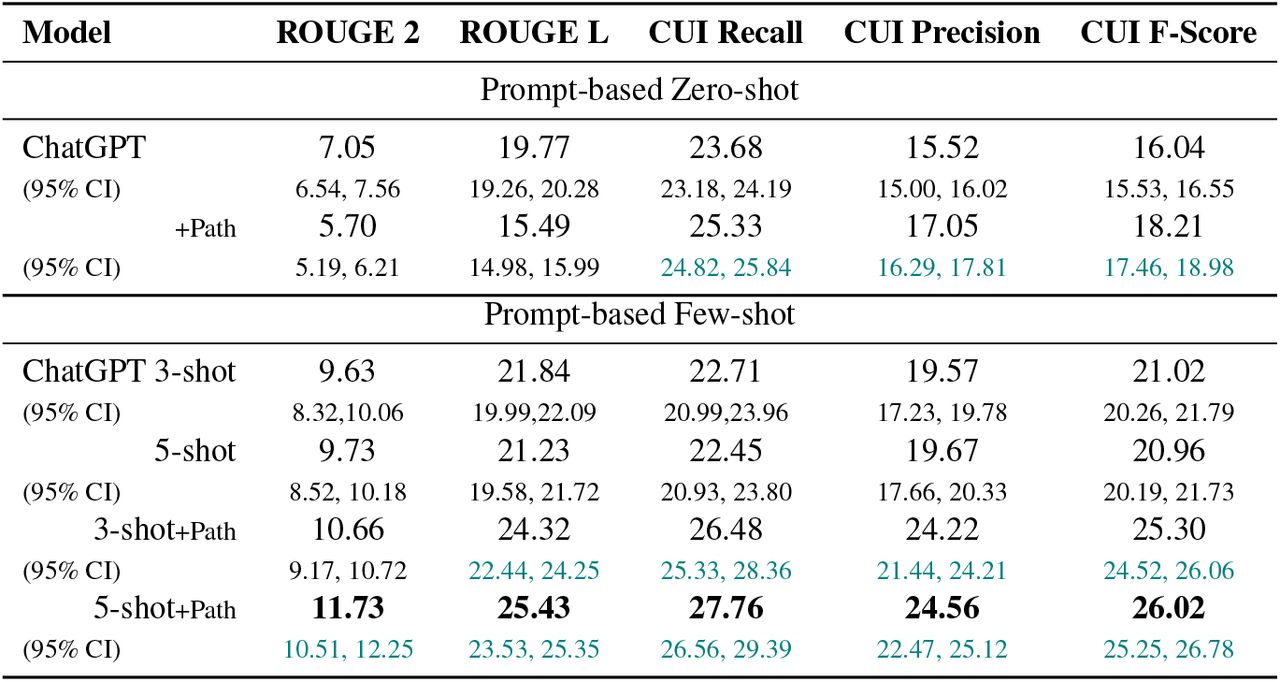

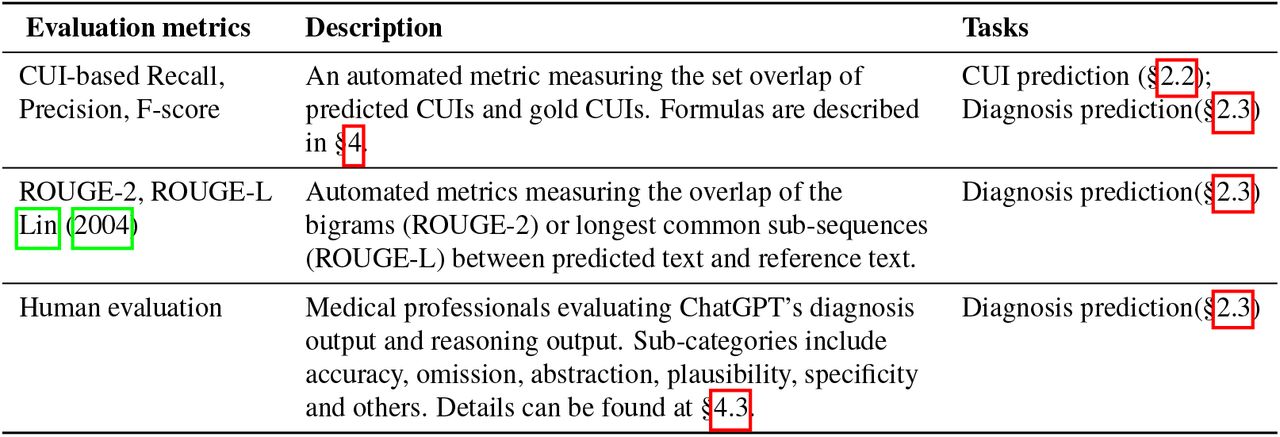

We summarized the deployment of evaluation metrics in Table 2. On CUI prediction task, we reported CUI-based Recall, Precision and F-score. The metrics helped us understand if the Dr.Knows could accurately identify CUIs that are the final diagnoses. On the results obtained through ChatGPT, we first applied automated metrics including CUI-based Recall, Precision, F-score, and two ROUGE variants (ROUGE-2 and ROUGE-L Lin (2004)). Then we asked two medical professionals to conduct a human evaluation using our proposed framework under the supervision of two senior physicians. By examining the effects of graph prompting on LLMs with real-world EHR data, we strive to contribute to an explainable AI diagnostic pathway.
