Mapping planktonic communities: a network approach to assess the role of scale and centrality on their diversity and composition
WasserCluster Lunz, Lunz am See, Austria
Institute of Aquatic Ecology, HUN-REN Centre for Ecological Research, Budapest, Hungary
FEHM-Lab (Freshwater Ecology, Hydrology and Management), Departament de Biologia Evolutiva, Ecologia i Ciències Ambientals, Facultat de Biologia,Universitat de Barcelona (UB), Diagonal 643, 08028 Barcelona, Spain
Departamento de Ecología y Gestión Ambiental, Centro Universitario Regional del Este (CURE), Universidad de la República, Tacuarembó s/n, Maldonado, Uruguay
GRECO, Institute of Aquatic Ecology, University of Girona, Girona, Spain
Eawag, Fish Ecology and Evolution Department, 6047, Kastanienbaum, Switzerland
Institute of Microbiology, University of Greifswald, Germany
*Corresponding author; email: david.cunillera@dcm.catAbstract
The distribution of habitats across a landscape and their centrality gradient are key elements defining the effective pathways of dispersal, and thus of metacommunity assembly. Understanding how centrality shapes diversity patterns is essential for predicting the impact of future landscape changes on diversity. While alpine lakes have been extensively studied, often considering the fluvial network as a potential landscape, small planktonic communities have frequently been overlooked as potential dispersers due to their assumed ubiquity. In this study, we investigate the diversity patterns of alpine lake planktonic communities along lake networks constructed at different scales, ranging from 6.5 to 650 km and the fluvial network. We sampled 55 lakes in the northern Alps (16S, 18S, phytoplankton and zooplankton) and calculated several diversity metrics (alpha, beta diversity and LCBD) and multivariate analysis. We then constructed several networks responding to different scales, determined their centrality gradients, and finally explored their relationship with the diversity of each planktonic group. We expected that a groups’ diversity would relate differently across scales based on body size, but the outcomes were varied. Bacterioplankton and zooplankton diversity were both affected across scales higher than 100 km, whereas phytoplankton appeared completely unrelated to centrality. Nonetheless, we could observe that when significant, the relationships between diversity and centrality were shared among organisms. These findings not only underscore that planktonic organisms are influenced by landscape configurations larger than the fluvial system but also emphasise the critical role of dispersal for these groups and the scales at which it impacts metacommunity assembly.
Significance statement
While dispersal is widely recognized as a key driver of assembly, some groups and systems remain insufficiently explored to fully grasp the impact of landscape and dispersal on their assembly. Planktonic communities have traditionally been considered ubiquitous and detached from regional-level structure, primarily due to their small size, leading to the notion that “everything is everywhere”. Additionally, alpine lake communities have traditionally been perceived as solely connected through fluvial systems. In this study, we challenge these notions by demonstrating how planktonic communities are indeed influenced by the relative positioning of lakes in the landscape, with significant impacts occurring at larger scales, spanning hundreds of kilometres. However, not all planktonic groups responded uniformly to the analysed factors, emphasizing the marked differences among groups and the diverging drivers shaping planktonic metacommunities.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
Metacommunity theory has contributed to a better comprehension of how the spatial arrangement of communities influences community assembly (Leibold et al. 2004, Leibold and Chase 2018, Thompson et al. 2020). The increasing recognition and quantification of spatial features has greatly advanced the field (Dale 2017, Gounand et al. 2018, Chubaty et al. 2020) since the first seminal works on metacommunity ecology (MacArthur and Wilson 1963, Hanski 1999). We are now able to quantify the scales at which the spatial arrangement plays a stronger role (Dray et al. 2006, Borcard et al. 2011), how these scales might be affected by directionality (Larsen et al. 2012, Altermatt 2013, Horváth et al. 2016), how the spatial arrangement impacts community patterns (Carrara et al. 2014, Epele et al. 2021, Borthagaray et al. 2023b) and how the relative position within a network defines diversity patterns (Economo and Keitt 2010, Altermatt et al. 2011, Henriques-Silva et al. 2019). All these approximations have been mostly focused on disentangling how space, in a broad sense, was shaping community assembly and its relative importance with respect to other variables (Peres-Neto et al. 2006, Gilbert and Bennett 2010, Bo et al. 2020, Almeida-Gomes et al. 2020). However, more detailed landscape analyses have unravelled the inherent complexity of spatial features, especially when considering the capacity of organisms to interact with, or to disperse across, a landscape (Newman 2003, Borthagaray et al. 2015a, Erős and Lowe 2019). Such organism-landscape interactions might greatly determine the scale at which spatial processes influence diversity and how species interact with one another (Ishiyama et al. 2014, Borthagaray et al. 2015b, Cunillera-Montcusí et al. 2021). Ultimately, dispersal, together with landscape structure, are the elements defining the canvas through which metacommunities assemble (Leibold and Chase 2018, Thompson et al. 2020, Borthagaray et al. 2023b).
Most previous works on aquatic metacommunity assembly have been focused on how organisms are able to actively disperse between habitats (i.e. invertebrates; (Ishiyama et al. 2014, Perez Rocha et al. 2018, Burgazzi et al. 2020), if they move shorter or longer distances within aquatic habitats (i.e. fish, molluscs; (Kappes and Haase 2012, Radinger and Wolter 2014, Herrera-Pérez et al. 2019), or disperse passively relying on different vectors, with adaptations that enables them to cross the “dry ocean” (Dodson 1992, Incagnone et al. 2015). However, the role of spatial processes in smaller microscopic organisms has received less attention until recently (Reche et al. 2005, Declerck et al. 2013, Winter et al. 2013, Jamoneau et al. 2018, Daffonchio et al. 2019, Choudoir and DeAngelis 2022). For these groups we are beginning to unfold how “everything might not be actually everywhere” (Whitfield 2005, Fontaneto et al. 2008, O’Malley 2008, Custer et al. 2022, Barbour et al. 2023).
When focusing on landscape structure, lotic systems (riverscapes) and small lentic system (pondscapes) have been mostly the grounds where studies focusing on spatial structure have been carried out in limnology (Almeida-Gomes et al. 2020, Heino et al. 2021, Hill et al. 2021). These systems often have specific dynamics that constrain dispersal of most of their inhabitants, because the strong directional component pushes organisms downstream (Seymour et al. 2015, Tonkin et al. 2018b), or its environmental features force organisms to move between habitats in order to complete their life cycles (Cunillera-Montcusí et al. 2020, Hill et al. 2021, Onandia et al. 2021), or in case of temporary lentic or lotic systems, drying mandates organisms to leave to more perennial neighbouring systems or resist drought in the soil (Martins et al. 2019, Cañedo-Argüelles et al. 2020, Florencio et al. 2020). In this sense, bigger and deeper lentic systems such as alpine lakes have remained understudied (Almeida-Gomes et al. 2020). In general, for these systems, landscape has been primarily considered as a determinant of local lake conditions linked to catchment geo-physical characteristics (e.g. bedrock, water residence time, land use; (Füreder et al. 2006, Schindler 2009, Klaus et al. 2021). However, the spatial position of lakes in the landscape can also define the connectivity between its communities and its neighbouring aquatic habitats. Being connected through waterways and/or closer to each other should foster more similar communities due to higher probability of exchange of individuals between lakes (Leibold and Norberg 2004, Heino et al. 2015). However, while the relevance of catchment geo-physical characteristics is clearly acknowledged as a diversity driver, the role of connectivity is often debated, especially for planktonic and microscopic aquatic organisms (Leibold and Norberg 2004, Winter et al. 2013, Custer et al. 2022).
The influence that landscape position might have on organisms may largely vary depending on the scale at which the landscape is considered (Declerck et al. 2011, Chase and Knight 2013, Borthagaray et al. 2015a, Morán-Ordóñez et al. 2015). Ultimately, a landscape is defined a priori based on the objectives, metrics or sites under study (Newman 2003, Turner 2005, Turner and Gardner 2015). However, how we simplify the landscape in our analyses can affect our inference about the assembly of focal communities (Baguette and Van Dyck 2007, Newman 2019). For example, if we set the boundaries of our landscape too large or too small, we might fail to capture the spatial pattern that affects community assembly. Thus, the challenge for our analyses lies in how to define an appropriate scale to consider the landscape (Baguette et al. 2013, Borthagaray et al. 2015a, Cunillera-Montcusí et al. 2021). In the case of organisms that can be transported along long distances due to dominant winds (Cáceres and Soluk 2002, Csabai and Boda 2005, Pinceel et al. 2016) or inside/attached to other organisms such as aquatic microorganisms or small crustaceans (Vanschoenwinkel et al. 2008, Coughlan et al. 2017, Lovas-Kiss et al. 2020), the scales at which landscape features might be relevant could extend several hundreds of kilometres (Green et al. 2002, Lovas-Kiss et al. 2019) or be only linked to the fluvial network connecting lakes if only dispersal by drift exist (Doretto et al. 2020). Hence, if we want to assess the role of landscape centrality for lake planktonic communities it is key to consider different scales granting the possibility to quantify how landscape arrangement might impact diversity patterns for these different taxonomic groups (Borthagaray et al. 2014, Cunillera-Montcusí et al. 2021).
Network theory can contribute to a better representation of landscape structures and understanding about the potential effect of different landscapes on biodiversity patterns (Urban and Keitt 2001, Dale 2017). By creating networks based on previously defined landscapes, we are able to calculate metrics that quantify the relative position of habitats in these networks, and directly test how relevant these are for biodiversity (e.g. centrality gradient; (Estrada and Bodin 2008, Economo and Keitt 2010, Horváth et al. 2019, Borthagaray et al. 2020). Furthermore, congruent patterns between different organisms and the scales at which they relate with centrality can inform us about the extent at which landscape is impacting their assembly patterns (Hill et al. 2017, Sarremejane et al. 2017, Schmera et al. 2018). Such congruence might be related with body size (Ortiz et al. 2023), that will markedly differ across planktonic groups, from bacterioplankton to zooplankton (Figure 1 H1). Smaller organisms (e.g. bacterioplankton and protists) might be related with larger scales not necessarily linked to fluvial connections whereas zooplankton might be related to smaller scales or to the fluvial network (Michels et al. 2001, Braghin et al. 2015, Chaudhary et al. 2022, Custer et al. 2022). However, even though the relationship of organisms with centrality might differ across scales, we could expect that the direction of these relationships would be preserved across organism groups (Figure 1 H2). Thus, on the one hand, we could hypothesise that communities located at more central positions would present greater species richness diversity and lower beta diversity as central communities could be easily reached by most of the regional pool of species (Mouquet and Loreau 2003, Ai et al. 2013, Grainger and Gilbert 2016, Custer et al. 2022). On the other hand, more isolated communities would contain lower alpha diversity and higher beta diversity (Chase and Shulman 2009, Tonkin et al. 2016b, Bender et al. 2017, Custer et al. 2022). This would reflect a concomitant change in composition, with central communities being more similar among them while greater differentiation would be observed in more isolated ones, potentially affecting communities contribution to beta diversity (Legendre and De Cáceres 2013). These general patterns may foster a stronger mismatch with environment when it relates with species richness but not against composition as environmental characteristics may fail to explain the total number of species in central sites (i.e. higher due to mass effects) but may perform better in explaining community dissimilarity (i.e. higher homogeneity). At which scales centrality will drive this mismatch will shed light on the impact of landscape on these processes and the equilibria between main assembly drivers (Thompson et al. 2020, Suzuki and Economo 2021).

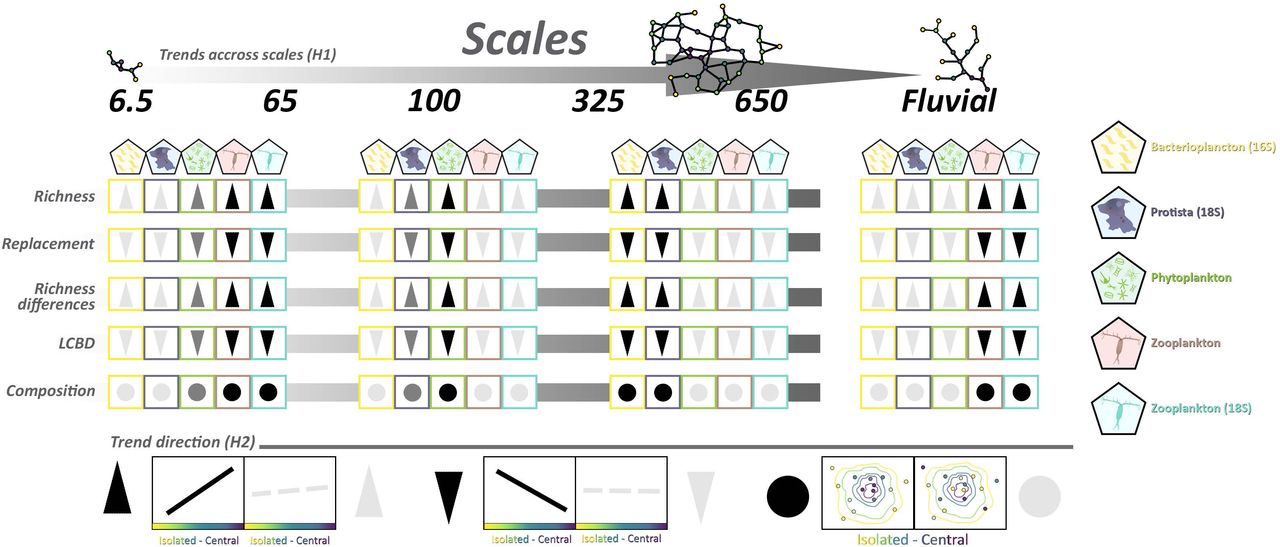

In this study, we explore the connection between network centrality and how diversity patterns interact with the environment in planktonic communities. Our goal is to enhance our understanding of the role that landscape structure plays in influencing the assembly of these taxonomic groups. To explore this, we obtained data from four groups of organisms ranging in size and ecological role (i.e. bacterioplankton, protists, phytoplankton and zooplankton) from 55 alpine lakes located across Austria, Germany, and Switzerland. Using the sampled lakes as reference, we constructed six networks that cover various landscape scales, considering the neighbouring lakes (ranging from 6.5 km to 650 km) as well as the fluvial network. Based on these data, we were able to relate how diversity and composition of planktonic communities were affected by the centrality gradient calculated at each scale. Across all these elements, we hypothesise that 1) large-bodied organisms (e.g. zooplankton) will relate with centrality at small scales (6.5 or 65 km) or the fluvial network while we expect the opposite for small-bodied organisms (Figure 1-H1). Nevertheless, we also hypothesise that 2) the sign of the relationships will be shared among groups being more central lakes, the ones consisting of richer and more similar communities contrasting with isolated ones (Figure 1-H2), thus raising community mismatch with lakes environmental characteristics.
Methods
Sampling procedure in the field

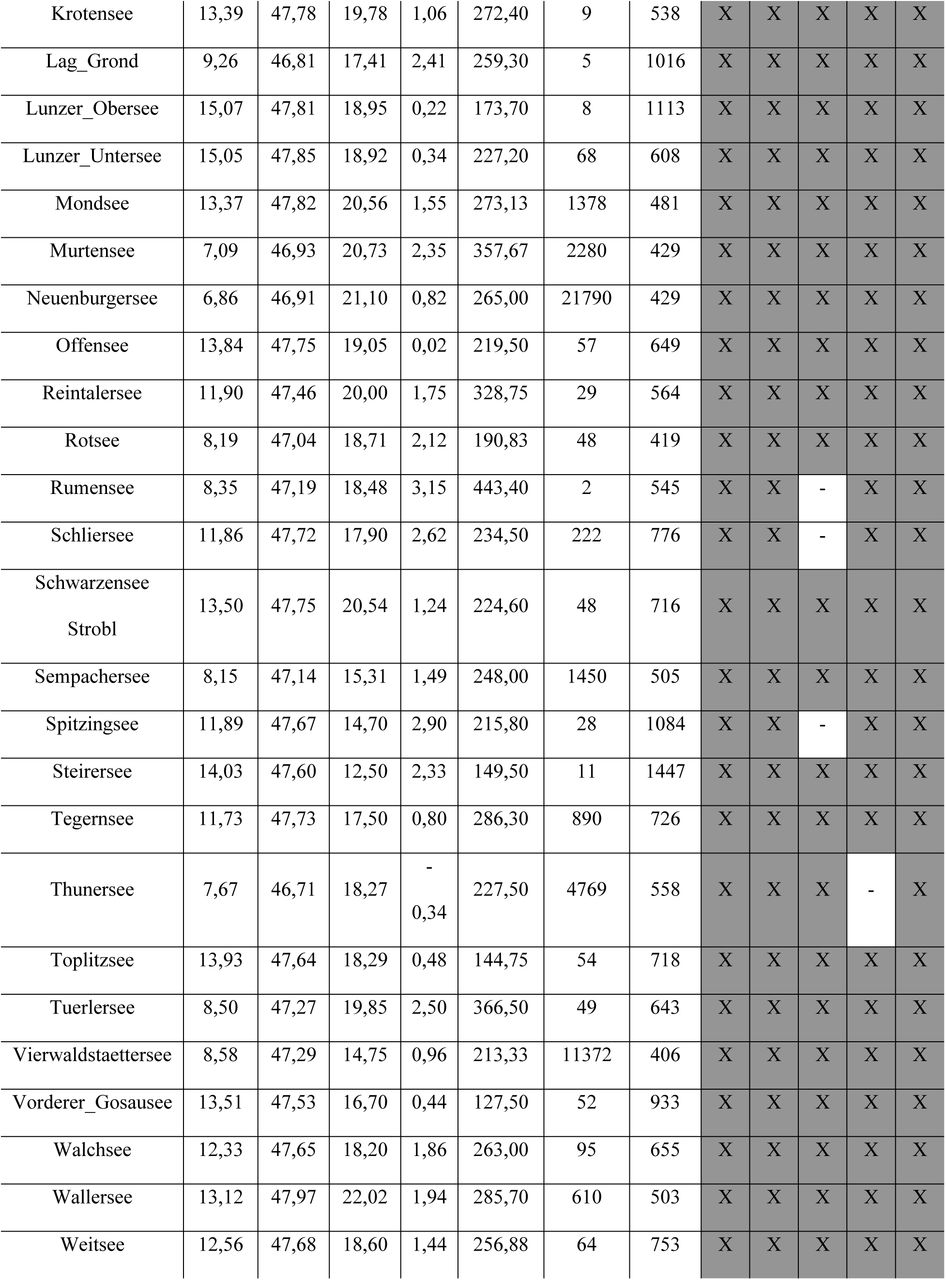

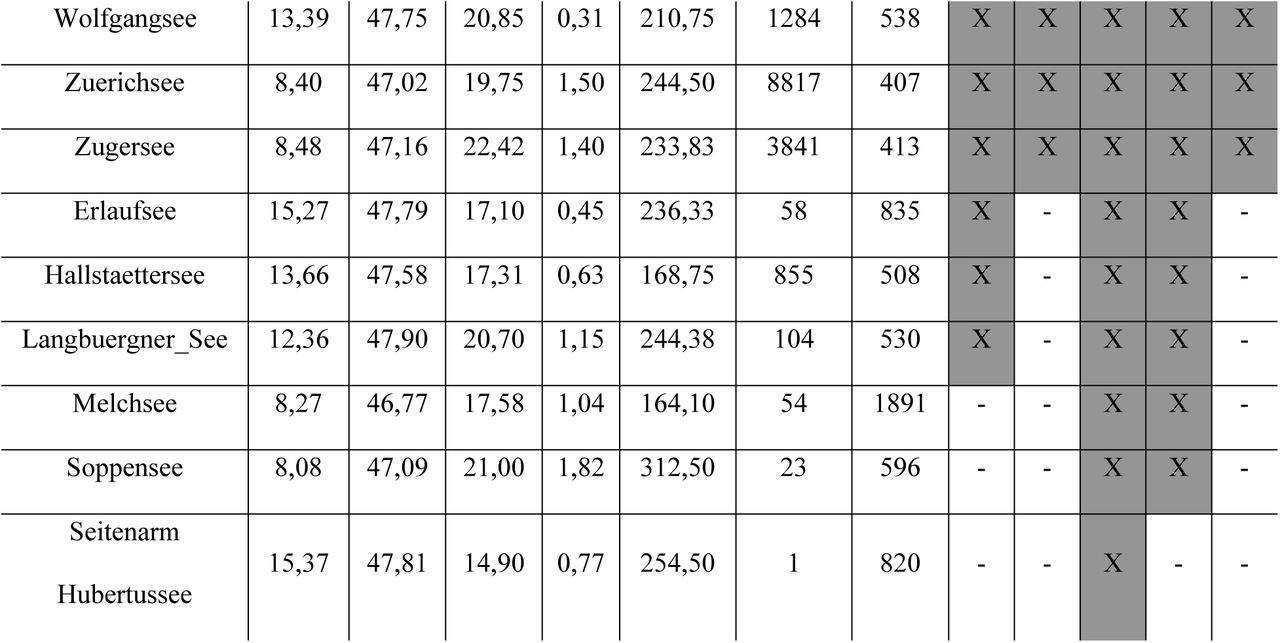

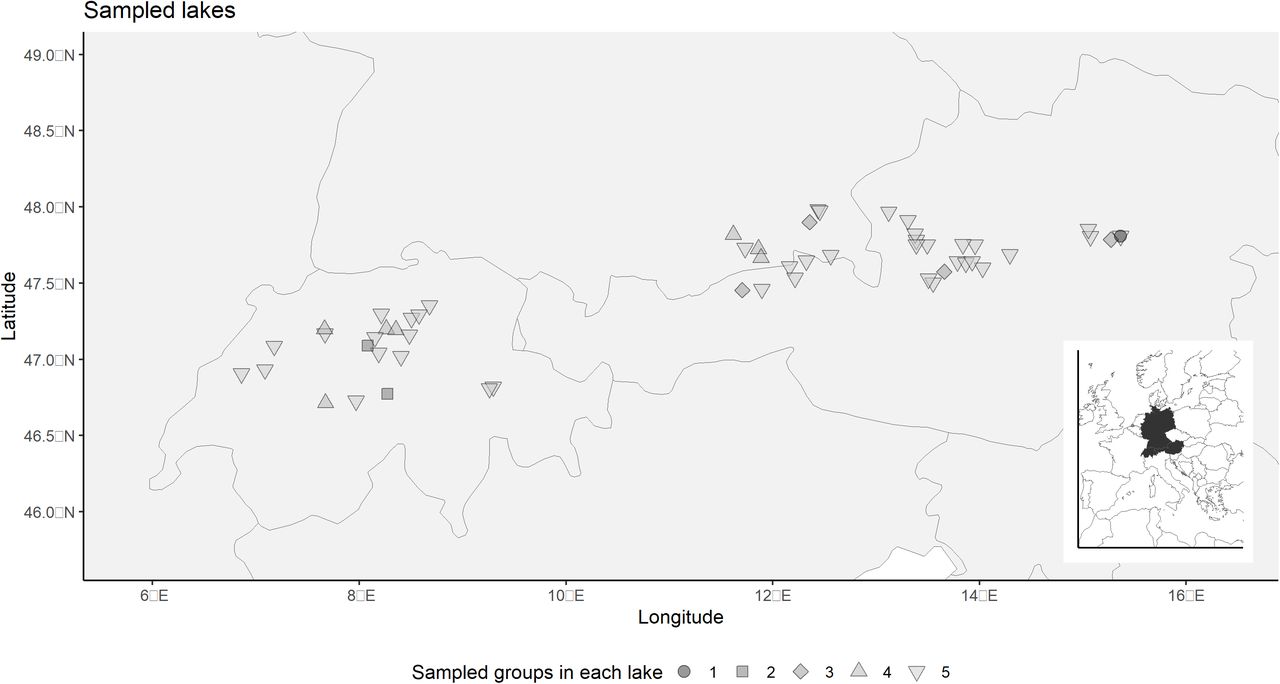

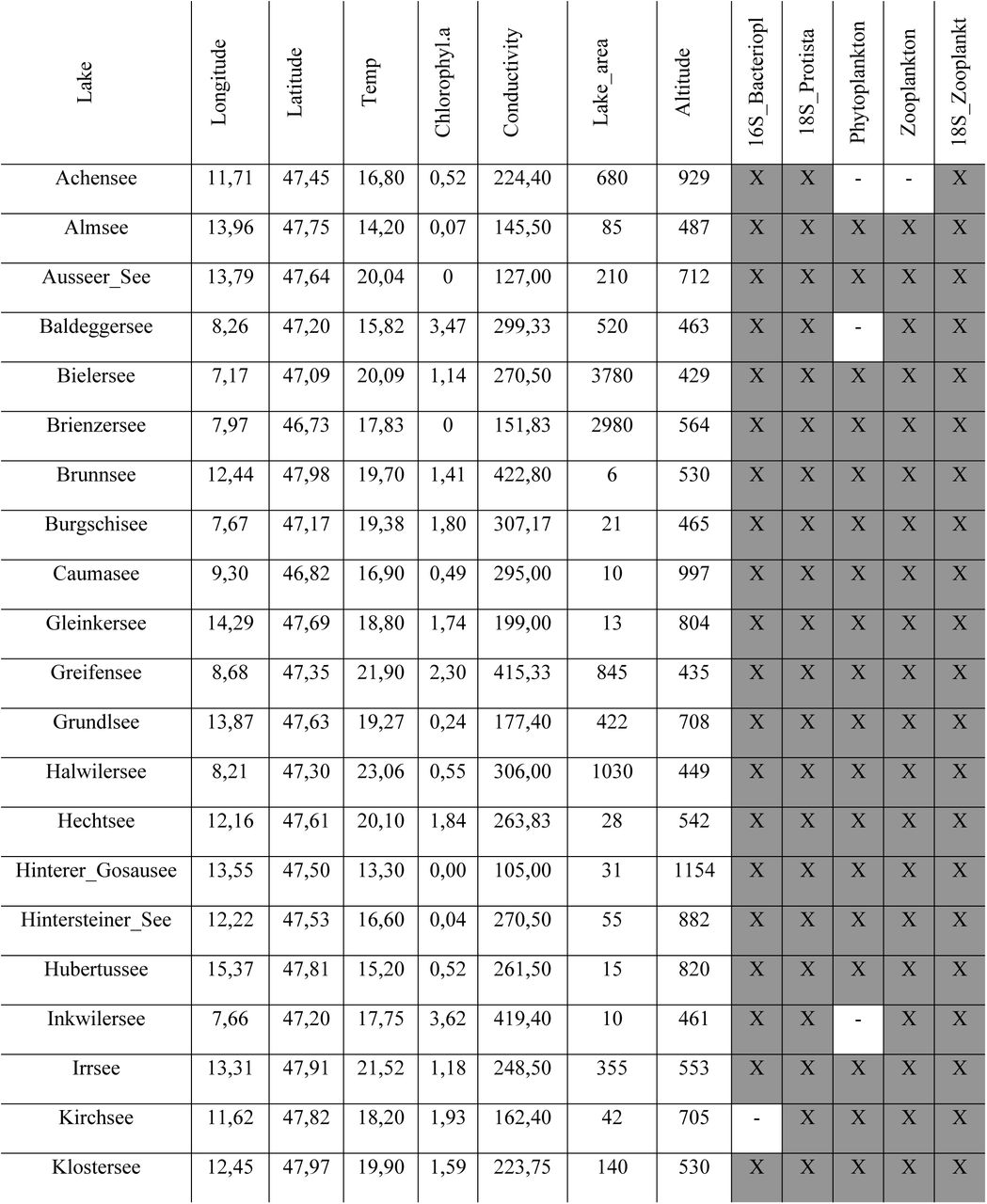

The general sampling protocol is described in (Horváth et al. 2017). Briefly, we sampled 55 lakes in the perialpine area of Austria, Southern Germany and Switzerland in 2011 & 2012 (Switzerland: n = 20; EAWAG sampling, summer and autumn 2011; Austria and Germany, WasserCluster sampling, summer and autumn 2012; n = 27 and 8, respectively; see Figure 2). Coordinates for all 55 lakes can be found in Supplementary S1. Five environmental variables were recorded for each lake: water temperature (°C), chlorophyll a concentration (μg/l), electrical conductivity (µS/cm), lake area (hectares), and altitude (m). These variables were used as proxies of the lakes’ main environmental characteristics and the level of anthropogenic influence. Sampling was carried out by a boat, with smaller lakes being sampled above their deepest points, and larger lakes at depths >15m, except for Hubertussee, where water was collected from the outlet of the lake. Water samples were collected by a tube sampler from the upper mixed layer (i.e., epilimnion), following inspection of temperature profiles which were measured prior to collecting the water samples. Phytoplankton samples were obtained following the same protocol as with zooplankton (see Horvath et al. 2017) and fixed with Lugol’s iodine solution. Sampling equipment was always rinsed with lake water before collecting water samples and cleaned by dilute hypochloric acid solution in between lakes. Analytical protocols for recording and measuring standard limnological variables are outlined in (Horváth et al. 2017). For molecular analysis 300-800 ml water samples were filtered through 0.2 µm nitrocellulose membrane filters until they were clogged. The equipment for filtration was thoroughly rinsed with water and cleaned with ethanol in between lakes to avoid contamination. Molecular filters were frozen immediately after filtration and kept stored at -20°C until further processing. Unfortunately, we could not obtain the same number of samples for each one of the targeted taxonomic groups and therefore we eventually used 52 lakes for bacterioplankton based on 16S, 47 for protists based on 18S, 50 for phytoplankton, 52 for zooplankton obtained by microscopic analyses, and 49 for zooplankton based on 18S of a total of 55 lakes (Figure 2).
Molecular analyses for 16S and 18S
DNA from the molecular filters was extracted using the MoBio PowerSoil DNA isolation kit and amplified with general primers targeting the 16S rRNA gene of bacteria (Caporaso et al. 2011) and 18S rRNA gene of eukaryotes (Hugerth et al. 2014). The two-step PCR amplification was carried out according to Caporaso et al. (2011) and included sample-specific barcode combinations. Illumina MiSeq sequencing libraries were prepared at the Centre of Genomic Research in Liverpool using Nextera kits (Illumina). For 16S, overlapping forward and reverse reads were combined. For 18S only the forward direction reads, ∼180 bp were used. Raw sequencing reads were quality filtered and OTU clustered (16S: 97% identity, 18S: 95% identity) using the VSEARCH pipeline (Rognes et al. 2016). OTUs were taxonomically classified using a manually curated version of the SILVA database with the CREST LCA Classifier (Lanzén et al. 2012). Through this molecular processing and classification, we obtained an OTUs and species list for bacterioplankton, protists, and zooplankton (18S zooplankton). The raw sequence data have been submitted to the European Nucleotide Archive under project PRJEB70292 and the processed datasets are available in the online supplementary material.
Microscopic analysis of phyto- and zooplankton
A detailed outline on the microscopic analysis of zooplankton is given in Horváth et al. 2017. Overall, all crustacean zooplankton were identified to the minimum taxonomic level possible (species or species complex). Phytoplankton were quantified by inverted microscopy, following standard protocols (Utermöhl 1958, Başoğlu et al. 2017). Depending on the biomass, 20-100 ml were allowed to settle for 24-48 hours. A minimum of 500 cells were identified and counted, employing different magnifications. The raw datasets are available in the online supplementary material.
Community structure and composition

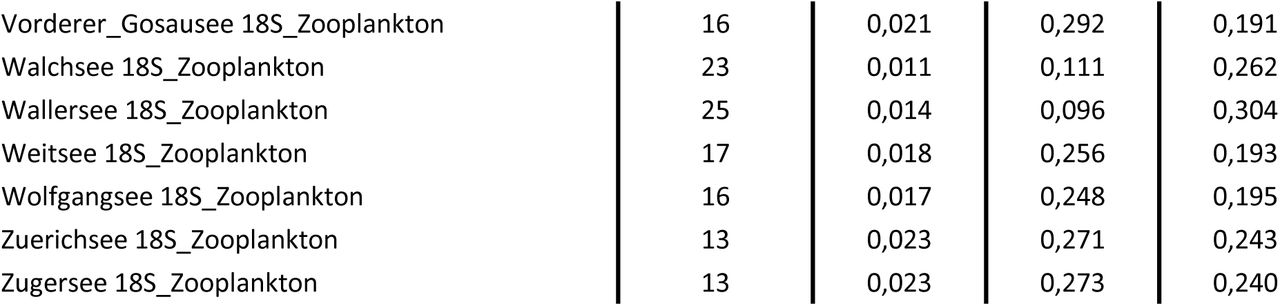

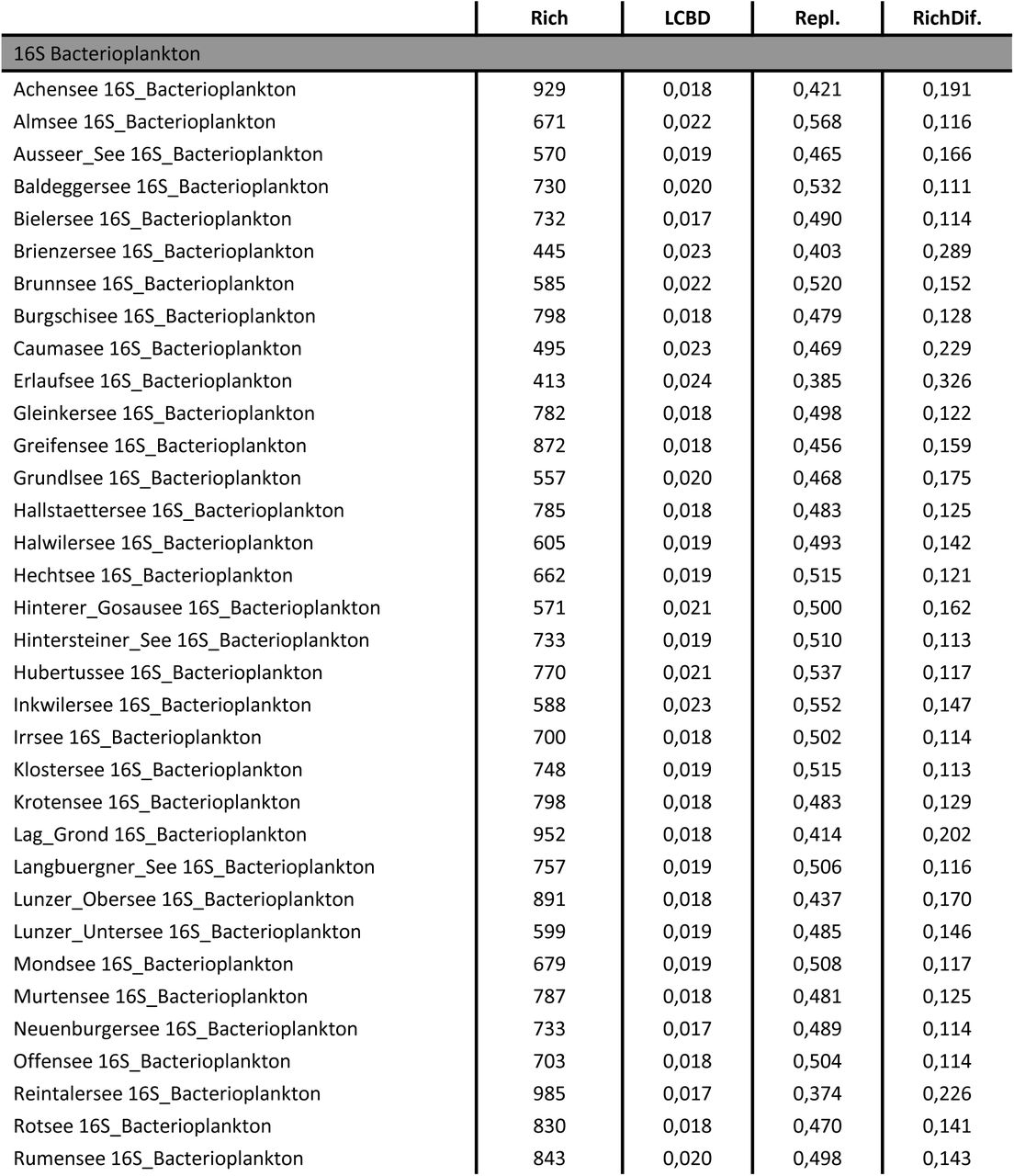

In total, we obtained five community datasets of different organism groups: bacterioplankton, protists, phytoplankton and zooplankton. For the latter, we independently considered datasets originating from morphological identification (“zooplankton”) and molecular identification (“18S zooplankton”). In all these five datasets, we used binary data on species or OTUs (presence/absence) after the exclusion of rare species (<10 sites for bacterioplankton and 18S zooplankton, <3 for protists, phytoplankton, and zooplankton). With these datasets, we analysed planktonic diversity by calculating specific community metrics (species richness, average replacement, richness difference and LCBD) and multivariate responses (dbRDA). Species richness (Rich) corresponded to the number of taxa found in each lake. Replacement and richness differences correspond to the beta diversity partitions that we averaged for each lake to obtain a unique sample value. Replacement (Repl) refers to what extent the composition of each pair of communities corresponds to species substitutions, whereas richness difference (Rich-Diff) informs to what extent this difference can be attributed to differences in species numbers between each pair of lakes (Legendre 2014). Local contribution to beta diversity, hereafter named LCBD, was used to quantify the relevance of each lake at a regional level, providing an estimate on how unique its community is with respect to all the other lakes (Legendre and De Cáceres 2013). For average replacement, average richness difference and LCBD we used Jaccard’s dissimilarity index for presence absence data from the Podani’s families of indices (Borcard et al. 2011, Podani and Schmera 2011, Legendre and De Cáceres 2013). Finally, for the multivariate analysis we carried out a distance-based redundancy analysis (dbRDA) also using the Jaccard index. All these analyses were done with the vegan package (Oksanen et al. 2010). For the calculation of all dissimilarity metrics and multivariate analysis, we considered only the lakes that were belonging to the same network for the cases where more than one subgraph was built (i.e. 65 km, 6.5 km and fluvial scales; see next paragraph).
Landscape scales and network construction

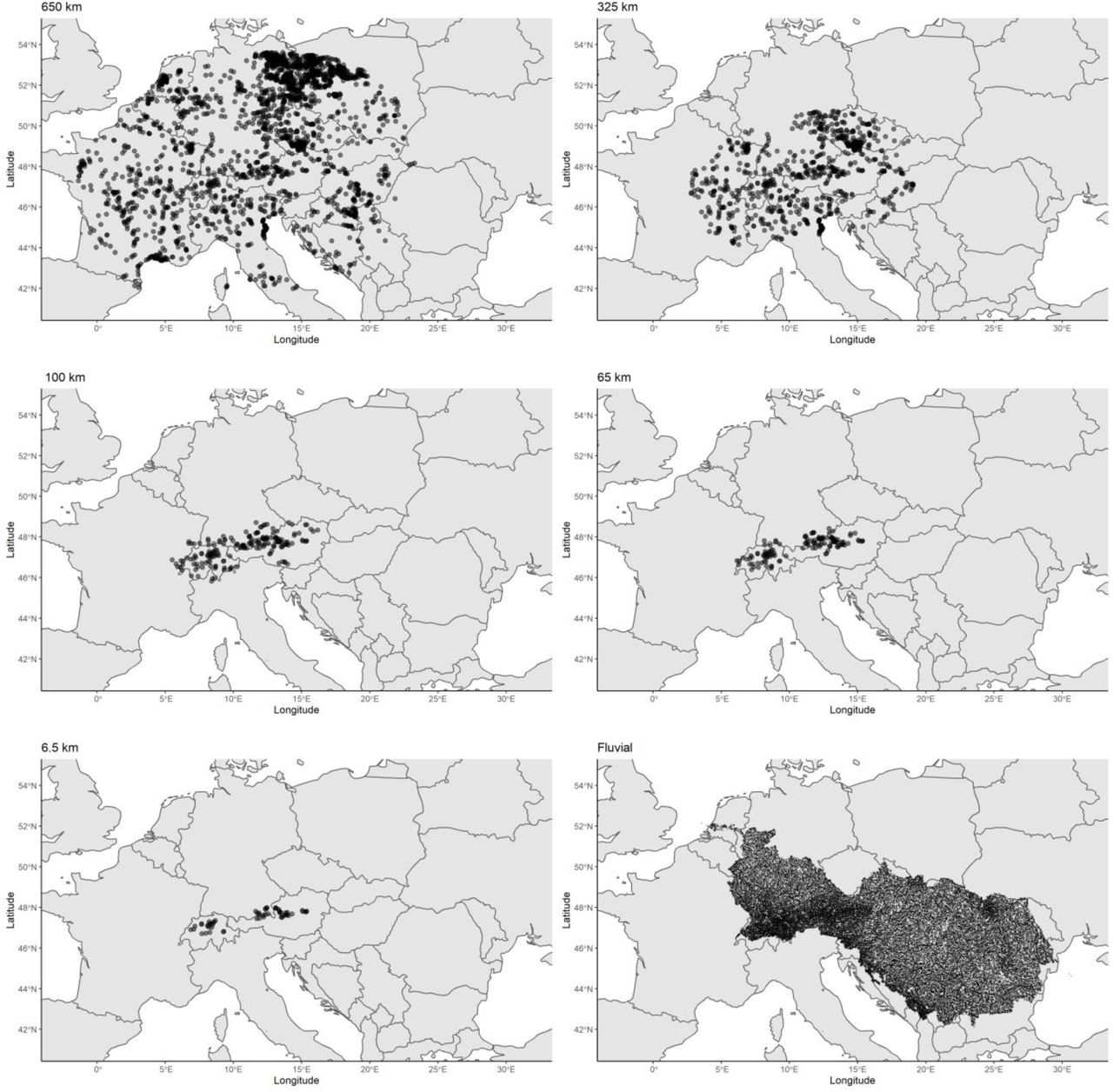

In order to create a set of different networks representing different spatial scales, we defined a total of five different landscapes by using the geographic position of all lakes surrounding the 55 sampled lakes based on a global database (Lehner and Do 2004). These five scales represent five different landscapes capturing lake distribution surrounding the sampled lakes. We used these five landscapes to construct five networks from which to calculate centrality values. First, we calculated the maximum distance between all the sampled lakes (from Neuenburgersee to Hubertussee of around 650 km). Second, we identified all the lakes within a buffer of that distance (resulting in a total of 2406 lakes in our dataset). This landscape constituted the largest scale (hereafter referred to as 650 km). We then repeated this procedure but dividing the scale by approximately half at each step to decrease the considered scale and the number of lakes included in each buffer. Thus, modifying the obtained potential network structure. This resulted in four landscapes with the following scales: 325 km including 771 lakes, 100 km including 185 lakes, 65 km including 127 lakes and 6.5 km including 58 lakes (Supplementary S2).

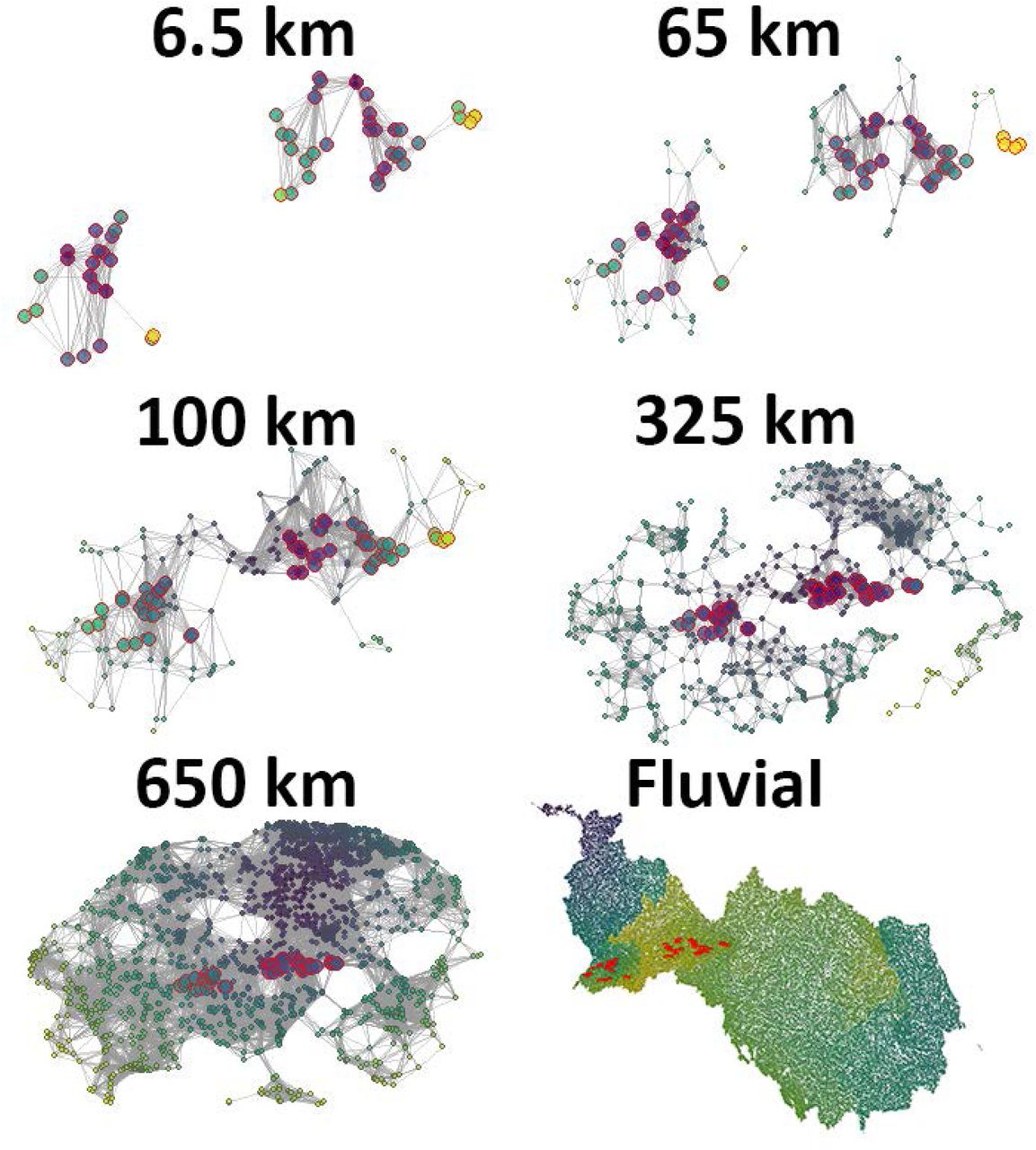

With the five landscapes, which included the 55 sampled lakes, we constructed five undirected networks (Figure 3). In these networks, each lake was considered a node and each connection an effective dispersal route. We connected these networks using the percolation distance, which is defined as the minimum linkage distance needed to connect all network nodes to at least one neighbour (Keitt 1997, Urban and Keitt 2001, Solé 2012). This distance was of 142 km for the 650 km scale, 71 km for the 325 km scale, 68 km for the 100 km scale, and of 6 and 6.9 km for the two subgraphs of the 65 and 6.5 km scales. We used the percolation distance because it allowed us to connect all nodes within one unique network while conserving the regional structure caused by the distribution of nodes in the landscape. Also, it allows consideration of all nodes when calculating centrality metrics. Thus, percolation networks represent the intermediate transition between a disconnected and a global network, where all nodes are potentially reachable but still preserve their regional structure (Borthagaray et al. 2015a). For each network we calculated closeness centrality, which represents the centrality gradient (Figure 3). Closeness centrality is the reciprocal of the average distance from the focal node to all the other network nodes, where higher values represent more central habitats in the network (Borthagaray et al. 2015a, Dale 2017). The two smaller scales (65 km and 6.5 km) consisted of two separated subgraphs and their closeness centrality values were calculated separately for each subgraph and later normalised dividing the values by each graph maximum. By including these scales in our analysis, we assumed that dispersal at these two scales was not occurring between subgraphs and maintained each subgraph centrality gradient avoiding the effect of having different numbers of nodes. Overall, with the five landscapes, we generated five networks and hence five gradients of centrality using the percolation distances (Figure 3).
The fluvial directed network was created using the two river networks where the sampled lakes belong (the Danube and the Rhine river catchments: Figure 3F). We obtained the shapefiles from these two fluvial networks from HydroRIVERS and HydroBASINS databases (Lehner et al. 2008, Lehner and Grill 2013). Then, we transformed the shapefile into a graph where each segment intersection was considered as a node using the package shp2graph (Lu et al. 2018). Once the network was defined, we located the position of the sampled lakes in it. Finally, we calculated the centrality isolation gradient considering a directed network from up- to downstream (i.e., out-closeness centrality). We considered a directed network to capture the natural dendritic structure of the rivers to also account for drift dispersal through the fluvial network. The two fluvial catchments consisted of two different subgraphs as the 65 and 6.5 km scales, thus, we followed the same approach and calculated centrality values (i.e. out-closeness) separately for each subgraph and later normalised dividing the values by each subgraph maximum. As out-closenness presented a marked skewness due to the dendritic network of rivers we additionally log-transformed their values to correct this. Overall, out-closeness presented the same gradient as the values of undirected networks with lower values of out-closeness representing more isolated parts of the stream basins (i.e. headstream nodes; Figure 3) and vice versa. For the five undirected networks and the fluvial network calculations and representation, we used the packages igraph (Csárdi and Nepusz 2006) and sna (Butts 2023).
Centrality-isolation against community facets
We followed two different procedures for community metrics and the multivariate analysis to relate them against centrality but in both cases we excluded environmentally explained variation in order to focus on the pure effect that the centrality gradient had on diversity and composition. For each one of the community metrics (Rich, LCBD, Repl, and Rich-Diff) we first selected the most relevant environmental variables using a random forest (randomForestSRC package, (Ishwaran and Kogalur 2023). Second, we conducted a linear model with each community metric as response variable and the selected environmental variables as explanatory variables. Third, we extracted the residuals of that linear relation retaining the unexplained part of this relationship. Finally, we used the residuals as a response variable against the centrality values of each one of the six networks using a generalized additive model (GAM; mgcv package, Wood 2017). We considered the residuals of each diversity metric as the response variable and the centrality-isolation gradient as the smooth term. Our focus on using residuals aimed to capture the discrepancies between environmental variables and the diversity patterns observed in planktonic communities, exploring their relationship with centrality measures (i.e. closeness and inverse out-closeness). In essence, any significant trends identified would indicate the pure impact of the centrality gradient on community assembly, independent of underlying gradients in environmental drivers and eliminating any potential autocorrelation between the environment and centrality.
For community composition (dbRDA; (Oksanen et al. 2010), we first subtracted the unexplained coordinates of the first two axes of the dbRDA. Second, we fitted a GAM using the ordisurf function of the vegan package (Oksanen et al. 2010) into the unexplained multivariate space. Here, centrality (closeness and out-closeness) was fitted as a smooth surface using penalised splines in GAM (Wood 2003) to later predict its fitted values in a regular grid. In summary, this function plots the fitted contours with a convex hull of data points over the existing unexplained multivariate space and calculates its significance (Oksanen et al. 2010). The two analyses considering community metrics and multivariate analysis were carried for each one of the five considered taxonomic groups (Bacterioplankton, Protists, Phytoplankton, Zooplankton and S18 Zooplankton) and considering the closeness values of each network (650 km, 325 km, 100 km, 65 km, 6.5 km and fluvial). So, overall, we conducted a total of 120 models for community structure and 30 dbRDA for community composition. From these we selected only the significant smooth terms (p<0.05), which indicated that there was some significant trend between community structure or composition and the centrality.
Results
Community structure and composition

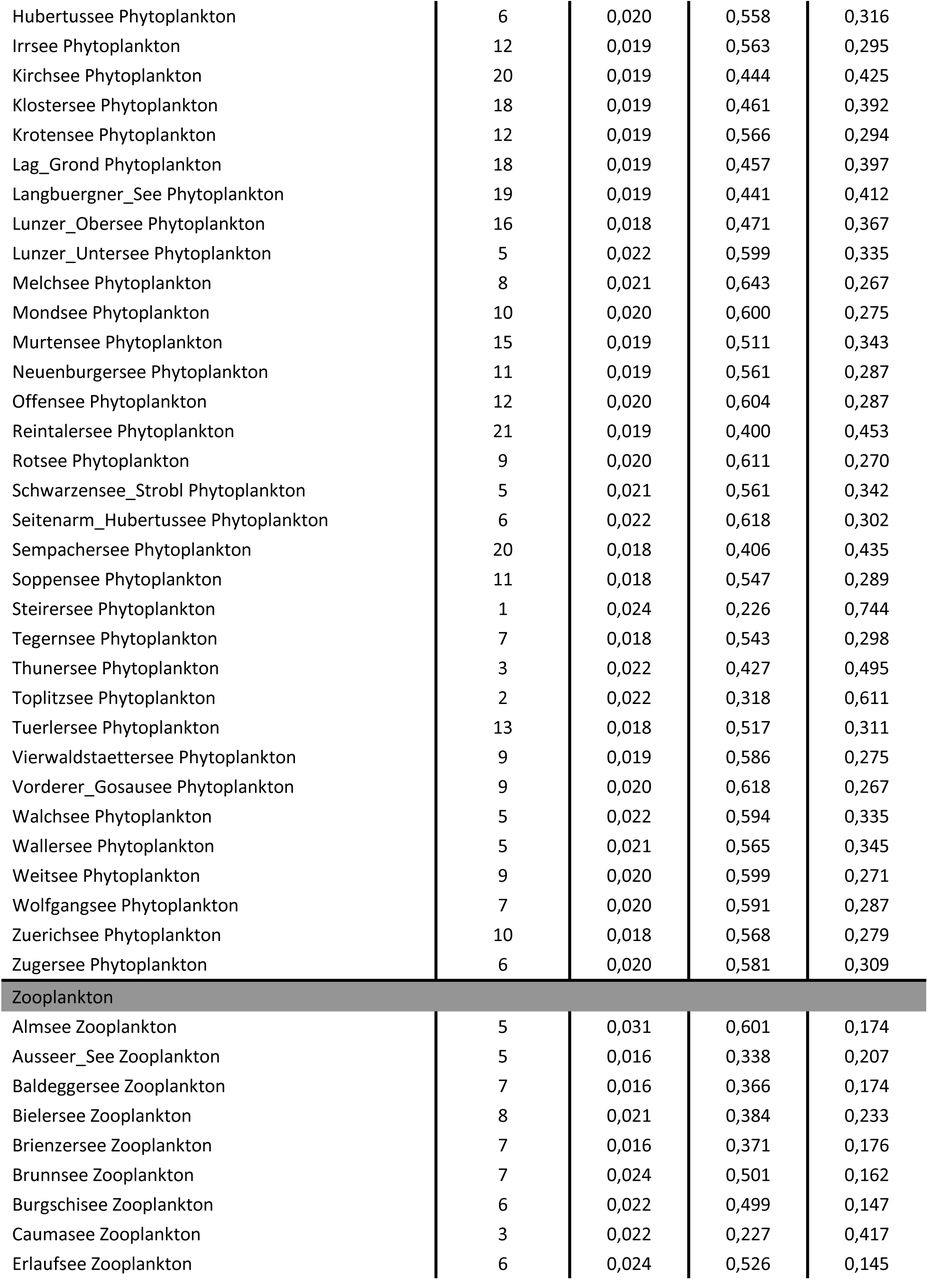

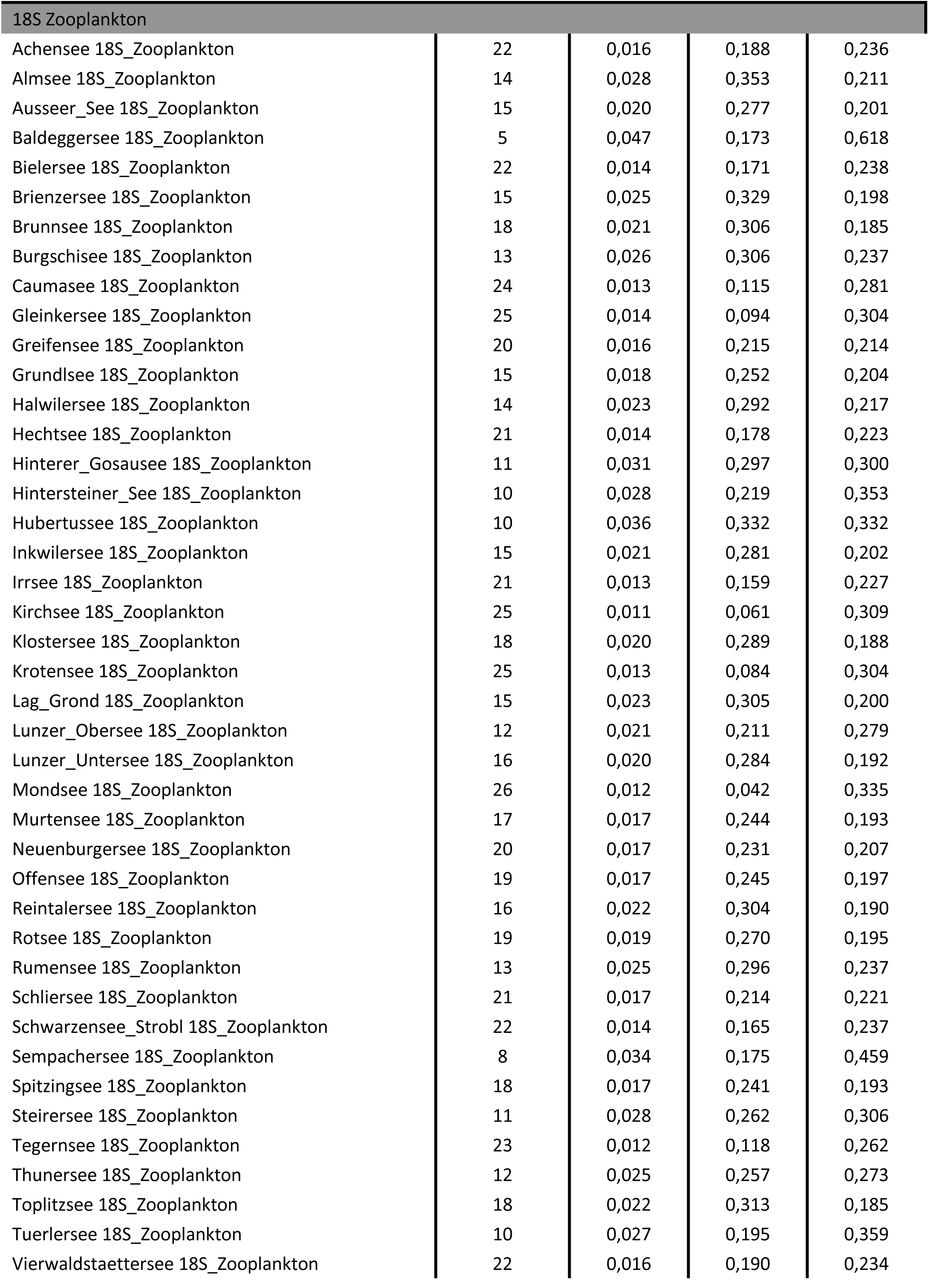

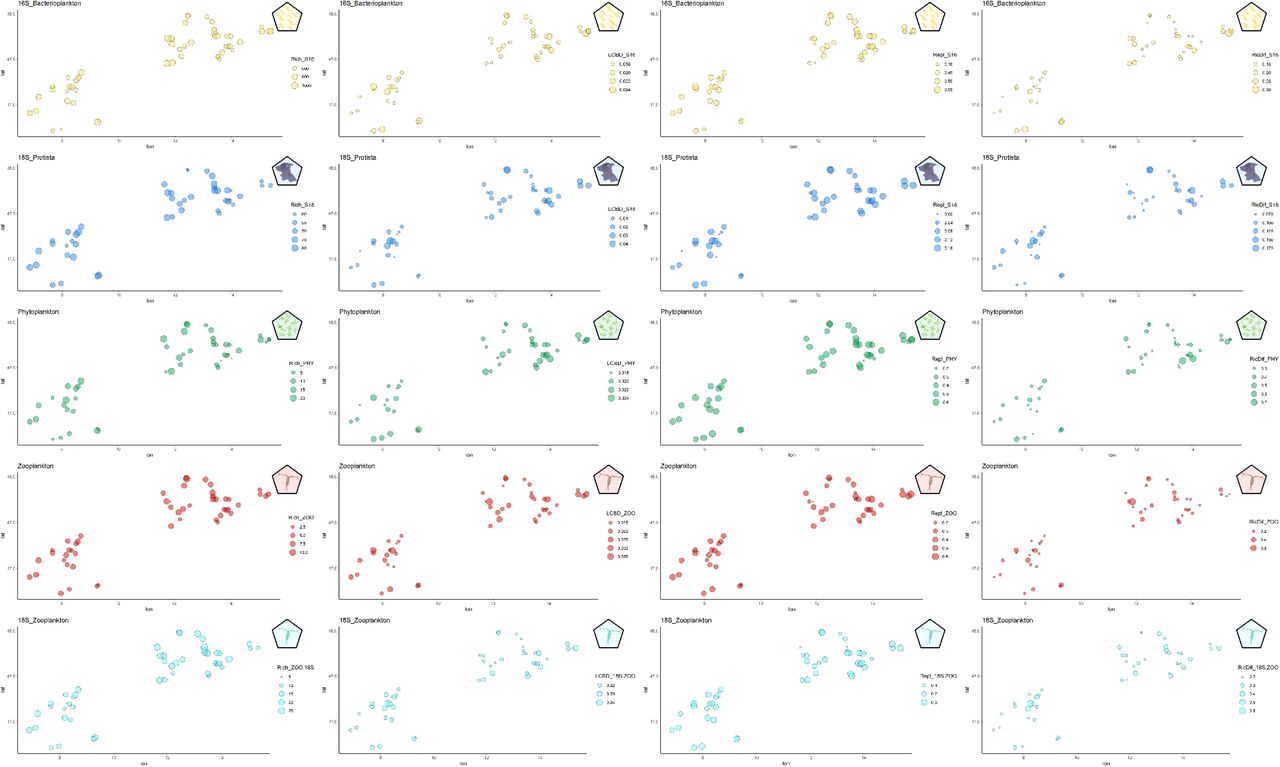

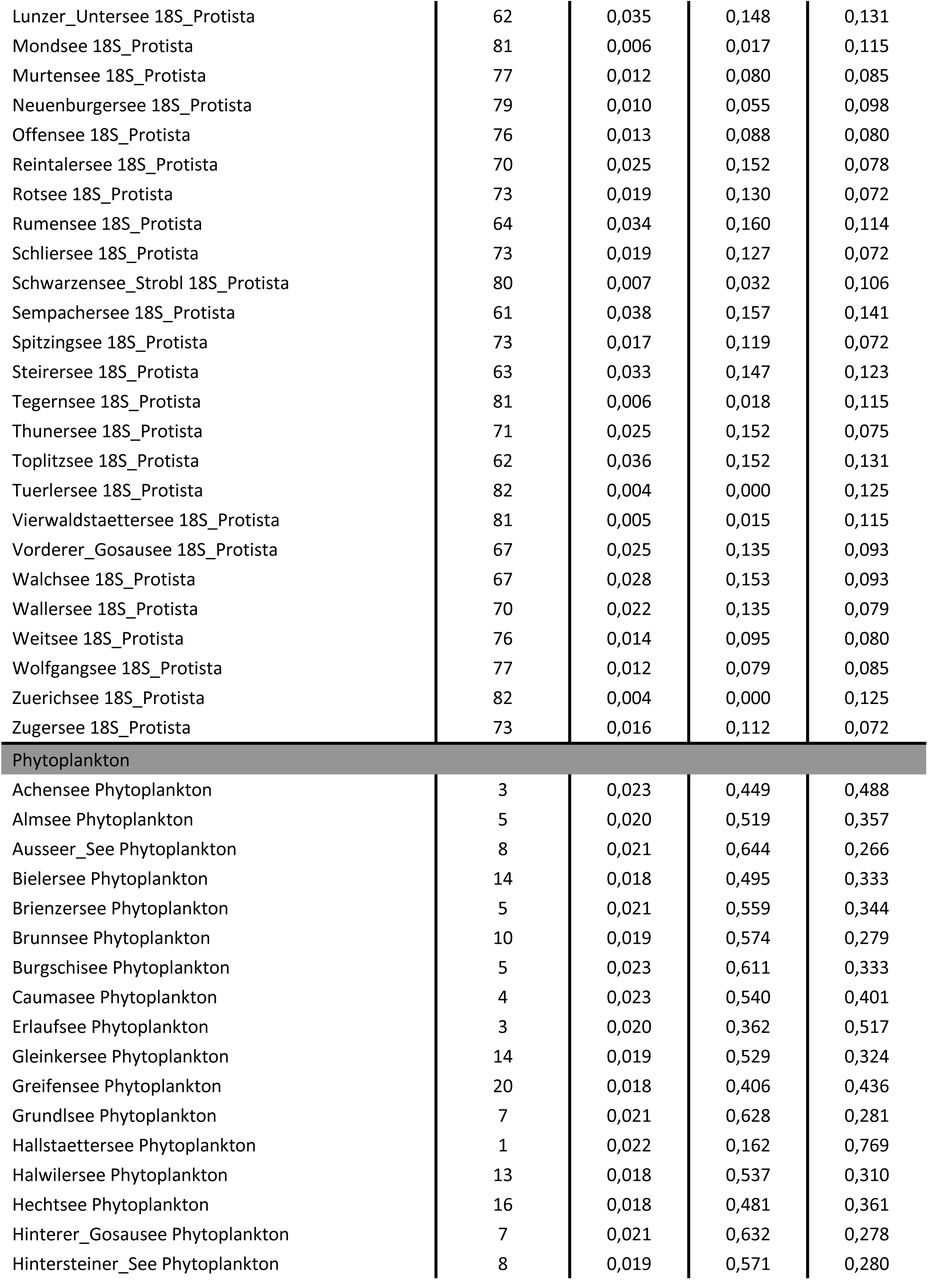

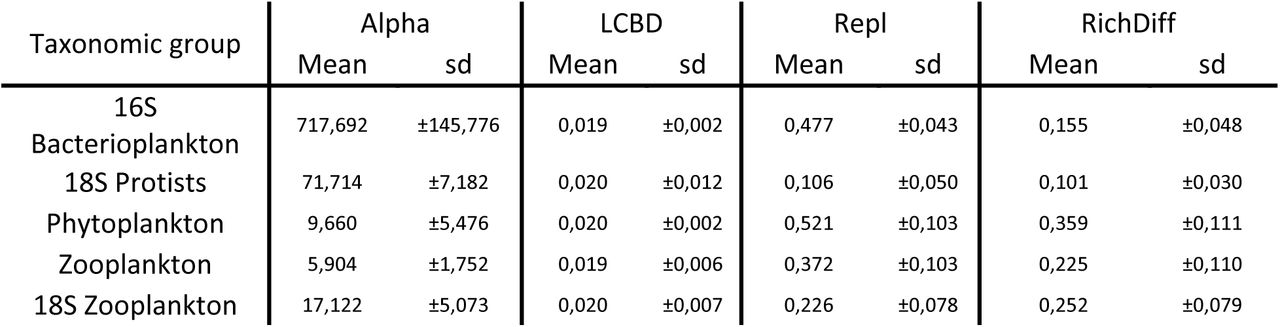

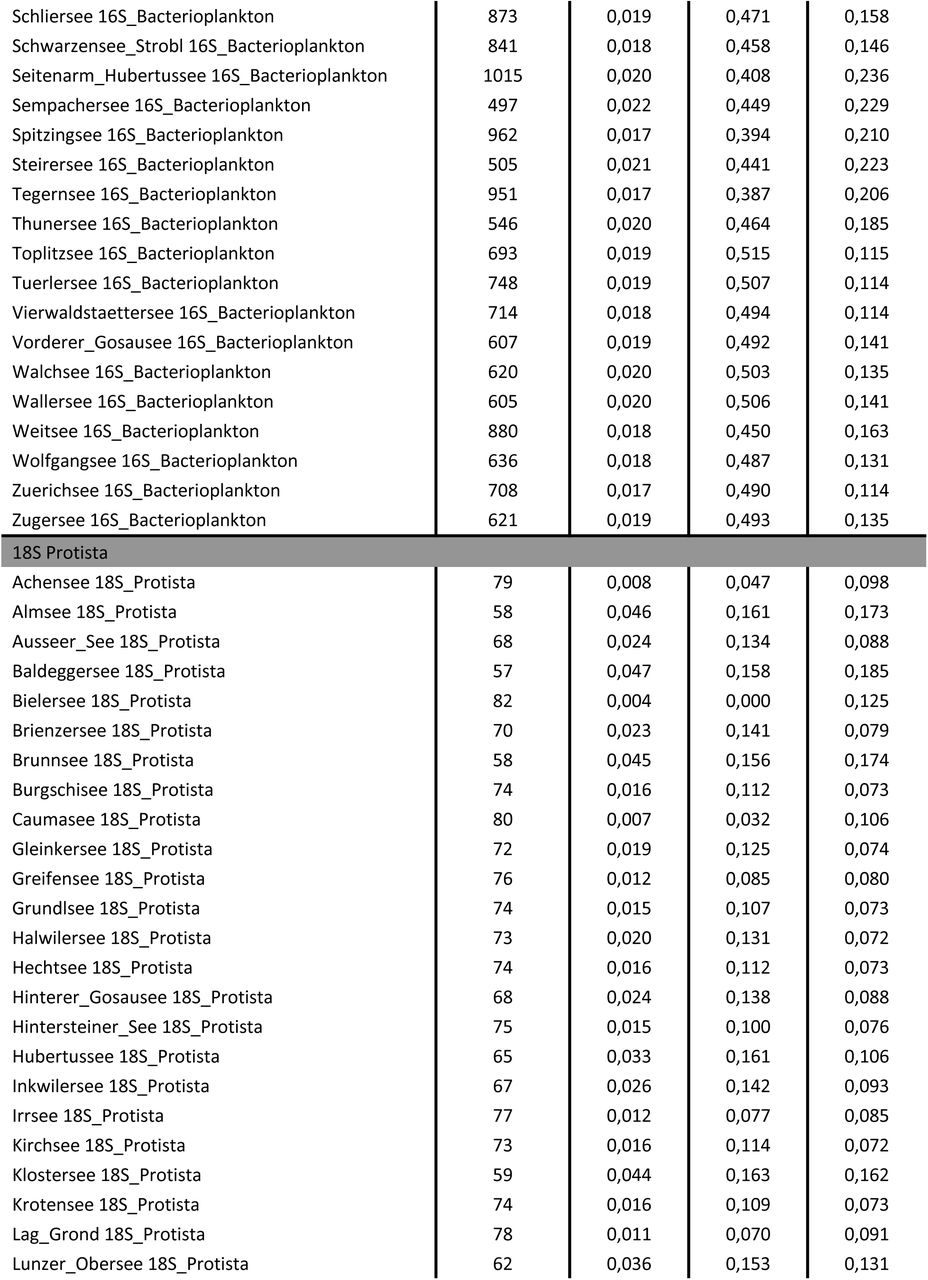

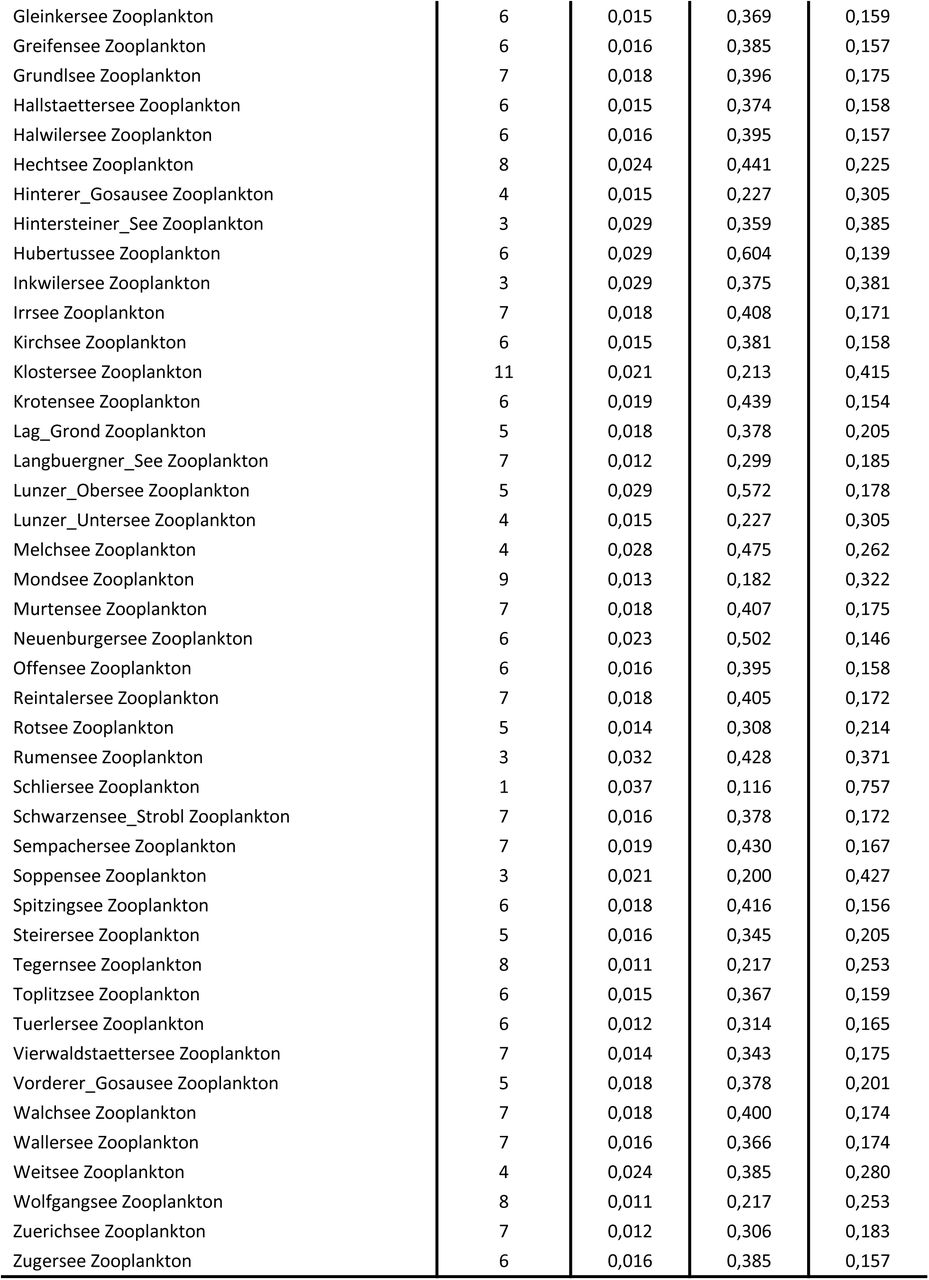

While there were major differences in the five taxonomic groups in their richness values, inherent to the two main identification pipelines (microscopic versus molecular), average LCBD values were quite similar between the groups (Table 1). Within LCBD, protists, zooplankton and S18 zooplankton presented a greater standard deviation, indicating a greater variation in uniqueness of their communities in comparison to Phytoplankton and Bacterioplankton. Average replacement and richness also showed differences between groups that overall indicated the strong variation at the regional level of each group (Table 1). Average replacement was markedly high for bacterioplankton and phytoplankton but bacterioplankton presented the lowest values of richness difference. Contrastingly, other groups had much more similar beta diversity partition values such as protists and S18 zooplankton. Tables with the specific values for each sampled lake as well as the plots representing these metrics can be found in Supplementary S3 and S4.
Landscape scales and network building

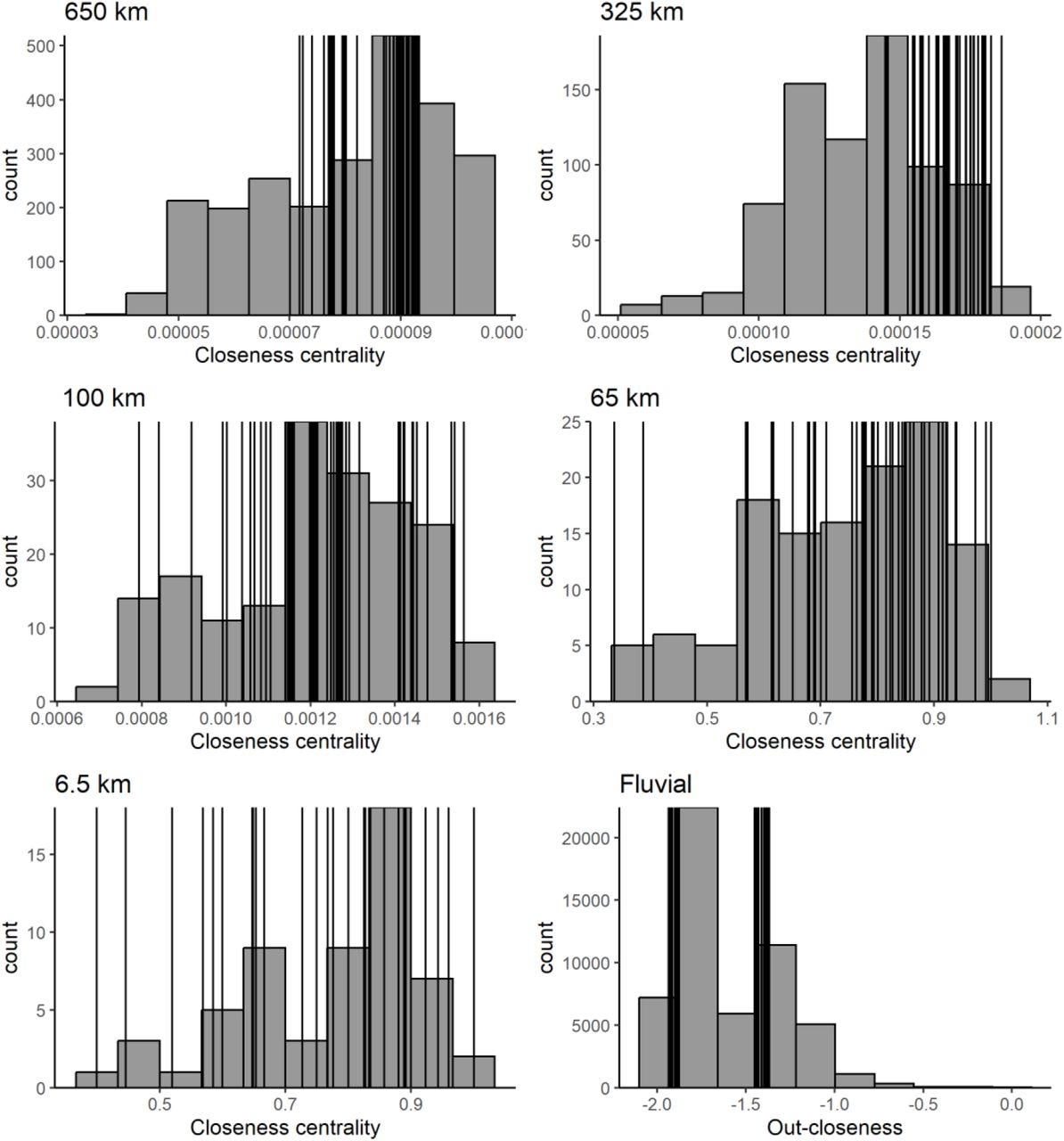

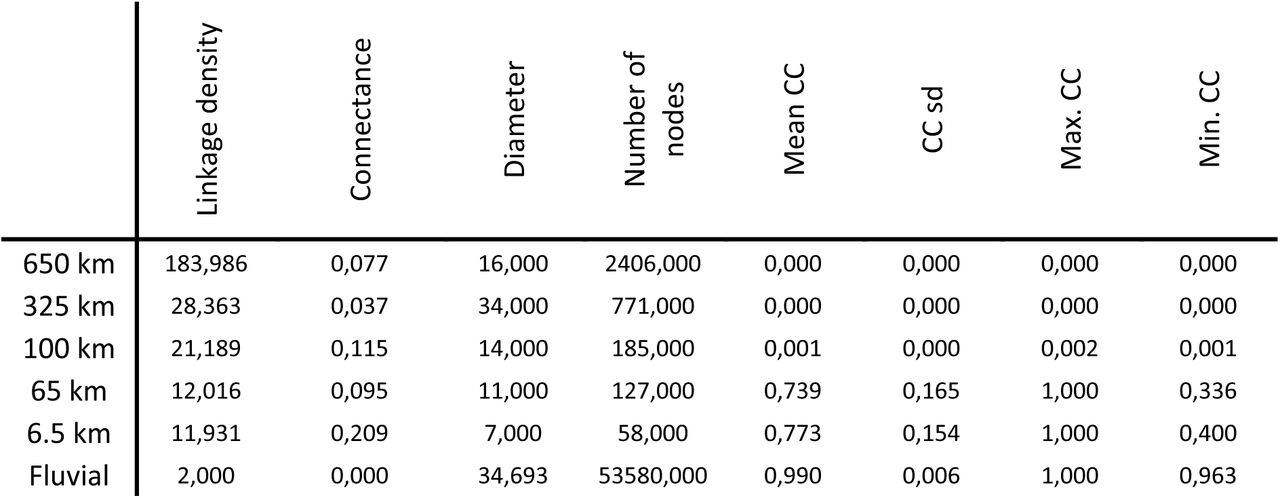

The six networks that we built presented some differences between the structure that they were capturing (Figure 3). For example, 650 km and 325 km networks represented markedly different scenarios, for 650 km the network was much denser and many links were present while for 325 km the structure was much less connected and related to the distribution of nodes through the landscape (Figure 3). On the other hand, 65 km and 6.5 km networks were more similar in terms of connections between lakes even though the first had two times the number of lakes of the other (Figure 3). Finally, the fluvial network was unique among the other networks as it was directed (i.e. each node was connected to its downstream neighbour following a head-to downstream sense). The parameters describing the six built networks can be found in Supplementary S5. For all the networks, the sampled lakes were located along the entire centrality-isolation gradient indicating that sampled lakes were representing most of the variability in closeness centrality of each network (Supplementary S6).
Centrality-isolation against community facets
Community metrics

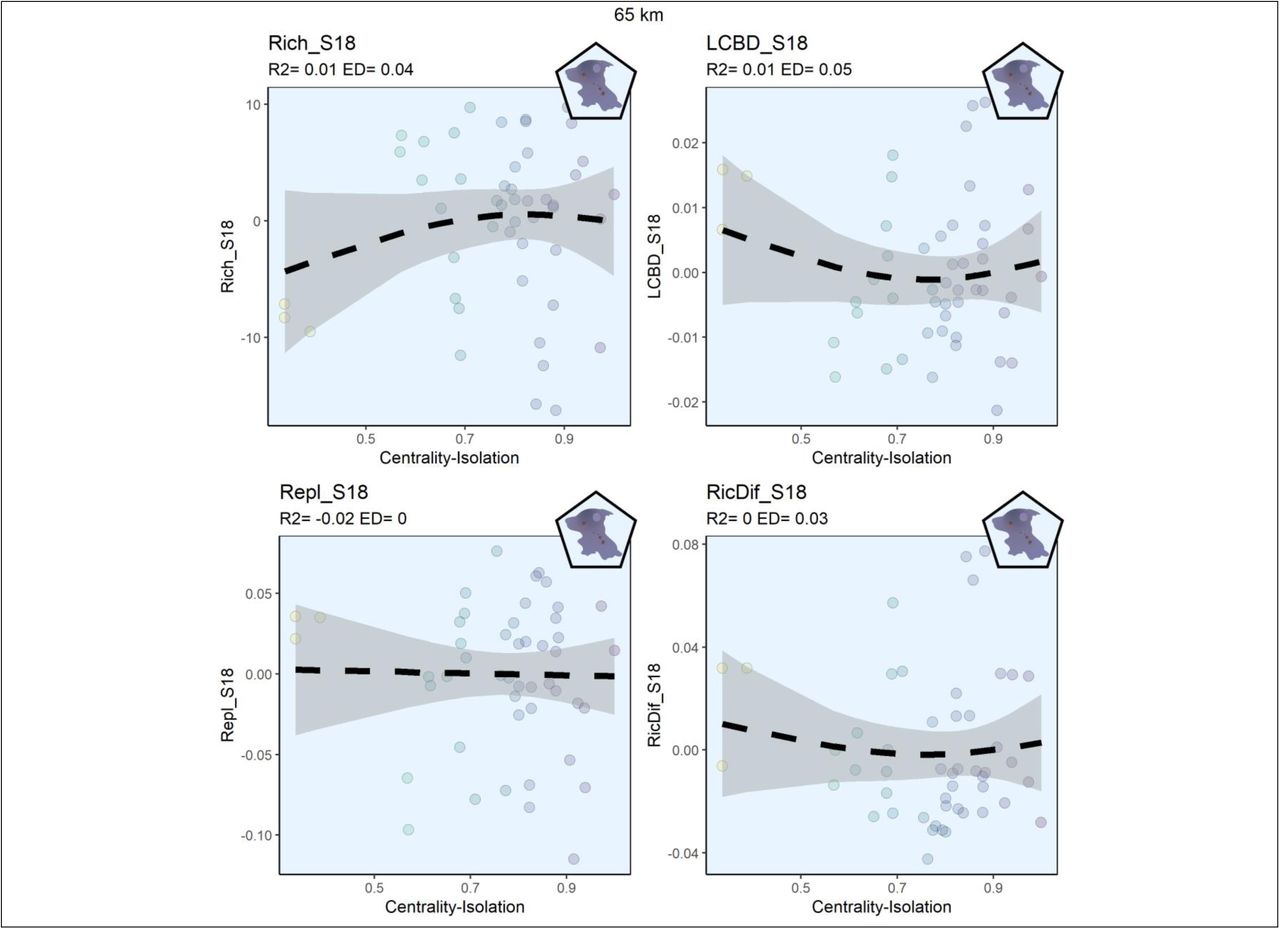

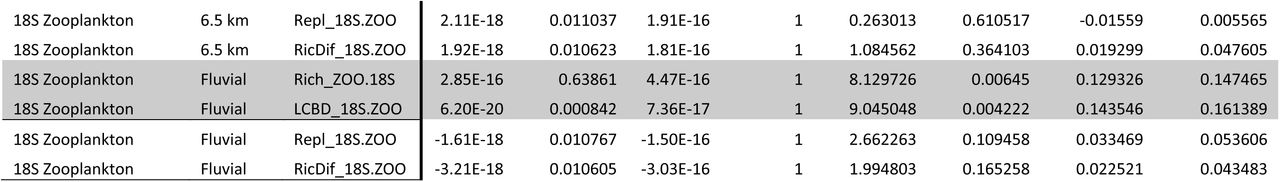

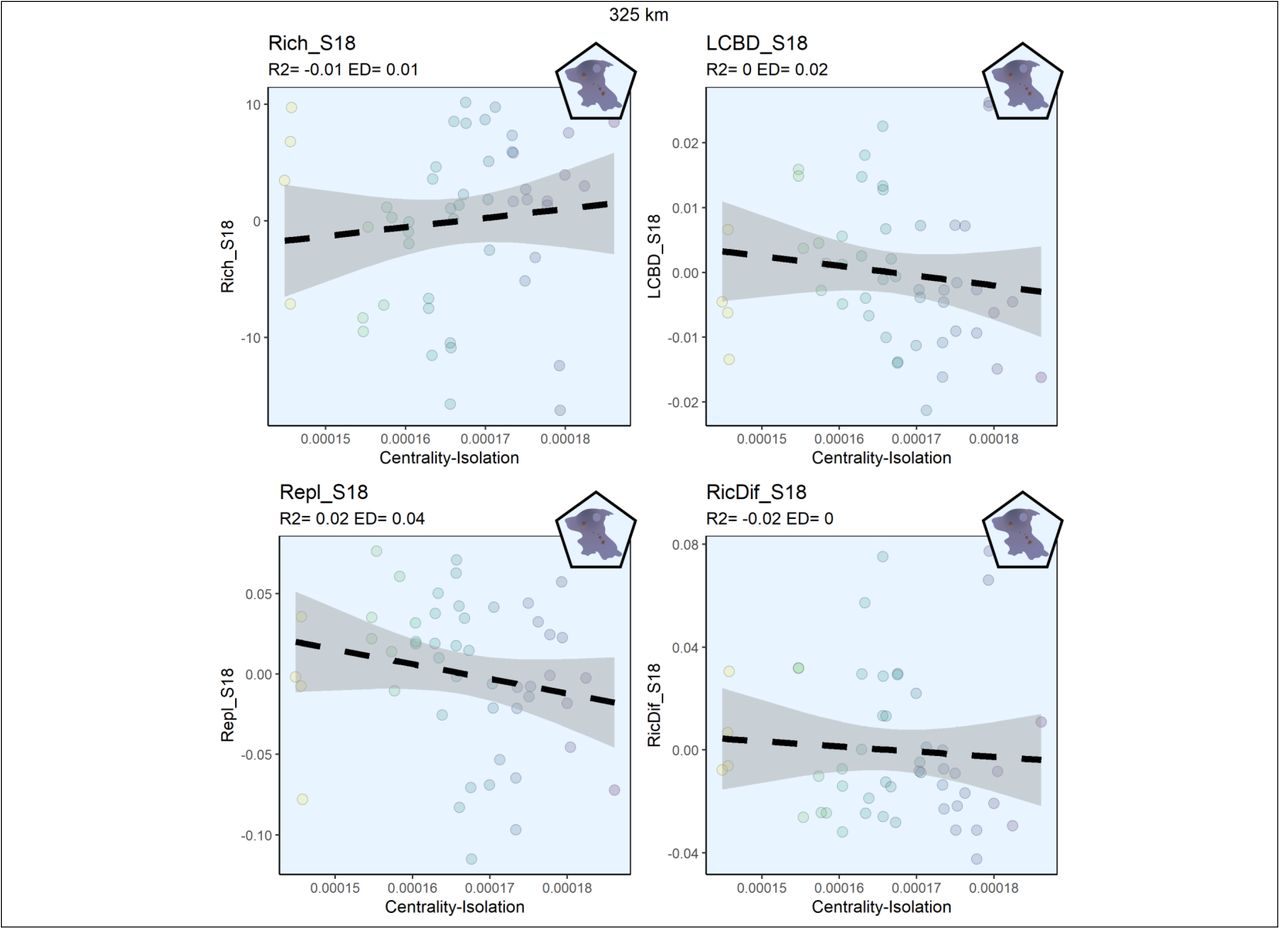

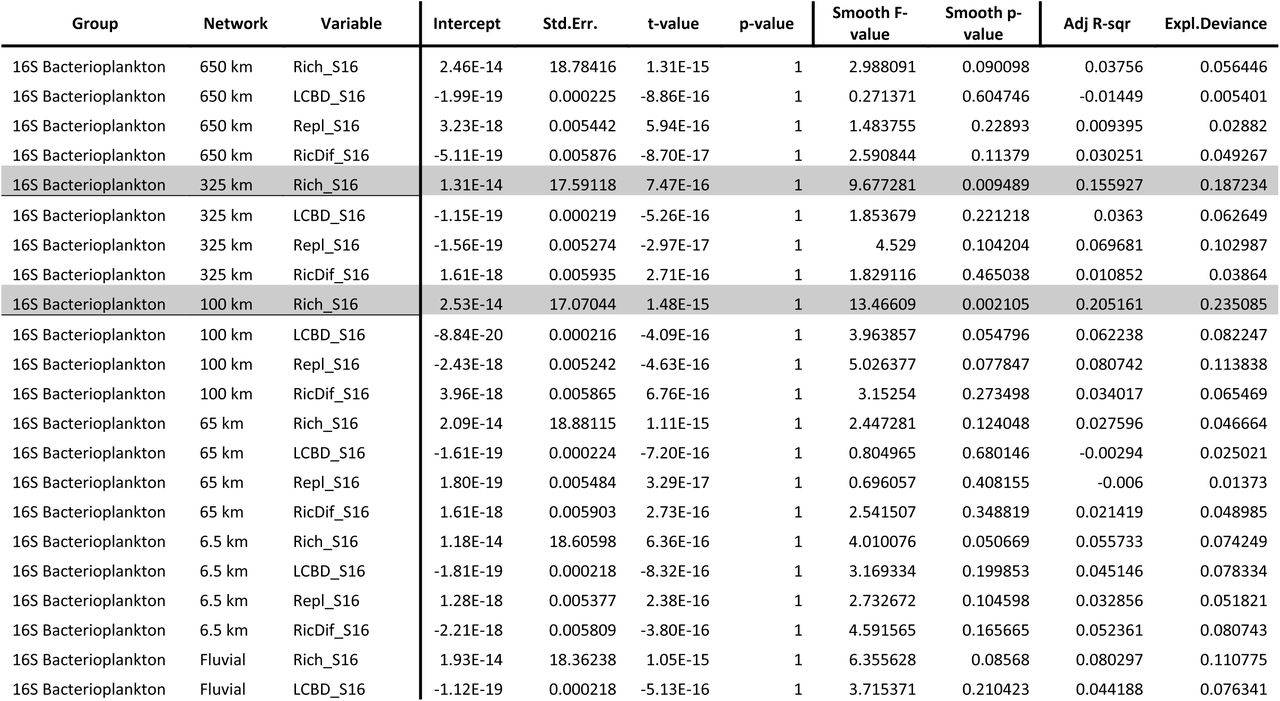

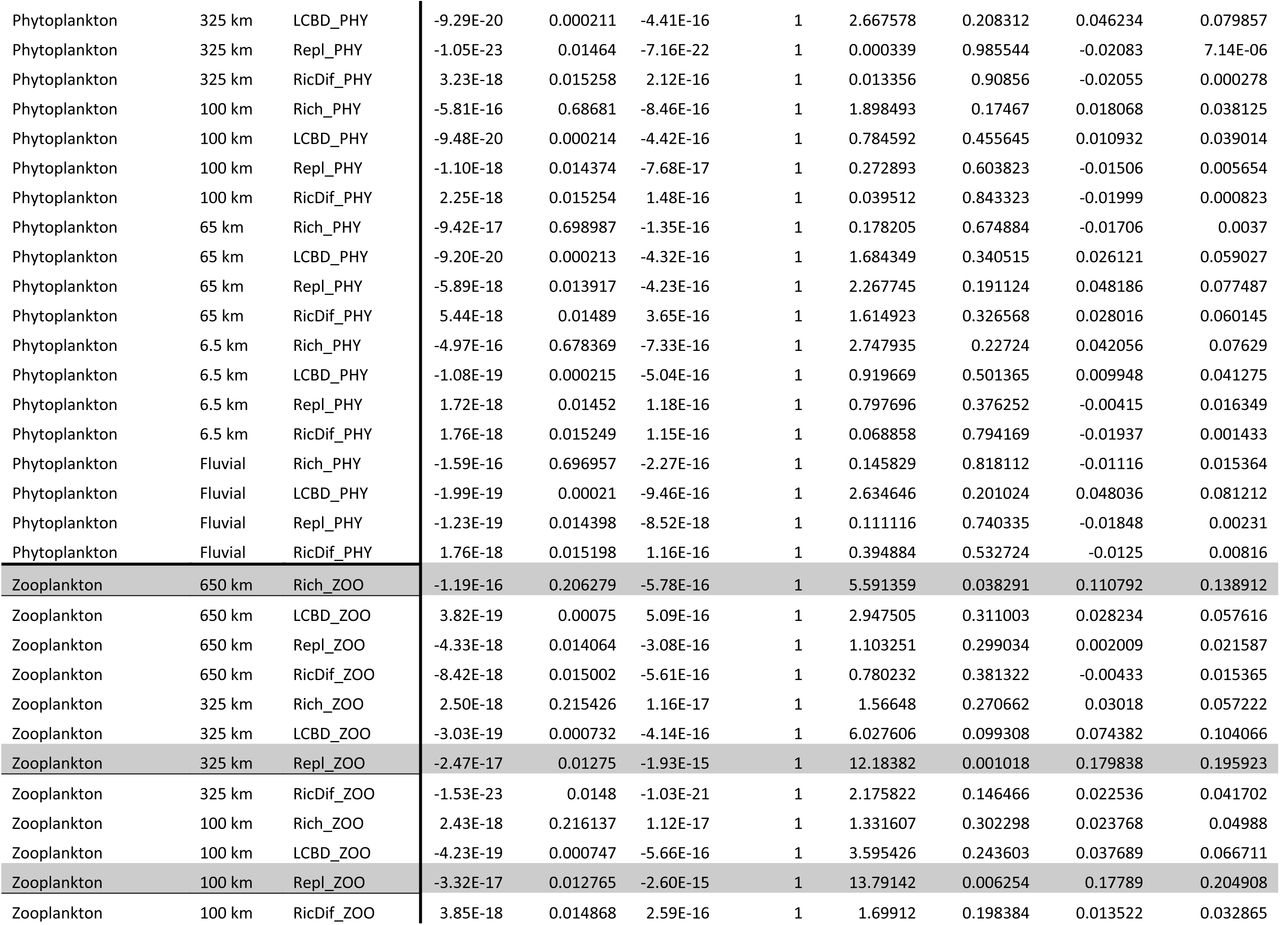

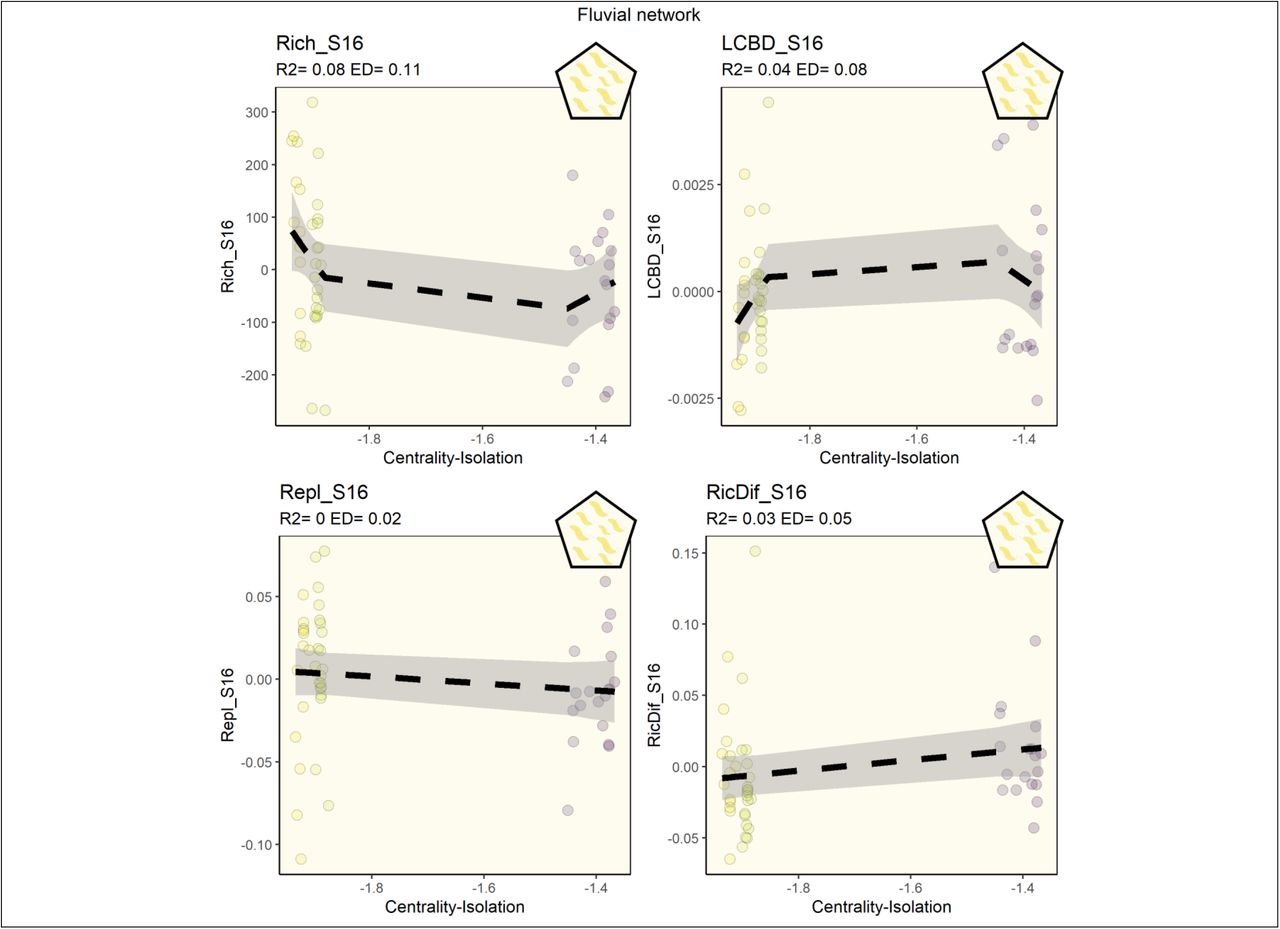

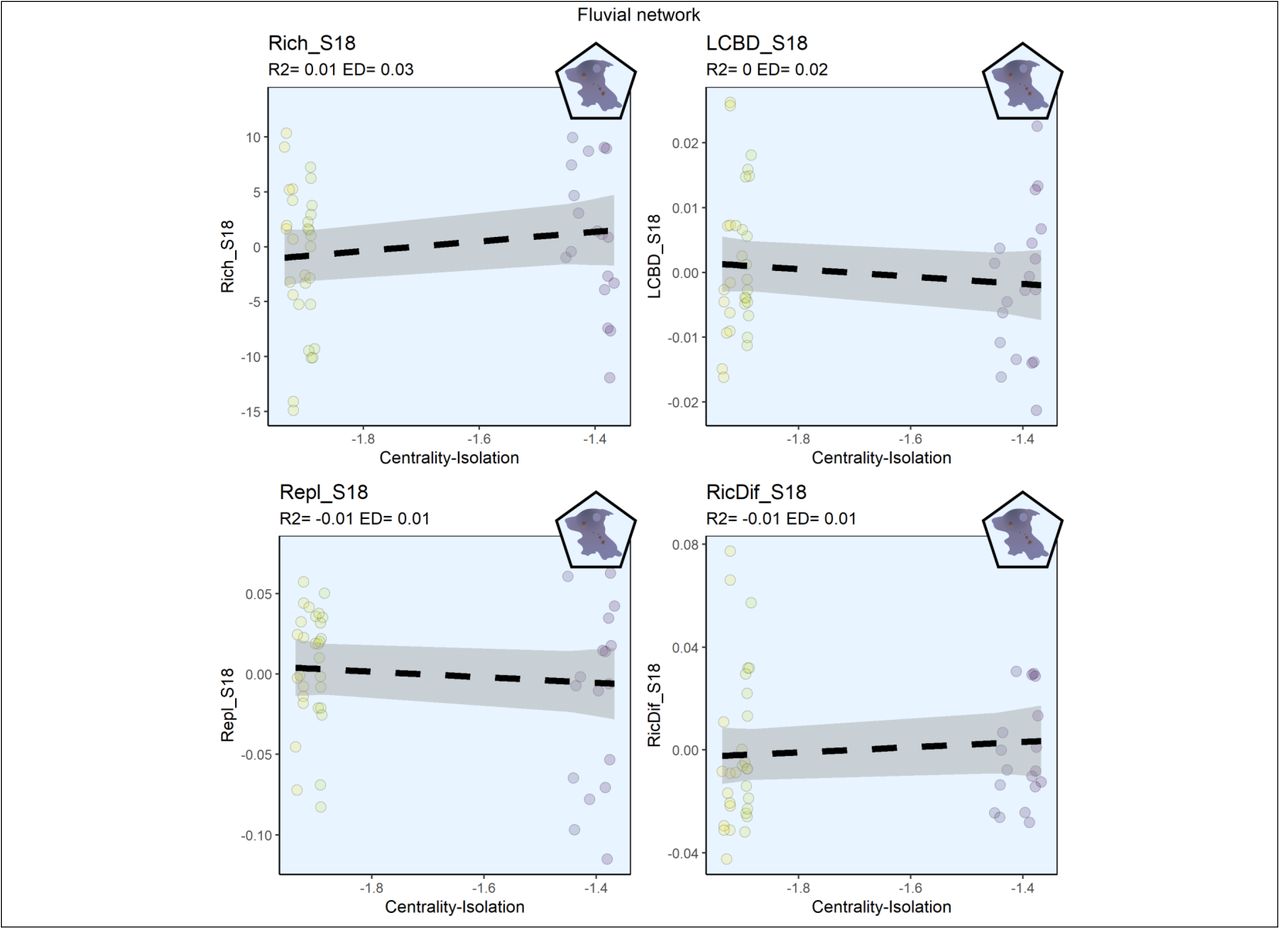

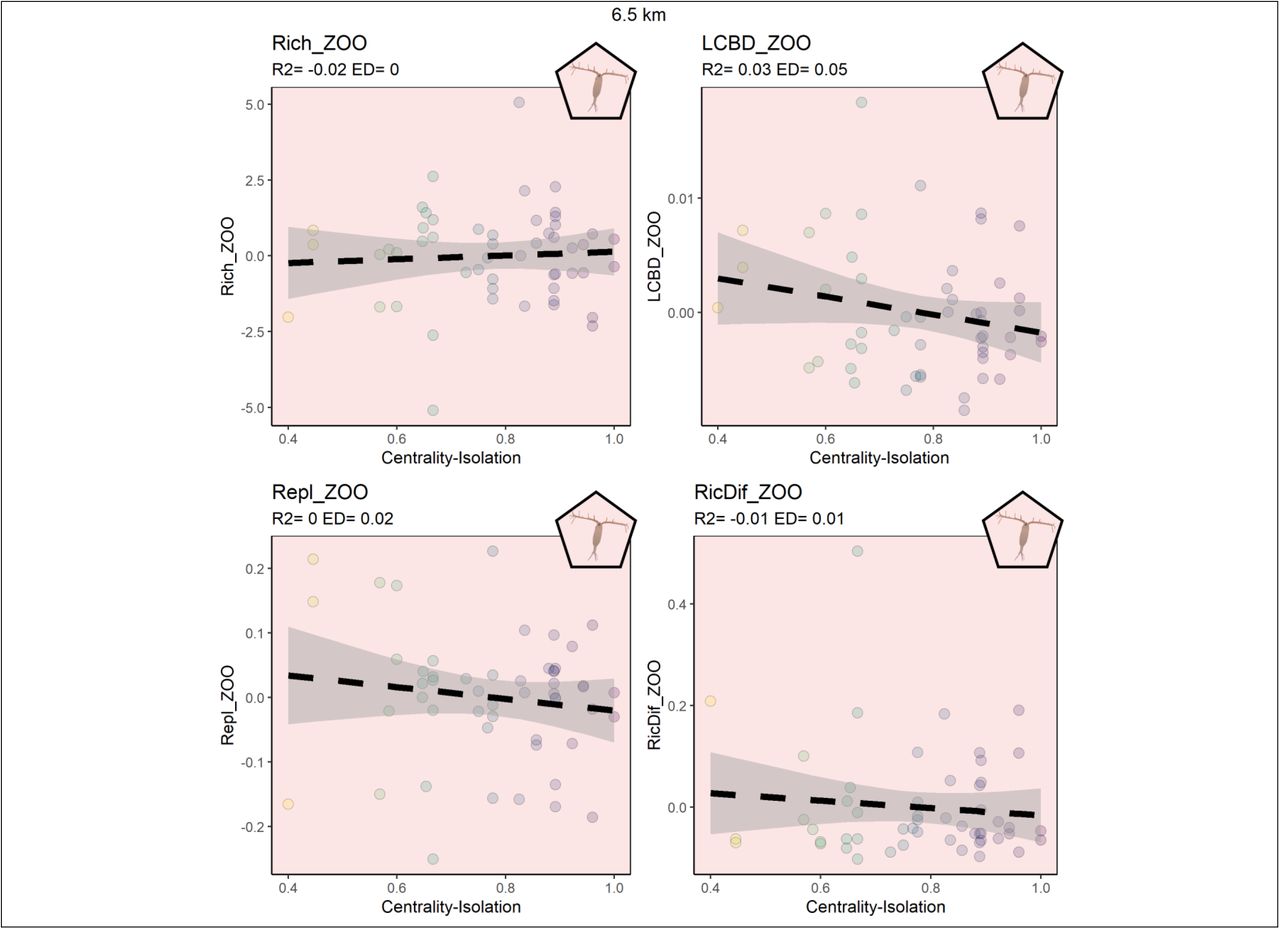

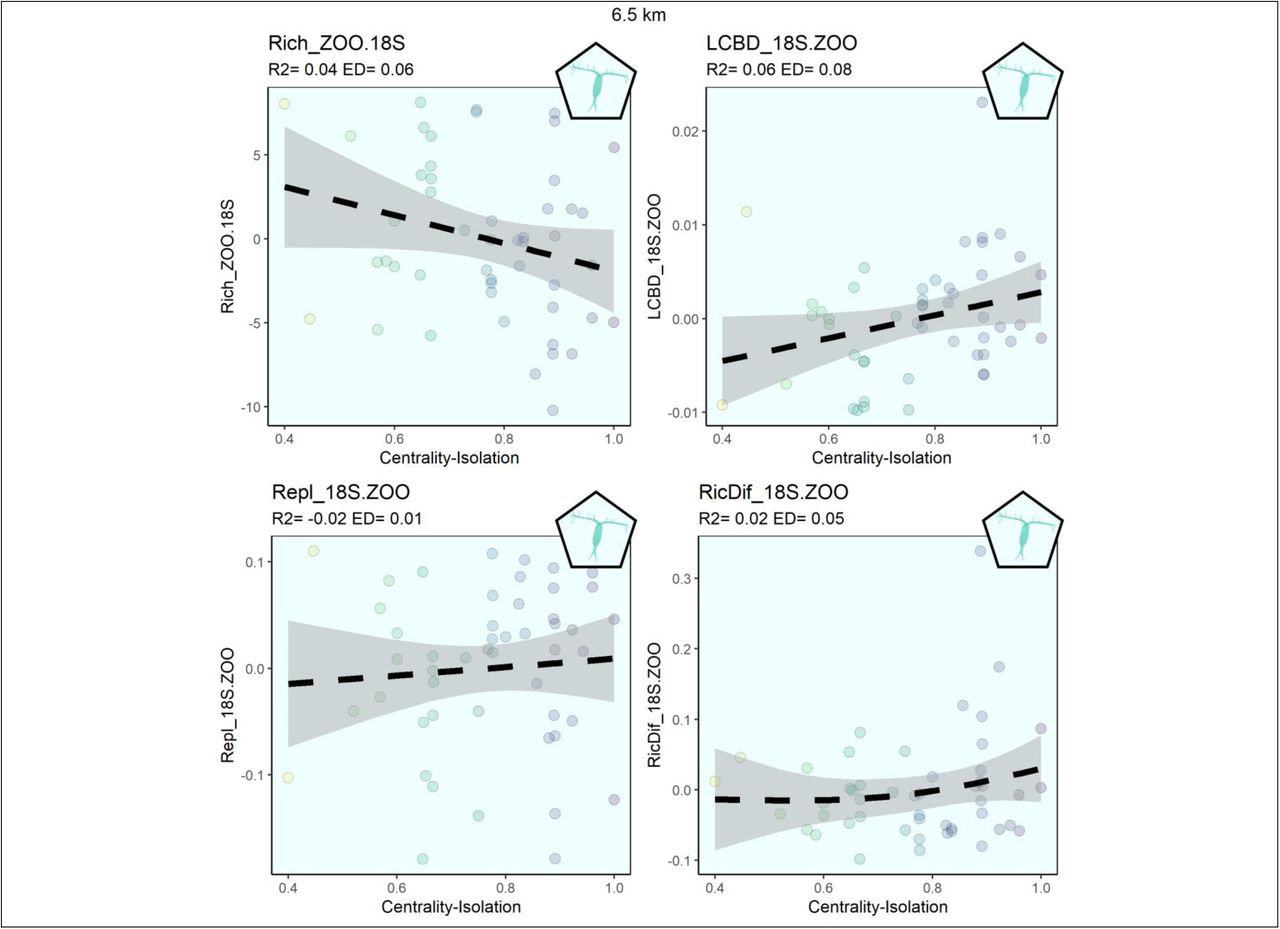

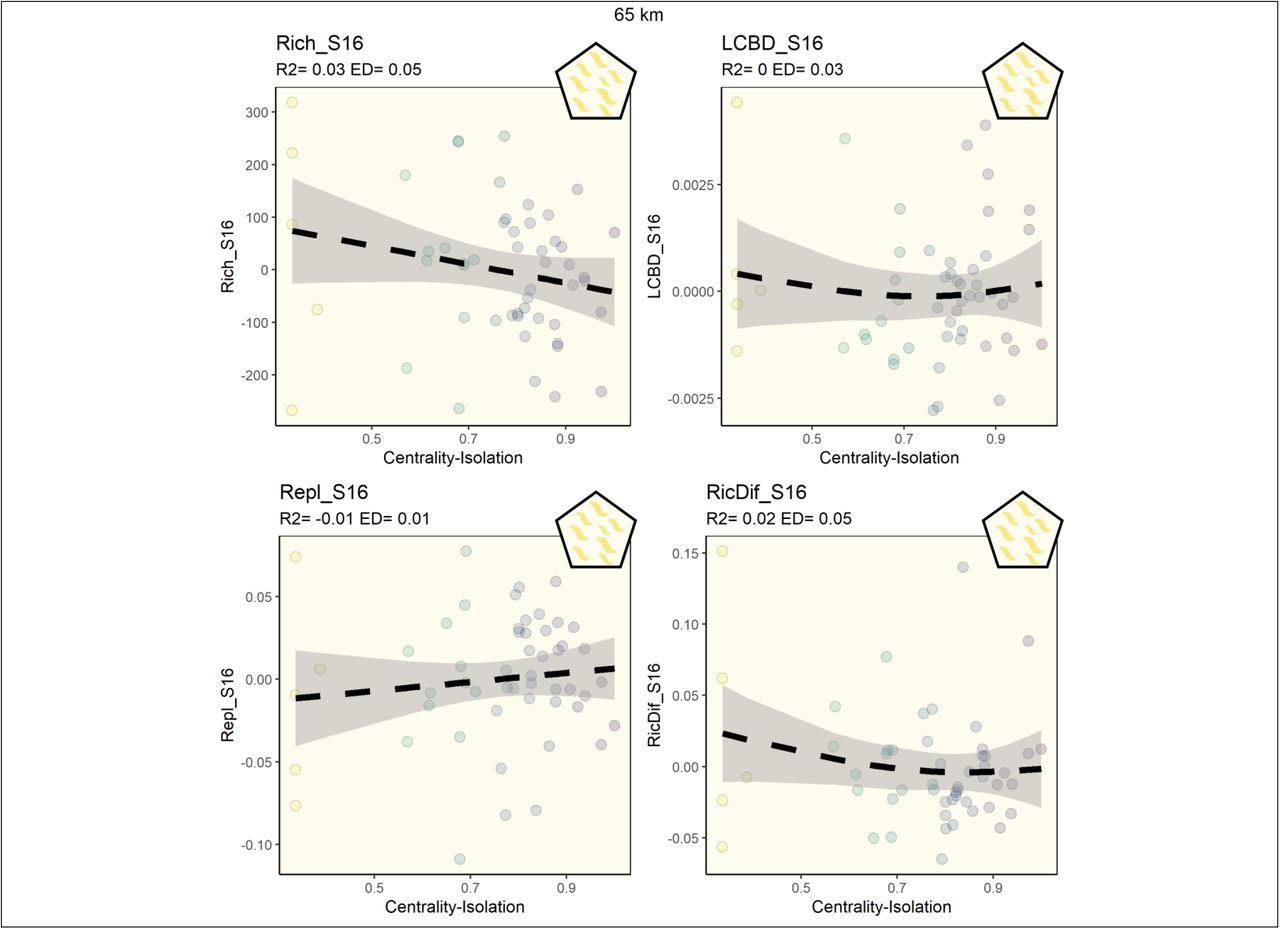

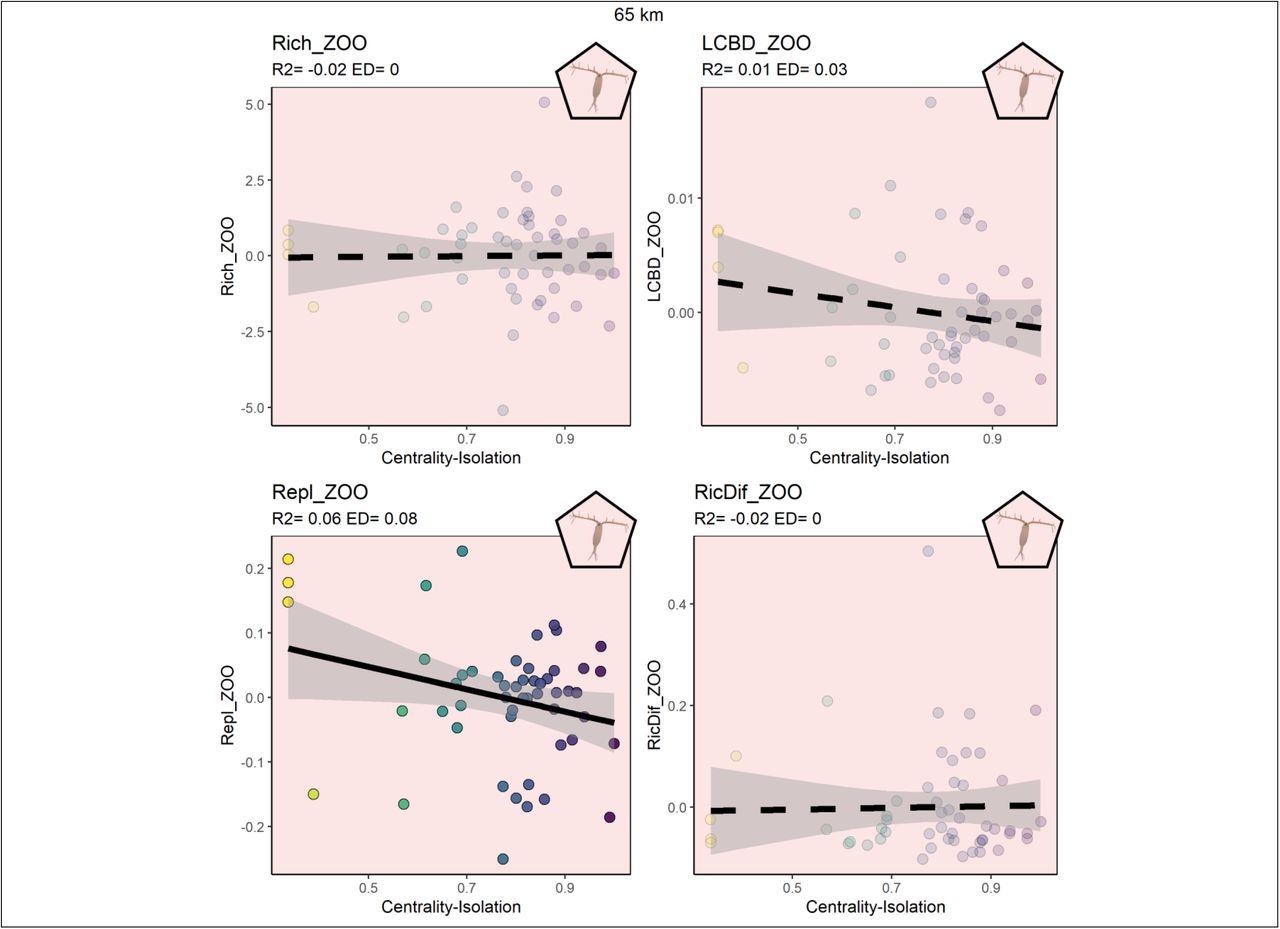

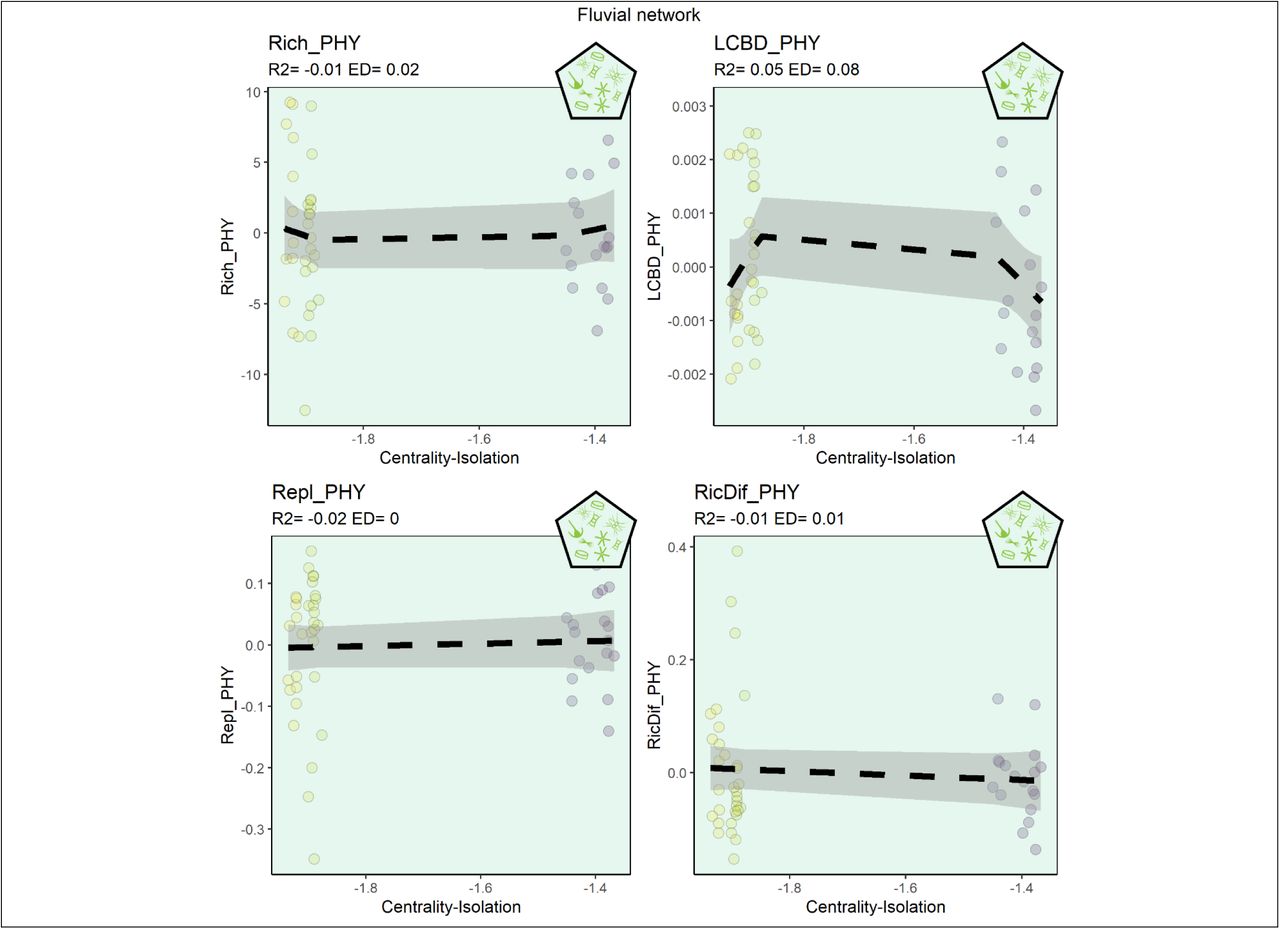

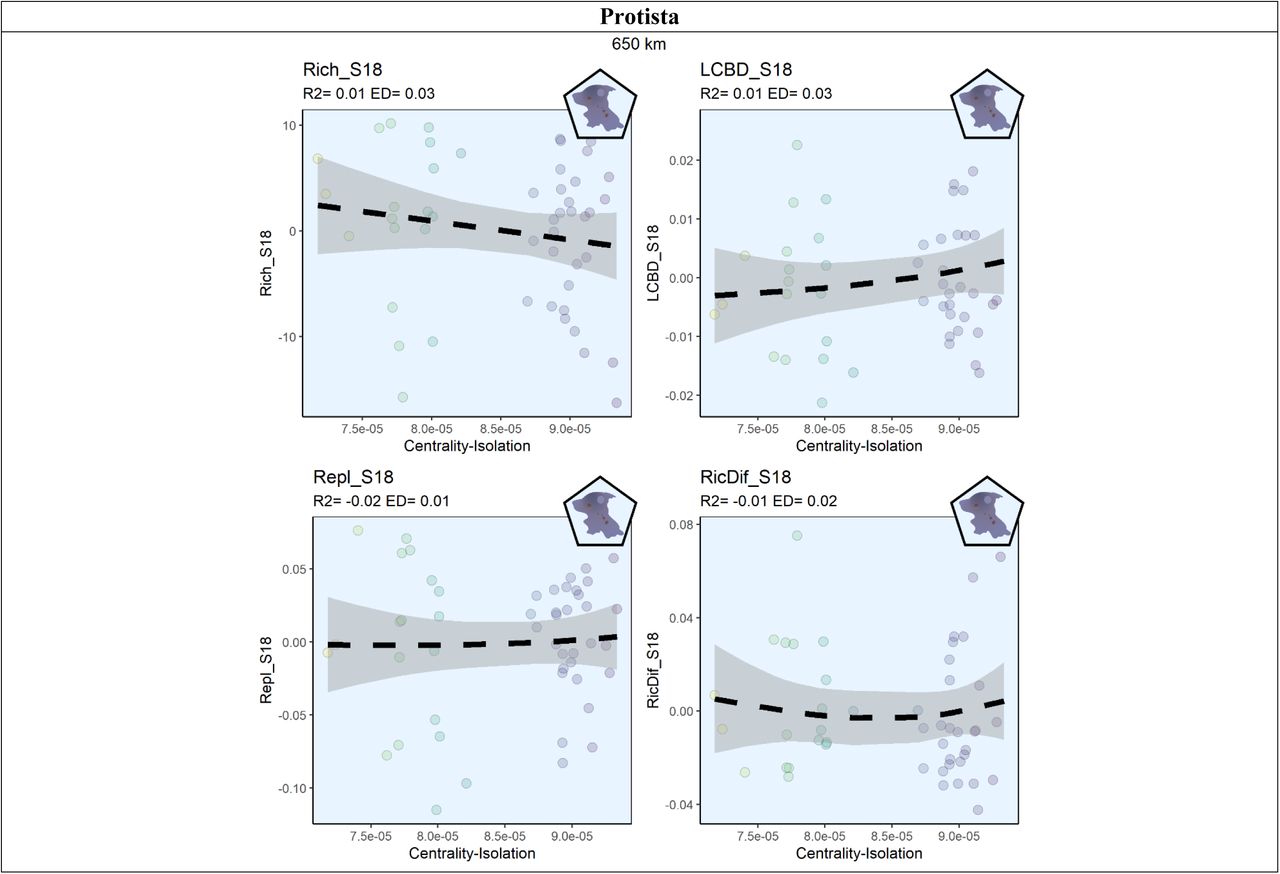

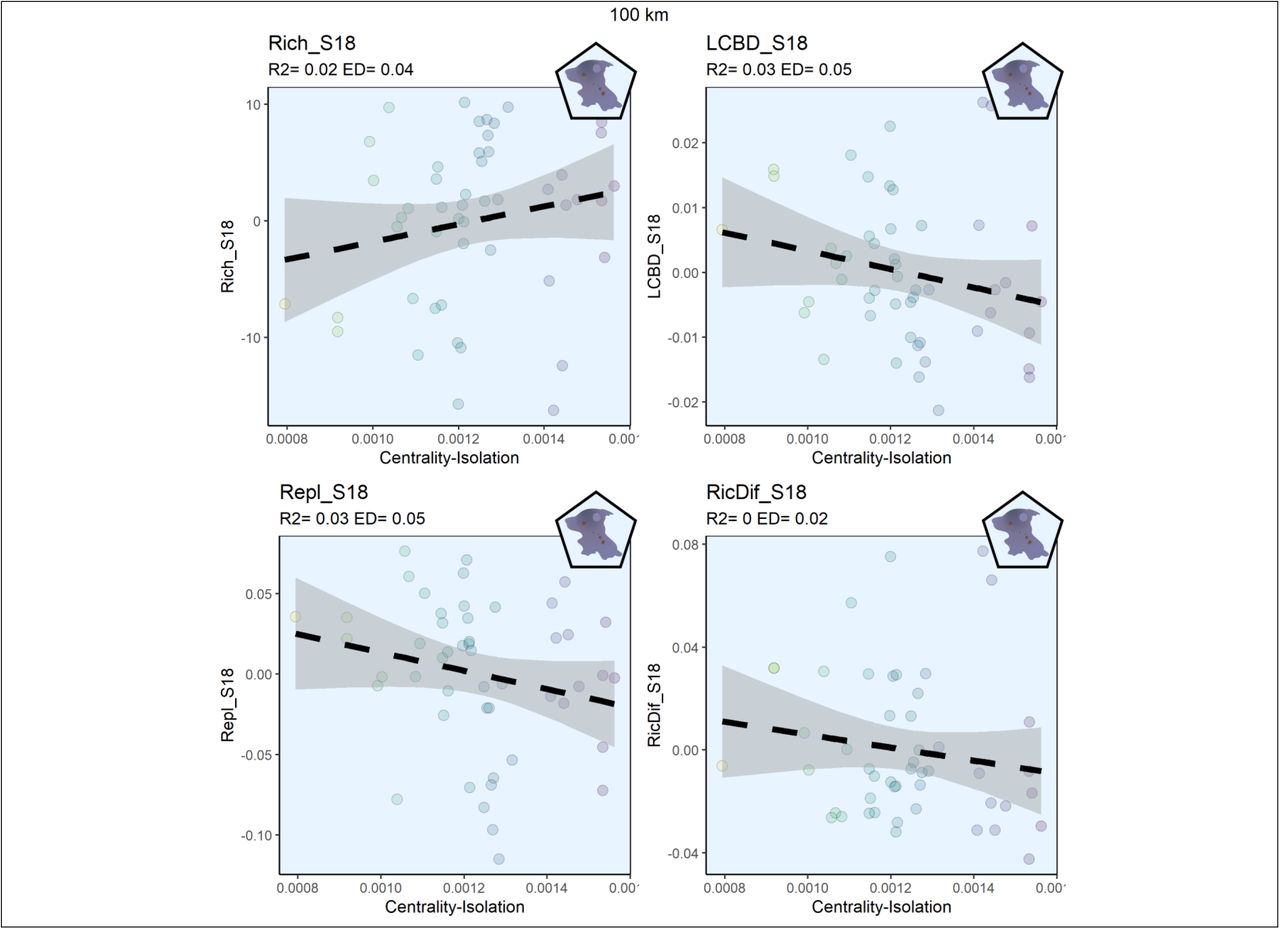

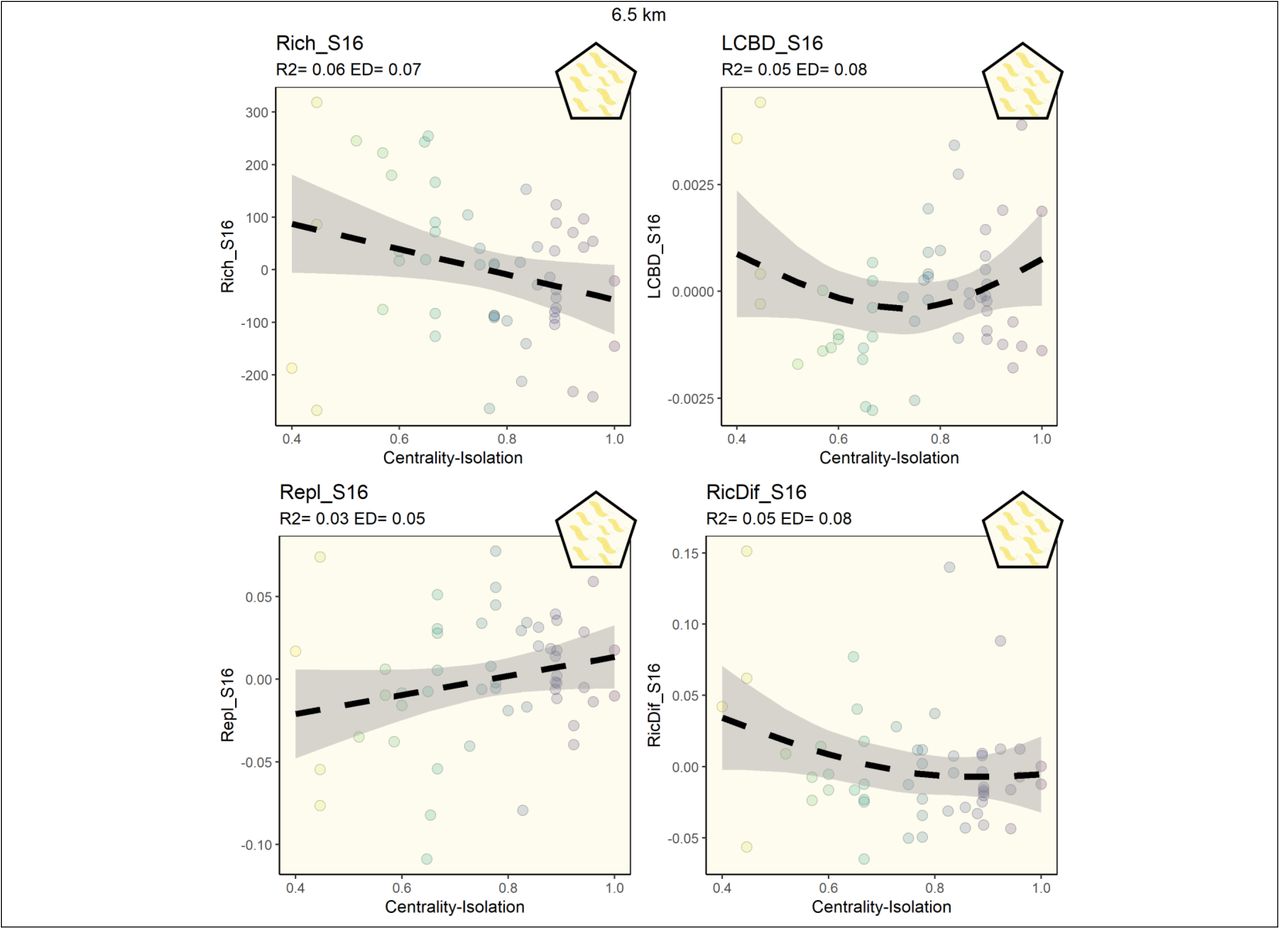

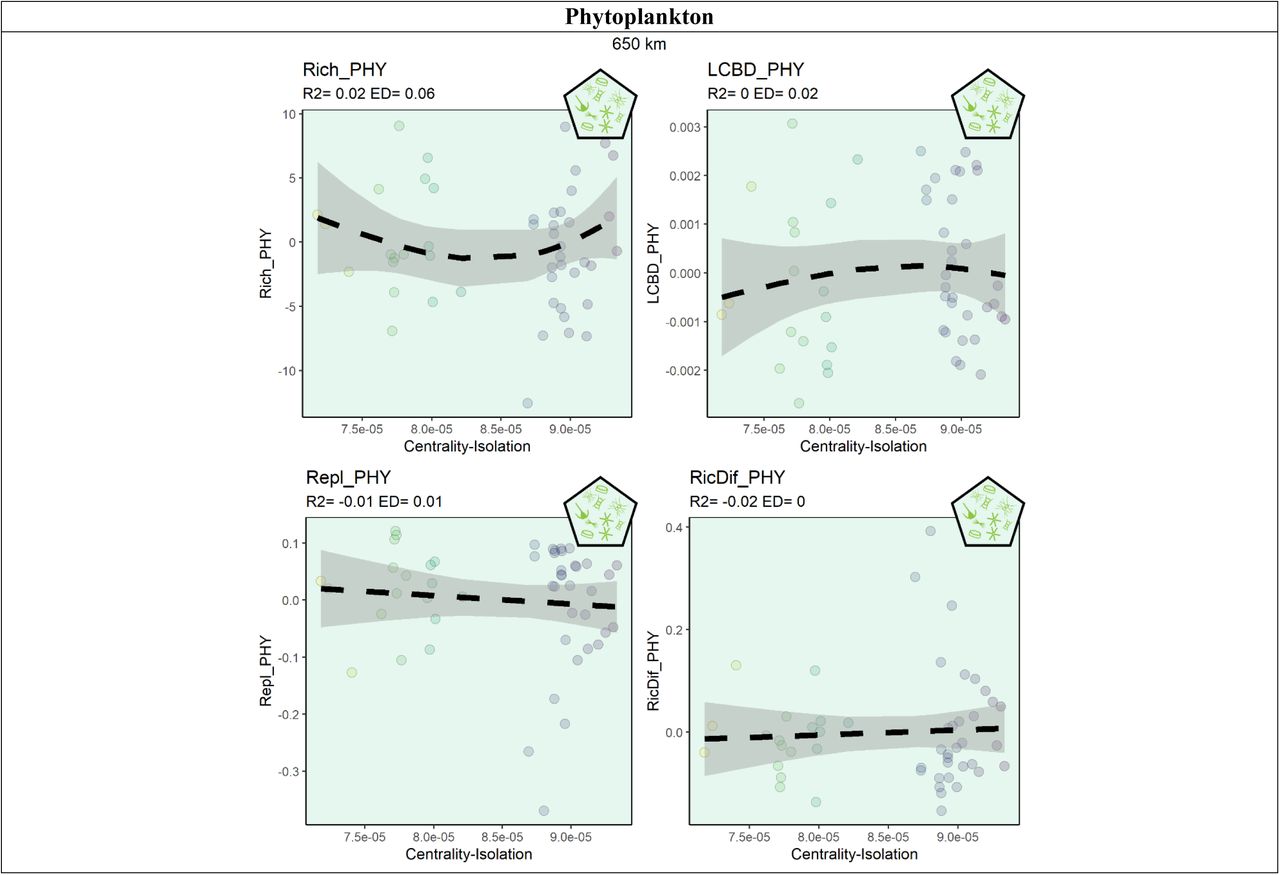

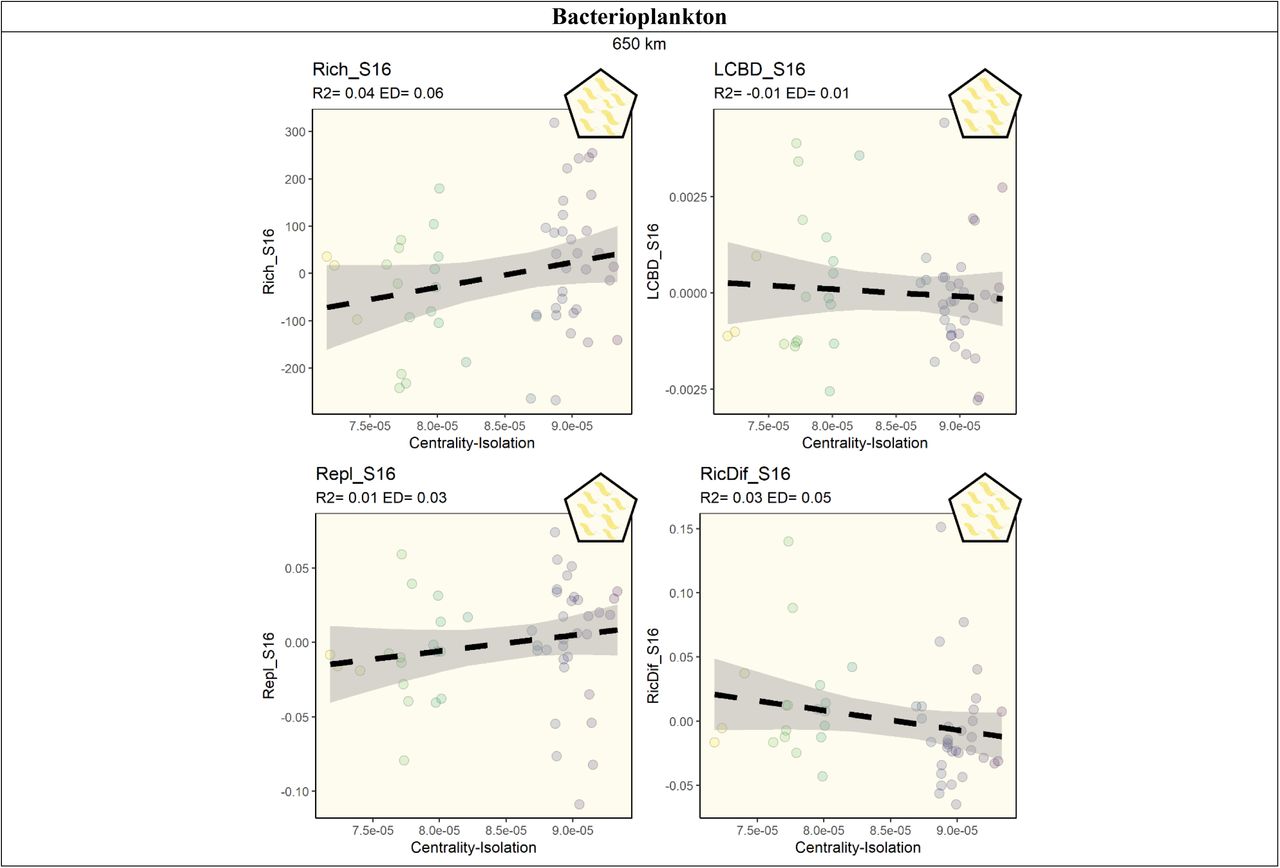

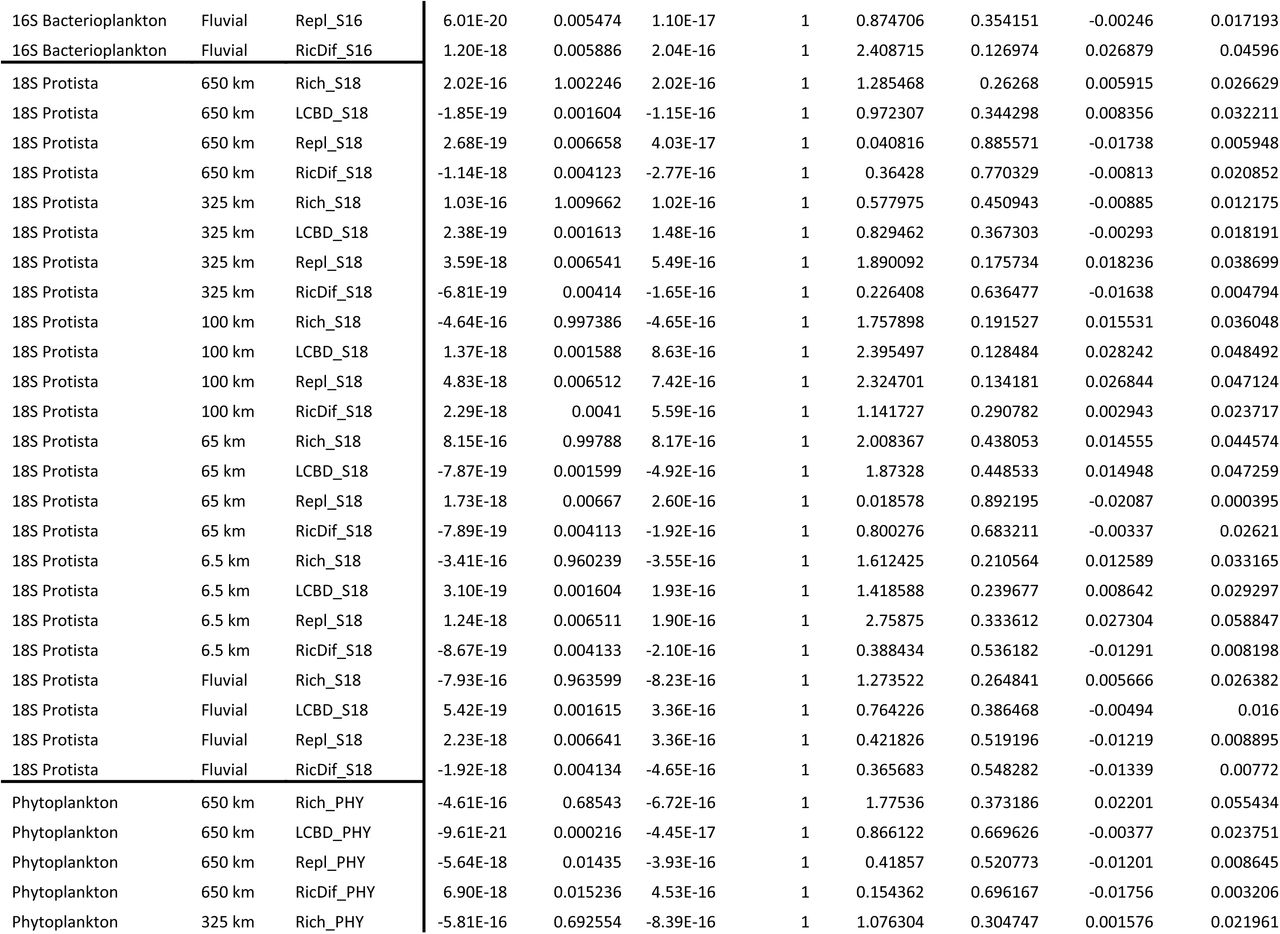

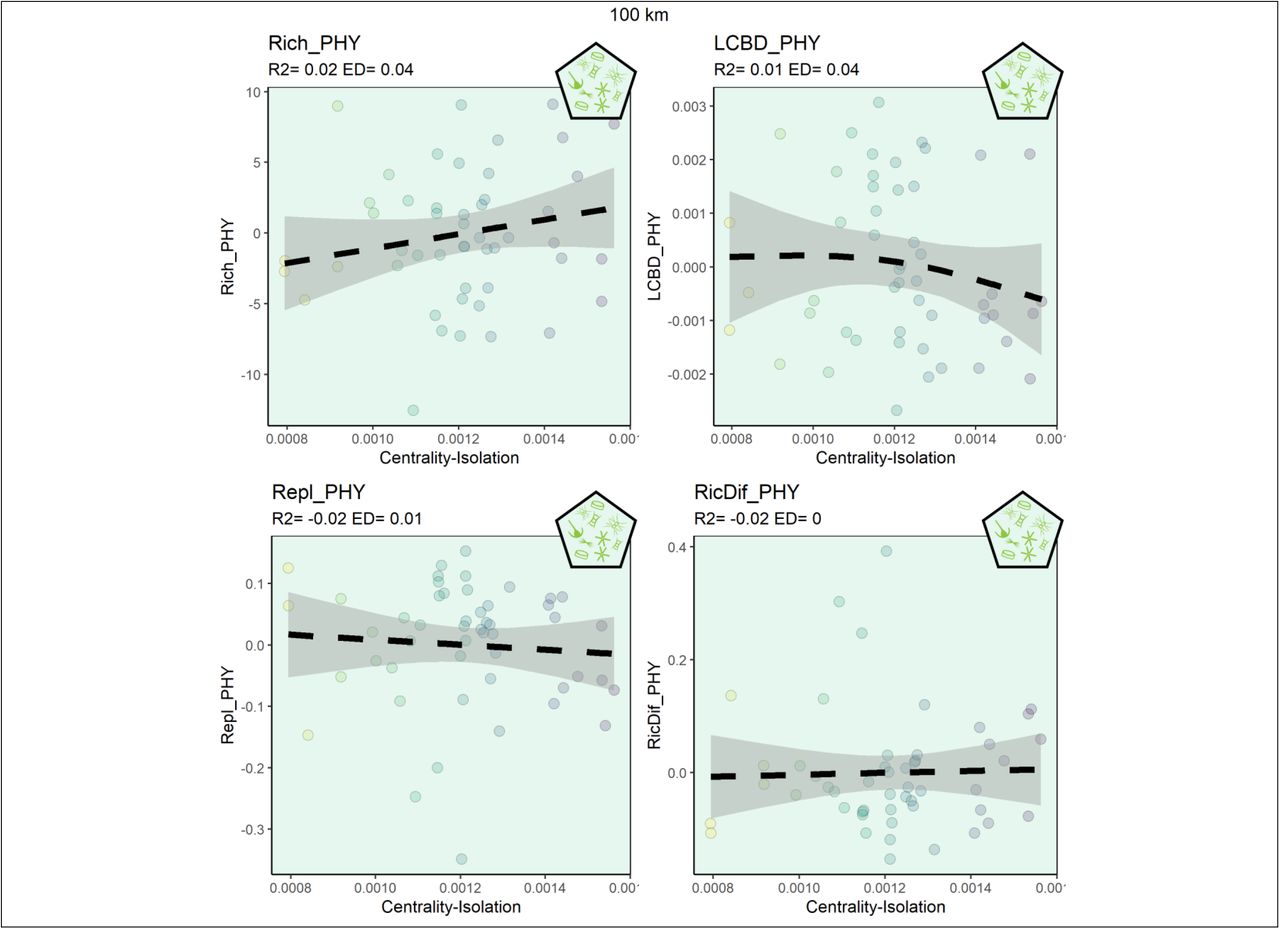

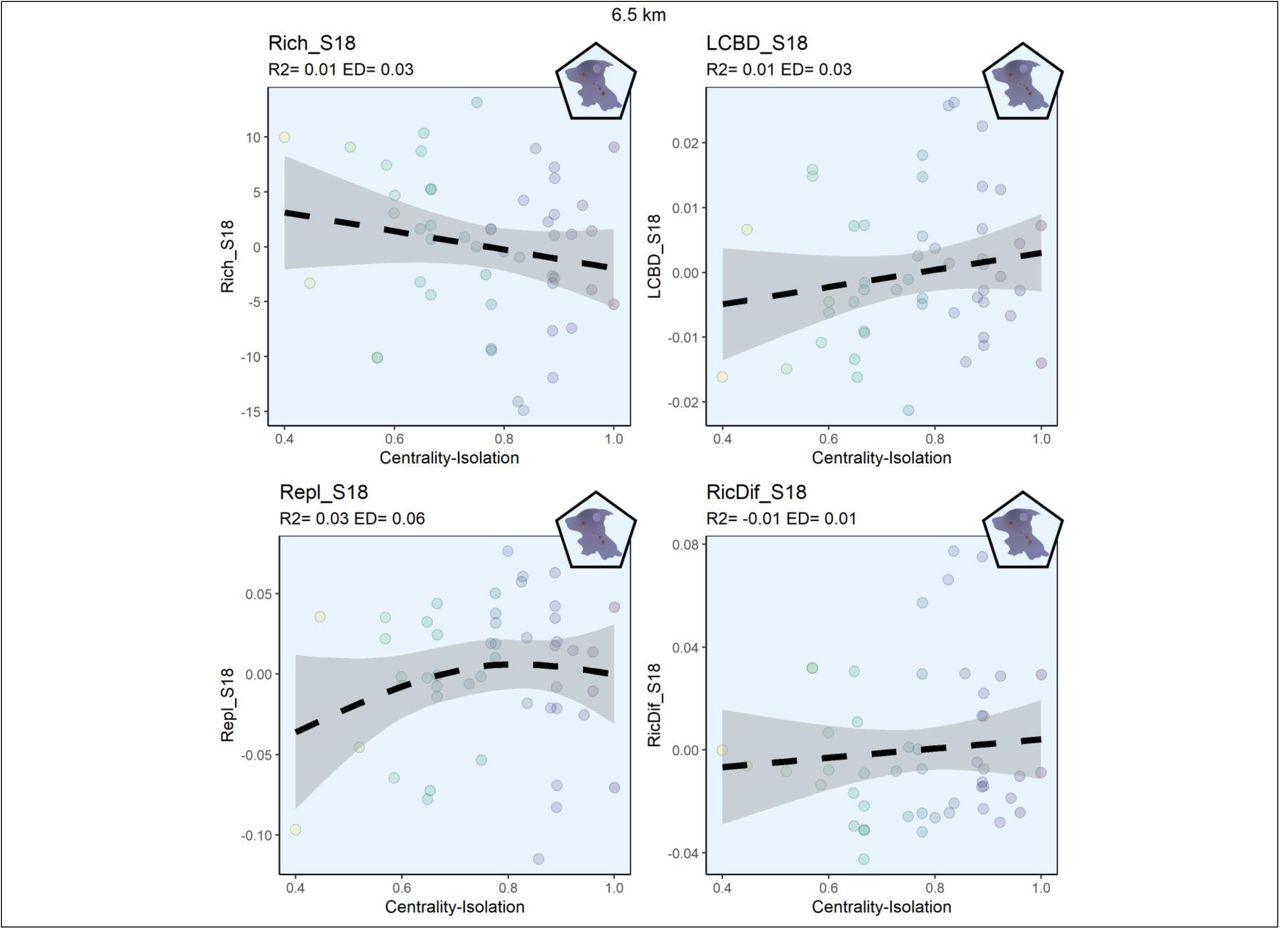

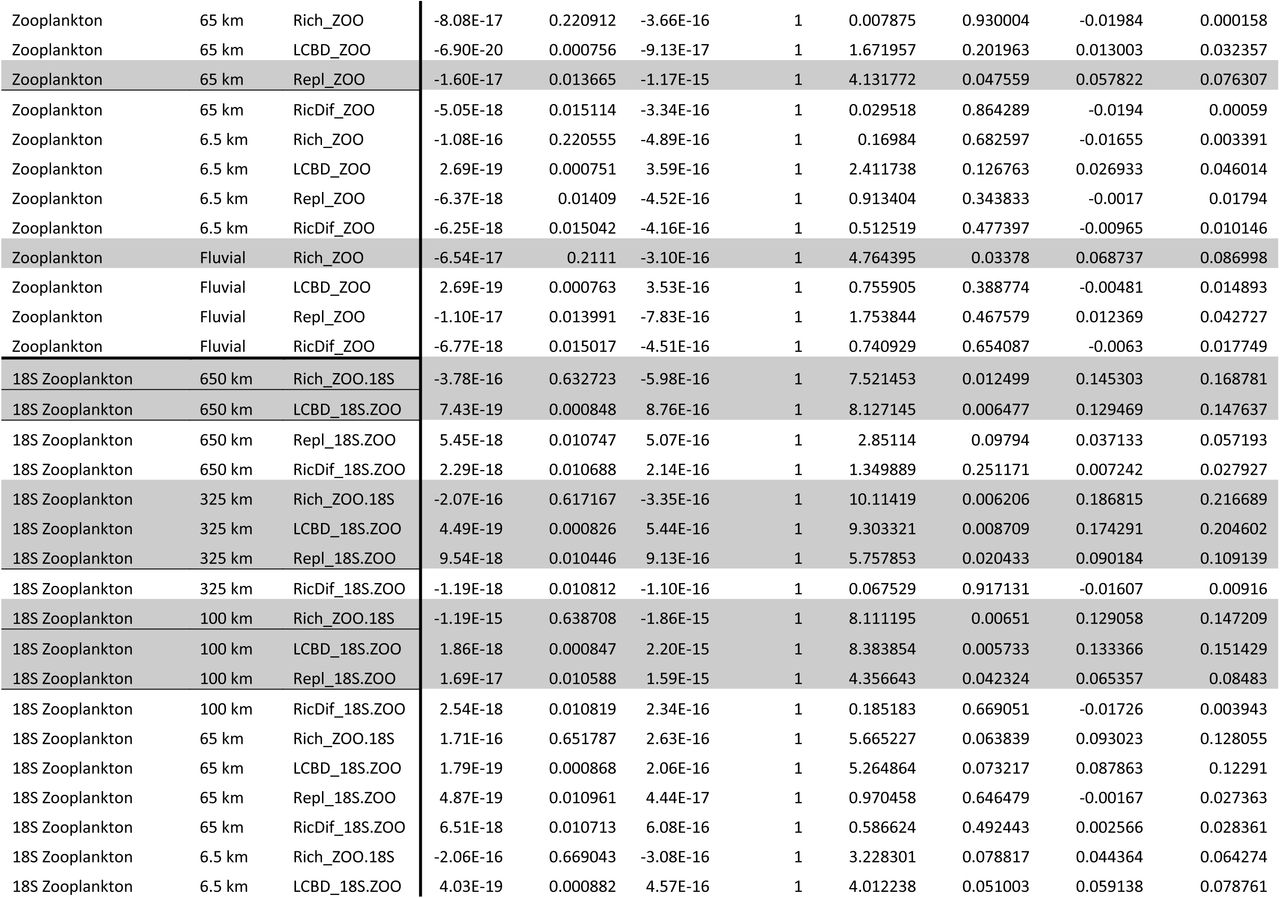

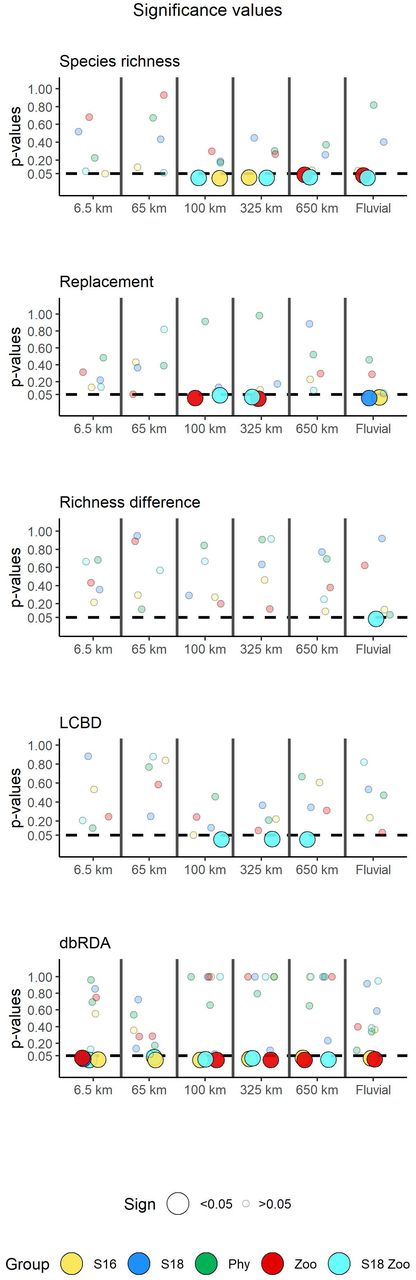

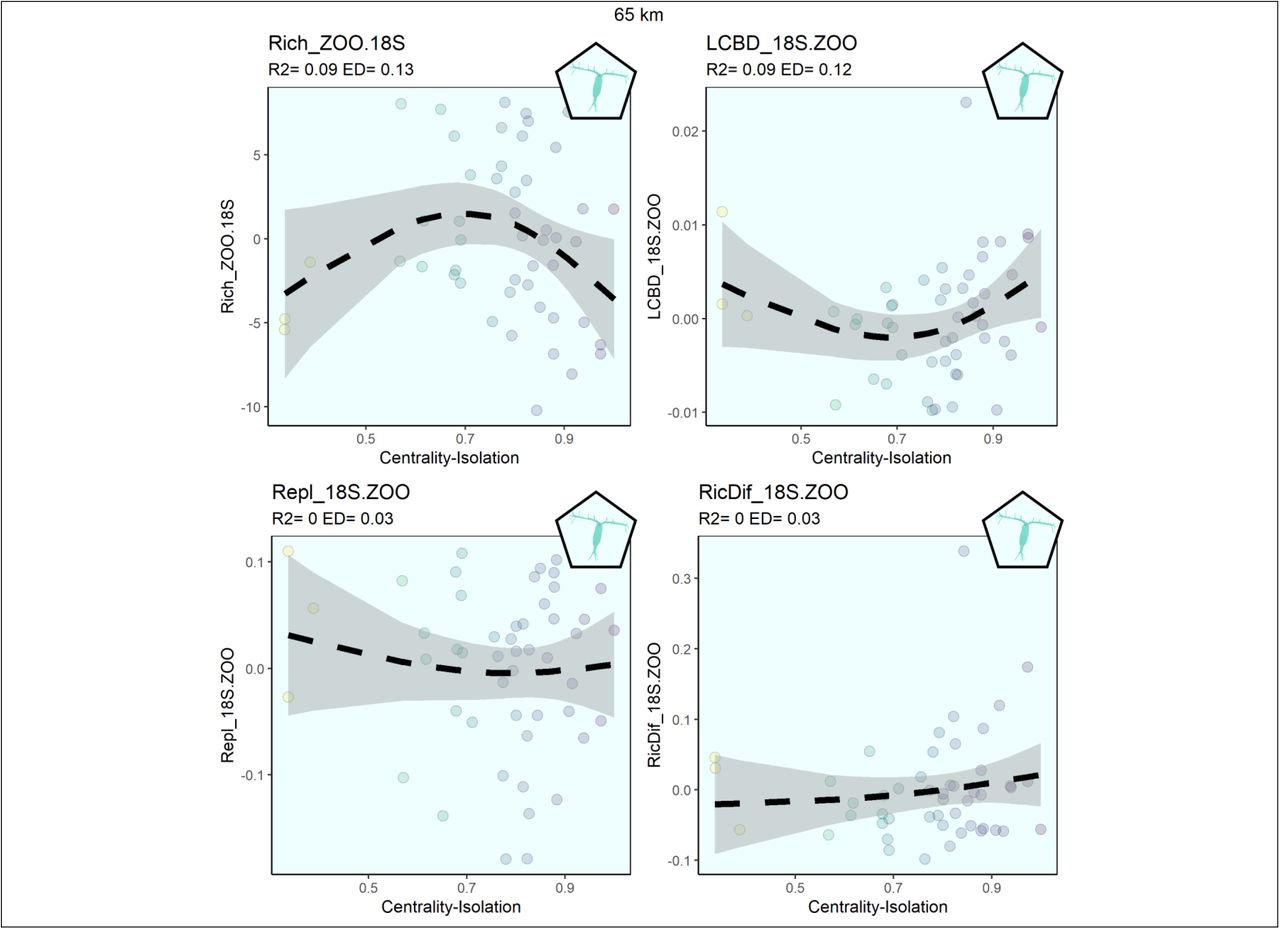

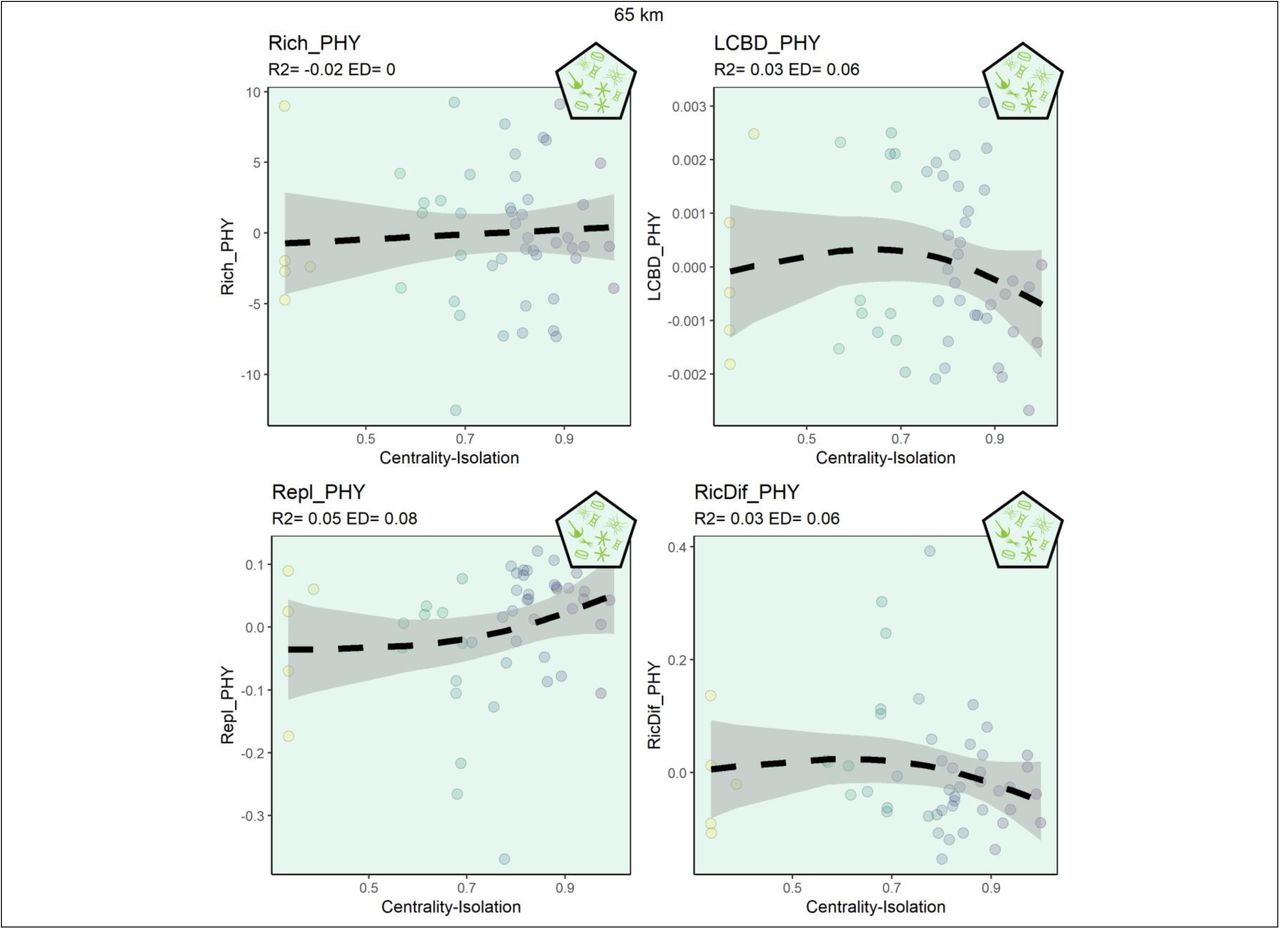

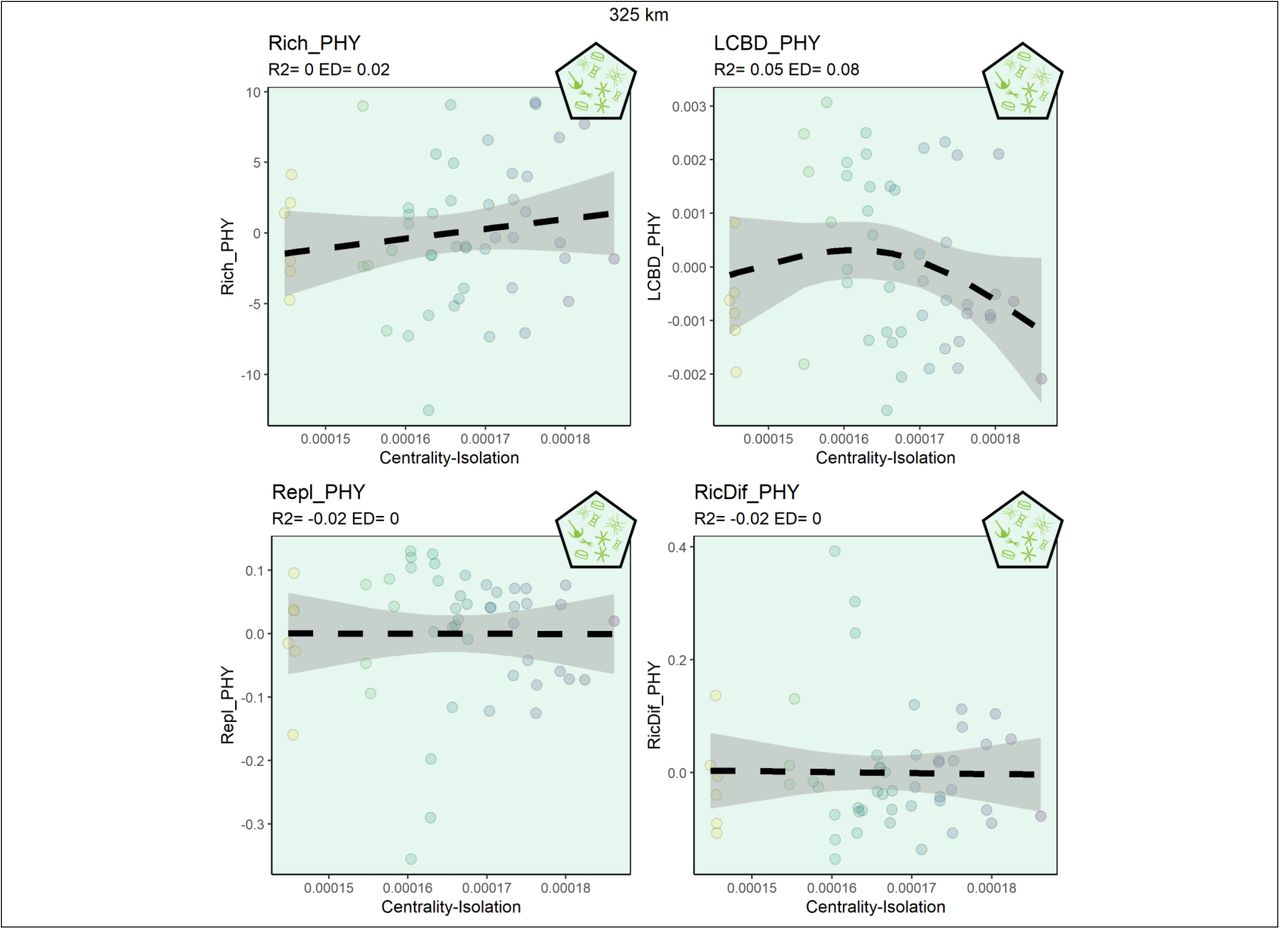

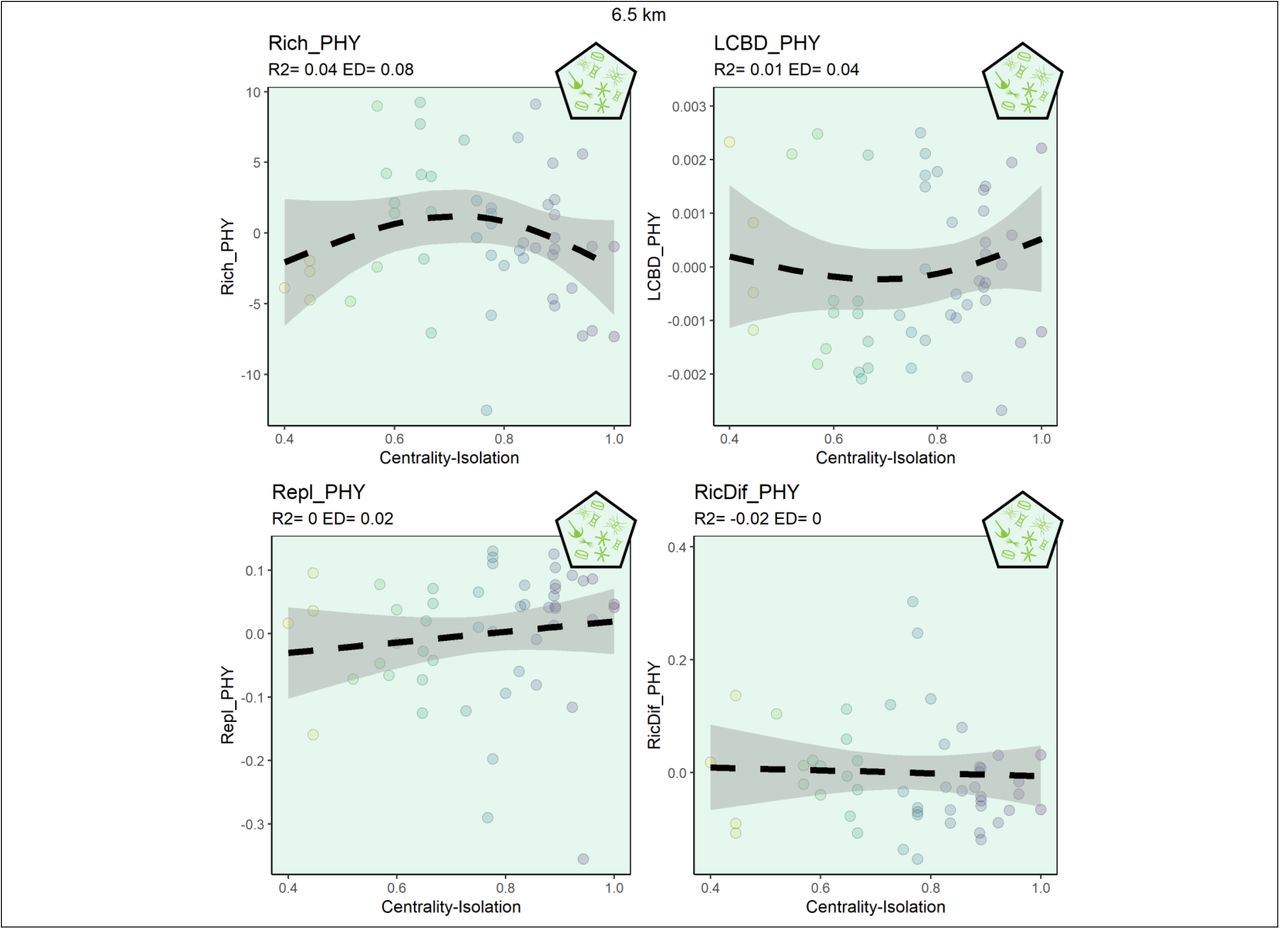

The GAMs conducted for each one of the five organism groups (bacterioplankton, protists, phytoplankton, zooplankton, and 18S zooplankton) using each one of the residual values from the four community metrics (Rich, Repl, RichDiff, and LCBD) as response variables and the centrality gradient from the six networks (6.5, 65, 100, 325, 650 km and fluvial) as smooth term showed differences between taxonomic groups and across scales (Figure 4). Mostly bacterioplankton, zooplankton and 18S zooplankton showed significant trend with centrality isolation gradient at some scales (650km, 320km, 100km, 65km and Fluvial) while protists only appeared related with one scale (Fluvial) and phytoplankton did not show any significant trend. From these, 18S zooplankton was the group presenting more significant trends of all the studied ones being the only group where Richness difference and LCBD values showed some significant trends (Figure 4). See all model results in Supplementary material S7.

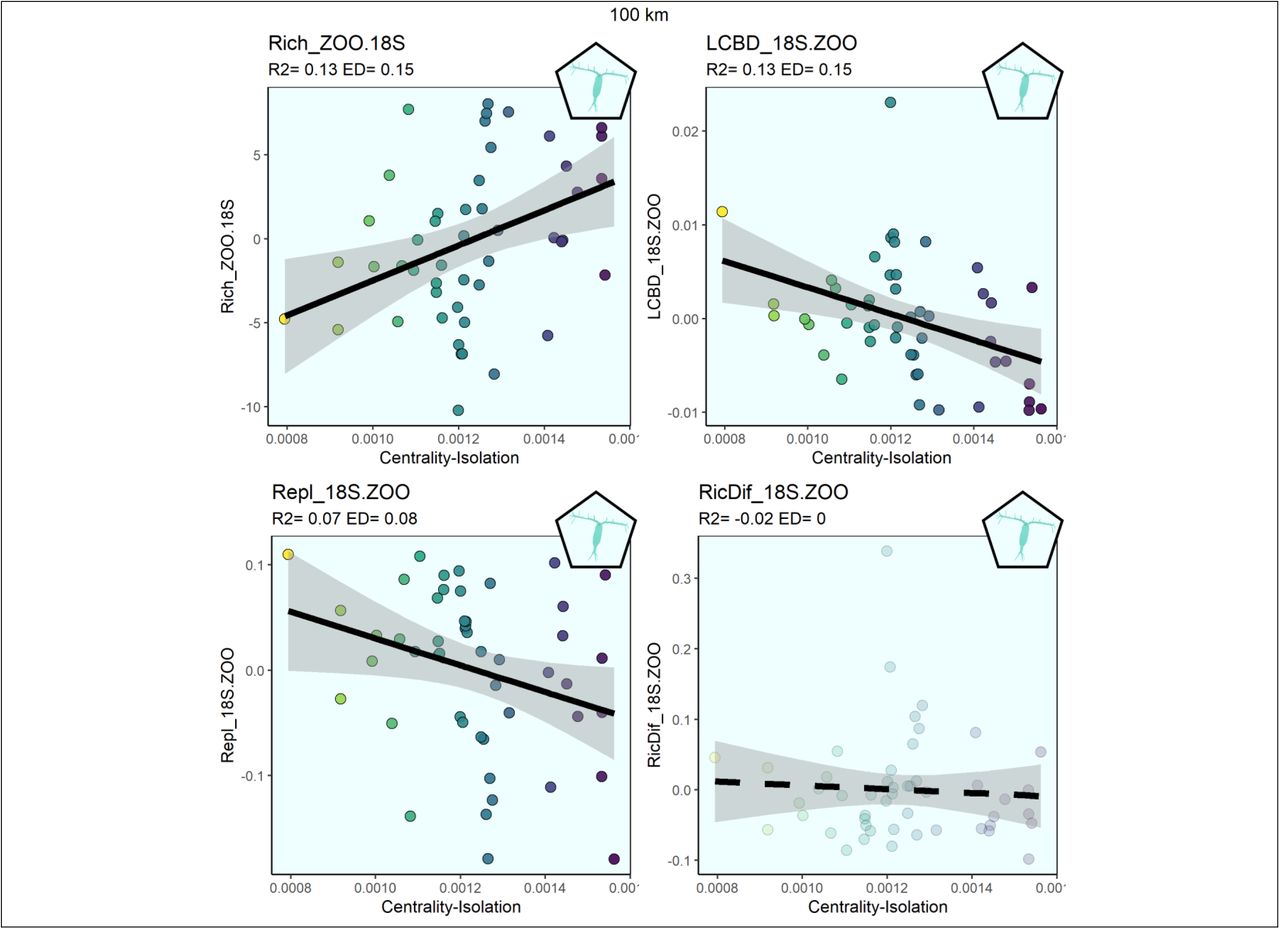

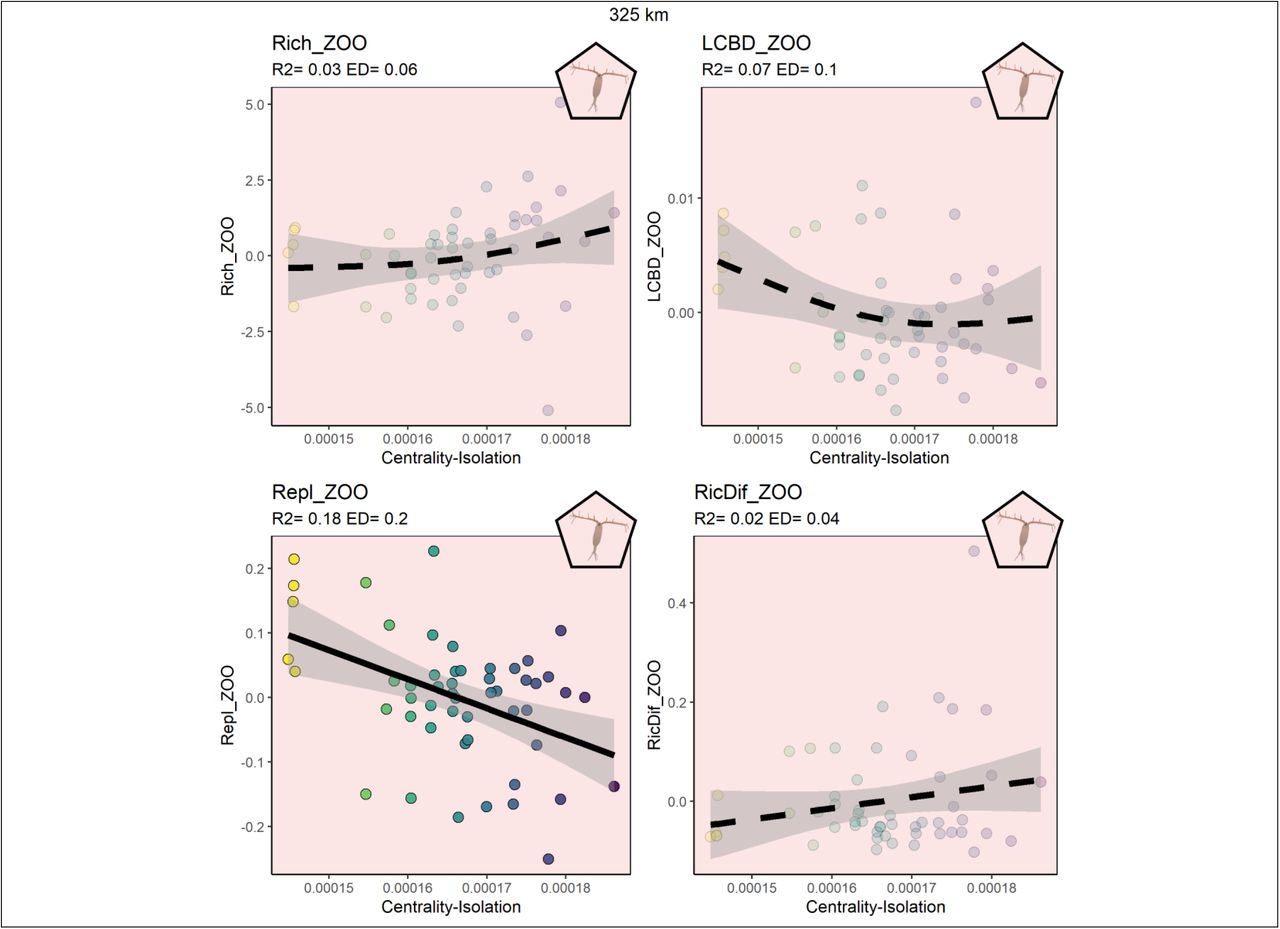

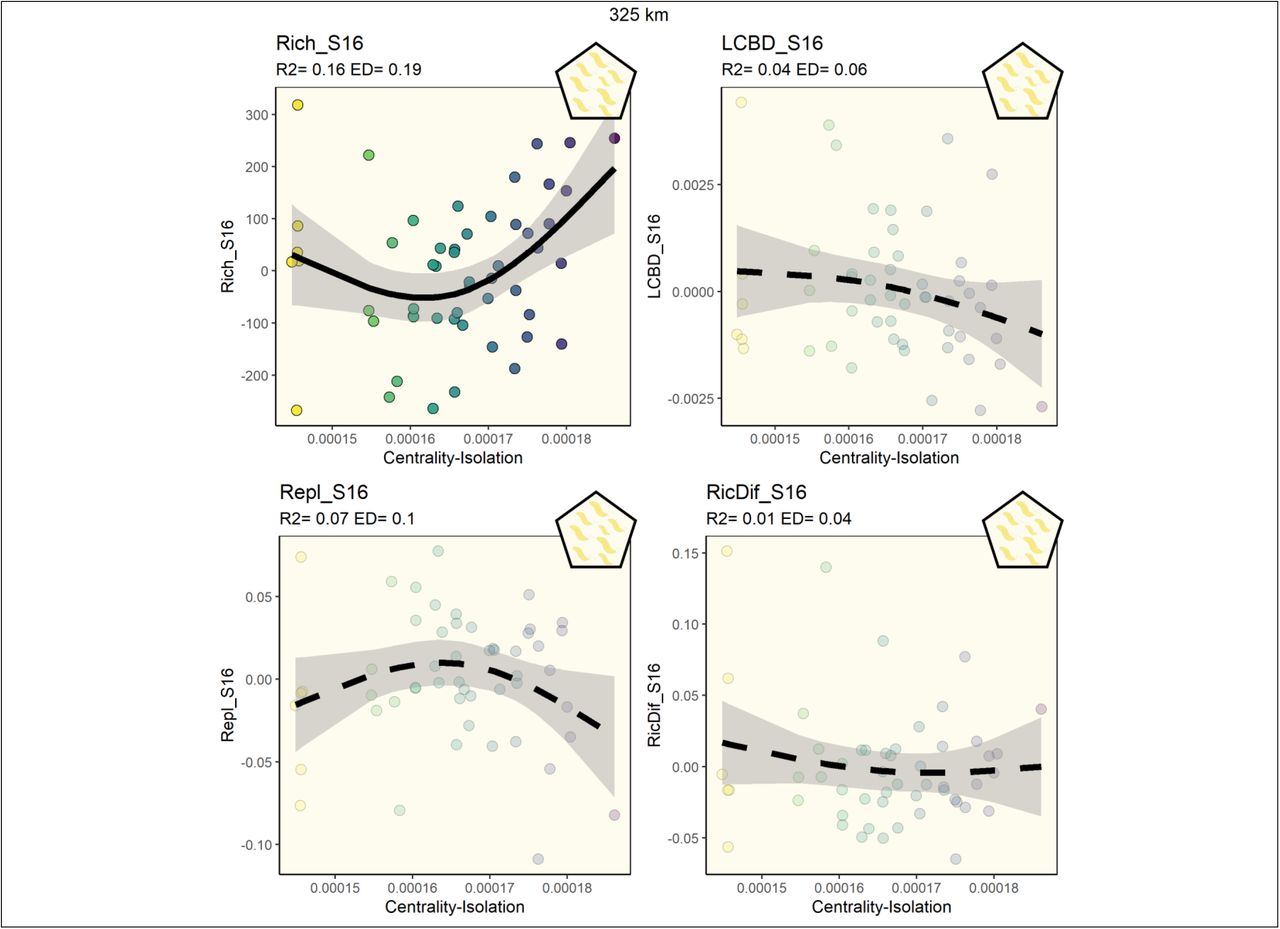

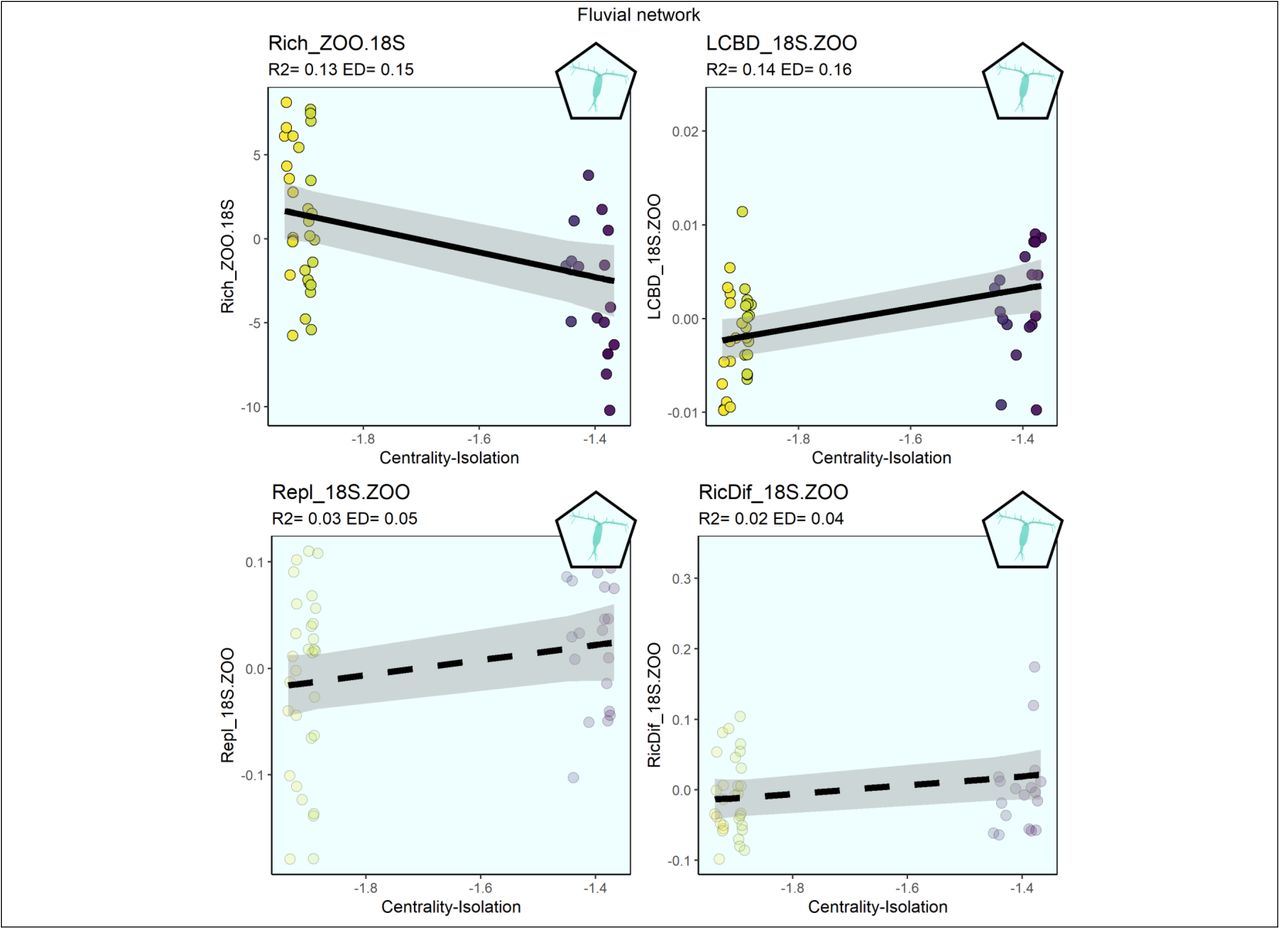

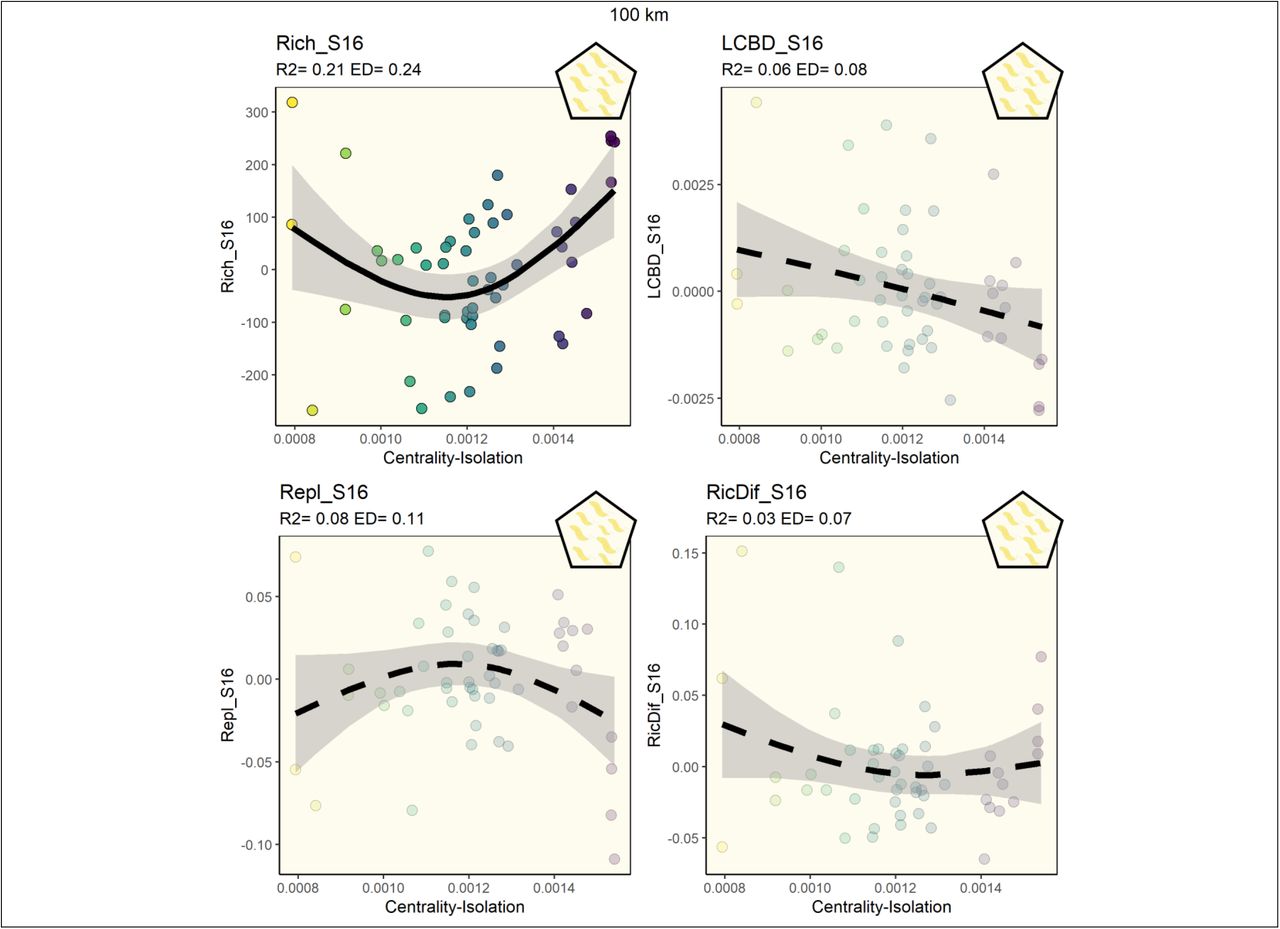

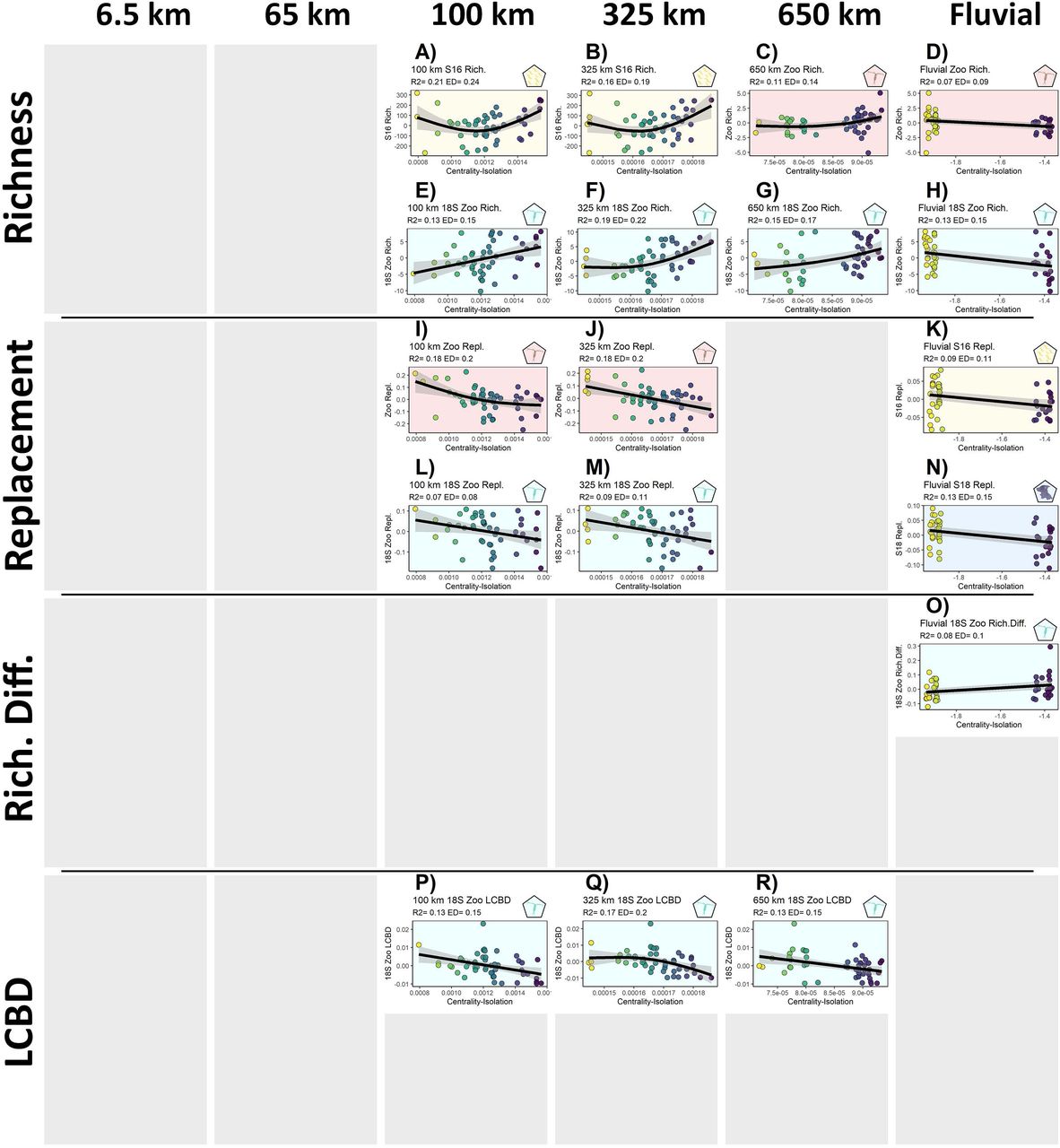

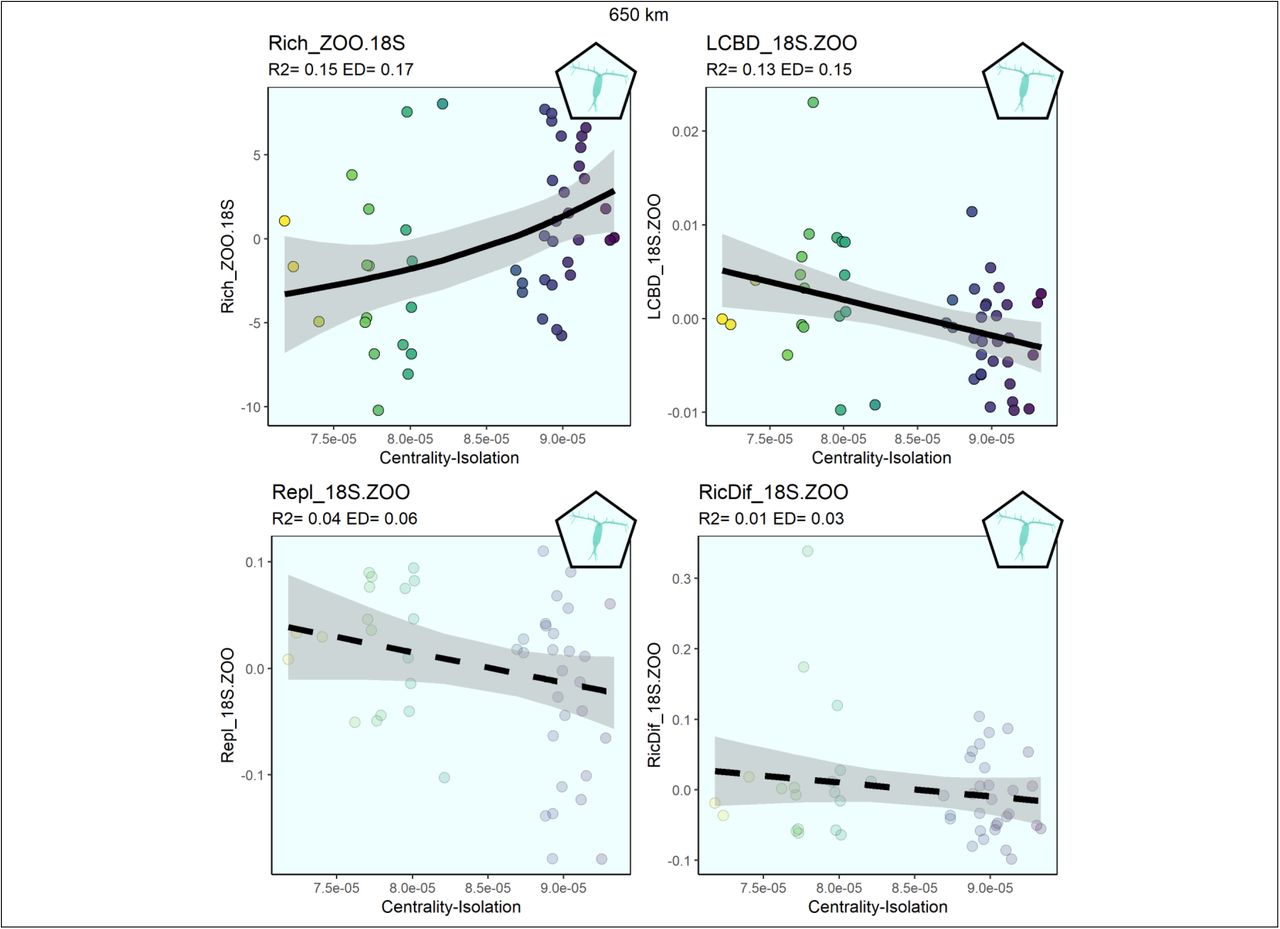

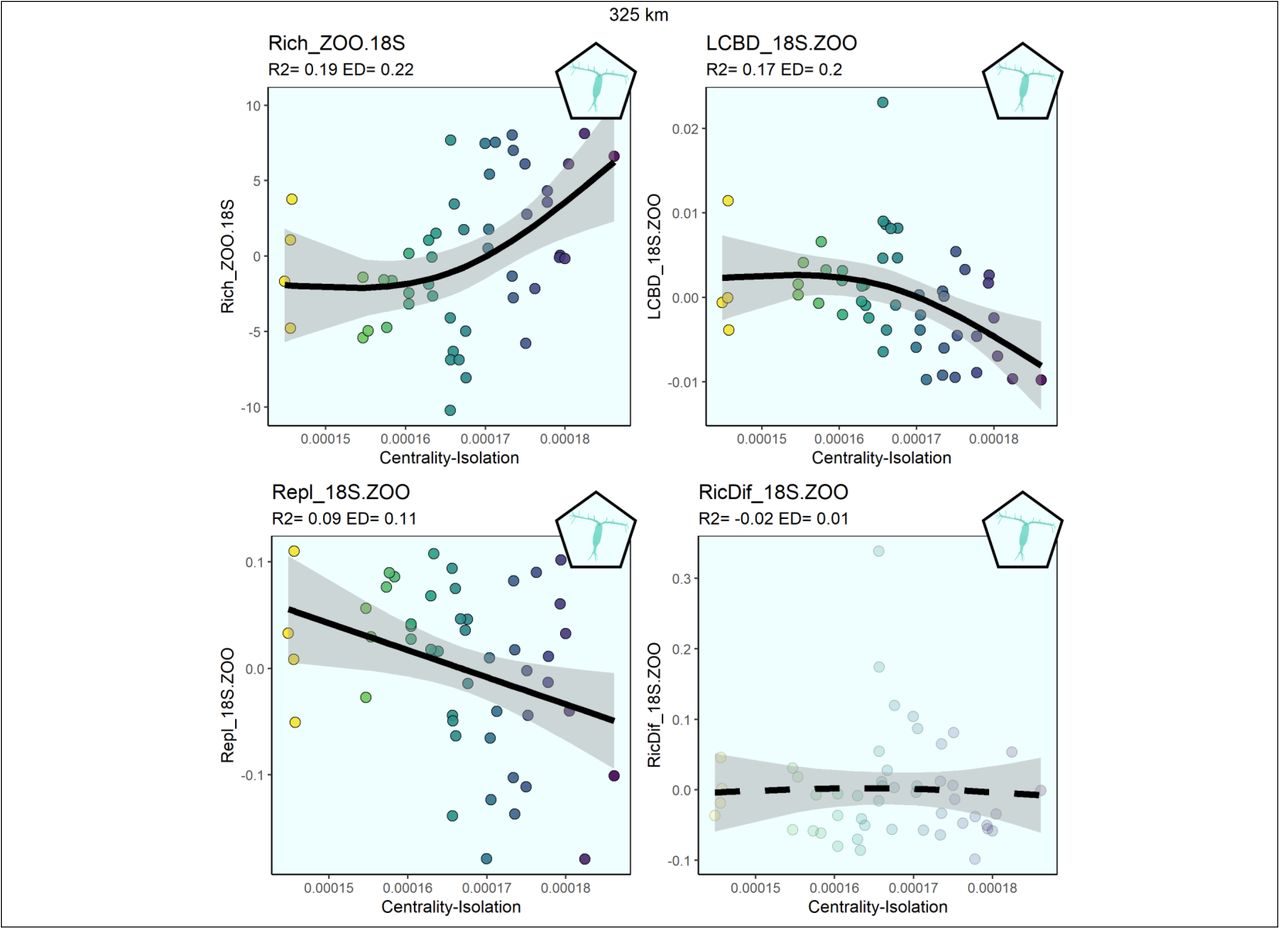

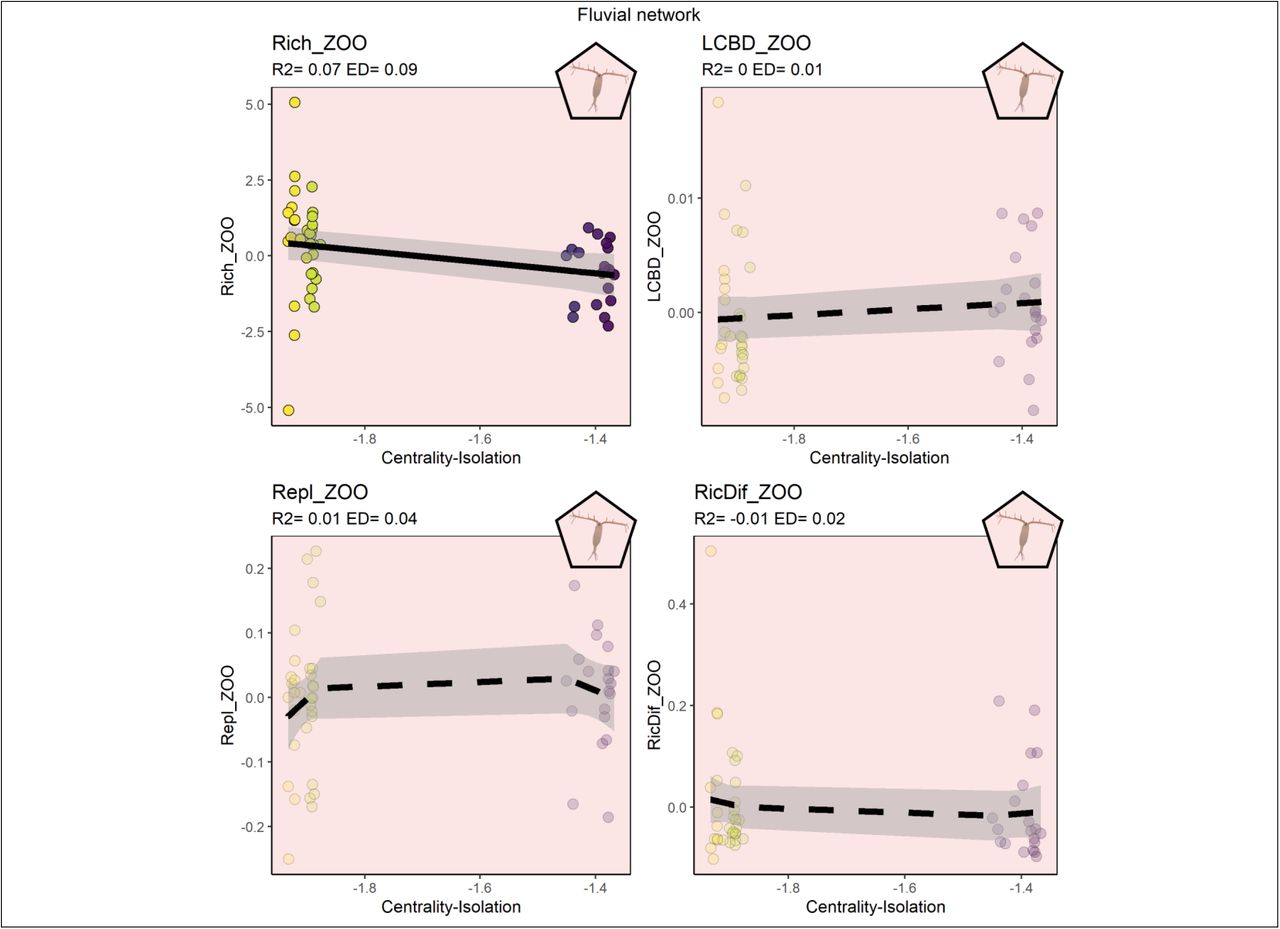

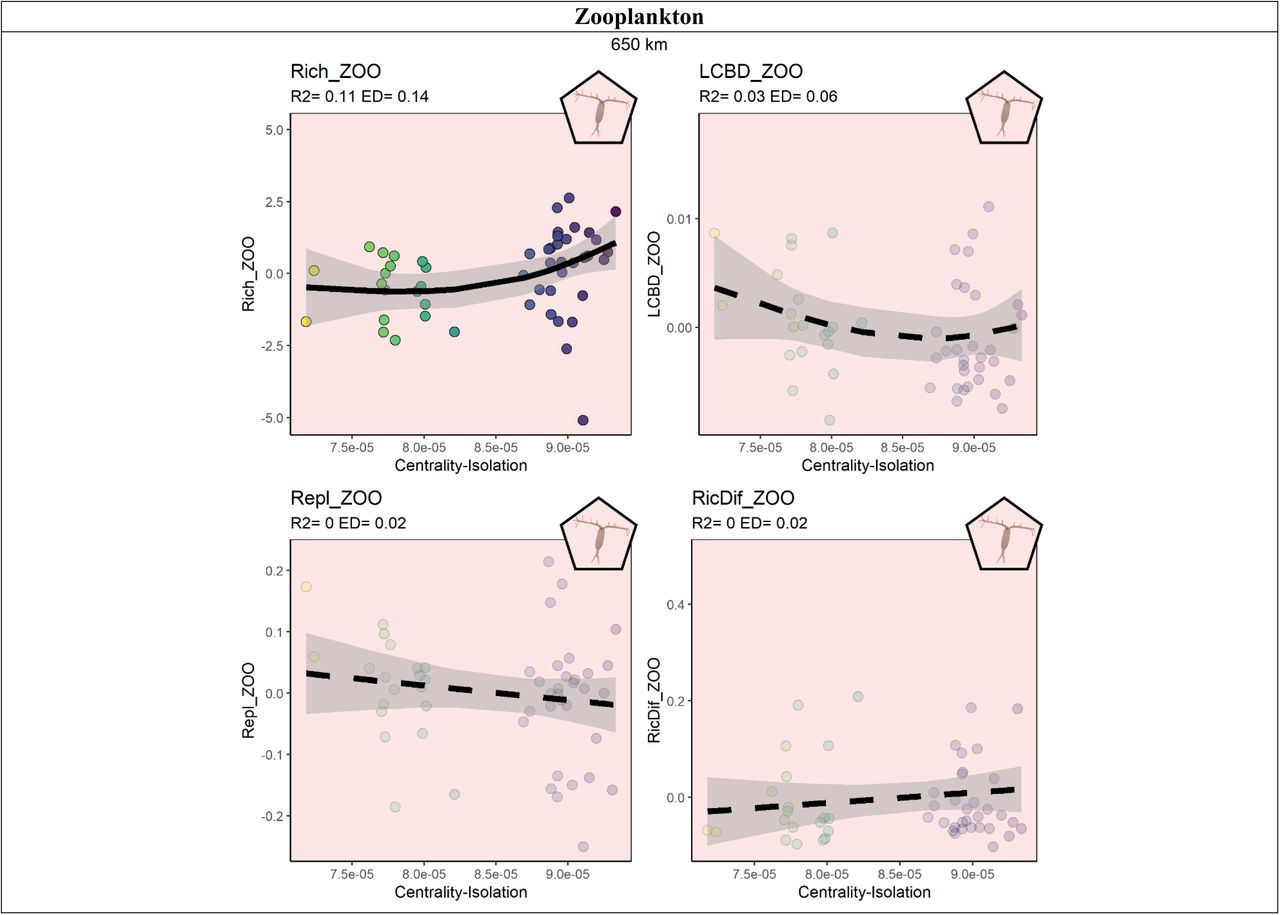

From the significant trends that we observed, species richness was significant for bacterioplankton, zooplankton and 18S zooplankton (Figure 5). Richness was significant for the networks built at 100, 325, 650 km, the Fluvial and for most of the groups it presented higher residual values at more central sites (Figure 5A:H), thus pointing to a greater mismatch between environment and species richness in these locations. Only for bacterioplankton it presented a more U-shaped trend for alpha diversity with lower residuals in sites with intermediate centrality values. In contrast, for the Fluvial network these patterns were reversed with lower residuals in more downstream sites (Figure 5D & H). Replacement presented a negative trend being more central communities, the ones having lower residual values for both zooplankton and 18S zooplankton at 100 and 325 km networks (Figure 5I,J,L & M) and thus showing a better match with environmental constraints for replacement. On the other hand, bacterioplankton and protists replacement was negatively related with centrality but from the fluvial network (Figure 5K & N), being downstream sites better explained by environment. Richness difference was only related with 18S zooplankton for the fluvial network (Figure 5O), having a positive trend with higher residuals in more downstream lakes. Finally, LCBD had significant trends only for the 18S zooplankton at 100, 325, 650 km, being more central sites, the ones having lower residuals and thus having a stronger link with environment (Figure 5P:R). Overall, all the significant models explained 10-20% of deviance and had consistent patterns across scales and even across groups for the significant community structure metrics (Figure 5). In general, there was a positive association between species richness residuals and centrality, indicating a disconnection from environmental factors in central positions. Conversely, the residuals for average replacement and LCBD exhibited a negative relationship with centrality, suggesting that in central locations, replacement and LCBD were more effectively explained by environment. Most observed trends followed a monotonous pattern, apart from bacterioplankton, which displayed distinctive U-shaped trends (Figure 5).
Multivariate analysis

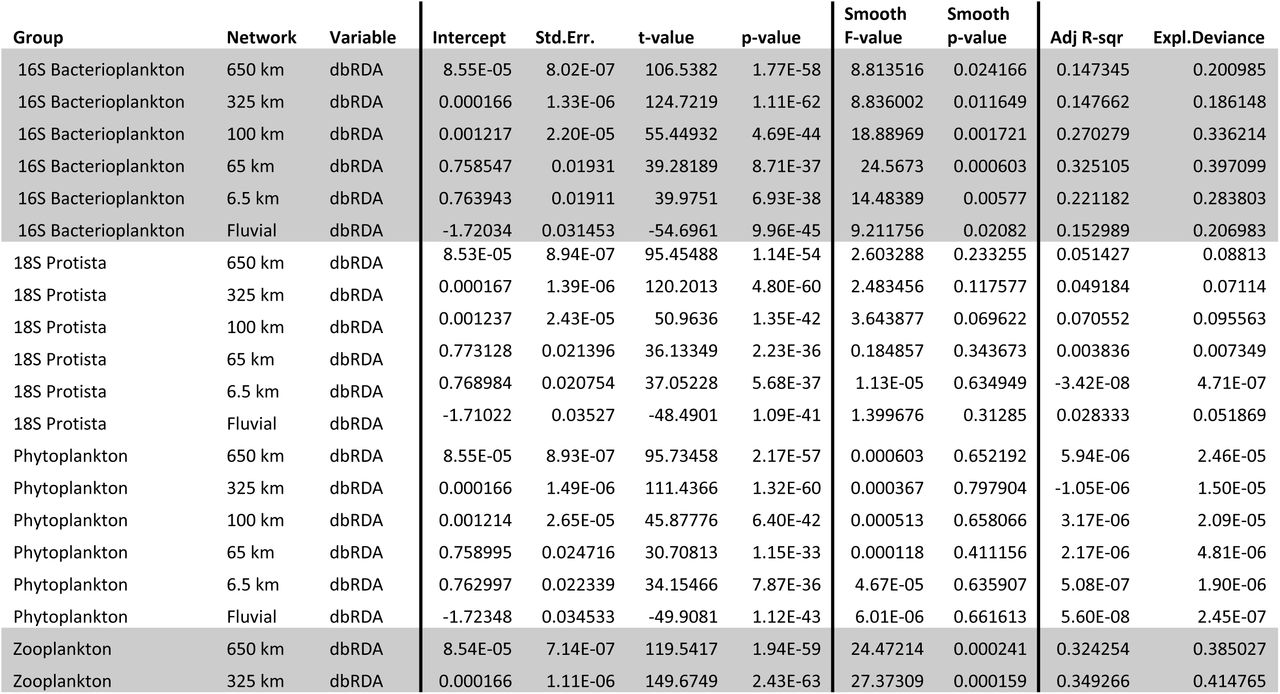

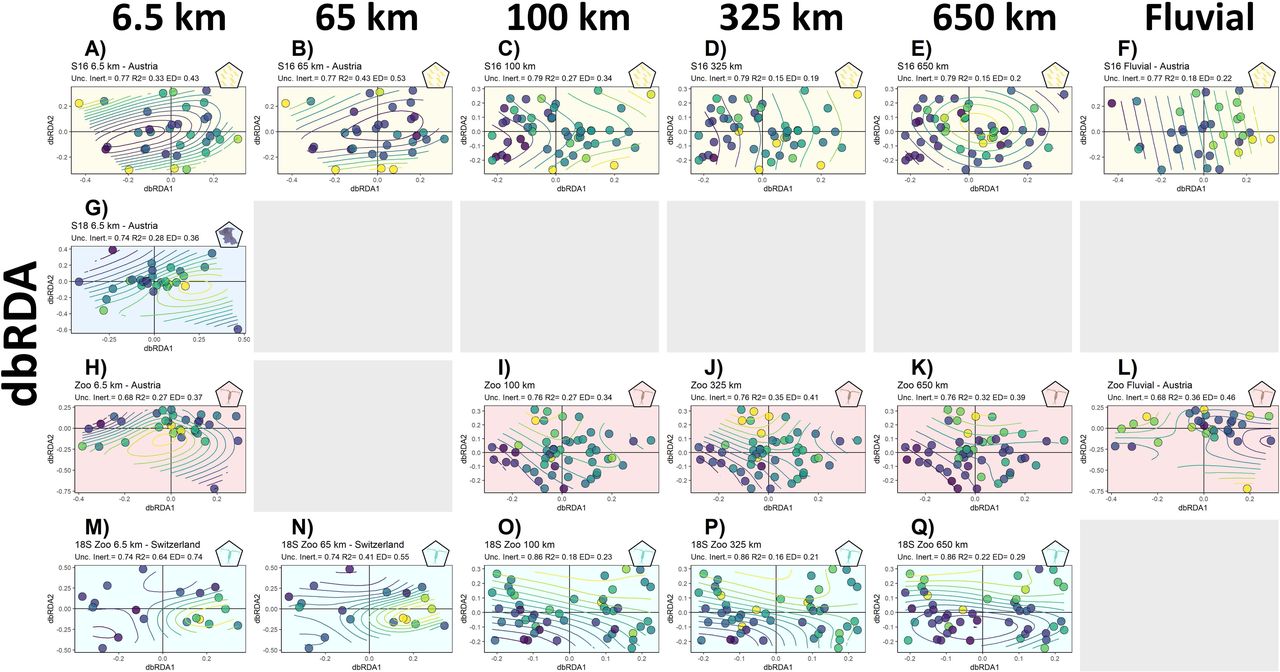

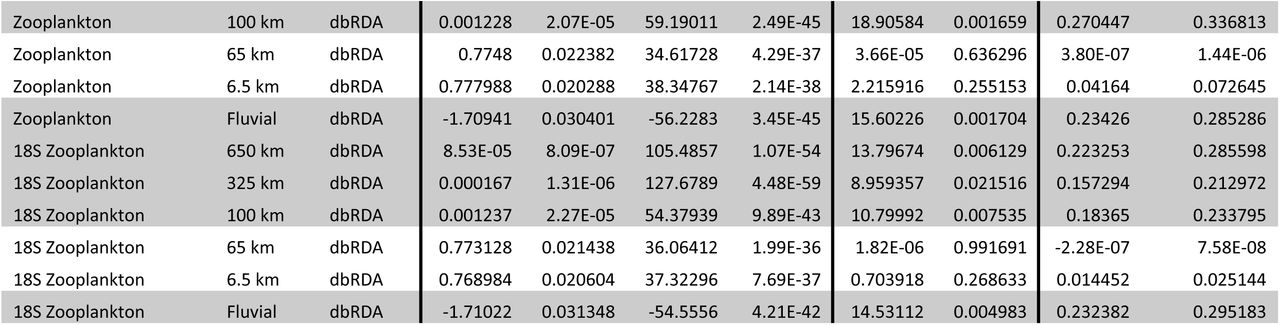

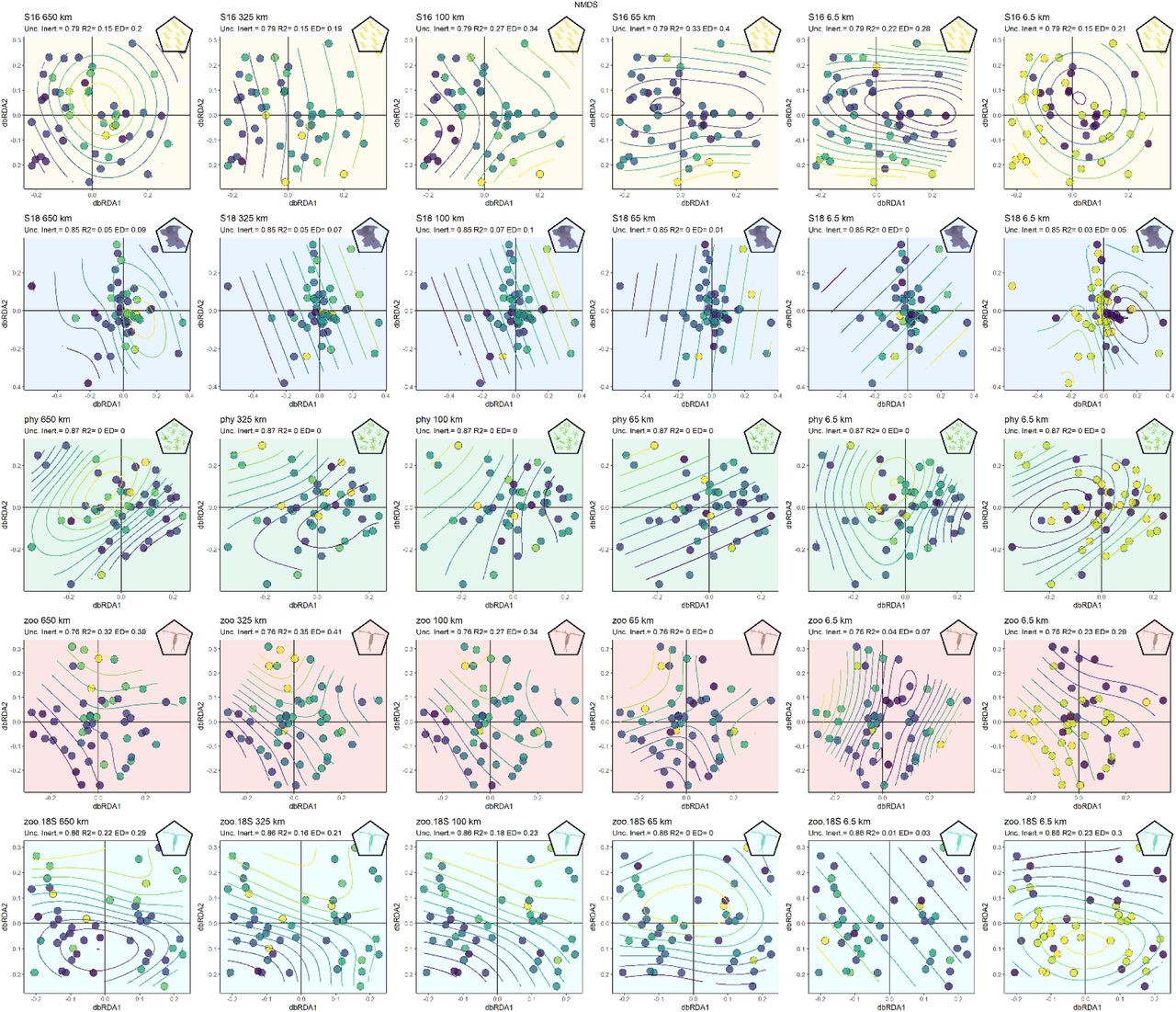

For the multivariate analysis we observed similar results than with community metrics, the groups presenting a significant smooth surface against centrality were basically bacterioplankton, zooplankton and 18S zooplankton (Figure 6) with protists being only significant in one case (Figure 6G). Bacterioplankton had a significant relationship across all networks (Figure 6A:F). For networks encompassing larger scales (e.g. 650km), more central sites tended to be more separated (Figure 6E & F). On the other hand, as scales decreased (e.g. 65 and 6.5km) this pattern was the inverse and more isolated lakes were the ones being in more external positions of the multivariate space (Figure 6A & B). For these smaller scales only one subgraph showed a significant relationship for composition (the lakes within Austria and Germany) for bacterioplankton, protists and zooplankton at 6.5 km scales (Figure 6A, G & H) and bacterioplankton at 65 km scales (Figure 6B). Contrastingly, 18S zooplankton appeared significantly related with 6.5 and 65km scales (Figure H & M) but only from the other group of lakes (lakes within Switzerland). For these scales, protists, zooplankton and 18S zooplankton showed more similar communities among isolated lakes. Finally, zooplankton and 18S zooplankton presented the same significance trends for 100, 325, 650 km (Figure 6I:K & O:Q). In these cases, the relationship with the centrality gradient was similar being more central sites, the ones tending to have similar composition through all the significant scales. See all dbRDA model results in Supplementary material S8.
Discussion
The impact of spatial structure on diversity patterns has been broadly discussed in the last years of ecological research (Turner and Gardner 2015, Leibold and Chase 2018, Erős and Lowe 2019, O’Connor et al. 2020). It connects directly with main assembly patterns as spatial structure defines the canvas in which metacommunities assemble and therefore, it drives diversity of species that are able to move throughout it (Vellend 2016, Thompson et al. 2020). In the current work, we highlighted the strong role that landscape structure plays as a driver of alpine lakes planktonic communities as well as the scales at which it takes place (i.e. 650, 325, 100 km and Fluvial). In these systems, landscape structure has generally been attributed to the fluvial connection between lakes (Almeida-Gomes et al. 2020). However, here, we saw that not only fluvial structure affects diversity patterns and that bacterioplankton, protists and zooplankton diversity appear also shaped at undirected network structures (i.e. 650, 325, 100, 65 and 6.5 km of distance). Furthermore, Phytoplankton did not show any relationship with centrality of these landscape structures, neither fluvial nor undirected. Such findings emphasise the complexity in quantifying spatial structures that appear relevant for diversity patterns and the strong variability that can exist between taxonomic groups (Boix et al. 2017, Tonkin et al. 2018a, Newman 2019), and they contribute to gather new insights in how, and more specifically at which scales, planktonic and microscopic organisms are being affected by centrality and thus the scales at which metacommunity processes might be taking place for them (Leibold and Chase 2018, Custer et al. 2022).
On the one hand, our hypotheses were partially refuted because we observed that organisms did not respond to different scales in relation to size (hypothesis 1, i.e. Bacterioplankton and Zooplankton appeared related through similar scales), and some groups community structure and composition was not correlated with centrality (i.e. Phytoplankton). On the other hand, when a pattern was detected across several groups the sign of it was consistent for all of them, which implies that the captured process was having the same effect across groups. For example, alpha diversity responded in the same way against centrality for both bacterioplankton and zooplankton or replacement for bacterioplankton, protists & zooplankton (hypothesis 2). An increase in centrality was concomitantly increasing the mismatch between environment and species richness. This loss of connections might be related to the higher species richness of more central sites (Economo and Keitt 2010, Altermatt 2013, Borthagaray et al. 2020). Interestingly, composition responded the other way around (for 325 and 100 km landscapes), where more central lakes and downstream lakes replacement had a better fit with environment. Although not shared among groups, zooplankton beta diversity was related with several scales and for both, Zooplankton and 18S Zooplankton. In all these cases, more central communities were better explained in central positions both for composition and uniqueness in comparison with more isolated lakes. Such patterns respond to a stronger impact of dispersal in more central communities (e.g. mass effects archetype; (Leibold et al. 2004), which would favour the foster community homogenization and the overall match of its replacement and LCBD values with respect to the regional pool (Altermatt et al. 2011, Ai et al. 2013, Carrara et al. 2014, Tonkin et al. 2016a, Jamoneau et al. 2018). These patterns were found at similar landscape scales for both Bacterioplankton and Zooplankton, which meant that the network structure obtained between 650 and 100 km was actually capturing a landscape structure that was affecting these two groups beta diversity patterns (Economo and Keitt 2008, Chisholm et al. 2011, Dale 2017). Thus, these scales could represent the most probable level at which dispersal processes would be impacting these groups defining the effective landscape at which the exchange of individuals drives diversity patterns and metacommunity assembly (Vellend 2016, Leibold and Chase 2018, Thompson et al. 2020).
The observed responses highlight not only that smaller-bodied organism groups are affected by the centrality gradient (i.e. Bacterioplankton), but also that the assembly of these groups is affected across different regional scales (Custer et al. 2022, Barbour et al. 2023, Tytgat et al. 2023). Therefore, even for smaller microscopic taxa, broad-regional patterns might explain their regional diversity distribution (Tytgat et al. 2023), something that highlights the relevance for accounting for landscape and centrality metrics even for these groups (Whitfield 2005, Fontaneto et al. 2008, Vannette and Fukami 2017). Along the same lines, Zooplankton appeared related with the same scales as Bacterioplankton, which could point towards both groups being dispersed by the same vectors or by vectors that act at the same scales of hundreds of kilometres (Incagnone et al. 2015, Pinceel et al. 2016, Coughlan et al. 2017). It is worth noting that bacterioplankton was sampled via filtration in a size-inclusive manner, meaning that bacteria associated with larger particles such as Zooplankton bodies are also included in our analysis. Contrastingly, phytoplankton showed the total opposite pattern, not being affected by any of the tested centrality isolation gradients. Protists behaved similarly only showing relationships at the fluvial scale and at the smallest network scales. Based on our results, we should expect that these two groups would have been related to same scales than bacterioplankton and zooplankton, as they could also be transported by the same vectors (Naselli-Flores and Padisák 2016, Padisák et al. 2016). As a consequence, we assume that these organisms were potentially transported through the same corridors but their establishment failed either due to different environmental conditions (Abonyi et al. 2018, Chaparro et al. 2018), or due to stronger priority effects (Fukami 2015, Leibold and Chase 2018). Furthermore, these two groups, specially Phytoplankton, are primary producers which strongly rely on environmental conditions (e.g. available nutrients, stratification; (Stomp et al. 2011, Li et al. 2019, Borics et al. 2021), which, together with the fact that we focused on the pure spatial effect (i.e. centrality gradient across scales) might have hidden the spatial signal for these groups if both environment and centrality gradients where equally relevant or correlated (Chaparro et al. 2018, Loewen et al. 2020, Rocha et al. 2020). Nonetheless, the current findings point towards the relevance of spatial distribution for the diversity of two key planktonic groups such as bacterioplankton and zooplankton not uniquely related to the fluvial network. Such results stress the strength of spatial processes for these groups but also the scales at which this occurs (i.e. hundreds of kilometres) that should be considered if regional diversity patterns are to be preserved (Edge et al. 2017, Horváth et al. 2019, Brauer and Beheregaray 2020).
One limitation of our work is that our environmental variables are a limited simplification of the actual local environment. Our simplification of the environment and our focus on how well landscape structure (i.e. centrality) was explaining the mismatch between it and diversity patterns was marked by the few environmental variables available. Although we accounted for several environmental variables to tease apart their contribution to diversity, the number of metrics was short (i.e. water temperature, chlorophyll-a concentration, electrical conductivity, lake area, and altitude) and therefore some key environmental variables may not have been considered (e.g. nutrients, fish community). However, the five considered metrics also represent main proxies of lake state and human impact for alpine lakes (Jacquemin et al. 2019, Li et al. 2021). In a similar line, landscapes were built based on existing databases with a determined level of accuracy (Lehner and Do 2004). Although satellite identification of water bodies is improving (Pekel et al. 2016), there is still a lack of accuracy to detect small water bodies, which in turn can play an important role in determining network scale fluxes (Downing 2010, Borthagaray et al. 2023a). Furthermore, we connected our landscapes based on the percolation distance which represents a compromise between local and regional network structure. However, networks could have been built based on different distances representing different perceptions of the landscape (Borthagaray et al. 2015a, Dale 2017, Cunillera-Montcusí et al. 2021). These networks would have corresponded to different ways to perceive each one of the different landscapes and thus, represent different centrality gradients (Borthagaray et al. 2014, Newman 2019, Savary et al. 2023). In the current work, we focused on varying the scale at which the landscape is constructed to focus on the relevance of habitat distribution at different scales in determining diversity patterns (Gilarranz 2020, Faggioni et al. 2021, Borthagaray et al. 2023b). Nevertheless, to additionally explore how different threshold distances might also impact diversity patterns constitutes an avenue to follow in the coming years to further disentangle how planktonic communities are perceiving and interacting with the landscape (Almeida-Gomes et al. 2020, Custer et al. 2022). We employed both morphological and molecular techniques to describe community structure and composition of the different organism groups, aligned with current and emerging best practice approaches to target aquatic diversity (Hillebrand et al. 1999, Deiner et al. 2015). The detection of similar patterns for the same organism group using independent methodology (e.g. zooplankton and 18S zooplankton), strengthens our observations.
In the current work we highlighted the complexity of defining a landscape that will drive diversity patterns across ecosystems at different scales. This complexity will become more evident with the greater availability of satellite information and computationally powerful tools that will allow us to process further layers of the landscape (Newman 2019, O’Connor et al. 2020, Savary et al. 2023). Therefore, the current work is an important step toward accounting for landscape structural features that shape planktonic groups in bigger lentic systems (Almeida-Gomes et al. 2020). These features are, together with abiotic and biotic interactions, key when assessing the diversity of these communities in face of global change as they have an impact on the species that are available to assemble communities (Leibold and Chase 2018, Thompson et al. 2020). The landscape structure of Alpine lakes is also particularly threatened as alterations at the regional level on the presence of these lakes (Zhang et al. 2017), their connectivity (Monaghan et al. 2005, Robinson and Kawecka 2005) and environmental characteristics (Moser et al. 2019) is subject to global change. Thus, potentially impacting future community diversity patterns (Fuller et al. 2015, Thompson et al. 2017, Pardini et al. 2018). As a consequence, to improve the current knowledge on the relevance of landscape structure on these groups appears key to further understanding the consequences of global change on them as they constitute the basal elements of lake trophic structure. Finally, the consideration of network scale patterns for alpine lakes, moving further from lotic networks, constitutes an advance to better disentangle how these systems are impacted by landscape structure (Almeida-Gomes et al. 2020) and thus, how their metacommunities are assembled and how the layers driving diversity are acting in these threatened ecosystems (Leibold and Chase 2018, Moser et al. 2019).
Acknowledgments
D.C.M. was supported by the H2020 EU-funded project AQUACOSM-plus (no. 871081), the H2020 EU-funded project AQUACOSM (no. 731065), by the European Union-NextGenerationEU, Ministry of Universities and Recovery, Transformation and Resilience Plan, through a call from Universitat de Girona and by the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement No 101062388. MMB was supported through the Austrian Science Fund (FWF) project P 26119-B25 and the German Research Foundation (DFG) project LakeMix (BE 6194/ 1-1).
