New synthetic cannabinoids and the potential for cardiac arrhythmia risk
School of Physiology, Pharmacology and Neuroscience, Biomedical Sciences Building, University Walk, Bristol BS8 1TD, UK
Institute of Pharmaceutical Science, King's College London, UK
Centre for Pharmaceutical Medicine Research, King's College London, UK
⁎Corresponding author. jules.hancox@bristol.ac.ukAbstract
Synthetic cannabinoid receptor agonists (SCRAs) have been associated with QT interval prolongation. Limited preclinical information on SCRA effects on cardiac electrogenesis results from the rapid emergence of new compounds and restricted research availability. We used two machine-learning-based tools to evaluate seven novel SCRAs' interaction potential with the hERG potassium channel, an important drug antitarget. Five SCRAs were predicted to have the ability to block the hERG channel by both prediction tools; ADB-FUBIATA was predicted to be a strong hERG blocker. ADB-5Br-INACA and ADB-4en-PINACA showed varied predictions. These findings highlight potentially proarrhythmic hERG block by novel SCRAs, necessitating detailed safety evaluations.

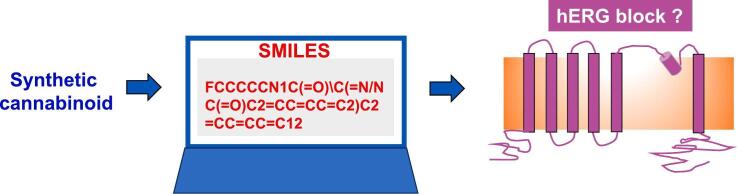

Graphical abstract
Highlights
- •Synthetic cannabinoid receptor agonists (SCRAs) are illicitly used psychotropics.
- •Mounting evidence suggests that SCRAs can affect cardiac repolarisation.
- •Two in silico tools were used to evaluate whether 7 novel SCRAs may inhibit “hERG”.
- •5 of the 7 SCRAs were predicted by both tools to inhibit the hERG potassium channel.
- •These results highlight a potential route for adverse cardiac effects of SCRAs.
1Introduction
A 2021 analysis of drug-related deaths reported to the UK National Programme on Substance Abuse Deaths (NPSAD) for England (census period 2012–2019) highlighted 165 deaths linked to the use of synthetic cannabinoid receptor agonists (SCRAs) [1], psychotropic drugs, most of which have no clinical indication. Approximately 75 % of these deaths were linked to cardiorespiratory complications and of those that were witnessed, ∼82 % were described as having involved sudden collapse [1]. There is growing evidence of a link between SCRA use and risk of cardiac arrhythmia [2]. Case reports and patient cohort studies have highlighted the potential for SCRAs to produce QT interval changes on the electrocardiogram (ECG) reminiscent of those observed in drug-induced long QT syndrome (diLQTS) [[3], [4], [5], [6], [7], [8], [9]]. diLQTS predisposes to the arrhythmia torsades de pointes (TdP). Therefore, administration of drugs with a propensity for QT-prolongation should be undertaken with caution in the clinical management of SCRA users [2].
One recent study of 72 SCRA users, of whom 68 were males, has reported P wave and QT interval abnormalities (including statistically significant increases in both rate-corrected QT interval duration and QT dispersion) in comparison with 27 age and sex matched controls (22 males) [8]. In multivariate analysis, serum potassium was found to be an independent predictor of premature ventricular beats [8]. It is well established that electrolyte abnormalities, including hypokalemia, are strongly associated with diLQTS and TdP [10]. In a 2022 study of 41 male SCRA users and a similar number of age-matched healthy controls, heart rate did not differ between the groups but SCRA users exhibited P wave dispersion, and increased QT interval, rate corrected QT (QTc) interval, QT dispersion and Tpeak-Tend values compared to controls [9]. The changes to markers of ventricular repolarization in this study are in good agreement with those reported in a prior study of 58 SCRA-using hospital patients, who exhibited longer QTc and Tpeak-Tend values than from 50 healthy controls [5]. Thus, the available clinical literature provides consistent evidence that SCRA use is linked to delayed ventricular repolarization.
Despite this, there remains relatively little preclinical literature on the underlying basis of altered ventricular repolarization with SCRAs. Cannabidiol, which is structurally distinct from SCRAs, has been shown to inhibit the “hERG” (Kv11.1) potassium channel and prolong ventricular action potential duration at some concentrations [11]. hERG block is the major culprit in diLQTS and novel pharmaceuticals are routinely evaluated for any propensity to inhibit hERG channels. One SCRA study has reported JWH-030 to act as a relatively low affinity inhibitor of hERG [12], but data on other SCRAs are lacking.
Street preparations of SCRAs may contain unidentified SCRAs or SCRA mixtures, and patterns of SCRA use continually evolve as new compounds emerge [1]. This complicates preclinical mechanistic analysis of SCRA toxicology. This problem is well illustrated by the diversity of SCRAs highlighted by the United Nations Office on Drugs and Crime (UNODC), which recently noted that 320 SCRAs had been reported to the UNODC early warning advisory on new psychoactive substances (UNODC-EWA) since 2009. In May of 2022, the UNODC reported detection of seven new unique SCRAs found in East and South-East Asia for the first time in 2021. Four of these are from the new “OXIZID” (N-alkylisatin-acylhydrazone) group, which may result from efforts to circumvent legal controls. The advisory from the UNODC reporting the emergence of these compounds highlights that most OXIZID analogues are unstudied with undetermined pharmacological effects.
The gold-standard approach to evaluating drugs for delayed ventricular repolarization involves patch-clamp evaluation of hERG channel inhibition in vitro. However, the near ubiquity of hERG block by QT interval prolonging drugs has led to efforts towards in silico screens that can be employed early in the evaluation process. This approach is well suited to the initial evaluation of novel compounds of restricted availability. Here we employed two publicly accessible online computational tools “PredhERG” and “hERGSPred” to evaluate the 7 new SCRAs recently reported by the UNODC.
2Methods

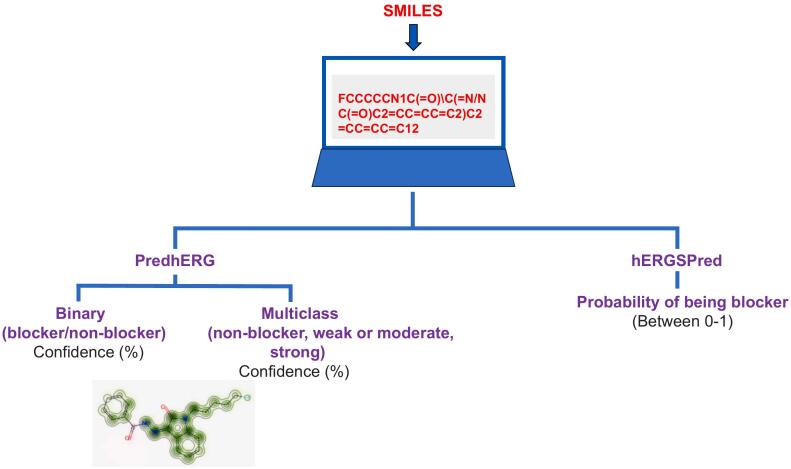

PredhERG was developed from a curated hERG dataset of 5984 compounds and provides binary (blocker/non-blocker) and multiclass (non-blocker, weak-moderate or strong blocker) predictions with correct classification rates of 0.83–0.84 for the binary model and accuracy of 0.66–0.79 for the multiclass model [13]. hERGSPred utilised machine-learning-based models trained on 12,850 compounds to produce a consensus model with an accuracy of 0.839 [14]. PredhERG but not hERGSPred includes as part of its data output whether or not a chemical structure falls within the applicability domain (AD) of the model. Both tools have web-based user interfaces and when this study was conducted (between December 2022 and April 2023) were freely available for online use (http://predherg.labmol.com.br/ and http://www.icdrug.com/ICDrug/T). SMILES structures of 4 OXIZID-based SCRAs (5F-BZO-POXIZID, BZO-HEXOXIZID, BZO-POXIZID, BZO-CHMOXIZID) and 3 additional newly-emerged SCRAs (ADB-FUBIATA, ADB-5Br-INACA, ADB-4en-PINACA) were entered into each tool. For comparative purposes, two distinct positive control drugs were used: E-4031 (a known high potency hERG blocker (eg [15])) and the psychotropic drug escitalopram (an intermediate potency hERG blocker [16]). Atenolol was included as a non-hERG blocker negative control. Fig. 1 provides a schematic representation of the workflow involved in using these tools. Ventricular action potential simulations were conducted at 1 Hz using the open source “AP Predict” online cardiac electrophysiology simulator.
3Results and discussion
Table 1 shows the prediction outcomes for the 7 new SCRAs. All 4 OXIZID compounds were rated by PredhERG to be potentially cardiotoxic with weak to moderate hERG block, whilst hERGSPred rated them as having high probabilities (from 0.98 to 0.99) of being hERG inhibitors. ADB-FUBIATA was predicted by PredhERG to be cardiotoxic with strong/extreme hERG block and by hERGSPred to be a hERG inhibitor with a probability of 0.95. There was less agreement between the two methods for ADB-5Br-INACA and ADB-4en-PINACA: these were found to be non-inhibitors by PredhERG, but to be inhibitors by hERGSPred with probabilities of 0.75 and 0.78 respectively. However, ADB-5Br-INACA was reported not to be within the AD of PredhERG, which confounds interpretation of the negative PredhERG result for this compound. All other structures were reported to lie within the AD for PredhERG.Compound IUPAC name PredhERG outcome (% confidence) hERGSPred: probability of hERG interaction 5F-MDA-19 (5F-BZO-POXIZID) (Z)-N′-(1-(5-Fluoropentyl)-2-oxoindolin-3-ylidene)benzohydrazide Potential cardiotoxic 50 %
Weak or moderate 60 %
Applicability domain Yes0.99 MDA-19 (BZO-HEXOXIZID) (Z)-N′-(1-Hexyl-2-oxoindolin-3-ylidene)benzohydrazide Potential cardiotoxic 50 %
Weak or moderate 60 %
Applicability domain Yes0.99 BZO-POXIZID (Z)-N′-(2-Oxo-1-pentylindolin-3-ylidene)benzohydrazide Potential cardiotoxic 50 %
Weak or moderate 60 %
Applicability domain Yes0.99 BZO-CHMOXIZID (Z)-N′-(1-(Cyclohexylmethyl)-2-oxoindolin-3-ylidene)benzohydrazide Potential cardiotoxic 50 %
Weak or moderate 60 %
Applicability domain Yes0.98 ADB-FUBIATA 2-(2-(1-(4-Fluorobenzyl)-1H-indol-3-yl)acetamido)-3,3-dimethylbutanamide Potential cardiotoxic 60 %
Strong or extreme 50 %
Applicability domain Yes0.95 ADB-5Br-INACA N-(1-Amino-3,3-dimethyl-1-oxobutan-2-yl)-5-bromo-1H-indazole-3-carboxamide Non cardiotoxic 60 %
Applicability domain No0.75 ADB-4en-PINACA N-(1-Amino-3,3-dimethyl-1-oxobutan-2-yl)-1-(pent-4-en-1-yl)-1H-indazole-3-carboxamide Non cardiotoxic 50 %
Applicability domain Yes0.78 E-4031 (positive control) N-[4-[1-[2-(6-Methylpyridin-2-yl)ethyl]piperidine-4‑carbonyl]phenyl] Potential cardiotoxic 90 %
Strong or extreme 70 %
Applicability domain Yes0.99 Escitalopram (positive control) (1S)-1-[3-(Dimethylamino)propyl]-1-(4-fluorophenyl)-3H-2-benzofuran-5‑carbonitrile Potential cardiotoxic 80 %
Strong or extreme 50 %
Applicability domain Yes0.99 Atenolol (negative control) 2-[4-[2-Hydroxy-3-(propan-2-ylamino)propoxy]phenyl]acetamide Non cardiotoxic 60 %
Applicability domain Yes0.12

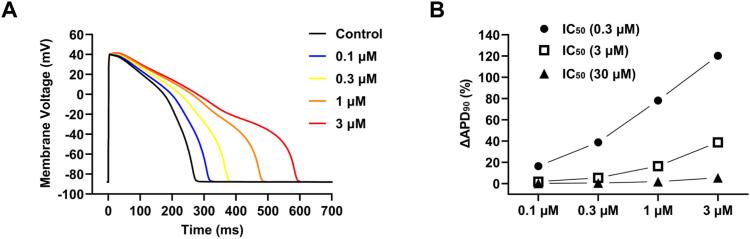

The positive control E-4031 was considered by PredhERG as cardiotoxic with strong/extreme block, while hERGSPred gave a hERG inhibition probability of 0.99. Escitalopram had similar prediction outcomes (Table 1). The negative control atenolol was reported by PredhERG to be noncardiotoxic and hERGSPred gave a hERG inhibition probability of only 0.12. Neither of the prediction software suite versions employed here provided quantitative estimates of hERG channel/current blocking potency, though the multiclass model classifications of PredhERG are linked to concentration ranges: non-blockers with hERG activity at greater than or equal to 10 μM; weak or moderate blockers with hERG activity between 1 and 10 μM; strong or extreme blockers with hERG activity below or equal to 1 μM [13]. Comparative plasma level data for users of the SCRAs studied here were not available to us and, additionally, lipophilic compounds may accumulate in tissue. For illustrative purposes, we selected half-maximal inhibitory concentration (IC50) values within the 3 ranges given above: 300 nM, 3 μM and 30 μM (equivalent to pIC50 values of 6.523, 5.523, 4.523) and simulated effects on ventricular action potential (AP) repolarisation of 4 concentrations (0.1, 0.3, 1 and 3 μM) of an inhibitor with each of these IC50 values. Fig. 2A shows APs in control and each of the 4 inhibitor concentrations, for an IC50 of 0.3 μM (corresponding to the ‘strong or extreme’ condition). Fig. 2B contains plots of change (increase) in the AP duration at 90 % repolarisation (APD90) at each concentration tested, for the 3 IC50 values. The results predict relatively less extensive AP prolongation for weak or moderate hERG inhibition across the tested range (ΔAPD90 of 2–39 %) than the marked prolongation (ΔAPD90 of 16–120 %) predicted for strong or extreme hERG inhibition.
A limitation of the present study is that the methods employed here focused solely on hERG. While hERG is the main culprit in diLQTS, it is possible that SCRAs may affect other ion channels or electrogenic transporters, as recently reported for cannabidiol [17]. To our knowledge, hERG electrophysiology data on SCRA actions have not been reported except for JWH-030 [12]. Although in silico predictions cannot wholly substitute for experimental data, measured conclusions can be drawn from our findings. First, where new recreational compounds emerge faster than the ability to conduct detailed experimental safety/toxicology analyses, the use of these web-based in silico tools may provide potentially useful early insights. Second, the new OXIZID-based SCRAs seem likely to exert direct actions on the hERG channel, whilst the similar in silico results across the four compounds suggest that one or two OXIZID molecules may be selected for in vitro experimental investigation of what may be a class effect. Third, the strongest result was obtained for ADB-FUBIATA and this observation should be pursued further through direct investigation of hERG blockade and associated cardiotoxicity. Fourth, the more equivocal findings for ADB-5Br-INACA and ADB-4en-PINACA indicate caution in ascribing cardiotoxic potential to these compounds in the absence of in vitro data. Finally, that caution in using licensed medications with potential for diLQTS is likely warranted in people who use SCRAs. Overall, the results of this study underscore a need for comprehensive preclinical data on cardiac effects of SCRAs, in order to understand the link between these illicit substances and abnormal ventricular repolarization.
Declaration of generative AI and AI assisted technologies in the writing process
During the preparation of this work the authors used ChatGTP 3.5 (Open AI) as part of the process of editing the Abstract. After using this tool the authors reviewed and edited the content as needed and take full responsibility for the content of the publication.
Declaration of competing interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgement
The authors thank the 10.13039/501100000274British Heart Foundation for funding (PG/20/10325; PG/23/11356).
