Genetic synergy in Acinetobacter baumannii undecaprenyl biosynthesis and maintenance of lipid asymmetry impacts outer membrane and antimicrobial resistance
1Department of Microbiology and Immunology, University of Illinois Chicago, Chicago, IL, USA
2Department of Chemistry, University of North Carolina Charlotte, Charlotte, NC, USA
3Trestle LLC, Milwaukee, WI, USA
*Corresponding author Lauren D. Palmer, 835 S Wolcott Ave MSB E703, Chicago, IL 60612 ldpalmer@uic.eduAbstract
Acinetobacter baumannii is a Gram-negative healthcare-associated pathogen that poses a major health concern due to increasing multidrug resistance. The Gram-negative cell envelope is a key barrier to antimicrobial entry and includes an inner and outer membrane. The outer membrane has an asymmetric composition that is important for structural integrity and barrier to the environment. Therefore, Gram-negative bacteria have mechanisms to uphold this asymmetry such as the maintenance of lipid asymmetry system (Mla), which removes glycerophospholipids from the outer leaflet of the outer membrane and transports them to the inner membrane. Loss of this system in A. baumannii results in attenuated virulence and increased susceptibility to membrane stressors and some antibiotics. We recently reported two strain variants of the A. baumannii type strain ATCC 17978, 17978VU and 17978UN. We show here that ΔmlaF mutants in the two strains display different phenotypes for membrane stress resistance, antibiotic resistance, and pathogenicity in a murine pneumonia model. We used comparative genetics to identify interactions between ATCC 17978 strain alleles and mlaF to uncover the cause behind the phenotypic differences. Although allele differences in obgE were previously reported to synergize with ΔmlaF to affect growth and stringent response, we show that obgE alleles do not affect membrane stress resistance. Instead, a single nucleotide polymorphism (SNP) in the essential gene encoding undecaprenyl pyrophosphate (Und-PP) synthase, uppS, synergizes with ΔmlaF to increase susceptibility to membrane stress and antibiotics, and reduce persistence in a mouse lung infection. Und-P is a lipid glycan carrier known to be required for biosynthesis of A. baumannii capsule, cell wall, and glycoproteins. Our data suggest that in the absence of the Mla system, the cellular level of Und-P is critical for envelope integrity, antibiotic resistance, and lipooligosaccharide abundance. These findings uncover synergy between Und-P and the Mla system in maintaining the A. baumannii outer membrane and stress resistance.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
Acinetobacter baumannii is a Gram-negative bacterial pathogen that is a major cause of hospital-acquired infection. Many clinical isolates of A. baumannii demonstrate resistance to first line antibiotics such as meropenem and colistin (1, 2). Both The World Health Organization and the Centers for Disease Control have thus identified A. baumannii as an urgent threat, calling for the development of novel antimicrobials (3–5). A. baumannii has multiple intrinsic mechanisms for resisting antibiotics and host stressors. The first line of defense is the cellular envelope including capsule, a peptidoglycan cell wall, and a dual-membrane system conserved among Gram-negative bacteria (6, 7). The inner membrane (IM) and outer membrane (OM) membrane protect the bacteria from environmental stress (8, 9). The Gram-negative OM is asymmetric with phospholipids composing the inner leaflet and lipopolysaccharides (LPS) or lipooligosaccharides (LOS) composing the outer leaflet. A. baumannii does not encode the gene required for O-antigen elaboration as other Gram-negative bacteria do, resulting in LOS rather than LPS (10). Additionally, A. baumannii is able to survive without LOS, whereas in most Gram-negative bacteria, LPS is essential (11, 12). In all Gram-negative bacteria, the asymmetric bilayer of the OM is critical for resistance to membrane stressors and antimicrobials (13).
The maintenance of lipid asymmetry (Mla) system is thought to be the primary homeostatic mechanism to maintain OM lipid asymmetry by removing mislocalized phospholipids from the outer leaflet of the OM (14, 15). MlaBDEF forms an IM ATP binding cassette (ABC) transporter with ATPase activity, MlaC is a periplasmic protein, and MlaA is an OM lipoprotein that forms a complex with OmpC/F (14, 16–18). Disruption of the Mla system results in increased outer membrane permeability and drug sensitivity (14, 19). Additionally, dominant negative mutations in mlaA (mlaA*) have been shown to increase outer membrane permeability and sensitivity to erythromycin and rifampicin in Escherichia coli (19). While the Mla system is not required for growth in lysogeny broth, bacteria lacking a functional Mla system are more sensitive to the membrane stress SDS/EDTA (14, 16, 20–22). Inactivating mlaF or mlaC in multiple species results in the loss of function of the Mla system and increased sensitivity to membrane stressors, antibiotics, and the host (20, 23–25). The Mla system is critical for the virulence of multiple pathogenic species including Shigella flexneri, Burkholderia pseudomallei, and Pseudomonas aeruginosa (26–30). By contrast, mutations in the Mla system have been shown to increase virulence in E. coli and Neisseria gonorrhoeae (31, 32). In summary, the Mla system is critical for maintenance of the gram-negative outer membrane, stress resistance, and virulence.
While the directionality of lipid transport by the Mla system has been debated, the preponderance of evidence support a retrograde transport model of phospholipid movement from the OM to the IM (33–35). Genetic evidence from E. coli, A. baumannii, and chloroplasts support a retrograde transport model in which phospholipids are removed from the outer leaflet of the OM and transported to the IM (14, 19, 20, 36–39). Additionally, crystallographic and cryo-EM structural data from Klebsiella pneumonia, Serratia marcescens, and E. coli support a model in which phospholipids are removed from the OM by the MlaA-OmpF complex and transported towards MlaBDEF based on the orientation of MlaA-OmpF in the OM (16, 40–42). Recent studies identifying AsmA-like proteins facilitating anterograde lipid transport machinery in E. coli further support the retrograde transport model for the Mla system (43, 44). By contrast, in vitro work in E. coli as well as cryo-EM, molecular dynamics and pulse-chase studies in A. baumannii described an anterograde transport model where newly synthesized phospholipids are transported to the inner leaflet of the OM (18, 23, 45, 46). However, Mann et. al., whose structural work in A. baumannii supports a lipid export model, speculate that nucleotide state or solubilization approach of the MlaBDEF studies may explain the differences in conclusions (46). Recently, structures of MlaBDEF from E. coli and A. baumannii, and E. coli MlaC in complex with MlaA or MlaD were solved and provide mechanistic insight on lipid binding, but do not provide clear evidence for either direction of lipid transport (21, 47, 48).
In A. baumannii, the Mla system synergizes with essential pathways to promote growth. A previous study reported synergy between the Mla system and the essential GTPase ObgE in promoting ΔmlaF growth and stringent response (49, 50). We previously reported a suppressor mutation in the isoprenoid biosynthetic pathway that restored resistance of an A. baumannii ΔmlaF mutant to membrane stress, some antibiotics, and host stressors (20). The suppressor is an ISAba11 transposition in the 5’ untranslated region of ispB that results in ispB downregulation (20). We hypothesized that the downregulation of ispB increased flux of the branchpoint substrate farnesyl-pyrophosphate (FPP) to undecaprenyl pyrophosphate (Und-PP) synthase, UppS. Undecaprenyl pyrophosphate synthase produces Und-PP, which is a precursor to the essential glycan carrier undecaprenyl phosphate (Und-P) (51). Und-P is responsible for transferring glycans across the plasma membrane to produce important envelope components like peptidoglycan, capsular polysaccharides, and the O-antigen in LPS-producing bacteria. This finding suggested a role for Und-P biosynthesis in membrane stress resistance in the absence of the Mla system. Thus, multiple reports have identified synergy between the Mla system and other pathways in A. baumannii.
Recently, we identified two variants of the commonly used laboratory strain A. baumannii 17978 distributed by ATCC (52). These variants, A. baumannii ATCC 17978VU and 17978UN, have distinct genotypes with 6 protein-encoding single nucleotide polymorphisms (SNPs) as well as a 44 kb accessory locus (AbaAL44) that is present in 17978UN but absent in 17978VU (52). The protein-coding SNPs encode variants of the predicted essential proteins ObgE, UppS, and the lipooligosaccharide transporter LptD (53). Our previous work used isogenic ΔmlaF strains in the 17978UN (AbaAL44+) background (20). Upon reconstructing ΔmlaF strains in the A. baumannii ATCC 17978VU strain background, we discovered that the ΔmlaF mutant was more resistant to SDS/EDTA membrane stress in the 17978VU background compared to the 17978UN background. Here we describe genetic synergy between the maintenance of lipid asymmetry and Und-P biosynthesis uncovered through genetic dissection and comparison of ATCC 17978VU and 17978UN ΔmlaF strains. These findings suggest an underlying relationship between the Mla system and undecaprenyl biosynthesis in A. baumannii that function together to maintain LOS abundance and promote membrane stress resistance, antimicrobial resistance, and virulence.
Results
UppS synergizes with the Mla system under membrane stress

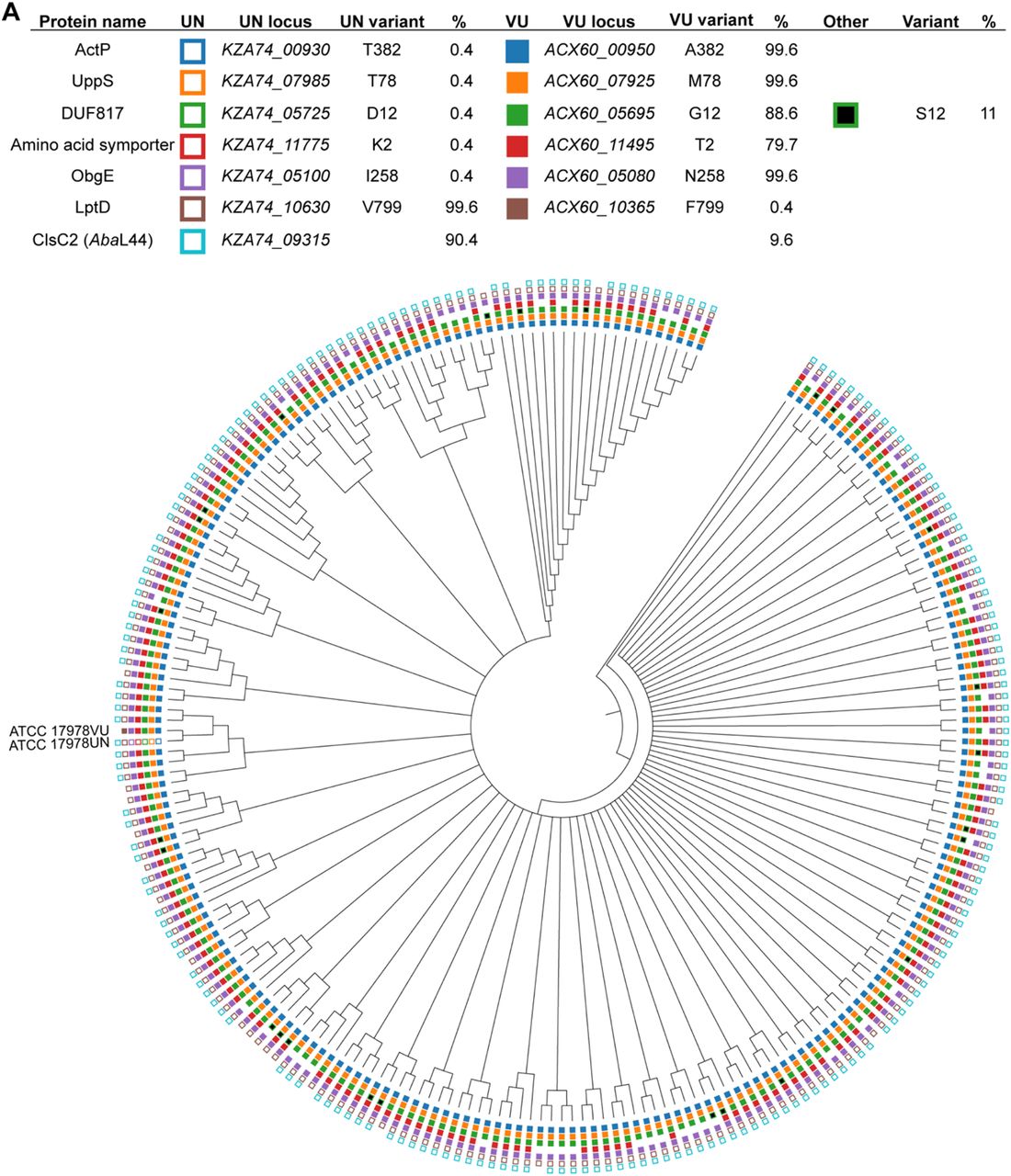

The 17978VU and 17978UN strain variants of ATCC 17978 contain SNPs in multiple protein coding genes (52). However, it is unknown which variant contains the more representative alleles for A. baumannii strains in general. To address this, we assessed the prevalence of the SNP containing genes across A. baumannii published genomes. A set of 5945 genomes were de-duplicated to remove near clonal lineages and the predicted proteomes of the resulting 233 genomes were further analyzed by OrthoFinder to deduce orthologues within A. baumannii (54, 55). The 17978UN predicted protein variants were more common for LptD (99%) and ClsC2 (indicative of the presence of the AbaAL44 cluster; 90%). The 17978VU predicted protein variants were more common for ObgE (99%), UppS (99%), ActP (99%), the amino acid symporter (79%), and DUF817 (89%) (Fig. 1). Thus, both 17978VU and 17978UN contain alleles representing the majority of published A. baumannii genomes. We reconstructed the ΔmlaF::Kn (ΔmlaF) mutation in A. baumannii ATCC 17978VU and compared SDS/EDTA membrane stress resistance in ΔmlaF in the 17978VU (AbaAL44-) and 17978UN (AbaAL44+) backgrounds by growth curves in LB with and without SDS/EDTA. Neither the wild-type strains nor the ΔmlaF mutants demonstrated a growth defect in LB alone regardless of strain background (Fig. 2A and 2B). However, in the presence of membrane stress, the 17978UN ΔmlaF mutant exhibited a greater growth defect than the 17978VU ΔmlaF mutant (Fig. 2F and 2G), suggesting synergy between mlaF and genetic differences between the strains. Therefore, the closely related strain variants ATCC 17978VU and 17978UN could be used as a tool to uncover this synergy.

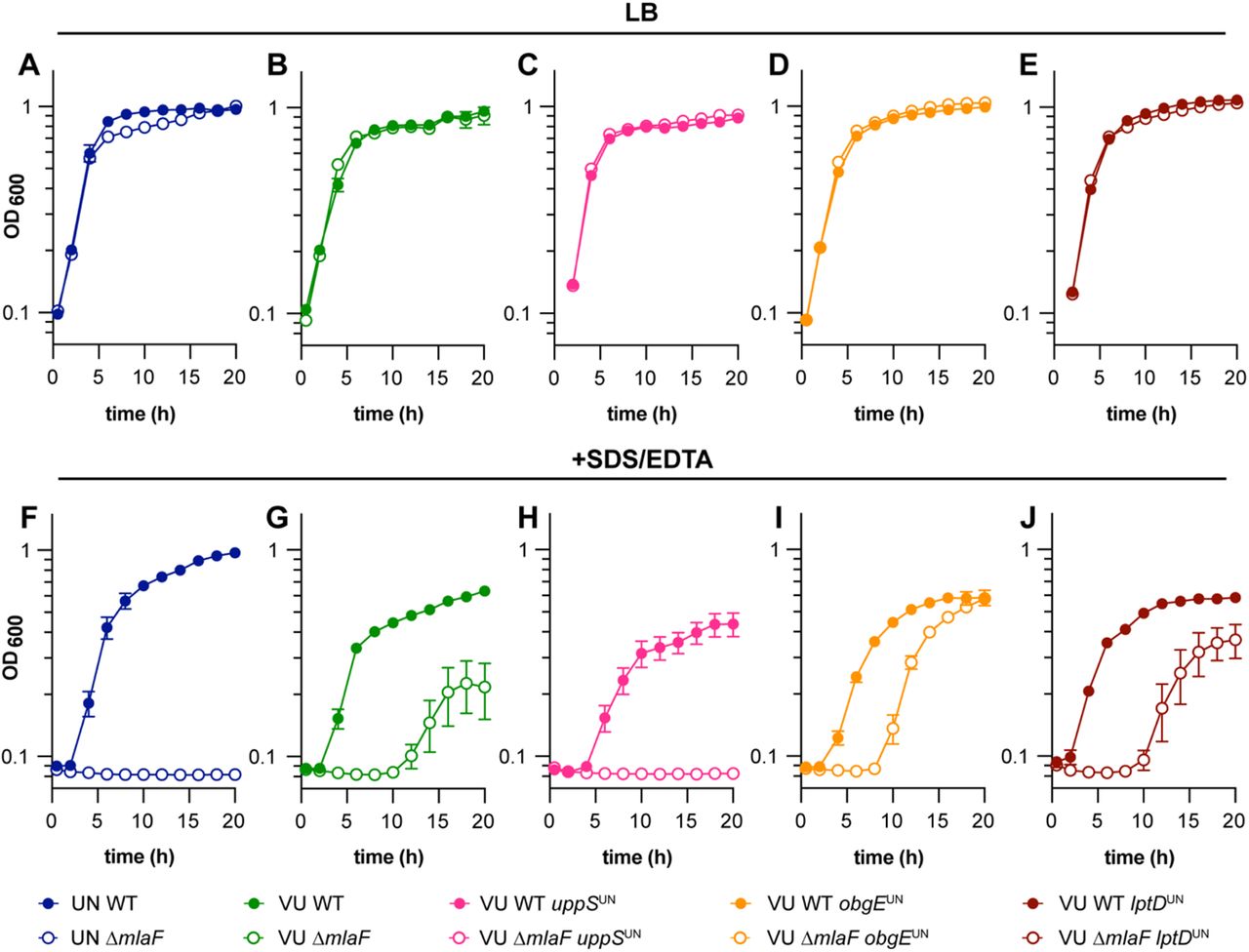

To determine the genetic cause behind the differences in membrane stress resistance between ATCC 17978VU and 17978UN ΔmlaF strains, point mutants were constructed for three candidate genes: obgE, lptD, and uppS. Candidate genes were chosen based on literature findings and known function. First, Powers et al. previously reported that obgE alleles in 17978 strains maintained at University of Washington (UW) and University of Georgia (UGA) synergized with mlaF to affect growth and stringent response. Specifically, the ΔmlaF strain with ObgEI258 (ObgEUN) had defects in LB growth and stringent response compared to the ΔmlaF strain with ObgEN258 (ObgEVU)(49). The strains were otherwise isogenic, suggesting that one strain was a derivative of 17978VU or 17978UN. Second, LptD is a β-barrel OM protein responsible for the translocation of LPS/LOS in Gram-negative bacteria (56). Third, we previously reported a potential role for undecaprenyl pyrophosphate, synthesized by uppS, in promoting A. baumannii envelope integrity in 17978UN ΔmlaF (20). The 17978UN allele for each candidate gene (encoding ObgE I258; LptD V799; UppS T78) was substituted in the intrinsic locus (encoding ObgE N258; LptD F799; UppS M78) in 17978VU WT and 17978VU ΔmlaF strains. We reasoned that if the candidate gene contributes to the contrasting phenotypes, then the 17978VU ΔmlaF mutant containing the 17978UN candidate allele would exhibit the 17978UN ΔmlaF phenotype of increased membrane stress sensitivity. As expected, none of the strains display a growth defect when grown in LB alone (Fig. 2A-E). However, in the presence of SDS/EDTA, neither the obgE nor lptD 17978UN alleles increased membrane stress sensitivity in the 17978VU ΔmlaF strain. Rather, 17978VU ΔmlaF uppSUN was unable to grow in SDS/EDTA similarly to 17978UN ΔmlaF, suggesting that the uppS allele determines membrane stress sensitivities of 17978VU and 17978UN ΔmlaF strains (Fig. 2H). Together, these data show that the Mla system is synthetic with uppS alleles in A. baumannii for resistance to SDS/EDTA membrane stress.
uppS alleles influence membrane permeability

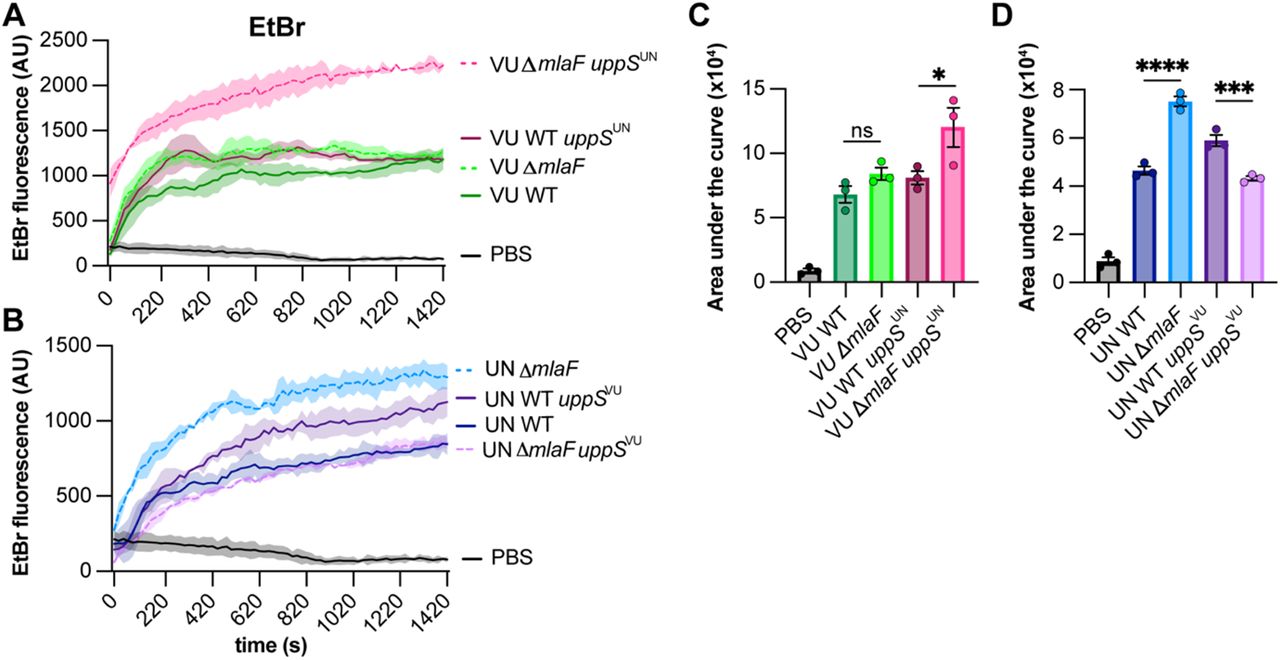

Given the role of both UppS and the Mla system in cell envelope biosynthesis and integrity, we hypothesized that other OM-associated phenotypes would be impacted by the uppS alleles in a ΔmlaF mutant. We predicted that the uppSUN allele would be associated with increased membrane permeability. An ethidium bromide (EtBr) uptake assay was used to test the effect of the uppS alleles on membrane permeability in wild-type and ΔmlaF strains (23, 57). In the 17978VU background, ΔmlaF uppSUN has significantly increased EtBr permeability compared to wild type, ΔmlaF, and uppSUN (Fig. 3A, C). Likewise, in the 17978UN background, introducing the uppSVU reduces membrane permeability in an ΔmlaF mutant (Fig. 3B, D). Together, these data suggest that uppS and the Mla system synergize to promote membrane integrity.
Isoprenoid pathway mutations suppress ΔmlaF membrane stress sensitivity only in the presence of uppSUN

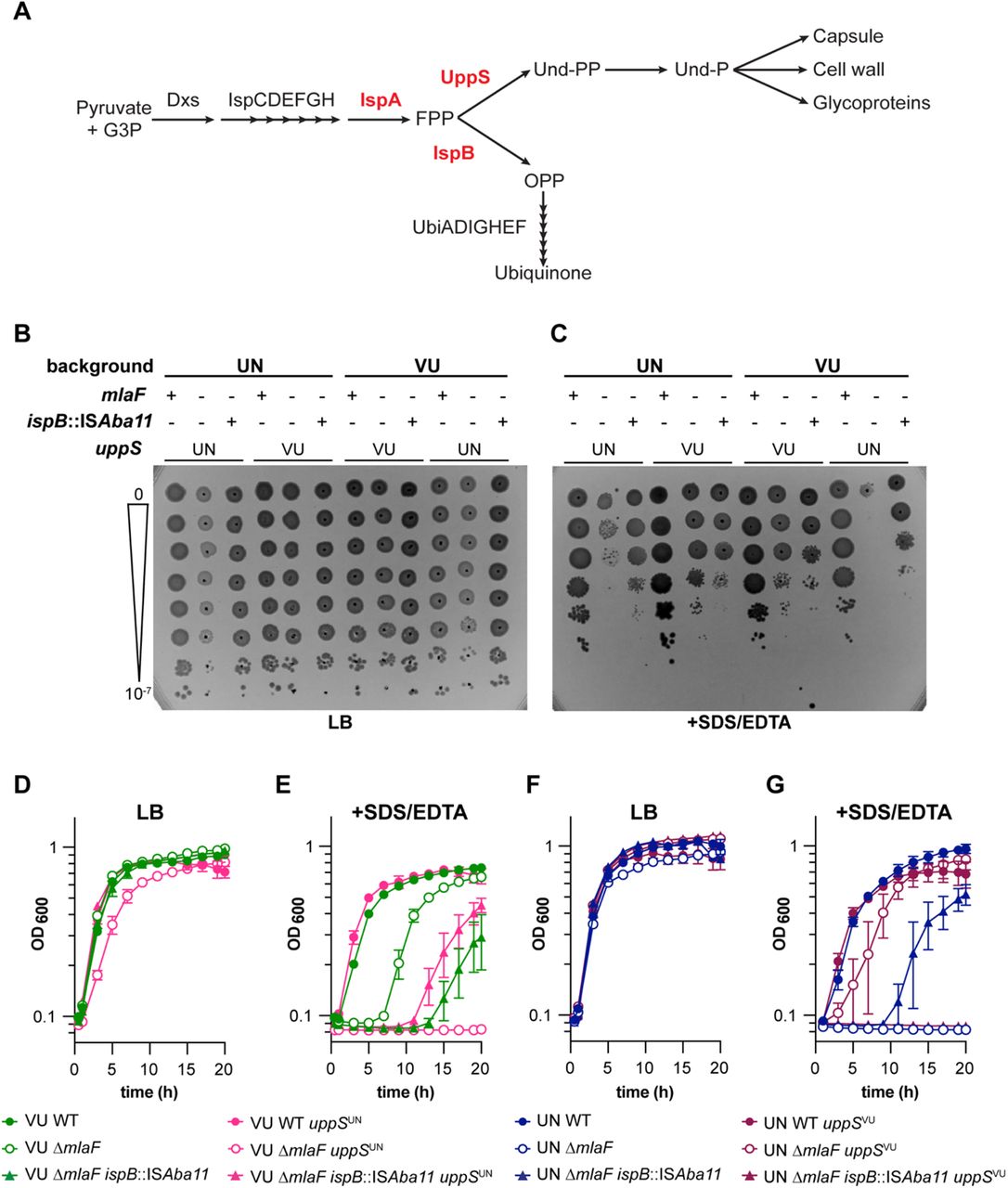

To determine if the uppSVU allele would result in increased membrane stress resistance in a 17978UN ΔmlaF background, the uppSVU allele was introduced into 17978UN WT and 17978UN ΔmlaF strains. Our previously identified 17978UN ΔmlaF suppressor was included to test the contribution of the isoprenoid biosynthesis pathway to the contrasting phenotypes (outlined in Fig. 4A). The suppressor mutation, which decreases transcript abundance of ispB, was identified in a 17978UN ΔmlaF background and restored virulence and membrane stress and antibiotic resistance to wildtype levels (20). Thus, to determine if the isoprenoid biosynthetic pathway impacts ΔmlaF growth, 17978UN ΔmlaF ispB::ISAba11 and 17978VU ΔmlaF ispB::ISAba11 strains were constructed with the intrinsic or alternate uppS allele. We performed a dilution spotting experiment to assess colony formation efficiency. As expected, none of the strains exhibit defects in colony formation on LB alone (Fig. 4B). In the presence of SDS/EDTA membrane stress, ΔmlaF strains encoding UppSUN exhibited a clear defect in colony formation efficiency compared to ΔmlaF strains encoding UppSVU (Fig. 4C). This further supports the conclusion of uppS being the genetic cause behind the differences in membrane stress resistance between ΔmlaF strains in ATCC 17978VU and 17978UN. Similarly, the ispB suppressor restored colony formation on SDS/EDTA in ΔmlaF strains encoding the uppSUN allele, regardless of strain background (Fig. 4C). This suggests that the ispB suppressor function is associated specifically with uppSUN.
To examine the effect of the different uppS alleles on ΔmlaF growth over time, we performed growth curves in liquid media with or without SDS/EDTA. Again, none of the strains showed overt growth defects when grown in LB alone (Fig. 4D, 4F). However, in the ΔmlaF background, the uppSUN allele resulted in complete lack of growth in media containing SDS/EDTA. Conversely, the uppSVU allele conferred increased resistance to SDS/EDTA in the ΔmlaF background (Fig. 4E, 4G). Interestingly, 17978UN ΔmlaF ispB::ISAba11 uppSVU was unable to grow in the presence of membrane stressors SDS/EDTA (Fig. 4G). This result suggests that the uppSVU allele in a 17978UN ΔmlaF background may be hindered by the ispB suppressor, perhaps due to a decreased flux towards ubiquinone production.
While constructing the 17978VU ΔmlaF uppSUN strain, one isolate displayed a distinct phenotype resembling that of 17978VU ΔmlaF. Upon whole genome sequencing, a mutation was discovered in ispA that resulted in a G223E substitution. This mutation was then reconstructed in the 17978UN ΔmlaF background to assess its function as a suppressor of the ΔmlaF uppSUN phenotype. A dilution spotting assay was used to characterize both ispA and ispB suppressors in the 17978UN background. All four strains grew well on LB medium (Fig. S1). As expected, 17978UN ΔmlaF displayed a strong growth defect that is partially rescued by suppressor mutations in ispA and ispB (Fig. S1). These data support a model in which the isoprenoid biosynthetic pathway is synthetic with the Mla system in A. baumannii. We predict that the mechanism in which both ΔmlaF suppressors function is by increasing the metabolic flux towards UppS and the production of Und-P, which promotes growth in the presence of the uppSUN allele.
UppSUN has decreased enzymatic activity, leading to lower cellular Und-P levels and LOS abundance

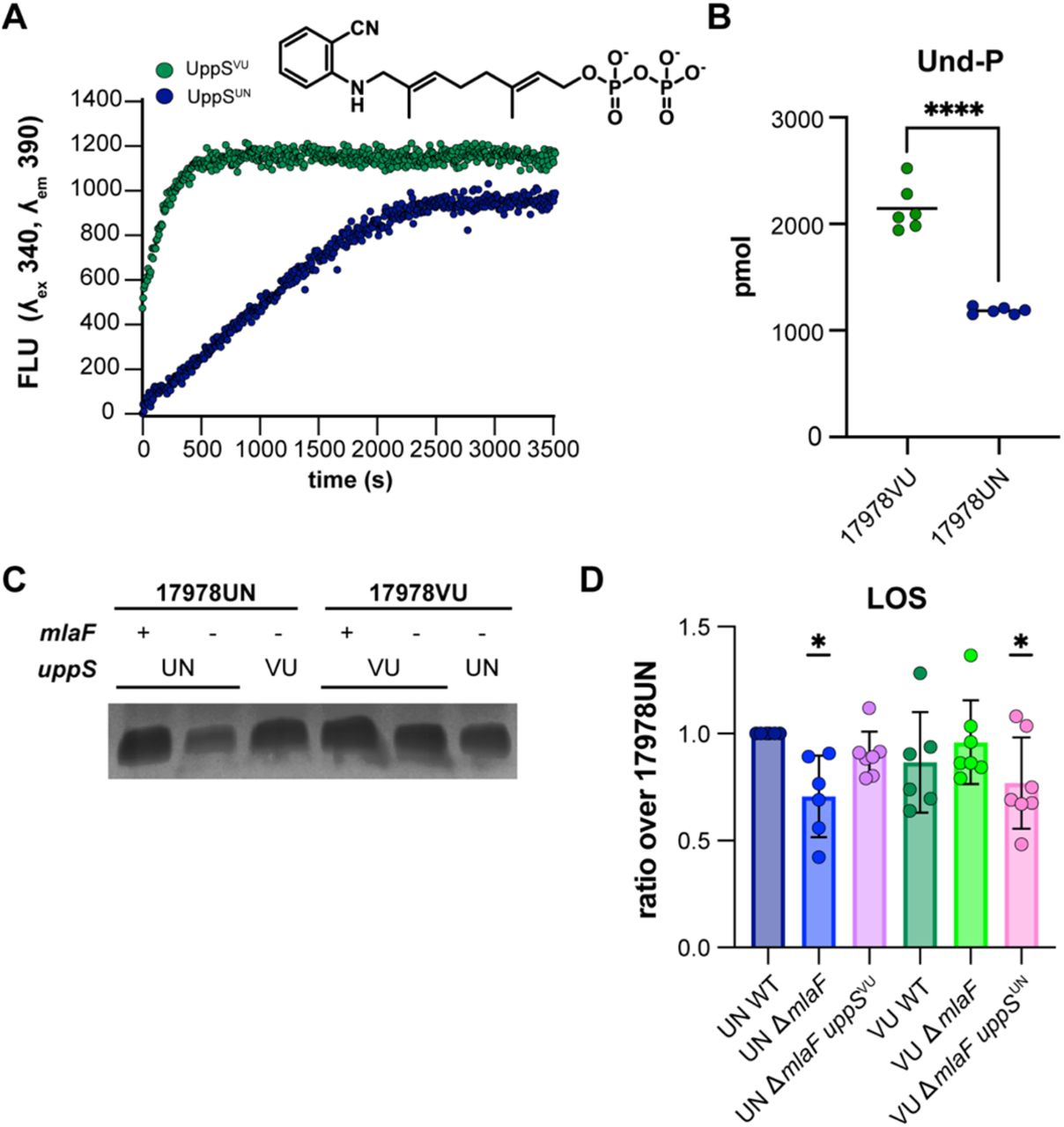

Thus far, the data suggested that there is a difference in function between UppSVU and UppSUN. We hypothesized that UppSUN (T78) was defective compared to UppSVU (M78). First, secondary structure was compared by circular dichroism analysis which showed that there were no structural differences between the UppS variants (Fig. S2A-B). To compare enzymatic activity, enzyme assays were performed using purified protein and a fluorescent analog (2-nitrileanilinogeranyl diphosphate; 2CNA-GPP) of the UppS substrate farnesyl pyrophosphate. UppS from Escherichia coli, Vibrio vulnificus, Staphylococcus aureus, and Bacteroides fragilis have previously been shown to catalyze the extension of the fluorescent substrate analogue 2CNA-GPP (58, 59). Upon elongation of the analogue, a concomitant increase in fluorescence can be readily monitored via a microplate assay. By this assay, UppSUN was found to have a five-fold decrease in the rate of fluorescence signal compared to UppSVU (Fig 5A). To determine if the decreased enzymatic activity of UppSUN results in decreased levels of the essential glycan carrier Und-P in A. baumannii, we quantified the cellular pools of Und-P in the 17978VU and 17978UN wild-type strains. The 17978UN strain contained two-fold lower levels of Und-P compared to the 17978VU wild-type strain (Fig. 5B). These data suggest that the UppSUN enzyme is aberrant in function and has insufficient activity to maintain cellular levels of Und-P.
Und-P has an established role in capsule, peptidoglycan, and glycoprotein biosynthesis; therefore, we hypothesized that capsule content or the cell wall may be altered by the reduced activity of UppSUN. However, Maneval staining of capsule and 3-[(7-Nitro-2,1,3-benzoxadiazol-4-yl)amino]-D-alanine hydrochloride (NADA) peptidoglycan stains showed no observable differences among strains (Fig. S2C-D). In other Gram-negative organisms, Und-P has an established role in the production of LPS through as the lipid carrier of O-antigen precursors (11). There is no known role for Und-P in the biosynthesis of LOS that lacks the O-antigen. Nevertheless, we previously found that the A. baumannii 17978UN ΔmlaF mutant contained significantly reduced levels of LOS compared to the wildtype strain (20). We therefore hypothesized that if Und-P plays a role in LOS biosynthesis, there would be reduced levels of LOS in the 17978UN ΔmlaF and 17978VU mlaF uppSUN strains. Indeed, when LOS was quantified by silver staining of proteinase K-treated cell lysates, ΔmlaF strains with uppSUN had reduced LOS abundance (Fig. 5C-D, Fig. S2E). The WT strains and the ΔmlaF strains with uppSVU showed no reduction in LOS (Fig. 5C-D, Fig. S2E). While further experiments would be required to confirm a role for UppS and Und-PP in LOS production, our data suggests that an aberrant UppS results in reduced LOS. Together, this data suggests that UppSUN results in reduced LOS abundance in an ΔmlaF mutant that confers a defective cellular envelope barrier function.
Mla and uppS synergy influence clinically relevant phenotypes

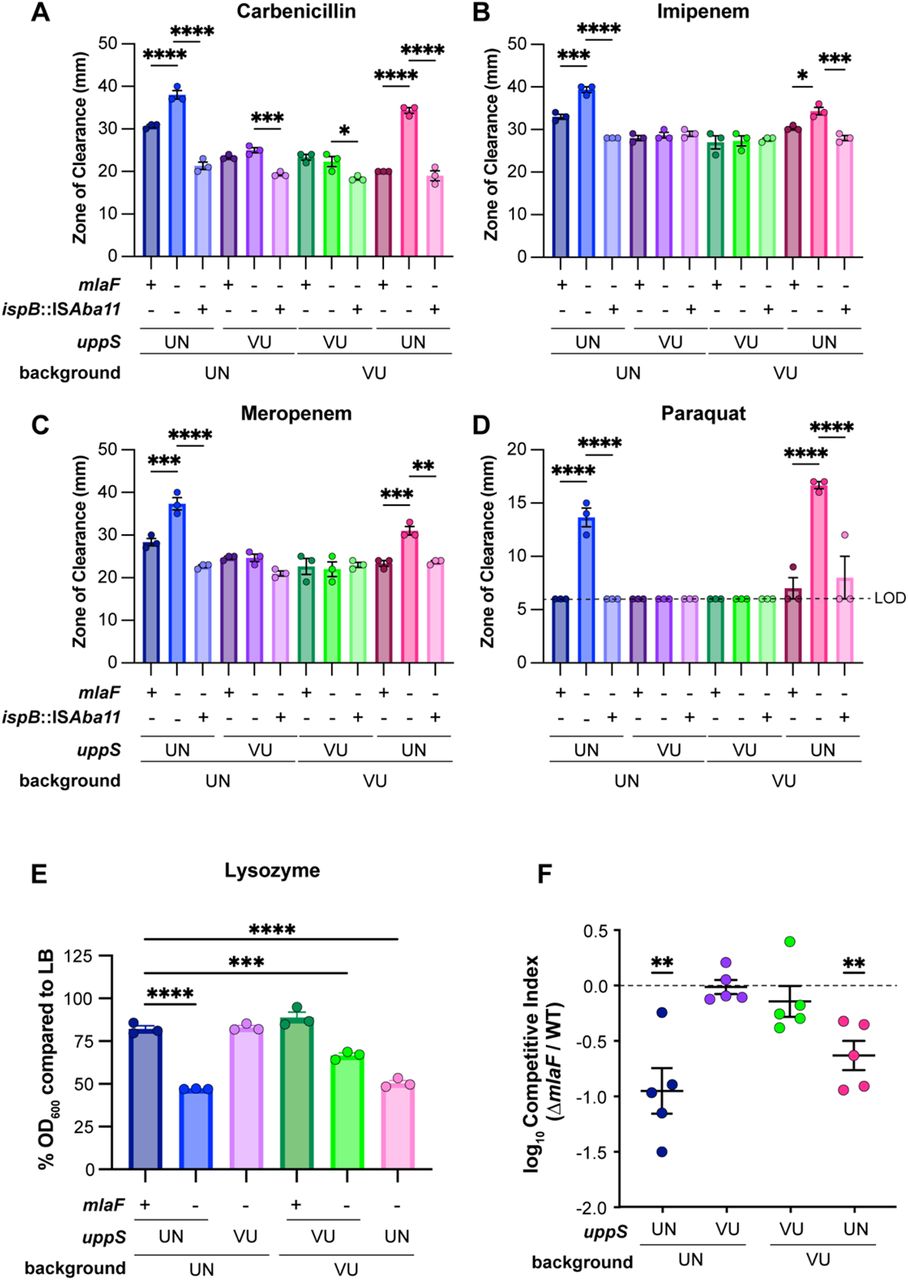

Previous reports showed that A. baumannii mla mutants have increased sensitivity to antimicrobials such as gentamicin, novobiocin, rifampicin, meropenem, and the superoxide donor paraquat (20, 23, 49). We hypothesized that in a ΔmlaF mutant background, the uppSUN allele would result in higher sensitivity to antimicrobials than the uppSVU allele. In a disc diffusion assay, the presence of uppSUN in a ΔmlaF mutant resulted in increased sensitivity to multiple antimicrobials, including first line antibiotics such as meropenem and imipenem, regardless of the ATCC 17978 background (Fig. 6A-D). These results show that UppS synergizes with the Mla system to promote A. baumannii antimicrobial resistance. As expected, the ispB suppressor only restored resistance to strains containing the uppSUN allele. These data are consistent with the model that the isoprenoid biosynthetic pathway contributes to antimicrobial resistance in the ΔmlaF mutant by altering flux to Und-P via UppS. We further hypothesized that the uppSUN allele would confer increased sensitivity to lysozyme, a host-produced enzyme that cleaves the peptidoglycan cell wall, compared to the uppSVU allele in a ΔmlaF mutant (60). During growth in LB with 1 mg/mL lysozyme, the 17978UN ΔmlaF exhibited severe susceptibility to lysozyme compared to the UN WT strain (Fig. 6E, Fig. S3E). Resistance was restored to 17978UN ΔmlaF by the uppSVU allele. Similarly, the uppSUN allele conferred greater susceptibility to 17978VU ΔmlaF (Fig. 6E, Fig. S3E). Together, these data show that the uppSVU allele helps to resist multiple antimicrobial stresses in a ΔmlaF mutant.
We previously reported that the ΔmlaF mutant in the ATCC 17978UN background had a virulence defect in a murine model of pneumonia (20). We hypothesized that the ΔmlaF uppSUN strain would have a greater virulence defect than the ΔmlaF uppSVU strain. Therefore, we compared bacterial burdens in a competitive infection with WT 17978VU and 17978UN strains and ΔmlaF mutants where the mutant expressed either the intrinsic or opposite uppS allele. At 40 h post infection, the ΔmlaF mutants containing the uppSUN allele had a significant defect in virulence compared to WT regardless of strain background (Fig. 6F, Fig. S3A-D). The ΔmlaF mutant strains with uppSVU showed no virulence defect compared to WT (Fig. 6F, Fig. S3A-D). This demonstrates that the virulence defect observed in ΔmlaF is due to synergy with the uppSUN allele. Together, these data suggest that the Mla system and Und-P levels synergize to promote antimicrobial resistance and virulence in A. baumannii.
Discussion
The A. baumannii cell envelope is the first line of defense against antibiotic stress and the host. Therefore, it is critical to understand the biological processes that uphold this barrier. The Mla system is an important factor in maintaining outer membrane lipid asymmetry to promote envelope function in Gram-negative bacteria. Multiple reports have demonstrated envelope defects in the absence of the Mla system in A. baumannii (23, 49, 61). Here, we found that the deletion of mlaF in two closely related A. baumannii type strains results in differential phenotypes. Genetic dissection uncovered synergy between the Und-P abundance and the Mla system in A. baumannii.
A. baumannii ATCC 17978 is a commonly used type strain. We recently discovered that ATCC 17978 was a mixed culture of two closely related strains that differed by the accessory locus AbaL44 and multiple SNPs (52). Depending on the time of order, the ratio of 17978UN to 17978VU isolates received from ATCC varied. In 2009, 4/6 isolates screened were 17978UN and 2/6 were 17978VU; by contrast, an ATCC order from 2021 yielded 35/36 as 17978UN and 1/36 as 17978VU (52). Differences in ΔmlaF phenotype of ATCC 17978UN and 17978VU presented the opportunity to use these variants as a genetic tool to investigate synthetic gene pairs. Ultimately, uppS was shown to synergize with ΔmlaF in resistance to membrane stresses and antibiotics, OM permeability, and virulence in a mouse lung infection. This result was surprising as a previous report identified SNPs in obgE, which encodes an essential GTPase involved in the stringent response, as the critical determinant of two isogenic ATCC 17978UN variants’ differences in growth and the stringent response (49). While we did not observe overt differences in growth based on the obgE allele, we speculate that is likely due to differences in growth conditions. Additionally, our results show that obgE is not synergistic with the Mla system for membrane stress resistance. Together, these findings exemplify that closely related strains can be leveraged to uncover underlying genetic synergy in A. baumannii.
As an essential glycan carrier, Und-P plays a role in the biosynthesis of multiple bacterial cell envelope components including peptidoglycan, glycoproteins, LPS O-antigen, lipid A, and capsular polysaccharides (51, 62, 63). However, A. baumannii does not synthesize the LPS O-antigen and does not encode LpxT that uses Und-PP as a phosphate donor for lipid A. Imaging of isogenic strains with UppS variants showed no overt difference in capsule or peptidoglycan (Fig. S2C-D). UppSUN has a decreased enzymatic rate and confers increased membrane sensitivity in an ΔmlaF background. However, there were no defects in the wild-type background strains for membrane stress sensitivity, suggesting that the ΔmlaF defects synergize with reduced Und-P to result in a weakened cell envelope. ABUW5075, a clinical multidrug resistant isolate of A. baumannii, possess UppSVU but demonstrated increased sensitivity to SDS/EDTA in a ΔmlaF background (20). This suggests that genetic components other than uppS may be at play in upholding the cell envelope in the absence of the Mla system. We previously observed that A. baumannii 17978UN ΔmlaF had decreased LOS abundance (20), suggesting Und-P may be important for LOS abundance in A. baumannii. Here, we show that the reduction in LOS within 17978UN ΔmlaF is due to UppSUN as an isogenic mutant with UppSVU displays WT-like LOS levels. This suggests that Und-P has an uncharacterized role in LOS synthesis in A. baumannii. For example, a non-homologous enzyme may use Und-PP as a phosphate donor for lipid A similar to LpxT. Alternatively, Und-P may serve as a glycan carrier for LOS such as for the sugar molecules in the core oligosaccharides.
Suppressor mutants in genes encoding isoprenoid biosynthetic pathway enzymes restored membrane stress resistance to ΔmlaF uppSUN strains. We found that the ΔmlaF uppSUN phenotype is suppressed by mutations in isoprenoid biosynthetic genes ispA and ispB. The ISAba11 transposition to the 5’ untranslated region of ispB was also found in an extensively drug resistant clinical isolate of A. baumannii, demonstrating potential clinical implications for the suppressive mechanism (64). Here, we identified another suppressor in an isoprenoid biosynthetic gene encoding IspAG223E that arose when constructing the 17978VU ΔmlaF uppSUN strain. In E. coli, ispA null mutants had reduced isoprenoid quinone levels that was rescued by the overexpression of either ispB or ispU (uppS) (65, 66). This suggests that there may be low level functional redundancy between IspA, IspB, and UppS. We therefore hypothesize that IspAG223E enhances low-level Und-PP synthesis performed by IspA. We observed both ispA and ispB suppressors restoring growth to strains containing uppSUN, suggesting that ispA and ispB may compensate for a reduced activity of UppS in the 17978UN background. Similarly, in E. coli, an aberrant UppS mutant resulted in growth defects that were rescued by mutants in the isoprenoid pathway (67). This suggests that there may be a conserved mechanism to promote the production of undecaprenyl species in the presence of a defective UppS.
The structure of UppS has been solved from multiple organisms, including A. baumannii (68–70). The substitution in UppS that differs between 17978VU (M78) and 17978UN (T78) is at the 78th amino acid position, located on the α3 helix. The α3 helix not only borders the active site but surrounds the open cavity the product chain would occupy. Residues along the α3 helix are largely conserved (71). The methionine at this position on the α3 helix is conserved in prenyl-transferases from E. coli, Saccharomyces cerevisiae, Mycobacterium tuberculosis, Arabidopsis thaliana, and humans (72). This suggests that the methionine is important for the structure or function of prenyl-transferases. In the 17978UN UppS variant the methionine at position 78 is replaced with a threonine. While not highlighted as a critical residue, the surrounding hydrophobic residues near E. coli UppS M86 (M78 in A. baumannii) (residues 85, 88, and 89 in E. coli) are implicated in interactions with the substrate (72). Importantly, there were no major structural differences in UppS between the M78 and T78 variants by circular dichroism analysis (Fig. S2A-B). The substitution to a threonine in 17978UN may therefore perturb internal hydrophobic interactions between the α3 helix and substrate. We found that 17978UN UppS has a reduced enzymatic rate compared to 17978VU UppS. This suggests that the T78 encoded by ATCC 17978UN may perturb the crucial interactions with the substrate hydrophobic tail required for Und-PP production.
Isoprenoid biosynthesis is an essential process in bacteria. Additionally, isoprenoids have diverse functions in the cell ranging from metabolism to virulence at the host-pathogen interface. As such, proteins within isoprenoid biosynthesis have been considered as a drug target for novel therapeutics (73, 74). Furthermore, UppS specifically is a proposed drug target for A. baumannii (75). The synthetically sick ΔmlaF mutants in ATCC 17978UN suggest that targeting UppS in a combination therapy may represent an effective therapeutic strategy. The genetic synergy between the A. baumannii Mla system and UppS highlights the importance of cell envelope maintenance during environmental stress and host infection. The cell envelope, and more specifically the OM, is the largest barrier to effective antibiotic treatment. Our findings provide a deeper understanding into how A. baumannii maintains cell envelope integrity to survive in hostile environments.
Methods
Bacterial strains and growth
All bacterial strains and plasmids used in this study are listed in Tables S1 and S2, respectively. Strains were grown in LB or on LB plates with 1.5% w/v agar. Antibiotics were used at the following concentrations: carbenicillin, 75 mg/L; kanamycin, 40 mg/L; chloramphenicol, 15 mg/L. Overnight cultures were started in 3-5 mL LB, inoculated with a single colony, and incubated at 37°C while shaking at 180 rpm for 8-16 hours. Growth curves were conducted in 100 μL media in a flat bottom 96-well plate, inoculated with 1 μL overnight culture, and incubated at 37°C with shaking. Bacterial growth was monitored by optical density at 600 nm (OD600) in an EPOCH2 BioTek (Winooski, VT) plate reader. For assays on membrane stress, SDS/EDTA was included in the media at varying concentrations and the concentrations used are noted in each figure due to variability. For lysozyme susceptibility assays, lysozyme was included in the media at a final concentration of 1 mg/mL and the OD600 at 12 hours was used to calculate the %OD600 compared to the average of the OD600 at 12-hours in LB for each strain.
Plasmid construction and allelic exchange mutants
All oligonucleotides used are listed in Table S3. DNA was amplified using 2X Phusion Master Mix (ThermoFisher, Waltham, MA), Q5 High Fidelity 2X Master Mix (New England Biolabs (NEB), Ipswich, MA) or GoTaq Green Master Mix (NEB, Ipswich, MA). The pFLP2 vector was used for all allelic exchange mutants. Using ATCC 17978VU or 17978UN as the template, 1000 bp upstream and downstream of the mutation of interest was amplified. For pFLP2-obgE, HN1 and HN2 were used. For pFLP2-lptD, HN23 and HN24 were used. For pFLP2-uppS, HN25 and HN26 were used. For ispA* reconstruction, HN85 and HN86 were used with strain LP546 as the template. The PCR product was incorporated into a digested pFLP2 backbone using KpnI and BamHI restriction sites and HiFi ligation mix (NEB, Ipswich, MA). All restriction enzymes are from NEB (Ipswich, MA). A. baumannii was transformed through conjugation by triparental mating with E. coli strain HB101 containing pRK2013 as the helper strain. Merodiploids containing the integrated pFLP2 vector were screened on plates containing 10% sucrose and 75 mg/L carbenicillin and SucS and CarbR colonies were selected. Merodiploids with the appropriate phenotype were screened by PCR to confirm plasmid incorporation at the correct site. Merodiploids were grown on LB agar, resuspended in LB, and plated to LB agar containing 10% sucrose to select for second crossover events, and the SucR strains were screened for CarbS. Genotypes were confirmed via Sanger Sequencing (UIC Genomics Research Core) and/or whole genome sequencing (SeqCoast Genomics, Portsmouth New Hampshire; SeqCenter, Pittsburg PA).
Strains containing the ispB suppressor mutation and mlaF knockout were generated using pLDP70 and pLDP8, respectively (20).
UppS expression plasmids for protein purification were generated using pET-15b digested with BamHI and NdeI. UppS was amplified from either 17978VU or 17978UN with HN94 and HN95 and ligated into the pET-15b backbone using a HiFi ligation. All plasmid sequences were confirmed with Sanger Sequencing by the UIC Genomics Research Core or whole plasmid sequencing by Primordium (Monrovia, CA).
Serial Dilution Spotting Assays
Overnight cultures were 10-fold serially diluted in 96-well plates in 1X PBS to 10-7. Dilutions were spotted in 3 or 5 μL drops on LB agar and LB agar containing SDS/EDTA and incubated at 37°C overnight. Images of plates were taken on a BioTek (Winooski, VT) ChemiDoc MP imager.
Antibiotic susceptibility assay
9.5 mL aliquots of soft agar containing 0.8% agar were inoculated with 270 μL overnight culture and plated to a prewarmed 15-cm LB agar plate. Once solidified, pre-loaded antibiotic discs (BD (Becton Dickinson), Franklin Lakes, NJ) were placed using the BD automatic disc dispenser onto the agar overlay and the plates were incubated at 37°C overnight. The following day, diameters of the zones of clearance were measured in mm.
Ethidium bromide uptake assay
The EtBr uptake assay was adapted from previous studies (23, 57). Bacteria were grown in 3 mL LB to mid-log phase before centrifuging and normalizing to ∼1x1010 CFU in PBS. Normalized cells were plated to confirm equal CFU across strains. In 200 μL final volume, normalized cells were combined with 200 μM carbonyl cyanide 3-chlorophenylhydrazone (CCCP) and 1.2 μM EtBr. EtBr uptake was monitored in a black 96-well plate with reads every 15 s on a BioTek Synergy H1 (Winooski, VT) using excitation and emission wavelengths of 530 nm and 590 nm, respectively.
Maneval stain for capsule
Strains were streaked to LB and incubated overnight at 37°C. A single colony was resuspended in 10 μL of 1% Congo Red and spread across a microscope slide. Slides were flooded with Maneval Stain (acid fuchsin, glacial acetic acid, iron(III) chloride)(76) for 5 minutes before gentle washing and imaging at 60X on a Keyence BZ-X Inverted Fluorescence microscope (Itasca, IL).
NADA-green peptidoglycan stain
3-[(7-Nitro-2,1,3-benzoxadiazol-4-yl)amino]-D-alanine hydrochloride (NADA) was used as previously described (77). Cultures were grown overnight at 37°C. The following morning, cells were subcultured into fresh media and grown to mid-log phase with an OD600 of 0.5. 1 mL of OD600 0.5 cells were pelleted, washed in LB, and resuspended in 1 mL fresh LB. NADA-green (ThermoFisher, Waltham, MA) was added to the resuspended cells to a final concentration of 30 μM and incubated for 30 minutes at 37°C. Cells were then fixed in 1.6% paraformaldehyde and plated on an agar pad. Imaging was performed at 60X using a Keyence BZ-X Inverted Fluorescence microscope (Itasca, IL).
UppS purification
UppSVU and UppSUN were purified from BL21 ArcticExpress DE3 RIL cells (VWR, Radnor, PA). Cells expressing pET-15b-UppSVU or pET-15b-UppSUN were grown in 10 mL LB containing carbenicillin overnight at 37°C. The following day, cells were subcultured into 1 L LB containing carbenicillin in a 2.8 L Fernbach flask and grown to mid-log phase at 37°C. At OD600 of 0.6, IPTG was added to a final concentration of 0.5 mM to induce protein expression. Cells were incubated overnight while shaking (180 rpm) at 25°C. The following day cells were centrifuged at 2,000 x g for 10 minutes and the cell pellet was lysed using 8 mL of B-PER Bacterial Protein Extraction Reagent (Thermo Scientific, Waltham, MA) per gram of pellet with gentle shaking for 1 hour. The lysate was pelleted by centrifugation at 4,300 x g for 5 minutes. The soluble fraction in the supernatant was mixed with an equal part lysis buffer (50 mM NaH2PO4, pH 8.0, 300 mM NaCl, 10 mM imidazole) and was added to 8 mL Ni-NTA resin (Qiagen, Hilden, Germany) preequilibrated with lysis buffer and rocked for 1 hour at 4°C. Protein-bound resin was then applied to a 10-mL chromatography column (BioRad, Hercules, CA) and washed twice with 10 mL wash buffer (50 mM NaH2PO4, pH 8.0, 300 mM NaCl, 20 mM imidazole). Protein was eluted using elution buffer (50 mM NaH2PO4, pH 8.0, 300 mM NaCl, 250 mM imidazole) in serial 2 mL elution volumes. Samples were separated by SDS-PAGE and stained with SimplyBlue Safe Stain (Invitrogen, Waltham, MA) to verify protein purification. Protein was desalted using PD-10 desalting columns (Cytiva, Marlborough, MA) into circular dichroism and UppS assay buffers (see below).
Circular dichroism
UppSVU and UppSUN were prepared to 0.1 mg/mL in circular dichroism (CD) buffer (10 mM sodium phosphate buffer, pH 8.0, with 10% glycerol). CD spectra were collected by the UIC BioPhysics Core from a 0.1 mg/mL sample in a 1 mm cuvette from 190 nm to 240 nm on a Jasco 815. Protein secondary structure was determined by the software CDSSTR (78, 79).
Undecaprenyl-phosphate quantification
5 mL cultures of 17978UN and 17978VU were grown in LB to mid-log phase with a final OD600 of 0.5. Cultures were pelleted and frozen at -80 for further processing. Pellets were then subjected to Bligh and Dyer extraction and dried overnight. The crude cell lysate was then resuspended in 200 mL of n-propanol and 0.1 % ammonium hydroxide (1:3)(80). After sonicating the cell suspension using water bath, 5 mL of sample was injected into C18 column and analyzed for C55 bactoprenol phosphate (BP) m/z ratio of 845.7 using LC-MS. Area under the curve of each BP peak of all samples were recorded and used to calculate BP (pmol) using a standard curve generated from known BP concentrations.
UppS microplate enzyme assays
2CNA-GPP was prepared as described previously (58, 67). In each well of a black-walled 96 well plate, reactions were prepared with 2.5 mM 2CNA-GPP, 0.5 mM MgCl2, 5 mM KCl, 0.1 % Triton-X-100, and 100 nM recombinant UppS from 17978UN or 17978VU. The plate was incubated in the plate reader at 30° C for five minutes then the reaction was initiated with the addition of 1 mM IPP (final concentration). Fluorescence was monitored at 30°C over one hour at an excitation wavelength of 340 nm and emission wavelength of 390 nm. The reaction rate was determined based on the linear fluorescence increase over the first 8 minutes for both strains.
LOS silver stain and densitometry
Samples were prepared similarly to previous descriptions (81, 82). Three-mL overnight cultures were diluted 1:100 in 5 mL fresh LB and grown to mid-log with an OD600 of 0.5. Two 1-mL aliquots were harvested. One aliquot was boiled at 85°C for 15 min and subjected to a Pierce 660 (Thermo Fisher, Waltham, MA) total protein quantification following manufacturer instructions. The second aliquot was pelleted and resuspended in 1X Novex SDS sample buffer (Invitrogen, Waltham, MA) so that the final total protein concentration was 6 mg/ml, which was determined to be in the linear range of the LOS densitometry analysis by a dilution series experiment. Samples were lysed via boiling for 15 min at 85°C and treated with proteinase K to a final concentration of 0.16 μg/μl. Gels were loaded with samples containing 10 μg total protein before electrophoresis on a 16.5% Tris Tricine gel (Bio-Rad, Hercules, CA). Gels were stained with the Pierce Silver Stain kit (Thermo Fisher, Waltham, MA) following manufacturer instructions. Images were captured on a BioTek (Winooski, VT) ChemiDoc MP imager.
Densitometry analysis was performed using ImageJ. Images were converted to an 8-bit image and the background was subtracted using a 50-pixel rolling ball radius. Using the gel analysis tool, LOS bands were selected and peaks were quantified. Data are presented as a ratio of the value of 17978UN WT for each independent gel.
Murine model of A. baumannii lung infection
Six-week-old female C57BL/6 mice were purchased from Jackson Laboratory. Mice were housed in a temperature-controlled environment with 12-h light/dark cycles and food and water were provided as needed and were acclimated to the facility to 1 week prior to infection. Mice were anesthetized with ketamine/xylazine and inoculated intranasally with 35 μL bacterial suspension 1:1 mixture A. baumannii ATCC 17978 WT and ΔmlaF mutant derivatives, containing approximately 3 × 108 CFU as described previously (20). The inoculum dose was confirmed by serial dilution and plating on selective agar media. Mice were euthanized at 48 h post infection by CO2 asphyxiation and the lungs were excised aseptically. Tissues were homogenized and all samples were serially diluted and plated on LB and kanamycin selective agar plates for bacterial enumeration. The competitive index of mutant/WT strains were calculated by dividing the mutant CFU ratio (CFUoutput/CFUinput) by the WT CFU ratio. All animal care protocols were approved by the University of Illinois Chicago Institutional Animal Care and Use Committee (IACUC; protocol number 20-165) in accordance with the Animal Care Policies of UIC, the Animal Welfare Act, the National Institutes of Health, and the American Veterinary Medical Association (AVMA). Animals were humanely euthanized consistent with the AVMA guidelines.
Variant protein tree construction – genome filtering and de-duplication
To acquire genomes for analysis, 7431 summaries of Acinetobacter baumannii reference assemblies (assembly accessions starting with “GCF_”) were downloaded from NCBI datasets using the datasets command line interface tool. Genomes with contig N50 scores in the bottom 20% were removed from the assemblies, resulting in a total of 5945 genomes. Since there were many closely related genomes, a deduplication process was carried out based on Average Nucleotide Identity (ANI) values estimated using Mash distances generated by Mash version 2.34 (83). Each genome was represented by a compressed min-Hash sketch, and pairwise distances between sketches were used to construct a standard distance matrix. To perform the deduplication, a custom Python script iterated through each genome in the distance matrix, comparing its distances to other genomes. A chosen threshold Mash distance (tdist) of 0.006 was used. If the pairwise distance between two genomes was less than tdist, the genome with the lower N50 score was discarded. This step was performed recursively until all pairwise distances were greater than tdist, ensuring that only unique genomes remained in the dataset. Ten assemblies were identified as outliers due to their high average Mash distance to all other genomes and were excluded. Scripts for downloading genomes, creating Mash sketches and distance matrices, and dereplicating genomes and removing outliers are available at https://github.com/JonWinkelman/genome_deduplication.
Variant protein tree construction – identification of orthologs in A. baumannii
We utilized OrthoFinder (54, 55) version 2.5.4 with default settings to determine orthologous relationships between genes in A. baumannii proteomes. A total of 233 proteomes from filtered and de-duplicated Acinetobacter genomes were included in the analysis. These genomes include three outgroups, A. baylyi, A. gyllenbergii and A. colistiniresistens that were used to root the species tree. OrthoFinder computed hierarchical orthologous groups (HOGs) for each internal node in the species tree. These HOGs consist of proteins descended from a single gene in the ancestral species corresponding to the respective internal node. For this study, we focused on analyzing HOGs associated with the species tree node representing the last common ancestor of all A. baumannii. OrthoFinder computes HOGs for each internal node of the species tree. Each HOG contains all genes that descended from a single gene in ancestral species represented by the internal node. In this analysis we analyzed HOGs for the species tree node representing the last common ancestor of all A. baumannii. A custom python dash application was used to explore results from OrthoFinder, and iTOL was used to annotate trees for figures (84). The proteomes and alleles depicted are listed in Table S4.
Variant protein tree construction – Manual identification of orthologs in A. baumannii
When working with three specific genes, OrthoFinder search for orthologs didn’t yield results across all species. In cases where OrthoFinder didn’t locate an ortholog, we adopted an alternative approach. Specifically, we investigated the presence or absence of neighboring genes. For instance, if an ortholog for the Acinetobacter baumannii 17978-mff gene ACX60_11495 was detected in a strain, orthologs to all other genes in its operon were found. Conversely, when this ortholog was absent, none of the operon’s other genes were found, suggesting that this gene and its operon were indeed absent from the genome.
In another instance involving the Acinetobacter baumannii 17978-mff gene ACX60_05080, OrthoFinder failed to identify orthologs in two strains. In this case, we observed adjacent orthologs and identified a potential ortholog with an unassigned HOG and more than 95% sequence identity to ACX60_05080. These findings strongly suggested that this identified potential ortholog was indeed an orthologous gene. Jupyter notebooks for downloading genomes, creating Mash sketches and distance matrices, dereplicating genomes, removing outliers, processing OrthoFinder results and creating figures are available at https://github.com/JonWinkelman/Palmer_baumannii_UNvVUprevalence.git.
Supporting information
Data availability
Whole genome sequencing data is available in the National Center for Biotechnology Information (NCBI) sequence read archive (SRA) under BioProject: PRJNA1020123 and PRJNA656143 (20).
Acknowledgements
This work was supported by startup funds from the University of Illinois Chicago and National Institutes of Health Awards R00HL143440 to L.D.P. and R01GM123251 to J.M.T. We thank the UIC Biophysics Core and the Center for Structural Biology for assisting with the circular dichroism experiment and analysis. We thank members of the Palmer laboratory for critical reading of the manuscript and Zachery Lonergan for review of the manuscript. The authors declare no conflict of interest regarding the content of this manuscript.
Declaration of interests
The authors declare no conflict of interests.
