Cannabidiol (CBD): a killer for inflammatory rheumatoid arthritis synovial fibroblasts
grid.14778.3d0000 0000 8922 7789Poliklinik, Funktionsbereich & Hiller Forschungszentrum für Rheumatologie, University Hospital Duesseldorf, D-40225 Duesseldorf, Germany
Klinik für Orthopädie/Orthopädische Rheumatologie, St. Elisabeth-Hospital Meerbusch-Lank, D-40668 Meerbusch, Germany
Abstract

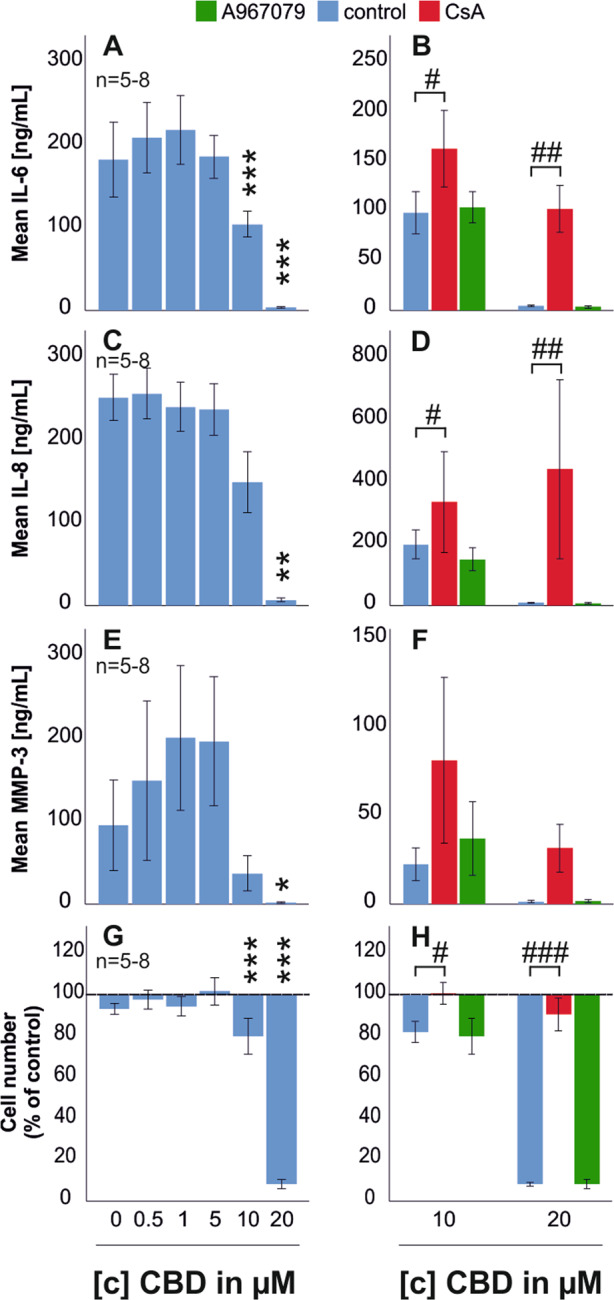

Cannabidiol (CBD) is a non-intoxicating phytocannabinoid from cannabis sativa that has demonstrated anti-inflammatory effects in several inflammatory conditions including arthritis. However, CBD binds to several receptors and enzymes and, therefore, its mode of action remains elusive. In this study, we show that CBD increases intracellular calcium levels, reduces cell viability and IL-6/IL-8/MMP-3 production of rheumatoid arthritis synovial fibroblasts (RASF). These effects were pronounced under inflammatory conditions by activating transient receptor potential ankyrin (TRPA1), and by opening of the mitochondrial permeability transition pore. Changes in intracellular calcium and cell viability were determined by using the fluorescent dyes Cal-520/PoPo3 together with cell titer blue and the luminescent dye RealTime-glo. Cell-based impedance measurements were conducted with the XCELLigence system and TRPA1 protein was detected by flow cytometry. Cytokine production was evaluated by ELISA. CBD reduced cell viability, proliferation, and IL-6/IL-8 production of RASF. Moreover, CBD increased intracellular calcium and uptake of the cationic viability dye PoPo3 in RASF, which was enhanced by pre-treatment with TNF. Concomitant incubation of CBD with the TRPA1 antagonist A967079 but not the TRPV1 antagonist capsazepine reduced the effects of CBD on calcium and PoPo3 uptake. In addition, an inhibitor of the mitochondrial permeability transition pore, cyclosporin A, also blocked the effects of CBD on cell viability and IL-8 production. PoPo3 uptake was inhibited by the voltage-dependent anion-selective channel inhibitor DIDS and Decynium-22, an inhibitor for all organic cation transporter isoforms. CBD increases intracellular calcium levels, reduces cell viability, and IL-6/IL-8/MMP-3 production of RASF by activating TRPA1 and mitochondrial targets. This effect was enhanced by pre-treatment with TNF suggesting that CBD preferentially targets activated, pro-inflammatory RASF. Thus, CBD possesses anti-arthritic activity and might ameliorate arthritis via targeting synovial fibroblasts under inflammatory conditions.
Introduction
Cannabidiol (CBD) is a non-intoxicating cannabinoid found in cannabis sativa1. In contrast to the psychoactive constituent tetrahydrocannabinol (THC), CBD demonstrates no direct effect at cannabinoid receptors 1 and 2 (CB1 and CB2) but modulates the effect of agonists suggesting an allosteric function2. In addition, CBD binds to PPARγ, GPR3/6/12/18/55, TRPV1/2, TRPA1, 5-hydroxytryptamine receptor, and mitochondrial proteins3–11. Despite its promiscuous pharmacology, CBD is well tolerated even when given in high concentrations12,13. Side effects of CBD in humans include diarrhea and fatigue and, more importantly, CBD interacts with other drugs since it is metabolized by CYP enzymes in the liver thereby inhibiting the degradation of other therapeutic compounds14,15. While the therapeutic benefits of CBD in childhood epilepsy are well documented, its effects on inflammation have only been investigated in animal models13,16. Studies in rodents with osteoarthritis or collagen-induced arthritis demonstrated anti-inflammatory and analgesic effects of CBD, but these studies did not identify the mechanism of action17–19. Here, we investigate the effect of CBD on intracellular calcium, cell viability, and cytokine production in rheumatoid arthritis synovial fibroblasts (RASF). RASF are one major contributor of joint destruction in RA as they secrete pro-inflammatory cytokines and matrix degrading enzymes20. In fact, subsets of RASF selectively mediate joint destruction or the inflammatory response, emphasizing their important role in the pathogenesis of RA21. In previous studies, we already identified TRPA1 as a therapeutic target since the TRPA1 agonist Polygodial selectively deleted TNF-activated RASF22. CBD also binds TRPA17,23, and therefore we hypothesized that CBD has detrimental effects on cell viability, which might explain in part its mechanism of action at sites of inflammation.
Results
CBD reduces cell viability and proliferation of RASF

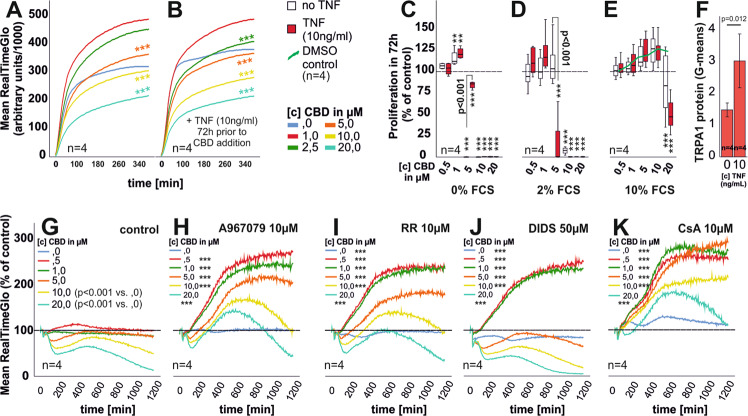

Over the course of 6 h we found that CBD (≥5 µM) decreases cell viability (Fig. 1a, b), but a stimulatory effect was detected for 1 µM CBD in TNF pre-incubated RASF (Fig. 1b). CBD combined with the TRPA1 antagonist, A967079, recovered cell viability (Fig. 1h). TRPA1 is upregulated by TNF (Fig. 1f) and we also detected an increase of TRPA1 mRNA by real-time PCR after 24 h under the influence of TNF (data not shown). Ruthenium Red (RR) also reduced the detrimental effects of CBD (Fig. 1i). Surprisingly, 4,4′-Diisothiocyanatostilbene-2,2′-disulfonate (DIDS), supported cell viability at low CBD concentrations but enhanced its cytotoxic effects at concentrations ≥1 µM (Fig. 1j), while Cyclosporin A (CsA), blocked the effects of CBD (Fig. 1k). Since RealTime-Glo assays were conducted at 37 °C in serum-free medium but without CO2 and humidity control, we also confirmed these results in cell titer blue endpoint assays (Fig. 5d). In vivo, CBD is bound to lipoproteins/albumin lowering the available concentration of free CBD24. Therefore, we investigated the effect of fetal calf serum content with CBD on proliferation. CBD in concentrations ≥5 µM reduced proliferation of RASF in medium without or 2% FCS (Fig. 1c, d). TNF pre-stimulation enhanced proliferation at 5 µM CBD in 0% FCS (Fig. 1c) while the opposite was true using 2% FCS (Fig. 1d). With 10% FCS, CBD inhibited proliferation of RASF only at 20 µM (Fig. 1e). DMSO (vehicle control) alone had a stimulatory effect on proliferation (Fig. 1e, green line). These findings underline the need for relatively high concentrations of CBD when used in in vivo settings13.
CBD increases intracellular calcium and its effects are enhanced by TNF

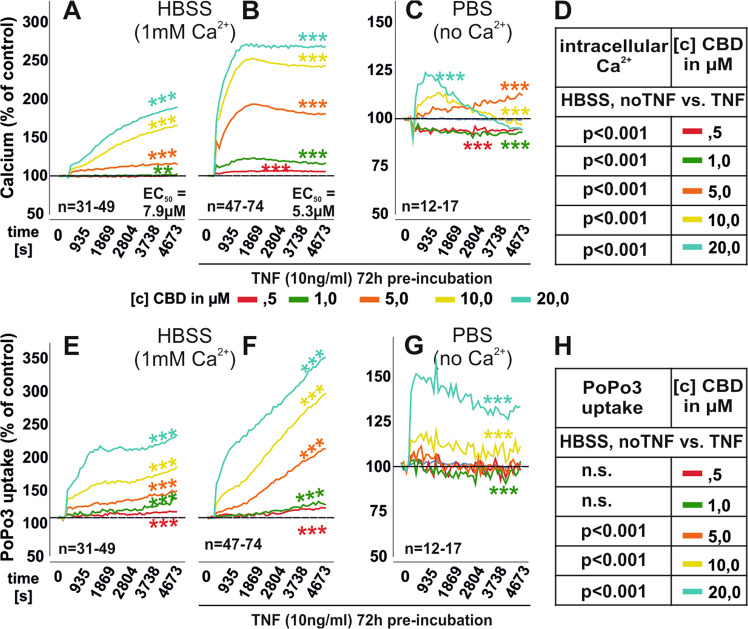

CBD influences calcium mobilization9,23,25 and we found that concentrations ≥5 µM increased intracellular calcium (Fig. 2a). The potency of CBD was enhanced by pre-incubation with TNF for 72 h (Fig. 2b). Under these conditions, intracellular calcium levels were significantly increased compared to untreated RASF (Fig. 2d). When extracellular calcium was omitted by using PBS, CBD still increased intracellular calcium although to a smaller extent (Fig. 2c) Besides calcium, we also analyzed the uptake of the cell viability dye PoPo3 iodide under CBD stimulation. PoPo3 uptake increases when membrane integrity is compromised during apoptosis or necrosis. CBD dose-dependently increased the uptake of PoPo3 which was enhanced by extracellular calcium and TNF pre-stimulation (Fig. 2f, g). Basal uptake of PoPo3 and intracellular calcium levels were increased by TNF pre-treatment (Supplementary Fig. 3A, B). The detrimental effect of CBD on cell viability was also confirmed in the XCELLigence system using untreated RASF (Supplementary Fig. 1).
Calcium mobilization and PoPo3 uptake partly depend on TRPA1 activation

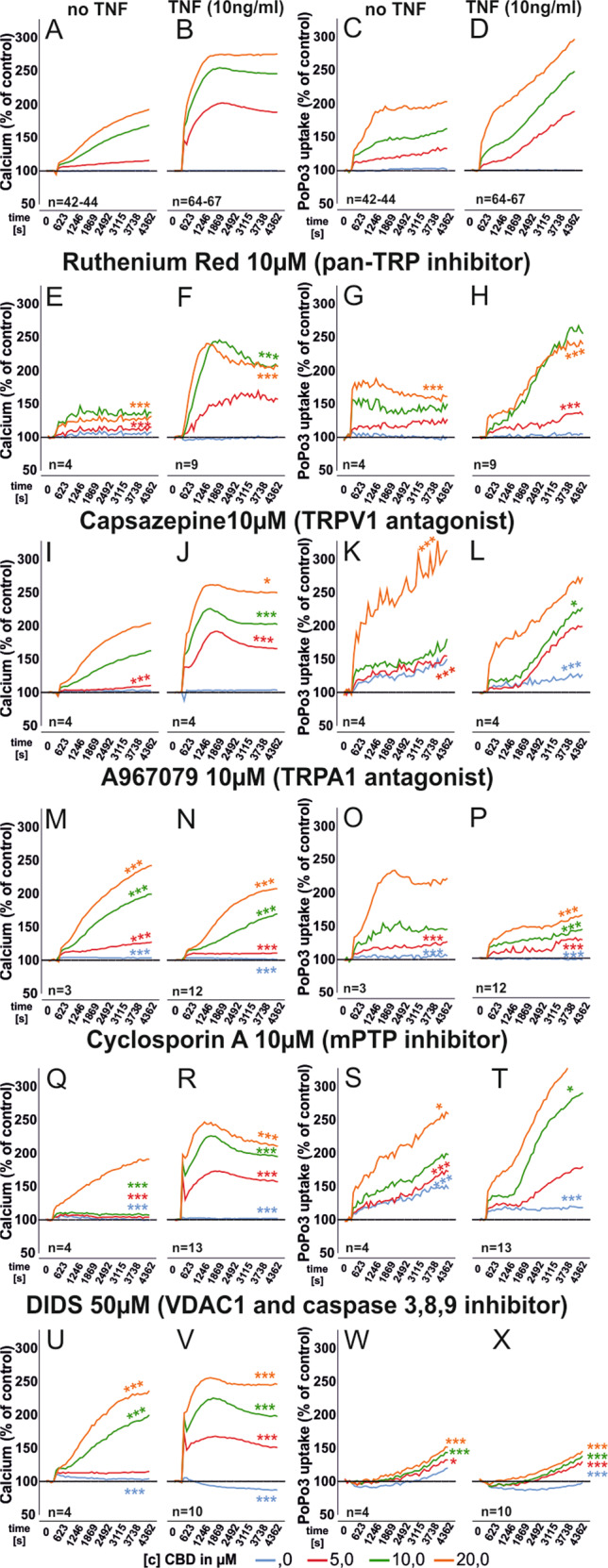

Since CBD binds TRPV1, TRPV2, and TRPA17 we investigated the involvement of these ion channels. RR, a general inhibitor for several TRP channels26–28, reduced intracellular calcium levels (Fig. 3e, f) and PoPo3 uptake (Fig. 3g, h) but the magnitude of inhibiton was small. RR did not change basal calcium levels or PoPo3 uptake in unstimulated but did so in TNF pre-stimulated RASF (Supplementary Fig. 3). Next, we combined CBD with the TRPV1 antagonist Capsazepine (CPZ)29. CPZ had only a minor influence on CBD-induced calcium levels and PoPo3 uptake (Fig. 3i–l). Of note, CPZ also modulated basal calcium and PoPo3 levels (Supplementary Fig. 3) With TRPA1 inhibition we found that without TNF pre-stimulation, the antagonist A967079 (10 µM) increased intracellular calcium (Fig. 3m) but decreased it when RASF were pre-incubated with TNF (Fig. 3n). A967079 increased PoPo3 uptake under basal conditions (Fig. 3o) but decreased it after TNF pre-incubation (Fig. 3p). Furthermore, A967079 enhanced basal calcium levels and PoPo3 uptake (Supplementary Fig. 3A–D).
Mitochondrial targets mediate the effects of CBD
We investigated four proposed mitochondrial targets for CBD: the mitochondrial calcium uniporter (MCU), the sodium/calcium exchanger (NCLX)30, the voltage-gated anion channel (VDAC1)8 and the mitochondrial membrane permeability transition pore (mPTP) which initiates apoptotic and necrotic events31.While we detected a minor influence of NCLX and MCU (Supplementary results and Supplementary Fig. 2) on intracellular calcium levels and PoPo3 uptake, inhibition of mPTP exerted the strongest influence (Fig. 3q–t). CBD-induced changes in intracellular calcium were reduced by the mPTP inhibitor CsA (Fig. 3q). In TNF pre-stimulated RASF, CsA reduced calcium levels over all CBD concentrations (Fig. 3r). In addition, CsA accelerated PoPo3 uptake (Fig. 3s, t) but did not alter basal calcium or PoPo3 levels (Supplementary Fig. 3A–D). Next, we combined CBD with DIDS, which is an inhibitor of VDAC in the outer mitochondrial and the plasma membrane32,33. CBD stabilizes a closed conformation of VDAC, which excludes the exchange of metabolites from the cytosol into mitochondria, but enhances its calcium transport function8,34. DIDS increased CBD-induced calcium mobilization regardless of TNF pre-stimulation (Fig. 3u, v) and it completely abolished PoPo3 uptake under all conditions (Fig. 3w, x). DIDS also increased basal calcium levels in TNF pre-stimulated RASF (Supplementary Fig. 3B) and decreased PoPo3 levels (Supplementary Fig. 3C, D). Since we found TRPA1 to be involved in the effects of CBD (Figs. 1h and 3m–p), we were interested in the cellular localization of this receptor. Since we assumed this to be an intracellular site, we used Thapsigargin to deplete calcium stores in the endoplasmatic reticulum (ER)35,36 and Gly-Phe-β-naphthylamide (GPN), which disrupts lysosomes and releases calcium stored in this organelle37,38. We found that GPN reduced the elevation of intracellular calcium by CBD (p < 0.001, Fig. 4e, f), while PoPo3 uptake was significantly enhanced (Fig. 4g, h). Of note, GPN per se induced an increase of intracellular calcium and PoPo3 uptake (Supplementary Fig. 3A–D). Similarly, the inhibitor of the endoplasmic reticulum Ca2+-ATPase, Thapsigargin, reduced the CBD-induced increase in intracellular calcium levels (Fig. 4i, j) and slightly attenuated PoPo3 uptake (Fig. 4k, l) but increased basal calcium and PoPo3 levels (Supplementary Fig. 3A–D). Cationic and uncharged compounds are taken up by organic cation transporters (OCT)39,40 and therefore we assessed the effects of Decynium-22 (D22), an inhibitor of all OCT isoforms on intracellular calcium and the uptake of PoPo3. Under all conditions, we found that D22 prevented the increase of intracellular calcium/PoPo3 uptake induced by CBD (Fig. 4m–p) and it reduced basal intracellular calcium (Supplementary Fig. 3A, B) but slightly elevated PoPo3 levels (Fig. 3c, d). Lastly, we determined the influence of CBD on the production of IL-6, IL-8, and MMP-3 by RASF. CBD (10 µM and 20 µM) significantly decreased the production of IL-6 (Fig. 5a), which was inhibited by the addition of CsA (Fig. 5b). IL-8 production was modified by CBD (20 µM) alone (Fig. 5c) and the addition of CsA increased IL-8 levels significantly (Fig. 5d). MMP-3 levels were reduced by 20 µM CBD (Fig. 5e). The cytokine-reducing effects of CBD might be related to the reduction in viable cells, since we detected a reduction in cell number at 10 µM and 20 µM CBD which was inhibited by the addition of CsA (Fig. 5g, h).
Discussion
In this study, we demonstrated that CBD decreases cell viability, proliferation, and cytokine production but increases intracellular calcium and PoPo3 levels of RASF and all effects were enhanced by TNF pre-stimulation. These effects were mediated by TRPA1 and by the assembly of the mPTP under pro-inflammatory conditions, whereas under unstimulated conditions, TRPA1 was not involved.
We demonstrated that CBD reduces cell viability, but RealTime-Glo assays were conducted in serum-free medium without carrier protein. Therefore, we assessed whether CBD influences RASF proliferation in medium containing FCS, since in vivo, CBD is bound to serum albumin, which lowers its free concentration available for receptor binding24,41. We confirmed that the anti-proliferative effect of CBD is dependent on FCS content. Consequently, for in vivo applications, CBD needs to be administered in high concentrations to elicit beneficial effects as shown in the treatment of Dravet syndrome13. In order to identify the cellular targets for CBD, we used the TRPA1 antagonist A967079 and the pan-TRP antagonist RR to inhibit the effects of CBD on cell viability as CBD has already been identified as ligand for TRPA123. Moreover, we found that CsA reversed the detrimental effects of CBD on cell viability, which confirms results from Olivas-Aguirre et al.25 that showed mitochondrial calcium overload correlates with assembly of the mPTP by CBD. It has been demonstrated that CBD influences calcium homeostasis25 and we also found CBD to elevate intracellular calcium in RASF. This confirms own previous results demonstrating calcium mobilization in response to TRPA1 ligation22. Moreover, we showed that TNF up-regulates TRPA1 protein in RASF, which translates into increased sensitivity to TRPA1 ligands22. CBD also increased calcium levels without extracellular calcium by using PBS instead of HBSS, suggesting mobilization form intracellular stores. In fact, in dorsal root ganglia neurons it has been shown that TRPA1 is located in lysosomes, where its activation fosters neurotransmitter release42. Although we do not provide direct evidence regarding the localization of TRPA1, the use of the cell-impermeable pan-TRP inhibitor RR43, which was only able to slightly attenuate the effects of CBD suggests an intracellular target protein. In line with this, the lipophilic antagonist A967079 decreased calcium mobilization and PoPo3 uptake after CBD challenge. Moreover, we used Thapsigargin to deplete ER calcium stores and GPN to disrupt lysosomes and both compounds reduced the elevation of intracellular calcium after CBD exposure. This shows that ER calcium stores are involved and it has been shown that even if calcium originates from lysosomes, the signal is amplified by depletion of ER stores44. This is important, because although GPN has been reported to mobilize lysosomal calcium, a recent study claimed that GPN increases calcium through an ER-dependent mechanism45. CBD is also an agonist at TRPV1/2 ion channels7,23,46,47, but neither CPZ nor RR inhibited the effects of CBD, ruling out these receptors as target molecules. CPZ is also an agonist at TRPA148, and we did detect a small increase in basal intracellular calcium in response to this ligand alone. Accordingly, CPZ slightly elevated the calcium response of RASF to CBD suggesting a sensitizing effect on TRPA1. TRPA1 inhibition with A967079 reduced calcium mobilization and PoPo3 uptake in TNF pre-stimulated but not naïve RASF, where we found the opposite, suggesting that CBD exerts additional effects via different cellular targets besides TRPA1. This demonstrates that TRPA1 contributes to the rise in intracellular calcium only in TNF pre-stimulated RASF, in which TRPA1 is upregulated. Besides binding to TRPs, it has been demonstrated that CBD ligates several proteins11,49 with mitochondrial targets being the most prominent8–10,25,30. In mitochondria, CBD targets VDAC1, NCLX, MCU, and controls assembly of the mPTP8–10,25. Although protective effects of CBD against mitochondrial toxins have been shown10,50, the majority of studies demonstrated that CBD induces cell death by disturbing calcium homeostasis8,9,25. This confirms our results, since CBD augmented calcium levels with a concomitant increase in cell death. Excess cytosolic calcium is taken up by mitochondria which are depolarized in this process51. If mitochondrial calcium levels exceed a certain threshold, mPTP is assembled leading to cell death52. In fact, we demonstrated that only CsA prevented cell death, suggesting that mitochondrial calcium overload occurs in CBD-stimulated RASF. In line with this, CsA reduced intracellular calcium, which is another indicator that mitochondria provide a significant contribution to the increase in calcium by CBD. Calcium is increased by mPTP formation as mitochondria are permeabilized releasing stored calcium into the cytosol53. Thus, inhibiting mPTP formation by CsA decreases calcium leakage from mitochondria and subsequent cell death. In addition, we found that the NCLX inhibitor CGP reduced cytosolic calcium levels. CGP blocks calcium transport from the mitochondrial matrix into the intermembrane space, thus increasing mitochondrial and reducing cytosolic calcium levels54. We also used the reverse mode inhibitor of the NCLX, KB-R7943, but results with this inhibitor are difficult to interpret due to its interaction with the MCU and NCLX. In the latter it can act as forward or reverse mode antagonist dependent on cell type, NCLX isoform, and concentration55,56. Using the specific MCU inhibitor DS16570511 we found increased cytosolic calcium levels in TNF pre-stimulated but not in unstimulated RASF. This might be explained by TRPA1, which only contributed to calcium level alterations in TNF pre-treated RASF. For the inhibition of VDAC1 we used DIDS which increased intracellular calcium in unstimulated, but decreased calcium in TNF pre-treated RASF. This might depend on the initial calcium signal generated by CBD, because DIDS can permeabilize the inner mitochondrial membrane depending on calcium concentration leading to formation of mPTP57. Besides calcium, PoPo3 uptake served as readout for changes in cell viability as it is supposed to enter cells with a compromised plasma membrane only. However, several studies showed that the uptake of PoPo3 related compounds also occurs via specific receptors/ion channels58,59. In addition, it has been demonstrated that the family of organic cation transporters (OCT) mediates the uptake of many charged but also electroneutral compounds into the cell39. Therefore, it is quite possible that PoPo3 is also taken up by OCT and indeed we show that decynium-22, which inhibits all OCT isoforms39 strongly reduced PoPo3 uptake and it also blunted the increase of intracellular calcium, which might be due to the electrogenic properties of D2240. Another possibility is that OCT mediates the uptake of CBD and D22 would limit the access of CBD to intracellular compartments. D22 did not influence basal uptake of PoPo3, but reduced the CBD-induced uptake and this might be related to changes in intracellular calcium since the activity of OCT is regulated by calcium-dependent proteins39. DIDS completely blocked PoPo3 uptake but these results are difficult to interpret since DIDS does not inhibit OCT but membrane anion channels, which should not mediate the uptake of the cationic dye PoPo3. It might be that the negatively charged DIDS binds PoPo3 directly, thereby inhibiting binding to DNA and the increase in fluorescence. PoPo3 might be suitable as a surrogate marker for the uptake of chemical compounds/drugs, which is enhanced by CBD. Since RASF produce high amounts of IL-6, IL-8, and MMP-360, we also investigated the impact of CBD on production of these mediators. CBD dose-dependently reduced IL-6, IL-8, and MMP-3 with concomitant reduction in cell viability. CsA was able to rescue RASF from cell death and increased Il-6 and IL-8 production confirming that cell death is the influencing factor on cytokine production.
From our data, we propose a mechanism of how CBD influences RASF function and induces cell death under pro-inflammatory conditions (Fig. 6). TNF sensitizes RASF to the action of CBD by up-regulating TRPA122. CBD increases intracellular calcium by activating TRPA1 but it also binds several mitochondrial targets like VDAC1, MCU, and NCLX, which on their part influence cytosolic calcium. Eventually, mitochondrial calcium overload occurs and mPTP is assembled leading to cell death.
CBD has been used in animal model of RA, demonstrating anti-inflammatory and analgesic effects but the mechanism of action has not been identified17,19. Here, we demonstrate that CBD reduces cell viability preferentially in TNF-activated RASF via TRPA1 and mitochondrial targets. CBD might decrease chronic inflammation since RA is characterized by a hypoxic environment in the joint with concomitant mitochondrial dysfunction61. In this setting, immune cells and RASF might be specifically vulnerable to a “second hit” induced by CBD, leading to deletion of pro-inflammatory immune cells and fibroblasts thereby resolving inflammation. In addition, CBD might also synergize with anti-rheumatic drugs like methotrexate or JAK inhibitors, since it has been reported in tumor cell lines that CBD works in synergy with e.g. the chemotherapeutic drug doxorubicin62. Furthermore, CBD also targets TRPV2, which not only increases the uptake of cytotoxic chemotherapeutic agents but also reduces RASF invasion and matrix metalloproteinase production47,63. In conclusion, CBD might be beneficial as an adjuvant treatment in rheumatoid arthritis that might support the action of currently used disease-modifying anti-rheumatic drugs.
Materials and methods
Biochemicals
Patients
In total, 40 patients with long-standing RA fulfilling the American College of Rheumatology revised criteria for RA (24) were included in this study. The RA group comprised of 32 females and 8 males with a mean age of 67.8 years ±10.5 years and 66.9 years ±8.2 years, respectively. C-reactive protein was 47.9 mg/dl ± 186.3 mg/dL for females and 28.7 mg/dL ± 43.2 mg/dL for males and rheumatoid factor was 184.4 iU/mL ± 280.4 iU/mL for females and 31.8 iU/mL ± 37.6 iU/mL for males. IN all, 11 out of 40 patients received glucocorticoids, 7 out of 40 methotrexate, 3 out of 40 biologicals, and 1 out of 40 a JAK inhibitor. All patients underwent elective knee joint replacement surgery, and they were informed about the purpose of the study and gave written consent. The study was approved by the Ethics Committees of the University of Düsseldorf (approval number 2018-87-KFogU) and Regensburg (approval number 15-1 01-021). We confirm that all experiments were performed in accordance with relevant guidelines and regulations (Table 1).order # vendor solvent [c] used in experiments Reference DIDS 4523 Tocris DMSO 50 µM 32,64 Cannabidiol 1570 Tocris DMSO 0.5 µM, 1 µM, 5 µM, 10 µm, 20 µM 7,8,23 CGP37157 1114 Tocris DMSO 1 µM, 10 µM 30,65 KB-R7943 1244 Tocris DMSO 2.5 µM, 25 µM 55,56 A967079 4716 Tocris DMSO 10 µM 22,66,67 Ruthenium red 1439 Tocris H2O 10 µM 68,69 Cyclosporin A 30024 Sigma DMSO 10 µM 9 Capsazepine 464 Tocris DMSO 10 µM 29,70 GPN 14634 Cayman DMSO 250 µM 29,70,71 Thapsigargin 1138/1 Tocris DMSO 10 µM 72 Decynium-22 4722 Tocris DMSO 10 µM 39,40
Synovial fibroblast and tissue preparation
Samples from RA synovial tissue were isolated and prepared as described previously22 (for details see also Supplementary methods).
Proliferation of RASF
Proliferation was assessed by the cell titer blue viability assay (Promega, Madison, USA, # G8080) according to manufacturer’s instructions.
Intracellular calcium and PoPo3 uptake
In black 96-well plates, RASF were incubated with 4 µM of calcium dye Cal-520 (ab171868, abcam, Cambridge, UK) in Hanks buffered salt solution (1 mM Ca2+; HBSS, sigma, # 55037 C) or PBS (no Ca2+) with 0.02% Pluoronic F127 (Thermo fisher scientific, Waltham, USA, # P6866) for 60 min at 37 °C followed by 30 min at room temperature. After washing, HBSS or PBS containing 1 µM PoPo3 iodide (Thermo fisher scientific, # P3584) and respective antagonists/ligands/inhibitors were added for 30 min at room temperature. After that, CBD was added and the intracellular Ca2+ concentration as well as PoPo3 uptake were evaluated with a TECAN multimode reader over 90 min.
Flow cytometry
RASF were trypsinized, washed and fixed for 20 min with 3.7% formaldehyde (F8775, Sigma Aldrich). Cells were permeabilized with 0.1% Triton X-100 (X100, Sigma) in PBS for 10 min. Then, 0.2 µg/50 µl primary antibody (Proteintech, 19124-1-AP) was added for 2 h. The secondary antibody (Abcam, goat anti-rabbit IgG H&L (Alexa Fluor® 488), ab150077) was incubated for 1 h. Cells were analyzed using a MACS Quant 9 analyzer (Miltenyi Biotec, Bergisch Gladbach, Germany).
RealTime-Glo cell viability assay
Cell viability was assessed according to manufacturer’s instructions (Promega, # G9711).
Statistical analysis
Statistical analysis was performed with SPSS 25 (IBM, Armonk, USA). The statistic tests used are given in the figure legends. Normal distribution was determined using the Shapiro–Wilk test, equal variance was determined by Levene’s test. In the case of equal variance, the Bonferroni post-hoc test was used, otherwise the Dunnet’s post-hoc test was employed. When data are presented as box plots, the boxes represent the 25th to 75th percentiles, the lines within the boxes represent the median, and the lines outside the boxes represent the 10th and 90th percentiles. When data are presented as line plots, the line represents the mean. When data are presented as bar charts, the top of the bar represents the mean and error bars depict the standard error of the mean (sem). The level of significance was p < 0.05.
Supplementary information
Untitled section
Supplementary information
Supplementary Information accompanies this paper at (10.1038/s41419-020-02892-1).
Acknowledgements
We thank Birgit Opgenoorth for excellent technical assistance. This work was supported by an unlimited grant of the Hiller Foundation. Open access funding provided by Projekt DEAL.
Data availability
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
Conflict of interest
The authors declare that they have no conflict of interest.
Ethics approval
This study was approved by the local ethics committees of Düsseldorf (2018-87-KFogU) and Regensburg (15-1 01-021).
