Evaluating Redundancy and Biases in EHR Social Determinants of Health Data Screening
1University of North Carolina at Chapel Hill, North Carolina Translational and Clinical Sciences Institute, Chapel Hill, NC, USA
2UNC Health Alliance, Morrisville, NC, USA
3University of North Carolina at Chapel Hill, Carolina Population Center, Chapel Hill, NC, USA
*Corresponding author contact information: E-mail: jppowers@unc.eduAbstract
Introduction
Healthcare organizations have begun incorporating screening procedures for social determinants of health (SDOH) into care, recognizing the impact these factors can have on health outcomes. We aimed to present methods for evaluating redundancy in the risk information gained across SDOH questions and for evaluating whether demographic biases are present in whether patients were asked SDOH questions and whether they declined to answer them.
Methods
SDOH question data were analyzed for 1.8 million UNC Health patients. To evaluate risk information redundancy, response agreement was analyzed for pairs of questions. Demographic biases were evaluated using logistic regression models.
Results
Risk information redundancy was identified, particularly across food and financial insecurity questions. Furthermore, female and White patients were more likely to be asked some questions than other groups, and American Indian or Alaska Native and Hispanic or Latino patients were less likely to decline to answer questions.
Conclusions
We demonstrated methods healthcare organizations can use to evaluate their SDOH screening procedures. These methods yielded insights for (1) reducing burden in clinical workflows by identifying where redundancy could be eliminated and (2) reducing bias in SDOH data collection through more systematic screening protocols.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
The project described was supported by the National Center for Advancing Translational Sciences (NCATS), National Institutes of Health, through Grant Award Number UM1TR004406. The content is solely the responsibility of the authors and does not necessarily represent the official views of the NIH.
INTRODUCTION
Social determinants of health (SDOH) have a significant impact on health, morbidity, and mortality.[1] With national health initiatives recognizing the import of SDOH in maintaining health,[2] governmental payers have begun requiring screening for SDOH in individual patients.[3] In anticipation of and in response to these requirements, many healthcare organizations have been rolling out SDOH screening procedures.[4–6] With substantial data now accumulated from these screening programs, organizations are seeking to evaluate the efficiency and effectiveness of SDOH screening programs to improve both their procedures and outcomes.[7,8] In this paper, we present analyses for evaluating efficiency and biases in SDOH screening at UNC Health, offering insights and replicable methods for evaluating and optimizing SDOH screening programs at other healthcare organizations.
The burden of adding several more questions to typical 15-minute visits or pre-visit questionnaires, as well as following up on the needs indicated by patients’ responses, can be a substantial concern for organizations trying to integrate SDOH screening practices.[4] This led us to query whether responses to some questions might be highly predictive of responses on other questions, i.e., the information captured by one question was redundant with another question. Such findings could support reducing the set of questions used in SDOH screening along with the burden of these screening procedures. For example, would financial resource strain accurately predict food insecurity or transportation barriers? While each SDOH question has been proven to predict its queried condition,[9–11] it was unknown whether responses in one domain could accurately predict responses in other domains. Thus, we used a data-driven approach to search for evidence of redundant risk information across SDOH questions, which could support eliminating questions to streamline screening procedures.
Additionally, the effectiveness of these screening procedures hinges on these questions being asked systematically across patients and patients choosing to answer these questions. Biases in either of these components could lead to patients with unmet social needs not being identified and appropriately supported. Indeed, SDOH screening rates have been shown to be associated with provider, patient, and setting characteristics as well as provider attitudes regarding SDOH screening, with effects sometimes varying by question domain.[12,13] Berg et al. have previously discussed potential sources of bias in SDOH data collected in electronic health records (EHR), including various selection biases and social biases influencing the data collected through direct interactions with providers.[14] Therefore, we evaluated SDOH response data for evidence of bias across demographic characteristics.
Thus, the first aim of these analyses was to identify redundancy in the risk information detected across the set of SDOH questions, which would support eliminating questions whose responses could be predicted from responses to the remaining questions. This would lower burden on practices and providers. Second, we aimed to evaluate whether biases were present between various demographic groups in (1) whether patients were asked SDOH questions during care and (2) whether patients declined to answer SDOH questions if asked. Such biases could indicate a need for developing more systematic SDOH screening procedures. We present these methods and findings to offer guidance to other institutions on how to evaluate and optimize SDOH data collection in their clinical care settings.
MATERIALS AND METHODS
Data
This study was approved by the University of North Carolina at Chapel Hill Institutional Review Board and received a waiver of informed consent for research and HIPAA authorization due to the research involving no greater than minimal risk. The data for this study were provisioned as part of a larger project examining SDOH in EHR at UNC Health, which started rolling out EHR SDOH questions and screening practices in late 2019. The dataset for the project included UNC Health EHR data in the Observational Medical Outcomes Partnership (OMOP) data model with a date range of Jan. 1, 2018– Dec. 31, 2022. In these initial years of SDOH screening rollout, the adoption of questions was highly variable across care sites, with care teams generally only being required to ask at least one SDOH question per patient per year. Thus, response rates were expected to be variable and generally low across all potential questions. Patients had to meet all of the following criteria for inclusion in the dataset: had a NC address in the date range, had at least two recorded encounters in the date range at least 30 days apart, had a recorded birth date, and was not incarcerated. The utilization inclusion criterion, two encounters at least 30 days apart, was used as a minimal indicator of active use of the healthcare system to filter out patients who may have only received care in the system for a single, isolated event. These analyses were additionally restricted to patients at least 18 years of age (N = 1,797,972). The dataset included SDOH question responses (see Table 1 for the list of questions and their labels) and demographic features. SDOH questions and answers were mapped to LOINC codes and stored in the OMOP data model using methods described in a prior publication.[15]
Redundancy Analyses
Data Preprocessing

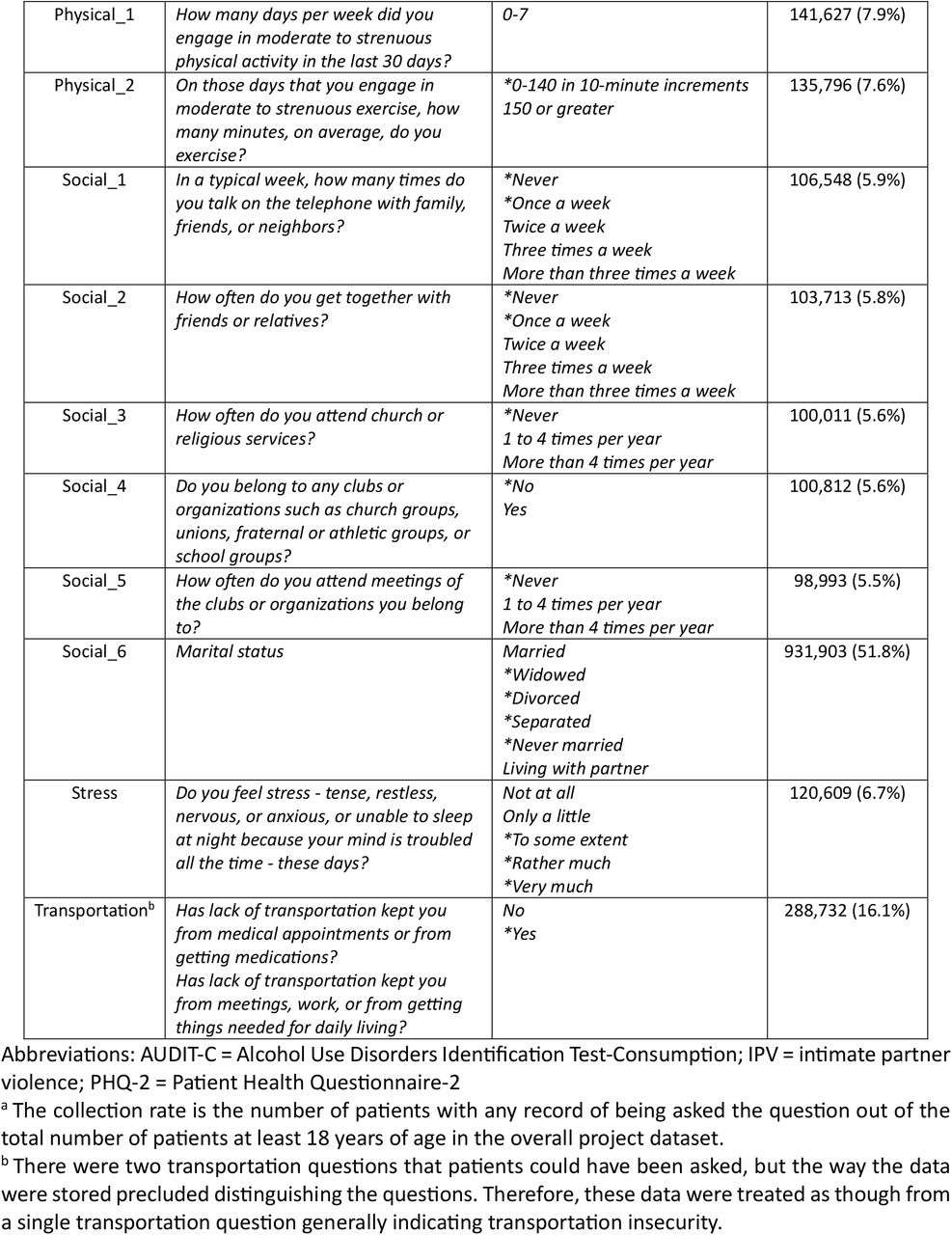

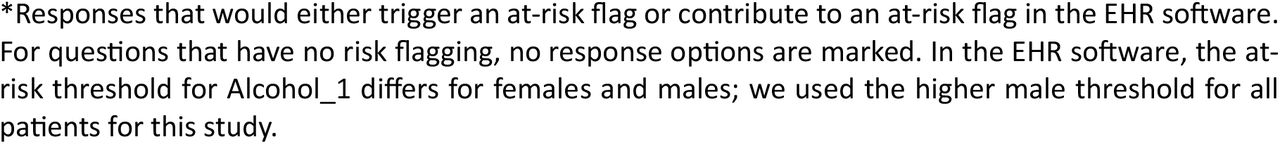

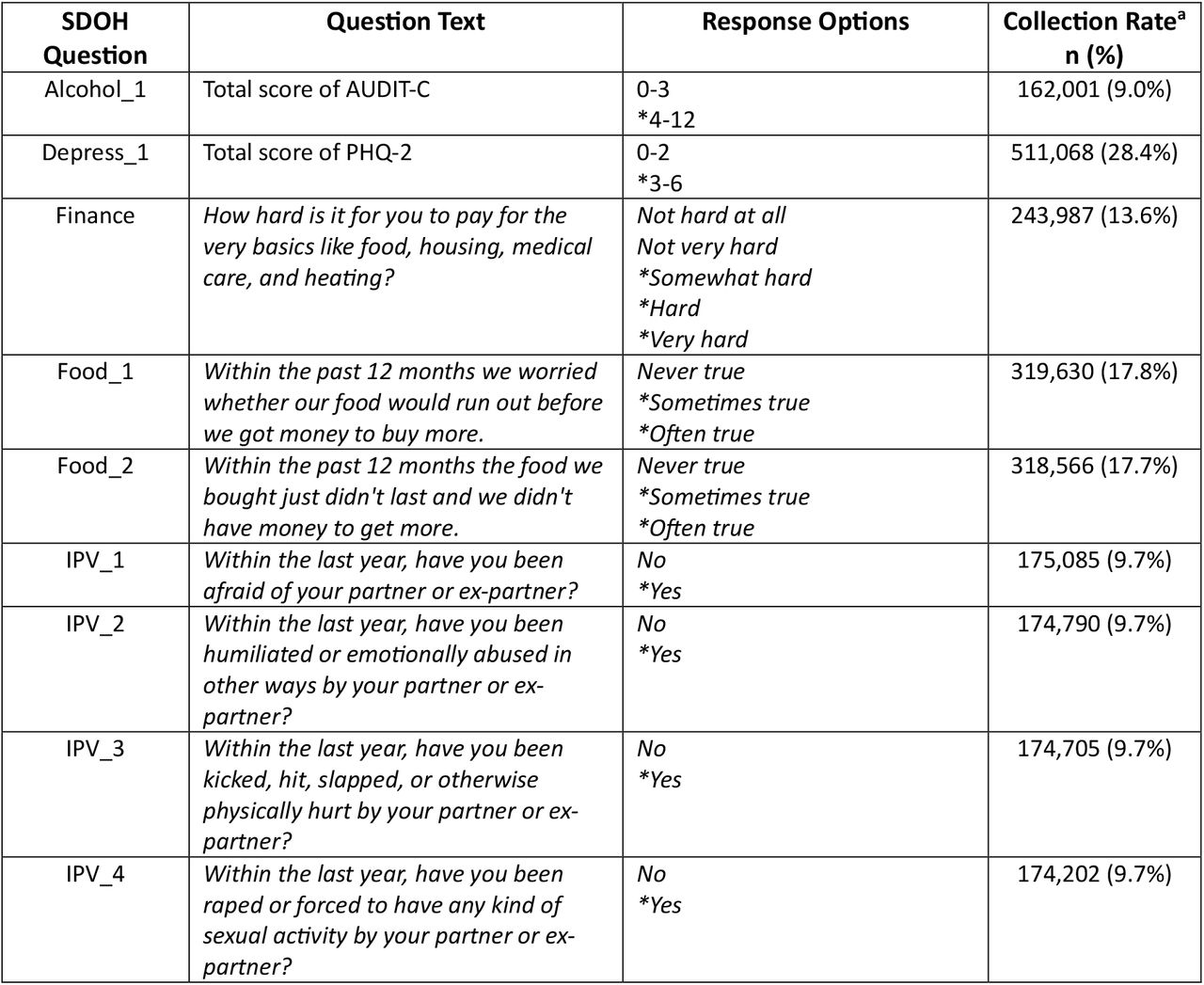

For many of the SDOH questions, thresholds have been programmed into the EHR software to flag a patient as being at-risk for negative health outcomes if their response is above the threshold (see Table 1). We used these thresholds to define a dichotomous risk status for these questions. For example, for Food_1 and Food_2, responses of Never true were categorized as not-at-risk, whereas responses of Sometimes true and Often true were categorized as at-risk. We eliminated duplicate records by filtering to the first record per question per patient per date. Through manual exploration, we observed such cases of multiple response records from a single date appeared to be duplicate data entries. If patients had multiple records for the same question collected on different dates, however, all of these records were retained in the dataset.
Analyses
Redundancy analyses involved evaluating agreement between responses recorded for the same patient and date for pairs of questions, with the goal of determining if the response to the first question in the pair was highly associated with the response to the second question. Thus, these analyses do not consider potential changes in patients’ responses to the same questions over time. Each pair of question responses from the same patient and date are considered independently, as the analysis is designed to assess the association between question responses that are collected concurrently. For all questions with a dichotomous risk status, the phi coefficient, which measures the strength of association between two binary variables, was computed between all possible question pairs. These phi coefficients were expressed as distance scores by subtracting them from one. A lower distance score then corresponds to a stronger association between measures. These distance scores were then submitted to hierarchical clustering analysis using the linkage function in the SciPy library for Python (v. 1.10.0) with the unweighted pair-group method with arithmetic mean. This hierarchical clustering analysis produces a summary of the relationships between all items based on all possible pairwise associations. Additional analyses were run on questions of interest (Finance, Food_1, Food_2, Transportation) in which all possible thresholds for dichotomizing the ordinal response options of one question in the pair were used to predict the original dichotomous risk status of the other question. Signal detection metrics were computed for each possible threshold of the predictor question, including sensitivity and specificity. A minimum sensitivity of 0.9 was used to identify significant predictions.
Bias Analyses
Data Preprocessing
Data were limited to patients with recorded values for sex, race, and ethnicity. Although included in the redundancy analyses, data from patients identified as Native Hawaiian or Other Pacific Islander were excluded from declined/answered models (see below) due to insufficient counts for modeling.
Analyses
To evaluate biases in which patients were asked questions, we defined two groups for each question: (1) patients who were asked the question and (2) patients with no record of being asked the question but who received care since 2020 from the same sites where other patients were asked. This approach was used to help control for variance in SDOH screening by care site; only patients with records from care sites where SDOH questions were being asked were included in this analysis. Note, records could indicate that a patient declined to respond to a question; such a record was treated as an indication that the patient was asked the question. A logistic regression model was used to predict asked/not asked status for each question using age, sex, race, and ethnicity.
Similarly, to evaluate biases in which patients declined to answer a question when asked, we defined groups of patients who always declined the given question (this ranged from 0.6%-11.1% of patients, depending on the question) and patients who always answered the question. Patients with records of sometimes declining and sometimes answering the given question were excluded from this analysis (0.4%-1.8% of patients had this mixed pattern of responding, depending on the question). Note, a record of declining to answer a question was distinct from the absence of a record for that question; this analysis only involved records that explicitly indicated the patient declined to answer the question versus providing some other response. Logistic regression models predicted declined/answered status using age, sex, race, and ethnicity. The largest subgroup was used as the reference level for categorical predictors. Age was modeled as a continuous predictor. Only questions for which declined response data were present were included in these analyses.
Significant predictors met thresholds for statistical and practical significance. Statistical significance was defined as p < 0.05 for the Wald test. Practical significance was defined as an absolute change in log odds ratio greater than 0.223 (see “Practical Significance Threshold for Bias Analyses” in the Appendix for additional discussion of this threshold).
RESULTS

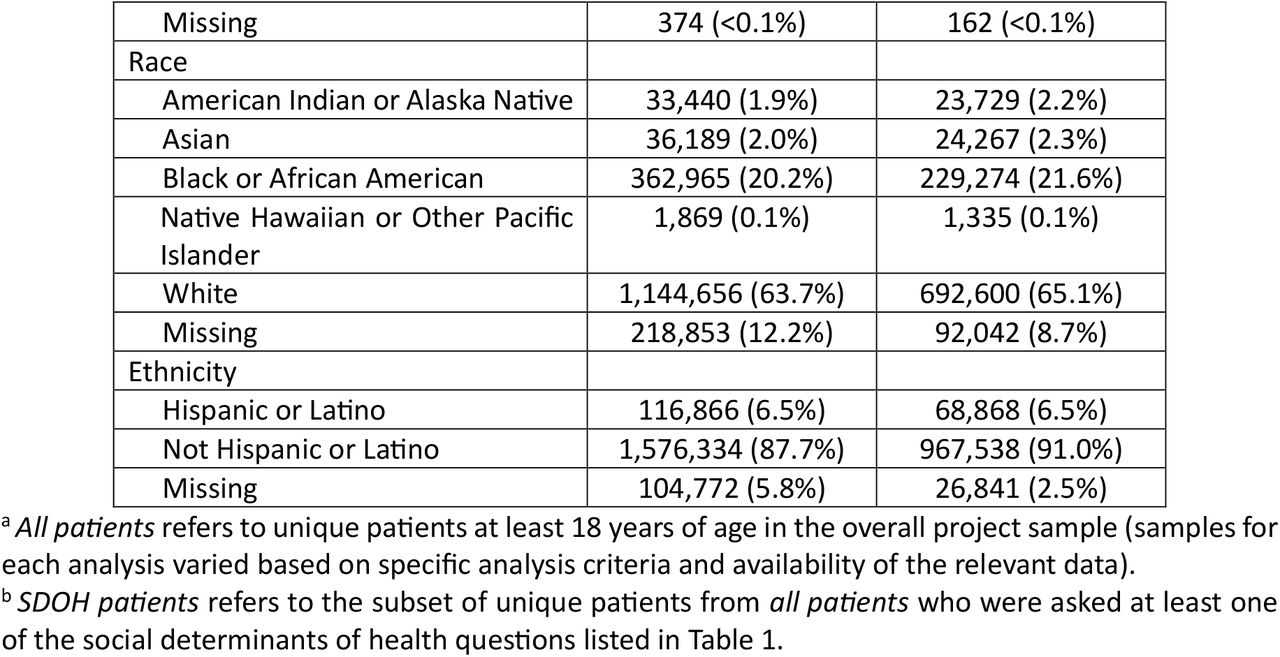

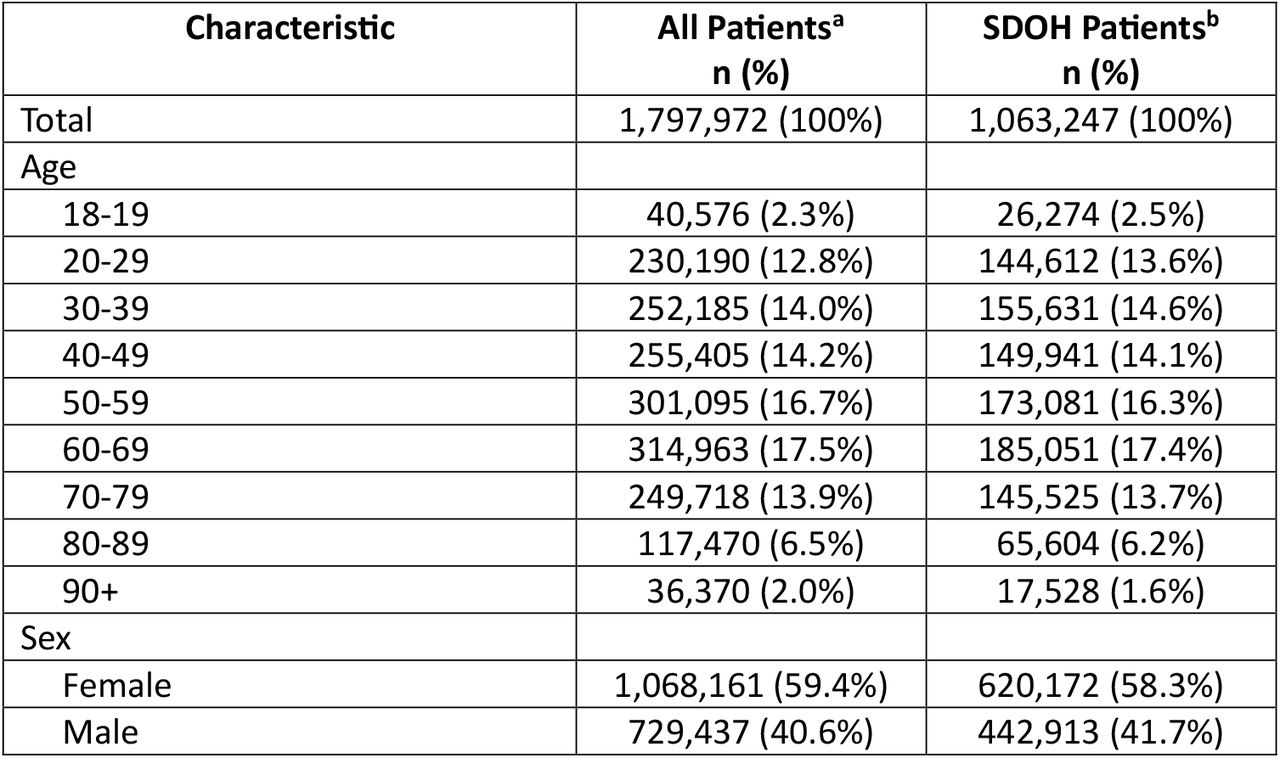

Demographic characteristics of patients at least 18 years of age in the overall project dataset are summarized in Table 2.
Redundancy Analyses

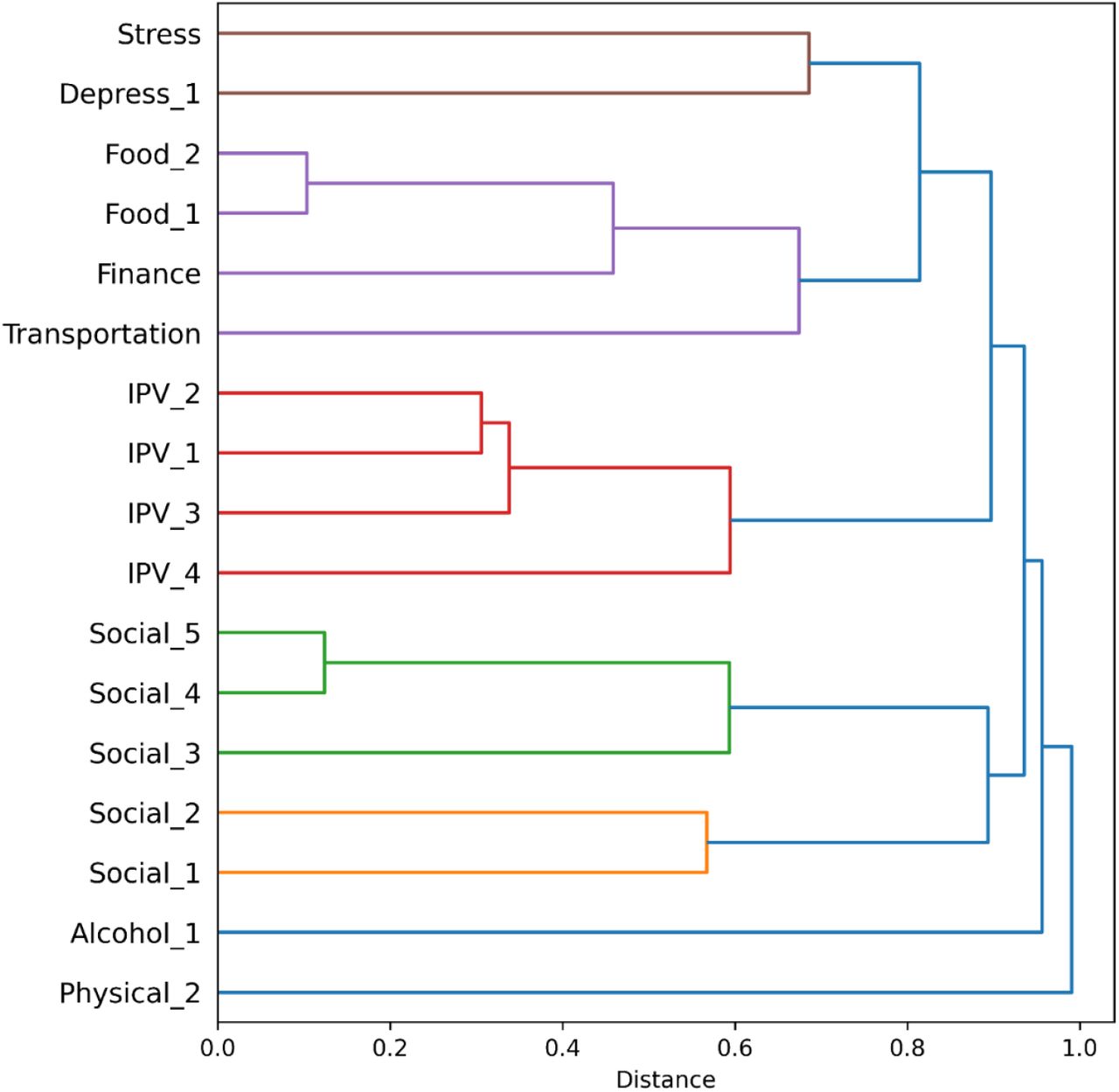

Hierarchical clustering results are presented in Figure 1. We observed a very strong association between the two food questions (distance of 0.103), and a strong association between these food questions and the financial question (0.459). We also observed strong associations between intimate partner violence questions (distances between 0.306-0.594) and moderate-to-strong associations between social questions (0.567 for Social_1 and Social_2, 0.124-0.593 for Social_3-Social_5).
Prediction analyses of questions of interest indicated that for one threshold of the financial question (not hard at all versus all other options), risk status for each food question was predicted with high sensitivity (Food_1: 0.912; Food_2: 0.921) but only modest specificity (Food_1: 0.760; Food_2: 0.719). However, risk status for Food_2 was predicted with high sensitivity (0.951) and specificity (0.993) by the original threshold of Food_1 (never true versus other options). No other predictions were significantly sensitive. This overall pattern of results replicated in several demographic subsamples (see “Redundancy Prediction Analyses in Subsamples” in the Appendix).
Bias Analyses

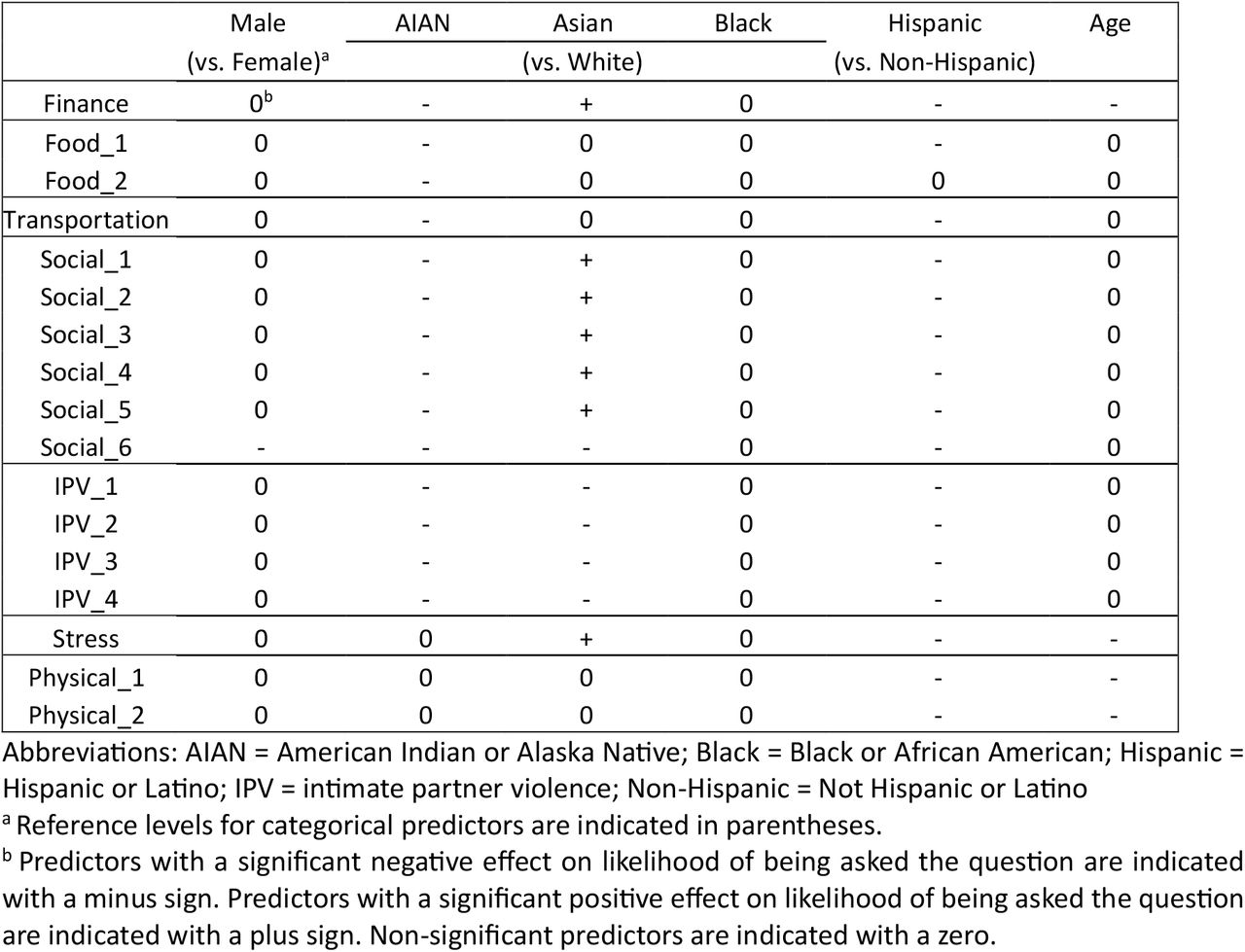

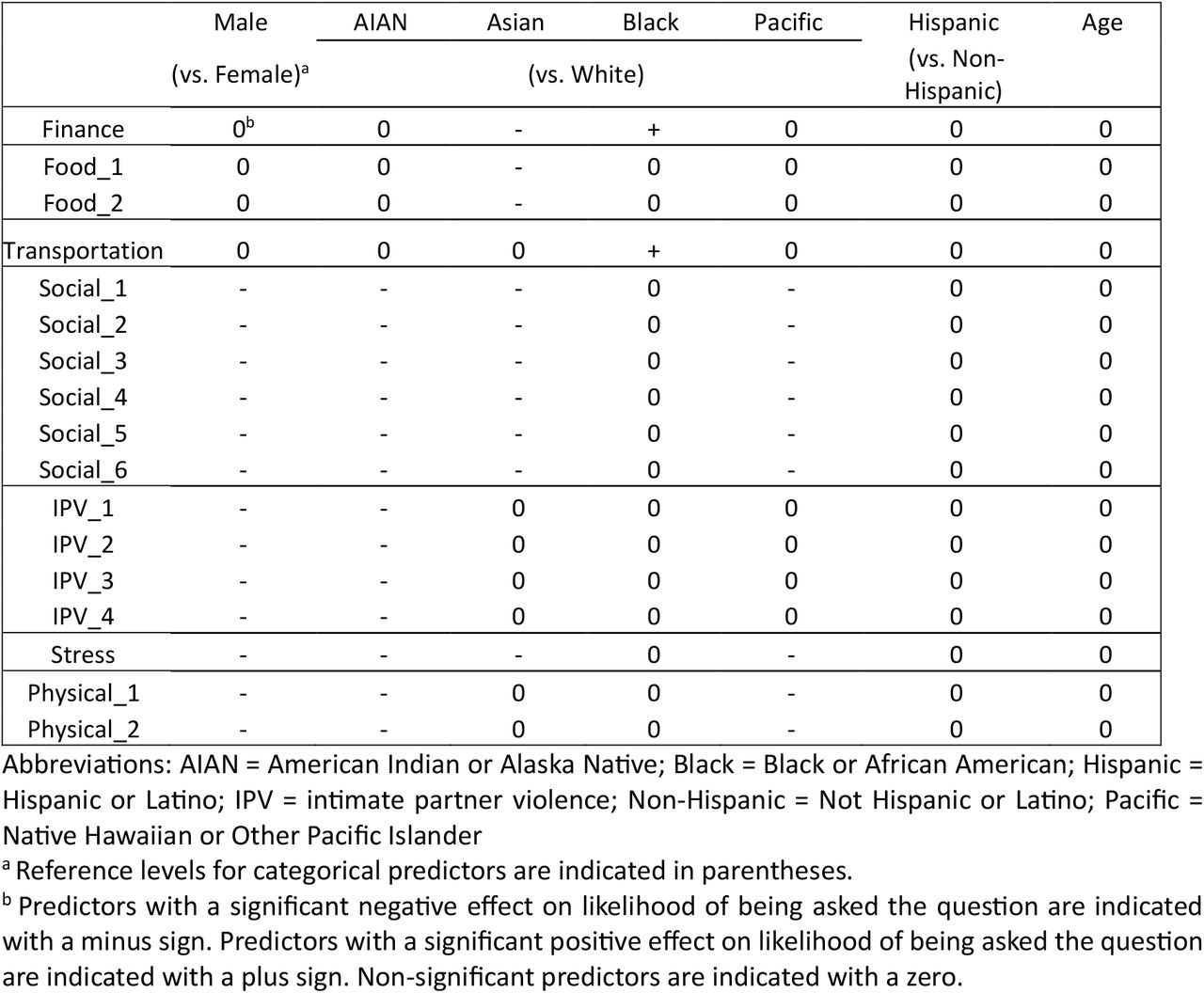

Results for the bias analyses of asked/not asked and declined/answered (conditional on being asked) are summarized in Tables 3 and 4 respectively. For many questions, female and White patients were more likely to be asked than male patients and other non-Black or African American racial groups. Black or African American patients were more likely to be asked the financial and transportation questions when compared with White patients. American Indian or Alaska Native patients were less likely to decline to respond to questions than White patients, and Hispanic or Latino patients were less likely to decline to respond to questions than Not Hispanic or Latino patients. The likelihood of Asian patients declining to respond relative to White patients varied by question.
DISCUSSION
This study aimed to evaluate whether multiple SDOH screening questions were providing redundant risk information and whether there were biases in which patients were asked SDOH questions and which patients declined to answer them. We demonstrated data-driven approaches using SDOH screening data that have been collected at UNC Health, and we found that the second of two food insecurity questions provided redundant information to the first and could therefore be dropped. This finding was replicated in several demographic subpopulations in addition to the full cohort. We also observed a few instances of moderately high redundancy (between food and finance questions, between multiple intimate partner violence questions, and between multiple social connection questions), where additional options for eliminating questions could be considered to further streamline screening procedures. At a minimum, these findings would support the removal of the highly redundant food question from the clinical workflow to reduce burden.
The definition of risk information used here involved applying thresholds to dichotomize ordinal responses into categories of at-risk or not-at-risk. While some response variance was sacrificed in this dichotomization, using thresholds to define actionable responses is often necessary to support clinical practice at scale, including in the context of SDOH screening.[16] For our initial redundancy analyses we relied on risk thresholds implemented in the EHR system (see Table 1 for how response options were dichotomized). For example, risk was considered positive for financial strain if a patient indicated “somewhat hard” or harder to pay for basics. Risk was considered positive for the food domain if a patient answered “sometimes true” or “often true” for questions about food running out. Some other SDOH domains, such as transportation and interpersonal safety, simply used dichotomous response options of yes or no. In an effort to support as many patients as possible, the healthcare system aimed for inclusive thresholds of positive risk to capture more patients who may benefit from intervention. Nevertheless, for select questions of interest we explored the full range of possible thresholds among response options.
We also found differences in rates of being asked and choosing to answer SDOH questions based on sex, race, and ethnicity. Whether one group is more or less likely to be asked or answer depends on the reference group. Here, where we used majority groups for reference, we found that male patients and patients of several non-White racial groups were less likely to be asked most questions than female and White patients. However, Black or African American patients were more likely to be asked the finance and transportation questions than White patients. We did not have data to determine the causes of these biases. Nevertheless, to minimize such biases in the future, we recommend that healthcare institutions provide clear, systematic guidelines for SDOH screening procedures, whether that means all patients are asked, or that a decision tree approach is used to determine who should be asked. The desired result is a policy that applies consistently to all patients.
One limitation of this dataset was the overall low collection rates of the SDOH questions. The rollout of SDOH screening at UNC Health has been a gradual process, as the adoption of new EHR tools often requires a significant transition period.[8] Current policies are increasing the number of SDOH questions patients are asked, but the study period of this dataset captured the initial rollout phase in which clinical teams were generally only required to ask patients at least one SDOH question. Thus, there may be biases not captured or addressed in these analyses in which questions care sites and providers selected to ask patients during the study period. The bias analyses presented here were designed to highlight broad patterns in SDOH screening across this health system. Steps were taken to reduce variance related to care site where relevant, as described in the methods. More granular factors, such as provider, likely impact SDOH data collection as well, but examination of these factors was beyond the scope of the present analyses. Additionally, the SDOH questions discussed in this study were designed to be collected as structured data in the EHR. Future research could explore supplementing such structured data with SDOH data extracted from clinical notes. This would require natural language processing tools to be feasible at this scale.[6]
In the context of brief clinical interactions, there is a tug-of-war between collecting maximal (and often regulatorily required) structured information and providing maximal care to the patient in the time allotted. New structured SDOH questions add to existing clinical processes, requiring more time to collect and follow up on. Based on these findings, we recommend careful evaluation of sets of screening questions to avoid collecting redundant risk information. We also recommend providing systematic guidelines for the clinic staff who ask SDOH questions and similar programming for automated screening systems to ensure screening procedures are implemented consistently across all patients. These recommendations and evaluation methods can be used to improve the efficiency and effectiveness of large-scale SDOH screening procedures at healthcare institutions.
Competing Interests
The authors declare they have no conflicts of interest. Neither the authors, nor their institutions, have received any payments or services in the past 36 months from a third party that could be perceived to influence, or give the appearance of potentially influencing, the submitted work.
Funding Statement
The project described was supported by the National Center for Advancing Translational Sciences (NCATS), National Institutes of Health, through Grant Award Number UM1TR004406. The content is solely the responsibility of the authors and does not necessarily represent the official views of the NIH.
Data Availability
The analyses presented in this paper rely on a limited data set, as defined and protected by the Health Insurance Portability and Accountability Act Privacy Rule 45 CFR 164.514 issued by the U.S. Department of Health and Human Services and cannot be made publicly available.
Appendix Group
Appendix
Practical Significance Threshold for Bias Analyses
Practical significance was defined as an absolute change in log odds ratio > 0.223 for one-hot encoded categorical variables, which included sex, race, and ethnicity. The same threshold for practical significance was used for age after multiplying its coefficient by 10 to reflect the change in log odds ratio for an age increase of 10 years rather than a single year. This threshold corresponds to an increase in odds ratio by a factor of 5:4 or a decrease in odds ratio by a factor of 4:5. For example, a negative effect in the Asian group on declining to respond would indicate the odds of declining to respond in the Asian group were less than the odds in the White group (the reference category) by a factor of at least 4:5. This threshold was selected to represent a minimal meaningful real-world difference in question asking or response patterns between demographic groups.
Redundancy Prediction Analyses in Subsamples
The prediction analyses presented in the main text were also run in demographic subsamples for sex, race, and ethnicity. The significant results from the overall sample replicated in the female subsample, male subsample, Hispanic or Latino subsample, Not Hispanic or Latino subsample, White subsample, and Black or African American subsample. In the American Indian or Alaska Native subsample, Food_2 was not significantly predicted by Finance, but the other results replicated. Food_1 significantly predicted Food_2 in the Asian subsample, but the other results did not replicate. The subsample of Native Hawaiian or Other Pacific Islander was too small to meaningfully interpret. All replicated results noted above replicated using the same threshold of the predictor question as in the results from the main text.
We conclude that the findings of the redundancy prediction analyses in the main text are not driven by particular demographic subgroups; rather, they are consistent across most demographic groups. The cases in which the results did not replicate were in the smallest subsamples, where the effects may have been less stable due to smaller numbers. Even in these cases, the results that did not replicate were generally close to the significance threshold.
