Cannabinoids activate the insulin pathway to modulate mobilization of cholesterol in C. elegans
Endocannabinoids and cholesterol mobilization
Laboratorio de Fisiología Microbiana, Instituto de Biología Molecular y Celular de Rosario (IBR), CONICET, Facultad de Ciencias Bioquímicas y Farmacéuticas, Universidad Nacional de Rosario, Rosario, Argentina
Laboratorio de Fisiología y Genética de la Audición, Instituto de Investigaciones en Ingeniería Genética y Biología Molecular "Dr. Héctor N. Torres" (INGEBI), CONICET, Buenos Aires, Argentina
Department of Neurobiology, University of Massachusetts Medical School, Worcester, Massachusetts, United States of America
Department of Biomedical and Pharmaceutical Sciences, University of Montana, Missoula, Montana, United States of America
Vanderbilt University Medical Center, UNITED STATES
* E-mail: demendoza@ibr-conicet.gov.arAbstract
The nematode Caenorhabditis elegans requires exogenous cholesterol to survive and its depletion leads to early developmental arrest. Thus, tight regulation of cholesterol storage and distribution within the organism is critical. Previously, we demonstrated that the endocannabinoid (eCB) 2-arachidonoylglycerol (2-AG) plays a key role in C. elegans since it modulates sterol mobilization. However, the mechanism remains unknown. Here we show that mutations in the ocr-2 and osm-9 genes, coding for transient receptors potential V (TRPV) ion channels, dramatically reduce the effect of 2-AG in cholesterol mobilization. Through genetic analysis in combination with the rescue of larval arrest induced by sterol starvation, we found that the insulin/IGF-1signaling (IIS) pathway and UNC-31/CAPS, a calcium-activated regulator of neural dense-core vesicles release, are essential for 2-AG-mediated stimulation of cholesterol mobilization. These findings indicate that 2-AG-dependent cholesterol trafficking requires the release of insulin peptides and signaling through the DAF-2 insulin receptor. These results suggest that 2-AG acts as an endogenous modulator of TRPV signal transduction to control intracellular sterol trafficking through modulation of the IGF-1 signaling pathway
Author summary
Although cannabis extracts have been used in folklore medicine for centuries, the past few years have seen an increased interest in the medicinal uses of cannabinoids, the bioactive components of the cannabis plant, for treatment of many diseases of the nervous system. However, the human body naturally produces endocannabinoids that are similar to the cannabinoids present in Cannabis sativa. Our goal is to understand how endocannabinoids maintain cholesterol homeostasis in animals, underscoring the importance of cholesterol balance for healthy life. Both cholesterol excess and cholesterol deficiency can have detrimental effects on health, and a myriad of regulatory processes have thus evolved to control the metabolic pathways of sterol metabolism. The nematode C. elegans is auxotroph for sterols. Therefore, in contrast to mammals, they cannot synthesize sterols and dietary supply is essential for survival. The aim of our study was to elucidate the mechanism by which endocannabinoids abolish larval arrest of C. elegans induced by cholesterol depletion. We show that endocannabinoids stimulate the insulin pathway, which affects development, reproduction and life span, to modulate mobilization of cholesterol in C. elegans. Our studies have important implications for a better understanding of human pathological conditions associated with impaired cholesterol homeostasis.
Data Availability
All relevant data are within the manuscript and its Supporting Information files.
Introduction
Cholesterol is essential for a diverse range of cellular processes, including hormone signaling, fat metabolism, and membrane structure and dynamics. Dysregulation of cholesterol and lipid homeostasis can have a major impact on development and disease [1,2]. Cholesterol deficiency can result in blunt steroid hormone production, reduced serotonin levels, vitamin deficiencies, and increased mortality, whereas cholesterol excess is a risk factor for cardiovascular disease, diabetes, neurodegeneration, and inflammation [3–8]. Thus, understanding cholesterol and lipid homeostasis is critical to illuminate aspects of human health and longevity.
The nematode Caenorhabditis elegans requires exogenous cholesterol since it cannot synthesize it de novo [9]. In C. elegans, cholesterol regulates at least two processes. First, it is required for growth and progression through larval stages, as well as for proper shedding of old cuticles during larval molting events [10]. Second, it regulates entry into a specialized diapause stage adapted for survival under harsh conditions, called the dauer larva [11]. Tight spatial and temporal regulation of uptake, storage, and transport of sterols to appropriate subcellular compartments is required for cholesterol to exert its diverse cellular functions [10].
Despite the pivotal role of sterols in C. elegans development, the regulation of cholesterol metabolism is only now beginning to be understood. Previously, it was shown that worms grown in the absence of cholesterol arrest as dauer-like larvae in the second generation [9]. The sterols that govern dauer formation are bile-acid-like hormones called dafachronic acids (DAs) [11]. Molecular mechanisms underlying their function have been intensely studied. DAs inhibit dauer formation by binding to the nuclear hormone receptor DAF-12, which, in the absence of DAs, activates the dauer program [12,13]. Even though cholesterol is associated with cell membranes and interacts with multiple lipid species, very little is known about how lipids influence cholesterol trafficking. It was recently discovered that the C. elegans glycolipids phosphoethanolamine glucosylceramides (PEGCs) stimulate the growth of worms by as yet unknown mechanism under conditions of cholesterol scarcity [14]. We also recently reported that the best studied endocannabinoids (eCBs), 2-arachidonoyl glycerol (2-AG) and arachidonoyl ethanolamine (AEA), lipid messengers that elicit a plethora of biological functions in mammals, enhance traffic of cholesterol in C. elegans [15]. We found that these eCBs stimulate worm growth under conditions of cholesterol scarcity and reverse the developmental arrest of ncr-2; ncr-1 mutants [15]. ncr-1 and ncr-2 encode proteins with homology to the human Niemann-Pick type C (NP-C) disease gene (NPC-1) and are involved in intracellular cholesterol trafficking in C. elegans [16]. The mechanism by which these signaling lipids exert their effects on cholesterol homeostasis within large endocrine networks is unknown. Here we show that 2-AG promotes cholesterol mobilization through pathways that are independent of known C. elegans cannabinoid-like receptors that mediate regulation of regenerative axon navigation [17] and behavior [18]. We find that mutations in the ocr-2 and osm-9 genes, coding for transient receptors potential of the vanilloid subtype (TRPV) ion channels, dramatically reduce the effect of 2-AG in cholesterol mobilization. We also show that the IIS pathway and UNC-31/CAPS, the calcium-activated regulator of dense-core vesicles exocytosis (DCVs), are necessary for 2-AG-mediated stimulation of cholesterol mobilization. This suggests that 2-AG-dependent cholesterol traffic requires signaling of insulin peptides through the DAF-2 insulin receptor. Our results indicate that 2-AG acts as an endogenous modulator of TRPV channels to control intracellular sterol trafficking through modulation of the IIS signaling pathway.
Results

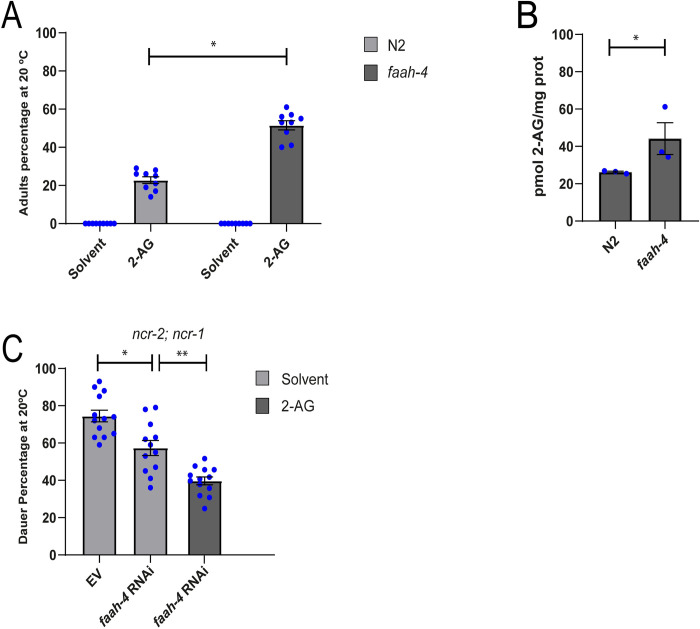

FAAH-4 is involved in cholesterol homeostasis in C. elegans
C. elegans interrupt reproductive development and arrest as L2-like larvae (L2*) when grown for two generations without cholesterol [9]. Previously, we found that this arrest is partially abolished by supplementation with the eCB 2-AG [15, Fig 1A]. Recent work has revealed that the monoacylglycerol lipase FAAH-4, but no other C. elegans FAAH enzymes, hydrolyzes 2-AG [19]. To test the specificity of eCB signaling we asked whether a 6951 pb deletion of the faah-4 gene (Δfaah-4) [19] could enhance the rescuing effect of 2-AG on the arrest induced by cholesterol depletion in C. elegans. Indeed, we found that under sterol free conditions exogenous 2-AG (50 μM) significantly increases the formation of adults in Δfaah-4 compared to wild-type animals (Fig 1A). In agreement with this result, faah-4 animals displayed elevated levels of endogenous 2-AG compared to the wild type (Fig 1B, [19]). Next, we investigated whether faah-4 deficiency relieves the phenotype of mutations that perturb cholesterol transport. We found that FAAH-4 RNAi decreased the Daf-c penetrance in null mutants for the Niemann-Pick homologues ncr-2; ncr-1 (Fig 1C). As expected, FAAH-4 RNAi also enhanced the ability of a low concentration of 2-AG (10 μM) to partially suppress dauer formation of ncr-2; ncr-1 double mutants (Fig 1C). These results suggest that FAAH-4 is an important enzyme in cholesterol homeostasis.

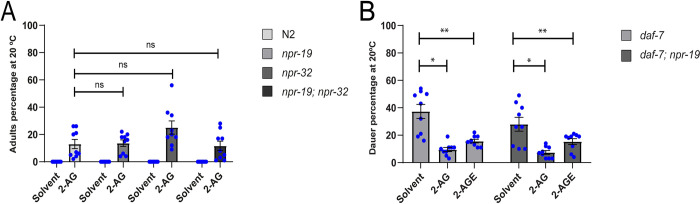

2-AG controls cholesterol homeostasis through NPR-19 and NPR-32 independent pathways
The biological effects of 2-AG in mammals are mediated through its interaction with the G-protein coupled type-1 (CB1) and type-2 (CB2) cannabinoid receptors [20–22]. In a C. elegans genome study where vertebrate CB1 were compared to other G protein-coupled receptors (GPCRs), the neuropeptide receptors (NPRs) NPR-19 and NPR-32, were shown to have conservation of the critical amino acid residues involved in eCB ligand binding [17]. NPR-19 has been shown to be a 2-AG receptor that modulates monoaminergic (e.g., serotonin and dopamine) signaling in C. elegans [18]. To determine whether NPR-19 is required for the 2-AG-mediated stimulation of cholesterol mobilization, we screened mutant animals for loss of 2-AG-dependent enhancement of cholesterol trafficking. We found that 2-AG relieved the L2* arrest of npr-19 and npr-32 mutants when cholesterol was depleted from the diet (0 μg/ml) (Fig 2A), indicating that 2-AG stimulation of cholesterol trafficking is independent of NPR-19 and NPR-32. Moreover, 2-AG partially rescued the arrest of the double mutant npr-19; npr-32 under cholesterol depletion (Fig 2A), ruling out the possibility that these two receptors might redundantly participate in the eCB effect. We also tested the interaction of NPR-19 with the DAF-7/TGF-β pathway, which plays an important role in promoting development by affecting cholesterol metabolism and DA production [14]. daf-7 mutants constitutively form dauer larvae when grown in normal dietary cholesterol (13 μM) due to impaired cholesterol trafficking [14]. We found that npr-19 did not increase the penetrance of the daf-c defects seen in daf-7 mutants at 20°C (Fig 2B). Moreover, dauer formation in both daf-7 and daf-7; npr-19 mutant animals were rescued by either 2-AG or 2-arachidonoylglycerol-eter (2-AGE) (Fig 2B), a non-hydrolysable analog of 2-AG. Together, these data demonstrate that 2-AG acts in cholesterol mobilization through NPR-19 and NPR-32 independent pathways. We also tested several 2-AG receptor candidates, such as GPCRs and neurotransmitter receptors, identified by examination of protein BLAST data using human CB1 receptor sequences. However, animals mutated in these potential targets were rescued by 2-AG under cholesterol depletion growing conditions (S1 Table).

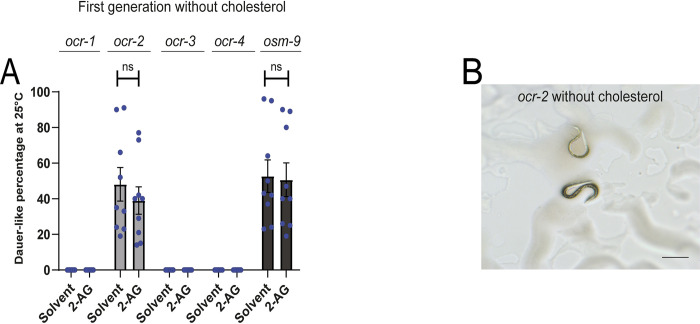

TRPV channels are required for 2-AG-dependent cholesterol mobilization
In mammals many cannabinoids can activate TRPV channels [23]. ocr-2 encodes a channel of the TRPV subfamily that functions in C. elegans olfaction, nociception and osmosensation [24]. We found that, similar to C. elegans fat-3 and fat-4 mutants, which are deficient in PUFAs and display aberrant cholesterol mobilization [15], ocr-2 animals displayed a high incidence of arrested dauer-like larvae in the first generation without cholesterol (Fig 3A and 3B). While 2-AG partially suppresses dauer formation of fat mutants [15], 2-AG was unable to rescue the arrest of ocr-2 animals starved from cholesterol. To determine the specificity of ocr-2 requirement for mobilization of cholesterol, we examined mutants for other TRPV channels. The C. elegans genome encodes five members of the TRPV family, ocr-1 through ocr-4 and osm-9. We found that null mutations in ocr-1, ocr-3 and ocr-4 produced almost 100% first generation gravid adults in the absence of cholesterol (Fig 3A). In contrast, and similar to ocr-2 mutants, about 50% of cholesterol starved osm-9 animals exhibited a dauer-like phenotype in the first generation (Fig 3A and 3B). 2-AG was also unable to prevent the arrest of osm-9 animals starved from cholesterol (Fig 3A). Taken together, these data demonstrate that both osm-9 and ocr-2 mutations eliminate 2-AG-dependent cholesterol mobilization.
In C. elegans, both, osm-9 and ocr-2 TRPV genes are expressed in ADF serotonergic neurons and also co-expressed in five pairs of non-serotonergic chemosensory neurons: the AWA, ADL, ASH in the head and the PHA and PHB in the tail [25]. It has been reported that OSM-9 and OCR-2 regulate serotonin (5-HT) biosynthesis in ADF neurons through the modulation of the tph-1 gene expression, which encodes a key enzyme required for 5-HT biosynthesis from tryptophan [26]. A recent report suggested that 2-AG stimulates 5-HT release through a pathway requiring OSM-9, from the serotonergic ADF neurons to modulate C. elegans behavior [27]. However, we found that the ability of 2-AG to rescue the development of cholesterol depleted worms is unaffected by mutations in tph-1 or in 5-HT receptor mutants (S1 Fig and S1 Table). These results indicate that 2-AG stimulation of cholesterol mobilization in C. elegans is independent of 5-HT release.
Both OSM-9 and OCR-2 are thought to function cooperatively and assemble into homo- and hetero-tetramers [28]. Recent electrophysiological studies employing the Xenopus laevis oocyte expression system demonstrated that OSM-9/OCR-2 respond to warming, suggesting that these channels cooperatively function as a temperature receptor [29]. Because OSM-9 and OCR-2 channels mediate influx of divalent cations with a preference for calcium [30], we hypothesized that 2-AG might be an agonist of channels containing OSM-9 and/or OCR-2 subunits and that activation of the channel is the trigger mechanism for 2-AG-induced mobilization of cholesterol in C. elegans. To test this hypothesis, we expressed OSM-9 and OCR-2 in Xenopus oocytes. Our analysis shows that 2-AG did not elicit currents in Xenopus oocytes injected with osm-9 and ocr-2 cRNAs either alone or in combination (S2 Fig). However, warm stimulus (about 36°C) evoked currents in Xenopus oocytes injected with both osm-9 and ocr-2 cRNAs (S2 Fig), indicating the expression of active channels.
To determine whether 2-AG can induce neuronal activity in vivo in neurons that co-express osm-9 and ocr-2 we used calcium imaging. 100 μM 2-AG failed to induce calcium transients in animal that express the GCaMP6 in ASH neurons (S3 Fig). The fact that 2-AG did not induce OSM-9/OCR-2 channel activation in vitro or in vivo, suggests that this compound acts upstream or in parallel of TRPV channels in sensory transduction.

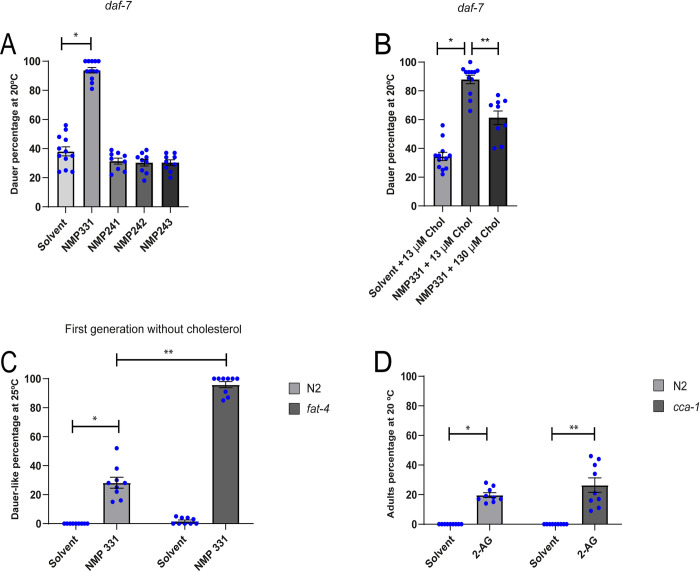

The cannabinoid based T-Type calcium channel blocker NMP331 antagonizes the action of 2-AG on cholesterol mobilization
Since the effect of 2-AG on cholesterol mobilization appears not to be mediated by CB receptor orthologues (Fig 2), we tested synthetic cannabinoid ligands with the expectation that some of these compounds might act as inverse agonists/antagonists of 2-AG. This approach has been used to identify lipophilic molecules that interact with putative eCB receptors with conserved function but which diverge from canonical mammalian receptors [31]. We reasoned that if a synthetic ligand blocks a cannabinoid signaling pathway involved in cholesterol trafficking, the Daf-c defects seen in daf-7 mutants would be increased. We tested whether a series of CB1/CB2 receptor ligands (NMP compounds) that target both CB receptors and T-type calcium channels [32,33] modulate the Daf-c phenotype of daf-7 (e1372) mutants. Of the four compounds tested, only one compound, NMP331 (named as compound 10 in reference 33), at a concentration of 1 μM robustly enhanced the dauer phenotype of daf-7 at a semi-permissive temperature (20°C) (Fig 4A). Supplementation of growth media with an excess of cholesterol lowered dauer formation in daf-7 exposed to NMP331 (Fig 4B), suggesting that this compound affects sterol mobilization. If NMP331 affects cholesterol mobilization, we predicted that, in the presence of this compound, wild-type animals would arrest already in the first generation in the absence of externally provided sterols. While wild type animals produced almost 100% gravid adults in the first generation without cholesterol, exposure to NMP331 in the absence of cholesterol resulted in a high incidence (20%) of arrested dauer-like larvae (Fig 4C). Furthermore, 2-AG antagonized the enhancing effect of 1 μM of NMP331 on dauer formation in daf-7 worms in a dose-response manner (S4A Fig).
Strikingly, when fat-4 animals, which are unable to synthesize AEA or 2-AG [15], were exposed to NMP331 in a cholesterol depleted medium, formed 90% dauer-like worms in the first generation, while untreated animals produced mostly gravid adults (Fig 4C).
Using radio-ligand assays and electrophysiology in human embryonic kidney cells, it was determined that compound NMP331, in addition to showing high affinity for CB1 receptors, also blocks CaV3.2 T-type calcium channels [33]. Unlike vertebrates that possess three genes that encode T-calcium channels, the genome of C. elegans encodes a single T-type channel named cca-1 [34]. We found that 2-AG-dependent cholesterol mobilization was still present in a cca-1 mutant (Fig 4D), suggesting that this T-type channel is not the target of NMP331. We also found that NMP331 can still exert its effects in npr-19 and npr-32 mutants (S4B and S4C Fig). This result shows that NMP331 impairs cholesterol mobilization trough NPR-19 and NPR-32 independent pathways.
Taken together we conclude that NMP331 impacts cholesterol availability, transport and/or metabolism by antagonizing the stimulatory role of 2-AG in cholesterol mobilization. At this point we do not know whether NMP331 affects other molecular targets, such as ion channels, involved in the cannabinoid-mediated modulation of cholesterol trafficking.

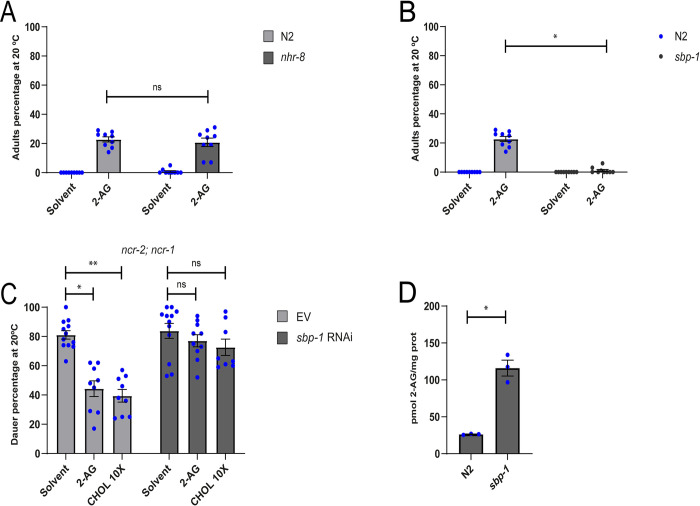

SBP-1 is required for 2-AG modulation of cholesterol mobilization
To identify potential C. elegans genes controlling the regulatory circuit of 2-AG-mediated cholesterol mobilization, we performed RNAi enhancer screen on daf-7 temperature sensitive mutants, using an RNAi library containing transcription factors, transporters and nuclear receptors potentially involved in cholesterol homeostasis (S2 Table). We first surveyed for enhancement of the daf-7 Daf-c phenotype and, in a secondary survey, screened for loss of 2-AG-dependent rescue of the developmental arrest caused by cholesterol depletion.
We identified two loci, nhr-8 and sbp-1, that in combination with daf-7 give a strong Daf-c constitutive phenotype (S2 Table). nhr-8, codes for a nuclear receptor that plays an important role in cholesterol homeostasis in C. elegans [35], while sbp-1, encodes the single orthologue of the sterol regulatory element (SREBP) family which regulates transcription of genes required in many aspects of lipid metabolism [36]. We found that supplementation with 2-AG partially rescued the developmental arrest of nhr-8 animals depleted of cholesterol (Fig 5A). Thus, nhr-8 is not positioned within the 2-AG pathway of cholesterol mobilization. In contrast, 2-AG was unable to abolish the developmental arrest induced by cholesterol depletion in sbp-1(ep79) animals (Fig 5B). This suggests that 2-AG promotes mobilization of cholesterol through a pathway that requires the transcriptional activity of SBP-1/SREBP. Consistent with this result, 2-AG was unable to suppress dauer formation in ncr-2; ncr-1 mutants exposed to sbp-1 RNAi, even though this Daf-c phenotype was largely suppressed by raising the cholesterol concentration in the growth media (Fig 5C). Surprisingly, this high cholesterol concentration did not rescue the Daf-c phenotype of ncr-2; ncr-1 mutants subjected to sbp-1 RNAi. This suggests that sbp-1 genetically interacts with the Niemann Pick proteins to regulate intracellular cholesterol trafficking. These findings agree with previous studies showing that ncr-1 is transcriptionally regulated by SBP-1 [37] and that mammalian NPC-1 expression is sterol-controlled by SREBP [38].
Finally, we found that sbp-1 animals displayed elevated 2-AG levels compared with control animals (Fig 5D). This could be due to a compensatory mechanism in order to optimize cholesterol trafficking in animals depleted of SBP-1.
Taken together, our results suggest that SBP-1, in concert with the Niemann-Pick homologs, plays an important role in the 2-AG signal transduction pathway to mobilize cholesterol.

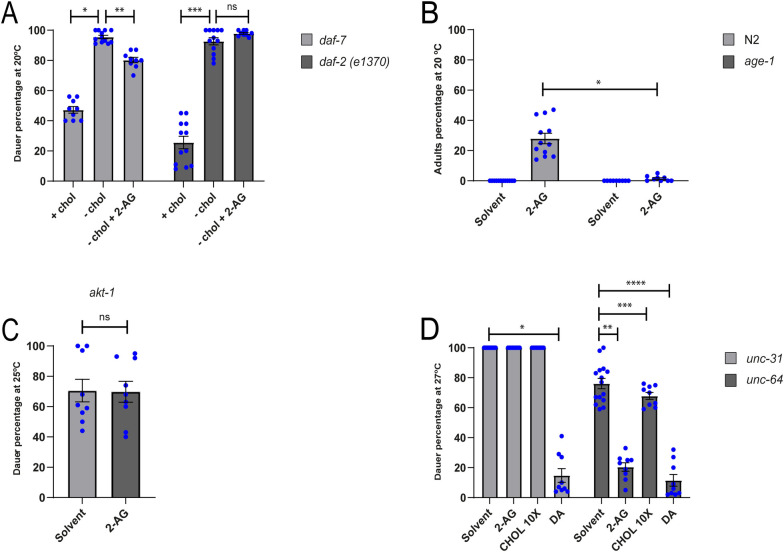

Mobilization of sterols by 2-AG is controlled by the insulin pathway
The DAF-2/IIS and DAF-7/TGF-β signaling comprise the major endocrine pathways modulating the conversion of cholesterol into DA [13]. In a previous study it was shown that temperature-sensitive daf-7 mutants are hypersensitive to cholesterol depletion and form dauer larvae in the absence of external cholesterol already at 20°C [14]. More recently, we reported that upon cholesterol deprivation 2-AG partially rescues the dauer arrest of daf-7 animals [15]. We determined that 2-AG also prevents dauer formation in mutants which are defective in core components of the DAF-7/TGF-β signaling pathway (S5A Fig), suggesting that 2-AG functions independently of this pathway.
Interestingly, daf-2(e-1370) mutants with reduced Insulin-IGF-1 receptor signaling also form about 90% dauers at 20°C in the first generation in the absence of cholesterol (Fig 6A). Nevertheless, unlike daf-7 mutants, 2-AG could not suppress the dauer arrest of daf-2 animals starved from cholesterol at 20°C (Fig 6A) or at 23°C (S5B Fig). This suggests that 2-AG-mediated mobilization of cholesterol depends on the IIS pathway. We also tested the requirement of phosphoinositide-3 kinase AGE-1/PI3K and of the serine threonine kinase AKT-1 that act downstream of the DAF-2 insulin receptor. 2-AG was unable to suppress the dauer-like phenotype of both single mutants growing under sterol depleted conditions (Fig 6B and 6C).
The DAF-2/IIS pathway has several physiological functions. Thus, it has been suggested that it is involved in the process of dauer formation by regulating the levels of DA via DAF-16 [9]. Indeed, previous work showed that the substitution of dietary cholesterol by lophanol, a sterol from which DA cannot be derived [9,39], leads to translocation of DAF-16 to the nucleus [9]. In agreement with this report [9] we found that after two generations of cholesterol depletion, a DAF-16::GFP fusion protein exhibited significantly higher accumulation in the nucleus compared to worms grown on cholesterol supplemented media (Fig 7). Exogenous 2-AG largely inhibited the nuclear localization of DAF-16 (Fig 7), adding important evidence to the hypothesis that the eCBs stimulate the mobilization of cholesterol and its conversion into DA.
Finally, we found that the 2-AG antagonist, NMP331, does not enhance the Daf-c phenotype at 20°C of daf-2(e1370) mutants (S5C Fig). This result shows that NMP331 requires a functional IIS signaling pathway for its effect on cholesterol trafficking. Taken together, our results suggest that IIS and 2-AG converge in a process essential for cholesterol mobilization.
UNC-31 and HID-1 are required for 2-AG-dependent cholesterol mobilization
We next sought to determine whether 2-AG rescued dauer formation in worms deficient in proteins that act upstream DAF-2, such as UNC-64/syntaxin [40] and UNC-31/CAPS [41]. unc-64 and unc-31 mutants have constitutive dauer formation at 27°C but not at 25°C (Fig 6D) [42]. Dauer formation of unc-64 mutant animals was markedly suppressed at 27°C by either 2-AG or DA under normally dietary cholesterol. As expected, high concentrations of cholesterol also suppressed dauer formation of unc-64 mutants at 27°C (Fig 6D). In contrast, 2-AG was unable to suppress the Daf-c phenotype of unc-31 mutants, suggesting that its gene product is essential for the 2-AG-dependent mobilization of cholesterol (Fig 6D). Consistent with a role of UNC-31 in cholesterol homeostasis, we found that DA rescues the dauer arrest of unc-31 animals (Fig 6D). unc-31 encodes the C. elegans homolog of mammalian Ca2+ activated protein for secretion (CAPS), required for the regulated release of dense core vesicles (DCVs), which contain biogenic amines, neuropeptide, and insulins [41,43–45]. In addition, 2-AG was unable to rescue the Daf-c phenotype at 27°C of animals deficient in HID-1, a key component in the secretion of DCVs [46] (S6A Fig). HID-1 is expressed in all neuron and gut cells of C. elegans. Expression of HID-1 under the rab-3 promoter in neurons in a hid-1(sa722) mutant background produced a slight, but statistically significant, rescue of the effect of 2-AG on dauer formation (S6B Fig). In contrast, 2-AG failed to rescue dauer formation when HID-1 was expressed under the ges-1 promoter in the gut of hid-1 animals (S6B Fig). Taken together, these experiments indicate that diminished neural release of DCVs impairs the effect of 2-AG on cholesterol mobilization.
Discussion
Although cannabis extracts have been used in folklore medicine for centuries, the past few years have increased the interest in the medicinal use of cannabinoids, the bioactive components of the cannabis plant, in the treatment of many diseases of the nervous system. We have recently demonstrated that 2-AG and AEA, the best characterized eCBs reverse the blockade of intracellular trafficking of cholesterol in C. elegans [15]. Since the endogenous cannabinoid 2-AG and AEA are synthesized within the brain and CNS [47], unraveling the molecular basis of cholesterol mobilization by eCBs in C. elegans could have important implications for a greater understanding of human pathological conditions associated with impaired cholesterol homeostasis.
Cannabinoids primarily activate Gαo-coupled cannabinoid receptors 1 and 2 (CB1 and CB2) [20,22]. CB1 is localized primarily in the brain and CNS, whereas CB2 is restricted to the periphery and certain leukocytes [48]. Although initial reports suggested that nematodes lacked a canonical CB receptor [49,50], it has been determined that C. elegans also possesses cannabinoid-like receptors [17,18]. NPR-19 is a functional orthologue to the mammalian CB1/2, and NPR-32, a functional orthologue to GPR18 and GPR55 [17]. Here we show that the modulation of cholesterol homeostasis by 2-AG is independent of the GPCRs NPR-19 and NPR-32 signaling. Instead, we found that 2-AG displays interactions with components of the insulin/IGF1 signaling, a major endocrine pathway modulating DA production and dauer formation. We determined that reduction of the IIS pathway by mutations in the insulin/IGF receptor homolog daf-2, the phosphoinositide-3 kinase AGE-1/PI3K or the serine threonine kinase AKT-1 result in animals that are not rescued by 2-AG in a cholesterol depleted medium (Fig 6). Since reduction of DAF-2/IIS pathway activity significantly affects 2-AG signaling, we asked whether insulin like peptide secretion controls eCB-mediated cholesterol homeostasis. We found that the calcium-activated regulator of dense-core vesicle release (DCVs), UNC-31/CAPS, which functions in the nervous system to mediate release of insulin like peptides [41,43–45] is essential for 2-AG-mediated stimulation of cholesterol mobilization (Fig 6D). It is puzzling that unc-64 does not behave in the same way that unc-31 (Fig 6D) as these two genes are involved in mediating Ca2+ regulated neurotransmitter secretion [42,51]. Nevertheless, we cannot exclude a role for UNC-64/syntaxin in 2-AG-mediated cholesterol homeostasis since in our experiments we used unc-64 (e246) which is a partial loss of function allele [42], while unc-31 (e928) is a deletion that removes most of the unc-31 gene [42].
In summary, the essentiality of unc-31 combined with the requirement of hid-1 for 2-AG signaling, suggests that neural release of DCVs is required for 2-AG regulation of cholesterol homeostasis. We hypothesize that 2-AG stimulates cholesterol mobilization through the release of insulin-like peptides.

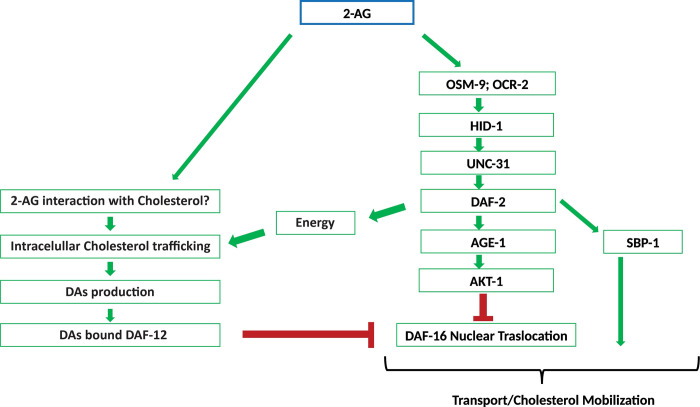

The simplest model consistent with previous [15] and present results is that 2-AG has a dual role, promoting the release of insulin peptides contained in DCVs and removing cholesterol from internal pools (Fig 8). It is not known how and where worms store the internal sterol pools. Even though cholesterol is associated with cell membranes and interacts with multiple lipid species, very little is known about how lipids influence cholesterol trafficking. One of the few examples is the positive effect of the phospholipid lysobisphosphatidic acid on the trafficking of cholesterol through the endolysosomal compartment [52]. Owing to the huge diversity of membrane lipids, multiple other lipid species might emerge as additional modulators of the cholesterol trafficking process. eCBs are amphiphilic molecules derived from phospholipids that are unlikely to diffuse passively in the membrane. Several reports have shown that cholesterol behaves as a specific binding partner for eCBs [53,54]. Following an initial interaction of either 2-AG or AEA with cholesterol, mediated by the establishment of hydrogen bonds, they are attracted towards the membrane interior forming a molecular complex [53,54]. This raises the possibility that the interaction of 2-AG with cholesterol enhances the intracellular trafficking of sterols to steroidogenic tissues, positively affecting production of DAs. This regulated transport of cholesterol demands energy [55]. As upregulation of the insulin pathway is linked to increased metabolic rates [56], 2-AG-mediated activation of the DAF-2 pathway may induce a metabolic shift to provide the fuel needed to meet the high energy demands of C. elegans cholesterol mobilization (Fig 8). In addition, stimulation of the IIS pathway should enforce, together with DA-bound DAF-12, the DAF-16/FOXO cytoplasmic retention to rescue the arrest of cholesterol depleted worms (Fig 8).
Many of the physiological effects produced by eCBs are not completely understood. As we report here, some of them may reflect their influence on cholesterol trafficking. Interestingly, eCBs and eCB agonists are known to increase the hepatic expression of SREBP in mice [57]. Here we show that the simple orthologue of mammalian SREBP in C. elegans, SBP-1, plays an important role in 2-AG mobilization of cholesterol (Fig 5B). Notably, RNAi of SBP-1 increased the penetrance of Daf-c defects seen in daf-2 (e1370) when grown in normal dietary cholesterol (S7 Fig). Although experimental evidence has demonstrated that daf-2 controls the expression of numerous genes predicted to participate in fatty acid metabolism [58], it is not clear how DAF-2 and its regulatory targets regulates lipid metabolism. Our findings indicate that SBP-1 and IIS converge on a critical physiological process potentially related to the role of eCBs in cholesterol availability (Fig 8). Future work should elucidate the nature of such interaction.
The specific molecular mechanisms through which C. elegans sensory neurons detect eCBs remain to be deciphered, however our findings suggest a key role for the osm-9 and ocr-2 TRPV genes in the control of cholesterol trafficking mediated by 2-AG. We found that both osm-9 and ocr-2 arrest already in the first generation without externally provided sterols (Fig 3), reminiscent of fat-3 and fat-4 mutants which are aberrant in cholesterol mobilization because they are unable to synthesize AEA and 2-AG [15]. Moreover, the arrest of osm-9 and ocr-2 mutants is not rescued by 2-AG, strongly suggesting that OSM-9/OCR-2 TRPV channel is essential for 2-AG-dependent cholesterol mobilization. Since the TRPV family encodes for non-selective cation channels with a preference for Ca2+ [30], it is possible that OCR-2/OSM-9 may directly activate insulin secretion trough UNC-31, a Ca2+ dependent regulator of DCVs release.
Although the exact mode of activation of OSM-9 and OCR-2 in neurons is partly understood, our data are consistent with the hypothesis that 2-AG acts upstream of the TRPV channel. Interestingly, it has been suggested that G-protein-coupled lipid signaling pathways regulate TRPV channel signaling in chemosensory neurons [59]. This yet to be identified pathway could be specifically inhibited by the cannabinoid based calcium blocker NMP331, that potently competes with 2-AG in cholesterol mobilization (S4A Fig).
Our insights in the role of eCBs in nematode cholesterol homeostasis has added an important new piece of information. Yet, the puzzle remains incomplete, and many mechanistic questions have yet to be answered. It seems plausible that both worms and mammals possess a fully functional eCB signaling pathway that regulates cholesterol homeostasis. Further dissecting cannabinoid regulation of lipid homeostasis in the context of larger endocrine networks should reveal how these processes alter disease states, health and possibly longevity.
Materials and methods
Materials
2-AG and 2-AGE were purchased from Cayman Chemical (Ann Arbor, Michigan, USA) and stock solutions were made in acetonitrile at 1 mg/ml and are stored at -80°C. Cholesterol, Dubelcco´s medium (DMEM) and antioxidant BHT were purchased from Sigma (Sigma-Aldrich, St. Louis, Missouri, USA). Δ4-DA and Δ7-DA were provided by Prof. H.-J. Knölker. All buffers, salts and chemical were reagent grade and were used without further treatments. Unless specified, all reagents were purchased from Merck or Sigma. The cannabinoid receptor ligands (NMP compounds) 241, 242, and 243 are named as compounds 40, 54 and 41 in reference 32. Compound NMP331 is named as compound 10 in reference 33.
Nematode maintenance and strains
Standard C. elegans culture and molecular biology methods were used. Strains were cultured at 15°C or 20°C on nematode growth media (NGM) agar plates with the E. coli OP 50 strain as a food source [60]. The wild type strain was Bristol N2. Some strains were provided by the Caenorhabditis Genetics Center (CGC) at the University of Minnesota. The strains hid-1 (sa722), hid-1 (sa722); lin-15 (n765); jsEx897 [rab-3p-HID-1-GFP], hid-1 (sa722); lin-15 (n765); jsEx909 [ges-1p-HID-1-GFP], hid-1 (sa722); lin-15 (n765); jsEx896 [hid-1p-HID-1-GFP] were kindly provided by D. Rayes. The strains used were: N2 Bristol (wild-type), daf-7(e1372), daf-2(e1370), daf-2(e1368), fat-4 (ok958), ncr-1 (nr2022); ncr-2 (nr2023), npr-19 (ok2068), tyra-3(ok325), ckr-2(tm3082), gar-2(ok520), gar-3(vu78), gar-1(ok755), ser-2(ok2103), npr-11 (ok594), ser-1(ok345), ser-5(ok3087), npr-5(ok1583), dop-1(vs101), mod-1(ok103), octr-1(ok371), npr-16(ok1541), ser-7(tm1325), ser-4(ok512), dop-2(vs105), npr-24(ok3192), dop-1(ok398), npr-32(ok2541), npr-35 (ok3258), gnrr-1 (ok238), age-1 (hx546), akt-1 (ok525), daf-4 (e1364), daf-8 (e1393), unc-64 (e246), unc-31(e928), daf-14 (m77), faah-4 (lt121), sbp-1 (ep79), nhr-8 (ok186), ocr-1 (ok132), ocr-2 (ok1711), ocr-3 (ok1559), ocr-4 (vs137), osm-9 (ok1677), tph-1 (mg280), cca-1 (ok3442), zIs356 [daf-16p::daf-16a/b::GFP + rol-6(su1006)]. hid-1 (sa722), hid-1 (sa722); lin-15 (n765); jsEx897 [rab-3p-HID-1-GFP], hid-1 (sa722); lin-15 (n765); jsEx909 [ges-1p-HID-1-GFP], hid-1 (sa722); lin-15 (n765); jsEx896 [hid-1p-HID-1-GFP]; xuEx1978 [Psra-6::Gcamp6(f), Psra-6::DsRed].
Preparation of sterol-depleted plates and sterol-deprived worm culture
To obtain sterol-free conditions, agar was replaced by ultrapure agarose and peptone was omitted from plates as described earlier [15]. Briefly, agarose was washed three times overnight with chloroform to deplete the trace sterols in it. Salt composition was kept identical to NGM plates. As a food source, E. coli NA22 grown overnight in sterol-free culture medium DMEM was used. Bacteria were rinsed with M9 buffer and 20 times concentrated. Bleached embryos were grown for one generation on sterol-free agarose plates. The resulting gravid adults were bleached and the obtained embryos were used in various assays.
The animals grown for two generations in the absence of cholesterol arrest as L1-L2* larvae [9]. The bypass of the L2* larval arrest is indicated as % of developed adults.
Generation of daf-7; npr-19 and npr-19; npr-32 double mutants
The daf-7 and npr-32 mutants were each crossed into npr-19 to generate double mutants by standard methods. Crosses were confirmed by PCR genotyping and constitutive dauer arrest at 25°C.
RNAi screen
To identify genes controlling cholesterol trafficking by 2-AG we carried out RNAi enhancer screen of daf-7 (e1372) mutants, which have partially diminished internal pool mobilization of cholesterol [14]. The RNAi mini-library was generated by selecting 16 clones from the Ahringer RNAi library. RNAi screen was carried out on plates supplemented with cholesterol (13 μM final concentration). The enhanced effect of RNAi was examined in the F1 generation. To this end bleached embryos were left to hatch overnight in M9 at 20°C and the resulting L1s were seeded to RNAi plates and grown at 20°C. First, we surveyed for enhancement of the Daf-c phenotype (S2 Table) and, in a secondary survey, screened for loss of 2-AG-dependent rescue of the developmental arrest caused by two generations of cholesterol depletion.
Dauer formation assays
Dauer assays were performed as previously described [15]. In general, 60–80 L1s or embryos were transferred to NGM plates seeded with E. coli (HT115, NA22 or OP50). eCBs (final concentration 50 μM) or NMP331 (final concentration 1 μM or as indicated in Fig 4) were added to the bacteria immediately prior to seeding. The final concentrations of these compounds were calculated according to the volume of the NGM agar used for the preparation of the plates. Depending on the sort of essays after 3, 4 or 5 days the dauer percentage was scored. Δ7-DA was used alternatively in dauer rescue experiments at a concentration of 90nM.
Lipid Extraction and endocannabinoid analysis by HPLC-MS/MS
The protocol was adapted from Folch (1957) [61]. Briefly, lipid extracts were made from approximately 200 mg of frozen worm pellets grown at 20°C. Pellets were washed with M9 buffer, then re-suspended in 1.3 ml pure methanol and sonicated three times for 30 seconds. After sonication, 2.6 ml of chloroform and 1.3 ml 0.5 M KCl/0.08 M H3PO4 were added. Butylated hydroxytoluene (BHT, 0.005% v/v) was added to prevent lipid oxidation. Samples were then sonicated for 15 min, vortexed twice for 1 min and centrifuged for 10 min at 2.000 x g to induce phase separation. The lower, hydrophobic phase was collected, dried under constant nitrogen stream, re-suspended in 100 μl of acetonitrile and loaded into dark caramel tubes using a glass pipette.
2-AG was quantified from nematode samples by liquid chromatography (Ultimate 3000 RSLC Dionex, Thermo Scientific) coupled with an ESI triple quadrupole mass spectrometer (TSQ Quantum Access Max (QQQ), Thermo-Scientific) as previously described [15].

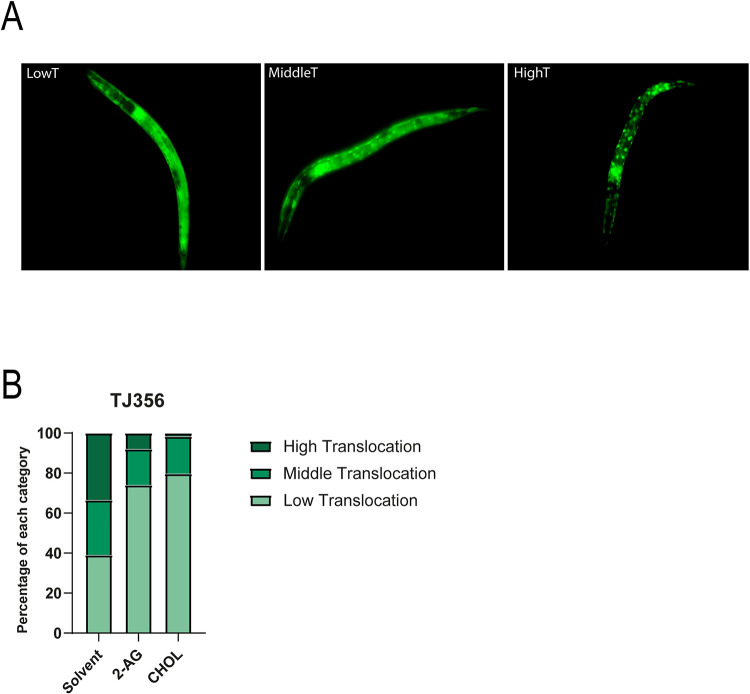

DAF-16:GFP expression analysis
A stably integrated DAF-16::GFP, TJ356 was used. The expression of GFP was observed using a Nikon Eclipse 800 microscope equipped with a fluorescent light source. The images were captured with a Andor Clara digital camera.
To observe GFP distribution, 15–25 animals were mounted on an agar pad containing 20 mM sodium azide and analyzed immediately. Animals on the pad were scored for a maximum of 10 min. DAF-16::GFP distribution was categorized based on the accumulation of GFP in the nucleus or the cytoplasm (diffuse form) in the whole animal. Individual animals were classified based on the presence of nuclear DAF-16::GFP in approximately 90%, 70% (High translocation), 50%, 30% (Middle traslocation), 10% or none (Low Translocation) of the body cells, as shown in S7 Fig. All scored animals were at the L2 stage after 72 hs of growing in the second generation under free sterol conditions.
Two-electrode voltage clamp recordings in Xenopus oocytes
For electrophysiological recording in Xenopus levis oocytes, OSM-9 and OCR-2 subunits subcloned into a modified pGEMHE vector were used. cRNAs were in vitro transcribed from linearized plasmid DNA templates using Large Scale RNA Production System (Promega, Madison, WI, USA). Xenopus oocytes were injected with 50 nl of RNase-free water containing 1.0 ng of cRNA (at a 1:1 molar ratio for heteromeric receptors) and maintained in Barth’s solution [in mM: NaCl 88, Ca(NO3)2 0.33, CaCl2 0.41, KCl 1, MgSO4 0.82, NaHCO3 2.4, HEPES 10] at 18°C. Electrophysiological recordings were performed at −60 mV under two-electrode voltage-clamp, with an Oocyte Clamp OC-725B or C amplifier (Warner Instruments Corporation, Hamden, CT, USA). Recordings were filtered at a corner frequency of 10 Hz using a 900 BT Tunable Active Filter (Frequency Devices Inc., Ottawa, IL, USA). Data acquisition was performed using a Patch Panel PP-50 LAB/1 interphase (Warner Instruments Corp., Hamden, CT, USA) at a rate of 10 points per second. Both voltage and current electrodes were filled with 3M KCl and had resistances of ∼1MΩ. Data were analysed using Clampfit from the pClamp 6.1 software (Molecular Devices, Sunnyvale, CA). During electrophysiological recordings 100 μM 2-AG was added to the perfusion solution. Recording was performed at room temperature and heat-stimulation (~ 36°C) by perfusion of heated Barth’s. The temperature of perfused bath solutions was checked with a TC-344B temperature controller (Warner Instruments) located near the oocytes. Mean ± SEM of current amplitudes of responses to temperature, 100 μM 2-AG and temperature plus 100 μM 2-AG in oocytes injected with either OSM-9, OCR-2 or OSM-9/OCR-2 were calculated using Prism 6 software (GraphPad Software Inc., La Jolla, CA, USA).
ASH calcium imaging
Animals expressing GCaMP6 in the ASH (xuEx1978 [Psra-6::Gcamp6(f), Psra-6::DsRed]) were immobilized in a PDMS microfluidic olfactory chip [62,63] and exposed to either a control buffer or a stimulus buffer containing 100mM 2-AG (Cayman Chemical Co. #62160). The required volume of 2-AG required to make 100mM solution was dissolved in 0.1% ethanol before being added to S-Basal buffer. Since the 2-AG stock solution was dissolved in acetonitrile, we added an equivalent volume of acetonitrile and 0.1% ethanol S-basal to make the control buffer. This ensured that responses were specific to 2-AG. The stimulus protocol was based on previously described exposure experiments [59]. Animals were allowed to stabilize in the olfactory chip for at least 5 minutes before recording. Recording was performed at 10x magnification on an AxioObserver A1 inverted microscope (Zeiss) connected to a Sola SE Light Engine (Lumencor) and an ORCA-Flash 4.0 digital CMOS camera (Hamamatsu). Micromanager Software [64] was used to control image acquisition. Recording was performed at 10 frames per second and 4x4 image binning. An Arduino was used to control pinch valves to direct stimulus and control buffer to the nose of animals in the following sequence: 6 second baseline, 4 second stimulation, 10 second interstimulus interval, 4 second stimulation, 6 second washout. GCaMP fluorescence was extracted using Matlab (Mathworks) scripts and the results were plotted using GraphPad Prism.
Supporting information
Acknowledgements
Some strains were provided by the CGC, which is funded by NIH Office of Research Infrastructure Programs (P40 OD010440). We thank Sider Penkov and Teymuras Kurzchalia for experimental data sharing, to Luisa Cochella, Claudia Banchio and Cecilia Mansilla for critically reading the manuscript and to Diego Rayes and Shawn Xu for the worm strains.
