Antimicrobial resistance determinants are associated with Staphylococcus aureus bacteraemia and adaptation to the hospital environment: a bacterial genome-wide association study
aNuffield Department of Medicine, Experimental Medicine Division, University of Oxford, John Radcliffe Hospital, Oxford OX3 9DU, UK
bMicrobiology and Infectious Diseases Department, Oxford University Hospitals NHS Foundation Trust, John Radcliffe Hospital, Oxford OX3 9DU, UK
cBig Data Institute, Nuffield Department of Population Health, Li Ka Shing Centre for Health Information and Discovery, University of Oxford, Old Road Campus, Oxford, OX3 7LF, United Kingdom
dDepartment of Infectious Diseases and Microbiology, Royal Sussex County Hospital, Brighton BN2 5BE, UK
eDepartment of Global Health and Infection, Brighton and Sussex Medical School, University of Sussex, Falmer BN1 9PS, UK
fNuffield Department of Primary Care Health Sciences, University of Oxford, Oxford, UK
gNational Institute for Health Research, Oxford Biomedical Research Centre, Oxford, UK
hNIHR Health Protection Unit in Healthcare Associated Infections and Antimicrobial Resistance at University of Oxford in partnership with Public Health England, Oxford, United Kingdom
iDepartment of Microbiology, University Hospitals Plymouth NHS Trust, Derriford Hospital, Plymouth, PL6 8DH, UK
‡Corresponding author: Bernadette C Young Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, John Radcliffe Hospital, Oxford OX3 9DU, UK bernadette.young@ndm.ox.ac.uk +44 1865 221918Abstract
Background
Staphylococcus aureus is a major bacterial pathogen in humans, and a dominant cause of severe bloodstream infections. Globally, antimicrobial resistance (AMR) in S. aureus remains challenging. While human risk factors for infection have been defined, contradictory evidence exists for the role of bacterial genomic variation in S. aureus disease.
Methods
To investigate the contribution of bacterial lineage and genomic variation to the development of bloodstream infection, we undertook a genome-wide association study comparing bacteria from 1017 individuals with bacteraemia to 984 adults with asymptomatic S. aureus nasal carriage. Within 984 carriage isolates, we also compared healthcare-associated (HA) carriage with community-associated (CA) carriage.
Results
All major global lineages were represented in both bacteraemia and carriage, with no evidence for different attack rates. However, kmers tagging trimethoprim resistance-conferring mutation F99Y in dfrB were significantly associated with bacteraemia-vs-carriage (p=10−8.9-10−9.3). Pooling variation within genes, bacteraemia-vs-carriage was associated with the presence of mecA (HMP=10−5.3) as well as the presence of SCCmec (HMP=10−4.4).
Among S. aureus carriers, no lineages were associated with HA-vs-CA carriage. However, we found a novel signal of HA-vs-CA carriage in the foldase protein prsA, where kmers representing conserved sequence allele were associated with CA carriage (p=10−7.1-10−19.4), while in gyrA, a ciprofloxacin resistance-conferring mutation, L84S, was associated with HA carriage (p=10−7.2).
Conclusions
In an extensive study of S. aureus bacteraemia and nasal carriage in the UK, we found strong evidence that all S. aureus lineages are equally capable of causing bloodstream infection, and of being carried in the healthcare environment.
Genomic variation in the foldase protein prsA is a novel genomic marker of healthcare origin in S. aureus but was not associated with bacteraemia. AMR determinants were associated with both bacteraemia and hospital-associated carriage, suggesting that AMR increases the propensity not only to survive in hospital environments, but also to cause invasive disease.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
This study was supported by the Oxford NIHR Biomedical Research Centre, a Mérieux Research Grant, the National Institute for Health Research Health Protection Research Unit (NIHR HPRU) in Healthcare Associated Infections and Antimicrobial Resistance at Oxford University in partnership with Public Health England (PHE) (grant HPRU-2012-10041), and the Health Innovation Challenge Fund (a parallel funding partnership between the Wellcome Trust (grant WT098615/Z/12/Z) and the Department of Health (grant HICF-T5-358)). Computation used the Oxford Biomedical Research Computing (BMRC) facility, a joint development between the Wellcome Centre for Human Genetics and the Big Data Institute supported by Health Data Research UK and the NIHR Oxford Biomedical Research Centre. Financial support was provided by the Wellcome Trust Core Award Grant Number 203141/Z/16/Z. D.J.W. is a Sir Henry Dale Fellow, jointly funded by the Wellcome Trust and the Royal Society (Grant 101237/Z/13/B). D.J.W. is supported by a Big Data Institute Robertson Fellowship. B.C.Y. is an NIHR Academic Clinical Lecturer, and this work was funded by a Research Training fellowship from Wellcome Trust (Grant 101611/Z/13/Z). T.E.P., D.W.C. and A.S.W. are NIHR Senior Investigators. The views expressed are those of the author(s) and not necessarily those of the NHS, PHE, the NIHR or the Department of Health.
Background
Staphylococcus aureus is a common coloniser of human mucosal surfaces and skin but also a major human pathogen. 1,2 It is a leading cause of hospital and community acquired infection and one of the leading causes of bloodstream infection worldwide.1,2,3,4 Over 12,000 cases occur each year in England, and the rate continues to increase, despite improving control of Methicillin-resistant S. aureus (MRSA) bacteraemia.5 Mortality following S. aureus bacteraemia (SAB) has not declined over recent years, and remains generally over 20% at 30 days, even with appropriate antimicrobial therapy.6,7,8
S. aureus possesses diverse and variable virulence mechanisms facilitating tissue invasion, inflammation and evasion of host immune factors. These include a thick peptidoglycan wall, polysaccharide capsule,1 toxins,9,10 complement control proteins,11 and bound adhesins.12 With the exception of specific toxinoses such as Toxic Shock Syndrome,13,14,15 and the role of Panton-Valentine Leucocidin (PVL) in skin or soft tissue infections16 and pyomyositis,17 evidence linking bacterial genetic variability to clinical disease phenotype is inconclusive.
The majority of evidence accrues from case-control studies using candidate gene approaches or microarrays to examine gene presence or absence. Such studies have implicated several specific genes encoding putative virulence factors in invasive S. aureus disease. Secreted enterotoxins,18,19,20,21 haemolysins18 and leucotoxins22; surface proteins which mediate tissue attachment, invasion and immune evasion18,22, the presence of the intercellular adhesin locus18,23 and variation in the Agr regulatory system22 have all been shown to co-occur with invasive S. aureus. However, the evidence for these associations is inconsistent, and for every study reporting an association, there is at least one large study shows no evidence of effect.18,24
The fact that a few S. aureus lineages account for the majority of S. aureus infections suggest important inter-lineage differences in virulence but again evidence is conflicting for a relationship between Clonal Complex (CC) and invasive disease.22,24,25,26,27,28,29 These discrepant results may reflect the variable sensitivity of probes employed, or the inconsistent methods used to control for effects of population structure. In particular, associations cannot be reliably inferred without considering linkage disequilibrium between candidate genes and potential virulence factors elsewhere in the genome.
Different genomic associations have been identified for community-associated (CA) or healthcare-associated (HA) SAB.30 Loss of function mutations in the Accessory Gene Regulator (Agr), a central controller of S aureus expression, have been frequently found in HA bloodstream infections,.31 Reduced cytotoxicity and low Agr expression were also independent predictors of mortality in a study of nosocomial MRSA pneumonia.32 There is a direct relationship between MecA expression and Agr dysfunction: the altered Penicillin Binding Protein (PBP) expressed by some MRSA can directly reduce Agr mediated toxin production.33 This dysfunction may be a fitness ‘cost’, overcome by the relative advantage of antimicrobial resistance in healthcare settings, and the relatively lower host defences found in hospitalised patients. However, evidence shows MRSA clones traditionally conceived of as HA lineages – such as clonal complex (CC) 22 - are equally capable of transmission in the community, including household settings,34 questioning the notion that MRSA requires the healthcare setting to gain a relative advantage.
There is growing evidence that the relationship between toxin production and virulence in S. aureus is not straightforward. While superantigen toxins and leukocidins have been linked to certain disease phenotypes, genomic changes associated with reduced bacterial toxicity may actually enhance bacterial survival in the bloodstream, evidenced by lower lymphocyte toxicity and greater fitness in human serum exhibited by bacteraemia isolates compared to those found in nasal carriage or soft tissue infection.42 Agr defective strains have been found in association with persistent bacteraemia,36,37 and associated with higher mortality.38Naturally occurring loss of function mutations in the regulatory protein Repressor of Surface Proteins (Rsp) have been documented arising within-host and in bloodstream infections.39 These mutations were associated with attenuated mortality in a mouse model of disease, but preserved the ability to disseminate and form abscesses,40 and have been shown to alter survival in blood and antibiotic tolerance.41 A comprehensive survey of within-host evolution of S. aureus infection demonstrated evidence of bacterial genomic adaption, with protein altering variation in regulatory genes, and the cell surface proteins under control of key regulators.43 Similar signals of adaptation were found in the genetic changes associated with prolonged bacteraemia.44
Thus, while conflicting evidence for the role of gene presence in carriage-vs-bacteraemia arises from case-control studies, there are observations supporting the hypothesis that subtle genetic variation – including that of a type traditionally thought to diminish virulence – could increase the likelihood of SAB. Recent developments in bacterial genome wide association studies (GWAS) demonstrate that these powerful tools can help delineate the genomic basis of bacterial infection. A study of bacteraemia caused by the ST239 lineage investigated associations between bacterial genetic variants, toxin production and severity of disease in a mouse model.45 Genomic variants were integrated with bacterial phenotyping and clinical data in 300 adults with bacteraemia involving the CC22 and CC30 lineages, finding that bacterial predictors of mortality varied by lineage.46 Investigating whether a genomic basis for invasive disease exists more generally at a population level requires careful control for population structure, an otherwise potent confounder. Bacterial GWAS incorporating such controls has recently identified PVL as the key determinant of S. aureus pyomyositis in a paediatric population.17
Here we present a bacterial GWAS of SAB across bacterial lineages, studying population-representative cases of bacteraemia and nasal carriage controls, integrating clinical data with 2001 bacterial sequences to investigate whether bacterial lineage or genomic variation is associated with carriage-vs-bacteraemia. Within S. aureus carriage, we further examine genomic features associated with CA-vs-HA carriage.
Materials and methods
Identification of cases and controls

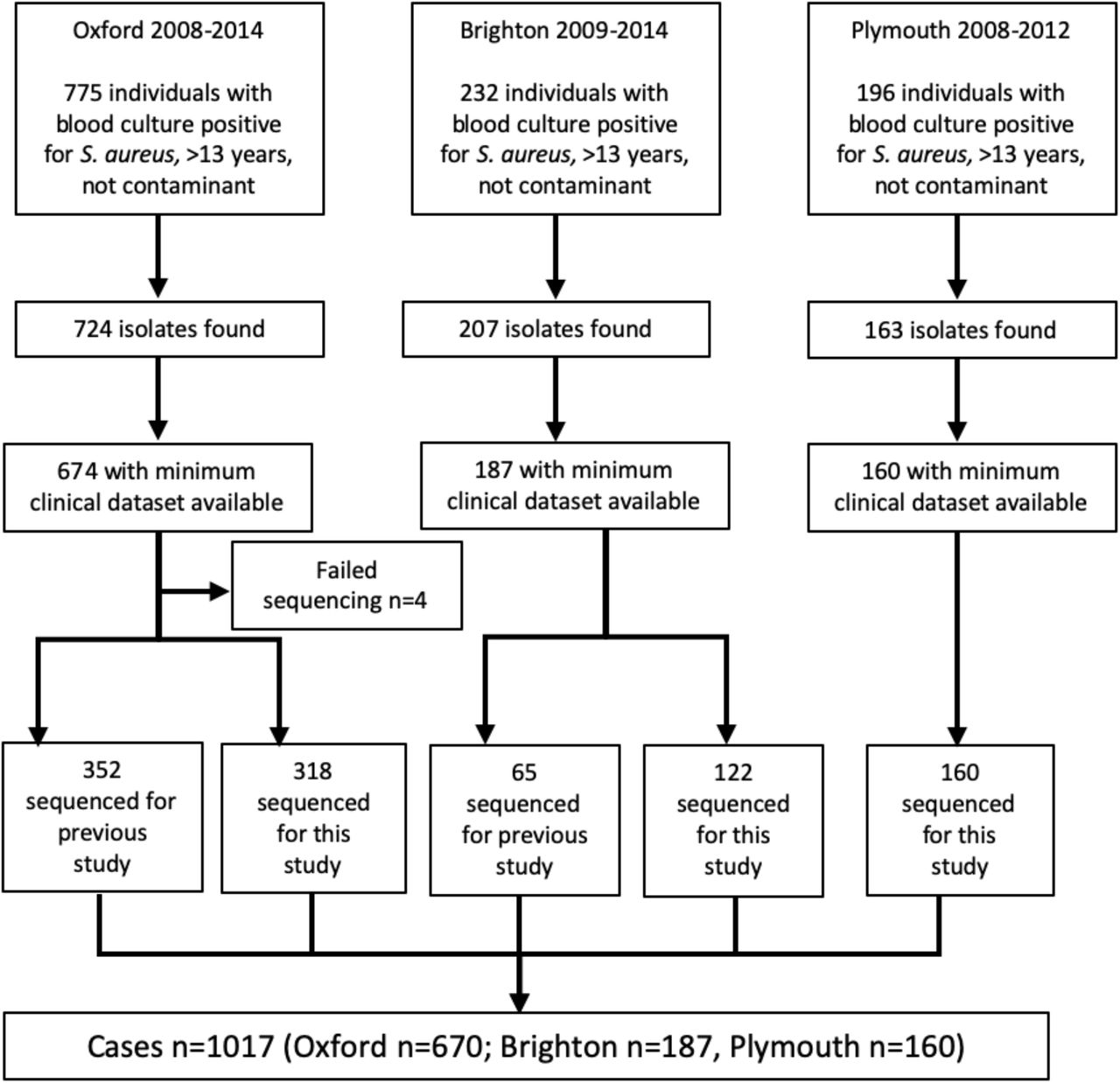

Cases of S. aureus bacteraemia (SAB) were identified from 3 UK hospital trusts between 2008-2014: Oxford University Hospitals NHS trust (Oxford UK), Brighton and Sussex University Hospitals NHS trust (Brighton, UK) and University Hospitals Plymouth NHS trust (Plymouth, UK). These sites were part of the UK Clinical Infection Research Group (UKCIRG) which established prospective cohort study of SAB in 2008,6 and then the International Staphylococcus Aureus Collaboration (ISAC) which established a multinational prospective cohort study of SAB in 2006.7 Sequential individuals from these studies over 13 years of age with S. aureus on blood culture were included if there was an isolate available for sequencing, with associated clinical data, and the blood culture had not been deemed to be a contaminant on local clinical review. We identified 1203 cases in patients that were not contaminants, after excluding repeat episodes (775, 232 and 196 at each centre respectively). Bacterial isolates were found from 724, 207 and 163 episodes at each centre respectively, and a minimum clinical data set (see below) was available for 674, 187 and 160 cases. We successfully sequenced 1017 of these 1021 cases for inclusion.
These included 417 cases from a previously sequenced collection investigating identifying antimicrobial resistance.47

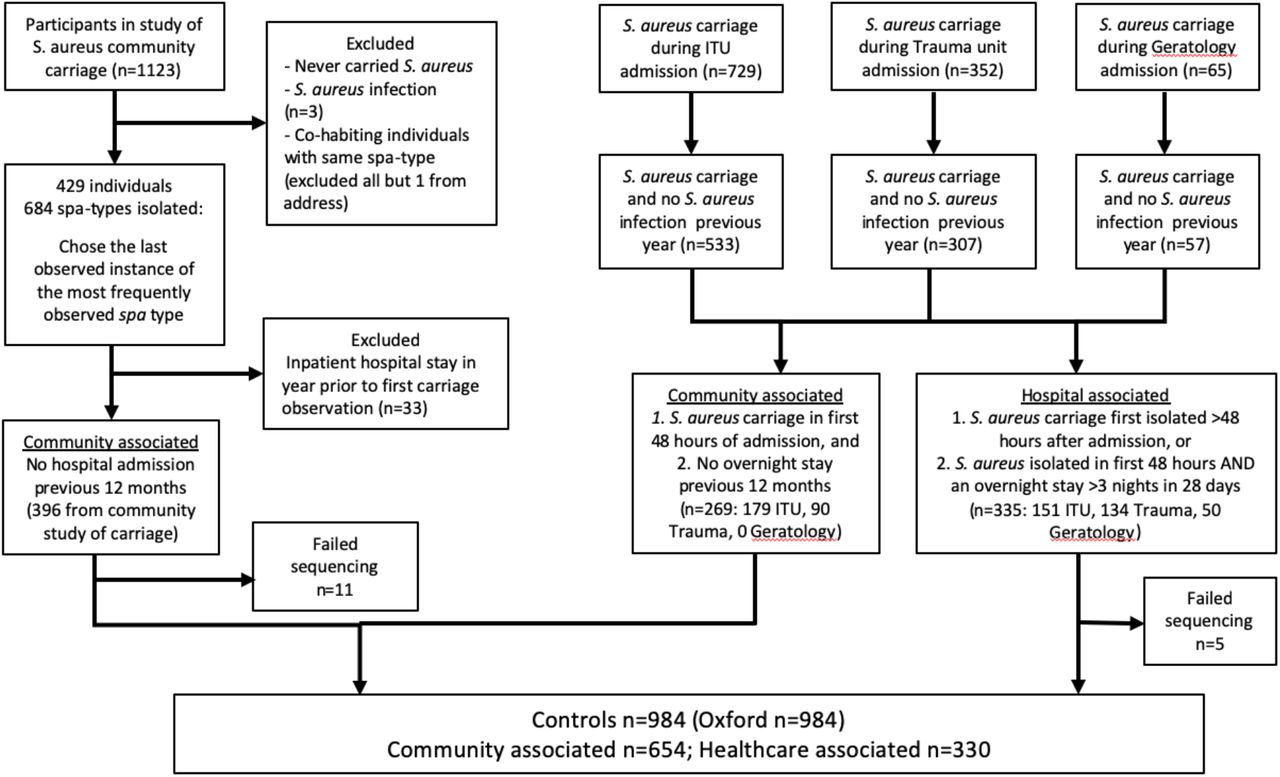

S. aureus isolates from nasal carriage in individuals without S. aureus infection were identified from two studies of S. aureus carriage in Oxfordshire, UK (Figure S2).
The first was a study of S. aureus nasal carriage in adults in the community between July 2009 and April 2013. 48 Of 1123 individuals enrolled, 360 individuals carrying S. aureus at recruitment and 211 swab-negative individuals were invited to supply nasal swabs at 2-monthly intervals.48 Where co-habiting individuals carried the same spa-type, only one individual was considered for inclusion to avoid over-sampling of strains with household transmission. The second was an investigation of nosocomial carriage and transmission at the John Radcliffe Hospital, Oxford between September 2009 and August 2011.49 Individuals admitted to three study wards had nasal swabs for S. aureus carriage performed on admission and at fortnightly intervals until discharge. 1146 individuals were found to have S. aureus carriage on any swab during the study (enrolled from Intensive Treatment Unit (ITU; 729 individuals), Trauma unit (352) or one of two elderly care wards (65)). Carriers with S. aureus originally isolated on the first or second day of admission and no overnight stay in the preceding 12 months were classified as community-associated controls (269). Carriers with S. aureus originally isolated more than two days after admission and carriers who had been admitted for three or more nights in the preceding 28 days were classified as healthcare-associated controls (335). All carriers with S. aureus isolated from a clinical sample in the previous 12 months were excluded. In total 984 asymptomatic carriage controls were successfully sequenced (Figure S2). For carriers with multiple positive samples, the latest sample of the longest carried spa-type was selected.
Epidemiological data
For each episode of SAB, the minimum dataset for inclusion was patient gender and age at the time of infection, date of admission, the number of days between admission and first blood culture from which S. aureus was cultured, and the number of days since the most recent discharge from hospital. If available, the clinically-determined focus of infection and vital status 90 days after infection were recorded.
Epidemiological data on episodes of SAB was collected as part of on-going service evaluation studies, as part of multi-centre collaborations with the UK Clinical Infection Research Group (UKCIRG)6 and the International Staphylococcus aureus Collaboration (ISAC).7 Further data, including for carriage controls were obtained from the Infections in Oxfordshire Research Database (IORD) which links information about patient attendances with results from pathology services in an anonymised research database.50
Cases were deemed healthcare-associated (HA) if the first blood culture positive for S. aureus was collected on the third day or later of a hospital admission (healthcare onset cases), or if the patient had an inpatient admission in the previous 90 days (community onset, healthcare-associated cases).51 Cases were deemed community-associated (CA) if the first blood culture positive for S. aureus was collected on the first or second calendar day of admission, and there was no inpatient admission in the previous 90 days.
Microbiological methods
S. aureus isolates from blood culture were characterised using standard operating procedures of clinical laboratories at all three centres. Isolates for inclusion were retrieved and frozen in 15% glycerol stock prior to DNA extraction.
Hospital carriage swabs were collected by research nurses using dry cotton-tipped swabs. Community carriage study participants self-collected swabs, returning these by mail as previously described.48 All swabs were incubated in 5% saline enrichment broth (Oxoid LTD) overnight at 37°C before subculture onto SaSelect chromogenic agar (Bio-Rad). Plates were examined after 24 hours incubation and potential S. aureus colonies confirmed by catalase, DNase and Prolex Staph Xtra Latex kit (Pro-Lab Diagnostics).
Isolates were stored at -80°C in 15% glycerol. Isolates were spa-typed as previously reported.48
Whole genome sequencing
For each bacterial culture, a single colony was sub-cultured and DNA was extracted from the sub-cultured plate using a mechanical lysis step (FastPrep; MPBiomedicals, Santa Ana, CA) followed by a commercial kit (QuickGene; Autogen Inc, Holliston, MA), and sequenced at the Wellcome Trust Centre for Human Genetics, Oxford. 600 isolates were sequenced on the Illumina HiSeq 2500 platform (San Diego, California, USA), with paired-end reads 150 base pairs long. The remaining 417 isolates had been sequenced for an earlier on the HiSeq 2000 platform, with paired-end reads of 99 base pairs.
Variant callin
Following established methods,17 we used Velvet52 v1.0.18 to assemble reads into contigs de novo. Velvet Optimiser v2.1.7 was used to choose the kmer lengths on a per sequence basis. The median kmer length for assembly was 123, however this was affected by sequencing read length, being significantly lower for assemblies based on 99bp reads (median k=69) than those based on 150bp reads (median k=125) (p<10−5, Wilcoxon rank sum test).
We used BLAST53 to find the relevant loci, and defined multilocus sequence type (MLST) using the online database at http://saureus.mlst.net/. Strains that shared six of seven MLST loci were considered to belong to the same Clonal Complex. Antibiotic sensitivity was predicted by interrogating the assemblies for a panel of resistance determinants as previously described.47
We used Stampy54 v1.0.22 to map reads against a reference genome (MRSA252, Genbank accession number NC_002952).55 Repetitive regions, defined by BLAST53 comparison of the reference genome against itself, were masked prior to variant calling. Bases were called at each position using previously described quality filters.39,56,57 Missing calls were imputed using ClonalFrameML.58
Reconstructing the phylogenetic tree
Kmer counting
We used a kmer-based approach to capture non-SNP variation.60 Using the de novo assembled genomes, all unique 31 base haplotypes were counted using dsk.61 If a kmer was found in the assembly it was counted present for that genome, otherwise it was treated as absent. This produced a set of 23,860,793 variably present kmers, with the presence or absence of each determined per isolate. We identified a median of 2,760,000 kmers per isolate, including variably present kmers and kmers common to all genomes (IQR 2,725,000 - 2,806,000). The number of kmers found per isolate did not differ significantly with sequencing platform (p=0.4, Wilcoxon rank sum test). From a smaller set of 1610 isolates sequenced with 150bp reads, we identified 22,284,204 variably present kmers.
Calculating heritability
We used the Genome-wide Efficient Mixed Model Association tool (GEMMA62) to fit a linear mixed model for association between a single phenotype (bacteraemia vs asymptomatic nasal carriage, [encoded as 1 and 0, retrospectively]). We calculated the relatedness matrix from biallelic SNP and kmer presence for tests of each allele type. We used GEMMA to estimate the proportion of variance in phenotypes explained by genotypic diversity (i.e. heritability).
Genome wide association testing of SNPs and Kmers
We performed association testing using an R package bacterialGWAS (https://github.com/jessiewu/bacterialGWAS), which implements a published method for locus testing in bacterial GWAS.63 The association between each SNP and kmer with the phenotype was tested controlling for population structure and genetic background using the linear mixed model (LMM) implemented in GEMMA. 62 We included healthcare or community origin of case/control status as a fixed covariate in the model when testing for associations with the carriage-vs-bacteraemia phenotype. The parameters of the linear mixed model were estimated by maximum likelihood and a likelihood ratio test was performed against the null hypothesis (that each locus has no effect) using the software GEMMA, 62 using a minor allele frequency of 0 to include all SNPs. GEMMA was modified to output the ML log-likelihood under the null and alternative hypothesis and –log10 p values were calculated using R scripts in the bacterialGWAS package.
Testing for lineage effects
We tested for associations between lineage and phenotype using principal components (PCs) in the R package bugwas (available at https://github.com/sgearle/bugwas), which implements a published method for lineage testing in bacterial GWAS. 63 PCs were computed based on biallelic SNPs using the R function prcomp. To test the null hypothesis of no background effect of each principal component, we used a Wald test64 against a χ2 distribution with one degree of freedom to obtain a p value.
Kmer mapping and sequence alignment
We used Bowtie65 to align all 31bp kmers from short-read sequences to the reference genome (MRSA25255). For all 31bp kmers significantly associated with case-controls status, the likely origin of the kmer was additionally determined by nucleotide sequence BLAST53 of the kmers against a database of all S. aureus sequences in Genbank. We used BLAST53 to identify the best match for coding sequences of interest in the de novo assembly, and used Jalview66 to and visualize the assembled sequences.
Multiple testing correction
Multiple testing was accounted for by applying a Bonferroni correction;67 the individual locus effect of a variant (PC, kmer or SNP) was considered significant if its P value was smaller than α/np, where we took α = 0.05 to be the genome-wide false-positive rate and np to be the number of PCs, kmer phylopatterns or SNP phylopatterns. We defined each phylopattern to be a unique partition of individuals by the alleles at that kmer or SNP.
The Bonferroni correction represents a conservative approach to controlling for type 1 error. The harmonic mean p-value (HMP) has recently been developed as a method to combine alternative hypotheses against the null hypothesis, without sacrificing power, even when the tests are not independent.68 The HMP was calculated for coding regions using the R package “harmonicmeanp” v3.0 (https://CRAN.R-project.org/package/harmonicmeanp). The HMP across a region was then adjusted for the proportion of kmers mapping to that region: (where ω = proportion of kmers mapping to that region, compared to the total number of kmers mapping to coding regions). The adjusted HMP was compared directly to the significance threshold αL, being a nominal threshold α (0.05) adjusted for the number of unique p-values being tested.68
Results

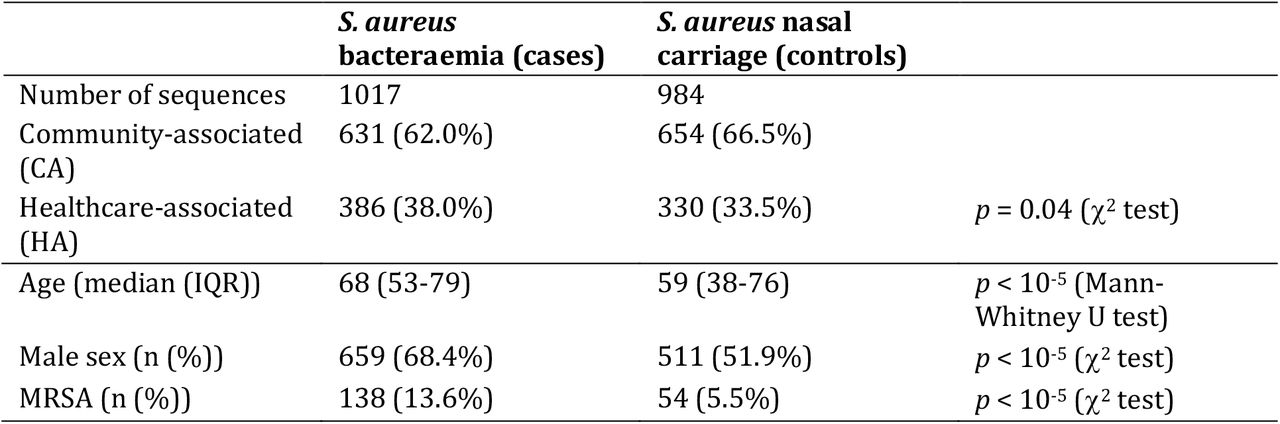

Sequences from 2001 S. aureus isolates (1,017 cases of bacteraemia and 984 asymptomatic nasal carriage controls) were analysed (Table 1). Cases were marginally more likely to be healthcare-associated (38% vs33.5%, p=0.04). Consistent with established risk factors for SAB,2 cases were significantly older (median age 68 years vs 59 years, p<10−5) and more likely to be male (68.4% vs 51.9%, p<10−5). Cases had a higher proportion of MRSA than controls (13.6% vs 5.5%, p<10−5), including when comparing HA cases (63/386 (15.3%)) with HA controls (35/330 (10.6%), p=0.04 (χ2 test)). Thus, even in individuals exposed to the healthcare environment, MRSA was found more often in bacteraemia than carriage. Reported focus of infection in cases of SAB showed soft tissue and vascular catheter infections to be the most commonly identified foci (Table S1). Mortality by 30 days was 26.5% (Table S2). These observations are consistent with previously reported UK cohort studies of SAB.6,7,8
S. aureus lineages do not differ strongly in their propensity to cause bacteraemia

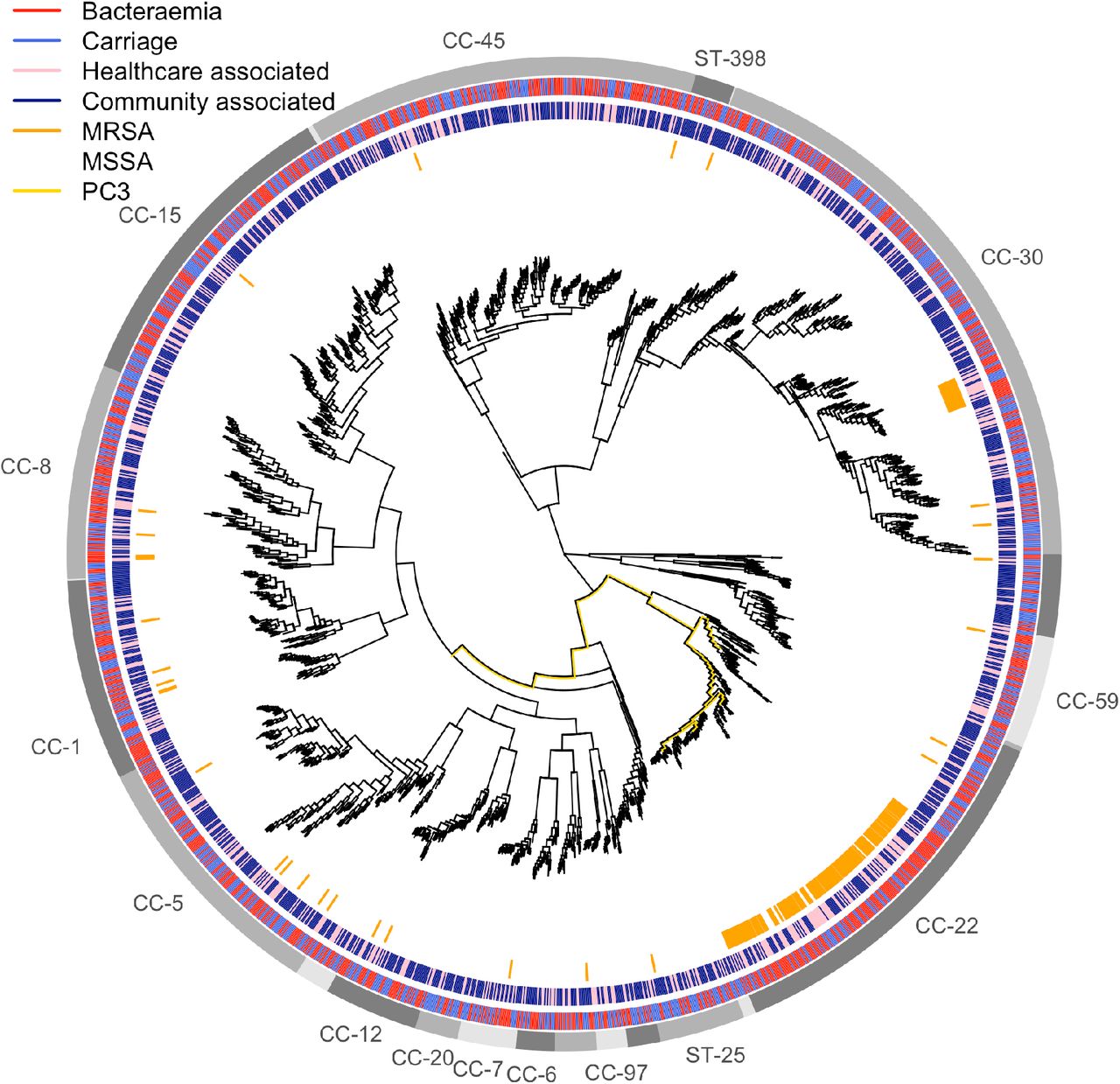

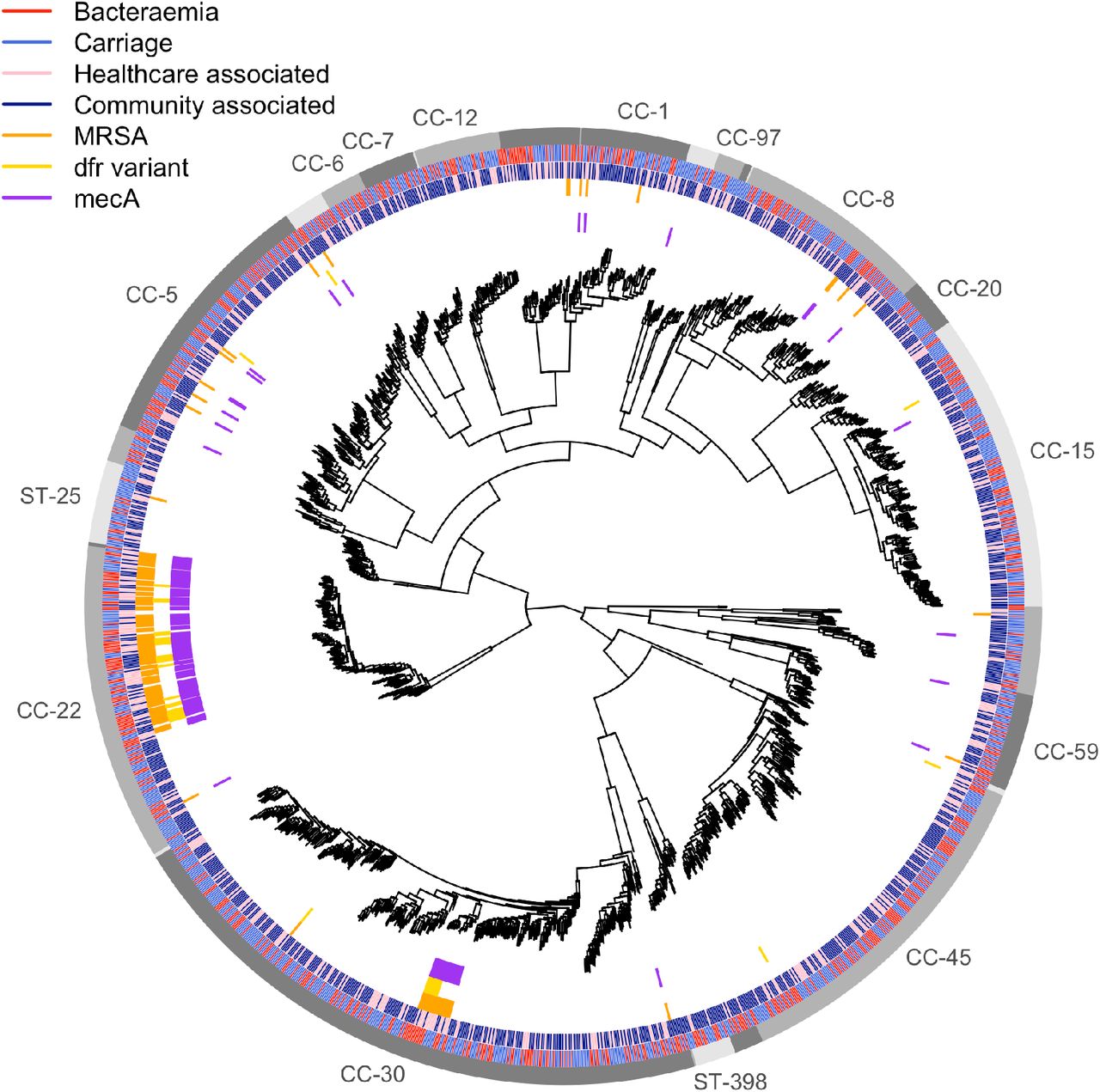

A phylogeny of 2001 cases and controls demonstrated that a broad diversity of S. aureus lineages among our cases (Figure 1), with representatives from all clonal complexes (CC) as defined in the MLST scheme.69 Cases and controls did not obviously cluster in the tree. Two lineages dominated MRSA isolates – ST-22 (within CC-22) and ST-36 (within CC-30) – consistent with the epidemiology of MRSA in Oxfordshire and throughout the UK.34,70,71,72 HA cases and controls were distributed throughout the tree, and did not strongly cluster within the population.

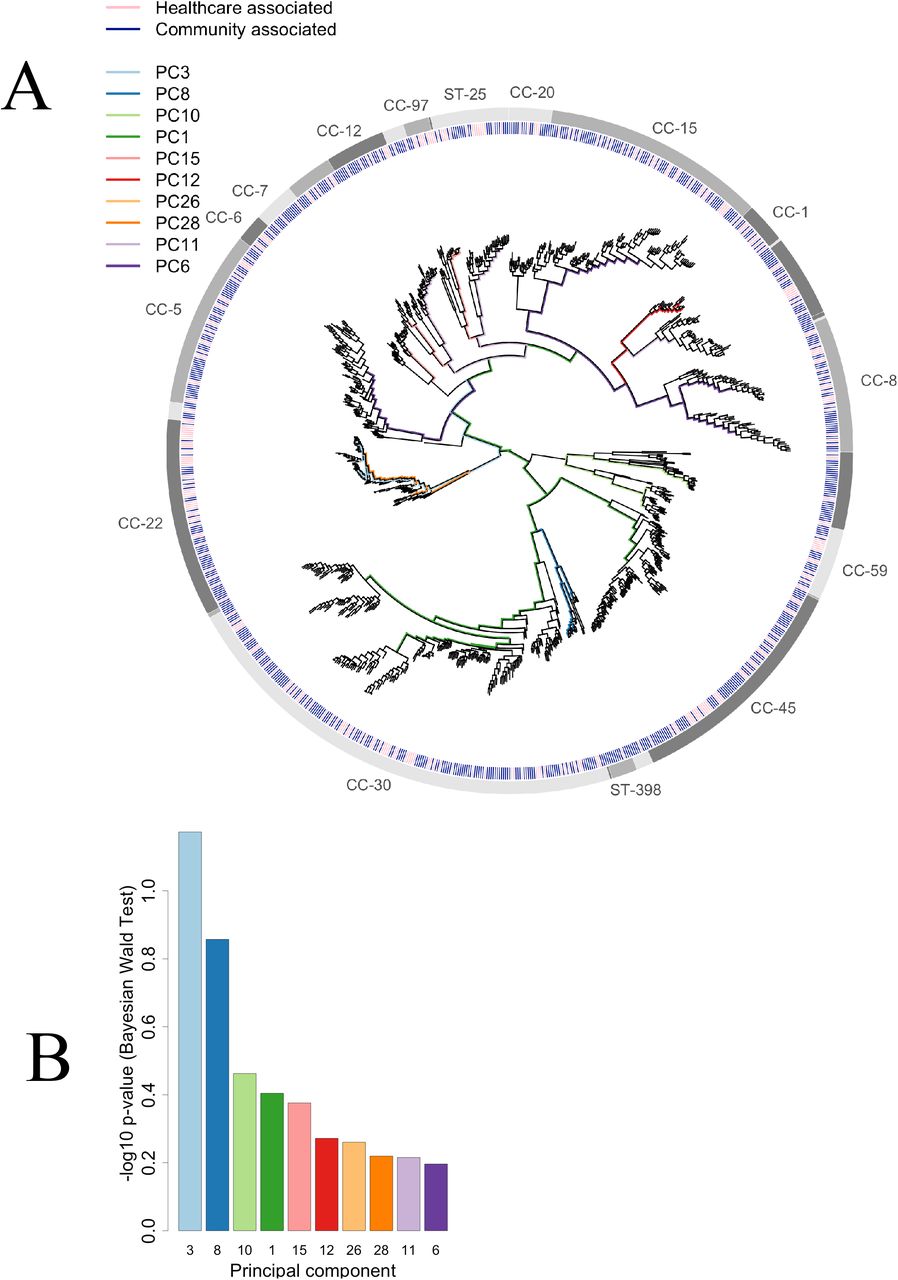

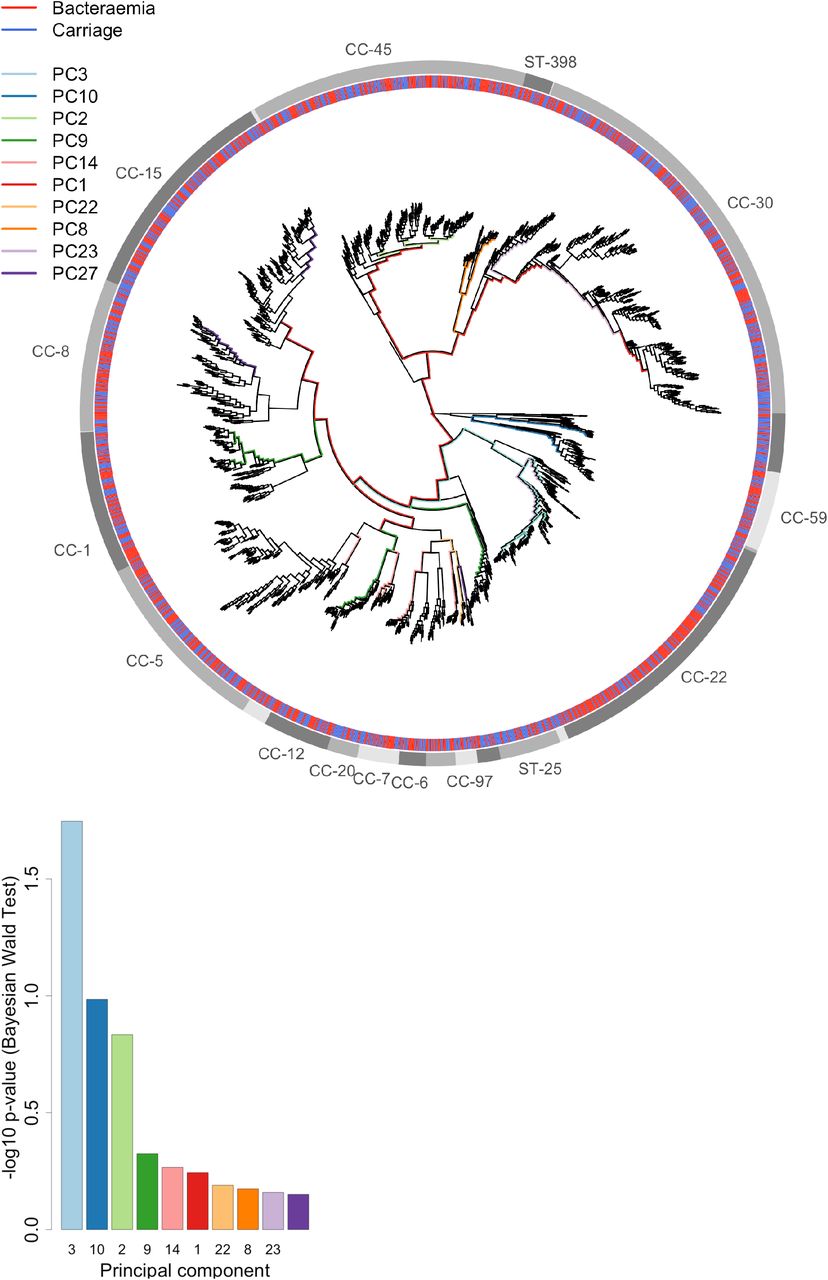

Formal testing for lineage effects with bugwas63 supported the absence of strong lineage effects. The third principal component (PC3), which identified the MRSA clade within the CC-22 lineage, was most strongly associated with bacteraemia-vs-carriage (p=0.02), but this was not statistically significant after adjusting for multiple testing (Figure 1, Figure S3). The overall sample heritability was predicted to be low (2.1%, 95% CI 0.0-5.3%). This comprehensive survey of SAB and carriage indicates that lineages of S. aureus do not differ substantially in their intrinsic propensity to cause bacteraemia.
Antimicrobial resistance determinants are associated with S. aureus bacteraemia
To investigate associations between genomic content or sequence variation and the carriage-vs-bacteraemia phenotype we tested SNP associations and also used a kmer approach,60 identifying 31bp DNA sequences (kmers) in the assembled genome and testing for association between their presence and bacteraemia. This approach allowed us to detect variation in the accessory genome, and variants such as small insertions or deletions that are not well captured by mapping SNPs.

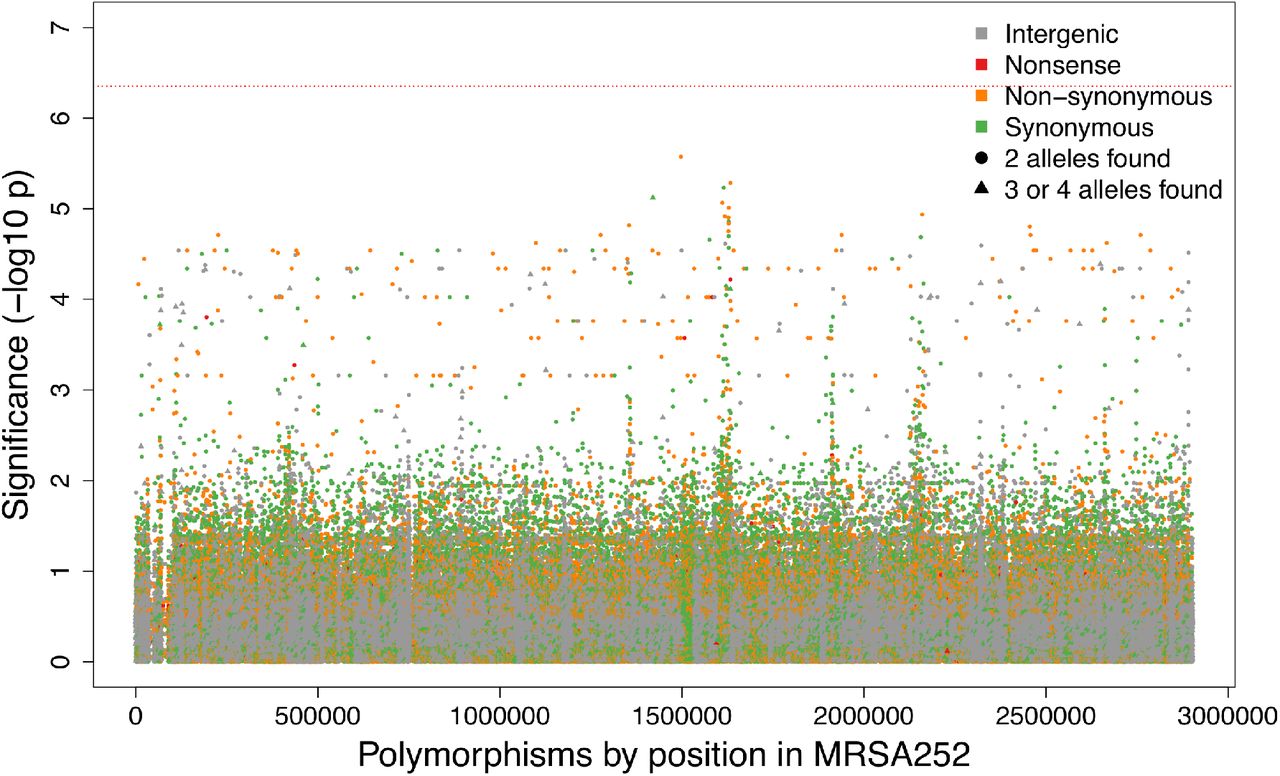

Testing all identified SNPs for association with case/control status in 2001 isolates did not identify any statistically significant associations between individual SNPs and bacteraemia at the genome wide level when controlling for population structure (Figure S4). However, the SNP coming closest to a statistically significant association (p=10−5.6) was an A to T mutation at position 1497290 in the MRSA252 reference genome. This SNP encodes a phenylalanine to tyrosine substitution at codon position 99 in dihydrofolate reductase (dfrB); this F99Y mutation confers trimethoprim resistance.47 It was relatively rare, being found in 41 cases and 5 controls, and correlated with resistance to other antibiotics: 36/46 (78%) of isolates with this variant were also methicillin resistant. This variant was found most commonly in isolates from CC-22 (63%) and ST-36 (22%).

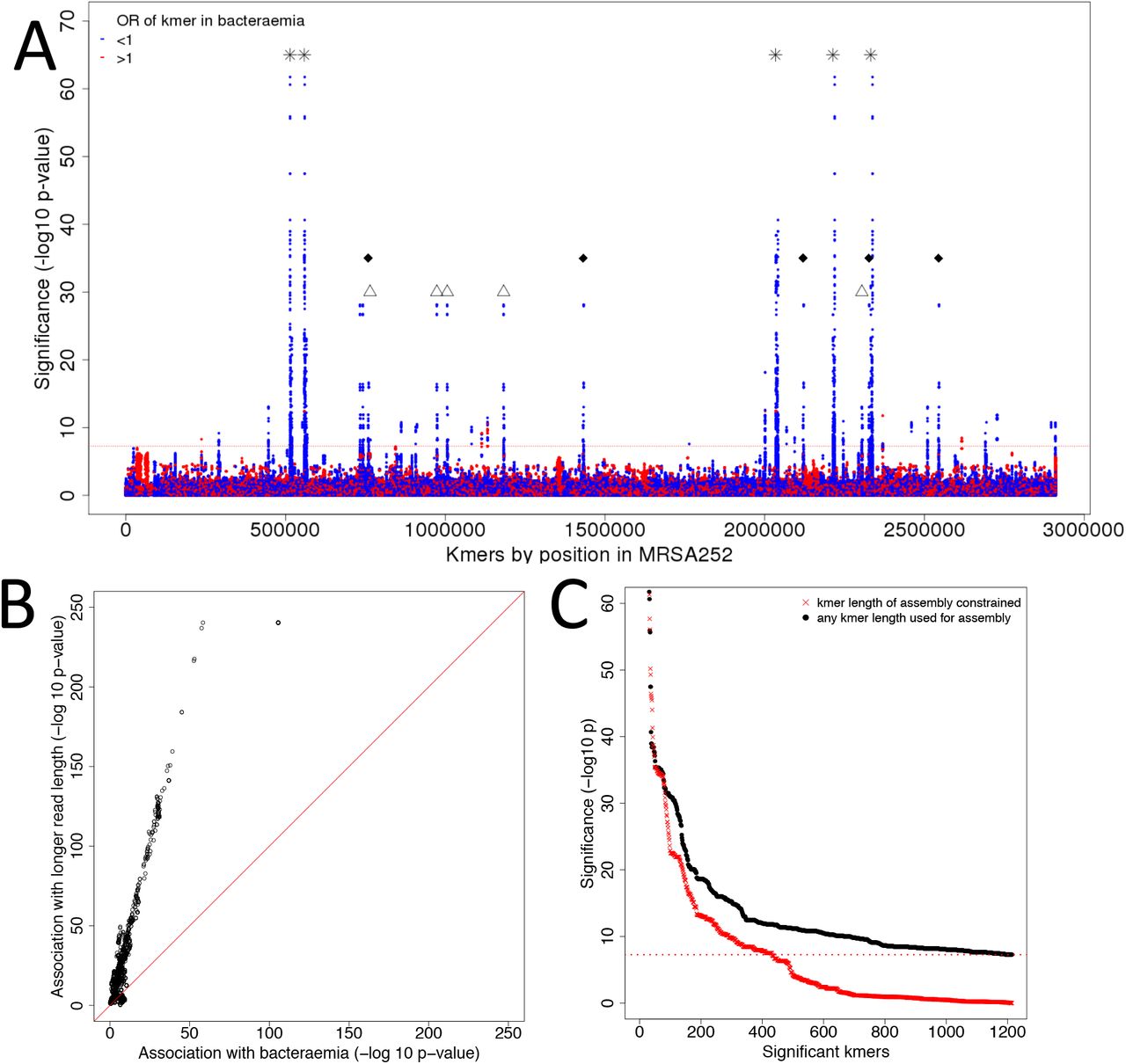

When testing kmers found in all 2001 isolates, we found 1214 kmers significantly associated with carriage. These kmers mapped to multiple sites across the genome, most of which were repeat regions, including 16S rDNA and transposon insertion sequences (Figure S5A). However, the presence of these kmers was strongly affected by the Illumina sequencing read length, being found in isolates sequenced using 150bp but not 99bp reads (Figure S5B). De novo assembly was repeated using a constrained kmer length in assembly (up to 79bp) to control for the variation in read length, and when these new assemblies were used, 76% (924/1214) of the previously identified 31bp kmers were no longer significantly associated with the phenotype (Figure S5c). We concluded that varying length of sequencing was a major source of confounding in kmer-based associated estimates.

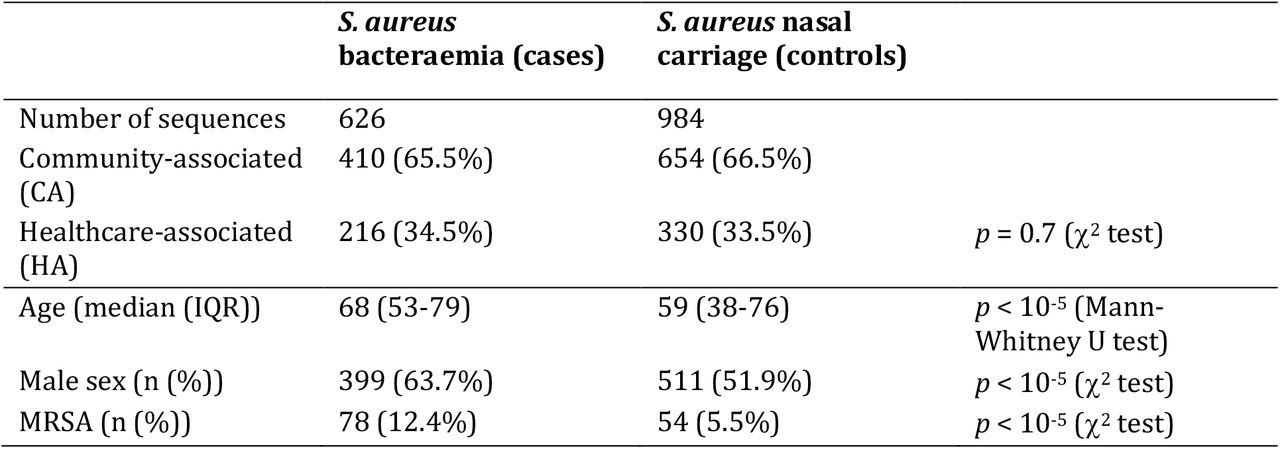

To avoid false positive results, we therefore restricted the investigation of kmers associated with carriage-vs-bacteraemia to isolates sequenced with 150bp reads (Table 2). This reduced set of cases showed similar epidemiological characteristics to the larger group (Table 1).

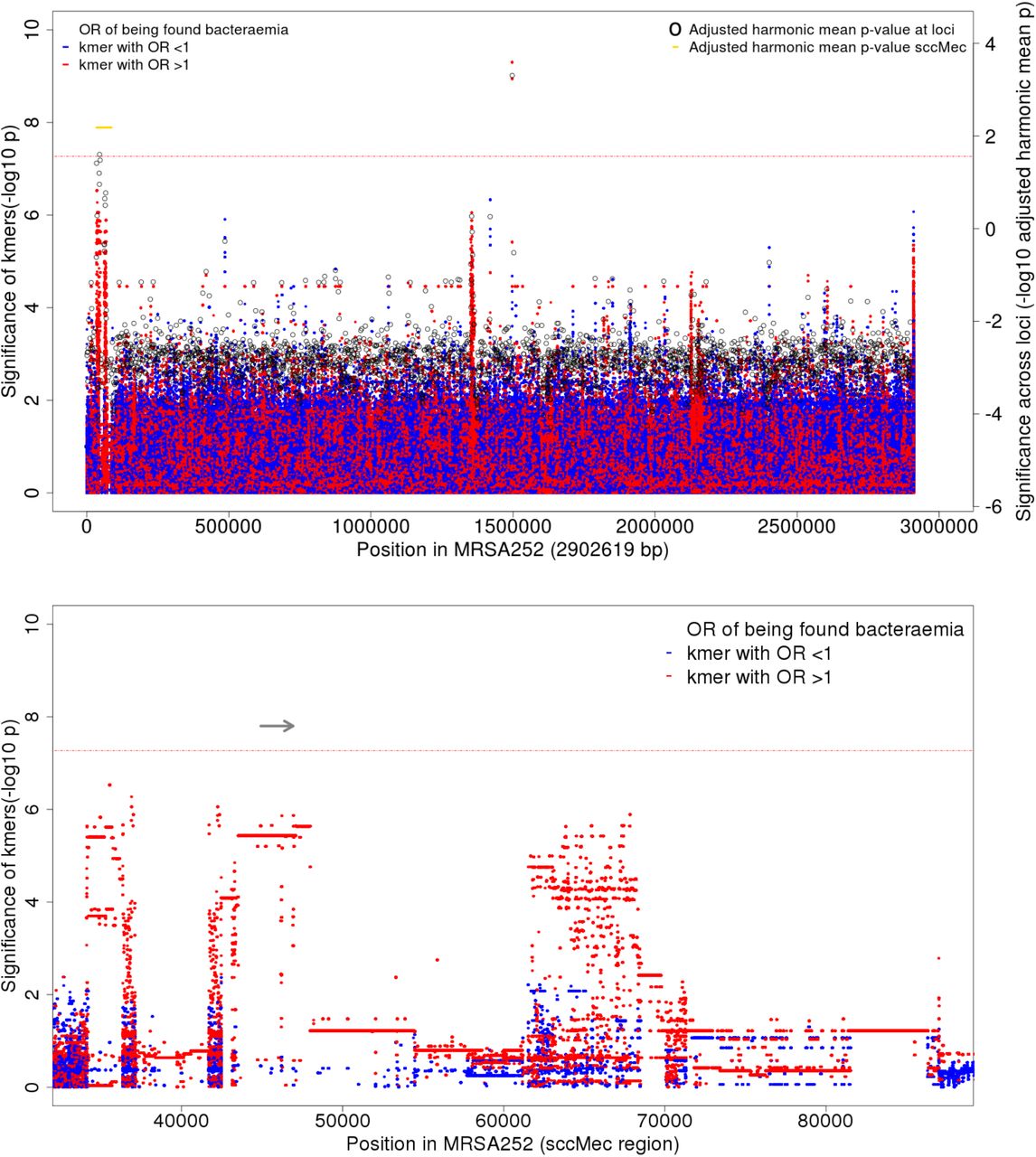

Kmers tagging antimicrobial resistance (AMR) conferring mutations were significantly associated with bloodstream infection. In total, we identified 22,284,204 kmers, occurring in 930,702 unique patterns across 1610 isolates with 150bp reads. Twenty-three kmers, occurring in two phylopatterns, were significantly associated with SAB (Figure 2). These kmers, mapping to a 52bp region in dfrB, exhibited 11.2-11.6-fold increased odds of being found in a disease-causing, rather than carried, S. aureus. This association remained significant after controlling for population structure (p=10−8.9-10−9.3). When mapped, these kmers centred on MRSA252 position 1497290, where three known single nucleotide variants are capable of conferring trimethoprim resistance, including the F99Y variant identified by our SNP GWAS. Like the trimethoprim resistance conferring SNP, these kmers were found in low frequencies (35/626 cases and 5/984 controls).
No further individual kmers met the threshold for significance, but there were distinctive peaks enriched for small p-values in the Manhattan plot (Figure 2). We calculated harmonic mean p-values (HMP) to perform aggregate kmer-based tests of association across coding regions of the genome. The HMP can improve power by combining information across variants and reducing the effective number of tests, thereby attracting a less stringent significance threshold. At the whole-genome level, the pooled evidence for association between coding sequence variation and bacteraemia was considerable (HMP=10−3.3). The evidence for kmers associated with bacteraemia, when pooled, was significant in several loci (Figure 2), including the dfrB locus, SAR1439 (HMP=10−6.9, HMPadj=10−3.3). The presence of kmers mapping across the SCCmec region was also significantly associated with bacteraemia (HMP=10−4.4, HMPadj=10−2.2). The strongest evidence within SCCmec was for mecA (SAR0039, HMP=10−5.3, HMPadj=0.02), which encodes the low affinity PBP2a that confers methicillin resistance.
When this region was examined in closer detail, high-risk kmers covered the entirety of the SAR0039 locus, encoding PBP2a, a PBP with low affinity for beta-lactams (Figure 2B). There are no alternate low-risk kmers in this region, suggesting the presence of this gene, rather than variation within it, is associated with bacteraemia. Thus, genomic sequences associated with AMR to both trimethoprim and beta-lactams, but not other antimicrobial classes, were significantly associated with bacteraemia.
Genomic signals of healthcare-associated carriage include antimicrobial resistance factors, as well as variation in a virulence determinant, prsA
Regulatory gene changes have been associated with persistent bacteraemia and increased mortality, and it has been hypothesised these changes either convey or accompany relative survival advantages in healthcare environments.31,32 We compared the genomic factors associated with healthcare environments by conducting a GWAS for HA-vs-CA among carriers (330 HA, 654 CA). We focused only on carriage isolates because we had more extensive data about hospital admissions in this group, and epidemiological data to further demonstrate that isolates from CA-carriage truly reflected community origin. The MRSA CC-22 lineage showed the strongest association with HA-vs-CA carriage (p=0.06, Figure S7), but this lineage effect was even less significant than for bacteraemia-vs-carriage (p=0.02, Figure S3), suggesting that no lineages were strongly associated with healthcare acquisition of S. aureus carriage.

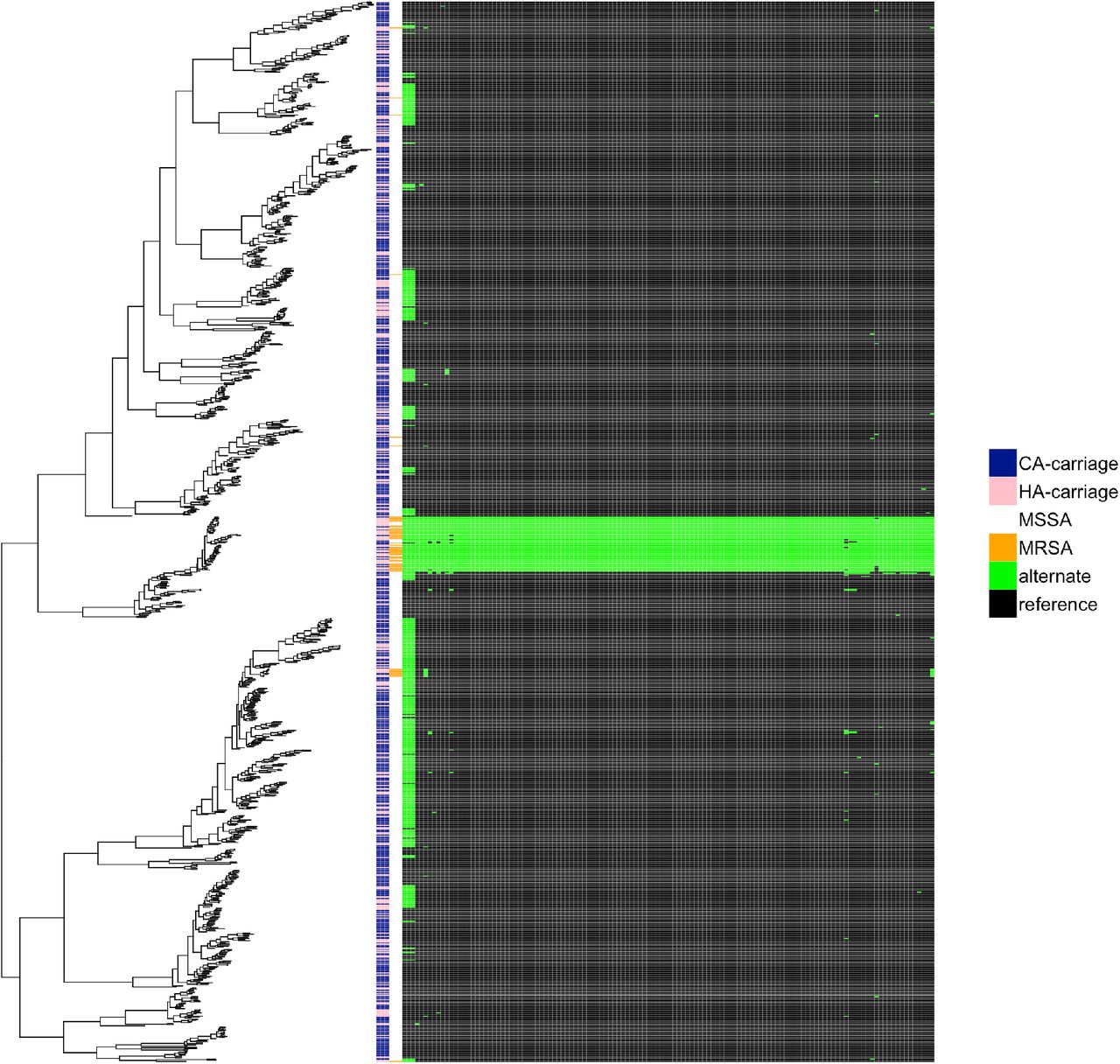

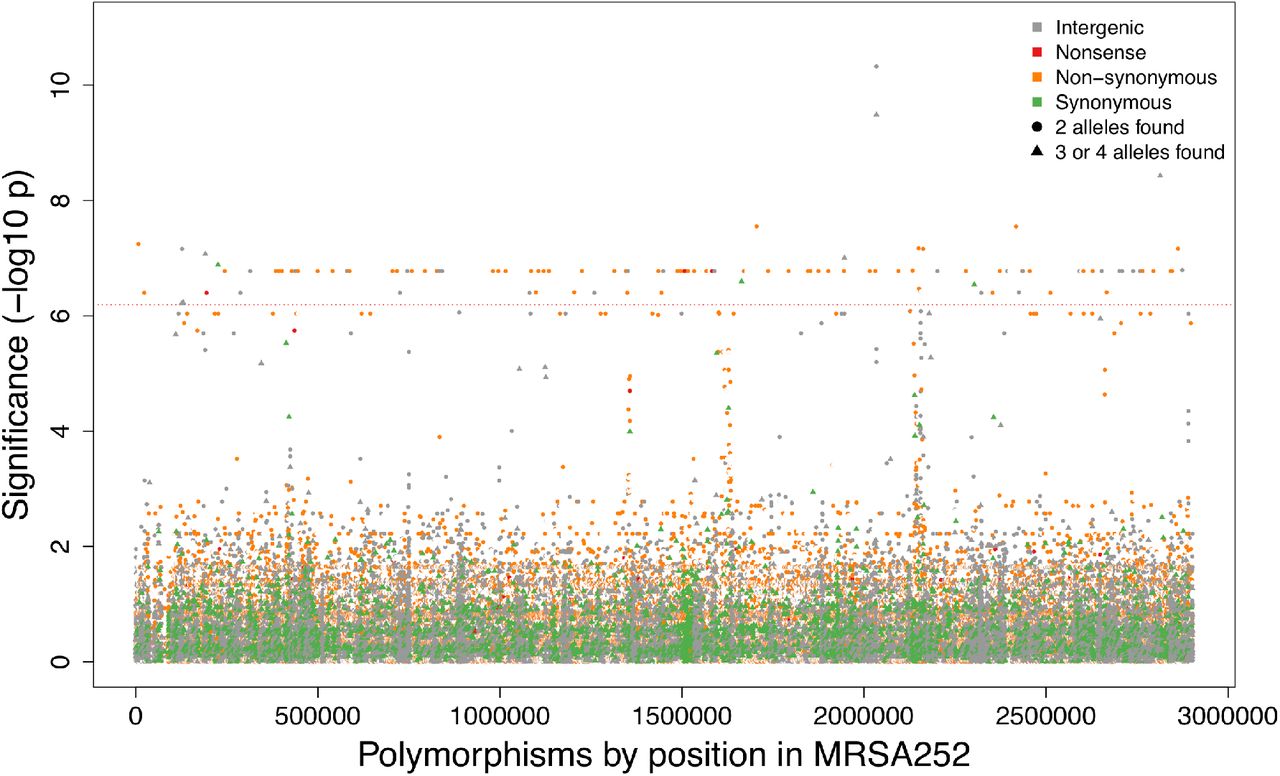

In total 124 SNPs were associated with HA-vs-CA carriage after controlling for population structure, and adjusting for the 77,597 SNP phylopatterns in the population (Figure S8, Table S3). The most significant were non-coding (intergenic) variants in a region encoding tRNAgly at 2034022-2034039. However, basecalls at these sites were frequently imputed (61.5%). Excluding isolates with imputed calls at these sites reduced the unadjusted OR for finding these SNPs in HA-vs-CA carriage from 2.1 to 0.87, suggesting that the observed association was a product of SNP imputation. The most significant coding variants included a G to A substitution at 2417648 in MRSA242 (p=10−7.2), encoding a proline to leucine substitution at 707 in SAR2345, an AcrB/AcrD/AcrF family protein, which is a multidrug efflux system subunit. They also included a C to T substitution at 7255 in MRSA252 (p=10−7.2), which encodes L84S in gyrA and confers quinolone resistance.47 A variant at these positions was called in all 984 isolates, so no calls were imputed. A significant association was also seen with a band of 91 low frequency SNPs, with shared minor alleles co-inherited predominantly in the MRSA sub-clade of CC-22 (Figure S9). The dfrB mutation seen associated with bacteraemia was not significantly associated with HA-vs-CA carriage (p=0.4).

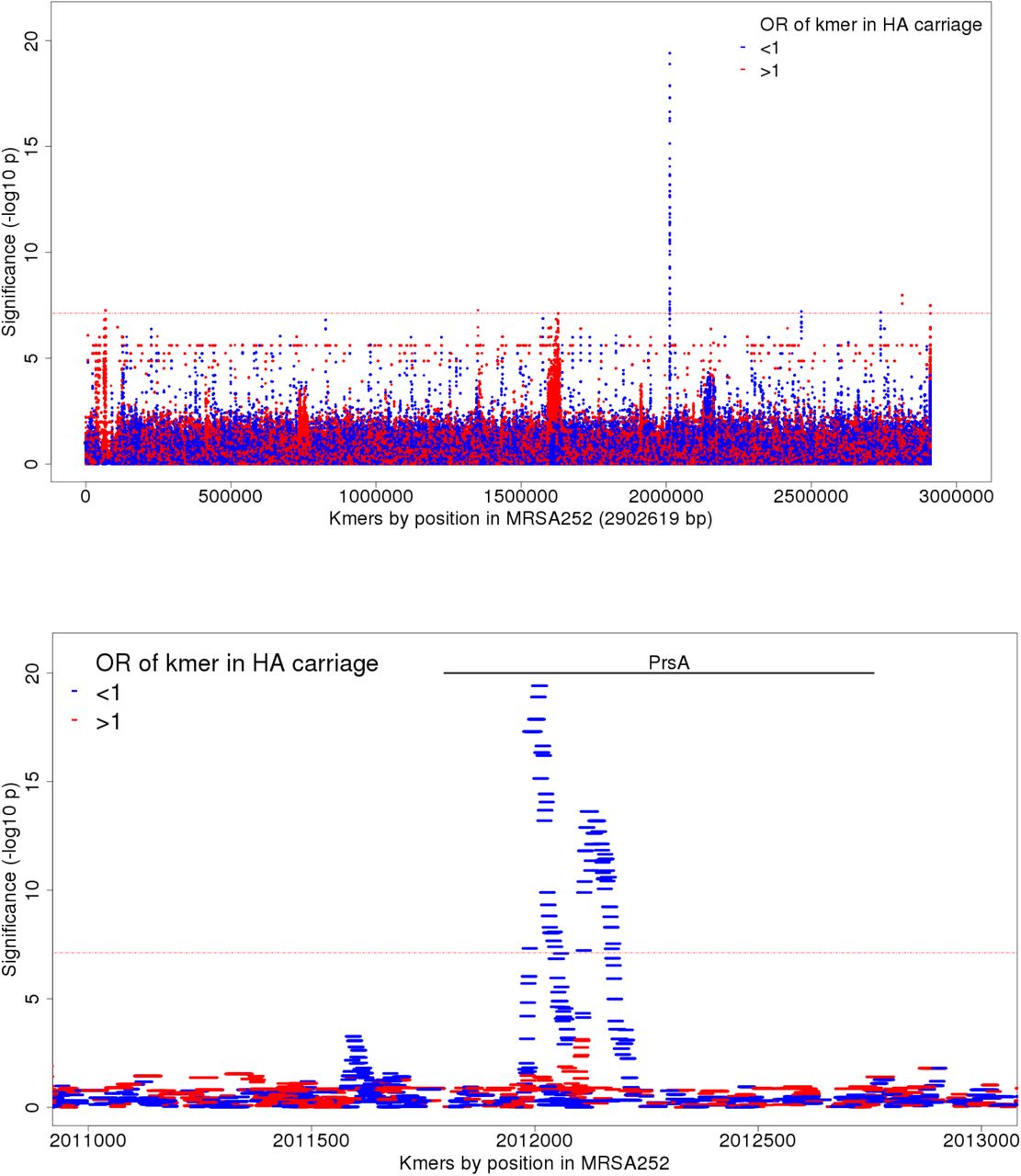

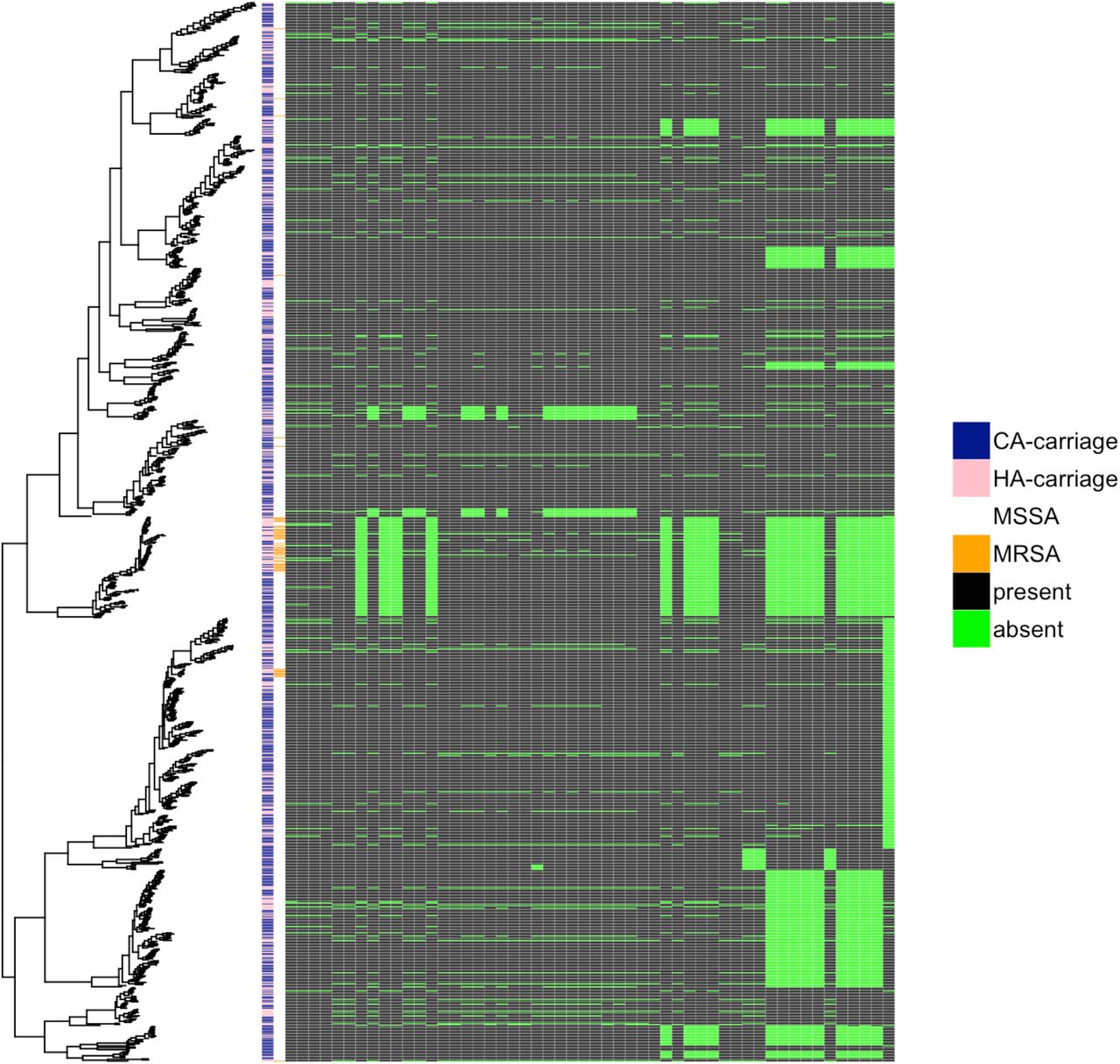

188 31bp kmers in 59 unique patterns were significantly associated with HA carriage (Figure 3A, Table S4); 123 (65.4%) kmers comprising 52 phylopatterns mapped to a single gene – prsA – and their absence was associated with HA carriage (p=10−7.2-10−19.4)(Figure 3B). A small peak of 11 significant kmers mapped to a hypothetical protein SAR0061, covering to a 41bp region from 67,816 (p=10−7.3). Three significant kmers mapped to a putative transcriptional regulator SAR2394, covering a 33bp region at 2,465,937(p=10−7.2). Of the remaining significant kmers, 26/188 (13.8%) did not map to the reference genome, and 25/188 (13.3%) mapped to non-coding regions at 1.3MB, 2.7MB and 2.8MB.

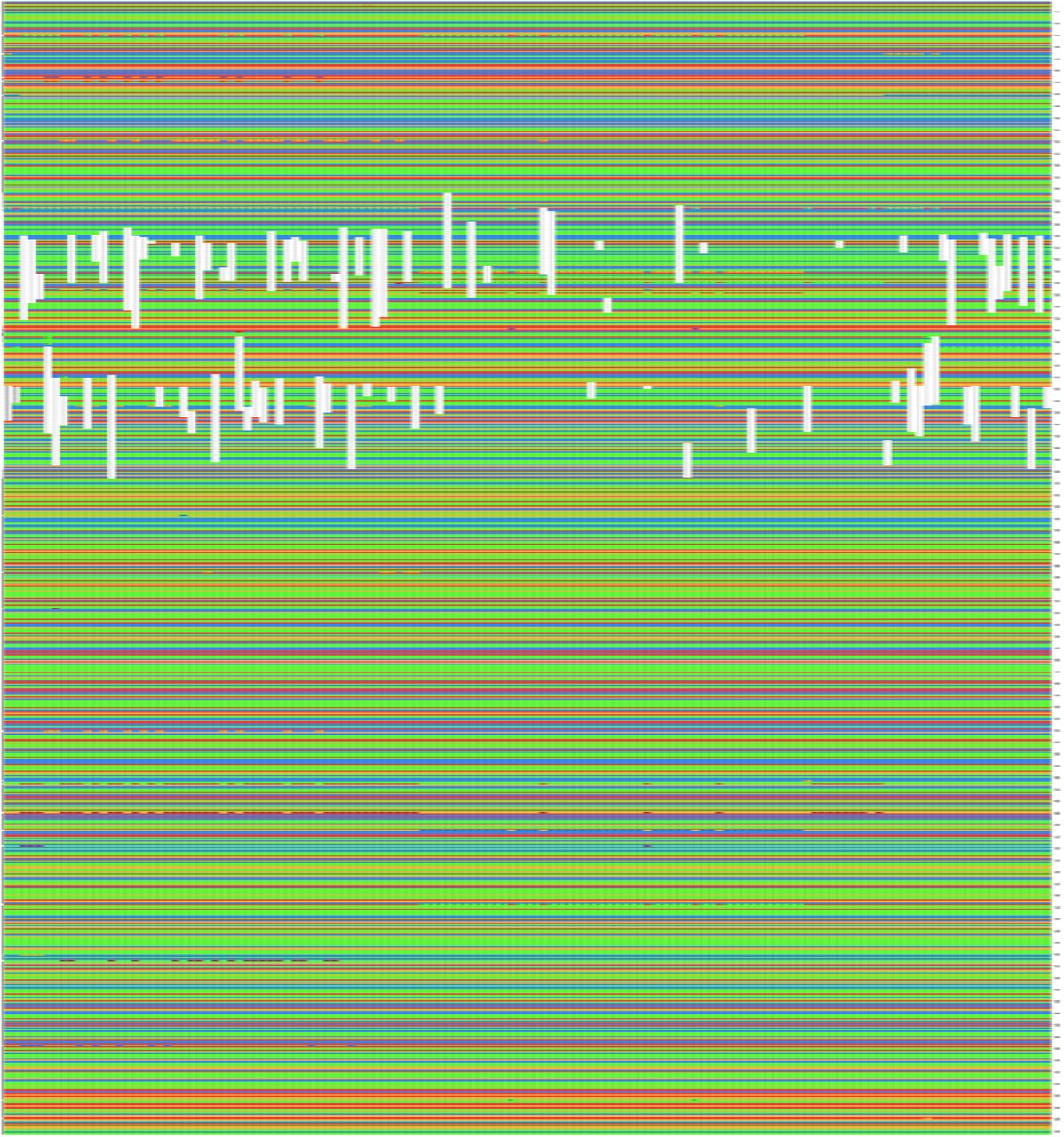

While CA carriage isolates showed conservation of the prsA sequence across the population, multiple patterns of variation arising in different lineages were seen in HA carriage isolates (Figure S10), consisting of both SNPs and deletions (Figure S11). When a conditional SNP GWAS was performed including the presence or absence of any of the kmers most strongly associated with CA-vs-HA carriage as a covariate in the model, no SNPs reached the threshold for significance, suggesting the signal of association accompanying these SNPs was better explained by prsA variation. Variation in prsA was common in the MRSA sub-clade of CC-22 but was not limited to this lineage. PrsA is a surface bound foldase protein, responsible for post-translational processing of virulence factors, including proteases and cell surface proteins80,81 which has also been shown to modulate susceptibility for both beta-lactam and glycopeptide antibiotics.78,79 No peak of significant kmers occurred at the prsA locus in the carriage-vs-bacteraemia GWAS (Figure 2A), suggesting that variation at this locus is specifically associated with carriage arising from the hospital environment, but not with bacteraemia.
Discussion
These findings reflect analysis of a large collection, representing the populations of S. aureus circulating in community and hospital settings, including the whole genomic content of the population, with control of population structure. In doing so, we address the conflicting results from smaller case-control studies which have found evidence for26,29 and against18,24 differing invasiveness between S. aureus lineages. Broadly, lineages did not differ in the frequency with which they caused bacteraemia, compared to their frequency in carriage. However, across lineages we found evidence that genetic variants underlying AMR were associated with increased odds of bacteraemia versus carriage. These included some determinants of methicillin resistance, contrasting with previous research indicating that methicillin resistance incurs a fitness cost for S. aureus, reducing its pathogenicity.82,83
The most obvious possible explanation for association between methicillin resistance and bacteraemia would be survival benefit in the presence of beta-lactam antibiotics. However more than half of our MRSA bacteraemia cases were community-associated, being first detected prior to or within 48 hours of hospital admission. While we do not have data about pre-hospital antibiotic treatment, it is unlikely that the majority of patients with CA bacteraemia were on beta-lactam antibiotics at the time that bacteraemia developed. It is also possible that other between-group differences, such co-morbid illnesses, may also account for the different prevalence of MRSA observed between patients with bacteraemia and asymptomatic carriers, and we have not been able to measure patient factors confounding between MRSA carriage and invasive infection.
However, there is in vitro evidence that mecA – the primary determinant of methicillin resistance – modifies bacterial virulence independently of antibiotic selection pressure, through modulation of Agr-mediated toxin expression.33 The association observed here concords with other evidence implicating the altered PBP encoded by mecA in persistent and complicated bacteraemia. Analysis of SAB over 21 years in the USA showed that within CC-8, the MRSA lineage USA300 was associated with higher rates of metastatic infection compared to the rest of the spa-t008 complex after adjusting for patient and clinical variables.73 S. aureus strains which are phenotypically methicillin susceptible but contain the mecA gene have been reported to have a higher risk of persistent bacteraemia, even when treated with vancomycin.74 AMR elements have been implicated as virulence determinants in another Gram positive species; Streptococcus pneumoniae, where a PBP variant associated with penicillin tolerance (though not resistance) was associated with meningitis among isolates found in invasive pneumococcal disease.75
Our finding of trimethoprim resistance associated with bacteraemia is not easily explained through direct antibiotic selection since trimethoprim containing antibiotics (e.g. co-trimoxazole) are not advised in therapeutic guidelines for treatment of skin and soft tissue infections in the United Kingdom, where CA-MRSA rates are low. It is plausible that patients may receive trimethoprim for urinary tract infections in the community, and this could reflect an impact on commensal flora, enabling invasion by trimethoprim-resistant S. aureus strains. It is also possible that mutations in dfrB, a metabolic gene important in bacterial DNA synthesis, affect bacterial persistence: trimethoprim resistant S. aureus have shown variable growth rate and survival under environmental stress according to the mechanism of resistance.77
Overall, we found MRSA was more prevalent in bacteraemia than carriage in samples, when sampling the population representatively. In the UK at this time MRSA was almost exclusively healthcare associated. Consequently, one potential explanation for this finding is unmeasured hospital exposure among CA bacteraemia cases for which hospital exposure data was only available for the preceding 12 weeks. However even restricting to HA associated cases and controls MRSA was associated with bacteraemia. Furthermore, by controlling for population structure, we can be confident the association demonstrated between mecA and bacteraemia is not simply a reflection of hospital adapted lineages, and that such lineage effects could have been detected using the GWAS methods employed here. In fact, while variation within prsA was strongly associated with HA carriage, variation in this gene was not associated with carriage-vs-bacteraemia. Likewise, a quinolone resistance mutation in gyrA was associated with HA carriage but not with bacteraemia. These observations suggest that distinct bacterial factors favour hospital adaptation or transmission compared with those favouring bloodstream infection.
The surface bound foldase protein PrsA has been implicated as a secondary resistance factor for both beta-lactam and glycopeptide antibiotics.78,79 In vitro assays have shown that S. aureus can survive despite disruption to prsA, but strains with prsA disruption are more susceptible to oxacillin.78 Regulating expression of a methicillin-resistant phenotype independently of mecA, PrsA reduces the membrane quantity of PBP2a without altered transcription of mecA.79 Additionally, PrsA plays an important role in the post-translational processing of virulence factors, including proteases and cell surface proteins,80,81 and while the secretion of some virulence factors is decreased when prsA is deleted,80 PrsA-deficient bacteria have enhanced aggregation and adherence,81 changes which might favour survival or transmission in the hospital environment.
Our study demonstrates some constraints and pitfalls for bacterial GWAS. Firstly, sequencing read length was a strong source of confounding in our data which, without adequate control, produced false positive results. This is an ongoing challenge for studies pooling existing sequencing data where it is not possible to randomize cases and controls across sequencing batches. We dealt with this using the conservative option of excluding 391 cases from kmer analysis, representing a substantial sacrifice of power. A further limitation was that population structure appeared to be incompletely controlled for low frequency variants,84 as exhibited by a set of 91 SNPs in strong linkage disequilibrium (LD) associated with HA-vs-CA carriage. Linear Mixed Models are able to control for lineages, and cryptic population structure through the use of a relatedness matrix, but they make the assumption that closely related isolates are unlikely to have large differences in phenotype. This assumption means that they can incompletely account for lineage effects arising from closely related strains which vary significantly in frequency between phenotypes.84 In our study, the SNPs in LD were found in the predominantly HA-MRSA isolates within CC-22. This may represent either a true association with that lineage, or co-carriage with another genomic element in that lineage. In this case, prsA variation was common in CC-22, but not detected in the SNP based study (as the variation was a deletion rather than a nucleotide substitution), and the signal of association accompanying these SNPs was better explained by prsA variation. Overall, the kmer-based methods were more fruitful in our study, both in their ability to detect non-SNP based variation (such as deletions in prsA, and the presence of mecA), and retaining the ability to identify significant SNPs (including a dfrB variant).
In previous studies we have identified within-host adaptation of S. aureus genes associated with development of invasive disease from a colonising isolate – particularly involving the agr locus, and the cell wall proteins under regulatory control of Agr and Rsp.43 Such variation was not associated with bacteraemia in this population-based study, perhaps because it provides only a short-term advantage to the bacteria, and in the longer term is detrimental, by adversely affecting transmission. In contrast, variation which confers AMR is likely to confer a bacterial survival advantage in carriage in the face of antibiotic selection pressure in the healthcare environment, as well as in the bloodstream, allowing these variants to survive in the population.
Conclusions
In a study of over 2000 isolates from S. aureus bacteraemia and nasal carriage in the UK, we found strong evidence that all S. aureus lineages are equally capable of causing bloodstream infection, and of being carried in the healthcare environment.
We found that genomic variation in the foldase protein prsA was a novel genomic marker of healthcare adaptation in S. aureus. This predictor of healthcare-associated carriage was not associated with bacteraemia, while AMR determinants were associated with both bacteraemia and hospital-associated carriage, raising the suggestion that in addition to enabling survival in healthcare environments, AMR functions as a virulence factor, promoting invasive disease.
Given studies demonstrating a direct effect of mecA on toxin expression33 and reduced toxicity enhancing bloodstream survival,42 we hypothesise that lowered expression of toxic virulence factors seen in MRSA may be one method by which S. aureus gains a short-term survival advantage and causes bloodstream infection.
Supporting information
Data Availability
Sequenced bacterial isolates submitted to Short Read Archive accession number PRJNA690682
Abbreviation
- Agr
- Accessory gene regulator
- AMR
- Antimicrobial resistance
- CA
- Community associated
- CC
- clonal complex
- HA
- Healthcare associated
- HMP
- Harmonic mean p-value
- MLST
- Multi locus sequence type
- MRSA
- Methicillin-resistant S. aureus
- LD
- linkage disequilibrium
- OR
- Odds ratio
- PBP
- Penicillin binding proteins
- PVL
- Panton Valentine leucocidin
- Rsp
- Repressor surface protein
- SAB
- Staphylococcus aureus bacteraemia
- S. aureus
- Staphylococcus aureus
- WGS
- Whole genome sequencing
Declarations
Ethics approval and consent to participate
The study of community S. aureus carriage was approved by Oxfordshire Research Ethics Committee B (08/H0605/102). Ethical approval for linkage to patient data without individual patient consent in Oxford was obtained from the South Central Ethics Committee (14/SC/1069) and the Confidentiality Group [ECC5-017(A)/2009]. Data about S. aureus bacteraemia in Oxfordshire, Brighton and Plymouth were collected for evaluations of clinical service provision. Under UK National Research Ethics Service guidance at the time this data collection constituted a service evaluation involving routinely available, non-identifying patient data and therefore not requiring research ethics committee review.
Consent for publication
Not applicable
Availability of data and materials
sequenced bacterial isolates deposited in Short Read Archive accession number PRJNA690682
Competing interests
The authors declare no competing interests
Funding
This study was supported by the Oxford NIHR Biomedical Research Centre, a Mérieux Research Grant, the National Institute for Health Research Health Protection Research Unit (NIHR HPRU) in Healthcare Associated Infections and Antimicrobial Resistance at Oxford University in partnership with Public Health England (PHE) (grant HPRU-2012-10041), and the Health Innovation Challenge Fund (a parallel funding partnership between the Wellcome Trust (grant WT098615/Z/12/Z) and the Department of Health (grant HICF-T5-358)).
Computation used the Oxford Biomedical Research Computing (BMRC) facility, a joint development between the Wellcome Centre for Human Genetics and the Big Data Institute supported by Health Data Research UK and the NIHR Oxford Biomedical Research Centre. Financial support was provided by the Wellcome Trust Core Award Grant Number 203141/Z/16/Z.
D.J.W. is a Sir Henry Dale Fellow, jointly funded by the Wellcome Trust and the Royal Society (Grant 101237/Z/13/B). D.J.W. is supported by a Big Data Institute Robertson Fellowship. B.C.Y. is an NIHR Academic Clinical Lecturer, and this work was funded by a Research Training fellowship from Wellcome Trust (Grant 101611/Z/13/Z). T.E.P., D.W.C. and A.S.W. are NIHR Senior Investigators.
The views expressed are those of the author(s) and not necessarily those of the NHS, PHE, the NIHR or the Department of Health.
Acknowledgements
We thank the International Staphylococcus aureus Consortium and the United Kingdom Clinical Infection Research Group for sharing data and bacterial strains from bloodstream infection.
Untitled section
Table S3: SNPs showing significant association with HA-vs-CA carriage
Table S4: Kmers showing significant association with HA-vs-CA carriage
