Predictive Modeling and Deep Phenotyping of Obstructive Sleep Apnea and Associated Comorbidities through Natural Language Processing and Large Language Models
1Department of Computer Science and Information Technology, Hood College, Frederick MD 21701, USA
2San Juan Bautista School of Medicine, Caguas, Puerto Rico 00727, USA
3Lawrence Berkeley National Laboratory, Berkeley CA 94720, USA
†Corresponding authors: dong@hood.edu, sncrivelli@lbl.govAbstract
Obstructive Sleep Apnea (OSA) is a prevalent sleep disorder associated with serious health conditions. This project utilized large language models (LLMs) to develop lexicons for OSA sub-phenotypes. Our study found that LLMs can identify informative lexicons for OSA sub-phenotyping in simple patient cohorts, achieving wAUC scores of 0.9 or slightly higher. Among the six models studied, BioClinical BERT and BlueBERT outperformed the rest. Additionally, the developed lexicons exhibited some utility in predicting mortality risk (wAUC score of 0.86) and hospital readmission (wAUC score of 0.72). This work demonstrates the potential benefits of incorporating LLMs into healthcare.
Data and Code Availability
This paper uses the MIMIC-IV dataset (Johnson et al., 2023a), which is available on the PhysioNet repository (Johnson et al., 2023b). We plan to make the source code publicly available in the future.
Institutional Review Board (IRB)
This research does not require IRB approval.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
We thank The National Energy Research Scientific Computing Center, The U.S. Department of Energy, The Sustainable Research Pathways Program, and The Hood College Volpe Scholarship for supporting the project. We are grateful to the physicians from Veterans Affairs for providing medical guidance.
1.Introduction
Obstructive sleep apnea (OSA) is a sleep-related breathing disorder characterized by complete (apnea) or partial (hypopnea) obstruction of the upper air-way, leading to sleep disruptions and intermittent hypoxemia, i.e., a low level of oxygen in the blood. In the United States, OSA prevalence among adults is estimated at 12% (Watson, 2016), and almost one billion people are affected globally (Benjafield et al., 2019). Additionally, OSA is linked to an increased risk of various cardiovascular (CV)(Loke et al., 2012; Seiler et al., 2019; Sulit et al., 2006; Xia et al., 2018), metabolic(Sulit et al., 2006), and neurological conditions (Olaithe et al., 2018; Yaffe et al., 2011).
While previous studies indicate some correlation between OSA severity and susceptibility to cardio-vascular and metabolic diseases, the pervasive and often undetected nature of OSA, coupled with the challenge of identifying individuals most at risk for CV and metabolic dysfunction, has resulted in under-diagnosis and consequently suboptimal healthcare utilization and poor personalized patient care. In 2015, the U.S. spent $12.4 billion on OSA-related expenses, with substantial costs in diagnosis, treatment, and associated productivity losses. Furthermore, the report estimated the cost burden of undiagnosed OSA among U.S. adults was an astounding $149.6 billion during the same period (Watson, 2016).
Diagnosing OSA is complex and involves specialized tests like polysomnography (PSG) and home sleep apnea testing (HSAT). However, research indicates that the likelihood of misdiagnosis in OSA cases based on a single night ranges from 20% to 50% (Lechat et al., 2022). There is an urgent need to improve OSA deep phenotyping and patient risk assessment to mitigate the risk of developing multiple highly challenging health conditions. Deep pheno-typing is defined as the precise and comprehensive analysis of phenotypic abnormalities for scientific examination of human disease (Robinson, 2012).
The widespread adoption of electronic health records (EHRs) has increased the availability and quality of electronic medical data. Utilizing EHRs, mainly the unstructured patient discharge notes, this study seeks to employ natural language processing (NLP) and large language models (LLMs) for a comprehensive understanding of obstructive sleep apnea and associated comorbidities. The three primary objectives are as follows:
- Compare LLMs: Compare large language models to evaluate their effectiveness in extracting informative n-grams for characterizing obstructive sleep apnea and its associated comorbidities.
- Develop Predictive Models for Diagnosis: Develop predictive models to sub-phenotype and diagnose obstructive sleep apnea in diverse patient cohorts. This involves utilizing unstructured discharge notes annotated with LLM-selected n-grams for diagnosis.
- Forecast Medical Outcomes: Construct predictive models with historical EHR data to forecast future medical outcomes, with a specific focus on predicting patient mortality rates and hospital readmissions. The overarching goal is to contribute to improved clinical decision-making.
3.Methodology
3.1.Dataset

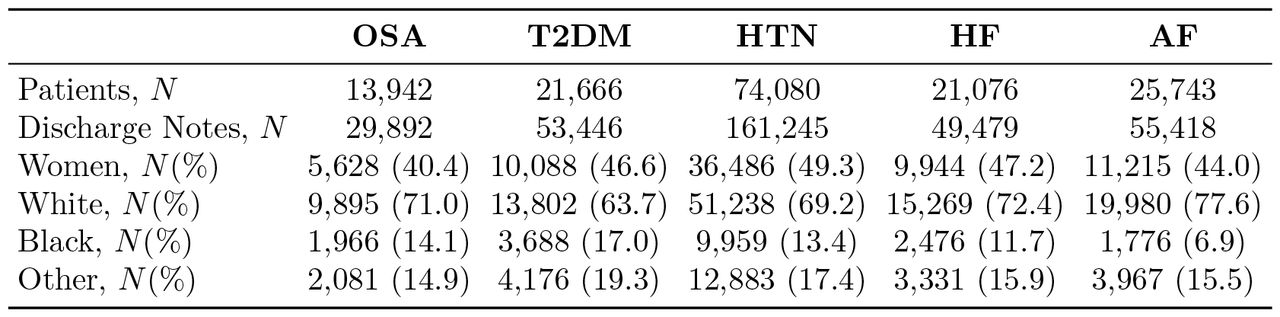

The Medical Information Mart for Intensive Care (MIMIC)-IV database is utilized for this project (Johnson et al., 2023b). It comprises deidentified electronic health records for patients admitted to the Beth Israel Deaconess Medical Center emergency department or ICU between 2008 and 2019. MIMIC-IV v2.2, released in January 2023, consists of 299,712 patients and 431,231 admissions.
In addition to obstructive sleep apnea, we examined the following associated comorbidities: diabetes mellitus type 2 (T2DM), hypertension (HTN), heart failure (HF), and atrial fibrillation (AF). Physicians have selected a specific set of International Classification of Diseases (ICD) codes for each health condition, and you can find a summary in Table 1.
As an example, the following ICD codes are used to identify patients with OSA: 327.20 (Organic sleep apnea, unspecified), 327.23 (Obstructive sleep ap-nea [adult, pediatric]), 327.29 (Other organic sleep apnea), 780.51 (Insomnia with sleep apnea), 780.53 (Hypersomnia with sleep apnea), 780.57 (Sleep ap-nea [NOS]), G4730 (Sleep apnea, unspecified), G4733 (Obstructive sleep apnea [adult, pediatric]), and G4739 (Other sleep apnea). A patient is considered to have a positive diagnosis for a specific health condition if they possess at least one corresponding ICD code. Table 2 provides basic demographic data of patients of interest.
3.2.Process Flow

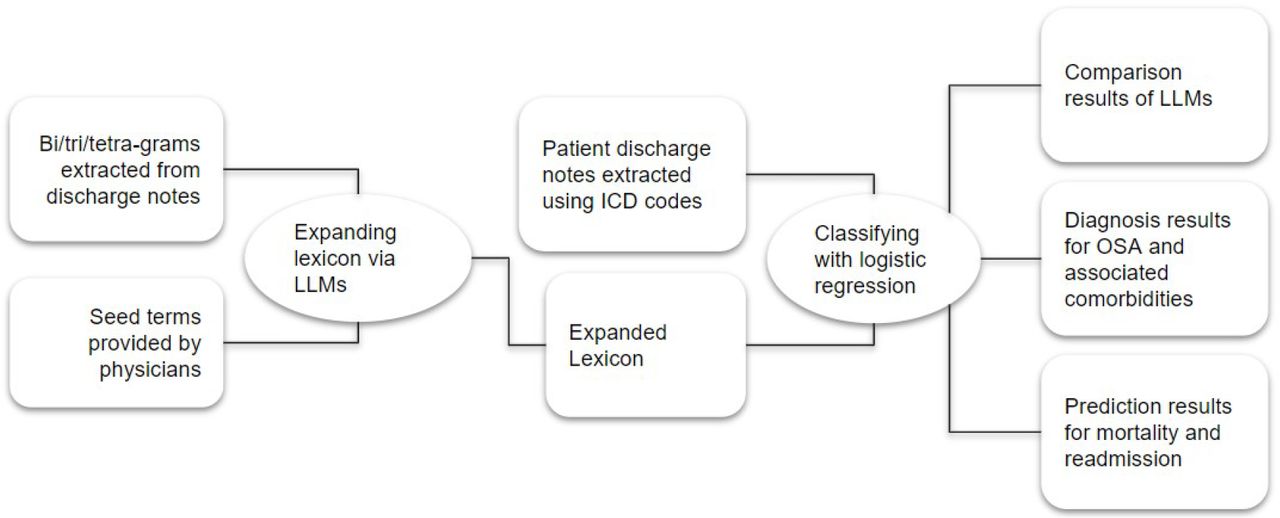

The flowchart (Figure 1) represents a data-driven approach to healthcare analysis and it outlines the sequence of tasks or processes that are executed to accomplish the three objectives, as described in Section 1, Introduction.
Bi/Tri/Tetra-grams extracted from discharge notes
The initial step is to extract bigrams (pairs of consecutive words), trigrams (triplets of consecutive words), and tetragrams (four consecutive words) from patient discharge notes to capture commonly used phrases. MIMIC-IV v2.2 contains 331,794 discharge notes. The mean number of characters per note is 10,551. The longest and shortest discharge notes have 60,381 and 353 characters, respectively. The numbers of bigrams, trigrams, and tetragrams extracted from this step are 3,096,096, 5,407,839, and 4,792,806, respectively. These ngrams (i.e., bigrams, trigrams, and tetragrams) are candidates for expanding lexicons in this study.
Seed terms provided by physicians
Physicians involved in this study provided seed terms, relevant medical terms or phrases for OSA and comorbidities of interest. The number of seed terms per condition is listed in Table 1. As an example, the following terms are among the 38 terms for OSA: poorly refreshing sleep, obstructive sleep apnea (OSA), obesity hypoventilation syndrome (OHS), unrefreshing sleep, sleepiness, excessive daytime sleepiness (EDS), and snoring.
Expanding lexicon via LLMs
The extracted ngrams are used to expand the seed terms using LLMs. The goal of this step is to identify informative ngrams (bi/tri/tetra-grams) from discharge notes for categorizing OSA and its associated comorbidities. The general approach to selection is by comparing how similar these ngrams are to the seed terms of corresponding conditions. The similarity between an ngram and a seed term is measured by the cosine similarity between their embeddings, which are semantic representations extracted from an LLM. Specifically, given an ngram t and a seed term s, the cosine similarity between t and s is measured using where V (t) is the LLM embedding vector for the ngram and V (s) is the LLM embedding vector for the seed term. We investigated multiple LLMs and compared their representation power or quality.
Patient discharge notes extracted using ICD codes

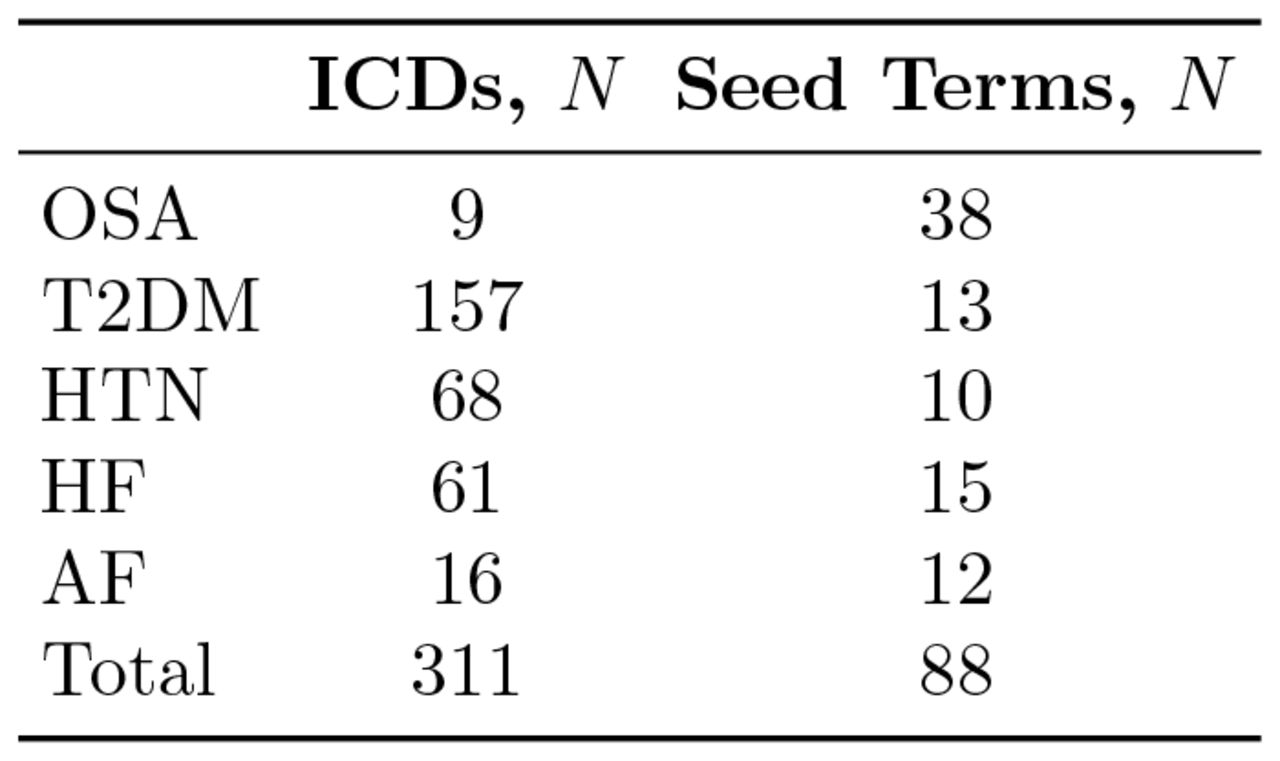

Discharge notes for patients with OSA and/or comorbidities are extracted based on ICD codes (See Table 2 for summary). The process involved merging information from multiple tables or files. Discharge notes are long-form narratives that describe the reason for a patient’s admission to the hospital, their hospital course, and any relevant discharge instructions. Each discharge note is for a patient’s one hospital stay, and a patient may have multiple discharge notes if he or she has more than one hospital stay.
Classifying with logistic regression
Multinomial Logistic Regression (MLR) is a statistical technique in machine learning designed to model relationships among multiple categories or classes within a dependent variable. MLR estimates probabilities for each class and is selected for this study due to its simplicity and its ability to offer valuable insights into the relative importance of different text features (i.e., ngrams) for predicting outcomes.

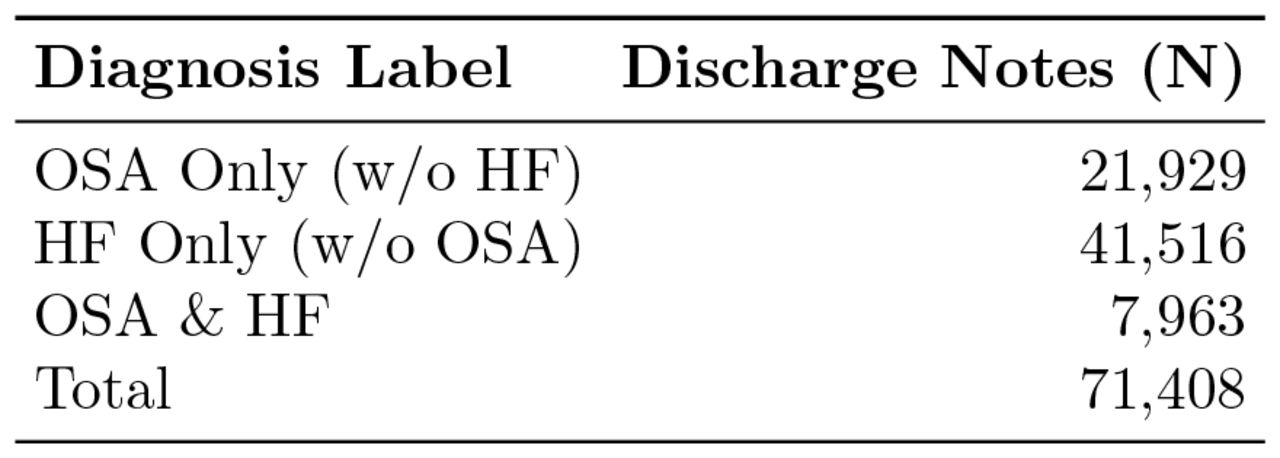

Each discharge note was labeled based on the diagnosis or medical outcome. For instance, in a study involving patients with OSA and HF (Table 4), the labels include OSA only (i.e., without HF), HF only (i.e., without OSA), and OSA & HF (i.e., with both OSA and HF). For the mortality study, each discharge note was labeled with either alive or deceased.
To represent each note, a “bag-of-ngrams” encoding was applied, treating each ngram as a presence/absence feature variable. The selection of ngrams is determined by the health conditions under study. For instance, in a study involving patients with OSA and HF using trigrams, the trigrams may comprise the top-n trigrams from OSA’s trigram list and the top-n trigrams from HF’s trigram list. These two listed are then merged with duplicates removed.
Models were tested along a repeated stratified 10-fold validation scheme.
Comparison results of LLMs
LLMs represent ngrams differently. To assess the effectiveness of the LLMs in expanding the lexicon and aiding in accurately characterizing obstructive sleep apnea and its associated comorbidities, diagnosis performance is used. See Section 4 for details.
Diagnosis results for OSA and associated comorbidities
Diverse patient cohorts were investigated with different approaches. See Section 5 for details.
Prediction results for mortality and readmission
Although seed terms and then expanded lexicon are for characterizing OSA and associated comorbidities, the predictive power in mortality and read-mission risks were assessed in Section 6.
3.3.Software and Platform
The packages used in this study include pandas, NumPy, multiple large language models, Matplotlib, NLTK, mpi4py, PyTorch, and scikit-learn. The National Energy Research Scientific Computing Center (NERSC) available at the Lawrence Berkeley National Laboratory provided computing resources used for LLMs, complex machine learning models and processing a large volume of electronic health records.
4.Comparative Study of Large Language Models

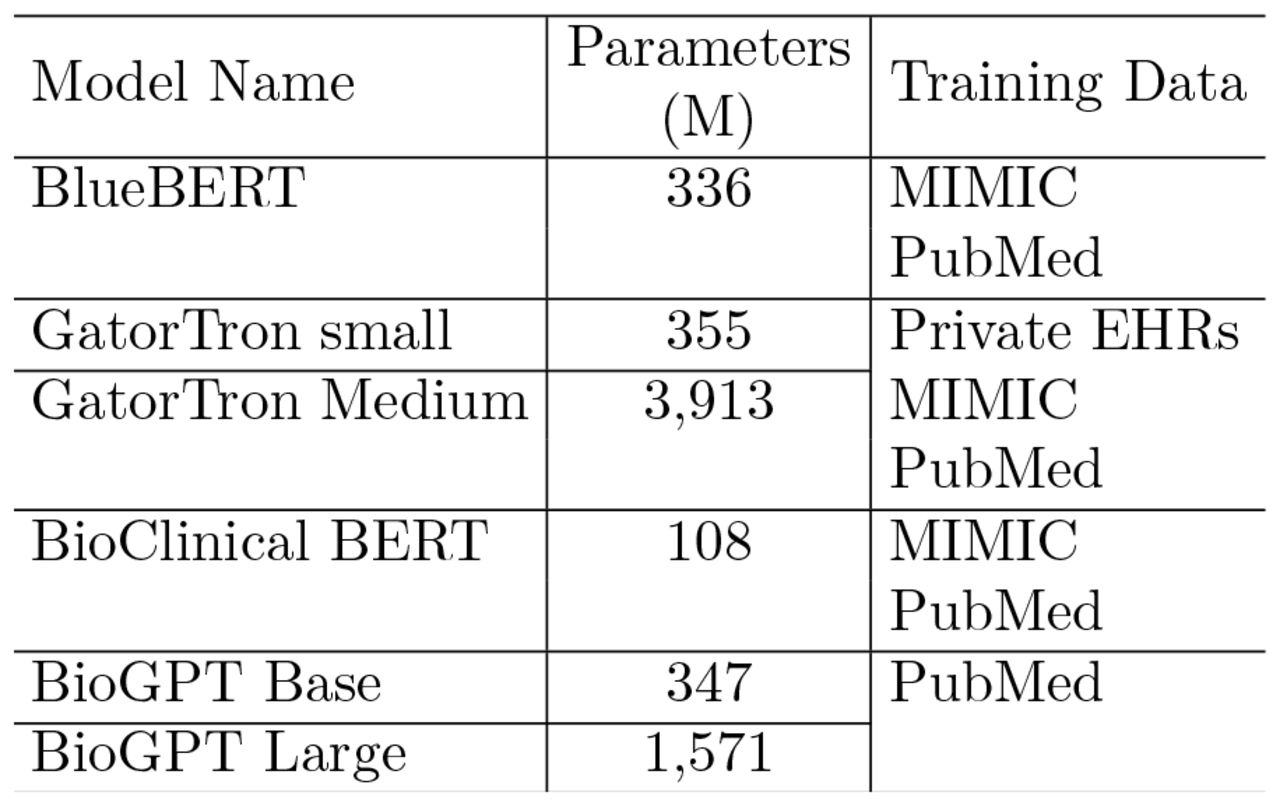

The representation power of large language models depends on their model size, exposure to training data, and the ability to capture intricate linguistic patterns and contextual dependencies. In this section, our objective is to compare the ability of six large language models to identify and discover informative ngrams from clinical notes for categorizing OSA and associated comorbidities. Table 3 shows how these models differ in size, training data, and model architecture.
4.1.Comparing LLMs in the Diagnosis of Sleep Apnea and Heart Failure
The goal is to compare the abilities of the six large language models to identify trigrams for diagnosing patients with obstructive sleep apnea, heart failure, or both. Table 4 provides information on the patient cohort composition and the number of discharge notes in each group.

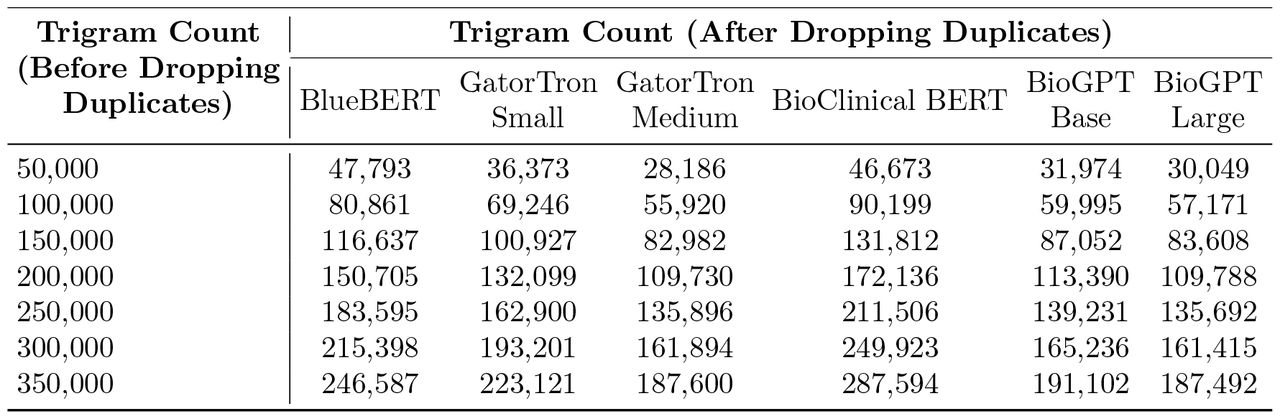

Building on our previous study with MIMIC-III, trigrams were used in this study. An equal number of trigrams were chosen from the ranked trigram lists of OSA and HF. If a trigram is relevant to both conditions and appears in both lists, only one copy is kept when merging the two lists. After merging, the actual counts of unique trigrams vary across LLMs (Table 5). Six trigram or feature sizes were explored.
Each selected trigram serves as a unique feature for the bag-of-words classification model, capturing the presence or absence of each trigram in a given discharge note. The discharge notes are labeled with OSA only (i.e., without HF), HF only (i.e., without OSA), or both OSA & HF based on the ICD code. Multinomial logistic regression (MLR) was then employed for a 3-class 1-to-many classification. The classification performance, represented by wAUC (weighted area under the curve), indicates the quality of trigrams selected by LLMs. In other words, it offers insights into how effectively the chosen trigrams contribute to the model’s ability to accurately classify patients into their respective diagnostic categories.

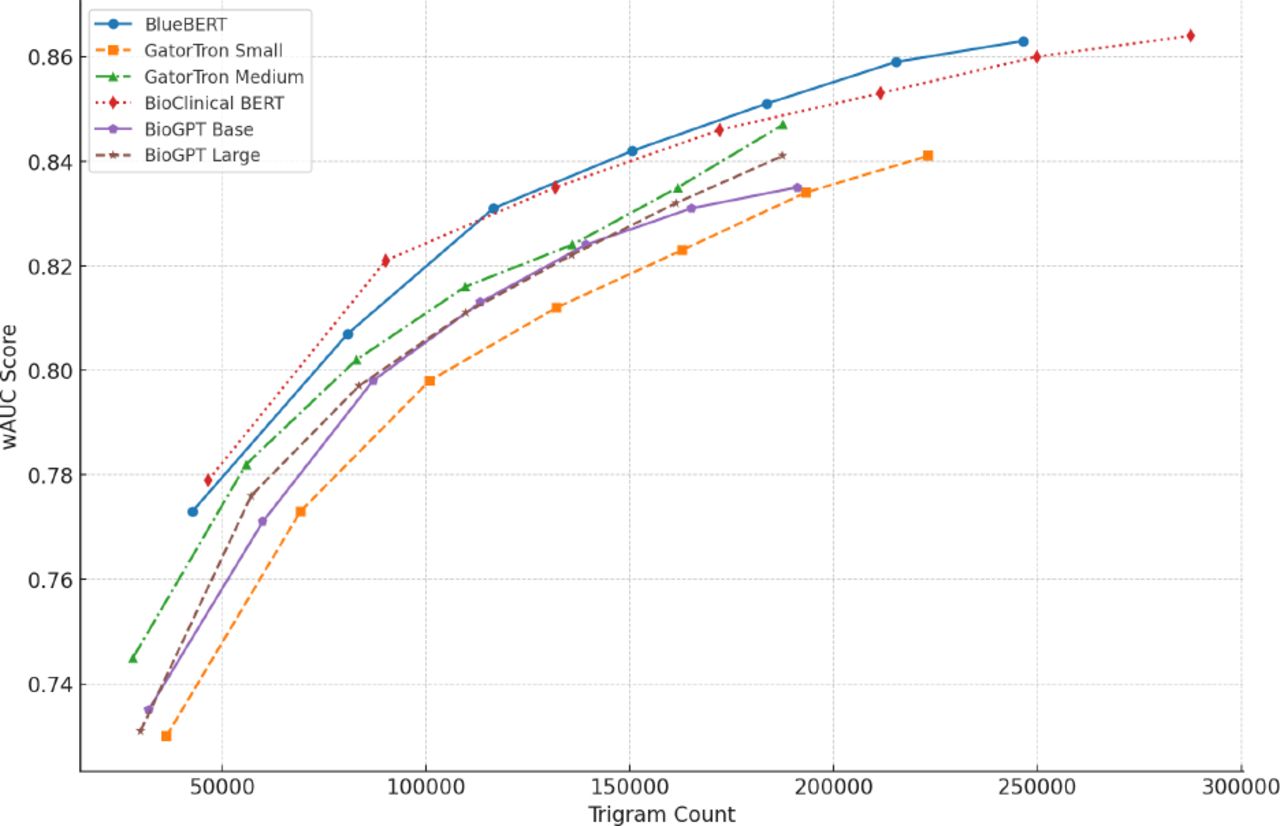

Each line in Figure 2 displays a trend of increasing wAUC score with the rise in trigram count, suggesting that model performance generally improves with the utilization of more trigrams or features. The actual number of trigrams (i.e., after duplicates are removed) ranges from 28,186, which is 0.52% of all trigrams, to 287,594, constituting 5.3% of all trigrams. The wAUC score spans from approximately 0.72 to 0.86.
According to the trends, BlueBERT and BioClinical BERT demonstrate better performance, especially at higher trigram counts. Table 5 reveals that these models have larger trigram counts post-deduplication than other large language models, suggesting that their OSA and HF trigram lists are more selective, that is, they share fewer trigrams. Further-more, BioGPT Large outperforms BioGPT Base and GatorTron Medium outperforms GatorTron Small, potentially indicating that the more complex models are selecting trigrams of higher quality, thereby better characterizing the two health conditions.
4.2.Comparing the Impact of Ngram Size

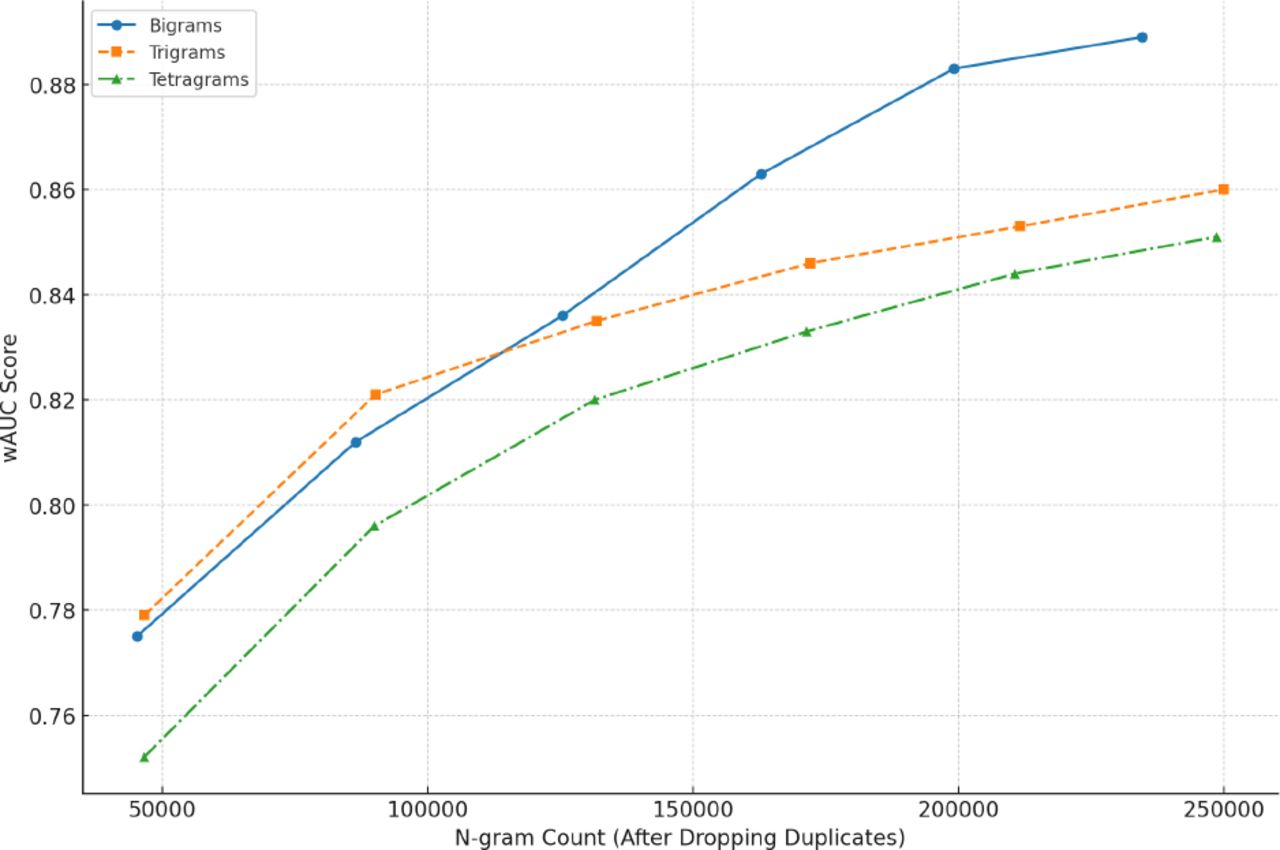

The goal of this study is to evaluate the effectiveness of different ngram sizes (i.e., bigram, trigram, and tetragram) in terms of diagnostic accuracy, as measured by the wAUC scores. The same patient cohort (Table 4) as that of Section 4.1 and BioClinical BERT were used in this study.
Similar to that of Section 4.1, an equal number of bigrams, trigrams, or tetragrams were chosen from the OSA and HF lists. Since a ngram can be relevant to both conditions, the actual count of unique ngrams, after combining the two lists, varies. Six ngram or feature sizes were explored, Overall, Figure 3 shows the wAUC range from approximately 0.74 to 0.9. It also suggests that the wAUC Score for all three types of ngrams increases as the number of ngrams grows, with the bigram model generally outperforming trigram and tetragram models, indicating that the additional context provided by trigrams and tetragrams does not contribute to a higher predictive performance for this analysis.
5.Predictive Modeling for Sleep Apnea Diagnosis
Sleep apnea is associated with increased cardiovas-cular and metabolic risks. We aim to evaluate how informative LLM-selected lexicons are in distinguishing OSA from common comorbidities. Section 4 used patients with OSA and/or HF for LLMs comparison; this section addressed other common comorbidities, including OSA and type 2 diabetes mellitus (T2DM), OSA and hypertension (HTN), and OSA and Atrial Fibrillation (AF) (Table 6).

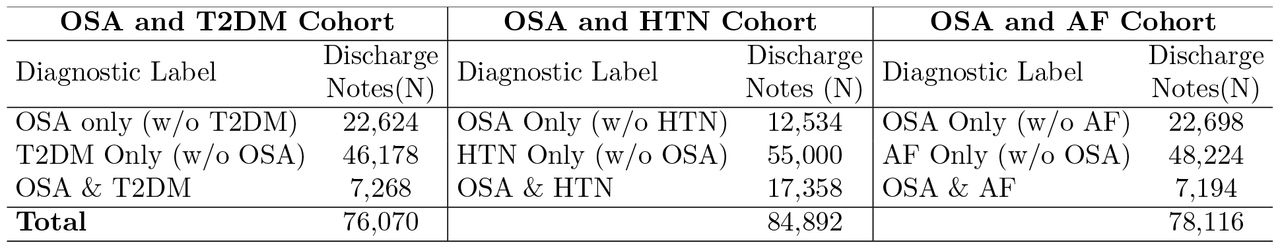

Trigrams were used in the OSA and T2DM, and OSA and HTN cohorts, while tetragrams were used in the OSA and AF cohort. Two LLMs—BlueBERT and GatorTron Medium—were used. For each patient cohort, an equal number of LLM-selected trigrams or tetragrams from both obstructive sleep apnea (OSA) and the corresponding comorbidity in the cohort were merged. Each unique trigram or tetragram functioned as a presence/absence feature variable for encoding discharge notes. Multinomial logistic regression was again employed for a 3-class 1-to-many classification. A search for hyperparameters, such as regularization strength and different optimization solvers, was conducted. All models underwent testing using a repeated stratified 10-fold cross-validation approach. The performance measures in Table 7 are wAUC scores.

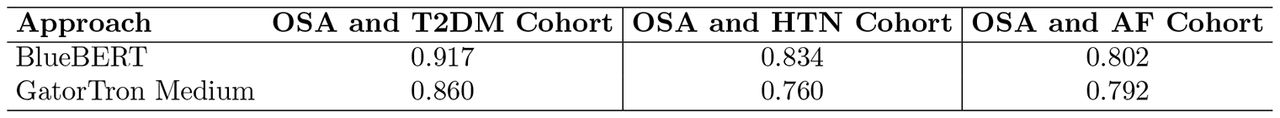

Table 7 shows BlueBERT consistently outperforms GatorTron Medium in all cohorts, with wAUC ranging from 0.917 for the OSA and T2DM cohort and 0.802 for the OSA and AF cohort. Additionally, based on Section 4.2, trigram model performed slightly better than tetragam model, this might be contributed to the performance variations between trigrams (OSA and T2DM Cohort and OSA and HTN Cohort) and tetragrams (OSA and AF Cohort).

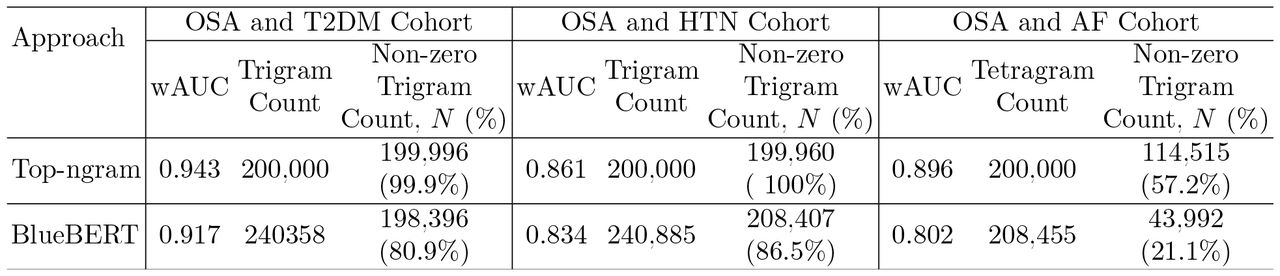

To further investigate the impact of LLM-selected ngrams on OSA diagnosis, we included a generic ngram model, i.e., the Top-ngram approach in Table 8. Instead of using LLM-selected trigrams, this approach uses the most frequently appearing trigrams in discharge notes from the MIMIC-IV dataset. Table 8 shows that the Top-ngram approach yields comparable or better results for OSA diagnosis across three patient cohorts.
We then examined the model parameters for a better understanding of the models. Specifically, we analyzed the number of unique ngrams used in each model (i.e., Trigram Count) and the number of grams with non-zero coefficients in the fitted MLR models (i.e., Non-zero Trigram Count)(Table 8). Please note that a non-zero coefficient indicates that an ngram contributes to the model performance. Table 8 shows that the Top-ngram approach utilized nearly all of the initial 200,000 ngrams, while Blue-BERT started with a larger pool of trigrams; however, a significantly lower percentage had non-zero coefficients, suggesting a more sparse model. This is often desirable as it indicates a more parsimonious representation, potentially enhancing model interpretability and reducing the risk of overfitting to noise in the data. Preliminary studies also indicate that the BlueBERT model runs about 5 times faster than the Top-ngram approach.
6.Predicting Mortality and Hospital Readmission
This study aims to construct predictive models using historical EHR data to forecast future medical outcomes. Our focus is on evaluating the predictive efficacy of LLM-expanded lexicon, designed for OSA diagnosis, in predicting mortality and hospital read-missions.
6.1.Mortality Prediction

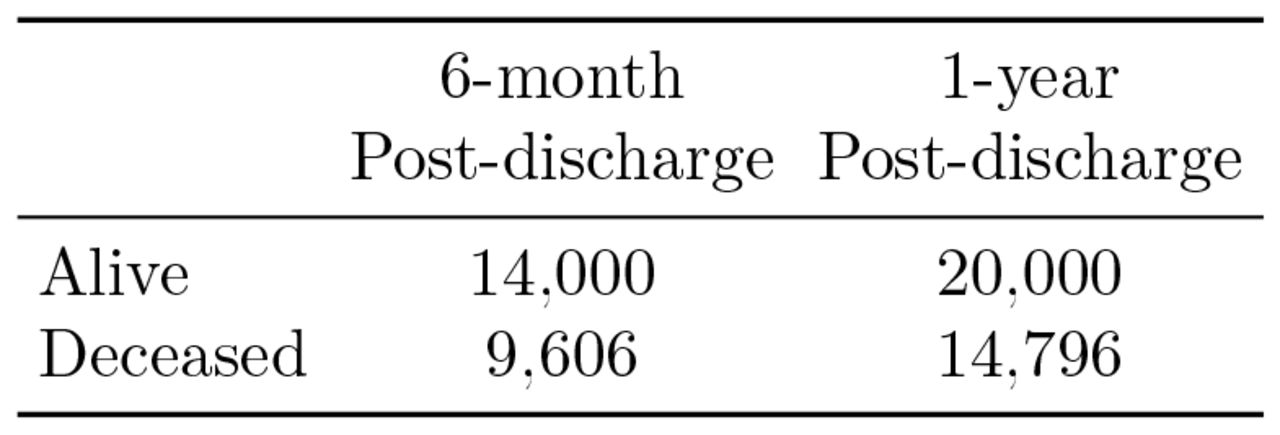

We extracted patients with obstructive sleep apnea (OSA), type 2 diabetes mellitus (T2DM), or hypertension (HTN). Patients’ discharge notes were labelled as deceased if patients expired either within 6 months after discharge or one year after discharge. The numbers in Table 9 are discharge note counts for different groups Two approaches were explored. The Top-ngram approach used the top 200,000 most frequently appearing trigrams in discharge notes, while the GatorTron Medium approach merged the top trigrams from each health condition’s GatorTron-expanded trigram lists, resulting in a final trigram count of 264,857.

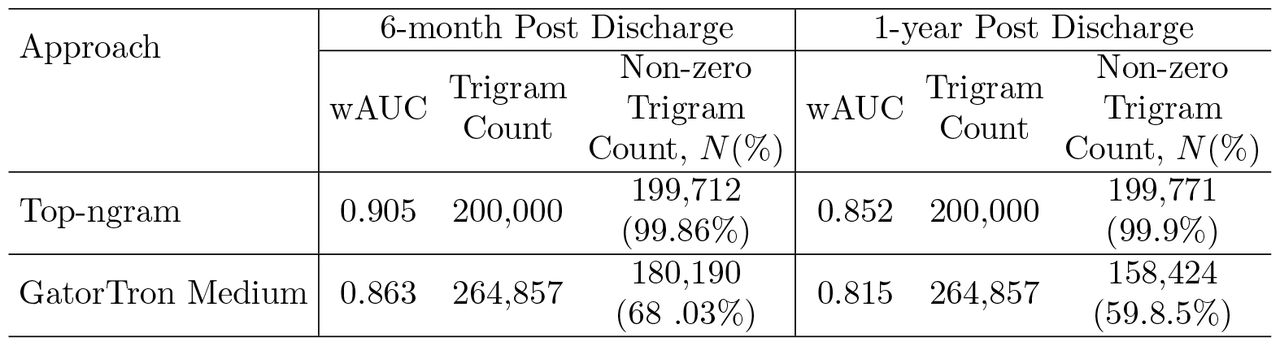

Table 10 shows that the Top-ngram approach out-performed the GatorTron model in both 6-month and 1-year mortality predications, suggesting that lexi-cons identified by LLMs have some but limited utility in predicting mortality risk. Yet, the GatorTron model had a much lower non-zero trigram feature, suggesting a simpler model.
6.2.Hospital Readmission Prediction
We extracted patients with obstructive sleep apnea (OSA) or atrial fibrillation (AF). Patients’ discharge notes were labeled as 1 if they were readmitted and labeled as 0 if not readmitted or deceased. The study cohort comprised a total of 67,161 patients, with 42,124 readmitted and 25,037 not readmitted.
Two approaches were explored. The Top-ngram approach used the top 200,000 most frequently appearing tetragrams in discharge notes, while the Blue-BERT approach merged the top tetragrams from each health condition’s BlueBERT-expanded tetragram lists, resulting in a final tetragram count of 208,455.

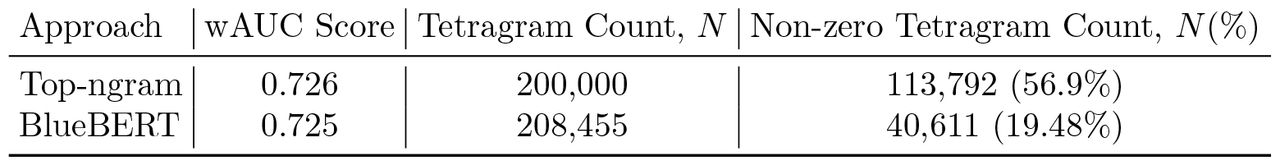

Both the Top-ngram and BlueBERT approaches demonstrated similar predictive performance in read-mission analysis, as indicated by nearly identical wAUC scores. Despite BlueBERT having a greater total number of tetragrams, only a smaller fraction contributed to the model. This suggests that the selection of tetragrams via BlueBERT produced a focused feature set, possibly resulting in more relevant but sparser features. In contrast, the n-gram method seems to benefit from a broader, denser feature utilization.
7.Discussions
Research suggests that obstructive sleep apnea increases the risk of cardiovascular and metabolic issues. Its frequent undiagnosed and delayed treatment lead to poor patient outcomes and substantial economic burdens. Deep phenotyping is crucial for early treatment, targeted interventions, improved patient outcomes, and more efficient healthcare resource allocation.
This study aims to utilize large language models (LLMs) and natural language processing to develop a lexicon specific to various OSA subphenotypes. This lexicon will help distinguish between patients diagnosed with OSA and its associated comorbidities, enhancing patient diagnosis and understanding of the condition and its related disorders.
7.1.Major Findings
The BioClinical BERT and BlueBERT outperformed all other tested models in diagnosing patients with OSA and heart failure. Both LLMs were pre-trained on one clinical dataset: MIMIC-III, potentially enabling the models to capture dataset-specific patterns and gain domain-specific knowledge, thereby improving their performance. Additionally, a more complex version of an LLM outperformed its simpler counterparts, even with fewer trigram features (Table 5 and Figure 2). This suggests that complex models are more adept at selecting higher-quality ngrams, leading to a more accurate characterization of health conditions.
Large language models can identify informative lexicons for OSA sub-phenotyping in simple patient cohorts, achieving wAUC scores of 0.9 or slightly higher (Table 8, Figure 2, and Figure 3). However, our preliminary study with more complex patient groups showed more challenges in effectively distinguishing between subphenotypes.
The Top-ngram approach for OSA sub-phenotyping, while yielding comparable or better results (Table 8), is more complex and computationally intensive compared to the models built with LLM-expanded lexicon. Although the LLM approach began with a larger pool of ngrams, only a smaller fraction had non-zero coefficients, indicating a simpler and interpretable model with a reduced risk of overfitting. This sparse modeling potentially contributes to the LLM approach’s speed, which is approximately five times faster than the Top-ngram approach. In contrast, the Top-ngram method utilizes a broader range of features, potentially leading to a denser feature set, as opposed to the focused and relevant feature set developed by LLMs.
The lexicons developed by large language models exhibited some utility, albeit limited, in predicting mortality risk and readmission. Both the Top-ngram and LLM approaches demonstrated comparable predictive performance, reflected in nearly identical wAUC scores. However, models generated from the LLM approach are simpler, a low percentage of non-zero features.
7.2.Limitations and Future Work
In this study, we explored the effectiveness of employing LLM-expanded lexicons for various sub-phenotyping of OSA and predicting patient out-comes. One limitation is that discharge notes for patients with OSA and comorbidities were labeled using ICD codes, primarily designed for billing and not necessarily indicative of the patient’s final diagnosis. To enhance model validation, we will consider incorporating two or more instances of diagnostic codes for a specific health condition when labeling (Keenan et al., 2020) or collaborating with physicians in this study to create a ground truth dataset (Cade et al., 2022).
Additionally, the ngram size study (Section 4.2) demonstrated that the bigram model generally out-performs the trigram and tetragram models. We will further investigate the impact of ngram size by applying it to phenotyping other patient cohorts, such as OSA and T2DM, OSA and HTN, and OSA and AF, as well as predicting patient mortality and hospital readmission risks.
Furthermore, the diagnostic and outcome prediction solely relied on unstructured clinical notes. Our future investigations will focus on integrating both structured data (such as demographics and time series measurements) and unstructured data (such as clinical notes) from EHRs for comprehensive pheno-typing of OSA patients, as well as predicting mortality and readmission risks.
Other areas for future work include developing lexicons using a combination of ngram sizes, constructing models for complex patient cohorts, exploring advanced machine learning models beyond MLR, and delving into improved methods for explaining model outputs to benefit clinicians from our study.
Data Availability
All data produced in the present study are available upon reasonable request to the authors.
