Synthesis of nano-sized lead sulfide thin films from Avocado (Glycosmis cochinchinensis) Leaf extracts to empower pollution remediation
Department of Physics, College of Natural and Computational Science, Dambi Dollo University, Dembi Dolo, Ethiopia
Centre for Excellence in Technology Transfer and Incubation, Dambi Dollo University, Dembi Dolo, Ethiopia
Department of Mechanical Engineering, Sri Eshwar College of Engineering, Coimbatore, India
Department of Mechanical Engineering, ULTRA College of Engineering and Technology, Madurai, Tamilnadu 625 104 India
Department of Mechanical Engineering, College of Engineering Science, Dambi Dollo University, Dembi Dolo, Ethiopia
Abstract
The translucent and nano-crystalline PbS films were equipped with the CBD techniques on metal substrates by the temperature of 90 °C through aqueous solutions of Lead Nitrate and Thiourea. The XRD phases verify the crystalline property of synthesized thin films that the shape falls in the cubic structures with favourite orientations. It revealed that the prepared material is cubic crystal oriented as (111), (110), (100) and (101) crystal planes. The crystalline size varied between 0.4 and 0.7 nm. The band gap was assessed using UV–vis captivation spectra and Tau relations. The average energy band gap was found to be 2.43 eV which is greater than bulk materials of PbS; because of quantum confinements of Lead Sulfide Nano Crystalline thin films, and PL also confirms this result. The variation in band gap with Leaf extracts and particle sizes displayed blue shifts characteristic of electrons quantum confinements. SEM micrograph shows extremely uniform and adherent PbS films are found at higher PH values. It was evidently observed that the viscosity of the synthesized thin films reduced from 563 to 111 nm with a rise in pH value. The sample prepared at pH 4 shows good performance, and thin films deposited from Avocado (Glycosmis cochinchinensis) leaf extracts are a promising method to empower pollution remediation and future energy.
Untitled section
Subject terms: Biochemistry, Biophysics, Biotechnology, Plant sciences, Climate sciences, Environmental sciences, Environmental social sciences, Chemistry, Energy science and technology, Engineering, Materials science, Nanoscience and technology, Physics
Article notes
Untitled section
Received 2022 Apr 28; Accepted 2022 Jun 29; Collection date 2022.
Introduction
Nanomaterials have been acknowledged to have a wide-ranging range of presentations in various areas. Because of their hopeful physicals, optical property and gas detecting behaviours, polymer composite has more and more applicability. Several investigators have studied the preparation of different chalcogenides. The electro-luminescence, as well as numerous diffractive properties of Nano-composites of chalcogenides/polymer, has lately been explored1–3.
Nanotechnologies also have an attention-grabbing character in the fields of subtracting, power inducing, optoelectronics, drug deliveries and ecological remediation4. In the initiation of Nano-technology, various nano-scale expedients have been advanced using several techniques, such as physicals, chemicals as well as green methods. Until now, a green Nanoparticle deposition is a tool of optimal easily equipped and contrived5–7. It is possible to see disadvantages of conservative methods for the production of Nanoparticles, comprising long term treating, expensive, painstaking processes, and in specific the usage of the poisonous compound. Furthermost of the applicable investigations have been engaged in biodegradable and fast production procedures for the manufacture of Nanoparticles because of these limitations8,9. The growth of eco-friendly techniques for manufacturing nano-scale ingredients has been the foremost attention in current centuries. In this esteem, green bottle production of Nanoparticles, particularly through leaf extracts from various floras, is increasing development that is considered simpler, cheaper as well as non-toxic in green harmony10. Nanotechnology has improved with a humanoid standard of existing through addressing numerous daily life issues, such as the involvement to power supply; weather alteration; gorgeousness, fabric as well as health manufacturing comprising the treatment of fatal sicknesses such as cancer as well as Alzheimer11–13. Because of their various claims in numerous procedural areas, inclusive study into metallic sulfide Nanoparticles has been concerted in previous years.
PbS is a very significant direct band gab binary semi-conducting substantial with refractive huge excitations Bohr-radius of 18 nm. It is a very imperative characteristic for the uses of electromagnetic discovery. The energy band gap of wholesale (bulk) crystal and poly-crystalline courses obtained lead Sulfide thin film is approximately 0.35 to 0.5 eV at room temperatures14. Therefore the photosensitive constant such as refractive indexes and extinction coefficients of a thin film is very significant for optical sensor uses. In recent times, the sizes altered Lead Sulfide Nanoparticles (grain) are equipped that is reducing the sizes it produces the band-gap of the Lead Sulfide thin films rises. This bounces the quantum confinements in Lead Sulfide Nanoparticles. These characteristics make the quantum confinement effect more prominent in Lead Sulfide associated with other Pb chalcogenide, even for comparatively greater particle size15,16.
In this perspective, Lead Sulfide has been developed in numerous procedures by several methods. These are electro-depositions, Spray pyrolysis, and Photo accelerated biochemical depositions17, void evaporations solid–gas depositions18. Generally, the provision of thin films had been applied through several procedures such as D-C magnetrons spluttering19, pulses electro-deposition techniques20, thermal vaporization technique21 rf magnetrons sputtering22, Sprays Pyrolysis technique23 as well as CBD (chemical bath deposition) techniques24. When a chemical bath is equated with the above approaches, it is comparatively simpler, more quick and cheap. Moreover, through this technique, thin films can be prepared on a glass substrate regardless of the form and surface morphology of the substrate, approximately at 37 °C. Depending on these causes, chemical bath deposition techniques provide, as it is found to be extremely gorgeous by researchers pointing to gain thin film25.
The chemical solution method is a thin film placing approach onto substrates as solutions; it includes sources of metallic, hydroxides and sulfides26. Chemical bath deposition has become a gorgeous technique based on many reasons, comprising ease of engineering, inexpensive, appropriateness for huge measure deposition area and the capability to deposit a thin film on several substrates and ease of monitoring thin film’s characteristics by adjusting the deposition constraints27.
The highest benefit of this technique is that throughout grows of thin films onto a substrate, and it is conceivable to guarantee that the reactions happening in the depositions bath occurred adequately gently27. Thin films synthesized by this method have promising claims in a solar cell absorber as well as solar controls coverings windows varnishing uses in earnest weathers, etc.28,29. The biological production of thin-film is attainment care of investigators due to the green (biosynthesis) has no influence on the environment. In the present study, Avocado (Glycosmis cochinchinensis) Leaf extract was used. Because in the entire world we only used the fruit of Avocado (Glycosmis cochinchinensis) Leaf extract and deposed its leaf in the environment and this leaves because the pollution of water, air and land; and this pollution causes the greenhouse effect and acid rain. So that researchers are much emphasized organizing the Nano-sized Lead Sulfide thin film from Avocado (Glycosmis cochinchinensis) Leaf extracts by using CBD technique.
The varieties of avocado cultivars in Ethiopia are around six kinds recorded for fabrication which are fusions of original competitions. These include Hass, Fuerte, Pinkerton, Nabal, Bacon, as well Ettinger30. But in a large area growing ordinary one which has large leafs harvest of fruits with big seeds. The improvement listed above has big fruit and small seed with small leaves. In this study, the researchers choose the conservative or unimproved avocado variety. In the current research, a methodical study was conducted on PbS thin films grown from CBD technique. The thin film was analyzed by XRD, UV–Vis, scanning-electron-microscopy and Photoluminescence spectrometer to investigate the structural, Morphological and Optical characteristics.
Materials and methods
Preparation PbS thin films

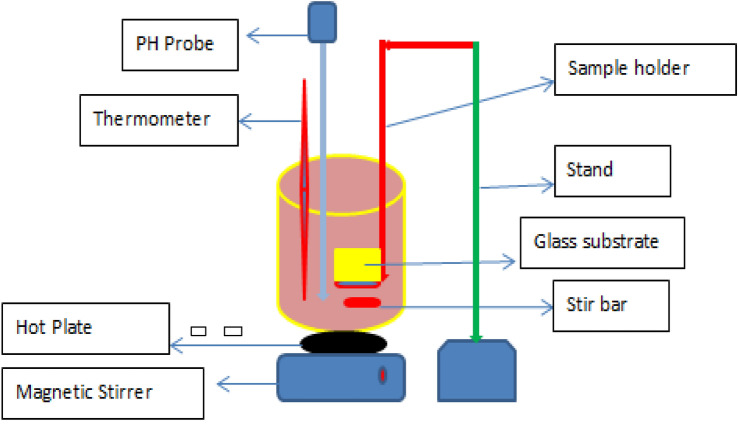

PbS thin film was prepared on metal substrates (30 × 70 × 1) mm through CBD techniques.
An aqueous solution of lead nitrite served as metal precursors basis that is lead(Pb), sodium-sulfide used as sulfides ion sources and [(HOC2H4)3N] as a reagent for preparations of PbS thin film. Every compound was logically arranged before the fabrications and bath solution was prepared with distilled water. Stepwise, 10 mL of (0.2) Molarity of Pb(NO3)2 was mixed with 15 mL of Tri-ethanol-amine. Then, 15 mL of (0.2) Molarity of Sodium Sulfide (Na2S) were added drop by drop to the solutions30–32. pH value of subsequent solutions was well-ordered through droplets of sulfuric acids than with repeated stirrings. The washed metallic substrates were purchased from the workshop to produce Nanoparticle of PbS, with changing pH values as 2, 4, 6 and 8 interleaved in ethanol nearby 15 min, followed through ultra-sonically splashed in distilled water again for 15 min, and finally dried very well. Figure 1 shows the setup of chemical bath deposition techniques. Avocado (Glycosmis cochinchinensis) plant used in this study is illustrated in Fig. 2.
Lead sulfide (PbS) synthesis with Avocado (Glycosmis cochinchinensis) Leaf extraction
20 g of Avocado (Glycosmis cochinchinensis) Leaf extract was collected and dried under normal conditions for two weeks. Then by using mortar and pestle, it was grinded, and Avocado (Glycosmis cochinchinensis) Leaf extract powder was gained. 20 g of powder was added to solutions of PbS and continuously stirred with a magnetic stirrer for 120 min total deposition time. Finally, we bring the water from the chemical solutions through the usage of syringes, and the bottom left molten (gel) of Lead Sulfide is Nanofluids. Succeeding, the glass substrate was glazed with liquefied Lead Sulfide, and it was dehydrated in warm air, wallowed with distilled water and reserved in an oven for supplementary investigation. The plant we have used in this report was cultivated in the local area of Dambi Dollo Town, Oromia, Ethiopia. This study complies with relevant international, national, institutional and legislative guidelines.
The reaction process can be considered as the following steps23.
Characterization techniques

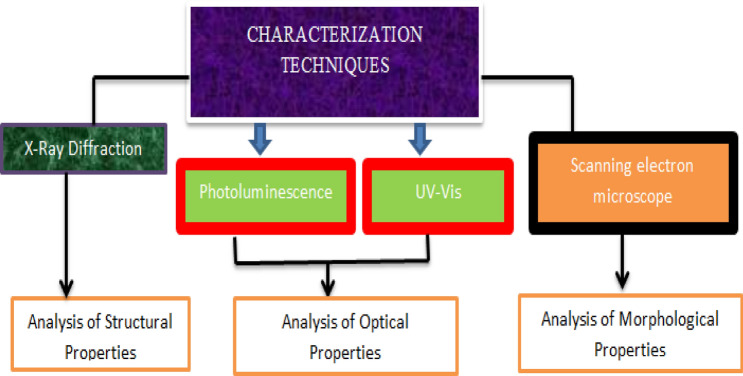

The structures, morphology and optical characterizations of Lead Sulfide (PbS) were studied through XRD, SEM, and UV–vis spectrophotometer (UV) and PL. Figure 3 shows the characterization techniques with benefits.
Results and discussion
Structure characteristics of lead sulfide thin films

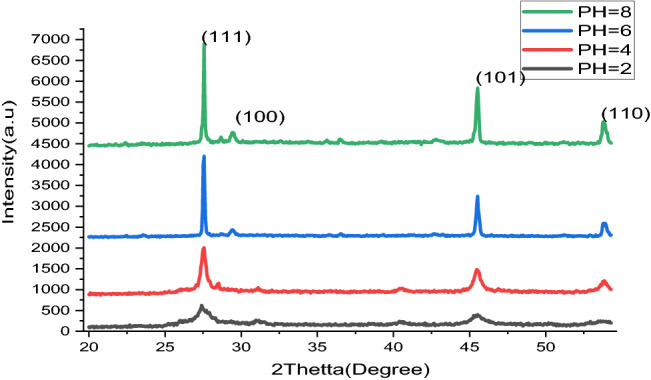

Figure 4 revealed the XRD configuration gained from the Lead Sulfide thin film. The detected crests were indexed with a cubic shock salt kind configuration, as inveterate through a standard (JCPDS N0. 05-0592) as well as they are epitomized by their consistent indices in the continuums. The constricted crests display that the materials have respectable crystal nature with very tougher specially oriented along the planes (100), (111), (101) and (110), which strength is predominantly liable on the preparation times. Furthermore, the nonappearance of extra peaks conforming to metal clusters and impurity tells virtuous qualities of the thin film. An average crystal size (0.5 nm) was calculated through Debye-Scherer’s formulas12,33.
As K is number approximately (0.94), is the wavelength (0.15418 nm), as well as is the full width at half-maximum of a well-defined deflection peak. The crystal size designates the Nanocrystalline of thin films. As shown in Fig. 4. The XRD revealed that the prepared material is cubic crystal oriented as (111), (110), (100) and (101) crystal planes. This result is in good agreement with reports34. Intensification of the energy band gap of the semi-conductor ingredients as the grain size declines; is an influence of quantum imprisonment. This is because of the localization of electrons and hole in a limited interplanetary, inducing visible quantization of the energy. An idea behindhand imprisonment is all almost protection electron, and hole stuck in a small areas35. The PbS thin films prepared on metal substrates nucleation’s ratios were measured to be greater than grown rate because of the abundant numbers of nucleation centred that departure on the superficial of the substrates36. Table 1 and Fig. 5. Shows the parameters calculated from Scherer’s equation and XRD data. It confirms that crystalline sizes decreased when pH values increased. These reveal the significant influence of pH values on the characteristics of thin films prepared through CBD techniques37.
| PH | 2θ (°) | θ (°) | FWHM (radian) | D (nm) |
|---|---|---|---|---|
| 2 | 0.08675 | 0.43375 | 247.4849 | 0.703841 |
| 4 | 0.18234 | 0.09115 | 290.8474 | 0.598906 |
| 6 | 0.2659 | 0.13295 | 166.5163 | 0.402963 |
| 8 | 0.2932 | 0.2547 | 178.3113 | 0.34323 |

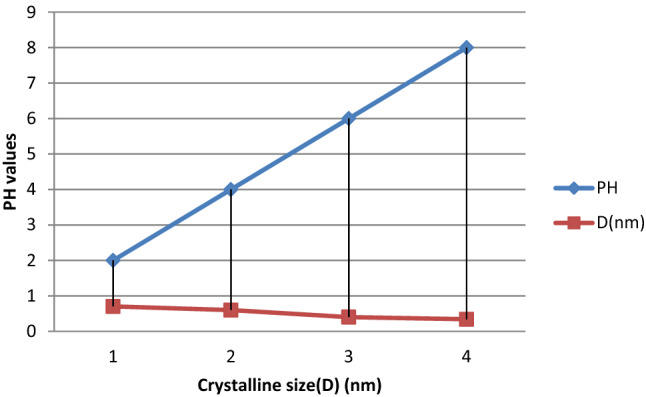

From XRD data, the crystal parameters were determined and discussed in Table 1.

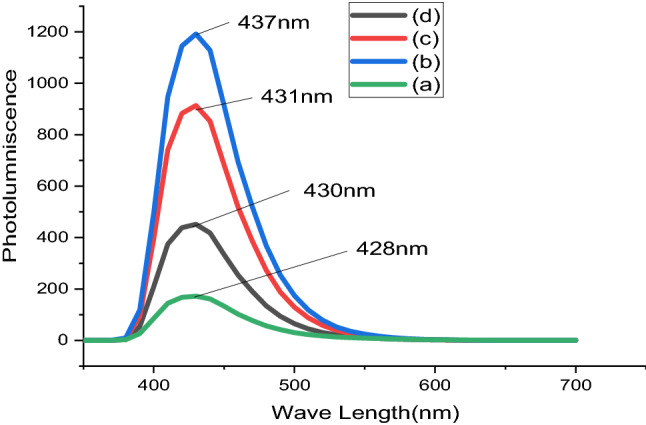

Photoluminescence spectrum of nano sized lead sulfide (PbS) thin films
Photo-luminescence (PL) spectroscopy is a contactless, non-destructive technique to examine the microelectronic structure of a material. The ghostly dispersal of Photo-luminescence (PL) spectroscopy from a semi-conductor can be studied to non-destructively decide the electrical band gap. This delivers earnings to enumerate the elemental prearrangement of a compound semiconductor and tremendously significant substantial parameters manipulating solar cells expedient effectiveness. The photo-luminescence (PL) spectroscopy continuum at low sample PH values often reveals shadowlike peaks related to contaminations limited with crowd materials. The extraordinary compassion of this method delivers the potential to categorize tremendously little concentration of deliberate as well as accidental impurities that powerfully influence material’s excellence and device performance. The amount of photo-luminescence (PL) spectroscopy produced from materials is in a straight line associated with the comparative quantity of radiate and nonradioactive recombination’s duties. Non-radiate rate is characteristically related to impurities, and therefore, this method can qualitatively screen alterations in substantial excellence as a purpose of growing and dispensation circumstances. Figure 6 displays that the photo-luminescence continuum of Lead Sulfide thin-film dropped at dissimilar PH values varied as (a) 2, (b) 4, (c) 6 and (d) 8. The PbS thin film deposited at PH = 4 shows the highest spectrum; this may be because acidity influences the photoluminescence spectrum of materials38,39.
Superficial morphology characteristics
The morphologies of the Nanocrystalline PbS thin film were premeditated through scanning electron micrographs, as perceived in Fig. 7. Clarification of the films in footings of sizes and morphologies of Nanocrystalline Lead Sulfide equipped through CBD technique. Enormously even and supporter Lead Sulfide films are established at pH values 4, 6 and 8. It is noticed that the films are smooth, homogeneous, brilliantly sheltered to the substrates and exhibitions separate groups of Lead Sulfide thin-film except a film prepared at pH = 2, which shows some uneven cracks14. The surfaces of the prepared Lead Sulfide film layers display groups in moderately movable thick configuration. This can explain why Lead Sulfide thin film synthesized on substrates is dense and by trivial crystalline sizes of particle15.
Optical properties analysis of nano sized PbS nanoparticles

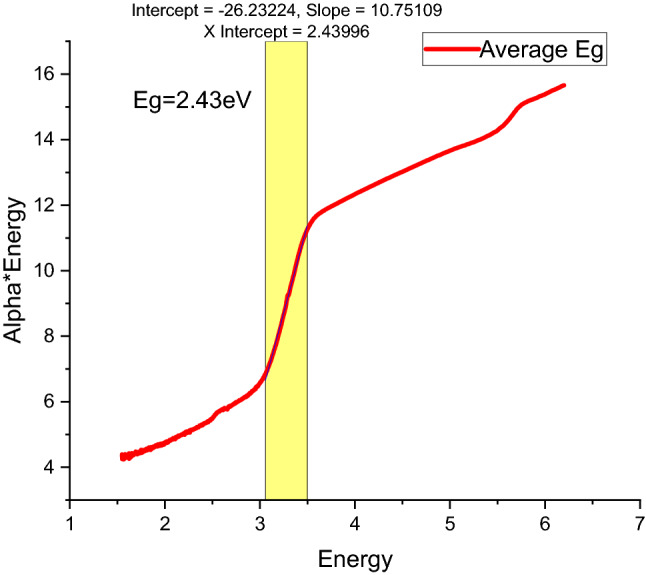

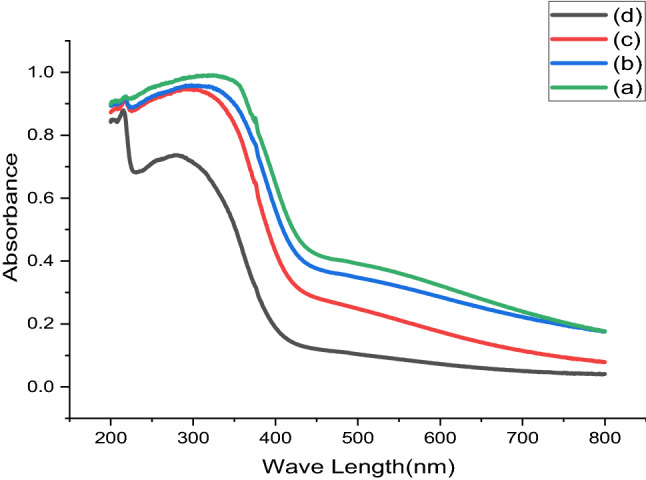

In the current study, the researchers studied the influence of the confession constraints on the photosensitivity characteristics of green approach nano-crystallite Lead Sulfide thin films. This work establishes significant means of outlining energy band configurations of semi-conductors. These include transmission as well as absorbance spectrum and the band gaps of Lead Sulfide thin films16. Figures 8 and 9 display absorbance and average energy band gap of Lead Sulfide thin films deposited at changed pH values varied as (a) 2, (b) 4, (c) 6 and (d) 8. From all samples at pH = 2 highest spectrum, it reveals that acidic solution influences the optical characteristics of the constituents17. An average energy gap of Nanocrystalline PbS thin films is calculated by Tau relation18, found to be 2.43 eV which is greater than bulk because of confinements of Nano Crystalline Lead Sulfide thin films, and PL also confirms this result. The obtained result clearly agreed with reports40.

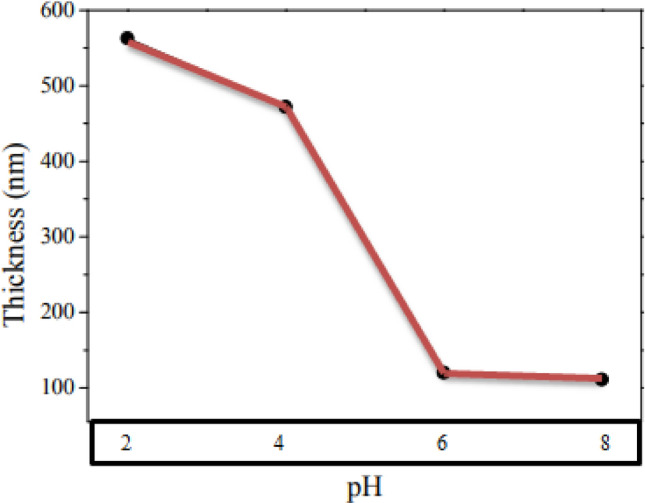

Thicknesses of PbS thin films
Thicknesses of the Lead Sulfide thin film deposited was indomitable by heaviness variance technique41,42. The densities of the PbS is engaged at 7.6 g/cm3 in the wholesale arrangement. Figure 10 displays the difference of the thicknesses for PbS film as a utility of pH values of the combination of the reaction for a constant depositions times of 2 h. It is observed that from Fig. 10, the thicknesses of the prepared thin film reduced from 563 to 111 nm with a rise in pH value. The pH value can be efficiently used to regulate the rate of PbS creations.
Conclusion
In the current work, Nanocrystalline Lead Sulfide thin films were successfully prepared through the CBD technique from leaf extracts of the Avocado (Glycosmis Cochinchinensis) plant. The produced thin film was of reputable superiority. In preparation of Lead Sulfide, thin films on metal substrates are attained by engaging Lead Nitrate, Sodium Sulfide, and tri-ethanol-amine as sources of precursors and complexing agents, respectively. XRD revealed that the prepared material is cubic crystal oriented as (111), (110), (100) and (101) and crystal plane vertical way to the planes of the substrates and average crystalline size was 0.5 nm. The great absorbance and little reflectance characteristics make fine material for solar cells. The band gap of the Nanocrystalline Lead Sulfide thin film is 2.43 eV which is greater than the bulk because of quantum confinements of Lead Sulfide Nano Crystalline. Photo-luminescence spectroscopy displays the emission at 355–490 nm. Scanning electron micrograph investigation had shown the establishment of cubic structured particles with uniform sizes of supplies. The thicknesses of the prepared thin films were reduced from 563 to 111 nm with increasing pH value. The samples prepared at pH = 4 show good performance, and thin films deposited from Avocado (Glycosmis cochinchinensis) Leaf extracts are a promising method to empower pollution remediation and future energy.
Data availability
The data are included with in the article.
Competing interests
The authors declare no competing interests.
