Selection of potent biologic antagonists of the cannabinoid GPCR CB2R from a constrained peptide library
1School of Biomolecular & Biomedical Science, University College Dublin, Belfield, Dublin 4, D04V1W8, Ireland
2Mucosal Inflammation Program, University of Colorado Hospital, Anschutz Medical Campus, Aurora, CO 80045
3Biochemistry and Structural Biology, Lund University, 221 00 Lund, Sweden
*Corresponding author: david.oconnell@ucd.ieAbstract
Dysregulated gut homing of leukocytes drives chronic inflammation in Crohn’s disease (CD). We employed phage display selection campaigns with libraries of stabilized, constrained peptides against endogenous conformation states of the cannabinoid receptor CB2R on human T cells, to discover novel receptor antagonists with potential to inhibit gut homing. Cluster and frequency analysis of 50,000 enriched sequences resulted in expression and functional characterisation of 10 protein candidates using assays of glucose uptake, ERK phosphorylation (pERK) and β-arrestin recruitment. Each candidate antagonised CB2R activity with recorded IC50 values of between 5-10 nM. Cannabinoid receptor nanodisc binding experiments and FSEC confirmed CB2R selectivity. SLKC_09 with an IC50 of 5.4 nM, was studied in a mouse model of chronic ileitis where it significantly inhibited gut homing of CD4+ & CD8+ naïve, effector and memory cell types. Our findings highlight an alternative route to therapeutic inhibition of leukocyte trafficking in CD with a biologic inhibitor of CB2R.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Main text
Crohn’s disease (CD) is one of the major types of inflammatory bowel disease (IBD), manifesting as chronic, refractory intestinal disease marked by transmural inflammation and granulomas [1, 2]. The global prevalence of the disease continues to rise with an accelerating incidence in newly industrialized countries and a compounding prevalence in developed ones [3–6]. Standard of care biologic therapies including the anti-TNF antibody Infliximab and the anti-α4β7 antibody Vedolizumab, while demonstrating significant clinical benefit in individual patients, are seen to plateau in a therapeutic ceiling in patient populations. Infliximab benefits approximately 50% of biologic-naïve patients, with up to 50% of responders becoming refractory to the treatment within a year [7]. Vedolizumab improves remission rates inapproximately 40% of patients [8–10]. These limitations with IBD therapeutic interventions and the absence of a definitive treatment for CD highlights a clear unmet clinical need in the development of a wider range of therapeutic approaches that could be utilised in a polypharmacology regimen to better manage the disease in more patients.
Self-medication with cannabis has been employed by some patients who have reported improvements in levels of abdominal pain, abdominal cramping, diarrhoea, and joint pain [11–13]. Conversely, cannabis use for longer than six months is associated with worsened disease outcomes in patients, including a fivefold increase in the risk of surgery [14]. The cannabinoid receptor CB2R is a peripherally expressed G protein-coupled receptor (GPCR), predominantly associated with the immune system widely expressed on leukocytes, including T cells that primarily depend on CB2R for canonical cannabinoid signalling [14, 15]. Recent evidence describes a role for CB2R signalling in promoting the induction of retinoic acid-mediated α4β7 expression on T cells [16]. Taken together, determining whether blockade of the receptor may offer a novel therapeutic avenue for the growing number of IBD patients is of potential significance.
Here we employed a phage display library with a constrained seven-residue variable loop peptide insertion between the two EF-hands of the small and tightly folded calcium binding protein S100G [17], to identify selective antagonists of CB2R expressed on human T cells. Lead candidates from computational analysis of deep sequencing from selection rounds were synthesised and assayed for receptor modulation using cellular assays prior to assessing the impact on leukocyte trafficking to the gut in a mouse model of chronic ileitis.
Results

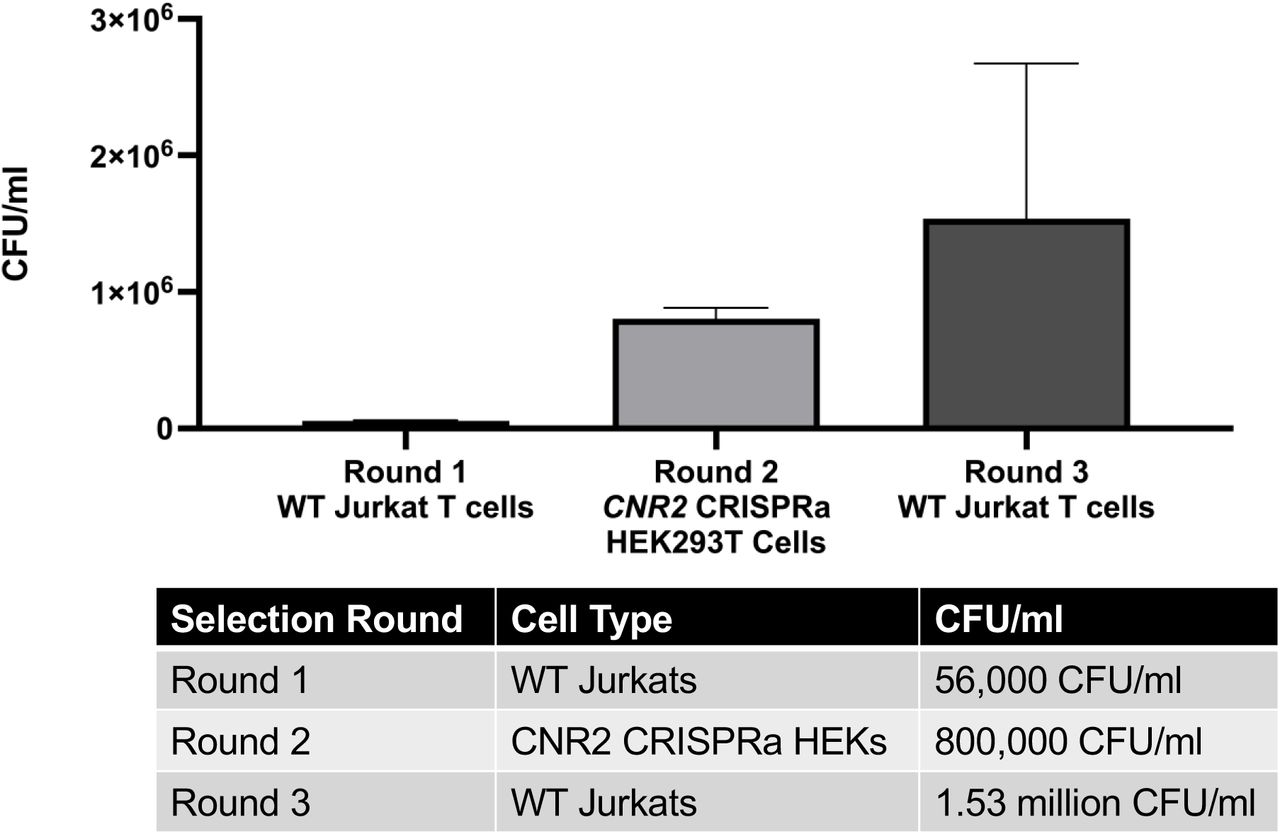

Cell surface selection against CB2R in multiple cell lines generates a pool of specific peptide binders
Utilising WT Jurkat T cells, which endogenously express CB2R, and genetically modified overexpressing CNR2 CRISPRa HEK293T cells, we established a selection protocol that isolated a pool of enriched CB2R-specific peptide binders. In Round 1, WT Jurkat T cells were used, an immortalised human lymphoma cell line which lack CB1R expression, exclusively relying on CB2R for canonical cannabinoid signalling, therefore mitigating any concerns regarding cannabinoid receptor specificity. Following the completion of Round 1, the number of colonies formed was approximately 56,000 CFU/ml. Round 2 incorporated the incubation of our Round 1 phage stock with CNR2 CRISPRa HEK293T cells, genetically modified to overexpress CB2R, allowing for the amplification of our CB2R-specific peptide binders, indicated by an increased CFU/ml of approximately 800,000. Similarly, Round 3 incorporated the incubation of our Round 2 phage stock with WT Jurkat T cells again, further enriching our binders. Given the expression profile of cannabinoid receptors in Jurkat T cells, this Round 3 enrichment ensured we were generating a pool of enriched CB2R-specific peptide binders, again indicated by an increased CFU/ml of approximately 1.53 million/ml (Fig. S1). Following next generation sequencing of Rounds 2 and 3 phage stocks, 79,482 7mer peptide binders targeting CB2R were identified, 48,969 of which were classified as being CB2R-specific (Table 1). Using our computational-based platform, these 48,969 CB2R-specific peptides were ranked based on their respective cluster size (i.e. the number of structurally similar peptides) and frequency (i.e. the number of times the peptides is identified in the sequencing data) in order to generate a list of the top 10 CB2R-specific peptides. For scientific rigour purposes, a frequency cut-off of > 5 was applied to remove any singleton peptides. Once the top 10 CB2R-specific peptides were identified via these criteria, we were able to structurally align them and identify any structural similarities present (Fig. 1). Taken together, these findings highlight the robust nature of phage-based cell surface selection and the importance of a substantial selection outline for the identification of receptor-specific peptide binders. Once identified, these peptide binders can then be ranked accordingly using our computational-based platform and structurally aligned in order to classify any structural similarities among binders prior to protein expression and purification for functional analysis.

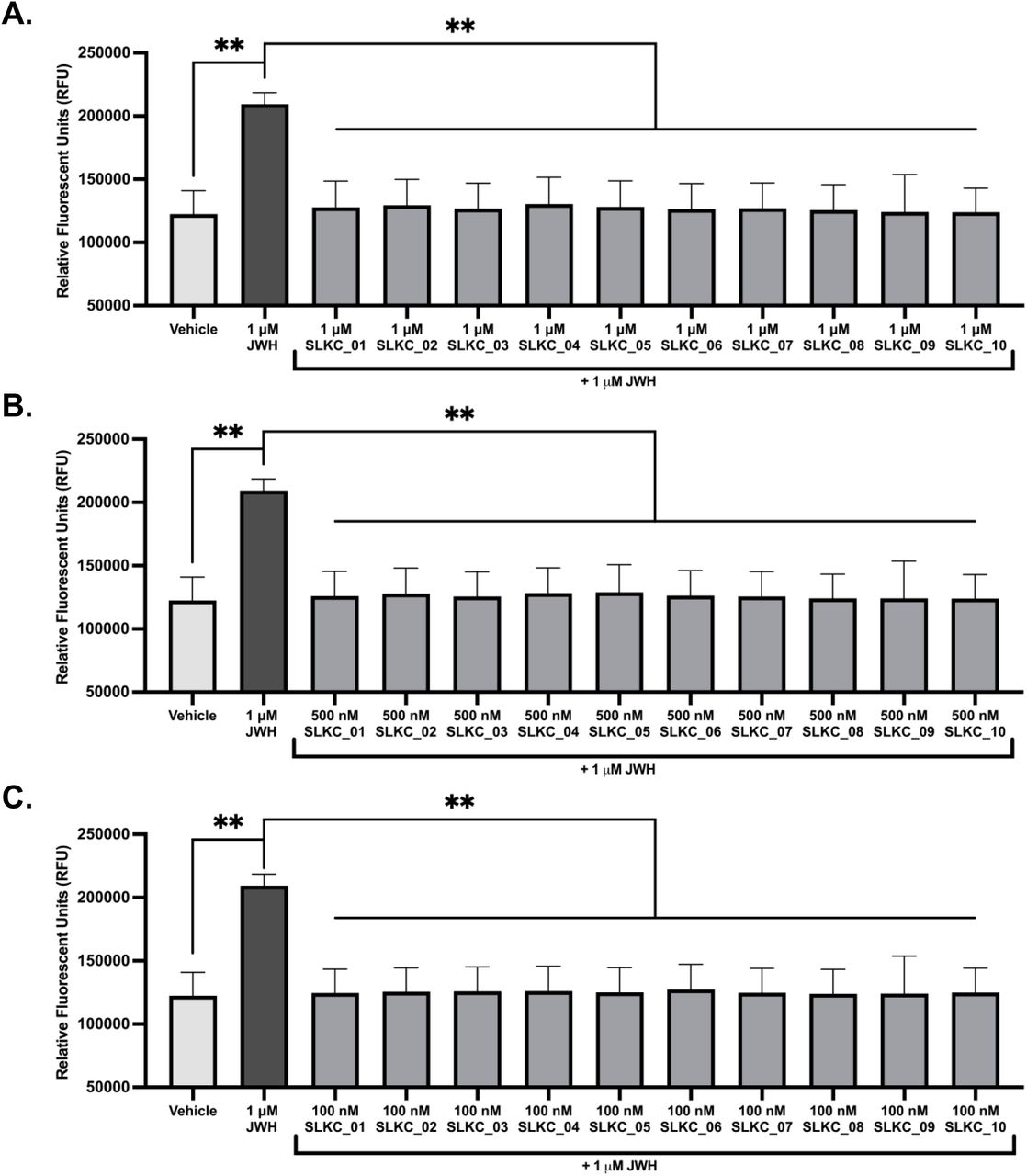

CB2R-specific peptides function as receptor antagonists, inhibiting CB2R-mediated glucose uptake into Jurkat T cells
Preliminary unpublished data has described CB2R signalling to have a significant role in regulating T cell glucose metabolism, particularly in driving the initial uptake of glucose into T cell following receptor activation as shown via the use of a fluorescent glucose analogue uptake assay utilising the fluorescent analogue 2-NBDG. In order to assess to what extent the identified CB2R-specific peptides operated at CB2R, we performed this fluorescent glucose analogue uptake assay as a method of functional readout. Jurkat T cells were simultaneously co-treated with 1 μM of the synthetic CB2R agonist JWH-133 and each of the top 10 CB2R-specific peptides at varying concentrations for 3 h. Vehicle-treated cells received 100% DMSO diluted in the same manner as JWH-133 in glucose-free media in place of any cannabinoid treatment or peptides, whereas a JWH-133-only treatment group in the absence of any peptides was used as a positive control. Following treatment time, the level of fluorescent glucose analogue 2-NBDG take up was quantified via fluorescence detection at Ex/Em of 485nm/520nm. At 3 h, CB2R activation in the positive control cohort significantly increased the rate of glucose uptake into treated T cells relative to the vehicle-treated cohort, something that was significantly inhibited by all of the CB2R-specific peptides at concentrations of 1 μM, 500 nM, and 100 nM (Fig. 2). In summary, CB2R activation drives glucose uptake into T cells which was inhibited significantly by our CB2R-specific selektides, indicating that these peptides are operating as receptor antagonists, even at the lower concentration of 100 nM.

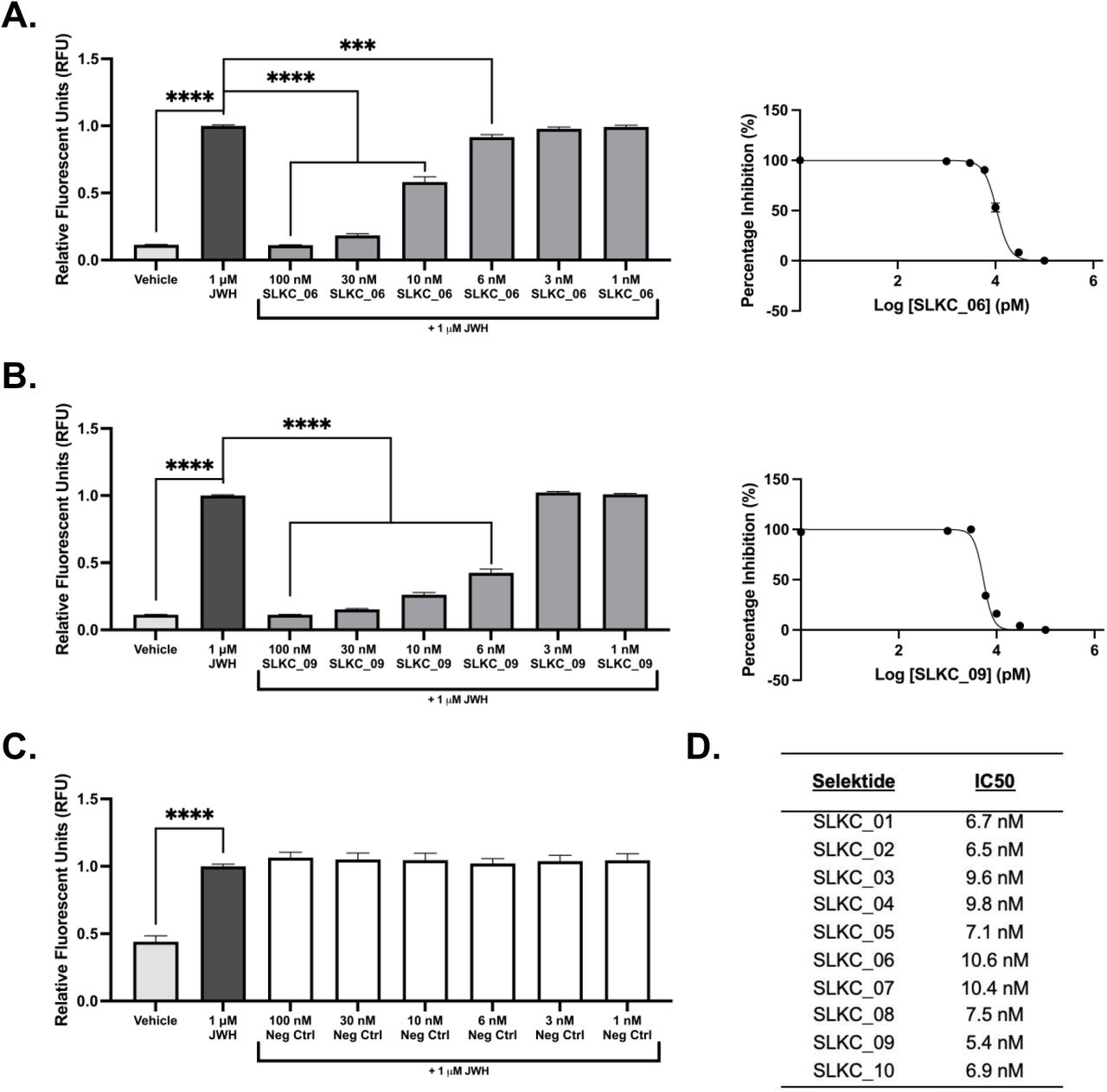

High affinity CB2R-specific binding peptides have IC50 values in the low nanomolar range and operate as functional CB2R receptor antagonists in a concentration-dependent manner
The fluorescent glucose uptake assay utilised in this study as a functional output of CB2R inhibition facilitated the calculation of IC50 values for each of the top 10 CB2R-specific peptide binders. Given it had the same inhibitory effect as 1 μM and 500 nM, the 100 nM concentration was used as the starting point in this assay as a means of identifying the lowest inhibitory concentrations for each selektide. The selektides with the lowest IC50 values, inhibiting CB2R activation at the lowest nanomolar concentration, and therefore operating with the highest receptor affinity were SLKC_01, SLKC_02, and SLKC_09 with IC50 values in the low nanomolar range of 6.7 nM, 6.5 nM, and 5.4 nM respectively (Fig. 3D). These CB2R peptide binders were identified as being potent functional CB2R antagonists, inhibiting receptor activation and subsequent downstream CB2R-dependent glucose uptake into T cells in a concentration-dependent manner. This functional inhibition was apparent in the nanomolar range from 100 nM to 6 nM, but was completely abolished when concentrations decreased further to 3 nM and 1 nM, indicating loss of their antagonistic features between 6 nM and 3 nM (Fig 3). The S100G scaffold used as a negative control in this assay showed no alteration in the rate of glucose uptake relative to the cohort of cells treated with JWH-133 alone. In summary, our CB2R peptide binders operate as potent antagonists of CB2R, inhibiting functional output of CB2R activation in a concentration-dependent manner with IC50 values in the low nanomolar range.

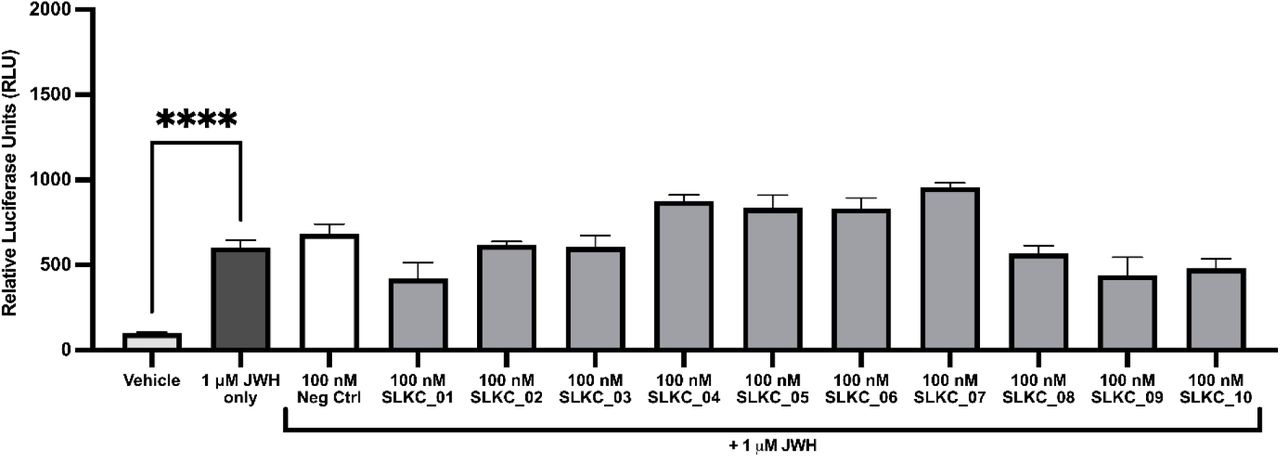

High affinity CB2R-specific selektides operate as receptor antagonists but show distinct profiles in modulating intracellular β-arrestin recruitment to CB2R
Using the β-arrestin recruitment assay presented herein, the top 10 CB2R-targeting selektides were screened against CB2R for modulation of G-protein independent β-arrestin recruitment, with quantitative measurements subsequently determined via luminescence readings. HTLA cells transfected with the CB2R-Tango plasmid were simultaneously co-treated with 1 μM of the synthetic CB2R agonist JWH-133 and our selektides at 100 nM for 24 h. The working concentration of 100 nM was chosen based off the previously described fluorescent glucose analogue uptake assay. Vehicle-treated cells received 100% DMSO diluted in the same manner as JWH-133 in supplemented DMEM media in the place of any cannabinoid treatment or selektides, whereas a JWH-only treatment group was used as a positive control. The screened selektides displayed trends towards distinct profiles in their modulation of β-arrestin recruitment to the activated CB2R. CB2R activation in the positive control cohort significantly increased the rate of β-arrestin recruitment in transfected cells in comparison to vehicle-treated cohort, in a manner that was expected given JWH-133 is well-documented to be a highly specific CB2R agonist [18, 19]. SLKC_01, SLKC_09, and SLKC_10 all displayed a trend towards the inhibition of agonist-induced β-arrestin recruitment, whereas SLKC_04, SLKC_05, SLKC_06, and SLKC_07 looked to increase β-arrestin recruitment when administered alongside the CB2R agonist. Additionally, SLKC_02, SLKC_03, and SLKC_08 showed no change in the recruitment of β-arrestin when compared with the JWH-133 alone cohort of treated cells. The S100G scaffold used as a negative control in this assay showed no alteration in the rate of β-arrestin recruitment (Fig. 5). Despite these alterations being deemed statistically insignificant, there are clear trends in the data that appear to indicate distinct profiles of these CB2R-targeting selektides in their modulation of β-arrestin recruitment which may be due to distinctions in their sequence makeup and resulting signalling bias.
Selektide-mediated attenuation of ERK phosphorylation

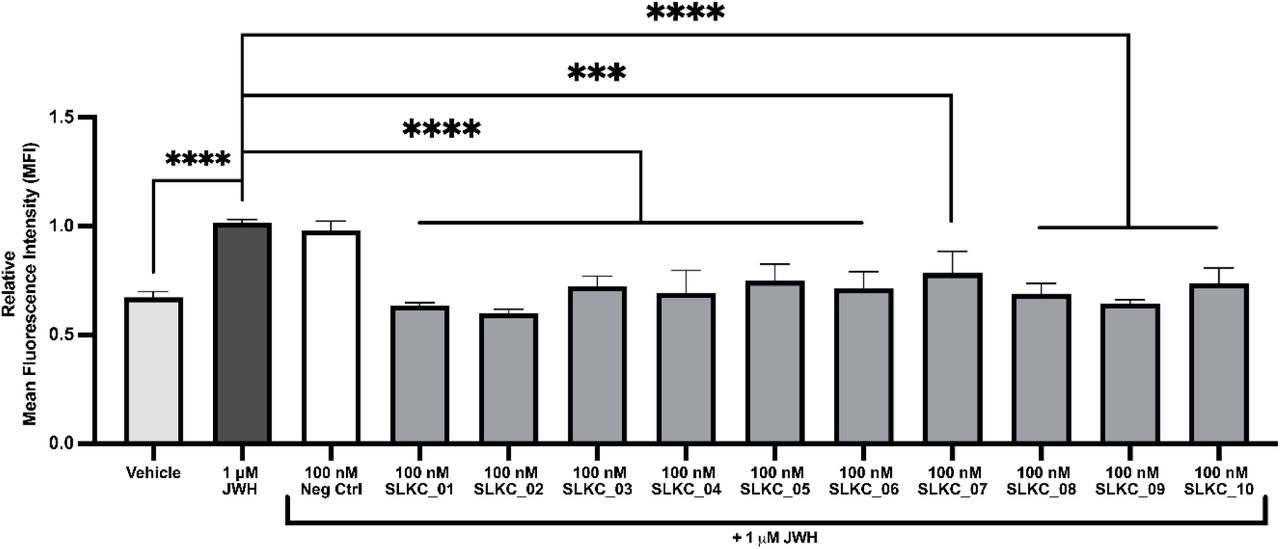

To investigate the capacity of the selektides to modulate CB2R-mediated ERK signalling, intracellular pERK levels were quantified by flow cytometry following treatment with the selektide candidates (SLKC_01-SLKC_10) at 100 nM in the presence of the CB2R agonist JWH-133 (1 µM). Relative mean fluorescence intensity (MFI) was used as a measure of ERK phosphorylation across all conditions. Stimulation with 1 µM JWH-133 alone produced a significant increase in pERK relative to vehicle-treated cells, confirming robust agonist-induced ERK activation under these experimental conditions. The 100 nM negative control peptide co-administered with JWH-133 did not alter pERK levels compared to agonist stimulation alone, demonstrating that non-specific peptide effects did not account for any observed attenuation. Co-treatment with selektides SLKC_01, SLKC_02, and SLKC_09 resulted in a statistically significant reduction in pERK relative to the JWH-133-stimulated positive control, with these candidates reducing relative MFI values to approximately 0.60– 0.65 of the positive control, suggesting meaningful antagonism of agonist-induced ERK activation. The remaining selektides also reduced pERK levels relative to the JWH-133 control, with relative MFI values ranging from 0.66 to 0.80. Collectively, these data indicate these selektides are capable of attenuating CB2R-mediated ERK phosphorylation, with SLKC_01, SLKC_02, and SLKC_09 emerging as the most potent candidates at the concentration tested (Fig. 5).
SLKC_09 and SLKC_09_ABD reduce CD4⁺ T cell numbers across gut-associated lymphoid compartments

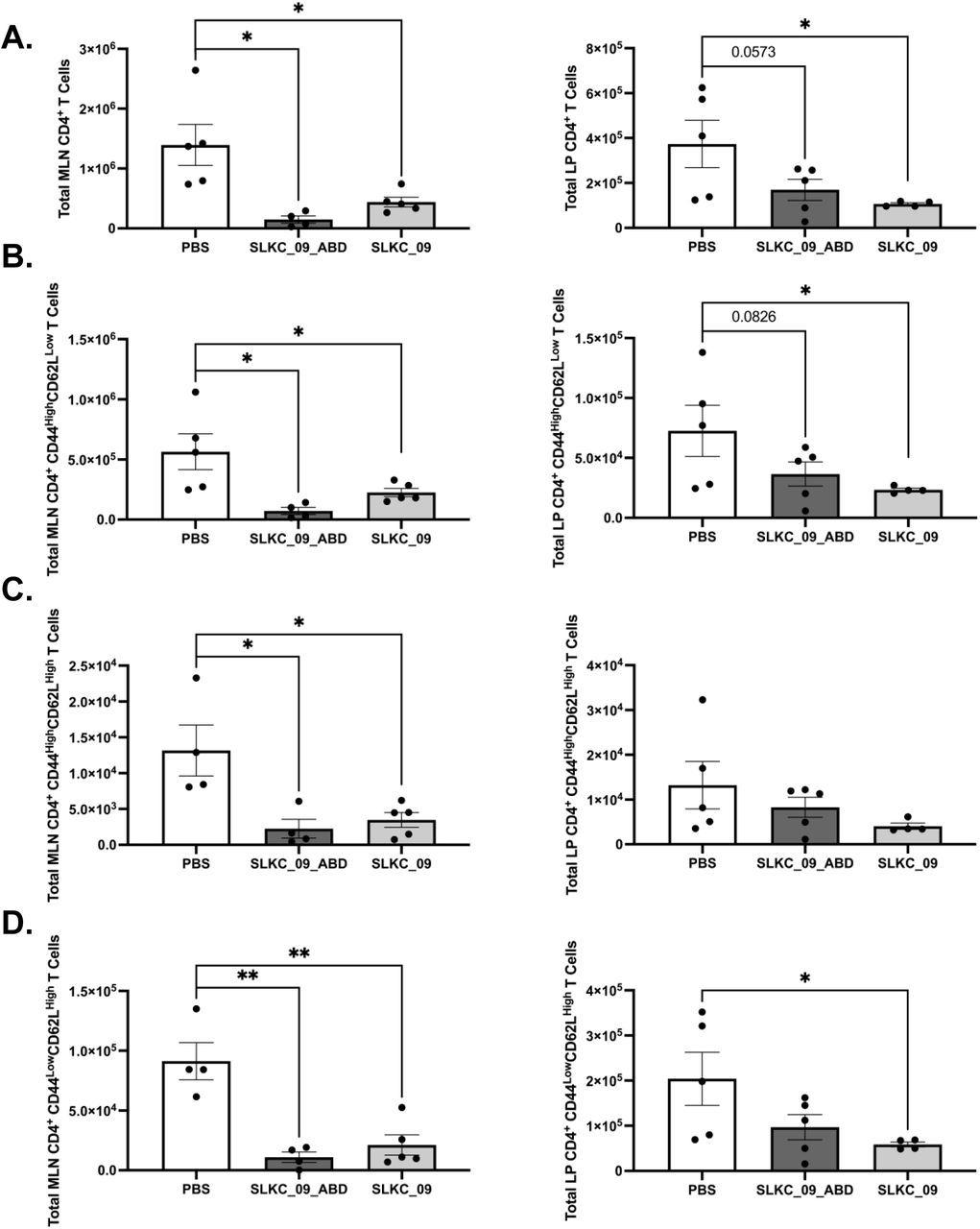

To evaluate the effects of selektide SLKC_09 and its modified variant with an albumin-binding domain SLKC_09_ABD on T cell trafficking in vivo, total T cell numbers were quantified across multiple phenotypically distinct subpopulations in the mesenteric lymph node (MLN) and intestinal lamina propria (LP) following selektide treatment relative to PBS vehicle control. Both SLKC_09_ABD and SLKC_09 significantly reduced total CD4⁺ T cell numbers compared to PBS-treated animals in the MLN, while in the LP only the unmodified SLKC_09 significantly reduced total CD4⁺ T cells infiltration (Fig. 6A). Analysis of the effector CD44HighCD62LLow T cell subtype revealed significant reductions in the MLN for both SLKC_09 and SLKC_09_ABD, with SLKC_09 also significantly reducing the LP counterpart (Fig. 6B). Within the central memory CD4⁺CD44HighCD62LHigh cohort, both selektides significantly reduced the numbers of these cells in the MLN, though neither produced a statistically significant reduction in the LP for this subset (Fig. 6C). For the naïve CD4⁺CD44LowCD62LHigh population, SLKC_09 significantly reduced LP cell numbers, while both SLKC_09 and the modified SLKC_09_ABD resulted in significant reduction in the corresponding MLN population (Fig. 6D).
Taken together, this data demonstrates that both SLKC_09 and SLKC_09_ABD broadly suppress the accumulation of CD4⁺ T cell subsets across multiple gut-associated lymphoid compartments in the MLN and LP, with consistent and reproducible effects observed across naïve, effector memory, and central memory populations.

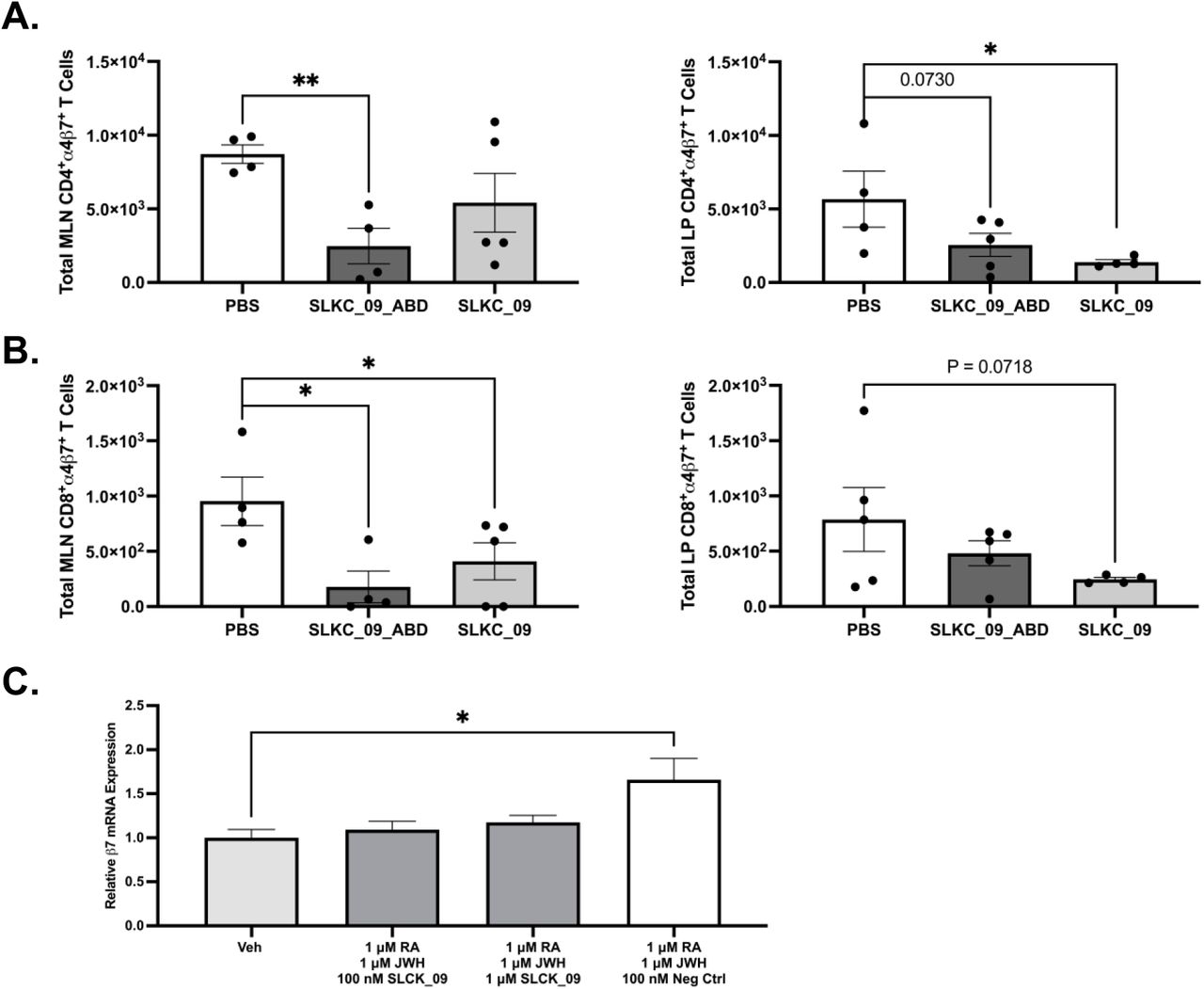

SLKC_09 and SLKC_09_ABD reduce gut-homing α4β7⁺ T cell numbers in the lamina propria and mesenteric lymph nodes via the inhibition of α4β7 expression
To determine whether selektide-mediated suppression extended to gut-homing integrin-expressing T cell populations, total α4β7⁺ cell numbers were quantified within both CD4⁺ and CD8⁺ compartments in the LP and MLN following treatment with SLKC_09 or SLKC_09_ABD relative to PBS vehicle control.
SLKC_09 significantly reduced LP CD4⁺α4β7⁺ T cell numbers compared to PBS-treated animals, while SLKC_09_ABD trended toward reduction without reaching significance. Conversely, in the MLN SLKC_09_ABD produced a significant reduction in CD4⁺α4β7⁺ T cell numbers, while the reduction observed with SLKC_09 alone did not achieve statistical significance in this compartment (Fig. 8A). For the CD8⁺α4β7⁺ gut-homing population, neither selektide resulted in a significant alteration in the total LP numbers, whereas both SLKC_09_ABD and SLKC_09 significantly reduced MLN CD8⁺α4β7⁺ T cell numbers (Fig. 8B).
To investigate the mechanism through which SLKC_09 could potentially decrease the accumulation of α4β7-expressing T cells in the MLN and LP of TNFΔARE mice, RT-qPCR was used to assess the expression of integrin β7 in Jurkat T cells following exposure to the CB2R agonist JWH-133 and SLKC_09, which was found to inhibit the induction of CB2R-driven β7 expression at an mRNA level at both concentrations tested.
This data indicates that SLKC_09 suppresses the accumulation of gut-homing α4β7-expressing T cells in a compartment- and lineage-dependent manner, with particularly pronounced and consistent effects observed in the MLN across both CD4⁺ and CD8⁺ populations, via the inhibition of CB2R-driven α4β7 expression on T cells.
Discussion
With rising global incidence and the incurable and chronic nature of CD & UC, IBD is one of the most prevalent and costly gastrointestinal disorders worldwide. According to a report conducted by Berkshire Hathaway in April 2025, the market for IBD therapeutics is experiencing a period of significant growth, projected to reach an unprecedented high of $33.99 billion by 2033, underlining the growing number of IBD patients and the growing therapeutic need. Globally, cannabis and cannabis-based products, known as cannabinomimetics, have grown increasingly popular among IBD patients as a complementary therapeutic aid, acting as an opioid alternative in providing chronic pain relief, managing and suppressing overactive gastrointestinal motility, and improving appetite. Numerous questionnaire-based studies and small clinical trials have indicated that self-medication for relief from IBD-associated symptoms are the main reasons for cannabis use in IBD patients [11–13]. A study with over two million IBD patients in 2015 recorded a higher incidence and earlier onset of cannabis use compared to healthy controls [20], with a survey in a paediatric IBD clinic reporting regular use in 70% of patients with a median age of 18.7 [21].
However, cannabinoids have failed to show any evidence of disease improvement in multiple interventional clinical trials in CD and UC [22]. While cannabis may provide temporary symptomatic relief, chronic use for longer than six months is associated with worsened disease outcomes in CD patients, including a five-fold increase in surgical risk, despite reported symptomatic improvements [23]. This disparity between patient-reported symptom relief and the lack of clinical benefit may stem from cannabinoid-associated psychoactive effects, potentially helping patients feel better without improving the underlying disease. A study in a chronic ileitis model, in which affected mice develop progressive and chronic ileitis that mimics many features of CD, found that blockade of CB2R signalling attenuated chronic murine ileitis, as demonstrated by improved histological scoring and decreased inflammatory cytokine expression [24]. The tissue expression profile of CB2R, reviewed extensively elsewhere, makes CB2R all the more interesting as a target in IBD [16, 25–31]. The distinct expression profile of this receptor in IBD, together with the findings that cannabis use can lead to disease worsening, suggest that overactive endocannabinoid signalling, may have a crucial role in the development of IBD pathogenesis.
The peripheral nature of CB2R on T cells, may offer a novel therapeutic mechanism avoiding the negative psychiatric and psychoactive effects associated with CB1R as previously observed with Rimonabant®, a selective CB1R antagonist, initially approved for the treatment of obesity but withdrawn due to complications including anxiety, depression, and suicidal ideology in patients [32, 33]. This study takes advantage of the discrete expression profile of CB2R on Jurkat T cells, that express high levels of functional CB2R in a constitutive manner [34, 35], and lack CB1R expression [15]. This ensures that, following extensive rounds of phage display-based cell surface selection, an enriched pool of highly selective CB2R peptide binders is generated with potential as a novel therapeutic for IBD.
The functional assays utilised in the study herein is a fluorescent glucose analogue uptake assay, employing 2-NBDG, a fluorescently-labelled deoxyglucose analogue, as a probe for the detection of glucose taken up by cultured cells, the subsequent level of which can be quantified via the use of fluorescent filters operating at Ex/Em of 485nm/535nm. Previously conducted unpublished data has indicated a role for CB2R signalling in T cell glucose metabolism, particularly in significantly driving the uptake of glucose in to T cells in a CB2R-dependent manner following receptor activation. As a direct result, the assay employed in this study operates as a functional readout of CB2R activation or inhibition, acting as a high-throughput screen of our generated CB2R-targeting selektides and facilitating the deciphering of their pharmacodynamic profile. Following three rounds of affinity selection using our patented library of constrained peptides and subsequent NGS, 10 of the highest ranked selektides were purified as soluble proteins and assessed in this assay in terms of their pharmacodynamic profile at CB2R, all of which operated as functional receptor antagonists, significantly inhibiting the CB2R-mediated uptake of glucose into Jurkat T cells.
We also utilised a luciferase reporter based Tango system first developed by Barnea et al [36] to screen our selektides against CB2R for β-arrestin recruitment to the activated receptor. β-arrestin recruitment is an important and classical aspect of GPCR function for the termination of G-protein dependent signalling, inducing G-protein dissociation and ultimately leading to both receptor desensitisation and internalisation [37]. This Tango system involves the introduction of three exogenous genetic elements: a protein fusion consisting of β-arrestin2 with a TEV protease, a tTA tethered to CB2R via TEV cleavage sites preceded by a sequence to promote arrestin recruitment, and a luciferase reporter gene whose transcription is triggered upon tTA transcription factor translocation to the nucleus, released upon β-arrestin2 recruitment [37]. This assay offers a selective readout to the target receptor of interest, alongside high sensitivity and robustness due to signal integration, making it an effective candidate for high-throughput ligand screening against specific GPCR targets. In addition to agonist-induced β-arrestin recruitment, this assay can also be utilised to quantify the activity of both antagonists and allosteric modulators. The results herein and the distinctions observed with our selektides in relation to β-arrestin recruitment is in agreement with the concept of ligand bias or functional selectivity, a concept where different ligand structures can elicit distinct receptor signalling cascades at a single receptor. To delve deeper into this concept and to get a greater understanding of the signalling cascades induced by our CB2R-targeting selektides, in addition to their proposed antagonism, we also assessed the activation of the G-protein-dependent signalling arm following exposure to our selektides, paying particular attention to phosphorylated ERK, a well-documented downstream effector following CB2R activation. While there appear to be differences between the manner in which these selektides modulate agonist-induced β-arrestin recruitment, there is consistency between the tested peptides in the assessment of downstream pERK levels, which all appear to significantly inhibit CB2R-agonist induced ERK1/2 phosphorylation, thus antagonising G-protein signalling. Given the inhibition of CB2R-driven glucose uptake, together with the reduction in agonist-mediated pERK levels, we can suggest that these selektides are operating as CB2R antagonists with high affinities. However, the results generated from the β-arrestin recruitment assay and the distinctions in which these selektides modulate β-arrestin recruitment allows us to stratify these further. SLKC_01, SLKC_09, and SLKC_10 all appear to function as classical neutral antagonists, inhibiting agonist-driven responses for both G-protein-mediated downstream ERK signalling and arrestin recruitment. Contrastingly, selektides SLKC_04, SLKC_05, SLKC_06, and SLKC_07 show characteristics of functional selectivity, inhibiting agonist-induced ERK phosphorylation but still enhancing the recruitment of β-arrestin. These ligands display characteristics not classically associated with a traditional antagonist, instead having the profile of β-arrestin biased agonists. This means the ligand inhibits G-protein-mediated signalling, such as the Gi/o/ERK pathway while promoting β-arrestin recruitment, potentially via the stabilisation of the receptor in a conformation that is functionally selective towards β-arrestin recruitment over G-protein activation. Functionally, these ligands behave as an antagonist for one signalling branch, G-protein signalling in this case, and a partial agonist for another in β-arrestin recruitment, producing pathway-selective signalling rather than uniform inhibition. A well-known example of this type of ligand is TRV027, an angiotensin II peptide analogue operating at the angiotensin II type 1 receptor studied extensively in heart failure, which blocks classical Gq-mediated signalling yet enhances the recruitment of β-arrestin1/2 [38]. Alternatively, a ligand that reduces pERK phosphorylation while sparing β-arrestin recruitment, especially when coapplied with an agonist, shows pathway selective antagonism (also known as G-protein-biased antagonism). This is the case with selektides SLKC_02, SLKC_03, and SLKC_08, meaning these selektides selectively block or weaken G-protein-mediated signalling such as the Gi/o/ERK cascade, yet do not interfere or engage with the events required for β-arrestin recruitment. It may be possible that these peptides are binding an allosteric site, selectively reducing G-protein signalling efficacy without affecting arrestin recruitment. Either way, the functional outcome is preserved arrestin recruitment alongside suppressed G-protein output, effectively creating a bias in signalling and reflecting functional selectivity rather than uniform inhibition. An example of this is the peptide PTH (1-34) which binds to the parathyroid hormone receptor 1 and acts as a biased or pathway-selective negative allosteric modulator that reduces G-protein-driven cAMP and ERK phosphorylation while maintaining regular β-arrestin recruitment elicited by full agonists [39].
As reported by Leddy et al., (2026), CB2R signalling is pivotal in promoting the induction of retinoic acid-mediated α4β7 expression on T cells, the heterodimeric integrin responsible for the specific trafficking of T cells to the gut and gut-associated intestinal tissues, contributing massively to the chronic inflammation characteristic of IBD. Additionally, this study also highlighted that the deletion of CNR2, the gene encoding CB2R, attenuated chronic murine ileitis in 20-week-old TNFΔARE/+ mice, indicating that inhibition of CB2R signalling may offer potential therapeutic benefit in IBD. To assess whether our selektides could mimic this by means of CB2R antagonism, SLKC_09 and an iteration of this selektide with an albumin binding domain fusion were administered subcutaneously in mice of the same model. Given it appeared to have the highest potency and looked to operate as a typical receptor antagonist in the functional assays herein, SLKC_09 was picked for this in vivo study, which was seen to inhibit the homing of both CD4+ and CD8+ T cells of naïve, effector, and memory phenotype relative to PBS-treated mice. Using RT-qPCR, we were also able to show that this selektide inhibited the induction of retinoic acid-mediated α4β7 expression on T cells, showing that our CB2R-targeting peptide antagonists inhibit the expression of α4β7 and therefore reduce subsequent leukocyte trafficking to gut, potentially being beneficial in the treatment of IBD. CB2R agonism has been reported in some colitis models as being beneficial in reducing mucosal inflammation, although conversely the CNR2-/- mice studied did not experience aggravated colitis [25]. Our data in a chronic disease model confirms antagonism as an alternative route to therapeutic inhibition of leukocyte trafficking in CD.
Given the lipid-based nature of the endocannabinoid system, the resources available do not indicate that any peptide-based drugs targeting either CB1R or CB2R are currently on the market, with the majority of clinically used compounds targeting cannabinoid receptors being small molecules [40]. However, some efforts have been made to discover novel cannabinoid receptor peptide binders. An example of this are hemopressin (Hp) and the related peptides VD-Hp and RVD-Hp found in rodents and humans which have been shown to exhibit high- affinity binding to CB1R and lower affinities for CB2R [41]. Additionally, researchers have designed and characterised bicyclic peptides based on the cyclotide vodo-C1 derived from the sweet violet plant, with their lack of functional activation of CB2R and partial radioligand displacement being consistent with weak competitive antagonists [42]. This study highlights our ability to generate highly specific CB2R peptide antagonists from constrained peptide library which could offer potential as novel therapeutic strategies for the treatment of IBD, offering several advantages over traditionally used small molecules and antibodies currently dominating the IBD and CB2R-targeting markets such as enhanced target specificity, better tissue penetration and cellular internalisation, and their design for various delivery routes including injection, nasal administration, or even topical application [43, 44]. Peptides often bind with higher affinity and specificity to their intended targets due to their size and structure traditionally being similar to those of natural biological molecules [43]. This appears to be the case with our CB2R peptide binders, operating as potent functional receptor antagonists in a concentration-dependent manner with IC50 value in the low nanomolar range, the concentration required to inhibit a biological process by 50%. In particular, the highest affinity CB2R-binding selektides SLKC_01, SLKC_02, SLKC_09 inhibited receptor activation and subsequent downstream CB2R-dependent glucose uptake into Jurkat T cells with IC50 values in the low nanomolar range of 6.7 nM, 6.5 nM, and 5.4 nM, respectively. Generally, the IC50 value of peptides drugs are highly variable. For example, a C1q-binding peptide that inhibits the classic complement pathway showed IC50 values between 2-6 μM [45]. In breast cancer cell lines, some peptides show IC50 values ranging from 16.3 to 137 μM [46], whereas peptides targeting major histocompatibility complexes molecules present with IC50 values in the range of 50-500 nM [47]. Whilst appearing to be highly variable, the IC50 generated for our selektides are in the low nanomolar range and are much lower than these examples, indicating our ability to utilise a constrained peptide library to generate highly potent and specific CB2R antagonists. Given the high level of variability within our constrained peptide library used in this study, the antagonists generated also display distinct profiles in terms of their pharmacodynamic profile and functional selectivity, not only functioning as classical neutral antagonists. This is critical and adds significant credence to the studies herein for the generation of potentially therapeutic peptide ligands against GPCRs previously deemed difficult to target, such as CB2R. The presence of neutral antagonists, functionally selective antagonists, and negative allosteric modulators in our top 10 CB2R-specific selektides reflects the structural and functional diversity captured by our peptide library, allowing the engagement of multiple receptor conformations and intracellular signalling pathways whilst also speaking to the complicated nature of GPCR signalling. The diversity amongst our selektides is potentially therapeutically significant as it enables more precise modulation of CB2R activity: classical antagonists provide robust inhibition when needed, whereas allosteric modulators/functionally selective binders can subtly regulate receptor function to preserve beneficial signalling and inhibit signalling that is not. Importantly, while this study is mainly focused on the IBD patient cohort and CB2R, such mechanistic variety expands the potential patient populations, as individuals who cannot tolerate full antagonists may benefit from modulators or pathway-biased peptides, opening opportunities to target specific disease-relevant pathways and ultimately increasing the numb er of indications that could be treated safely and effectively.
Conclusion
We have shown in this study that the use of a patented, constrained peptide library based on a small and highly stable Ca2+-binding protein scaffold, combined with phage-based cell surface selection against CB2R, enables the identification of highly specific peptide binders. Notably, we were able to identify a ranked list of binders from this library that are highly specific to CB2R which operate as potent functional CB2R antagonists, operating as either as classical antagonist or antagonists with distinct degrees of functional selectivity. The identification of a peptide antagonists specific to CB2R from a peptide library using phage-based cell surface selection is a novel finding, offering a starting point for the selection of novel CB2R antagonists which may be used therapeutically in the treatment of IBD for the inhibition of leukocyte trafficking to the gut, especially in a time where the clinical need continues to rise. Given the success in specifically targeting CB2R, this approach could be adopted for the targeting of other receptors involved in diseases where there remains an unmet clinical need.
Methods
Jurkat T Cell Culture
Jurkat clone E6-1 cells, a human T cell lymphocytic leukaemia cell line, were obtained from the American Type Culture Collection. The cells were maintained in RPMI-1640 media containing L-glutamine supplemented with penicillin-streptomycin and fetal bovine serum (FBS) to a final concentration of 1% and 10%, respectively. Cells were incubated at 37°C (95% O2/5% CO2). Media was changed and cells were passed every 2-3 days.
CNR2 CRISPRa HEK293T Cell Culture
HEK293T cells were seeded in a 6-well plate at a seeding density of 6.25 × 10⁵ cells in a total volume of 2 ml 24 h prior to transfection and allowed to adhere overnight. On the day of transfection, the culture medium was aspirated and replaced with 2 ml of fresh DMEM.
DNA-lipid complexes were prepared in 1.5 ml microcentrifuge tubes for each treatment condition. Each complex was assembled in a total volume of 500 µl Opti-MEM. The transfection conditions were as follows: Well 1 served as an untransfected vehicle control (500 µl Opti-MEM only); Well 2 received 2.1 µg of LRG-GFP plasmid and served as a transfection efficiency positive control; Well 3 received a three-plasmid combination consisting of 0.54 µg PB-SAM, 1.56 µg PB-sgRNA3, and 0.4 µg of PBase transposase. The concentration of each plasmid was determined by NanoDrop spectrophotometry prior to transfection in order to calculate the required volume. PBase (0.5 µg/µl) was added at a volume of 0.8 µl to achieve the desired mass of 0.4 µg.
To each DNA-Opti-MEM mixture, 4 µl of Lipofectamine LTX reagent and 2.5 µl of PLUS reagent were added as per the manufacturer’s recommendations. Complexes were mixed gently by pipetting and incubated at room temperature for 30 minutes. Following incubation, each complex was transferred to its designated well. Cells were incubated for 48 hours post-transfection prior to the initiation of antibiotic selection.
Stable transformants were selected by supplementing the culture medium with Hygromycin B at a concentration of 300 µg/ml, a dose determined empirically by antibiotic kill curve. Selection was maintained for a minimum of 9 days. Once cells reached confluency in the 6-well plate, they were expanded into larger tissue culture flasks. The resulting CRISPRa CNR2-HEK293T cell line was subsequently maintained in culture medium supplemented with 300 µg/ml Hygromycin B.
HTLA Cell Culture
The HEK293-derived cell line containing stable integrations of a tetracycline transactivator-dependent luciferase reporter and a β-arrestin2-tobacco etch virus (TEV) fusion gene (HTLA cells) were obtained from….. The cells were maintained in Dulbecco’s Modified Eagle Medium (DMEM), supplemented with 100 μg/ml hygromycin B, 2 μg/ml puromycin, penicillin-streptomycin and FBS to a final concentration 1%, and 10%, respectively. Cells were incubated at 37 °C (5% CO2/95% air). Media was changed and cells were passed every 3-4 days.
Cell Surface Selection against CNR2
Day One
A confluent T75 of Jurkat T cells was pooled and pelleted via centrifugation at 1,200 × g at 25 °C for 5 minutes prior to aspirating the cell culture media. The cells were rinsed twice in 1X phosphate-buffered saline (PBS) via centrifugation at 1,200 × g at 25 °C for 5 minutes before being resuspended 8.5 ml of PBS/0.05% Tween/5% bovine serum albumin (BSA) and 750 μl each of 7mer and 5mer peptides. Resuspended cells were incubated on an over and under rotator at room temperature for 5 minutes, pelleted via centrifugation at 1,200 × g at 25 °C for 5 minutes to aspirate unbound phage, and washed three times in 10 ml of PBS/0.05% Tween/5% BSA under the same centrifugation conditions. Washed cells were resuspended in 1 ml of 0.1 M pH 2.2 filter sterilised glycine, transferred to 1.5 ml microcentrifuge tubes, and incubated at room temperature on an over and under rotator for 4 minutes. The cell biomass was pelleted via centrifugation at 1,500 × g at 25 °C for 3 minutes and the cleared aspirate was removed and immediately neutralised by adding to 2 ml of 1 M Tris pH 7.4, prior to being stored at 4 °C.
A starter culture of TG1 E. coli cells was prepared by adding a 500 μl stock aliquot to 50 ml of sterilised 2xYT (made up of 8g tryptone, 5 g yeast extract and 2.5 g NaCl in 500 ml deionised H2O) media in an autoclaved 250 ml flask under a flame, and was grown in a shaking incubator at 37 °C, 240 rpm. Just before reaching OD600 0.4, the TG1 flask was removed from the incubator and immediately placed in a 37 °C water bath to avoid TG1 cooling. 4.5 ml of the TG1s was removed using a pipette gun and added to 1.5 ml of the previously prepared neutralised, clear phage eluate, prior to being incubated in a 37 °C water bath for 30 minutes. Following 30 minute infection, 100 μl was removed from the tube and 1/100, 1/1,000, and 1/10,000 serial dilutions were prepared using sterilised 2xYT media under a flame. The remaining contents were pelleted via centrifugation at 9,000 × g for 2 minutes. The supernatant was decanted and infected TG1s were resuspended in 200 μl of sterilised 2xYT under a flame. This 200 μl was spread on a large 100 mm cell culture dish containing TYE/100 ng/μL ampicillin /1% glucose and stored overnight at 37 °C and will be used as the lawn. 10 μl of the dilution plates were spread on small 10mm cell culture dishes in triplicate containing TYE, 100 ng/μL ampicillin, and 1% glucose and stored overnight at 37 °C.
Day Two
Following overnight incubation, dilution plates were used to calculate colony-forming units (CFU)/ml and TG1 colonies were scraped off the lawn in 2 ml of sterilised 2xYT media containing 15% glycerol under a flame. 50 μl of this bacterial stock was added to 50 ml sterilised 2xYT media containing 100 μg/ml ampicillin and 1% glucose in an autoclaved 250 ml flask and placed in a shaking incubator at 37 °C, 240 rpm. Just before reaching OD600 0.4, the TG1 flask was removed from the incubator and immediately placed in a 37 °C water bath to avoid TG1 cooling. 10 ml of this cell culture was then infected with approximately 5×1010 KM13 helper phage for efficient phage rescue, and incubated in a 37 °C water bath for 30 minutes. Following incubation, the cells were pelleted via centrifugation at 3,300 × g for 10 minutes at 4 °C. and resuspended in 50 ml sterilised 2xYT media containing 100 μg/ml ampicillin, 50 μg/ml kanamycin, and 0.1% glucose in an autoclaved 250 ml flask. This was then grown overnight in a shaking incubator at 30 °C, 220 rpm.
Day Three
Overnight culture was pelleted via centrifugation at 3,300 × g for 15 minutes at 4 °C. 40 ml of the supernatant was saved and precipitated with 10 ml PEG/NaCl on ice for 1 hour. After an hour, this was pelleted via centrifugation at 3,300 × g for 30 minutes at 4 °C, and the pellet was resuspend in 2 ml of PBS/15% glycerol. The resuspension was again pelleted via centrifugation at 11,600 × g for 10 minutes at room temperature in a microcentrifuge tube, and the clear supernatant phage stock was labelled as ‘Round 1’ and stored at 4 °C for short term storage or at -80 °C for long term storage.
Round 2 of cell surface selection was completed on CNR2 CRISPRa HEK293T cells. Three 10cm3 plates of CNR2 CRISPRa HEK293T cells at > 60% confluency were rinsed in pre-warmed 1X PBS before incubation in 5 ml pre-warmed FBS-free DMEM supplemented with 7 mM Ethylenediaminetetraacetic Acid (EDTA) for 5 minutes at 37 °C. The plates were gently knocked alongside some additional pipetting of media to dislodge any remaining adherent cells and the cells were pooled into a 15 ml tube. The cells were pelleted via centrifugation at 1,200 × g at 25 °C for 5 minutes prior to aspirating the EDTA-containing media. The cells were rinsed twice in 1X PBS via centrifugation at 1,200 × g at 25 °C for 5 minutes before being resuspended 9 ml of PBS/0.05% Tween/5% BSA and 1 ml of the previously prepared Round 1 phage stock. The protocol was then followed as described above.
Round 3 of cell surface selection was completed on wild-type Jurkat T cells. A confluent T75 of Jurkat T cells was pooled and pelleted via centrifugation at 1,200 × g at 25 °C for 5 minutes prior to aspirating the cell culture media. The cells were pelleted via centrifugation at 1,200 × g at 25 °C for 5 minutes prior to aspirating the cell culture media. The cells were rinsed twice in 1X PBS via centrifugation at 1,200 × g at 25 °C for 5 minutes before being resuspended 8.5 ml of PBS/0.05% Tween/5% BSA and 1 ml of the previously prepared Round 2 phage stock. The protocol was then followed as described above.

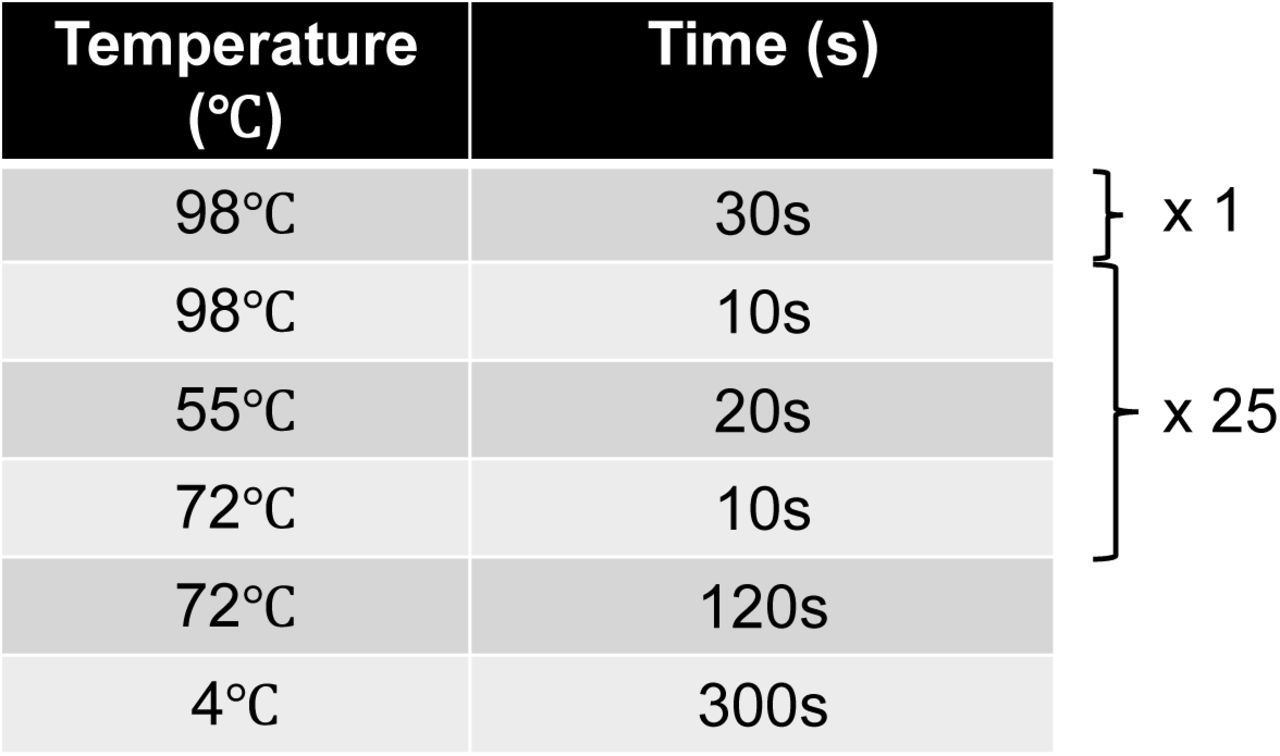

Polymerase Chain Reaction (PCR) and Gel Purification of Round 2 and Round 3 Phage Stocks
Phage stocks from Round 2 and Round 3 of cell surface selection were prepared for next generation sequencing (NGS). 500 μl of each phage stock was pelleted via centrifugation at 6,800 × g for 3 minutes at room temperature, and the DNA samples were prepared using the QiaPrep® Spin Miniprep Kit according to the manufacturer’s instructions. 5 ng of prepared DNA was PCR amplified in a master mix containing 10 μl 5X Q5® PCR reaction buffer, 1 μl dNTPs, 1.2 μl 500 nM forward and reverse S100G primers, and 0.5 μl Q5® high-fidelity DNA polymerase (New England Biolabs; M0491S) made up to a final reaction volume of 50 μl using sterilised de-ionised H2O. These samples were placed in a thermocycler and ran at the following conditions for efficient PCR amplification of prepared DNA:
40 μl of prepared PCR product was mixed with 12 μl of 6X DNA loading dye, 50 μl of which was loaded into a 2% agarose gel made with 1.4 g agarose, 70 ml 1X TAE, and 7 μl SYBR safe DNA gel stain. 10 μl of 100 base pair DNA ladder was used as the loading control. The gel was initially run at 65 V for 15 minutes, before being increased to between 80-90 V for 1-2 h. Following sufficient run time, the gel was visualised using the Vilber E Box, and the respective DNA bands were excised accordingly. DNA from the excised gel was then efficiently extracted and cleaned up using the QiaQuick® gel extraction kit according to the manufacturer’s instructions. The concentration of the extracted DNA samples was calculated using the NanoDrop, and the samples were sent to NeoChromosome Inc. for NGS.
BL21 Star Competent Cell Transformation
On ice, one vial of competent OneShot™ BL21 Star™ E. coli cells was thawed per each required transformation. The required pET-3a vector plasmid containing the respective CB2R-specific sequence cloned in via Nde/BamHI cloning sites (GenScript) was vortexed briefly and placed on ice. From the plasmid, 1 µl was added to 17 μl of competent cell stock and mixed gently by tapping, before being incubated on ice for 30 minutes. The remaining plasmid was stored at - 20°C. Following incubation the E. coli cells were heat shocked using a heat block for 45 seconds at 42 °C in the absence of any shaking. Immediately following the heat shock period, the vial was removed and placed on ice for 5 minutes. The transformed cells were then plated on pre-warmed selective petri dish containing LB and agar, supplemented with 100 µg/ml ampicillin and chloramphenicol and incubated at 37 °C overnight for selective growth.

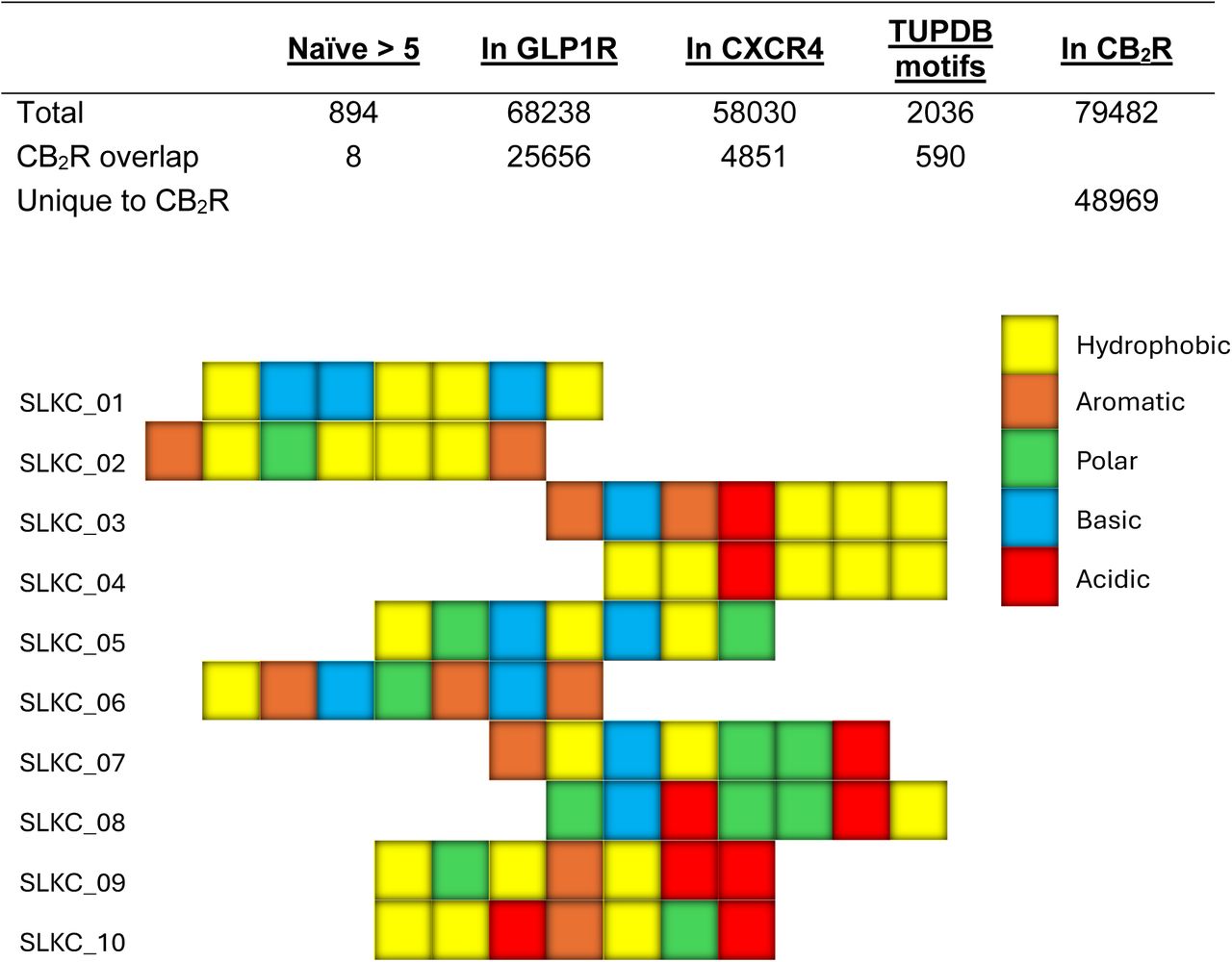

Bioinformatics Pipeline for NGS Data Analysis
The results of NGS from NeoChromosome Inc. were obtained in the FASTQ format along with sequence quality report. A parser step was completed to break FASTQ files into CSV files with each row containing sequence index, FASTQ sequence and associated quality scores. These CSV were then read by the Rev_For_Search module, which scanned for forward and reverse adapter sequences, as well as linkers flanking the NNK-format insert. This categorised the sequences into forward reads, reverse-complemented sequences, and orphan sequences lacking identifiable primers which were filtered out from the input. The Translate_Clean step took the mapped nucleotide sequences, evaluated the quality of the NNK regions, and translated them into amino acid sequences. To determine the correct reading frame, the script scanned all three frames and identified the one containing 7x [NNK] flanked by amino acid tags. Next, the Frequency Count module compiled the translated the 7-mer peptide inserts, calculated the frequency of each unique peptide, and summarised the distribution within the screen library. Finally, the Clustering step applied an amino acid scoring matrix, as developed by Linse et al. [17] to cluster peptides by aligning each sequence against all others in the dataset, with a chosen cutoff alignment score of ≥ 30.
Microscale Expression and Purification of CB2R-specific Peptides for Functional Analysis
Single isolated colonies from selection plates were picked and inoculate into 10 ml of Overnight Express™ Instant TB media supplemented with filter sterilised 1% glycerol 100 μg/ml ampicillin. The inoculated samples were incubated in a shaking incubator at 37 °C for 20-24 h for efficient protein expression. Following incubation, the samples were pelleted via centrifugation at full speed (4500-5000 × g) at 4 °C for 15 minutes. The supernatant was discarded carefully and the pellets were resuspended in 1 ml of 10 mM Tris pH 8.0 and transferred to 1.5 ml microcentrifuge tubes, before being placed in a sonicating water bath for 10 minutes. The resulting cell lysate was frozen at -20 °C for 2 h and then thawed in a water bath at 37 °C for 10 minutes prior to boiling. The lids of respective microcentrifuge tubes were pierced carefully with a syringe needle, and the tubes were placed in a heat block and boiled at 100 °C for 10 minutes. Following boiling, the tubes were removed carefully and pelleted via centrifugation at 18,000 × g for 15 minutes. The resulting supernatant were saved, added to 5 μl of DNase in new microcentrifuge tubes and placed in a heat block at 37 °C for 30 minutes. Following incubation, 15 μl of 200 mM EDTA stock was added to each tube for a final EDTA concentration of 3 mM, prior to being added to 9 ml of 10 mM Tris pH 8.0/1 mM EDTA and purified via ion exchange chromatography (IEX) for downstream functional analysis. Add 100 μl of DEAE Sephacel™ resin to each well of an AcroPrep™ Advance 96-well 10-30 K filtration plate. Wash the resin multiple times with 10 mM 4-(2-Hydroxyethyl)-1-piperazineethanesulfonic Acid (HEPES)/Tris and 1 mM EDTA pH 8.0 in order to achieve a resin pH of 8.0. 200 μl of protein eluate was added to respective wells and leave rest for 10 minutes. The plate was spun at room temperature for 5 minutes at 2,000 × g and the resulting flow through in the collection plate was transferred to fresh microcentrifuge tubes. These elution steps were repeated with 200 μl 10 mM HEPES/Tris and 1 mM EDTA pH 8.0 + a 0-500 mM serial dilution of NaCl. The flow through from each elution was collected and a sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) gel was run to confirm the presence of each sample prior to the second IEX. The eluates were then pooled and another SDS-PAGE gel was run to confirm eluates with 10 kDa bands as S100G selektides. The protein concentration A280 of each pooled sample was measured using the NanoDrop, and based on the resin binding capacity the pooled samples were diluted with 10 mM HEPES/Tris and 2 mM CaCl2 or water. In a fresh 96-well filtration plate, 800 μl of resin was added to each well and multiple washes were completed as above. Following sufficient washing, 1.5 ml of diluted sample was added to the resin and left sit for 5 minutes. The plate was spun at room temperature for 5 minutes at 2,000 × g and the resulting flow through in the collection plate was collected and transferred to a fresh 15 ml tube. This was repeated until all of the sample was loaded on to the resin. These elution steps were repeated with 800 μl 10 mM HEPES/Tris and 2 mM CaCl2 + a 0-300 mM serial dilution of NaCl. The flow through from each elution was collected and an SDS-PAGE gel was run to confirm the presence of each sample. The eluates were then pooled and another SDS-PAGE gel was run to confirm eluates with 10 kDa bands as S100G selektides. The protein concentration A280 of each pooled sample was measured using the NanoDrop, being diluted accordingly for future use in functional assays.
Fluorescent Glucose Analogue ptake Assay in Jurkat T cells
In 100 µl of pre-warmed supplemented RPMI-1640, Jurkat T cells were plated at approximately 1×106 cells/ml into a clear, sterile, flat-bottom 96-well plate. For 3 h and in biological and technical triplicates, the cells were exposed simultaneously to 1 μM CB2R agonist JWH-133 (JWH) alongside varying concentrations of the purified selektides freshly prepared in glucose-free RPMI-1640 media, in order to assess the effect of the selektides on CB2R-driven glucose uptake in Jurkat T cells. Vehicle-treated cells received 100% dimethyl sulfoxide (DMSO) diluted in the same manner as JWH-133 in glucose-free media in the place of any cannabinoid treatment. 10 minutes prior to treatment time concluding the cells were exposed to the fluorescent glucose analogue 2-(N-(7-nitrobenz-2-oxa-1,3-diazol-4-yl)amino)-2-deoxyglucose (2-NBDG) prepared in glucose-free media, at a final concentration of 100 µM in each well. The cells were again incubated at 37 °C for 10 minutes. Following 10 minute incubation, the plate was removed from the incubator and the cells were transferred to a white opaque, flat-bottom 96 well plate. The cells were then pelleted by centrifugation at 400 × g at room temperature for 5 minutes using the Eppendorf Centrifuge 5810R. Without disturbing the cell layer, the supernatant was removed, before 200 µl of cell-based assay buffer/PBS was added to each well to sufficiently wash the cells. Again, the plate was centrifuged for 5 minutes at 400 × g at room temperature. Similarly, the supernatant was removed carefully as to not disturb the cell layer, before 100 µl of cell-based assay buffer/PBS was added to each well. The fluorescent intensity of the treated cells was then analysed immediately using the ClarioStar PLUS plate reader (BMG LabTech) with filters designed to detect fluorescence at Ex/Em of 485nm/535nm.
Phosphorylated ERK Level Assessment in Jurkat T cells
In 100 μl of pre-warmed supplemented RPMI-1640, Jurkat T cells were plated at approximately 2 x106 cells/ml into a clear V-bottom 24-well plate. In biological and technical triplicates, the cells were simultaneously exposed to 1 μM CB2R agonist JWH-133 alongside 100 nM of selektides for 30 minutes, freshly prepared in glucose-free RPMI-1640 media, in order to assess the effect of the selektides on downstream intracellular ERK1/2 signalling following CB2R activation. Vehicle-treated cells received 100% DMSO diluted in the same manner as JWH-133 in RPMI-1640 media in the place of any cannabinoid/Selektide treatment. Following treatment, the cells were pelleted via centrifugation for 5 minutes at 1500 × g using the Eppendorf centrifuge 5810R. Pelleted cells were then intracellularly stained with anti-human/mouse phospho-ERK1/2 T202/Y204 APC following fixation and permeabilisation using the Intracellular Fixation and Permeabilisation Buffer Set according to the manufacturer’s’ instructions. Live cells were identified using Live/Dead Fixable Aqua dye. Following respective fixation and permeabilisation, the cells were resuspended in 100 μl PBS, before being analysed using the Cytoflex LX system (Beckman Coulter), and post-run analyses were performed using CytExpert software (Beckman Coulter).
β-arrestin Recruitment Assessment in HTLA cells
Day One
In 100 μl of pre-warmed supplemented DMEM, HTLA cells were plated at approximately 0.5 x106 in a sterile, flat-bottom 96 well plate.
Day Two
100 ng CB2R-Tango DNA was transfected per well using Lipofectamine 2000 according to the manufacturer’s instructions. Non-transfected control wells received 10 μl Opti-MEM reduced serum media in place of any DNA complex.
Day Three
Following transfection, the cellular media and transfection mix were removed from the cells prior to treatment and the cells were washed once in 1X PBS. The cells were simultaneously exposed to varying concentrations of JWH-133 alongside a fixed concentration of selektides at 100 nM for 24 h, freshly prepared in supplemented DMEM media. Vehicle-treated cells received 100% DMSO diluted in the same manner as JWH-133 in DMEM media in the place of any cannabinoid/Selektide treatment.
Day Four
After 24 h stimulation, the cells were removed from incubation and 50 μl of the Promega Bright-Glo Luciferase Assay System was added to each well according to the manufacturer’s instructions. The plate was incubated in the dark for 20 minutes at room temperature before the luminescent signal was measured using the ClarioStar PLUS plate reader.
Mice Handling
TNFΔARE/+ mice (B6.129S-Tnftm2GKI/Jarn; MGI:3720980) were generated by backcrossing heterozygous TNFΔARE/+ mice to C57BL/6J. Male and female TNFΔARE/+ mice aged 8–12 weeks were randomised across the three tested treatment groups. Animals were maintained under specific pathogen-free conditions with ad libitum access to standard chow and water. All experimental procedures were approved by the Institutional Animal Care and Use Committee of the University of Colorado.
Single-Cell Suspension Preparation and Flow Cytometry
Single-cell suspensions were obtained from the spleen and mesenteric lymph nodes (MLN) by mechanical dissociation through a 70 µm cell strainer. Erythrocytes were depleted from splenocyte preparations by incubation in ammonium chloride lysing reagent. Lamina propria mononuclear cells (LPMCs) were isolated as previously described. Briefly, intestinal tissues were agitated in saline solution containing 1 mM EDTA to liberate epithelial cells, followed by digestion of the remaining stromal tissue with 1 mg/ml Collagenase VII (Sigma-Aldrich: C0773). Single-cell suspensions from each tissue compartment were washed in PBS and stained with the relevant fluorophore-conjugated antibody combinations for surface marker detection. Flow cytometry data were acquired using the BD FACSCanto II and analysed using FCS Express.
Statistics
Statistical analyses were performed using Student t test. Graphs are presented as means ± standard error of the mean (SEM) and were generated using GraphPad Prism 10 software. Values of p < 0.05 were considered statistically significant.
