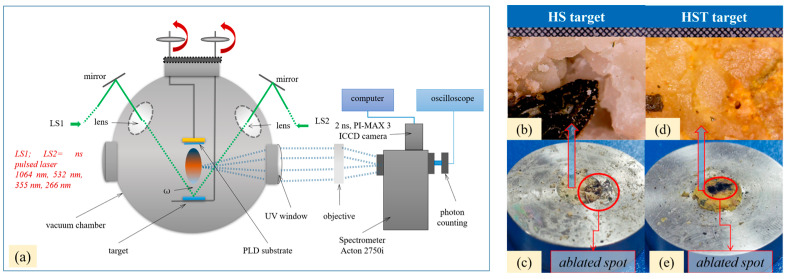

In this study, the main observations are focused on phenolic compounds (namely the CBD and THC cannabinoids and the ferulic and coumaric phenolic acids) and how they are affected during the ablation process and deposition in the thin films induced in the DPL mode (Figure S2, Tables S3 and S4). Curcumin which was added for enhancing the hemp seed ablation is also included in the observations due to its phenolic functional group that may interfere with the targeted compounds in the analysis. Structural chemical formulas of the molecules, including the cannabinoids, CBD and THC, the phenolic acids, coumaric and ferulic, and curcumin, and their IR spectra, were simulated (Figure 2) with the GAUSSIAN 6 software in order to distinguish the vibration bands in the FTIR spectra of the targets and of the thin films specific to hemp and turmeric, which depend on the functional groups in the molecules of the phenolic compounds. The hemp seed target composition was analyzed before and after ablation (HS-target and HS-target ablated), and the spectra proved to be similar. Although the laser beams also hit the stainless steel ring, the eventual re-deposition of the removed material did not produce any observable changes. Also, the interaction of the laser radiation with the hemp seeds did not induce any noticeable modification in the IR spectrum of the ablated target.

Regarding the spectra obtained for the deposited thin films on different areas, including HS-DPL/glass (1), HS-DPL/glass (2), HS-DPL/glass (3), and HS-DPL/glass (4) as seen in Figure 3, the vibration bands have remained similar to those of the target (HS-target and ablated HS-target), and only slight shifts in the immediate vicinity of the wavenumber values were recorded. Also, the intensity of the transmittance changed, probably due to the amount of material, but also due to the new arrangement and distribution of its components in the analyzed samples of thin films, as well as due to the analysis method used (transmittance on pellets versus ATR on a thin layer). On the thin layer deposited on the glass support, it is found that there are no major differences between the light color structures (predominant) and the dark ones. Again, only the quantity of components may be different.

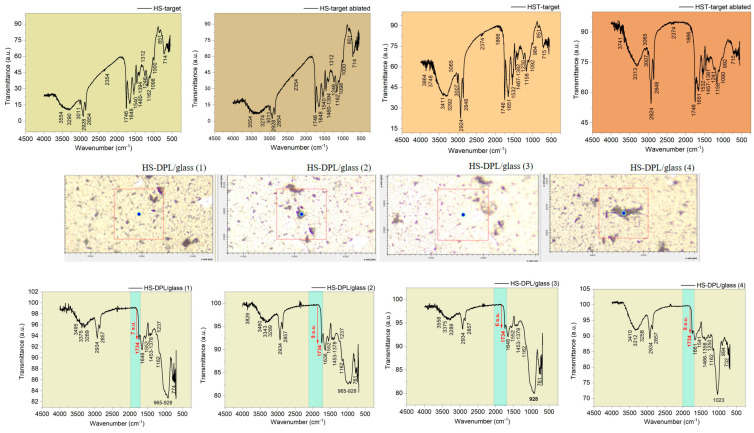

Phenolic compounds are highlighted in the FTIR spectra of the ablated HS-target/HS-target and the ablated HS-T target/HS-T target (Figure 3) by the large stretching band in the range of 3554 cm⁻¹–3290 cm⁻¹/3274 cm⁻¹ and 3411–3292 cm⁻¹/3313 cm⁻¹, respectively, and the bends in the range of 1394–1312 cm⁻¹ and 1392 cm⁻¹/1381 cm⁻¹, respectively, which are assigned to the OH groups of phenols. In the literature [33,34], the aromatic vibrations CH are also assigned in the range from 3200 cm⁻¹ to 3312 cm⁻¹ and as the bands at 1246 cm⁻¹ and 1162 cm⁻¹ in the HS target spectra, and 1230 cm⁻¹/1241 cm⁻¹ and 1158 cm⁻¹ in the HS-T target spectra are for Ar-C-OH bindings, and the phenols are once again confirmed. The HS-DPL/glass thin films spectra (Figure 3) show vibrations in the same range as the HS target (HS-DPL/glass (1): 3495 cm⁻¹, 3375 cm⁻¹, and 3289 cm⁻¹ with the bindings at 1378 cm⁻¹, 1237 cm⁻¹, and 1162 cm⁻¹; HS-DPL/glass (2): 3460 cm⁻¹, 3343 cm⁻¹, and 3289 cm⁻¹ with 1378 cm⁻¹, 1237 cm⁻¹, and 1162 cm⁻¹; HS-DPL/glass (3): 3558 cm⁻¹, 3375 cm⁻¹, and 3289 cm⁻¹ with 1378 cm⁻¹ and 1162 cm⁻¹; HS-DPL/glass (4): 3410 cm⁻¹, 3312 cm⁻¹, and 3258 cm⁻¹ with 1358 cm⁻¹, 1250 cm⁻¹, and 1162 cm⁻¹). In the HST-DPL/glass thin film spectra (Figure 3), slight differences are noticed compared to the HS-T target (HST-DPL/glass (1): 3472 cm⁻¹ and 3319 cm⁻¹ with bends at 1376 cm⁻¹, 1246 cm⁻¹, and 1160 cm⁻¹; HST-DPL/glass (2): 3524 cm⁻¹ and 3352 cm⁻¹ with 1376 cm⁻¹, 1235 cm⁻¹, and 1148 cm⁻¹; HST-DPL/glass (3): 3518 cm⁻¹ and 3335 cm⁻¹ with 1379 cm⁻¹, 1239 cm⁻¹, and 1164 cm⁻¹). The shifts from 3411 cm⁻¹ to 3472 cm⁻¹, 3524 cm⁻¹, and 3518 cm⁻¹ in the HST-DPL/glass spectra compared to HS-T target spectrum could be due to the increased deposition of coumaric acid and curcumin, based on the Gaussian simulated IR spectra (Figure 2 and Table S1). In the HS-T target spectrum, there are also stretching vibrations at 3855 and 3748 cm⁻¹ assigned to free OH in the silanol terminal groups from turmeric [4]. The C=O functional groups vibrate at 1746 cm⁻¹, 1734 cm⁻¹, 1746 cm⁻¹, 1732 cm⁻¹, 1737 cm⁻¹ and 1648 cm⁻¹, 1636 cm⁻¹, 1661 cm⁻¹, 1651 cm⁻¹, 1657 cm⁻¹, and 1661 cm⁻¹ in carboxylic acids (ferulic and coumaric acids) when coupled with the bands at 1460 cm⁻¹, 1453 cm⁻¹, 1466 cm⁻¹, 1467 cm⁻¹, 1457 cm⁻¹, 1462 cm⁻¹, and 1451 cm⁻¹. The latter bands are also assigned to the methyl and methylene group in curcumin. Aliphatic C-H in the side chains of the studied components are evidenced by the asymmetric and symmetric stretches at (1) 2928 cm⁻¹, 2934 cm⁻¹, 2924 cm⁻¹, 2932 cm⁻¹, 2920 cm⁻¹ and (2) 2854 cm⁻¹, 2857 cm⁻¹, and 2848 cm⁻¹, respectively. The unsaturated side chain specific to canabinoids and also to coumaric and ferulic acids is shown by specific C=C bends at 1540 cm⁻¹, 1552 cm⁻¹, 1541 cm⁻¹, 1532 cm⁻¹, 1528 cm⁻¹, and 1530 cm⁻¹ coupled with the bends in the range of 1100 cm⁻¹ to 700 cm⁻¹. Aminoacids, amides, esters, and other components specific to the hemp seeds are also indicated by the vibrations in the IR spectra (Figure 3) as presented in Table S1. Lignanamides (named as cannabisin) [18] may also be indicated by the functional group vibrations presented in Table S1.

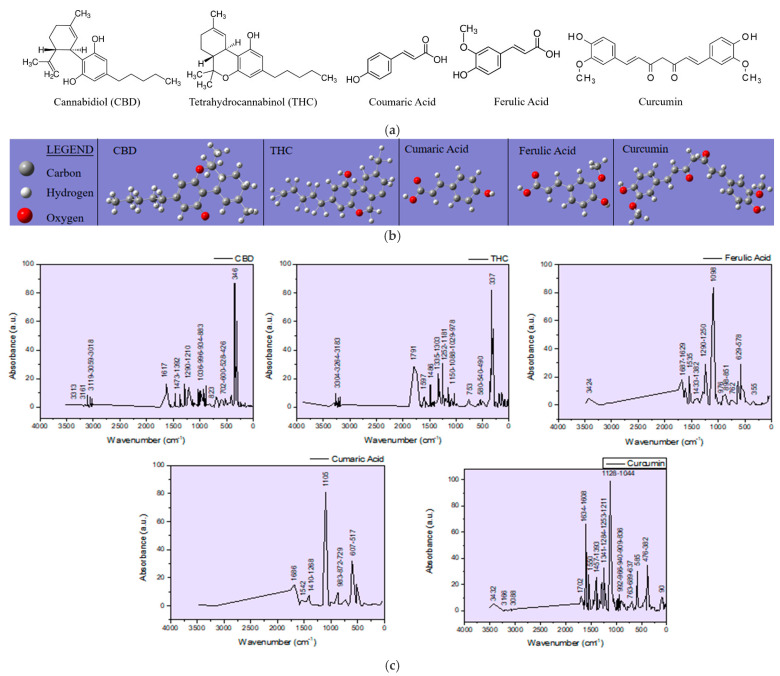

Based on the theoretical IR spectra generated with Gaussian software, phenolic compounds can be distinguished in the natural biocomposite structures represented by hemp seeds, as well as in the artificial biocomposites obtained by DPL ablation and the deposition process. Thus, the cannabinoids CBD and THC have specific vibrations at (1) 3313 cm⁻¹, 3161 cm⁻¹, 3119 cm⁻¹, 3059 cm⁻¹, 3018 cm⁻¹, 1617 cm⁻¹, 1473 cm⁻¹, 1392 cm⁻¹, 1290 cm⁻¹, 1036 cm⁻¹, 966 cm⁻¹, 934 cm⁻¹, 883 cm⁻¹, 823 cm⁻¹, and 702 cm⁻¹ and (2) 3304 cm⁻¹, 3264 cm⁻¹, 1791 cm⁻¹, 1597 cm⁻¹, 1486 cm⁻¹, 1335 cm⁻¹, 1303 cm⁻¹, 1252 cm⁻¹, 1181 cm⁻¹, 1150 cm⁻¹, 1088 cm⁻¹, 1029 cm⁻¹, 978 cm⁻¹, and 753 cm⁻¹, respectively, or in the vicinity of these wavenumber values. The specific vibrations of ferulic and coumaric phenolic acids show vibrations in the IR spectra at (1) 3424 cm⁻¹, 1687 cm⁻¹, 1629 cm⁻¹, 1535 cm⁻¹, 1433 cm⁻¹, 1382 cm⁻¹, 1290 cm⁻¹, 1290 cm⁻¹, 127 cm⁻¹, 125 cm⁻¹, 125 cm⁻¹, 898 cm⁻¹, 851 cm⁻¹, and 762 cm⁻¹ and (2) 3500 cm⁻¹, 1686 cm⁻¹, 1542 cm⁻¹, 1410 cm⁻¹, 1268 cm⁻¹, 1105 cm⁻¹, 983 cm⁻¹, 872 cm⁻¹, and 872 cm⁻¹, respectively. Curcumin exhibits vibrations in the theoretical IR spectra at 3432 cm⁻¹, 3166 cm⁻¹, 3088 cm⁻¹, 1702 cm⁻¹, 1634 cm⁻¹, 1608 cm⁻¹, 1550 cm⁻¹, 1457 cm⁻¹, 1391 cm⁻¹, 1391 cm⁻¹, and 1608 cm⁻¹. Also, 966 cm⁻¹, 940 cm⁻¹, 909 cm⁻¹, 836 cm⁻¹, 736 cm⁻¹, and slight shifts in the vicinity of these wavenumber values are expected.

The specific vibrations of ferulic and coumaric phenolic acids are found with Gaussian simulation in the IR theoretical spectra at (1) 3424 cm⁻¹, 1687 cm⁻¹, 1629 cm⁻¹, 1535 cm⁻¹, 1433 cm⁻¹, 1382 cm⁻¹, 1290 cm⁻¹, 1250 cm⁻¹, 1098 cm⁻¹, 976 cm⁻¹, 898 cm⁻¹, 851 cm⁻¹, and 762 cm⁻¹ and (2) 3500 cm⁻¹, 1686 cm⁻¹, 1542 cm⁻¹, 1410 cm⁻¹, 1268 cm⁻¹, 1105 cm⁻¹, 983 cm⁻¹, 872 cm⁻¹, 729 cm⁻¹, respectively, or in their vicinity. Curcumin exhibits vibrations in the theoretical IR spectra at 3432 cm⁻¹, 3166 cm⁻¹, 3088 cm⁻¹, 1702 cm⁻¹, 1634 cm⁻¹, 1608 cm⁻¹, 1550 cm⁻¹, 1457 cm⁻¹, 1393 cm⁻¹, 1044 cm⁻¹, 992 cm⁻¹, 966 cm⁻¹, 940 cm⁻¹, 909 cm⁻¹, 836 cm⁻¹, and 736 cm⁻¹. Also, slight shifts in the vicinity of these wavenumber values are expected. Furthermore, analyzing the experimentally obtained spectra using as reference the theoretical spectra of phenolic compounds whose appearance is noticed in the natural as well as in the artificial biocomposites obtained by DPL process, it is observed that all compounds have been transferred from the hemp seed target to the deposition substrate, and their distribution in the thin layers obtained is inhomogeneous, specific to composite materials. In this regard, it can be observed how acid is missing from the spectrum of the HS-DPL/glass (1), HS-DPL/glass (2), HS-DPL/glass (4), and HST-DPL/glass (1) thin film areas due to the absence of the peak at 3500 cm⁻¹. The absence of the vibration peak at 3500 cm⁻¹ in the spectrum of the hemp seeds/turmeric target (HS-T target) also demonstrates the inhomogeneity of the hemp seed composition specific to composite materials. Also, an increase in the vibrational intensity in the 1700 cm⁻¹ range can be observed in the thin film spectra obtained from the hemp seed/turmeric target, especially HST-DPL/glass (2) and HST-DPL/glass (3). This can be attributed to curcumin, including the interaction of curcumin with THC, since the phenomenon of increasing the intensity of the vibration of carbonyl groups in THC is not found in the case of deposits resulting from the ablation of the target from turmeric-free hemp seed (HS-DPL/glass).

At the same time, there is a slight shift of the peak from 1746 cm⁻¹ in the spectra of the HS-target and HST-target targets to 1734 cm⁻¹, 1732 cm⁻¹, and 1737 cm⁻¹ in the thin film spectra (HS-DPL/glass (1)–(4) and HST-DPL/glass (1)–(3)). When depositing on the hemp fabric substrate, when using both HS and HST targets, there is a decrease in the carbonyl vibration in the range of 1700 cm⁻¹ and a shift in the spectra obtained by Micro-FTIR analysis performed on the thin layers from 1746 cm⁻¹ to 1735 cm⁻¹ for HS-DPL/hemp fabric deposition and 1719 cm⁻¹ for the HST-DPL/hemp fabric deposition (Figure 4). Bruker Optics published [35] the ATR analysis of the hemp compounds, THC and CBD, and carboxylic acids extracted from cannabis flowers. It is worth noting the presence of vibration in the area of 1700 cm⁻¹ in the THC spectrum which we also find in the analyzed samples both for the hemp seeds and for the thin films obtained. Important to notice is that vibration in the 1700 cm⁻¹ range does not occur in the CBD [35] spectrum. These results also correspond to the Gaussian 6 simulation of the IR spectra for CBD and THC.

The hemp fabric used as a support for the deposition of thin layers starting from the HS and HST target, after intense and long processing both by mechanical processes of the removal of the wood component and by thermal and chemical processes (boiling with caustic soda and hydrogen peroxide), nevertheless, retains some of the phenolic compounds, which are denoted by the vibrations of the specific phenolic groups of 3334 cm⁻¹, 1647 cm⁻¹, 1617 cm⁻¹, 1428 cm⁻¹, 1372 cm⁻¹, 1316 cm⁻¹, 1250 cm⁻¹, 1198 cm⁻¹, and 1162 cm⁻¹ (Figure 4). During dual pulsed laser deposition, some of the ablated material from the HS or HST target enters the fabric gaps or is absorbed into the fiber, which explains the mitigation of the intensity of some vibration bands compared to those of the targets. These spectra obtained with Micro-FTIR in ATR mode when analyzing thin films deposited on the hemp fabric substrate are actually of the composite manufactured for use as a component of the transdermal drug delivery device.

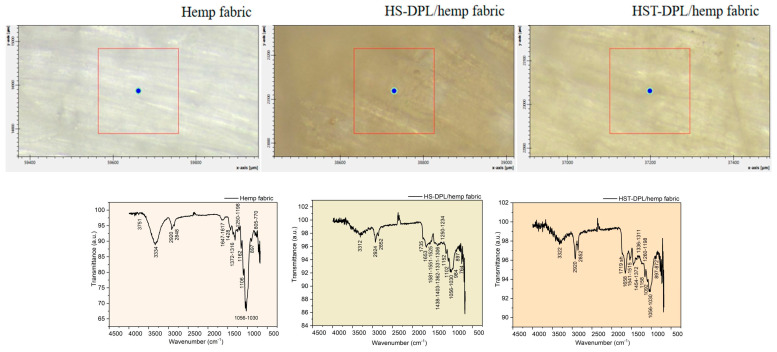

The phenolic compounds in the thin films deposited on the hemp fabric as HS-DPL/hemp fabric and HST-DPL/hemp fabric are identified by vibrations of their specific functional groups and skeletal vibrations, namely (1) 3312 cm⁻¹, 1735 cm⁻¹, 1653 cm⁻¹, 1581 cm⁻¹, 1551 cm⁻¹, 1525 cm⁻¹, 1438 cm⁻¹, 1403 cm⁻¹, 1362 cm⁻¹, 1331 cm⁻¹, 1306 cm⁻¹, 1250 cm⁻¹, 1234 cm⁻¹, 1198 cm⁻¹, 1158 cm⁻¹, 1102 cm⁻¹, 1056 cm⁻¹, 1030 cm⁻¹, 984 cm⁻¹, and 897 cm⁻¹ and (2) 3322 cm⁻¹, 1719 cm⁻¹, 1658 cm⁻¹, 1541 cm⁻¹, 1515 cm⁻¹, 1454 cm⁻¹, 1372 cm⁻¹, 1336 cm⁻¹, 1311 cm⁻¹, 1260 cm⁻¹, 1152 cm⁻¹, 1056 cm⁻¹, 1030 cm⁻¹, 897 cm⁻¹, 872 cm⁻¹, and 764 cm⁻¹, respectively (Figure 4 and Table S2).

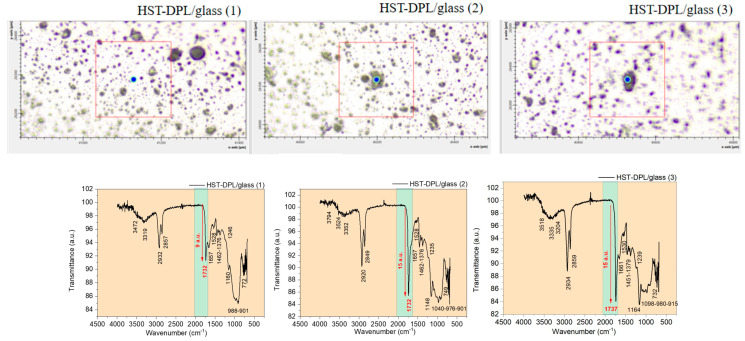

Turmeric added to the hemp seed target to enhance ablation also produced selective ablation intensification effects as shown by the 1732–1734 cm⁻¹ carbonyl group vibration band assigned to THC from the HST-DPL/glass (2 and 3) spectra where the transmittance is of 15 a. u. (100 a.u.–85 a. u.) compared to the same peak in the HS-DPL/glass (1, 2, 3, 4) spectra where the transmittance ranges only between 9 a. u. (100 a. u.–91 a. u.) and 6 a. u. (100 a. u.–94 a. u.) (Figure 3). Since the functional groups of the side chains are also found in the spectra of the thin layers at values identical or close to those of the target (Tables S1 and S2), and even if some vibration bands have decreased in intensity or have increased, it means that there have been no structural changes of the chemical components but only different ablation efficiency from one component to another or selective ablation efficiency.

The elemental analysis with EDS technique (Figure S1) shows that including the edge of the stainless steel ring into the DPL process added an insignificant amount of iron to the thin film (only up to 0.55% and an average of 0.29% in weight and maximum 0.13% atomic and an average of 0.07% atomic with the standard deviation ranging for Fe between 13.48% and 32.14%). However, the solution of using turmeric powder to increase ablation yield is more effective for the purpose of the study and subsequent applicability in the medical field.

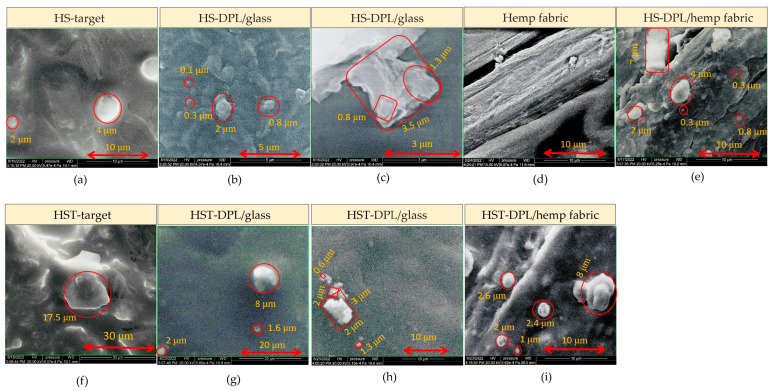

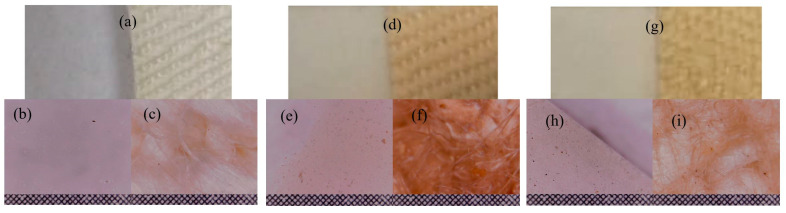

The images acquired with electron microscopy (SEM) highlight the inhomogeneous structure of, the natural biocomposite, hemp seeds and the HS and HST target, with granular formations (Figure 5a and Figure 5f, respectively) that are also found in the artificial biocomposite, i.e., the thin layer obtained by the PLD technique using DPL regime. On the thin-layer SEM images one can see spherical structures of 0.1–2 μm in diameter on the HS-DPL/glass (Figure 5b), 0.3–4 μm on the HS-DPL/hemp fabric (Figure 5d,e), 1.6–8 μm on the HST-DPL/glass (Figure 5g), and 1–8 μm on the HST-DPL/hemp fabric (Figure 5i), as well as angular, apparently amorphous, structures of about 3.5 μm for the HS-DPL/glass (Figure 5c), but also structures with a crystalline appearance of 0.6–3 μm in size for the HST-DPL/glass (Figure 5h). The SEM images thus confirm the morphological similarity of the artificial biocomposite obtained by depositing thin layers with the DPL technique.

2.1. Transfer Test

Regarding the substance transfer from the thin layers deposited by the DPL technique on the hemp fabric, tests were carried out on the filter paper.

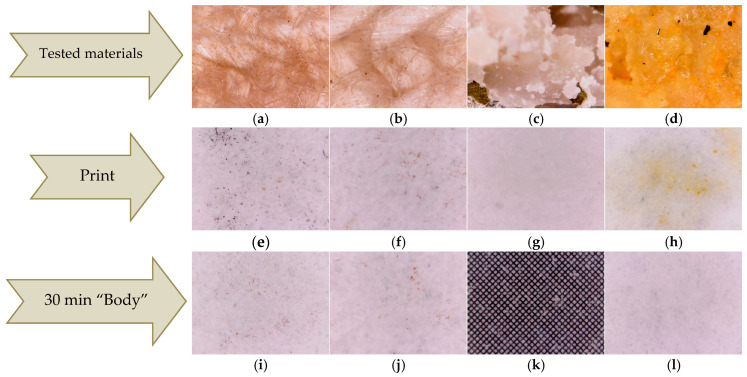

The first test, denoted as print test, consisted of manually pressing the HS-HMP and HST-HMP samples of coated fabrics (Figure 6a,b) on the filter paper. The results were compared with those obtained by pressing crushed hemp seeds (HS) and crushed hemp seeds mixed with turmeric powder (HST) under the same conditions (Figure 6c,d). Pressing the fabric coated the with thin layer, denoted as print tests HS-DPL/hemp fabric and HST-DPL/hemp fabric, led to the deposition of microparticles on the filter paper both in the case of the HS-DPL/hemp fabric and for the HST-DPL/hemp fabric (Figure 6e,f). The print tests performed with HS and HST highlighted a transfer of oils from the hemp seed to the filter paper (Figure 6g, h). The oily stain is very visible for the HST print test (Figure 6h) due to the turmeric color highlighting effect. The print test results show that the HST print consists mainly of hemp oil and turmeric and the HS print consists of hemp oil, while the HS-DPL/hemp fabric prints and the HST-DPL/hemp fabric prints consist of microparticles, the latter two showing no oily stains.

The second test, denoted as the “body” test, consisted in obtaining the transfer of substances as microparticles from the thin layer deposited on the hemp fabric to the filter paper only by keeping it in contact with the filter paper for 30 min at a temperature of 36–37 °C, without pressing. The results of this test showed that the transfer occurred in the form of microparticles in both the HS-DPL/hemp fabric and HST-DPL/hemp fabric samples, as can be seen from Figure 6i,j, with the 0.1 × 0.1 mm gradation in Figure 6k as a reference. This second test looked at whether the transfer of microparticles from the thin layer can take place under the conditions of contact with human skin, i.e., whether the thin layer releases microparticles under the given conditions. Taking into account the print test, it is observed that, from the thin layers deposited from the hemp seed on the hemp fabric, the transfer of microparticles can be achieved under conditions of human body temperature (36–37 °C), and a slight pressing can increase the transfer process. It is also important to note that the microparticles remain independent (do not agglomerate or deform) in the transfer process. The transdermal effect was not tested because the study followed the behavior of the mixture of phenolic compounds in hemp seeds under the action of a 532 nm laser radiation, in the dual pulsed laser (DPL) regime.

If we think of hemp seeds as a biocomposite with a continuous phase mainly of hemp oils and the dispersed phase consisting of various components such as cannabinoids, phenolic acids, and others, the microparticles resulting from the ablation and deposition process should be regarded as microcomposites with most of the constituents of the initial bulk composite. Microcomposites form aggregates but do not mix with each other. They interact only through physical bonds (hydrogen bonds and van der Waals bonds) that hold them together. Transfer tests reflect this aspect of the behavior of microcomposites as individual elements. Each microparticle is thus an element that contains the characteristics of the original biocomposite, i.e., the hemp seed. The DPL process should be seen in this case as the breaking of hemp seeds into small elements suitable for the mass transfer process and possibly for the transdermal process. Microcomposites, with properties and chemical composition of constituents similar to that of the bulk biocomposite material and that aggregate into a compact material that is easy to handle and that can release microparticles over time upon exposure to human body temperature and cross the dermal barrier, represent the concept of a new material designed for TDD systems. These materials can be successfully produced using the pulsed laser deposition technique, either as a single pulse laser (SPL) or as a double pulse laser (DPL) method, the latter being presented in this study for the advantage of being able to work with lower energy lasers. The components are “sealed” in the resulting microcomposites, and their “longevity” when passing through the bloodstream is increased in this way. The components are “sealed” in the resulting microcomposites, and their “longevity” when passing through the bloodstream is increased in this way, unlike products administered orally or even transdermally, but as extracted substances exposed to direct interactions once they enter the body’s organs that can change their chemical profile. To these advantages of the TDD system manufactured by the DPL technique from hemp seeds is added that of the entourage effect due to the content of the microcomposites that constitute the resulting thin layers and which are similar to that of the hemp seed. Practically, we can consider it as a division of the hemp seed into microseeds.

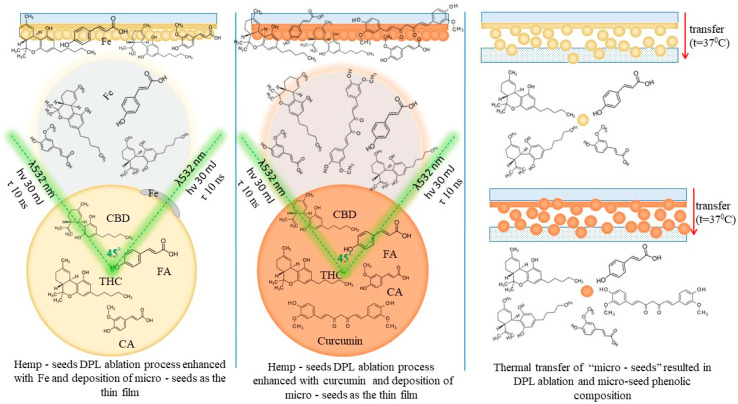

The goal of this work was to develop a new method by which to obtain a new material in the compact form of a thin film but composed of microparticles that can “individuate” and detach under the action of stimuli within a time interval. This objective was achieved by obtaining thin layers using the double pulse laser technique. The thin films produced in this way exhibit the desired morphological structure characteristics, being composed of micro- and sub-microparticles. These micro and nanosized particles that are compacted in a thin film on the deposition support due to physical bonds (hydrogen bonds and van der Waals forces) were detached under the action of external stimuli. The substance transfer tests were performed by pressing, obtaining immediate detachment, and at a temperature similar to the human body when the transfer process was effective within 30 min. This smart behavior of the material makes it suitable for TDD systems.

2.2. Antioxidant Activity Test

The antioxidant activity is important to reduce oxidative processes in the biological cells which are harmful for the body [36,37,38]. FTIR analysis highlighted the presence in the thin layers obtained in this study from hemp seeds through the DPL technique of both cannabinoids and phenolic acids, whose antioxidant potential has been demonstrated through studies on various hemp extracts [37]. Since these thin layers obtained through the new method are intended for transdermal transfer, the evaluation of antioxidant activity must be performed directly on the manufactured material as a whole, unlike extraction analysis methods in which each compound is analyzed individually.

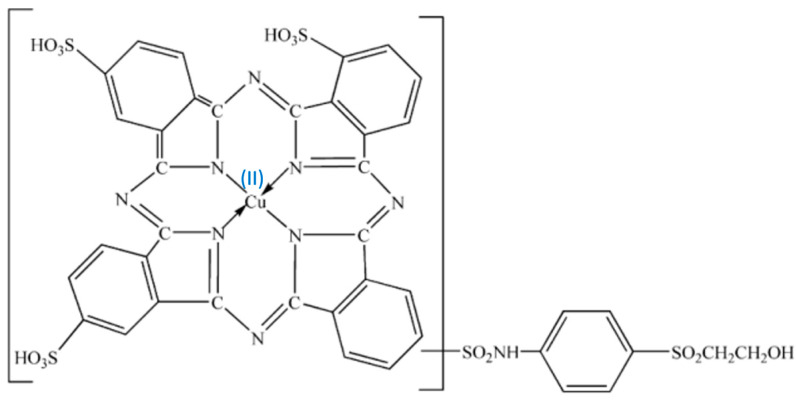

Among the existing methods, we have adapted the CUPRAC method for the analysis of thin layers containing phenolic compounds. The method is based on the reduction of Cu (II) to Cu (I) by antioxidants. For this purpose we used the dye C.I. Reactive Blue 21 (RB21) which is a copper (II) ion-organic complex, a textile dye with a copper phthalocyanine chromophoric structure onto which the reactive side chain is grafted (Figure 7). In the redox process, the organic complex based on Cu (II) is transformed into an organic complex based on Cu (I). Thus, the oxidation of the phenolic groups of the antioxidants to quinones leads to the reduction of the RB21 and copper (II) ion complex to the RB21 and copper (I) ion complex. The colorimetric evaluation was carried out in the RGB color model using Colorimeter Lab Tools v. 2.25.17. The test was conducted by dripping an aqueous solution of RB21 10 g/l both on the thin film deposited on the hemp fabric (RB21-HS-DPL/hemp fabric) and on that deposited on the glass (RB21-HS-DPL/glass), each being compared with the control samples obtained by dripping the aqueous RB21 solution on the hemp fabric and on the glass substrate and both materials from the control samples being identical to those used as substrates for the thin film deposits. The colorimetric tests were conducted 24 h after treating the samples with the dye solution. The samples were kept in Petri dishes at a room temperature of approximately 24 °C.

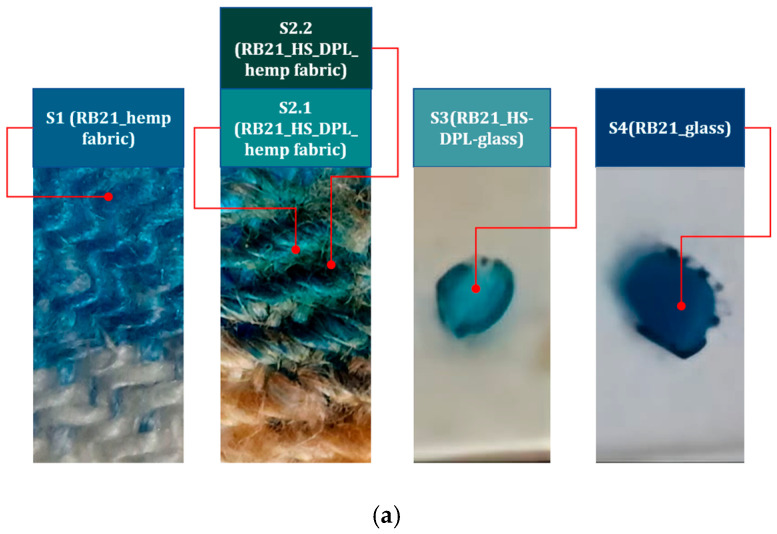

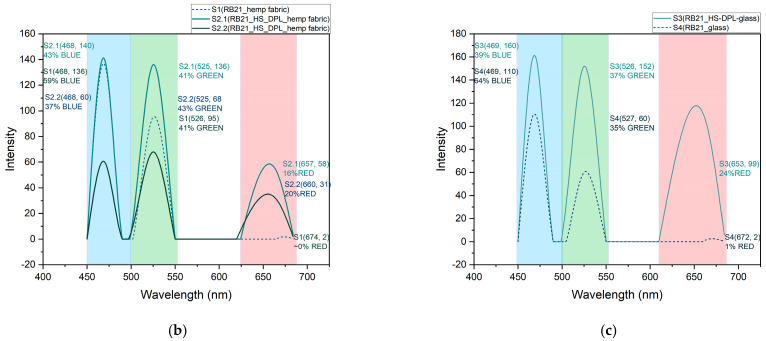

The reduction of Cu (II) ion-complex to Cu (I) ion-complex is studied in the RGB colorimetric model based on the data presented in Table 1 and Table 2. The mitigation in the blue component from 59% for the control sample to 43% and 37% for the two analyzed areas on the RB21-HS-DPL/hemp sample is noticed in the Figure 8a,b, and from 64% for the RB21-glass control sample to 39% for the RB21-HS-DPL/glass sample in the Figure 8a,c. This highlights a change in the ratio between the blue and green components. In this regard, if in the control sample S1 the dominant component is blue of 59% versus 41% green, in the test performed on the thin film deposited on hemp fabric, there is almost an equalization of the percentage between the two components in the analyzed area S2.1 (43% blue versus 41% green) and a decrease in the percentage of the blue component below that of the green component in the analyzed area S2.2 (37% blue versus 43% green). The red component that is almost absent from the control sample S1 is found in the sample resulting from the test performed on the thin film deposited on the hemp fabric both in area S2.1 and in area S2.2 in percentages of 16% and 20%, respectively. The results of the test conducted on the thin film deposited on glass (S3) are more relevant and were compared with the control sample S4 of RB21 dye solution dripped onto the glass substrate without deposition. In this case, interferences due to the substrate were avoided, as the use of hemp fabric as a substrate can lead to interactions with other compounds in hemp fiber, including phenolic compounds, lignin, and as a result of sorption phenomena within the volume of the substrate. In this regard, in Figure 8a, a more uniform coloring is observable in the case of sample S3 compared to S2.1/S2.2. From the graph in Figure 8c, it is observed that there was a decrease in the percentage of the blue component from 64% in the control sample S4 to 39% in the thin film sample S3. At the same time, the ratio between the blue component and the green component changes in favor of the green component in sample S3 (39% blue and 37% green) compared to control sample S4 (64% blue and 35% green). It is also observed, for the thin layer test deposited on glass S3, the red component of 24% which is also almost absent in the test on the control sample on glass S4. The shift towards the green component of the color resulting from the interaction of the RB21 dye aqueous solution with the thin layer deposited from hemp seeds using the DPL technique indicates a process of reduction of Cu (II) ion-complex to Cu (I) ion complex [36] as a result of the interaction with antioxidants represented by cannabinoids, phenolic acids, and other phenolic compounds that were identified by FTIR analysis in the thin films HS-DPL/hemp fabric and HS-DPL/glass. The color change resulted in the test with the RB21 aqueous solution on the control samples and on the samples with thin film deposited by the DPL technique is a bathochromic effect, a shift towards lower wavelength values, which is a characteristic of the reduction of copper from Cu (II) ion-complex to Cu (I) ion complex. The intensity in the RGB model is higher for less color saturation (the highest intensity is for white) and lower for saturated colors (the lowest intensity is for black). The less saturated colors appear to be more specific to Cu(I) ion-complex compared to Cu(II) ion-complex (Figure 8a,c).

Sample	R	G	B	R %	G%	B%
S1 (RB21-hemp fabric)	0	95	136	0	41	59
S2.1 (RB21-HS-DPL-hemp fabric)	58	136	140	16	41	43
S2.2 (RB21-HS-DPL-hemp fabric)	31	68	60	20	43	37

Sample	R	G	B	R %	G%	B%
S3 (RB21-DPL-glass)	99	152	160	24	37	39
S4 (RB21-glass)	2	60	110	1	35	64
