SGIP1 binding to the α-helical H9 domain of cannabinoid receptor 1 promotes axonal surface expression
School of Biochemistry, Centre for Synaptic Plasticity, University of Bristol, Biomedical Sciences Building, BS8 1TD, UK
*Corresponding authors: alex.fletcher-jones@bristol.ac.uk and j.m.henley@bristol.ac.ukAbstract
Endocannabinoid signalling mediated by cannabinoid type 1 receptors (CB1Rs) is critical for homeostatic neuromodulation of both excitatory and inhibitory synapses. This requires highly polarised axonal surface expression of CB1R, but how this is achieved remains unclear. We previously reported that the H9 domain in the intracellular C-terminus of CB1R contributes to polarised surface expression by an unknown mechanism. Here we show the H9 domain binds to the endocytic adaptor protein SGIP1 to promote CB1R expression in the axonal membrane. Overexpression of SGIP1 increases CB1R axonal surface localisation but has no effect on CB1R lacking the H9 domain (CB1RΔH9). Conversely, SGIP1 knockdown reduces axonal surface expression of CB1R but does not affect CB1RΔH9. Furthermore, SGIP1 knockdown diminishes CB1R-mediated inhibition of presynaptic Ca2+ influx in response to neuronal activity. Together, these data advance mechanistic understanding of endocannabinoid signalling by demonstrating that SGIP1 interaction with H9 underpins axonal CB1R surface expression to regulate presynaptic responsiveness.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
The endocannabinoid system (ECS) is a negative feedback system that homeostatically controls neurotransmission in the brain. By mediating activity-dependent suppression of presynaptic release, the ECS modulates synaptic strength and plasticity, which are fundamental for many brain processes including cognition, appetite/energy expenditure, and learning and memory (1). Moreover, the ECS plays key roles in attenuating stress-induced glutamate release and is implicated in a wide range of neurological and neurodegenerative diseases (2, 3).
Because ECS pharmacology is complex and pleotropic, drugs that act directly on the system often result in unwanted neurological and psychoactive side effects (4). Given these limitations, increased understanding of the biochemistry and cell biology of the ECS could provide new avenues for therapeutic intervention.
In neurons, the main ECS receptor, cannabinoid type 1 receptor (CB1R), is located predominantly at the axonal membrane (5–14), particularly at the presynaptic terminal (15–17). CB1R activation by endocannabinoids released from the postsynaptic membrane suppresses presynaptic neurotransmitter release via G protein-mediated inhibition of presynaptic voltage-gated Ca2+ channels (18) and/or adenylyl cyclase activity (19). Thus, the selective targeting of CB1R to the axonal membrane is crucial to its role in regulating activity at the presynapse, yet how this is orchestrated at a molecular level is poorly defined (20).
We have reported previously that CB1R is preferentially and directly axonally targeted through the secretory pathway and that polarity is maintained, at least in part, by the more rapid endocytosis of CB1Rs from the somatodendritic than the axonal membrane (13). Furthermore, we showed that the 21-residue putative helical H9 domain in the intracellular C-terminal domain of CB1R (ctCB1R) contributes to the delivery and stabilisation of axonal CB1R (13). However, despite this progress, exactly how H9 promotes the axonal surface distribution of CB1R remains to be determined.
SH3-containing GRB2-like protein 3-interacting protein 1 (SGIP1) is abundant in brain (21) and preferentially localised to axons and presynaptic terminals (22–24). SGIP1 is an endocytic adaptor protein linked to clathrin-mediated endocytosis (25–30) but its precise role(s) are elusive and may be isoform-dependent since the longer, less abundant isoform, SGIP1α, is capable of membrane tubulation whereas SGIP1 itself is not (31).
SGIP1 has been reported to bind ctCB1R in a yeast 2-hybrid study but the site of interaction on CB1R was not determined (23). Nonetheless, expression studies in HEK293 cells have suggested that SGIP1 interferes with agonist-induced internalisation of CB1R and modulates β-arrestin and GRK3 association and downstream ERK1/2 signalling (23, 32). Moreover, SGIP1 knockout mice display disrupted ECS-dependent behaviours and altered responses to Δ9-tetrahydrocannabinol (THC), including reduced anxiety, reduced acute nociception, and increased sensitivity to cannabinoid-induced analgesia, while working memory and exploration remain unaltered (33).
Here we report that SGIP1 binds to the CB1R α-helical H9 domain and acts to stabilise CB1R at the presynaptic membrane. We show that overexpression of SGIP1 increases CB1R at the axonal plasma membrane, whereas SGIP1 knockdown phenocopies the decreased surface expression observed upon H9 deletion (CB1RΔH9) and impairs CB1R-mediated modulation of synaptic transmission. These data provide mechanistic understanding of how CB1R polarity is established and maintained by identifying SGIP1 as an important mediator of CB1 axonal surface expression. Moreover, these findings open the possibility that manipulating this interaction could be used to regulate the availability of presynaptic CB1R for potential therapeutic benefit.
Results
Cloning of SGIP1β from rat cortical neuronal cultures
Deletion of H9 reduces CB1R surface expression and increases CB1R endocytosis in primary neurons (13), whereas co-expression of SGIP1 enhances CB1R surface expression in HEK293 cells (23). Based on these observations we wondered if SGIP1 interacts with H9 to regulate CB1R surface expression. To investigate this possibility, we amplified rat SGIP1 from cDNA derived from mRNA extracted from DIV21 primary cortical neurons and subcloned it into a modified pcDNA3.1 to incorporate an N-terminal FLAG tag.

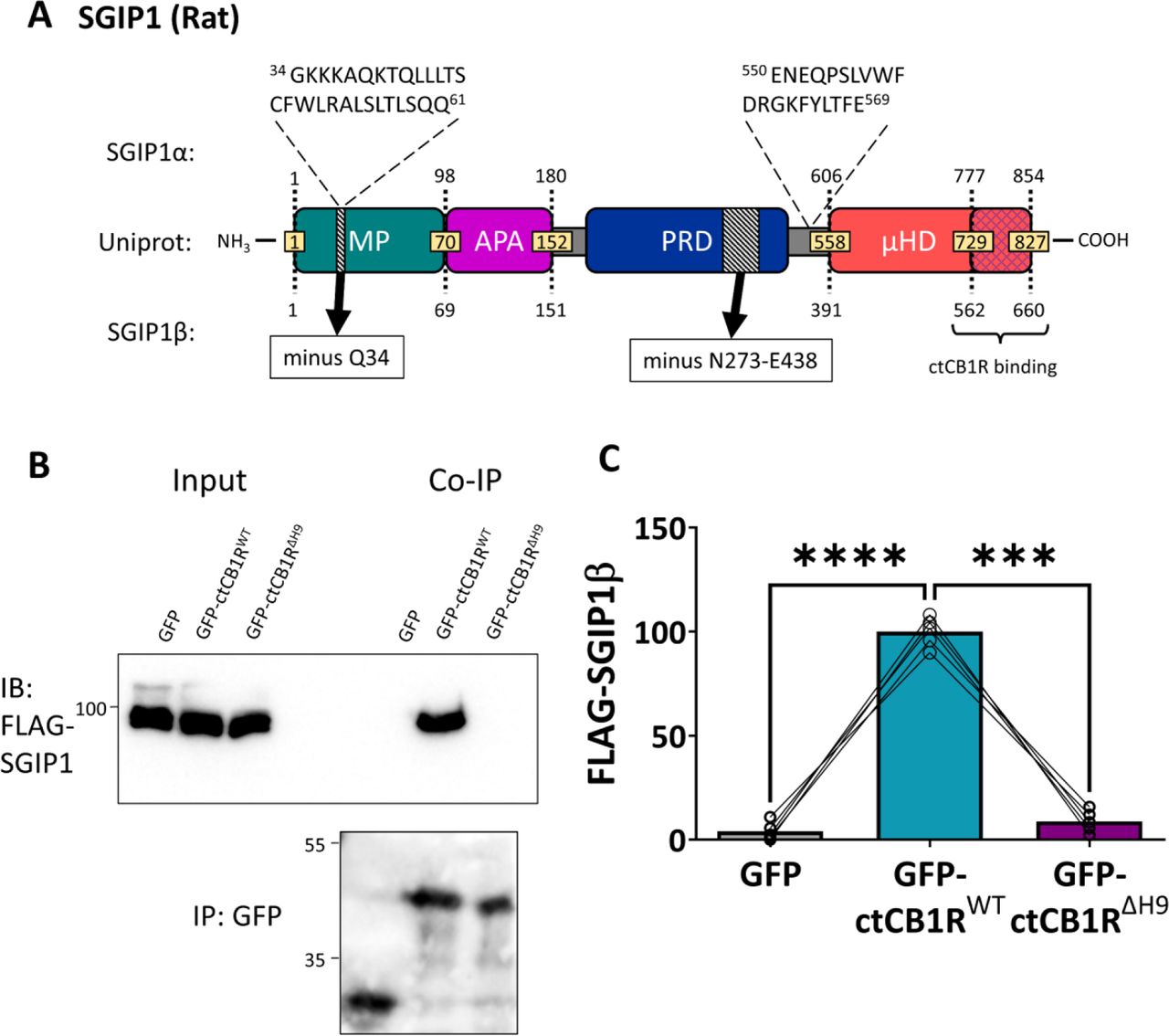

The isolated sequence corresponded to predicted SGIP1 transcript variant X19 (NCBI Reference Sequence: XM_017593774.2; Figure 1A). This 660-amino acid variant differs from the full-length canonical Uniprot entry (i.e., transcript variant X9 NCBI Reference Sequence: XM_017593764.2) by two deletions: a single residue deletion in the membrane phospholipid binding domain (MP; Q34) and a 165-residue deletion in the proline-rich domain (PRD).
Importantly, this variant, which we refer to as SGIP1β, does not contain the additional sequence found in the longer isoform SGIP1α (NCBI Reference sequences NM_001376936.1, transcript variant X1 NCBI Reference Sequence: XM_039109919.1, and X2: NCBI Reference Sequence: XM_039109920.1) that is necessary for membrane tubulation (31). Furthermore, the 99 C-terminal residues D708-N806 in both mouse SGIP1 and rat SGIP1β, which have 100% sequence identity and contain the CB1R binding domain (23), are unchanged.
SGIP1β interacts with the H9 domain of CB1R
To determine whether SGIP1 binds CB1R via H9, we co-transfected HEK293T cells with FLAG-SGIP1β and either EGFP, EGFP-ctCB1RWT, or EGFP-ctCB1RΔH9. Using GFP-Trap, FLAG-SGIP1β co-immunoprecipitated with EGFP-ctCB1RWT but not with EGFP-ctCB1RΔH9 or the EGFP control, indicating that H9 is required for CB1R binding to SGIP1 (Figure 1B-C).
Overexpression of SGIP1 increases surface expression of CB1RWT, but not CB1RΔH9

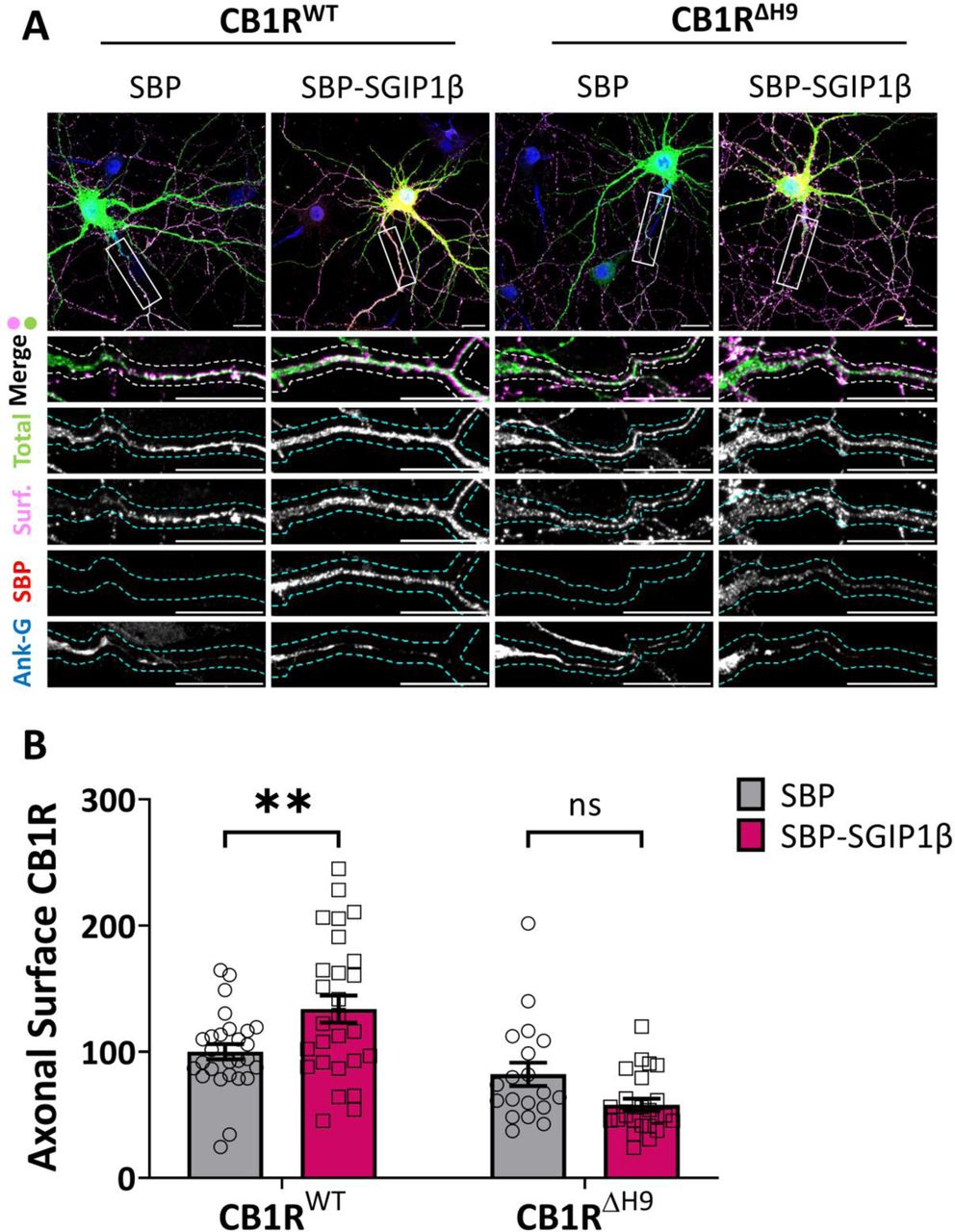

To determine the role of SGIP1 on CB1R axonal surface expression, we co-transfected DIV12 neurons with full-length EGFP-CB1RWT or EGFP-CB1RΔH9, and either SBP control or an SBP-tagged SGIP1β. Following transfection, neurons were incubated for a further 2 days and then stained for surface CB1R using anti-GFP antibody (Figure 2A). Co-expression of SBP-SGIP1β, but not SBP control, significantly increased axonal surface levels of EGFP-CB1RWT (Figure 2B), similar to what occurs in HEK293 cells (23). Importantly, no such increase was observed for EGFP-CB1RΔH9, suggesting that H9 is necessary for this effect to occur (Figure 2B).

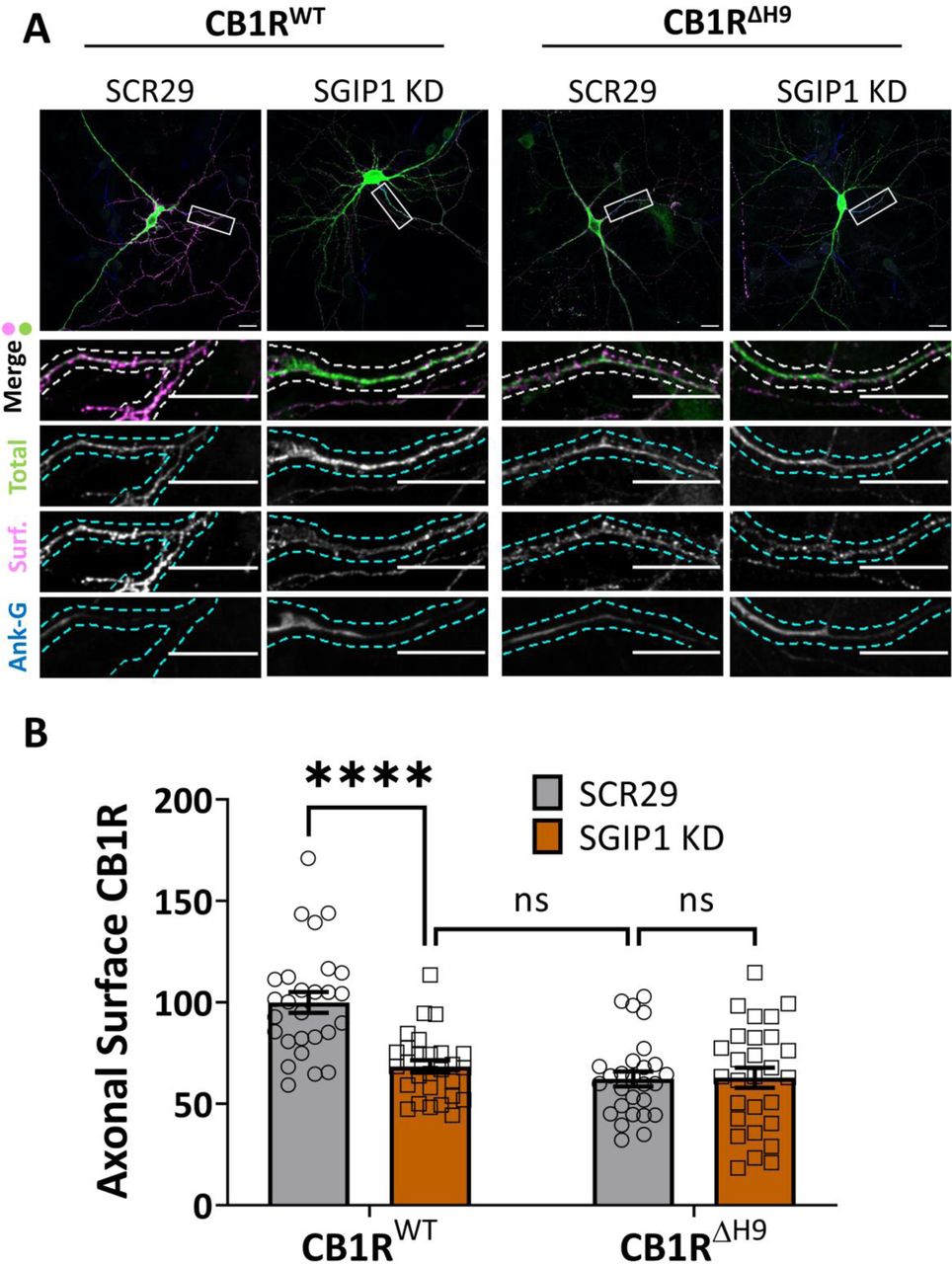

SGIP1 knockdown reduces surface expression of CB1RWT, but not CB1RΔH9

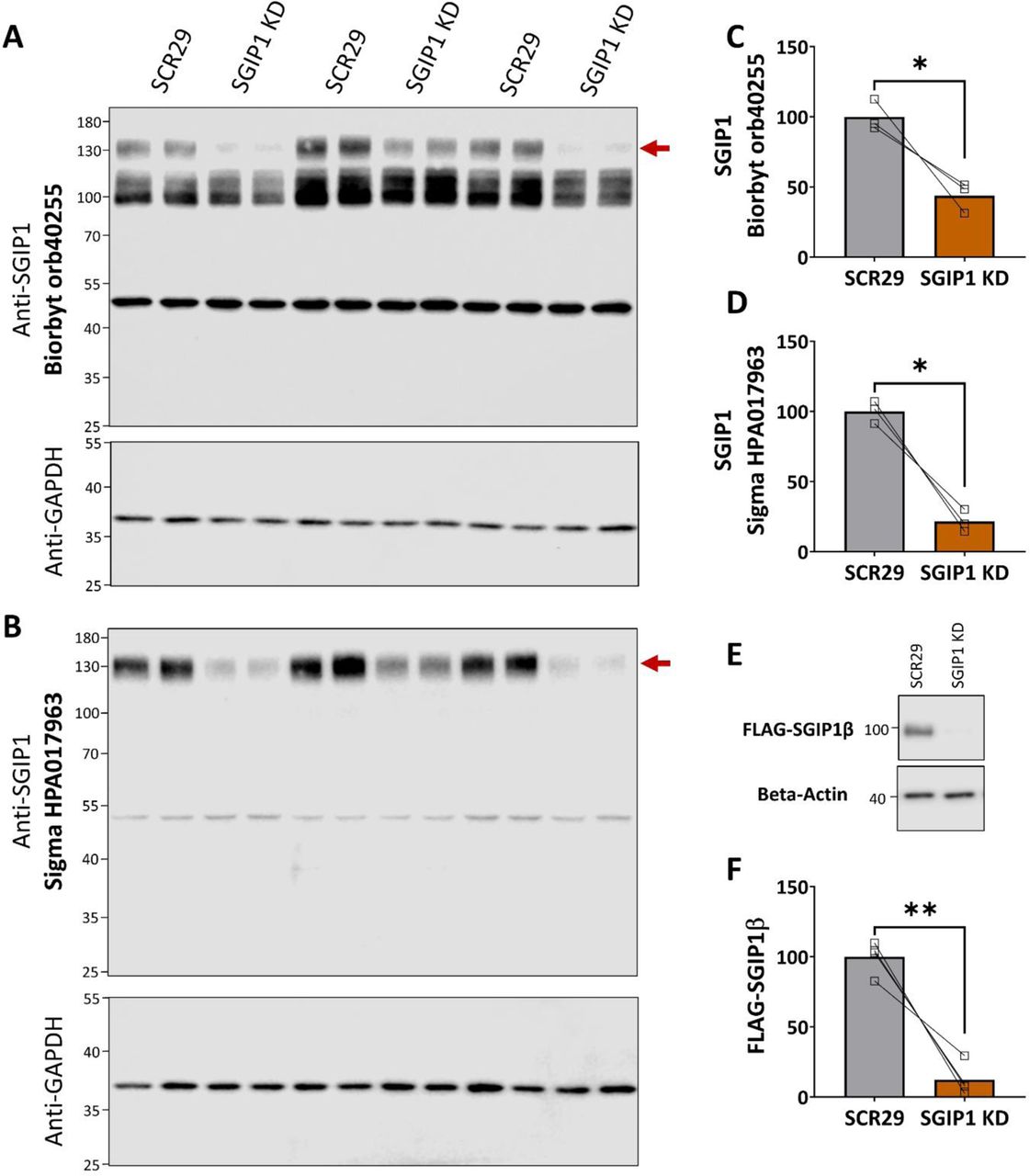

Next, we transfected DIV9 hippocampal neurons with a scrambled shRNA (SCR29), or an shRNA knockdown construct that targets all known isoforms of SGIP1 (25), and either EGFP-CB1RWT or EGFP-CB1RΔH9 (Supplementary Figure 1). Following transfection, neurons were incubated for a further 5 days to ensure complete knockdown, and then live stained for surface CB1R using anti-GFP antibody (Figure 3A). Consistent with a role for SGIP1 in promoting CB1R axonal surface expression, SGIP1 knockdown reduced surface EGFP-CB1RWT in axons to levels equivalent to EGFP-CB1RΔH9 (Figure 3B). Importantly, SGIP1 knockdown did not further reduce surface expression of EGFP-CB1RΔH9 (Figure 3B). These data demonstrate that CB1RΔH9 is insensitive to regulation by SGIP1 and strongly suggest that the reduced surface expression phenotype of EGFP-CB1RΔH9 is due to its inability to bind SGIP1.

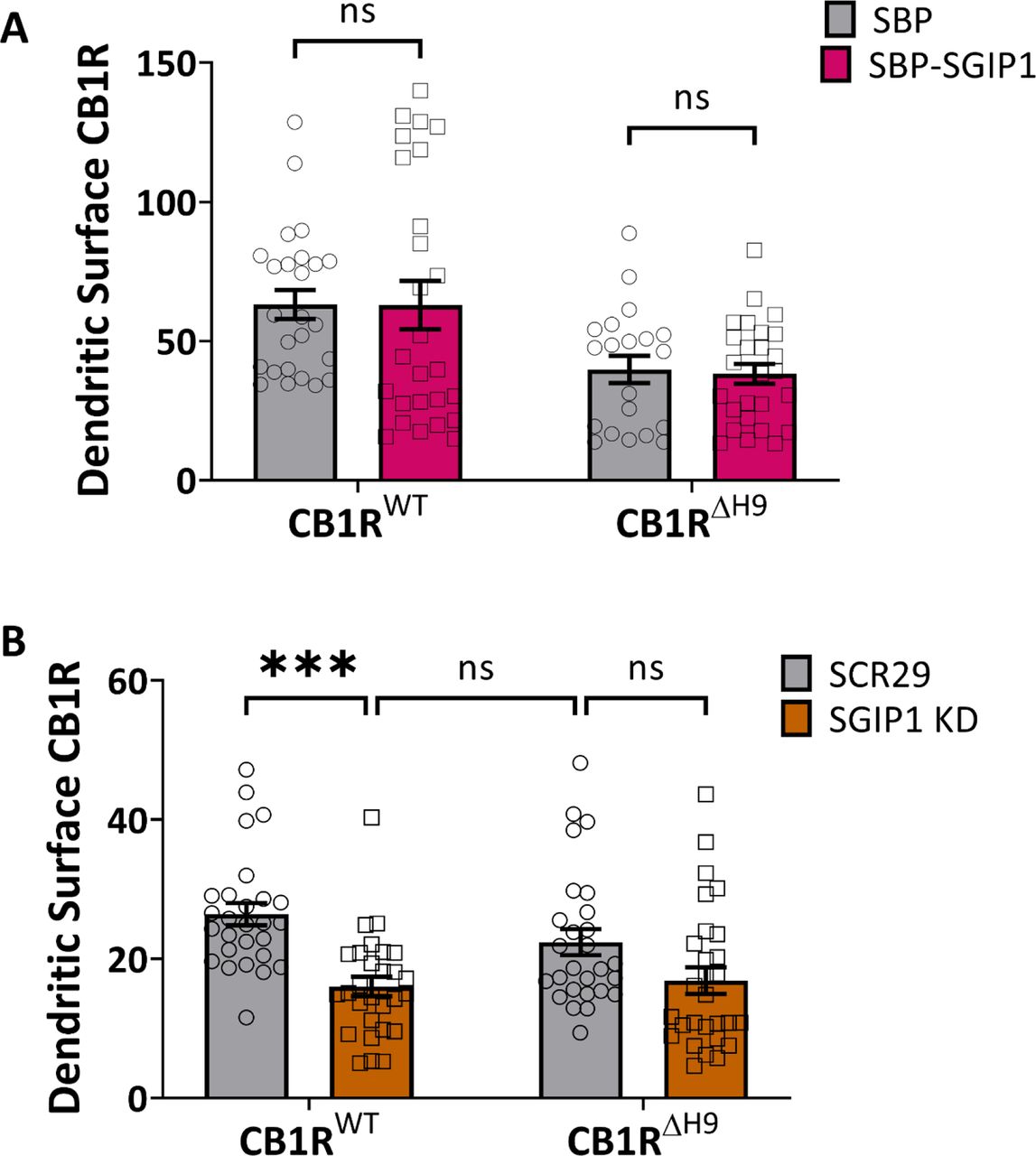

We, and others, have shown that although CB1R is delivered to dendritic plasma membrane, it is rapidly internalised (6, 7, 11, 13, 34). While SGIP1 has been reported to preferentially localise to axons and presynaptic terminals (22, 23, 35), SBP-SGIP1β appears to be present throughout the neuron. However, while no effect of SBP-SGIP1β overexpression on CB1R surface expression was observed in dendrites (Supplementary Figure 2A), pan-SGIP1 knockdown reduced dendritic surface levels of CB1RWT, but not CB1RΔH9 (Supplementary Figure 2B). These results raise the possibility that an isoform other than SGIP1β might affect CB1R surface expression in dendrites.
SGIP1 knockdown reduces the surface/total ratio of endogenous CB1R

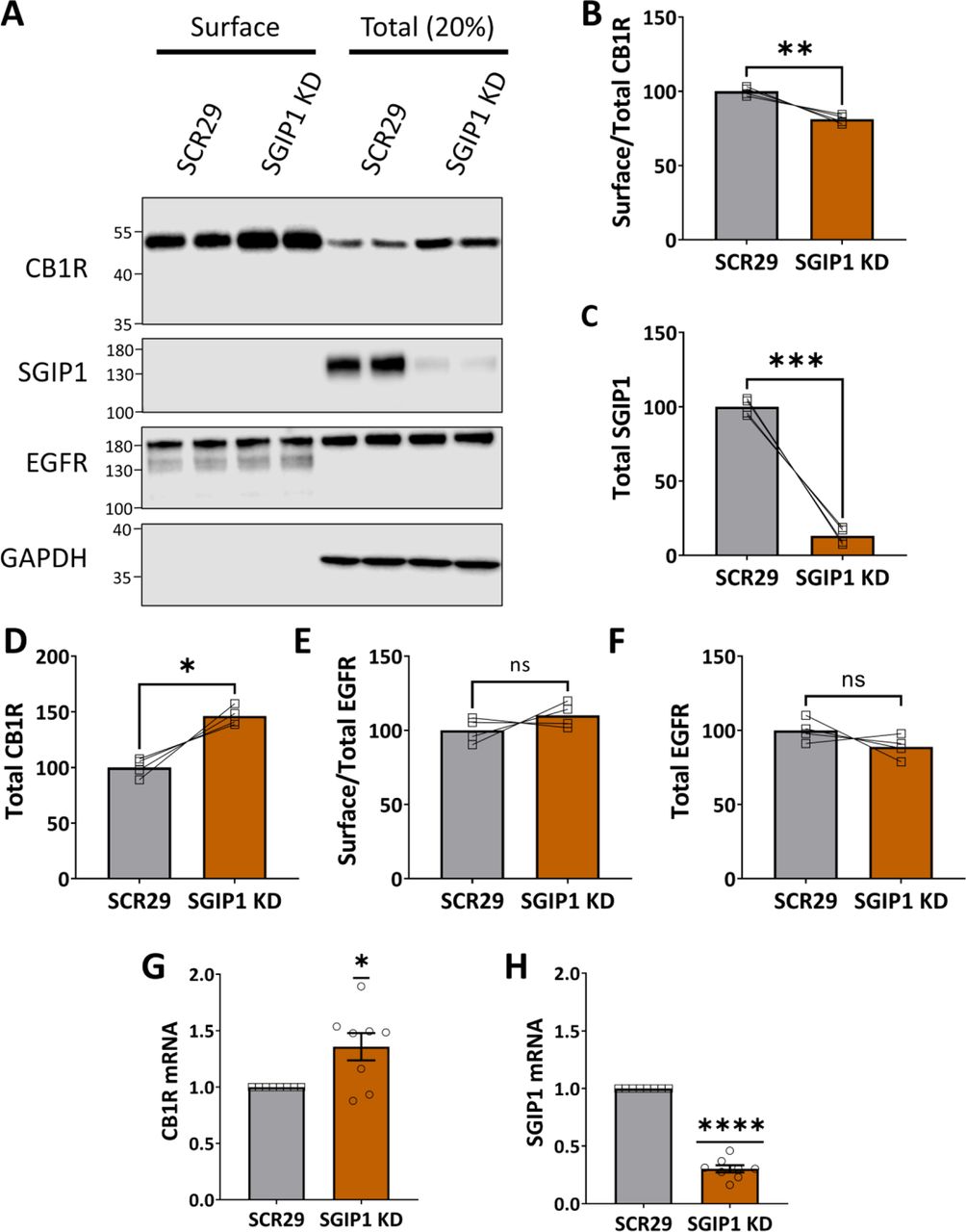

To determine how SGIP1 effects surface expression of endogenous CB1R, we transduced DIV7/8 primary cortical neurons with lentivirus expressing either a scrambled shRNA control (SCR29) or SGIP1 shRNA. Surface and total levels of endogenous CB1R were examined at DIV14/15 by surface biotinylation followed by streptavidin pulldown and Western blotting (Figure 4A). Consistent with our exogenously expressed CB1R data, knockdown of SGIP1 to levels of ∼15% compared to the SCR29 control significantly decreased surface expression of endogenous CB1R (Figure 4B-C and Supplementary Figure 1). These results further support a role for SGIP1 in promoting CB1R surface expression.
Surprisingly, however, in these experiments, total levels of endogenous CB1R were increased by SGIP1 knockdown compared to the SCR29 control (Figure 4D). In contrast, neither total (Figure 4E) nor surface (Figure 4F) levels of epidermal growth factor receptor (EGFR) were affected by SGIP1 knockdown, suggesting the changes observed could not be attributed to global alterations in membrane protein expression or surface expression.
Therefore, to assess if the increase in total CB1R protein levels could be due to increased transcription, we analysed transcript levels of CB1R in DIV14/15 cortical cells transduced with SCR29 or SGIP1 shRNA by RT-qPCR (Figure 4G-H and Supplementary Figure 3). The relative mRNA level of CB1R was significantly increased when SGIP1 was knocked down, suggesting that enhanced CB1R levels likely constitute a homeostatic mechanism in response to reduced surface expression.
SGIP1 knockdown impairs CB1R-mediated inhibition of intracellular Ca2+ influx
We next investigated how presynaptic CB1R signalling is affected by loss of SGIP1. CB1R/SGIP1 co-expression in cell lines alters CB1R-mediated ERK1/2 phosphorylation as well as recruitment of β-arrestin and GRK3 (23, 32), whereas G protein activation and intracellular Ca2+ mobilisation is unaffected (23).

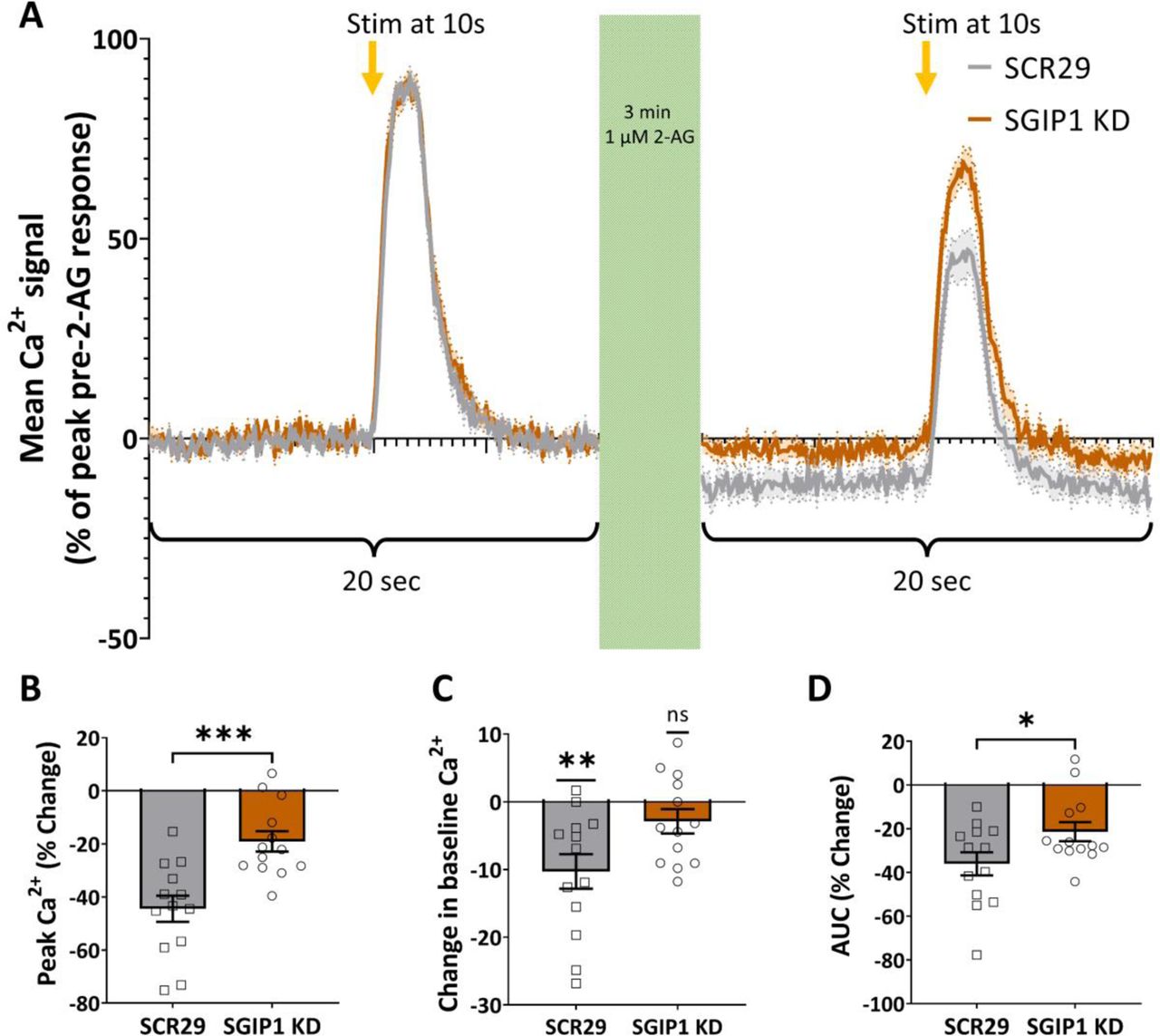

To define what happens in neurons we transfected DIV8/9 primary hippocampal neurons with the presynaptically-localised Ca2+ indicator synaptophysin-GCaMP3 (SyGCaMP3) (36) and either SCR29 or SGIP1 knockdown shRNA, and assayed CB1R function at DIV14/15. Neurons were stimulated with 20 APs (50V, 1ms pulses) at 20Hz, perfused with the CB1R agonist 2-AG (1 μM) for 3 minutes, and restimulated. The Ca2+ signal was compared before and after 2-AG incubation (Figure 5A).
As expected, in control neurons the peak Ca2+ signal decreased after 2-AG incubation by ∼45% (Figure 5B), consistent with the presynaptic inhibitory action of CB1R signalling (37, 38). The magnitude of this decrease was markedly reduced in SGIP1 knockdown neurons (Figure 5B). Furthermore, 2-AG significantly decreased the baseline Ca2+ signal compared to pre-2-AG incubation in control cells, but not after SGIP1 knockdown (Figure 5C). Lastly, the reduction in the area under the curve of the Ca2+ response was significantly less in SGIP1 knockdown cells compared to control cells (Figure 5D). Together, these data suggest that SGIP1 knockdown suppresses the endocannabinoid-mediated reduction in Ca2+ influx, indicative of reduced presynaptic CB1R signalling in the absence of SGIP1.
Discussion
The context of this study was that the amphipathic α-helical H9 domain in the intracellular C-terminal of CB1R contributes to the polarised presynaptic surface expression of CB1R (13). SGIP1 binds to CB1R, increasing its surface expression and modulating its signalling in HEK293 cells (23, 32). The distributions of SGIP1 and CB1R overlap in mouse brain (39), and they co-localise at the presynapse (23). We therefore hypothesised that SGIP1 might interact with H9 to modulate synaptic CB1R availability at the presynaptic membrane.
We show that SGIP1 binds to the CB1R H9 domain to promote axonal surface expression. A FLAG-tagged isoform of SGIP1, which we refer to as SGIP1β, co-IPs with ctCB1RWT, but not with ctCB1RΔH9 in HEK293T cells (Figure 1A-C). Moreover, overexpression of SGIP1β increases CB1R axonal plasma membrane expression (Figure 2), while knockdown of SGIP1 reduces axonal surface levels (Figure 3). Importantly, neither overexpression (Figure 2) nor knockdown (Figure 3) of SGIP1 altered CB1RΔH9 surface expression, consistent with SGIP1 mediating its effect through interaction with the H9 domain of CB1R.
SGIP1 knockdown reduces both the surface/total ratio of endogenous CB1R (Figure 4A-C) and modulates downstream CB1R signalling. Under control conditions, CB1R activation inhibits voltage-gated Ca2+ channels via Gi βγ-subunit mobilisation (37, 38), but the magnitude of the effect is significantly reduced with SGIP1 knockdown (Figure 5). Notably, this effect on signalling remains even though total CB1R levels increase with SGIP1 knockdown (Figure 4D) – a phenomenon that we speculate may represent a homeostatic mechanism in response to decreased CB1R surface expression, since CB1R transcript levels were also increased (Figure 4G-H). Taken together, these data provide strong evidence that SGIP1 promotes axonal surface localisation of CB1R through interaction with H9.
SGIP1 is a member of the muniscin family of cargo adapters due to its similarity with FCHo1/2 proteins and interacts with AP-2 (40), intersectin (28), and Eps15 (25). Since SGIP1 is a component of the clathrin-mediated endocytosis complex, a key question is why does SGIP1 overexpression enhance, and knockdown reduce, CB1R surface expression?
We speculate that key to untangling this conundrum is the observation that the actions of SGIP1 are highly isoform-dependent (31). Both SGIP1 and FCHo1/2 proteins contain an N-terminal membrane phospholipid (MP) binding domain, an AP-2 activator domain, a proline rich domain, and a C-terminal µ homology domain (28, 40) (Figure 1A). However, the membrane binding domain of FCHo1/2 is an F-BAR domain that deforms the plasma membrane to facilitate clathrin-coated pit formation. The corresponding region of SGIP1, however, has no F-BAR sequence similarity.
Nonetheless, a recent report has identified a 28-residue, positively charged sequence present in the membrane binding domain that is necessary for homo-oligomerisation of SGIP1 and membrane tubulation (31). Of the 32 different predicted rat transcript variants available on the NCBI database, 13 contain the membrane tubulating sequence in its entirety. Importantly, SGIP1α contains this sequence, while SGIP1 and SGIP1β do not, and previous experiments indicating that SGIP1/CB1R co-expression in HEK293 cells increases CB1R surface levels were performed using the non-membrane tubulating form of SGIP1 (23). Consistent with these findings, our data show that overexpression of SGIP1β, which does not contain the tubulating sequence, increases CB1R surface levels in axons (Figure 2).
We note, however, that different SGIP1 isoforms may be selectively recruited to different cargo to mediate opposing effects. Differences between the SGIP1 isoforms are in the homo-oligomerisation and membrane-tubulating sequences, whereas the C-terminal 99 residue domain of SGIP1 that interacts with CB1R is present in all three SGIP1 isoforms. One possibility could be that SGIP1 and SGIP1β act as endogenous ‘dominant negatives’ to SGIP1α and FCHo1/2 proteins, preventing them from binding cargo by taking up the binding site. However, further work will be required examine this possibility directly. In conclusion, our findings indicate that SGIP1 promotes CB1R surface expression via interaction with H9.
Materials and methods
Plasmids and reagents
To N-terminally tag rat CB1R, the first 25 N-terminal amino acids were removed and an exogenous signal peptide corresponding to interleukin-2 (SPIl2) was added before the tags as previously characterised (8, 13).

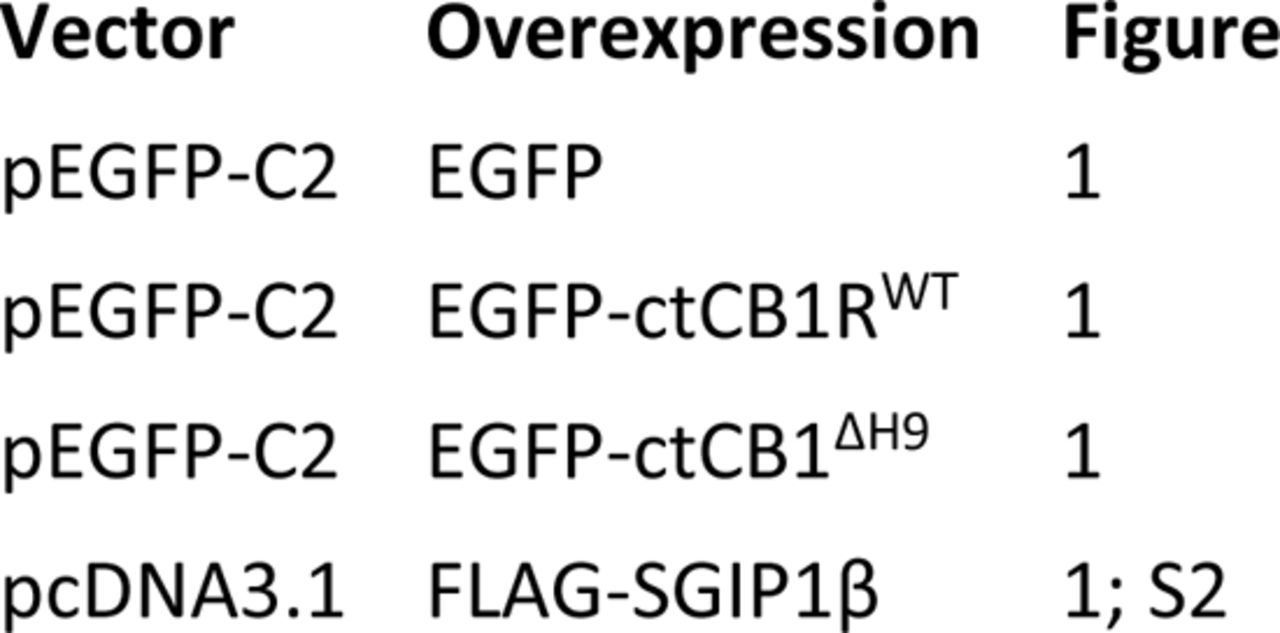

The following overexpression plasmids were used:

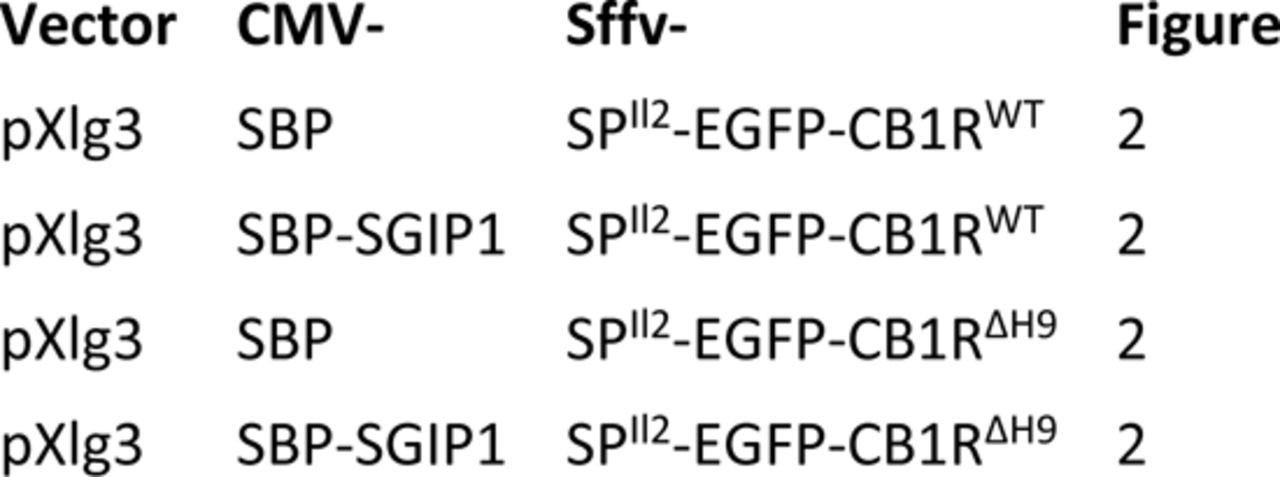

The following double overexpression plasmids (one cassette with a CMV promoter, one cassette with an Sffv promotor) were used:

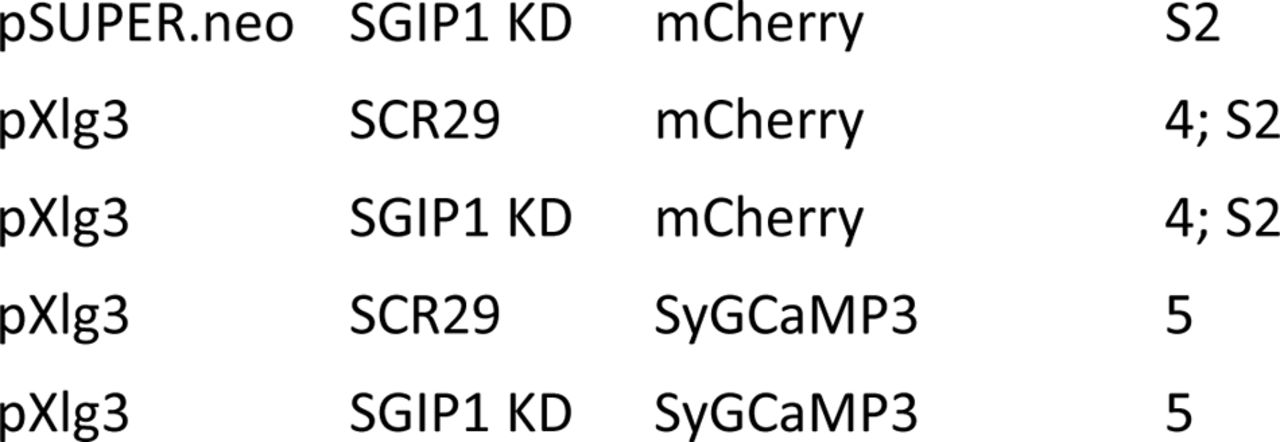

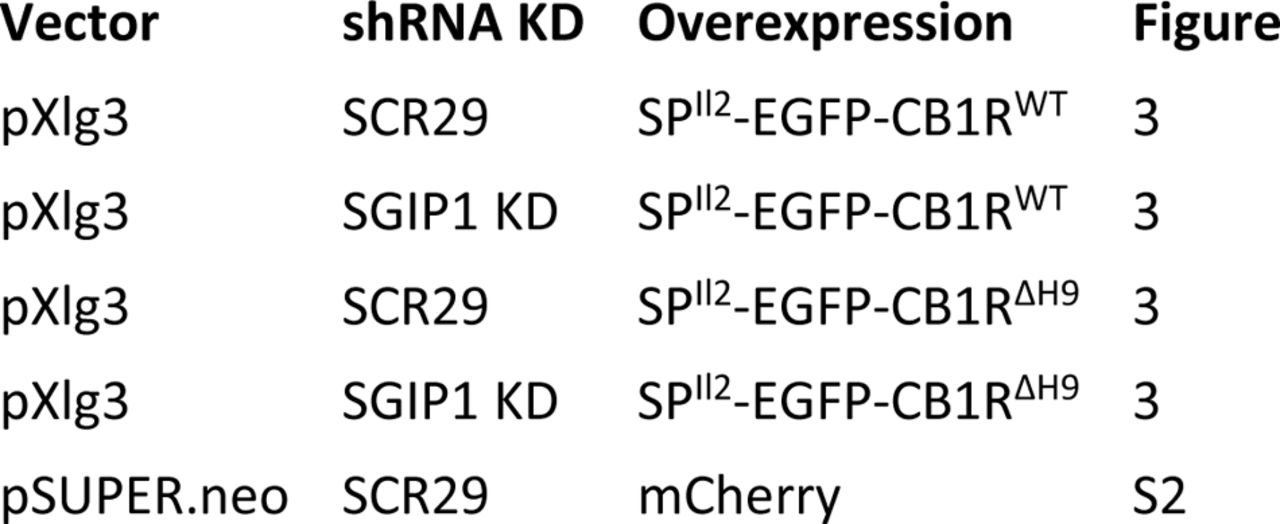

The following shRNA knockdown (H1 promoter) + overexpression (Sffv promoter) plasmids were used:
The non-targeting 29-mer shRNA (SCR29) sequence was:
5’ – GCACTACCAGAGCTAACTCAGATAGTACT – 3’ (Origene)
The SGIP1 shRNA target sequence was:
5’ – CCAATACCAAGGAATTCTGGGTAAA – 3’ (25).

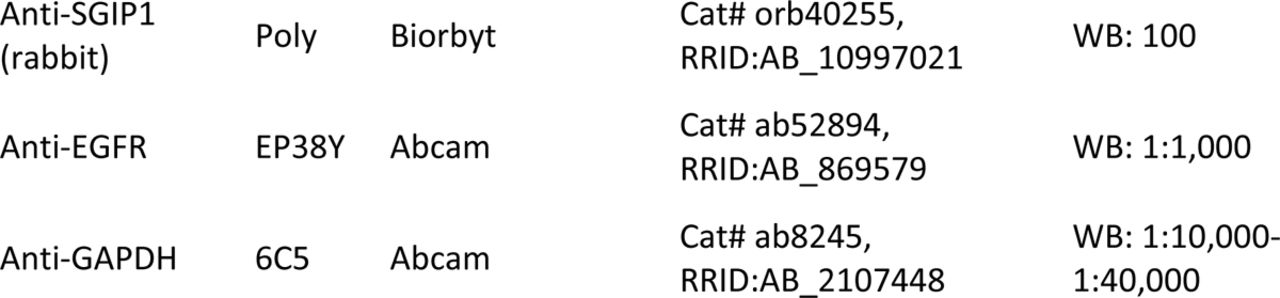

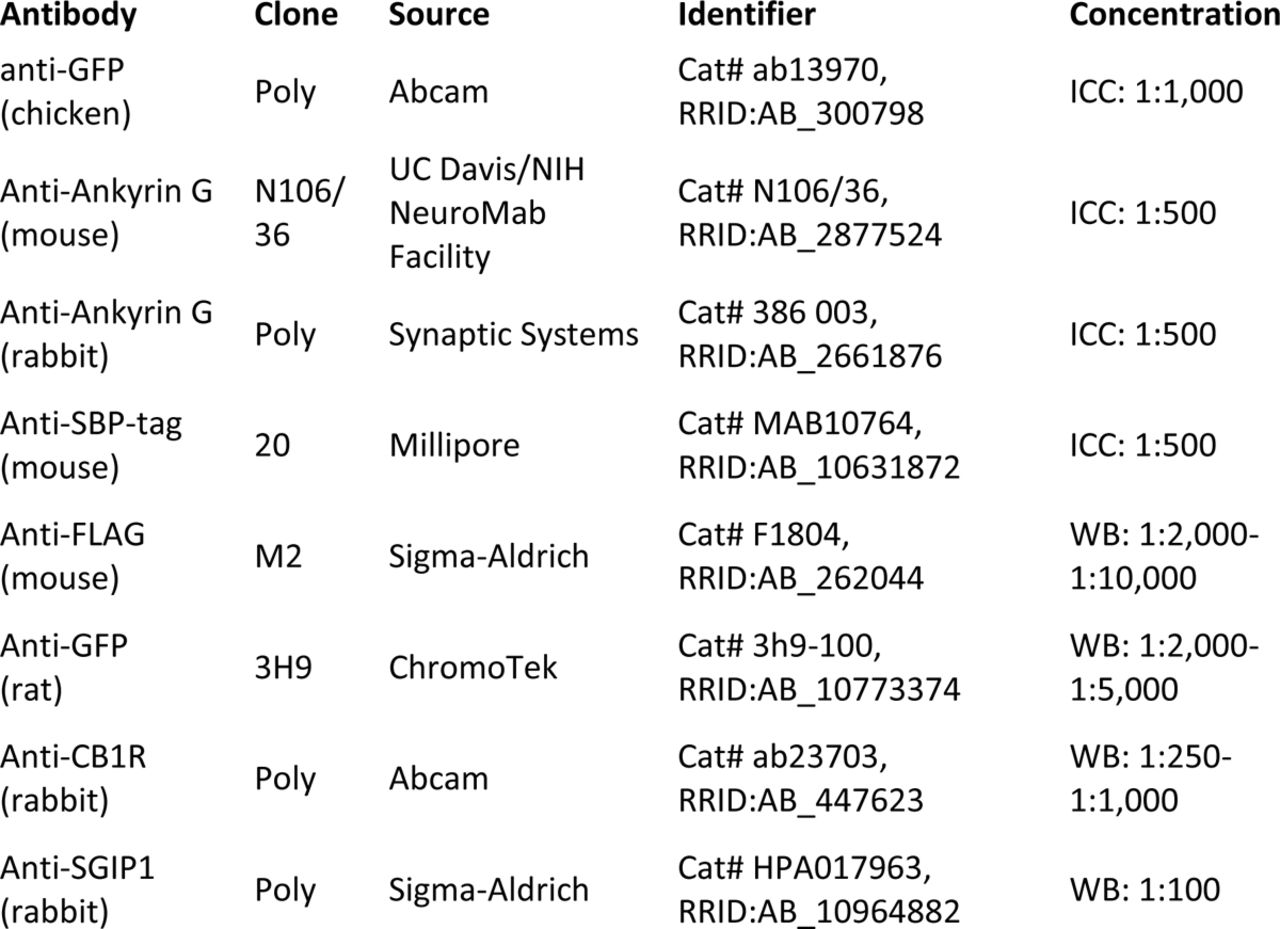

The lentiviral helper vectors p8.91 and pMD2.G were used. The following primary antibodies were used:

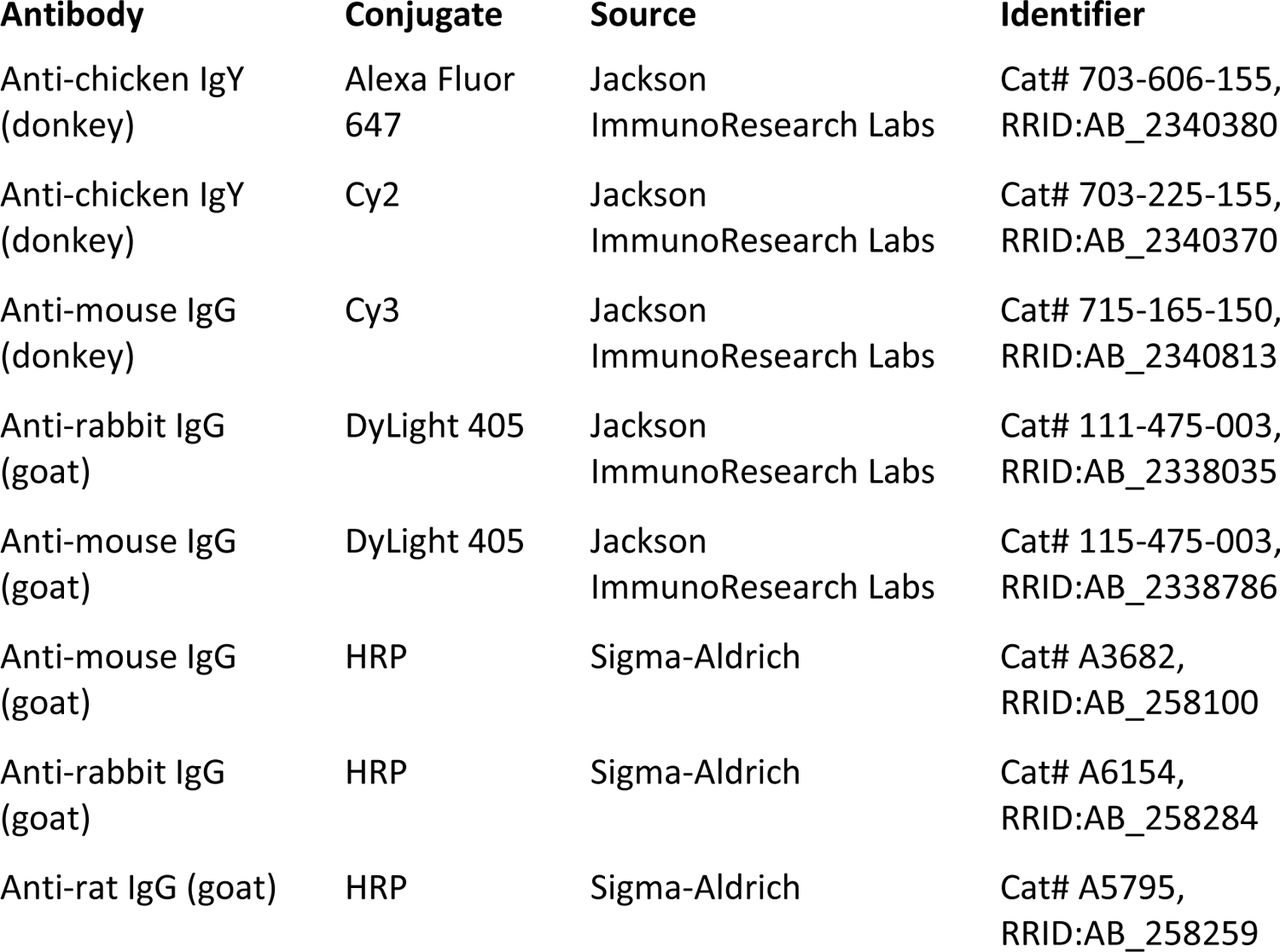

The following secondary antibodies were used:
All fluorescent secondary antibodies for ICC were used at 1:400 and all HRP secondary antibodies for WB were used at 1:10,000.
Cell culture and transfection
The hippocampus and cortex were dissected from E17 Han Wistar rats and dissociated according to standard protocols (41). 200,000-350,000 dissociated hippocampal neurons were plated onto 25 mm glass coverslips pre-coated with PDL (Sigma) in plating media (Neurobasal, Gibco; supplemented with 5% horse serum, Sigma; 2 mM GlutaMAX, Gibco; and 1xGS21, GlobalStem). 500,000 cortical neurons were plated per well of a 6 well plate pre-coated with PDL. The next day, plating media was removed and replaced with feeding media (Neurobasal supplemented with 1.2 mM GlutaMAX and 1xGS21). When GS21 became unavailable, dissociated hippocampal neurons were both plated and maintained in B27 Plus media (Neurobasal Plus supplemented with 1x B27 Plus, Gibco).
DIV9 (KD) or DIV12 (overexpression) primary hippocampal neurons were transfected with 1-2 μg plasmid DNA and 5 μL Lipofectamine 2000 (Invitrogen) according to manufacturer’s instructions, with minor modifications. For overexpression experiments, cells were left 2-3 days whereas for KD experiments, cells were left 5 days to ensure efficient KD. All experiments were carried out at DIV14/15. Cortical neurons were transduced with lentivirus at DIV7/8 and assayed at DIV14/15. To limit glial growth, antimitotics (FDU + uridine, final concentration 0.4 μM) were added at DIV7/8 to cortical cultures.
HEK293T cells (EACC) were passaged and maintained in glutamine-containing DMEM (Gibco) supplemented with 10% FBS and 1% penicillin/streptomycin and were transfected with Lipofectamine 2000 (Invitrogen) in penicillin/streptomycin-free media for 48 hours according to manufacturer’s instructions, with minor modifications. HEK293T cells were treated with ciprofloxacin (10 μg/mL) regularly to prevent mycoplasma contamination.
GFP-Trap
GFP was immunoprecipitated with GFP-Trap (Chromotek) according to manufacturer’s instructions, with minor modifications. Samples were kept at 4°C throughout. HEK293T cells were lysed in lysis buffer (50 mM Tris HCl pH 7.4, 150 mM NaCl, 0.5% Triton X, 1 x cOmplete protease inhibitors [1x = 1 tablet in 40mL; Merck]), sonicated, incubated 20 min, and clarified by centrifugation at 16k RCF for 20 min. A proportion of the lysate was kept aside (“input”), and the rest was incubated with GFP-Trap beads on a rotating wheel for 1 hour. The beads were pelleted for 2 minutes at 1.5k RCF and washed 3x in wash buffer (lysis buffer minus protease inhibitors). 2x Laemmli sample buffer was added to the beads and the inputs and the beads were boiled at 95°C for 5 minutes.
Lentivirus production and transduction of cortical neurons
Lentivirus was produced in HEK293T cells following standard protocols (42). HEK293T cells plated in 6- or 10-cm dishes were transfected using plain DMEM containing 2 μg/mL of the appropriate pXlg3 viral vector, 0.5 μg/mL pMD2.G, 1.5 μg/mL p8.91, and 12 μg/mL PEI in plain DMEM media for 4 hours. The transfection mix was removed and replaced with DMEM + 10% FBS. After 48 hours, the virus-containing media was collected, centrifuged at 4k rpm for 10 min, and passed through a 0.45 μm syringe filter to remove any remaining HEK293T cells. 500 μL of virus was added per well of a 6 well plate of DIV7 cortical neurons in duplicate and incubated for 7 days.
Surface biotinylation and streptavidin pulldown
All solutions were pre-chilled to 4°C and steps were carried out on ice. DIV14/15 cortical neurons in 6-well plates transduced with lentivirus were cooled on ice to prevent endocytosis, then washed 3x in ice-cold 1xPBS. Surface proteins were biotinylated by incubation with 0.3 mg/mL of EZ-link Sulfo-NHS-SS-Biotin (Thermo) dissolved in 1xPBS for 10 minutes. Unreacted biotin was washed off with 3x washes in PBS and quenched with a 2 min incubation in 50 mM NH4Cl in PBS. Quenching solution was washed off with an additional 3 washes in PBS and cells were lysed in 250 μL of lysis buffer (50 mM Tris HCl pH 7.4, 150 mM NaCl, 1% CHAPS, 0.1% SDS, 10% glycerol, 1 mM EDTA, 1 x cOmplete protease inhibitors), sonicated, incubated 20 min, and clarified by centrifugation at 16k RCF for 20 min.
Biotinylated surface proteins were isolated using streptavidin-coated agarose beads (Merck). The beads were washed 2 times in lysis buffer by centrifugation at low speed (<1.5k RCF). 50 μL of clarified lysate was set aside (total) and 100 µL of clarified lysate was added to 30 µL of beads along with 500 µL of lysis buffer (surface). The beads were incubated on a rotating wheel at 4°C for 1.5 hours, then washed in wash buffer (lysis buffer without protease inhibitors) 3 times, by pelleting the beads for 2 minutes at 1k RCF and discarding the supernatant between washes. 2x Laemmli sample buffer was added to both the surface and total samples. The samples were vortexed, spun down, and incubated overnight at RT (to prevent CB1R aggregation).
Western Blotting
Samples in Laemmli sample buffer were resolved on 10% acrylamide gels by SDS-PAGE, transferred onto methanol-activated PVDF membrane, and immunoblotted according to standard protocols. Chemiluminescence was detected using a LI-COR Odyssey Fc and quantified using Image Studio.
RT-qPCR
RNA was extracted from DIV14/15 cultured cortical cells transduced with lentivirus expressing a 29-mer non-targeting shRNA (SCR29) or SGIP1-targeting shRNA using the Qiagen RNeasy mini kit following manufacturer’s instructions. RNA concentration was measured using a nanodrop and 1 µg of RNA was converted to cDNA using the RevertAid First Strand cDNA Synthesis Kit (ThermoFisher Scientific) according to manufacturer’s instructions.
qPCR was performed using PowerUp™ SYBR™ Green Master Mix (ThermoFisher Scientific) mixed with 2 µL of each sample and gene-specific primers at 0.25 µM each and run on a qPCR machine with MxPro software and SYBR green with dissociation curve setup.

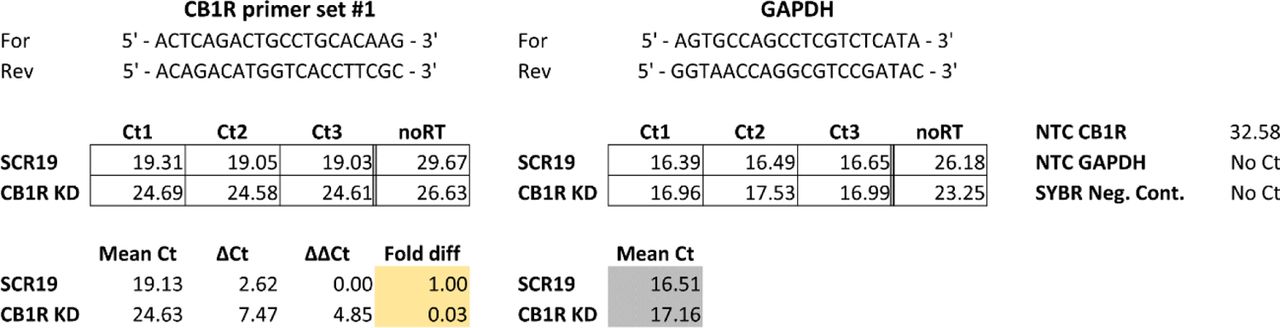

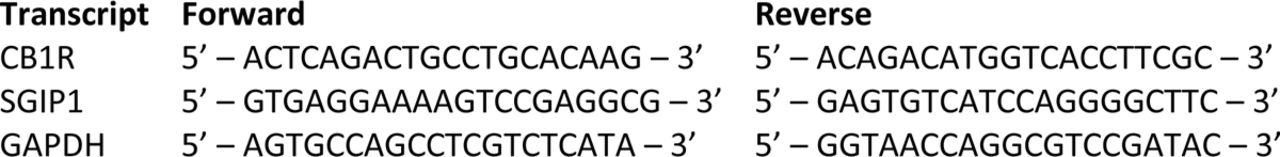

The following primers were used:
Unknown samples were run in triplicate and no-RT (-RT), no template (NTC), and SYBR neg (10 µL SYBR master mix + 10 µL H2O) controls were included with each qPCR.
Relative gene expression was quantified using the ΔΔCt method. Mean cycle threshold (Ct) values of the gene of interest were normalised first to GAPDH mean Ct values (ΔCt) and then to the SCR29 control (ΔΔCt). Fold change of gene expression was plotted as 2-ΔΔCt and a one sample t-test was performed to determine whether the SGIP1 KD condition was significantly different from 1.
Live surface staining
To measure surface expression, DIV14 cultured hippocampal neurons grown on 25mm glass coverslips were incubated live in the appropriate antibody raised against an extracellular epitope. Briefly, cells were removed from the incubator and allowed to cool to RT for 5 minutes. Cells were then incubated in chicken anti-GFP antibody (1:1,000) in 90 μL conditioned media for 10 minutes at RT. The antibody mix was dotted onto parafilm, and the coverslips were incubated upside down to ensure even coating. Cells were washed 3 times in 1xPBS to remove excess antibody and fixed.
Fixation and fixed immunostaining
Cells were fixed in pre-warmed 4% PFA and 5% sucrose in 1xPBS for 12 minutes. Following 3 washes in PBS, residual PFA was quenched with a wash in 100mM glycine in 1xPBS, and the cells were washed 3 more times in PBS.
Cells were blocked and permeabilised in 3% BSA in 1xPBS with 0.1% Triton-X for 20 minutes. Cells were then incubated in secondary antibody to label surface. Cells were then stained for total levels and Ankyrin-G (axon initial segment marker). Primary and secondary antibodies were diluted in 3% BSA in 1xPBS. 90 μL of the antibody mix was dotted onto parafilm and the coverslips were incubated upside down for 1 hour at RT. The cells were washed 3x in PBS between incubations. Coverslips were dipped in distilled H20 and mounted onto slides using Fluoromount G (ThermoFisher Scientific) mounting media with or without DAPI.
Fixed image acquisition and analysis
Images were acquired using a Leica SP8 confocal laser scanning microscope (Wolfson Bioimaging Facility, University of Bristol). All settings were kept the same within experiments. To avoid bias, neurons were selected for data acquisition based only on their total staining and surface was stained in far red.
Fiji (ImageJ) was used to quantify fluorescence. Images were max projected, and regions of interest (ROIs) of approximately similar lengths were drawn around axons based on the total channel only. Axons were defined as processes whose initial segment was positive for Ankyrin-G. Surface fluorescence was normalised to total fluorescence to control for differences in expression levels and expressed as a percentage of the control condition.
SyGCaMP assay and analysis
SyGCaMP assay was performed as previously described (36). Hippocampal neurons grown on 25mm coverslips were transfected at DIV8/9 with pXlg3-SCR29-SyGCaMP3 or pXlg3-SGIP1 KD-SyGCaMP3 and assayed at DIV14/15. Cells were assayed in HEPES Buffered Saline (HBS; 90-140 mM NaCl [adjusted according to osmolarity of culture media], 5mM KCl, 1.8 mM CaCl2, 0.8mM MgCl2, 25 mM HEPES pH 7.4, 5 mM glucose) with 25 µM CNQX and 50 µM D-AP5 to prevent spontaneous firing. Timelapse imaging of SyGCaMP was performed at 10Hz with 2×2 binning on a Nikon Eclipse Ti-E C1 plus widefield microscope with a 40x objective, a CCD camera, a GFP filter cube, and accommodating an electrical field stimulation setup. A 20s imaging session was started. After 10s of baseline recording, cells were electrically stimulated with 20 APs (50V, 1ms pulses) at 20Hz. Cells were then perfused with 1 μM 2-AG and incubated for 3 minutes, and the 20s recording and stimulation were repeated.
For each field of view, the mean fluorescence of 3-10 punctate regions of interest (ROIs) were analysed, and non-responsive ROIs were discarded. The mean fluorescence of 3 background ROIs was also measured, which was subtracted for each timepoint for each ROI. Background subtracted values then normalised to basal levels for each ROI (calculated as average mean fluorescence during 8-9s). The average for each timepoint of all ROIs for a field of view was found and then plotted as a percentage of the peak mean fluorescence of the first stimulation. Three parameters were analysed: 1) change in peak post-2-AG signal, 2) change in baseline (calculated as average during 8-9s post-2-AG), 3) change in area under curve (AUC; Total Peak Area was calculated using Prism with the following parameters: baseline = mean of 8-9s and 18-19s, ignoring peaks less than 10% distance from minimum to maximum Y, ignoring any peaks defined by fewer than 8 adjacent points. Post-2-AG AUC was presented as a percentage of pre-2-AG AUC).
Statistics
All statistics were performed using GraphPad Prism (version 9). Outliers were removed using GraphPad Prism’s ROUT method (Q = 1%). T-tests were used to determine statistical significance between two groups. For more than two groups, One- or Two-way ANOVAs with Tukey’s or Sidak’s post hoc tests were used to determine statistical significance, depending on the comparisons required.
For image analysis, ‘n’ denotes the total number of neurons that were analysed, as is convention in the field (6–8, 11, 13). However, the number of separate neuronal cultures prepared from litters of pups from separate dams is also noted for each experiment. For surface biotinylation experiments, ‘n’ denotes the number of separate neuronal cultures, where each ‘n’ is the average of two duplicate experiments. For all data, *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. Data are presented as mean ± SEM.
