Optimization of Extraction Methods for NMR and LC-MS Metabolite Fingerprint Profiling of Botanical Ingredients in Food and Natural Health Products (NHPs)
1College of Biological Science, University of Guelph, Guelph, ON N1G 2W1, Canada; vinaychemist89@gmail.com (V.V.); ragu@uoguelph.ca (S.R.); snehara@auamed.net (R.S.); snewmast@uoguelph.ca (S.G.N.)
2Biological and Life Sciences, Canadian Light Source, Saskatoon, SK S7N 2V3, Canada
3College of Medicine, American University of Antigua, Jobberwock Beach Road, Coolidge P.O. Box W1451, Antigua and Barbuda
*Correspondence: athiru@outlook.comAbstract
Metabolite fingerprint profiling is a robust tool for verifying suppliers of authentic botanical ingredients. While comparative studies exist, few apply identical conditions across multiple species; this study utilized a cross-species comparison to identify versatile solvents despite biochemical variability. Multiple solvents were used for sample extraction prior to analysis by proton NMR and liquid chromatography–mass spectrometry (LC-MS) for multiple botanicals including Camellia sinensis, Cannabis sativa, Myrciaria dubia, Sambucus nigra, Zingiber officinale, Curcuma longa, Silybum marianum, Vaccinium macrocarpon, and Prunus cerasus. Comparisons were normalized by total intensity; deuterated methanol aids NMR lock but is not required for LC-MS. Hierarchical clustering analysis (HCA) evaluated solvent efficacy. Methanol–deuterium oxide (1:1) was the most effective extraction method, yielding 155 NMR spectral metabolite variables for Camellia sinensis, while methanol (90% CH3OH + 10% CD3OD) produced 198 for Cannabis sativa and 167 for Myrciaria dubia, with 11, 9, and 28 assigned metabolites, respectively. LC-MS detected 121 metabolites in Myrciaria dubia in methanol as the most effective extraction method. Methanol (10% deuterated) is the most effective extraction method for comprehensive metabolite fingerprinting using NMR and LC-MS protocols because it provides the broadest metabolite coverage. This study advances fit-for-purpose methods to qualify suppliers of botanical ingredients in food and NHP quality control programs.
1. Introduction
1.1. Why NMR for Botanical Ingredient Quality Control in NHPs and Food?
Nuclear magnetic resonance (NMR) spectroscopy is a robust and reproducible technique for ensuring the quality control of botanical ingredients utilized in food products and natural health products (NHPs). Historically, the application of NMR necessitated considerable expertise in chemistry, physics, and mathematics, restricting its use to highly specialized researchers [1,2]. Over the past decade, significant technological advancements have transformed NMR into a rapid, non-destructive, highly reproducible method, accessible to molecular laboratory technicians with minimal sample preparation requirements [3,4]. Employing a 400 MHz Bruker Avance III spectrometer, NMR facilitates the verification of botanical species across a diverse array of matrices, including medicinal plants [5] and herbs [6,7] (Cannabis sativa and Zingiber officinale); food matrices (spices [8,9], fruit juices [10,11]); and fermented products (wine [12], and beer [13]). This technique may reflect metabolomic differences supporting taxonomic identification [14], complemented by genetic methods (DNA barcoding), and determines geographic origins with high accuracy [15,16,17]. Furthermore, NMR serves as an effective tool for screening adulterants—such as fillers, added sugars, and synthetic compounds [9,18,19]—and for differentiating plant parts that are associated with specific therapeutic or nutritional efficacy claims [20,21]. Beyond identification, NMR enables the relative/absolute quantification of bioactive molecules, positioning it as a comprehensive instrument for authentication and quality assurance within the food and NHP sectors [7,22]. Recent studies have demonstrated NMR’s utility in profiling complex botanical mixtures [23,24,25,26,27], underscoring its growing relevance to industrial applications. Despite these advances, there is a need to standardize extraction methodologies to support the routine implementation of NMR quality control under good manufacturing practices (GMP) that qualify suppliers of authentic botanical ingredients. Practical challenges include cost and standardization, addressed here via optimized protocols.
1.2. Comparison of NMR with DNA-Based Other Analytical Chemistry Methods
NMR fingerprinting complements a spectrum of alternative authentication technologies, each with distinct strengths and limitations. DNA-based methodologies rely on species-specific genetic markers to confirm identity and detect adulteration, proving effective for minimally processed ingredients where DNA remains intact [28,29,30,31]. However, these methods encounter significant challenges with extracted materials due to the degradation of genetic material during processing [29,32]. In contrast, orthogonal analytical chemistry approaches target phytochemicals directly linked to health benefits, with targeted techniques focusing on individual compounds and non-targeted NMR offering a holistic profile of sample composition [33,34,35]. When compared to liquid chromatography–mass spectrometry (LC-MS), NMR exhibits lower sensitivity but superior reproducibility and stability [22,36]. Similar challenges affect NMR chemical shift libraries for complex mixtures. NMR, by contrast, provides a less targeted perspective on sample composition, enabling the simultaneous elucidation and relative quantification of multiple compounds regardless of the industrial processing method [7]. This enables the detection of unknown adulterants in sourced ingredients. This characteristic, coupled with its adaptability to various stages in the supply chain, has driven its increasing adoption in ensuring the quality and authenticity of food and NHPs. NMR provides a fit-for-purpose quality assurance method for non-targeted fingerprinting (authentication), targeted assignment (identification), and integration (relative quantification).
1.3. Key Uncertainties Concerning Different NMR Extraction Methods
The effective application of commercial NMR methods for fingerprinting botanical ingredients hinges on the optimization of extraction solvents, which selectively target specific classes of metabolites and thereby influence the accuracy of botanical species authentication [20]. For certain botanical taxa, extraction protocols incorporate solvents such as methanol, methanol blended with deuterium oxide, chloroform, and dimethyl sulfoxide, while others utilize acetone, acetonitrile, and water-based systems. Initial experimental trials employing higher sample masses demonstrated no measurable differences in extraction efficacy compared to reduced masses; consequently, the lower mass was adopted due to constraints in sample availability. Several factors complicate the extraction process, including the presence of co-extracted compounds, potential contamination, metabolite decomposition, and the formation of artifacts attributable to impurities within the solvents [2]. Variations in chemical shifts arising from pH differences can be addressed through the use of phosphate buffers in deuterium oxide, enhancing spectral consistency [37]. Certain botanicals necessitate tailored extraction strategies to mitigate issues such as enzyme activity or lipid contamination [38]. Research indicates that aqueous methanol, when supplemented with phosphate buffers, proves effective for extracting amino acids, carbohydrates, and phenolic compounds [6,39,40], while pure methanol emerges as a preferred solvent for food ingredients like olives and ginseng, offering scalability suitable for industrial protocols [20,23]. Nevertheless, a significant gap remains in the comparative analysis of extraction methods across a broad range of botanical species, underscoring the need for standardized approaches to develop comprehensive NMR spectral libraries, a challenge pertinent to the advancement of quality assurance of suppliers of authentic botanical ingredients [41].
1.4. Objective of This Study
This study seeks to develop standardized NMR and LC-MS extraction methodologies to enhance the authentication of botanical ingredients within the food and NHP industries. The investigation encompasses three primary model taxa alongside six additional botanical species, selected to represent a diverse range of chemical profiles and industrial relevance. The specific objectives of this research are to:
- Establish NMR protocols utilizing a variety of solvents to detect a broad spectrum of spectral variables across the selected taxa, adjusting sample masses based on initial trials that indicated no significant differences with varying quantities.
- Implement targeted LC-MS metabolomics through direct injection and reverse-phase LC-MS/MS techniques, aiming to identify and quantify an extensive array of metabolites within plant material extracts prepared at standardized concentrations.
- Evaluate the efficiency of different solvents in assigning metabolites through NMR-based chemical shift analyses, providing insights into extraction optimization.
- Conduct analyses of NMR fingerprints using hierarchical clustering techniques to group a specific model botanical (tea—Camellia sinensis) samples according to their key metabolite profiles, facilitating a comparative assessment of extraction solvent performance.
- Investigate the utility of methanol as an extraction solvent across multiple botanicals, targeting the detection of a wide range of spectral variables to assess its versatility.
- Examine the stability of methanol extracts over an extended duration, assessing variations in key metabolite profiles to ensure reliability under storage conditions.
2. Results
2.1. Extraction Efficiency and Sample Preparation
The extraction efficiency of nine botanical taxa was evaluated using proton NMR and LC-MS (camu camu only) protocols with comprehensive sample preparation details documented in Table 1. For Camellia sinensis, three distinct sample types were processed: Orange Pekoe tea extracts with a mass of 50 mg (±1 mg) using 1 mL of solvent, Green Tea extracts at 51 mg (±1 mg) with 1 mL of solvent, and Black Tea extracts at 51 mg (±1 mg) with 1 mL of solvent. For Cannabis sativa, dry bud samples were extracted at 50 mg (±1 mg) with 1 mL of solvent, while dry leaf samples were prepared at 51 mg (±1 mg) with 1 mL of solvent. For Myrciaria dubia, camu camu powder extract and dry seed samples were both processed at 300 mg (±1 mg) with 2 mL of solvent, reflecting the higher mass requirement to support LC-MS analysis, which was exclusively performed for this taxon to capture a broader metabolite profile. Additional taxa, including Sambucus nigra (elderberry dry fruit), Zingiber officinale (ginger dry root), Curcuma longa (turmeric dry root), Silybum marianum (milk thistle dry seed), Vaccinium macrocarpon (cranberry dry fruit), and Prunus cerasus (tart cherry dry fruit), were extracted at 300 mg (±1 mg) with 2 mL of solvent. The preparation process involved homogenizing the plant material to ensure uniformity, followed by solvent extraction optimized for NMR and LC-MS compatibility. The consistency in sample masses and solvent volumes across replicates facilitated reproducible spectral outputs, with NMR spectra recorded using a 0.01 ppm bin size to enhance resolution and accuracy in metabolite detection [22].

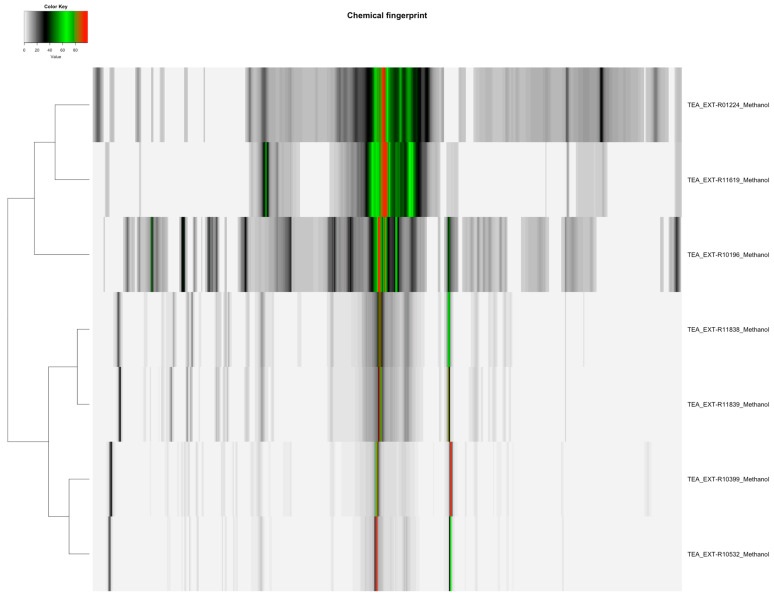

2.3. Hierarchical Clustering Analysis of Tea Samples
The distribution of featured spectral variables in Camellia sinensis tea samples (Orange Pekoe, Green Tea, Black Tea) was analyzed using heatmaps to evaluate differences for authentication purposes, with the results presented in Figure 1 and Figure 2. Methanol-extracted samples, with 82 variables, exhibited distinct clustering patterns that reflected variations in flavonoid and catechin content across the three tea types, providing a robust basis for species-specific identification. Water-extracted samples, with 130 variables, displayed variations in polar metabolites such as amino acids and sugars, offering valuable data for relative quantification of these compounds and distinguishing tea subtypes. The comparative heatmap in Figure 3, illustrating spectral variables ranging from 42 for Camellia sinensis in chloroform to 402 for Prunus cerasus in methanol across all botanicals, underscored solvent-dependent differences in metabolic profiles, suggesting potential markers for advanced statistical differentiation [42].

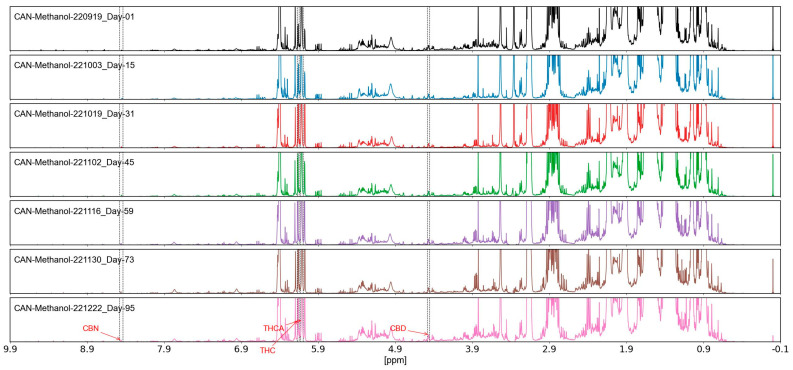

2.4. Stability Assessment of Methanol Extracts
The stability of methanol-extracted Cannabis sativa samples (dry bud and dry leaf) was thoroughly assessed over a 95-day period, with results depicted in Figure 4. Analysis of the 198 spectral variables, encompassing key cannabinoids and flavonoids, revealed a variation of less than 5%, as determined through repeated NMR measurements conducted at 0, 30, 60, and 95 days under controlled environmental conditions. This minimal variation indicated negligible degradation of active ingredients, with spectral integrity maintained across the assessment period. The stability of these extracts, particularly the consistency of metabolite signals, supports their reliability for long-term storage and authentication applications [2].
2.6. Stability of Methanol Extracts
NMR analysis of Cannabis sativa methanol (90% CH3OH + 10% CD3OD) extracts over 95 days (Figure 3) showed stable chemical shifts and peak intensities. Metabolites (e.g., Δ9-tetrahydrocannabinol, 6.0–6.2 ppm; trigonelline, 8.8 ppm) exhibited intensity variations < 5% (coefficient of variation 3.2%). Signal-to-noise ratios remained at 50:1, with no peak shifts or signal loss.
3. Discussion
3.2. Comparison of Extraction Methods for Cannabis Samples
The comparison of NMR spectra for Cannabis sativa extracts, as presented in Table 2, revealed significant solvent-dependent variations. Water extraction yielded the highest number of spectral variables (343; 0.01 ppm buckets, excluding noise/solvent), indicating its efficacy in capturing polar metabolites such as sugars and amino acids, followed by methanol (198 variables), with a broader profile including cannabinoids and flavonoids. Dimethyl sulfoxide (178 variables) and dimethyl sulfoxide–chloroform (181 variables) enhanced the detection of nonpolar cannabinoids, while chloroform (171 variables) and acetone (147 variables) showed moderate efficiency. The high variable count in water and methanol extracts suggests their superior ability to capture diverse metabolites, with water excelling in polar compounds and methanol providing comprehensive coverage of both polar and nonpolar metabolites, including key authentication markers such as those assigned in methanol (Table 3). Chloroform-based solvents, despite detecting 171 variables, exhibited lower resolution due to baseline rolling issues from solvent volatility, limiting their utility for polar metabolite quantification [3]. These findings indicate that methanol extracts, with their balanced profile and 18 assigned metabolites, are the most effective for authenticating Cannabis sativa and relative quantification of its bioactive compounds for statistical modeling.
3.3. Comparison of Extraction Methods for Camu Camu Samples
NMR spectra of camu camu (Myrciaria dubia) revealed that methanol extraction provided the highest variable count (167; distinct bins post-processing), encompassing a wide range of metabolites, followed by chloroform (165) and water (159), with acetonitrile (69) and acetone (74) yielding fewer variables (Table 2). The LC-MS analysis further revealed 121 metabolites in methanol, 80 in water, and 84 in methanol–water (1:1), indicating methanol’s superior efficiency for capturing diverse metabolites, including those assigned as 28 in methanol and 14 in water (Table 3). Methanol was effective in extracting both polar (e.g., organic acids) and nonpolar (e.g., flavonoids) compounds, while water was effective in extracting polar metabolites. Chloroform had a lower efficiency (165 variables) and baseline issues that restrict its use for comprehensive profiling of botanicals [3]. Methanol extraction captured many metabolites, which was supported by the LC-MS data. This suggests that methanol should be considered as the preferred solvent for Myrciaria dubia ingredient authentication, with water serving as a complementary option for polar metabolite analysis.
3.4. Comparison of Extraction Methods for Tea Samples
NMR spectra of Camellia sinensis tea extracts indicated that methanol–deuterium oxide (1:1) and water extracts yielded the highest number of metabolite variables (155 and 130, respectively). The other extraction methods extracted fewer metabolite variables: acetone–deuterium oxide (1:1) yielded 126 variables; dimethyl sulfoxide–chloroform (1:1) yielded 75 variables; and chloroform yielded 42 variables (Table 2). The heatmaps in Figure 1 and Figure 2 revealed distinct clusters, with methanol–deuterium oxide and water extracts showing diverse metabolite profiles, including those assigned as 11 in methanol–water (1:1) and 10 in water (Table 3). Chloroform-based extracts were grouped separately due to lower diversity in the metabolite profiles [42]. This suggests that methanol–deuterium oxide is the most effective solvent for comprehensive Camellia sinensis fingerprinting, with water providing a focused profile for polar metabolites, facilitating authentication across all types of tea (Orange Pekoe, Green Tea, Black Tea).
3.8. Efficiency of Methanol Extraction on Other Botanicals

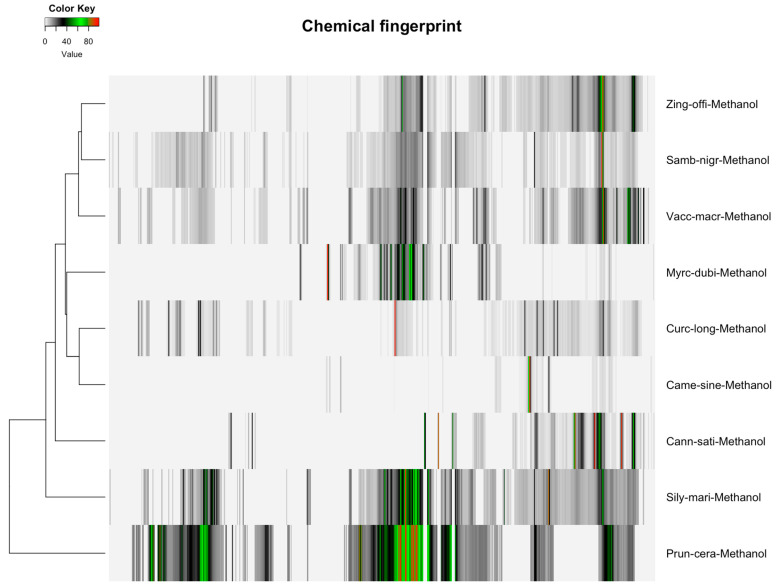

Methanol extraction efficiency was assessed for six additional botanicals, with the results shown in Table 2. Sambucus nigra yielded 397 variables, reflecting a rich profile of anthocyanins and phenolic acids. Zingiber officinale produced 313 variables, capturing anti-inflammatory gingerols and related compounds. Curcuma longa yielded 314 variables, including curcuminoids with therapeutic potential. Silybum marianum yielded 396 variables, extracting silymarin and flavonolignans. Vaccinium macrocarpon yielded 347 variables, encompassing proanthocyanidins and flavonoids. Prunus cerasus yielded 402 variables, capturing anthocyanins and phenolic acids. These variable counts demonstrate methanol’s consistent efficacy for the authentication and relative quantification of diverse botanical matrices for all the taxa in this study [20].
3.10. Extract Stability During Storage and Ingredient Stability over Time
The stability of methanol-extracted Cannabis sativa samples over 95 days is shown in Figure 4. Degradation was low, with less than 5% variation among the extracted 198 spectral variables. We repeated NMR measurements at 0, 30, 60, and 95 days under controlled conditions. The results indicate that the metabolite signals were stable, suggesting resistance to hydrolysis and oxidation (qualitative; monitored key peaks THC and CBD). This was important for Cannabis sativa samples, where cannabinoids were stable through time, which is useful for product label claims concerning specific cannabinoids. The stability of methanol extraction outperforms volatile solvents like chloroform, which exhibited baseline issues [2]. The reliability of long-term methanol extract preservation is important for quality control. The consistent integrity of assigned metabolites (e.g., nine in methanol) ensures reproducibility in authentication protocols. No major changes indicate that the polar metabolites are stable.
3.11. Overview and Implications
The results demonstrate that methanol-based solvents, particularly methanol–deuterium oxide, provide the most comprehensive metabolite profiles, with specific assignments (e.g., 9 for Cannabis sativa, 28 for Myrciaria dubia) serving as chemotaxonomic markers for ingredient authentication. The stability of methanol extracts over 95 days, with <5% variation, supports their adoption in GMP-compliant quality control, addressing industry needs for reproducible botanical authentication [20]. The integration of NMR and LC-MS data offers a robust framework for developing standardized extraction protocols, enhancing authentication and relative quantification in food and natural health product industries.
4. Materials and Methods
4.1. Experimental Design and Sample Collection
The study was designed to evaluate the extraction efficiency and metabolite profiles for nine botanical taxa using proton nuclear magnetic resonance (NMR) spectroscopy and liquid chromatography–mass spectrometry (LC-MS). The evaluation was focused on the need for extraction methods that can provide diverse metabolomic fingerprint profiles that would be useful for chemotaxonomic authentication of botanical species ingredients. The selected taxa included three model species—Camellia sinensis (tea varieties: Orange Pekoe, Green Tea, Black Tea), Cannabis sativa (dry bud, dry leaf), and Myrciaria dubia (camu camu powder extract, dry seed)—along with six additional species: Sambucus nigra (elderberry dry fruit), Zingiber officinale (ginger dry root), Curcuma longa (turmeric dry root), Silybum marianum (milk thistle dry seed), Vaccinium macrocarpon (cranberry dry fruit), and Prunus cerasus (tart cherry dry fruit). Dried plant material was obtained from certified commercial suppliers and authenticated by botanical experts using morphological and genetic markers prior to analysis. Samples were stored at 4 °C in airtight, light-protected containers to prevent degradation until processing. The experimental design employed multiple deuterated and non-deuterated solvent systems to optimize metabolite extraction, with LC-MS analysis restricted to Myrciaria dubia to broaden metabolite coverage [22]. All sample vouchers are stored at the NHP Research Alliance, at the University of Guelph, Ontario, Canada. Cannabis research was conducted following University of Guelph research license (LIC-ANQAC4M3XI-2020) including handling and destruction of all samples according to the license requirements. LC-MS was limited to Myrciaria dubia for in-depth profiling and consistent solvent testing across taxa for NMR. All conditions were tested across model taxa and subsets for others due to relevance.
4.2. Sample Preparation
Sample preparation protocols were optimized for uniformity and reproducibility. Dried plant material (2 g) was homogenized using an IKA (Wilmington, NC, USA) Tube Mill (40 mL chamber, 25,000 rpm) for 2 min to achieve a consistent particle size. Camellia sinensis, Orange Pekoe tea, Green Tea, and Black Tea extracts were prepared at 50 mg (±1 mg) and 51 mg (±1 mg), respectively, using 1.0 mL of solvent. Cannabis sativa dry bud and dry leaf samples were extracted at 50 mg (±1 mg) and 51 mg (±1 mg) with 1.0 mL of solvent. The remaining taxa, including Myrciaria dubia (camu camu) and six additional species powder extracts and dry seeds, were extracted at 300 mg (±1 mg) of material with 2.0 mL of solvent to support LC-MS analysis where applicable. All extractions were performed in triplicate to account for any sample variation. Each sample was vortexed for 30 s, sonicated for 15 min at room temperature (25 °C), and centrifuged at 13,000× g for 10 min to collect the supernatant. Quality control (QC) samples were prepared by pooling equal volumes of each taxon’s extracts to monitor batch consistency, while blank samples (solvent only) were analyzed to assess background signals. Daily calibration of the NMR spectrometer with an external standard (0.1% trimethylsilane in methanol) ensured instrumental accuracy.
4.3. Selection of Extraction Solvents
Solvent selection was tailored to extract chemotaxonomically relevant metabolites, ensuring well-resolved NMR and LC-MS peaks for untargeted and targeted chemometric analysis [4,20]. Deuterated solvents were used for NMR to provide a lock signal, with methanol comprising 90% CH3OH + 10% CD3OD, while other NMR solvents (e.g., D2O, CDCl3) were fully deuterated. Non-deuterated solvents were employed for LC-MS analysis of Myrciaria dubia. The solvent systems targeted specific metabolite classes:
- Methanol (90% CH3OH + 10% CD3OD): Extracted polar and semi-polar metabolites, including alkaloids, flavonoids, and cannabinoids [43].
- Deuterium Oxide (D2O): As a dissolution medium for polar extracts such as amino acids and sugars [37].
- Chloroform (CDCl3): Used for the extraction of lipophilic compounds, including lipids and terpenoids [43].
- Dimethyl Sulfoxide (DMSO-d6): Enhanced extraction of flavonoids and alkaloids [20].
- Acetone (Acetone-d6) and Acetonitrile (Acetonitrile-d3): Targeted phenolics and flavonoids [45].
- Combinations: Included methanol–deuterium oxide (1:1), chloroform–cyclohexane (1:1), dimethyl sulfoxide–chloroform (2:3 and 1:1), and acetone–deuterium oxide (1:1) to broaden metabolite coverage.
LC-MS analysis of Myrciaria dubia utilized non-deuterated solvents including methanol, water, methanol–water (1:1), acetone, acetonitrile, and chloroform. The effectiveness of these solvent systems in detecting spectral variables and metabolites is summarized in Table 2.
4.4. Proton NMR Acquisition and Processing
Proton NMR spectra were acquired using a Bruker (Billerica, MA, USA) Avance III 400 MHz spectrometer equipped with a 5 mm broadband probe (room temperature), employing a NOESY-based 1D presaturation experiment to suppress the water signal. Acquisition parameters included a 12 ppm spectral width, 64k time domain points, a 4 s relaxation delay, and 128 scans to achieve signal-to-noise ratios ranging from 20:1 to 60:1. Spectra were processed using Bruker TopSpin 4.1 software, involving Fourier transformation with 2-fold zero-filling, the application of 0.3 Hz exponential line broadening, automated and manual phase correction, and third-order polynomial baseline correction. Chemical shifts were referenced to 0.1% trimethylsilane (TMS) in methanol at 0.00 ppm. Spectra were binned into 0.01 ppm buckets and normalized to total spectral intensity, with noise reduction achieved by zeroing values below the mean intensity and filtering zero-sum columns. Metabolite identification was performed by comparing chemical shifts and coupling patterns with the Human Metabolome Database (HMDB) and the published literature [2,46]. The number of assigned metabolites for model taxa is detailed in the relevant table. Hierarchical clustering analysis (HCA) was conducted using R (version 4.2.3) with Euclidean distance and Ward2 linkage on methanol-extracted data to differentiate taxa [20].
4.5. Extract Solvent Stability During Storage
To assess the stability of extracted samples, aliquots of the prepared extracts were stored in airtight amber vials to prevent photodegradation and maintained at 4 °C in a refrigerator for specified durations (0, 30, 60, and 95 days) to evaluate long-term integrity. For data collection, samples were removed from storage and allowed to equilibrate to room temperature (25 °C) for 30 min. Each sample was then placed in a sonicating bath operating at 40 Hz for 30 s to ensure homogeneity prior to analysis. Subsequently, the samples were transferred to 5 mm NMR tubes, and NOESY proton NMR data were collected using the same acquisition parameters as described above. This procedure minimized disruption to metabolite profiles during stability assessment, with spectral changes monitored to quantify degradation over time [2].
4.6. LC-MS Analysis
Targeted metabolomics for Myrciaria dubia (camu camu powder extract and dry seed) was performed using an Agilent (Santa Clara, CA, USA) 1260 UHPLC system coupled to an ABSciex (Framingham, MA, USA) 4000 QTrap mass spectrometer, equipped with a reverse-phase C18 column (2.1 mm × 100 mm, 1.8 µm particle size). Samples (300 mg) were extracted in 2.0 mL of solvent (methanol, water, methanol–water 1:1, acetone, acetonitrile, chloroform). The LC-MS/MS assay targeted up to 121 metabolites, including amino acids, organic acids, phenolic compounds, and flavonoids, with optimized conditions including a flow rate of 0.3 mL/min, column temperature of 40 °C, and a gradient elution from 5% to 95% acetonitrile with 0.1% formic acid over 20 min [46]. Non-acidic organic metabolites were derivatized with phenyl-isothiocyanate (enhances ionization for low-abundance analytes), extracted with 5 mM ammonium acetate in methanol, and diluted with 50:50 methanol–water (0.1% formic acid). Organic acids were precipitated with ice-cold methanol, derivatized with 3-nitrophenylhydrazine (targets carboxylic acids), and stabilized with 0.01% butylated hydroxytoluene (BHT; prevents oxidation, validated in pilot tests). Mass spectrometry operated in positive and negative ion modes with multiple reaction monitoring (MRM) pairs, using isotope-labeled internal standards for relative quantification (standards for amino acids/carboxylic acids; no absolute data presented). Data were processed with Analyst 1.6.2 software, comparing retention times and MRM transitions to Sigma-Aldrich standards and the Metlin database (identifications via exact mass, RT, fragmentation; criteria per Metlin). Quality control samples, injected every 10 samples, exhibited peak area relative standard deviations below 15%. Solvent efficiency was evaluated using MetaboAnalyst 5.0, with statistical analyses pending optimization [47].
4.7. Statistical Analysis
NMR data were preprocessed by log-transformation and Pareto-scaling in MetaboAnalyst 5.0 and R (version 4.2.3) to normalize variance. Hierarchical clustering analysis (HCA) was applied to methanol-extracted spectral variables, using Euclidean distance and Ward2 linkage, to differentiate the nine botanical taxa. LC-MS data for Myrciaria dubia were similarly processed in MetaboAnalyst 5.0, with statistical methods (e.g., principal component analysis, partial least squares-discriminant analysis) pending optimization to assess solvent efficiency and metabolite differentiation [20,46].
5. Conclusions
This study systematically evaluated extraction solvents for metabolite fingerprinting of nine botanical taxa using proton nuclear magnetic resonance (NMR) spectroscopy and liquid chromatography–mass spectrometry (LC-MS), as detailed in the experimental methods and summarized in the relevant tables. The findings emphasize the critical role of solvent selection in optimizing metabolite extraction for the authentication and quality control of food and natural health products (NHPs), addressing industry needs for standardized methods that support regulatory compliance [20].
5.1. Implications for Botanical Ingredient Authentication
The results highlight the importance of tailored solvent selection for comprehensive metabolite fingerprinting. Methanol (90% CH3OH + 10% CD3OD) emerged as the most effective primary NMR solvent across the nine botanicals, detecting 198 spectral variables for Cannabis sativa, 167 for Myrciaria dubia, and 82 for Camellia sinensis, capturing diverse metabolites such as flavonoids, alkaloids, and organic acids. Methanol–deuterium oxide (1:1) proved most effective for Camellia sinensis, yielding 155 variables and effectively detecting catechins and amino acids. Dimethyl sulfoxide-based solvents (e.g., 181 variables in dimethyl sulfoxide–chloroform 2:3 for Cannabis sativa) and chloroform (171 variables for Cannabis sativa) enhanced the extraction of specific classes like cannabinoids and lipophilic compounds, though chloroform’s utility was limited by baseline distortions in 10–15% of spectra [18]. For LC-MS, methanol extracted 121 metabolites from Myrciaria dubia, with methanol–water (1:1) yielding 84 metabolites, providing a robust profile for targeted metabolomics. The development of standardized extraction and analysis protocols, informed by these solvent-specific outcomes, is essential for establishing consistent NMR and LC-MS spectral libraries [9,15].
5.2. Key Findings
- Solvent Efficiency: Methanol (90% CH3OH + 10% CD3OD) demonstrated high efficiency, capturing 198 variables (58% of maximum) for Cannabis sativa, 167 variables (100%) for Myrciaria dubia, and 82 variables for Camellia sinensis, encompassing flavonoids, alkaloids, and organic acids (based on variable counts; criteria: >150 variables, <10% CV reproducibility). Methanol–deuterium oxide (1:1) was optimal for Camellia sinensis with 155 variables (100%), effectively detecting catechins and alkaloids. For LC-MS, methanol extracted 121 metabolites (100%) from Myrciaria dubia, followed by methanol–water (1:1) with 84 metabolites (69%) [22].
- Polar Metabolite Extraction: Deuterium oxide (D2O) excelled in extracting polar metabolites, yielding 343 variables (100%) for Cannabis sativa and 159 variables (95%) for Myrciaria dubia, though its limited coverage of nonpolar compounds reduced its chemotaxonomic utility [37].
- Nonpolar Metabolite Extraction: Chloroform targeted lipophilic metabolites, detecting 171 variables (50%) for Cannabis sativa and 165 variables (99%) for Myrciaria dubia, but baseline distortions in 10–15% of spectra compromised reliability, necessitating alternative solvents [24,43].
- Chemotaxonomic Applications: Methanol-based NMR data facilitated robust chemotaxonomic libraries via hierarchical clustering analysis (HCA), differentiating the nine taxa: Prunus cerasus (402 variables), Sambucus nigra (397), Silybum marianum (396), Vaccinium macrocarpon (347), Curcuma longa (314), Zingiber officinale (313), Cannabis sativa (198), Myrciaria dubia (167), and Camellia sinensis (82). This approach supports species-specific authentication [9].
- Stability of Methanol Extraction: Methanol extracts of Cannabis sativa, stored in airtight amber vials at 4 °C for 95 days, maintained spectral integrity with less than 5% variation in 198 variables. The pre-analysis protocol—equilibration to room temperature (25 °C) for 30 min and sonication at 40 Hz for 30 s before NMR tube transfer—ensured minimal disruption, validating long-term quality control applicability [2,20].
- Complementary LC-MS Analysis: LC-MS detected 121 metabolites in Myrciaria dubia with methanol, though approximately 30% remain unassigned. Expansion to all nine taxa is planned, with statistical methods (e.g., partial least squares–discriminant analysis) under optimization [47].
5.3. Future Directions
Future research should investigate alternative solvents, such as dichloromethane, to mitigate chloroform’s baseline issues (10–15%) and improve nonpolar metabolite detection [22]. Extending LC-MS analysis to all nine taxa, once methods and metabolite assignments are optimized, will provide a holistic metabolite profile. Advanced chemometric techniques, including partial least squares–discriminant analysis (PLS-DA) and Random Forests, alongside automated NMR processing, are recommended to enhance authentication efficiency for food and NHP industries [9,24]. The assemblage of NMR metabolite fingerprints for many botanical species ingredients using these extraction methods will provide a standard protocol for quality assurance programs. This would advance fit-for-purpose methods to qualify suppliers of botanical ingredients in food and NHP quality control programs.
5.4. Conclusion Statement
Methanol (90% CH3OH + 10% CD3OD) and methanol–deuterium oxide (1:1) are the most effective NMR solvents for botanical fingerprinting, offering comprehensive metabolite coverage, reproducibility, and stability over 95 days with less than 5% variation. Methanol and methanol–water (1:1) excel for LC-MS profiling of Myrciaria dubia, with plans to extend this approach. HCA-based chemotaxonomic libraries enable reliable botanical species ingredient authentication, addressing regulatory and safety requirements for the food and NHPs [9,20].
Acknowledgments
We thank the Natural Health Product Research Alliance (NHPRA) and the University of Guelph for supporting this study.
Appendix Group
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30163379/s1. NMR spectra and assignments are in Supplementary Figures S1–S7.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.
Conflicts of Interest
The authors declare no conflicts of interest.
| Sample Type | Taxon | Mass (±1 mg) | Solvent Volume (mL) |
|---|---|---|---|
| Tea—Orange Pekoe (fermented; extracts) | Camellia sinensis | 50 | 1 |
| Tea—Green Tea (unfermented; extracts) | Camellia sinensis | 51 | 1 |
| Tea—Black Tea (fermented; extracts) | Camellia sinensis | 51 | 1 |
| Cannabis—dry bud | Cannabis sativa | 50 | 1 |
| Cannabis—dry leaf | Cannabis sativa | 51 | 1 |
| Camu camu—powder extract | Myrciaria dubia | 300 | 2 |
| Camu camu—dry seed | Myrciaria dubia | 300 | 2 |
| Elderberry—dry fruit | Sambucus nigra | 300 | 2 |
| Ginger—dry root | Zingiber officinale | 300 | 2 |
| Turmeric—dry root | Curcuma longa | 300 | 2 |
| Milk thistle—dry seed | Silybum marianum | 300 | 2 |
| Cranberry—dry fruit | Vaccinium macrocarpon | 300 | 2 |
| Tart cherry—dry fruit | Prunus cerasus | 300 | 2 |
| Taxon | Analysis | Solvent System | NMR Variables | LC-MS Metabolites |
|---|---|---|---|---|
| Myrciaria dubia | NMR | Methanol (90% CH3OH + 10% CD3OD) | 167 | N/A |
| Myrciaria dubia | NMR | Deuterium oxide (D2O) | 159 | N/A |
| Myrciaria dubia | NMR | Chloroform (CDCl3) | 165 | N/A |
| Myrciaria dubia | NMR | Acetonitrile (Acetonitrile-d3) | 69 | N/A |
| Myrciaria dubia | NMR | Acetone (Acetone-d6) | 74 | N/A |
| Myrciaria dubia | LC-MS | Methanol | N/A | 121 |
| Myrciaria dubia | LC-MS | Water | N/A | 80 |
| Myrciaria dubia | LC-MS | Methanol–water (1:1) | N/A | 84 |
| Myrciaria dubia | LC-MS | Acetone | N/A | 53 |
| Myrciaria dubia | LC-MS | Acetonitrile | N/A | 41 |
| Myrciaria dubia | LC-MS | Chloroform | N/A | 48 |
| Cannabis sativa | NMR | Methanol (90% CH3OH + 10% CD3OD) | 198 | N/A |
| Cannabis sativa | NMR | Deuterium oxide (D2O) | 343 | N/A |
| Cannabis sativa | NMR | Chloroform (CDCl3) | 171 | N/A |
| Cannabis sativa | NMR | Chloroform–cyclohexane (1:1) | 157 | N/A |
| Cannabis sativa | NMR | Acetone (Acetone-d6) | 147 | N/A |
| Cannabis sativa | NMR | Acetonitrile (Acetonitrile-d3) | 164 | N/A |
| Cannabis sativa | NMR | Dimethyl sulfoxide (DMSO-d6) | 178 | N/A |
| Cannabis sativa | NMR | Dimethyl sulfoxide–chloroform (2:3) | 181 | N/A |
| Camellia sinensis | NMR | Methanol (90% CH3OH + 10% CD3OD) | 82 | N/A |
| Camellia sinensis | NMR | Deuterium oxide (D2O) | 130 | N/A |
| Camellia sinensis | NMR | Methanol–deuterium oxide (1:1) | 155 | N/A |
| Camellia sinensis | NMR | Chloroform (CDCl3) | 42 | N/A |
| Camellia sinensis | NMR | Dimethyl sulfoxide–chloroform (1:1) | 75 | N/A |
| Camellia sinensis | NMR | Acetone–deuterium oxide (1:1) | 126 | N/A |
| Camellia sinensis | NMR | Acetonitrile (Acetonitrile-d3) | 58 | N/A |
| Sambucus nigra | NMR | Methanol (90% CH3OH + 10% CD3OD) | 397 | N/A |
| Zingiber officinale | NMR | Methanol (90% CH3OH + 10% CD3OD) | 313 | N/A |
| Curcuma longa | NMR | Methanol (90% CH3OH + 10% CD3OD) | 314 | N/A |
| Silybum marianum | NMR | Methanol (90% CH3OH + 10% CD3OD) | 396 | N/A |
| Vaccinium macrocarpon | NMR | Methanol (90% CH3OH + 10% CD3OD) | 347 | N/A |
| Prunus cerasus | NMR | Methanol (90% CH3OH + 10% CD3OD) | 402 | N/A |
| Solvent System | Cannabis | Tea | Camu Camu |
|---|---|---|---|
| Methanol | 18 | 22 | 28 |
| Methanol–water (1:1) | Not tested | 11 | Not tested |
| Water | 8 | 10 | 14 |
| Acetone–deuterium oxide (1:1) | Not tested | 9 | Not tested |
| Acetone | 6 | Not tested | 7 |
| Dimethyl sulfoxide–chloroform | 12 | 7 | Not tested |
| Chloroform | 10 | 5 | 9 |
| Acetonitrile | 6 | 6 | 6 |
| No. | Species | Compound Class | Metabolite | 1H NMR Chemical Shift (δ, ppm) |
|---|---|---|---|---|
| 1 | Tea | Alkaloids | Caffeine | 7.74 (s, 1H), 3.89 (s, 3H), 3.54 (s, 3H), 3.29 (s, 3H) |
| 2 | Tea | Alkaloids | Theobromine | 7.77 (s, 1H), 3.46 (s, 3H) |
| 3 | Tea | Phenolic compounds | p-Coumaroyl quinic acid | 7.47 (s, 1H), 7.36 (s, 1H) |
| 4 | Tea | Phenolic compounds | Gallic acid | 7.01 (s, 2H) |
| 5 | Tea | Phenolic compounds | Quinic acid | 4.17–4.19 (m, 2H), 1.99–2.05 (m, 4H) |
| 6 | Tea | Flavonoids | Epigallocatechin-3-gallate | 6.87 (s, 1H), 6.50 (s, 1H), 5.82 (d, J = 2.3 Hz, 1H), 5.50 (m, 2H), 2.70–2.75 (m, 4H) |
| 7 | Tea | Flavonoids | Epigallocatechin | 6.75 (s, 1H), 6.50 (s, 1H), 5.86 (d, J = 2.3 Hz, 1H), 5.49 (m, 1H), 2.81–2.86 (m, 2H) |
| 8 | Tea | Flavonoids | Epicatechin-3-gallate | 6.90 (s, 1H), 5.90 (d, J = 2.3 Hz, 1H), 5.51 (m, 2H), 2.91–2.94 (m, 2H) |
| 9 | Tea | Flavonoids | Epicatechin | 5.93 (s, 1H), 2.96 (m, 2H) |
| 10 | Tea | Flavonoids | Catechin | 6.86 (s, 1H), 5.93 (s, 2H), 2.99 (m, 2H) |
| 11 | Tea | Carbohydrates | Sucrose | 5.39 (d, J = 3.8 Hz, 1H) |
| 12 | Tea | Carbohydrates | α-Glucose | 5.16 (d, J = 3.5 Hz, 1H) |
| 13 | Tea | Carbohydrates | β-Glucose | 4.50 (d, J = 7.3 Hz, 1H) |
| 14 | Tea | Carbohydrates | Fructose | 4.12 (d, J = 8.2 Hz, 1H) |
| 15 | Tea | Amino acids | Threonine | 3.50 (d, J = 4.0 Hz, 1H) |
| 16 | Tea | Amino acids | Valine | 0.93 (m, 3H) |
| 17 | Tea | Amino acids | Isoleucine | 0.98 (m, 3H) |
| 18 | Tea | Amino acids | Leucine | 1.12 (m, 3H) |
| 19 | Tea | Other compounds | Succinic acid | 2.15 (s, 4H) |
| 20 | Tea | Other compounds | Acetic acid | 1.99 (s, 3H) |
| 21 | Tea | Other compounds | Lactic acid | 1.30 (s, 3H) |
| 22 | Tea | Other compounds | Theanine | 1.18 (t, J = 7.1 Hz, 3H) |
| 23 | Cannabis | Cannabinoids | Δ8-THC | 6.08 (d, J = 1.7 Hz, 1H), 2.42–2.36 (m, 2H), 0.90 (t, J = 7.1, 1.8 Hz, 3H) |
| 24 | Cannabis | Cannabinoids | Δ8-THCA | 6.16 (d, J = 1.7 Hz, 1H), 2.82–2.88 (m, 4H), 1.05 (s, 3H) |
| 25 | Cannabis | Cannabinoids | Δ9-THC | 6.43 (t, J = 1.7 Hz, 1H), 1.64 (s, 3H), 1.03 (s, 3H) |
| 26 | Cannabis | Cannabinoids | Δ9-THCA | 6.40 (t, J = 1.7 Hz, 1H), 1.39 (s, 3H) |
| 27 | Cannabis | Cannabinoids | CBD | 6.20 (s, 1H), 4.50 (s, 1H) |
| 28 | Cannabis | Cannabinoids | CBDA | 6.15 (s, 1H), 4.48 (s, 1H) |
| 29 | Cannabis | Cannabinoids | CBDVA | 4.42 (s, 1H) |
| 30 | Cannabis | Cannabinoids | CBG | 5.24 (t, J = 2.7 Hz, 1H) |
| 31 | Cannabis | Cannabinoids | CBGV | 5.20 (t, J = 1.3 Hz, 1H) |
| 32 | Cannabis | Cannabinoids | CBN | 6.14 (s, 1H) |
| 33 | Cannabis | Cannabinoids | CBC | 6.62 (s, 1H) |
| 34 | Cannabis | Cannabinoids | CBCA | 6.67 (s, 1H) |
| 35 | Cannabis | Carbohydrates | Sucrose | 5.44 (d, J = 10.0 Hz, 1H) |
| 36 | Cannabis | Carbohydrates | α-Glucose | 5.22 (d, J = 1.3 Hz, 1H) |
| 37 | Cannabis | Carbohydrates | Fructose | 4.05 (d, J = 2.9 Hz, 1H) |
| 38 | Cannabis | Other compounds | Trigonelline | 9.21 (s, 1H), 8.91 (d, J = 8.1 Hz, 1H), 8.84 (d, J = 6.1 Hz, 1H) |
| 39 | Cannabis | Other compounds | ATP | 8.36 (s, 1H), 8.46 (s, 1H) |
| 40 | Cannabis | Other compounds | Choline | 3.22 (s, 2H) |
| 41 | Camu Camu | Organic acids | Citric acid | 2.78 (d, J = 15.7 Hz, 1H), 2.90 (d, J = 15.6 Hz, 1H) |
| 42 | Camu Camu | Organic acids | Malic acid | 2.65 (dd, J = 16.1 Hz, 1H), 2.80 (dd, J = 16.1 Hz, 1H) |
| 43 | Camu Camu | Organic acids | Pyruvic acid | 2.16 (s, 3H) |
| 44 | Camu Camu | Organic acids | Acetic acid | 2.0 (s) |
| 45 | Camu Camu | Organic acids | Lactic acid | 1.29 (s) |
| 46 | Camu Camu | Organic acids | Tartaric acid | 4.30 (d, J = 2.8 Hz, 1H) |
| 47 | Camu Camu | Organic acids | Fumaric acid | 6.61 (s) |
| 48 | Camu Camu | Organic acids | Succinic acid | 2.54 (s) |
| 49 | Camu Camu | Flavanols | Flavanols derivatives | 6.83 (d, J = 3.2 Hz, 1H), 7.57 (d, J = 7.8 Hz, 1H) |
| 50 | Camu Camu | Anthocyanins | Cyanidin derivatives | 9.27 (s), 8.11 (s), 6.90 (s) |
| 51 | Camu Camu | Ellagic derivatives | Ellagic acid | 7.36 (s, 1H) |
| 52 | Camu Camu | Gallic derivatives | Gallic acid | 7.04 (s, 1H) |
| 53 | Camu Camu | Carbohydrates | α-Glucose | 5.12 (d, J = 3.7 Hz, 1H) |
| 54 | Camu Camu | Carbohydrates | β-Glucose | 4.49 (d, J = 7.8 Hz, 1H) |
| 55 | Camu Camu | Carbohydrates | Fructose | 4.08 (d, J = 7.6 Hz, 1H) |
| 56 | Camu Camu | Carbohydrates | Sucrose | 5.63 (d, J = 4.8 Hz, 1H) |
| 57 | Camu Camu | Amino acids | Alanine | 1.49 (d, J = 2.8 Hz, 1H) |
| 58 | Camu Camu | Amino acids | Threonine | 1.16 (d, J = 2.9 Hz, 1H) |
| 59 | Camu Camu | Amino acids | Valine | 1.01 (m, 3H) |
| 60 | Camu Camu | Amino acids | Isoleucine | 0.95 (m, 3H) |
| 61 | Camu Camu | Amino acids | Leucine | 0.90 (m, 3H) |
| 62 | Camu Camu | Amino acids | Methionine | 2.57 (t, J = 4.1 Hz, 1H) |
| 63 | Camu Camu | Amino acids | Glutamine | 2.32–2.38 (m), 2.02–2.05 (m) |
| 64 | Camu Camu | Fatty acids | Unsaturated fatty acid | 5.33 (m) |
| 65 | Camu Camu | Fatty acids | Triglycerides | 4.47 (dd, J = 12.1, 4.0 Hz, 2H) |
| 66 | Camu Camu | Other compounds | Choline | 3.20 (s) |
| 67 | Camu Camu | Other compounds | Glutamate | 2.18–2.22 (m), 1.89–1.97 (m) |
| 68 | Camu Camu | Other compounds | γ-Aminobutyric acid | 2.28 (t, J = 7.4 Hz, 1H), 2.45 (t, J = 7.1 Hz, 1H) |
